User Manual
KODAK
VR CAMERA
PIXPRO ORBIT360 4K/4KVR360
1
Before You Start
Declaration of Conformity
Responsible Party: JK Imaging Ltd.
Address: JK Imaging Ltd., 17239 So. Main Street, Gardena, CA 90248 USA
JK Imaging Europe, 71 Clarendon Road, Watford, WD17 1DS, UK
Company Website: kodakpixpro.com
About this Manual
Thank you for purchasing this KODAK PIXPRO 360 VR Camera. Please read this manual carefully and keep it in a safe place for future reference.
JK Imaging reserves all rights of this document. No part of this published manual may be reproduced, transmitted, transcribed, stored in a retrieval system or
translated into any language or computer language, in any form, by any means, without the prior written permission of JK Imaging.
All trademarks mentioned in this manual are used for identiication purposes only and are properties of their respective owners.
This manual provides you with instructions on how to use your new KODAK PIXPRO 360 VR CAMERA. Every eort has been made to ensure that the contents
of this manual are accurate; however JK Imaging reserves the right to make changes without notice.
Throughout this manual," " indicates useful information, " page number" indicates an introduction to contents on the speciied page.
2
For Customers in the U.S.A.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2)
this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and has been found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. There is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna
- Increase the area of separation between the equipment and receiver
- Connect the equipment into an outlet on a dierent circuit from that to which the receiver is connected
- Consult an experienced radio/TV technician for advice or help
FCC Caution: Any changes or modiications not expressly approved by the party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter should not be co-located or operated in conjunction with any other antenna or transmitter.
Radiation Exposure Statement:
This product complies with the FCC portable RF exposure limit set forth for an uncontrolled environment and is safe for the intended operation as described in
this manual. Further reduction of RF exposure can be achieved if the product is kept as far away as possible from the user’s body or by setting the device to lower
power output if such functionality is available.
Canadian Industry Statement:
This device complies with ISED’s licence-exempt RSS’s. Operation is subject to the following two conditions: (1) This device may not cause harmful interference
and (2) this device must accept any interference received, including interference that may cause undesired operation.
Radiation Exposure Statement:
This product complies with the Canadian portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in
this manual. Further reduction of RF exposure of can be achieved if the product is kept as far away as possible from the user’s body or by setting the device to
lower power output if such functionality is available.
3
For Customers in Europe
This symbol [crossed-out wheel bin WEEE Annex IV] indicates the separate collection of electrical waste and electronic equipment in European countries.
Please do not throw the equipment into domestic refuse. Please use the return and collection systems available in your country for proper and safe disposal
of this product.
The “CE” mark indicates that this product complies with European requirements for safety, health, environment and customer protection. “CE” marked
cameras are intended for sales in Europe.
Europe – EU Declaration of Conformity
This device complies with the essential requirements of the RED Directive 2014/53/EU. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the RED Directive 2014/53/EU:
- EN609501/A12:2011+A2:2013
Safety of Information Technology Equipment
- EN 62311:2008
Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic ields (0 Hz-300 GHz)
- EN 300 3301 V2.1.1:2017
Electromagnetic compatibility and Radio Spectrum Matters (ERM); Short Range Devices (SRD); Radio equipment in the frequency range of 9 KHz to 25
MHz and inductive loop systems in the frequency range 9 KHz to 30 MHz
- EN 300 328 V2.1.1 (201611)
Wideband transmission systems; Data transmission equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques
- EN 301 4891 V1.9.2:2011
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1:
Common technical requirements
- EN 301 4893 V1.6.1:2013
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 3:
Speciic conditions for Short-Range Devices (SRD) operating on frequencies between 9 KHz and 246 GHz
- EN 301 48917 V2.2.1:2012
Electromagnetic compatibility and Radio Spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment; Part 17: Speciic
conditions for Broadband Data Transmission Systems
Sintai Optical (Shenzhen) Co., Ltd., declares that this [KODAK PIXPRO 4KVR360 and BLUETOOTH Remote] is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
Manufacturer: Sintai Optical (Shenzhen) Co., Ltd.
Address: Qiwei Ind Sec, 1st, 2nd,& 3rd Bldg, Lisonglang Village, Gongming Town, Bao’an District, Shenzhen, Guangdong, China
Packaging: Please follow local regulations for recycling of product packaging.
Batteries: Please dispose of used batteries at designated collection and recycling centers.
4
SAR Statement
A minimum separation distance of zero cm must be maintained between the user’s body and the device, including the antenna during body-worn operation to
comply with the RF exposure requirements in Europe.
To comply with the RF Exposure requirements or limitations in Europe, third-party belt-clips, holsters or similar accessories used with this device should not
contain any metallic components. The use of accessories that do not satisfy these requirements may not comply with RF exposure requirements or limitations
and should be avoided.
5
Safety Notes
Product Notes:
Ù %POPUEJTBTTFNCMFPSBUUFNQUUPSFQBJSUIJTQSPEVDUCZZPVSTFMG
Ù %Pnot handle this product improperly. This product may be damaged or permanently broken if dropped, punctured or crushed.
Ù "WPJEEJSFDUMZUPVDIJOHUIFMFOTFMFNFOUT1MFBTFVTFBQSPGFTTJPOBMTPGUMFOTDMFBOJOHDMPUIUPHFUIFSXJUIBHFOUMFMFOTDMFBOJOHBHFOUUPXJQFBOEDMFBOUIF
camera lenses for optimal performance.
Ù %POPUVTFDPSSPTJWFBMDPIPMJDPSPSHBOJDTPMWFOUDPOUBJOJOHBHFOUTUPDMFBOUIJTQSPEVDU
Ù %POPUVTFPSTUPSFUIJTQSPEVDUJOIJHIUFNQFSBUVSFFOWJSPONFOUT
Ù %POPUFYQPTFUIFMFOTFTUPTUSPOHMJHIUTPVSDFTFHEJSFDUTVOMJHIUFUDGPSFYUFOEFEQFSJPETPGUJNF
Ù %POPUVTFPSTUPSFUIFQSPEVDUJOBTUSPOHNBHOFUJDȗJFMEFOWJSPONFOU
Ù *GUIFQSPEVDUJTRVJDLMZUSBOTGFSSFEGSPNBMPXUFNQFSBUVSFUPBIJHIFSUFNQFSBUVSFFOWJSPONFOUXBUFSDPOEFOTBUJPONBZPDDVSJOTJEFUIFQSPEVDUEVFUP
physical changes. In this case, it is recommended to wait until the product returns to normal room temperature before you turn it on again to operate.
Ù *GBQIPUPPSWJEFPDBOOPUCFQMBZFECBDLEVFUPJNQSPQFSPQFSBUJPOCZUIFVTFSUIF$PNQBOZTIBMMBTTVNFOPMJBCJMJUZPSSFTQPOTJCJMJUZGPSDPNQFOTBUJPO
Ù ,FFQUIFQSPEVDUJOBESZBOEDMFBOFOWJSPONFOUXIFOZPVBSFHPJOHUPTUPSFUIFQSPEVDUGPSMPOHQFSJPETPGUJNF
Ù %VFUPUIFDIBSBDUFSJTUJDTPGUIFFMFDUSPOJDFMFNFOUTJOTJEFUIFDBNFSBUIFUFNQFSBUVSFPGUIFDBNFSBXJMMJODSFBTFIFBUXJMMCFFNJUUFEJOUIFQSPDFTTPG
use. Even though the temperature could be relatively high and heat is emitted from the surface of the camera, the camera is capable of shooting continuously
and operating properly. When the camera detects that the temperature of the camera body is within certain limitations it will power o automatically.
Ù *ODBTFPGQPXFSJOHPūEVFUPJODSFBTFEUFNQFSBUVSFMJNJUBUJPOTUIFDBNFSBDBOCFQPXFSFEPOBHBJOGPSVTFBGUFSJUTUFNQFSBUVSFDPPMTBOESFUVSOTUP
normal.
Battery Notes:
Ù 1MFBTFVTFUIFJODMVEFE-JJPOCBUUFSZPSSFQMBDFNFOUCBUUFSZUIBUJTUIFTBNFUZQFBTUIFPOFJODMVEFE
Ù *GUIFCBUUFSZPWFSIFBUTEVSJOHDIBSHJOHPSVTJOHTUPQDIBSHJOHPSVTJOHJNNFEJBUFMZ5VSOUIFDBNFSBPūDBSFGVMMZSFNPWFUIFCBUUFSZBOEXBJUVOUJMJUDPPMT
down completely.
Ù 1MFBTFLFFQUIFCBUUFSZDPOUBDUTDMFBOBOEESZ
Ù *OTUBMMUIFCBUUFSZBDDPSEJOHUPUIFQPTJUJWFBOEOFHBUJWFNBSLTPOUIFDBNFSBTCBUUFSZDPNQBSUNFOU/FWFSGPSDFJUJOUPUIFCBUUFSZDPNQBSUNFOU
Ù *GCBUUFSZȗMVJEMFBLTJOUPUIFQSPEVDUQMFBTFDPOUBDUPVSDVTUPNFSTFSWJDFDFOUFSJNNFEJBUFMZ*GCBUUFSZȗMVJEMFBLTPOUPZPVSTLJOSJOTFUIFBSFBJNNFEJBUFMZ
with clean water and seek immediate medical attention.
Ù 5PQSFWFOUUIFCBUUFSZGSPNCFJOHEBNBHFEEPOPUESPQUIFCBUUFSZIJUJUXJUIIFBWZPCKFDUTPSTDSBUDIJUXJUITIBSQPCKFDUT
Ù %POPUMFUUIFCBUUFSZDPNFJODPOUBDUXJUINFUBMPCKFDUTJODMVEJOHDPJOTJOPSEFSUPBWPJETIPSUDJSDVJUJOHEJTDIBSHJOHFYDFTTJWFIFBUJOHPSQPTTJCMF
leakage.
Ù %POPUIFBUUIFCBUUFSZPSUISPXJUJOUPBȗJSFUPBWPJETFSJPVTJOKVSZPSBQPTTJCMFFYQMPTJPO
Ù 3FNPWFUIFCBUUFSZJGUIFDBNFSBXJMMCFTUPSFEGPSBMPOHQFSJPEPGUJNF
Ù %POPUTUPSFUIFCBUUFSZJOIJHIUFNQFSBUVSFFOWJSPONFOUT
Ù 6TJOHUIFCBUUFSZJODPMEFOWJSPONFOUTXJMMSFTVMUJONVDIMPXFSDBNFSBQFSGPSNBODF
Ù %POPUBUUFNQUUPEJTBTTFNCMFUIFCBUUFSZCZZPVSTFMG
Ù 1MFBTFEJTQPTFPGUIFCBUUFSZQSPQFSMZBOEBDDPSEJOHUPZPVSMPDBMMBXTBOESFHVMBUJPOTOBUJPOBMPSSFHJPOBM
6
Memory Card Notes:
Ù 5IFNFNPSZDBSESFGFSSFEUPJOUIJTVTFSNBOVBMJTBmicroSD card, microSDHC card or microSDXC card, class 10 or higher.
Ù 1MFBTFLFFQUIFNFNPSZDBSEDMFBOBOEESZ
Ù 8IFOJOTFSUJOHBNFNPSZDBSENBLFTVSFUIFOPUDIEJSFDUJPOPGUIFDBSENBUDIFTUIFOPUDIEJSFDUJPOPGUIFNFNPSZDBSENBSLOFBSUIFDBNFSBTDBSETMPU
Never force the memory card into the card slot.
Ù #FGPSFVTJOHBOZCSBOEOFXNFNPSZDBSEQMFBTFGPSNBUUIFNFNPSZDBSEȗJSTU

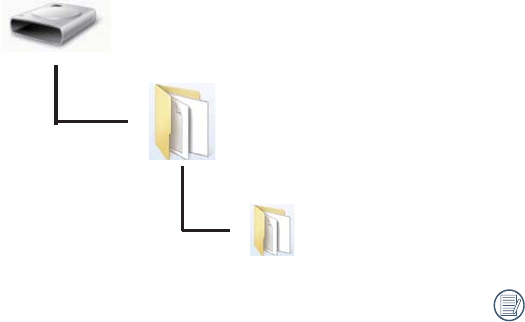

Ù "QIPUPPSWJEFPUBLFOXJUIUIFQSPEVDUXJMMCFTUPSFEJOBGPMEFSUIBUJTBVUPNBUJDBMMZHFOFSBUFEPOUIFNFNPSZDBSE%POPUTUPSFQIPUPTPSWJEFPTUIBUXFSF
not taken using the product in these folders, in case the iles cannot be recognized during normal playback.
Ù %JSFDUMZFEJUJOHUIFEBUBPOUIFNFNPSZDBSEJTOPUSFDPNNFOEFE"MXBZTDPQZUIFEBUBUPZPVSDPNQVUFSȗJSTUCFGPSFFEJUJOH
Ù 5VSOUIFQSPEVDUPūCFGPSFSFNPWJOHUIFNFNPSZDBSEPUIFSXJTFUIFNFNPSZDBSEPSȗJMFTDPVMECFEBNBHFEpermanently and iles/folders could be
permanently lost.
Ù 8IFOUIFDBNFSBJTTUPSFEGPSBMPOHQFSJPEPGUJNFQMFBTFCBDLVQUIFEBUBPOUIFNFNPSZDBSEBOESFNPWFUIFNFNPSZDBSEGSPNUIFDBNFSB
Other Notes:
Ù %POPUEJTDPOOFDUUIFQPXFSPSUVSOUIFQSPEVDUPūEVSJOHUIFȗJSNXBSFVQEBUJOHQSPDFTT%PJOHTPNBZDBVTFJODPSSFDUEBUBUPCFXSJUUFOBOEUIFQSPEVDU
may not power on later.
Ù 8IFOVTJOHZPVSQSPEVDUPOBOBJSQMBOFPCTFSWFUIFSFMFWBOUSVMFTTQFDJȗJFECZUIFBJSMJOFBOE'FEFSBMSFHVMBUJPOT
Ù %VFUPUIFMJNJUBUJPOTPGNBOVGBDUVSJOHUFDIOPMPHZUIFcamera's LCD may have a few dead or bright pixels. This is completely normal and these pixels do not
aect the quality of the photos or videos taken with this camera.
Ù *GUIF-$%TDSFFOJTEBNBHFEQMFBTFQBZDMPTFBUUFOUJPOUPUIFMJRVJEDSZTUBMQIPTQIPSJOTJEFUIFTDSFFO*GBOZPGUIFGPMMPXJOHTJUVBUJPOTBSJTFLJOEMZUBLFUIF
recommended actions immediately as indicated below:
1. If liquid crystal comes in contact with your skin, please wipe your skin with a clean, dry cloth, thoroughly wash with soap and rinse with plenty of clean water.
2. If liquid crystal gets into your eye, lush your eye immediately with plenty of clean water for at least 15 minutes. Please seek immediate medical assistance.
3. If liquid crystal is accidentally swallowed, rinse your mouth immediately with clean water and try to induce vomiting. Please seek immediate medical
assistance.
Waterproof Notes:
Ù 5IJTQSPEVDUJTTQMBTIQSPPGGPSUIFQVSQPTFPGEBJMZBDUJWJUJFT#FGPSFVTFQMFBTFNBLFTVSFUPGVMMZMPDLUIFCBUUFSZDPWFSUPFOTVSFBDPNQMFUFTFBM
Ù "OZTDSBUDIFTDSBDLTPSTNBMMGPSFJHOPCKFDUTTVDIBTTBOEPSIBJSBUUBDIFEUPUIFSVCCFSSJOHJOTJEFPGUIFCBUUFSZDPWFSXJMMBūFDUUIFFȘJDJFODZPGUIF
splash proof function. Before use, please check whether the waterproof rubber ring is damaged or contaminated with a foreign object before closing the
battery cover door. When there is a foreign object on the waterproof rubber ring and its adjacent surfaces, please use a clean, lint-free, dry cloth to clean it. If
there are any scratches or cracks, contact our service center immediately for maintenance or obtain a replacement waterproof rubber ring.
Ù %POPUEJSFDUMZPQFOUIFCBUUFSZDPWFSEPPSXIFOUIFQSPEVDUJTBDDJEFOUBMMZFYQPTFEUPXBUFS1MFBTFUVSOPūUIFcamera's power and thoroughly wipe it with
a clean, dry, lint-free cloth before opening the battery cover door in order to remove the battery and the memory card.
Ù 8IFOPQFOJOHUIFCBUUFSZDPWFSEPPSJGUIFSFBSFXBUFSESPQMFUTPOUIFTVSGBDFTMPDBUFECFUXFFOUIFJOUFSJPSPGUIFDBNFSBBOEUIFcamera body, please
make sure to fully wipe and dry them o.
Ù "GUFSVTJOHUIFQSPEVDUJOUIFQSFTFODFPGTBOENVEPSPUIFSGPSFJHONBUUFSQMFBTFDBSFGVMMZSJOTFJUXJUIDMFBOXBUFSGVMMZDMPTFUIFCBUUFSZDPWFSEPPSUJHIUMZ
before rinsing). After rinsing, wipe the camera with a clean, dry, lint-free cloth.
7
Before You Start ....................................................................................................................................1
Safety Notes ........................................................................................................................................ 5
Contents .............................................................................................................................................. 7
Getting Ready ...................................................................................................................................... 9
Standard Parts and Accessories Included ...........................................................................................................9

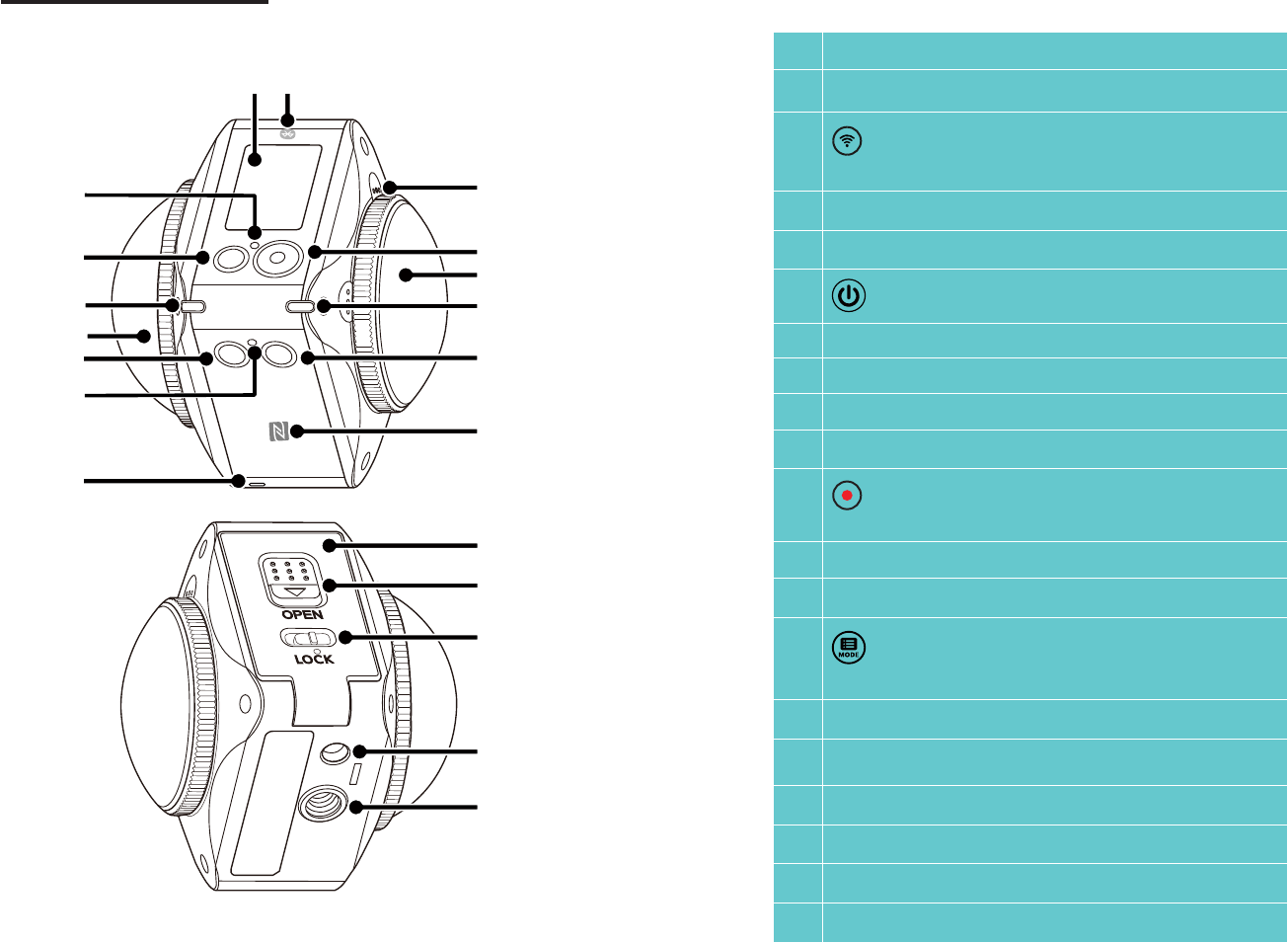

Camera Part Names ............................................................................................................................................ 10

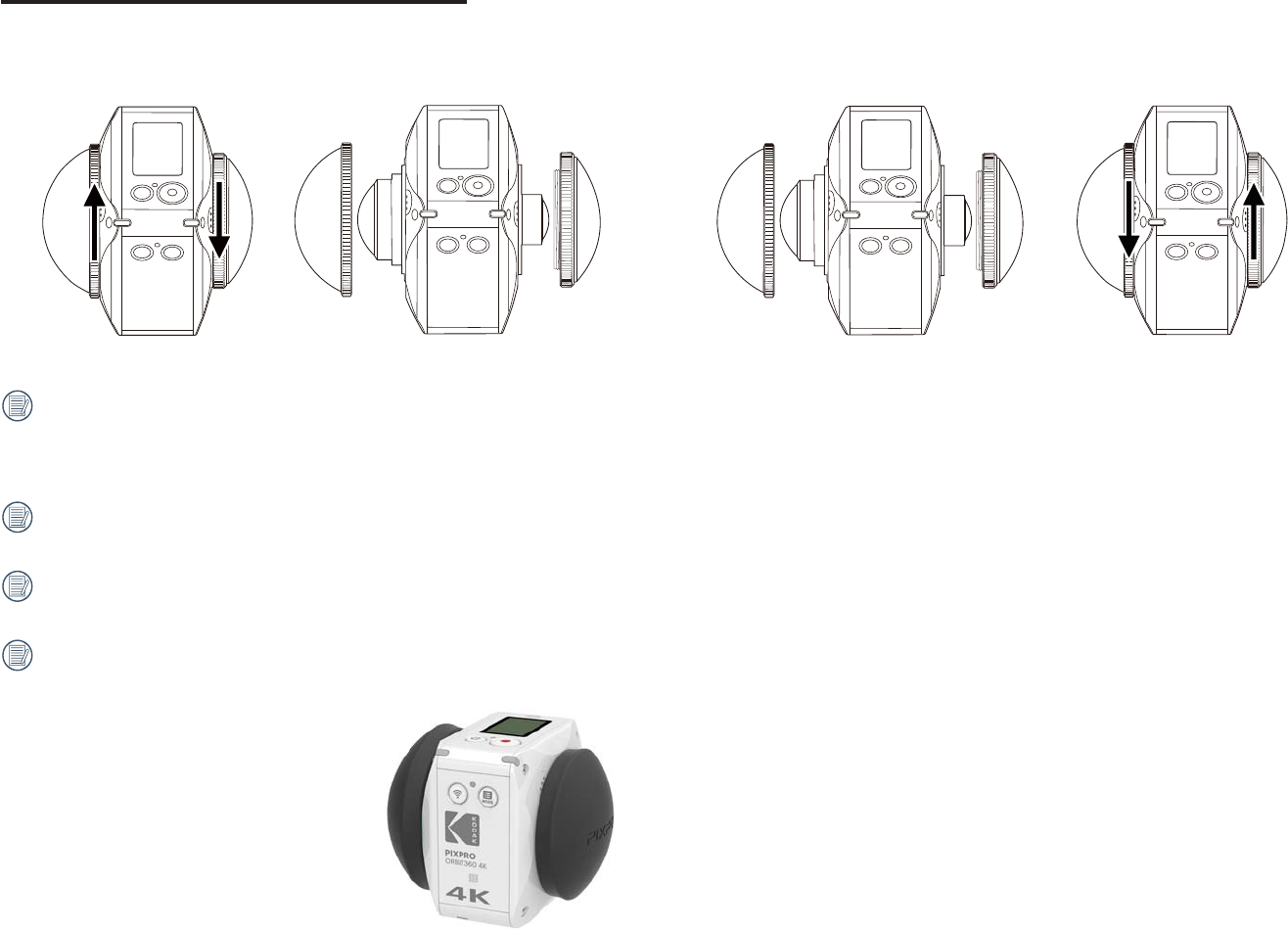

Mounting / Removing Lens Covers ..................................................................................................................... 11
Installing the Battery ............................................................................................................................................12

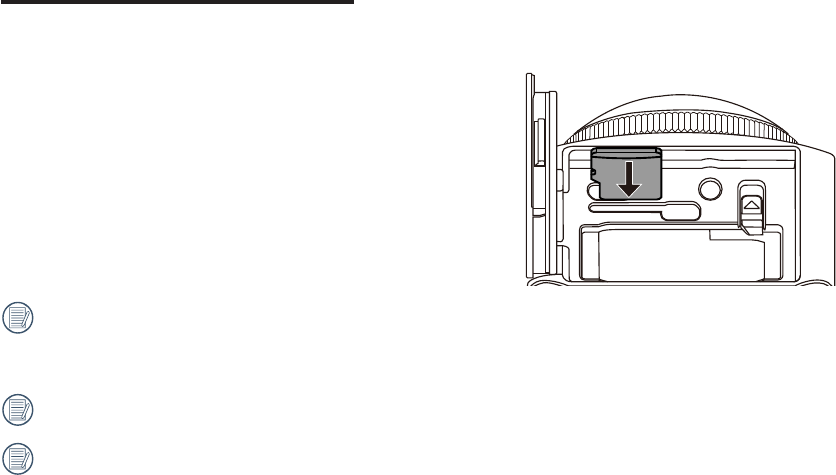

Installing a Memory Card ....................................................................................................................................13
Charging the Battery ...........................................................................................................................................14

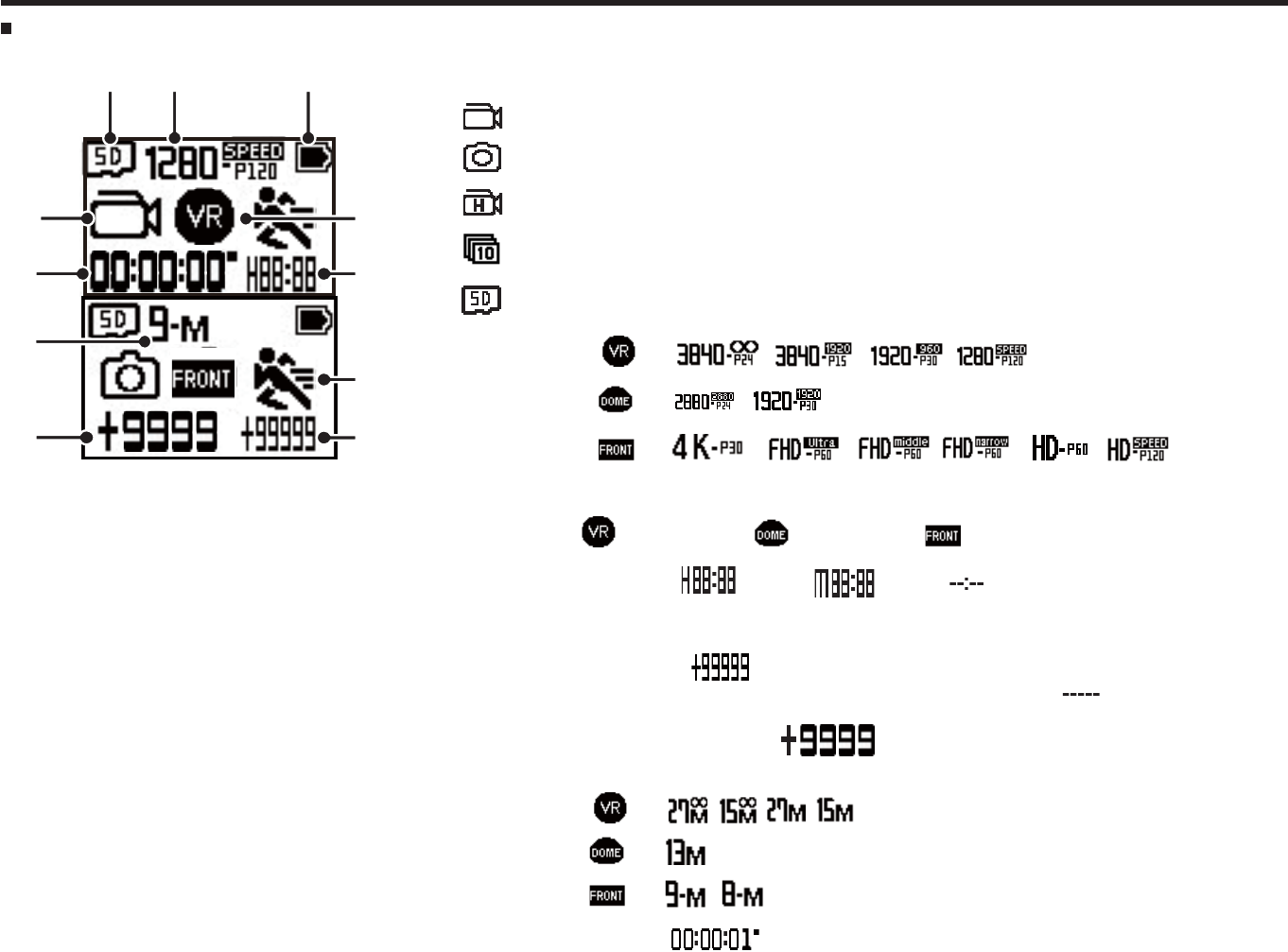

Main Camera Interface .......................................................................................................................16
Power On / O .....................................................................................................................................................17
Start-up for Language, Date and Time ................................................................................................................17

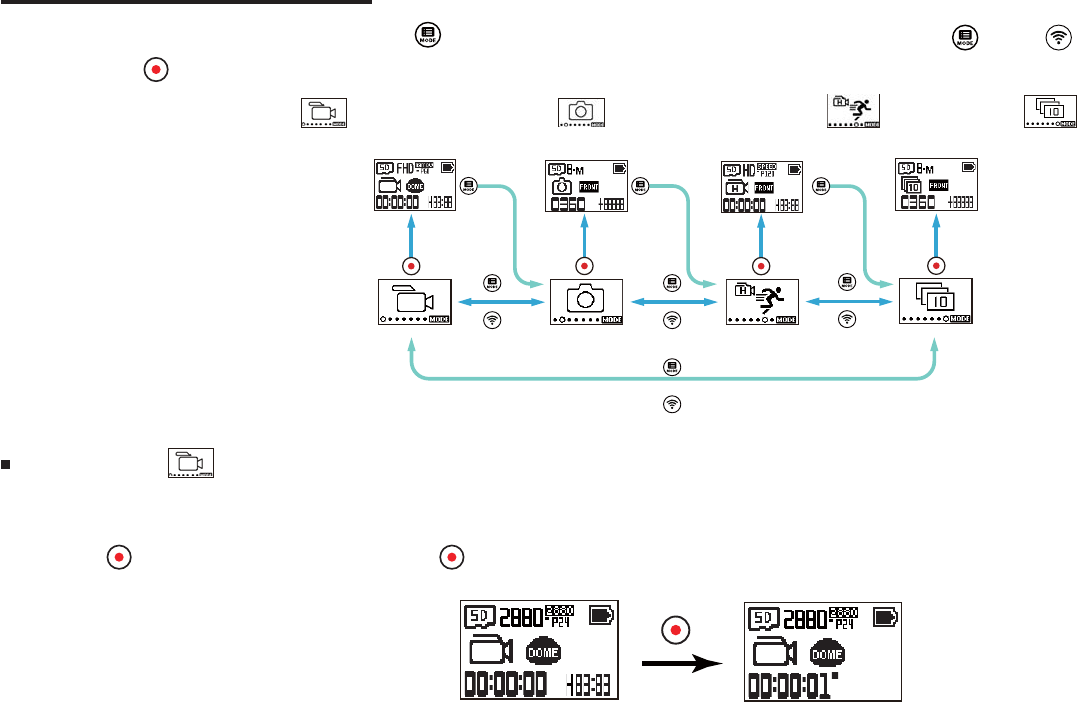

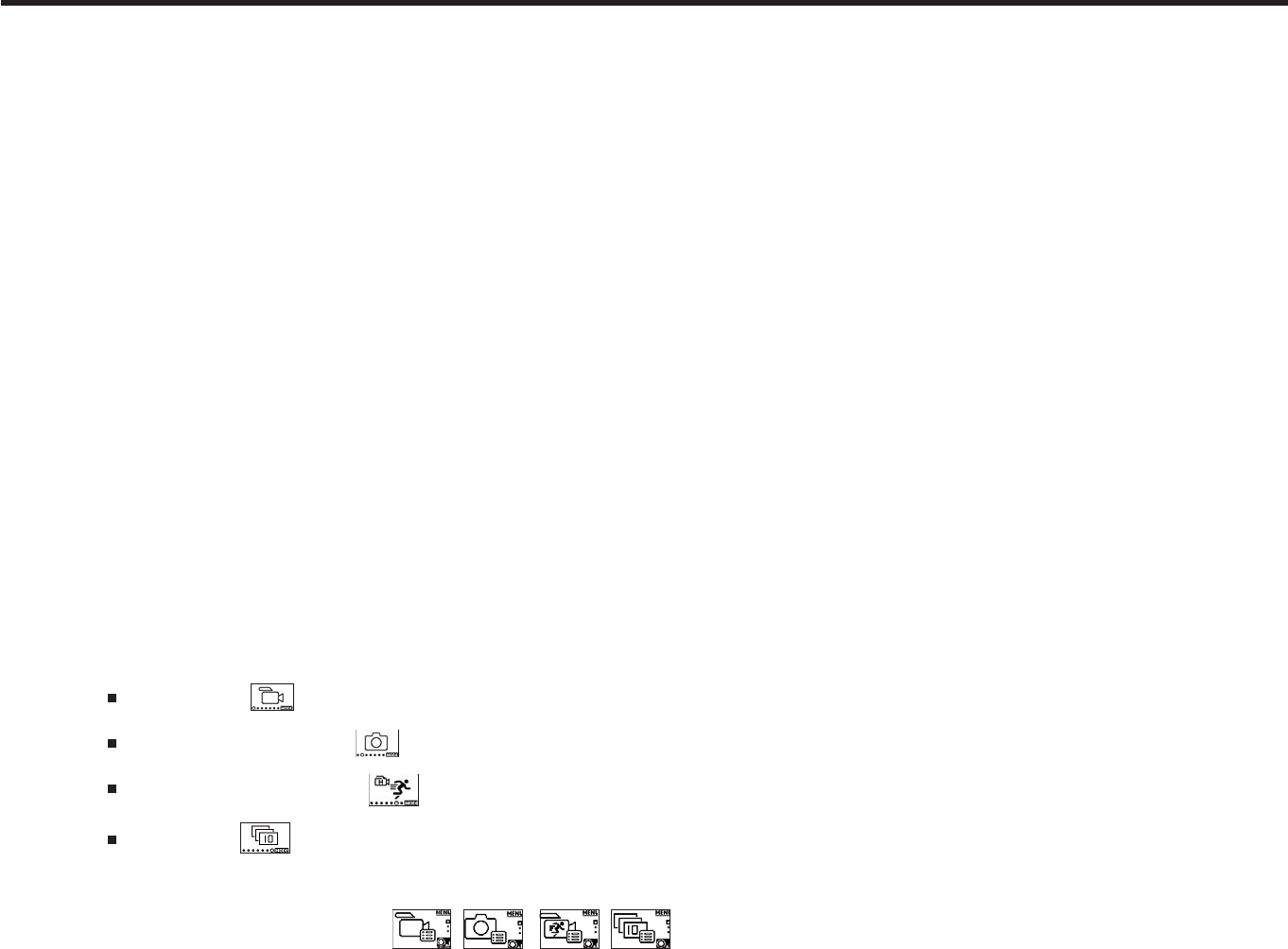

Camera Mode Introduction .................................................................................................................................18

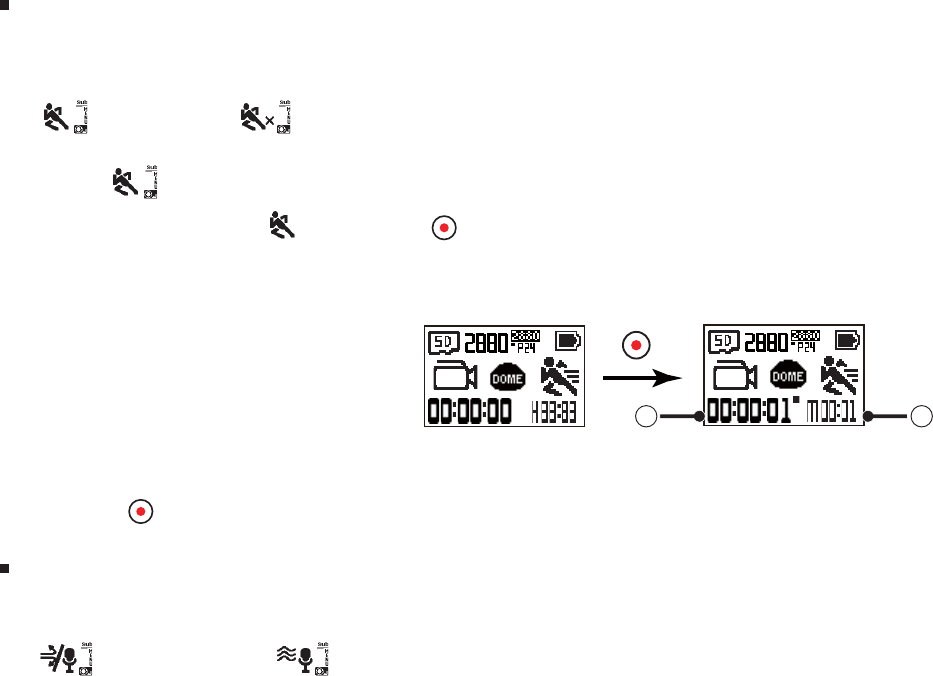

Movie Mode ..................................................................................................................................................................................... 18

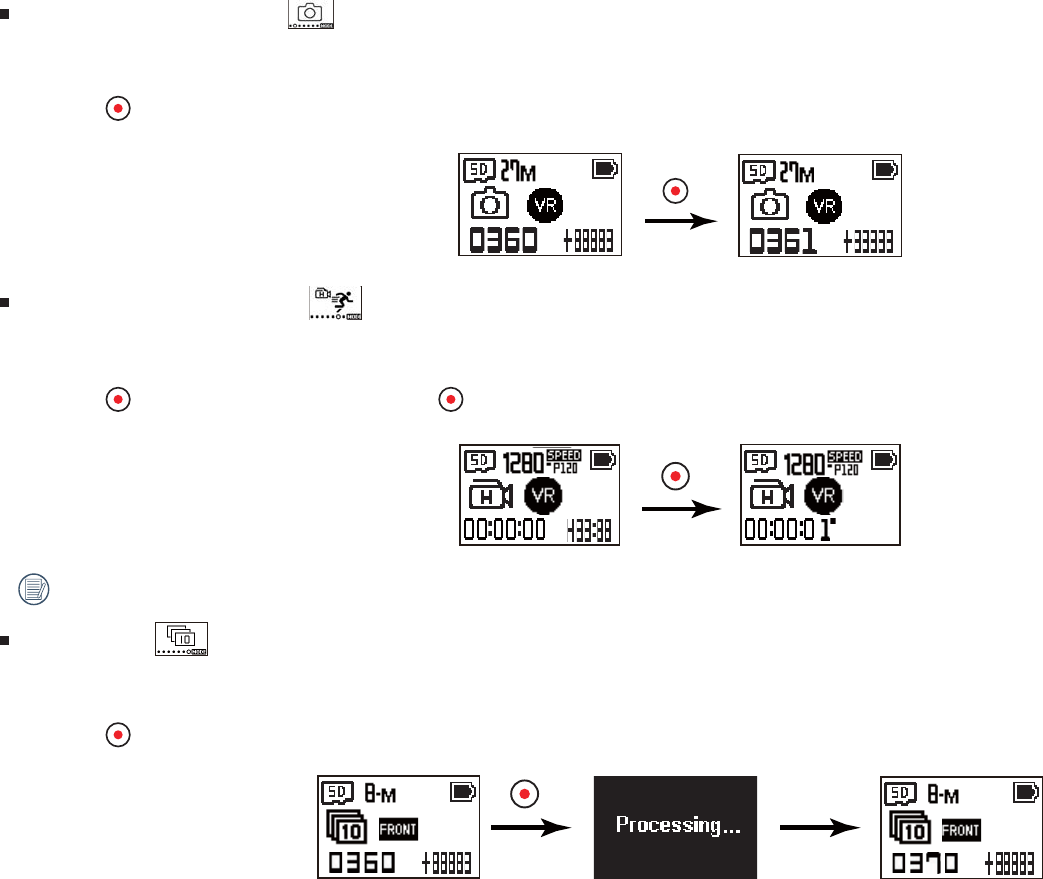

Snap Shot Photo Mode ................................................................................................................................................................. 19
High-Speed Movie Mode .............................................................................................................................................................. 19
Burst Mode ...................................................................................................................................................................................... 19

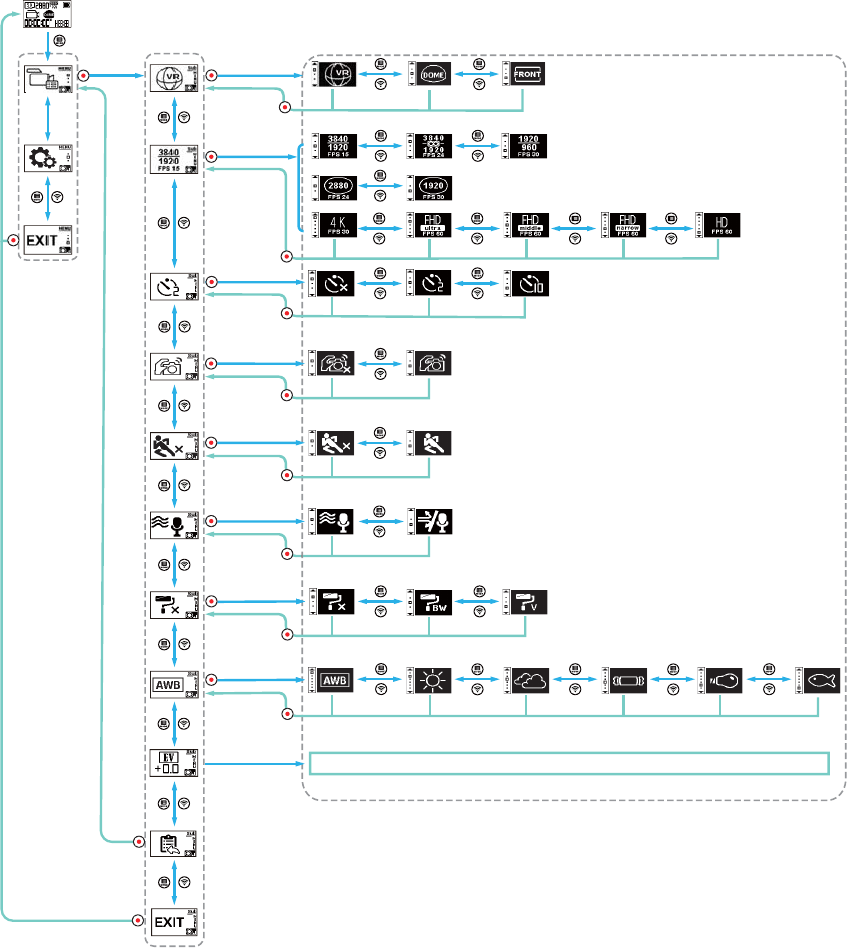

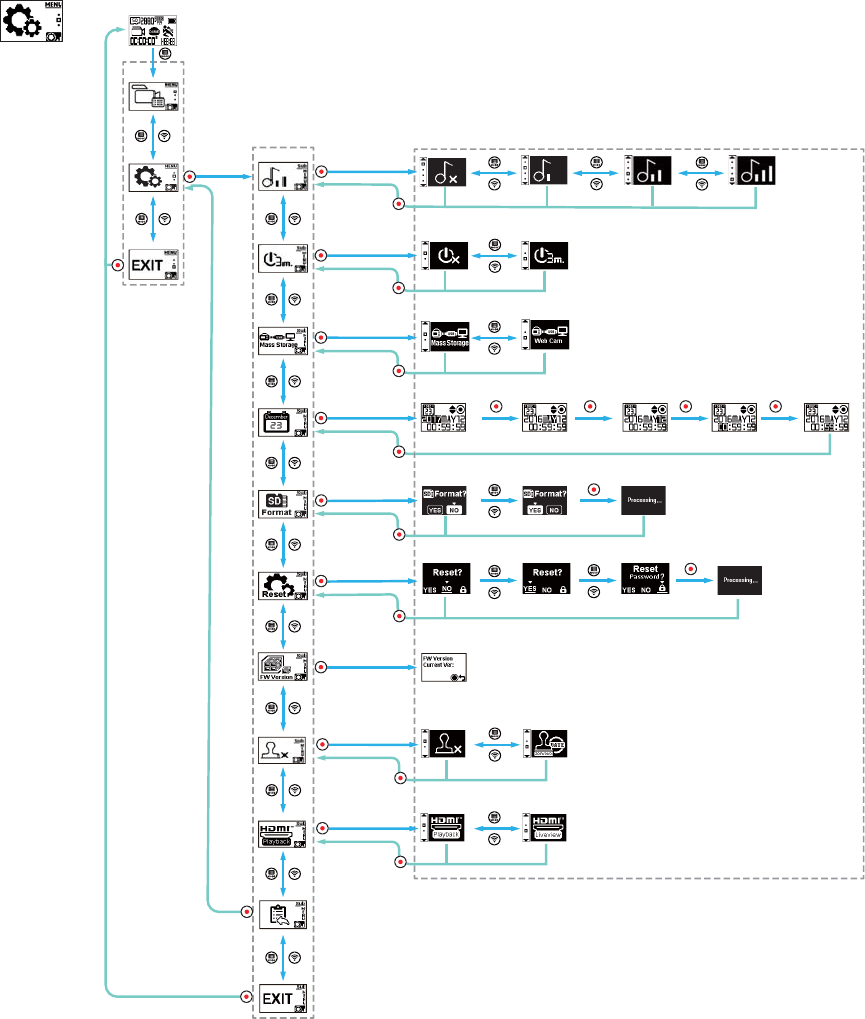

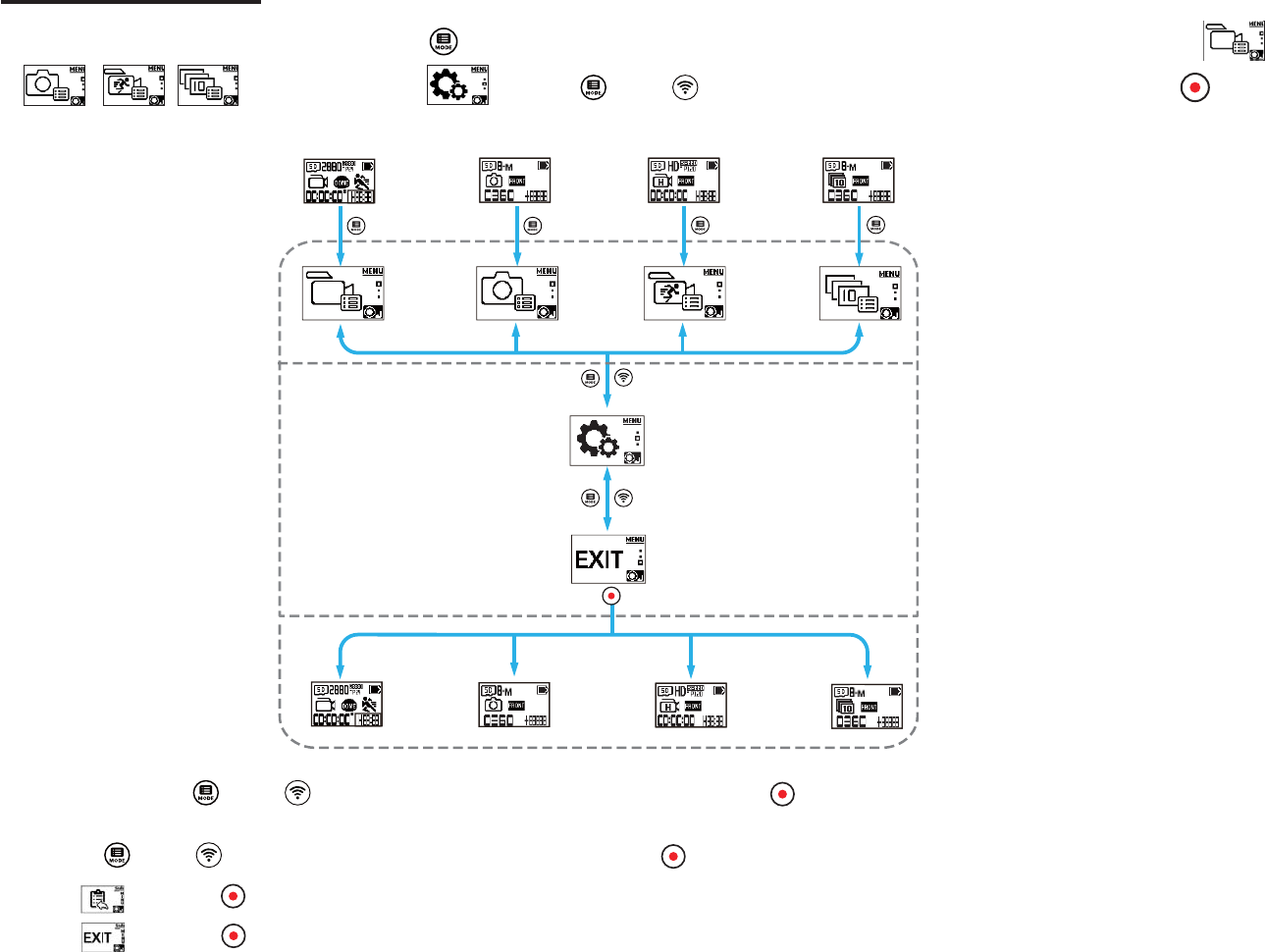

Menu Introduction ..............................................................................................................................................20

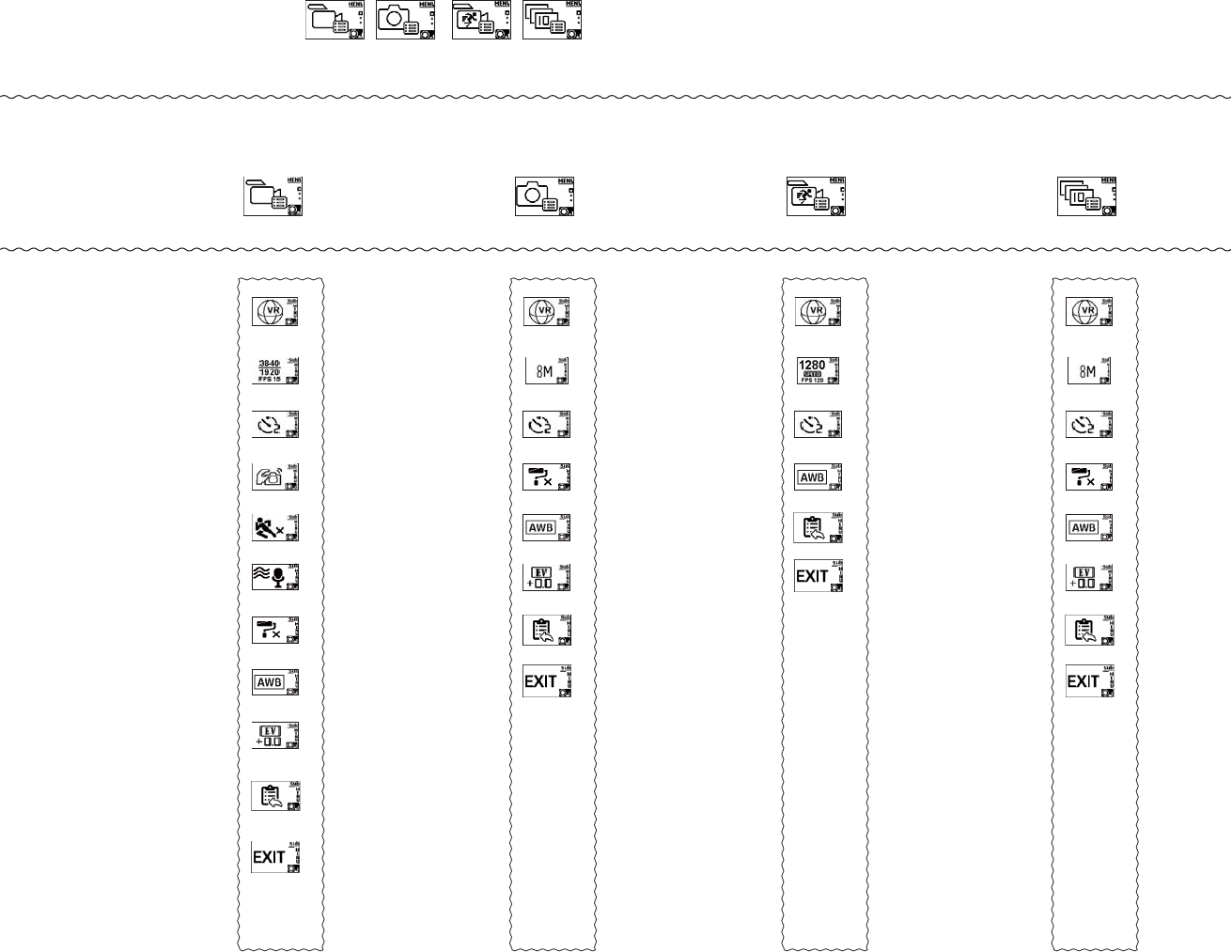

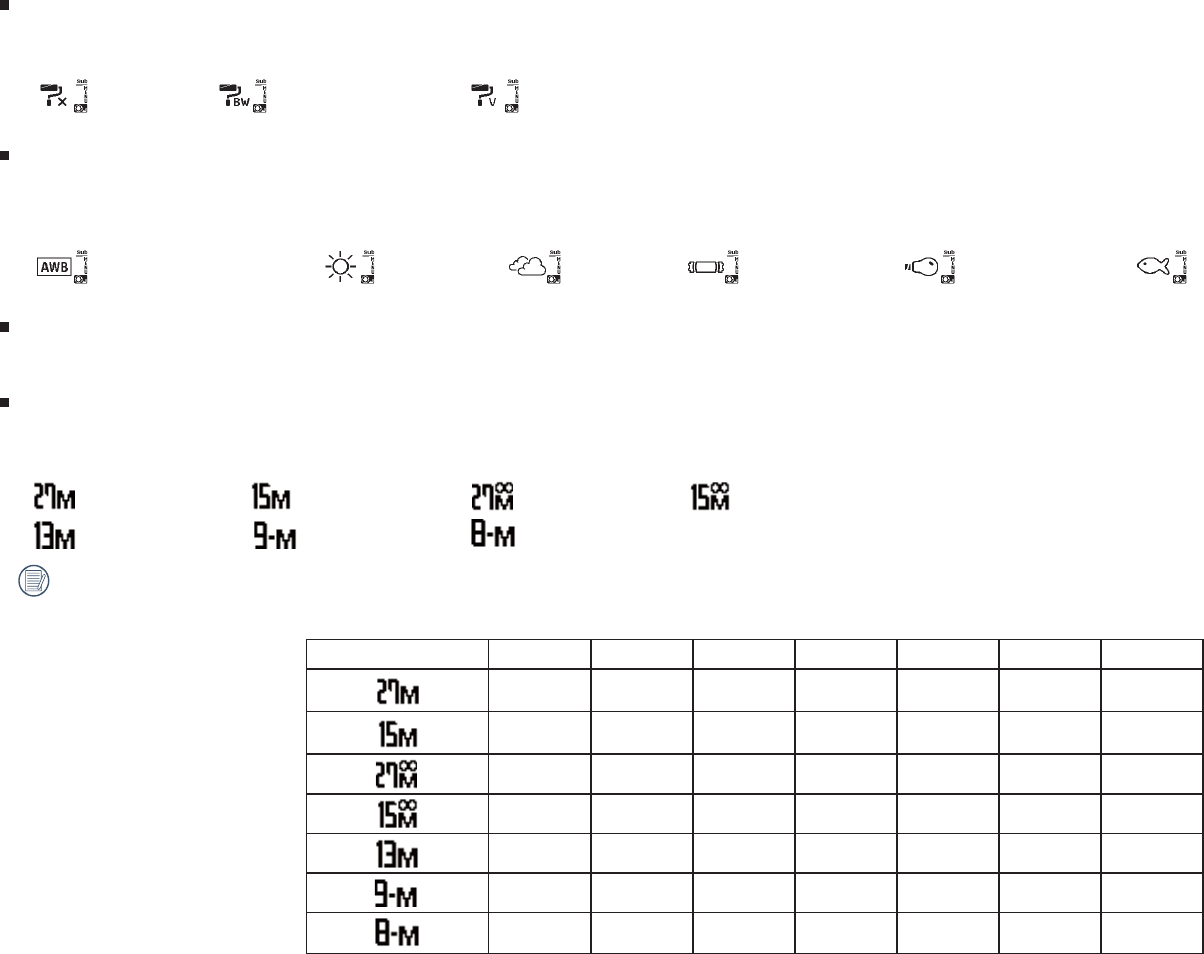

All Shooting Mode Settings ( / / / ) ................................................................................................... 21
Contents
8

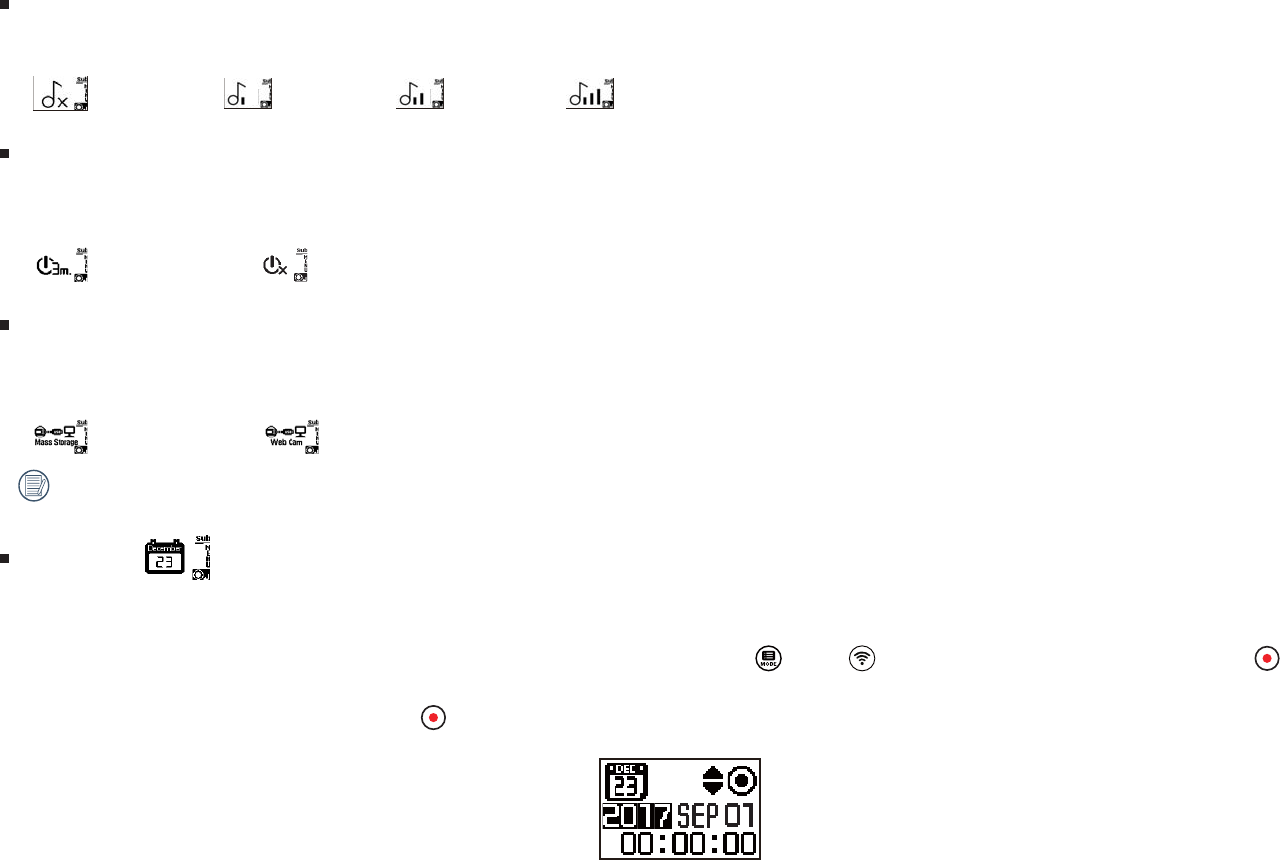

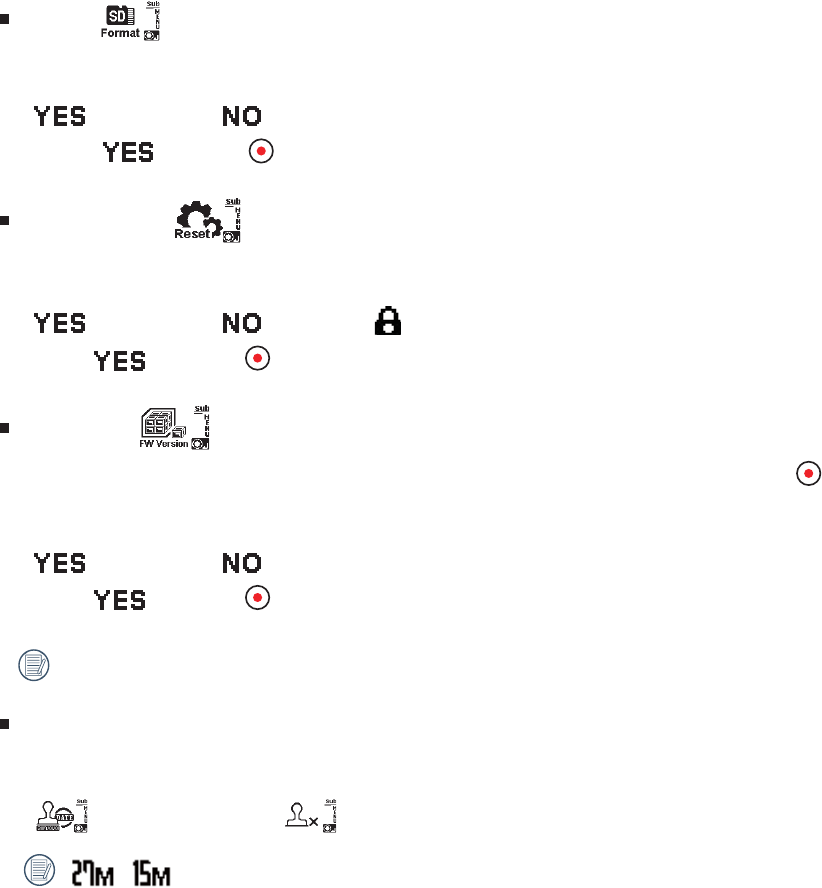

General Settings .............................................................................................................................................................28

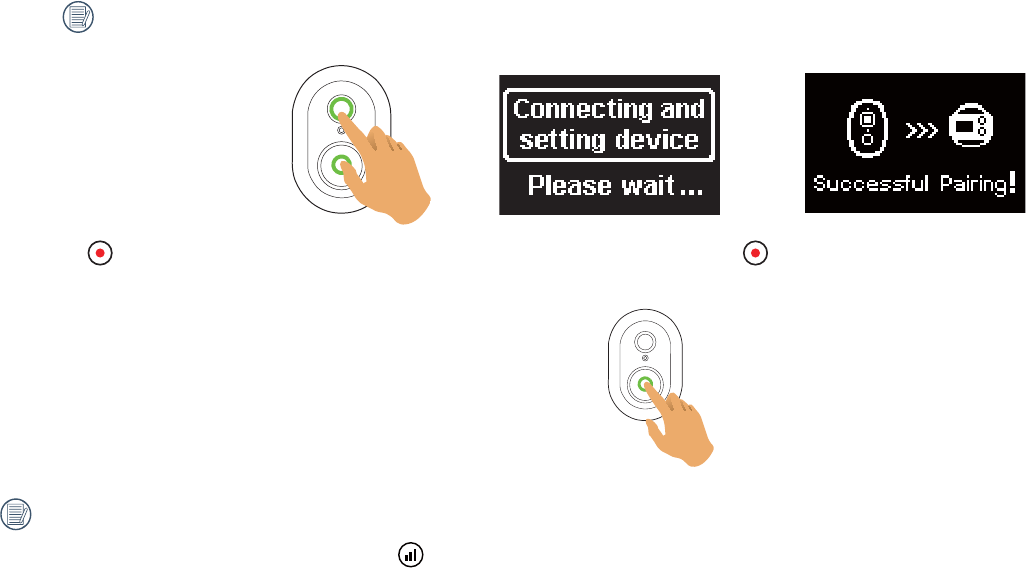

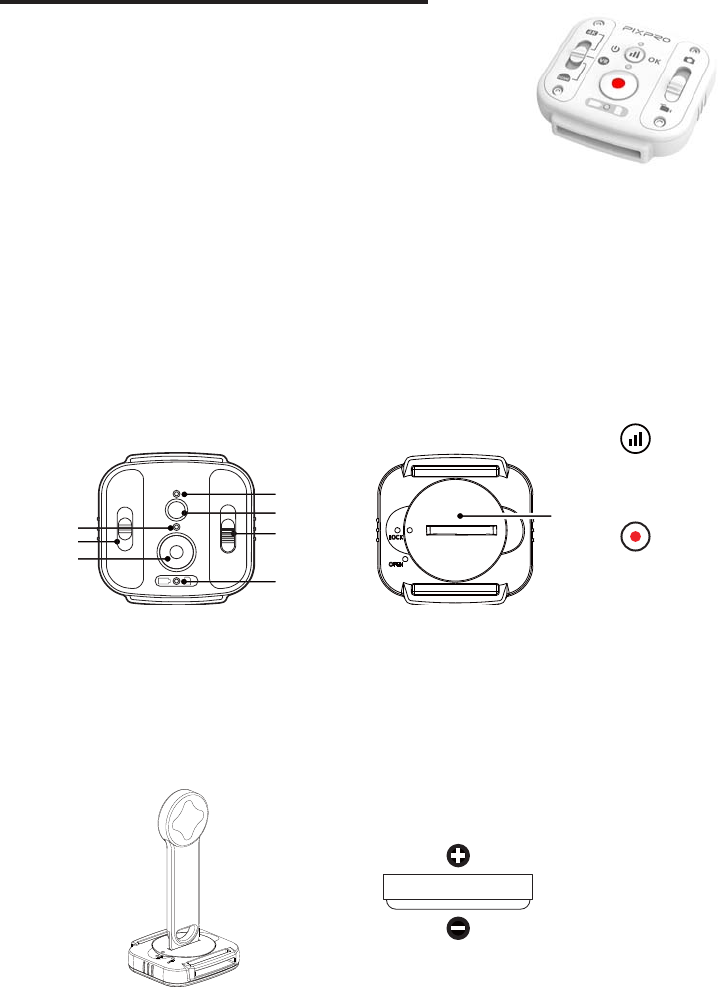

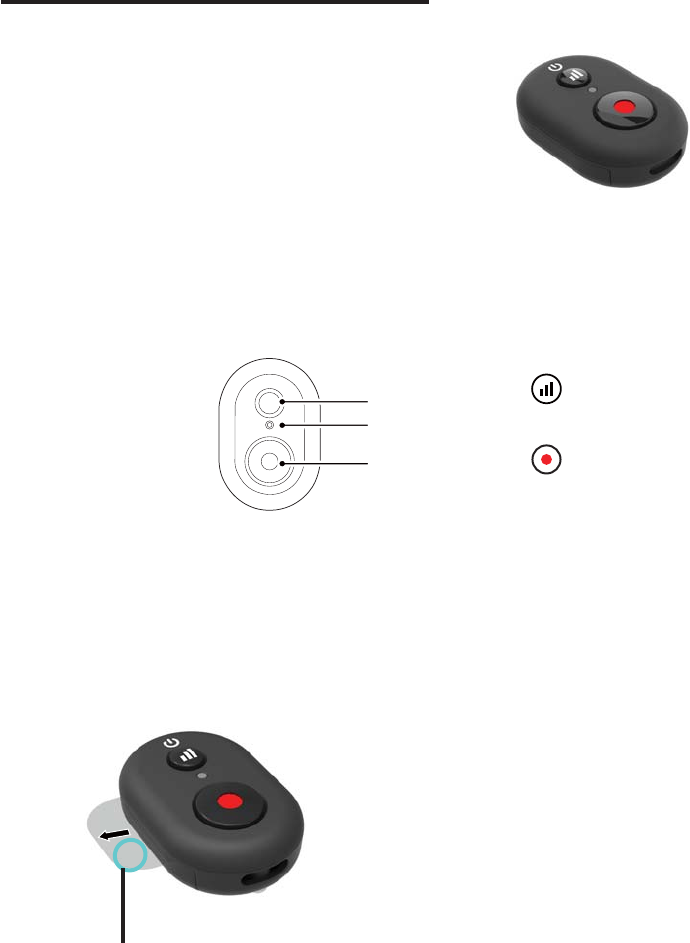

BLUETOOTH Remote Control-D ..........................................................................................................................31
User Interfaces .................................................................................................................................. 36
Micro USB Interface ............................................................................................................................................36

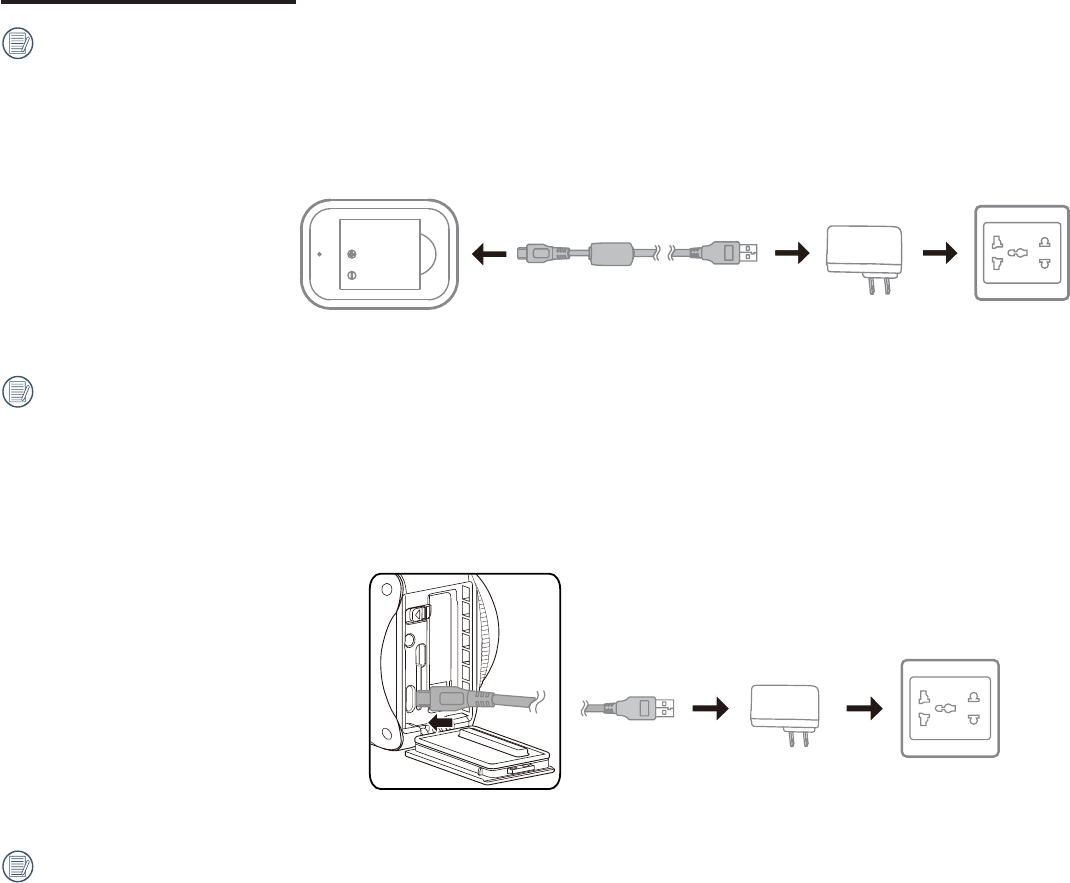

Charging Your Camera ...............................................................................................................................................................36
Using an External Power Supply ................................................................................................................................................36

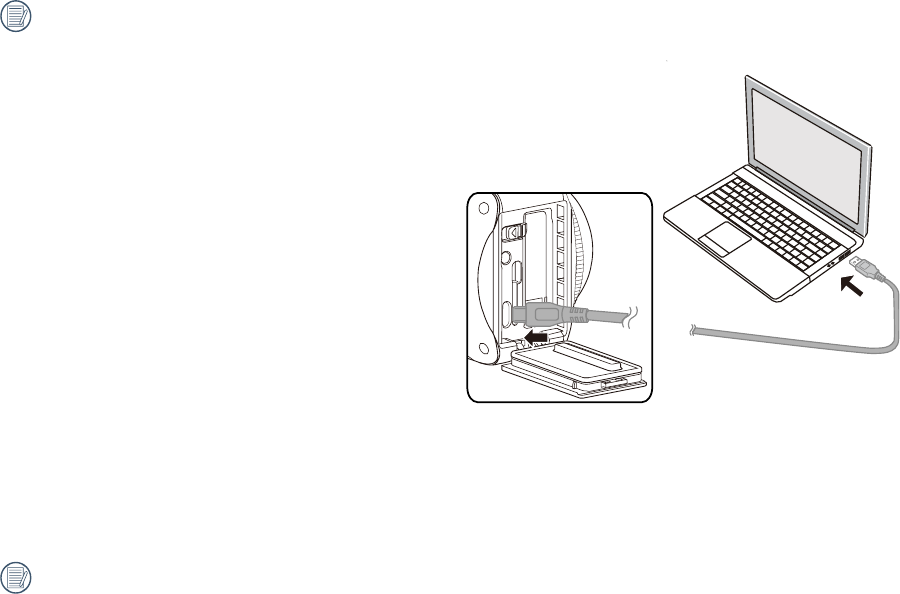

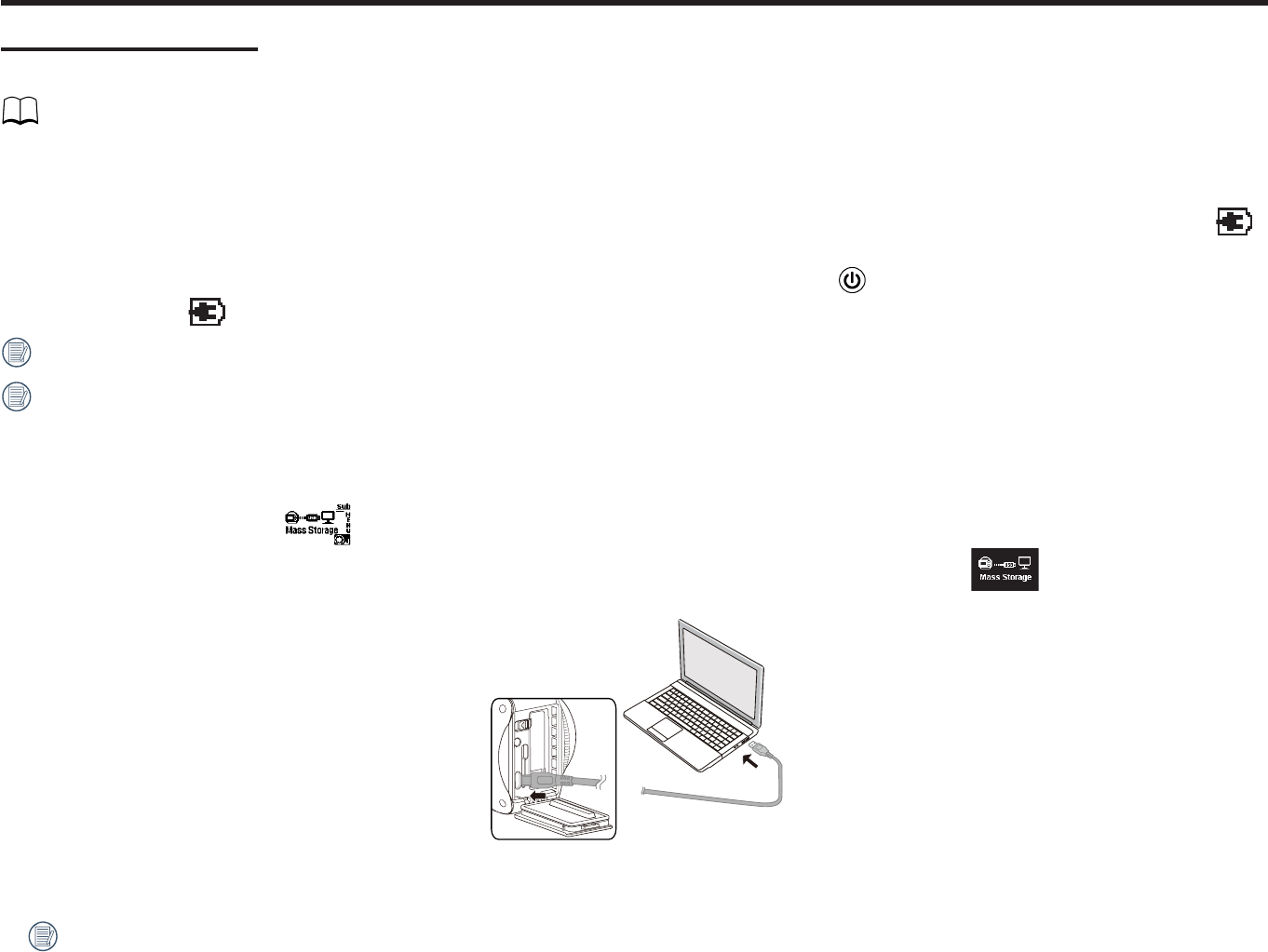

Data Transmission ......................................................................................................................................................................36

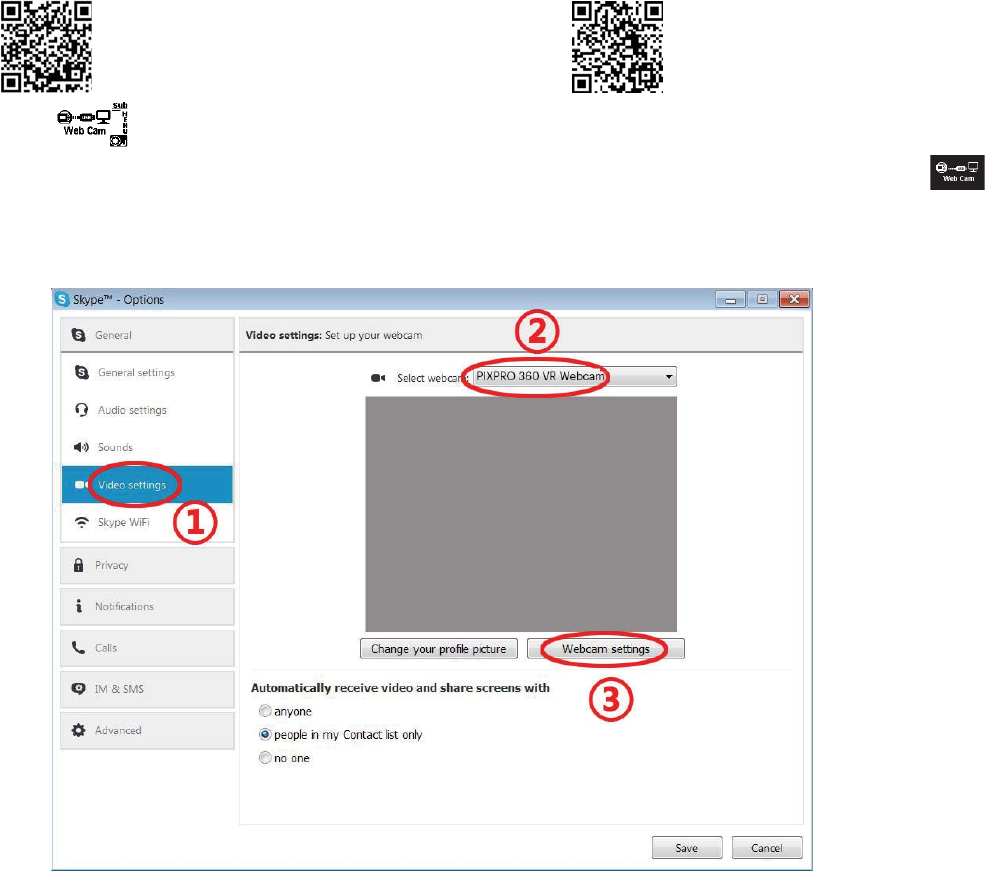

Webcam ......................................................................................................................................................................................38

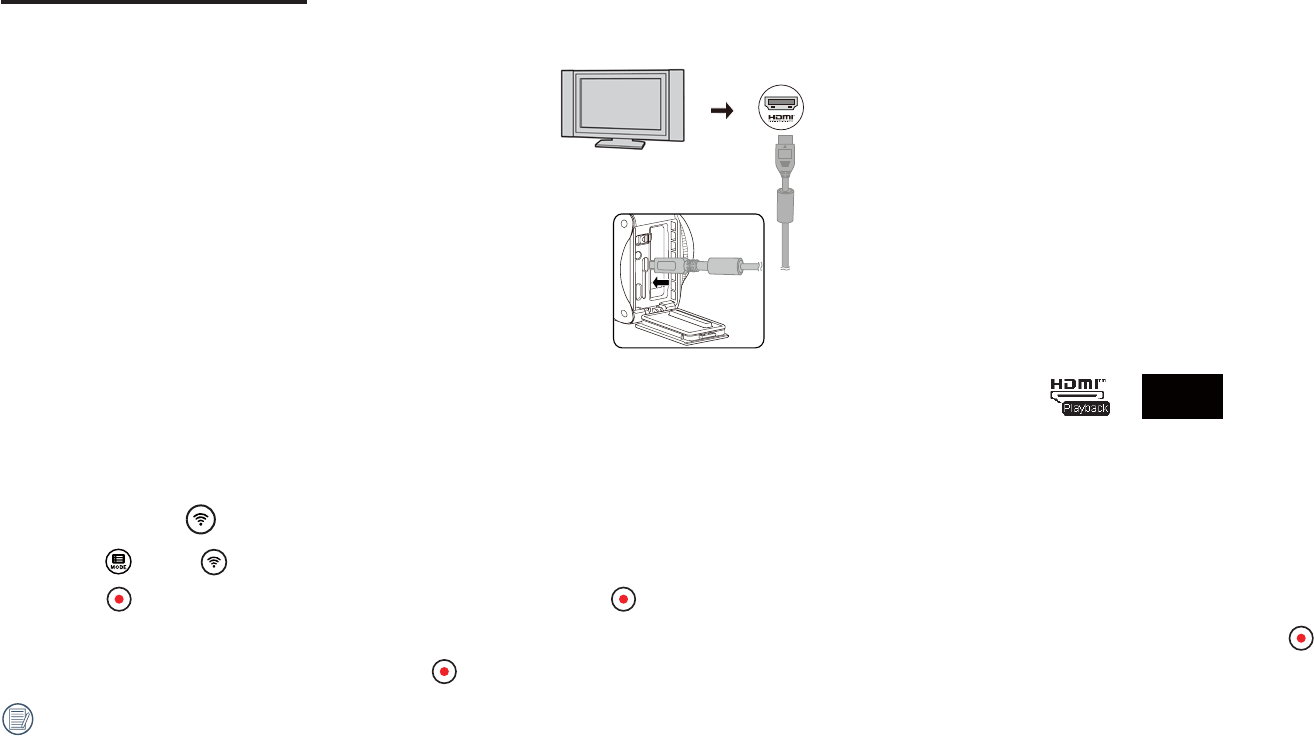

Micro HDMI Interface: .........................................................................................................................................40

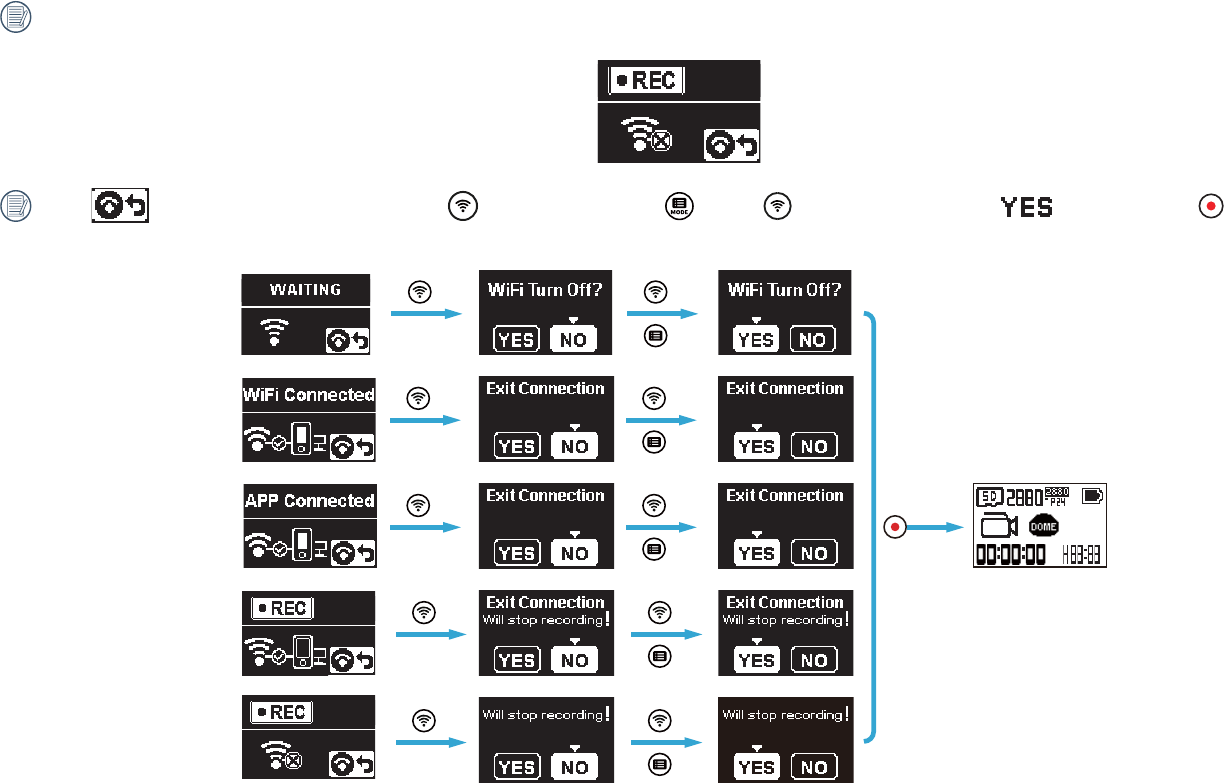

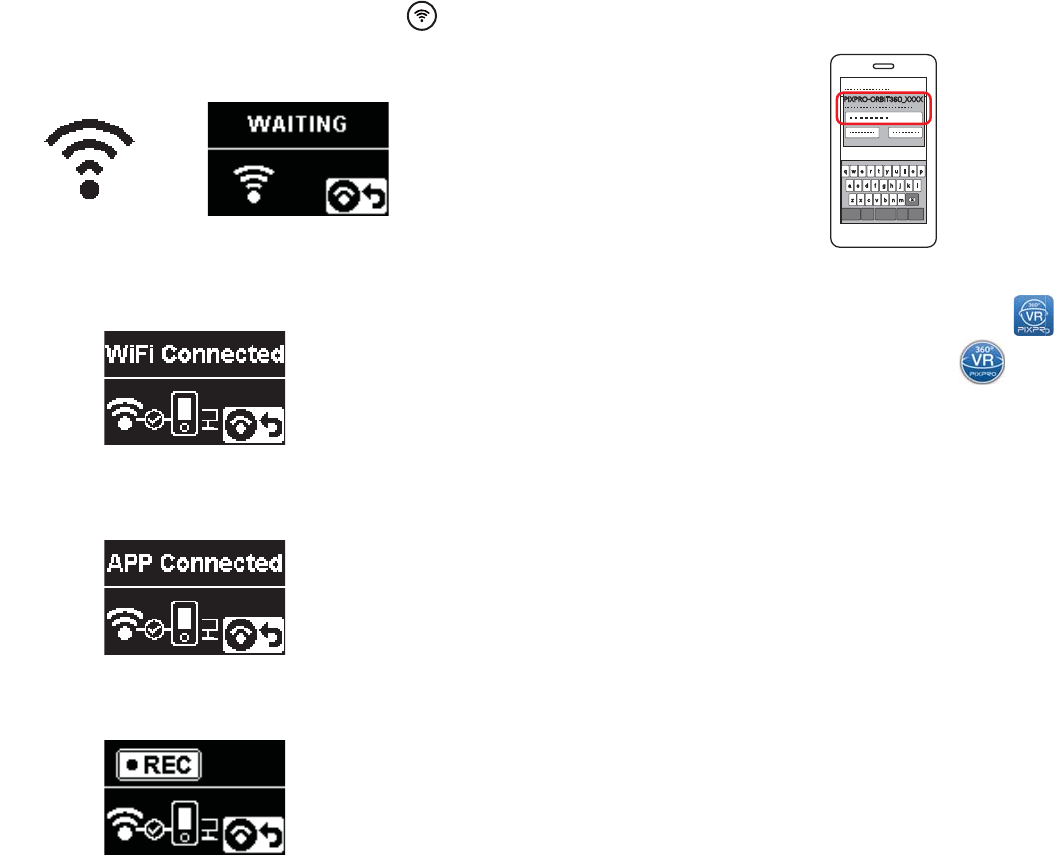

Wi-Fi Mode .............................................................................................................................. 42
Appendices ........................................................................................................................................ 46
Speciications .....................................................................................................................................................46

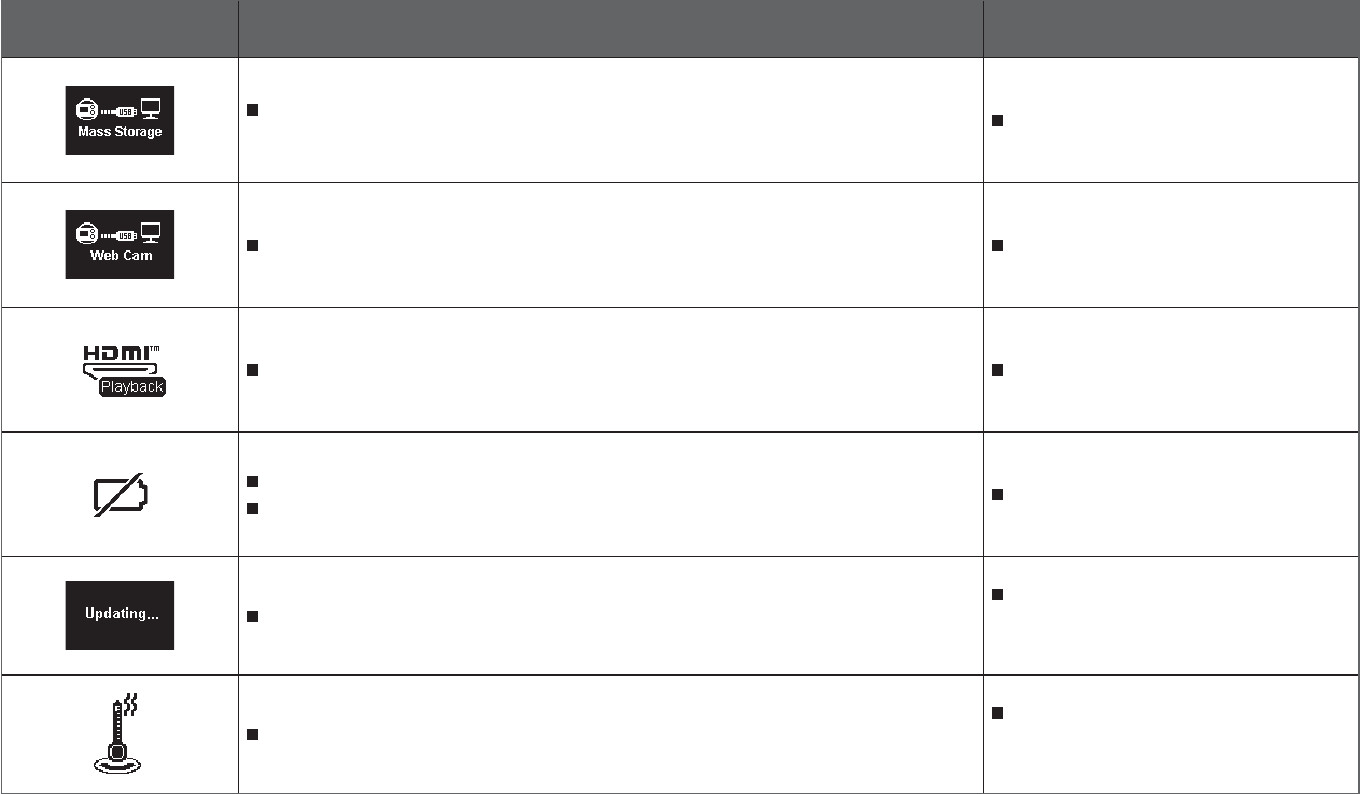

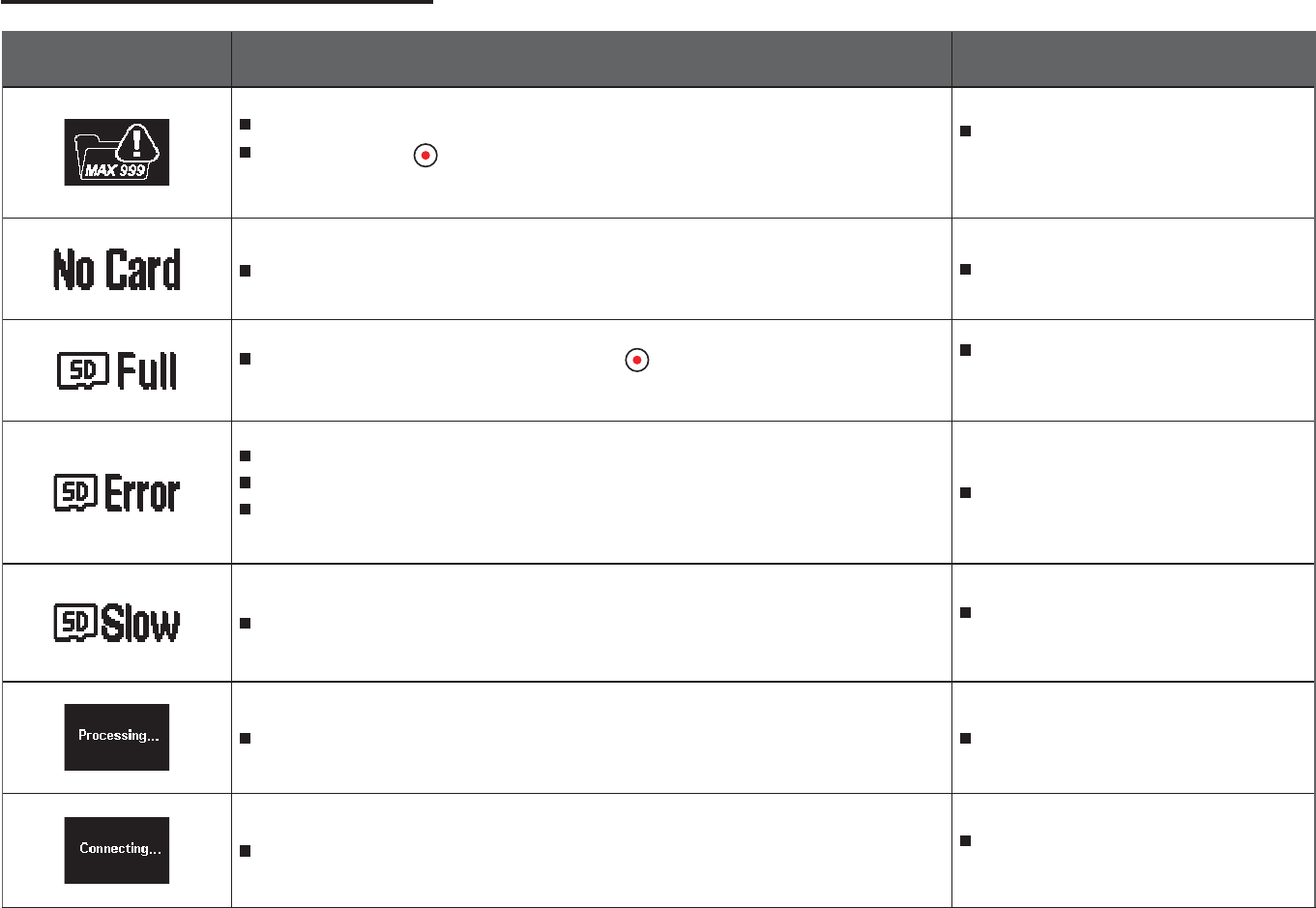

Prompts and Warning Messages ........................................................................................................................49
Trouble Shooting .................................................................................................................................................51
9
Getting Ready
Standard Parts and Accessories Included:
Your product packaging should contain the camera you purchased along with the following standard parts and accessories. If anything is missing or appears
to be damaged, please contact our customer service center. (The AC Adapter style will vary according to the power requirements from dierent countries or
regions. Pictures below are for reference only):
Warranty Card
Quick Start Guide
Quick Start Guide
STOP
Service Card
Lens Covers
(BSmall CLarge)
Protective Covers
(BSmallCLarge)
Rechargeable Li-ion Battery Micro USB CableBattery Charger AC Adapter
Carrying Case
Cleaning Cloth

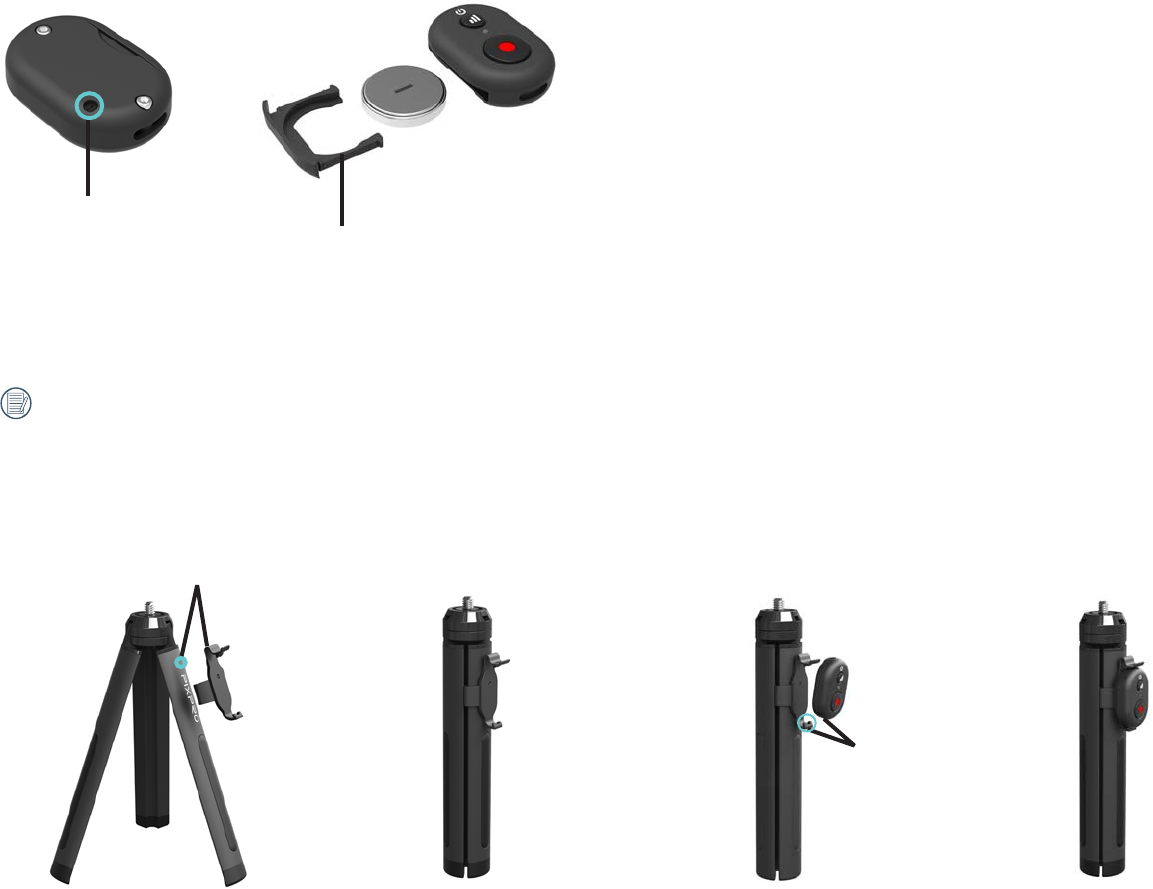

Small 3Leg Stand-B
Remote Control
Mount-B
Online Company
Store Card
Team 360
Sticker
BLUETOOTH Mini
Remote Control-D
10
Camera Part Names
1 Speaker
2Wi-Fi Indicator
3 Wi-Fi Button / Direction Button (down) / Remote

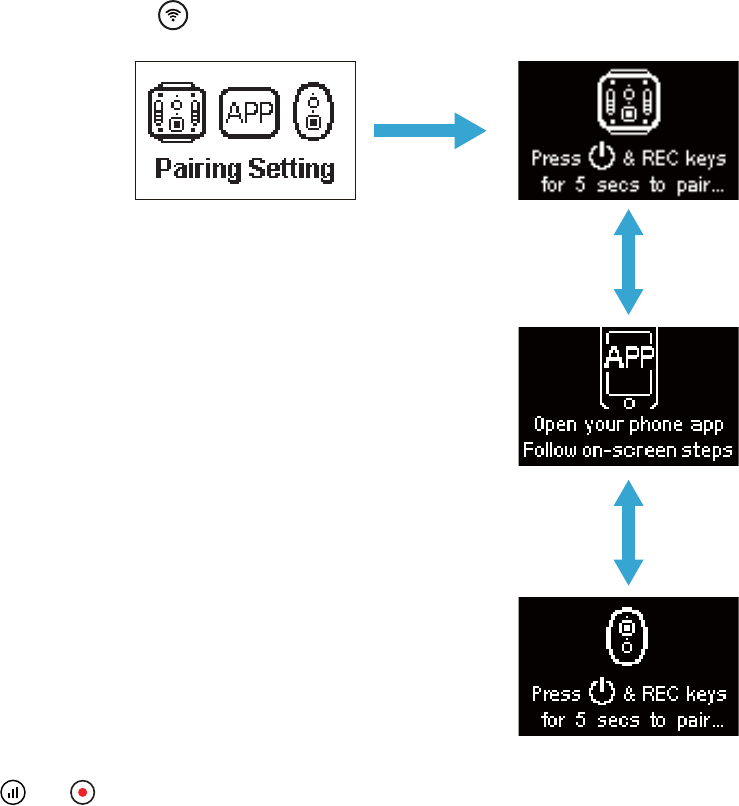

Control Pairing (press and hold)
4Lens B (235 Degrees)
5Lens Status Indicator B
6 Power Button
7Status Indicator
8LCD
9 BLUETOOTH Logo / Mark
10 Exterior Microphone (Stereo)
11 Video Recording Button / Photo
Shooting Button / OK Button
12 Lens A (155 Degrees)
13 Lens Status Indicator A
14 Menu Button / Direction Button (up) / Mode
Switching (press and hold)

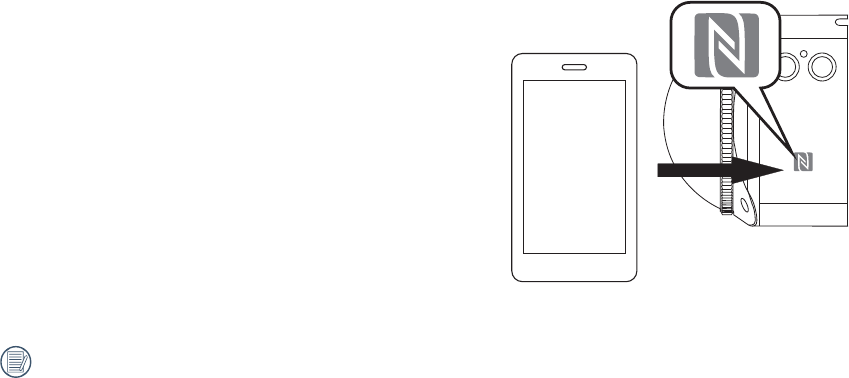

15 NFC Logo / Mark
16 Battery Cover Door
17 Battery Cover Open Toggle Switch
18 Battery Cover Door Lock
19 Positioning Mount Receptor
20 1/4" Screw Socket
5
4
7
6
3
2
1
13
12
10
11
14
15
20
19
18
17
16
8 9
11
Mounting / Removing Lens Covers:
Removing lens covers:
Turn the clear, protective lens cover counter clockwise following the illustrations
below until it separates from the ORBIT360 4K/4KVR360.
Attaching lens covers:
Turn the lens covers clockwise and irmly tighten the lens covers as illustrated
below.
The lens covers protect the camera's glass lenses from being permanently damaged and are dustproof, shockproof and splash proof. Using the lens covers
when taking a photo/shooting a video will not aect the photo image/video quality. Keeping the clear, prootective lens covers on the ORBIT360 4K/4KVR360
is essential to being able to use the internal stitch feature of the camera. If you do not use the clear lens covers, you will not be able to stitch photo/videos
and render iles for sharing.
Before mounting the clear lens covers, make sure the permanent glass lens surfaces are clean and dry. Always use a clean, lint-free, dry cloth to clean the
camera's lenses before shooting or recording so any foreign particles it will not aect the photo or video quality.
When the ORBIT360 4K/4KVR360 is exposed to extreme temperature dierences, condensation may form inside the camera's lens covers. If this happens,
remove the lens covers, clean with a soft, dry, lint-free cloth and reinstall the lens covers.
If the ORBIT360 4K/4KVR360 will not be used for a long period of time or during transportation, always put the black rubber protective covers on (as shown
in the image below):
12
Installing the Battery:
1. Open the Battery Cover Door
Slide the battery cover lock to the left ʒ then slide the open switch of the
battery cover door downward ʓ.
2. Insert the Battery
Insert the Li-ion battery into the battery compartment in the direction of the
arrow ʔ (note the location of the + and - symbols).
3. Close the Battery Cover Door
Close the battery cover door until your hear a “click” to indicate the door is
fully and tightly closed ʕ. Slide the battery cover lock to the right ʖ.
3
4
5
13
Installing a Memory Card:
Open the battery cover door, then insert the memory card into the card slot as shown in the illustration below (note the direction of the memory card opening).
Push the bottom end of the memory card with your ingertip into the slot completely and close the battery cover door.
A memory card (microSD / microSDHC / microSDXC) is essential to recording and saving 360 photos and videos and is not included in the product
packaging. The memory card needs to be purchased separately. Please use a memory card which is Class 10 or higher and has a capacity of 8GB to 256GB.
When recording with any new memory card Class 10 or higher, it is recommended you format the memory card before using.
To remove the memory card, open the battery cover door, gently press the memory card to eject it and remove it carefully.
The camera will automatically turn o if the memory card is inserted or removed when the product is turned on.
14
Charging the Battery:
Please use the supplied battery charger and AC adapter to charge the Li-ion battery in an ambient temperature ranging from 50F to 95F or 10˚C to 35˚C.
Charging the Battery with Induded Battery Charger:
1. Place the battery into the battery charger according to the direction illustrated below. Use the Micro USB cable to connect the battery charger to the AC
adapter then plug the AC adapter into an electrical outlet.
2. The indicator light will turn red when charging. The indicator light will turn green when charging is complete.
When charging the battery for the irst time or after a long period of storage, please make sure that the charging time is a minimum of four hours.
Charging the Camera with an AC Adapter or an External Power Supply (vehicle power supply, portable power supply, etc.):
1. Place the battery into the camera.
2. While in the "off" mode, use the Micro USB cable to connect the camera to the AC adapter irst, then plug the AC adapter into an electrical outlet. Alternatively,
use the Micro USB cable to connect the camera to an external power supply (vehicle power supply, portable power supply, etc.).
3. The indicator light will turn orange while it is charging. The indicator light will go out once charging is completed and the battery is fully charged.
The camera cannot be recharged when its power is on.
15
Charging the Camera via a Computer:
1. Place the battery into the camera.
2. Use the Micro USB cable to connect the camera (in the "o" position) to your computer.
3. The indicator light will remain orange while it is charging. The indicator light will go out once charging is completed and the battery is fully charged.
The camera cannot be recharged when its power is on.
Using the Internal Microphone:
Please only use the proprietary PIXPRO audio cable available @ kodakpixpro.com (cable sold seperately).
16
Main Camera Interface
Main Camera Interface Introduction:
2 4
7
8
6
5
1
9
10
11
31. Camera Mode
Movie Mode
Snap Shot Photo Mode
High-Speed Movie Mode
Burst Mode
2. Memory Card
3. Movie Size: / / /
/
/ / / / /
4. Battery Status
5. Display Mode： 360 Spherical / 235 Spherical / 4K [16:9] Full Frame
6. Remaining Recording Time: HH:MM / MM:SS / none
7. Motion Detection (On)
8. Number of Remaining Shots: : ("+9999" will be displayed when the SD card exceeds the
maximum available display number) / none
9. Existing Document in the Memory Card: ("+9999" will be displayed when the SD card
exceeds the maximum available display number)
10. Photo Size: / / /
/
11. Time Recording the Movie
17
Power On / O
Power On:
When the power is o, press the button for one second or more to turn the camera on.
Power O:
When the power is on, press the button for one second or more to turn o the product.
If the product cannot be powered o normally, you can remove the battery from the camera to force it to power o.
Start-up for Language, Date and Time
1. Press the button to turn the camera on. When starting for the irst time, the display will show the date and time screen setting, "Year/Month/Day/Hour/
Minute/Second".
2. The ield to be adjusted will be highlighted with a black background color. Press the (up) or (down) buttons to adjust the value, press the button to
enter and conirm.
3. After adjusting the "Minute : Second" value, press the button to enter the main camera menu interface.
18
Camera Mode Introduction
In the main camera interface, press and hold the (up) button to enter the mode selection interface. Press the (up) or (down) button to select any one
mode; press the button to enter and conirm the mode of the current interface.
4 modes are available: Movie Mode , Snap Shot Photo Mode , High-Speed Movie Mode , and Burst Mode .
Movie Mode
Enable video recording. This mode is suitable for recording in most conditions.
Operation Method:
Press the button to start recording. Press the button again to stop recording.
19
Snap Shot Photo Mode
Enable photo shooting. This mode is suitable for shooting photos in most conditions.
Operation method:
Press the button to take a photo.
High-Speed Movie Mode
This camera shoots ultra-high speed movies and plays back with normal 30fps speed.
Operation method:
Press the button to start recording. Press the button again to stop recording.
Audio cannot be recorded in this mode.
Burst Mode
Enables ten successive photos to be captured continuously before automatically pausing.
Operation method:
Press the button; the camera will pause after 10 photos have been taken.
20
Menu Introduction:
1. In the main camera interface, press and hold the (up) button to enter the interface menu. There are 2 options: All Shooting Mode Settings ( /
/ / ) and General Settings . Press the (up) or (down) button to select the desired setting and press the button to
enter the corresponding sub-menu interface.
Menu Interface
2. Toggle between the (up) or (down) buttons to select the desired setting; press the button to conirm and to enter the selected menu interface
(highlighted with a black background color).
3. Press the (up) or (down) buttons to select the desired item; press the button to select and conirm and to go back to the sub-menu interface.
4. Select , press the button to return to the menu interface.
5. Select , press the button to return to the main menu interface.
21
The Sub Menu for all shooting modes and settings:
All Shooting Mode Settings ( / / / )
Menu Interface
Movie Setting Photo Setting High-Speed Movie Setting Burst Setting
Sub-Menu
Interface
settings
22
Below is an illustration of the recording setting menu for an example. The operating settings of all optional shooting modes have the same menu entry low and
menu access as shown below:
Menu Sub-Menu Selectable Options
-3.0、-2.7、-2.3、-2.0、-1.7、-1.3、-1.0、-0.7、-0.3、+0.0、+0.3、+0.7、+1.0、+1.3、+1.7、+2.0、+2.3、+2.7、+3.0
23
Display Mode
Set image storage format.
There are 3 options:

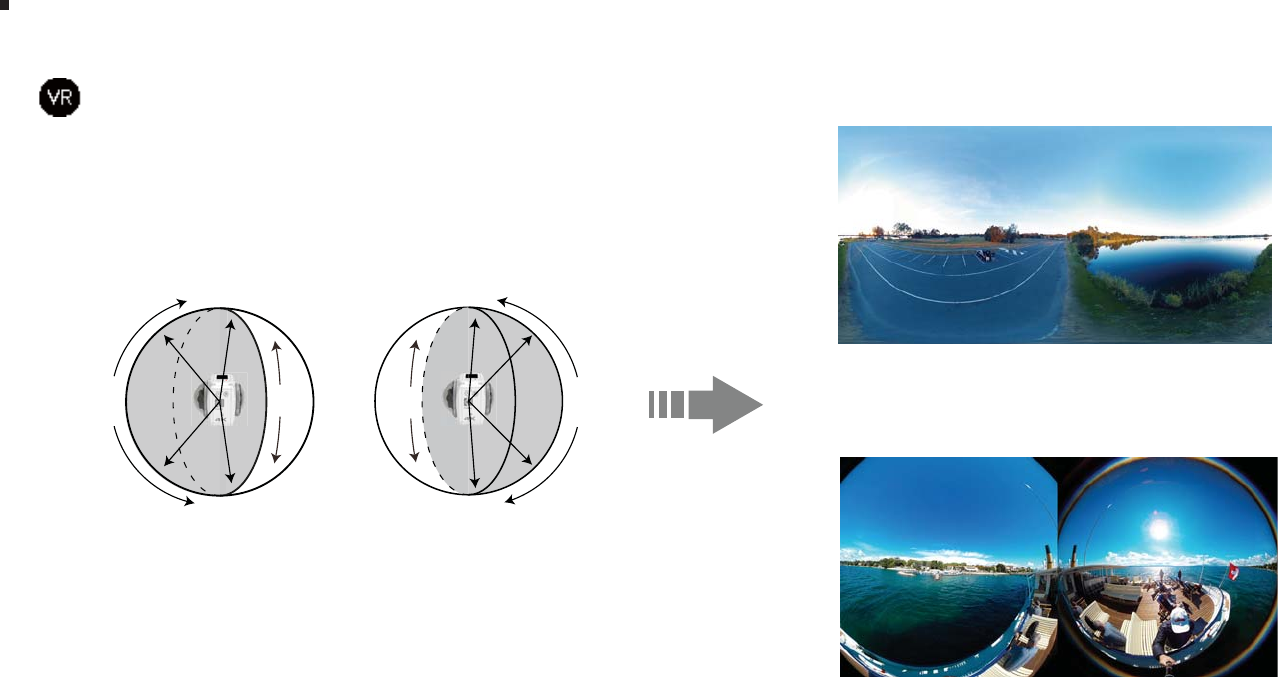

1. 360 Spherical / VR Mode
235° 360° 360° 155°
Stitched
Global

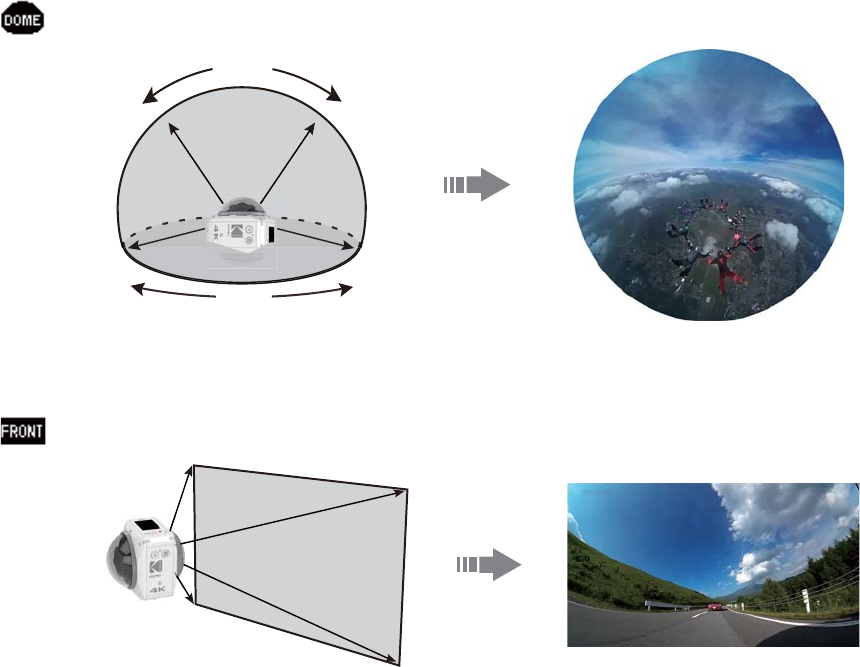

2. 235 Spherical Mode
235°
360°
3. 4K [16:9] Full Frame Mode
25

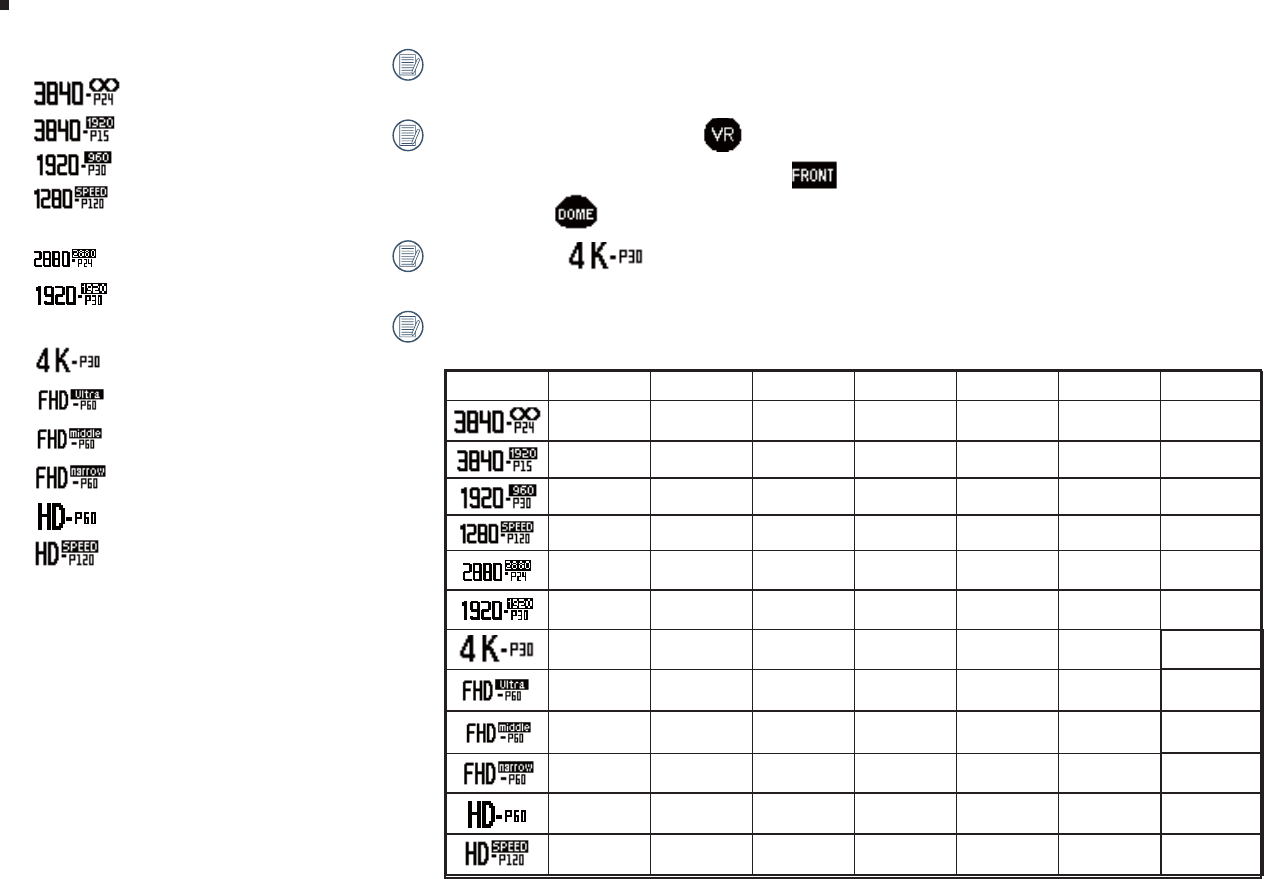

Movie Size
Video Resolution Settings:
VR 360 Spherical / VR Mode (2:1)
Ù 3840×1920 (24fps)
Ù 3840×1920 (15fps)
Ù 1920×960 (30fps)
Ù 1280×640 (120fps)
Dome 235 Spherical Mode (1:1)
Ù 2880×2880 (24fps)
Ù 1920×1920 (30fps)
Front Mode [16:9] Full Frame
Ù 3840×2160 (30fps)
Ù 1920×1080 (60fps)
Ù 1920×1080 (60fps)
Ù 1920×1080 (60fps)
Ù 1280×720 (60fps)
Ù 1280×720 (120fps)
The selectable video resolution options vary for dierent video shooting modes and are subject to actual user
selections that will determine inal playback and the saved video ile resolution.
When the display mode is set to , the only options available will have the [2:1] aspect ratio and will be
displayed; when the display mode is set to , only the [16:9] options will be displayed; when the display
mode is set to , only the [1:1] aspect ratio options will be displayed.
When selecting during recording, if the lenses face toward a harsh or brighter light, a glow aect
may occur.
The maximum recording times are:
Movie size 4GB 8GB 16GB 32GB 64GB 128GB 256GB
00:08:00 00:16:00 00:32:00 01:05:00 02:07:00 04:16:00 08:42:00
00:08:00 00:16:00 00:32:00 01:05:00 02:07:00 04:16:00 08:42:00
00:28:00 00:57:00 01:56:00 03:51:00 07:33:00 15:12:00 30:59:00
00:18:00 00:37:00 01:16:00 02:31:00 04:56:00 03:39:00 20:16:00
00:08:00 00:16:00 00:32:00 01:05:00 02:07:00 04:16:00 08:42:00
00:24:00 00:29:00 00:58:00 01:57:00 03:50:00 07:42:00 15:43:00
00:08:00 00:16:00 00:32:00 01:05:00 02:07:00 04:16:00 08:42:00
00:18:00 00:37:00 01:15:00 02:30:00 04:54:00 09:51:00 20:05:00
00:18:00 00:37:00 01:15:00 02:30:00 04:54:00 09:51:00 20:05:00
00:18:00 00:37:00 01:15:00 02:30:00 04:54:00 09:51:00 20:05:00
00:30:00 01:00:00 02:03:00 04:04:00 08:01:00 16:07:00 32:51:00
00:21:00 00:43:00 01:28:00 02:56:00 05:54:00 11:34:00 23:34:00
26
Self Timer:
Setting the self-timer function:
There are 3 options:
Ù4FMG5JNFS0ū Ù 4FMG5JNFSTFD Ù Self Timer - 10 sec
Electronic Image Stabilization (EIS):
Setting the Electronic Image Stabilization (EIS) function:
There are 2 options:
Ù&OBCMF Ù O
Shooting Modes Number of Recording Pixels
Still
7360x3680 360° -
5520x2760 360° -
7360x3680 360° -
5520x2760 360° -
3680x3680 235° -
3525x2644 197° -
3840x2160 197° -
Movie
3840x1920 15fps 360° -
3840x1920 24fps 360° -
1920x960 30fps 360° -
2880x2880 24fps 235° 207°
1920x1920 30fps 235° 207°
3840x2160 30fps 197° 172°
1920x1080 60fps 197° 172°
1920x1080 60fps 155° 140°
1920x1080 60fps 100° 91°
1280x720 60fps 67° 61°
Hi Speed Movie 1280x640 120fps 360° -
1280x720 120fps 197° -
When the camera is set in VR Mode, the EIS setting is not available.
27
Motion Detection:
Motion detection means if the camera detects moving objects entering into view, it will automatically start recording. During the recording process, if there is
no moving object detected for 10 continuous seconds, the recording will pause automatically.
There are 2 options:
Ù &OBCMFÙ O
Operation method:
1. Select and return to the main menu interface.
2. The display will show the icon. Press the button to activate. When the product detects moving objects, it will automatically start recording.
3. The product will stop recording when there is no change in the image or lack of movement after 10 seconds. When the image changes or the camera senses
movement again, the camera will start recording again automatically and a new video ile will be generated after each pause and restart.
1 2
ʒ indicates the total time of recording
ʓ indicates the total time from enabling the Motion Detection setting
4. Press the button to stop recording and detecting.
Wind Reduction:
Wind reduction refers to the camera's ability to reduce the amount of noise caused by wind or high speed according environments.
There are 2 options:
Ù &OBCMFÙ O
28
Color:
Set Image Color.
There are 3 options:
Ù /PSNBMÙ #MBDLBOE8IJUFÙ Vivid
White Balance:
White balance means the user can adjust the color temperature under dierent light sources to help ensure that the colors in photos and videos are
reproduced as accurately as possible.
There are 6 options:
Ù Auto White Balance Ù %BZMJHIUÙ $MPVEZÙ 'MVPSFTDFOUÙ *ODBOEFTDFOUÙ Underwater
Exposure Compensation:
Adjust picture brightness. The adjustable range of the camera's exposure compensation value is from EV -3.0 to EV +3.0.
Photo Size:
Set photo resolution.
There are 7 options:
Ù Ù Ù Ù 5520×2760(2:1)
Ù Ù Ù 3840×2160(16:9)
Number of photos that can be stored:
Photo size 4GB 8GB 16GB 32GB 64GB 128GB 256GB
190 380 780 1560 3050 6140 12520
330 680 1370 2730 5350 10760 21700
190 380 780 1560 3050 6140 12520
330 680 1370 2730 5350 10760 21700
370 760 1530 3060 5960 11970 24410
530 1080 2190 2080 8510 17110 17110
600 1210 2450 4890 9530 19160 39060
29
General Settings
Menu Sub-Menu Selectable Options
X.XX
30
Audio / Sound
Set the audio / sound levels of the camera.
There are 4 options:
Ù 4PVOE0ūÙ 4PVOEÙ 4PVOEÙ Sound 3
Automatic Power O
When this function is enabled, if there is no action taken within a set time frame (except while recording or connected to Wi-Fi), the camera will automatically
power o.
There are 2 options:
Ù NJOVUFTÙ O
USB Connection Mode
The mode of connecting the camera via a Micro USB cable to a computer is available. If there is a need to read, save photos or videos, please select the "Mass
Storage" mode from the menu settings. If there is a need for the camera to serve as a video chat (SKYPE) camera, please select the "Webcam" option.
There are 2 options:
Ù .BTT4UPSBHFÙ Webcam
When the Webcam is being used, the power can only be supplied by the camera's internal Li-ion battery, so a fully charged battery is highly recommended.
Date / Time
Set the date and time in the camera.
1. The display shows the date and time setting screen, "Year, Month, Day, Hour : Minute : Second";
2. The ield to be adjusted will be highlighted with a black background color. Press the (up) or (down) button to adjust the value, press the button
to conirm value.
3. After adjusting the "Minute" value, press the button to enter the Sub-Menu Interface.
31
Format
Format will clear all data stored on the memory card and will fully erase all photos and videos stored on the card.
There are 2 options:
Ù $POȗJSNÙ Cancel
To select , press the button to start formatting the card and return to the sub-menu interface after completion.
Reset Settings
Reset settings will recover abd reinstall all standard product settings to the factory defaults (except for date and time).
There are 3 options:
Ù $POȗJSNÙ $BODFMÙ Reset Password
If select , press the button to start reset and return to the sub-menu interface after completion.
FW Version
The FW version will display the current irmware version installed on your camera. Press the button to return to the sub-menu interface.
If there is a new version stored in a folder irmware on the memory card, the irmware can be updated by inserting the memory card and updating the irmware.
There are 2 options:
Ù $POȗJSNÙ Cancel
If select , press the button to start updating the new irmware and the camera will automatically power o after completing and installing the
irmware update.
If the low battery warning appears, fully charge the battery before reattempting to update the irmware.
Date Stamp
Include a date stamp on the photo image.
There are 2 options:
Ù %BUF4UBNQ@0OÙ Date Stamp_O
/ will not allow a date stamp on the photo images.
32
BLUETOOTH Remote Control-D
1
2
3
Speciications
Model: RRBK04
Dimension:30×20×13.7mm
Weight: 27±2g (including battery)
Dust Proof: IP6X
Temperature: -10° to 40°C
Humidity: 0~90%
Battery: Button Cell CR2032
1. BLUETOOTH Signal Test Button
2. Connect / Shooting Indicator
3. Recording / Shooting Button
Remote Control View
Before Using:
Pull the insulating strip completely out prior to operating the remote control.
Insulating Strip
33
Installation of the Remote Control Mount-B /Mini Remote Control/3Leg Stand:
1. Press the Mini Remote Control mount onto the 3Leg Stand (Fig. 1). Close the tripod (Fig. 2).
Align the mount anchor point with the tripod anchor point.
2. To mount the Mini Remote Control and align it between the two location holes at the bottom of the mount (Fig. 3), align the remote control with the two
locating points at the top of the mount (Fig. 4), and snap into place.
Mount Anchor Point
Locating point
(1) (2) (3) (4)
Installing the Battery:
Use a screwdriver to remove the screw on the backside of the remote control by turning it counterclockwise (Fig. 1). Open the battery cover and insert the
battery (Fig. 2), close the battery cover and rotate the screw in the opposite direction to tighten down.
Screw
Battery Cover
Negative
34
Pairing the Camera Via BLUETOOTH Remote Control:
1. Pair the camera to the remote control
This method is for one remote control for one camera:
With the camera turned on, press the button for 2 seconds to enter the pairing mode.
Press and hold the and buttons simultaneously on the remote control until pairing is successful.
35
While attempting to pair, the remote control should be held close to the camera.
2. Press the button on the remote control to start shooting or recording and press the button again to stop recording.
Other parameters in the camera will remain the same as initially set.
3. To terminate remote control pairing, press the button.
36
Successful Pairing Between the Camera and the Remote Control:
1. If the camera is powered off, the camera can be powered on and will start recording by pressing the botton on the remote control.
2. To test if the camera is powered on or whether the remote control is paired successfully, press the button. The camera will power off by pressing and
holding the button for 1.5 seconds or more.
3. Using the mini remote control, all settings or parameters set in the camera's menus for shooting or recording will remain the same as initially set.
Upon successful pairing, both the remote control and camera will remember the BLUETOOTH information.
Indicator Lamp Status Description:
1. If pairing is successful, the signal indicator light will turn green.
2. If pairing fails, the signal indicator lamp will turn red.
3. When recording or shooting with the Mini Remote Control, the shooting status indicator lamp will turn red.
4. When the remote control's battery level is less than 20%, the indicator light will turn orange.
Precautions:
1. If the Wi-Fi, NFC or HDMI connection or computer connection with the camera are enabled, the remote control function is not available.
2. The remote control operates at band 2.4GHz. Because microwave ovens, radios and amateur radios also use the same cyclic wave, it is possible to experience
radio interference.
3. Before using the remote control, please make sure there are no other electronic devices or radio stations, etc. around. Please use the camera and remote
control in an environment with better permeability and free from obstructions.
4. Radio interference and other circumstances may cause a malfunction of the remote control. Pay attention to the actual conditions of the camera when using
the remote control.
37
A remote control can be used for remotely controlling the camera at a long distance.
The remote control is optional. If you need one, contact the local retailer to buy or access http://kodakpixpro.com for details of customer service.
You can wear the remote control on your wrist to perform long-distance control on the camera by operating the remote controller.
Speciications
Model: RRWH03
Dimension: 46.9×46.1×13.7mm
Weight: 28g (including battery)
Waterproof: 5m (16 feet)
Crashproof: 2m (6.5 feet)
Dustproof: IP6X
Temperature: -10 to 40°C
Humidity: 0~90%
Battery: Button Cell CR2450
1
7
6
5
2
3
4
8
1. Signal Indicator Lamp
2. BLUETOOTH Signal Test Button
3. Shooting Mode Switch
4. Battery/Memory Card Indicator Light
5. Recording / Shooting Button
6. VR 360°/Front 155°/Round 235° Mode Switch
7. Shooting Status Indicator Lamp
8. Battery Cover
Remote Control View
Installing the Battery:
Open the battery cover plate with the included accessories tool in a counter clockwise direction. Insert the battery with the anode facing upward. Replace cover
CR2450 plate over battery and turn clockwise to lock into place.
CR2450
BLUETOOTH Remote Control-C
Positive
Negative
38
Pairing the Camera Via BLUETOOTH Remote Control:
1. Pair the camera to the remote control
This method is for one remote control for one camera:
With the camera turned on, press the button for 2 seconds to enter the pairing mode.
Press and hold the and buttons simultaneously on the remote control until pairing is successful.
39
While pairing, the remote control should be held closer to the camera.
2. Set the desired shooting mode (movie mode or snap shot photo mode ) and the display mode (VR , Round or Front ).
Other parameters are set the same as the current settings of the camera at the same mode.
3. Press the button on the remote control to start shooting or recording and press the button again to stop recording.
40
Successful Pairing Between the Camera and the Remote Control:
1. To test if the camera's powered on or whether the remote control is paired successfully, press the button. The camera will power off by pressing and
holding the button for more than 1.5 seconds.
2. When the button on the remote control is pressed to start recording or shooting, the camera works with the current setting of the remote control.
Upon successful pairing, both the remote control and camera will remember the BLUETOOTH information.
If the camera has been powered off for more than 12 hours, it is impossible to power on the camera directly with remote control.
Indicator Lamp Status Description:
1. If pairing is successful, the signal indicator light will turn green.
2. If pairing fails, the signal indicator lamp will turn red.
3. During remotely controlled recording or shooting, the shooting status indicator lamp turns orange.
4. When the battery level of the camera is less than 25% or the memory card is full, the battery/memory card indicator lamp turns red.
Precautions:
1. If the Wi-Fi, NFC or HDMI connection or computer connection with the camera are enabled, the remote control function is not available.
2. The remote control operates at band 2.4GHz. Because microwave ovens, radios and amateur radios also use the same cyclic wave, it is possible to experience
radio interference.
3. Before using the remote control, please make sure there are no other electronic devices or radio stations, etc. around. Please use the camera and remote
control in an environment with better permeability and free from obstructions.
4. Radio interference and other circumstances may cause a malfunction of the remote control. Pay attention to the actual conditions of the camera when using
the remote control.
41
User Interface
Micro USB Interface
Charging Your Camera:
14
Using an External Power Supply
In the case of low battery power or when a long-term power supply is needed, an external power supply (AC adapter, vehicle power supply, portable power
supply or other power unit) can be used instead of a battery. The camera settings for functions, photography and other operation can be performed normally.
When powered on, use the Micro USB cable to connect the camera to an external power supply. When connected with an external power supply, this icon " "
will be displayed on the camera's LCD.
When powered o, use the Micro USB cable to connect the camera to the external power supply. Press the button to power on. When connected to an
external power supply, " " will be displayed on the camera's LCD.
Requirements for the external power supply: output power of 5 V, output current of 1 A.
Insert the battery into the camera before using an external power supply to charge the camera.
Data Transmission
Use the Micro USB cable to connect the camera to a computer and copy iles from the camera to the computer.
The steps are as follows:
1. Set the USB connection mode to in the camera menu.
2. Use the Micro USB cable to connect a computer (on) to the camera (on). During the connection, the camera will display " " and the computer will
automatically detect the camera.
3. Open the camera folder on the computer to copy your iles to the computer's hard drive. After the transmission is complete, please unplug the USB cable in a
safe manner according to the computer's settings and operation manual.
4. The camera will automatically power o when the Micro USB cable is unplugged.
Your computer operating system version needs to be Mac OS X10.9 and above or Windows 7 and above.
42
The folder structure of a microSD card on which this camera has performed recording is as follows:
͓ Folder numbers range from 100 to 999. Four alphabetic characters indicate the camera lens type.
Five or eight alphabetic characters indicate the ile type.
The character shows the camera lens type used in the shot:
VR: 360 Spherical / VR Mode : _
Dome: 235 Spherical Mode: R
Front: 155 4K [16:9] Full Frame Mode : F
͓ VR iles formattedͧEach folder stores a maximum of 9999 still picturesͨ
Still pictures in .jpg format
Movie iles in .mp4 format
If you want to have a 360° viewing experience, please watch the video recorded by the ORBIT360
4K/4KVR360. Playback your photos or videos using the application program dedicated for the
ORBIT360 4K/4KVR360.
100VR360
DCIM
ORBIT360 4K
43
Webcam:
Connect the camera and computer via a Micro USB cable to use the ORBIT360 4K/4KVR360 as a Webcam.
 %PXOMPBEUIFESJWFSTGPSUIF"11Ô1*9130738FCDBNÕGSPNUIFPȘJDJBM,0%",1*9130XFCTJUFBOEJOTUBMMJUPOUPUIFDPNQVUFSBTQSPNQUFEPOZPVS
computer's screen.
Americas
http://kodakpixpro.com/Americas/
support/downloads.php
Europe
http://kodakpixpro.com/Europe/
support/downloads.php
2. Set the USB connection mode to from the camera's menu.
3. Connect the computer (while turned on) and camera (while turned on) via a Micro USB cable. While connecting, the camera will display “ ” and the
computer will detect the camera automatically.
4. Open the video software (SKYPE) in your computer and select “Options” from the “Tools” menu. Click on “Video Settings” and select “PIXPRO 360 VR Webcam”
as the video input device. By clicking on “Webcam Settings” you may change various settings.
44
5. Change any desired settings and click on “OK” to exit.
The image size can be adjusted on your computer. If you choose a resolution of 1280×720, the image will be displayed in an aspect ratio of [16:9].
This function supports Windows 7 and higher OS. (Graphics GPU must support Direct 3D 10.)
Applicable Video Software: SKYPE™.
The Webcam consumes battery power, so we recommend you use fully charge your camera's battery. (A fully charged battery and selecting HD image
quality will work for approximately 6 hours).
The Webcam function is not available if the battery is not inserted into the camera.
While using the Webcam mode, the camera can only be connected to the USB interface with the Cisco Discovery Protocol (CDP) feature and it will
consume the camera's battery power. (Please connect to the USB interface with the camera turned on).
45
Micro HDMI Interface:
To connect your camera to a TV, use a Micro HDMI cable (sold separately).
After the connection is successful, the iles on the memory card of the camera should be displayed on the television, while or
Liveview
is displayed on
the camera's LCD.
Shooting and Playback Functions on the Camera:
1. Press and hold the button to switch between the video playback mode and the shooting modes.
2. Press the (up) or (down) buttons to browse the folders and iles in the playback modes.
3. Press the button to start playing videos and photos and press the button again to stop playing while in the recorded folders and iles.
4. Set the camera parameters according to requirements in the menu irst while in the shooting mode. Then return to the main camera screen, press the
button to shoot or start recording and press the button again to stop recording.
In the live view mode, the frame rate depends on the video settings.
46
Playback Functionality from your TV's and Remote Control:
1. Press the left and right keys to switch between the folders and iles on your camera's Micro SD card.
2. Press the button to return to main menu.
3. Press the button to hide or display the TV screen information.
4. For browsing the video folders and iles, press the TV remote control central key to start playing, press the left arrow to fast reverse, press the right arrow to
fast forward and press the central button again to pause playback.
5. Press the button to delete the current ile and select to conirm deletion.
6. Press the button to stop playing.
Only HDMI televisions having the Consumer Electronics Control (CEC) function can support this function.
47
Download and Install APP
Smart Devices:
Download the APP installation package (APP name: PIXPRO 360 VR Remote Viewer) to your smart device from the path below and install it by following
the instructions on the interface.
For ANDROID devices, search and download the APP "PIXPRO 360 VR Remote Viewer" in Google Play and install it by following the instructions on your
smart device's interface.
For iOS devices, search and download the APP "PIXPRO 360 VR Remote Viewer" in APP Store and install it by following the instructions on your smart
device's interface.
Personal Computers:
Download the "PIXPRO 360 VR Suite" (for Mac or Windows) installation package GSPNUIFPȘJDJBM,0%",1*9130XFCTJUFBOEJOTUBMMJUPOZPVSDPNQVUFS
by following the prompts on the interface.
Americas
http://kodakpixpro.com/
Americas/support/downloads.php
Europe
http://kodakpixpro.com/Europe/
support/downloads.php
Please review the following items before your irst time connecting:
1. Do not use in places with high intensity magnetic ields, electrostatic and electric wave interference (for example near a microwave oven), which may or
may not cause failure in receiving proper signals.
2. Do not use the Wi-Fi or NFC connection or functions on an airplane.
3. To maintain your connection, please keep the ORBIT360 4K/4KVR360 within 32.8 feet (10 meters) without signal shielding interference.
4. The ORBIT360 4K/4KVR360 and the smart device can only be connected one to one.
5. The ORBIT360 4K/4KVR360 and personal computer can only be connected one to one.
6. Your smart device operating system version needs to be iOS 9 or higher on Mac or ANDROID 5.0 or higher. iPad mini1 / iPad 4 / iPhone 5c and earlier
models (any system versions) will not support this APP.
7. Your computer operating system version needs to be OS X10.9 on Mac and Windows 7 and above.
Wi-Fi Mode
48
1. Camera:
Check SSID (Service Set Identiier) (PIXPROORBIT360_XXXX / PIXPRO-
4KVR360_KXXXX) and password (initial password: 12345678) indicated on
the label in the battery compartment of the camera. Press the button
to enable Wi-Fi mode. The camera will enter the pending connection mode
interface two seconds later:
Connecting your Camera to Smart Device (or Personal Computer) with Wi-Fi:
Operation Method:
2. Smart Device or Personal Computer:
When you enable Wi-Fi mode, the camera will automatically search nearby
Wi-Fi hotspots. Select the one with the same SSID (PIXPROORBIT360_
XXXX / PIXPRO4KVR360_KXXXX) and input the camera's password. (Default
Password: 12345678)
PIXPRO-ORBIT360_XXXX
3. Camera:
When the Wi-Fi connection is successful, enter the Wi-Fi connection
interface.
4. Smart Device or Personal Computer:
When connected via Wi-Fi, you can tap the APP icon on the smart
device to start it; or double-click the APP icon on the desktop of your
computer to start it.
5. Camera:
When the APP is connected to the camera, the APP connection interface will
appear.
When recording has started via the APP, the recording interface will appear
on the camera's LCD.
49
If the Wi-Fi connection is dropped while recording, the camera will continue to record and will enter the connection free recording mode.
When displays in the interface, press the button and press the (up) or (down) button to select . Then press the button to exit
the Wi-Fi connection mode.
50
Connecting Camera to Smart Device with NFC
1. These instructions are to enable NFC connection on your smart device.
2. Use your smart device to lightly touch the NFC mark on the ORBIT360 4K/4KVR360 camera. If the smart device has a prompt tone or vibration that means the
connection is successful.
3. The APP will automatically open on your smart device.
The NFC feature is only available when your smart device's screen is unlocked.
51
Appendices
Speciications:
Design and speciications are subject to change without notice.
Image Sensor A
Type 1/2.3" BIS CMOS
Eective Pixels 20.68 Megapixels
Total Pixels 21.14 Megapixels
Lens A
Focal Length 1.633mm
Equivalent to 35mm ilm 9.18mm
F Number F2.4
Lens Construction 7 groups 8 elements
Focus Fix Focus
Field of View
Max. 197 Degrees (For Front Mode [16:9])
Max. 155 Degrees (For VR Mode [2:1])
Focusing Range 30cm~f
Image Sensor B
Type 1/2.3" BIS CMOS
Eective Pixels 20.68 Megapixels
Total Pixels 21.14 Megapixels
Lens B
Focal Length 1.257mm
Equivalent to 35mm ilm 7.08mm
F Number F2.4
Lens Construction 7 groups 8 elements
Focus Fix Focus
Field of View Max. 235 Degrees
Focusing Range 30cm~f
Anti-Handshake Electronic Image Stabilization (EIS)
52
Number of Recording
Pixels
Still Image
27MP: 7360x3680 (2:1) Stitched
VR Mode / 360 Spherical
15MP: 5520x2760 (2:1)
27MP: 7360x3680 (2:1) Global
15MP: 5520x2760 (2:1)
13MP: 3680x3680 (1:1) Dome Mode / 235 Spherical
8MP: 3840x2160 (16:9)
Front Mode / [16:9] Full Frame
9MP: 3525x2644 (4:3)
Movie
(2:1)
3840×1920/24fps Global
VR Mode / 360 Spherical
3840×1920/15fps
Stitched
1920×960/30fps
(1:1)
2880x2880/24fps
Dome Mode / 235 Spherical
1920×1920/30fps
(16:9)
3840x2160/30fps
Front Mode / [16:9] Full Frame
1920x1080/60fps
1280x720/60fps
High-speed Movie :
1280×640/120fps(2:1) VR Mode / 360 Spherical
1280x720/120fps(16:9) Front Mode / [16:9] Full Frame
File Format
Still Image Exif 2.3 (JPEG)
Movie MP4 [Image: H.264; Audio: AAC(Stereo)]
Camera Modes VR Mode (Lens A and Lens B), Round Mode (Lens B), Front Mode (Lens A)
Shooting Modes Photo, Hi-Speed Movie, Movie, Burst
Splash proof Equivalent to JIS/IEC IPX5 (Body)
Shockproof Up to 2m (with lens cover)
Dustproof Equivalent to JIS/IEC (IP6X)
53
Freeze-prooing -10°C
LCD 1.0 inch TN LCD (With Backlight)
Level Gauge 3 Axis
ISO Sensitivity Auto (100~1600) (Photo) Auto (100~800) (Movie)
Exposure Metering Method Artiicial Intelligence AE (AiAE)
Exposure Control Method Program AE
Burst Supported
White balance Auto White Balance, Daylight, Cloudy, Fluorescent, Incandescent, Underwater
Recording Media
Internal Memory: No
microSD / microSDHC / microSDXC Card (Up to 256GB Support)
Language English
Interface USB 2.0 (Micro 5 pin USB) , HDMI (Type D), Stereo Microphone Input (Diameter of 2.5mm)
Wi-Fi Supported (802.11b/g/n)
NFC Supported
BLUETOOTH Supported (BLE4.1)
BLUETOOTH Remote Control-D Supported
BLUETOOTH Remote Control-C Supported (Option)
Power Rechargeable Li-ion Battery LB080, 3.6V 1250mAh, In-Camera Charging
Shooting Capability (Battery
Performance)
Approx. 150 shots (Based on CIPA Standards) (Wi-Fi on)
Approx. 80 minutes for Video (@3525x2644 /15fps) (Wi-Fi on)
Operation Environment Temperature: -10 ~ 40°C, Humidity: 0 ~ 90%
Dimensions (W×H×D) Approx.55.0×55.0×66.9 mm (without lens cover) (Based on CIPA Standards)
Weight Approx. 130g (only body)
Approx. 156g (with battery and memory Card)
54
Prompts and Warning Messages:
Message Description Recommended Action
There are too many iles, which may cause a delay in powering on.
When pressing the button for recording, the memory card cannot be accessed
because there are too many folders/iles.
After copying the iles to your computer,
choose to delete or reformat Micro SD
Card.
No memory card is detected in the camera. Insert your memory card.
When turning on the product or pressing the button, the product detects that the
memory card is out of capacity.
After copying the iles to your computer,
choose to delete or reformat Micro SD
Card.
The memory card still cannot be recognized after formatting.
An error occurs when reading the memory card.
An interruption has been encountered during shooting or recording so the camera
cannot shoot or record any further.
Reformat the memory card.
When the writing speed is too slow, recording cannot continue. Please select a Class 10 memory card or
higher for optimum performance.
File processing (saving, formatting, etc.) time exceeds 2 seconds. No action required.
Connecting to your computer or TV. The display will disappear after a
successful connection.
55
Message Description Recommended Action
The camera is set to "Mass Storage" device and is connecting to the computer via
USB. No action required.
The camera is set to "Webcam" and is connecting to the computer via USB. No action required.
Connecting to a HDMI device. No action required.
A warning for low battery before the camera will shut down automatically.
5IFȗJSNXBSFDBOOPUCFVQEBUFEXJUIJOTVȘJDJFOUCBUUFSZQPXFS Charge or replace with a new battery.
Updating irmware.
No action required. The camera will
turn o automatically after the update is
complete.
Battery temperature is too high. The product will automatically shut down.
Remove the battery carefully when the
product is shut down. The battery can be
used again after cooling down.
56
Trouble Shooting:
Problem Possible Causes Recommended Action
Camera does not turn on The battery has been depleted.
The battery is installed incorrectly.
Charge the battery.
Follow the charging instructions in the manual to
properly install the battery.
Blurred Images There could be smudges or dirt on the camera's
lenses or the lens covers. Clean carefully with a clean, lint-free, dry cloth.
Failed to Connect to Wi-Fi Wrong password entered.
Re-enter the password. If you have forgotten the
password after changing it from the default factory
password, you can use the reset function to restore
the initial factory default password: 12345678
Slow Wi-Fi Connection There are too many programs running
simultaneously on your smart device.
Close other unnecessary programs and APPs
connecting or running on your smart device.
Micro USB Connection Failure The wrong USB connection mode has been
selected.
Conirm the USB connection mode in the camera
menu. If there is a need to read, save videos or
photos, please select "Mass Storage". If there is
a need to serve as a video chat (SKYPE) camera,
please select "Webcam".
The Kodak trademark, logo and trade dress are used under license from Kodak.
© 2017 JK Imaging Ltd. All Rights Reserved.
JK Imaging Ltd. 17239 So. Main Street, Gardena, CA 90248 USA
JK Imaging Europe, 71 Clarendon Road, Watford, WD17 1DS, UK
kodakpixpro.com
Made in Myanmar
Ver. 1
