Users Manual

Satellite

Radio

Receiver

User

Guide

SA10035

FCC ID: RS2SA10085

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interferernce, and

2. This device must accept any interference received,

including interference that may cause undesired

operation.

IMPORTANT: The FCC and FAA have not certified the

Delphi XM Roady2 Satellite Radio Receiver for use in any

aircraft (neither portable nor permanent installation).

Therefore, Delphi cannot support this type of application

or installation.

Welcome

Thank you for purchasing a Delphi XM®Roady2™Satellite Radio Receiver.

Your Roady2 gives you access to over 120 XM Satellite Radio channels of

music, news, and information from coast-to-coast.*

Your Roady2 must be used with the enclosed connecting

devices to ensure maximum performance and safety.

*XM subscription required for reception. Not available in Alaska or Hawaii.

Warning: Do not modify or alter wires or connections in any way.

Shortening wires or connections may prevent proper functioning of the protec-

tion circuit. Doing so may damage your receiver and will void your warranty.

About Roady

Roady2 is the latest in the acclaimed line of portable devices from Delphi XM

Satellite Radio and represents the best in audio technology. The smallest and

lightest satellite radio receiver available, Roady2 is always ready to go with

you. Just plug it in and go! Roady2 now contains an integrated wireless FM

modulator for the ultimate in convenience, and a stock ticker that will let you

track up to 20 of your favorite stocks while listening to any XM channel.

About Delphi

Delphi is a worldwide leader in mobile electronics and transportation

components of audio technology. Delphi created the first in-dash car radio

decades ago, and is responsible for many audio innovations through the

years. Now Delphi technology has helped make satellite radio a reality,

and Delphi continues to expand its in-vehicle and consumer electronics

technologies. Delphi has a broad portfolio of products to answer a wide

variety of information and entertainment needs.

About XM

One big idea can change everything. And XM Satellite Radio is one big idea:

Radio to the Power of X®. America’s most popular satellite radio service offers

over 120 digital channels of sheer variety: music, sports, talk, comedy, drama,

news, traffic and weather, kids programming, and more. All 68 XM music

channels are now 100 percent commercial-free, and XM’s instant traffic and

weather channels provide the most comprehensive, in-depth information on

traffic incidents, delays, and road conditions available on radio. These services

are available for a low monthly subscription, and additional devices may

qualify for a reduced subscription fee through the XM Family Plan.

Contents

Section 1

Getting Started: Activating

Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Section 2

Roady2 Receiver

Roady2 Display Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Roady2 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Section 3

Basic Operations

Turning Roady2 On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Basic Channel Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Changing the Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Save and Recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Section 4

Menu Commands and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Section 5

Installation

Roady2 Kit Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Roady2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

XM Antenna Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Section 6

Reference

Taking Care of Your Roady2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Contacting Customer Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Section 7

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Section 1

Getting Started: Activating Roady2

To quickly begin enjoying Delphi XM Satellite Radio, follow these simple steps:

1. Set up your Roady2 using the installation instructions in Section 5 of this

guide (see page 17) or with the help of a professional installer.

2. Press the power button to turn the Roady Receiver on and verify that it

is playing Channel 1, the XM Preview Channel.

3. Select Channel 0. The receiver’s eight-character XM Satellite Radio ID

number will appear on the display. Write the number here:

4. Activate your XM Satellite Radio service. To subscribe, make sure you

have a major credit card and your XM Satellite Radio ID number handy

and contact XM at http://activate.xmradio.com. You can also activate

your service by calling 1-800-852-9696.

Note: You will need to keep your Roady2 on for at least one hour after activation and installation to

receive the full channel lineup.

Caution: Failure to properly

follow all installation instructions

may result in personal injury or damage

to your Roady2 or to your vehicle.

Warning: When using this product it is

always important to keep your eyes on the road and

your hands on the wheel. Not doing so could result

in injury to you or to others or in property damage.

Note: Carefully check your XM Radio ID. The letters I, O, S, and F are not used.

Roady2 Receiver

Roady2 Display Screen

While tuned to an XM channel, the Roady2 default display contains

information about that channel and the Roady2 settings. See figure 1.

Signal-strength indicator

(zero to three bars) Keypad mode (Direct, Preset A,

Preset B, or Preset C)

Channel name

and number

Artist name

Figure 1. Roady2 display.

Section 2

Display mode

indicator

Category search

indicator

Tuning Wheel (inset

on corner of unit)

Power button

Category search

Control keys

Figure 2. Roady2 controls.

Number keys

Infrared lens

Roady2 Controls

Section 2

The Roady2 unit has seven function buttons, a Tuning Wheel, and 10 number keys.

Turns the Roady2 on or off.

The display button toggles between three display options:

1. Channel name, channel number, artist name

2. Channel name, channel number, song title

3. Artist name, song title

4. Artist name, stock ticker

Press Memory to save artist name and song title information. Press

and hold memory key to recall information.

Press Menu to select and change receiver configuration options.

Pressing Menu when in menu mode will allow the user to back out

to the previous level.

Switches between Direct Entry, Preset A, Preset B, and Preset C.

Enters category search and displays channels grouped by category.

Continued presses step through available categories. Use the

Tuning Wheel to scroll through channels within a category; press

the Tuning Wheel in to select a channel. Category search times out

after 6 seconds if no channels are selected.

Use the Tuning Wheel to scroll through channel or menu options.

Pressing the Tuning Wheel selects a channel or menu option.

Number keys are used to select a channel directly (when in Direct

Entry mode), and to select or set presets when in a Preset mode.

display

category

Changing the Display

Pressing lets you change what is shown on your two-line Roady2

display during normal listening mode from among four different options.

Display mode 1 (factory default) shows the channel name and channel

number on the first line and the artist name on the second line. Pressing

once switches to display mode 2, which also shows the channel name and

number on the first line, but now shows the song title on the second line.

Pressing it again switches to display mode 3, which shows the artist on the

first line and the song title on the second line. If you have entered stock sym-

bols using the stock ticker menu feature, pressing again will select a fourth

display mode, showing the artist name on the first line and a scrolling stock

ticker on the second line.

Save and Recall Artist Name and Song Title Information

You can save the artist name and song title on the current channel for future

reference.

1. Press and release to save the current screen information. Up to 20

different artist and song titles can be saved, after which any new information

that is saved will replace the oldest information in memory.

2. To recall saved information, press and hold for 3 seconds. Next, use the

Tuning Wheel to display each saved artist name/song title.

memory

display

Display Option 1 Display Option 2 Display Option 3 Display Option 4

Section 3

Figure 3. Roady2 screen displays.

Menu Commands and Settings

Pressing enters the menu section of Roady2. Here, you can change each of

the following options using the Tuning Wheel . Select the highlighted item by

pressing the Tuning Wheel . While in the menu section, acts as a “back”

button, allowing you to back out of existing sections. Following are the settings

that can be changed:

Screen Color

Change the color of the display by simply using the Tuning Wheel to scroll

through the seven color choices. Select a new color by pressing the Tuning

Wheel .

Contrast

This control allows you to adjust the contrast of your display.

FM Frequency

Roady2’s internal FM modulator can be used to send the audio to a nearby

radio using an unused FM band. It is automatically enabled whenever the

audio jack is unplugged from the side of Roady2. This menu command

allows you to use the Tuning Wheel to select the FM rebroadcast

frequency.

First, ensure that there are no connectors (such as the cassette tape adaptor

connector) in the audio jack. Then, find an open FM frequency on your car (or

home/portable) radio by using its tuning knob or buttons to sample the following

frequencies, selecting the one that does not have an existing FM radio station on

it and has the least amount of interference from neighboring FM stations:

88.1 88.3 88.5 88.7 88.9 106.7 106.9 107.1 107.3 107.5 107.7 107.9

Section 4

Next, return to your Roady2, select this option in the menu, and turn the

Tuning Wheel up or down and then push in to select the same frequency

you just set your other radio to.

Note that you may need to repeat this procedure if you travel to areas with

different FM stations in order to ensure the most static-free performance.

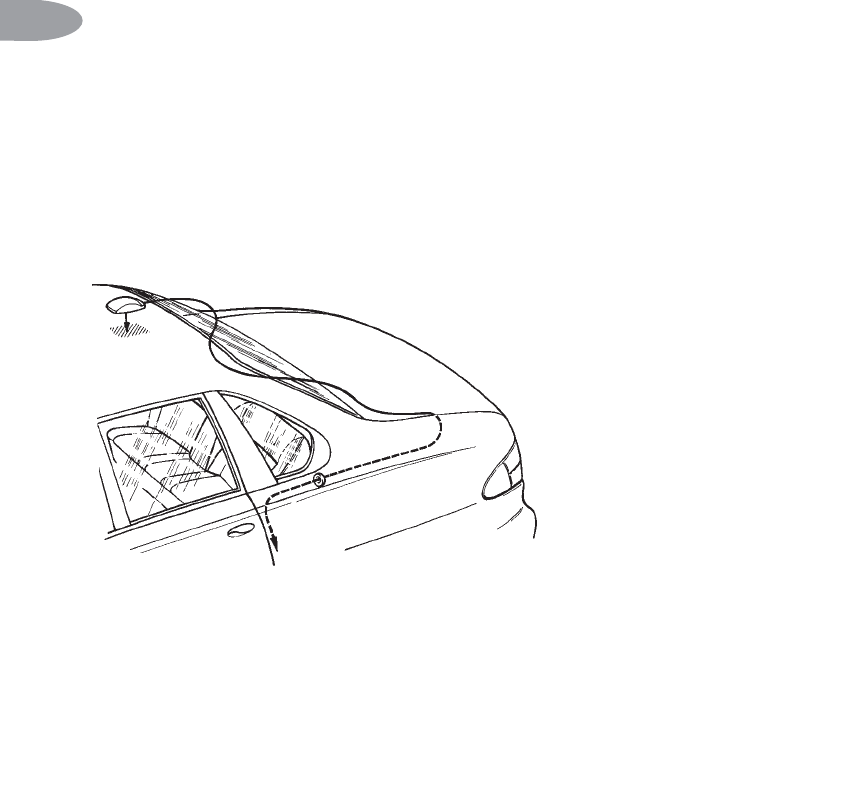

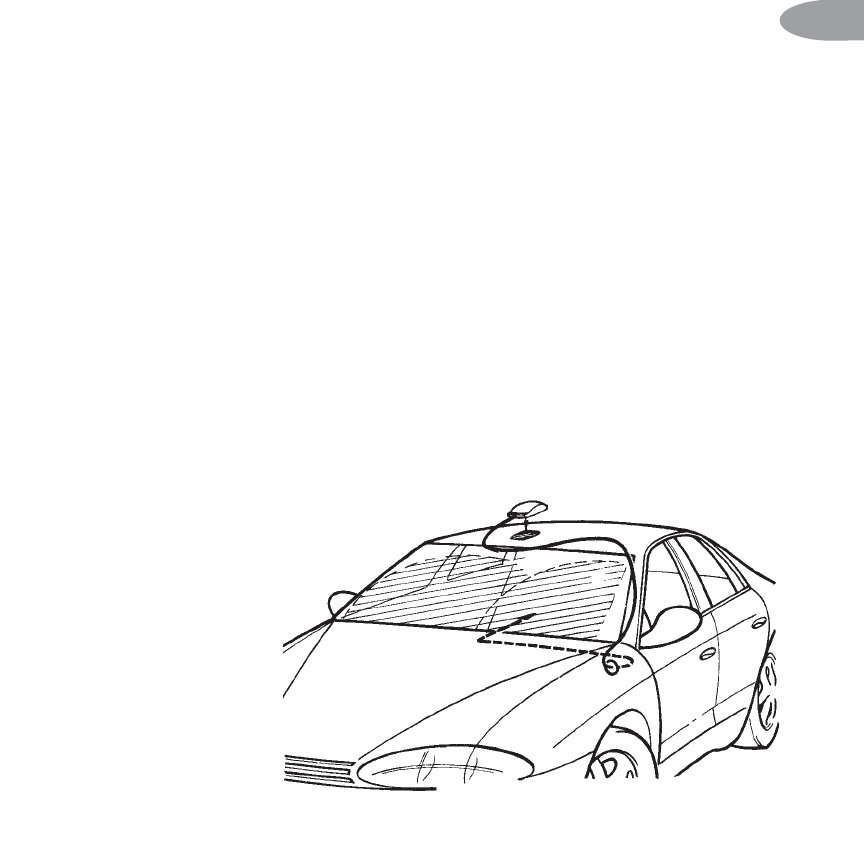

In order to optimize the performance of this feature, the XM antenna should

be installed near your vehicles FM antenna following the procedure on page

22 of this manual.

Audio Level

Use this to adjust the Roady2 audio-output level if it is too high, causing distor-

tion, or too low for your car. Most users will NOT need to change this level from

the factory setting. This is not a volume control. You should set the volume using

the audio system connected to your Roady2.

Antenna Aiming

When using the optional home kit, you can optimize the position of your home

antenna using this screen. For optimal performance, your home antenna should

be positioned to maximize the satellite signal received by your Roady2.

Memory Recall

This is an alternative way of recalling the saved artist and song title information.

It functions the same as pressing and holding .

Section 4

memory

TuneSelect™

Using this function, you can program your Roady2 to alert you with a

tone and display change when a favorite song is played again on a

channel other than the one you are listening to.

1. While the song is playing, press and hold the Tuning Wheel in

for 2 seconds. Roady2 will beep and display “Song Selected” on

line 1 of the display for 2 seconds, then return to normal display for

the current song. Up to 20 songs may be stored in the TuneSelect

list. Once the list is filled, a new entry will replace the oldest item on

the list. You can erase songs from your TuneSelect list by going into

the menu and choosing TuneSelect. Then, follow your options to

erase specific song titles or clear out all titles.

2. When the song plays again on any channel other than the one you

are currently listening to, your Roady2 will beep and display an alert

notice. “Song Found” will appear on line 1 and the name of the

song on line 2 for 5 seconds.

3. While the “Song Found” alert is displayed, push the Tuning Wheel

in to switch to the channel playing the song. If the Tuning

Wheel is not pressed while the alert is displayed, TuneSelect

will time out and return to normal display mode.

Section 4

Stock Ticker

This feature lets you enter up to 20 different stock symbols and track their

current price and daily movement.* You can thus track the performance of

any listed stock on the NYSE, NASDAQ, or AMEX.

This feature is first set up by selecting “Stock Ticker” in the menu and then

selecting “Add Stocks.” The Tuning Wheel can then be used to select each

letter in the desired stock symbol by turning to the desired letter, pressing in, and

then repeating the sequence for each additional letter. Once the desired symbol is

entered, press the Tuning Wheel in an additional time to save the stock. The

Roady2 uses an autocomplete feature based on valid stock symbols to both

simplify this process and ensure that incorrect stock symbols are not entered.

In addition, you can enter the following market indices and have them scroll on

the display with the stock prices:

For this indice Enter this symbol on your Roady2

NASDAQ COMP

S&P500 SPX

DJIA $INDUA

You can delete stocks or indices from your list by selecting “Stock Ticker” and

then “Manage Stocks.” You will then be given the choice of deleting all symbols

or selecting individual ones to delete.

*The stock and market indice information on the Roady2 is approximately 25 minutes delayed.

Direct Tune

This feature changes the functionality of the Tuning Wheel so that is

automatically selects a channel each time it is rolled, without having to press

Tuning Wheel in. Note: Roady2 does not have a preview mode when

this feature is active.

Section 4

Auto-On

Once you have installed your Roady2 and the power has been turned on

using the power button , you will discover your Roady2 has been factory-

set to be turned off and back on again using the ignition key in your vehicle.

To change this factory-set condition and always power your Roady2 on and

off with the power button , select the “Auto-On” feature in the menu and

then select “Off.”

Auto-Off

You can set your radio to automatically shut off 60, 120, or 180 minutes after

it is turned on. This feature should be used if your vehicle continues to power

the cigarette lighter/auxiliary power after you remove your key, so if you leave

it on, Roady2 will shut down automatically after the time period you select and

will not drain your battery.

Factory Default

This feature lets you restore your Roady2 to the same settings as when you

purchased it. It will erase the presets, TuneSelect, memory, and stock ticker

data stored and reset the other features to the as-shipped configuration.

Installation

Roady2 Kit Set-up

Your Roady2 Kit contains the following components:

Cell phone mount

adaptor

Vent mount

Cassette audio

adaptor

Car mount 12V power adaptorXM antenna

Your kit also includes:

• Car mount bracket

• Extra adhesive pad

• Surface preparation cleaning kit

• Alcohol prep pad

• Cable wrap

Hooking up your Roady2 Receiver

Figure 5. Connect accessories to your Roady2

as shown.

Caution: Connect only appropriate

input devices to the Roady2. Connecting an

incorrect input device may damage thesystem

and/or the external electronic device. It is

recommended that you use only the 12V

to 6V conversion power adaptor that came

with your Roady2 Kit.

Section 5

Figure 4. Roady2 Kit components.

Image to be

supplied

Section 5

Direct Connect:

Cassette Adaptor:

FM Modulator:

Wireless FM Modulator:

Audio Quality Good Better Best

Roady2 offers the listener an unprecedented variety of options for connecting

to your vehicle’s radio. All options provide excellent sound quality and stereo

separation, with the use of the cassette adaptor being most common. XM

research and lab results show, that for vehicles with a cassette player, using the

cassette adaptor maximizes the relationship between sound quality and ease

of installation.

Direct Connect

For vehicles with radio head-units equipped with auxiliary audio inputs,

connecting the audio directly to the auxiliary inputs of the head-unit (in a

limited number of vehicles these inputs are located on the dash) provides

maximum audio quality.

Cassette Adaptor

For vehicles with a built-in cassette player, using the cassette adaptor for audio

is the most popular solution.

FM Modulator

For a more professional-looking installation, an additional installation kit that

will connect Roady2 and internal FM modulator directly to your vehicle

radio’s antenna jack can be purchased from Delphi. See www.delphi.com or

your retailer for details.

Wireless FM Modulator

Many late model cars do not come with built-in cassette players. For these

cars, Roady2 includes an integrated wireless FM modulator that rebroadcasts

the XM audio signal wirelessly to the vehicle’s FM radio. This FM modulator

is automatically turned on whenever the cassette adaptor (or other audio jack)

is unplugged from the side of the Roady2. One of 12 different frequencies can

be selected, as described on page 12. In order to ensure optimum perform-

ance, the signal is broadcast to your car’s FM radio from both inside the

Roady2, and from the included XM antenna.

Roady2 Installation

Your Roady2 can be installed as follows:

1. First, attach all of the components as shown in figure 5 (page 17). Insert the

cassette audio adaptor into the vehicle’s cassette deck or, if the vehicle does not

have a cassette deck, find an open FM frequency and tune both the Roady2 FM

Modulator and the vehicle’s FM radio to that

frequency as described on page 12. Insert the

12V power adaptor into the cigarette lighter,

and the antenna on the car’s roof. Turn on

the car and Roady2 to verify that the system

is working. You should always be able to

access Channel 1, even if your service is

not activated. Disassemble the system,

and proceed with step 2.

Section 5

Warning: The Roady2 should be

placed in your vehicle where it will not

interfere with the function of safety

features, e.g., deployment of airbags.

Failure to correctly place the Roady2

may result in injury to you or others if

the unit becomes detached during an

accident.

Section 5

2. Identify a hard, flat surface within your car to allow the optimum Roady2

viewing position for the primary user as well as access to the cassette

player, power source, and antenna-cable route. In order to maximize

visibility, this position should be chosen to minimize glare or direct

sunlight on the display. Do not install the mount where it or Roady2

could block your vision, vehicle airbags, or controls. Do not install the

mount on a leather surface. The adhesive used on the mount is not easily

repositioned when installed, so please use care when choosing the location

and placing the mount.

3. Clean the vehicle mounting surface with the enclosed surface preparation

cleaning kit. Wipe with the towelette in only one direction. Do not wipe the

surface in a circular motion or back and forth. Dry area with a clean, dry

cloth. Wipe dry in the same direction again and then repeat this cleaning

process. Allow to air dry thoroughly to ensure effective adhesion.

4. Clean the same surface with the enclosed alcohol prep pad. Wipe in the

same direction and manner as with the towelette. Dry the area with a clean,

dry cloth, wiping in one direction. Allow to air dry thoroughly. Ensure that

the surface is at least 60°F.

5. Warm the car mount adhesive pad by using a hair dryer or by placing

the car mount on top of the vehicle’s defrost outlet for several minutes with

the heater on. Remove the liner from the adhesive pad and adhere to the

vehicle’s surface. Make sure you accurately place the pad on the first try

since in many cases it will bond almost immediately. 3M recommends a

72-hour curing time for maximum adhesion.

Note: Your Roady2 Kit includes an optional temporary vent mount that can be used in place

of the more permanent car mount described in steps 2 through 5 above. Follow the same

installation guidelines in selecting a vent. Assemble the mount by inserting the two clips into

the main piece, clip them onto the vent, and then position the pivoting kickstand at the bot-

tom. Be careful when applying and removing the vent mount clips to prevent damaging the

vehicle’s vent.

6. Clip the Roady2 onto the car or

vent mount (figure 6).

7. Reassemble the system as in

step 1, inserting cassette audio

adaptor into the vehicle’s cassette

deck and the 12V power adaptor

into the cigarette lighter.

8. Attach the antenna as explained on

page 22.

Removing car mount from your dashboard

You can remove the car mount from your dashboard by taking the

following steps:

1. Lift one edge of the adhesive pad gently with fingers or the rounded edge

of a spoon. Once enough of the edge is loosened to grip with your fingers,

pull the pad gently from the mounting surface at a 90-degree angle. Avoid

using sharp tools that could damage the vehicle’s interior.

2. If the pad fails to loosen, first warm it with a hair dryer for 2 to 3 minutes

to soften the adhesive. Be careful not to apply too much heat, which could

damage the mounting surface.

3. If any adhesive remains on the dashboard surface, the adhesive can easily

be removed by rubbing your thumb or finger across it.

4. As necessary, use a mild household cleaner to clean the dashboard

surface.

Figure 6. Attach car mount to back of

Roady2 as shown.

To vehicle

dashboard

Caution: Never use a commercial heat

gun or paint-stripping gun. This could result in

damage to the unit or to your vehicle.

Section 5

Figure 7. The design flexibility of your XM Antenna allows

mounting on many types of vehicles. Trunk mount-

ing of the antenna is an alternative only for hard-

or soft-top convertibles with nonmetallic rooftops.

All other vehicles should have roof mounting.

Middle

Front

Warning: Failure to properly

install the antenna may result in injury

to you or others if it becomes detached

during an accident.

XM Antenna Set-up

Antenna Installation

•Best reception is achieved with the antenna mounted on the metal surface

of the vehicle roof in the center of an area with at least 12" x 12" of surface

area and a minimum of 6" from a window or sunroof. Figure 7 shows three

typical mounting locations.

• For optimum wireless FM reception, the XM antenna should be placed in a

location close to the vehicle’s FM radio antenna. Note that in some vehicles the

FM antenna is imbedded in the rear windshield.

•If the vehicle has roof racks or skid ribs, it may be necessary to mount the

antenna off-center.

•If the vehicle roof does not provide a sufficient metal surface area, then the

antenna can be mounted on the metal trunk lid at least 4" from the rear window.

•If an appropriate antenna mounting location cannot be identified, contact

your local retailer installation department for additional guidance.

Important: Do not install antenna

inside vehicle passenger compartment.

Mounting the antenna in the passenger

compartment either on the front dash-

board or on the rear window deck area

of the vehicle will cause reception issues

and must be avoided. Mounting the

antenna on a non-metallic surface will

also result in severe degradation in

reception.

Rear

Cable Routing

•Once you have mounted the antenna in the correct location, plan how

to route the cable from this location to the receiver, avoiding blocked

passages and any obstructions that could kink, crimp, twist, or chafe the

cable. Figure 8 shows typical routing configurations. If the cable will

come into contact with a rough metal opening, use a rubber grommet

to prevent damage.

•For antenna mounting locations at the front or middle of the roof, the

cable can be routed down along the door jamb and into the vehicle. In

some vehicles, the cable may be brought into the vehicle through the

grommet in the door jamb which carries the power window and power

lock wires. If the cable does not fit easily through the grommet, do not

try to force it through. Instead, route the cable under the weather seal

near the bottom of the door.

Figure 8. Route XM Antenna through windshield as shown.

Front Mounting Option

Section 5

•For antenna mounting locations at the rear of the roof, the antenna cable

can be routed into the vehicle through the trunk, as shown in

figure 9. Always route the cable under the weather seal near the lowest

part of the trunk to help reduce possible water leaks.

•Use pre-existing wiring channels created by the vehicle manufacturer

whenever possible.

Final installation

Verify that the antenna is in its final desired position. The antenna

contains a powerful magnet that will secure the antenna to a metal roof

under normal driving conditions.

Figure 9. Route XM Antenna wiring as shown.

Rear Mounting Option

Section 6

Reference

Taking Care of Your Roady2

(Failure to follow these instructions may result in personal injury or

damage to your Roady2 or to your vehicle.)

Important:

•Use only a soft, dry cloth to clean the outside of your Roady2 and any

peripherals.

•Do not use any solvents, chemicals, or cleaning solutions containing

alcohol, ammonia, or abrasives.

•Do not allow liquids to spill on the unit.

•Do not use sprays near your Roady2.

•It is best to keep Roady2 out of direct sunlight or other sources of

extreme heat.

•Avoid placing Roady2 in a setting where air cannot circulate around

the unit.

Caution: Refrain from using

food or drinks near the Roady2.

Spilling food or drinks on the unit

could damage it.

Section 6

Troubleshooting

Your Roady2 is designed and built to provide you with trouble-free

performance without the need for service. If it does not appear to be

functioning correctly, please follow these troubleshooting steps:

1. Make sure all connectors are properly attached.

2. Make sure the cigarette lighter/auxiliary power socket is clean and free of

corrosion.

3. Make sure the adaptor is firmly seated in the cigarette lighter/

auxiliary power socket.

4. Check the adaptor fuse by unscrewing the ribbed end of the adaptor

and examining it. If required, replace with a 1-amp fuse only. If your

cigarette lighter adaptor does not have a removable end cap, then it is

equipped with an internal fuse that resets itself after it is left unpowered

for a period of time.

If you see this on the display:

NO SIGNAL

Cause: The XM

signal is being blocked.

ANTENNA

OFF AIR

Cause: The channel selected is not

currently broadcasting.

You should:

The message should disappear as

soon as you move out of an

obstructed area such as an indoor

garage. If the problem persists,

make sure your antenna is mounted

outside and on top of your car with

a clear view of the sky.

Make sure antenna is correctly

attached to the receiver and that

antenna cable is undamaged and

free from kinks. Turn the Roady2 off

and back on to reset this message.

Tune in to another channel.

Section 6

If this happens:

You do not receive all XM chan-

nels. Cause: Your Roady

Receiver is not activated.

The audio sounds distorted

The audio level is too low

You cannot tune to a

channel

No song title or artist name

displays

The audio has static

The audio on the XM instant

traffic and weather channels

does not have the same dynamic

range as the other XM channels.

You should:

Contact XM as described in “Getting Started:

Activating Roady” on page 6.

Reduce audio-output level as described under

“Menu Commands and Settings: Audio

Level” on page 13.

Increase audio-output level as described in

“Menu Commands and Settings: Audio

Level” on page 13.

Verify that you are authorized to receive that

channel as part of your subscription with XM

and that you have not asked XM to block

that channel on your Roady2 unit.

Nothing is wrong with your receiver. This is

normal on many talk and news channels

where there is no song playing. Also,

this information may not yet be in the

channel lineup for some selections.

Select a different FM frequency on your

Roady2 and your vehicle’s FM radio, as

described on page 12.

Nothing is wrong with your receiver. These

channels use a different audio technology

than the main XM channels in order to pro-

vide many different dedicated city channels.

Section 6

Contacting Product Technical Support and Customer Service

For additional information in solving problems with your Roady2,

contact Delphi at 1.877.GO DELPHI (1.877.463.3574) Monday—Friday.

• Customer Service: 8:00 am—4:30 pm Eastern Standard Time

• Technical Support: 8:00 am—8:00 pm Eastern Standard Time

Customer Service and Technical Support is also available at www.delphi.com.

Technical Information

Dimensions

Roady2. . . . . . . . . . . . . . . . XX in. W x XX in. H x X in. D

(101 mm x XX mm x XX mm)

Weight

Roady2. . . . . . . . . . . . . . . . XX oz.

(XXXg)

Inputs/Outputs

Antenna. . . . . . . . . . . . . . . RF SMB connector

Power. . . . . . . . . . . . . . . . . P13 connector, 6V DC, 600 mA average, ( )

positive polarity

Audio output . . . . . . . . . . 3.5 mm diameter ministereo jack

Section 7

XM Satellite Radio Limited Consumer Warranty

Delphi Product and Service Solutions (“Delphi”) warrants all XM Satellite

Radio Products sold by Delphi (“Products”) to be free of defects in material

and workmanship, subject to the following conditions.

The duration of Delphi’s warranty with respect to Delphi XM Satellite Radio

Products is limited to one (1) year from the date of sale to the original

consumer purchaser.

No other express warranties are made with respect to any Product. All

implied warranties, including warranties of merchantability and fitness for

a particular purpose are limited to the warranty period set forth above.

This warranty is not transferable and applies only to the original consumer

purchaser of the Product.

Delphi will, as its sole obligation under this warranty, replace or repair, at its

option, any Product that does not conform to this warranty. Under no circum-

stances will Delphi be liable for any incidental or consequential damages

under this warranty or any implied warranties.

Delphi will not be responsible for damage resulting from any (i) deviation

from Delphi’s operating instructions as printed in Delphi’s catalog or on any

packaging, labels or other literature provided with a Product, (ii) installation of

a Product in a manner which is inconsistent with Delphi’s written instructions,

(iii) alteration or modification of a Product, (iv) misuse, (v) neglect, (vi) abuse,

(vii) accident, (viii) normal wear and tear, (ix) commercial use, (x) service by

anyone other than a Delphi authorized repair facility, or (xi) other improper

application, installation or operation of the Product.

Section 7

How you (the Customer) can get service:

To obtain warranty service during the first thirty (30) days after the date of

purchase, you must return the defective Product with the original receipt to the

original place of purchase. To obtain warranty service during the remainder of

the warranty period, you must contact Delphi by phone at 1.877.GO DELPHI

(1.877.463.3574) or by fax at 1.866.790.3675.

When contacting Delphi by fax, please include a letter detailing your com-

plaint and provide a daytime phone number where you can be reached. If

further clarification or additional information is required from Delphi, you

may call Delphi at 1.877.GO DELPHI (1.877.463.3574).

If warranty service is needed at any time during the warranty period, the

purchaser will be required to furnish a sales receipt/proof of purchase

indicating the date of purchase, amount paid and place of purchase.

Customers who fail to provide such proof of purchase will be charged

for the repair of any Product.

How state law relates to the warranty:

Some states do not allow limitations on how long implied warranties last, or

the exclusion or the limitation of incidental or consequential damages. So the

above limitations or exclusions may not apply to you. This warranty gives

you specific legal rights. You may also have other rights that may vary from

state to state.

NO PERSON IS AUTHORIZED BY DELPHI TO MODIFY OR ADD TO THIS

LIMITED WARRANTY.

Delphi Corporation

1441 West Long Lake Road

Troy, Michigan 48098-5090

U.S.A.

Customer Service: [1] 877.GO DELPHI

www.delphi.com

Printed on Recycled Paper

DPSS-04-E-049

The Roady2 name, XM name, and related logos are

trademarks of XM Satellite Radio Inc.

Sirius XM Radio SA10085 WIRELESS TRANSMITTER User Manual Roady Guide keys 6 X6

Sirius XM Radio Inc. WIRELESS TRANSMITTER Roady Guide keys 6 X6

Users Manual

Navigation menu

Namespaces

Views

Navigation
