USERS MANUAL
Delphi Corporation
Troy, MI 48098 USA
www.delphi.com
Made in Malaysia
User Guide
<FCC ID>
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including
interference that may cause undesired operation.
The Delphi XM MyFi Satellite Radio Receiver incorporates an FM
transmitter and is therefore classified as an intentional transmitter.
Changes or modifications to the unit not expressly approved by
Delphi can void your authority to operate this equipment.
IMPORTANT: The FCC and FAA have not certified the Delphi XM MyFi
Satellite Radio Receiver for use in any aircraft (neither portable nor
permanent installation). Therefore, Delphi cannot support this type
of application or installation.
Table of Contents

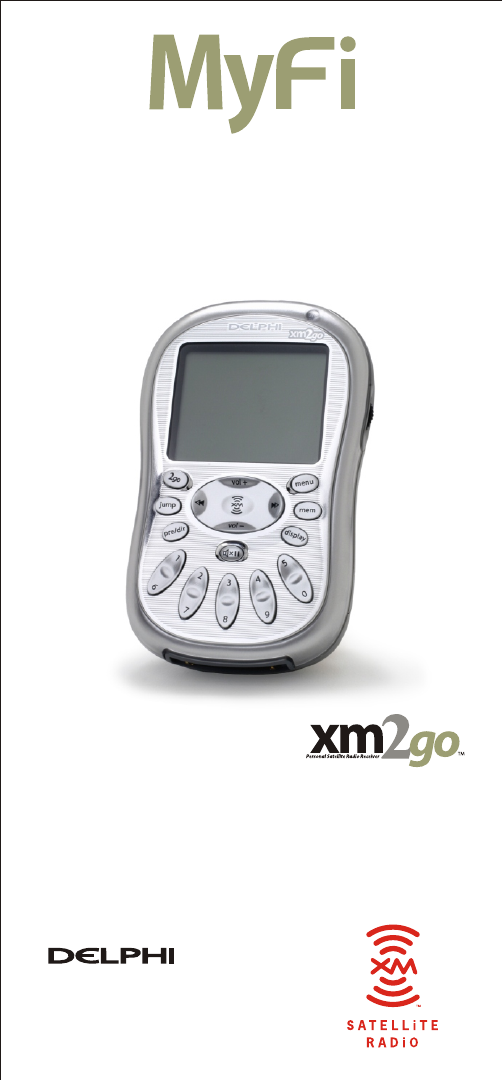

Delphi MyFi™ XM Satellite Radio Receiver - A User's Guide
Model Sa10113
Ever since XM Satellite Radio signed up its first subscriber in 2001,
we've been working constantly to create the best satellite radio
receiver. We imagined a radio that works not only in a vehicle, a
home, or an office, but something you can take with you virtually
anywhere you go. Now we have it: introducing MyFi, the world's first
truly portable satellite radio receiver.
With your MyFi, you can
<”listening” graphic> listen to live XM programming at home, in your
car, and now virtually anywhere outdoors (page ##),
<”2Go” graphic> easily save up to 5 hours of the most current XM
programming for listening at another time (page ##),
<VCR or recording or clock graphic> program it to store XM
programming at a specific time (page ##),
and personalize it to suit your lifestyle (page ##).
About Delphi
Delphi is a worldwide leader in mobile electronics, vehicle
components, and audio technology. Delphi created the first in-dash
car radio in 1936 and continues its strong tradition of innovation in
the audio industry. Now Delphi technology has helped make satellite
radio a reality, and Delphi continues to expand its in-vehicle and
consumer electronics technologies. With its exciting line of satellite
radio products, Delphi offers a broad portfolio of products to answer
a wide variety of information and entertainment needs-in the
vehicle, home, office, or virtually anywhere.
About XM
One big idea can change everything. And XM Satellite Radio is one
big idea: Radio to the Power of X®. America's most popular satellite
radio service offers over 130 digital channels of sheer variety: music,
sports, talk, comedy, drama, news, traffic and weather, kids
programming, and more. All 68 XM music channels are 100%
commercial-free, and XM's 21 instant traffic and weather channels
provide the most comprehensive, in-depth information on traffic
incidents, delays, and road conditions available on radio. These
services are available for a low monthly subscription, and additional
devices may qualify for a reduced subscription fee through the XM
Family Plan.*
*XM subscription required for reception of XM service. Not available in Alaska or Hawaii.
Satellite radio reception may vary by location due to satellite signal obstruction.
A Brief History
Let's Get Started
First, some important reminders
We know you're eager to turn on your brand new MyFi and listen to
XM. Please take a moment to remember the following:
, [!] Warning: This manual contains important safety and operating
information. Please read, understand, and follow all instructions.
Failing to do so can result in personal injury, death, and/or
damage to your MyFi receiver, accessories, and/or to your vehicle
or property.
, Caution: Use your MyFi only with the enclosed components or
approved accessories. Do not modify wires or other connections
in any way; you may cause a malfunction, which may damage
your MyFi and will void your warranty.
, [!] Warning: If you use your MyFi in a moving vehicle or watercraft,
keep your eyes on the road or water, and hands on the wheel or
controls. Not doing so could result in personal injury, death,
and/or damage to your MyFi receiver, accessories, and/or to your
vehicle or other property.
We're always concerned for your safety and want you to have the
best MyFi experience possible!
Controls
Before you begin, take a moment to familiarize yourself with your
MyFi's controls. Most basic functions can be accessed using the front
panel buttons and the dial. More advanced features are accessed
using the “menu” button and the dial.
memory button
saves and recalls song
information such as
artist and song title
preset/direct button
switch between direct
channel entry or up to
30 presets.
2go button
stores up to 5 hours of
XM programming
power button
press to turn your
MyFi on and off
menu button
customize options
and access advanced
features
rotate to highlight a
channel or menu
option; push in to
make selection
dial
mode button
switch between LIVE
listening and MY XM
playback
mute / pause / lock button
press to mute audio (LIVE) or pause
playback (MY XM); press and hold to
lock or unlock your MyFi controls
number keys
enter a channel number
directly or select your
favorite presets category / track skip
cycles through channel
categories (LIVE), skips to
previous or next song
(MY XM)

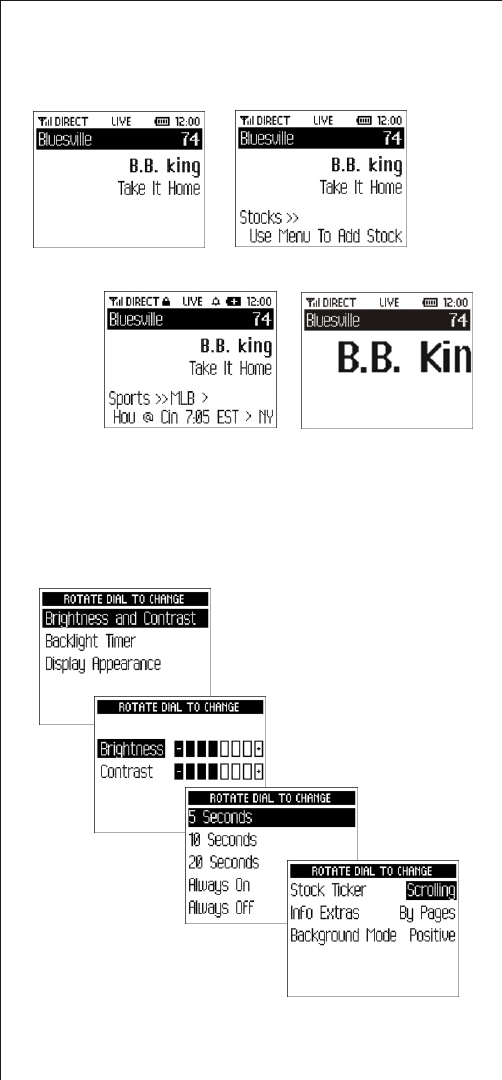

display button
changes the appearance of the
display, including access to
different modes that display
stock quotes and info extras like
sports scores.
volume buttons
raise or lower volume
only when headphones
are plugged in
IR lens
aim your remote
control here
display
backlit high-
resolution
LCD display
headphone jack
your earbuds or head-
phones plug in here
antenna jack
for use with an external
antenna
battery door latch
push inwards to slide
battery door open
XM Radio ID
use this to activate
your radio
reset button
battery level
(charging)
listening mode
show current playback
mode ‘LIVE’ or ‘MY XM’
12 or 24 hr.
clock
channel
number
alarm indicator
artist name
song / program
title
channel
select
mode
direct entry or
preset bank
A, B or C
signal strength
0 to 3 bars
channel name
additional info
volume / playback
bars, Stock Ticker
and Info Extras
key button
lock indicator
2go button
stores up to 5 hours of
XM programming
power button
press to turn your
MyFi on and off
XM button
select channel or menu
option; push and hold to
add artist/song to your
TuneSelect list
mode button
switch between
LIVE XM and MY XM
playback
menu button
customize options and
access advanced
features
pause button
pauses MY XM playback
search button
switch between search
by category or searches
by scanning presets or
scanning all channels
jump button
switch to previous
channel
preset/direct button
switch between direct
channel entry or up to
30 presets
display button
changes the appearance of
the display, including access
to different modes that display
stock quotes and info extras
like sports scores
memory button
saves and recalls song
information such as artist
and song title
arrow buttons
views channel categories
(LIVE), skips to previous or
next song (MY XM)
mute button
mutes live XM
volume buttons
raise or lower volume
only when headphones
are plugged in
number keys
enter a channel directly
or select your favorite
presets
channel buttons
previews channels (LIVE);
previews songs (MY XM)
belt clip lock
universal
connector
battery
compartment
remote control
home stand
audio cable
home
power adaptor
home antenna

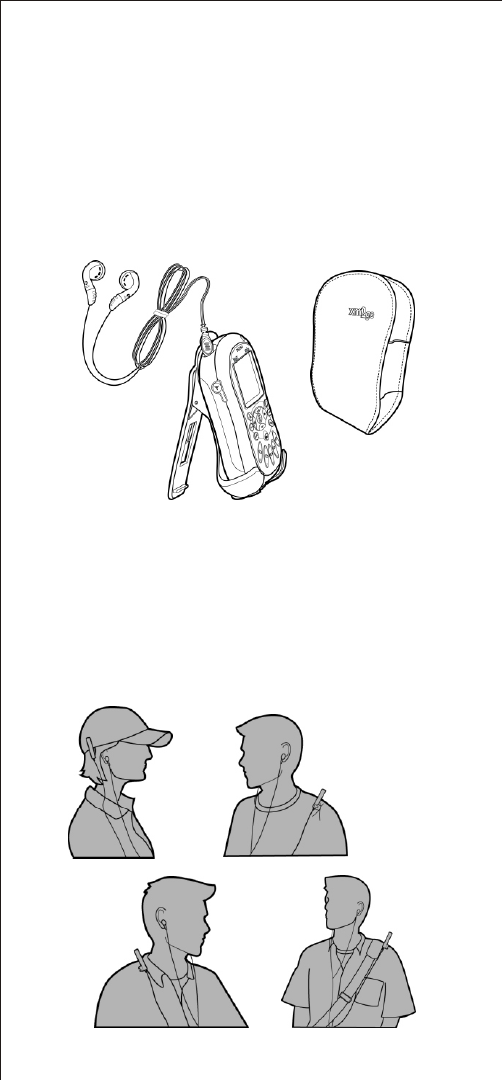

belt clip / stand
protective case
wearable antenna
with 2 clip options
headphones

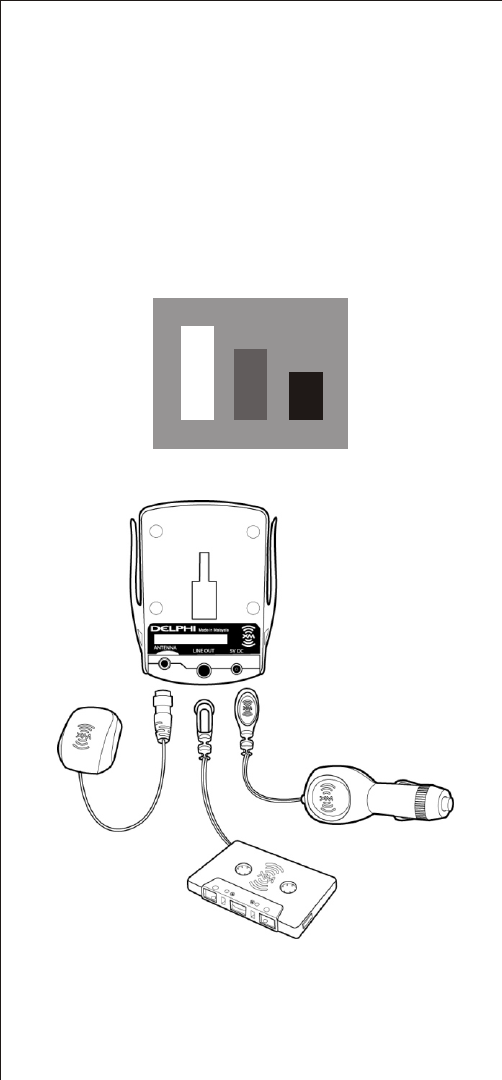

car power adaptor
car antenna
car cradle
rechargeable
lithium ion battery
cassette adaptor

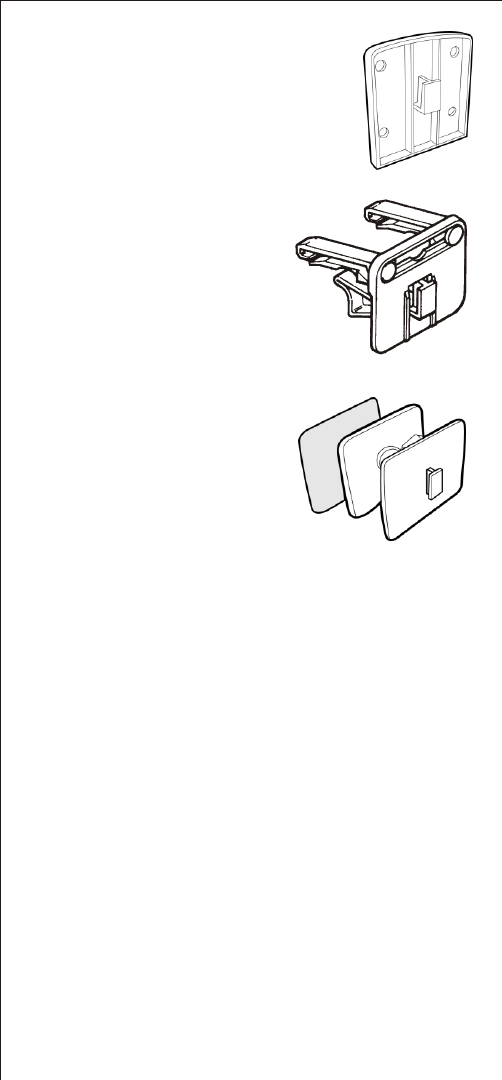

vent mount
swivel mount
(with extra adhesive)
cleaning kit
flush mount
velcro pads
Setting up
Assemble your MyFi and its
home stand as shown
below; plug the AC adaptor
into an outlet. Let the
battery charge for at least
three hours.
Turn on your MyFi by
pressing the power button.
You should be able to hear
Channel 1, the XM Preview
Channel. If you do not, and
the screen displays “NO
SIGNAL,” try moving your
MyFi's antenna to another
location. Make sure the
antenna points south
outdoors or through a
window. To maximize the
signal, refer to “Aiming the
home antenna” (page ##).
Activate your MyFi
Assemble Home Stand

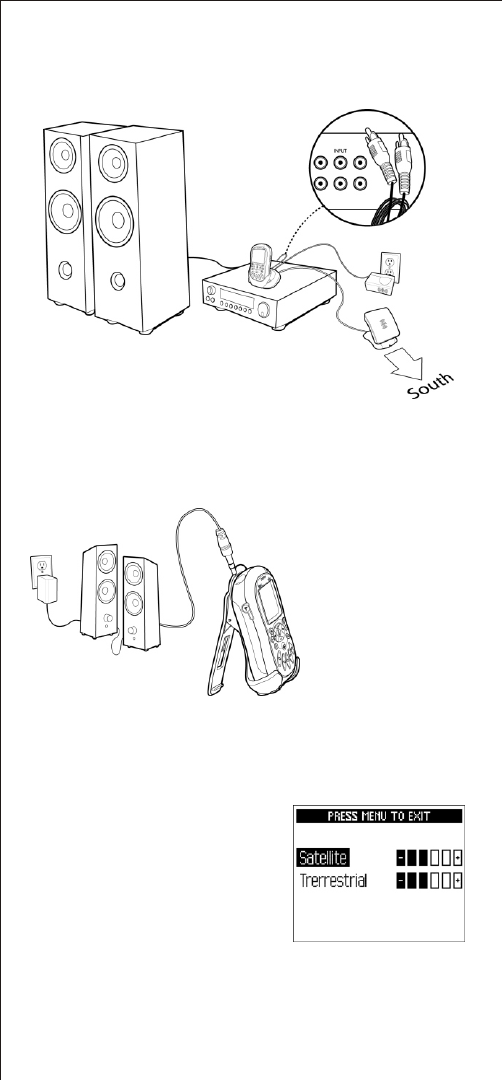

Connect to Stereo
Aim Antenna
Connect to Stereo
Plug the AC adaptor into an outlet. Connect the home antenna and
connect the line out to either your home stereo or powered (PC type)
speakers.
Turn the dial to highlight channel 0, and press the dial in to select it.
You should see an 8-character XM Radio ID in the display. (The XM
Radio ID should also be on your MyFi's package and under the
battery.) Write the ID here:
The XM Radio ID does not use the letters I, O, S, and F.
Activate your XM Satellite Radio service by contacting XM at
http://activate.xmradio.com or by calling 1.800.XM.RADIO
(1.800.967.2346). You will need the XM Radio ID and a major credit
card.
XM will send a signal from the satellite to activate the full channel
line-up. Activation normally takes 10-15 minutes, but during peak
busy periods, you may need to keep MyFi on for up to an hour to
complete the activation process. When you can access the full
channel lineup on your MyFi, you're done!
Go ahead!

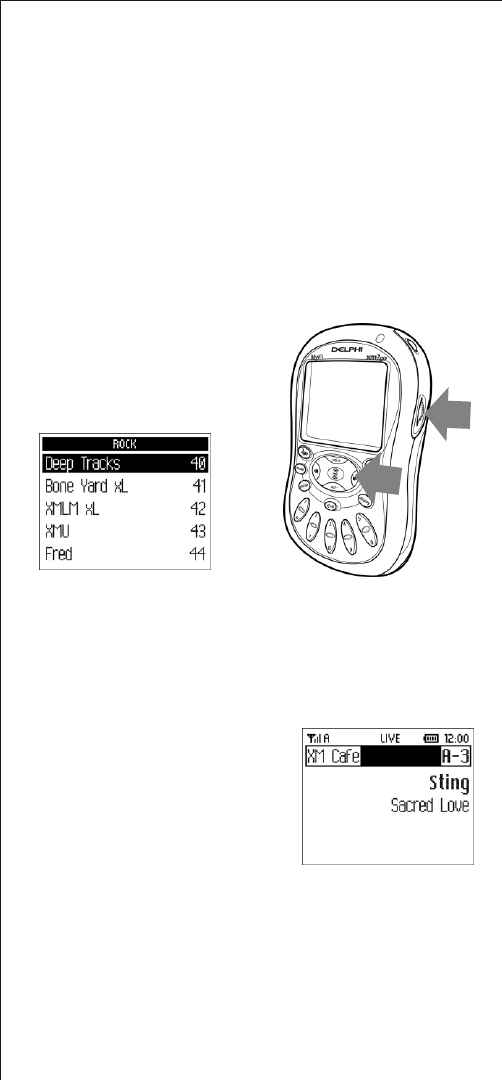

Rotate the dial to preview a list of channels. When you find one
you're interested in, press the dial in to tune to that channel.

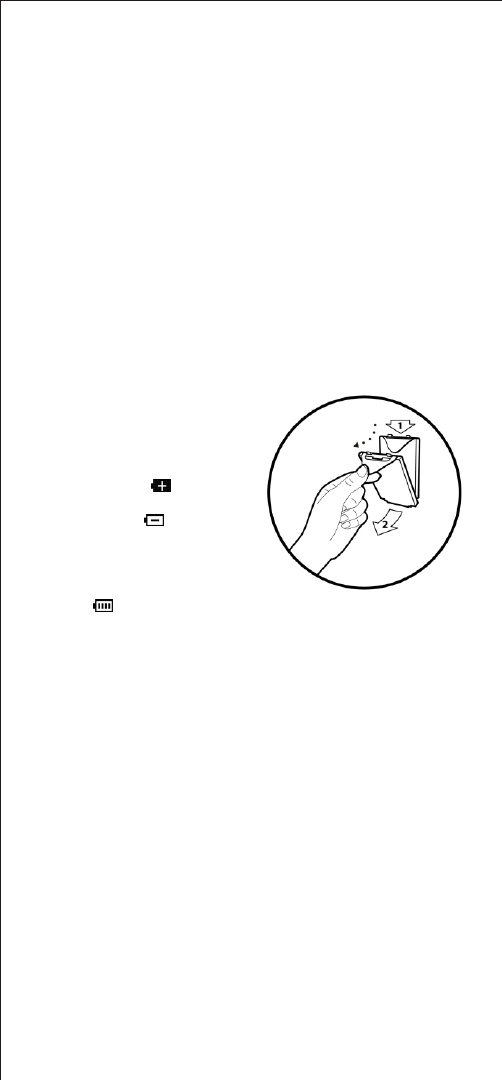

Insert battery
Important! You will need to fully charge your Myfi battery for at
least three hours to have sufficient battery power for portable use.
Listening to XM
Changing channels
1. Rotate the dial to preview a list of channels.
2. When your desired channel is highlighted, press the dial in to
select that channel.
-OR-
1. Press the “pre/dir” button until the word “DIRECT ENTRY” flashes in
the display.
2. Press the number keys corresponding to a channel number. For
channel 8, press “8.” For channel 130, press “1,” then “3,” then “0.”
-OR-
1. Press the “<<” or “>>” buttons while in “LIVE” mode. You will see the
channels organized by category.
2. Rotate the dial to highlight a
channel. Press in the dial in to select
that channel.
Saving favorite channels
into presets
Your MyFi can store up to 30 of your favorite channels as presets. The
presets are organized into 3 banks (A, B, or C) that each contain 10
presets.
To save a channel into a preset:
1.Tune to the channel using the dial or
by entering the channel number.
2.Press the “pre/dir” button until
“PRESET A,” “PRESET B,” or “PRESET C”
appears in the display.
3.Press and hold a number key to save
that channel into that preset. For
example, by pressing and holding the
“3” key, you can save channel 45 into
the “A-3” preset. The “0” key is used for
the tenth preset.
To recall a preset:
1.Press the “pre/dir” button until “PRESET A”, “PRESET B”, or “PRESET C”
appears in the display.
2.Press the number key corresponding to your desired preset. In the
example, press the “3” key and your MyFi should tune to channel
45.
1
2
You can use the preset banks to organize your channels in different
ways. You might want to store your favorite channels in bank A, and
someone else’s favorite channels in bank B. Or store music channels
in one bank, news and talk channels in another.
Storing song information in memory
Ever hear a song and later forget the artist's name or song title? Let
your MyFi remember for you.
TO STORE A SONG'S INFORMATION IN MEMORY, press and release
the “mem” button while the song or program is playing. Your MyFi
will beep to confirm.
TO RECALL A SONG'S INFORMATION FROM MEMORY, press and hold
the “mem” button until your MyFi beeps and you see “Memory
Recall” in the display. If you have stored more than one song's
information, you can rotate the dial to view each entry.
Your MyFi can hold up to 20 entries, after which any new entry
replaces the oldest entry in memory.
TuneSelect : always find your favorite songs or artists
If you can't get enough of a certain artist or song, your MyFi can tell
you when it's currently being played on any XM channel.
1.Press the “menu” button and choose the “TuneSelect” option.
2.Choose either “Select by Song” or “Select by Artist.” “Select by Song”
finds a song or program by its title; “Select by Artist” searches using
the artist's name.
3. When you hear one of your favorite songs or artists, press and hold
the dial in. Your MyFi will beep and flash “Song Selected” or “Artist
Selected” on the display. This signals that your chosen song title or
artist name is saved in the TuneSelect list. The list holds up to 20
entries (either artist names or song titles); when the list is full, any
new entry replaces the oldest song title or artist in the list.
4.When any song or artist on the list is currently playing on any other
XM channel, your MyFi will beep and flash “Artist/Song Found” on
the screen. Switch to that channel by pressing in the dial.
5.You may erase individual song titles or artists from the list, or all the
songs and artists. Using the “menu” button and dial, choose the
“TuneSelect” option and then select either “Erase All” or “Erase
Some.” Follow the instructions on your MyFi's display.
TM
MY XM
2go: store and play back
Your MyFi lets you store up to 5 hours of programming and play it
back at a later time. Listen to XM wherever you are, whenever you
prefer.
TO STORE BY PRESSING ONE BUTTON:
1. Turn on your MyFi and select a channel.
2. Press the “2go” button. To prevent
you from accidentally recording over
a previously stored program, your
MyFi will ask you to confirm. Press the
“2go” button again. The center of the
top line of your MyFi's screen
switches from “LIVE” to “REC.”
3. To stop storing and continue with
live programming, press the “2go”
button again. The display reverts to
“LIVE”.
TO PLAY BACK:
1. Press the “mode” button. Your MyFi
switches from “LIVE” to “MY XM.”and
will begin to play back from the
beginning or where you last stopped
or paused.
2. “MY XM” holds up to 5 hours of
programming. Press either the <<
or >> button to skip to the
previous or to the next song.
3.
4. To return to LIVE listening, press
the “mode” button again.
Scheduling a session
You can set your MyFi to store XM programming at a specific time.
1. Press the “menu” button and use the dial to select “MY XM.”
2. Select “Schedule MY XM.”
3. You can schedule up to 2 sessions. Choose “Session 1” or “Session
2.”
4. Rotate the dial to change and press the dial in to fill in the “When?,”
start time, ending time, and channel field. The “How Often?” option
allows you to activate the session for “Once,” “Every Day,” or “Off”
(postponing until another time).
3.You can also rotate the dial to
view a list of the stored artists and
songs. Simply highlight an artist
with the dial, then press the dial in
to listen to it.
1
2
1
2
3
TIP: You can use the number buttons to
enter a channel number. You can use
the up, down, and XM buttons on the
remote to enter time and make
selections.
5. Set up the second session, if you
desire. The combined time for both
sessions should not exceed 5 hours in one day and the sessions
should not overlap each other. Your MyFi will advise you if either
condition occurs, and will give you another chance to schedule the
sessions.
6.Turn off your MyFi and be sure it is plugged in to the home stand.
When the session starts, the display will show “Session 1 (or 2)
Recording.” If your MyFi is already on when the session is
supposed to start, MyFi skips the session and does not interrupt
your listening. When the session starts, it writes over the oldest
stored content first, ensuring that you're always listening to the
freshest programming.
NOTE: You will only be able to store a session if the MyFi is turned off
and plugged in to the home stand with the AC adaptor connected
and receiving power. The home stand should also have the home
antenna connected to ensure that your MyFi has strong signal
during the scheduled session.
7. To erase the stored content, choose the “Clear My XM” option
under the “My XM” menu. All previously recorded content can no
longer be accessed.
Personalizing Your MyFi
You can easily adapt your MyFi to the way you listen and use the
satellite radio. You can change how the display appears, track stocks
and other information, adjust your MyFi's audio output, and change
how you use the display.
Simply press the “menu” button, rotate the dial to highlight an
option, and press the dial in to select. Your MyFi guides you with
instructions right on the screen.
If you ever get lost or decide not to change anything, press “menu” to
return to normal operation. Or wait for about 15 seconds and your
MyFi reverts back by itself.
Adjusting audio
You can ADJUST THE BASS OR TREBLE, which affects both the
headphones and audio outputs of the home stand and vehicle
cradle.

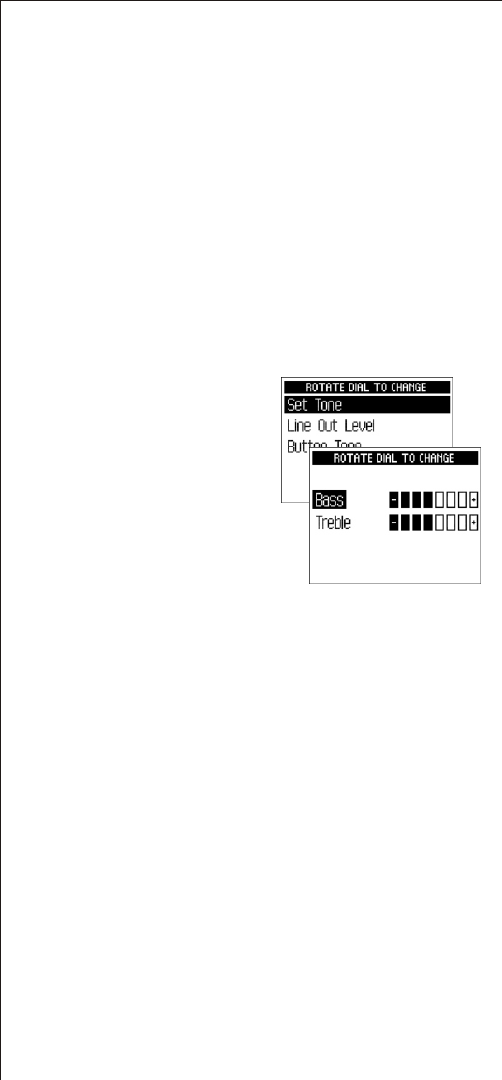

1. Press the “menu” button and use
the dial to select “Set Audio.”
2. Select “Set Tone.”
3. Rotate the dial to highlight either
“bass” or “treble.” Press the dial in
to select.
4. Rotate the dial to change the bass or
treble level. Press the dial in to confirm.
5. When you're done, press the “menu”
button until you return to normal operation.
To CHANGE THE VOLUME LEVEL of the cassette adaptor, FM
transmitter, or line-level audio output:
1. Press the “menu” button and use the dial to select “Set Audio.”
2. Select “Line Out Level”. Your MyFi can detect when you're using the
FM transmitter or cassette adaptor and will make the appropriate
changes to the settings.
3. Rotate the dial to change the audio level. Press the dial in to
confirm.
4. When you're done, press the “menu” button until you return to
normal operation.
Normally, your MyFi's buttons beep whenever you press them. You
can turn the sound off by setting the following option:
1. Press the “menu” button and select “Set Audio” using the dial.
2. Select “Button Tone.”
3. Select “Off” to turn the button tone off, or select “On” to turn it back
on.
Changing display information
TO DISPLAY DIFFERENT INFORMATION ON THE SCREEN, press the
“display” button to cycle through these options:
TO CHANGE THE APPEARANCE OF THE SCREEN, press the “menu”
button and select “Change Display.” You can change the brightness
and contrast, set how long the backlight remains on, flip the screen
between positive (black characters on white background) or
negative (white characters on black background) modes, and set the
way the Stock Ticker and Info Extras appear on the screen.
Primary display Stock Ticker
Info Extras Large Scrolling Text
Make any FM radio an XM radio
Your MyFi contains a built-in FM transmitter that sends the XM audio
signal to any nearby FM radio home stereo, boombox, car radio, or
marine radio.
1. Turn on your FM radio, and turn off your MyFi. Unplug any
headphone or audio cable from your MyFi's headphone jack, and
any audio cables connected to the home stand or vehicle cradle.
2. You need to find an FM frequency that is not being used by any
commercial FM station.Tune your FM radio to the following FM
frequencies: 88.1, 88.3, 88.5, 88.7, 88.9, 106.7, 106.9, 107.1, 107.3,
107.5, 107.7, and 107.9. Note which frequency has no FM station or
the least amount of interference.
3. Turn on your MyFi.
4. Using the “menu” button and the dial, select “Set FM Frequency.”
5. Rotate the dial to highlight the FM frequency you found in step 2.
Press the dial in to select that frequency.
6. You should now hear XM programming on your FM radio. If the
sound isn't clear or you hear noise or static, try another FM
frequency. If you're traveling, you may need to retune periodically;
this is due to the differences in signal strength of local FM stations
and is not a problem with your MyFi.
TIP: When you plug headphones, a cassette adaptor, or an audio
cable into the headphone jack, your MyFi automatically turns off the
FM transmitter.

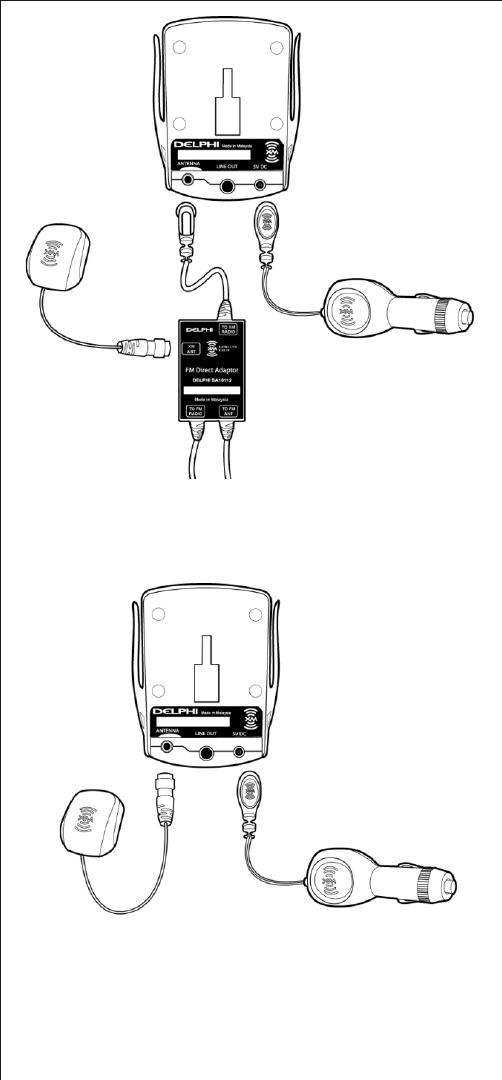

TIP: In the rare situation that you cannot find an open FM frequency,
consult a professional car audio installer. You can improve the audio
performance in your vehicle by using the Delphi FM Direct Adaptor
(model SA10112, sold separately).
Stock Ticker
With your MyFi, you can track up to 20 stock symbols and see their
prices and movements right on the screen.*
TO ADD A STOCK SYMBOL:
1. Using the “menu” button and dial, select “Stock Ticker.”
2. Rotate the dial to highlight “Add Stocks” and press dial in to select.
3. Rotate the dial to add each letter of the desired stock symbol. Press
the dial in after choosing each letter. (Your MyFi has a list of over
9000 stock symbols, and will not only help you complete each
entry but prevents you from entering incorrect symbols.) Confirm
the stock symbol is the stock you want to enter.
4. When you've entered all your desired stock symbols, press the
“menu” button several times (or simply wait a few seconds) until
your MyFi returns to normal operation.
5. Press the “display” button until you see “Stocks” and a scrolling
ticker across the bottom of the screen. This display mode only
works when you're listening to “LIVE” programming.
TO ERASE some or all of the stock symbols, use the “menu” button
and rotate dial to select “Stock Ticker,” then to select “Erase Stocks.”
Follow the directions on your MyFi's screen.
*Quotes are provided by ComStock, Inc. and cover most stocks listed
on the NYSE, AMEX, or NASDAQ exchanges. Market information is
delayed by approximately 25 minutes.
Info Extras
XM Satellite Radio will broadcast information such as sports scores
and other features from time to time. To see what's available, press
the “menu” button and select “Info Extras.” Simply follow the
instructions on the display to select which Info Extras you're
interested in.
To view your chosen Info Extras, press the “display” button until you
see the Info Extras items at the bottom of the screen. You can also
affect how you view Info Extras by selecting the “Change Display”
option in the menu.
Direct Tune - select channels faster
Normally as you rotate the dial, you can preview what's playing on
other XM channels before you push the dial in to select a channel. To
automatically tune to the channel without pressing the dial, you can
set the following option:
1. Use the “menu” button and dial to select “Channel Access.”
2. Select “Direct Tune.”
3. Select “Direct Tune On.” (To return to the factory-default method,
select “Direct Tune Off.”)
Setting time features
XM automatically sets the minutes of your MyFi's built-in clock. You
can adjust the hours by time zone, choose 12- or 24-hour formats,
and choose whether Daylight Savings Time is used in your area.
Your MyFi also has a sleep timer and an alarm. You can set the sleep
timer to shut off your MyFi automatically after 15 minutes up to 1
hour. The alarm turns on your MyFi at a certain time; you can choose
to be alerted by a beep or by XM programming.
For vehicles with power outlets that are always powered, we
recommend that you use the “Delayed Power OFF” feature. This
avoids draining your vehicle battery if your MyFi is left on.
Skipping channels
You can simplify the list of channels that
you see when you rotate the dial. To
skip over a channel:
1. Use the “menu” button and scroll
wheel to select “Channel Access.”
2. Choose the “Channel Skip/Add”
option.
3. You will see a list of channels. There is a “+” or a “-“ in front of each
channel. To skip a channel, highlight that channel and press the
dial in to change the “+” to “-.” To add a channel, change the “-“ to a
“+.”
4. When you're done, press the “menu” button twice (or do nothing
for 15 seconds) until your MyFi returns to normal operation.
TIP: You can still tune to any channel directly by entering the channel
number directly or by pressing a preset. Skipping a channel does
not remove it from use.
TIP: This should not be used for “parental control.” To completely
block access to any XM channel, contact XM Listener Care at
1.800.XM.RADIO (1.800.967.2346).
Returning to factory defaults
You can return your MyFi to the state it was shipped from the factory.
Be careful: this feature erases all settings, including stock ticker,
display options, audio options, channel skip/add, Info Extras, and
anything stored in “MY XM.”
1. Use the “menu” button and dial to select “Set Factory Defaults.”
2. Select “Yes” to restore your MyFi to the factory settings
Using MyFi at Home
Turn off your MyFi and your audio system. Connect your MyFi to your
audio system in either way illustrated below.
If you use the home stand and connect it to a stereo, you must plug
in the AC adaptor and home antenna. Your MyFi's audio output will
not work if these are not connected.
If you attach your MyFi
to powered speakers,
adjust the audio level
using the speakers'
volume control.
TIP: If you hear nothing,
try adjusting the volume
controls located on the
MyFi. If there does not
appear to be power,
check all connections
and make sure all plugs
are inserted completely.
Aiming the home antenna
Your MyFi can help you aim the home antenna to pull in the
strongest signal available.
1. Using the “menu” button and dial,
choose “ Antenna Aiming.”
2. Slowly turn and tilt the antenna. The
signal bars on the display will
change. Find the position that gives
at least two bars on either “satellite”
or “terrestrial.”
3. The antenna aiming screen remains as long as it's needed to help
you position the antenna. When you've found the best position,
press the “menu” button to return to normal operation.
Using MyFi In Your Vehicle
Because every vehicle is different, we can only provide some general
guidelines. If you need help, consult a professional installer.
1. Decide which method (cassette adaptor, wireless FM transmitter, or
wired connection) is best for your vehicle and location.
2. Always do a trial run before installing anything permanently.
Temporarily connect all power, audio, and antenna lines. Make sure
that you receive the XM signal and that you hear XM programming
through your vehicle's audio system.
Audio quality
Use the CASSETTE ADAPTOR if your vehicle's audio system has a
built-in cassette player.
Cassette
Adaptor Wired
FM Wireless
FM
Audio Quality
For a neat, fully integrated installation, use the DELPHI FM DIRECT
ADAPTOR (SA10112, sold separately). We recommend that you
consult a professional installer.
The WIRELESS FM TRANSMITTER is the easiest and quickest way to
hear XM programming in your vehicle. Simply set your FM radio and
your MyFi to the same frequency.
(optional accessory)

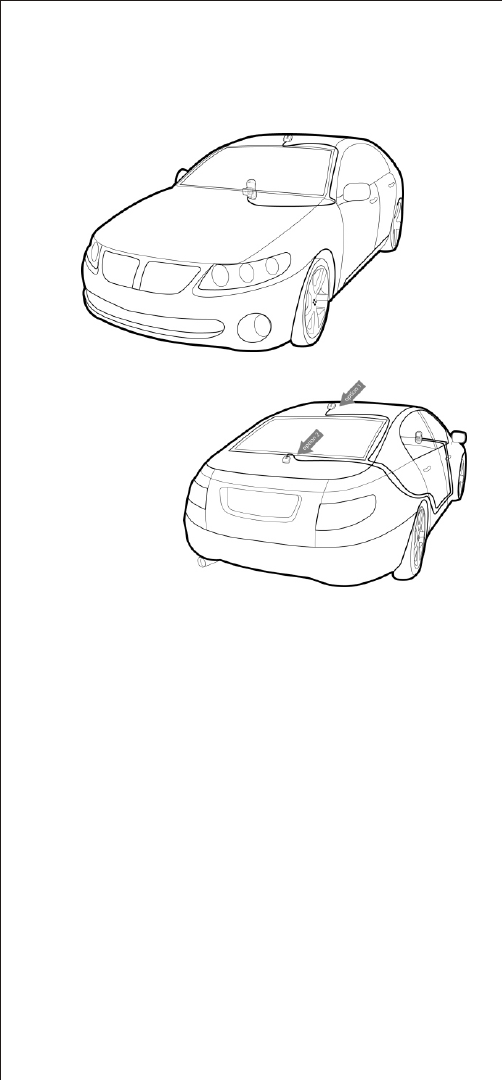

Placing the antenna
Your XM antenna should be mounted on the vehicle's metallic roof,
at least 6" from any window or sunroof. It can be placed in the front,
middle, or rear of the roof.
Avoid crimping,
twisting, or chafing
the XM antenna
cable. Try to use
existing holes, body
grommets, and other
wiring channels.
If the car is a hard- or
soft-top convertible,
you may mount the
antenna on the metal
trunk lid. It should be
at least 4" from the rear window. Ensure that the antenna and cable
don't interfere with the opening or closing of the convertible top
and the trunk lid.
TIP: You can choose whether or not your MyFi automatically turns on
when you turn the ignition key. Please see “Setting time features”
(page ##).
TIP: If you route the antenna cable through the trunk seal, use the
lowest part of the weather seal. This should minimize any water
leaks.
TIP: If you use your MyFi's wireless FM transmitter, mount the XM
antenna as close to your vehicle's FM antenna as possible. The FM
antenna may be a wire or metallic strip embedded in the windshield
or rear window.
TIP: Don't install the XM antenna inside your vehicle or on a non-
metallic surface. Doing so will likely degrade the signal and you will
probably experience more signal interruptions.
Mounting your MyFi on the dash
We've included 3 types of mounts to help you install your MyFi in
your vehicle's interior.
FLUSH MOUNT: Attach the included Velcro® pads
or adhesive pad to the back of your MyFi's vehicle
cradle. Stick the vehicle cradle onto a flat surface
in your vehicle, preparing the surface as
described below. Do not install the mount on a
leather surface. Doing so could permanently
damage the surface.
VENT MOUNT: Assemble the vent
mount as shown, if not already
assembled. Find a horizontal air vent
that is strong enough to hold the
weight of your MyFi and its cradle. Clip
the vent mount into the vent.
SWIVEL MOUNT: Find a suitable
location; the mount uses a strong
adhesive and you'll have difficulty
repositioning it after installation. Do
not install this mount on a leather
surface. Make sure the air temperature
is at least 60 F.
1. Clean the mounting surface with the
enclosed surface preparation kit.
Allow to air-dry.
2. Clean the same surface with the
alcohol prep pad. Allow to air-dry.
3. You may warm the adhesive pad
using a hair dryer or the vehicle's defroster. Place the swivel mount
accurately since it will bond on the first try.
4. For best results, do not touch or apply any pressure to the vehicle
mount for 72 hours.
To remove the swivel mount, first try lifting the adhesive pad with
your fingers or a spoon. You may warm it with a hair dryer for 2-3
minutes to help soften the adhesive. Remove any leftover adhesive
from the dash surface by rubbing with your finger, or you can use a
mild cleaner as recommended by your vehicle's manufacturer.
Using MyFi On the Go
Your MyFi contains a built-in antenna that works best when your
MyFi receiver is upright. Use the belt clip to hold your MyFi in the
proper position; laying your MyFi down flat may weaken reception.
TIP: If you carry your MyFi in a bag or use it while exercising, you can
lock the buttons and dial and prevent something from accidentally
pressing the buttons. Press and hold the “mute/pause/lock” button
until you see the lock indicator in the display. To unlock the controls,
press and hold the “mute/pause/lock” button until the lock
indicator disappears.
TIP: The belt clip doubles as a table stand; just pull out the back leg.
TIP: You can plug the AC or cigarette lighter adaptor directly into the
bottom of your MyFi without using the home stand or vehicle
cradle.
Use the wearable antenna when you want to improve signal
reception or if you carry your MyFi in a bag or close to your body.
Wearable Antenna

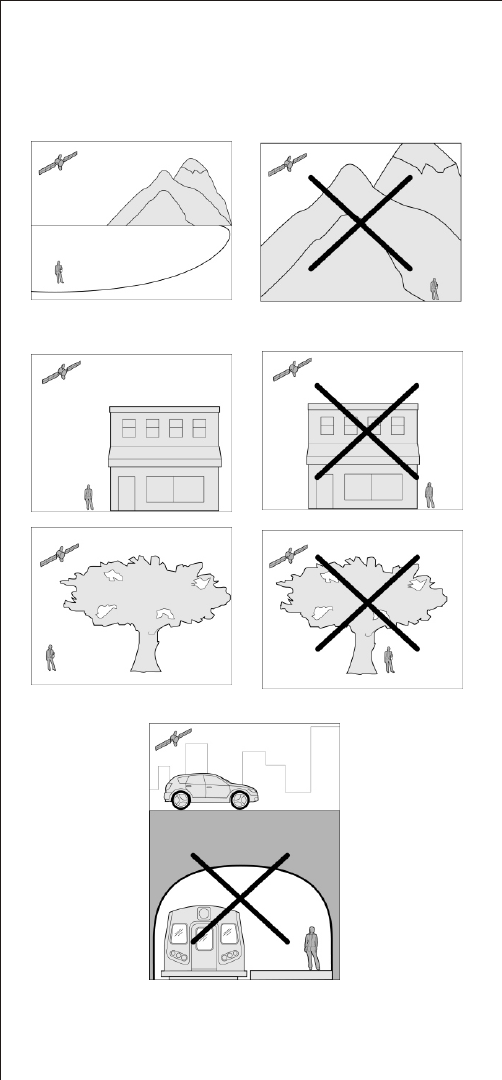

Signal Reception Guidelines
Your MyFi's antenna should have an unobstructed view of the XM
satellites in the southern sky. In large cities, XM also has a network of
ground repeaters to help increase the signal coverage.
Other Things You Should Know
Care
You should be able to take your MyFi along with you during most of
your daily activities. Still, you should remember:
" Your MyFi is not waterproof. Avoid splashing it with liquids and
never submerge it underwater.
" Take your MyFi with you when you leave your vehicle, especially on
a hot day. Not only can you continue to enjoy XM programming, but
you'll also prolong the life of your MyFi's case, display, and battery.
" If your MyFi does get dirty, wipe the case with a soft cloth lightly
moistened with water, then wipe dry with another cloth. Avoid
chemicals such as paint thinner, alcohol, or abrasive cleansers.
Important Battery information - Please Read
Your MyFi's battery should be
charged before you use the radio.
The amount of charge is indicated
by the battery level meter in your
MyFi's display. When you're
charging the battery, you will see
a “+” in the meter; when the
battery is exhausted, you will see
a “-“ in the meter.
When you use your MyFi for the
first time, charge the battery until
the meter indicates it's fully
charged. Then use your MyFi
until the battery is exhausted. This
charge/discharge cycle calibrates the battery level meter so that it
accurately reports the state of the battery.
Your battery performs best when used and charged in an ambient
temperature of between 50°F to 90°F (10°C to 32°C). Do not leave
your MyFi inside a hot vehicle or in direct sunlight.
Batteries gradually wear down and require longer charging times.
When a battery no longer holds its charge, you should purchase a
new battery. Always use authorized Delphi batteries and power
adaptors.
To prevent injuring yourself or damaging your MyFi, do not
disassemble, crush, or puncture the battery. Never allow metal to
touch the battery terminals.
<recycle logo>
Your MyFi's rechargeable battery should be disposed of properly
and may need to be recycled. Contact your local recycler for details.
Never dispose of batteries in a fire or water as they may explode.
To remove the battery, follow these steps as shown below. Use the
clear tab to help you pull the battery out.
Accessories (sold separately)
We're always developing useful and clever accessories for your MyFi.
Check our Web sites, www.xmradio.com or www.delphi.com, or your
favorite electronics retailers frequently.
Troubleshooting
Your MyFi should provide you with trouble-free performance
without needing any servicing. If it does not appear to be working
properly, first try to remedy the problem by following these steps:
1. Attach all connections firmly and securely.
2. Make sure the battery is fully charged and has been properly
cycled.
3. Reset your MyFi by removing the battery cover and inserting a
paper clip into the hole marked “RESET” at the upper left hand
corner of the case. You can also reset your MyFi by removing the
battery, then reinserting it.
If you see this on the display: You should:
NO SIGNAL
Cause: the XM signal is being
blocked.
Move your MyFi away from
obstructed area, e.g. an under-
ground garage.
ANTENNA
Cause: possible problem with
the built-in or external antenna.
Connect the external antenna.
Make sure the cable and
connector are not damaged or
kinked.
If you are using the home stand
or car cradle, make sure the
home or car cradle antenna is
plugged in.
OFF AIR
Cause: the channel is not
currently broadcasting.
Tune to another channel.
LOADING
Cause: your MyFi is acquiring
audio or program information
from the XM signal.
This message should disappear
in a few seconds in good signal
conditions.
UPDATING
Cause: your MyFi is being
updated with the latest
encryption code.
Simply wait a few seconds until
the update is done.
---
Cause: you may have tried to
tune to a channel that you
have blocked or that you cannot
receive with your subscription
package.
To receive that channel, contact
XM Satellite Radio at
1.800.967.2346.
Audio is too soft when using
the built-in FM transmitter.
Increase audio output level
(see page ##).
No audio when using the home
stand that is connected to a
stereo system.
Have you plugged the AC
adaptor into the home stand?
The audio line output only
works when the AC adaptor is
plugged in.
You cannot tune to a channel. Check that you have not chosen
to skip that channel (see page
##). If the problem persists,
contact XM Satellite Radio at
1.800.967.2346. Verify that you
are authorized to receive that
channel as part of your XM
subscription, and that you have
not asked XM Satellite Radio to
block that channel.
No song title or artist name
displayed.
Nothing is wrong with your
MyFi. That information may be
in the process of being updated.
On some sports and news
channels, there is no title or
artist information.
No audio when listening
through an FM radio.
Make sure that the FM radio and
your MyFi are set to the same
frequency (see page ##).
Audio has static while listening
through an FM radio.
Change to another FM
frequency (see page ##). If the
problem persists and you are
using the wireless FM
modulator in a vehicle, change
to a hard-wired FM modulator
(see page ##).
Audio on XM instant traffic and
weather channels sounds
different from other XM
channels.
Nothing is wrong with your
MyFi. These channels use a
different audio technology
than the other XM channels.
If this happens: You should:
There is no power, or your MyFi
shuts off quickly.
Your MyFi’s battery is low. Insert
your MyFi into it’s home stand
and plug the AC adaptor into
the wall to charge the battery.
You do not receive all XM
channels you have subscribed
to.
Your MyFi may not be activated.
Contact XM Satellite Radio
(see page ##).
Audio sounds distorted when
using the built-in FM
transmitter.
Reduce audio output level
(see page ##).
The display does not change or
the backlight does not turn on
or turn off.
Reset your MyFi by following
the procedure above.
Battery level meter doesn't
match the charging or playback
time.
Fully charge the battery, then
use your MyFi until the battery
is fully exhausted. This calibrates
the battery level meter.
If this happens: You should:
Your MyFi's controls do not
respond.
You may have locked the
controls. Check whether the
lock indicator is being displayed.
If so, unlock the controls by
pressing and holding the
“mute/pause/lock” button until
the lock indicator disappears
(see page ##).
If you have unlocked the
controls and they still do not
respond, reset your MyFi by
carefully inserting the tip of a
paper clip into the “RESET” hold
under the battery cover. You can
also reset your MyFi by
removing and reinserting the
battery.
Contacting Technical Support and Customer Service
For additional information in solving problems with your MyFi,
contact Delphi at 1.877.GO.DELPHI (1.877.463.3574).
Customer Service: 8:00 am - 4:30 pm Eastern Time, Monday-Friday
Technical Support: 8:00 am - 8:00 pm Eastern Time, Monday Friday
Customer service and technical support is also available at
www.delphi.com.
Technical Information
Dimensions
MyFi receiver: 4.5 in H x 2.8 in W x 1.2 in D (114 mm H x 71 mm W x 30 mm D)
MyFi remote: 4.8 in H x 1.9 in W x 1.2 in D (123 mm H x 48 mm W x 31 mm D)
Weight
MyFi receiver: 6.9 oz. (196 g)
MyFi remote: 2.9 oz. (82.2g)
Battery
MyFi receiver: 3.6 V lithium-ion
MyFi remote: 2 AAA cells
Inputs and outputs
antenna (home stand and vehicle cradle): 1 RF SMB connector
antenna (MyFi receiver): 1 RFSSMBconnector
power: 5V, 2000mA maximum current, positive polarity
audio output: 3.5 mm diameter mini-stereo jack
Warranty
Delphi Limited Consumer Warranty
Delphi Product and Service Solutions (“Delphi”) warrants all XM Satellite Radio Products sold by Delphi
(each “Product”) to be free of defects in material and workmanship, subject to the following conditions:
The duration of Delphi's warranty with respect to each Product is limited to one (1) year from the date
of sale to the original consumer purchaser.
No other express warranties are made with respect to any Product. All implied warranties, including
warranties of merchantability and fitness for a particular product are limited to the warranty period set
forth above. This warranty is not transferable and applies only to the original consumer purchaser of
the Product.
Delphi will, as its sole obligation under this warranty, replace or repair, at its option, any Product that
does not conform to this warranty. Products may be repaired or replaced with new or with refurbished
items. This limited warranty does not cover defects in appearance, cosmetic or decorative items,
including any non-operative parts. Under no circumstances will Delphi be liable for any incidental or
consequential damages under this warranty or any implied warranties. These remedies are the
customer's exclusive remedies for breach of warranty. This limited warranty only extends to customers
who purchase the Products in the United States.
Delphi will not be responsible for damage resulting from any (i) deviation of Delphi's operating
instructions as printed in Delphi's catalog or on any packaging, labels or other literature provided with
a Product, (ii) installation of a Product in a manner which is inconsistent with Delphi's written
instructions, (iii) alteration or modification of a Product, (iv) misuse, (v) neglect, (vi) abuse, (vii) accident,
(viii) normal wear and tear, (ix) commercial use, (x) improper storage, (xi) environmental conditions,
including excessive temperature or humidity, (xii) service by anyone other than a Delphi authorized
repair facility, (xiii) other improper application, installation or operation of this Product, or (xiv) defects
or malfunctions of which Delphi is not advised within ten (10) days of the expiration of the limited
warranty period.
(PLACEHOLDER UNTIL DELPHI PROVIDES PROPER LANGUAGE) Exceptions to this warranty include the
following:
!· Battery the duration of the warranty is limited to ten (10) days from the date of sale to the original
consumer purchaser.
How you (the Customer) can get service
To obtain warranty service, you must return the defective Product with the original receipt to the
original place of purchase. If further clarification or additional information is required from Delphi, you
may call Delphi at 1.877.GO.DELPHI (1.877.463.3574). If warranty service is needed at any time during
the warranty period, the purchaser will be required to furnish a sales receipt/proof of purchase
indicating the date of purchase, amount paid and place of purchase. Customers who fail to provide
such proof of purchase will be charged for the repair of the Product.
How state law relates to the warranty
Some states do not allow limitations on the duration of implied warranties, or the exclusion or the
limitation of incidental or consequential damages. So the above limitations or exclusions may not apply
to you. This warranty gives you specific legal rights. You may also have other rights that may vary from
state to state. NO PERSON IS AUTHORIZED BY DELPHI TO MODIFY OR ADD TO THIS LIMITED WARRANTY.
Delphi Corporation
1441 West Long Lake Road
Troy, Michigan 48098-5090
U.S.A.
Customer Service (1) 877 GO DELPHI
www.delphi.com
MyFi is a registered trademark of the Delphi Corporation. The XM name, XM2Go, TuneSelect, and related
logos are trademarks of XM Satellite Radio Inc.
Printed on Recycled Paper
©2004 Delphi Corporation. All rights reserved.
