Sirius XM Radio Inc. Sirius XM Lynx Portable Radio Home Kit Users Guide
Contents
Home Kit Users Guide
Select a location in close proximity to your stereo system or powered speakers
for the Bluetooth® Home Dock. The location should be easily accessible and
provide good visibility of the display, but should not be located where it will be
in direct sunlight, which will reduce the visibility of the display screen.
a. Connect the Home Power Adapter to
the red POWER connector at the rear
of the Home Dock, and plug it into an
outlet.
b. If you plan to subscribe to satellite
radio, connect the Indoor/Outdoor
Home Antenna to the silver ANT
connector at the rear of the Home
Dock.
c. Place Lynx into the Home Dock and
press the Power button.
d. Lynx will automatically connect via Bluetooth to
the Home Dock. The Bluetooth Pairing Light will
blink during the connection process, and become
solid when connected. If for any reason Lynx fails
to connect to the dock, see the section “Bluetooth
Connections” for instructions on manually
connecting the dock.
Once connected, you can remove Lynx from the
dock and carry it with you.* To listen to satellite
radio, or to use the Remote Control, Lynx must be in
the dock.
AUDIOPOWER
ANT
If you have connected the Indoor/Outdoor Home Antenna, but have not yet
subscribed to SiriusXM satellite radio, follow the instructions on the Activation
screen to subscribe. You may need to turn Lynx off, and then on again to show
the Activation screen.
a. You will need the Radio ID which can be
found:
•on the Activation screen
•by tuning to channel 0
•on a label on the bottom of the gift box
•on the label inside the rear cover of Lynx
The Radio ID does not use the letters I, O, S,
or F.
b. Lynx should still be in the Bluetooth Home
Dock and displaying the Activation screen.
•By phone: Call 1-800-967-2346
•Online: Go to www.siriusxm.com/
activatenow
c. Activation usually takes 10 to 15 minutes after you have completed the
subscription process, but may take up to an hour. We recommend that
Lynx remain on and in the dock until subscribed. Once subscribed, you’ll
be able to tune to the channels in your subscription plan.
If Lynx has a Wi-Fi connection, but you have not yet subscribed to SiriusXM
Internet radio, Lynx will prompt you to set up Internet radio. Follow the
instructions if you wish to subscribe to Internet radio.
Hardware and subscription sold separately. Service will automatically renew for additional periods of the same length as
the plan you choose, on the subscription package you choose (which may differ from the package which arrived with the
radio) until you call us at 1-866-635-2349 to cancel. See our Customer Agreement for complete terms at www.siriusxm.
com. Activation fee of $15, other fees and taxes apply. All fees and programming are subject to change.

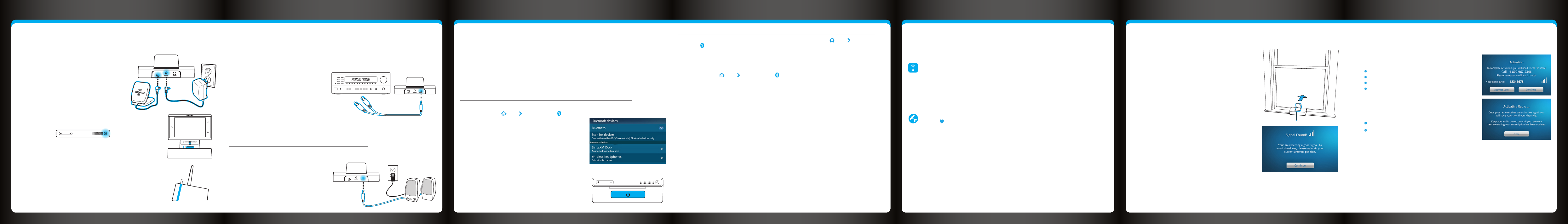

Install the Home Dock and Radio, and Connect an Audio Device
The Bluetooth Home Dock can be connected to your stereo system, or to a set of
powered speakers.
To Connect the Home Dock to Your Stereo System:
a. Using the provided Stereo Audio Cable, connect the single connector to the
green AUDIO connector at the rear of the Bluetooth Home Dock.
b. Connect the white left and
red right Stereo Audio Cable
connectors to any available input
other than PHONO on your stereo
system. (If your stereo’s inputs are
marked red and black, connect
the white plug to the black input.)
c. Turn the stereo system On,
and set input on your stereo
system for the AUX In or LINE In
connection, or whatever input you have connected to.
To Connect the Home Dock to Your Powered Speakers:
a. Connect the powered speakers to the green AUDIO connector at the rear of
the Bluetooth Home Dock.
b. Plug the powered speakers into a
wall outlet.
c. Turn On the powered speakers.
AUDIOPOWER
ANT
AUDIOPOWER
ANT
Bluetooth Connections Install the Indoor/Outdoor Home Antenna and Subscribe to Satellite Radio
Subscription Options
This step is optional and only necessary if you will be subscribing to SiriusXM
satellite radio. The Indoor/Outdoor Home Antenna needs to installed so that it clear
view to the satellites in the south sky.
a. Open the antenna clamshell approximately
half way, and place the antenna in a window
that faces south. Place the antenna on the
windowsill making sure it faces the glass
and not the window frame. There should be
nothing outside the window which would
block the antenna’s clear view of the sky, such
as a building, trees, or shrubs.
Not sure which way is south? Think about
where the sun rises (in the east) and sets
(in the west). Then stand so that east is to
your left and you’ll be facing south. Is there a
window in the direction you’re facing? Place
the antenna in that window.
b. Avatar will check the signal strength. If Signal
Found is displayed, tap Continue to proceed
with the audio check. If Avatar displays No
Signal/Check Antenna, try repositioning the
antenna in a different south facing window,
and tap Not getting a signal? to proceed and
try again.
If you were unable to find an indoor location where the antenna could receive the
signal, you will need to place it outdoors instead, facing the south sky. You can also
refer to www.siriusxm.com for additional help and support for installing the Indoor/
Outdoor Home Antenna.
SOUTH
Connecting Lynx to the Bluetooth Home Dock using Bluetooth provides a wireless
streaming connection between them. You can take Lynx out of the dock and carry it
with you and manage your listening experience from wherever you are.* (Listening
to satellite radio, or using the Remote Control, requires Lynx to be in the dock.)
You can also use Bluetooth to connect Lynx with a Bluetooth stereo audio
streaming device, such as headphones, earbuds, speakers, etc., devices which use
the A2DP profile.
Lynx will automatically pair with and connect to the Bluetooth Home Dock when
you insert Lynx into the dock. Once connected, you can remove Lynx and carry it
with you.
To Connect Lynx without inserting it into the Bluetooth Home Dock:
To connect using Lynx:
a. Tap Home , tap , tap Connect .
b. From the Bluetooth Settings menu tap
Bluetooth to turn it on, if it’s not already on.
A check mark will appear in the box at the
right once Bluetooth is on. Lynx will scan for
and show available Bluetooth devices under
Bluetooth devices.
c. Tap the dock name in the list and Lynx will
connect with the dock. If successful, the
Connected to... message will be displayed
below dock name.
To connect using the Bluetooth Home Dock:
a. Press the Power button on the top rear of the
Bluetooth Home Dock. The Bluetooth pairing
light on the right side of dock will begin to
blink. Once connected, the light will be steady.
To Connect Lynx to a Bluetooth Device Other Than the Bluetooth Home Dock:
If you had previously paired the device with Lynx, tap Home , tap , tap
Connect and tap the Bluetooth device in the list.
To use a new Bluetooth device, you’ll need to pair and connect it with Lynx. You’ll need
to know how to place your Bluetooth device in discoverable mode and may also
need the passcode.
a. Tap Home , tap , tap Connect .
b. From the Bluetooth Settings menu tap Bluetooth to turn it on, if it’s not
already on. A check mark will appear in the box at the right once Bluetooth is
on. Lynx will scan for and show available Bluetooth devices under Bluetooth
devices.
c. If necessary, consult the instructions for your Bluetooth device and place the
device in Bluetooth discoverable mode.
d. Tap the Bluetooth device you wish to connect to. (You may be prompted for
the passcode for the device. If so, enter the passcode.) If pairing is successful,
the Paired but not connected message will be displayed below the Bluetooth
device name.
e. Tap the Bluetooth device name again and a menu will be displayed with the
choices Connect, Unpair, Options.... Tap Connect and Lynx will connect to
the device. If successful, the Connected to... message will be displayed below
your Bluetooth device name.
SiriusXM offers two subscription options, Internet radio and satellite radio.
Subscribing to both provides you with the complete experience of Lynx, giving
you access to all of the features Lynx has to offer. Whether you’re in your home,
in your vehicle*, out walking or jogging, or within range of a Wi-Fi network,
you’ll always have a variety of content to which you can listen.
Internet radio provides the ability to listen to SiriusXM using a Wi-Fi
connection. Whether in your home, or at any establishment that has
Wi-Fi, you can listen to live SiriusXM radio. (An Internet radio subscription also
provides the ability to listen to SiriusXM using your computer.)
If you plan to subscribe to Internet radio only, consult the Quick Start Guide
which accompanied your Lynx, the section titled “Subscribe Lynx to SiriusXM
Internet Radio”. You can always subscribe to satellite radio later if you change
your mind.
Satellite radio adds additional exciting features such as the ability to
“Love” the song to which you’re listening, and build your own personal
channel (My SXM Channel). Select the artists of “Loved” songs and Lynx will
find and add additional songs by the artists to your channel. Another feature a
satellite radio subscription provides is Radio Replays. When you select channels
as favorites, Lynx will record content from those channels for playback when
you are on-the-go, or whenever you want to listen to them.
Continue with the next panel if you plan to subscribe to satellite radio. You can
subscribe to both Internet radio and satellite radio at the same time.
*Bluetooth range is generally up to 30 feet, but the actual distance may vary depending upon the location of
the Bluetooth Home Dock. *To listen to satellite radio in your vehicle you will need to purchase the LV1 Vehicle Kit.
my SXM
channel

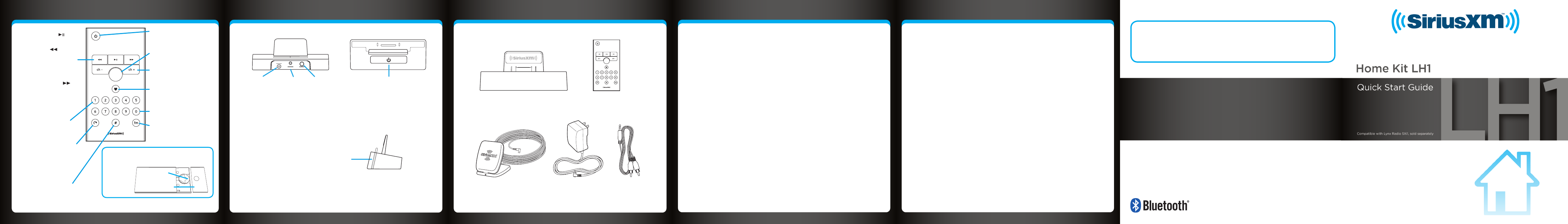

Bluetooth Home Dock Remote Control
Home Power
Adapter
Indoor/Outdoor
Home Antenna
Stereo Audio
Cable
AUDIOPOWER
ANT
Bluetooth Home Dock Rear View Bluetooth Home Dock Top View
Bluetooth
Home Dock
Side View
ANT (Silver)
Connection for the
Indoor/Outdoor
Home Antenna
(optional).
AUDIO (Green)
Connection for
stereo system
or powered
speakers.
Power Button
Press and release to start
Bluetooth pairing mode. When
paired, press and release to
turn off the dock’s Bluetooth
connection.
Bluetooth Pairing Light
Blinks when in pairing mode;
steady when connected.
POWER
(Red)
Connection
for Home
Power
Adapter.
What’s in the Box? Copyrights and Trademarks
Bluetooth Home Dock Buttons & Connectors
©2011 Sirius XM Radio Inc. “Sirius”, “XM” and all related marks and logos are
trademarks of Sirius XM Radio Inc. The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks
by Sirius XM Radio Inc is under license. “Wi-Fi” is a trademark of the Wi-Fi
Alliance. Visit www.siriusxm.com/channellineup for updates. All programming/
channel lineup/XM service subject to change or preemption. All other marks
and logos are the property of their respective owners. All rights reserved.
Our satellite service is available only to those at least 18 and older in the 48
contiguous USA and DC. Our Sirius satellite service is also available in PR (with
coverage limitations). Our Internet radio service is available throughout our
satellite service area and in AK and HI. Certain channels are not available on our
Internet radio service, including MLB® play-by-play.
This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
Specifications
System
Power Requirements: 5 V DC, 1.6 A (max)
Operating Temperature: -4°F to +140°F (-20°C to +60°C)
Audio Output: 2.0 Vrms (max)
Bluetooth Home Dock
Dimensions: 4.5 in (width) x 2.1 in (height) x 1.9 in (depth)
115 mm (width) x 54 mm (height) x 49 mm (depth)
Weight: 5.1 oz (145 g)
Audio Connector: 1/8 in (3.5 mm) female
Antenna Connector: SMB male
Remote Control
Dimensions: 2.2 in (width) x 4.2 in (height) x 0.4 in (depth)
55 mm (width) x 105 mm (height) x 10 mm (depth)
Weight: 1.3 oz (37 g)
Battery: CR2025 (3 V)
Self-installation instructions and tips are provided for your convenience. It is
your responsibility to determine if you have the knowledge, skills and physical
ability required to properly perform an installation. SiriusXM shall have no
liability for damage or injury resulting from the installation or use of any
SiriusXM or third party products. SiriusXM product warranties do not cover the
installation, removal or reinstallation of any product.
my SXM
channel
Power Button
Press to turn Radio On; Press
and hold to turn Radio Off.
Numbers 1-5
Selects the corresponding
favorite channel in the current
favorite page on the Now
Playing screen.
Jump**
If configured for traffic/weather,
jumps to the traffic/weather for
the city you have selected.
If configured for last channel,
jumps to the channel to which
you had previously been
listening.
Numbers 6-0
Selects the favorite channel
page, i.e., 6=page 1, 7=page
2, etc.
FM (PowerConnect only)
Toggles through the FM
presets. If no FM presets
have been set, opens the FM
Settings screen.
Direct
Directly tunes a channel by
entering the channel number
with the number buttons.
Tune Up/Down Channels
Immediately tunes up or
down the channels.
Love**
Saves the song to which you
are listening to My Library
for playback later.
My SXM Channel**
Tunes to the virtual channel
of all your ‘Loved’ and ‘Loved
Artist’ songs.
Pause and Replay Buttons:
Pause/Play button
Pauses or resumes playing of
the currently tuned channel.
Rewind button
*
Rewinds through content so
you can hear-that-again. Tap
to rewind to the beginning
of a song or show segment.
(Press+hold to continuously
rewind through content.**)
Fast-Forward button
*
Advances through content
until live radio is reached. Tap
to advance to the next song
or show segment. (Press+hold
to continuously rewind
through content.**)
* For music and comedy channels, you are limited to 1 rewind and up to 5 skip-forwards per hour.
** When listening to satellite radio.
Remote Control Button Functions & Battery
Battery Replacement. Turn the Remote Control
over and remove the battery cover. Observe
the orientation of the battery, then slide it out
and replace
it with a
CR2025.
Reinstall
the battery
cover.
Battery
Battery Cover
Sirius XM Radio Inc.
1221 Avenue of the Americas
New York, NY 10020
1.800.967.2346
siriusxm.com
© 2011 Sirius XM Radio Inc.
Lynx HK QSG 081011a
