Onyz EZ Manual

USER GUIDE

Dock & Play Radio

with Vehicle Kit

Table of Contents

Introduction ................... 3

Features ...........................3

Safety and Care Information ..........4

What’s in the Box? ..................6

Onyx EZ Functions ..................7

PowerConnect Vehicle Dock ..........8

Vehicle Installation ............ 10

Step 1: Choose a Location for Your

Radio ........................... 10

Step 2: Install the Dash or Vent Mount 12

Step 3: Mount the Magnetic Mount

Antenna ......................... 16

Step 4: Route the Magnetic Mount

Antenna Cable ...................22

Step 5: Connect the Magnetic Mount

Antenna and PowerConnect Power

Adapter .........................33

Step 6: Connect the Audio ......... 34

Subscribe ....................43

Using Your Onyx EZ .......... 45

The Main Display .................. 45

Navigation Basics ................. 46

Listening to Satellite Radio ......... 48

FM Presets ........................52

Parental Controls .................. 54

Where Else Can You Use Your

Onyx EZ? ...................59

Conﬁguring Your Onyx EZ ..... 60

Radio ID .......................... 60

Find Available FM Channels in Your

Area ............................61

Set and Select an FM Channel .......63

Jump Settings .................... 66

Set Brightness or Contrast ..........67

Set Audio Level ................... 68

Signal Indicator ................... 69

Factory Settings .................. 70

Demo Mode .......................73

Auto Shut Off ......................74

Using the Vehicle Dock From the

Universal Xpress Car Kit ...........76

Turn FM Transmitter On/Off .........77

Troubleshooting ..............79

Product Speciﬁcations .........83

Patent and Environmental

Information ................ 84

FCC Statement ...............85

Copyrights and Trademarks .....86

Owners Record ...............87

Table of Contents

Features

Thank you for purchasing the XM Onyx EZ with Vehicle Kit!

XM Onyx EZ has these exciting features to enhance your overall experience:

•Hear SiriusXM through your existing vehicle radio with easy, do-it-

yourself installation.

•View artist name, song title, and channel information on the large color

display.

•Store your favorite channels for one touch access.

•Easily lock and unlock channels with mature content.

•One-Touch Jump™ to trafﬁc and weather for the city of your choice

from a list of 22 of the most congested cities, or to the previous channel

to which you were listening.

•Listen in multiple vehicles, at home, in the ofﬁce or outdoors - all with

just one subscription.

•Vehicle Kit included — add accessories for your home, ofﬁce, or other

vehicles.

Please read the entire User Guide before using your Onyx EZ!

Introduction

Safety and Care Information

IMPORTANT! Self installation instructions and tips are provided for your

convenience. It is your responsibility to determine if you have the knowledge,

skills, and physical ability required to properly perform an installation.

SiriusXM shall have no liability for damage or injury resulting from the

installation or use of any SiriusXM or third party products. It is your

responsibility to ensure that all products are installed in adherence with local

laws and regulations and in such a manner as to allow a vehicle to be

operated safely and without distraction. SiriusXM product warranties do not

cover the installation, removal or reinstallation of any product.

•Do not expose to extreme temperatures (above 140°F or below -4°F, or

above 60°C or below -20°C).

• Do not expose to moisture. Do not use device near or in water. Do not

touch the device with wet hands.

• Do not let any foreign matter spill into device.

• Do not store in dusty areas.

• Do not expose to chemicals such as benzene and thinners. Do not use

liquid or aerosol cleaners. Clean with a soft damp cloth only.

•Do not expose to direct sunlight for a prolonged period of time, and do

not expose to ﬁre, ﬂame, or other heat sources.

• Do not try to disassemble and/or repair device yourself.

• Do not drop your device or subject it to severe impact.

• Do not place heavy objects on device.

• Do not subject device to excessive pressure.

• If the LCD screen is damaged, do not touch the liquid crystal ﬂuid.

Introduction

Warning!

•Opening the case may result in electric shock.

•If the liquid crystal ﬂuid comes in contact with your skin, wipe the skin

area with a cloth and then wash the skin thoroughly with soap and

running water. If the liquid crystal ﬂuid comes into contact with your

eyes, ﬂush the eyes with clean water for at least 15 minutes and seek

medical care. If the liquid crystal ﬂuid is ingested, ﬂush your mouth

thoroughly with water. Drink large quantities of water, and induce

vomiting. Seek medical care.

•Make sure that you insert the PowerConnect Power Adapter all the way

into the vehicle’s cigarette lighter or power adapter socket.

•If you are using PowerConnect as your audio connection option, it is

advisable not to insert a multi-outlet adapter into the same vehicle

cigarette lighter or power adapter socket to simultaneously power other

devices. Some multi-outlet adapters can prevent the PowerConnect

feature from working properly.

• When using this product, it is always important to keep your eyes on the

road and hands on the steering wheel. Not doing so could result in personal

injury, death, and/or damage to your device, accessories, and/or to your

vehicle or other property.

• Vehicle installation, service activation, and Radio conﬁguration functions

should not be performed while driving. Park your vehicle in a safe location

before beginning installation.

•This product contains chemicals known to the State of California to

cause cancer and birth defects or other reproductive harm.

Your device should be placed in your vehicle where it will not interfere

with the function of safety features, e.g., deployment of airbags. Failure

to correctly place device may result in injury to you or others, if the unit

becomes detached during an accident and/or obstructs the deployment of

an airbag.

Introduction

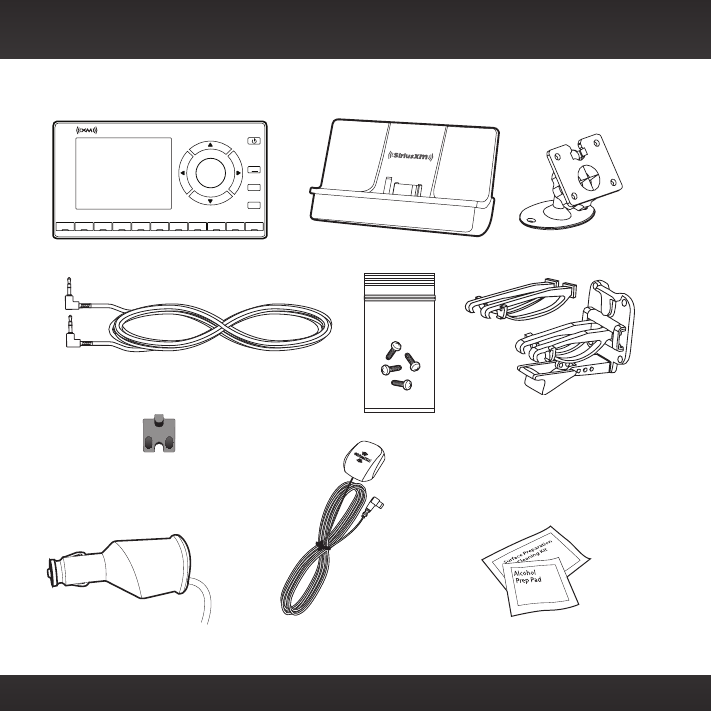

What’s in the Box?

234567890

direct

jump

Onyx EZ Radio

Magnetic Mount

Antenna

Antenna & Dash Mount

Alcohol Preparation Pads

PowerConnect Power

Adapter

Aux In Cable

Cable

Routing Adapter

Introduction

PowerConnect™ Vehicle Dock Dash Mount

Screws (4)

Vent Mount and

Extended Vent Clamps

Onyx EZ Functions

234567890

direct

jump

Power Button

Press to turn Radio on

and off.

Left and Right Buttons

Press to search for

channels by category.

Up and Down Buttons

Press to preview and tune

to channels through the

channel lineup; also press

to scroll through lists and

highlight menu items.

Menu Button

Press to access

advanced features and

configuration options;

in configuration options,

press and hold to return

to main display screen.

Select Button

Press to confirm

selection of highlighted

items in a menu or list.

FM Button

Press to access and

cycle through FM

presets.

Jump Button

Press to directly access

traffic and weather for

the city of your choice;

or press it to go back

to the previous channel

to which you were

listening.

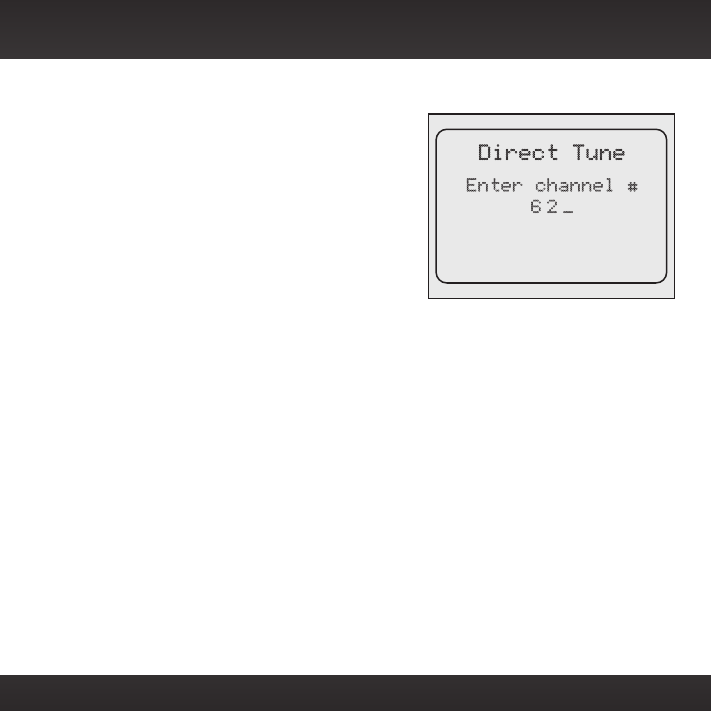

Direct Button

Press first before

entering the channel

number, to directly

tune to a channel.

Number Buttons

Press to tune to

a stored favorite

channel, press and

hold to store a

favorite channel;

also enter a channel

number.

Introduction

PowerConnect Vehicle Dock

Color-Coded Connections

The color-coded PowerConnect Vehicle Dock makes it simple to

connect. Just match the colors on the cable ends to the colors on the

dock to see what goes where.

Rear View

Introduction

ANT (Silver)

Connection for

the Magnetic

Mount Antenna.

AUDIO (Green)

Connection for Aux In

Cable or optional

Cassette Adapter

(sold separately).

PWR (Red)

Connection for

PowerConnect

Power Adapter.

FM (Blue)

Connection for

optional FM

Direct Adapter

(sold separately).

AUDIOANT PWRFM

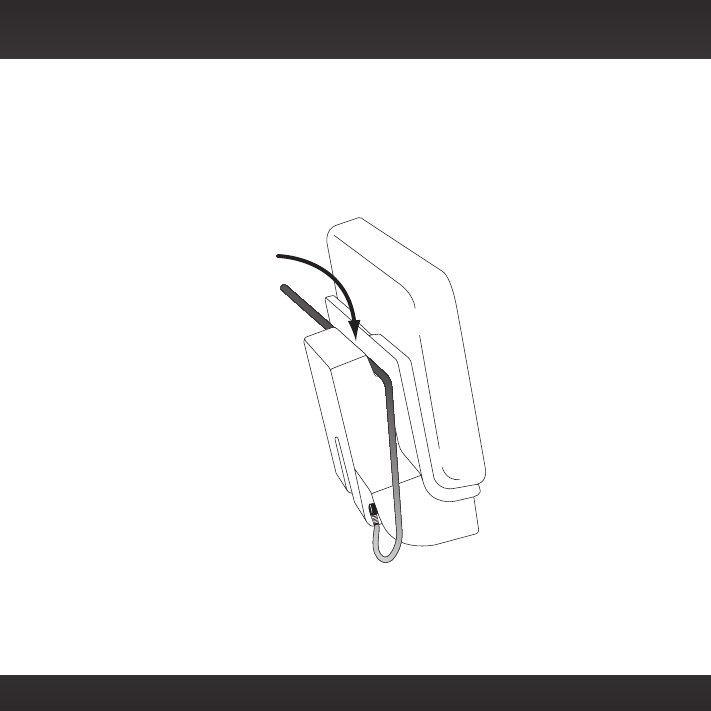

Wire Guide

The PowerConnect Vehicle Dock has a wire guide at the top rear that can

help you to organize the cables and wires connected to the dock. If you

need to bring a cable or wire from one side of the dock to the other, utilize

the wire guide by looping the cable though the wire guide as shown.

Wire Guide

Introduction

WARNING! DO NOT attempt to install Onyx EZ while driving. Park your

vehicle in a safe location before beginning installation.

Step 1: Choose a Location for Your Radio

When installing Onyx EZ in your vehicle, choose a location where it will

not block your vision, interfere with the controls, or obstruct the air bag.

The location should be easily accessible and provide good visibility of the

display, and should not be located where it will be in direct sunlight, which

will affect the visibility of the display screen.

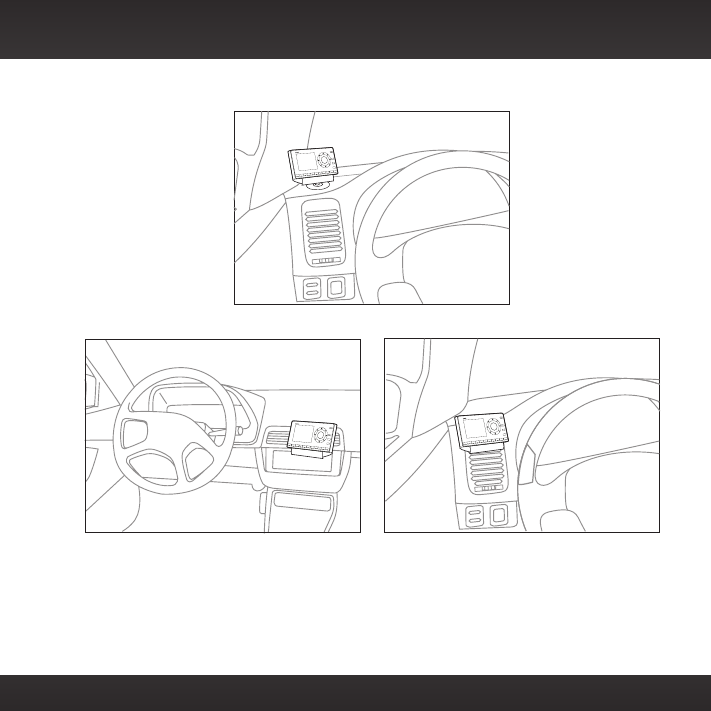

Several examples of Onyx EZ mounted in a vehicle are shown: A is the on

dash method using the Dash Mount, and B is the vent clip method using the

Vent Mount.

Option 1 Option 2

234567890

direct

jump

234567890

direct

jump

Vehicle Installation

Option 3

Option

ption 5

234567890

direct

jump

234567890

direct

jump

234567890

direct

Vehicle Installation

Step 2: Install the Dash or Vent Mount

Follow the instructions on the next several pages for the mounting method

you have selected.

NOTE! The PowerConnect Vehicle Dock included with Onyx EZ is compatible

with the T-slot style Dash and Vent Mounts. If you have an existing Dash Mount

or Vent Mount in your vehicle, you can continue to use it with this dock, and

skip this step.

Installing the Dash Mount:

CAUTION! The adhesive used on the Dash Mount may be

difﬁcult to remove. Do not install this mount on leather

surfaces (contact your automobile dealership if you are

unsure about your dash surface), and make sure the air

temperature is at least 60°F (15°C) during installation. If it’s

not at least 60°F, turn on the heater in your vehicle to bring

the temperature up to 60°F.

1. Locate a flat surface for the Dash Mount. Make sure there is ample

room for the PowerConnect Vehicle Dock and Onyx EZ Radio when

installed.

2. Set the orientation of the Dash Mount before adhering it. Loosen the

knob and adjust the adhesive foot for the location you selected in

“Step 1: Choose a Location for

Your Radio” on page 10.

•Option 1 & Option 3

should be oriented as I.

•Option 2 should be oriented

as II.

3. The dock mounting plate can

be tilted in different directions. Adjust as necessary for your particular

vehicle. When the orientation is correct, tighten the knob.

4. Attach the Dash Mount to the PowerConnect

Vehicle Dock using the 4 provided screws.

5. Before you attach the Dash Mount to the

dash, skip ahead and finish the remainder of

the vehicle installation so that the cables are

attached to the dock.

6. Once the cables have been attached to the

dock, clean the mounting surface in the vehicle

with the alcohol preparation pad and let it dry

thoroughly.

7. Peel off the adhesive liner. Position,

press, and hold the Dash Mount in

place for 30 seconds.

IMPORTANT!

Allow the Dash Mount

adhesive to cure (dry) for a minimum of

2-4 hours before using the mount. The

best adhesion occurs after 24 hours.

TIP! To remove the Dash Mount, carefully lift the adhesive pad with your

ﬁngers or a spoon. Warming the pad with a hair dryer for several minutes will

help soften the adhesive.

AUDIO ANT PWR FM

Vehicle Installation

Knob Adhesive Foot Dock Mounting Plate

Installing the Vent Mount:

IMPORTANT! To make the cable connections easier, wait until after you have

connected all the cables to the dock before you attach the Vent Mount to a

vent.

1. Locate a vent with horizontal louvers sturdy

enough to hold your PowerConnect Vehicle

Dock and Onyx EZ Radio.

2. If the vent louvers in your vehicle are

recessed, you may need to use the longer

vent clamps with the Vent Mount. If so,

remove the shorter vent clamps and install

the longer ones into the Vent Mount. Be

sure to observe the orientation of the vent

clamps as shown.

Slide Short Vent Clamps OutRemove End Cap

Slide Extended Vent Clamps In Replace End Cap

Extended Vent Clamps

Short Vent

Clamps

Vehicle Installation

3. Attach the Vent Mount to the

PowerConnect Vehicle Dock using the 4

provided screws.

4. Before you attach the Vent Mount to the

vent, skip ahead and finish the remainder

of the vehicle installation so that the

cables are attached to the dock.

Note! For greater clarity, the next

illustration does not show the dock

attached to the Vent Mount, however, the

dock should be attached before continuing.

5. Once the cables have been attached to the dock, push the Vent Mount

onto the vehicle vent as shown (1) until it hooks on the rear of the vent

louver (2).

6. Rest the foot against the bottom of the vent (2), and adjust the tilt of the

Vent Mount by repositioning the foot to a different adjustment hole (3).

TIP! To remove the Vent Mount, push the mount into the vent. Then lift up

until disengaged from the rear of the vent louver, and remove the Vent

Mount.

PUSH

Dash

Vent

Louver

Foot

Vent Vent

Dash Dash

HOOKED

TILT

ADJUSTMENT

HOLES

1 2 3

AUDIO ANT PWR FM

Vehicle Installation

Step 3: Mount the Magnetic Mount Antenna

Mount the Magnetic Mount Antenna on the outside of your vehicle, on a

horizontal surface that will always face the sky. The antenna contains a

strong magnet which will stick to any metal part of your vehicle, but will not

damage the vehicle.

To install the Magnetic Mount Antenna:

1. Choose the best location for your antenna considering

your vehicle type. Pay particular attention to any

accessories that you may have like luggage racks and

how frequently you may use them.

Sedan/Coupe: We recommend mounting the antenna just above

either the front windshield or the back window as shown.

Magnet

Vehicle Installation

SUV: We recommend mounting the antenna at the rear of the

roof as shown.

Convertible: We recommend mounting the antenna at the

leading edge of the trunk as shown.

Pickup Truck: We recommend

mounting the antenna just above the

front windshield as shown.

IMPORTANT! Consult a professional installer if

your vehicle roof or hood is non-metallic (i.e.,

ﬁberglass), or you have difﬁculty ﬁnding a

location for your antenna.

2. Clean the surface of the selected mounting

location using the alcohol preparation pad

and let it dry thoroughly.

Vehicle Installation

3 If you are installing the antenna at the roof edge, or hood edge, install

the Cable Routing Adapter to direct the antenna cable downward.

Place the antenna

wire into the groove

of the Cable Routing

Adapter

Slide the Cable Routing

Adapter down the antenna

wire and press it into the

antenna until it is ﬂush with

the bottom of the antenna

Without Cable

Routing Adapter

Installed

With Cable

Routing Adapter

Installed

Cable Routing

Adapter orientation

Vehicle Installation

TIP! Mount the antenna on the

roof (for most vehicles) or trunk

(for convertibles) where it has a

clear view of the sky in all

directions.

4 Place the antenna in the location you selected. Follow the Tips and

Cautions shown on the next several pages.

Vehicle Installation

CAUTION! Don’t mount the antenna

inside the vehicle, for example, on the

dashboard.

CAUTION! Don’t mount the antenna on

any of the vehicle’s front, back or side

pillars.

CAUTION! Don’t mount the antenna

close to a roof rack. Adjust the rack so

it’s further away from the antenna or

move the antenna closer to the center of

the roof.

Vehicle Installation

CAUTION! Don’t mount the antenna

close to another antenna. Mount it at

least 3 inches away.

Vehicle Installation

Step 4: Route the Magnetic Mount Antenna Cable

Before you begin routing the antenna cable, read these general instructions

for how to route and hide the antenna cable. Then route your antenna cable

according to the instructions which follow for your speciﬁc type of vehicle.

Feed cable under

rubber moulding

around window

Tuck the cable under the

moulding around the window

Use a blunt plastic putty knife, a credit card,

a plastic knife, or a similar blunt tool to lift the

rubber window moulding

Vehicle Installation

Route cable out from under rear windshield

moulding and tuck into weatherstripping

around trunk opening

Pull weatherstripping

from trunk opening

Tuck cable into weatherstripping.

Route cable through weatherstripping

several inches to avoid sharp bends

Pull cable out of weatherstripping

and route through trunk to cabin

Avoid sharp bends by running cable through

weatherstripping for several inches

Route cable out of window

moulding and into weather-

stripping around trunk opening

Vehicle Installation

Bring cable out of weatherstripping and into trunk

Route cable along trunk

wall and into cabin through

gap or conduit, along existing

wiring harness

Route cable along trunk

wall and into cabin

Vehicle Installation

Use a blunt plastic putty

knife or similar blunt tool

to lift edge of interior

trim and tuck cable

under trim. Continue

towards front of vehicle

Route cable from trunk

under interior trim, into

cabin and towards front

of vehicle

Route cable under

trim or upholstery

Continue routing cable

under trim or carpet

towards front of vehicle

Vehicle Installation

TIP! Always be careful to include enough slack in your cable to

accommodate open doors or trunk lids. Use things typically found around

the home, like electrical tape, to secure cables in areas so that hinges do

not pinch the cable with the door. Hide any excess cable in the trim.

Continue routing cable under

carpet or console to radio location

Coil excess

cable under

carpet or mat

Bring cable out

from trim

Pull carpet

or mat back

Bring cable out from trim

and route under carpet to

dashboard or console

Vehicle Installation

Sedan/Coupe With Antenna Placed at the Rear of the Roof:

1. Feed the antenna cable from the antenna underneath the rubber

molding around the rear window. Use a blunt plastic putty knife or

similar blunt tool to lift the rubber molding around the rear window

and tuck the antenna cable underneath the molding. Route the antenna

cable around and down the window to the lowest point. If your rear

window does not have rubber molding, we recommend consulting a

professional installer.

2. Route the antenna cable out of the window molding and into the

rubber weather stripping around the trunk opening. Lift the weather

stripping from the opening and tuck the cable inside it, then replace

the weather stripping. To avoid sharp bends in the cable, run the cable

inside the weather stripping for a few inches, then remove the cable

from the weather stripping inside the trunk. Keep the cable away from

hinges, gears, etc., that could damage it.

3. Route the cable out from the rubber weather stripping and along the

trunk wall. Continue routing the cable into the vehicle cabin through a

conduit or along an existing wiring harness.

4. Route the cable through the

main cabin area under the

interior trim, towards the front

of the vehicle. Use a blunt

plastic putty knife or similar

blunt tool to lift the plastic trim

just enough to tuck the cable

under underneath. Avoid side

airbag locations on back pillars

and above the doors. Airbag

locations are marked with “SRS”

Vehicle Installation

logos. Be careful not to crimp or cut the cable.

5. Bring the cable out from the trim near the front of the cabin and route

it under the carpet toward the dashboard or console. Coil any excess

cable in a hidden location, such as under the carpet, keeping it away

from any vehicle pedals or controls. Secure the excess cable with wire

ties (purchased separately).

6. Bring the end of the cable out at the PowerConnect Vehicle Dock

location. Leave yourself enough cable so you can easily connect it to

the antenna connector of the dock.

7. Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 33.

Sedan/Coupe With Antenna Placed at the Front of the Roof

1. Feed the antenna cable from the antenna underneath the rubber

molding around the windshield. Use a blunt plastic putty knife or

similar blunt tool to lift the rubber molding around the windshield and

tuck the antenna cable underneath the molding. Route the antenna

cable around and down the windshield to the lowest point.

2. At the lowest corner of the windshield, route the cable out of the

windshield molding and into

the rubber weather stripping

around the door opening. Lift

the weather stripping from the

opening and tuck the cable

inside it, then replace the

weather stripping. Run the cable

inside of the weather stripping

to the bottom of the door

Vehicle Installation

opening.

3. Pull the cable out of the weather stripping at the bottom of the door

opening and route it under the carpet toward the dashboard. Coil any

excess cable in a hidden location, such as under the carpet, keeping it

away from any vehicle pedals or controls. Secure the excess cable with

wire ties.

4. Bring the end of the cable out at the PowerConnect Vehicle Dock

location. Leave yourself enough cable so you can easily connect it to

the antenna connector of the dock.

5. Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 33.

Sport Utility Vehicle (SUV)

1. Feed the antenna cable underneath the rubber weather stripping of

the rear tailgate window/door and route the cable along the rear hatch.

Lift the weather stripping from the opening and tuck the cable inside

it, then replace the weather stripping. Pull the cable out from weather

stripping and route it into the

cabin under the interior trim.

Avoid hinges or gears that could

crimp or cut the cable.

2. Route the cable through the

SUV’s main cabin area under

the interior trim, towards the

front of the vehicle. Use a blunt

plastic putty knife or similar

blunt tool to lift the plastic trim

just enough to tuck the cable

Vehicle Installation

under underneath. Avoid side airbag locations on back pillars and

above the doors. Airbag locations are marked with “SRS” logos. Be

careful not to crimp or cut the cable.

3. Bring the cable out from the trim near the front of the cabin and route

it under the carpet toward the dashboard or console. Coil any excess

cable in a hidden location, such as under the carpet, keeping it away

from any vehicle pedals or controls. Secure the excess cable with wire

ties (purchased separately).

4. Bring the end of the cable out at the PowerConnect Vehicle Dock

location. Leave yourself enough cable so you can easily connect it to

the antenna connector of the dock.

5. Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 33.

Convertible

1. Bring the antenna cable from the antenna into the trunk at the front

edge of the trunk lid. Keep any bends in the cable loose. Tape or tie the

cable along the inside of the trunk lid to the trunk lid hinge strut.

2. Allow enough slack in the cable so

the trunk lid can easily open and close

and keep the cable away from hinges,

gears, etc., that could crimp or cut it.

Route the cable along the trunk wall

and into the cabin through a conduit or

along an existing wiring harness.

3. Route the cable through the main

cabin area under the interior trim,

Vehicle Installation

towards the front of the vehicle. Use a blunt plastic putty knife or

similar blunt tool to lift the plastic trim just enough to tuck the cable

under underneath. Avoid side airbag locations on back pillars and

above the doors. Airbag locations are marked with “SRS” logos. Be

careful not to crimp or cut the cable.

4. Bring the cable out from the trim near the front of the cabin and route

it under the carpet toward the dashboard or console. Coil any excess

cable in a hidden location, such as under the carpet, keeping it away

from any vehicle pedals or controls. Secure the excess cable with wire

ties (purchased separately).

5. Bring the end of the cable out at the PowerConnect Vehicle Dock

location. Leave yourself enough cable so you can easily connect it to

the antenna connector of the dock.

6. Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 33.

Pickup Truck

1. Use a blunt plastic putty knife or similar

blunt tool to lift the rubber molding

around the windshield and tuck the

antenna cable underneath it.

2. Continue tucking the cable underneath

the windshield molding around the

windshield to the lowest corner.

3. At the lowest corner of the windshield,

route the cable out of the windshield

molding and into the rubber weather

Vehicle Installation

stripping around the door opening. Lift the weather stripping from the

opening and tuck the cable inside it, then replace the weather stripping.

Run the cable inside of the weather stripping to the bottom of the door

opening.

4. Pull the cable out of the weather stripping at the bottom of the door

opening and route it under the carpet toward the dashboard. Coil any

excess cable in a hidden location, such as under the carpet, keeping it

away from any vehicle pedals or controls. Secure the excess cable with

wire ties.

5. Bring the end of the cable out at the PowerConnect Vehicle Dock

location. Leave yourself enough cable so you can easily connect it to

the antenna connector of the dock.

Continue with “Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter” on page 33.

Vehicle Installation

Step 5: Connect the Magnetic Mount Antenna and

PowerConnect Power Adapter

1. Plug the Magnetic Mount Antenna into the

silver ANT connector on the PowerConnect

Vehicle Dock.

2. Insert the PowerConnect Power Adapter

into your vehicle’s cigarette lighter or power

adapter socket.

3. Plug the PowerConnect Power Adapter into

the red PWR connector on the dock.

AUDIOANT PWR FM

AUDIOANT PWRFM

Vehicle Installation

Step 6: Connect the Audio

To play XM audio through your vehicle’s stereo or FM radio, decide on one

of the following audio connection options:

•Option 1: Best: Use the provided Aux In Cable if your vehicle’s stereo

system has an auxiliary input connection or jack. Refer to your vehicle’s

owners manual to ﬁnd the location of the auxiliary input jack, or consult

the vehicle dealer.

TIP! The auxiliary input jack may be located on the face plate of the vehicle

radio, on the back of the radio, anywhere on the front dash panel, inside the

glove compartment, or inside the center console in between the front seats.

•Option 2: Better: Use a Cassette Adapter if your vehicle has a built-

in cassette player. Cassette Adapters are sold separately and can be

purchased from an electronics retailer, or go to www.siriusxm.com/

accessories.

•Option 3: Good: Use the PowerConnect feature of Onyx EZ.

PowerConnect plays the audio through your vehicle’s FM radio.

•Option 4: Best: Use the FM Direct Adapter. If none of the previous

three audio connection options will work in your vehicle, then you will

need to use the FM Direct Adapter (FMDA) (sold separately). The FMDA

needs to be installed by a professional installer and directly connects

Onyx EZ to your vehicle’s FM radio. To learn more, check with the

retailer where you bought your Radio, or go to www.siriusxm.com/

accessories.

Follow the installation instructions in the next several sections for the audio

connection option that you have selected.

Vehicle Installation

Option 1: Aux In Cable Installation Instructions

1. Plug one end of the Aux In Cable into the green AUDIO connector on

the dock.

2. Plug the other end into the auxiliary input jack

of your vehicle’s stereo system.

3. If you are using the vent mounting method,

attach the Vent Mount to the vehicle vent.

4. Insert your Onyx EZ into the dock.

5. Power on your Onyx EZ by pressing the Power

button.

6. Be sure the vehicle is outside and the antenna has a

clear view of the sky. Verify that you are receiving

the XM signal. There should be at least two bars on

the lower left corner of the main display screen that

denotes antenna signal strength. You can also press

menu and then press to scroll to and highlight

Signal Indicator. Press the Select button. The

Satellite and Terrestrial bars show the strength of the

signal being received. If the signal reception is good, press and hold

menu to return to the main display screen.

234567890

direct

jump

234567890

direct

jump

AUDIOANT PWRFM

Vehicle Installation

7. Ensure Onyx EZ is tuned to channel

1, the XM Preview channel. Upon

power up, Onyx EZ should tune to

channel 1 by default, when it’s not yet

activated. If it’s not on channel 1, refer

to “Listening to Satellite Radio” on

page 48 to learn about how to tune

a channel.

8. Turn on your vehicle’s stereo system.

Set it to play from the auxiliary input

source. You should hear XM channel 1

through your vehicle’s stereo system.

You are now ready to activate your

Onyx EZ.

9. Go back to “Step 2: Install the Dash or

Vent Mount” on page 12 and finish

installing the Dash or Vent Mount.

Then the installation is complete.

10.

The audio level output of Onyx EZ

can be increased or decreased as

necessary to match the audio levels of

other sources in your vehicle. Refer to

“Set Audio Level” on page 68.

If the signal reception is good, showing at least two bars in the lower

left corner of the display, but there is no XM audio, be sure the vehicle’s

stereo system is set to the auxiliary input source (step 8). Also be sure

that the audio level is set high enough to be heard (step 10). Refer to

“Troubleshooting” on page 79 for additional help.

Signal Indicator

SATELLITE

- +

-TERRESTRIAL

866-635-2349

siriusxm.com

1 XM Preview

Vehicle Installation

Option 2: Cassette Adapter Installation Instructions

1. Plug the Cassette Adapter into the green AUDIO connector on the dock.

2. Insert the Cassette Adapter into the vehicle’s cassette deck. You may

need to turn on your vehicle’s stereo system in order to do so.

3. If you are using the vent mounting method, attach

the Vent Mount to the vehicle vent.

4. Insert your Onyx EZ into the dock.

5. Power on your Onyx EZ by pressing the Power

button.

6. Be sure the vehicle is outside and the antenna

has a clear view of the sky. Verify that you are

receiving the XM signal. There should be at least

two bars in the lower left corner of the main display

screen that denotes antenna signal strength. You can

also press menu and then press to scroll to and

highlight Signal Indicator. Press the Select button.

The Satellite and Terrestrial bars show the strength

of the signal being received. If the signal reception is

good, press and hold menu to return to the main

234567890

direct

jump

234567890

direct

jump

AUDIO ANT PWRFM

Vehicle Installation

display screen.

7. Ensure Onyx EZ is tuned to channel

1, the XM Preview channel. Upon

power up, Onyx EZ should tune to

channel 1 by default, when it’s not yet

activated. If it’s not on channel 1, refer

to “Listening to Satellite Radio” on

page 48 to learn about how to tune

a channel.

8. Turn on your vehicle’s stereo system.

Set it to play from the auxiliary input

source. You should hear XM channel 1

through your vehicle’s stereo system.

You are now ready to activate your

Onyx EZ.

9. Go back to “Step 2: Install the Dash or

Vent Mount” on page 12 and finish

installing the Dash or Vent Mount.

Then the installation is complete.

10.

The audio level output of Onyx EZ can be increased or decreased as

necessary to match the audio levels of other sources in your vehicle.

Refer to “Set Audio Level” on page 68.

If the signal reception is good, showing at least two bars in the lower left

corner of the display, but there is no XM audio, be sure the vehicle’s stereo

system is set to the cassette source (step 4). Also be sure that the audio

level is set high enough to be heard (step 5). Refer to “Troubleshooting” on

page 79 for additional help.

Signal Indicator

SATELLITE

- +

-TERRESTRIAL

866-635-2349

siriusxm.com

1 XM Preview

Vehicle Installation

Option 3: PowerConnect Installation Instructions

1. If you are using the vent mounting method, attach the Vent Mount to

the vehicle vent.

2. Insert your Onyx EZ into the dock.

3. Power on your Onyx EZ by pressing the Power

button.

4. Be sure the vehicle is outside and the antenna

has a clear view of the sky. Verify that you are

receiving the XM signal. There should be at least

two bars in the lower left corner of the main

display screen that denotes antenna signal strength.

You can also press menu and then press to scroll

to and highlight Signal Indicator. Press the Select

button. The Satellite and Terrestrial bars show the

strength of the signal being received. If the signal

reception is good, press and hold menu to return to

the main display screen.

5. You’ll first need to find an available FM

channel. An available FM channel is one

that’s not being used by an FM radio

station in your area. When you tune

your FM radio to an available channel,

you should only hear static or silence –

not talk or music. We recommend one

of the following methods to find an

available FM channel:

a. Use the SiriusXM FM Channel

234567890

direct

jump

234567890

direct

jump

866-635-2349

siriusxm.com

1 XM Preview

Vehicle Installation

Signal Indicator

SATELLITE

- +

-TERRESTRIAL

Finder at www.siriusxm.com/

fmchannel. Go to the website and

enter your zip code. The Channel

Finder will suggest a list of available

FM channels in your area. For

convenience, write down or print out

the list.

b. Manually tune through your local FM

channels on your vehicle’s FM radio.

Locate and create a list of channels that aren’t being used by any FM

radio station. Write down the list. Once you have created your list of

available FM channels, you will need to ﬁnd the one that provides the

best match for Onyx EZ.

TIP! You’ll need to use the ‘Manual’ tune function on your vehicle’s FM radio

to tune through every FM channel one-by-one. Turn on your vehicle’s FM

radio. Start at 88.1 and use the ‘Manual’ tune function on your vehicle’s FM

radio to tune through each FM channel one-by-one (88.1 followed by 88.3

etc.) to locate channels that aren’t being used by a local FM radio station.

Write down each FM channel that has only static or silence on it, until you

reach 107.9.

6. Ensure Onyx EZ is tuned to channel 1, the XM Preview channel. Upon

power up, Onyx EZ should tune to channel 1 by default, when it’s not yet

activated. If it’s not on channel 1, refer to “Listening to Satellite Radio” on

page 48 to learn about how to tune a channel.

7. Pick the first FM channel on your list from step 5. Turn on your vehicle’s

FM radio (if you have not already done so) and tune it to this FM channel.

NOTE! If you are using the Vehicle Dock from the Universal Xpress Car Kit

instead of the PowerConnect Vehicle Dock which came with your Onyx EZ,

you will have to disable AUX Detect. Refer to “Using the Vehicle Dock From

the Universal Xpress Car Kit” on page 76, and complete the additional

Vehicle Installation

instructions before continuing with the next step. The

audio connection will be through your vehicle’s FM

radio, but it is not PowerConnect.

8. Set your Onyx EZ to transmit on the same FM

channel that you have selected in step 7:

i. Press menu.

ii. Press to scroll to and highlight

FM Settings and press the Select

button.

iii. FM Channels will be highlighted. If it

is not highlighted, press to scroll

to and highlight FM Channels. Press

the Select button.

iv. Press to scroll to and highlight

the storage location FM 2 and

press the Select button.

v. Tune to the available FM channel

you choose in step 3. Press and

to tune in steps of .2, i.e., 99.3 to

99.5. Press and to tune in

steps of 1, i.e., 99.3 to 100.3. Press

the Select button to select the FM

channel.

234567890direct

jump

90.1

MATCH FM CHANNELS

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

current

FM 1

FM 2

FM 3

FM 4

FM 5

97.9

___

FM Channels

Vehicle Installation

vi. Start Using is highlighted. Press the Select button.

vii. The FM channel you selected will be conﬁrmed on the display

screen. Onyx EZ will tune to the FM channel.

9. You should hear XM channel 1 through your vehicle’s FM radio. If you

are satisfied with the sound quality, the installation is complete. You are

now ready to activate your Onyx EZ.

10.

Go back to “Step 2: Install the Dash or Vent Mount” on page 12

and finish installing the Dash or Vent Mount. Then the installation is

complete.

11.

If the selected FM channel doesn’t work well for you, work down the list

of FM channels until you find one with which you are satisfied. Each time,

you will need to tune your vehicle’s FM radio to the FM channel and then

set your Onyx EZ to transmit on the same FM channel (steps 7 & 8).

If the signal reception is good, showing at least two bars in the lower left

corner of the display, but there is no XM audio, verify that both Onyx EZ

and your vehicle’s FM radio are tuned to the same FM channel (steps 7 &

8). Also ensure the chosen FM channel is a suitable one to use in your area

(step 5). Verify that nothing is plugged into the AUDIO connector on the

PowerConnect Vehicle Dock. Refer to “Troubleshooting” on page 79 for

additional help.

Option 4: FM Direct Adapter (FMDA) Installation

The FMDA needs to be installed by a professional installer. Professional

installation can help improve your Radio’s reception and signiﬁcantly

reduce the visibility of wires. To learn more, check with the retailer where

you bought your Radio, or go to www.siriusxm.com/accessories.

Vehicle Installation

You can follow either the general activation and subscription process or use

the on-board activation guide to activate your Onyx EZ and subscribe to

the XM service.

General activation and subscription process:

Subscribe to the XM service by following these steps:

1. Make sure your Onyx EZ is turned on, tuned

to XM Preview channel 1, and receiving the

XM signal so that you can hear the XM audio.

2. Make a note of the XM Radio ID. You can find

it:

•by selecting Radio ID in menu items

•on channel 0 (zero)

•on a label on the bottom of the gift box

•on the label on the back of your Onyx EZ

NOTE! The XM Radio ID does not use the letters

I, O, S, or F.

3. To subscribe:

•Online: Go to www.siriusxm.com/activatenow to access or set up an

online account, subscribe to the service, and activate your Radio.

•By phone: Call 1-866-635-2349.

Activation usually takes 10 to 15 minutes after you have completed the

subscription process, but may take up to an hour. We recommend that your

Radio remain on until subscribed. Once subscribed, the Radio will receive

866-635-2349

siriusxm.com

1 XM Preview

*The phone number shown

above may differ from the

one shown on your Onyx EZ.

All numbers are valid.

and you can tune to channels in your subscription plan.

Press or to tune to other channels, and or to browse the different

categories of channels. Learn what all the buttons do by turning to

“Navigation Basics” on page 46.

Activation guide:

For your convenience, Onyx EZ has an on-board activation guide. You can

activate your radio and subscribe to the XM service by using this guide,

where you will be guided step-by-step through the subscription process. To

access and use the guide, simply follow these steps:

1. Turn Onyx EZ on and press the menu button.

2. Activate Radio will be highlighted. Press the

Select button.

3. Follow the directions on each successive

screen until you complete the subscription

process.

Activate Radio

Radio ID

FM Settings

JUMP Settings

Display Settings

Audio Level

The Main Display

When listening to a channel, information about the channel and what is

currently playing is displayed.

Tom Petty

Should

Have

Known

28 The Spectrum

Antenna Signal

Strength

Channel Number Channel Name

Artist Name

or Talk Show Host

or Sports Teams/Score

Song/Program Title

or Talk Show Schedule

or Game Time/Game Details

Using Your Onyx EZ

Navigation Basics

Power Button

Pressing the Power button turns Onyx EZ On or Off.

Navigation Buttons

Pressing Left, Right, Up, and Down navigates through various

features and functions of Onyx EZ.

•Left or Right button: Displays the channel categories such as Rock,

Pop, Sports, Talk/News, etc. Repeated presses cycle through the

categories one at a time. Also, decreases or increases the settings of

various menu options such as Brightness, Audio Level, etc.

•Up or Down button (press and release): Immediately tunes to the

next or previous channel in the channel lineup. Also, scrolls through lists

and highlights an item in the list.

•Up or Down button (press and hold): Continuously scrolls

through any list. While on the main display screen, continuously scrolls

through the channel lineup and brieﬂy displays the information of each

channel. When the button is released, Radio tunes to the last channel it

had scrolled to in the channel lineup.

Select Button

Pressing the Select button selects a highlighted item in a list and

conﬁrms settings.

Using your Onyx EZ

Menu Button

Pressing menu displays various options to make setup and feature

changes. Pressing menu when in menu options returns to the previous menu

option screen until menu options is exited. Pressing and holding menu returns

to the main display screen in most instances.

FM Button

Pressing FM provides easy tuning of FM presets for optimized

PowerConnect performance. Repeatedly pressing FM displays and cycles

through the list of preset FM channels one at a time. The Radio

automatically tunes to the displayed FM channel. Pressing and holding FM

accesses the FM Settings menu. It is not available when Aux In Cable or

Cassette Adapter is used for audio connection.

Jump Button

Depending on how it is conﬁgured, pressing jump either tunes to

the channel broadcasting trafﬁc and weather conditions of a city of your

choice, selected from a list of the 22 most congested cities, or tunes to the

previous channel that was being played. Pressing it again returns it to the

original channel.

Direct Button

Pressing direct prompts for the entry of a channel number using the number

buttons. Once the channel number is entered, the Radio directly tunes to the

new channel.

Number Buttons

Each number button stores a favorite channel in its button location and

provides one touch access to it afterward. Number buttons also directly

tune to a channel when the channel number is entered after pressing direct.

jump

direct

1 0

...

Using Your Onyx EZ

Listening to Satellite Radio

Tune to a channel:

1. Press and release and to immediately tune to the next or previous

channel.

2. Press and hold and to quickly scroll through the channels. Release

to tune to the channel that is displayed.

View a category:

Channels are organized into categories to make it easier for you to ﬁnd the

ones that suit your taste.

1. To view channels in a category in list

mode press or .

2. Scroll through the category using

and , and find the channel you want

to tune.

3. Press the Select button to select the

channel, or press or to view

channels in the previous or next

category.

TIP! To brieﬂy listen to each channel in the category, scroll to and highlight

Scan at the end of the category list and press the Select button. Refer to

“Scanning Channels in a Category” on page 51 to learn more about Scan.

Pearl Jam Radio

Pearl Jam/Better M

Grateful Dead/Truc

Jimmy Buffett/Fins

Grateful Dead23

Margaritaville24

Rock

Using your Onyx EZ

Direct Tune

A channel can be tuned directly by entering

the channel number using the number

buttons.

1. To directly tune to a channel press

direct.

2. Use the number buttons 0-9 to enter

the channel number and wait a moment

until the channel is tuned, or press the

Select button to immediately tune to

the channel.

Return to Main Display Screen

Pressing and holding menu in most instances will return you to the main

display screen. In some cases, you may need to follow the instructions on

the display screen.

Jump

Depending upon how you conﬁgure the mode, pressing jump will either

go to the trafﬁc and weather channel for the city of your choice, which you

select from a list of the 22 most congested cities, or go to the previous

channel to which you were listening.

If Jump is set to Trafﬁc, when you press jump and the trafﬁc/weather

broadcast of your selected city is not immediately available, a message will

be displayed at the bottom of the screen to indicate that a jump is pending.

Once the trafﬁc/weather report is ready to be broadcast, the Radio will

Direct Tune

Enter channel #

Using Your Onyx EZ

automatically tune to the trafﬁc/weather

channel. Since a channel may broadcast

the trafﬁc and weather reports of more

than one city, you may have to wait a few

minutes for the broadcast of your selected

city.

If Jump is set to Last Channel, pressing

jump will immediately tune to the previous

channel to which you were listening.

Pressing jump while a jump is pending will cancel the jump. Pressing jump

after the Radio has tuned to the trafﬁc/weather or desired channel, will

return it back to the channel to which you had been listening immediately

prior to pressing jump.

TIP! By default jump is conﬁgured to tune to a trafﬁc/weather channel. To

select a city for trafﬁc and weather, or to conﬁgure jump to tune to the last

channel to which you were listening, refer to “Jump Settings” on page 66.

Favorite Channels

You can set up to 10 of your favorite

channels so you can easily access them.

Each favorite channel can be assigned to a

number button.

To assign a favorite channel to a number

button:

1. Tune to the desired channel.

Boston Pending

Tom Petty

Should

Have

Known

28 The Spectrum

Favorite Saved

10 The Pulse

saved as

Favorite 1

Using your Onyx EZ

Press and hold a number button between 0-9 that you want to assign to

that favorite channel. An advisory with the channel number and name will

be displayed on the screen confirming that the channel has been assigned.

To listen to a favorite channel:

1. Press the number button between 0-9 that was assigned to the desired

favorite channel. Onyx EZ will tune to that channel.

TIP! When you are at the main display screen, press to see your list of

favorite channels. Scroll to highlight a favorite and press the Select button to

listen to that channel.

Scanning Channels in a Category

You can scan a category and listen to each channel for 10 seconds before

Onyx EZ automatically tunes to the next channel. If you want to stay tuned

to the channel being played and stop the scan, just press the Select button.

To scan a category:

1. Press or until the desired category is displayed.

Pop

The Blend

Phil Collins/Take

Dionne Warwick/Hea

Love 17

Scan Pop>

Scanning

70s on 7

Neil Diamond/Sweet

The Hooters/And We

Ace of Base/The Si

80s on 8 8

90s on 9 9

Using Your Onyx EZ

2. Scroll down to highlight the last item in the category which will be

Scan and the category name.

3. Press the Select button. The scan will begin.

4. Press the Select button to stop the scan, and to continue to listen to

the channel currently being played, or press or to return to the

channel you were listening to before you began the scan.

FM Presets

FM presets make it easy to quickly access stored FM channels and choose a

new FM channel from them.

Use FM presets when you use PowerConnect or the FMDA to listen

to your Onyx EZ through your vehicle’s FM radio. (Refer to “Option

3: PowerConnect Installation Instructions” on page 39 for more

information.)

To use a different FM preset:

1. Press FM to display the current FM

preset.

2. To display and select the next FM

preset, press FM. The Radio will tune

to the displayed FM channel. If the

preset is the one you want, press

menu or wait for the screen to time

out.

3. Repeatedly pressing FM will cycle

through the FM presets.

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

Using your Onyx EZ

4. Set your vehicle’s FM radio to the

same FM channel.

IMPORTANT! You need to ensure that

your vehicle’s FM radio is tuned to the

same FM channel.

TIP! To conﬁgure the list of preset FM

channels, you need to ﬁnd available FM

channels in your area. Refer to”Find

Available FM Channels in Your Area” on

page 61. Next, refer to “Set and

Select an FM Channel” on page 63.

103.7 FM

Set your vehicle radio to the

above channel to enable audio.

Using your Onyx EZ

Parental Controls

Onyx EZ has a parental control feature which allows you to lock access

to channels, or lock access to an entire category. A 4-digit code controls

access to the locked channel or locked category.

When you browse a category, the number of the

locked channel will be shown but not the artist and

song/program information. Instead, a lock icon

and the word “Locked“ is shown. If you scroll

through the channels using and , the locked

channels are skipped and are neither displayed, nor

tuned.

If you attempt to tune to a locked channel, either by using direct tune or

through the category list, you’ll be prompted to enter your 4-digit code.

When the correct code is entered, you’ll be able to tune to and listen to the

channel. All locked channels become unlocked and remain unlocked until you

turn Onyx EZ Off, and back On. In the category list, the previously locked

channels will show an unlocked icon .

To turn Parental Controls On (or Off):

1. Press menu.

2. Press to scroll to and highlight Parental Controls. Press the Select

button.

•If this is the ﬁrst time you want to turn on Parental Controls, Parental

Ctrls will be highlighted. Press the Select button. You will be

prompted to select a 4-digit code:

i. For each digit, press one of the 0-9 keys (or press or to

Pearl Jam Radio

Pearl Jam/Better M

Jimmy Buffett/Fins

Locked23

Margaritaville24

Rock

Special Features

select digits) and then press to

advance to the next digit. (Press

if you need to go back and edit

a previous digit.)

ii. When you have selected all 4

digits of your code press the

Select button.

iii. The Code Conﬁrmation screen

will be displayed. For your

records, write down the code

you have selected. Press the

Select button. Continue with

step 3.

•If you had previously selected a

4-digit code you will be prompted to

enter your code:

i. For each digit, press one of the

0-9 keys (or press or to

select digits) and then press to

advance to the next digit. (Press

if you need to go back and edit a previous digit.)

ii. When you have selected all 4 digits of the code press the Select

button.

3. At the “Parental Controls” screen, Parental Ctrls will be highlighted.

Press the Select button to turn parental control On (or press the Select

button to turn parental control Off).

4. Press and hold menu to return to the main display screen.

Enter Parental Code

0 0 0 0

Press OK to confirm

Special Features

Your Parental Code is:

3287

You will need this code to change

or turn off Parental Controls

Press Select to continue

Code Confirmation

To lock (or unlock) channels or categories:

1. Press menu.

2. Press to scroll to and highlight Parental Controls. Press the Select

button.

3. You will be prompted to enter the 4-digit code. For each digit, press

one of the 0-9 keys (or press or to select digits) and then press

to advance to the next digit. (Press if you need to go back and edit a

previous digit.)

4. When you have entered all 4 digits of the code press the Select button.

5. If Parental Ctrls is shown as Off, press the Select button to turn it On,

otherwise continue with the next step.

6. At the “Parental Controls” screen, Press to scroll to and highlight

Locked Channels. Press the Select button.

7. A list of all the categories and the channels in each category will be

displayed. Press and to scroll to and highlight a channel or

category you want to lock. Press the Select button. A lock icon will

be displayed to the left of the channel or category you locked. (To

unlock a locked channel or category, simply highlight the locked

Locked Channels Locked Categories

Locked Channels

Rock

Locked Channels

Rock

Elvis Radio

E Street Radi

Undergrnd Gar

Pearl Jam Rad

E Street Radi

Undergrnd Gar

Pearl Jam Rad

Elvis Radio

Special Features

channel or category and press the Select button. The lock icon will

disappear indicating the channel or category is unlocked.)

8. You can continue to lock and unlock as many channels or categories as

you wish. When you are finished, press and hold menu to return to the

main display screen.

To change your code:

1. Press menu.

2. Press to scroll to and highlight Parental Controls. Press the Select

button.

3. You will be prompted to enter your existing 4-digit code. For each

digit, press one of the 0-9 keys (or press or to select digits) and

then press to advance to the next digit. (Press if you need to go

back and edit a previous digit.)

4. When you have entered all 4 digits of the code press the Select

button.

5. If Parental Ctrls are shown as Off, press the Select button to turn it On,

otherwise continue with the next step.

6. At the “Parental Controls” screen,

Press to scroll to and highlight

Change My Code. Press the Select

button.

7. You will be prompted to enter a new

4-digit code. For each digit, press one

of the 0-9 (or press or to select

digits) keys and then press to

advance to the next digit. (Press if

you need to go back and edit a

Your Parental Code is:

3287

You will need this code to change

or turn off Parental Controls

Press Select to continue

Code Confirmation

Special Features

previous digit.)

8. The Code Confirmation screen will be displayed. For your records,

write down the code you have selected. Press the Select button.

9. Press and hold menu to return to the main display screen.

To listen to a locked channel:

There are two ways to tune to a channel which has been locked. The ﬁrst

is to directly tune to the locked channel, and the second is to select the

locked channel from a category list.

1. Directly tune to or select the locked channel:

To directly tune to a locked channel:

i. Press direct and enter the channel number using the 0-9 keys.

To select a locked channel from the category list:

i. Press or to view the category list of the locked channel to

which you wish to tune.

ii. Press to scroll to and highlight the locked channel. Press the

Select button.

2 You will be prompted to enter your existing 4-digit code. For each

digit, press one of the 0-9 keys (or press or to select digits) and

then press to advance to the next digit. (Press if you need to go

back and edit a previous digit.)

3 When you have entered all 4 digits of the code, press the Select

button. If your code is correct the channel will be tuned. All locked

channels become unlocked and remain unlocked until you turn Onyx EZ

Off, and back On. In the category list, the previously locked channels will

show an unlocked icon .

Special Features

SiriusXM offers a variety of accessories that allow you to adapt your

Onyx EZ to your lifestyle and enhance your listening experience. With

these accessories, you can effortlessly take your Satellite Radio listening

experience from your vehicle to your home or ofﬁce or on the go — all with

a single subscription.

•In Your Home, Ofﬁce, etc. – With a Home Kit, you can play your Onyx EZ

through your existing stereo system or powered speakers.

•In Your Other Vehicles – With Vehicle Kits, you can enjoy your Onyx EZ

in other vehicles.

•In Almost Any Location You Like – With a portable Sound System you

have the freedom to listen to your Onyx EZ where and when you want,

from your kitchen or den, to the ofﬁce, to outside on the deck, or at a

picnic.

For more information on XM accessories or to purchase an accessory,

please visit your local retailer or www.siriusxm.com/accessories.

Where Else Can You Use Your Onyx EZ?

Radio ID

Your Onyx EZ has an 8 character alphanumeric ID which uniquely identiﬁes

your Radio. This ID is used during the subscription process.

To display the Radio ID:

1. Press menu.

2. Radio ID will be highlighted. If it is not

highlighted, press to scroll to and

highlight Radio ID. Press the Select

button. The Radio ID will be displayed.

3. Press and hold menu to return to the

main display screen.

Radio ID

Your Radio ID is:

A234B456

Conﬁguring Your Onyx EZ

Find Available FM Channels in Your Area

Before attempting any of the procedures below, you should park your

vehicle in a safe location. Do not attempt to set up your FM channels or any

Onyx EZ function while driving.

PowerConnect allows you to listen to SiriusXM through your existing vehicle

radio. You will ﬁrst need to ﬁnd an available FM channel, which is a channel

that is not being used by an FM radio station in your area. When you tune

your vehicle’s FM radio to an available channel, you should only hear static

or silence – not talk or music.

Once you have found an available FM channel, you’ll need to tune Onyx

EZ and your vehicle’s radio to the same FM channel to receive XM audio

through your vehicle’s radio.

We recommend one of the following methods to ﬁnd an available FM channel:

1. Use the SiriusXM FM Channel Finder

Use the SiriusXM FM Channel Finder at www.siriusxm.com/fmchannel.

Go to the website and enter your zip code. The Channel Finder will

suggest a list of available FM channels in your area. For convenience,

write down or print out the list.

Tune Onyx EZ to a favorite XM channel (or to channel 1, if it’s not

activated). Turn on your vehicle’s FM radio. Pick the first FM channel

on your Channel Finder list and tune the FM radio to that channel. If

you do not hear a local FM station broadcast, then tune Onyx EZ to the

same FM channel. (Refer to “Set and Select an FM Channel” on page

63.) You should hear the XM channel through your vehicle’s radio. If

you are satisfied with the sound quality, you’re done! If this FM channel

doesn’t work well for you, work down the list until you find an FM

channel that allows you to hear XM clearly.

Conﬁguring Your Onyx EZ

2. Manually tune through your local FM channels

Manually tune through your local FM channels on your vehicle’s FM

radio. Turn on your vehicle’s FM radio. Start at 88.1 and use the ‘Manual’

tune function on your vehicle’s FM radio to tune through each FM

channel one-by-one (88.1 followed by 88.3 etc.) to locate channels that

aren’t being used by a local FM radio station. Write down each FM

channel that has only static or silence on it, until you reach 107.9. Once

you have created your list of available FM channels, you will need to find

the one that provides the best match for Onyx EZ.

Tune Onyx EZ to a favorite XM channel (or to channel 1, if it’s not

activated). Pick the first FM channel on your list and tune the FM radio to

that channel. Then tune Onyx EZ to the same FM channel. (Refer to “Set

and Select an FM Channel” on page 63.) You should hear the XM

channel through your vehicle’s radio. If you are satisfied with the sound

quality, you’re done! If this FM channel doesn’t work well for you, work

down the list until you find an FM channel that allows you to hear XM

clearly.

NOTE! You may ﬁnd an FM channel with static or silence that does not work

with Onyx EZ. It is possible that some type of inaudible interference is

present that prevents reception of the XM broadcast. Your only options are to

use another FM channel or a different audio connection method.

TIP! If you regularly drive from one location to another, such as your daily

commute, you may need to use different FM channels along your route for

best performance. If this is the case, we recommend saving the best FM

channels as presets on your FM radio and Onyx EZ. Then you simply select

and match the best channel for the area you are in.

TIP! It will be much more difﬁcult to ﬁnd available FM channels in large cities

than in most suburban or rural locations. A direct audio connection using the

Aux In Cable, Cassette Adapter, or professional installation is your best

Conﬁguring Your Onyx EZ

solution if you drive in or near large metropolitan areas.

NOTE! The SiriusXM FM Channel Finder relies on data from the Federal

Communications Commission. The data may not reﬂect the latest stations in

your area. In addition, local geography and weather conditions can impact

reception, so your results may be different from the list.

NOTE! The performance of FM radios are different, based on manufacturer

and vehicle style. Some may not work well with the type of FM transmitter

used by Onyx EZ. This is why we recommend a direct audio connection using

the Aux In Cable or Cassette Adapter if they can be used in your vehicle.

Professional installation can also resolve almost any performance issue.

Set and Select an FM Channel

Onyx EZ allows you to easily store (i.e., preset) up to 5 different FM channels.

At any time, you can select any one of these 5 FM presets to hear SiriusXM

through your existing vehicle radio. Having a choice of 5 FM presets also

makes it easy to switch to the appropriate FM channel as you travel from one

area to another. Each FM preset is stored in its own storage location. You can

easily add or edit the FM preset in any one of the 5 storage locations.

IMPORTANT! Onyx EZ and the vehicle’s FM radio need to be tuned to the

same FM channel in order to hear the audio.

TIP! The FM 1 storage location is preset with FM channel 97.9.

To set and select an FM preset:

1. Press menu.

2. Press to scroll to and highlight FM

Settings and press the Select button.

3. FM Channels will be highlighted. If it is

current

FM 1

FM 2

FM 3

FM 4

FM 5

97.9

99.3

100.3

___

FM Channels

Conﬁguring Your Onyx EZ

not highlighted, press to scroll to and highlight FM Channels. Press

the Select button.

4. Press to scroll to and highlight the storage location (FM 1 to

FM 5) you want to set and press the Select button. You can choose

among the following options:

i. If the chosen storage location is empty (denoted by “---“), or if

the storage location contains the FM preset currently being used

(denoted by “current”), then the FM channel tuning screen is

displayed.

ii. If the chosen storage location has

an FM preset that is not currently

being used, and you want to edit it,

Edit Channel is highlighted. Press

the Select button. The FM channel

tuning screen is displayed.

iii. If the chosen storage location has

an FM preset that is not currently

being used, and you want to start

using it, press to highlight Start

Using and press the Select button.

Skip to step 7.

5 Press and to tune to the desired

FM channel in steps of .2, i.e., 99.3 to

99.5. Press and to tune to the

desired channel in steps of 1, i.e., 99.3

to 100.3. Press the Select button to

select the FM channel.

6 If you are editing the storage location

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

Edit FM Channel 2

99.3 FM

and Select to confirm

Press arrow keys to tune

Conﬁguring Your Onyx EZ

that has the “current” FM preset, skip to step 7. Otherwise, Start Using

will be highlighted. Press the Select button.

NOTE! You can also set an FM preset without having to start using it right

away. Just press menu and exit the screen.

7 The chosen FM channel will be confirmed on the display screen and

Onyx EZ will tune to that FM channel.

8 Set your vehicle’s FM radio to same FM channel.

IMPORTANT! You’ll ﬁrst need to ﬁnd a suitable FM channel that is unused or

available in your area.

To quickly select an FM preset:

1. Press FM to display the current FM

preset.

2. To display and select the next FM

preset, press FM. Onyx EZ will tune to

the displayed FM channel. If the preset

is the one you want, press menu or

wait for the screen to time out.

3. Repeatedly pressing FM will cycle

through the FM presets.

4. Set your vehicle’s FM radio to same FM

channel.

Set your vehicle radio to the

above channel to enable audio.

99.3 FM

103.7 FM

Set your vehicle radio to the

above channel to enable audio.

Conﬁguring Your Onyx EZ

JUMP Settings

Mode Traffic/Weather

Set Location ATL

JUMP Settings

Mode Last Channel

Jump Settings

The jump button can be conﬁgured to either jump to the trafﬁc and

weather for the city of your choice from a list of 22 of the most congested

cities, or to jump back to the last channel to which you were listening.

When conﬁguring for trafﬁc/weather, you’ll need to select your city.

To conﬁgure jump:

1. Press menu.

2. Press to scroll to and highlight

JUMP Settings and press the Select

button.

3. Mode will be highlighted with either

Last Channel or Traffic/Weather. If

you want to change the mode, press

the Select button. Otherwise, just

leave it as shown. (Repeatedly pressing

the Select button toggles between the

choices.)

4. If you have selected Last Channel,

press and hold menu to return to

the main display screen. If you have

selected Traffic/Weather continue

with step 5.

5. Press to scroll to and highlight Set

Location and press the Select button.

6. A list of cities will be displayed. Press

Conﬁguring Your Onyx EZ

to scroll to and highlight your

desired location and press the Select

button.

7. The JUMP Settings screen will display

the location you selected. Press and

hold menu to return to the main

display screen.

Set Brightness or Contrast

To change the display’s brightness or

contrast:

1. Press menu.

2. Press to scroll to and highlight

Display Settings and press the Select

button.

3. Press the Select button to change the

brightness, or press to scroll to and

highlight Contrast and press the Select

button.

4. Press to decrease or to increase the

brightness or contrast of the display.

5. Press the Select button to confirm the

brightness or contrast setting.

6. Press and hold menu to return to the

main display screen.

Conﬁguring Your Onyx EZ

Set Location

Atlanta

Baltimore

Boston

Chicago

Dallas

Detroit

Set Brightness

and Select to confirm

Press arrow keys to tune

Set Contrast

and Select to confirm

Press arrow keys to tune

Set Audio Level

The audio level of Onyx EZ can be adjusted when an audio connection

is made between the dock and the vehicle’s stereo system. Audio level is

used to adjust Onyx EZ’s volume level to match the volume of other audio

sources you may use, such as a CD player, other FM stations, or an MP3

player.

Do not use the audio level as a volume control. Use the volume control on

your vehicle’s stereo instead.

To adjust the audio level:

1. Press menu.

2. Press to scroll to and highlight

Audio Level and press the Select

button.

3. Press to decrease or to increase

the audio level.

4. Press the Select button to confirm the

new audio level.

5. Press and hold menu to return to the

main display screen.

Set Audio Level

and Select to confirm

Press arrow keys to tune

Conﬁguring Your Onyx EZ

Signal Indicator

For best reception, your Magnetic Mount Antenna should have an

unobstructed view of the XM satellites. In large cities, there are terrestrial

transmitters (ground repeaters) to help increase the signal coverage.

Your Onyx EZ can display the received strength of the satellite and

terrestrial signals being received.

To display the signal strength:

1. Press menu.

2. Press to scroll to and highlight

Signal Indicator and press the Select

button.

3. The Satellite and Terrestrial bars

show the strength of the signal being

received.

4. Reposition the antenna if you are

having trouble receiving the signal. Be

sure your vehicle is outside with an

unobstructed view of the sky.

5. Press and hold menu to return to the

main display screen.

Signal Indicator

SATELLITE

- +

-TERRESTRIAL

Conﬁguring Your Onyx EZ

Factory Settings

The factory settings menu has two choices, AUX Detect and Restore

Defaults.

AUX Detect

AUX Detect allows Onyx EZ to

automatically detect a connection made to

the AUDIO connector of the PowerConnect

Vehicle Dock by an Aux In Cable or

Cassette Adapter. AUX Detect is enabled

by default.

IMPORTANT! If you are using the

PowerConnect Vehicle Dock which came

with your Onyx EZ, AUX Detect should

remain enabled.

If you are using the older model Vehicle Dock from the Universal Xpress

Car Kit, and plan to use PowerConnect or FMDA as the audio connection

option, you will need to disable AUX Detect. Please read the additional

instructions, “Using the Vehicle Dock From the Universal Xpress Car Kit”

on page 76. Once AUX Detect is disabled, you’ll have to turn the FM

Transmitter On. Refer to “Turn FM Transmitter On/Off” on page 77.

To disable AUX Detect:

(Do this only when using the older model Vehicle Dock.)

1. Press menu.

2. Press to scroll to and highlight Factory Settings and press the

Select button.

Factory Settings

AUX Detect enabled

Restore Defaults

Conﬁguring Your Onyx EZ

3. AUX Detect should be highlighted

and show as enabled. Press the Select

button to toggle the setting.

4. A warning screen will be displayed.

Press the Select button to confirm that

you want to disable AUX Detect.

5. If you want to cancel press menu to

return to Factory Settings. AUX Detect

will remain enabled.

6. AUX Detect will show as disabled.

Press and hold menu to return to the main display screen.

To enable AUX Detect

(Do this when the Radio is transferred to the PowerConnect Vehicle Dock

from an older model Vehicle Dock.)

1. Press menu.

2. Press to scroll to and highlight Factory Settings and press the

Select button.

3. AUX Detect will be highlighted and show as disabled. Press the Select

button again to toggle the setting to enabled.

4. Press and hold menu to return to the main display screen.

Conﬁguring Your Onyx EZ

Disable only if using vehicle

dock from Universal Xpress Car

Kit. Otherwise, leave it enabled.

Disable AUX Detect?

or menu to cancel

Press Select to confirm

Restore Defaults

You can clear all of your personal settings, such as favorite channels, FM

presets, etc., and return the Radio to its original out-of-the-box settings.

To reset Onyx EZ to factory defaults:

NOTE! Restoring defaults permanently removes all personal settings.

1. Press menu.

2. Press to scroll to and highlight

Factory Settings and press the

Select button.

3. Press to scroll to and highlight

Restore Defaults and press the

Select button.

4. A warning screen will be displayed.

If you are certain that you want to

reset your Onyx EZ to the default

settings, press the Select button to

confirm.

5. If you want to cancel, press menu to

return to Factory Settings.

All settings will be erased.

Are You Sure?

or menu to cancel

Press Select to confirm

Conﬁguring Your Onyx EZ

Demo Mode

Your Onyx EZ has a demo mode that starts playing when, for a prolonged

period of time (more than 5 minutes), the Radio either detects it’s not

connected to the antenna, or the antenna stops receiving a signal. It disappears

when the antenna is connected properly or when the Radio starts receiving a

signal. You can also exit demo mode at any time, by pressing and holding the

Select button for 10 seconds. If desired, you can also manually put Onyx EZ in

demo mode.

The ability for Onyx EZ to enter demo mode is enabled by default. If you

don’t want Onyx EZ to ever enter the demo mode, you can disable the

demo feature. You can enable it again at another time if desired.

To enable or disable the demo mode:

1. Press menu.

2. Press to scroll to and highlight

Demo Mode and press the Select

button.

3. Status will be highlighted. Press

the Select button to toggle the

setting between enabled or disabled.

(Repeatedly pressing the Select

button toggles between the choices.)

4. If you have selected disabled, press and hold menu to return to the

main display screen. If you have selected enabled continue with step 5.

5. Press to scroll to and highlight Enter Demo Mode and press the

Demo Mode

Status enabled

Enter Demo Mode

Conﬁguring Your Onyx EZ

Started auto shut off

due to inactivity

Auto Shut Off

Press any button

to cancel

Entering Demo Mode.

Press & Hold Select

for 10 seconds to exit

Demo Mode

Select button. The demo mode will

start in 10 seconds.

6. To exit demo mode at any time, press

and hold the Select button for 10

seconds.

Auto Shut Off

Onyx EZ will automatically shut off after

8 hours of inactivity, i.e., when no buttons

have been pressed. This feature prevents

the vehicle battery from being discharged

if you forget to turn your Onyx EZ off.

When Onyx EZ is about to shut off, the

message Auto Shut Off, Started auto shut

off due to inactivity is displayed, followed

by Press any button to cancel. If you wish

to continue listening, press any button.

Conﬁguring Your Onyx EZ

To enable or disable Auto Shut Off:

1. Press menu.

2. Press to scroll to and highlight Auto

Shut Off and press the Select button to

enable or disable Auto Shut Off.

3. Press and hold menu to return to the

main display screen.

Auto Shut Off

Status enabled

Press Select to

change setting

Using the Vehicle Dock From the Universal Xpress Car Kit

If you have chosen to use the Vehicle Dock from the

Universal Xpress Car Kit rather than the PowerConnect

Vehicle Dock included with your Onyx EZ Radio, you

will need to complete some additional installation steps.

When you have completed these additional steps, you

can continue with the installation of your Onyx EZ.

When you are using the Universal Xpress Vehicle

Dock, the screen will initially display “AUX Connected”

when you power on your Onyx EZ. Ignore this

message. Once you have completed the steps below,

it will not be displayed again.

If you are connecting the audio through your vehicle’s FM radio

(SureConnect or FMDA):

1. Disable the AUX Detect feature. Refer to “AUX Detect” on page 70,

and disable AUX Detect.

2. Turn the FM Transmitter in Onyx EZ On. Refer to “Turn FM Transmitter

On/Off” on page 77, and turn the FM Transmitter On.

3. Continue with the installation.

If you are connecting the audio using the Aux In Cable or Cassette Adapter:

1. Disable the AUX Detect feature. Refer to “AUX Detect” on page 70,

and disable AUX Detect.

TIP! The FM Transmitter must be Off. To verify that the FM Transmitter is Off,

refer to “Turn FM Transmitter On/Off” on page 77.

2. Continue with the installation.

Audio enabled through

auxiliary line. FM turned OFF.

AUX Connected

Conﬁguring Your Onyx EZ

Turn FM Transmitter On/Off

Turning the FM Transmitter On applies only if you are using the older

model Vehicle Dock from the Universal Xpress Car Kit, and plan to use

SureConnect or FMDA as the audio connection option.

You’ll have to turn On the FM Transmitter under the FM Settings menu.

However, before you can access the FM Settings menu, you ﬁrst need to

disable AUX Detect. Refer to “AUX Detect” on page 70. Once you have

disabled AUX Detect, the FM Settings menu will be accessible.

To turn the FM Transmitter On:

1. Press menu.

2. Press to scroll to and highlight FM

Settings and press the Select button.

3. FM Transmitter will be highlighted.

Press the Select button to toggle the

setting from Off to On.

4. The FM Channels menu item will now

be accessible, allowing you to tune

Onyx EZ and the FM radio in your vehicle to the same FM channel.

TIP! Onyx EZ is programmed with FM channel 97.9 as the default setting.

FM Settings

Transmitter on

FM Channels

Conﬁguring Your Onyx EZ

To turn the FM Transmitter Off:

If you are using the older model Vehicle Dock from the Universal Xpress Car

Kit, and plan to use the Aux In Cable or a Cassette Adapter as the audio

connection option, you’ll have to turn the FM Transmitter under the FM

Settings menu in Onyx EZ Off, if it was previously turned On.

1. Press menu.

2. Press to scroll to and highlight FM

Settings and press the Select button.

3. FM Transmitter will be highlighted.

Press the Select button to toggle the

setting from On to Off.

4. A warning message will be displayed

advising you to connect the Aux In

Cable. Press the Select button to

confirm that you want to turn off the

FM Transmitter.

5. Press and hold menu to exit.

FM Settings

Transmitter off

FM Channels

Please connect an AUX cable

or no audio will be available.

Turn OFF FM?

Press Select to confirm

Conﬁguring Your Onyx EZ

Onyx EZ has been designed and built to be trouble-free but if you

experience a problem, try this:

•Check that all connections are ﬁrm and secure.

•Make sure the vehicle power socket is clean and free of corrosion.

•Make sure you have connected Onyx EZ as described in this User

Guide. Verify that the PowerConnect Power Adapter is plugged into the

vehicle’s cigarette lighter or power adapter socket, and that the LED

on the PowerConnect Power Adapter is lit (on). If not, your vehicle may

need to be running to provide power to the socket.

If you see this on the screen:

Try this:

Acquiring Signal •Make sure that the vehicle is outdoors with a

clear view of the sky.

•Make sure the Magnetic Mount Antenna is

mounted outside of the vehicle.

•Move the antenna away from any obstructed

area. For example, if you are parked in an

underground garage, you should receive a signal

after leaving the garage.

Check Antenna Connection •Make sure that the antenna cable is ﬁrmly

and securely plugged into the PowerConnect

Vehicle Dock. Make sure the cable is not bent or

broken.

•Turn Onyx EZ Off, then On, to reset this

message.

•If the message persists, most likely the Magnetic

Mount Antenna cable has been damaged.

Replace the antenna.

Channel Off Air •The channel you’ve selected is not currently

broadcasting. Tune to another channel.

Troubleshooting

If you see this on the screen:

Try this:

Loading •Your Onyx EZ is acquiring audio or program

information This message usually goes away in

a few seconds.

Updating •Your Onyx EZ is updating with the latest

encryption code. Wait until the update is done.

•You may be trying to tune to a channel that is

blocked or unavailable. Tune to another channel.

—•No program information, such as artist name,

song title, or channel exists.

If this happens: Try this:

You do not receive all the

channels to which you

subscribed

•Ensure that you have subscribed to the service by

following the steps in “Subscribe” on page 43.

•Go to www.siriusxm.com/refresh and follow the

directions to refresh your Radio.

•Call 1-866-635-2349 for further assistance.

Audio sounds too soft •Raise the volume of your stereo system or

increase the audio level of your Onyx EZ until

the sound quality improves. Refer to “Set Audio

Level” on page 68.

No audio when using the Aux In

Cable or Cassette Adapter

•Check all cables between your Onyx EZ and

your vehicle’s stereo system for a ﬁrm and

secure connection.

•Ensure you have selected the proper input

source on your vehicle’s stereo system.

•Increase the audio level of Onyx EZ. Refer to

“Set Audio Level” on page 68.

•If you are using the Vehicle Dock that came with

the Universal Xpress Car Kit, ensure that the FM

Transmitter in Onyx EZ is turned Off.

Troubleshooting

If this happens: Try this:

Audio fades or has static when

listening

•Check all cables for a ﬁrm and secure connection.

•If you are using PowerConnect to listen via your

vehicle’s FM radio, and the problem persists,

it most likely is interference from another

commercial or broadcast FM station. You will

need to ﬁnd an unused or available FM channel

in your area. Refer to “Find Available FM

Channels in Your Area” on page 61.

•If you are using PowerConnect, and you cannot

solve the audio problem, try connecting the

audio using the Aux In Cable or a Cassette

Adapter. (Refer to page 35 and page 37.)

If you cannot use those solutions, consider using

an FM Direct Adapter. (Refer to page 42.)

No audio when using

PowerConnect or FMDA

•Check that your Onyx EZ and your vehicle’s FM

radio are tuned to the same FM channel.

•For PowerConnect, ensure you are using the

PowerConnect Vehicle Dock and PowerConnect

Power Adapter.

•If you are using the Vehicle Dock that came with

the Universal Xpress Car Kit, ensure that the FM

Transmitter in Onyx EZ is turned On. Refer to

“Turn FM Transmitter On/Off” on page 77.

If this happens: Try this:

No song title or artist name is

displayed

•The information may not be available or updates

may be in progress.

Trafﬁc and Weather channels

sound different from other

channels

•These channels use a different audio technology

than other channels so they often sound

different from other channels.

The demo is playing •Your Magnetic Mount Antenna is not connected

or you are not receiving the signal. Check that

the antenna is connected properly and is not

obstructed.

•Press and hold the Select button for 10 seconds

to exit Demo Mode.

•You can disable Demo Mode. Refer to “Demo

Mode” on page 73.

Troubleshooting

System

Power Requirements: 9-16 V DC, 500 mA (max)

Operating Temperature: -4°F to +140°F (-20°C to +60°C)

Audio Output: 1.0 Vrms (max)

Onyx EZ Radio

Dimensions: 4.5 in (W) x 2.4 in (H) x 0.7 in (D)

115 mm (W) x 61 mm (H) x 17 mm (D)

Weight: 3.4 oz (95 g)

PowerConnect Vehicle Dock

Dimensions: 4.0 in (W) x 2.4 in (H) x 1.2 in (D)

102 mm (W) x 63 mm (H) x 31 mm (D)

Weight: 1.6 oz (46 g)

Audio Connector: 1/8 in (3.5 mm) female

Antenna Connector: SMB male

PowerConnect Power Adapter

Dimensions: 3.7 in (W) x 1.7 in (H) x 1.3 in (D)

94 mm (W) x 43 mm (H) x 34 mm (D)

Weight: 2.4 oz (69 g)

Input / Output: 9-16 V DC / 5 V DC, 1.5 A

Cable Length: 4 ft 7 in (1.4 m)

Vehicle Antenna

Type: XM Magnetic Mount

Connector: SMB female, right angle

Cable Length: 23 ft (7.0 m)

Aux In Cable

Connectors: 1/8 in (3.5 mm) stereo male to

1/8 in (3.5 mm) stereo male

Cable Length: 4 ft (1.2 m)

Product Speciﬁcations

Patent and Environmental Information

Patent Information

It is prohibited to, and you agree that you will not, copy, decompile,

disassemble, reverse engineer, hack, manipulate, or otherwise access and/or

make available any technology incorporated in this product. Furthermore,

the AMBE® voice compression software included in this product is

protected by intellectual property rights including patent rights, copyrights,

and trade secrets of Digital Voice Systems, Inc. The software is licensed

solely for use within this product. The music, talk, news, entertainment,

data, and other content on the Services are protected by copyright and

other intellectual property laws and all ownership rights remain with the

respective content and data service providers. You are prohibited from

any export of the content and/or data (or derivative thereof ) except in

compliance with applicable export laws, rules and regulations. The user of

this or any other software contained in a Sirius XM Radio Inc is explicitly

prohibited from attempting to copy, decompile, reverse engineer, hack,

manipulate or disassemble the object code, or in any other way convert the

object code into human-readable form.

Environmental Information

Follow local guidelines for waste disposal when discarding packaging and

electronic appliances.

Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/

hazardouswaste/perchlorate (Applicable to California, U.S.A.)

The user is cautioned that changes or modiﬁcations not expressly approved by Sirius

XM Radio Inc. can void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the installation instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one

or more of the following measures:

• Reorient or relocate the receiving antenna of the affected receiver.

• Increase the separation between the SiriusXM equipment and the affected

receiver.

• Connect the SiriusXM equipment into an outlet on a circuit different from that to

which the affected receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! The FCC and FAA have not certiﬁed this Satellite Radio Receiver for use in

any aircraft (neither portable nor permanent installation). Therefore, Sirius XM Radio

Inc. cannot support this type of application or installation.

FCC Statement

are trademarks of Sirius XM Radio Inc. and its subsidiaries. “BBC” and “Radio

One” are trademarks of the British Broadcasting Corporation and are used

EPE Reg. U.S. Pat & TM off. IndyCar (and Design) are registered trademarks

of Brickyard Trademarks, Inc., used with permission. Major League Baseball

trademarks and copyrights are used with permission of Major League

Baseball Properties, Inc. Visit the ofﬁcial website at MLB.com. Games subject

to availability and change and may not include all spring training games.

Association for Stock Car Auto Racing, Inc. The NBA identiﬁcations are the

intellectual property of NBA Properties, Inc. and the respective NBA member

related trademarks are trademarks of the National Football League. NHL and

NHL 2011. All NHL logos and marks and NHL team logos and marks depicted

herein are the property of the NHL and the respective teams and may not

be reproduced without the prior written consent of NHL Enterprises, L.P.

The Swinger Golfer logo is a registered trademark of PGA TOUR, Inc. Visit

www.siriusxm.com/channellineup for updates. All programming/channel

lineup/XM service subject to change or preemption. All other marks and

IMPORTANT NOTICE: REQUIRED SUBSCRIPTION

Hardware and subscription sold separately, and activation fee required. Other

fees and taxes may apply. Subscriptions governed by SiriusXM Customer

Agreement; see www.siriusxm.com. Prices and programming are subject to

change. Service automatically renews into the subscription Package you

choose (which may differ from the Package which arrived with the Radio),

for additional periods of the same length, and automatically bills at the

then current rates, after any complimentary trial or promotional period

ends, until you call us at 1-866-635-2349 to cancel. XM U.S. Satellite service

available only to those at least 18 years of age in the 48 contiguous USA and

DC, while SiriusXM Internet Radio is available throughout our satellite area

and also AK, HI and PR.

Copyrights and Trademarks

The Radio model number is located below and the XM Radio ID is located

on the label on the back of Onyx EZ.

Record the XM Radio ID in the space provided below. Refer to these

numbers whenever you call your dealer regarding this product.

Radio Model Number: XEZ1

XM Radio ID:___________________________

Owners Record

Sirius XM Radio Inc.

1221 Avenue of the Americas

New York, NY 10020

1.866.635.2349

siriusxm.com

XEZ1VKUG 121105a

Sirius XM Radio XEZ1 Onyz EZ User Manual Onyz EZ Manual

Sirius XM Radio Inc. Onyz EZ Onyz EZ Manual

Contents

Onyz EZ Manual

Navigation menu

Namespaces

Views

Navigation
