XM Satellite Radio, Inc. Proprietary and Confidential

Samsung Electronics America, Inc.

400 Valley Road

Mount Arlington, NJ 07856

1-800-SAMSUNG (1-800-726-7864)

www.samsung.com

XM respects copyrights. This device is for personal use only. XM

Programming stored on the device cannot be transferred off the

unit. Download legally. Buy digital music from XM+Napster.

The XM name, related logo, and NeXus are trademarks of XM

YP-X5Z

ENG xm_samsung keys 1/16/06 4:03 PM Page I

XM Satellite Radio, Inc. Proprietary and Confidential

1. Charge battery for at least 8 hours (page 12).

2. Set up your player (page 18).

3. Activate your XM subscription (page 17).

4. Listen to and record live XM* (pages 24 and 28).

5. Listen to recorded content on the go (page 32).

6. Manage your songs and playlists from

your computer (page 51).

7. Buy songs from XM+Napster (page 50).

*Hardware and required monthly subscription sold separately. Installation cost and other fees and taxes, including a one-

time activation fee may apply. Subscription fee is consumer only. XM products, programming, services, and fees are sub-

ject to change, at any time, without notice. Channels with frequent explicit language are indicated with an XL. Channel

blocking is available for XM radio receivers by calling 1-800-XM-RADIO. Subscriptions subject to Customer Agreement

rights reserved.

Quick Start

Contents

Contents 3

ENG

Introduction...................................... 4

Features.................................................... 4

Safety Instructions.................................... 7

What’s in the Box .................................... 10

Charging the Battery .............................. 12

Player Controls ...................................... 13

Using the Controls .................................. 14

Player Display.......................................... 15

Remote .................................................... 16

Subscribing to XM........................ 17

Using Your Player Alone .......... 18

Setup ...................................................... 18

Live XM .................................................. 24

Recording XM.......................................... 28

Listening to Recorded XM Content.......... 32

Organizing Your Music ............................ 33

Using Your Player with a PC .. 42

System Requirements .............................. 42

Setup ...................................................... 43

Registering with XM+Napster ................ 46

What Can You Do with XM+Napster? .... 49

Exploring ................................................ 49

Purchasing Music .................................... 50

Organizing Your Music ............................ 51

Disconnecting the Player from the PC .... 55

Listening to XM Radio Online (XMRO).... 56

Using Your CDs or MP3/WMA Files ........ 57

Updating NeXus Firmware...... 60

Settings.............................................. 62

FM Frequency .......................................... 62

Audio ...................................................... 64

Display .................................................... 65

Channel Access........................................ 66

Time ........................................................ 67

Sleep Timer .............................................. 67

Memory Partition .................................... 68

Restoring Factory Defaults ...................... 69

Customer Support........................ 70

Troubleshooting ...................................... 70

Specifications .......................................... 73

Patent Information .................................. 75

FCC Statement ........................................ 76

Warranty.................................................. 77

Quick Start

ENG xm_samsung keys 1/16/06 4:03 PM Page 2

XM Satellite Radio, Inc. Proprietary and Confidential

Introduction

Introduction 5

ENG

Features

Congratulations on your purchase of the Samsung NeXus™– our newest digital audio player

plus XM®Satellite Radio.

Like any digital audio player, you can enjoy listening to your music anywhere you go. But

NeXus offers more: dock the player into a home or vehicle cradle, plug in the XM Passport

and an antenna, and access XM’s 160 channels from coast to coast, with over 80,000 hours

of entertainment each month. XM offers musical choice, variety, and discovery – worlds beyond

your own collection – plus a wide range of news, sports, talk, comedy, kids, and entertainment

channels. Hear XM live, or save XM programming on your NeXus to listen at your leisure.

We’ve also teamed up with Napster, a leading provider of online music. Imagine discovering a

new artist on XM and then, with just a few clicks of a mouse, buying high-fidelity tracks and

albums by that artist. It’s that simple.

We also provide you with the XM+Napster program that lets you manage all your music –

XM tracks, songs you purchase from Napster, and MP3/WMA files you rip from your CDs –

on one integrated package on your Microsoft®Windows®PC.

One device, all the music you could ever hope for, and the easiest way to find the music you

want – now that’s a music experience!

Introduction

NeXus, Undocked

■ Listen to recorded XM content and MP3/WMA files

■ Manage your music

*Hardware and required monthly subscription sold separately. Installation cost and other fees and taxes, including a

one-time activation fee may apply. Subscription fee is consumer only. XM products, programming, services, and fees

are subject to change, at any time, without notice. Channels with frequent explicit language are indicated with an XL.

Channel blocking is available for XM radio receivers by calling 1-800-XM-RADIO. Subscriptions subject to Customer

NeXus + Cradle + Antenna

■ Listen to live XM*, recorded XM*, and MP3/WMA files

■ Listen at home or in your car (Car Accessory Kit YA-CP200

sold separately); you only have to

carry your NeXus player and the

XM Passport between locations

■ Manage your music

ENG xm_samsung keys 1/16/06 4:03 PM Page 4

XM Satellite Radio, Inc. Proprietary and Confidential

Safety Instructions

NeXus Digital Audio Player

Please read and understand all the instructions to avoid injury to yourself

and/or damage to the player.

Do not expose to extreme temperatures (above 140°F or below -4°F, or above

60°C or below -20°C).

Do not expose to moisture. Do not use this product near water.

Do not let any foreign matter spill into the player.

Do not expose to chemicals such as benzene and thinners. Do not use liquid or aerosol

cleaners. Clean with a soft damp cloth only.

Do not expose to direct sunlight or heat sources for a prolonged period.

Do not try to disassemble and/or repair the player yourself.

Do not subject the unit to severe impact.

Do not place heavy objects on the player.

Do not subject the player to excessive pressure.

Do not touch the charger with wet hands.

Do not store in dusty areas.

Please be aware that Samsung claims no responsibility for damage from

data loss due to breakdown, repair, or other causes.

Introduction

Introduction 7

ENG

NeXus + Cradle + Antenna + PC

■ Manage your music using NeXus or the PC

■ Listen to XM Radio Online

■ Purchase music from XM+Napster and transfer purchased music to your NeXus player

Introduction

ENG xm_samsung keys 1/16/06 4:03 PM Page 6

XM Satellite Radio, Inc. Proprietary and Confidential

Battery Charger Safety

Caution: Opening the case may result in electric shock.

Caution: The uninsulated parts inside the power adapter and cradle may cause electric

shock or fire. For your safety, please do not open these components. Do not let metallic

objects such as necklaces or coins come into contact with the power adapter plugs or

battery terminal.

Caution:To avoid electric shock, use the power adapter only with an outlet that matches

the shape of the adapter’s plug.

Caution: Make sure that you insert the adapter’s plug all the way into the outlet.

Caution: To avoid the risk of fire, do not charge longer than 12 hours.

Caution: Do not plug several devices into the same electrical outlet.

Important: Always read and understand the user guide to help prevent problems.

Warning: Use the power adapter and cradle away from water sources to avoid fire or

electric shock.

Introduction

Introduction 9

ENG

Earbuds and Headphones

Follow traffic safety instructions

■ Do not use the earbuds while driving an automobile or riding a bicycle. It’s not only

dangerous, but against the law.

Protect your ears

■ Do not turn up the volume too high. Doctors warn against prolonged exposure to

high volume.

■ Stop using the player or turn the volume down if you have ringing in your ears.

■ Take care so that the earbud cable is not caught by your arm or other objects while

walking or exercising.

Environmental Information

Follow local guidelines for waste disposal when discarding packaging, batteries, and

electronics appliances.

Your player is packaged with cardboard, polyethylene, etc., and does not contain any

unnecessary materials.

Introduction

ENG xm_samsung keys 1/16/06 4:03 PM Page 8

XM Satellite Radio, Inc. Proprietary and Confidential

Introduction

Introduction 11

ENG

What’s in the Box

NeXus player

(NeXus 25: YP-X5X, NeXus 50: YP-X5Z)

XM Passport

Battery

Home dock/cradle

(YA-CD200)

Earbuds

(EP-360)

Remote

What’s in the Box

Home XM antenna AC power

adapter

RCA audio cable

Also included:

USB cable

User guide

XM+Napster install CD

Carrying

case/holster

Introduction

ENG xm_samsung keys 1/16/06 4:03 PM Page 10

XM Satellite Radio, Inc. Proprietary and Confidential

Charging the Battery

Charge the battery for at least 8 hours before using your player for the first time,

or if you have not used it for several months. When charging, make sure the

ambient temperature is between 32°F and 113°F (0°C to 45°C).

Introduction

1. Open battery compartment. 2. Insert battery into player.

3. Plug adapter into cradle

and wall socket.

Player Controls

Introduction

Introduction 13

ENG

Power button – Slide left to

turn power on or off. Slide right

to “hold” controls, preventing

you from accidentally pressing

a button.

Arrow buttons – Select

menu entries, change channels,

cycle through categories, skip to

next or previous songs, and

Home cradle

Audio, power, and

antenna connections

IR window – Point the

remote here

Earbud jack

Display

XM Passport

Pause/Mute –Pause

playback or mute live XM

Volume

XM button –Start

here; press to access

channels, playlists, menus,

and confirm selections

Digital antenna jack

USB jack

Introduction

ENG xm_samsung keys 1/16/06 4:03 PM Page 12

XM Satellite Radio, Inc. Proprietary and Confidential

Player Display

Introduction

Introduction 15

ENG

Using the Controls

Throughout this guide, you will see instructions such as “Select XM ➝Settings ➝Setup

➝Antenna Aiming.” This tells you to perform the following actions:

1. Press the XM button.

2. The displayed menu’s last option is “Settings.” Press the down arrow button to

highlight “Settings,” then press the XM button to select it.

3. The next displayed menu’s third option is “Setup.” Again, press the down arrow

button to highlight “Setup,” and press the XM button to select it.

4. The last menu’s second option is “Antenna Aiming.” Press the down arrow

button to highlight “Antenna Aiming,” then the XM button to select it.

Not all of the menu items described in this guide may appear on your NeXus display. For

example, if you have not recorded any XM content and have not stored any MP3 or WMA

files, you will not see “My Music” if you press the XM button while listening to live XM.

✍NOTE: Remember that pressing the left arrow button generally allows you to “back out”

of any menu.

Introduction

Battery charge

Mode – “Live XM” or

“My Music” (recorded

content)

H – “H” indicates that the

power switch is set in the

“hold” position.

Clock

Artist name

Song title

Progress bar – Shows

total song length and

current location within

song during playback.

Available memory – Black portion indicates

amount of storage available. White portion indicates

amount of storage taken up by locked XM songs

(page 35). “!” indicates that there is less than 3

minutes of storage available. In “Live XM” mode,

you will see a signal strength indicator instead.

While listening to “Live XM,”

this box shows the channel

name. During “My Music,”

this box indicates whether

you’re viewing all songs,

or songs by a particular

artist, channel, category,

or recording session.

play

reverse or fast-forward through track

pause

skip to previous or next track

PC track (MP3 or WMA file)

track assigned to a playlist

PC track is assigned to a playlist

XM track is locked

repeat track

play tracks randomly

Additional symbols:

ENG xm_samsung keys 1/16/06 4:03 PM Page 14

XM Satellite Radio, Inc. Proprietary and Confidential

Before you can listen to or record XM content, you must activate your player.

1. Set up your player, cradle, power adapter, and antenna (page 18 or page 20). Make sure the

XM Passport is inserted in the cradle and that the player can receive the XM signal.

2. Place NeXus in the “Live XM” mode (page 24).

3. Find the 8-character XM Radio ID, which is printed on the XM Passport and on the package.

Or select XM channel 0 to view the Radio ID. Record the Radio ID here for reference:

■■■■■■■■■■■■■■■■

The XM Radio ID does not use the letters I, O, S, or F.

4. Activate your XM Satellite Radio service online at http://activate.xmradio.com or by calling

1-800-XM-RADIO (1-800-967-2346). You will need a major credit card.

XM will send a signal from the satellites to activate the full channel lineup. Activation normally

takes 10 to 15 minutes, but during peak busy periods, you may need to keep your player on

for up to an hour. When you can access the full channel lineup on your player, you’re done!

Subscribing to XM

Subscribing to XM 17

ENG

Introduction

Remote

Power button

Left arrow button –

Pressing the left arrow button

also allows you to “back out”

of any menu you have selected

Volume

Record – Press and release to

start recording a song, or to

stop recording. Press and hold

to start recording a channel. If

you’re already recording a

channel, pressing and holding

this button ends recording after

the current song.

Bookmark – Tag interesting

songs or tracks

Numeric keypad – Select

XM channels by channel number

Mode – “Live XM” or

“My Music” (recorded

content)

XM button – Access

menus and confirm

selections

Arrow buttons –

Select menu entries, change

channels, cycle through

categories, skip to next or

previous songs, and more

Pause/Mute – Pause

playback or mute live XM

Favorites – Go to

favorite channels

ENG xm_samsung keys 1/16/06 4:03 PM Page 16

XM Satellite Radio, Inc. Proprietary and Confidential

3. Connect NeXus to your

audio system. Connect

power adapter and home

antenna. Point antenna

toward the southern sky

through a window.

Using Your Player Alone

Using Your Player Alone 19

ENG

Setup: At Home

Using Your Player Alone

4. To optimize signal recep-

tion, you may mount the

home antenna outdoors,

facing south. Make sure

the antenna is not blocked

by buildings or trees.

1. Insert XM Passport into

home cradle.

2. Insert player into

home cradle.

ENG xm_samsung keys 1/16/06 4:03 PM Page 18

XM Satellite Radio, Inc. Proprietary and Confidential

2. Insert XM Passport and

player into car cradle.

Using Your Player Alone

Using Your Player Alone 21

ENG

Setup: In a Vehicle

(requires Car Accessory Kit, sold separately)

Every vehicle is different; for your safety, follow all instructions carefully.

Consult a professional installer if you have questions.

You can listen to your Samsung NeXus through your car stereo by using the FM transmitter

built into the optional car cradle. Simply find an unused FM frequency on your car stereo and

set NeXus to transmit on that same frequency.

1. Mount antenna to the roof or trunk of the vehicle. During installation, make sure you are

outdoors and the antenna is not obstructed by tall buildings.

Using Your Player Alone

3. Connect car cradle to antenna cable and

power adapter.

to antenna

(optional) audio

output for cassette

adapter or RCA cable

to DC adapter

ENG xm_samsung keys 1/16/06 4:03 PM Page 20

XM Satellite Radio, Inc. Proprietary and Confidential

5. To install the vent mount, find a horizontal vent that is strong enough to hold your NeXus

and its cradle. To remove the vent mount, push it into the vent and lift upwards slightly to

release the mount’s hooks from the vent vane.

6. Find an unused FM frequency on your car stereo.

7. Set your NeXus to the same FM frequency. (Refer to the section marked “Settings,”

“FM Frequency.”)

8. Tune NeXus to XM channel 1. You should be able to hear XM through your car stereo.

Using Your Player Alone

Using Your Player Alone 23

ENG

4. To install the swivel mount, first find a suitable location. The swivel mount’s adhesive is

very strong and may be difficult to remove. Do not install this mount on leather surfaces

and make sure the air temperature is at least 60°F (15˚C).

Clean the mounting surface with the surface preparation kit. Peel away the adhesive liner

and firmly press the swivel mount to the surface for 30 seconds. Allow 24 hours before

using the mount.

You can adjust the tension of the mount with a screwdriver.

If you need to remove the mount, carefully lift the adhesive pad with your fingers or a

spoon. Warming with a hair dryer for several minutes will help soften the adhesive.

Using Your Player Alone

ENG xm_samsung keys 1/16/06 4:03 PM Page 22

XM Satellite Radio, Inc. Proprietary and Confidential

Selecting Channels

Press the up or down arrow buttons to scroll through the list of channels.

– OR –

Press the number keys on the remote that correspond to the channel number.

– OR –

1. Press the left arrow button on the player. You will see a virtual keypad on the display.

2. Use the arrow buttons to select the digits corresponding to the channel number.

Press the XM button after highlighting each digit.

3. When you’ve entered a valid channel number, the player will tune to that channel

after 2 seconds.

Using Your Player Alone

Using Your Player Alone 25

ENG

Live XM

✍ NOTE: You must dock your NeXus in its cradle, with the XM Passport, power adapter, and

antenna connected, and power it on for a total of 8 hours a month. This authenticates your

XM subscription and ensures that you can continue to enjoy your recorded XM content and

live XM programming.

Turn on the player. Subscribe to XM (page 17) if you haven’t done so already.

If you see “Live XM” at the top of the display, you’re listening to XM content that is currently

being broadcasted from the satellites.

If you see “My Music” on the display, perform these steps to hear live XM:

1. Press the XM button to display the menu.

2. Use the arrow buttons to highlight “Live XM” and press the XM button to select it.

Using Your Player Alone

ENG xm_samsung keys 1/16/06 4:03 PM Page 24

XM Satellite Radio, Inc. Proprietary and Confidential

Categories

XM channels are organized into categories, or genres, such as “Rock,” “Jazz,” or “News.”

To find a channel by category:

1. Push the right arrow button one or more times. The category name appears in the display.

“Favorites” is your first category if you have designated any channel as a “favorite channel.”

2. When you’ve found the category you want, press the up or down arrow buttons to select

a channel.

3. Choose Select to tune to that channel.

Using Your Player Alone

Using Your Player Alone 27

ENG

Favorite Channels

You can save your favorite channels in an easily accessible list.

1. While you’re tuned to a channel, press the XM button.

2. Select Favorite Channels ➝Add Channel.

3. To remove a channel from the “Favorites” list, select XM ➝ Favorite Channels ➝

Remove Favorite Ch ➝(channel name) ➝Remove Channel.

4. Once you’ve saved your favorites, you can quickly access the list. From the “Live XM”

screen, simply press the right arrow button to see your “Favorites” list. Press the up and

down arrow buttons, then the XM button to select the desired channel.

Using Your Player Alone

ENG xm_samsung keys 1/16/06 4:03 PM Page 26

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player Alone

Using Your Player Alone 29

ENG

Using Your Player Alone

Recording XM

Your NeXus enables you to record XM content for personal use. You may record XM content

while listening to live XM or by scheduling a recording session. You can then listen to recorded

XM content on the go. You can also personalize your XM content by creating playlists for

every mood and occasion.*

To record XM content, you must dock NeXus in its cradle, install XM Passport, and attach the

antenna and power adapter.

Recording a Single Song

1. While you’re listening to live XM, select XM ➝Record ➝Record Song. Don’t worry if

you miss the beginning of the song; your NeXus captures the entire song even if you start

up to 45 seconds after the beginning of the song, as long as you’re already tuned to that

channel.

2. By selecting “Record Song,” you instruct your NeXus to stop recording at the end of

the song.

3. To stop recording immediately, press the XM button and select XM ➝Record ➝Stop

Recording. If you change channels, NeXus automatically stops recording.

4. Alternatively, you can continue recording the channel you’re listening to by selecting

XM ➝Record ➝Record Channel. Recording will not stop until you select

XM ➝Record ➝Stop Recording.

SHORTCUT: To immediately start recording at any time, press and hold the XM button until

you see the “Recording …” message on the display.

*XM content cannot be removed from the NeXus digital audio player. If you wish to own a complete, high-fidelity version

of digital content on demand, you should purchase content from XM+Napster. This allows you to store the content on

multiple devices.

Recording a Channel

1. While you’re listening to live XM, select XM ➝Record ➝Record Channel. You will

record the channel you’re currently listening to.

2. To stop recording immediately, select XM ➝Record ➝Stop Recording. If you change

channels, NeXus automatically stops recording.

3. Alternatively, you can choose to stop recording at the end of the song you’re currently

listening to by selecting XM ➝Record ➝Record Song.

Scheduling a Recording Session

You can set NeXus to record XM at a later time. To record live XM, you must dock NeXus in its

cradle, and attach the antenna, XM Passport, and power adapter.

1. To schedule a recording session, select XM ➝Record ➝Schedule Recording ➝

New Session.

2. The “Edit Session” display allows you to set various options. Use the up and down arrow

buttons to adjust each entry. Press the XM button to accept the entry and move to the

next option.

ENG xm_samsung keys 1/16/06 4:03 PM Page 28

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player Alone

Using Your Player Alone 31

ENG

Using Your Player Alone

3. To edit an existing session, select XM ➝Record ➝Schedule Recording.

You will see a list of sessions. Highlight the session you wish to edit.

You may not see all the sessions that you scheduled in the past. Sessions that have expired

are automatically removed from the list.

You can choose to schedule a session for “Today,”

“Everyday,” or a specific “Date.”

Set start and stop times using the up and down arrow

buttons. If the session length exceeds the available

memory, you will record over the oldest XM tracks in

the memory, so you’ll always have the latest content.

Choose the channel you want recorded.

Choose “Accept” to save the session. You can also

edit the session. To cancel, press the left arrow button.

4. Choose Edit Session to change the session’s options.

5. To delete a session, choose Cancel Session.

At the scheduled time, your recording session will begin if NeXus is docked in its cradle.

NeXus may be powered on or off, but you must attach the power adapter. Remember that

when you schedule a recording session, you are instructing NeXus to switch to the desired

channel.

ENG xm_samsung keys 1/16/06 4:03 PM Page 30

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player Alone

Using Your Player Alone 33

ENG

Using Your Player Alone

Listening to Recorded XM Content (My

Music)

You are listening to XM content that you have recorded when you see “My Music” at the top

of the display.

1. To switch to “My Music” from “Live XM,” select XM ➝My Music.

2. Press the up and down arrow buttons to scroll through the list of songs that you have

recorded on NeXus. Highlight the song you want to listen to, then select Play to start

playing from that song.

3. Alternatively, while you’re listening to a song, simply press the right arrow button to skip

to the next song. Press the left arrow button to skip to the previous song.

4. While you’re listening to a song, you can also press and hold the right arrow button to

fast forward through that song. Press and hold the left arrow button to reverse through

the song.

✍ NOTE: In order to access your XM content you have recorded on NeXus, you must

(1) maintain an active XM Satellite Radio subscription, and (2) dock your NeXus to its cradle,

XM Passport, power adapter, and antenna for a total of 8 hours a month.

Organizing Your Music

Finding Your Music

All songs and tracks that are stored in your NeXus are normally played in the order that

they were recorded or transferred into the player. You can also sort the selections by artist,

category, channel, or recording session.

1. While listening to recorded tracks in “My Music,” select XM ➝Find.

2. To sort your stored music by artist, select Artists.

Artists

View all songs on your NeXus.

You can also sort songs by artist, category,

channel, or recording session.

ENG xm_samsung keys 1/16/06 4:03 PM Page 32

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player Alone

Using Your Player Alone 35

ENG

Using Your Player Alone

3. Press the up or down arrow buttons to scroll through the list of artists. Press the

XM button to select an artist.

4. Once you’ve selected an artist, you will see a list of the artist’s songs that you have recorded.

5. Select the song you want to hear using the arrow and XM buttons. Select Play to begin

playing that song.

6. To return to the list of artists, press XM ➝Find ➝Artists and select another artist as in

steps 3 and 4.

7. You can also sort your tracks by categories or by channels. WMA and MP3 songs show the

category or genre that they are assigned to using their ID3 tags, which may or may not be

the same as the XM category. WMA and MP3 songs are also assigned to a channel named

“MP3/WMA.”

SHORTCUT: As soon as you’ve highlighted an artist or a song, simply press the right arrow

button to start playback.

Shows the artist’s songs in alphabetical order.

Opens the Edit window, allowing you to add an

artist to a playlist, lock or unlock all the artist’s

songs, or delete all the artist’s songs.

Locking and Unlocking XM Content

When you record XM, your NeXus records over the oldest XM tracks first. This ensures that

you always hear the latest XM content. You can “lock” a song or track to prevent NeXus from

recording over it. Locked songs occupy memory on your NeXus and reduce your recording

time. Remember that you can buy high-fidelity songs or albums from XM+Napster that can be

stored either on your NeXus or on your PC.

1. While you’re listening to a song in “My Music,” press the up or down arrow buttons to

view the list of songs.

2. Highlight the song you want to lock.

3. Select XM ➝Edit Song ➝Lock Song.

4. The locked song is indicated with a padlock symbol to the left of the song title.

5. To unlock a song, highlight the song in the list and select XM ➝Edit Song ➝

Unlock Song.

SHORTCUT: To lock the song that you’re currently listening to, press and hold the XM

button, then select Lock Song.

You can also lock all songs by an artist, in a category, or in a channel.

To lock all songs by an artist:

1. Select XM ➝Organize ➝Artists ➝(artist name) ➝Lock Artist.

2. All songs by this artist are displayed with a padlock symbol to the left of the song title.

If you add a song to a playlist, that song is automatically locked.

ENG xm_samsung keys 1/16/06 4:03 PM Page 34

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player Alone

Using Your Player Alone 37

ENG

Playlists – Adding Songs

You can create one or more custom lists, called playlists. Each playlist is an index of songs

that play in a certain order. You can create a “morning drive” playlist, a “workout” playlist, a

“best of” playlist, and more.

1. To add a song to a playlist, first select a song using the up or down arrow buttons. The

song may be a recorded XM track, an MP3 track, or a WMA track, including songs purchased

through XM+Napster.

2. Select XM ➝Edit Song ➝Add to Playlist.

3. You can choose to add the song to an existing playlist, or to create a new playlist. To

choose an existing playlist, simply highlight and select the playlist name. To create a new

playlist, choose New Playlist and use the virtual keyboard to name that playlist.

4. The display confirms by showing “Song Added.”

5. Adding a song to a playlist automatically locks that song.

SHORTCUT: To add the song that you’re currently hearing to a playlist, press and hold the

XM button, then select Add to Playlist.

You can add a song to more than one playlist.

You can also add all songs by an artist to a playlist; select XM ➝Organize ➝ Artists ➝

(artist name) ➝Add to Playlist. You can also add all songs in a particular XM channel

or category to a playlist.

Playlists - Removing Entries

After creating a playlist, you can edit it by rearranging its entries or by removing entries.

Remember that removing a song from one playlist does not remove it from any other playlist,

and does not delete that song from NeXus.

To remove one or more songs from a playlist:

1. Select XM ➝Playlists ➝(playlist name) ➝Edit Playlist ➝Remove Songs.

2. Use the up and down arrow buttons to highlight a song.

3. Press XM ➝Select Song. The song’s name will be displayed in gray.

4. Use the up and down arrow buttons to highlight another song, and press the XM button to

select that song. Do this for all the songs you want to remove. (If you press the right arrow

button, you automatically select that song for deletion and advance to the next song.)

5. Select XM ➝Remove Song ➝Yes.

6. NeXus confirms by displaying “Songs Removed.”

Using Your Player Alone

ENG xm_samsung keys 1/16/06 4:03 PM Page 36

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player Alone

Using Your Player Alone 39

ENG

Using Your Player Alone

Playlists – Playing

1. Select XM ➝Playlists ➝(playlist name) ➝Select.

2. Choose a song you want to hear and press the XM button.

3. You will see the following options:

4. To exit a playlist and return to all songs, select XM ➝Find ➝ All Songs.

Play songs in the order listed in the playlist,

starting from the selected song.

Play songs in random order, starting from the

selected song. To cancel random play, select a

song but choose “Play” instead of “Random.”

Repeat the selected song. To cancel repeat play,

select a song but choose “Play” instead of

“Repeat Song.”

Playlists – Renaming

To rename a playlist:

1. Select XM ➝ Playlists ➝(playlist name) ➝Edit Playlist ➝Rename Playlist.

2. Use the virtual keyboard to change the name of the playlist.

3. Select “OK” when you’re done.

ENG xm_samsung keys 1/16/06 4:03 PM Page 38

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player Alone

Using Your Player Alone 41

ENG

Using Your Player Alone

Bookmarking Songs

“Bookmarks” are a great way to remember interesting songs. You can view all your book-

marks through the XM+Napster application, look up information about the artist or album, or

purchase a complete, high-fidelity version of the song that you may play on multiple devices

through XM+Napster. You may also purchase songs by the same artist through XM+Napster.

To bookmark a song in My Music:

1. Press the up or down arrow buttons until you’ve highlighted the song you want to

bookmark.

2. Press XM ➝Edit Song ➝Bookmark.

3. NeXus confirms by displaying “Info Added.”

To bookmark a song in “Live XM”:

1. Select XM ➝Bookmark.

2. NeXus confirms by displaying “Info Added.”

SHORTCUT: To bookmark the song that you’re currently listening to, press and hold the

XM button, then select Bookmark. You can only bookmark recorded XM tracks, not MP3 or

WMA tracks.

Deleting Songs

When you’re no longer interested in a song or track, you can delete it from your NeXus.

“Deleting” a song permanently erases it from memory, and is different from “removing” a

song from a playlist.

To delete one song from My Music:

1. Press the up or down arrow buttons until you’ve highlighted the song you want to delete.

2. Press XM ➝ Edit Song ➝Delete ➝Yes.

3. Nexus confirms the song is erased by displaying “Song Deleted.”

SHORTCUT: To delete the song that you’re currently listening to, press and hold the XM

button, then select Delete.

To delete multiple songs from My Music:

1. Select XM ➝Organize ➝Songs ➝All Songs.

2. Use the up and down arrow buttons to highlight a song.

3. Press XM ➝Select Song. The song’s name will be displayed in gray.

4. Use the up and down arrow buttons to highlight another song, and press the XM button

to select that song. Do this for all the songs you want to remove.

5. Select XM ➝Delete Song(s) ➝Yes.

6. NeXus confirms that the songs are erased by displaying “Songs Deleted.”

ENG xm_samsung keys 1/16/06 4:03 PM Page 40

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player with a PC

Using Your Player with a PC 43

ENG

Setup

To connect your NeXus to your PC:

1. If you haven’t done so already, disconnect your NeXus and its cradle from your PC.

2. Insert the XM+Napster CD into your computer’s CD or DVD drive.

3. The software should start automatically. You should see the following screen on your PC:

Follow the directions indicated on the screen. If you have any questions about the

XM+Napster software, see the XM+Napster FAQs at http://napster.xmradio.com.

Using Your Player with a PC

Click here to begin the

installation.

Click here only if you

need to install these

individual components.

Click here when you’re

done with the installa-

tion procedure.

System Requirements

The PC system must meet the following requirements:

■ Intel®Pentium®-class CPU

■ Microsoft Windows XP Home SP2, Windows XP Professional SP2, or Windows 2000 SP4

operating system*

■ At least 64 MB of RAM

■ At least 100 MB of available hard disk space

■ Internet Explorer 5.1 or higher

■ Windows Media Player 9 or higher; Windows Media Player 10 recommended for Windows XP

■ Active Internet connection; we recommend a broadband (cable, DSL, or fiber) connection

for optimal performance

*The following operating systems are not supported: Windows 95, Windows 98, Windows NT, Windows Me, Mac OS.

ENG xm_samsung keys 1/16/06 4:03 PM Page 42

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player with a PC

Using Your Player with a PC 45

ENG

6. Your PC should recognize NeXus. Close any file folders that appear on your screen. You can

manage the contents of NeXus entirely by using the XM+Napster program.

7. When taking your NeXus with you, you must disconnect NeXus from the PC by following

the procedure described in “Disconnecting the Player from the PC” (page 55).

Using Your Player with a PC

4. Reboot your PC if necessary, then restart the XM+Napster program.

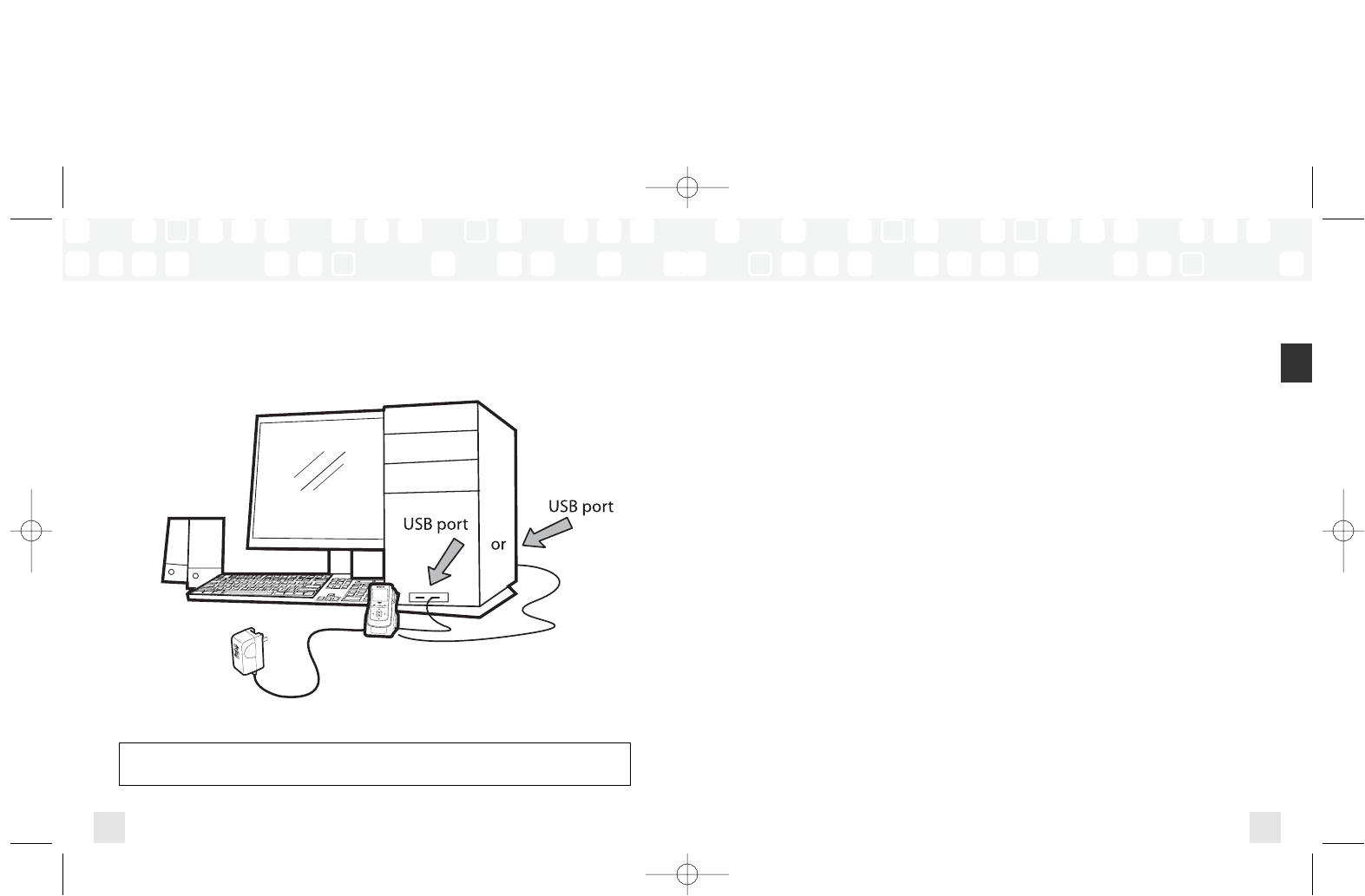

5. Set up NeXus as shown and plug the USB cable into the PC.

WARNING: Use only the USB supplied in the package. Other USB cables may not allow your

NeXus to charge its battery or communicate with your PC.

ENG xm_samsung keys 1/16/06 4:03 PM Page 44

XM Satellite Radio, Inc. Proprietary and Confidential

To register, follow these steps:

1. Click File / Sign In on the XM+Napster application. Click on the link for new members.

2. Follow the directions indicated on the registration display. You must have your active

XM Radio ID and billing ZIP code to register.

Using Your Player with a PC

Using Your Player with a PC 47

ENG

Registering with XM+Napster

Choose either the XM+Napster Light service or the XM+Napster service. XM+Napster Light

allows you to buy individual songs or albums whenever you want. XM+Napster lets you

stream music to your PC for an additional monthly subscription.

XM+Napster XM+Napster Light

Manage XM content and MP3/WMA

files on your NeXus

Transfer MP3/WMA files from your PC

to your NeXus

Buy individual songs or albums to keep

forever, burn to CD and transfer onto

your NeXus player

Additional monthly subscription with

XM+Napster required

Download and listen to all the Napster

music you want on your PC

Listen to 70+ radio stations on your PC

from XM Radio Online

Community and music discovery tools

Using Your Player with a PC

✔

ENG xm_samsung keys 1/16/06 4:03 PM Page 46

XM Satellite Radio, Inc. Proprietary and Confidential

What Can You Do with XM+Napster?

Using XM+Napster, you can:

■ Manage songs, playlists, and recording sessions on your Samsung NeXus

■ Transfer MP3 and WMA files between NeXus and your PC

■ Explore and purchase music from XM+Napster’s enormous online store

■ Listen to XM Radio Online

Exploring

Using Your Player with a PC

Using Your Player with a PC 49

ENG

Explore XM+Napster’s online store and

community, with over 1.5 million songs,

100,000 albums, and 80,000 artists.

Search by entering an

artist name, song title,

or album.

Drag and

drop tracks or

albums onto

the “playlist/

radio” pane

to play them

on your PC.

3. If you choose XM+Napster, you must provide a valid credit card. Registering for

XM+Napster Light does not require a credit card; you only need one when you purchase

individual songs or albums. Simply select “Start XM+Napster Light” instead of entering

your billing information.

4. The next time you use XM+Napster, sign in with your user name and password to access

the XM+Napster service. You can also use the XM+Napster software off-line, without signing

in, and still retain the ability to manage your NeXus.

Using Your Player with a PC

For XM+Napster,

enter your credit card

information.

For XM+Napster Light,

simply click here.

ENG xm_samsung keys 1/16/06 4:03 PM Page 48

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player with a PC

Purchasing Music

The XM+Napster store allows you to stream, download, or buy songs or albums.

■ Stream – Listen to a song while your PC is connected to the Internet.

■ Download – Store music on your PC. You can listen to these songs anytime,

even if your PC is off-line.

■ Buy – Purchase the track or album. You can transfer these songs to your

Samsung NeXus at any time.

“download” – Available to buy,

download, or stream from XM+Napster

“buy only” – Only available to buy or to

sample a 30-second clip from XM+Napster

Organizing Your Music

Using Your Player with a PC

Using Your Player with a PC 51

ENG

The “Folder” pane lets you

view the tracks stored on

NeXus or on your PC, playlists,

recording sessions, bookmarks,

and more. Click on the desired

folder to see its contents on

the main pane.

Drag and drop purchased tracks onto the “transfer”

pane to move them from your PC to your NeXus.

The main pane shows the

contents of a folder.

View and manage all the

XM content you recorded,

WMA, and MP3 tracks on

your NeXus and your PC.

Drag and drop tracks

or albums onto the

“playlist/radio” pane to

play them on your PC.

Using Your Player with a PC

ENG xm_samsung keys 1/16/06 4:03 PM Page 50

XM Satellite Radio, Inc. Proprietary and Confidential

Playlists

You can manage your NeXus playlists using XM+Napster. Simply dock your NeXus in its cradle,

then select Library / NeXus / Playlists. You can create new playlists or edit or delete any

playlists that are stored in your NeXus.

You can also create and manage playlists for any music content stored on your PC. Select

Library / My Playlists.

To add a track to any playlist, select that track on the main pane and drag it to the playlist

name in the “Folder” pane. Alternatively, right-click on the track name, then select the playlist

you want to add the track to.

You can move a PC playlist onto your NeXus by dragging that playlist name into the

Library / NeXus / Playlists line. When you move tracks and playlists onto your NeXus,

you may have to purchase that content from XM+Napster, if you have not done so already.

Using Your Player with a PC

Using Your Player with a PC 53

ENG

Recording Sessions

View and edit your NeXus recording sessions by selecting Library / NeXus / XM

Recordings on the XM+Napster application.

Using Your Player with a PC

Enter the options for the recording session.

Create a new recording session

or view an existing session.

NeXus playlists

PC playlists

ENG xm_samsung keys 1/16/06 4:03 PM Page 52

XM Satellite Radio, Inc. Proprietary and Confidential

Disconnecting the Player from the PC

Before you remove your NeXus from its dock or unplug the USB cable from the dock or the

PC, you must disconnect using one of the following methods:

■ In Windows: right-click on the Safely Remove Hardware icon , which is on the

right side of the Windows taskbar. Select “USB Mass Storage Device,” and click on Stop.

■ On XM+Napster: click on the Disconnect Device icon

or select File / Disconnect portable device.

If you want to connect NeXus to your PC again, re-insert NeXus into its cradle.

Using Your Player with a PC

Using Your Player with a PC 55

ENG

Transferring Between PC and NeXus

To transfer a track or playlist from your PC to your NeXus, drag and drop the track or playlist

onto the “transfer” pane on the lower right-hand side of the XM+Napster application.

You can only transfer songs that you have purchased from XM+Napster or songs that you

have ripped from your audio CDs.

Using Your Player with a PC

ENG xm_samsung keys 1/16/06 4:03 PM Page 54

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player with a PC 57

ENG

Using Your Player with a PC

Listening to XM Radio Online (XMRO)

XM Radio Online gives you access to over 75 channels of the same amazing programming

you hear on XM Satellite Radio, plus 10 select AOL Radio channels for even more choices.

To access XM Radio Online, click on Home / Radio / XM Radio Online. Then simply

choose your desired channel from the channel list.

Save favorite channels in the preset buttons by dragging a channel onto the desired button.

Note that these presets are not the same as the “Favorite Channels” on your NeXus.

You can enjoy XM Radio Online anywhere you have a PC and a high-speed connection.

Remember that you cannot save or transfer XMRO programming onto your NeXus.

Using Your CDs or MP3/WMA Files

Ripping Your CDs

Use the XM+Napster application to rip tracks from a CD into your Napster library.

1. Insert an audio CD into your PC’s CD drive.

2. Click on Library, then click on the CD icon in the “Folders” pane. You will see a listing

of the CD tracks in the main pane.

3. Click the Rip icon on the bottom of the main pane. By

default, the tracks will be encoded into the WMA format at 128 kbps. You can change this

setting by clicking File / Options / CD Options.

Using Your Player with a PCUsing Your Player with a PC

ENG xm_samsung keys 1/16/06 4:03 PM Page 56

XM Satellite Radio, Inc. Proprietary and Confidential

Using Your Player with a PC 59

ENG

Importing Tracks into XM+Napster

If you already created MP3 or WMA files in your computer, you can import them into your

Napster library.

1. Click File / Import Tracks to My Library … .

2. Follow the directions on the screen.

WARNING: Though you can transfer files other than MP3 or WMA types to your NeXus,

those files cannot be played as audio files. Furthermore, do not attempt to format the NeXus

storage; doing so may cause damage to the player.

Burning CDs

Transfer MP3 and WMA files onto a recordable CD or DVD. Please note that the content

recorded from XM cannot be burned onto a CD or DVD or otherwise transferred off your

NeXus.

1. Insert a recordable CD or DVD into your PC’s CD/DVD drive.

2. Click Library.

3. Pull up the Burn screen at the bottom of the main pane.

4. Drag and drop tracks into the “Burn” pane.

5. When you’ve finished selecting tracks, click Burn Disc.

Using Your Player with a PC

ENG xm_samsung keys 1/16/06 4:03 PM Page 58

XM Satellite Radio, Inc. Proprietary and Confidential

Using the Update Tool

If you don’t use XM+Napster, you can

update the NeXus firmware manually.

1. Insert the XM+Napster CD in your PC’s

CD-ROM or DVD drive. The XM+Napster

software should start automatically.

2. Click on Browse CD.

3. Click on Utils, then click on

XMFirmwareUpdateClient.

4. Follow the instructions on the PC screen.

You can run this firmware update tool at any time. If the firmware needs to be updated, the

tool will install it automatically. If the firmware is already up-to-date, nothing happens.

For more information, please see the XM+Napster FAQs at http://napster.xmradio.com.

Updating NeXus Firmware

Updating NeXus Firmware 61

ENG

Occasionally we make improvements to the NeXus firmware, which is the software that

makes your NeXus player work. Updating the firmware is a quick and easy process.

Remember that:

■ Your NeXus must be docked in its cradle with a power adapter and must be connected to

your PC

■ Your PC must be connected to the Internet

Using XM+Napster

If you have installed and use XM+Napster, it automatically checks the firmware when you

connect NeXus to your PC. XM+Napster notifies you when it’s necessary to update the

firmware. Simply follow the instructions.

Don’t worry if you miss a firmware update. XM+Napster will always check whether your

NeXus needs an update or not.

Updating NeXus Firmware

ENG xm_samsung keys 1/16/06 4:03 PM Page 60

XM Satellite Radio, Inc. Proprietary and Confidential

Settings

Settings 63

ENG

FM Frequency

(requires car dock)

When listening to your NeXus through your vehicle’s FM radio, set your NeXus player and the

FM radio to the same frequency.

1. Find an unused FM frequency on your FM radio.

2. Select XM ➝Settings ➝FM Frequency.

3. Use the up and down arrow buttons to choose the proper frequency. You should hear

XM programming over your FM radio when your NeXus and radio frequencies match.

4. Press the XM button to confirm your selection.

Settings

Aiming the Antenna

For optimal reception of XM’s live satellite signal, your NeXus antenna should have an unob-

structed view of the XM satellites in the southern sky. In large cities, XM also has a network

of ground repeaters to help increase the signal coverage.

Your NeXus can help you aim the home antenna to pull in the strongest possible signal.

1. Press the XM button to display the menu.

2. Using the arrow and XM buttons, select Settings ➝Setup ➝Antenna Aiming.

3. Slowly turn and tilt the antenna. The signal bars on the display will change. Find the position

that gives at least four bars on either “Satellite” or “Terrestrial.”

4. The antenna aiming screen remains as long as it’s needed to help you position the antenna.

When you’ve found the best position, press the left arrow button repeatedly to exit the

Settings menu.

5. Select XM channel 1. You should be able to listen to the XM Preview Channel.

ENG xm_samsung keys 1/16/06 4:03 PM Page 62

XM Satellite Radio, Inc. Proprietary and Confidential

Settings

Settings 65

ENG

Display

Brightness & Contrast

To change the screen’s brightness and contrast:

1. Select XM ➝Settings ➝Preferences ➝Change Display ➝

Brightness & Contrast.

2. Press the up or down arrow buttons to select brightness or contrast.

3. Press the left or right arrow buttons to adjust each level.

4. Press the XM button to confirm your selection.

Backlight Timer

Your NeXus screen remains lit for a short time after you press a button. To adjust this

time period:

1. Select XM ➝Settings ➝Preferences ➝Change Display ➝Backlight Timer.

2. Press the up and down arrow buttons to select the desired time period.

3. Press the XM button to confirm your selection.

Settings

Audio

Tone

You can adjust the audio tone quality to suit the kind of music you’re listening to.

1. Select XM ➝Settings ➝Preferences ➝EQ Set.

2. You will see a list of tone characteristics. Use the up, down, and XM buttons to select

the one you prefer.

3. Press the XM button to confirm your selection.

Line Out Level/FM Audio Level

If you connect NeXus to another stereo system, you can adjust NeXus’s audio level to match

other audio sources. This is not a volume control; use the volume control on your stereo instead.

When your NeXus is plugged into the car cradle, the FM modulator turns on if you do not

connect anything to the cradle’s audio output. In that case, this level control sets the audio

level being transmitted on FM.

1. Select XM ➝Settings ➝Setup ➝Line Out Level (or FM Audio Level).

2. Use the left or right arrow buttons to decrease or increase the audio level.

3. Press the XM button to confirm your selection.

ENG xm_samsung keys 1/16/06 4:03 PM Page 64

XM Satellite Radio, Inc. Proprietary and Confidential

Settings

Settings 67

ENG

Channel Access

Direct Tune

Normally, as you scroll through live XM channels, you can preview what’s playing on each channel

before you select it. The NeXus does not switch to that channel until you push the XM button. You

can change this so that NeXus automatically tunes to the channel that you’re previewing.

1. Select XM ➝Settings ➝Preferences ➝Channel Access ➝Direct Tune.

2. Select Direct Tune On.

3. Press the XM button to confirm your selection.

To return NeXus to its default behavior, select Direct Tune Off.

Channel Skip/Add

You can simplify the list of channels that you see when you press the up and down arrow

buttons. To skip a channel:

1. Select XM ➝Settings ➝Preferences ➝Channel Access ➝Channel Skip/Add.

2. You will see a list of channels. Press the XM button to skip a channel. That channel will be

displayed in reverse type.

3. To add a channel that has been skipped, highlight that channel, then press the XM button.

The added channel name will be displayed in normal type.

4. Press the left arrow button to return to the Channel Access menu.

5. NeXus confirms by displaying “Channel List Updated.”

You can still tune to a channel directly by using the virtual keypad to enter its channel number,

or by selecting that channel if it’s saved in a “Favorite Channels” list.

Channel skip/add should not be used as a form of parental control. To completely block access

to an XM channel, contact XM Listener Care at 1-800-XM-RADIO (1-800-967-2346).

Settings

Time

1. In “Live XM,” the time is automatically set using the XM signal. Otherwise, you can set the

time by selecting XM ➝Settings ➝Setup ➝Set Time ➝Set Clock ➝Set

Date & Time. Press the up and down arrow buttons to set the correct value for each

field. Press the XM button to advance to the next field.

2. Select XM ➝Settings ➝Setup ➝Set Time ➝Set Clock ➝Select Time Zone

to set the correct time zone for your location.

3. Your NeXus automatically adjusts for daylight-saving time. To turn this feature off,

select XM ➝Settings ➝Setup ➝Set Time ➝Set Clock ➝Automatic DST

➝No.

4. To display time in 12- or 24-hour format, select the desired format through

XM ➝Settings ➝Setup ➝Set Time ➝Set Clock ➝12/24 Hour Mode.

Sleep Timer

Your NeXus has a sleep timer that can automatically shut off the unit after a period of time.

1. Select XM ➝Settings ➝Setup ➝Set Time ➝Sleep Timer.

2. Select the desired time period.

3. Press the XM button to confirm the selection. Your NeXus will remember this setting the

next time you turn on the player.

Settings

ENG xm_samsung keys 1/16/06 4:03 PM Page 66

XM Satellite Radio, Inc. Proprietary and Confidential

Restoring Factory Defaults

To restore all NeXus settings and preferences to a “factory fresh” state:

1. Select XM ➝Settings ➝Setup ➝Restore Defaults.

2. You should see this display:

3. Confirm by pressing Yes, or cancel by selecting No.

Settings

Settings 69

ENG

Settings

Memory Partition

The internal storage in NeXus can store recorded XM content and MP3/WMA files. By default,

the storage is divided 50/50, but you can select different memory partitions:

device setting typical storage for content typical storage for PC

recorded from XM (MP3 and WMA) tracks

NeXus 25 50/50 XM/PC files 12.5 hours 4 hours

100% XM 25 hours 0 hours

NeXus 50 50/50 XM/PC files 25 hours 8 hours

100% XM 50 hours 0 hours

To change the memory partition:

1. Select XM ➝Settings ➝Setup ➝Memory Partition.

2. Highlight the desired setting and press the XM button.

3. Confirm by selecting Yes, or cancel by selecting No.

CAUTION: When you change the memory partition, you will erase all your stored XM

content and MP3/WMA tracks from your NeXus player.

Restore just the settings

to factory defaults.

Restore settings to

factory defaults and erase all

music.

ENG xm_samsung keys 1/16/06 4:03 PM Page 68

XM Satellite Radio, Inc. Proprietary and Confidential

ENG

Customer Support

Troubleshooting

Customer Support

If you see this on the display: You should:

No Signal Something is blocking the XM signal. Move your NeXus away

from the obstructed area, e.g. an underground garage.

Check Antenna Plug the antenna into the home or vehicle cradle.

Make sure the antenna wire is not bent or broken.

Off Air The channel you’ve selected is not currently broadcasting.

Tune to another channel.

Loading Your NeXus is acquiring audio or program information from the XM

signal. This message should disappear in a few seconds in good signal

conditions.

Updating XM is updating your NeXus with the latest encryption code. Simply wait

a few seconds until the update is done. – OR – You may be attempting

to tune to a channel that is blocked or that you cannot receive with

your subscription package. To receive that channel, contact XM Satellite

Radio at 1-800-967-2346.

--- (no artist or title) No program information such as artist name or song title exists.

Channel You are attempting to tune to a channel that is not available.

Check XM C&P Passport Check whether the XM Passport is inserted into the cradle. Also check

the power connections to the cradle.

All Recording Features Not Available Activate your XM subscription to enable you to store XM

programming on your NeXus.

This Channel Not Available for Recording Some programming cannot be recorded due to restrictions placed by

the content owners.

This Program Not Available for Recording Some programming cannot be recorded due to restrictions placed by

the content owners.

Connect to XM Antenna Within ## Days You must dock your NeXus in its cradle, with the XM Passport and

to Avoid Interruption in Listening to antenna connected, and power it on for at least 8 hours a month.

XM Recordings This authenticates your XM subscription and ensures that you can

continue to enjoy your recorded XM content and live XM programming.

Please connect to XM Antenna to Dock your NeXus into its cradle, and connect the XM Passport and

Confirm Valid Subscription antenna.

Activation required for playback Activate your XM subscription.

Troubleshooting

If this happens: You should:

There is no power or your NeXus shuts Your NeXus battery may be low. Charge the battery by docking your

off quickly. NeXus in the cradle and plugging in the AC adapter.

NeXus shuts off unexpectedly. Check whether you set the sleep timer, and set it to “Off” if desired.

NeXus remembers the sleep timer setting even when you turn the

player off.

You do not receive all the XM channels you Check that you have not skipped any channels (page 66). If you still do

have subscribed to. not receive all channels, your NeXus may not be activated. Contact XM

Satellite Radio.

No audio. Check all connections between your NeXus and your stereo system.

No song title or artist name is displayed. Nothing is wrong with your NeXus. That information may be in the

process of being updated. Some channels, such as news and sports,

may not have such information.

No audio when listening to NeXus through Check that your NeXus and your radio are tuned to the same FM

an FM radio. frequency.

Audio fades or has static when listening You might be hearing interference from another FM station. Set your

through an FM radio. NeXus and your radio to a different FM frequency.

Audio sounds too soft or is distorted when Raise or lower the FM audio level until the sound quality improves.

listening to an FM radio.

XM Instant Traffic and Weather channels Nothing is wrong with your NeXus. These channels use a different

sound different from other channels. audio technology than the other XM channels.

Controls do not respond. Check whether the power switch is in the "hold" position.

If so, slide it to the center position to unlock the controls.

The controls still refuse to respond, the display Reset your NeXus by removing and re-inserting the battery.

does not change, or the backlight does not

turn on or off.

Battery level meter doesn’t match the expected Fully charge the battery, then use your NeXus until the battery is

charge or playback time. exhausted. This calibrates the battery level meter.

NeXus does not communicate with your PC. Check the power and USB connections between the cradle and your PC.

Be sure to use the supplied USB cable; any others may prevent your

NeXus from charging or communicating properly with your PC.

Remove your NeXus from its cradle, then re-insert.

ENG xm_samsung keys 1/16/06 4:03 PM Page 70

XM Satellite Radio, Inc. Proprietary and Confidential

Customer Support 73

ENG

Customer Support

Specifications

NeXus Player

Dimensions 47 mm (W) x 86 mm (H) x 17 mm (D)

1.9 in (W) x 3.4 in (H) x 0.67 in (D)

Weight 130 g

4.4 oz

Storage capacity Nexus 25: 512 MB

Nexus 50: 1 GB

Music file formats MP3 (64-320 kbps)

WMA (64-192 kbps)

WMA DRM (Secure WMA)

XM content

Audio output 3.5 mm mini-stereo jack

Antenna connector (home and cradles) RF SMB

Battery Type: lithium polymer

Voltage: 3.7 V

Capacity: 1040 mAh

External power Voltage: 5 V DC

Current: 2000 mA

Polarity:

Troubleshooting

If this happens: You should:

Artist and song title information does not NeXus may not correctly show the artist and song information

display correctly. (ID3 tags) of certain foreign songs.

Cannot transfer songs that were downloaded NeXus is not compatible with Napster To Go’s monthly subscription

with Napster To Go™ into NeXus. service. To transfer songs from your PC to your NeXus, you must

purchase individual songs or albums from XM+Napster Light or

XM+Napster.

Customer Support

ENG xm_samsung keys 1/16/06 4:03 PM Page 72

XM Satellite Radio, Inc. Proprietary and Confidential

74 75

ENG

Patent Information

Technology. It is prohibited to copy, decompile, disassemble, reverse engineer, hack,

manipulate, or otherwise make available any technology incorporated in receivers compatible

with the XM Satellite Radio System or that support the XM website, the Online Service or any

of its content. Furthermore, the AMBE®voice compression software included in this product is

protected by intellectual property rights including patent rights, copyrights, and trade secrets

of Digital Voice Systems, Inc. You also agree not to upload, post, transmit or otherwise make

available any material that contains software viruses or any other computer code, files, or

programs designed to interrupt, disable, or limit the functionality of the XM website or the

Online Service. Furthermore, the music, talk, news entertainment, data, and other content on

the Services are protected by copyright and other intellectual property laws and all ownership

rights remain with the respective content and data service providers. You are prohibited from

any export of the data (or derivative thereof) except in compliance with applicable export

laws, rules, and regulations. The user of this or any other software contained in an XM Radio

or the XM website and all software used in connection with either is explicitly prohibited from

attempting to copy, decompile, reverse engineer, or disassemble the object code, or in any

other way convert the object code into human-readable form. The software is licensed solely

for use within this product.

Customer Support

Specifications

Remote

Dimensions 39 mm (W) x 95 mm (H) x 12 mm (D)

1.5 in (W) x 3.7 in (H) x 0.47 in (D)

Battery Type: CR2032

Voltage: 3 V

Model Numbers

NeXus 25 player YP-X5X

NeXus 50 player YP-X5Z

Remote YA-RC200

Home cradle YA-CD200

Car accessory kit YA-CP200

Battery 990208

Earbuds EP-360

ENG xm_samsung keys 1/16/06 4:03 PM Page 74

XM Satellite Radio, Inc. Proprietary and Confidential

76 77

ENG

Warranty

Samsung warrants MP3 players as free of defects in material, design, and workmanship for

a period of twelve (12) months from the original date of purchase. If during the period of

warranty this product proves defective under normal use and service, you should return the

product to the retailer from whom it was originally purchased. The liability of Samsung and its

appointed maintenance company is limited to the cost of repair and/or replacement of the

unit under warranty.

Return of the product for defective reasons should be to the original purchaser; however,

Samsung Authorized Dealers and Authorized Service Centers will comply with the warranty

on the terms issued to purchasers in the country concerned. For further information

relating to the Authorized Service Centers, contact 1-800-SAMSUNG

(1-800-726-7864).

Customer Support

FCC Statement

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference

that may cause undesired operation.

CAUTION: Any changes or modifications in construction of this device which are not

expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

■ Reorient or relocate the receiving antenna.

■ Increase the separation between the equipment and receiver.

■ Connect the equipment to an outlet on a circuit different from that to

which the receiver is connected.

■ Consult the dealer or an experienced radio/TV technician for help.

ENG xm_samsung keys 1/16/06 4:03 PM Page 76

XM Satellite Radio, Inc. Proprietary and Confidential

e. Accidents, acts of God, or any cause beyond the control of Samsung caused by lightning,

water, fire, public disturbances, and improper ventilation.

f. Unauthorized modifications carried out for the product to comply with local or national

technical standards in countries for which the Samsung product was not originally

designed.

g. Repairs performed by non-authorized service centers such as opening of the product by

a non-authorized person.

h. The model, serial number and product number on the product has been altered, deleted,

removed, or made illegible.

6. This warranty does not affect the consumer’s statutory rights nor the consumer’s rights

against the dealer from their purchase/sales agreement.

ENG

Warranty Conditions

1. The warranty is only valid when the warranty card is properly completed, and upon

presentation of the proof of purchase consisting of original invoice or sales slip confirmation,

indicating the date of purchase, dealer’s name, model, serial number, and product number.

Samsung reserves the right to refuse warranty service if this information has been removed

or changed after the original purchase of the product from the dealer.

2. Samsung’s obligations are to the repair of the defective part, and at its discretion, replacement

of the product (service exchange unit).

3. Warranty repairs must be carried out by an Authorized Samsung Dealer/Service Center. No

reimbursement will be made for repairs carried out by non-Samsung Centers, and warranty

coverage will not be valid for any repairs or damage caused by such repairs.

4. Repair or replacement under the terms of this warranty does not give right to extension to

or a new starting of the period of warranty. Repair or direct replacement under the terms of

this warranty may be fulfilled with functionally equivalent service exchange units.

5. The warranty is not applicable in cases other than defects in material, design, and

workmanship. The warranty does not cover the following:

a. Periodic checks, maintenance, repair, and replacement of parts due to normal

wear and tear.

b. Abuse or misuse, including but not solely limited to the failure to use this product for its

normal purpose or in accordance with Samsung’s instructions usage and maintenance.

c. Use of the product in conjunction with accessories not approved by Samsung for use

with this product.

d. Failure of the product arising from incorrect installation or use not consistent with

technical or safety standards in current force, or failure to comply with product manual

instructions.

Customer Support

ENG xm_samsung keys 1/16/06 4:03 PM Page 78

Sirius XM Radio YP-XZC SATELLITE RADIO CRADLE WITH FM TRANSMITTER User Manual

Sirius XM Radio Inc. SATELLITE RADIO CRADLE WITH FM TRANSMITTER

users manual

Navigation menu

Namespaces

Views

Navigation
