Skuandy SK20120004 Bluetooth Adapter User Manual ever win 2035135
Skullcandy Inc. Bluetooth Adapter ever win 2035135
Skuandy >
Manual
User manual
Model no：2035135 Rating: 5V 200MA
Main Unite:

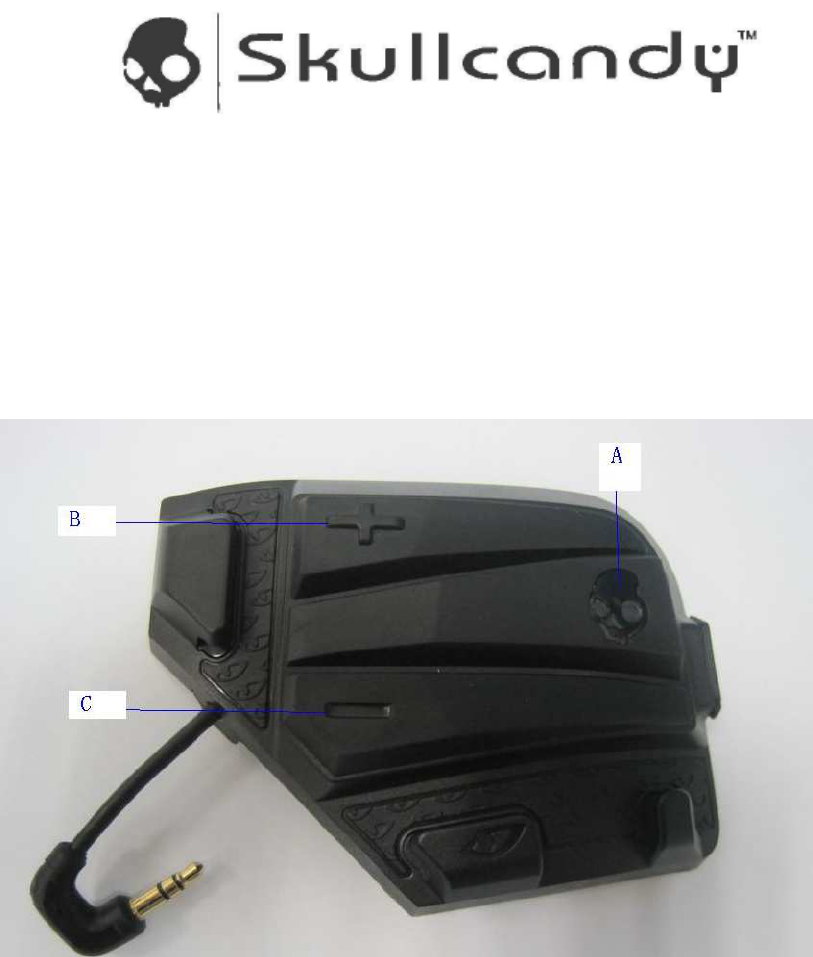

• this section include the photo of the product and the overview of the main unit
• A: Power on/Power off
Also refer to MFB (Skull Button) below mentioned
• B: Volume+
Increase volume and track forward
• C: Volume-
Decrease volume and track backward
To Enter
rr
r Pairing Mode:
• Make sure the Giro Device is in OFF mode
• Long Press MFB (Skull Button)(refer to A point) for 5 seconds
• While in pairing mode, the LED will alternate flashing Blue/Red
In STANDBY mode , Blue LED will fast flash two times every 3 secs.
To Power On:
• Make sure Giro is in OFF mode
• Long Press MFB (Skull Button) (refer to A point) for 3 seconds
• While Power On, the LED will flash Blue
• Giro will search and AUTO connect with previous paired phone for 3 seconds
• If previous phone is not available, it will enter STANDBY mode
• Can MANUALLY connect previous phone in STANDBY mode by phone operation
• Please note cannot pair a NEW phone in STANDBY mode
• To pair a NEW phone that has never been paired before, need to start Pairing Mode process
To Power Off:
• While Giro is in “Power ON” or “STANDBY” mode
• Long Press MFB (Skull Button) (refer to A point) for 3 seconds
• If in STANDBY mode for 30 mins, Giro Device will automatically Power off
To Answer Phone Call, Play/Pause Music:
• Short Press MFB (Skull Button) (refer to A point)
• Music will resume after hanging up call
Volume Up:
• Short Press Volume Up Button (+)
• Will have audible tone sound when Max volume is reached
• 15 steps of volume control up
Volume Down:
• Short Press Volume Down Button (-)
• Will have audible tone sound (mute) when Min volume is reached
• 15 steps of volume control down
Track Forward:
• Long Press Volume Up Button (+)
Track Backward:
• Long Press Volume Down Button (-)
Tested Line of Sight Range of BT Connection:
• 12 meters
Battery Playback Time:
• 7 to 7.5 hours
Charging:
• Approximately 1.5 Hours
• LED will display solid Red when charging
• When Charge Full, LED will turn off
Low Battery Status Indicator:
• LED will display flashing Red
• Will have audible beeping indication every 30 seconds when battery is low
Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be
disposed with normal household waste.
Please inform yourself about the local rules on separate collection of batteries because correct disposal
helps to prevent negative consequences for the environmental and human health.
Caution:
Risk of explosion battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions :
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the
following two conditions:
(1) this device may not causeinterference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type
and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.
Conformement a la reglementation d'Industrie Canada, le present emetteur radio peut fonctionner avec
une antenne d'un type et d'un gain maximal (ou inferieur) approuve pour l'emetteur par Industrie
Canada. Dans le but de reduire les
risques de brouillage radioelectrique a l'intention des autres utilisateurs, il faut choisir le type d'antenne
et son gain de sorte que la puissance isotrope rayon ee equivalente (p.i.r.e.) ne depasse pas l'intensite
necessaire a l'etablissement d'une communication satisfaisante.
Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts
de licence. L'exploitation est autoris e e aux deux conditions suivantes : (1) l'appareil ne doit pas
produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi,
meme si le brouillage est susceptible d'en compromettre le fonctionnement.
