Sky Light Digital TSN51B Portable Scanner User Manual TSN51B

Sky Light Digital Limited Portable Scanner TSN51B

Contents

User Manual

TSN51B Manual
1. Key features
600/300 dpi resolution scan selection
Built-in BLUETOOTH transmission
Directly save JPEG file to microSD/SDHC card
Support microSD/SDHC card up to 32GB
Driver free to download for Windows® XP, Windows® Vista™,
Windows® 7 and Mac OS® 10.4 or above
(direct plug-in, driver installation not required)

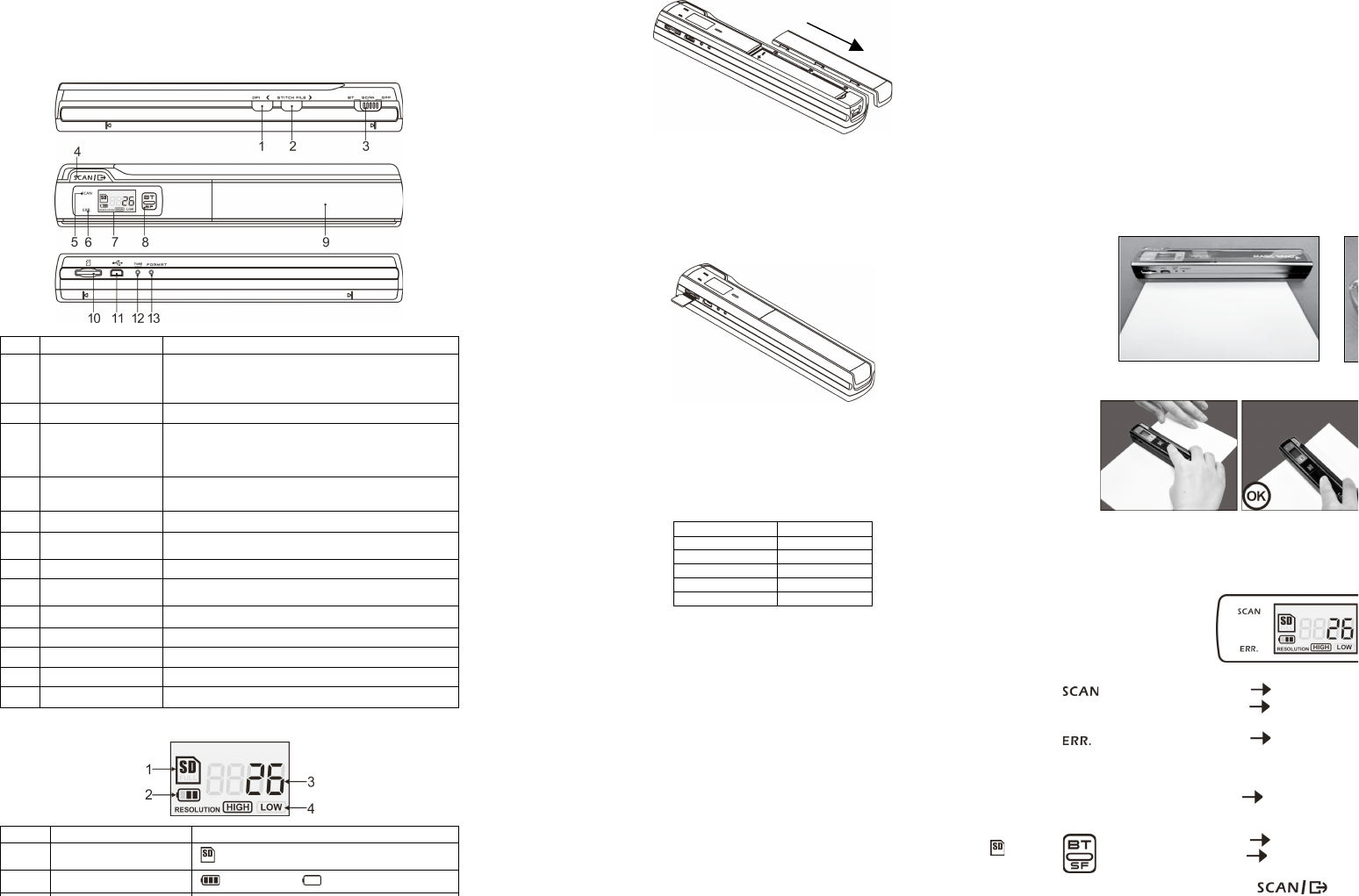

2. Functional parts
Part
Function
1
Resolution
Select High(600dpi) / Low(300dpi) resolution;
High / Low resolution mode icon will be displayed on
status LCD screen.
2
Stitch file
Create new folder for file storage.
3
Power / Bluetooth
button
Bluetooth On/Off: Switch this key left to turn Bluetooth on
or off.
Power On/Off: Switch this key middle or right to turn
scanner on or off.
4
Scan
In power on mode, press this button to start scanning,
press this button again to stop scanning
5
Scan LED indicator
Ready for scan: Yellow LED on
6
Error LED indicator
Over speed: Red LED on
Charging battery: Red LED on until complete.
7
LCD screen
Scanning status display
8
BT/SF LED indicator
Bluetooth: Blue LED on
Stitch file: White LED on
9
Battery door
For 4.2V rechargeable battery
10
microSD card slot
microSD/SDHC card storage location.
11
USB interface
Download photo to a computer via USB cable provided.
12
Time set
Press to enter Time and Date setting mode
13
Format button
Press this button to format the microSD/SDHC card.
3. Explanation of the status icons
Item
Function
Description
1
SD card indicator
Photos will be stored in microSD card
2
Battery indicator
Battery is full Empty battery
3
Counting indicator
Show scanned files in microSD card
4 Selected resolution High:600 dpi / Low:300 dpi
4. Using the scanner
4.1 Installing the battery
1. Open the battery door by sliding the battery compartment downwards as indicated by
the arrow in the diagram below.
2. Make sure battery is in the battery compartment. If not, insert 4.2V rechargeable lithium
polymer battery into compartment.
3. Turn on the scanner by switching the [POWER] button middle.
4.2 Inserting a microSD memory card (not included)
To operate the scanner, you must insert a microSD Card (not supplied) to record and store your
pictures. Inserting the microSD memory card:
1. Turn OFF the scanner.
2. Insert the microSD card into the microSD card slot (with metal side facing upwards).
Gently press in until card is latched.
Note: Do not force the card into the slot; forcing may damage scanner and the microSD memory
card. Align microSD card position (as marked) and try again.
4.3 Time setting
1. Press [TIME SET] button to enter time setting mode by using a thin, blunt object, such
as a paperclip to access the button. The LCD screen will read “1##” for the year. “##” is
a set of number that would be changed to correspond to the actual time/date setting.
2. Press the [STITCH FILE] or [DPI] buttons to select the current Year.
3. Press [SCAN] button to confirm setting. The LCD screen will now read “2##.”
4. Repeat steps 2 and 3 to select the Month, Date, Hour, and Minute.
Setting
Year
Month
Date
Hour
Minute
5 After setting the Minute, “5##”, press the [TIME SET] button again to complete the Time
and Date setting.
4.4 Formatting the microSD memory card
Note: All contents on the microSD card will be erased during formatting.
1. Insert a microSD card into the scanner with metal side facing upwards. Then power on
the scanner.
2. Press the [FORMAT] button with a thin, blunt object, such as the end of a paperclip to
access the button. An “F” shows on the LCD screen.
3. Press the [SCAN] button once to begin formatting microSD card.
4. The microSD card indicator will blink until the formatting process is complete.
4.5 Calibrating your scanner
Note: Perform calibration only when white balance needs adjustment.
1. Turn on the scanner by sliding the [POWER] button to ON. Then place the scanner on
the provided “White Balance Calibration” paper.
2. Click and hold onto the [STITCH FILE] button. While holding onto the [STITCH FILE]
button, press the [SCAN] button once and then release both bottons. SD symbol will
flash and “GREEN” and “RED” LED light will turn on.
3. Do not move the scanner. Wait until the “RED” LED light turns off. “GREEN” LED light
will stay on.
4. With only the “GREEN” LED light on, start scanning the white paper by sliding the
scanner across the paper until the “GREEN” LED light turns off. (Slide the scanner
backwards if necessary).
5. Slide the [POWER] button to OFF to turn off the scanner. Calibration is complete.
4.6 Setting the resolution
1. By pressing the [DPI] resolution button on the scanner, you may choose between high
resolution (600 dpi) and low resolution (300 dpi).
2. The high or low resolution mode will be displayed on the LCD screen to reflect your
choice.
4.7 Stitch file
To group scanned files into a new folder within the microSD card use the Stitch file function.
1. Press the [STITCH FILE] button to create a new folder within the microSD card for files
storage. SF white LED light will turn on.
2. Then scan your documents. Your files will be saved into the new folder.
3. To save another new set of scans in another folder, press the [STITCH FILE] button
again to generate a new folder.
For free optional stitching software, please download the program from the following link:
http://research.microsoft.com/en-us/um/redmond/groups/ivm/ice/
4.8 How to scan
Note: To scan, make sure your scanner is not connected to the computer.
1. Turn on the scanner by sliding the [POWER] button to SCAN.
2. Place the document on a flat surface and hold down the document with one hand.
3. Place the scanner on the edge of the paper approximately 5/8 to 3/4 of an inch onto the
paper to ensure the most of the document can be scanned. Make sure to keep the
scanning area in between the scanning width indicator marked on the side of the
scanner.
4. Hold the scanner flat against the material and then press the [SCAN] button once.
5. Slide the scanner slowly, keeping you hand stable to get the best quality picture.
6. Press the [SCAN] button again to stop scanning.
5. LED light indications
“GREEN” SCAN LED ON Scan in progress.
“GREEN” SCAN LED OFF Standby / Scan is complete.
----------------------------------------------------------------------------------------------------
“RED” ERROR LED ON Scanning too fast.
May cause scanning error.
Restart and scan again.
“RED” ERROR LED OFF No error in scanning speed.
Continue scanning process.
---------------------------------------------------------------------------------------------------------------------
“BLUE” BT LED ON/OFF Bluetooth is workong
“WHITE” SF LED ON/OFF A new folder created.
﹡Scan will START when button is pressed
﹡To END scan, press button again
6. Viewing your scans

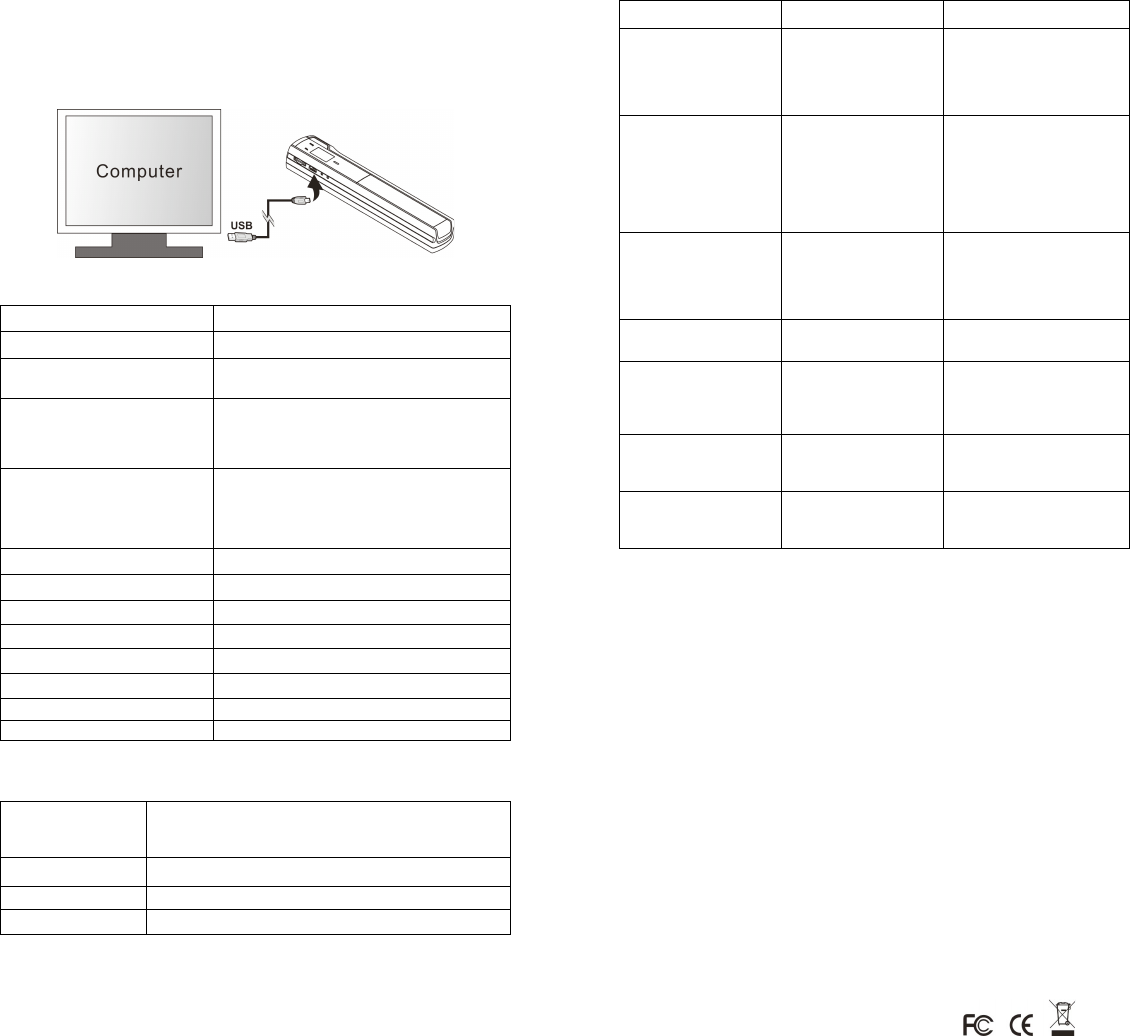

1. Connect your scanner to your computer and then turn on your scanner.
2. Your computer should recognize the scanner as a “Removable Disk.” Click “Open folder
to view files” to view and import scans.
NOTE: If the Removable Device window did not launch automatically, go to your “My Computer” (PC)
and find the device under Removable Storage.
NOTE: In power off mode, connect your scanner to your computer to charge the battery. OR use the
power adapter that is included.
7. Specifications
Image sensor
Color Contact Image Sensor
Number of sensor
6048 dots
Resolution
Low resolution : 300x300 dpi(default)
High resolution: 600x600 dpi
Maximum scanning
speed for A5 size
document
Color High resolution: 6 Seconds
Color Low resolution: 5 Seconds
Capacity (Based on 1GB microSD
card. Scan A5 size file, the quantity
of scans varies depending on the
content complexity)
600dpi color: 550 Photos(Min.)
300dpi color: 1200 Photos(Min.)
Scan width
Approx. 5”
Scan length
300DPI: 53"(Max), 600DPI: 26"(Max)
File format
JPEG
LCD
Scanning status display
Auto Power Off
3 Minutes
USB Port
USB 2.0 high speed
External memory
microSD Card
Standard Battery
4.2V Rechargeable Lithium Polymer battery
8. Computer system minimum requirement
Operating System
Windows® XP, Windows® Vista™, Windows® 7 and Mac
OS® 10.4 or above
(direct plug-in, driver installation not required)
CPU
Pentium III or above
RAM
At least 256MB
Interface
USB port
9. Troubleshooting
Problem
Cause
Solution
Cannot turn on the
scanner
1. Low battery.
2. Battery not inserted
properly
1. Recharge the battery by
connecting scanner to the
computer via USB cable.
2. Replace or install the
battery correctly
Pictures cannot be
saved when you are
scanning them
1. microSD card has not
been installed correctly.
2. Memory is full
3. The microSD card has
not been formatted
properly
1. Install microSD card with
metal side facing upwards.
2. Download the pictures from
the scanner to the computer
to create storage space
3. Format your microSD card.
Refer to section 4.4
Computer does not
recognize your scanner
when connected. (You
cannot find removable
disk)
Connection failure.
1. Make sure all cable
connections are secured.
Restart the computer if
necessary
2. Try a different USB port.
The battery life is
very short
Use wrong type of battery
Replace with new
4.2V rechargeable battery
Blurry images
The lens of the scanner is
dirty.
1. Clean the lens with soft
dry cloth
2. Recalibrate the scanner.
Refer to section 4.5
ERR. LED is on when
scanning a document
Scanning speed is too
fast
Press the [SCAN] button to
reset and try re-scanning the
document more slowly
ERR. LED is on after
powering on the
scanner
The calibration data is
reset.
Recalibrate the scanner.
Refer to section 4.5
Windows® XP, Windows® Vista™, Windows® 7 are registered trademarks of Microsoft Corporation.
Mac OS® is a registered trademark of Apple Inc.
All trademarks are the property of their respective owner.
AM-TSN51B-GB-STD-1
FCC ID: ZEATSN51B
IMPORTANT REGULATORY INFORMATION
This device complies with Part 15 of the FCC Rules: Operation is subject to the
following two conditions:
1. This device may not cause harmful interference
and
2. This device must accept any interference that is received, including
any interference that may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
Changes or modifications not expressly approved by
the
party responsible for compliance could void the
user’s
authority to operate the
equipment.
NOTE: This equipment has been tested and found
to
comply with the limits for a Class B digital device,
pursuant
to Part 15 of the FCC Rules. These limits are designed
to
provide reasonable protection against harmful
interference
in a residential installation. This equipment generates,
uses
and can radiate radio frequency energy and, if not
installed
and used in accordance with the instructions, may
cause
harmful interference to radio communications.
However,
there is no guarantee that interference will not occur in
a
particular installation. If this equipment does cause
harmful
interference to radio or television reception, which can
be
determined by turning the equipment off and on, the user
is
encouraged to try to correct the interference by one
or
more of the following
measures:
-- Reorient or relocate the receiving
antenna.
-- Increase the separation between the equipment
and
receiver.
-- Connect the equipment into an outlet on a
circuit
different from that to which the receiver is
connected.
-- Consult the dealer or an experienced radio/TV
technician
for
help.
