Sky Light Imaging Limited Toucan Smart Socket
User manual
Toucan Surveillance Kit
Camera & Smart Socket
USER’S MANUAL
Model: TSK100KU
Toucan user manual24_wo.indd 1 31/3/2016 10:30 AM
1
1. Key Features 2
2. What is Included 5
3. Positioning 8
4. Toucan Installation 9
5. Status LED Indicators 13
6. Specications 14
7. Troubleshooting & FAQ 15
8. Regulations & Compliance 16
Table of Contents
Toucan user manual24_wo.indd 1 31/3/2016 10:30 AM
2

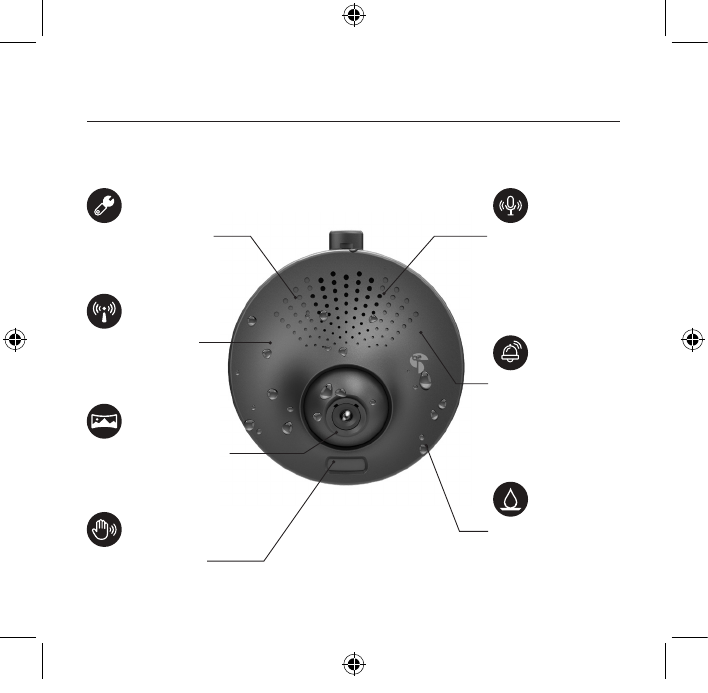

1. Key Features
Easy 3-Steps Installation
· DIY installation in minutes;
no need to pull wires
2-way communication
· Built-in microphone and
high-delity speaker for
clear audio communication
100dB Siren Alarm
· Sound the alarm instantly
to unwanted visitors
Weatherproof Design
· Withstands rain, snow,
humidity, and house
maintenance year-round
Wireless Connectivity
· Built-in WiFi® and
Bluetooth® technology
Wide Angle Adjustable Lens
· Clear HD LIVE video feed
and event recording capture
Passive Infrared Sensor
· Detects change in motion
Toucan Camera
Prevent a Break In, before it happens.
Toucan user manual24_wo.indd 2 31/3/2016 10:30 AM
3
1. Key Features

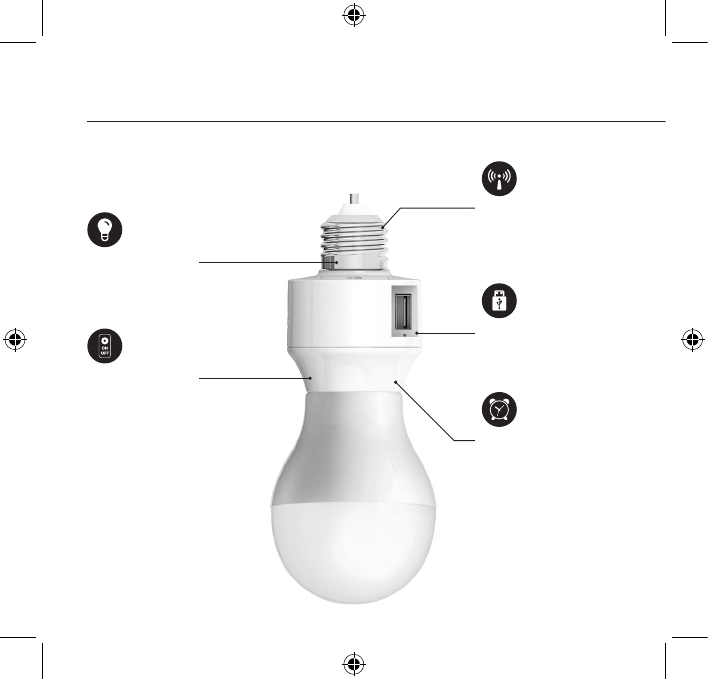

Smart Socket
Adapt to lamp fixture
· Simply thread in E26 adapter
between fixture and the bulb
Mesh Network Connectivity
· Total security solution
for entire home with
Bluetooth® technology
USB power adapter
• Provides power to camera
Schedule dusk-to-dawn
• Timer feature to schedule
light to turn on at dust and
off at dawn through cloud
system
Remote Light Control
· Turn on and off the lights
Easy to install the smart socket
Toucan user manual24_wo.indd 3 31/3/2016 10:30 AM
4

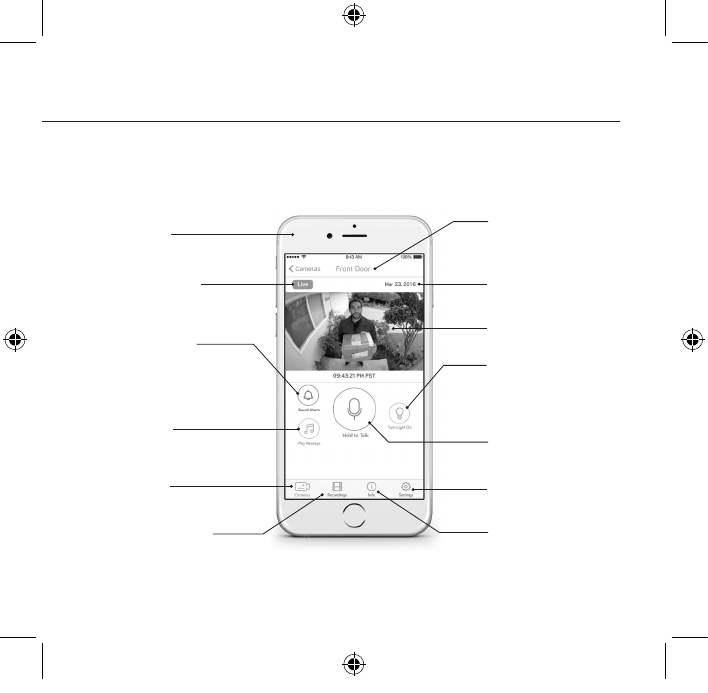

Functions on the KUNA app
Free app to receive automatic notifications, view live video, and speak directly to those at your door.
Captured footage up to 2 hours and stored in Cloud Server. Never miss a moment!
*User interface is subject to change without prior notice.
Automatic
Notifications
Toucan Camera Name
· Set up by user
Hold to talk
· 2-way communication
Light control
· Turn ON/OFF the lights
Date
Camera setting
Wide Angle LIVE view
App and Contact Info
Live video indicator
100dB Siren Alarm
· Sound the alarm instantly
to unwanted visitors
LIVE Camera
View Recorded Videos
Play Message
· Pre-recorded messages
Toucan user manual24_wo.indd 4 31/3/2016 10:30 AM
5

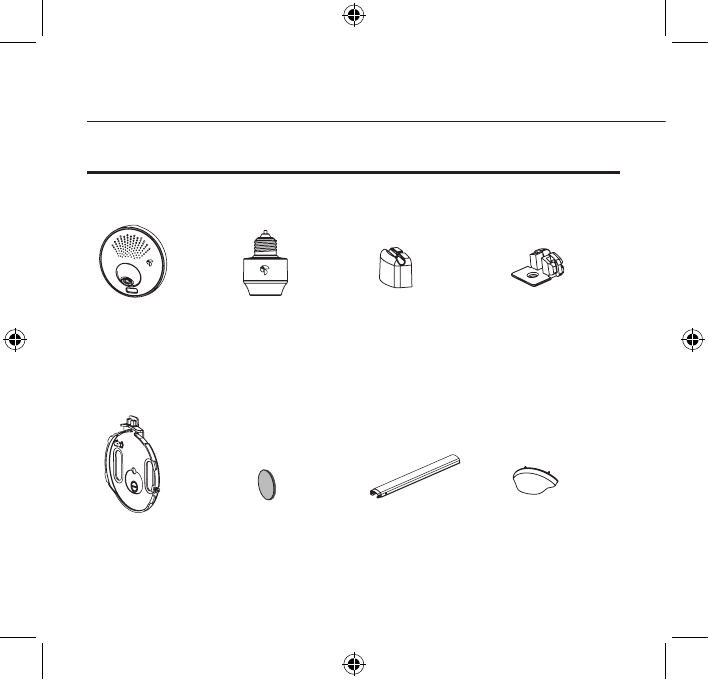

2. What is Included
Before installing Toucan, make sure all parts are present.
If any part is missing, please contact VuPoint Solutions at support@vupointsolutions.com.
Toucan Camera
· Mount camera under
light fixture
Camera Mount Plate
· Fix the cable position
on mount plate
Mount Plate Cover
· Fix the cable position
Conduit Cover
· Fix the cable position
Conduit
· Manage the cable
between cable and
light fixture with
adjustable length
Visor
· Anti-glare from light
bulb
Smart Socket
· Thread in between
light fixture and light
bulb. USB port provides
power to camera.
Mount Camera on Mount Plate
Positioning Sticker
· Indicator for camera’s
position on the wall
during installation
Toucan user manual24_wo.indd 5 31/3/2016 10:30 AM
6

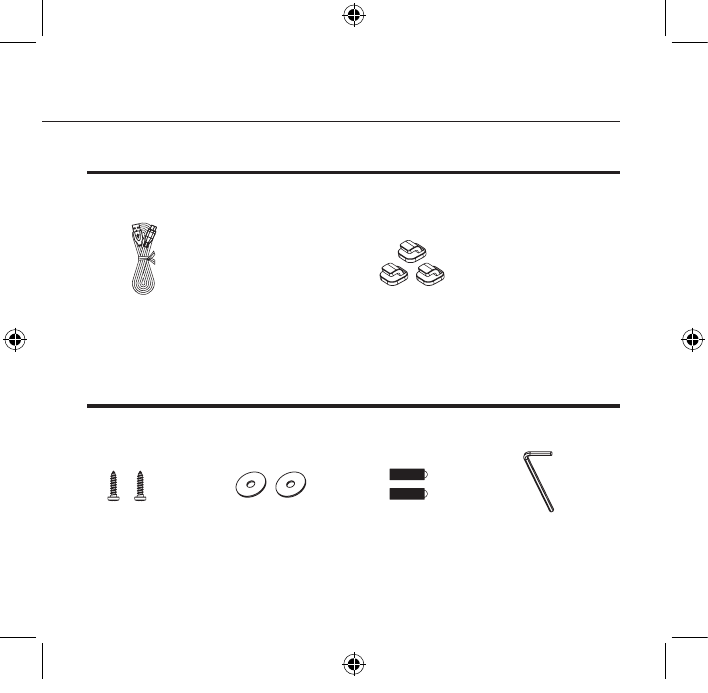

Cable Management
Mount of Wall
USB cable with Silicon pipe
· Connect camera to socket for power
source. Silicon pipe protects USB cable
when installing lamp shade on fixture.
Cable Clips (3pcs)
· Manage the cable on light base plate
Mount Screws (2pcs)
· Wall mount purpose
Wall Inserts (2pcs)
· Wall mount purpose
Washers (2pcs)
· Wall mount purpose
Hexagonal Wrench
· Lock and unlock the
camera on mount plate
Toucan user manual24_wo.indd 6 31/3/2016 10:30 AM
7
2. What is Included

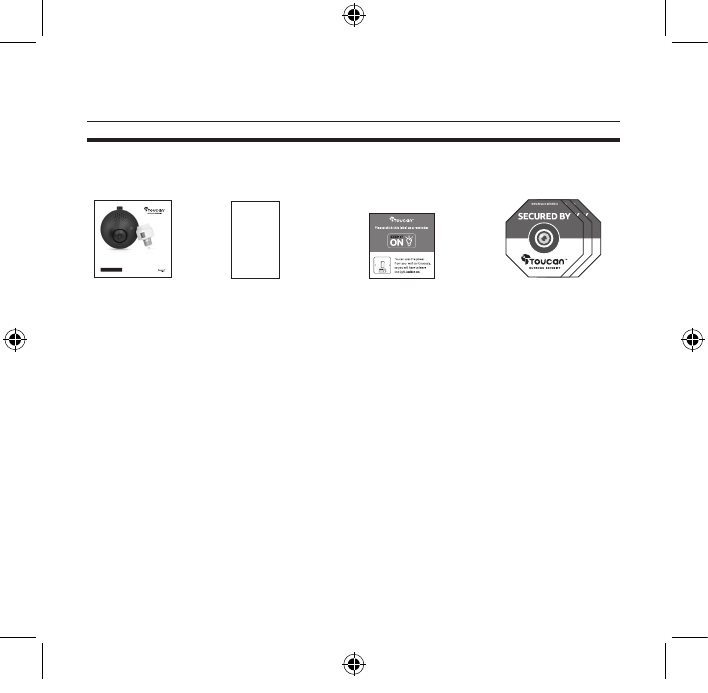

Manual and Labels
User’s Manual Warranty Card Secure Stickers (3pcs)
· Alert intruder that home
is secured by Toucan
Power Sticker
· Stick on main power
switch
Toucan Surveillance Kit
Camera & Smart Socket
USER’S MANUAL
Model: TSK100KU
Warranty
Card
Toucan user manual24_wo.indd 7 31/3/2016 10:30 AM
8

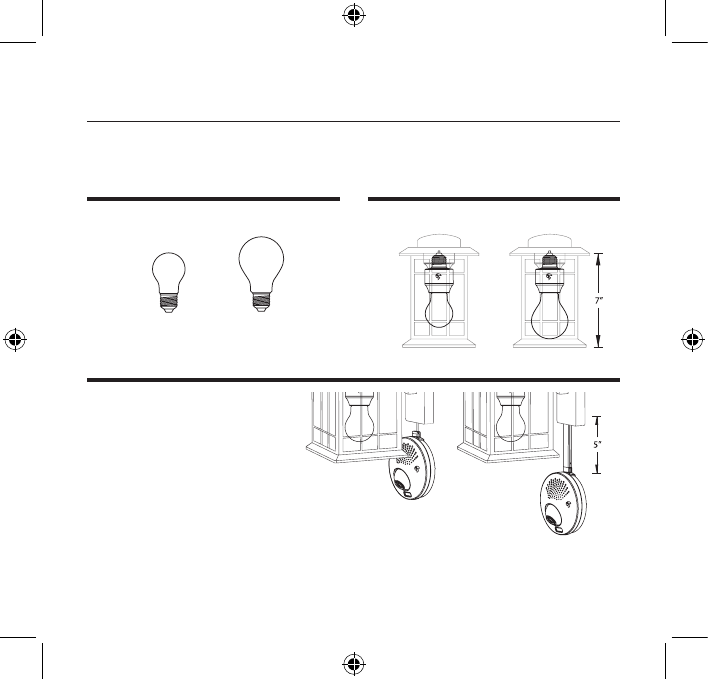

Lightbulb Light fixture with socket
A15 A19
3. Positioning
Smart Socket is compatible to standard commonly known light bulbs A15 and A19 and can support up to 75W.
If your lamp shade height is less than 7 inches, or if your light bulb protrudes from your light fixture after
threading in Smart Socket and light bulb, please consider changing to a smaller light bulb.
It is recommended to position the
camera beneath the light fixture. If the
camera is placed approx. 5” beneath the
lamp base against the wall, please install
the conduit to manage the cables.
*Placement recommendations may vary based on different light fixture’s designs, style, and size.
Toucan user manual24_wo.indd 8 31/3/2016 10:30 AM
9
Before installation, make sure the power switch is OFF or disconnect power at fuse.
Refer to “What Is Included” in Section 2 for part installation for the steps below:

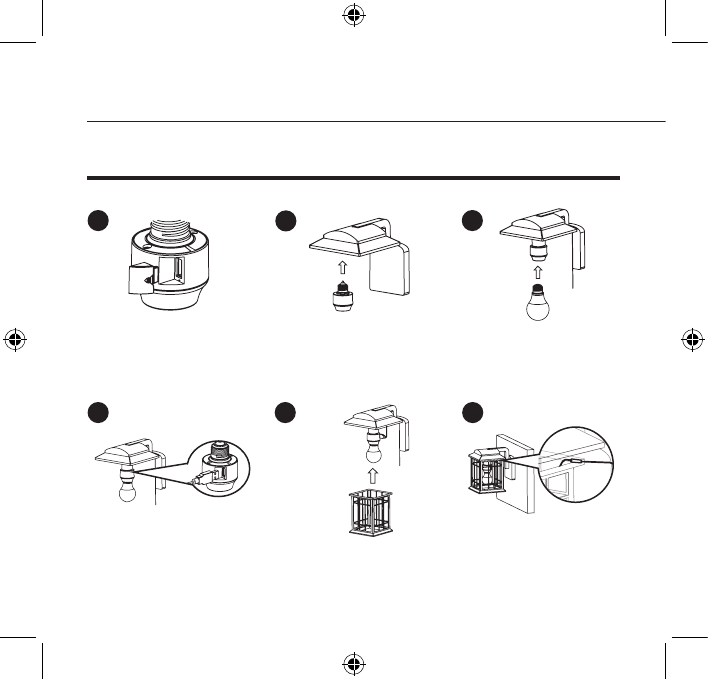

STEP 1 Socket installation
Install Smart Socket to fixture.
Attach USB Cable to
Smart Socket.
Thread in light bulb.
Reattach lamp
shade if necessary.
Remove USB cover. Before
installing the socket into light
fixture, disassemble the lamp
shade if necessary.
Screw lamp shade back in and
drag out USB cable through the
shade then adjust Silicon Pipe
from USB cable to protect cable.
1
4
2
5
3
6
4. Toucan Installation
Toucan user manual24_wo.indd 9 31/3/2016 10:30 AM
10

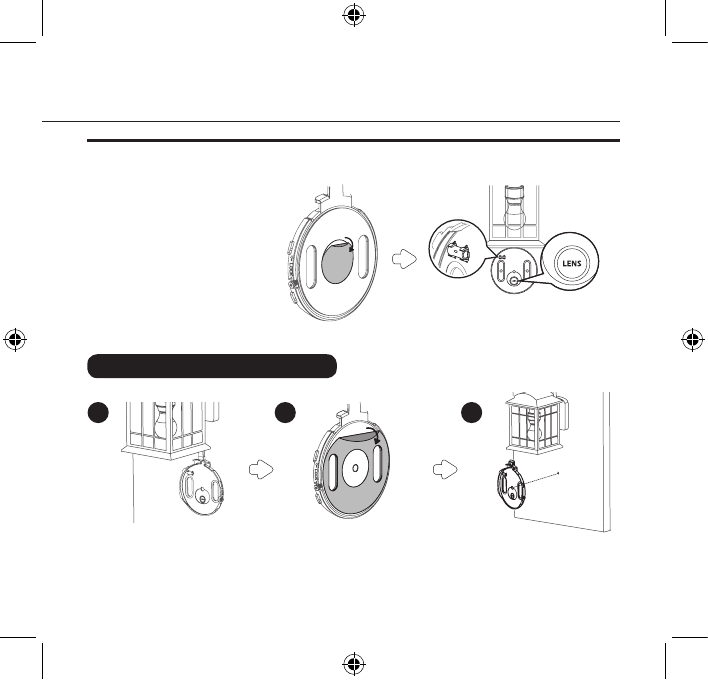

Remove optional inner temporary
adhesive for camera positioning and
use leveler to align and balance back
plate. You can use a pencil or Position
Sticker (included) to mark placement
before adhering to your wall.
Refer to Option 1 to mount camera
to wall with adhesive or Option 2 to
mount camera to wall with screws.
STEP 2 Mounting the camera’s back plate
After using the Leveler to adjust
the balance of the plate, adhere
the Positioning Sticker to mark
the center of the plate.
Remove and flip plate to remove
outer adhesive from back plate
for a more stable placement of
the camera to the wall.
Align back plate with the
Positioning Sticker on the wall
to center the plate.
1 2 3
OPTION 1 Mounting with adhesive
Toucan user manual24_wo.indd 10 31/3/2016 10:30 AM
11
4. Toucan Installation

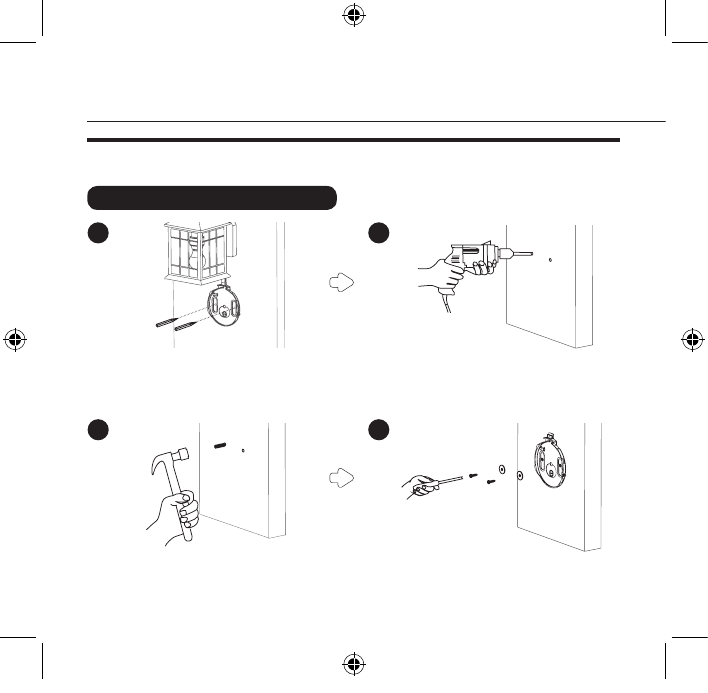

After using the Leveler to adjust the balance
of the plate, you can use a pencil to mark the
placement for the screws.
Drill holes for screws placement.
Install Wall Inserts.Mount back plate with Washers and Screws.
1 2
3 4
OPTION 2 Mounting with screws
STEP 2 Mounting the camera’s back plate
Toucan user manual24_wo.indd 11 31/3/2016 10:30 AM
12

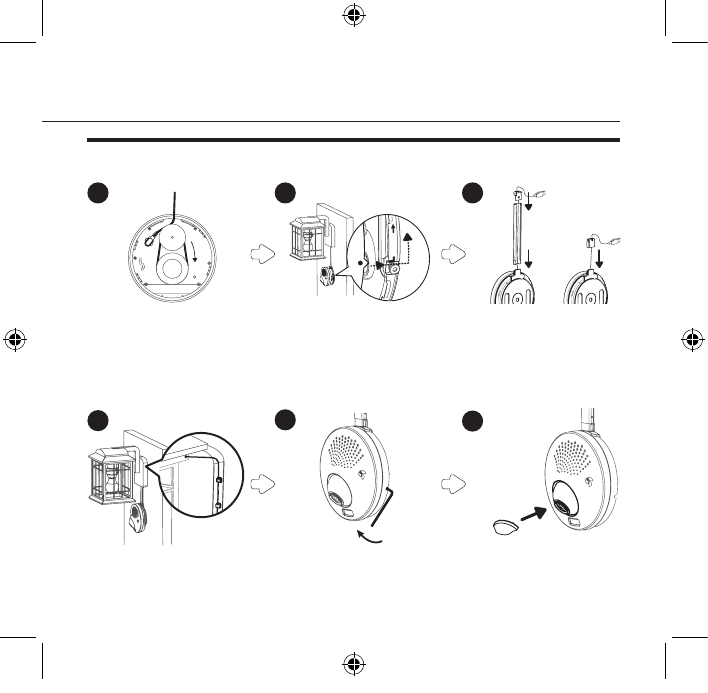

STEP 3 Camera body installation
Plug USB Cable into the back of
the camera and loop the cable
around the rings; continue
looping the cable if necessary.
Mount the camera to the back
plate and align the white dot to
the left of the screw where the
white arrow starts and rotate
camera counter-clockwise to lock.
Manage the cable with
optional Conduit. Then attach
the Cover to the top of the
conduit/mount plate.
Tighten the security screw with
hexagonal wrench. Do not
over-tighten the security screw.
Attach Visor to the top of the
camera lens.
Position camera and use
Cable Clips to manage the
cable if necessary.
1
4
2
56
3
Mount Plate
Cover
Conduit
Cover
LOCK
Toucan user manual24_wo.indd 12 31/3/2016 10:30 AM
13
5. Status LED Indicators
LED STATUS DESCRIPTION
In order to set up your Toucan, please make sure it’s successfully installed, and the status LED on the bottom
left side of your Toucan camera is flashing red. This means that your Toucan is ready to be set up!
Solid Red
Flashing Red
Flashing Yellow
Solid Blue
Solid Purple
Booting
Waiting for Wi-Fi Connection
Connected to Wi-Fi
Waiting for connection to Kuna Servers
Connected to Kuna Servers and operating normally
Firmware updating triggered by user
Toucan user manual24_wo.indd 13 31/3/2016 10:30 AM
14
6. Specications
Toucan Camera (Model: TC100KU)
Toucan Smart Socket (Model: TS100WU)
Camera
Video resolution
Field of View
Wi-Fi®
Bluetooth®
Siren Alarm
Lighting Control
Weatherproof Design
Dimensions (L×H×W)
Microphone:
Speaker:
Input Voltage:
Compatibility:
Operating temperature:
HD 720p resolution
1280x720 at 30 fps. H.264
116 degrees (diagonal)
2.4GHz 802.11 b/g/n
Bluetooth® BLE 4.0
100 dB
On/Off/Scheduling with app
IP44
4.6” x 4.6” x1.9”
Built-in
Built-in
DC:5V/1.0A
iOS: 5 or above / Android : 4.3 or above
-40°F - 140°F
Lamp Base Type
USB Output
Input
Lighting Control
Bluetooth®
Light bulb
Dimensions
Socket type E26
DC5V, 1A
AC120V, 60Hz
On/Off/Scheduling through BLE Mesh Network
Bluetooth® BLE 4.0
Support maximum 75W standard bulb;
recommended 10W LED light bulb; not included
2”(Dia.) x 3”
Toucan user manual24_wo.indd 14 31/3/2016 10:30 AM
15
7. Troubleshooting & FAQ
Frequently Asked Questions
1
2
3
4
5
6
7
How long will my recordings be available?
Do I have to leave my light switch on?
How many Toucan Cameras can I install
at home?
Can I use LED bulb with Toucan?
What is the maximum light bulb wattage
I can use with the Smart Socket?
I do not see any Toucan camera show up
in setup screen?
My Toucan is “offline”?
All Toucan come standard with a two-hour download and “look back”
window. With premium subscription plans, you can “go back in time”
to access every event that your Toucan generated for up to 30 days.
Yes, Toucan uses power continuously, so you will have to leave the
light switch on. We have provided with your Toucan a “Keep it On”
label as reminder to leave the switch on.
There’s no limit. We recommend installing Toucan at all major entry
points. You can add multiple camera to your Kuna app and manage
each camera all in one app.
Yes, we recommend that you use an LED bulb.
Smart Socket supports up to maximum 75W.
Toucan uses Bluetooth® LE 4.0 for setup. You will need to be within
about 10 feet of the Toucan and have Bluetooth enabled on your
mobile device. Try rebooting your mobile device and launch the
Kuna app again.
1) Reboot your Toucan: Turn off your Toucan (using the light
switch it’s connected to) and wait at least 10 seconds.
Then, turn on the light switch back on.
2) Run through the set-up process: Re-add the Toucan camera again.
* may be caused by weak Wi-Fi signal. Improve performance
by moving your router closer to your Toucan, or adding a
Range Extender in between.
Note: If you need to change the router or ownership of your Toucan, please contact Kuna Customer Service to reset the Toucan.
Note: Model Number and Serial Number (S/N) is located on the packaging, instruction manual,
or on the product. Please have this information ready before contacting tech support.
Toucan user manual24_wo.indd 15 31/3/2016 10:30 AM
16
SAFETY & OPERATIONS
USB power output max. up to 5W. Please adhere to the following safety instructions. Failure to
follow the instructions outlined in the user’s manual may lead to serious personal injury and possible
property damage.
Use only the USB cable packaged with the product from Toucan. The Smart Socket and USB cable
may become warm during normal use. Always allow adequate ventilation around the smart socket
and USB cable and use care when handing. Unplug the device if any of the following conditions exist:
• the USB cable or Smart Socket has become frayed or damaged
• the USB connector or Smart Socket is exposed to rain, liquid, or excessive moisture
• the USB cable or Smart Socket has become damaged
• you suspect the USB cable or Smart Socket needs service or repair
• you want to clean the USB cable or Smart Socket
8. Regulations & Compliance
Toucan user manual24_wo.indd 16 31/3/2016 10:30 AM
17
FCC STATEMENT
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
8. Regulations & Compliance
Toucan user manual24_wo.indd 17 31/3/2016 10:30 AM
RF Exposure Statement
To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum
distance between 20cm the radiator your body: Use only the supplied antenna.
18
App StoreSM is a service mark of Apple Inc. Google Play™ and Android™ are registered trademarks of Google
Inc. Wi-Fi® is a registered trademark of the Wi-Fi® Alliance. Kuna is a registered trademark of Kuna Systems
Corporation, Bluetooth® word mark and logo are registered trademarks owned by Bluetooth SIG, Inc.
All trademarks are the property of their respective owner.
Camera FCC ID:
Socket FCC ID:
2ABT4TC100KU
2ABT4TS100WU
U.S. Patent Pending TSK100KU_Manual_16-0226
Toucan user manual24_wo.indd 18 31/3/2016 10:30 AM
www.toucan.solutions
Toucan user manual24_wo.indd 19 31/3/2016 10:30 AM
