Users Manual
1
Never use the MID when driving car, in order to
ensure safe driving.
In the medical area, please abide by related rules
and regulations. Please shut down the MID when
it is near to the medical area.
To avoid the wireless signal to interrupt the plane-
controlled signal, please shut down the MID or
using airplane mode when you are boarding a
flight,
To avoid electronic equipment failure, please shut
down the MID in the vicinage of high-accuracy
electronic equipments.
Please don’t disassemble the MID and
accessories. Only authorized agent has access to
service the MID.
Please keep the MID far away from magnetic
equipments, the radiation of MID may erase the
data stored in the magnetic equipments.
Never use the MID in the vicinage of high
temperature, inflammable gas ( gas station).
Protect the MID and accessories from kids reach
scope, and avoid the kids to use the MID without
parents’ supervision.
Announcements
Preventive maintainance
Please always keep the MID dry. To avoid the
device short trouble, corrosion fault and electric
short, please prevent the device, battery and
charger from water and moisture, and don’t
operate the device or charger by wet hand.
To avoid failure of device, battery and charger,
please prevent the device, battery, charger from
violent shock or shake.
To avoid failure of device, battery and charger,
please prevent the device, battery, charger of all
over heating or too cold circumstance
Never shock, throw, prod the MID, or drop,
extrude, bend the MID.
Never disassemble the device and accessories
arbitrarily, otherwise the device and accessories
are not in our company warranty scope.
Safety Instruction
Before the operation of the MID, please read
this chapter and teach your kids about these
information. For further details, please refer to
the safety instructions and announcement.
User manual
Model: ELITE 5.5 OCTA Brand: SKY DEVICES
2
Please comply with related rules and
regulations, and respect others’ privacy and
legal rights while using the MID.
Please strictly adhere to related instructions in
the manual when using USB cable to ensure
the safety of the MID or PC.
Never use the MID in bathroom or other humid
environment, and please protect the MID from
liquid wash or wet.
Assembling
C harge the battery
Before using the device for the first time, you
must charge the battery.
Warning: Use only original batteries and
chargers. Unapproved chargers or cables
can cause batteries to explode or damage
your device.
Ins tall the S IM c ard
Ins tall the memory c ard
Notice: Our company uses approved
industry standards for memory cards, but
some brands may not be fully compatible
with your device.
Read me first
Please read this manual before operating your
tablet, and keep it for future reference.
The descriptions in this manual are based on
the default settings.
Images and screenshots used in this manual
may differ from the actual product.
Available features and additional services may
vary by device, software or service provider.
Our company is not liable for performance
issues caused by third-party applications.
3

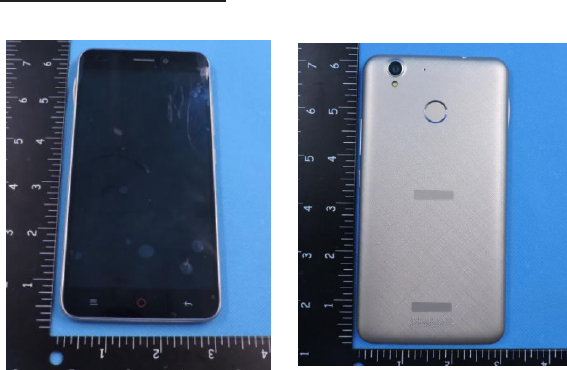

Unit at a Glance
4
Home screen
The home screen has multiple panels. Scroll left
or right to the panels on the home screen, you
can view indicator icons, widgets, shortcuts to
applications, and other items.
Task bar
The task bar is shown at the bottom of the
screen.
It displays commonly used option buttons,
battery level indicator, current time and other
indicator icons.
Return to previous screen.
Return to home screen.
View the applications you have accessed
recently.
Open application menu.
Display notification icons. Tap the notifications
area to open the notification panel.
Indicator icons
Icon Definition
Open Wi-Fi available
Wi-Fi c onnected
Signal strength
Roaming mode
Uploading data
Downloading data
Connected to PC
Alarm activated
®
®
® ®
5
Indicator icons
Icon Definition
Flight mode activated
New email
New text or multimedia message
Call in progress
Missed call
Call on hold
Call diverting activated
Battery power level
Music being played
Tap the notifications area to open the
notification panel shown below. You can
access a list of notifications.
Tap icon to activate or deactivate wireless
connection features and other settings.
Wi-F i : Activate or deactivate the Wi-Fi
connection.
Auto-rotate s c reen: Activate or deactivate
the auto rotation feature.
B rightnes s : Adjust the basic brightness
level of the display to lighter or darker.
Notific ations : Activate or deactivate the
notification feature.
S ettings : Access Settings application.
Notification panel
Auto rotation
6
If you rotate the device while using some
features, the interface will automatically
rotate as well. To prevent the interface from
rotating, open the notifications panel and
select Auto-rotate screen, then scroll it to
Off.
L ock & unloc k the
s creen
To unlock the screen, tap and hold the lock
icon, then drag it to the unlock area where
the unlock icon is.
To lock the screen manually, press Power
key.
E nter text
You can enter text by selecting characters
on the virtual keyboard.
Tap the text input field to display the virtual
keyboard. To hide the keyboard, tap at
the task bar.
To change the text input method, tap at
the task bar.
From a text field, you can use the copy and
paste feature for fast inputting.
R es et tablet
You can reset system and desktop settings
to their original values by the following
steps:
1.Select SettingsBackup & reset from
application list.
2.Tap Factory data reset.
3.If you want to erase all data on your tablet,
such as music, pictures, and other data, tap
Erase SD card checkbox to create a
checkmark.
4.Tap Reset tablet.
The device resets to the factory default
settings automatically.
Warning!: Factory data reset will erase all
data from your device and SD card,
including your google account, system and
application data and settings, and
downloaded applications.
7
Phone
To use calling functions, tap Phone from
application list.
• Make calls
• Answer a call
To answer a call, drag the circled button to the
green button.
• Decline or end a call
To decline a call, drag the circled button to the
red button.
To end a call in progress, tap the red button.
• C all s ettings
To change call settings, tap the option button at
the upper right.
1.R ingtone & Vibrate
• You can set different ringtones for incoming
calls. Select Phone ringtone to open a list of
ringtones, select the desired ringtone, and then
select OK to confirm.
• Tap Vibrate when ringing to create a checkmark
and the tablet vibrates to notify you of incoming
calls.
Contacts
Tap People from application list to access
contacts.
C ommunication
・ Add new contact
・ E dit a contact
・ Create new group
・ R ename group
・ Import/E xport contacts
・ S earch for contacts
Mes saging
Create and send a text or multimedia message,
and view or manage messages that you have
sent or received.
E mail
To receive and send mail, you must have a
remote mailbox service. This service may be
offered by a service provider. Your device is
compliant with applicable internet standards for
POP3/IMAP/Exchange.
1.Before you can send or receive mail on your
device, you need to set up an email account and
define the email settings correctly.
8
E ntertainment
Gallery
To view or organize your images and video
clips, or edit and send your files to other
devices, or set photos as wallpapers, select
Gallery from application list.
Note: It takes a few more minutes to enter this
application if you store more files.
S upported file f ormats
Type F ormat
Video
JPEG,GIF,BMP,PNG
MPEG4-SP, H264/AVC,H263,VPX,
3GP,3G2,MP4,MKV,AVI,WEBM
Note: Some files may not play properly
depending on how they are encoded.
C amera
With the camera function, you can capture
photos and take videos.
Tools
C alendar
With the Calendar feature, you can consult
the calendar by day, week, or month, create
events, and set an alarm to act as a
reminder, if necessary.
Alarm
From application list, tap Clock, and then
select to add alarm.
®
®
®
®
®
®
9
File Manager
Many features of the device, such as
images, videos, documents, received
attachments and downloaded files or
applications, use memory to store data.
With File manager, you can store and
browse files and folders in your device, or
edit, move, copy files; you can send files to
compatible devices as well.
S ound R ec order
With Recorder, you can record a voice
memo. From application list, tap Recorder.
C alc ulator
C onnec tivity
US B C onnec tion
You can connect your device to a PC and
use it as a removable disk, which allows you
access the file directory.
1.If you want to transfer files from or to a
memory card, insert a memory card into the
device.
2.With a USB cable, connect your device to
a PC.
3.Open the notification panel, select USB
connected.
4.Tap Turn on USB storage.
5.Open the folder to view files.
6.Copy files from the PC to the memory
card.
Wi-Fi
With Wi-Fi , you can connect to the internet
or other network devices anywhere an
access point or wireless hotspot is
available.
・ Activate the Wi-F i f eature
1.From application list, tap Settings.
2.In the field of WIRELESS & NETWORKS,
turn on the Wi-Fi feature.
・ Find a nd c onnec t to Wi-Fi
1.Once the Wi-Fi feature is activated, the
device automatically search for available
Wi-Fi connection.
2.Select a network.
3.Enter a password for the network (if
necessary).
4.Select Connect.
10
Read these simple guidelines before using
your device. Not following them may be
dangerous or illegal.
Airc raft
Switch off in aircraft and follow any
restrictions. Wireless devices can cause
interference in aircraft.
Vehic les
Never use your device while driving. Place it
in a safe place.
Position your device within easy reach. Be
able to access your device without removing
your eyes from the road.
E lec tronic d evic es
In some circumstances your device may
cause interference with other devices.
Potentially e xplos ive e nvironments
Switch off your device when in any area with
a potentially explosive atmosphere, and
obey all signs and instructions. Sparks in
such areas could cause an explosion or fire
resulting in bodily injury or even death.
S afety P recautions
Pacemakers a nd other medic al devic es
Pacemaker manufacturers recommend that
a minimum separation of 8 inches be
maintained between a wireless device and a
pacemaker to avoid potential interference
with the pacemaker.
Operation of any radio transmitting
equipment, including wireless phones may
interference with the functionality of
inadequately protected medical devices.
Consult a physician or the manufacturer of
the medical device to determine if they are
adequately shielded from external RF
energy or if you have any questions.
Switch off your device in heath care
facilities when any regulations posted in
these areas instruct you to do so.
Operating environment
When connecting to other device, read its
user guide for detailed safety instructions.
Do not connect incompatible products.
Do not place your device in the air bag
deployment area.
11
Use the device only in its normal operating
positions as explained in the product
documentation.
Always switch off your device when its use
is prohibited or when it may cause
interference and danger.
Areas w ith pos ted regulations
Switch off your device when any regulations
posted in these areas instruct you to do so.
C are & M aintenance
• Use only manufacturer-approved
accessories. Use general accessories may
shorten the life of your device or cause
device to malfunction.
• Keep your device dry. Humidity and all
types of liquids may damage device parts or
electronic circuits.
• Do not use or store the device in dusty,
dirty areas.
• Do not store the device in hot or cold
areas.
• Do not store your device near magnetic
fields.
• Do not store your device with such metal
objects as coins, keys and necklace.
• Do not drop your device or cause impacts
to your device.
12
Specifications
Processor
RAM
Storage
Display
Wi-Fi Networking
Audio Output
PC Interface
Additional Features
Operating System
2G Band
3G Band
Power
Playback Time
(hours)
MT6735
8GB flash built-in; micro SD card
(max.32GB supported)
7” 800*1280 IPS
IEEE 802.11 b/g/n
3.5mm headphone
USB 2.0 high speed
Up to 4 hours music,
3 hours video,
3 hours web browsing
Built-in microphone
Front facing camera(5.0MP), Rear 8.0MP
1X1W speaker
Android™ 6.0.
850/1800/900/1900
850/1900
Rechargeable Li-poly battery,
power Adapter(DC 5V, 1A)
1G DDR3
Bluetooth Bluetooth Wireless Connection 4.0
®
®
4G Band Band 2/4/7/17
3.0+EDR
FCC Warning
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Specific Absorption Rate (SAR) information:
This Mobile phone meets the government's requirements for exposure
to radio waves. The guidelines are based on standards that were
developed by independent scientific organizations through periodic and
thorough evaluation of scientific studies. The standards include a
substantial safety margin designed to assure the safety of all persons
regardless of age or health.
FCC RF Exposure Information and Statement
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device types: Mobile phone (FCC ID: 2ABOSELITE55OCTA) has also been
tested against this SAR limit. The highest SAR value reported under this
standard during product certification for use at the ear is 0.467W/kg and
when properly worn on the body is 1.076W/kg. This device was tested
for typical body-worn operations with the back of the handset kept
10mm from the body. To maintain compliance with FCC RF exposure
requirements, use accessories that maintain a 10mm separation distance
between the user's body and the back of the handset. The use of belt
clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy
these requirements may not comply with FCC RF exposure requirements,
and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with
RF exposure requirements, a minimum separation distance of 10mm
must be maintained between the user’s body and the handset, including
the antenna. Third-party belt-clips, holsters, and similar accessories used
by this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with
RF exposure requirements and should be avoided. Use only the supplied
or an approved antenna.
IC Warning
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1) This
device may not cause interference, and (2) This device must accept any
interference, including interference that may cause undesired operation
of the device.
RF Exposure Information and Statement
The SAR limit of USA is 1.6 W/kg averaged over one gram of tissue.
Device types: Mobile phone (IC: 20031-ELITE55OCTA) has also been
tested against this SAR limit. The highest SAR value reported under this
standard during product certification for use at the ear is 0.467W/kg and
when properly worn on the body is 1.076W/kg. This device was tested
for typical body-worn operations with the back of the handset kept
10mm from the body. To maintain compliance with IC RF exposure
requirements, use accessories that maintain a 10mm separation distance
between the user's body and the back of the handset. The use of belt
clips, holsters and similar accessories should not contain metallic
components in its assembly. The use of accessories that do not satisfy
these requirements may not comply with IC RF exposure requirements,
and should be avoided.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with
RF exposure requirements, a minimum separation distance of 10mm
must be maintained between the user’s body and the handset, including
the antenna. Third-party belt-clips, holsters, and similar accessories used
by this device should not contain any metallic components. Body-worn
accessories that do not meet these requirements may not comply with
RF exposure requirements and should be avoided. Use only the supplied
or an approved antenna.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en
compromettre le fonctionnement
RF exposition Information et Déclaration
La limite SAR des Etats-Unis est de 1,6 W / kg en moyenne par gramme
de tissu. Types d'appareil: Mobile phone (IC: 20031-ELITE55OCTA) a
également été testé contre ces valeurs. La valeur SAR la plus élevée
déclarée en vertu de cette norme lors de la certification de produit pour
une utilisation à l'oreille est 0.467W / kg et lorsqu'il est correctement
porté sur le corps est 1.076W / kg. Ce dispositif a été testé pour les
opérations typiques portés sur le corps avec le dos du combiné gardé
10mm du corps. Afin de maintenir la conformité aux exigences de la IC,
utilisez des accessoires qui maintiennent une distance de séparation
10mm entre le corps de l'utilisateur et le dos du combiné. L'utilisation de
pinces de ceinture, étuis et accessoires similaires ne doivent pas contenir
de composants métalliques dans son ensemble. L'utilisation
d'accessoires qui ne satisfont pas à ces exigences ne peuvent pas se
conformer aux exigences de la IC, et devrait être évitée.
Porté au corps Opération
Ce dispositif a été testé pour les opérations typiques portés sur le corps.
Pour se conformer aux exigences d'exposition aux radiofréquences, une
distance de séparation minimale de 10mm doit être maintenue entre le
corps de l'utilisateur et le combiné, y compris l'antenne. Tiers pinces de
ceinture, étuis et autres accessoires similaires utilisés par ce dispositif ne
doit pas contenir de composants métalliques. accessoires qui ne
répondent pas à ces exigences peut ne pas se conformer aux exigences
d'exposition RF et doit être évité Body-porté. Utilisez uniquement
l'antenne fournie ou une approbation.
