Users Manual
1
Contents
1 Safety Precautions .............................................. 2
2 Overview .................................................... …….4
3 Installing the SIM card ...................................... 5
4 Installing the storage card ................................. 7
5 Charging .............................................................. 7
6 Power on / Power off .......................................... 8
7 Android Home Screen Guides .......................... 9
8 Changing OSD Language & System Time .... 10
9 Connecting to Wi-Fi ......................................... 10
10 Transferring Contents from PC ................... 11
11 Troubleshooting ............................................. 12
12 Technical Specifications ................................ 13
Notice
The phone pictures, as well as data on the phone
appearance, color and design features found in the
manual are for reference only. We reserve the right
to change the appearance and technical parameters
of the product without prior notice.
2
1 Safety Precautions
Never attempt to disassemble your phone. You alone
are responsible for how you use your phone and any
consequences of its use.
As a general rule, always switch off your phone
wherever the use of a phone is prohibited. Use of your
phone is subject to safety measures designed to protect
users and their environment.
Do not use your phone in damp areas (bathroom,
swimming pool…). Protect it from liquids and other
moisture.
Do not expose your phone to extreme temperatures
lower than - 10°C and higher than + 55°C.
The physicochemical processes created by chargers
impose temperature limits when charging the battery.
Your phone automatically protects the batteries in
extreme temperatures.
Do not leave your phone within the reach of small
children (certain removable parts may be accidentally
ingested).
Electrical safety: Only use the chargers listed in the
manufacturer’s catalogue.
Aircraft safety: When traveling by plane, you will
need to switch your phone off when so instructed by
the cabin crew or the warning signs.
Personal safety: To prevent possible
hearing damage, do not listen at high
volume levels for long periods.
Explosive materials: Please comply with warning
signs at gas stations asking you to switch your phone
off. You will need to comply with radio equipment
usage restrictions in places such as chemical plants,
fuel depots and at any location where blasting
operations are under way.
3
Electronic equipment: To avoid the risk of
demagnetization, do not let electronic devices close to
your phone for a long time.
Electronic medical equipment: Your phone is a radio
transmitter which may interfere with electronic medical
equipment or implants, such as hearing aids,
pacemakers, insulin pumps, etc. It is recommended that
a minimum separation of 15 cm be maintained between
the phone and an implant. Your doctor or the
manufacturers of such equipment will be able to give
you any advice you may need in this area.
Hospitals: Always make sure that your phone is
switched off in hospitals when so instructed by
warning signs or by medical staff.
Road safety: Do not use your phone when driving. In
order to give your full attention to driving, stop and
park safely before making a call. You must comply
with any current legislation.
Distance of operation: This phone model has been
tested and meets radiofrequency exposure guidelines
when used as follows:
• Against the ear: Place or receive a phone call and
hold the phone as you would a wire line telephone.
• Body worn: When transmitting, place the phone in a
carry accessory that contains no metal and positions the
phone a minimum of 2.5cm from your body. The use of
other accessories may not ensure compliance with
radiofrequency exposure guidelines. If you do not use a
body worn accessory and are not holding the phone at
the ear, position the phone a minimum of 2.5cm from
your body.
• Data operation: When using a data feature, position
the phone a minimum of 2.5cm from your body for the
whole duration of the data transmission.
4
2 Overview

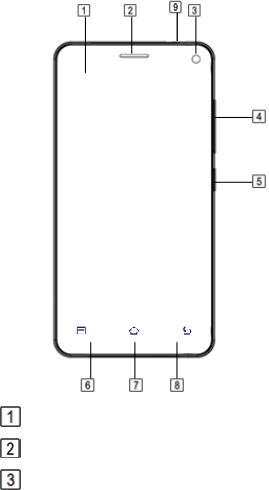

Front and Side panels
Touch Screen
Earpiece
Front Camera
5
Volume +/- Button
Power Button
Menu Button
Home Button
Back Button
Headphone Jack
Back Panel
Flash Light
Back Camera
Speaker
Microphone
Micro USB Port
3 Installing the SIM card
You need to remove the back cover before you can
install the SIM card and battery. Also, make sure to
6
always turn off the power before installing or
replacing the SIM card and battery.
To prize up the back cover
1) Make sure your device is turned off.
2) Use your nail or pick to open up the back cover,
since there is a slot at the right bottom corner of
back cover.

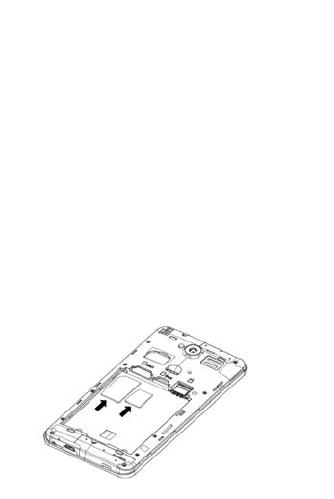

To install the SIM card
Your device is supported both 2G and 3G
(WCDMA) SIM cards.
1) Remove the battery if it is installed.
2) Locate the SIM card slot, and then insert the
SIM card with it's direction as the following
figure.
3) Slide the SIM card completely into the slot.
7
4 Installing the storage card
To have additional storage for your images, videos,
music, and files, you can purchase a memory card
and install it into your device.
1) Make sure that your device is turned off, and
then remove the back cover.
2) Remove the battery if it is installed.
3) Locate the memory card slot on the upper part
of the exposed Right panel.
4) Insert the memory card into the slot according to
the indication icon.
To remove the memory card, perform converse
installations.
Note: make sure the power is off before inserting or
removing the memory card to avoid damages.
5 Charging
New batteries are shipped partially charged. Before
8
you start using your device, it is recommended that
you install and charge the battery. Some batteries
perform best after several full charge/discharge
cycles.
Plug the DC end of adapter to the micro USB
port of the device and plug the AC end to the
wall socket for charging.
Normally it takes approximately 3~5 hours to
fully charge the device. Operating the device
during charging with the AC adapter may extend
the time of full charging.
6 Power on / Power off
1) To turn on the device, press and hold the Power
button until you see the start-up screen then
release, it will automatically enter the Home
screen. If it is the first time to use it, it will enter
set-up guide menu. Please follow the on-screen
instructions.
2) Press the Power button once to enter sleep mode
and press it again to open the device.
3) Press and hold the Power button, and then tap on
OK to power off the device.
9
Notice
If the system halts, press and hold the Power button
until it is turned off completely.

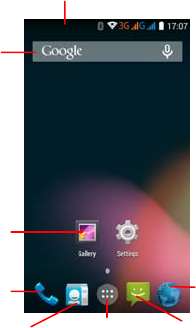

7 Android Home Screen Guides
Notifications & quick
settings: hold and slide down
Web information
search
Message
Call Explore
browser
APPS menu
Shortcuts: touch to
open; touch & hold
to move
Contacts
10
8 Changing OSD Language & System
Time
On the Home menu tap on the icon and select
Settings icon to access the list of options.
Select Settings---Language &
input---Language to change OSD language.
Select Settings---Date & time to change system
time.
9 Connecting to Wi-Fi
On the Home menu tap on the icon and
select Settings icon to access the list of options.
Select Wireless & Networks.
If the Wi-Fi is off, tap on the Wi-Fi line to turn it
on.
The device will scan for available Wi-Fi
networks and display them on the screen.
Tap on the network you want to connect to. Then
tap on the wireless password field to enter the
required network information and tap on
Enter---Connect.
11
Your device will now attempt to establish a
connection to the Wi-Fi access point with the
network parameters you entered.
10 Transferring Contents from PC
Connect the device to your PC/Notebook via
USB cable.
If the network of your PC/Notebook is on, it will
install the required driver automatically then tap
"Turn on USB storage" on the screen to turn on
USB storage function.
Select the contents you want to transfer from
your PC/Notebook.
Drag the contents from the PC/Notebook to the
device.
Please do not disconnect the USB cable during
loading. It may cause malfunction of the device
and files.
Left click on on the right bottom of your
PC/Notebook to disconnect the device from
PC/Notebook safely.
12
11 Troubleshooting
Q1: What if water enters the device?
A：
1) DO NOT turn on the device.
2) Disconnect the outlet cable in order to turn it
off instead of pressing the power button.
Disconnect all external devices and then send
to the service center for advice.
Q2: How to check the device if it won’t turn on?
A：
If the power is low, connect the adapter to
charge.
Remove the micro-SD card and any other
external device.
Q3: How to restore the factory default settings?
A：Go to Settings---Backup & reset---Factory
data reset to recover the system to the default
status.
Q4: How to prolong the usage time of the battery?
A：
Adjust the brightness of the touch screen to
proper level on Settings---Display---
Brightness menu.
Turn down the volume.
13
Set the sleep time to proper level on
Settings--- Display---Sleep menu.
Q5: What to do if the micro SD or SIM card can’t
be read?
A: Please turn off the device and re-insert the card.
Q6: Why are the Bluetooth and 3G function
disabled? (Applicable only for model with
Bluetooth and 3G function)
A：Check if the “Airplane mode” is enabled, if it is
then the Bluetooth and 3G function can’t be
activated.
12 Technical Specifications
Processor MT6582M
RAM (#) 512MB LPDDRII
Storage capacity(#) EMMC 4GB
Size 5.0” FWVGA
Capacitive Multi-touch
Resolution 480x854 pixels
Descriptions Front: 2.0M pixel; Back: 8.0M
pixel
Communications Wi-Fi (802.11 b/g/n),
Bluetooth(BT4.0)
GPS Center 1575.42MHz
14
Frequency
Operating
Temperature 5-35℃
Operating
Humidity 30%-85%
Storage
Temperature -20-55℃
Storage Humidity 20%-93%
Adapter AC 100~240V; DC 5V/1A
Output Power
(maximum) ≤5~10W
Battery 2100mAh Li-ion battery
Weight About 159.2g
Dimension 142.5mm x72.5mm x9.97mm
Notice
The # symbol means that the item is optional.
15
FCC cautions
Any Changes or modifications not expressly approved
by the party responsible for compliance could void the
user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
IMPORTANT NOTE:
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and
receiver.
16
—Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
—Consult the dealer or an experienced radio/TV
technician for help.
Specific Absorption Rate (SAR) information
SAR tests are conducted using standard operating
positions accepted by the FCC with the phone
transmitting at its highest certified power level in all
tested frequency bands, although the SAR is
determined at the highest certified power level, the
actual SAR level of the phone while operating can be
well below the maximum value, in general, the closer
you are to a wireless base station antenna, the lower the
power output.
Before a new model phone is a available for sale to
the public, it must be tested and certified to the FCC
that it does not exceed the exposure limit established
by the FCC, Tests for each phone are performed in
positions and locations (e.g. at the ear and worn on the
body)as required by the FCC. For body worn operation,
this model phone has been tested and meets the FCC
RF exposure guidelines when used with an accessory
designated for this product or when used with an
accessory that contains no metal and that positions the
handset a minimum of 1.0 cm from the body.
Non-compliance with the above restrictions may result
in violation of RF exposure guidelines.
