SkyAutoNet ULTRASCAN-B Low-Powered Wireless Device User Manual

SkyAutoNet Inc Low-Powered Wireless Device

User Manual

1
Ultrascan-B
USER MANUAL
2
WARRANTY POLICY
Providing that this product has been installed and used as instructed in this operating manual,
SKYAUTONET will repair Ultrascan-B module with new or reconditioned parts, free of charge for
- Two (2) year for full kit base
from the date of original purchase in the event of defect in materials or workmanship.
For a Full Kit Ultrascan-B, during the first 1 year of this 2-year warranty period, SKYAUTONET will
cover the freight cost for return trip of the Ultrascan-B module for repair service, and for the remaining
second 1 year period, the customer shall pay the return trip freight cost while the labor and part costs
are still covered by SKYAUTONET.
Functioning accessories including cables and connectors are warranted for 1 year from the data of
original purchase.
Non-functioning parts and consumable accessories including but not limited to base unit plastic case,
carry case and parts thereof, plastic bags, printed material and CD or DVD.
The warranty is extended solely to the original purchaser. A purchase receipt or other proof of
evidencing the date of original purchase will be required to be presented before providing necessary
warranty service.
You are required to register Ultrascan-B and user information to SKYAUOTNET website immediately.
SKYAUTONET holds the right to refuse provision of any service for the product that has not been
registered.
This warranty only covers failures caused by defects in materials or workmanship, which may occur
during normal use. It does not cover damage occurs during shipment or failures which may be caused
by products, non-genuine parts or accessories not supplied by SKYAUTONET, or failures resulting
from act of god, alteration, accident, misuse, introduction of liquid material or any other foreign matter
into the product, abuse, neglect, improper installation, maladjustment of consumer controls, improper
maintenance, modification or service conducted by any one unauthorized by SKYAUTONET
SKYAUTONET SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGE RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING
OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
SKYAUTONET’s entire liability and your exclusive remedy under this warranty shall be limited to the
replacement, or any defective parts or functions in the products, which is returned to SKYAUTOENT
or its authorized local distributor, together with a copy of the purchasing receipt, during the
aforementioned warranty period. Anything in the foregoing to the contrary notwithstanding,
SKYAUTONET shall have no obligation for any defects in the product resulting from your storage
thereof, or for defects that have been caused by operation of the product other than on the operation
manual or in environmental conditions other than those specified by SKYAUTOENT or by alteration,
accident, misuse, abuse, neglect, mishandling, misapplication, installation, maladjustment of
consumer controls, improper maintenance, modification or damage that is attributed to acts of God.
3
This limited warranty gives you specified legal rights, and you may also have other rights, which vary
from country to country. The laws of Republic of Korea, without regard to its conflict-of-laws rules, will
govern this Limited Warranty.
A minimum separation distance of 20 ㎝ must be maintained between the
antenna and the person for this appliance to satisfy the RF exposure
requirements
Product name
Descriptions
Model
Manufactured date
Seller
Buyer (User)
E-mail
Address
Telephone
Warranty service
A customer shall have the right of warranty
service within 2-year after an original of purchase
date when a product has problems
Non-warranty service
It does not cover damage occurs during shipment
or failures which may be caused by products,
non-genuine parts or accessories not supplied by
SKYAUTONET, or failures resulting from act of
god, alteration, accident, misuse, introduction of
liquid material or any other foreign matter into the
product, abuse, neglect, improper installation,
maladjustment of consumer controls, improper
maintenance, modification or service conducted
by any one unauthorized by SKYAUTONET
DISCARD OF USED EQUIPMENT
WEEE (Waste Electrical and Electronic Equipment) symbol as shown in Fig. 1 is indicated. Please
note that Ultrascan-B is subject to this regulation for disposal of Waste Electrical and Electronic
Equipment, therefore you are kindly requested to follow the suggested rules.
4
WEEE is applied to EU member nations as well as Non-EU member European countries with
separate waste collection systems.
This symbol on the product or on its packaging indicates that this product shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The recycling of materials will
help conserve natural resources. For more information on recycling of this product, please contact
your community authority, your household waste disposal service or your local distributor.
CAUTIONS BEFORE USE
A warnings and cautions for safe and proper use of this product, therefore it is recommended that
every user should read this section carefully before using the product and make sure that such
warnings and precautions are well observed and comprehended.
Make secure connections of all cables and connectors. Be careful not to let the any cables or
power cable gets disconnected while the ULTRASCAN-B is operating.
Do not disassemble or dismantle the Ultrascan-B module in any case.
Use only the parts and accessories authorized by SKYAUTONET
Use Ultrascan-B only for the original purposes as it was designed for.
Beware that the user shall be fully liable for any direct or consequential damage or loss caused
by not following the instructions provided in this Ultrascan-B user’s manual.
Beware that only the service personnel authorized by SKYAUTONET is entitled to provide
aftersales service for Ultrascan-B.
SKYAUTONET is not liable for any loss or damage cause from using parts or accessories that
SKYAUTONET has not supplied.
Avoid humidity and dusts when storing and using Ultrascan-B in order to prevent electric shock or
fire.
Be careful not to cause damages to the cables by heat from the engine or the moving parts in the
engine compartment when Ultrascan-B connection is made.
Stow the parts and accessories that are not in use in the Ultrascan-B carry case.
Avoid following hazards for storing Ultrascan-B
- Very high or low temperature
Warning
Dangerous consequences may arise, with the possibility of fire, death or serious injury to the user,
if the product is not handled properly as instructed below.
The user shall be fully liable for any direct or consequential damage or loss caused by not following
the instructions provided in this G-scan user’s manual.
Caution
Dangerous consequences may arise, with the possibility of serious injury to the user and or
damage to the product, if not handled properly as instructed below.
The user shall be fully liable for any direct or consequential damage or loss caused by not
following the instructions provided in this Ultrascan-B user’s manual.
5
- Very high or low humidity
- Exposure to direct sunlight
Avoid physical impart and vibration when carrying Ultrascan-B.
Keep away from moisture when storing or using Ultrascan-B.
Keep away from flammable substances or static inducing environment when storing or using
Ultrascan-B keep away from chemical or acid material that may damage Ultrascan-B module or
accessories.
Do not expose Ultrascan-B to X-ray or microwave, otherwise it may cause serious damage
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution: Any changes or modifications to the equipment not expressly approved by the party
responsible for compliance could void user’s authority to operate the equipment.
This appliance and its antenna must not be co-located or operation in conjunction with any other
antenna or transmitter.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source
de rayonnement et votre corps.
6
[Ultrascan-B INTRODUCTION]
This s designed to track a vehicle driving information through PC connection, CDMA wireless
communication device or Bluetooth and to collect vehicle abnormal trouble codes, to analyze driver’s
driving patterns and behaviors by connecting device to vehicle OBD II(On-board diagnostic) socket.
Low-Powered Wireless Device/Ultrascan-B
STM32F103RCT6
ISO-9141, ISO-14230, CAN
Class2 (within 10m)
ECU(Engine Control Unit), ABS
-30C ~75C
53mmx44mmx24mm
65g
2402MHz~2480MHz
79EA
1dBm
12 VDC
Dielectric Chip Antenna
GF5K/DQPSK/8DPSK

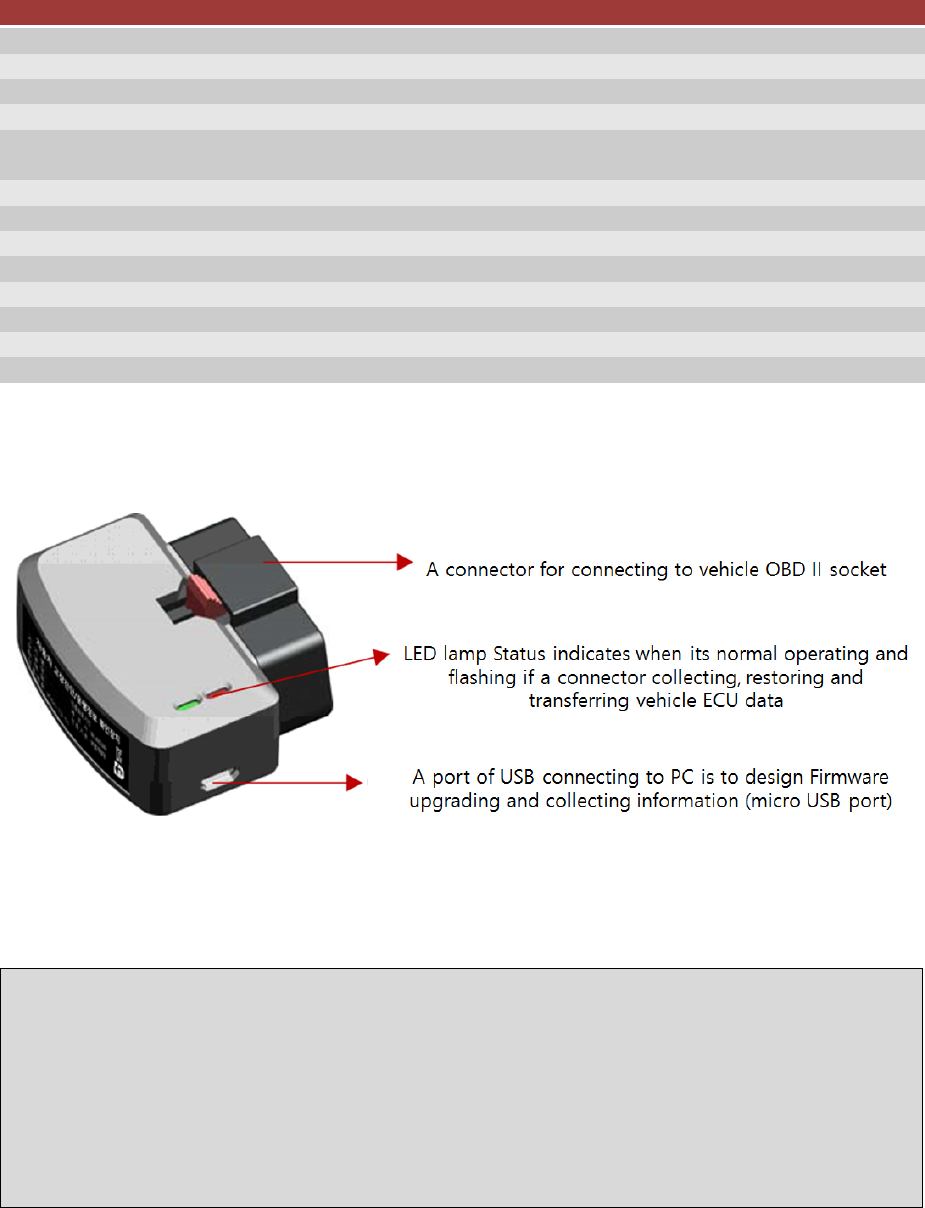

[Ultrascan-B PART]
On-board diagnostics (OBD) is an automotive term referring to a vehicle's self-diagnostic and
reporting capability. OBD systems give the vehicle owner or repair technician access to the status of
the various vehicle subsystems. The amount of diagnostic information available via OBD has varied
widely since its introduction in the early 1980s versions of on-board vehicle computers. Early versions
of OBD would simply illuminate a malfunction indicator light or "idiot light" if a problem was detected
but would not provide any information as to the nature of the problem. Modern OBD implementations
use a standardized digital communications port to provide real-time data in addition to a standardized
series of diagnostic trouble codes, or DTCs, which allow one to rapidly identify and remedy
malfunctions within the vehicle.
7
[KEY FUNCTIONS]
① Collection of daily vehicle driving information
- Storage functionality for daily driving record
- Data collected as daily driving record for insurance standardization applied
② Details for driving information (optional)
- Driving speed (Max speed-average speed, speed distribution) sampling
- Sampling data for the rapid acceleration and deceleration.
③ Self-Diagnostic function(optional)
- Generator Low-High temperature warning function
- Cool-temperature warning function when its’ high
- Engine oil warning function when its’ high
[INSTRUCTIONS FOR USE]
1. Be sure Ignition must be OFF before Ultrascan-B connecting.

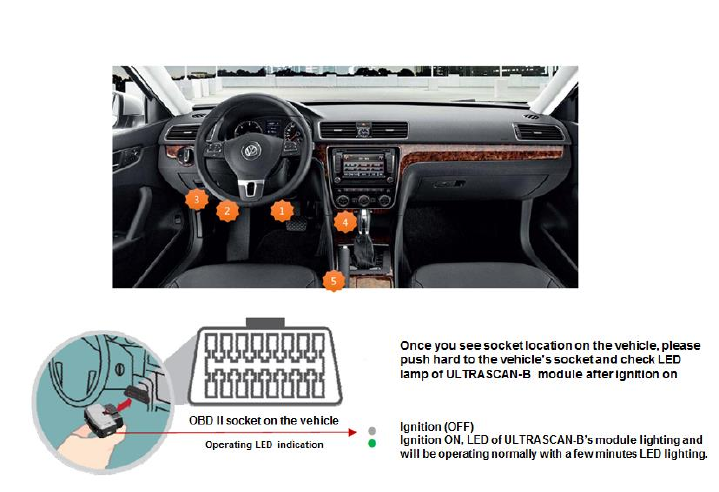

2. Check a connection location then connecting Ultrascan-B
3. After Ignition ON, LED of Ultrascan-B’s module lighting and will be operating normally with a
few minutes LED lighting.
4. After checking power on of Ultrascan-B module, try to activate Android application to connect
to Bluetooth. This step is for BT pairing.
5. By Bluetooth connection, it can be started to communicate ECU of motorcycle and reading.
6. After diagnosing, you close application and BT by disconnection.
8

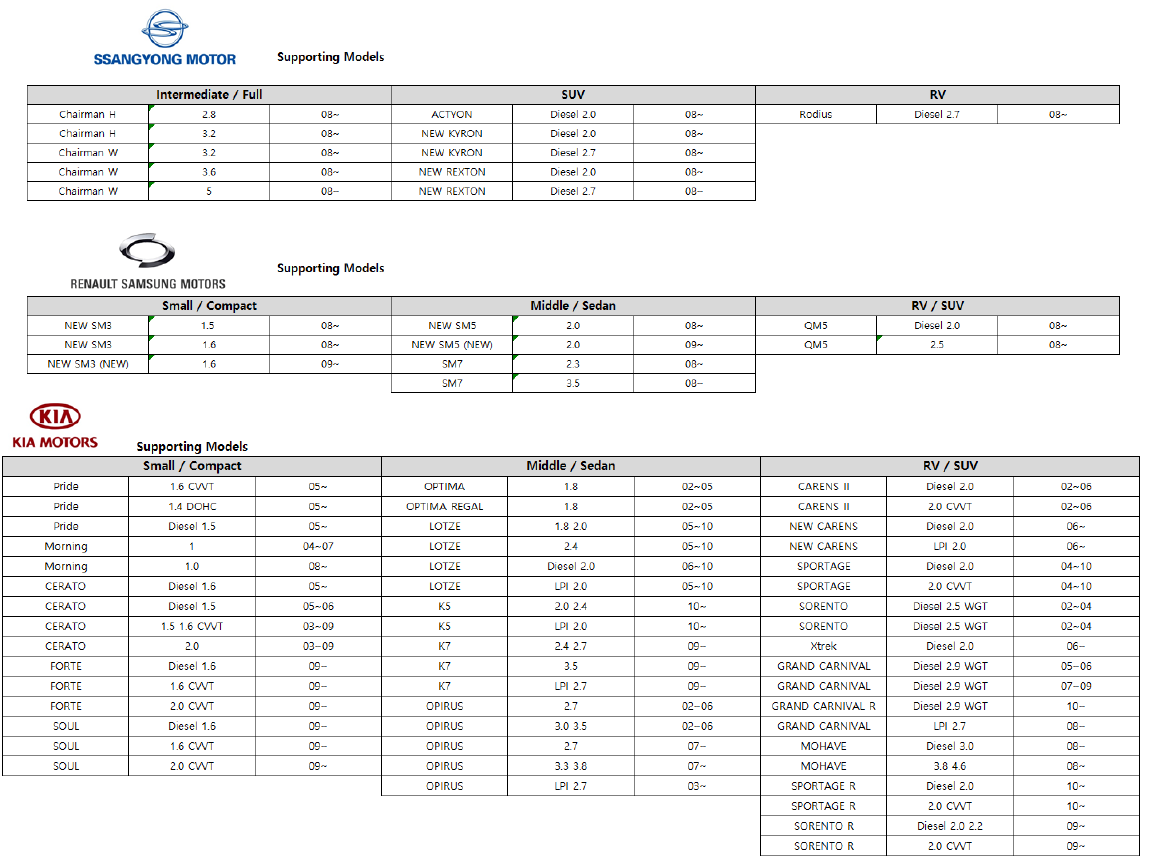

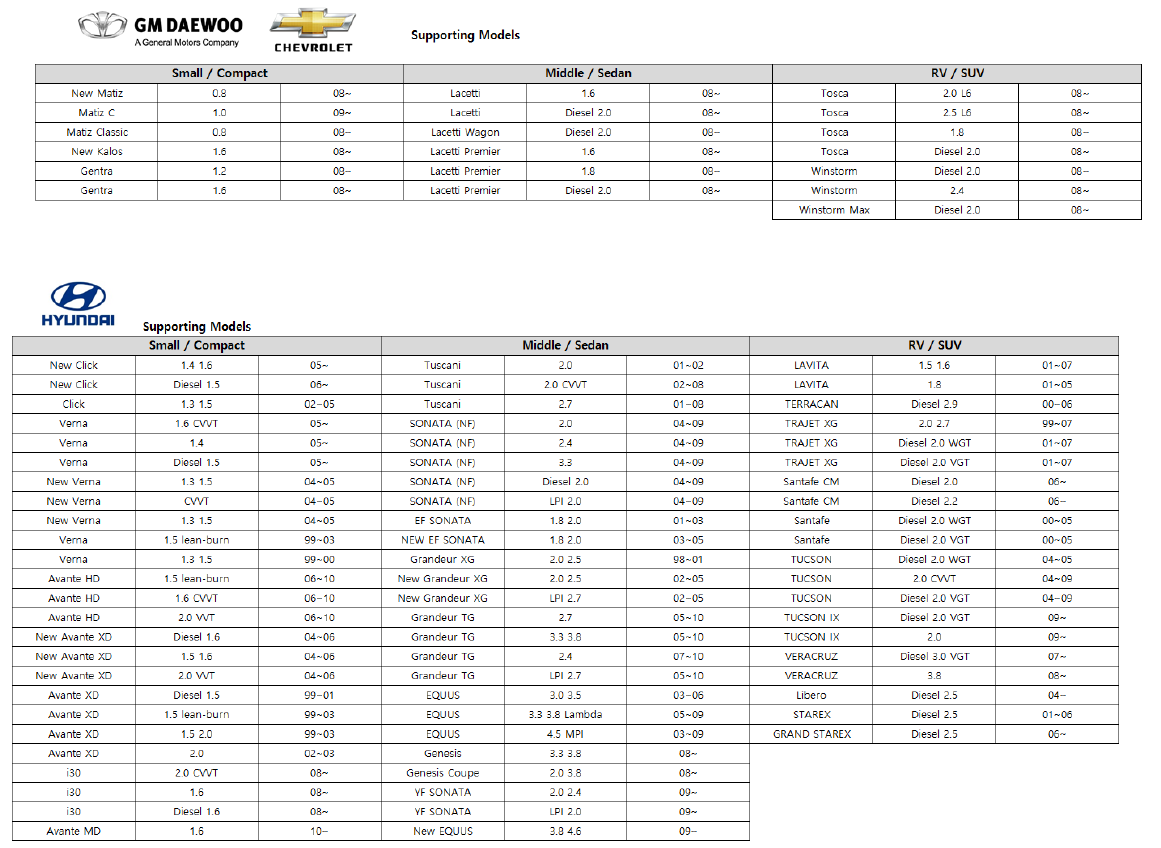

[Ultrascan-B DIAGNOSTIC COVERAGE]
9
