Skylab M and C Technology SKW75 WIFI module User Manual WG208 USB WiFi Module

Skylab M&C; Technology Co.,Ltd. WIFI module WG208 USB WiFi Module

User Manual

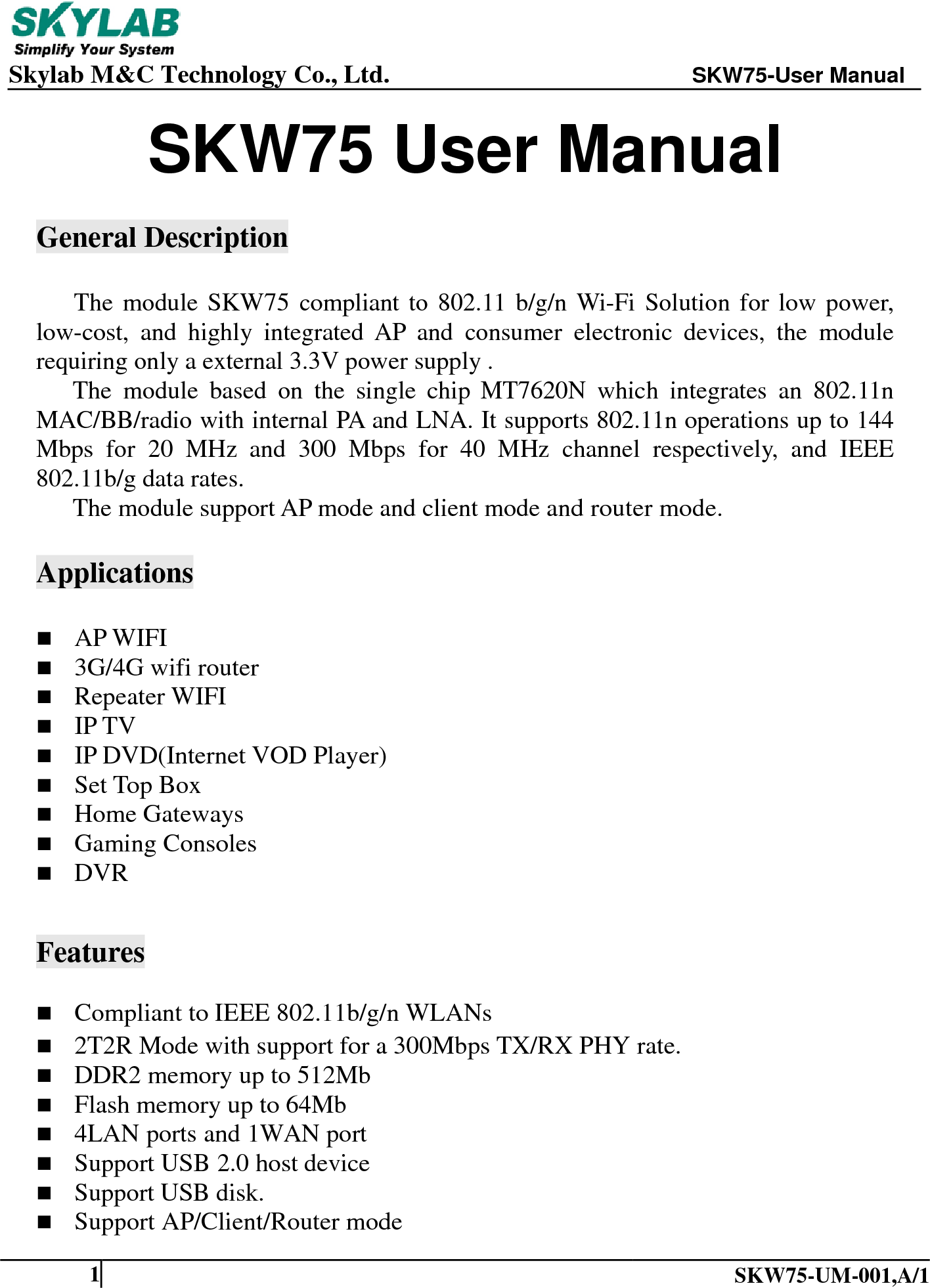

    Skylab M&C Technology Co., Ltd.               SKW75-User Manual    SKW75-UM-001,A/1  1 SKW75 User Manual  General Description  The module SKW75 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic  devices, the module requiring only a external 3.3V power supply . The module based on the single chip MT7620N which integrates an 802.11n   MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 144 Mbps for 20 MHz and 300 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates. The module support AP mode and client mode and router mode.  Applications   AP WIFI  3G/4G wifi router  Repeater WIFI  IP TV  IP DVD(Internet VOD Player)  Set Top Box  Home Gateways  Gaming Consoles  DVR   Features  Compliant to IEEE 802.11b/g/n WLANs  2T2R Mode with support for a 300Mbps TX/RX PHY rate.  DDR2 memory up to 512Mb  Flash memory up to 64Mb  4LAN ports and 1WAN port  Support USB 2.0 host device  Support USB disk.  Support AP/Client/Router mode
