Preface
Thanks very much for choosing our TV Box. In order to make it more convenient for you to use
proficiently, we provide you with a user manual. Please read it carefully before using and
properly keep it for reference.
Statements
We have made every effort to provide the most current information about the product.
We do not grant any guarantees as to the contents of the present instruction manual and
disclaim any implied guarantees concerning market value or suitability for specific purposes.
The information contained here is an instruction intended to enable the correct usage and
maintenance of the receiver.
We reserve itself the right to introduce amendments, changes or translations of the user
manual without prior notification thereof. For this reason, we recommend you regularly visit
our website in order to obtain the latest information.
Contents
Chapter 1 System Introduction.......................................................................
1. 1 Key Features
1. 2 System Environment
1. 3 Package Contents
.................................................................................
........................................................................
Chapter 2 Remote Control..............................................................................
2. 1 Introduction of Remote Control
Chapter 3 System Connection........................................................................
3. 1 AV Connection
3. 2 HDMI Connection
3. 3 Startup
Chapter 4 System Operation ..........................................................................
Chapter 5 Local Apps ......................................................................................
5. 2 Music
5. 3 Picture
5. 4 Filebroswer
Player
Player
..................................................................................
...............................................................................
.................................................................................
Chapter 6 Upgrade .........................................................................................
Chapter 7 Troubleshooting
Chapter 8 Specification .................................................................................
..........................................................................................
........................................................................
.............................................................................................
.........................................................................................
.......................................................................................................... 3
3
1
1
1
2
1
2
3
4
6
4. 1 Add Apps
4. 2 Settings
.....................................................................................................
.....................................................................................................6
7
8
8
8
9
5. 1 Movie Player..................................................................................
8
9
10
11
............................................................................
Chapter 1 System Introduction
01
1.1 Key Features
Android 4.2.2 operating system with ARM Dual Core Cortex A9.
Support many kinds of IPTV and OTT TV programmes.
Support three main HD formats: VC-1, H.264, MPEG-2 and many others normal formats,
1.2 System Environment
PS: Only suitable for indoor operation environment
Operation: Temperature range: 0--40℃; Humidity range: 20--95%
Storage: Temperature range: -20--50℃; Humidity range: 10--90%
1.3 Package Contents-In addition to TV Box, other accessories as below:
Support standard RJ45 cable network connection and wireless network connection.
Video formats include avi, mpg, vob, rmvb, mkv, m2ts, ts and so on.
Photo formats include JPEG, BMP, and PNG up to 80M pixels.
Audio formats include Mp3, WMA, WAV, Ac3, DTS, AAC and so on.
Support three USB2.0 host connectors with maximum output current of 5V/500mA.
Accessories Quantity
Power adaptor
Infrared remote control
AV cable
User manual
1
1
1
1
HDMI cable 1
Support infrared remote control operation.
such as MPEG-1, MPEG-2,MPEG-4, DIVX, REALMEDIA and so on.
Chapter 2 Remote Control
02
2.1

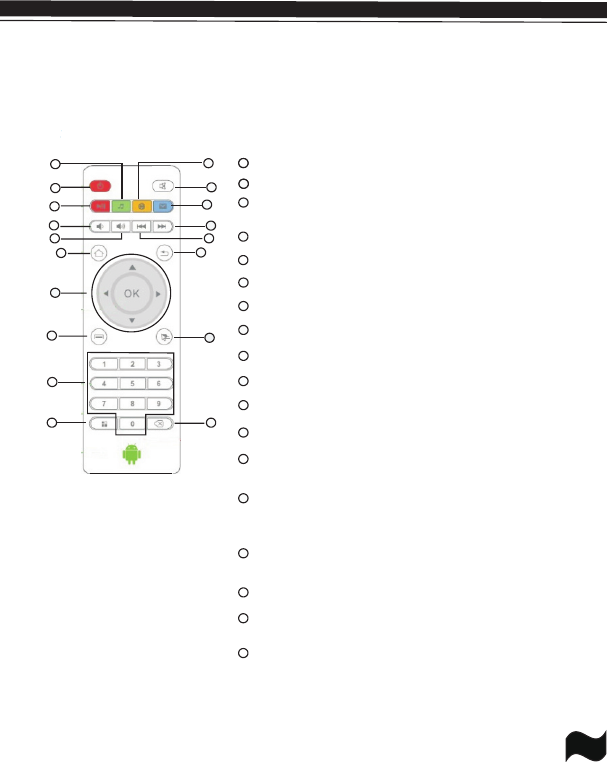

Introduction of Remote Control
OK
I
I
123
456
789
0
4
6
1
1
1
10
18
2
5
8
11
1
9
1
1
16
1
1
13
1
15
1
14
12
17
3
1
7
5
1
2
4
3
POWER: Press to turn on/off.
MUTE: Press to turn off the volume.
PAUSE: Press to pause when playing video, music
or photo.
MUSIC: Shortcut key to go to music playlist.
BROWSER: Shortcut to go to web browser.key
8
6
7
9
10
13
E-Mail: Shortcut to go to mail box interface.key
VOL-: Press to decrease the volume.
VOL+: Press to increase the volume.
FAST REWIND: Go to previous page.
FAST FORWARD: Go to next page.
12
14
5
17
16
15
11
5
18
RETURN: Press to return back to previous menu.
NAVIGATION: Press to navigate left/right/up/down.
Press OK to confirm your choice.
Number Keypad: Press to input Arabic number.
MENU: Press to choose function menu of
Main menu: Shortcut to go to the main menu.key
Cursor: Press to use the navigation button
Google NOW: Shortcut key to go to Google NOW
Backspace:
11
corresponding application in video, music,
photo and website.
interface.
as cursor.
To move the cursor on a computer
screen or the carriage of a typewriter
back one or more spaces by striking the
key used for this purpose.
Chapter 3 System Connection
03

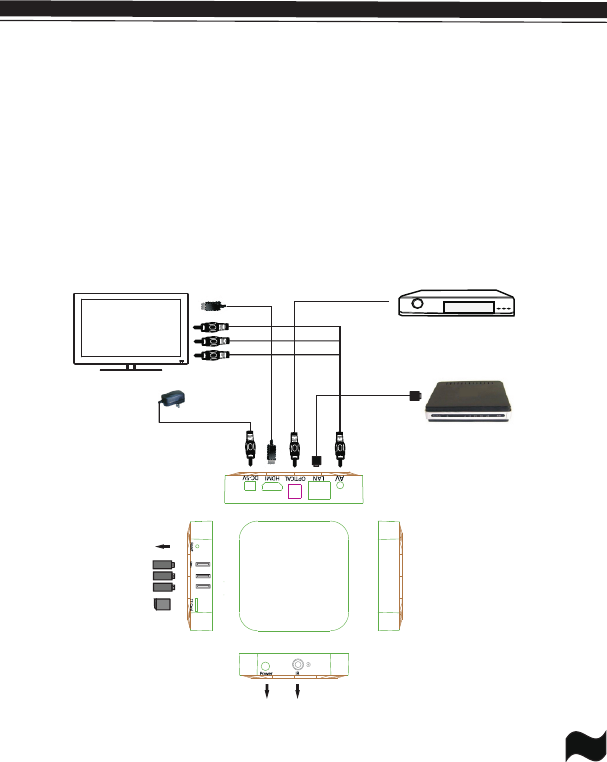

3.1 AV Connection
TV
Amplifier
Optical cable
AV cab le
HDMI cable
Adaptor cable
Router
Network cable
USB-1
Micro SD/TF card
Reset
Power IR
P.S You can change output mode in SETTINGS menu, choose resolution on 480i or 576i .
P.S You can change output mode in SETTINGS menu, choose resolution on 480p/576p/720p
/1080p etc.
3.2 HDMI Connection
a. Connect the AV cable of the 3 color(red/white/yellow) to the TV Box’s AV output interface,
the other end to TV set AV input interface. Connection can be made by color.
b. Power on the TV Box, set TV video mode to AV input.
a. Connect HDMI cable into the product interface, the other side into a TV set.
b. Power on the TV Box, set TV video mode to corresponding HDMI input.
USB2 US B3
USB-2
USB-3

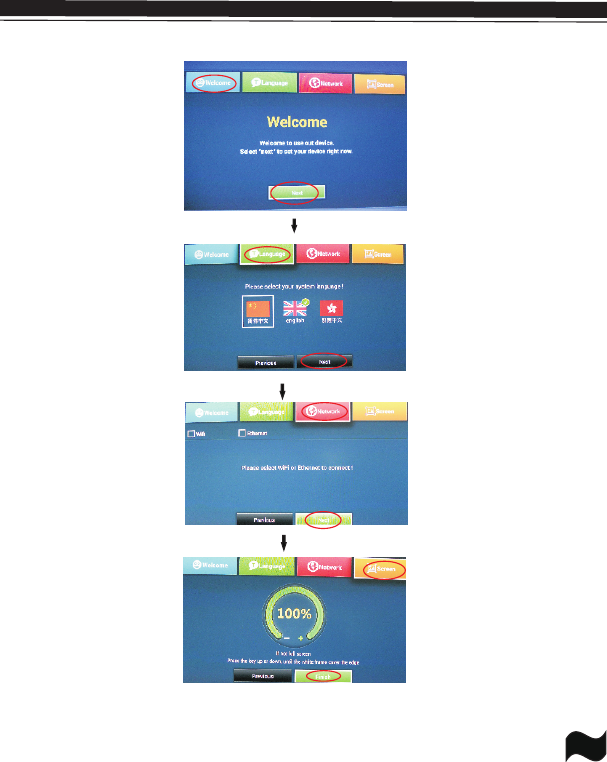

3.3 Startup
04
Turn on the TV Box while indicator lights is blue, about 30 seconds to enter into main
interface.
Note: Once the user to proceed software upgrades or reset, after completing and restart
the unit, the system will automatically enter into Welcome settings interface:
It is a direct way to refresh the system on the TV Box.
Press “ Next” to finish the setting(see next page).
05
06
Chapter 4

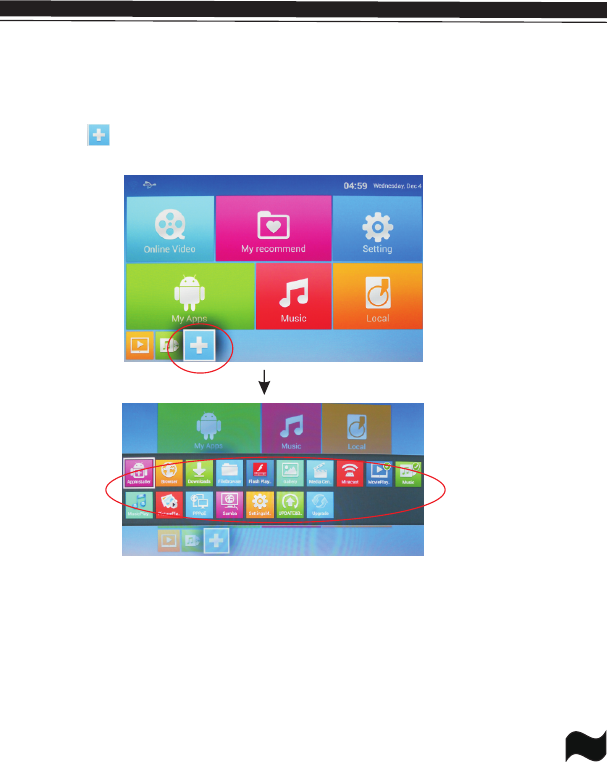

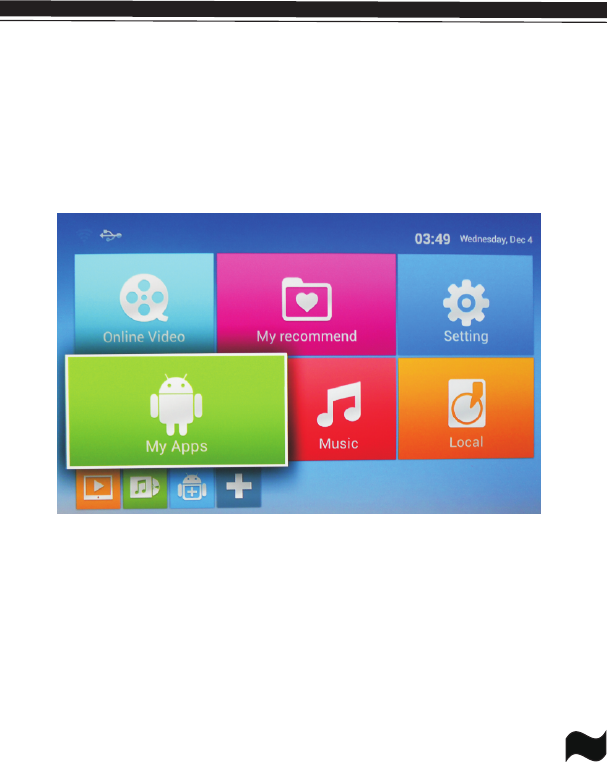

Move to“ ”icon, press“OK”to add applications on the desktop.
4.1 Add application
System Operation
07

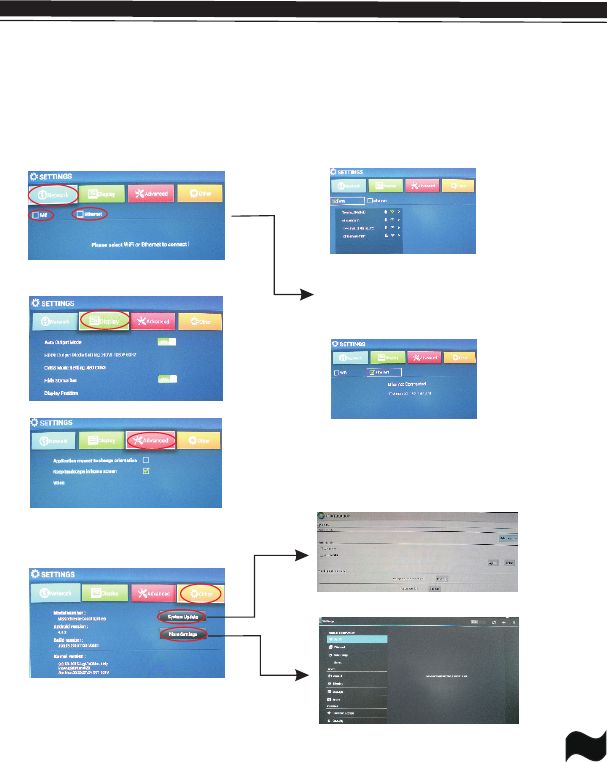

Choose “ Setting ”icon, Press OK to enter into system setting.
You will see the menu on the following picture.
4.2 Settings
Select“Ethernet configuration”,
System will automatically connect the Ethernet network.
Select“Wi-Fi”setting，System will start scanning
available Wi-Fi networks around you automatically.
Press OK to choose your network and enter with
password.
Wi-Fi
After authenticating IP address, when connected
is shown, Wi-Fi is available now.
Notice: Sometimes Wi-Fi is not stable. If Wi-Fi
connecting is fall, please try again.
Select Wi-Fi or Ethernet to connect the network.
Press to enter“System update”, Select to proceed system
upgrade or backup(see upgrade operati on on page 9).
Press to enter“setting” main menu.

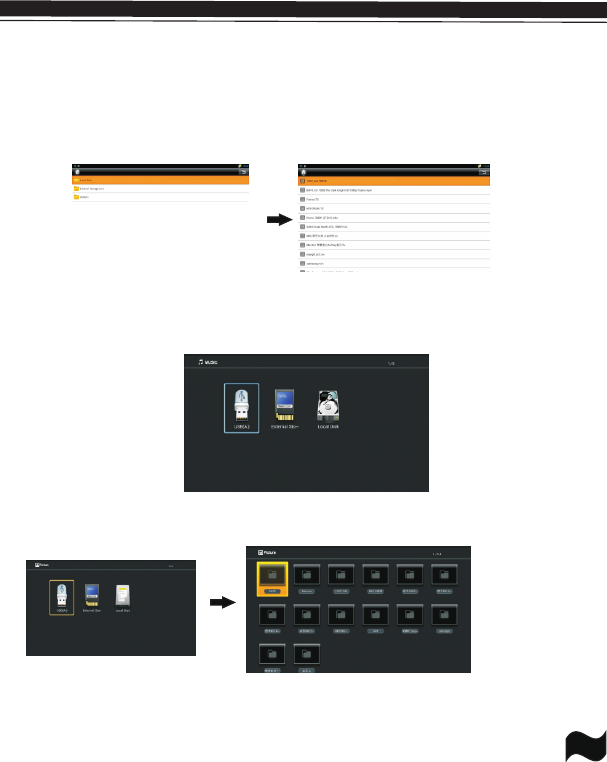

5.2 Music player
08
Move to “ Music Player”,
Press OK to enter into music list.
Choose your desired device and play videos you like,
5.3 Picture player
Move to “ Picture player”,
Press OK to enter into picture list.
Choose your desired device and play videos you like,
Chapter 5 Local apps
5.1 Movie player
Move to “ Movie Player”, Choose your desired device and play videos you like,
press OK to enter into movie list.

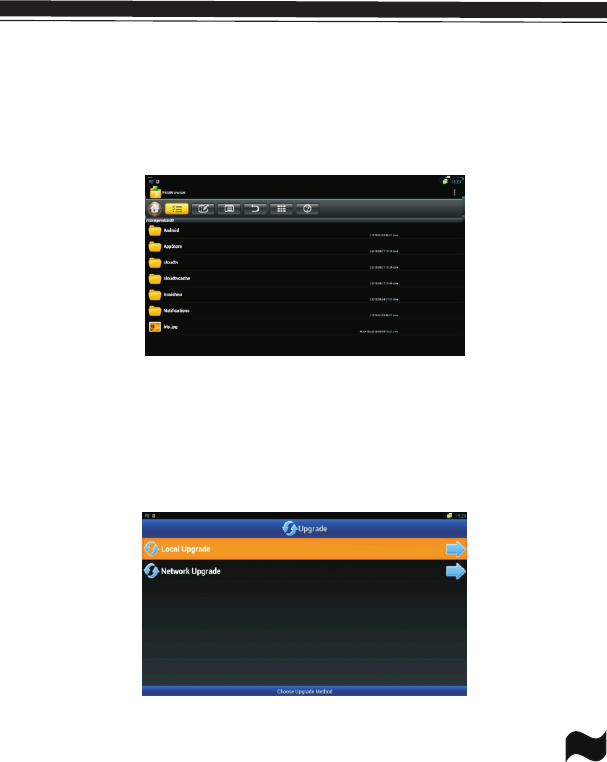

6.4 Filebrowser
Move to “Filebrowser” icon,
press OK to enter into device list.
When inserting with USB device or SD/TF cards, there will show” device is mounting”.
Choose your desired device and play videos you like,
9
Upgrade: Move to “Upgrade”, press OK to enter in. It is a system update function.
Insert with update software on the SD card, click”Upgrade” icon to choose local upgrade.
After upgrade finished, system will restart automatically.
Notice: Please do not power off when system is upgrading.
Chapter 7 Upgrade
Chapter 8 Troubleshooting
10
Warning
Under no circumstances should you try to repair the TV Box by yourself, as this will invalidate
the warranty. Do not open the TV Box as there is a risk of electric shock. If a fault occurs, first
check with points listed below before taking the TV Box for repair. If you are unable to remedy
a problem by following hints, consult your dealer for help.
Problem Solution
No picture
No sound or distorted sound
No audio or digital output
The box does not respond
to the remote control
Player does not respond to
some operating commands
during playback
No sound during movies
playback
The contents of the USB
flash drive cannot be read
No sound with HDMI
connection
The TV screen is blank and
the player LED is blinking
-Check if the power adaptor is properly connected to the
power and the TV Box.
-Press the power on the remote controller to turn on the power.
Slow operation of the USB
flash drive
No power
-Reconnect with HDMI cable or AV cable.
-Check if the TV is switched on.
-Adjust the volume.
-Check that the speakers are connected correctly.
-Check the digital connections.
-Check if your amplifier is set correctly.
-Operations may not be permitted. Refer to the user manual.
-Possibility of system halted, re-insert with power adaptor to
restart.
-Aim the remote control directly at the sensor on the front of the
TV Box.
-Reduce the distance to the TV Box.
-Replace the batteries in the remote control.
-The audio codec may not be supported by the TV Box. You can
change to the supported audio on playing menu.
-Check the volume.
-The USB flash drive format is not compatible with the box.
-If one of the USB can not be read. Please turn off the TV Box
for 30 seconds and restart the TV Box.
-Big file size or high resolution USB flash drive takes longer
time to read and display on the TV screen.
-Check the connection between the TV and the HDMI jack of
box.
-Check your TV system setup.
-Check the volume.
-Turn off your TV Box, wait 30 seconds, turn it on again.
-If under HDMI status, check if HDMI connection is correct or
change another HDMI cable, set the output resolution of this
TV Box into 720p.
11
Chapter 9 Specification
Parameters
Items Android TV Box
Main function
On-line video
(iPTV and OTT
TV programs)
Many iPTV programmes, all standard iPTV software and
popular on-line video website based on android system.
(Such as Youtube, Netflix. Local satellite TVs, Sports,
finance, etc)
It can also connect to your designated website.
Support many applications from google play including
web browser, google map, 2D/3D games, P2P download,
online video chat, email and so on. Support mouse and
keyboard;
Support FAT16, FAT32, NTFS file system.
Android
applications
All formats
with Full HD
definition
Builds in all formats 1080p high definition decoding;
Supports three main HD formats VC-1, H.264, MPEG2-HD
together with common formats rm, rmvb, divx etc;
Support more new formats by installing android player.
Video format
1080p/720p/480p
multi-format
decoding
MPEG1/MPEG2/P\MPEG4/VC-1/H.264/Real video formats
including avi, mpeg, vob, mkv, ts, m2ts, wmx, rm, rmvb
suffixes and so on.
Photo format Up to 80M
pixels JPG, BMP, PNG
Audio format Multi-audio
format
Mp3, WMA, WAV, MIDI, OGG, Ac3, DTS(some formats
need the support of the third party player software).
Hardware
configuration
Main chipset
GPU
Memory
Storage cards
Dual Core Cortex A9 1.5GHz
Dual Core Mali-400
1GB -DDR3, 4GB-FLASH (other capacity available.)
Mrico SD/TF card; Voltage: 2.7-3.3V
Input interface
USB interface Three USB 2.0 high-speed ports.
Internet
interface
Standard RJ45 Internet interface.
Support internet wireless Wi-Fi(some other models require
additional adaptor).
DC 5V/2A
Output interface
Audio
Video
Optical digital audio output.AV port or analog L/R stereo
output, or HDMI synchronized sound output.
Standard 3.5mm AV output port(Female), or HDMI 1.4
standard interface.
Others Remote distance Effective distance is more than 6 meters.
Dimension 108x108x21.5mm
Weight 140g
Power rating
Power rating
The specification and contents subject to change without the prior notice
DC 5V/2A
