Skytech II 13XXA REMOTE CONTROL RECEIVER User Manual USERS MANUAL

USERS MANUAL

13XX-A User’s Manual

Date:2005-10-11

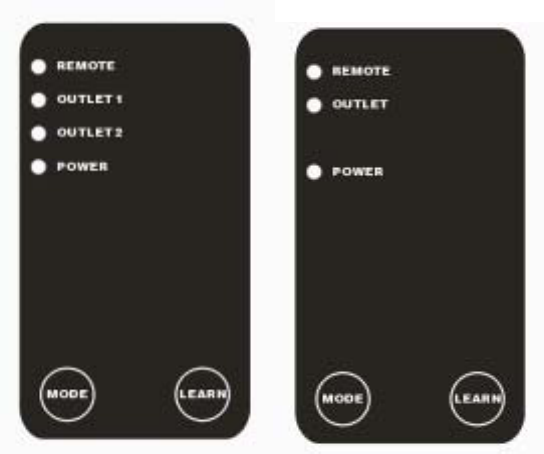

 Receiver name plate description:

 Receiver indicator :

1. “remote”: If receiver control by transmitter then this led will be ON.

2. “Outlet1”: When receiver output 1 ON,then this led will be ON.

3. “Outlet2”: When receiver output 2 ON,then this led will be ON.

4. “Power”:. When receiver get electricity power ,then this led will be ON.

 Receiver button :

1. “MODE”: switch receiver output mode.

2. “LEARN”: receiver learn mode use.

 Operation:

1. Before use this receiver first need press “LEARN” button to finish learning mode

then can operate.

Learn step: a. Press “Learn” button, receiver will beep around two second.

b. Press transmitter any button ,If receiver have five short beep that

mean finish learn mode.

2. Press “MODE” button can switch receiver output mode as below:

3. OFF(outlet1&2 all off) Outlet1 output ON- Outlet2 output ON-

Outlet1&outlet2 output ONOFF…...

4. If receiver had got three transmitter then it need have “learn clear ID”

procedure.Its method is press and hold “Learn” button over 6 second then release

button .If ok , receiver will beep three times.

 FCC Compliance Statement:

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference, and (2)

This device must accept any interference received, including interference that may

cause undesired operation.

Note: The manufacturer is not responsible for any radio or TV interference caused by

unauthorized modifications to this equipment. Such modifications could void the

user’s authority to operate the equipment.
