Skytech II 5001 Fireplace Remote Controller User Manual Part 1
Skytech II, Inc. Fireplace Remote Controller Part 1
Part 1
5001 Operation description
Date:2007-11-14
Author: Javy Huang

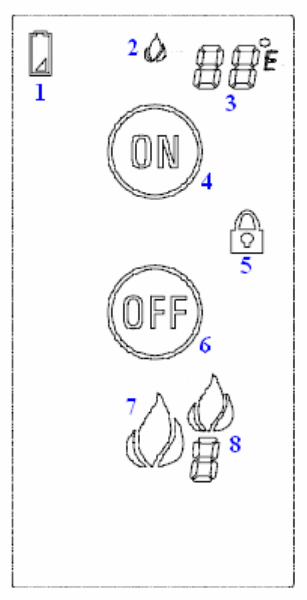

z LCD Diagram
z LCD Indicator:
1. Low Battery: Battery power is low. Replace batteries within two weeks.
2. Radio Frequency Icon: It will be showed if the RF command is transmitting by manual
operation.
3. Room Temperature: Indicates CURRENT room temperature.
4. Manual On: It’s button region for operating the system ON.
5. Child Proof: Lock-out operation of the appliance.
6. Manual Off: It’s button region for operating the system OFF.
7. Manual On Flame Icon: Indicates burner/valve in operation.
8. Reserve Flame Icon : Reserved for providing multiple flame modulation levels by
providing a variable current output to specific modulation device.
z Button Description:
1) Manual On: Press once, unit comes on in System On. The flame
icon appears on screen.
2) Manual Off: Press once, unit comes on in System Off. The flame icon
disappeared.
3) Child Proof Lockout：To activate the child-proof lockout feature, press and hold
and buttons for 10 seconds, “ ＂ will briefly
appear on screen.

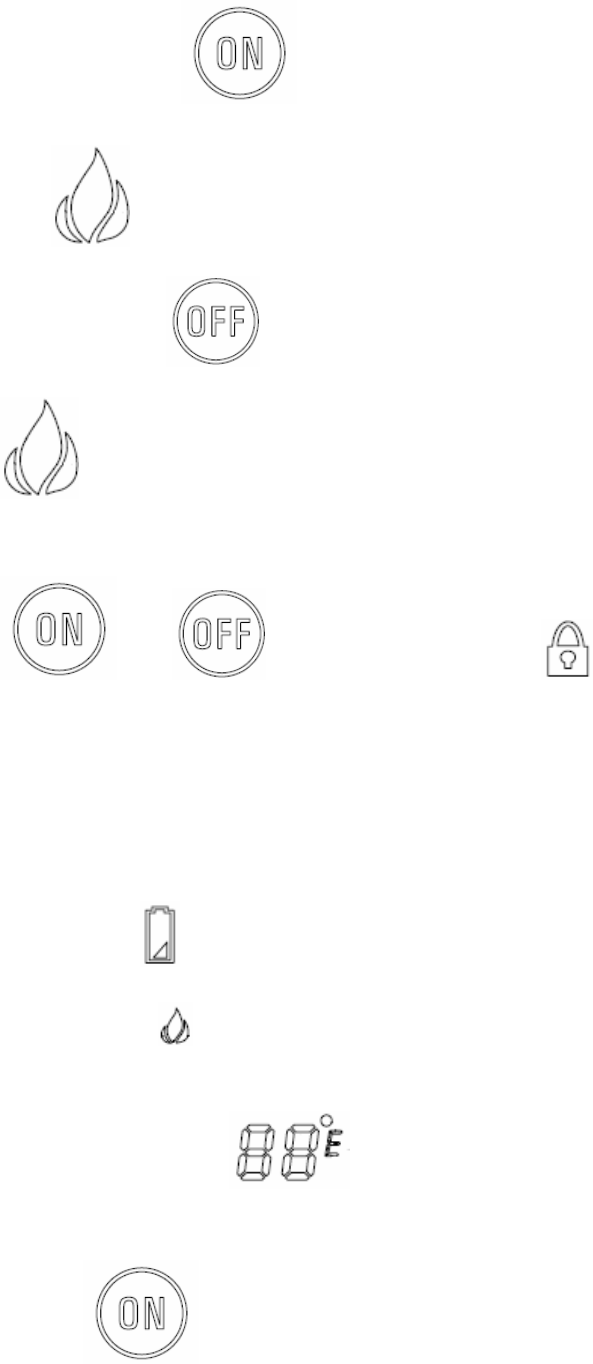

z Operation Description:
1) Low Battery ( ) will appear when battery power has dropped significantly.
2) The RF Icon ( ) will be showed if the RF command is transmitting by manual
operation.
3) The room temperature always shows on screen, which range
between 32 and 99 Fahrenheit.
4) The On ( ) always shows on screen.
5) The Off ( ) always shows on screen.

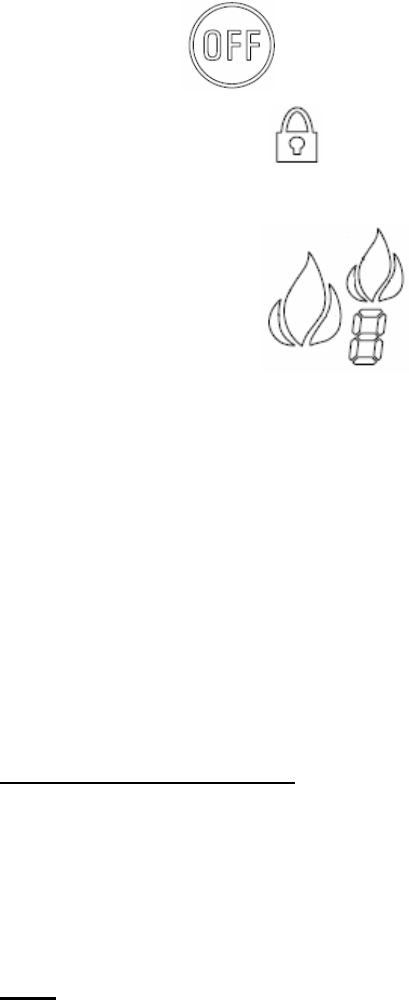

6) The Child Proof ( ) will appear on screen if the “Lock-out＂ Feature is
activation.
7) The Flame icon ( ) , the main flame indicates burner/valve in
operation and additional flame is reserved for specific modulation device.
z Further Description
1) Radio Frequency range: 303.8MHZ
2) The remote receiver is SR 1001.
3) The remote controller effective distance is above 40 feet.
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
