Skytech II LEVEL3TX Remote Control Device User Manual
Skytech II, Inc. Remote Control Device
User Manual
Level3 Operation description
Date:2008-02-14
Author: Javy Huang
z LCD Diagram
z LCD Indicator:
1. Manual On Flame Icon: Indicates burner/valve in operation.
2. Manual On / OFF: Indicates the system ON / OFF.
3. Set Temperature: Indicates the required temperature.
4. Thermostat:
Indicates the system activates the thermostat mode.
5. Flame: Indicates the flame function and burner/valve(High/Low).
6. Bullet point: Indicates the current setting of functions.
7. Level / Valve: Indicates the level of current function.
8. Fan: Indicates the fan function and level(Hi/Med/Lo/Off).
9. Aux1: Indicates the Aux1 function and level(Hi/Med/Lo/Off).
10. Aux2: Indicates the Aux1 function and level(Hi/Off).
11. Pilot: Indicates the pilot function and level(On/Off).
12. Level: Indicates the level of Pilot function.
13. Timer: Indicates the system activates the timer mode.
14. Timer Setting: Indicates the time of timer.
15. Child Proof: Lock-out operation of the appliance.
16. Low Battery: Battery power is low. Replace batteries within two weeks.
17. Room Temperature: Indicates CURRENT room temperature.
z Button Description:

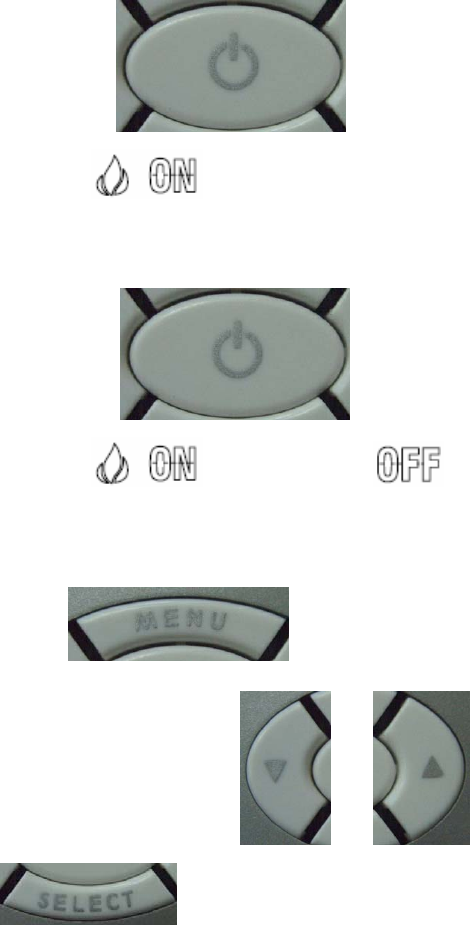

1) Manual On: Press once, unit comes on in System On.
The flame icon appears on screen.
2) Manual Off: Press once, unit comes on in System Off.
The flame icon disappeared and appears on screen.
3) Menu: Press once, all of the functions will appear on
screen by different mode. Press or change the levels and
press to confirm the setting.

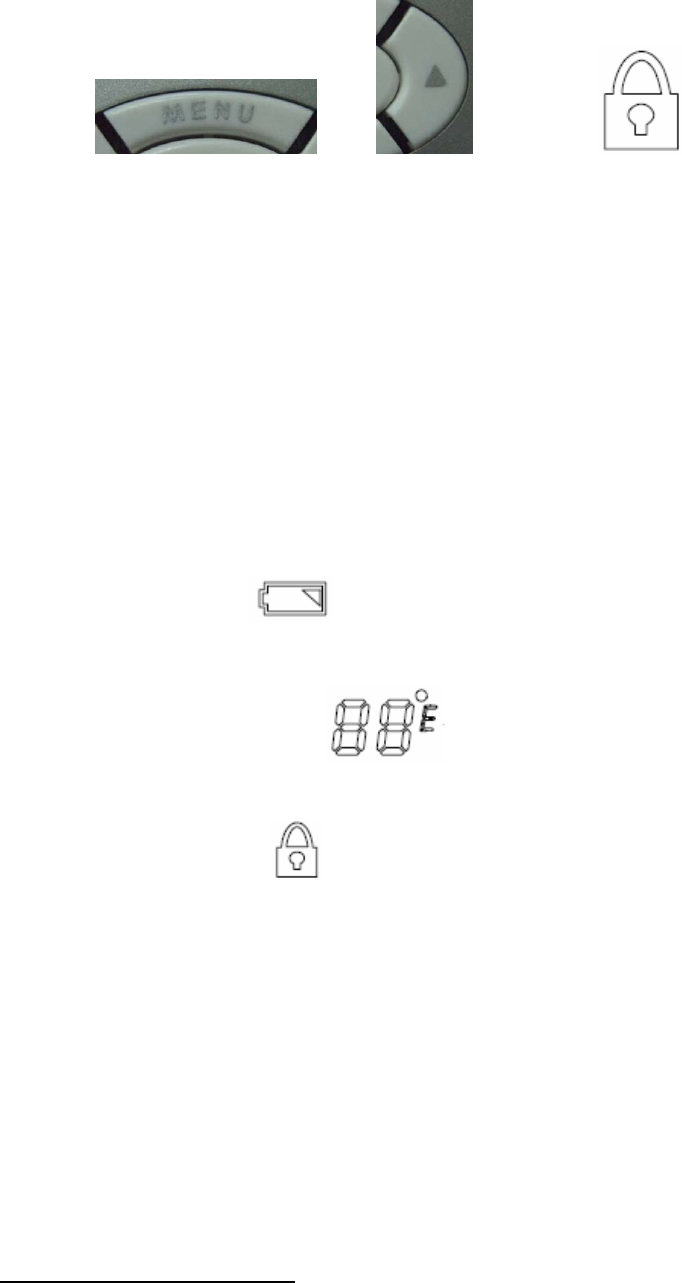

4) Child Proof Lockout: To activate the child-proof lockout feature, press and hold
and buttons, “ ＂ will briefly
appear immediately on screen.
5) Initial Setting: the small button locate inside battery lid to enter the
initial setting for C/F conversion and Swing Setting.
z Operation Description:
1) Low Battery ( ) will appear when battery power has dropped
significantly.
2) The room temperature always shows on screen, which range
between 32 and 99 Fahrenheit.
3) The Child Proof ( ) will appear on screen if the “Lock-out＂ Feature is
activation.
z Further Description
1) Radio Frequency range: 303.8MHZ
2) The remote receiver is Smart MOD.
3) The remote controller effective distance is above 40 feet.
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
cause undesired operation.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
