Skyworth Digital Technology A12E 4K IPTV Set Top Box User Manual
Shenzhen Skyworth Digital Technology Co.,LTD 4K IPTV Set Top Box
User manual
Operating Manual
A12E
4K IPTV Set Top Box
Table of Contents
Quick Setup Guide…………………………….. Page 1
Specifications…………………………………...Page 2
Safety Information……………………………...Page 3
General Information…………………………… Page 5
Packing Details………………………………… Page 6
Rear Panel………………………………………. Page 6
Connection Overview ………………………….Page 7
Remote Control………………………………… Page 8
Connect to TV with AV Cable………………...Page 9
Connect to TV with HDMI Cable…………….. Page 10
Warranty………………………………………….Page 11
Noxious Substance……………………………. Page 18
Quick Setup Guide
1
1. Connect A12E to TV
Use the included AV or HDMI cable.
2. Connect A12E to Power
Plug included power adapter into A12E and wall AC electric receptacle.
3. Connect A12E to Network
Use an Ethernet cable or configure Wi-Fi (See step 4).
4. For Wi-Fi Only
Select Wi-Fi settings.
Select preferred Wi-Fi network.
Provide password (if required) for the selected Wi-Fi network.
(Some Wi-Fi networks may require a user name & password).
5. Watch TV on the A12E
From “Home” screen, select shortcut for IPTV player application.
A12E will start on the last channel watched.
Specifications
2
Safety Information (1)
3
Do not place A12E, remote
controller or batteries in direct
sunlight, near exposed flame, or
other heat source.
The A12E should not be placed
near liquid or objects filled with
liquid.
To prevent electric shock, do not
open the A12E enclosure. Refer
servicing to qualified personnel.
Do not block ventilation holes of
the A12E, to permit proper air
circulation.
Safety Information (2)
4
Do not touch the A12E during a
lightning storm, which may
create electric-shock hazards.
Unplug A12E power immediately
if any unexpected behavior.
(smoking, sound, smell, etc.).
FCC STATEMENT
1.This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation.
General Information
5
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of
the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for
an uncontrolled environment. In order to avoid the possibility of exceeding
the FCC radio frequency exposure limits, human proximity to the antenna
shall not be less than 20cm(8 inches) during normal operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.

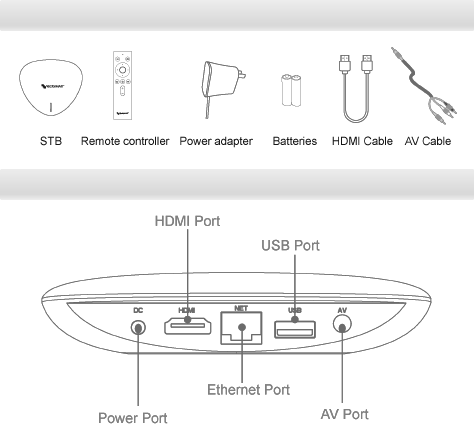

Packing Details
Rear Panel
6

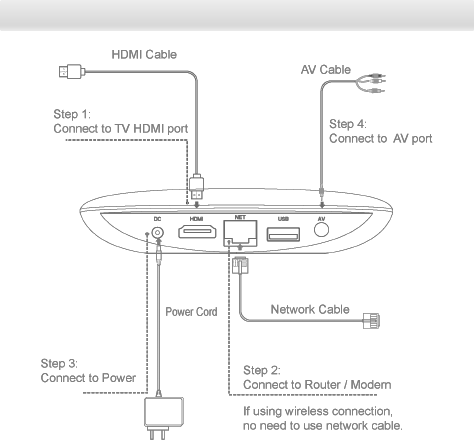

Connection Overview
7

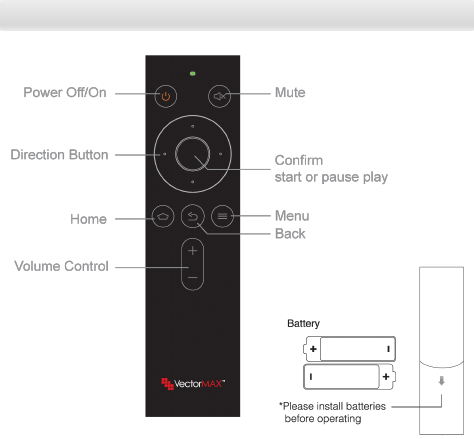

Remote Control
8

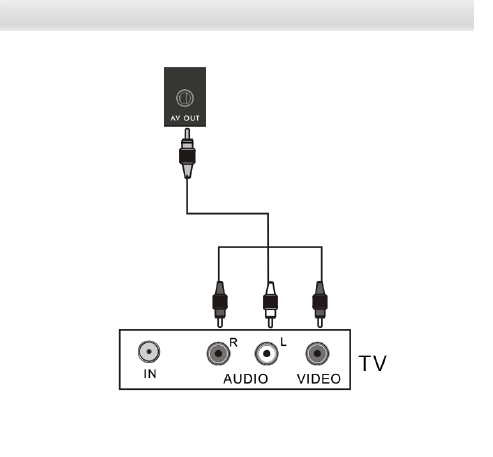

Connect to TV with AV Cable
9
Connect to TV with HDMI Cable
10
Warranty (1)
11
VectorMAX Warranty
Thank you for your patronage. We at VectorMAX Corporation
("VectorMAX") appreciate your loyalty and support. VectorMAX is
committed to providing you with the highest quality most feature filled
experience available. If you received this device from a third party such
as a carrier or service provider, please contact that entity for all service
related and product warranty issues. Please do not contact VectorMAX
directly if you did not purchase this device yourself from an authorized
retailer.
IF YOU PURCHASED THIS DEVICE, PLEASE FILL OUT THE
ENCLOSED WARRANTY CARD AND RETURN TO VECTORMAX
CORPORATION WITH A COPY OF YOUR PURCHASE RECIEPT TO
ACTIVATE YOUR WARRANTY
Limited Warranty
For direct purchasers of this device, the warranty obligations of
VectorMAX for this product are limited to the terms set forth below:
Warranty (2)
12
What is Covered
This limited warranty covers defects in materials and workmanship in this
product.
Thank you for your patronage. We at VectorMAX Corporation appreciate
your loyalty and support. VectorMAX is committed to providing you with
the highest quality most feature filled experience available.
This product guaranteed for 12 months after date of purchase against all
defects due to faulty design or manufacture. Should this device not
perform as required
What Is Not Covered
This limited warranty does not cover any damage, deterioration or mal-
function resulting from any alteration, modification, improper or unreason-
able use or maintenance, misuse, abuse, accident, neglect, exposure to
excess moisture, fire, improper packing and shipping (such claims must
be presented to the carrier), lightning, power surges, or other acts of
nature. This limited warranty does not cover any damage, deterioration or
malfunction resulting from the installation or removal of this product from
any installation, any unauthorized tampering with this product, any repairs
attempted by anyone unauthorized by VectorMAX to make such repairs,
or any other cause which does not relate directly to a defect in materials
and/or workmanship of this product. This limited warranty does not relate
Warranty (3)
13
directly to a defect in materials and/or workmanship of this product. This
limited warranty does not cover cartons, equipment enclosures, cables or
accessories used in conjunction with this product. Without limiting any
other exclusion herein, VectorMAX does not warrant that the product
covered hereby, including, without limitation, the technology and/or
integrated circuit(s) included in the product, will not become incompatible
with other devices or that such items are or will remain compatible with
any other product or technology with which the product may be used.
How Long this Coverage Lasts
The standard limited warranty for VectorMAX products is one (1) year
from the date of original purchase.
Who is Covered
Only the original purchaser of this product is covered under this limited
warranty. This limited warranty is not transferable to subsequent purchas-
ers or owners of this product.
What VectorMAX Will Do
VectorMAX will, at its sole option, provide one of the following three rem-
edies to whatever extent it shall deem necessary to satisfy a proper claim
under this limited warranty:
1. Elect to repair or facilitate the repair of any defective parts within a
Warranty (4)
14
reasonable period of time, free of any charge for the necessary parts and
labor to complete the repair and restore this product to its proper
operating condition.
2. Replace this product with a direct replacement or with a similar product
deemed by VectorMAX to perform substantially the same function as the
original product.
3. Issue a refund of the original purchase price less depreciation to be
determined based on the age of the product at the time remedy is sought
under this limited warranty.
What VectorMAX Will Not Do
Under This Limited Warranty If this product is returned to VectorMAX or
the authorized dealer from which it was purchased or any other party
authorized to repair VectorMAX products, this product must be insured
during shipment, with the insurance and shipping charges prepaid by you.
If this product is returned uninsured, you assume all risks of loss or dam-
age during shipment. VectorMAX will not be responsible for any costs
related to the removal or re-installation of this product from or into any
installation. VectorMAX will not be responsible for any costs related to any
setting up this product, any adjustment of user controls or any program-
ming required for a specific installation of this product.
Warranty (5)
15
How to Obtain a Remedy Under This Limited Warranty
To obtain a remedy under this limited warranty, you must contact either
the authorized VectorMAX reseller from whom you purchased this product
or the VectorMAX office nearest you. For a list of authorized VectorMAX
resellers and/or VectorMAX authorized service providers, visit our web site
at www.vectormax.com or contact the VectorMAX office nearest you. In
order to pursue any remedy under this limited warranty, you must possess
an original, dated receipt as proof of purchase from an authorized
VectorMAX reseller. If this product is returned under this limited warranty,
a return authorization number, obtained from VectorMAX, will be required
(RMA number). You may also be directed to an authorized reseller or a
person authorized by VectorMAX to repair the product. If it is decided that
this product should be returned directly to VectorMAX, this product should
be properly packed, preferably in the original carton, for shipping. Cartons
not bearing a return authorization number will be refused.
Limitation of Liability
THE MAXIMUM LIABILITY OF VECTORMAX UNDER THIS LIMITED
WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE
PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED
BY LAW, VECTORMAX IS NOT RESPONSIBLE FOR DIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING
Warranty (6)
16
ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY
OTHER LEGAL THEORY. Some countries, districts or states do not allow
the exclusion or limitation of relief, special, incidental, consequential or
indirect damages, or the limitation of liability to specified amounts, so the
above limitations or exclusions may not apply to you.
Exclusive Remedy
TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED
WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE
EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES
AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR
IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW,
VECTORMAX SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF
VECTORMAX CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED
WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED
WARRANTIES COVERING THIS PRODUCT, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS
PROVIDED UNDER APPICABLE LAW. IF ANY PRODUCT TO WHICH
THIS LIMITED WARRANTY APPLIES IS A “CONSUMER PRODUCT”
Warranty (7)
17
UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301,
ET SEQ.) OR OTHER APPICABLE LAW, THE FOREGOING
DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU,
AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE
PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER
APPLICABLE LAW.
Other Conditions
This limited warranty gives you specific legal rights, and you may have
other rights which vary from country to country or state to state. This
limited warranty is void if (i) the label bearing the serial number of this
product has been removed or defaced, (ii) the product is not distributed by
VectorMAX or (iii) this product is not purchased from an authorized
VectorMAX reseller. If you are unsure whether a reseller is an authorized
VectorMAX reseller, visit our web site at www.vectormax.com or contact a
VectorMAX office from the list at the end of this document. Your rights
under this limited warranty are not diminished if you do not complete and
return the product registration form or complete and submit the online
product registration form. VectorMAX thanks you for purchasing a
VectorMAX product. We hope it will give you years of satisfaction.
Noxious Substance
18
Content of the noxious substance in the homogenous material of
this part is below the limited requirement regulated by Directive
2011/65/EU (RoHs).
Content of the noxious substance in the homogenous material of
this part is above the limited requirement regulated by Directive
2011/65/EU (RoHs). The noxious substance is limited by
technology development level, which could not be replaced or
reduced at the current time. This device is not harmful to
consumer health under normal operating conditions.
