User’s Information Manual

Galaxy GG, GX, GXH & GXHA Series, Sentry S/SX Series

and Sentinel SE Series Gas Boilers with Continuous Pilot

WARNING: If the information in this

manual is not followed exactly, a fire

or explosion may result causing

property damage, personal injury or

loss of life.

—DO NOT store or use gasoline or

other flammable vapors and liquids in

the vicinity of this or any other appliance.

—WHATTO DO IF YOU SMELL GAS

• DO NOT try to light any appliance.

• DO NOT touch any electrical

switch; DO NOT use any phone in

your building.

• Immediately call your gas supplier

from a neighbor's phone. Follow

the gas supplier's instructions.

• If you cannot reach your gas

supplier, call the fire department.

— Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

DO NOT use this boiler if any part has

been underwater. Immediately call a

qualified service technician to inspect

the boiler and to replace any part of the

control system and anygas control

which has been underwater.

WARNING

Should overheating occur or the gas

supply fail to shut off, DO NOT turn off

or disconnect the electric supplyto the

circulator pump. Instead, shut off the

gas supplyat a location EXTERNAL to

the appliance.

If your boiler is purchased with or will be equipped with an automatic vent damper, make certain

that the damper is installed and wired by a qualified installer who has been certified by your local

gas utility. See Vent Dampers page 7.

Keep the boiler area clean and free of all materials that can burn.

Never close or reduce openings that supply air for the boiler combustion and for ventilation.

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

FOR YOUR SAFETY:

• Before operating this boiler, READ this manual.

• DO NOT attempt to install, service or repair this boiler yourself. There are no user serviceable

parts. Contact a qualified service agency if your boiler needs repair or maintenance. Ask your

gas supplier for a list of qualified service agencies.

Printed in U.S.A. 1005 PUBLICATION NO. GS-UIM-CBP

PartNo. 41-1824

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

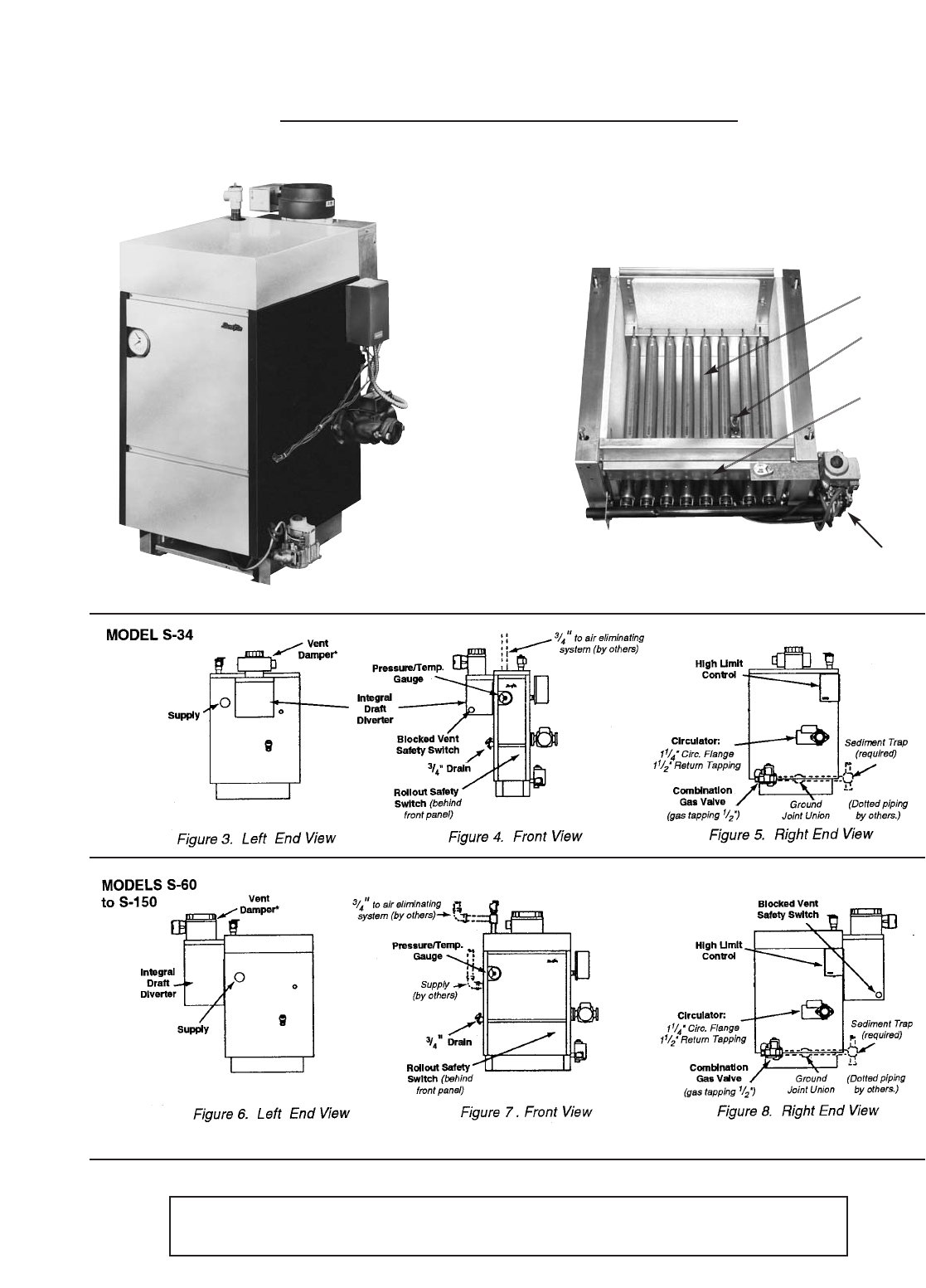

SENTRY “S” SERIES HOT WATER BOILER

WITH INTEGRAL DRAFT DIVERTER

Location and identification of parts

See lighting instructions on pages 7-8.

Figure 1.

Figure 2.

Front and Right End View

Models S-60 thru S-150

Burners

Pilot

Burner

Access

Door

Gas Valve

Base Assembly

2

*Vent damper may be installed horizontally on all models with use of a common vent elbow.

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

See lighting instructions on pages 7-8.

SENTINEL “SE” SERIES and

SENTRY “SX” SERIES HOT WATER BOILER

WITH EXTERNAL DRAFT HOOD

Location and identification of parts

Figure 9.

Front and Right End View

Figure 10.

Burners

Pilot

Burner

Access

Door

Gas Valve

Base Assembly

*Vent damper may be installed horizontally on all models with use of a common vent elbow.

3

MODELS SX-150

to SX-210 and

SE-70 to SE-245

GALAXY GG/GX GXHA SERIES HOT WATER AND STEAM BOILER

Location and identification of parts

Figure 14.

Figure 15.

Figure 17.

Name and

Rating Plate

Lighting

Instructions

(inside front

panel)

Gas Valve

Burner

Access Door

Burners

Gas Manifold

Jacket Top

Relief Valve

Temperature

and Pressure

Gauge

Jacket Top

Pop Safety Valve Pressure Gauge

Front

Panel

4

Figure 16 GXHA Series—Steam Boiler

Jacket Top

Pop Safety Valve Pressure Gauge

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

See lighting instructions on page 8.

Easy access front panel on standard extended jacket, is removed

by simply pressing hand against panel and pushing up.

Inspection, cleaning, repair—

Chimney, flue pipe and boiler

Your boiler and heating system will last an indefinitely

long time at full efficiency, if it is inspected regularly

and is kept in good repair and adjustment.You, the user,

should make regular inspections, and report any prob-

lems to your service agency. At regular intervals, you

should have that agency inspect the system, and clean

the boiler and make repairs and adjustments as neces-

sary. What you and the service agency should do are

listed below.

Contact your gas supplier for a list of qualified service

and repair agencies.

User inspection

At least once each month during the heating season

and once just before cold weather starts:

(1) Look closely at the smokepipe and draft hood (see

Figure 18, 19 & 20). Make sure pipe joints are snug

and are fastened with screws. Cement at the chim-

ney joint should fill the joint and should not leak air.

There should be no visible signs of rust (corrosion)

or salts from water evaporation.

(2) Look at all water (or steam) piping. There should be

no leaks or signs of leaks at any pipe joints or

around the boiler. Drain valves, other valves, and

the relief valve (or steam safety valve) should not

drip or leak.

(3A) On water boilers:

The temperature and pressure gauge indicates the

pressure in the boiler at each water temperature.

For most installations, it should indicate about 12 to

15 psi pressure when temperature is about 70 to

100 degrees F, and from 15 psi to 25 psi when tem-

perature is up to 240 degrees F. FOR YOUR SYS-

TEM, there is one correct pressure for each temper-

ature.ASK YOUR INSTALLER OR SERVICEPER-

SON TO EXPLAIN AND SHOW YOU. Learn what

normal pressures to look for. If pressure decreases

from normal, your system is losing water.If pres-

sure rises from normal, the relief valve will open to

relieve the pressure. Call your service organization

if pressures are higher or lower than normal, and if

the relief valve spills water. Repair or adjustment is

needed.

(3B) On steam boilers:

(a) The water level in the gauge glass must be kept

constant. You must have your installer or service

organization explain to you how water is added to

maintain water level.

(b) Most boiler models are equipped with float type low

water cutoff.

You must be familiar with this LOW WATER CUT-

OFF, how it works and HOW TO BLOW IT DOWN.

Instructions are supplied with it. Ask your service

organization to explain and show you blowdown.

The cutoff should be blown down three times the

first week and should be blown down weekly there-

after. Maintenance of the low water cutoff is vital in

protecting your steam boiler against breakage due

to loss of water.

If your boiler is equipped with an electronic probe

type low water cutoff, it requires periodic testing.

Ask your service agency to test this low water cutoff

twice a year.

(4) Study the labels attached to your boiler, especially

the LIGHTING AND SHUTDOWN instructions. Have

your installer or service organization show you how

to start and shut down the boiler following those

instructions. The lighting instructions on your boiler

are also reproduced, with pictures, in this manual.

(5) Stand near the boiler, look and listen. As the burners

start and shut off, there should be no unusual noise.

No fire should be visible coming out of the front

when the burners start or run.

(6) Ample air is required for your boiler to burn fuel

cleanly and safely. Check to make sure the open-

ings provided in your house are not closed and are

not obstructed. This is most important in colder

weather, when most air is needed.

5

Figure 18. (Galaxy GG, GX, GXH,

Sentinel SE, Sentry SX boilers) Figure 19. Figure 20.

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

(7) If equipped with vent damper, which can ONLY be

installed on boilers equipped with 24 volt gas valve:

(a) Your vent damper must be OPEN when the boiler is

operating (BURNERS ARE ON). Ask your installer

or serviceperson to show you the vent damper posi-

tion indicator, indicating the open and closed

damper positions. Inspect for proper operation

monthly. If damper position indicator indicates that

the damper is closed when the boiler is operating,

SHUTDOWN the boiler immediately and call your

service agency.

(b) This device must be installed and inspected annually

by a qualified installer in accordance with the

Slant/Fin vent damper installation instructions. If

improperly installed, a hazardous condition such as

explosion or carbon monoxide poisoning could

result. If installed improperly, all vent damper and

boiler warranties shall be voided.

SERVICE INSPECTION

The selected service organization should make these

inspections,preferably once each year, before the cold

weather begins:

(1) Make the checks for leaks, corrosion, noise, flame,

heat and outside air supply described under User’s

Inspection.

(2) Check safety operation of the HIGH LIMIT CON-

TROL (and, for steam boilers, the LOW WATER

CUTOFF) and GAS VALVE. If the boiler is equipped

with an automatic vent damper, check this device for

safeand automatic operation.

(3) Check gas input rate, by clocking the gas meter.

Inspect burner flame. Clean and adjust burners and

adjust gas rate as required.

(4) Disconnect flue pipe from draft hood. Remove draft

hood and inspect boiler heating surface below. If any

soot, scale or rust is visible, clean the boiler as

described in the next section.

(5) Replace anycorroded smokepipe. Repair or re-

place other devices as found necessary. Check and

adjust for normal operation. Explain to the user

what was done and what to look for to prevent fu-

ture problems.

CLEANING—BOILER, SMOKEPIPE,

CHIMNEY (See Figure 21). If necessary as indicated

in (4) of Service Inspection section, the selected service

organization should clean the boiler as follows:

(1) Shut off electric power and gas supply.

(2) Disconnect smokepipe and remove draft hood.

(3) Remove jacket top panel. Remove flue cover

from boiler.

(4) Remove access door and remove burners, or place

cover over burners for dirt protection.

(5) Brush down boiler flues to bare metal. Clean all

debris from bottom of boiler after brushing.

Clean burner slots, if necessary.

(6) Replace flue cover and seal with furnace cement.

Replace burners if removed. Replace access door.

(7) Inspect draft hood and smokepipe. If corroded,

replace. If soot or deposits from condensation are

found, clean out, and inspect inside of chimney for

soot or other deposits. Clean if necessary.

(8) Reconnect hood and flue pipe and fasten and seal

all joints. Turn on gas and electric power.

(9) Check boiler performance after cleaning, and adjust

as necessary.

NOTE: Condensate (water), rust, scale and soot are not

found in the boiler or smokepipe of normally operating

system. If any of these is found, eliminate the cause.

The most likely cause of condensate and corrosion or

soot is (a) restricted air supply, or (b) a faulty chimney.

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

If you find during your inspection any unusual

noise, water leak, corroded smokepipe, abnor-

mal water pressure or flame rollout, call for

service immediately.

6

Figure 21.

VENT DAMPERS

ASlant/Fin vent damper is available only as part of a

Slant/Fin gas boiler package equipped with a 24 volt

gas valve. This vent damper is design certified by A.G.A.

for use only on specific Slant/Fin Corporation gas boiler

models.

These boilers will be equipped with a plate which states

that the boiler may be used with a Slant/Fin Corp. auto-

matic vent damper device and indicates the proper vent

damper model number.

OTHER VENT DAMPER OR DEVICES WITH SIMILAR

PURPOSE ARE NOT PERMITTED.

WITH ANY VENT DAMPER

OR PILOT SYSTEM

(a) DO NOT attempt to install or adjust or service it

yourself.

(b) Make certain that the installation is approved by your

local gas utility.

IGNITION SYSTEM—CONTINUOUS

BURNING (STANDING) PILOT

Your gas boiler is equipped with the Honeywell VR8200

or VR8300 gas valves. See Safety and Lighting

Instructions on pages 7 and 8 and Figure 22.

SAFETY AND LIGHTING INSTRUCTIONS

FOR IGNITION SYSTEMS EQUIPPED WITH GAS

VALVES VR8200 AND VR8300

SAFETY INFORMATION

For Your Safety Read Before Lighting

WARNING: If you do not follow these instructions

exactly, a fire or explosion may result causing

property damage, personal injury or loss of life.

A. This appliance has a pilot which must be lighted by

hand. When lighting the pilot, follow these instruc-

tions exactly.

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

WARNING

Should overheating occur or the gas supply fail to shut off, DO NOT turn

off or disconnect the electric supplyto the circulator pump. Instead,

shut off the gas supply at a location EXTERNAL to the appliance.

7

Figure 22. Continuous (Standing) Pilot

Ignition System

B. BEFORE OPERATING smell all around the appli-

ance area for gas. Be sure to smell next to the floor

because some gas is heavier than air and will settle

on the floor.

WHAT TO DO IF YOU SMELL GAS

• DO NOT try to light any appliance.

• DO NOT touch any electric switch; DO NOT use

any phone in your building.

• Immediately call your gas supplier from a neigh-

bor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire

department.

C. Use only your hand to push in or turn the gas control

knob. NEVER use tools. If the knob will not push in

or turn by hand, DON’T try to repair it, call a quali-

fied service technician. Force or attempted repair

may result in a fire or explosion.

D. DO NOT use this appliance if any part has been

underwater. Immediately call a qualified service

technician to inspect the appliance and to replace

any part of the control system and any gas control

which has been underwater.

LIGHTING INSTRUCTIONS

1. STOP! Read the safety information on page 7 and

above.

2. Set the thermostat to lowest setting.

3. Turn off all electrical power to the appliance.

4. Remove control access panel. (Galaxy models

only.)

5. Turn gas control knob clockwise to “OFF”.

6. Wait five (5) minutes (longer for propane) to clear

out anygas,then smell for gas, including near the

floor. If you then smell gas STOP! Follow “B” in the

safety information above on this page, if you don’t

smell gas, go to next step.

7. Remove the pilot access panel located below and

behind the gas control unit.

8. Find pilot, follow metal tube from

gas control. The pilot is between

two burner tubes behind the pilot

access panel.

9. Turn knob on gas control counterclockwise

to “PILOT”.

10. Push in red button all the way and hold in.

Immediately light the pilot with a match. Continue to

hold the red button in for about one (1) minute after

the pilot is lit. Release button and it will pop back

up. Pilot should remain lit. If it goes out, repeat

steps 5 through 10.

• If button does not pop up when released, stop

and immediately call your service technician or

gas supplier.

• If the pilot will not stay lit after several tries, turn

the gas control knob to “OFF” and call your

service technician or gas supplier.

11. Replace pilot access panel.

12. Turn gas control knob counterclockwise to

“ON”.

13. Replace control access panel. (Galaxy models

only.)

14. Turn on all electric power to the appliance.

15. Set thermostat to desired setting.

TOTURN OFF GAS TO APPLIANCE

1. Set the thermostat to lowest setting.

2. Turn off all electric power to the appliance, if service

is to be performed.

3. Remove control access panel. (Galaxy models

only.)

4. Turn gas control knob clockwise to “OFF”. DO

NOT force.

5. Replace control access panel. (Galaxy models

only.)

These boilers are equipped with both a blocked vent

safety switch and a rollout safety switch. The blocked

vent safety switch is located on the draft hood flue stack.

This is a manual reset control used to prevent excessive

spillage of flue gases from the draft hood. The rollout

safety switch is a single use (one time) thermal fuse to

prevent the boiler from operation if flue passages are

blocked. If either of these devices operate to shut down

the burners, follow instructions in the section “To Turn

Off Gas To Appliance” and call your service technician

or gas supplier.

Your gas boiler must be installed and serviced by a qualified service agency or

gas supplier. The lack of proper service can result in a dangerous condition.

SLANT/FIN CORPORATION, Greenvale, N.Y. 11548 • Phone: (516) 484-2600

FAX: (516) 484-5921 •Canada: Slant/Fin LTD/LTEE,Mississauga, Ontario

www.slantfin.com

©Slant/Fin Corp. 2004.
