Smarfid Security Equipment HR3D28N Slender Series 125 kHz Reader User Manual Mounting
Shanghai Smarfid Security Equipment Co., Ltd. Slender Series 125 kHz Reader Mounting
User Manual
Slender Series 125 kHz Reader
User Manual
Product Name: Slender Series 125 kHz Reader
Brand: Vitto
Model: HR3D2-8N
Manufacture: Shanghai Smarfid Security Equipment
Co.,Ltd.
Slender Series 125 kHz Reader
Mounting:

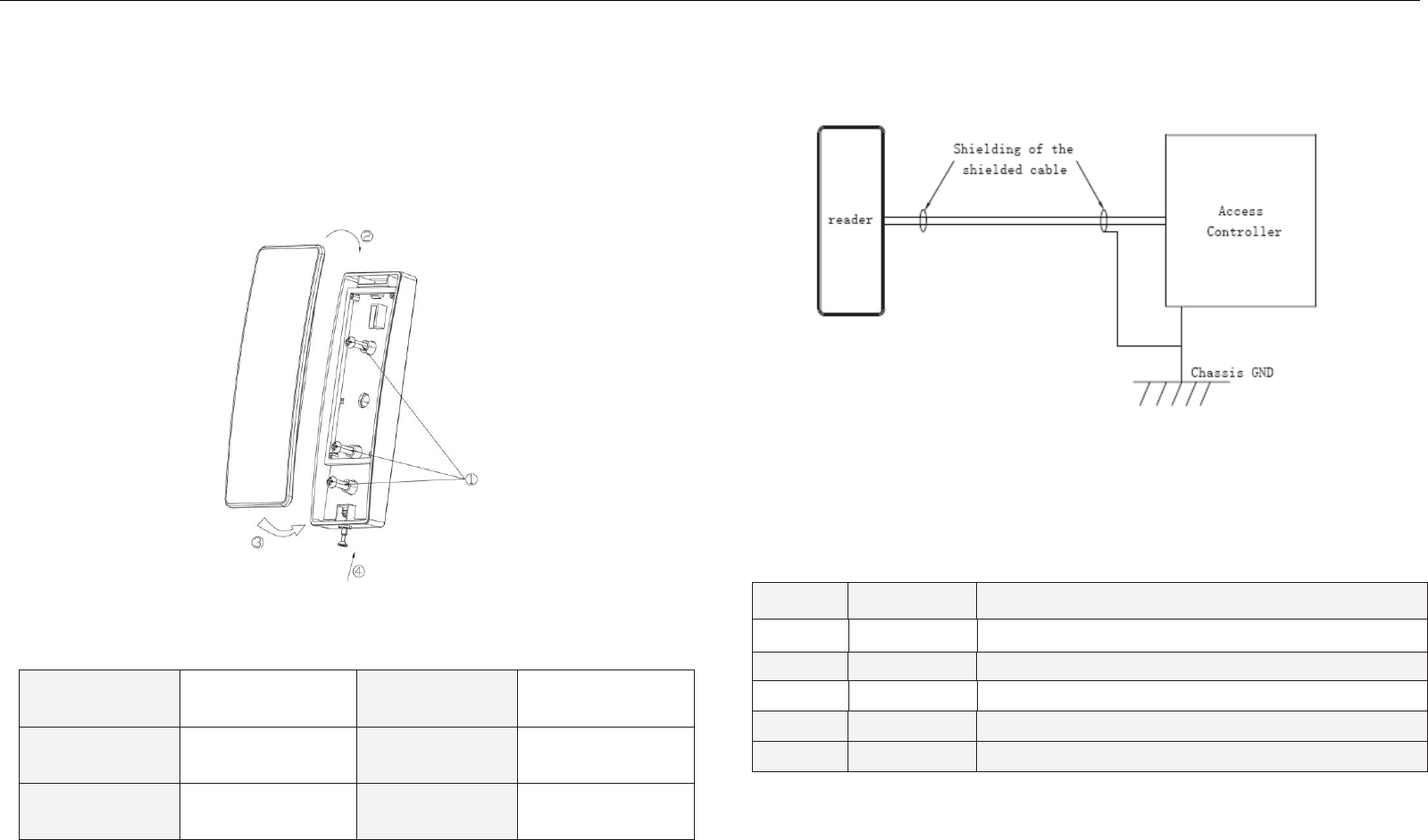

1. Install the back plate on the wall as shown in the diagram below.
2. The cover shall clip on the upper edge the push in the bottom part as show in
diagram.
3. Tighten the non-dropout screw, which located underneath of the reader to fix the reader and
the back plate, installation is completed.
Specification:
Recommendation:
1. Linear DC Power Supply;
2. 22AWG shielded cable; it’s required to do “one-point” ground. (As shown in the diagram)
Wiring:
Input Voltage (at
Reader end)
DC5V~12V
Typical Read
range
> 6cm
Operating Current
100mA (max)
Maximum Cable
Length
150m
Operating
Temperature
-10ºC~70 ºC
Color
Label
Description
Red
+12V dc
Power Supply to the reader
Black
GND
Signal GND
Green
Data0
Wiegand Output data, D0
White
Data1
Wiegand Output data, D1
Blue
Green LED
Green LED control, active low
Slender Series 125 kHz Reader
Power up Sequences:
1. This is a Slender Series 125 kHz Reader. When reader is powered up, the Green back will flicker for 5 seconds. The reader will beep once and the reader is in Ready mode.
2. Present the card. The Red LED will flicker once; buzzer will beep once.
3. When card is present and read by the reader, the card data will be transmitted to the controller. Whether the back lit of the reader will remain ON or Flash or change to Green or Red color, this
depends on the Green LED inputs.
4. For number pad reader, when a number is pressed and successfully detected, the back lit under the number will flash 1 time and the buzzer will beep once. The number being pressed will burst out
by default (4 bits burst).

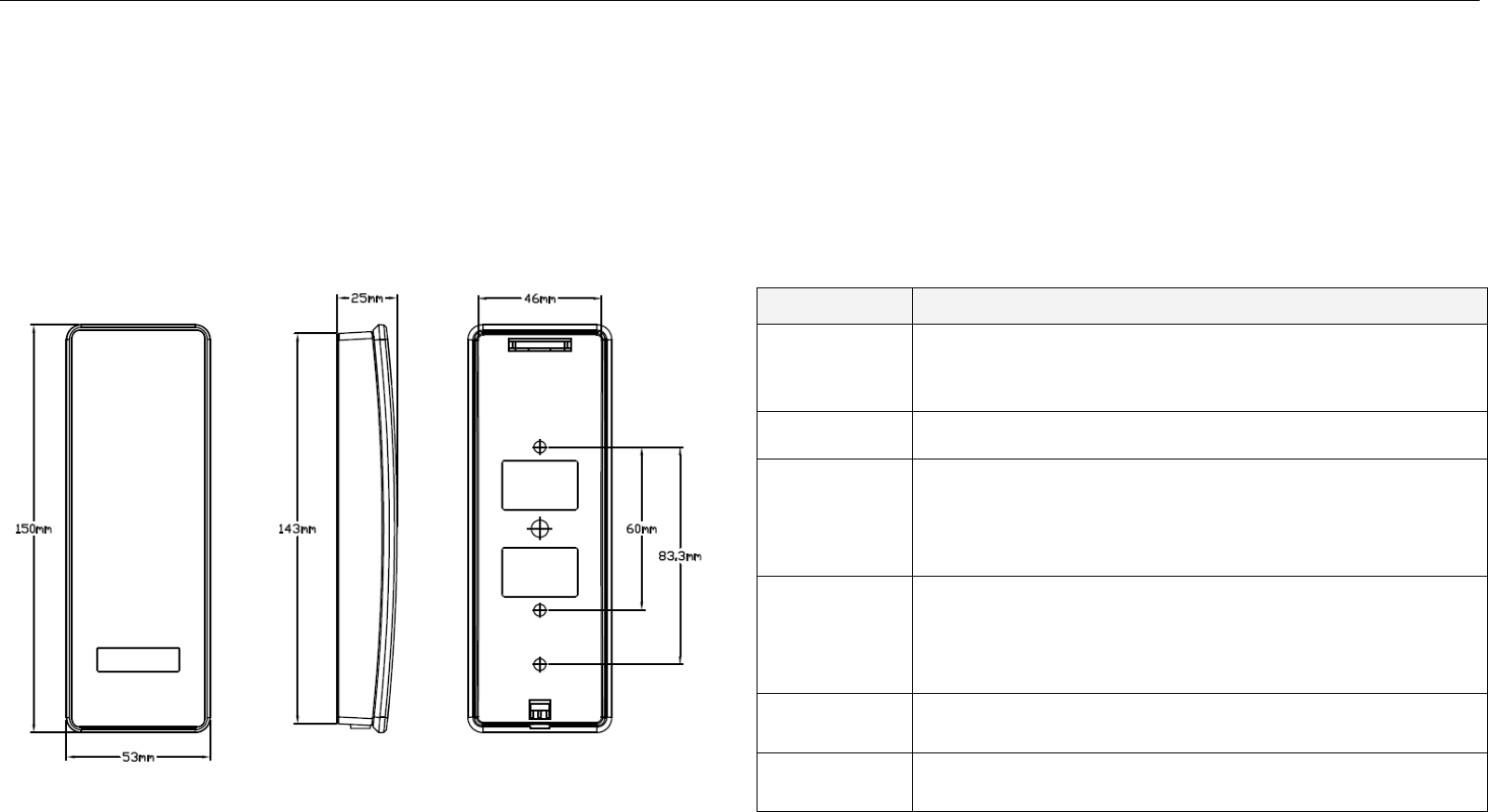

Physical Dimension:
Troubleshooting:
Trouble List
Solution
No Response
when Power Up
Disconnect the power and confirm that the power supply cable is
correctly connected (See “Wiring” above).
Check the input voltage is sufficient (See “Specifications” above).
Auto Restart
Check the input voltage is sufficient (See “Specifications” above).
Cannot read card
number correctly
Check the format setting on the controller if it is the same as the card
format. Use approved card (known format and Facility Code) to test.
Check if the shield cable is correctly connected to Classis Ground at
ONE point only.
Reader beeps but
No card data info
Check if data 0 & data 1 cable is correctly connected (See “Wiring”
above).
Check the input voltage at the card reader end is correct (See
“Specifications” above).
Back Lit Error
Check the LED cable is correctly connected (See “Wiring” above).
Use Default Configuration Card to set it back to normal.
Keypad
No Response
Power off reader for 5 seconds and power on again
Slender Series 125 kHz Reader
