Shanghai Smarfid Security Equipment Co, Ltd. Mifare Slender Reader Users Manual
Users Manual
Mifare Contactless Reader (MW3528) Operation Manual
ver1.0
Model：MW3528
General
This is a Mifare flash reader. When a card is being read by the reader, the reader will lit up.
Reader Start up
When reader power up, the reader will lit ON. The Red LED will blinks for 5 seconds. After 5 seconds, the reader
will ‘beep’ to indicate the start up procedures is finished.

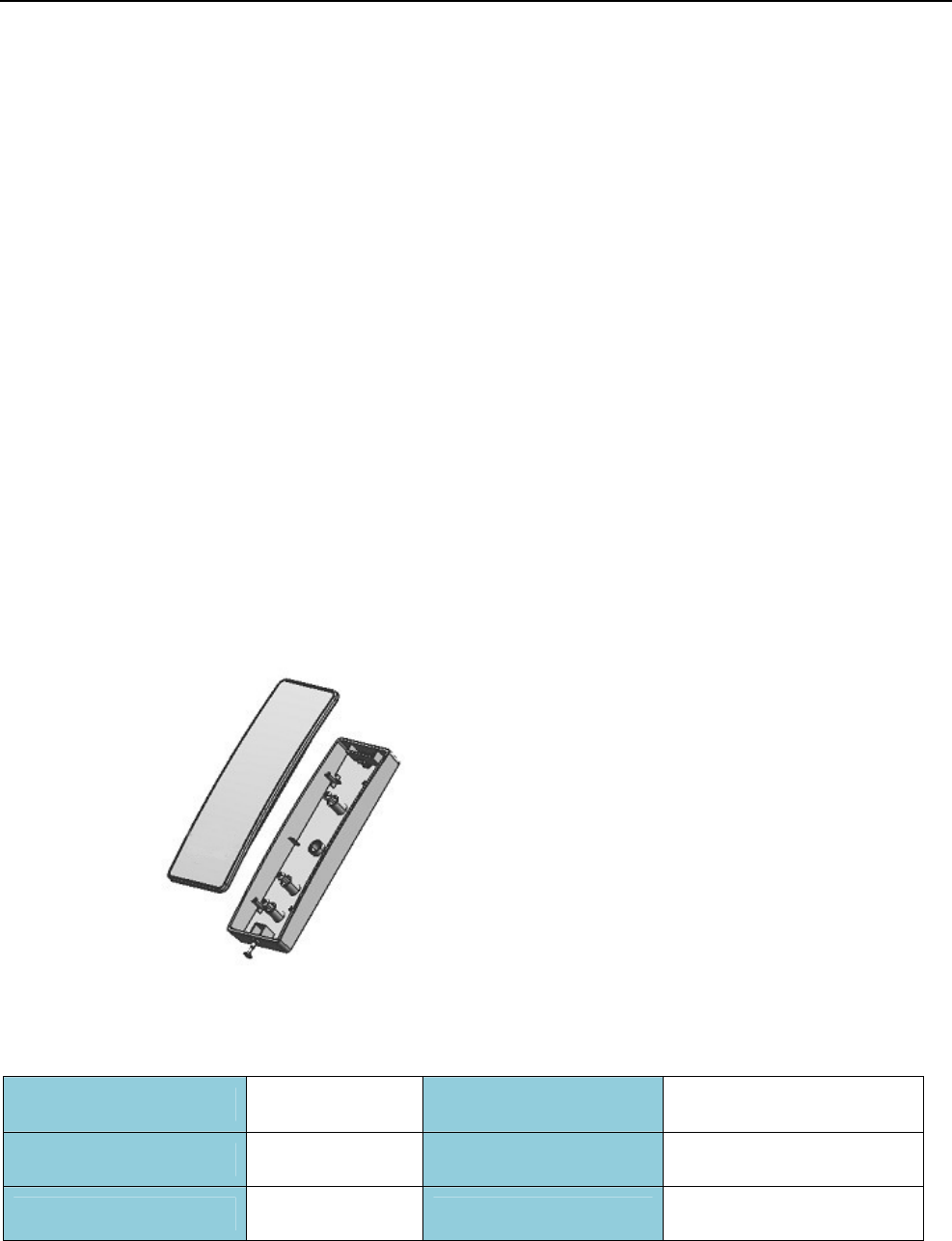

Installation Diagram
1. The back part shall fit on the wall.
2. The cover shall clip on the upper edge of the back part first.
3. After, tighten the screw goes underneath of the reader to fix the reader with the back part.
Operating Specification:
Operating Voltage 9-13VDC Typical read range 5cm
Operating current 120mA Standard Color Black
Operating Temperature -20℃ - 60℃ Exterior dimension 150mm×53mm×25mm
SIEMENS Mifare Contactless Reader Operation Manual ver1.0
Function Description
Wiring Connection Table
Color Label Description
Red +12Vdc Power Supply to the reader
Black GND Signal GND
Green Data0 Wiegand Output data, D0
White Data1 Wiegand Output data, D1
Yellow R_LED No use
Blue B_LED Blue LED control, active low
Brown Buzzer Can be control by outside device, active low
Grey No use No use

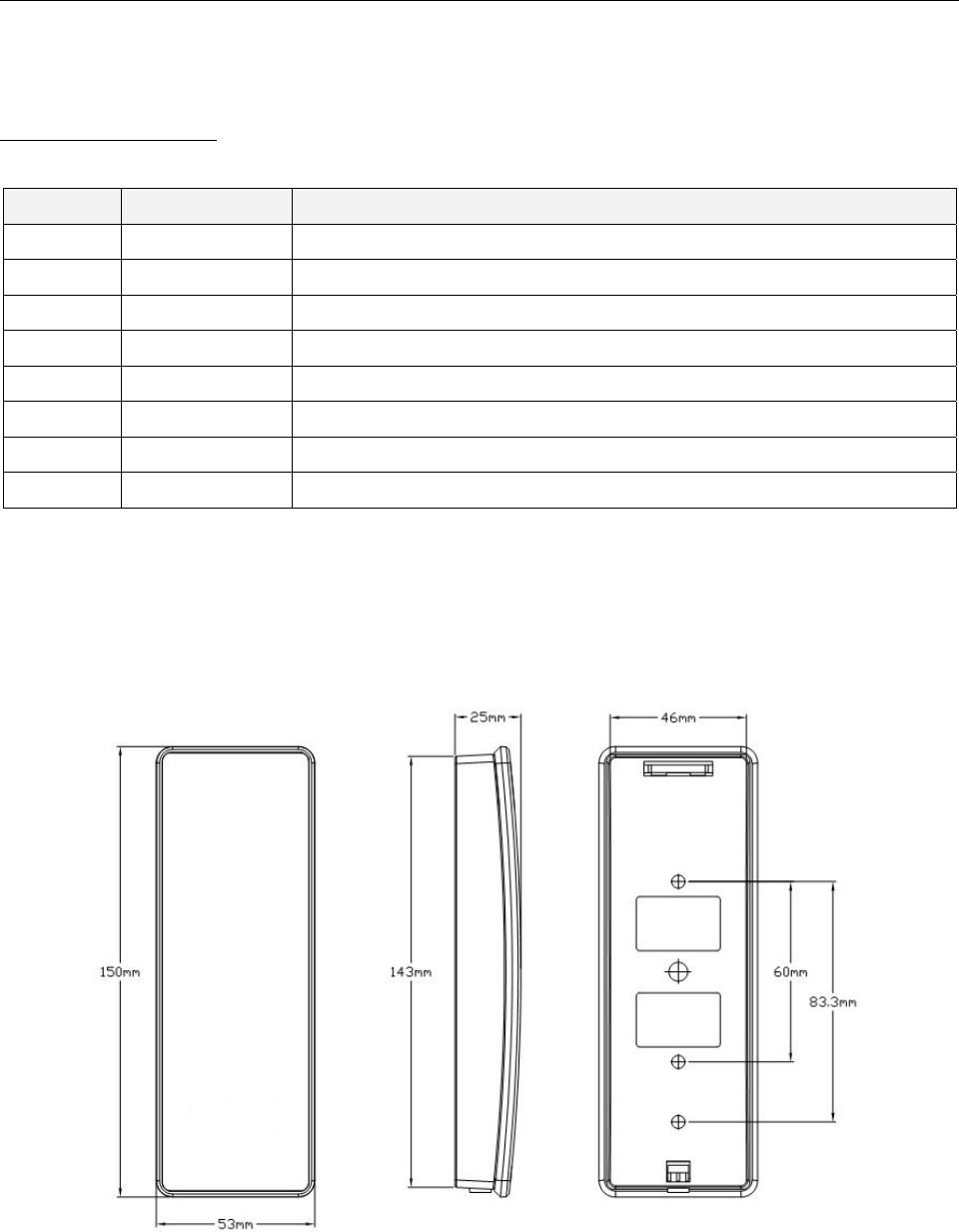

Physical Dimension
SIEMENS Mifare Contactless Reader Operation Manual ver1.0
FCC Caution:
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference;
(2) This device must accept any interference received, including interference that
may cause undesired operation.
