Smarfid Security Equipment MW3D28N Slender Series 13.56 MHz Reader User Manual Mounting
Shanghai Smarfid Security Equipment Co., Ltd. Slender Series 13.56 MHz Reader Mounting
User Manual
Slender Series 13.56 MHz Reader
User Manual
Product Name: Slender Series 13.56 MHz Reader
Brand: Vitto
Model: MW3D2-8N
Manufacture: Shanghai Smarfid Security Equipment
Co., Ltd.
Slender Series 13.56 MHz Reader
Mounting:

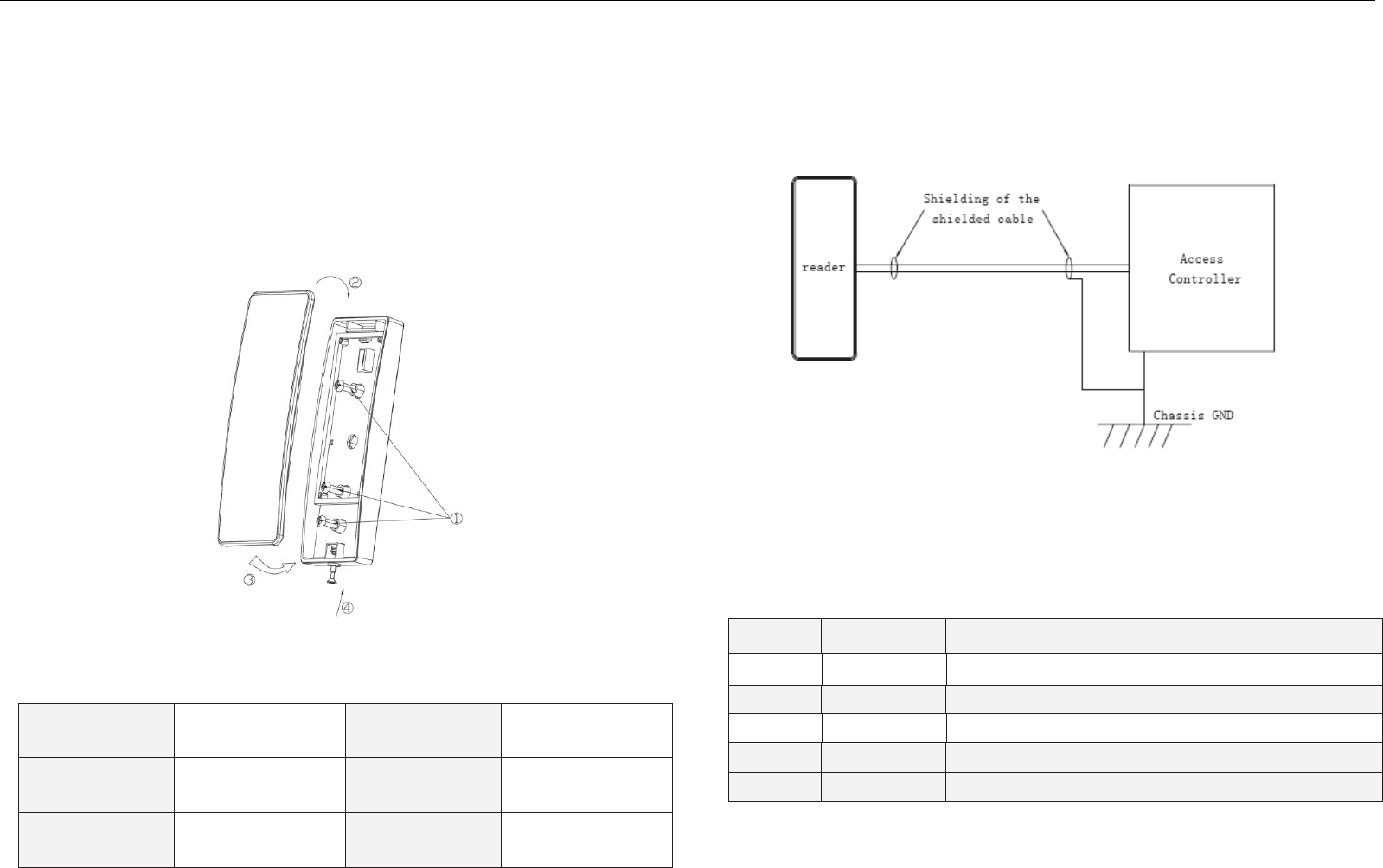

1. Install the back plate on the wall as shown in the diagram below.
2. The cover shall clip on the upper edge the push in the bottom part as show in
diagram.
3. Tighten the non-dropout screw, which located underneath of the reader to fix the reader and
the back plate, installation is completed.
Specification:
Recommendation:
1. Linear DC Power Supply;
2. 22AWG shielded cable; it’s required to do “one-point” ground. (As shown in the diagram)
Wiring:
Power up Sequences:
Input Voltage (at
Reader end)
DC8V~16V
Typical Read
range
> 5cm
Operating Current
100mA (max)
Maximum Cable
Length
150m
Operating
Temperature
-10ºC~70 ºC
Color
Label
Description
Red
+12V dc
Power Supply to the reader
Black
GND
Signal GND
Green
Data0
Wiegand Output data, D0
White
Data1
Wiegand Output data, D1
Blue
Green LED
Green LED control, active low
Slender Series 13.56 MHz Reader
1. This is a Slender Series 13.56 MHz Reader. When reader is powered up, the Green back will flicker for 5 seconds. The reader will beep once and the reader is in Ready mode.
2. Present the card. The Red LED will flicker once; buzzer will beep once.
3. When card is present and read by the reader, the card data will be transmitted to the controller. Whether the back lit of the reader will remain ON or Flash or change to Green or Red color, this
depends on the Green LED inputs.
4. For number pad reader, when a number is pressed and successfully detected, the back lit under the number will flash 1 time and the buzzer will beep once. The number being pressed will burst out
by default (4 bits burst).

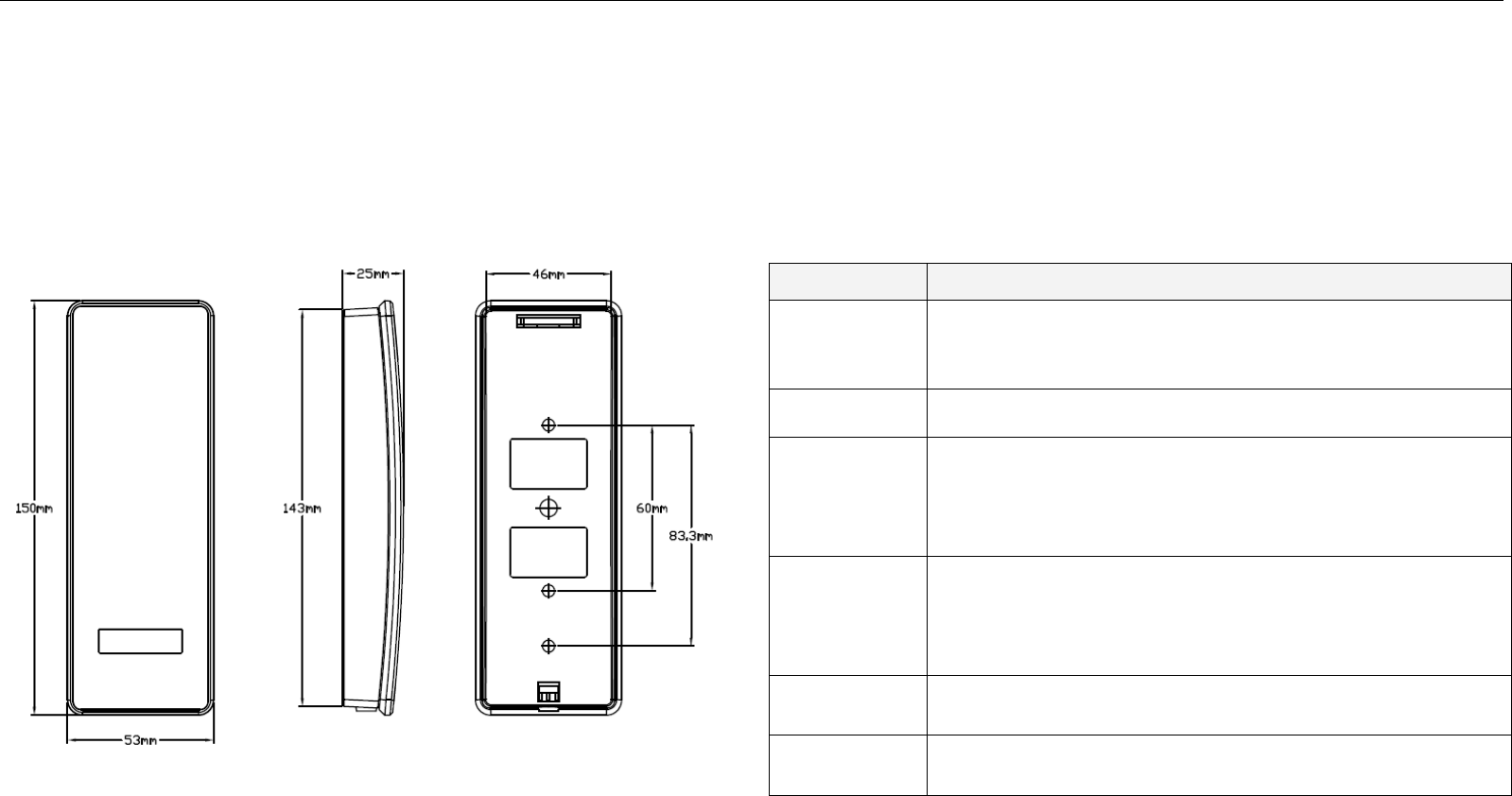

Physical Dimension:
Troubleshooting:
Trouble List
Solution
No Response
when Power Up
Disconnect the power and confirm that the power supply cable is
correctly connected (See “Wiring” above).
Check the input voltage is sufficient (See “Specifications” above).
Auto Restart
Check the input voltage is sufficient (See “Specifications” above).
Cannot read card
number correctly
Check the format setting on the controller if it is the same as the card
format. Use approved card (known format and Facility Code) to test.
Check if the shield cable is correctly connected to Classis Ground at
ONE point only.
Reader beeps but
No card data info
Check if data 0 & data 1 cable is correctly connected (See “Wiring”
above).
Check the input voltage at the card reader end is correct (See
“Specifications” above).
Back Lit Error
Check the LED cable is correctly connected (See “Wiring” above).
Use Default Configuration Card to set it back to normal.
Keypad
No Response
Power off reader for 5 seconds and power on again
Slender Series 13.56 MHz Reader
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
