Keypad & Proximity Flash Mount Reader Installation Manual
Mounting:
1. Install the metal plate on the wall with two or four screws, which depends on different kinds of
gang box being installed1.

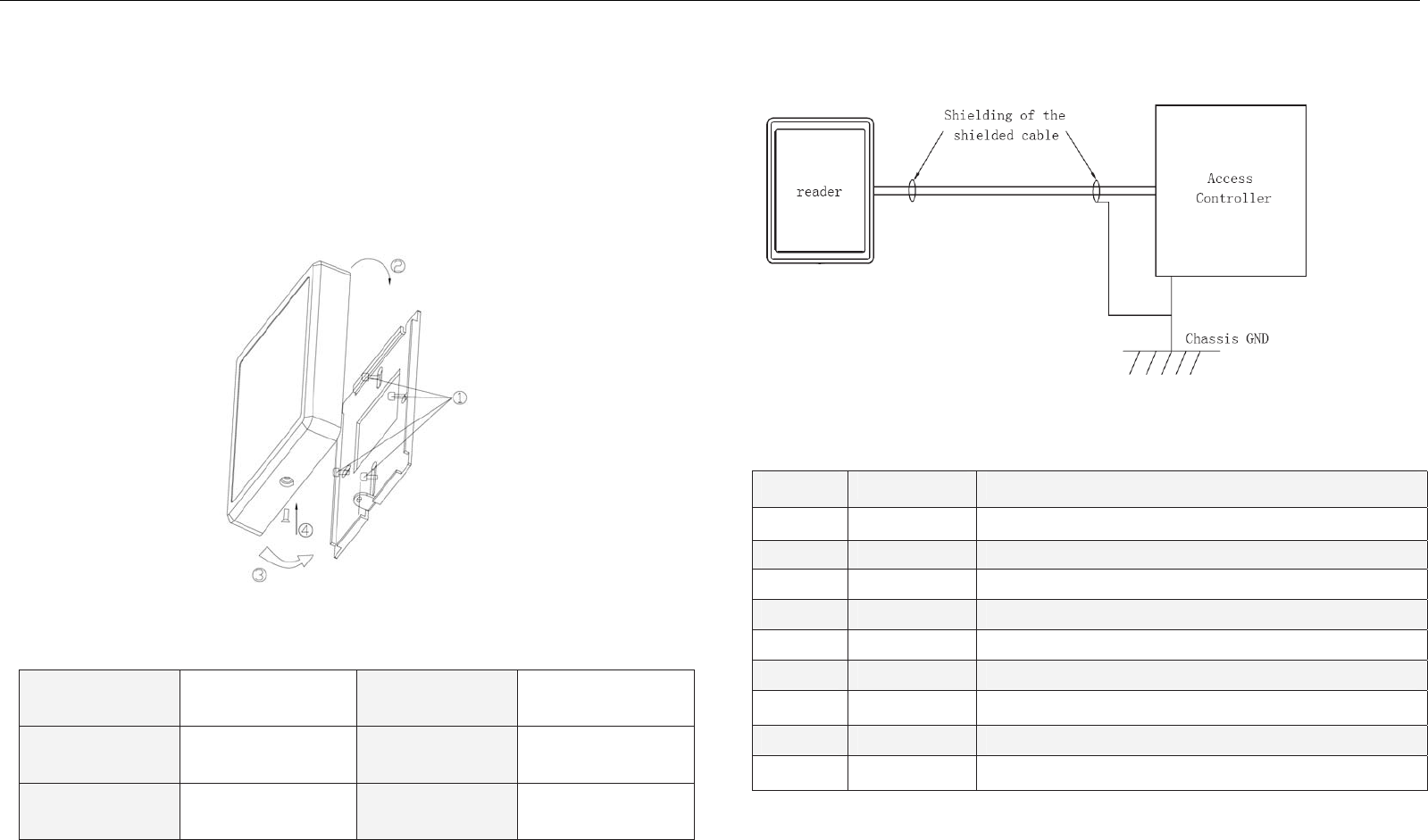

2. The cover shall clip on the upper edge 2 the push in the bottom part as show in
diagram3.
3. Tighten the secure non-dropout screw, which located underneath of the reader to fix the
reader and the back plate4, installation is completed.
Specification:
Recommendation:
1. Linear DC Power Supply;
2. 22AWG shielded cable; it’s required to do “one-point” ground. (As shown in the diagram)
Wiring:
Input Voltage (at
Reader end) DC10V~15V Typical Read
range > 5cm
Operating Current 160mA (max) Maximum Cable
Length 150m
Operating
Temperature -30ºC~70 ºC Number pad
format
4 bits burst by default
Color Label Description
Red +12V dc Power Supply to the reader
Black GND Signal GND
Green Data0 Wiegand Output data, D0
White Data1 Wiegand Output data, D1
Yellow RED LED RED LED control, active low.
Blue Green LED Green LED control, active low
Brown Buzzer Buzzer input, active low
Grey Tamper Tamper output (open collector, Active low, max 100mA)
Purple Doorbell
Door bell output (open collector, +5Vdc output ≤ 5mA)
Keypad & Proximity Flash Mount Reader Installation Manual
Power up Sequences:
1. When reader is powered up, the Green back will flicker for 5 seconds. The reader will beep
once and the reader is in Ready mode.
2. Present the card. The Blue LED will flicker once; buzzer will beep once.
3. When card is present and read by the reader, blue back lit will flash once; and buzzer will
beep once as well. The card data will then transmit to the controller. After, weather the back lit
of the reader will remain ON or Flash or change to Green or Red color, this shall depend on
the Green and Red LED inputs.
4. For number pad reader, when a number is pressed and successfully detected, the back lit
under the number will flash 1 time and the buzzer will beep once. The number being pressed
will burst out by default (4 bits burst).

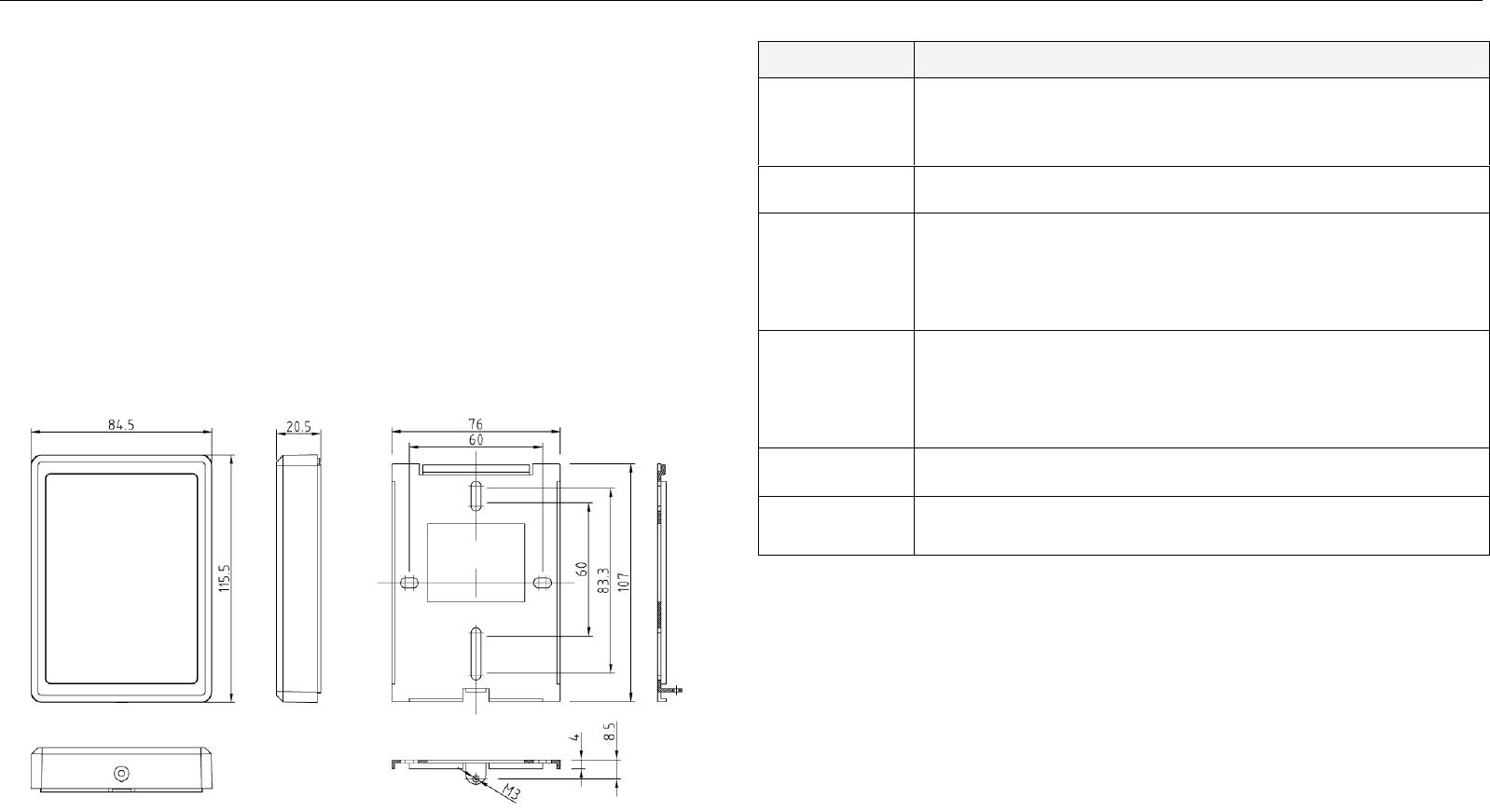

Physical Dimension:
Troubleshooting:
Trouble List Solution
No Response
when Power Up
z Discount the power and confirm that the power supply cable is
correctly connected (See “Wiring” above).
z Check the input voltage is sufficient (See “Specifications” above).
Auto Restart z Check the input voltage is sufficient (See “Specifications” above).
Cannot read card
number correctly
z Check the format setting on the controller if it is the same as the card
format. Use approved card (known format and Facility Code) to test.
z Check if the shield cable is correctly connected to Classis Ground at
ONE point only.
Reader beeps but
No card data info
z Check if data 0 & data 1 cable is correctly connected (See “Wiring”
above).
z Check the input voltage at the card reader end is correct (See
“Specifications” above).
Buzzer error z Check if the buzzer cable is correctly connected (See “Wiring” above).
Back Lit Error
z Check the Led cable is correctly connected (See “Wiring” above).
z Use Default Configuration Card to set it back to normal.
