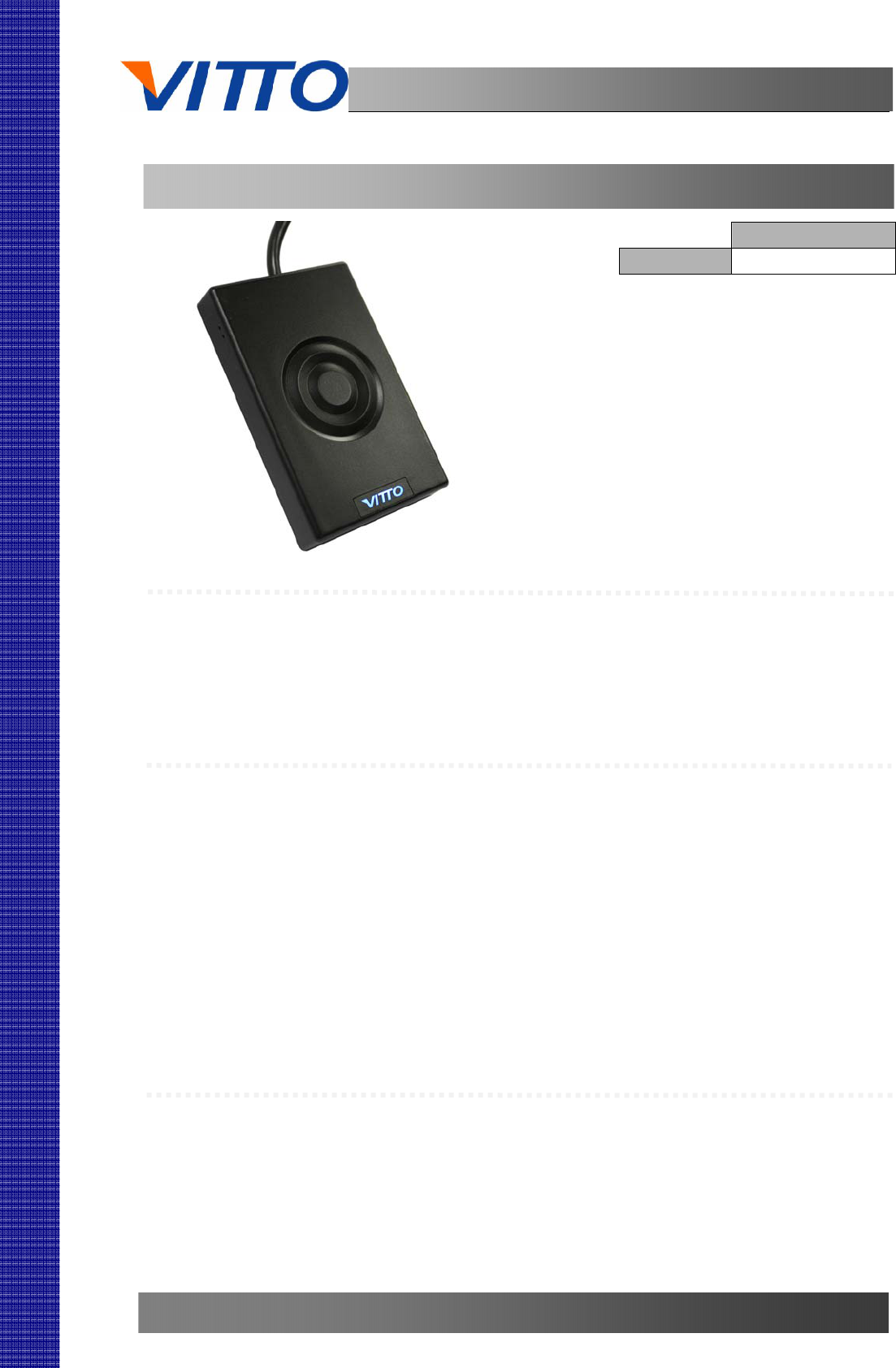

Desktop Mini USB Reader
Model MW4621/ MW4631 is a compact credit card size
USB smart card reader. MW4621 can read the UID
(Unique Identification Number) of Mifare card. MW4631
is designed to read the UID as well as the card sector
information from all different kinds of Mifare card. The
LED logo can be customized.
Flashing outlook and Customization
The mini USB reader can be configured to read and output different information from the card. The Logo area can
be customized with different Company logo. The back lit color of the logo will change from green to blue as standard
when the card read is success and can also be specified and customized. The mini USB reader equipped with built
in buzzer to notify the user when the card read is success.
Flexible Applications
With Enrollment Software, the Mini USB reader is configured to read the card information and transmit the card
information to the Enrollment Software, which runs at the background. The software will simulate the key stroke, and
input the card number into the cursor position on the screen.
With Log-on Software*, the Mini USB reader act like a log-on reader, which allow the user to log on to the PC when
it first start up or reactivate after screen saver.
In addition, a set “Library Command” is also available for 3rd party software to integrate with Mini USB reader. It
supports card reading, LED status control, buzzer control and 3DES communication setup in between the software
and reader. A test program is available for simple command and test.
Environmental protection
In order to support environment control, all the components being used inside the reader are “LEAD FREE” – RoHS
complied.
Note: “*” the software will available mid of 2010.
Logo lit up
New P/N MW4621/MW4631
MW4621/ MW4631 (based on LEGIC Technology)
Shanghai Smarfid Security Equipment Co., Ltd
http://www.smarfid.com
Operating Specification:
Operating Voltage USB Powered （5V） Typical read range 4-6cm
Operating current 150mA Standard Color Black
Frequency 13.56MHz RFID Technology Mifare
Host Interface USB2.0
(also compliant with USB 1.1)
Transmission
speed
12 Mbps
(USB 2.0 full speed)
Operating
Temperature
32°~131°F
(0°~55°C)
Exterior
dimension 85.8*54*12mm
Operating
Humidity 10% - 90% Material PC+ABS
Part Number:
MW46X1

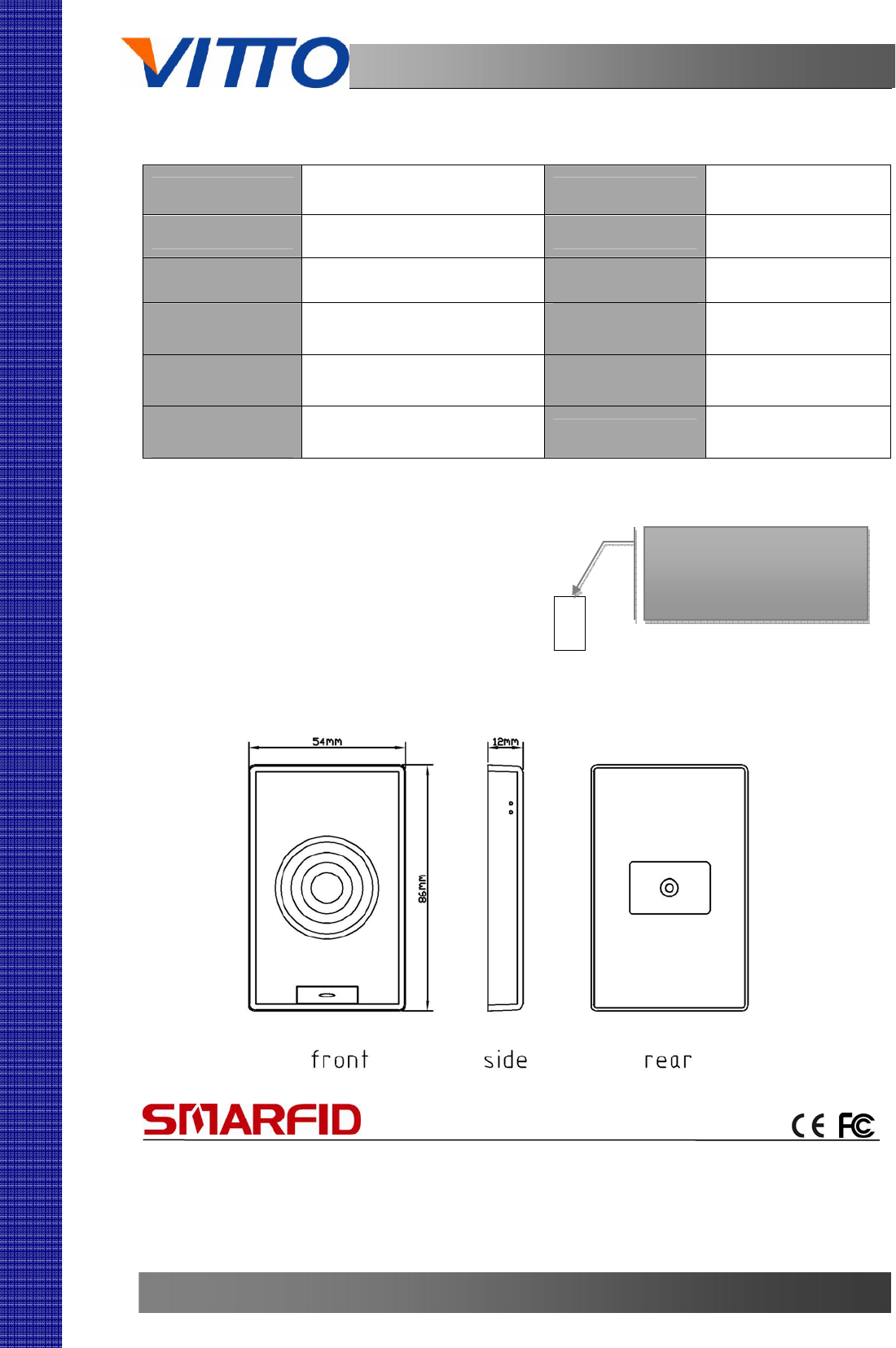

Physical Dimension:
Add: Rm.206, 4th Bldg., No. 471 Guiping Road, Shanghai, China 200233
Tel: (86-21) 54260103, 54260132
Fax: (86-21) 54260132 ext.222
Email：OS@Smarfid.com
Read Information;
2=CSN/UID/ID Reading
3=Sector Reading
