Smart Modular Technologies 90137 USB Bluetooth Adapter User Manual BluePC
Smart Modular Technologies USB Bluetooth Adapter BluePC
Users Manual
USB BlueOpal Adapter
User Guide
Version Number: 2.1
BluePC User Manual
Copyright
©Copyright 2002 SMART Modular Technologies, Inc. All right reserved..
No part of this work may be reproduced, copied, (electronically, mechanically or otherwise), stored in a retrieval system, or transmitted in
any form or by any means, mechanical, electronic, photocopying, recording, or used to make a derivative work (such as translation,
transformation, or adaptation) or otherwise, without the permission of SMART Modular Technologies, Inc. except as permitted by the
amended United States Copyright Act of 1976.
Trademarks
SMART and SMART Modular logo are trademarks of SMART Modular Technologies
Impulsesoft, Impulsesoft logo, BluePC, BlueConfig, BlueTransfer, and BlueExplore are trademarks of Impulsesoft.
Microsoft, Windows, Windows NT, and Windows for Workgroups are registered trademarks of Microsoft Corporation.
Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by SMART Modular Technologies under license.
All other products or name brands are trademarks of their respective holders.
BluePC User Manual
Contents
ABOUT THIS BOOK...............................................................................................................6
DOCUMENT CONVENTIONS......................................................................................................................6
CHAPTER 1 INTRODUCTION.............................................................................................7
CHAPTER 2 INSTALLING BLUEPC....................................................................................8
2.1 SYSTEM REQUIREMENTS....................................................................................................................8
2.2 INSTALLING BLUEPC.........................................................................................................................8
CHAPTER 3 GETTING STARTED...................................................................................... 16
3.1 ACCESSING BLUEPC.........................................................................................................................16
3.1.1 Post Installation.........................................................................................................................16
3.2 ELEMENTS OF BLUEPC....................................................................................................................17
3.2.1 BluePC Wizard.........................................................................................................................17
3.2.2 Bluetooth-enabled Windows Explorer.........................................................................................19
3.2.3 Bluetooth Manager.....................................................................................................................20
3.2.4 BluePC Preferences.....................................................................................................................21
3.3 SETUP PREFERENCES .......................................................................................................................22
3.3.1 BluePC Preferences Wizard.......................................................................................................23
3.3.2 General tab................................................................................................................................27
3.3.3 Services Tab...............................................................................................................................28
3.3.4 Security Tab...............................................................................................................................40
3.3.5 Advanced Tab ...........................................................................................................................42
CHAPTER 4 USING BLUEPC..............................................................................................43
4.1 ACCESS THE NETWORK ...................................................................................................................43
4.1.1 Locate the Network Access Service.............................................................................................43
4.1.2 Set up Connection ......................................................................................................................53
4.2 TRANSFER FILES................................................................................................................................58
4.2.1 Using the Transfer File Menu Option........................................................................................58
BluePC User Manual
4.2.2 Using the Bluetooth-enabled Windows Explorer.........................................................................61
4.3 EXCHANGE BUSINESS CARDS.........................................................................................................66
4.3.1 Send Business Cards..................................................................................................................66
4.3.2 Receive Business Cards...............................................................................................................67
4.4 PRINT FILES........................................................................................................................................69
4.4.1 Using BluePC Wizard..............................................................................................................69
4.4.2 Using Bluetooth-enabled Windows Explorer ..............................................................................74
4.4.3 Print to a Standalone Printer.....................................................................................................75
4.5 SYNCHRONIZE PDAS WITH YOUR PC...........................................................................................81
4.5.1 Add a Serial Port Service...........................................................................................................81
4.5.2 Setup the PDA to use the Serial Port Service.............................................................................81
4.5.3 Synchronize your PDA..............................................................................................................81
4.6 WIRELESS CONFERENCING SCENARIO.........................................................................................86
4.6.1 Setup the Host Computer...........................................................................................................86
4.6.2 Set up the Guest Computer ........................................................................................................90
4.6.3 Use an already setup Wireless Conference Scenario .....................................................................97
4.7 SEND A FAX........................................................................................................................................99
4.8 LISTEN TO MUSIC........................................................................................................................... 104
4.8.1 Setup your Computer as a Audio Gateway.............................................................................. 104
4.8.2 Connect to the Audio Device................................................................................................... 109
CHAPTER 5 TROUBLESHOOTING BLUEPC.................................................................110
APPENDIX A UNINSTALLING BLUEPC........................................................................115
APPENDIX B BLUEEXPLORE ICONS............................................................................117
APPENDIX C DISABLING “DIGITAL SIGNATURE NOT FOUND”...........................118
APPENDIX D SUPPORTED OS, PROFILES, AND PROTOCOLS ................................120
APPENDIX E REGULATORY INFORMATION .............................................................121

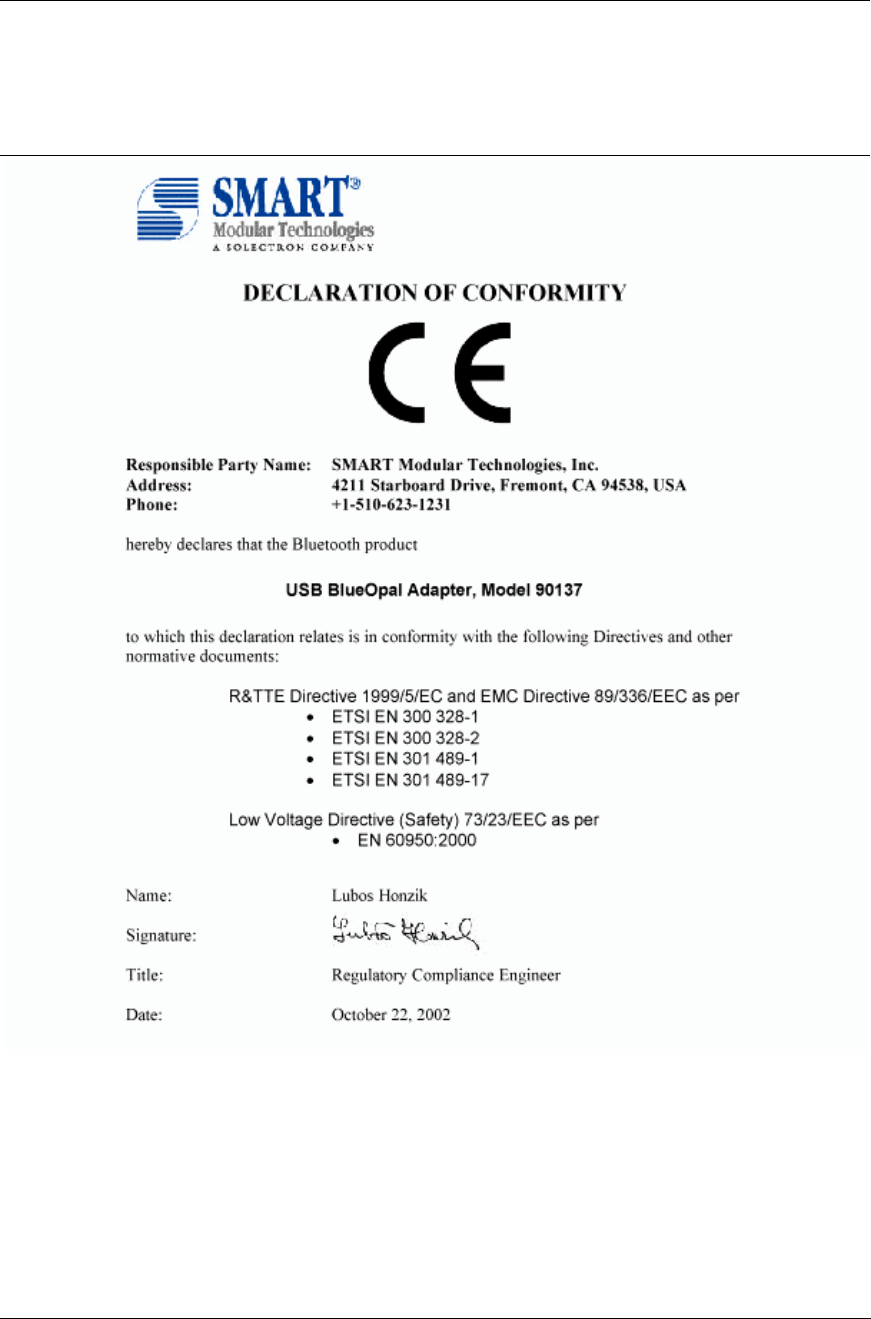

APPENDIX F DECLARATION OF COMPLIANCE ........................................................123
BluePC User Manual
About this Book 6
About this Book
The BluePC user manual contains instructions on how to configure and use BluePC. It has the
following sections:
• Chapter 1 Introduction – This section gives an introduction to BluePC, and describes the key
features.
• Chapter 2 Installing BluePC – This section lists the minimum system requirements, and
describes the installation procedure.
• Chapter 3 Getting Started – This section describes the elements of BluePC, the methods of
accessing BluePC, and the procedures for configuring BluePC preferences.
• Chapter 4 Using BluePC – This section is a tutorial on how BluePC can be used to set up
wireless connections to access the network, browse the Internet, fax information.
• Appendix – This section lists the supported OS, profiles, protocols, and icons used.
Document Conventions
This document uses the following conventions.
Appearance Description
Option Means that this is an option that needs to be selected.
Screen name Screen/dialog name
Means reader take note. Notes contain helpful suggestions or references to
material not covered in the guide.
Means caution. These are caveats to users that you need to be careful of the
response that you give, or the action that you perform. For example, if an
option is not selected the required action will not be performed.
It is a tip for saving time. Means the action describes an operation that the
reader can perform to save time.
BluePC User Manual
Introduction 7
Chapter 1 Introduction
Impulsesoft's BluePC™ is a high-performance, versatile Bluetooth solution for Windows. It helps
end-users to seamlessly transition from a wired experience to a wireless experience. BluePC has been
certified for Bluetooth specification version 1.1.
BluePC™ enables a wireless connection between your computer and other Bluetooth devices. For
example, BluePC will help you:
• Transfer files
• Print information
• Browse the Internet
• Send or receive a fax
• Synchronize mobile and hand-held computer devices
Every MS-Windows Legacy Application, be it Direct Cable Connection or Dial-up Networking or
NetMeeting, can now be used with the Bluetooth device connected to your computer.
Before you begin using BluePC, review the following terms that will be used through out the manual.
Term Definition
Bluetooth Address Unique identifier of a Bluetooth device.
Device Name This is the name used by BluePC to identify your device in the Bluetooth
Neighborhood.
Service Is the capability of a Bluetooth device through which the other Bluetooth
devices can access the Internet, local area network, or other resources.
Host The device that acts as a “source of services” and provides guests with the ability
to use these services.
Guest The device that utilizes services provided by the host.
BluePC User Manual
Installing BluePC 8
Chapter 2 Installing BluePC
2.1 System Requirements
This section lists the requirements that need to be met before you install BluePC.
• Pentium class personal computer
• 64 MB RAM
• 16 MB of free disk space
• Bluetooth Hardware
• Windows 2000, Windows XP, Windows Millennium Edition, Windows 98 Second Edition
Note: The user needs to have administrator privileges on the system to install and
use BluePC.
2.2 Installing BluePC
1. Insert BluePC™ CD-ROM into the CD-ROM drive.
2. Execute the BluePC.exe file that is present on the BluePC CD-ROM. The Welcome window is
displayed.

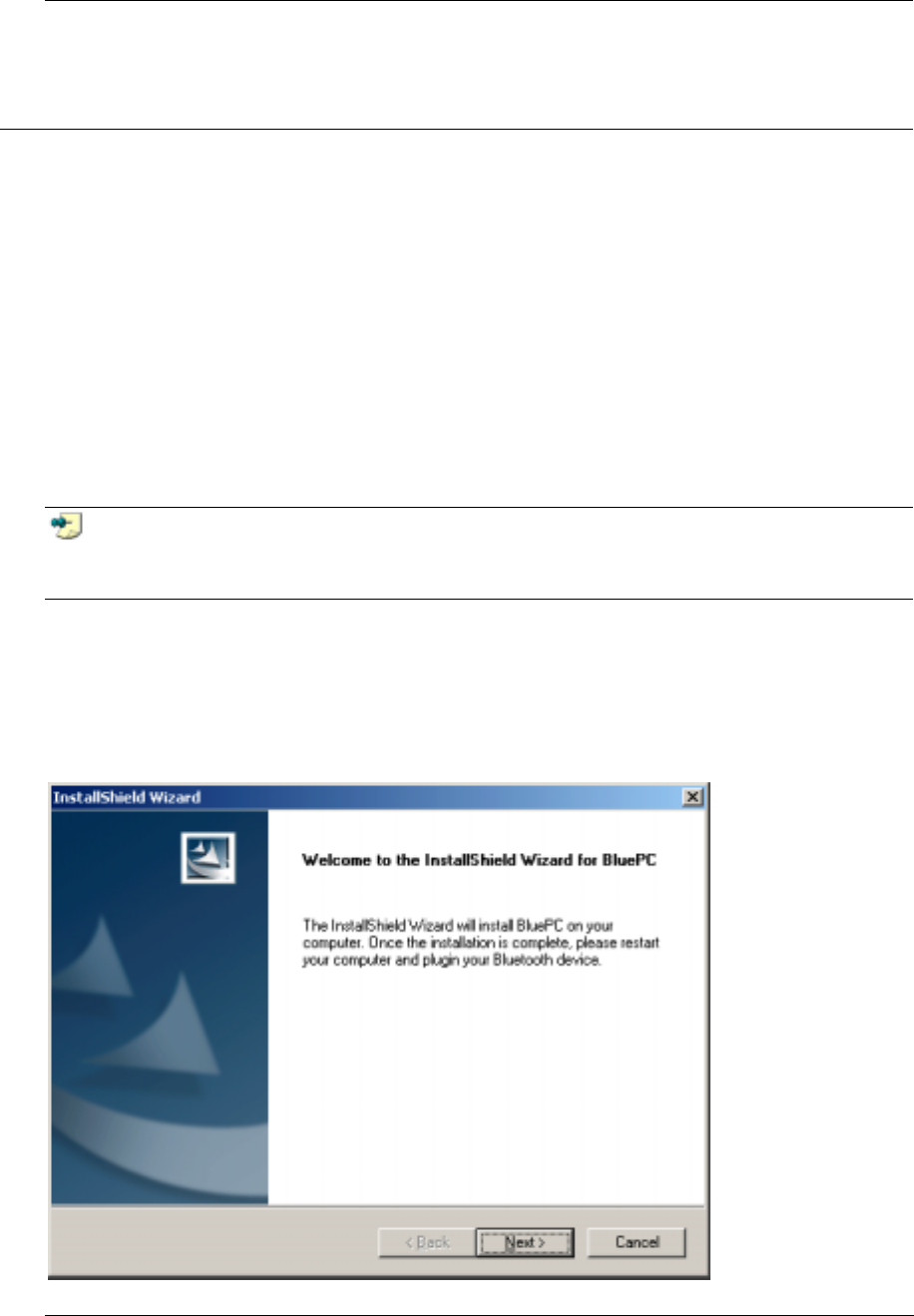

Figure 1. Welcome screen
BluePC User Manual
Installing BluePC 9
3. Click Next. The License Agreement screen is displayed.

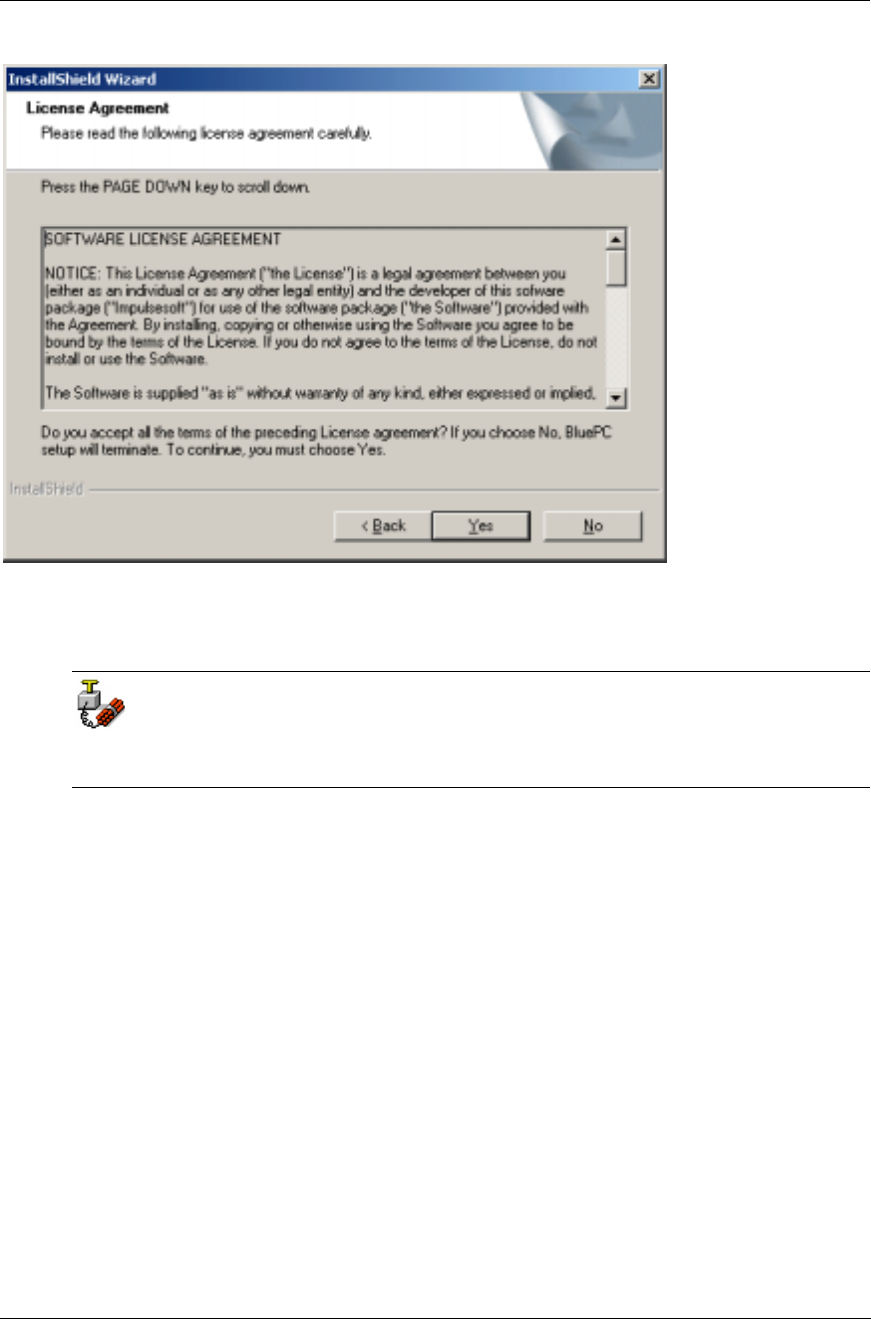

Figure 2. License Agreement
4. If you accept all the terms of the license agreement, click Yes to proceed. If you do not accept
all the terms of the license agreement, click No.
Caveat: To continue installation, it is mandatory to agree to the terms of the License
Agreement.
BluePC User Manual
Installing BluePC 10

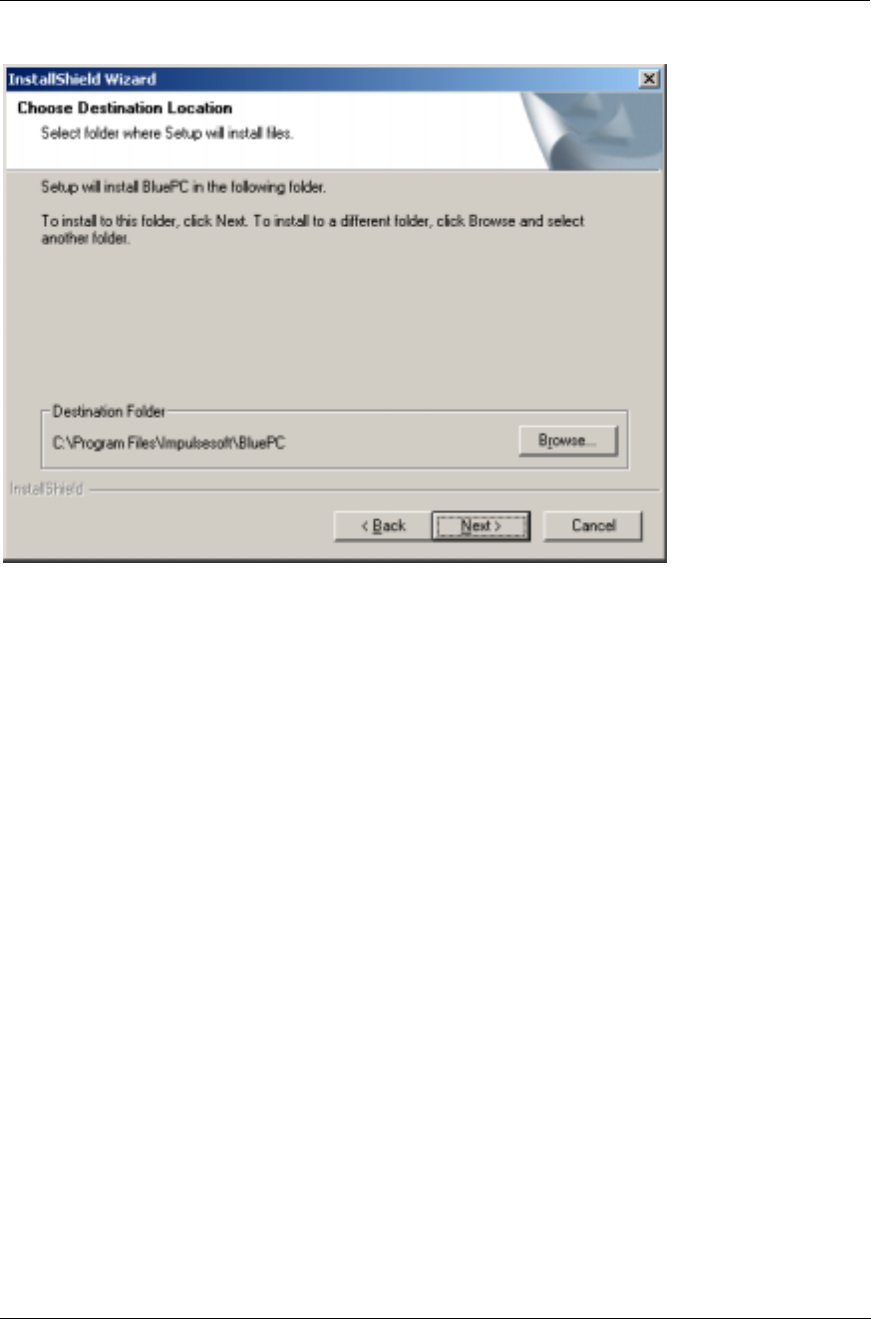

5. Click Next. The Choose Destination Location window appears.
Figure 3. Destination Folder
BluePC User Manual
Installing BluePC 11
6. By default, BluePC is installed in the Program Files\Impulsesoft\BluePC folder. To change
the destination folder, click Browse and select the required folder. Click Next to proceed. The
Installation Preferences window appears.

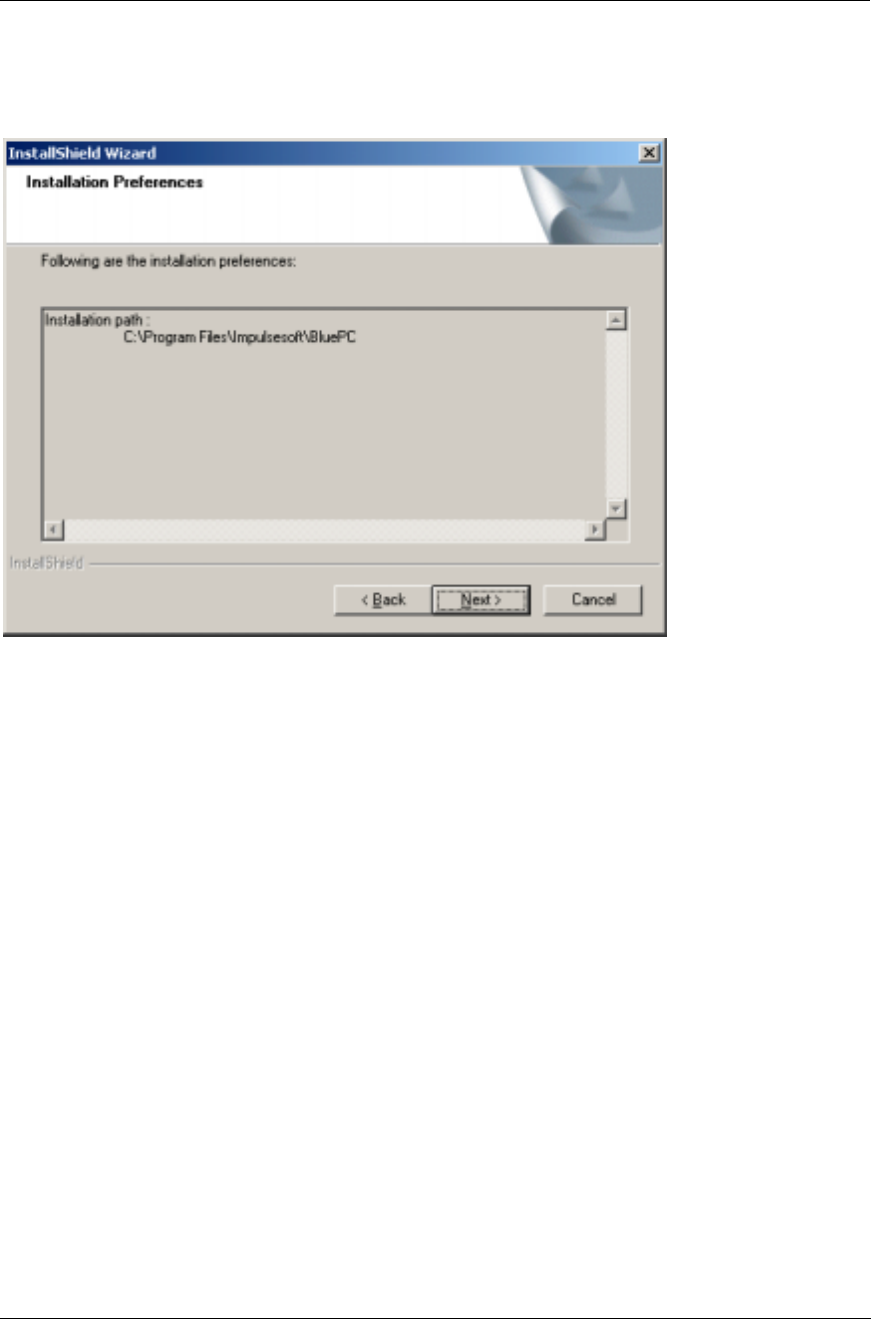

Figure 4. Installation Preferences
BluePC User Manual
Installing BluePC 12
7. Click Next to proceed. The Setup Status windows appears.

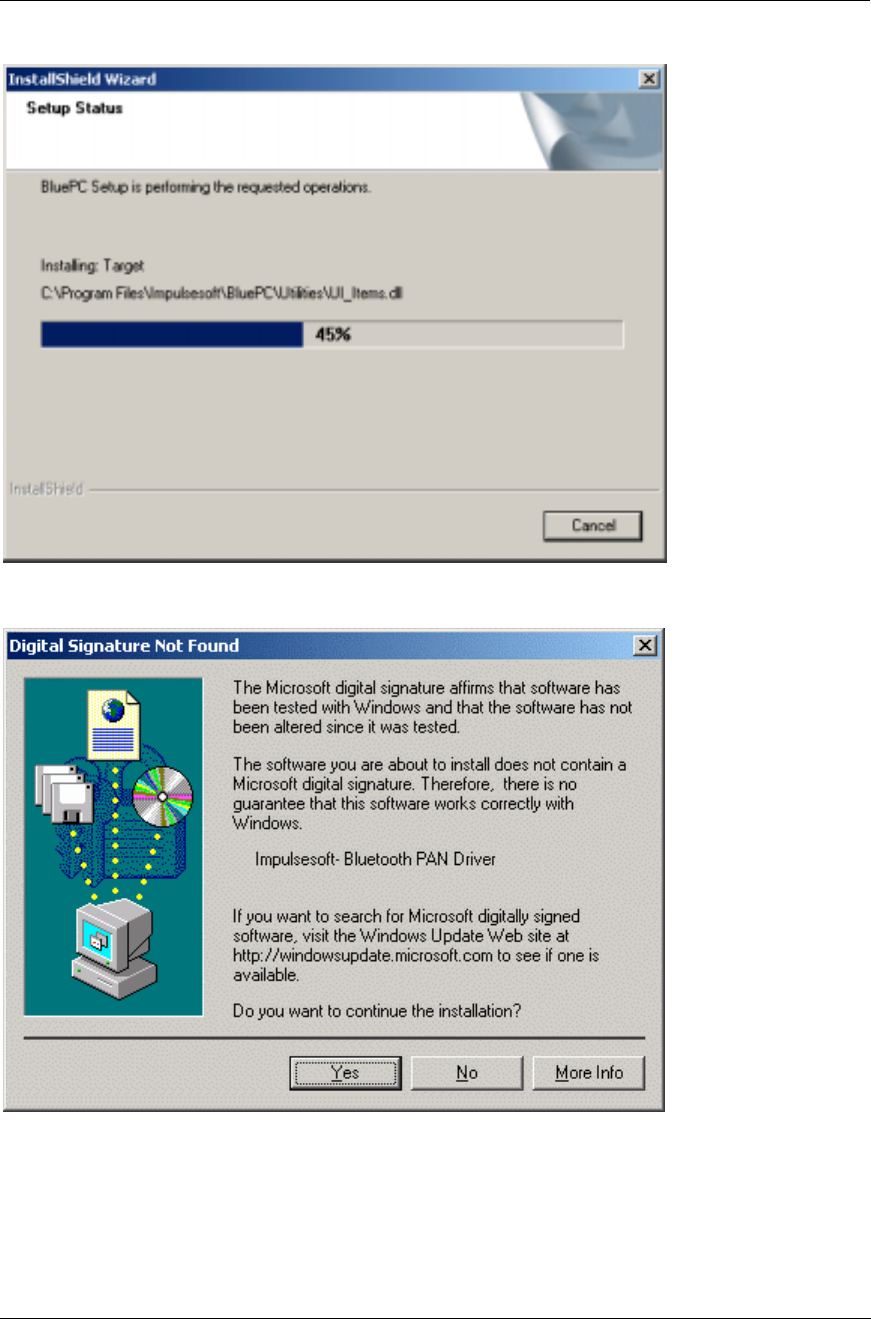

Figure 5. Setup Status
8. After all the files are copied, the following screen is displayed:

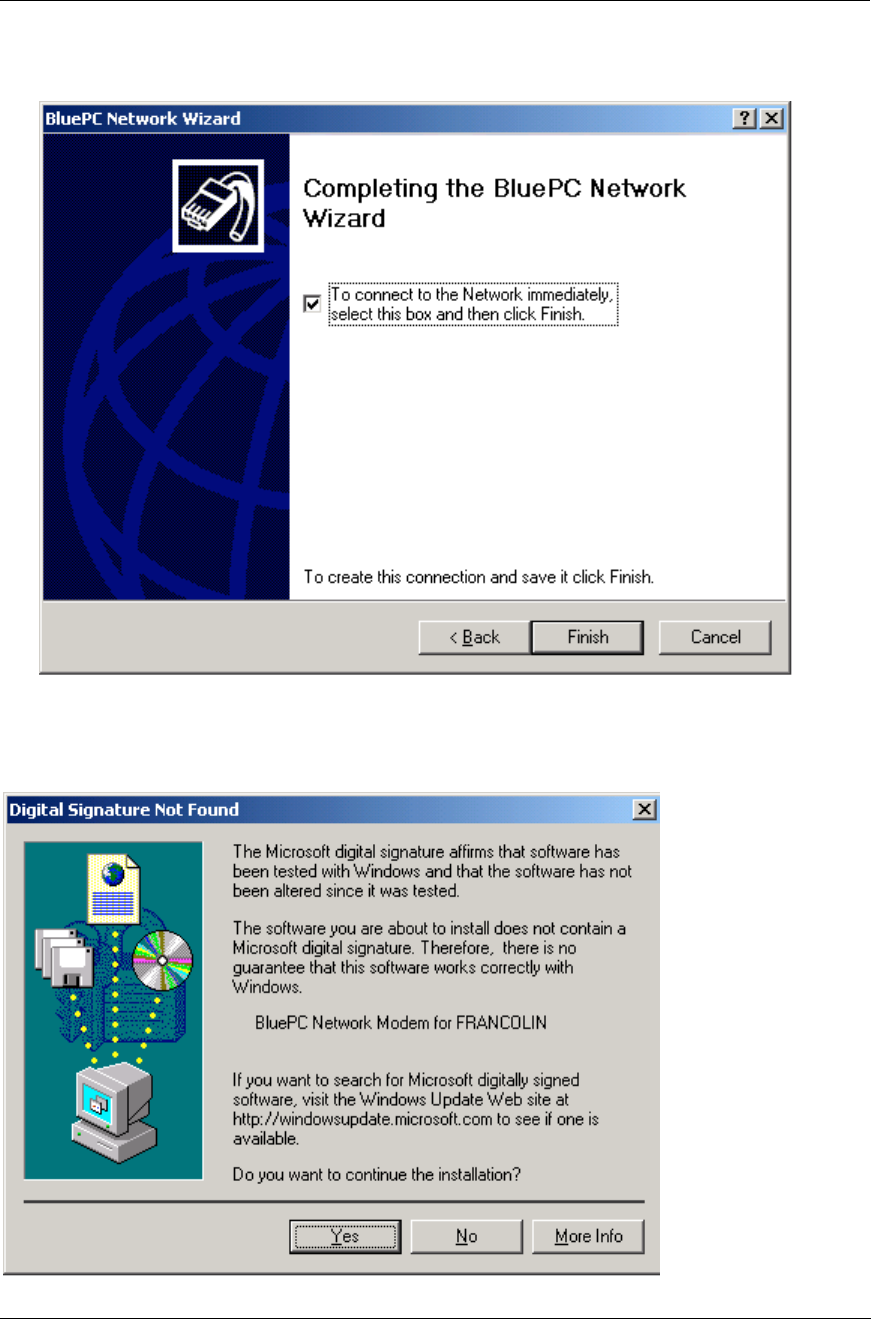

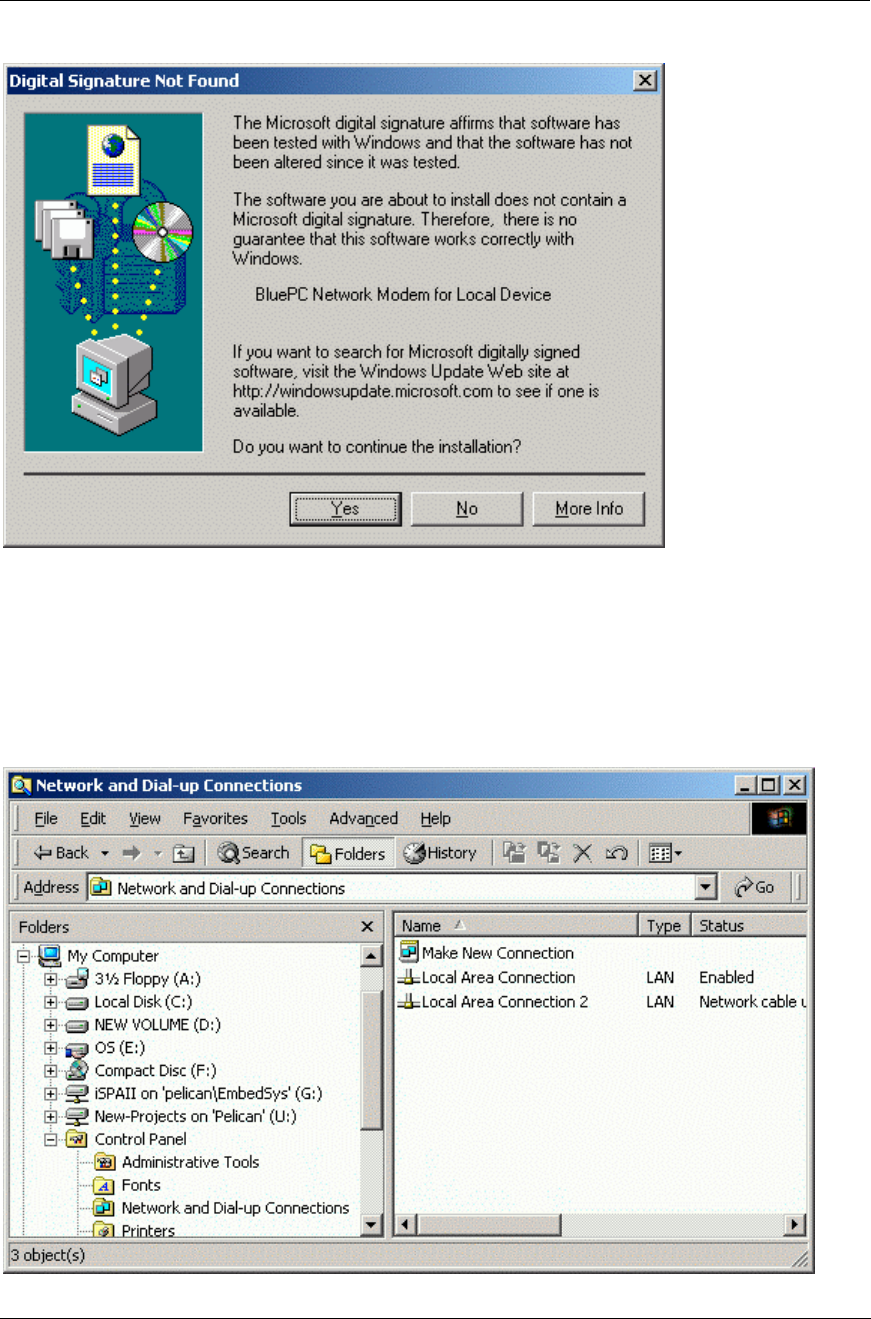

Figure 6. Digital Signature Not Found
BluePC User Manual
Installing BluePC 13
9. Click Yes. The Installation Complete screen is displayed.

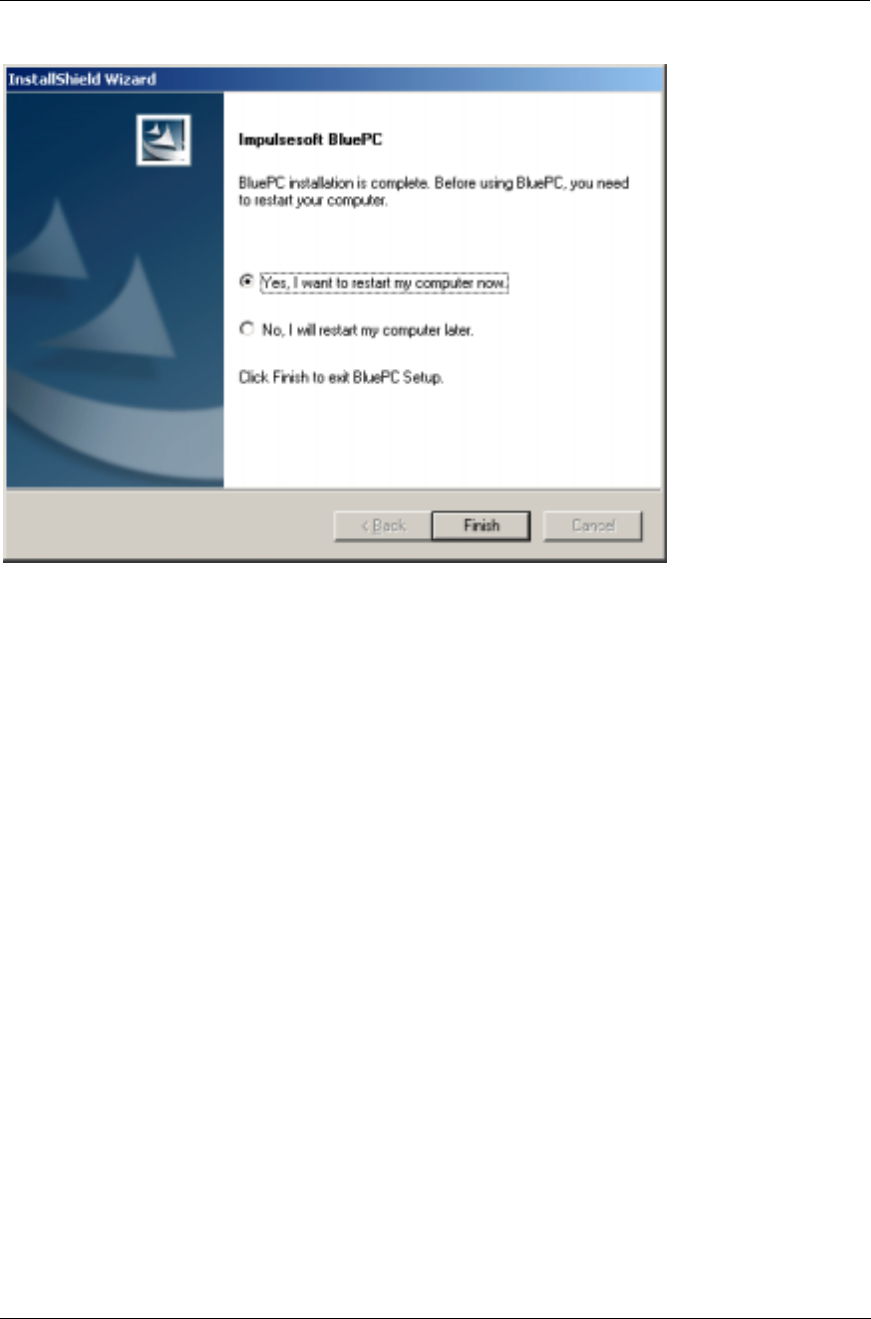

Figure 7. Installation Complete
10. If you want to start using BluePC immediately, you need to restart your computer. Select the Yes, I
want to restart my computer now option and click Finish. Or, you can choose the No, I will
restart my computer later option and click Finish.
After you have restarted the computer, plug-in your Bluetooth device.
BluePC User Manual
Installing BluePC 14
If you are using a USB Bluetooth device and it has not been plugged in, the following screen is
displayed:
Figure 8. Getting Started
1. Locate the USB Port.
2. Plug in the Bluetooth device.
BluePC User Manual
Installing BluePC 15
If you are using a Bluetooth PC card and it has not been inserted, the following screen is displayed:
Figure 9. Getting Started
1. Locate the PC card slot.
2. Plug in the Bluetooth device.
BluePC User Manual
Getting Started 16
Chapter 3 Getting Started
This chapter describes the following:
• Accessing BluePC
• Elements of BluePC
• Setting BluePC Preferences
3.1 Accessing BluePC
You can access BluePC in more than one ways. The simplest way is to use the BluePC wizard, or the
(Bluetooth icon) in the system tray. This section describes how you can access the various
elements of BluePC.
3.1.1 Post Installation

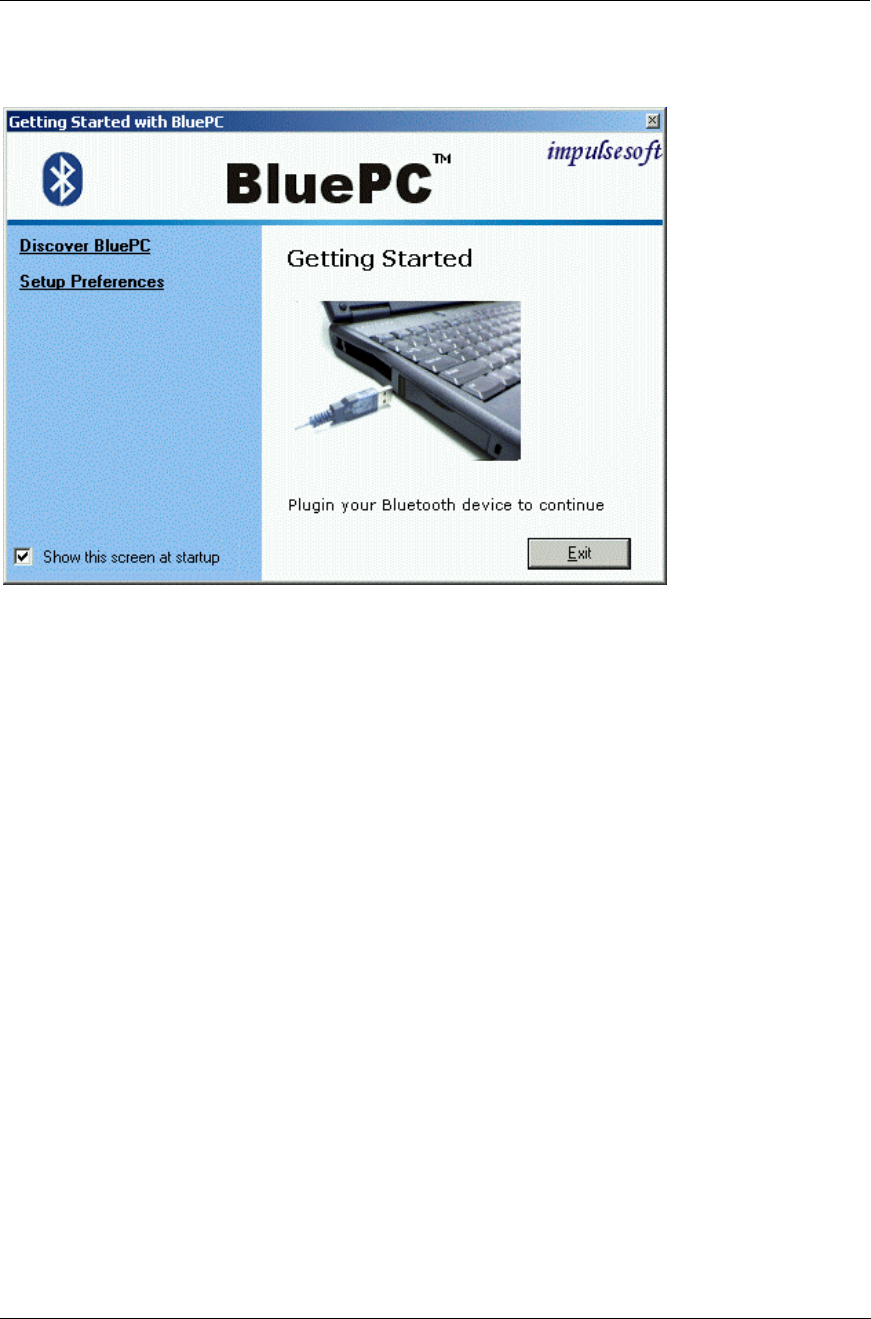

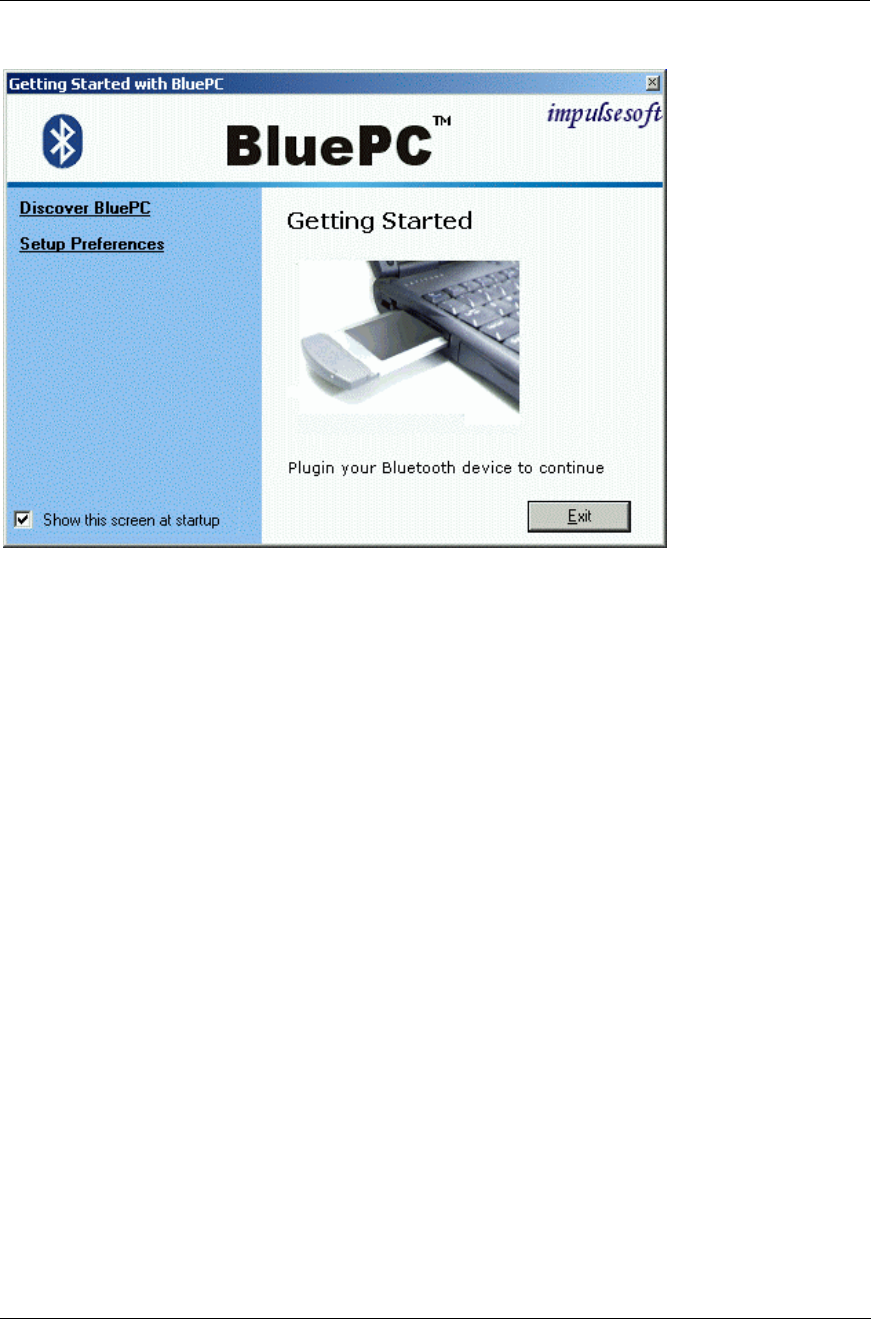

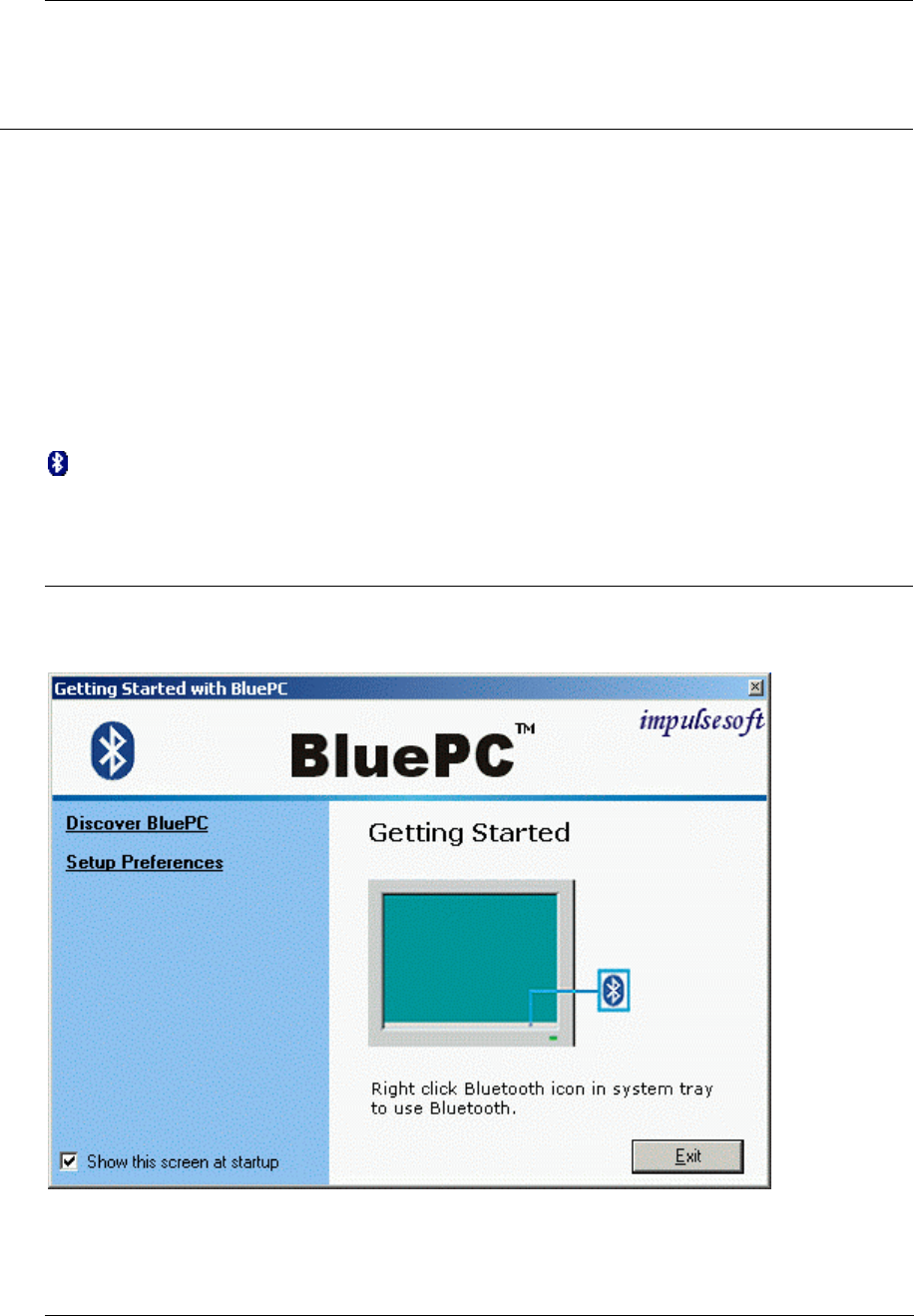

After you install BluePC and restart your machine, the BluePC Getting Started screen is displayed as
shown in the figure.
Figure 10. Getting Started
BluePC User Manual
Getting Started 17
Through this screen you can:
• Discover BluePC - Click this option to view the user manual
• Setup Preferences – Click this option to configure the BluePC preferences such as, device
name, accessibility, services offered by your device, file transfer, and business card options.
If you select the option Show this screen at startup, this screen is displayed every time you start
BluePC (at restart or Plug in of device). When you click Exit with Bluetooth device inserted in your
PC, the Bluetooth icon is displayed in the system tray.

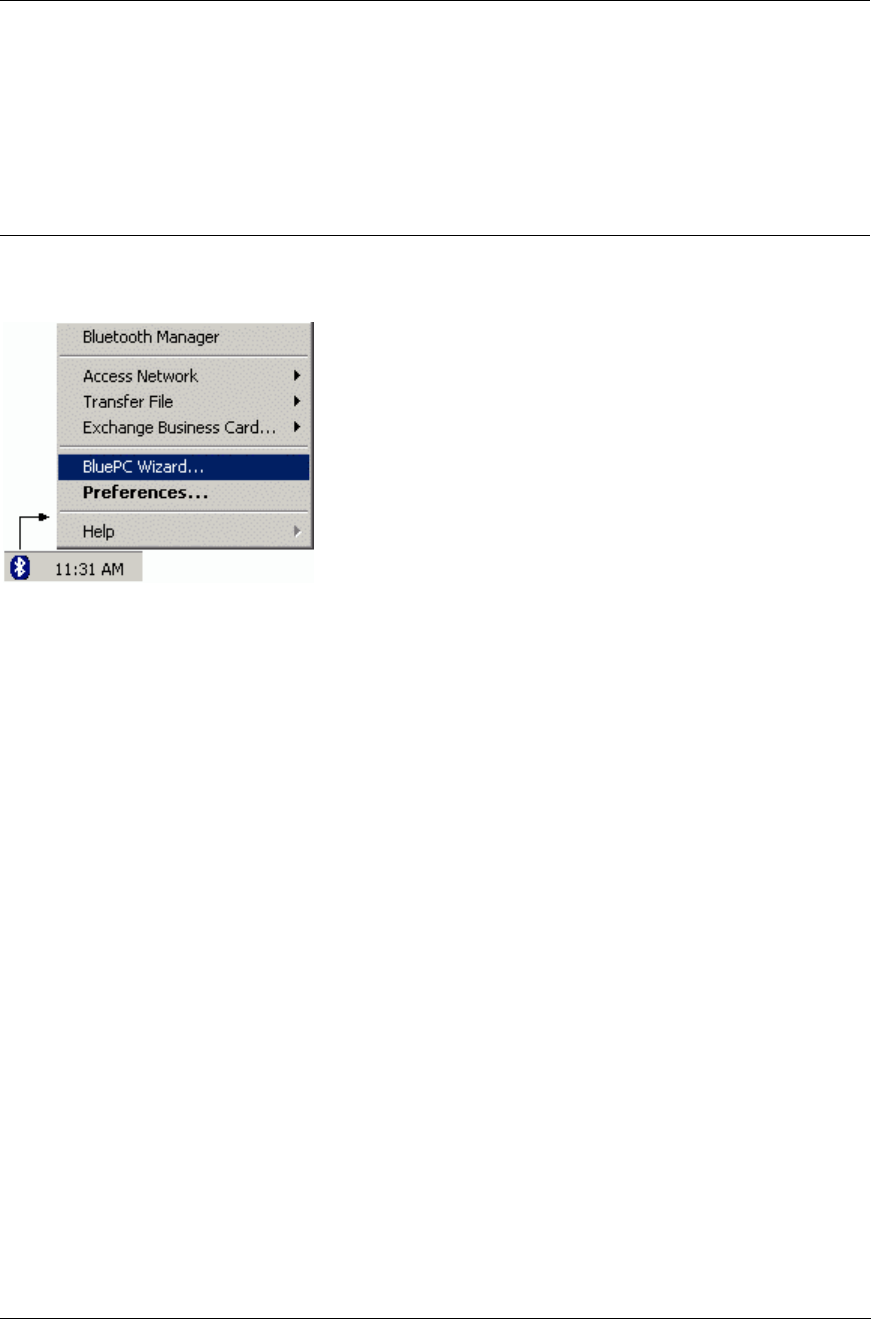

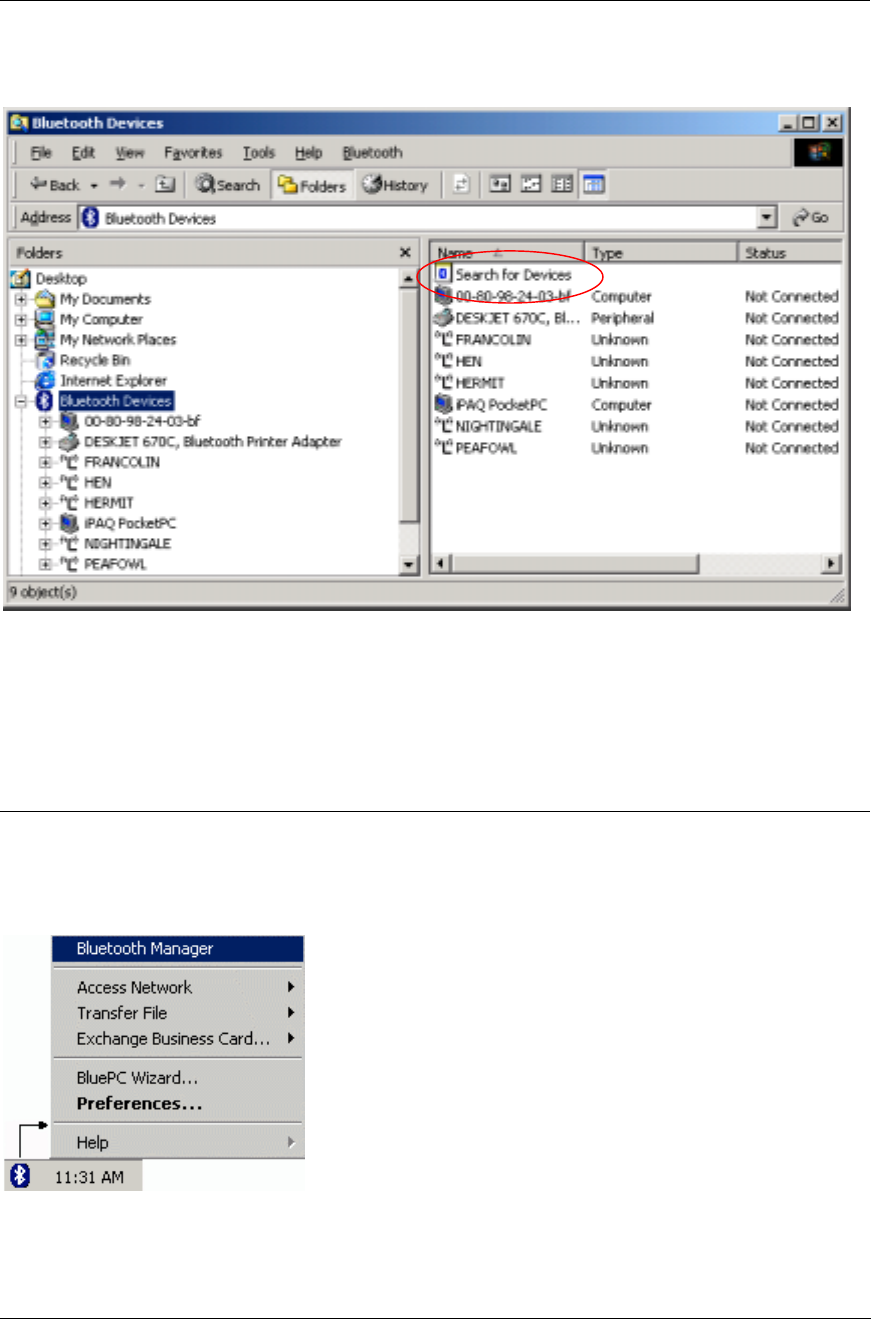

Figure 11. Bluetooth Icon

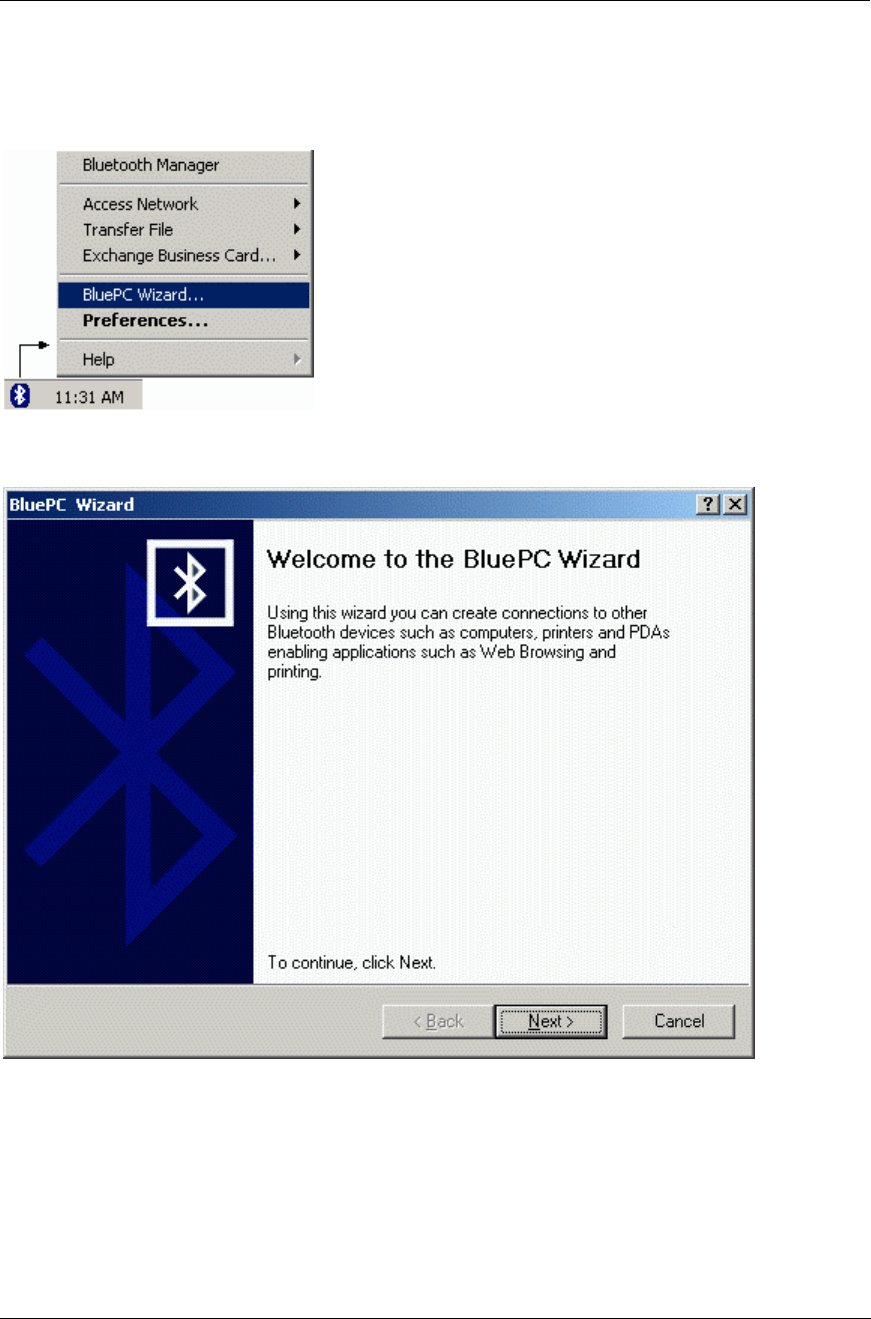

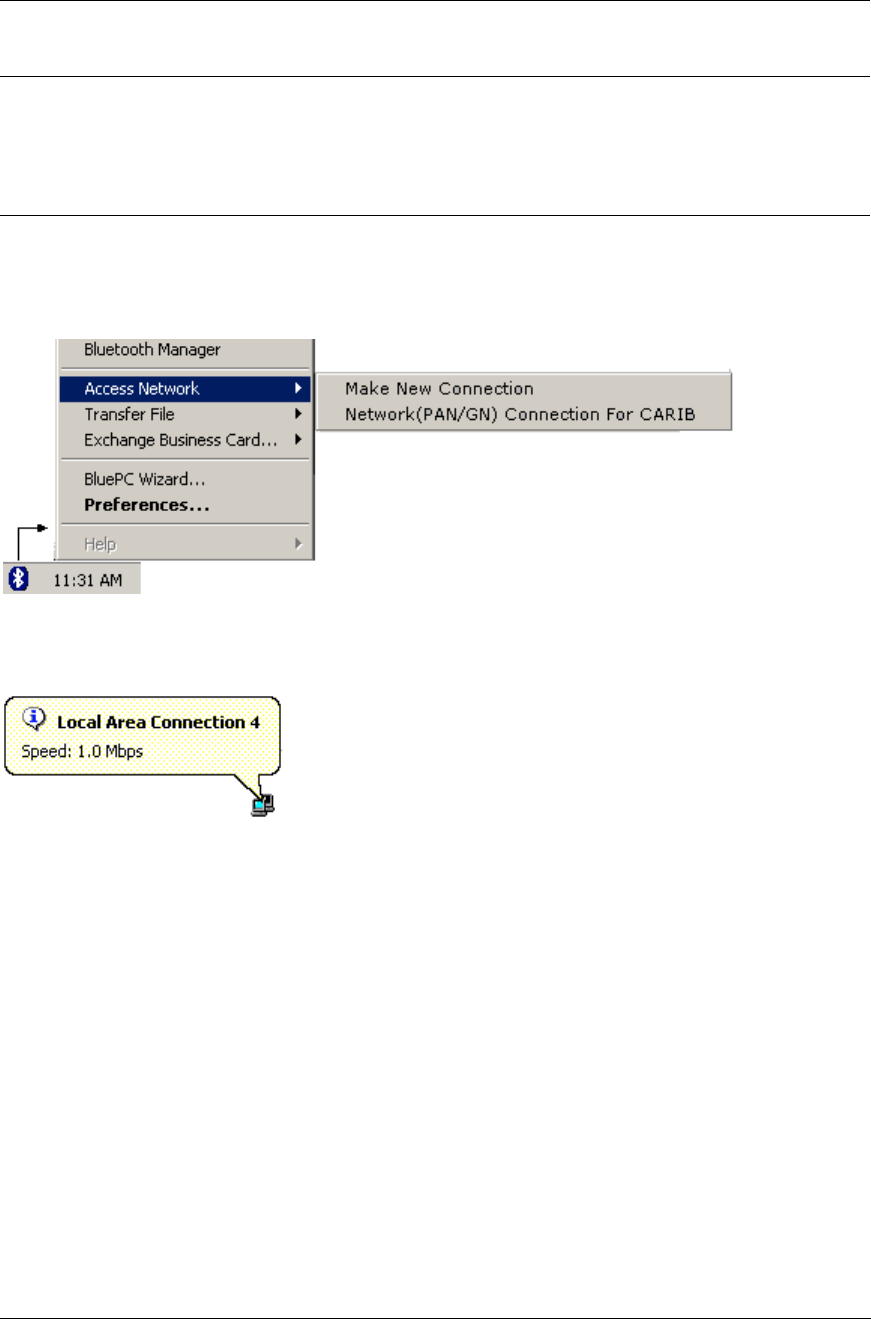

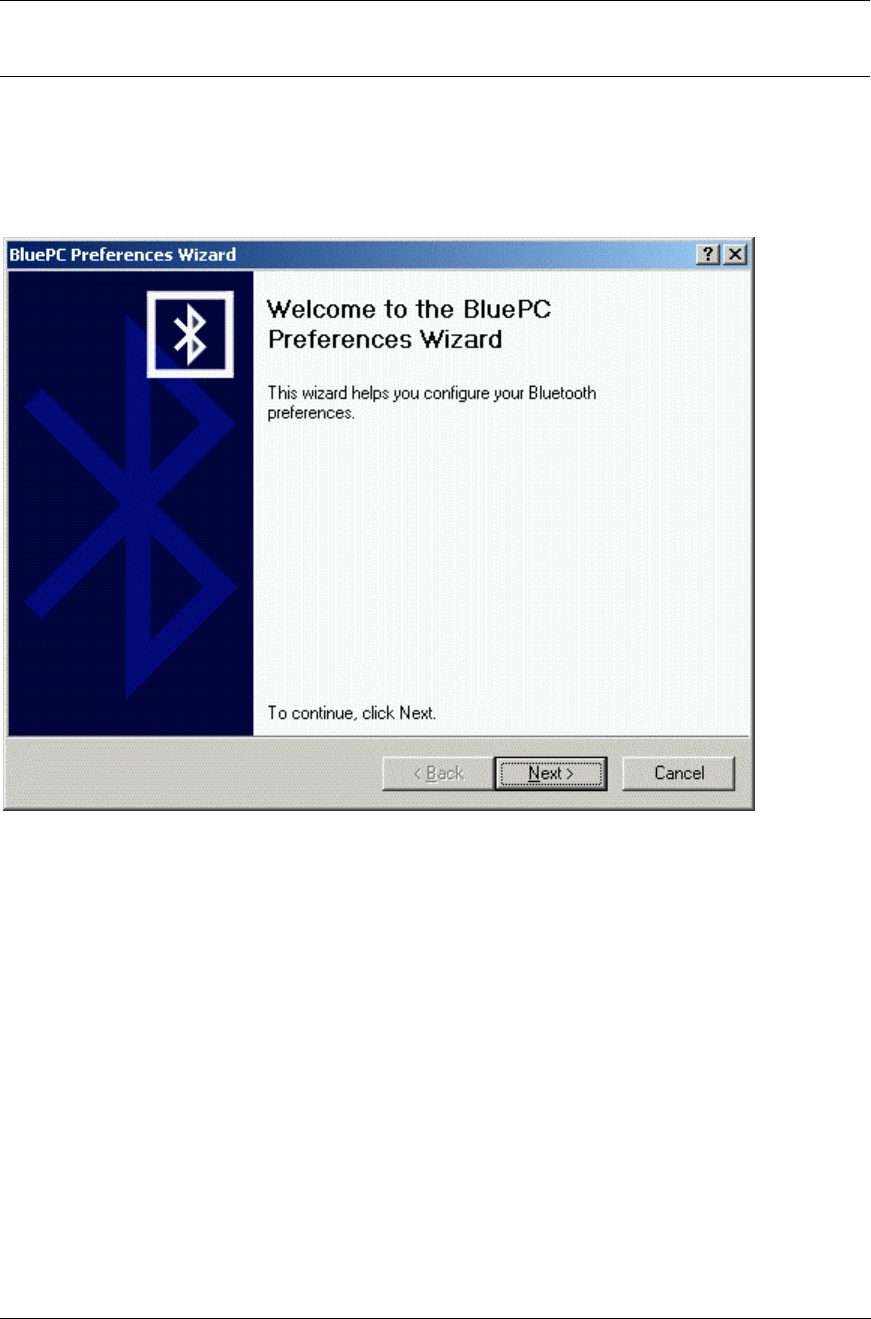

Right-click the Bluetooth icon to view the menu. If you double-click on the icon, the Bluetooth
Preferences Wizard is displayed. Through this you can configure the BluePC preferences. Refer to
section 3.3 Setup Preferences on page 22 for more information.
If the Bluetooth device has not been inserted into you PC and you start your system, the Bluetooth
icon appears as shown in the figure below with the message:
Figure 12. Insert Bluetooth device
The message will disappear if you double-click the icon.
3.2 Elements of BluePC
BluePC comprises the following:
• BluePC Wizard
• Bluetooth-enabled Windows Explorer
• Bluetooth Manager
• BluePC Preferences

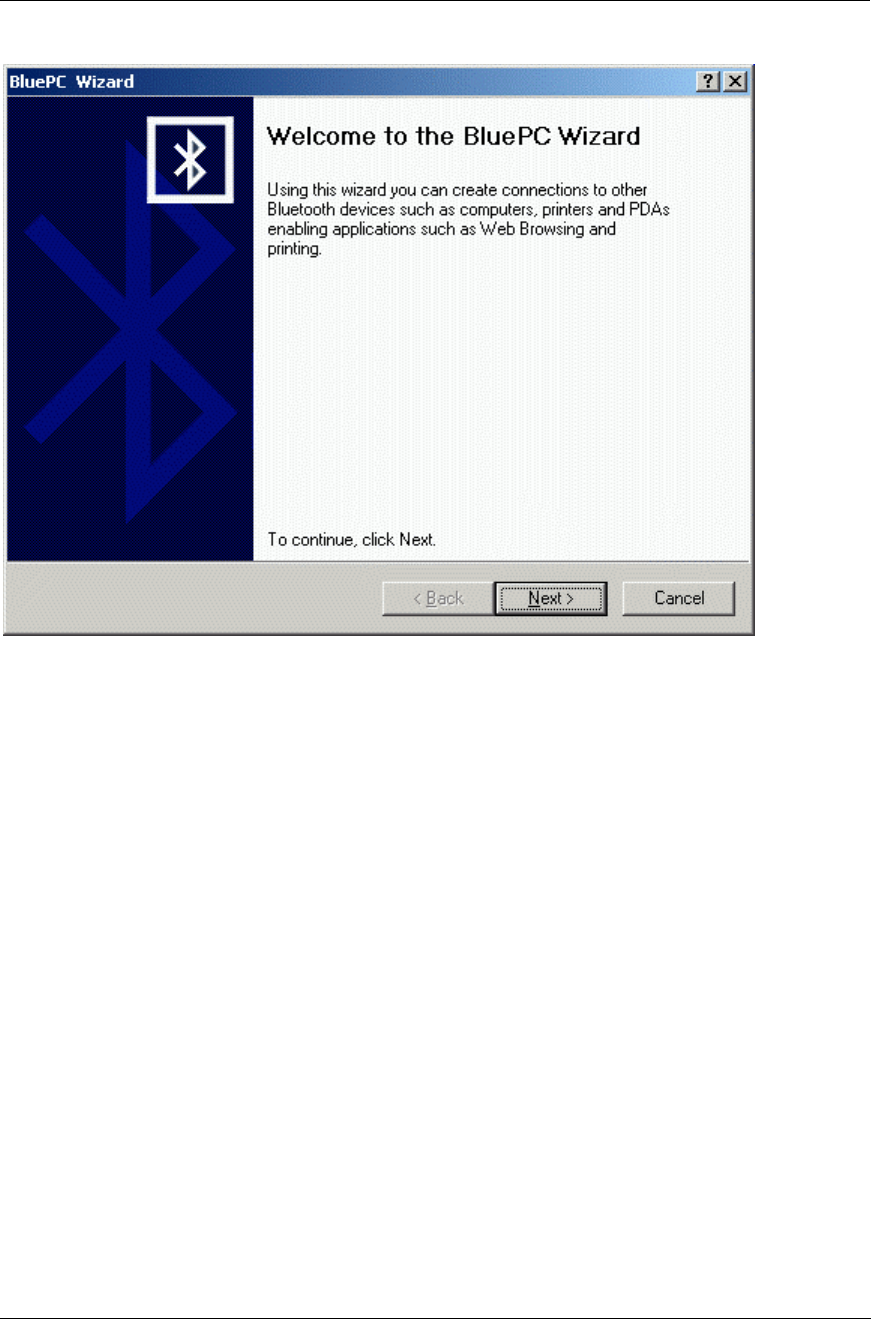

3.2.1 BluePC Wizard

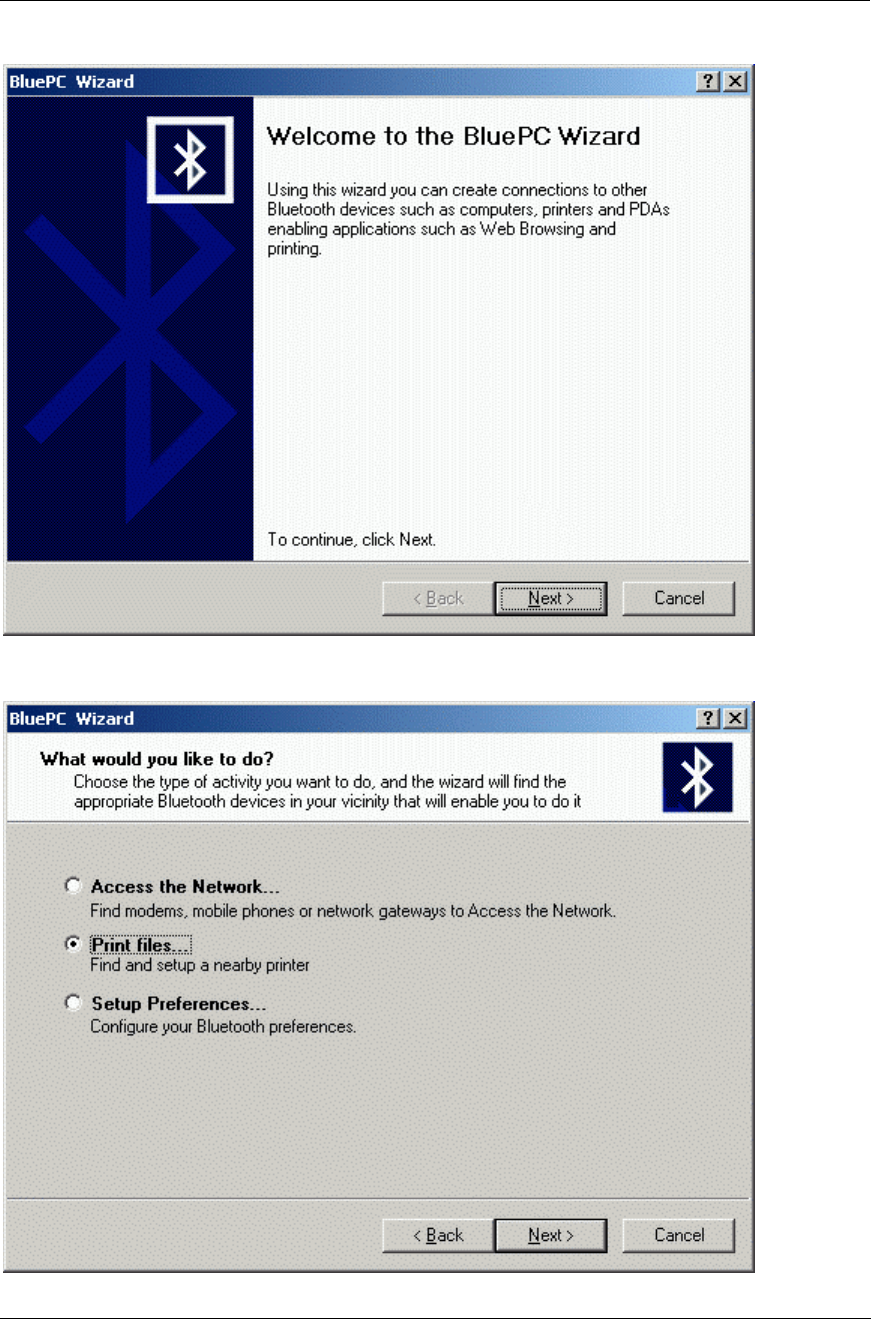

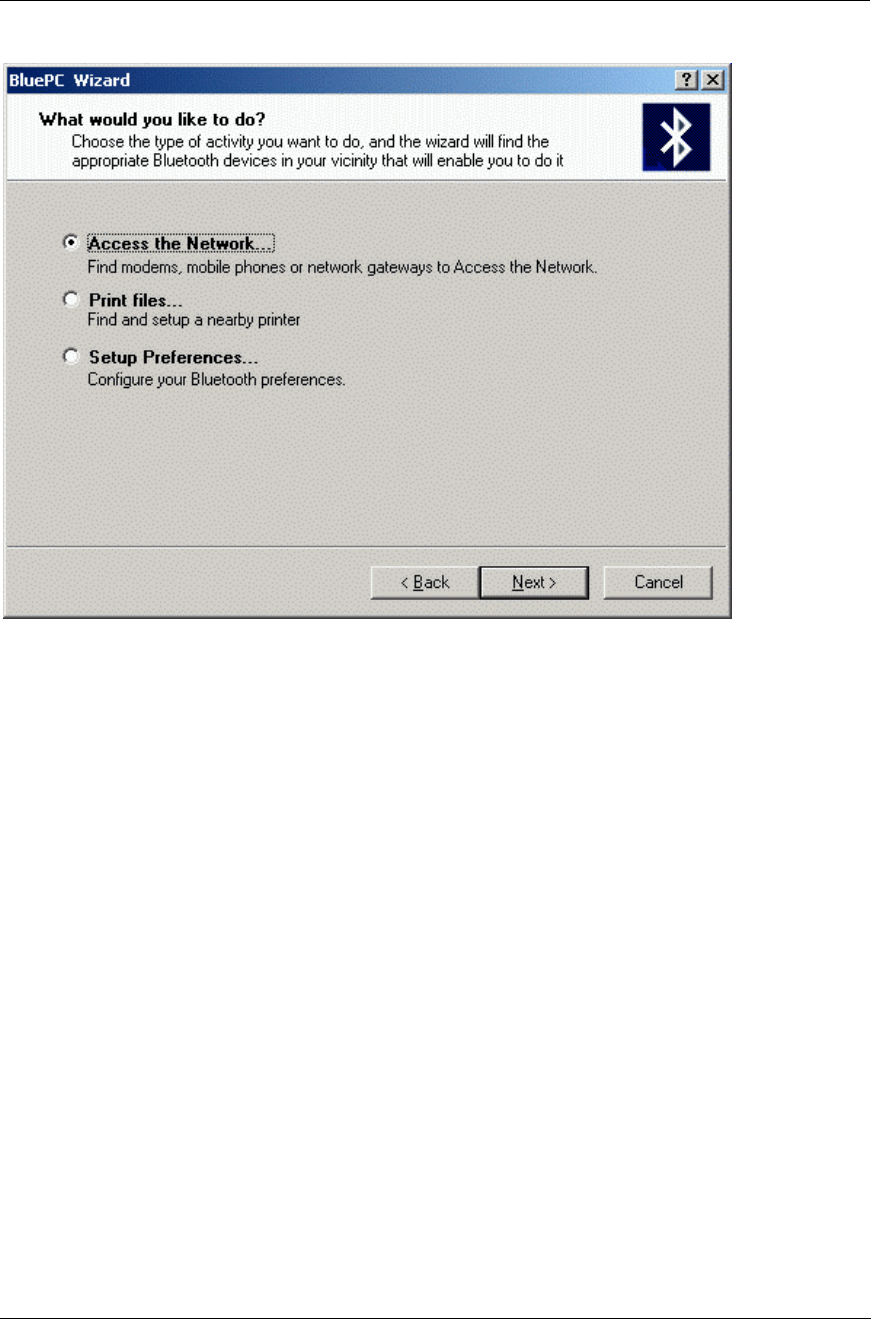

The BluePC wizard helps you perform your tasks using Bluetooth. The wizard automatically
discovers the Bluetooth devices and the services offered by them. It presents the right choice of
device and service through which you can accomplish your task. Through the wizard, you can:
• Browse the Internet
BluePC User Manual
Getting Started 18
• Print files
• Setup Preferences

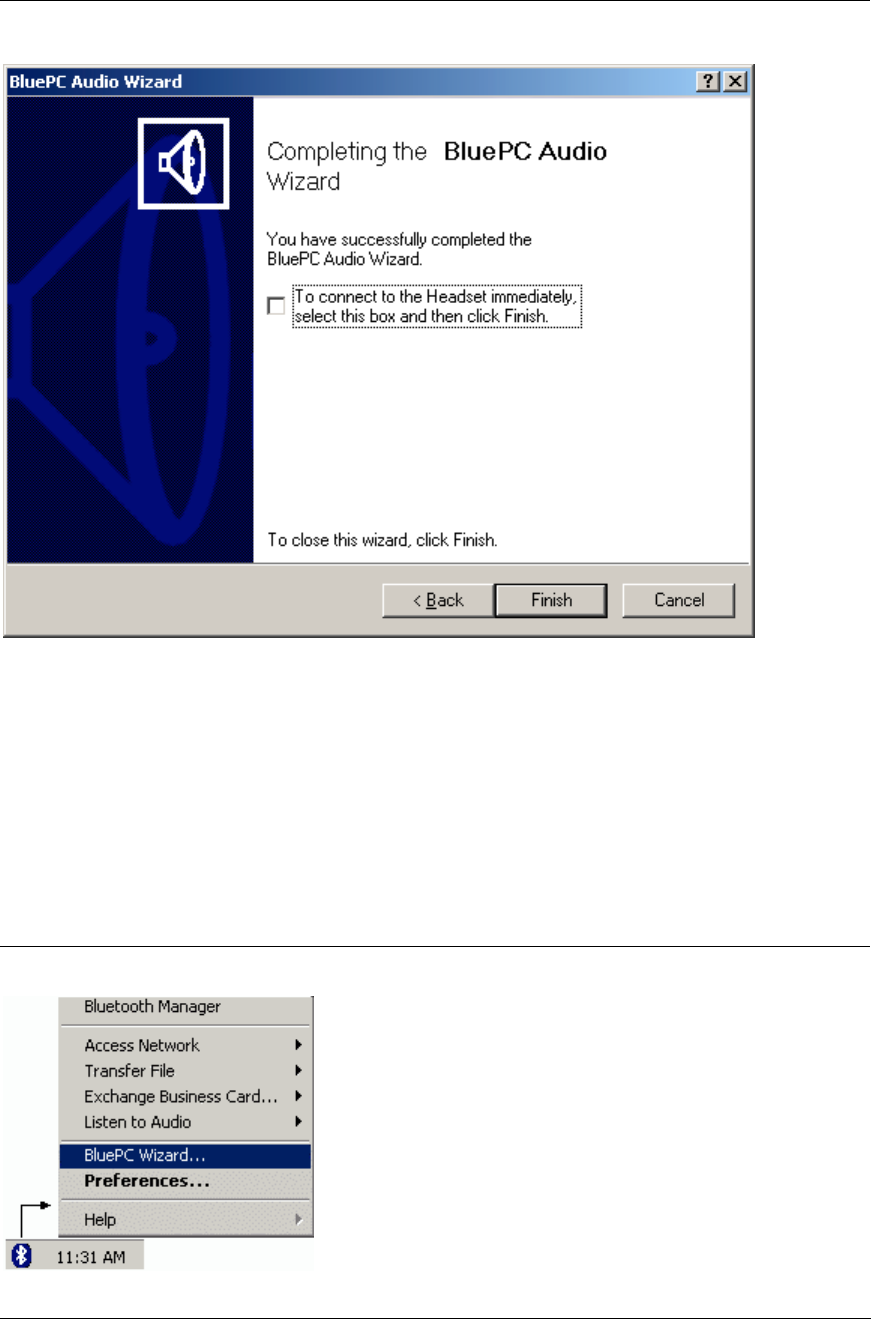

To access the wizard, right-click the Bluetooth icon in the system tray and select BluePC Wizard.
Figure 13. Bluetooth Wizard menu
The following screen is displayed:
Figure 14. BluePC Wizard
Please refer to Chapter 4 Using BluePC on page 43, for details on how to print files or access the
network.
BluePC User Manual
Getting Started 19

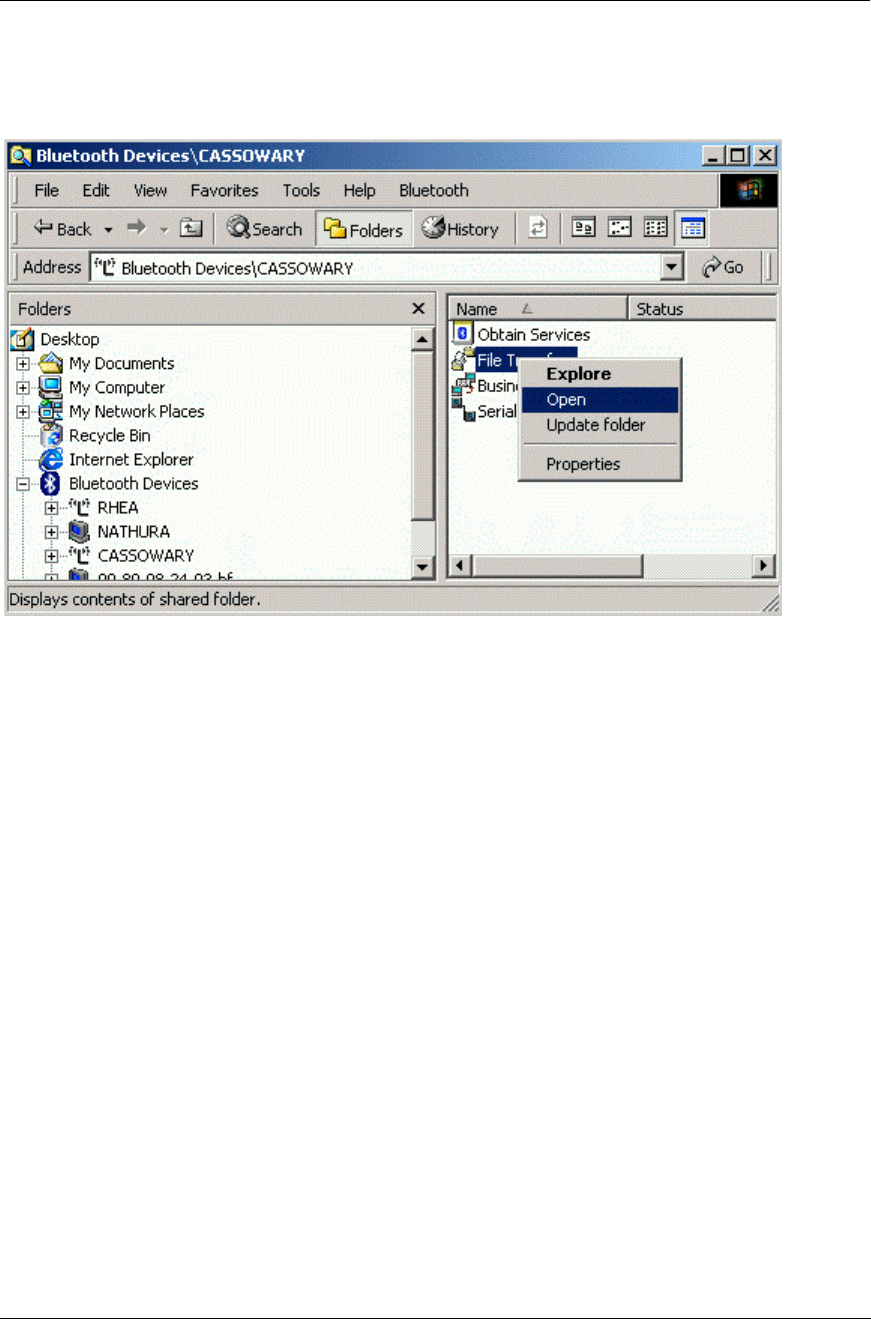

3.2.2 Bluetooth-enabled Windows Explorer
The Bluetooth-enabled Windows Explorer is an enhanced Windows Explorer that allows you to
quickly discover other Bluetooth devices within the range, identify services, and configure the
required services as well. To access the Bluetooth-enabled Windows explorer, double-click the
Bluetooth Devices icon on your desktop or launch the Windows Explorer from the Start menu.
Figure 15. Bluetooth device icon
The following screen is displayed.

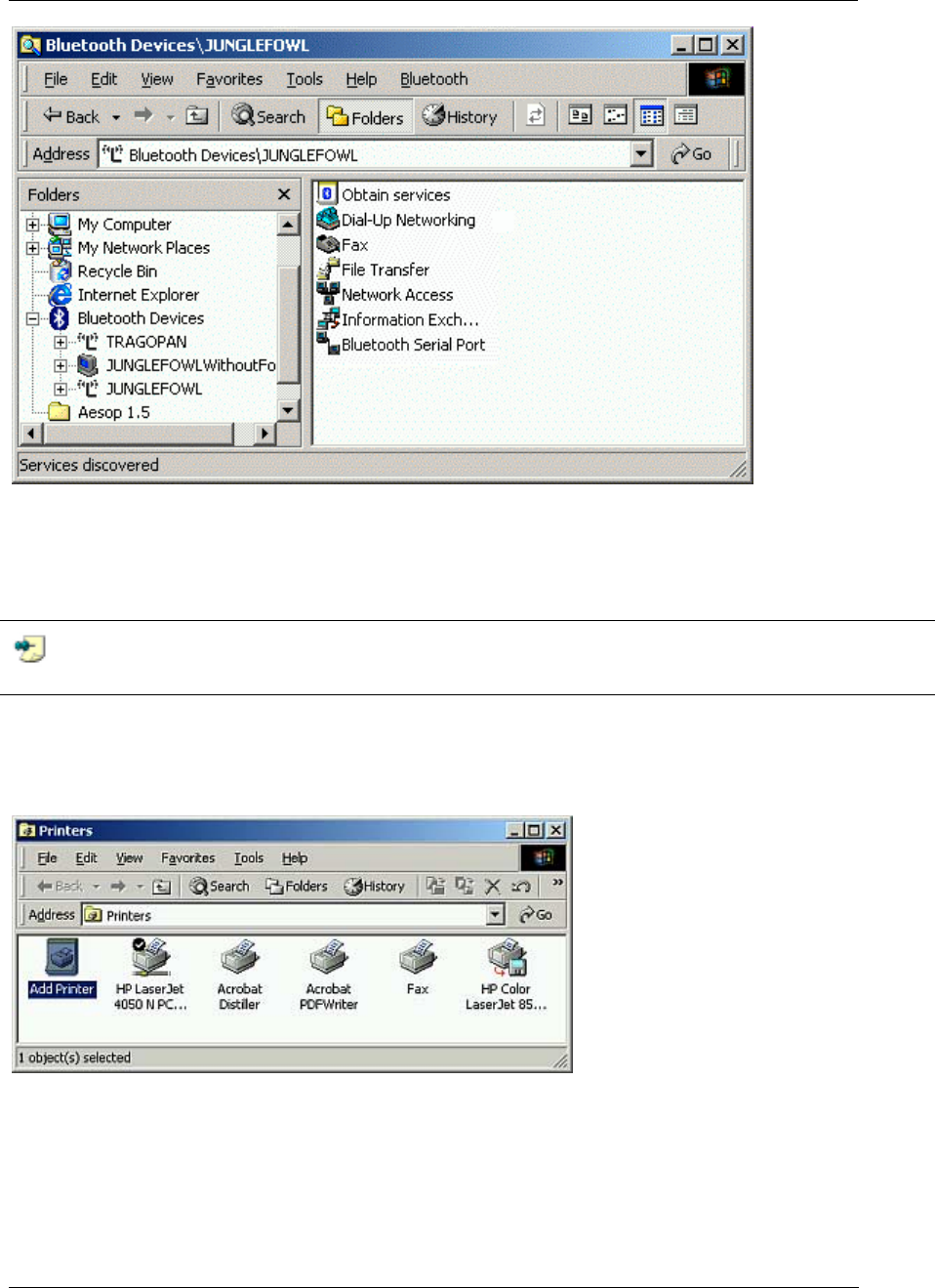

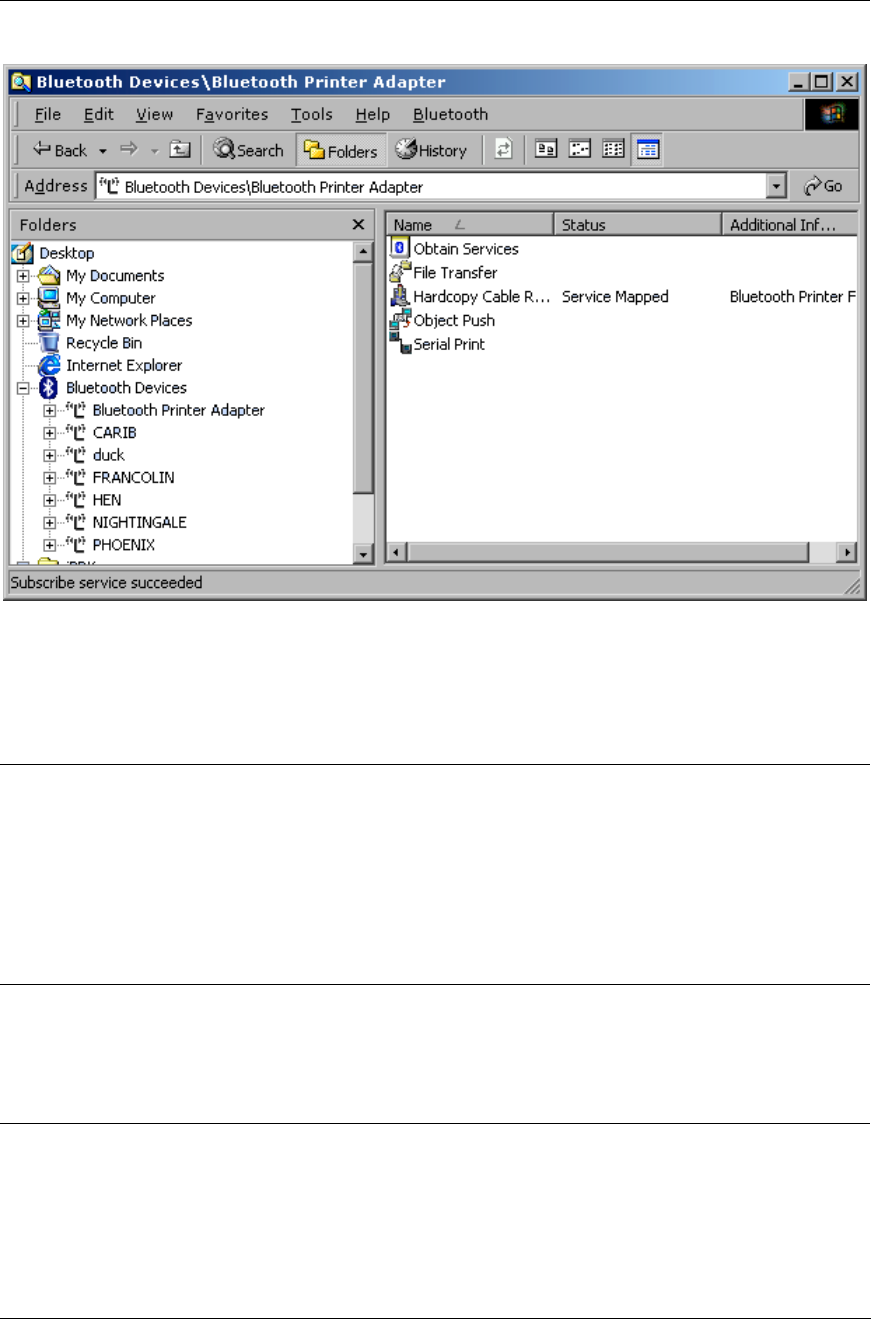

Figure 16. Bluetooth-enabled Windows Explorer
BluePC User Manual
Getting Started 20
You can also access Bluetooth devices through Windows Explorer. The Bluetooth Devices list
displayed in the left pane as shown in the figure below:

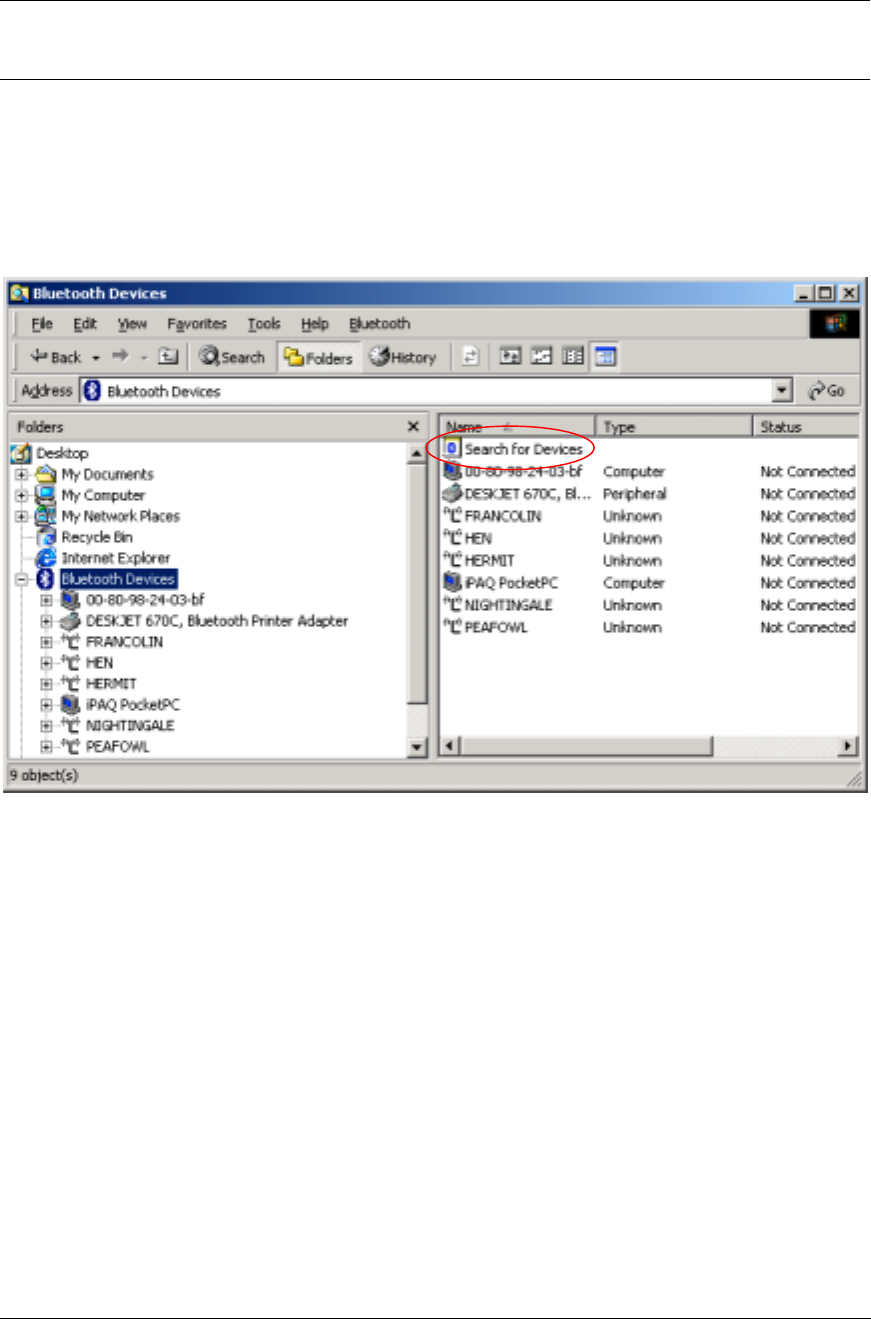

Figure 17. Bluetooth Devices
To search for Bluetooth devices in the vicinity, right click Bluetooth Devices and select the option
Search for Devices. You can also double-click the Search for devices icon in the right pane as
shown in Figure 17.
3.2.3 Bluetooth Manager
The Bluetooth Manager helps you organize the Bluetooth devices and services available. To access
the Bluetooth Manager:
1. Right-click the Bluetooth icon in the system tray. The following menu is displayed:

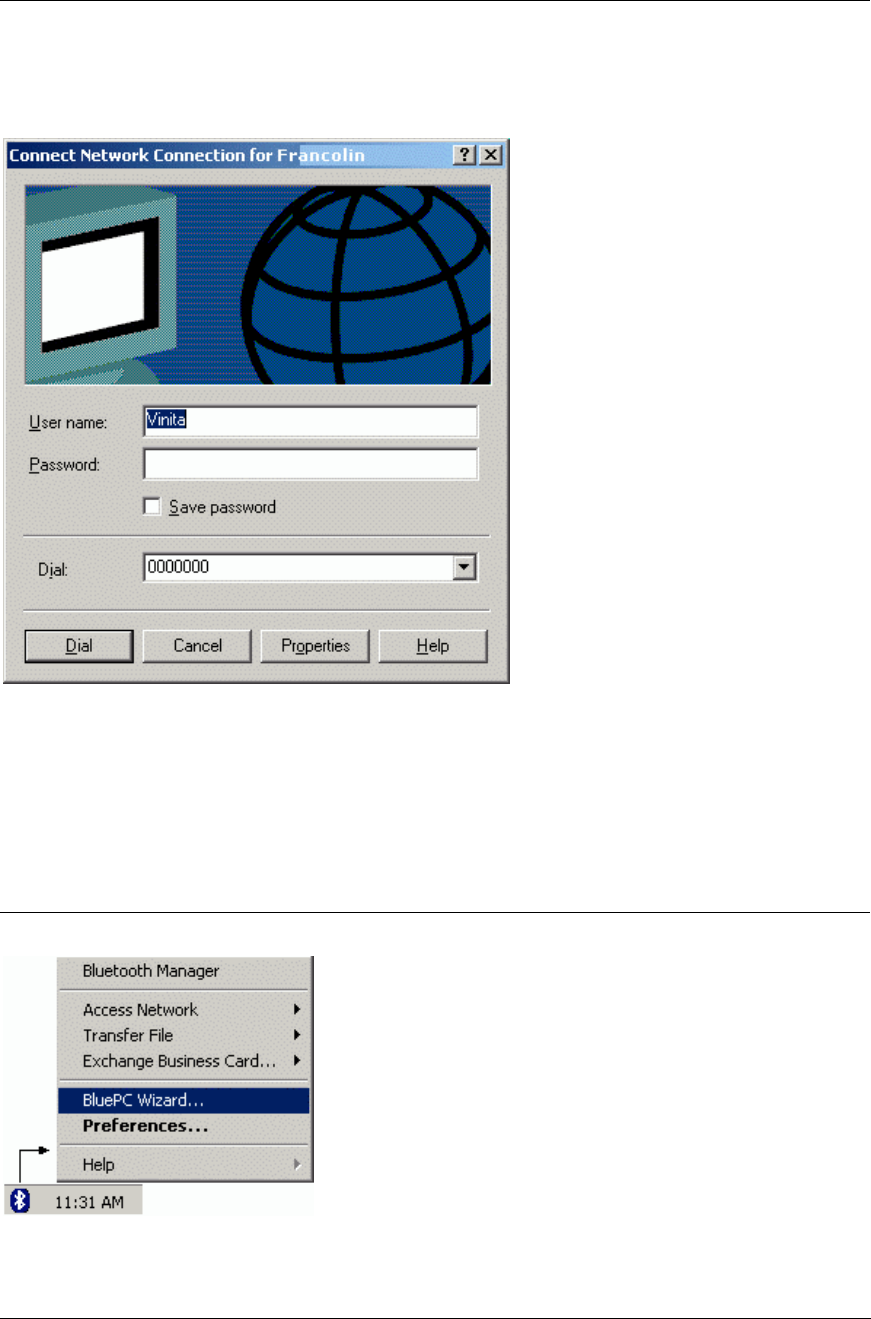

Figure 18. Bluetooth Manager Menu
BluePC User Manual
Getting Started 21
2. Select Bluetooth Manager. The following screen is displayed:
Figure 19. Bluetooth Manager
Bluetooth Manager remembers devices that you have discovered in the past. These devices are listed
by Bluetooth Manager in gray if they are not currently available. Click Delete under Bluetooth
Devices to remove an old device from the list. Click Delete under Service to remove the
corresponding setup in BluePC.
3.2.4 BluePC Preferences
Use BluePC Preferences to configure Bluetooth settings. When you use BluePC the first time after
installation, the BluePC Preferences wizard guides you through the process. You can access the
BluePC Preferences in the following ways:
• Click the Setup Preferences option in the Welcome screen
• Right-click the Bluetooth icon in the system tray and select the option Preferences
BluePC User Manual
Getting Started 22
• Double-click the Bluetooth icon in the system tray
• Double-click the BluePC Preferences icon in the Control Panel
• Select the Setup Preferences option in the BluePC Wizard
Figure 20. Preferences
Refer to section 3.3 Setup Preferences on page 22 for more information on how to set preferences.
3.3 Setup Preferences
You need to configure your Bluetooth preferences before proceeding further. You can access the
Preferences screen in the following ways.
• After you install BluePC and restart the machine, the Getting Started screen is displayed as
shown in Figure 10. Select the option Setup Preferences.
• Double-click the Bluetooth icon in the system tray.
• Right-click the icon and select the option Preferences from the menu.
• Double-click the BluePC Preferences icon in the Control Panel
• Select the Setup Preferences option in the BluePC Wizard
BluePC User Manual
Getting Started 23
3.3.1 BluePC Preferences Wizard
When you use the utility the first time after installation, the BluePC Preferences wizard guides you
through the various preferences that have to be set. Subsequently, this can also be invoked through
the Setup Preferences option in BluePC Wizard.
1. The BluePC Preferences Wizard welcome screen is displayed.
Figure 21. BluePC Preferences Wizard
BluePC User Manual
Getting Started 24
2. Click Next. The Bluetooth Device Name screen is displayed.
Figure 22. Bluetooth Device Name
3. Enter a name by which the local device will be identified. Click Next. The Select the Shared
Folder screen is displayed.
Figure 23. Select Shared Folder
BluePC User Manual
Getting Started 25
4. Select a folder on your system which can be accessed by other devices in the vicinity. Click Next.
The Select the Business Card screen is displayed.

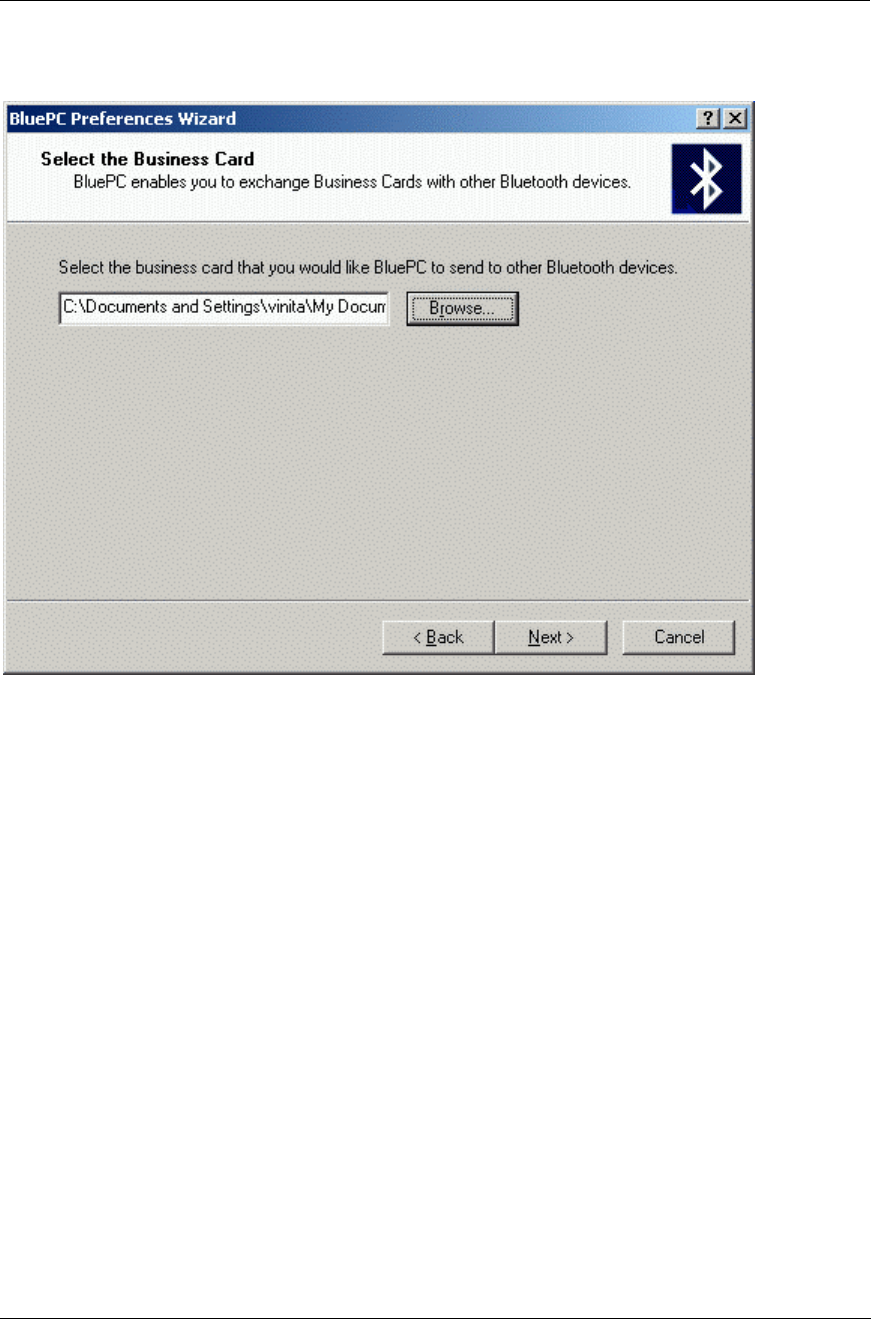

Figure 24. Select Business Card
5. Select the business card that you would like BluePC to send to other Bluetooth devices. Click
Next.
BluePC User Manual
Getting Started 26
6. The Select the Inbox Folder screen is displayed.

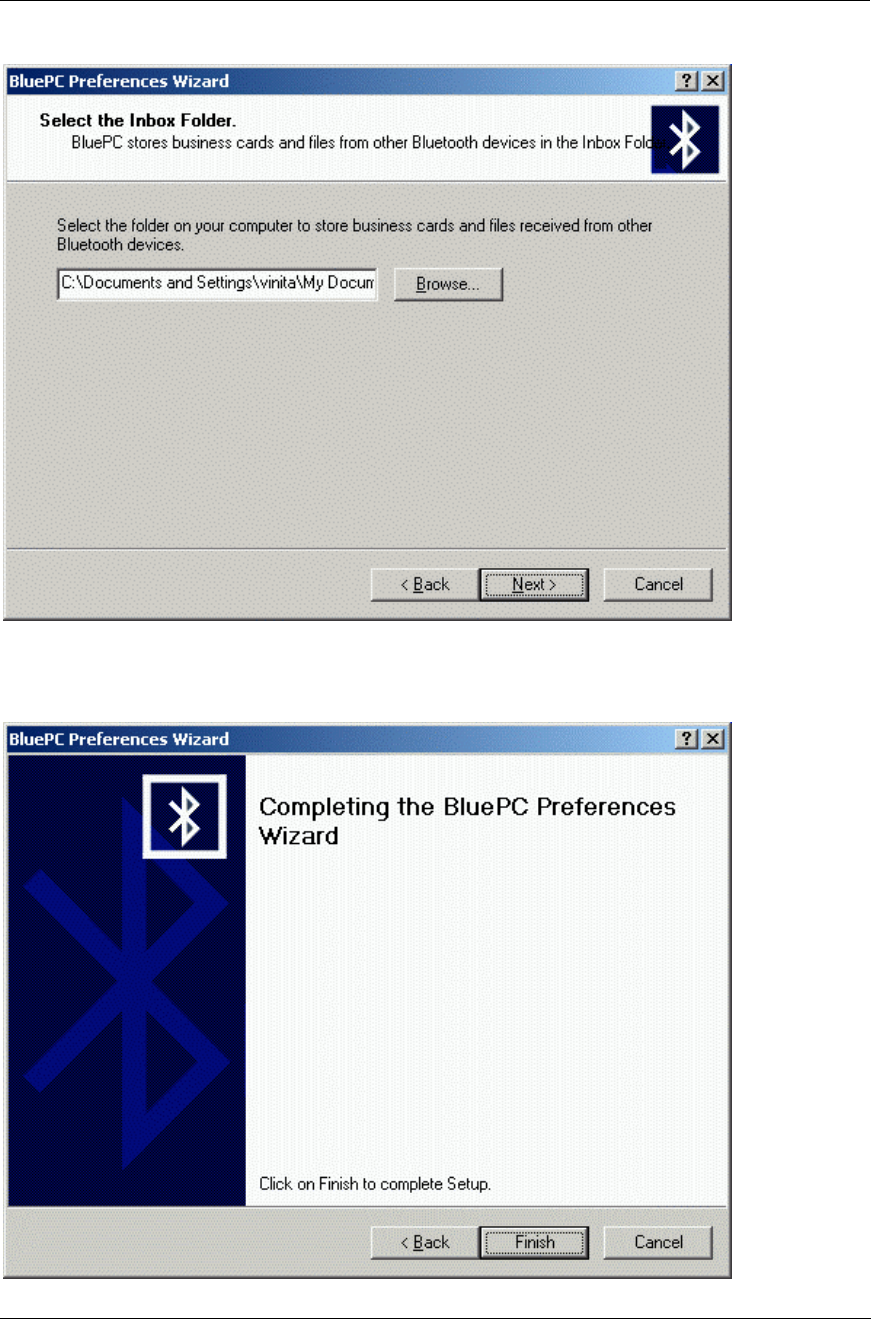

Figure 25. Select Inbox Folder
7. Select the folder on your computer to store business cards and files received from other
Bluetooth devices. Click Next.
Figure 26. Final Screen
BluePC User Manual
Getting Started 27
8. The Final screen is displayed. Click Finish to complete the process.
Subsequently, when you access the Preferences option, the Preferences screen is displayed. It has
four tabs through which you can configure the preferences for your local device:
• General
• Services
• Security
• Advanced
3.3.2 General tab
Through this tab you can configure the properties related to the Bluetooth device on the computer.
This tab displays the following information:
• Device Name
• Bluetooth Address

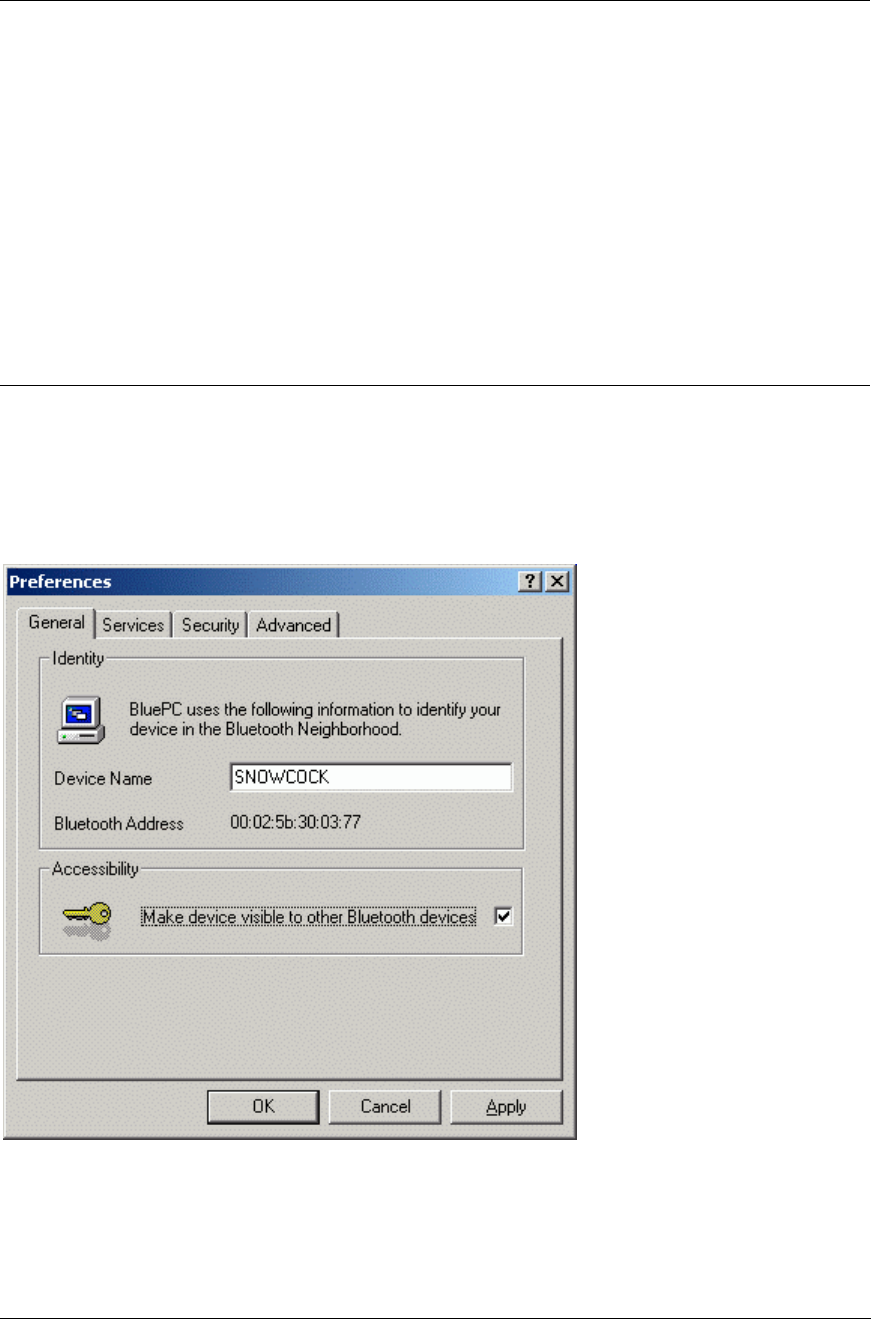

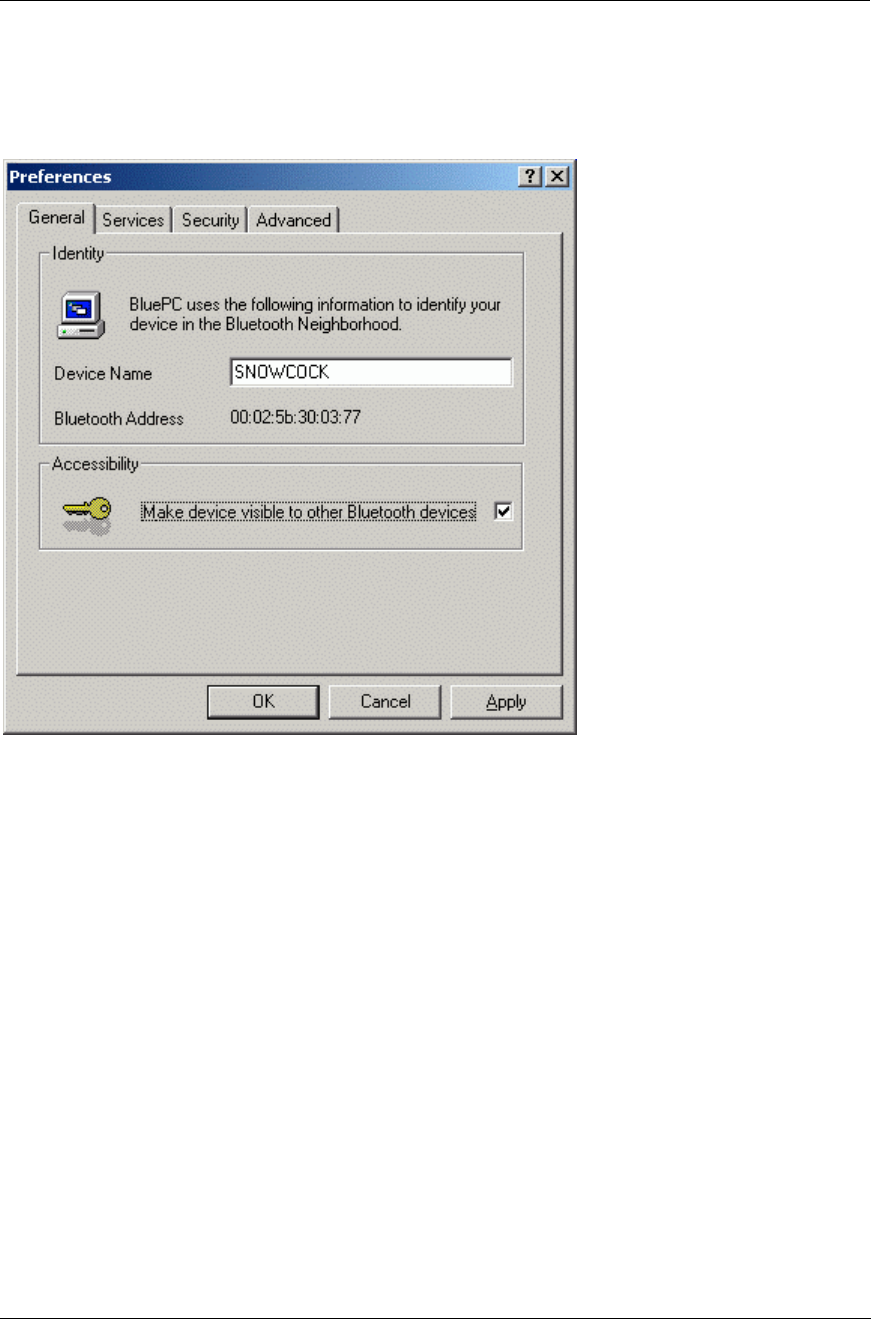

Figure 27. General tab
1. You can enter a name for the local Bluetooth device for the other Bluetooth devices to identify
the local Bluetooth device.
2. In order to make your device accessible to other Bluetooth devices in the vicinity, you can select
the Make device visible to other Bluetooth devices.
BluePC User Manual
Getting Started 28
3. Click Apply to save the settings.
3.3.3 Services Tab
The Services tab is displayed as shown in the figure. You can add a service, which other Bluetooth
devices in the vicinity can use. Through this tab you can also remove a service.

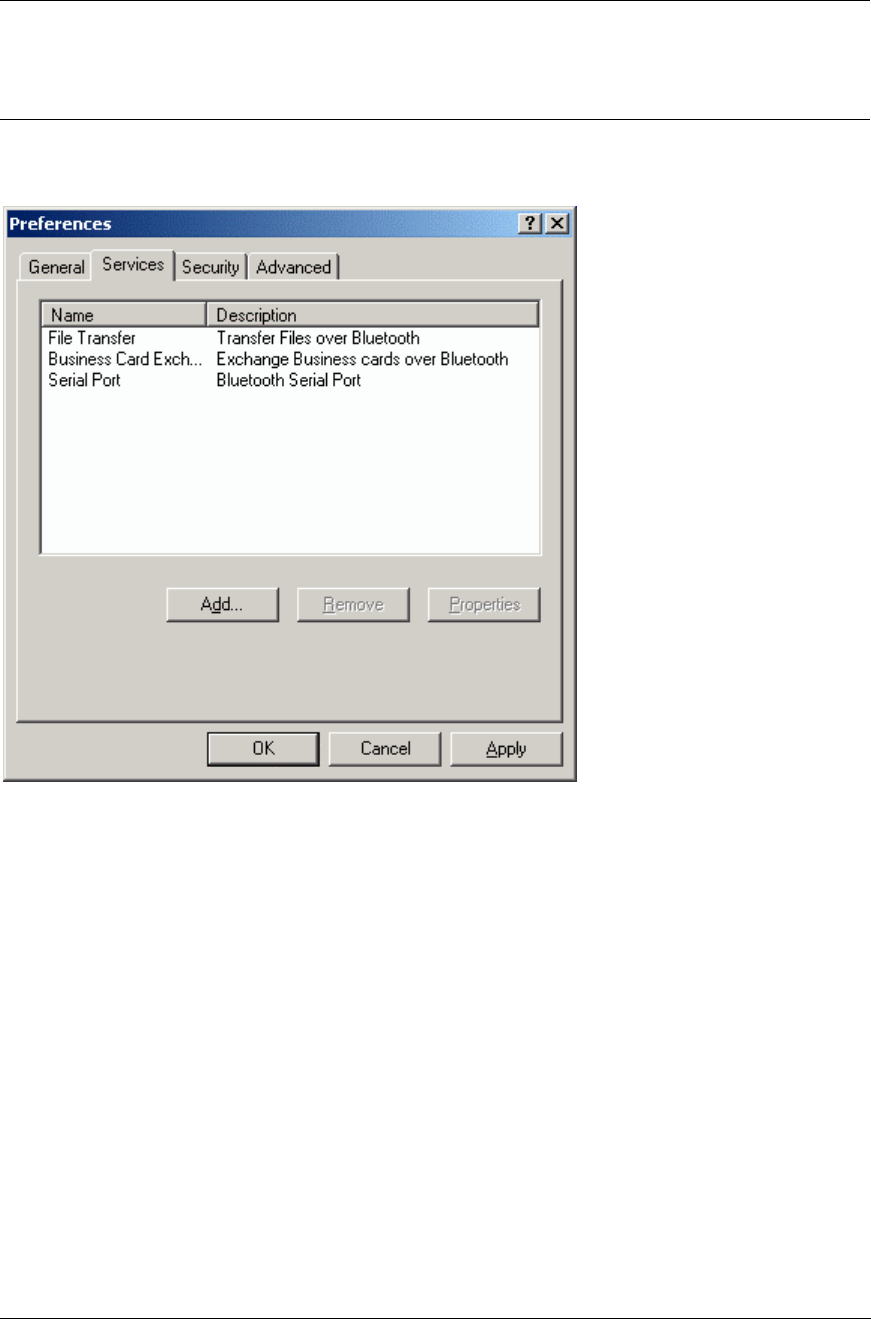

Figure 28. Services tab
This tab displays the following information:
• Name of the service
• Brief description of the service
The following services are automatically offered:
• Serial Port
• File Transfer
• Business Card Exchange
Double-click on a service to view it’s properties.
BluePC User Manual
Getting Started 29
Add a File Transfer Service
Using the File Transfer service you can exchange files with another Bluetooth device in the vicinity.
You need the service only if you would like other Bluetooth devices to access files on your computer
or to send files to your computer.
To add a File Transfer service:
1. Click Add. The Add Service dialog is displayed.

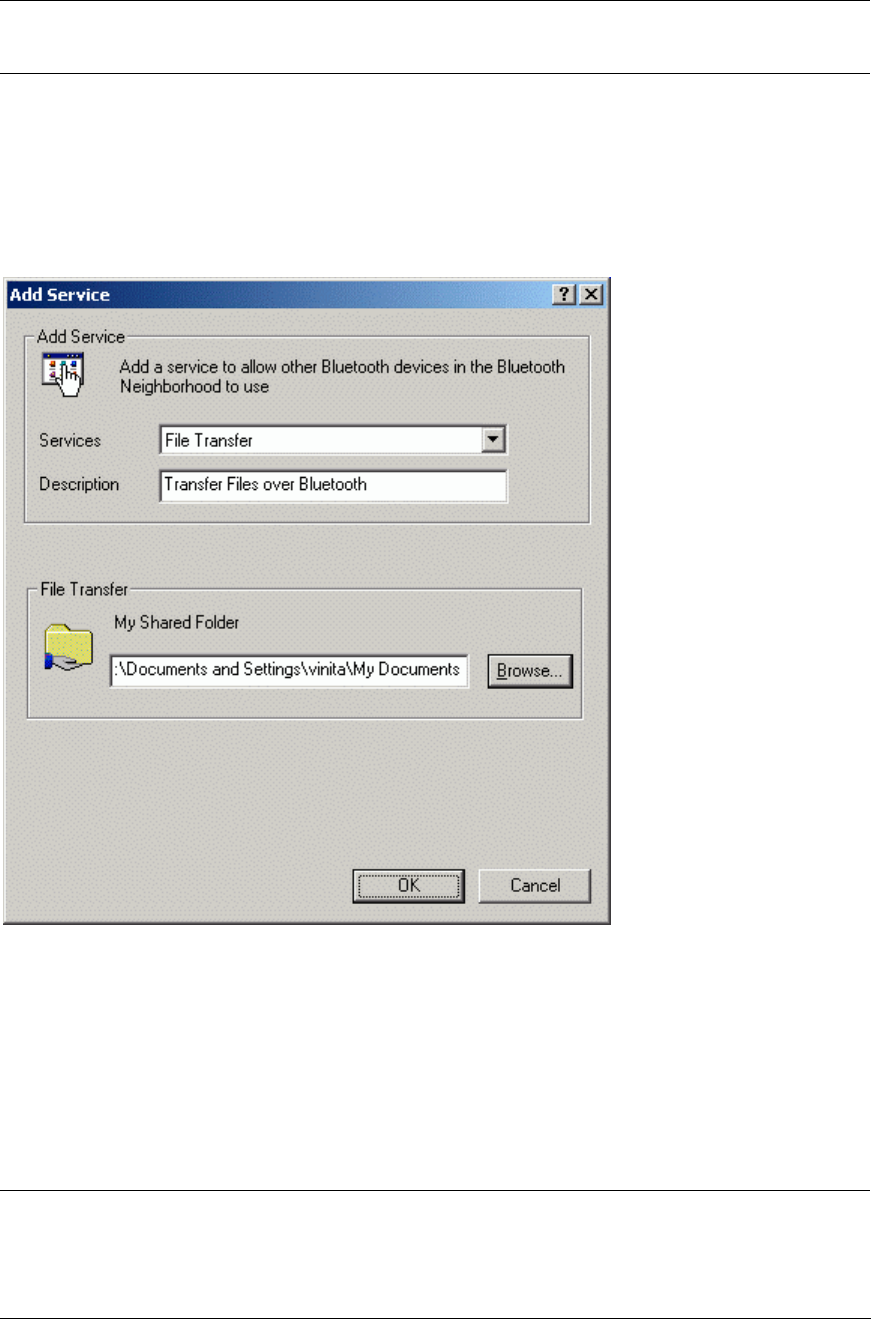

Figure 29. Add File Transfer
2. Select File Transfer from the Services list.
3. You can change the default description of the service.
4. By default the “share folder”, through which files can be transferred, is set to your default
directory in the My documents folder. Click Browse to select the path to the share folder.
5. Click OK to save the settings.
Add Business Card Exchange Service
Using the Business Card Exchange service you can send and receive business cards with other
Bluetooth devices in the vicinity. To enable the business card exchange service you first need to add
the service on your local device.
BluePC User Manual
Getting Started 30
To add a Business Card Exchange service:
1. In the Services tab click Add. The Add Service dialog is displayed.

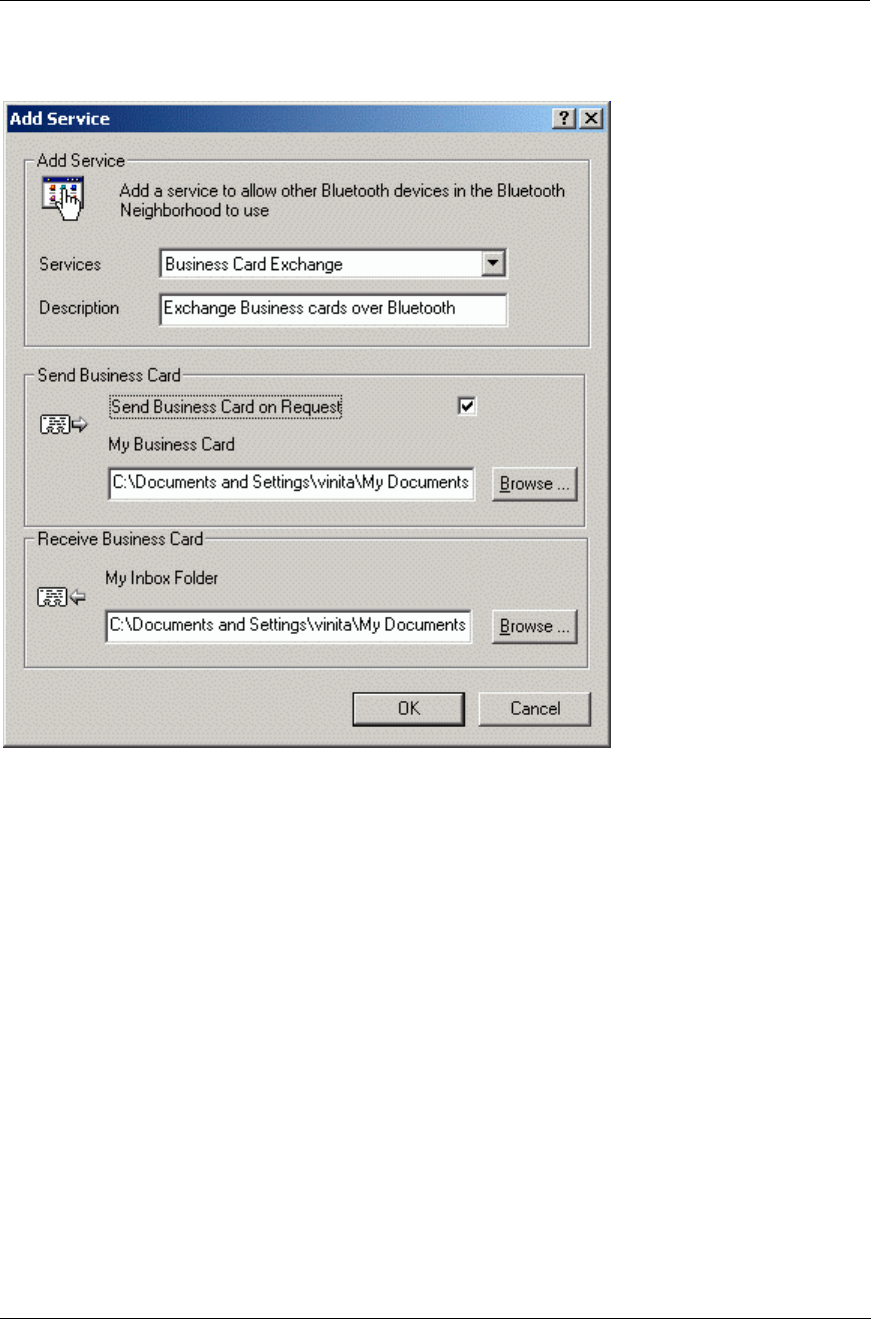

Figure 30. Add Business Card Service
2. Select Business Card Exchange from the Services list.
3. You can change the default description for the service.
4. If you want to send a business card to a remote device, click Browse to select the path where
the business card is stored. If the option Send Business Card on Request is not selected
remote devices cannot “pull” your business card. If the option is selected, they can “pull” the
card from your machine.
5. By default, the business card that is “sent” by a remote system or pulled from a remote system is
stored in the path C:\Documents and Settings\<username>\My Documents. To change
the default path, click the Browse button and select the required path.
6. Click OK to save the settings.
BluePC User Manual
Getting Started 31
Add Serial Port Service
If your system is capable of offering a serial port service to other devices in the vicinity, you can add
the Serial Port service to Services list. To do so:
1. In the Services tab click Add. The Add Service dialog is displayed.
Figure 31. Add Serial Port Service
2. Select Serial Port from the Services list.
3. You can modify the default description.
4. Click OK to save the settings.
BluePC User Manual
Getting Started 32
Add Network Access Service
If your system has access to the network, you can offer a network access service to other devices in
the vicinity. This would help devices in using network resources. To add network access service:
1. In the Services tab click Add. The Add Service dialog is displayed.
Figure 32. Add Network Access Service
2. Select Network Access from the Services list.
3. You can modify the default description.
BluePC User Manual
Getting Started 33
4. Click OK to save the settings. The Digital Signature Not Found screen is displayed.
Figure 33. Digital Signature Not Found
5. Click Yes.
For other devices in the vicinity to access the network through your system, you need to configure it
accept incoming connections. To do so:
1. Click Start -> Programs -> Accessories -> Communications -> Network and Dial-up
Connections. The Network and Dialup Connections window is displayed.

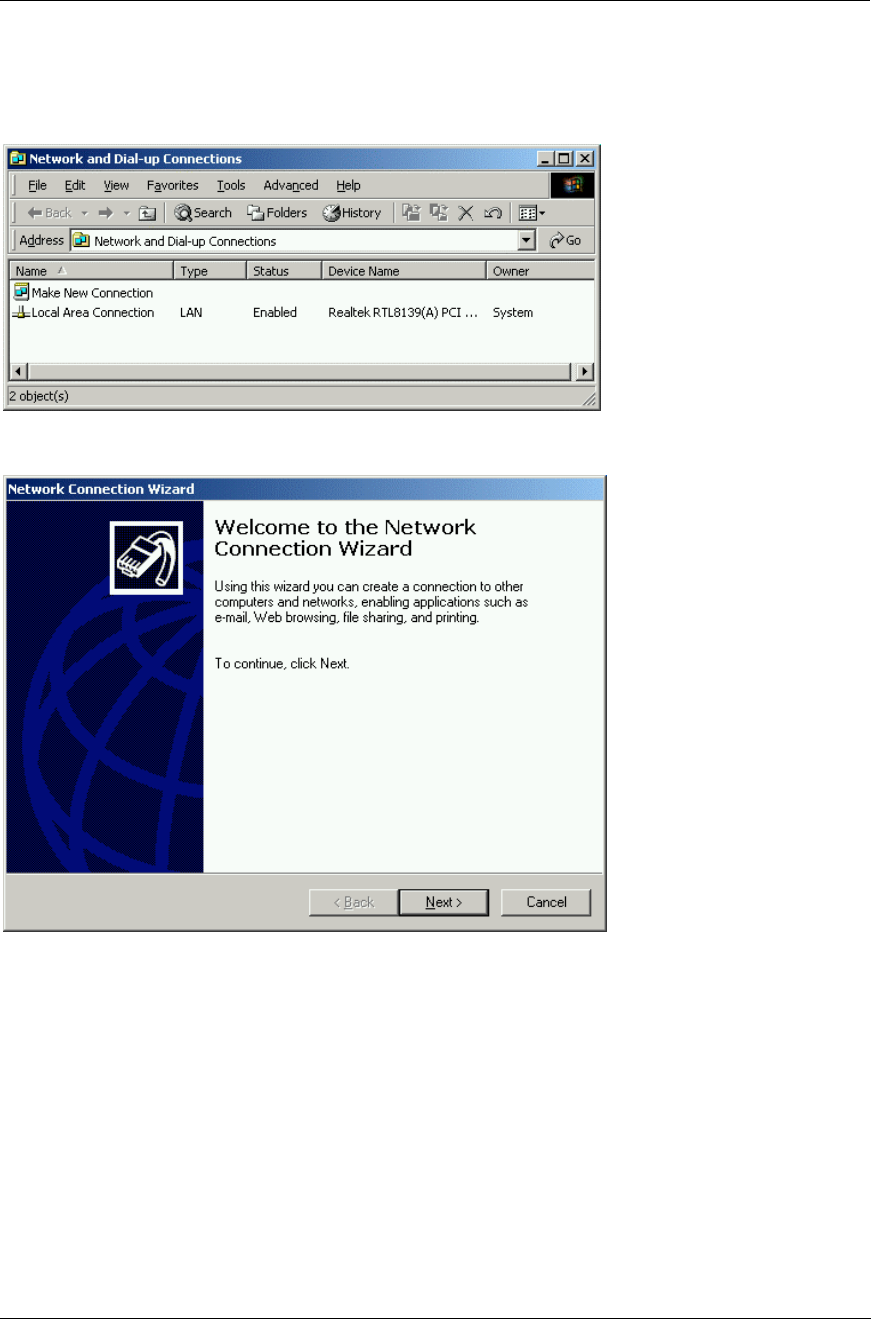

Figure 34. Network and Dial-up Connections
BluePC User Manual
Getting Started 34
2. Double-click Make New Connection. The Network Connection Wizard is displayed.

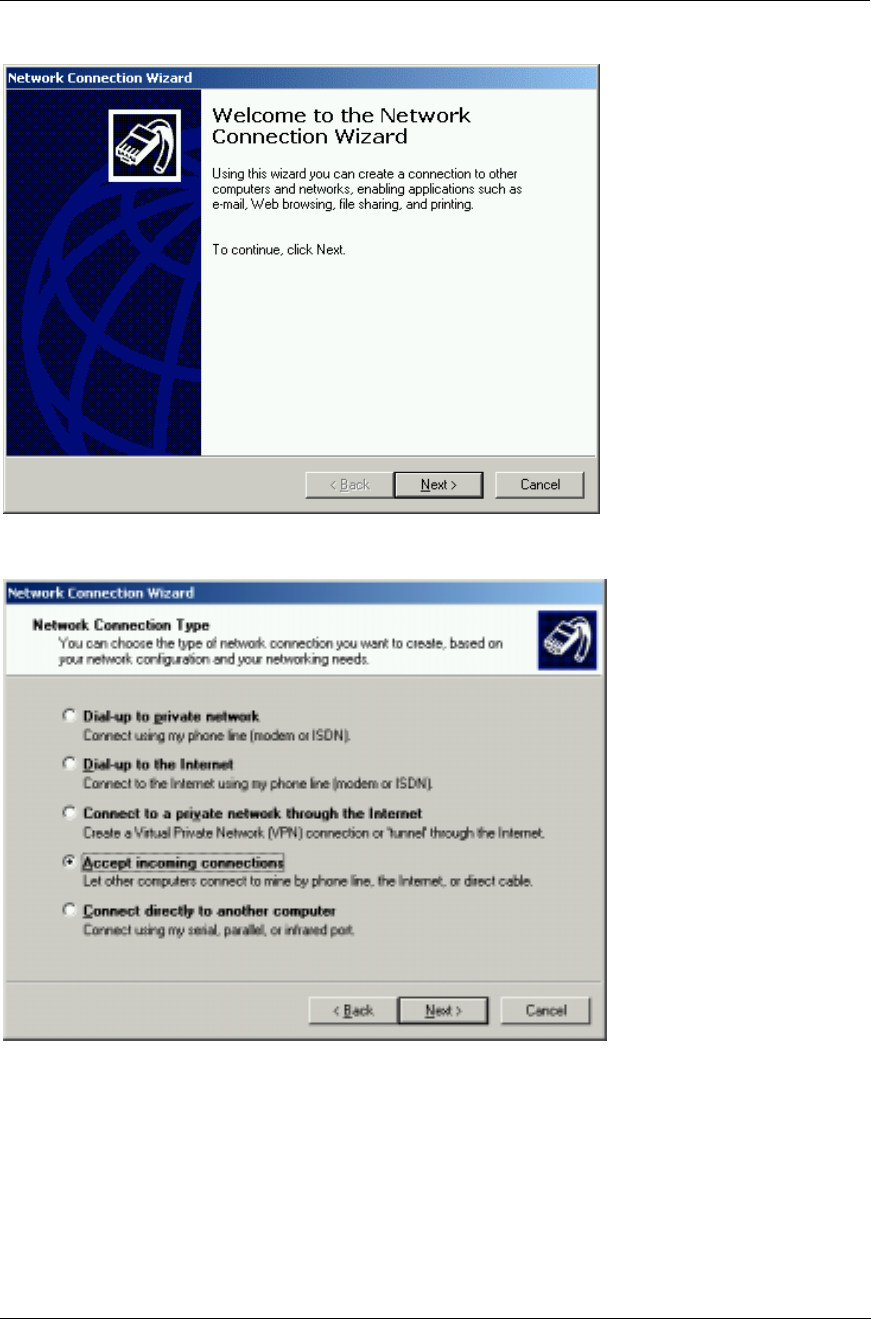

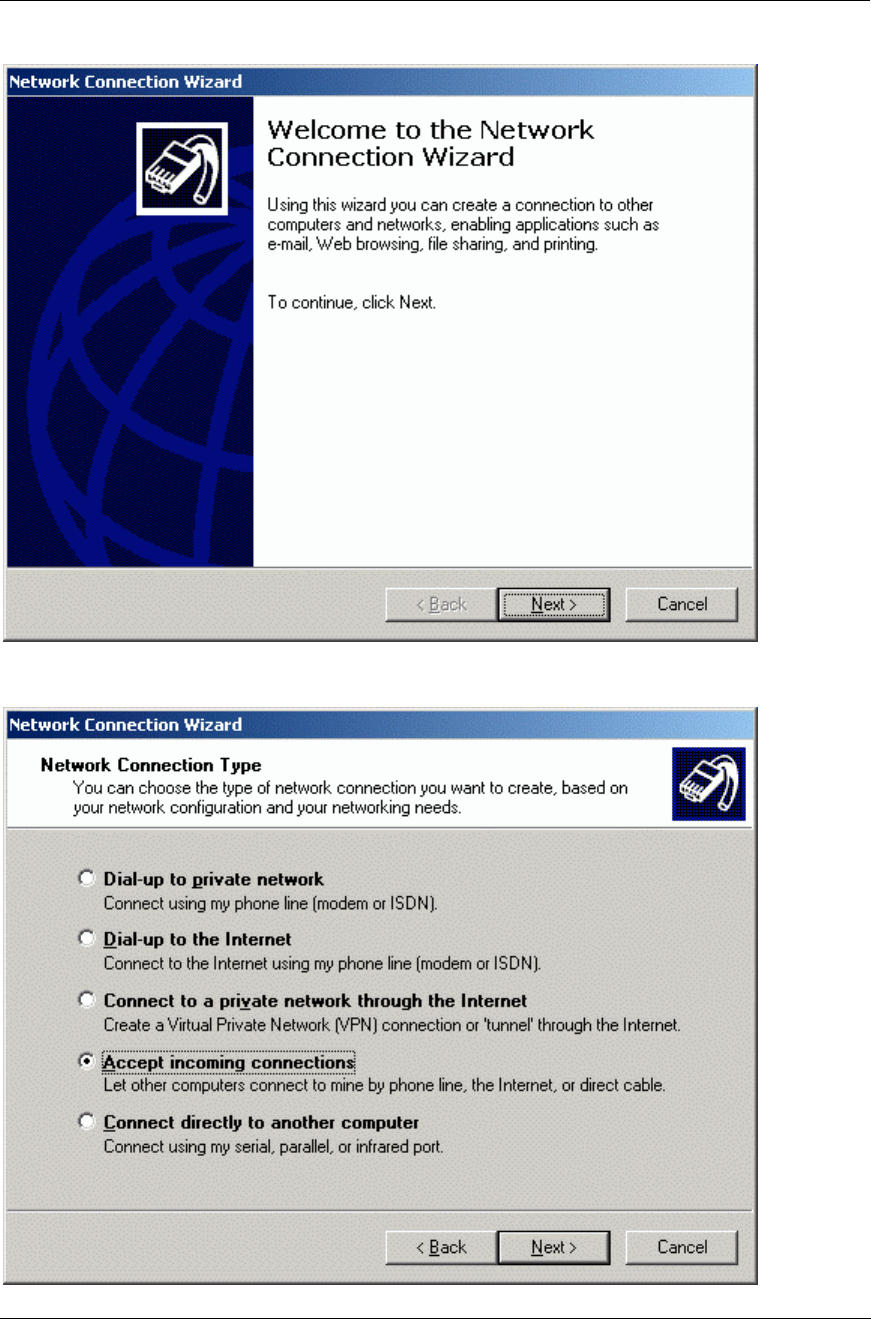

Figure 35. Network Connection Wizard
3. Click Next. The Network Connection Type screen is displayed.
Figure 36. Network Connection Type
BluePC User Manual
Getting Started 35
4. Select the option Accept incoming connections. Click Next. The Devices for Incoming
Connections screen is displayed.

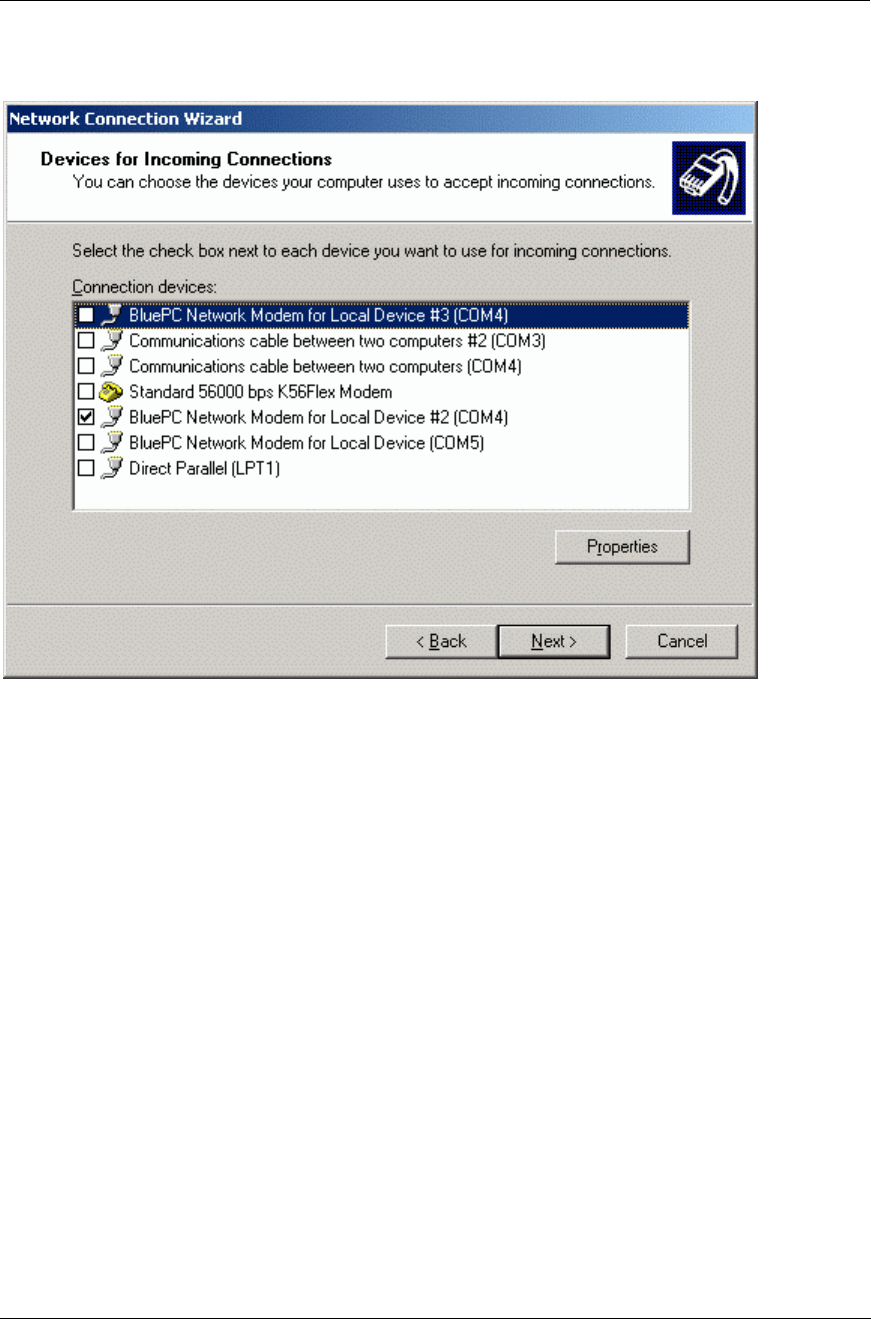

Figure 37. Devices for Incoming Connections
5. Ensure that only the option BluePC Network Modem for the Local Device is selected. Click
Next.
BluePC User Manual
Getting Started 36

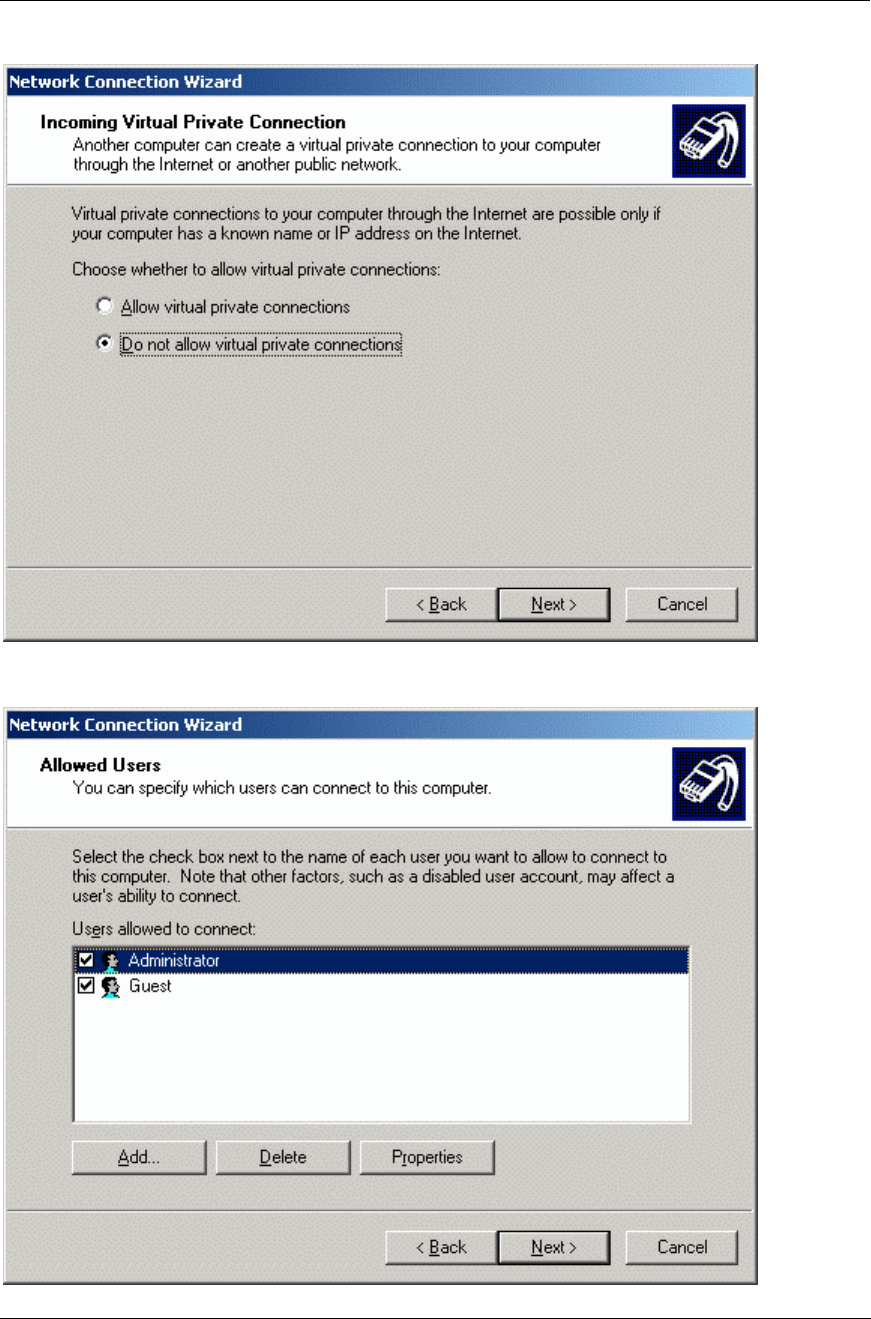

6. The Incoming Virtual Private Connection screen is displayed.
Figure 38. Incoming Virtual Private Connections
7. Click Next. The Allowed Users screen is displayed.

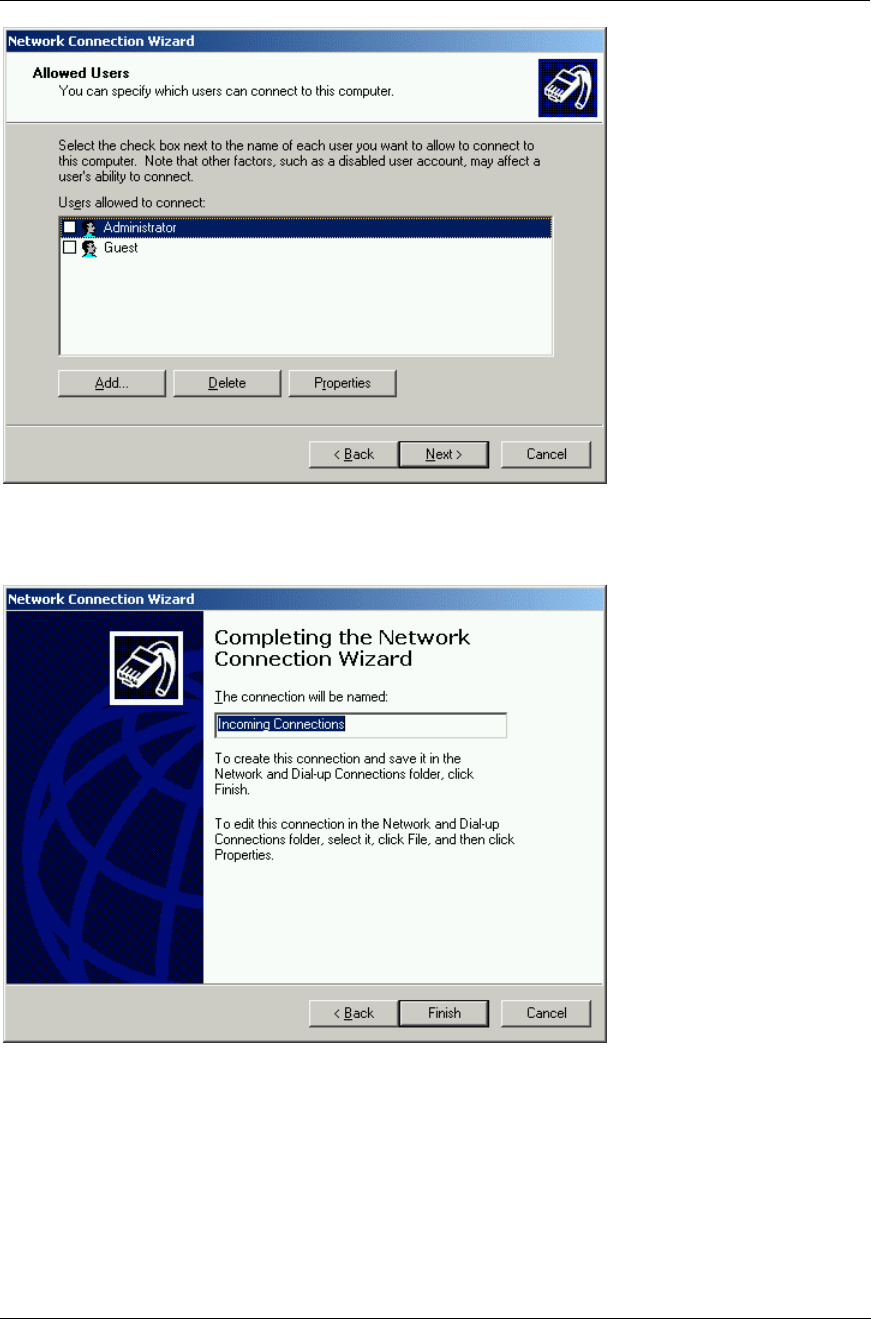

Figure 39. Allowed Users
BluePC User Manual
Getting Started 37
8. If a user other than the Administrator or Guest needs to connect, you will need to add the user.
Click Add. The New User screen is displayed.
Figure 40. New User
9. Enter the details and click OK. Click Next to proceed. The Networking Components screen is
displayed.
Figure 41. Networking Components
10. Click Next.
BluePC User Manual
Getting Started 38
11. The Final screen is displayed.

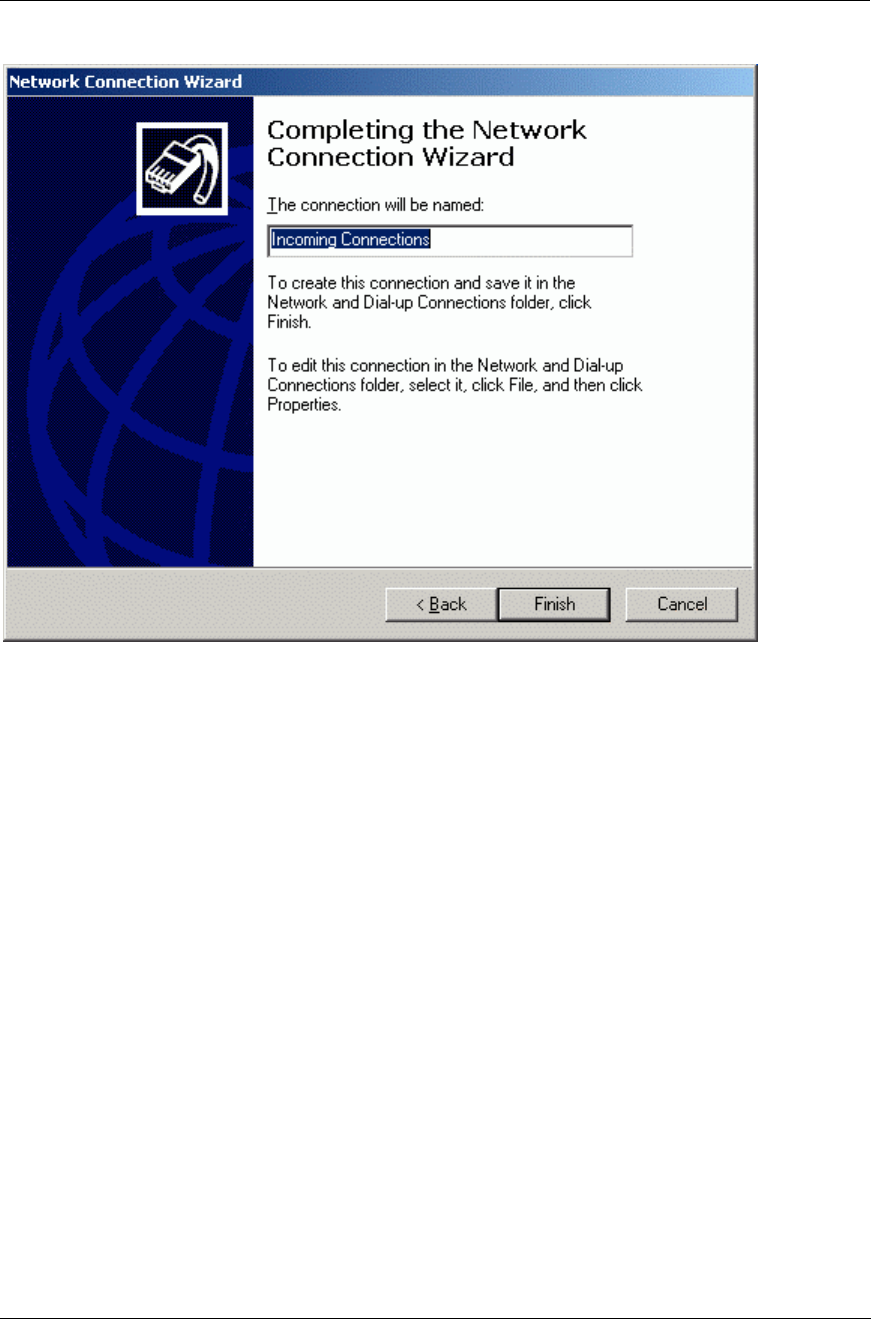

Figure 42. Completing the Network Connection
12. Enter a name for the incoming connection. Click Finish to complete the process.
Users on the client side will now be able to connect to the LAN through BluePC.
BluePC User Manual
Getting Started 39
To remove a service:
Select the service in the Services tab and click Remove.
Figure 43. Remove Service
If you click Properties, the properties of the selected service will be displayed in a window.
Note: Any settings modified will be valid only for the next connection, and will be ignored
for the current connection.
BluePC User Manual
Getting Started 40
3.3.4 Security Tab
The Security tab is displayed as shown in the figure:
Figure 44. Security tab
1. Move the slider to set the security level (low or high) for your device.
a. Low security setting indicates that all devices in the vicinity will be allowed to connect to
your device and they do not need to provide password to connect
b. High security setting indicates that only trusted devices will be allowed to connect, and
untrusted devices will need to provide a password to connect
2. Therefore, when devices try to connect they are prompted with the following message:
Figure 45. Password Window
BluePC User Manual
Getting Started 41
3. If you choose a “High” security setting, you can specify devices that do not need to provide
password information. To do so, click Make Device Trusted.

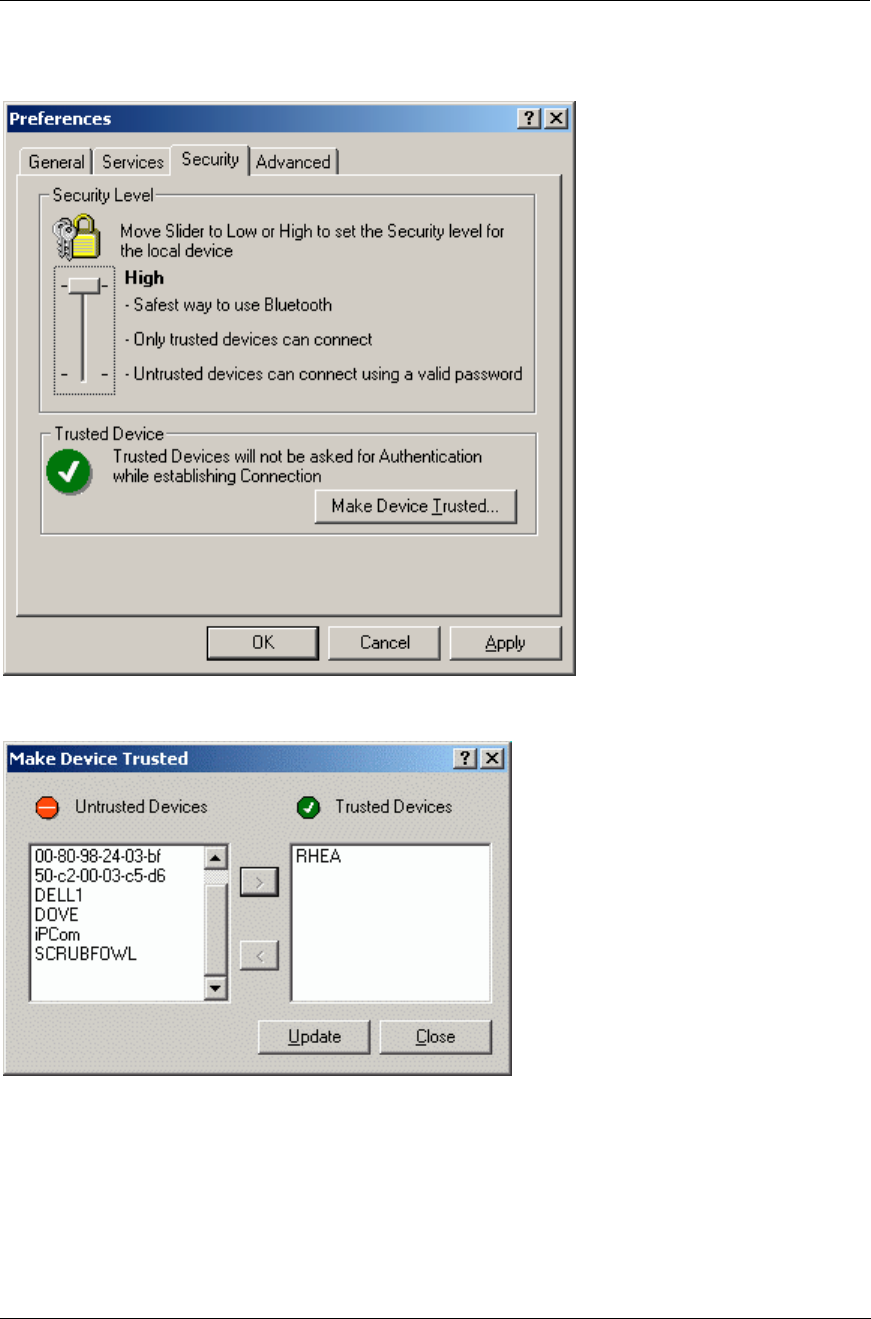

Figure 46. High Security
4. The following screen is displayed.
Figure 47. Make Device Trusted
5. Select a device in the Restricted Devices list, and click the arrow to move the device to
Trusted Devices list.
6. Click Update to save the settings. You will be prompted for a password, one at a time, for each
device
7. Click Close to close the window.
BluePC User Manual
Getting Started 42
3.3.5 Advanced Tab
The Advanced tab is displayed as shown in the figure:
Figure 48. Advanced tab
1. Through this tab you can set the search options
• Specify the number of seconds to search
• Specify the number of devices to report
2. BluePC remembers Bluetooth devices that were found in the past. You can specify the
maximum number of days to keep devices in history.
3. Click Apply to save the information
You can obtain quicker results if you specify smaller values.
BluePC User Manual
Using BluePC 43
Chapter 4 Using BluePC
This section describes how you can use BluePC to browse the web, access your network, fax
information, or synchronize your PDA with your PC. This section describes how to:
• Access the Network
• Transfer Files
• Exchange Business Cards
• Print Files
• Synchronize PDAs with your PC
• Send a Fax
4.1 Access the Network
You can create a connection to another computer or network thereby enabling applications such as
e-mail, browsing, and accessing the network resources. Setting up a network connection is a two step
process. You need to:
• Locate a Bluetooth device offering network access
• Set up Connection
4.1.1 Locate the Network Access Service
You can setup devices in the following ways:
• Using the Access Network menu option in the Bluetooth menu
• Using the BluePC wizard
• Using the Bluetooth enabled Windows explorer
There are two methods in which you can access the network:
• Through the Personal Area Network
• Through the standard Dial-up network or LAN Access setup
Till a PAN connection is established, the PAN icon in the system tray is displayed with a cross.
BluePC User Manual
Using BluePC 44
Using the Bluetooth menu

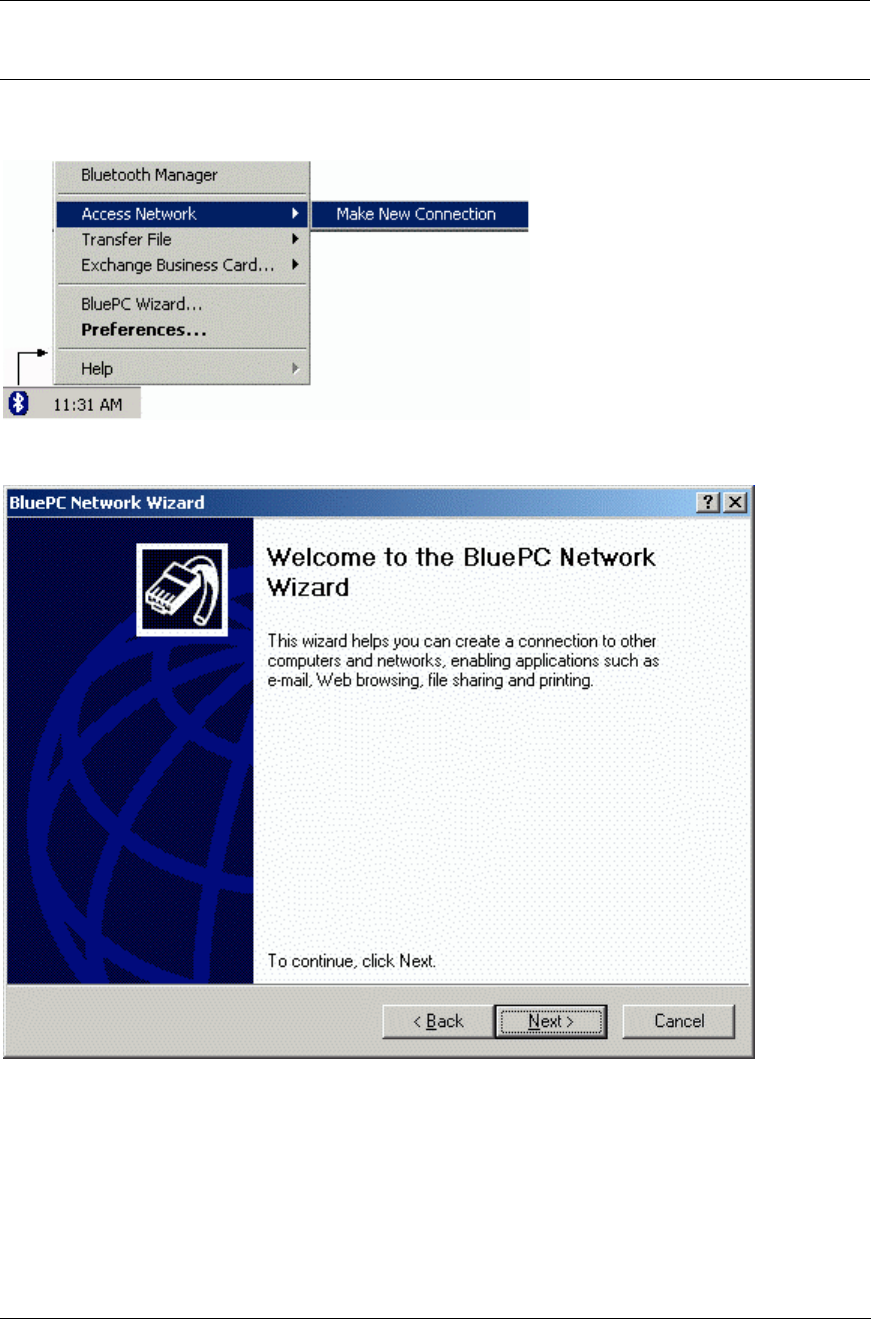

1. Right-click the Bluetooth icon in the system tray and select Access the Network – >Make New
Connection.
Figure 49. Network Access menu
2. The BluePC Network Wizard screen is displayed. Click Next.
Figure 50. Network Connection Wizard
BluePC User Manual
Using BluePC 45
3. The Network Connection Configuration screen is displayed with a list of devices through
which you can access the network.

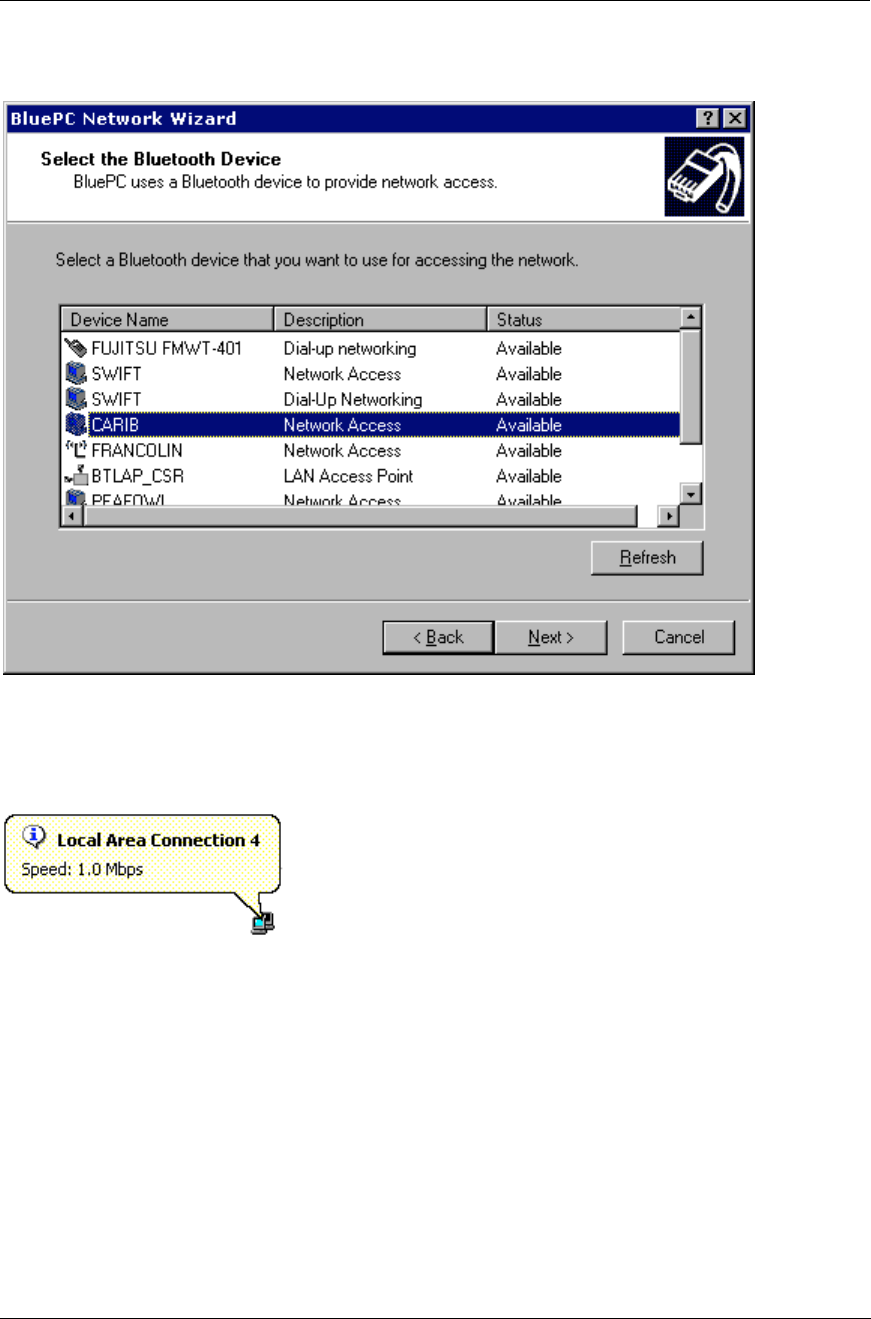

Figure 51. Network Device Selection
4. Select the device and click Next. If you are accessing the network through a Personal Area
Networking service, you are directly connected to the network. And, LAN connection icon
displays in the system tray as shown in the following figure:
Figure 52. LAN Connection in the system tray
BluePC User Manual
Using BluePC 46
5. If you are accessing the network through a LAN or Dial-up connection., the Final screen is
displayed:
Figure 53. Complete Network Connection Configuration
6. If you check the option To connect to the Network immediately select this box and then
click Finish, the Digital Signature Not Found screen is displayed.
Figure 54. Digital Signature Not Found
BluePC User Manual
Using BluePC 47
7. You will get this if you have not disabled “Digital Signature not Found” as explained in the
Appendix Disabling “Digital Signature Not Found”. Click Yes to proceed. The Network
Connection screen is displayed.
Figure 55. Network Login screen
8. Enter your network user name and password and click Dial. Click Finish to complete the
process.
If you have not checked the option as indicated in Step 6, you can connect to the network using the
procedure described in section 4.1.2 Set up Connection on page 53.
Using BluePC Wizard
1. Right-click the Bluetooth icon in the system tray and select the option BluePC Wizard.
Figure 56. Bluetooth Wizard menu
BluePC User Manual
Using BluePC 48
2. The BluePC Wizard welcome screen is displayed.
Figure 57. BluePC Wizard welcome screen
BluePC User Manual
Using BluePC 49
3. Click Next. The BluePC Wizard option screen is displayed.
Figure 58. Access the Network option
4. Choose Access the Network. The steps that follow to setup the network access are the same as
described in the previous section Using the Bluetooth menu on page 44.
BluePC User Manual
Using BluePC 50
Using the Bluetooth-enabled Windows Explorer
If you know the Bluetooth device offering network access, use the Bluetooth-enabled Windows
Explorer to access the network.
1. Double-click the Bluetooth Devices icon on your desktop (You may also right-click the
Bluetooth Devices icon and select the option Search for Devices). The following screen is
displayed:
Figure 59. Bluetooth Devices screen
2. Double-click the Search for Devices icon. The Explorer searches for devices in the vicinity.
BluePC User Manual
Using BluePC 51
3. Select the required device and double-click Obtain Services.
Figure 60. Obtain Services
4. The services offered by the selected device is listed.
5. If you are accessing the network through a Personal Area Network service, you are directly
connected to the network. And, LAN connection icon displays in the system tray as shown in
the following figure:
Figure 61. LAN Connection
BluePC User Manual
Using BluePC 52
6. If you are accessing the network through a LAN or Dial-up connection, double-click the
Network Access icon to connect to the service. The following screen is displayed.
Figure 62. Digital Signature not Found
7. Click Yes. BluePC connects to the device offering the service and displays the status
Service Mapped in the Status field.
Figure 63. Service Mapped
BluePC User Manual
Using BluePC 53
4.1.2 Set up Connection
The network connection window is automatically launched once the service is set up. Later on, you
can access the connection through the system tray or through Bluetooth-enabled Windows explorer.
To access the connection through the system tray:
If you have connected to a Personal Area Network service:
1. Right-click the Bluetooth icon and select the option Access the Network. The Network Access
services that you have configured are displayed as shown.
Figure 64. Network Access Menu
2. Click the select the required service. You are directly connected to the network, and the LAN
connection icon displays in the system tray as shown in the following figure:
Figure 65. LAN Connection
BluePC User Manual
Using BluePC 54

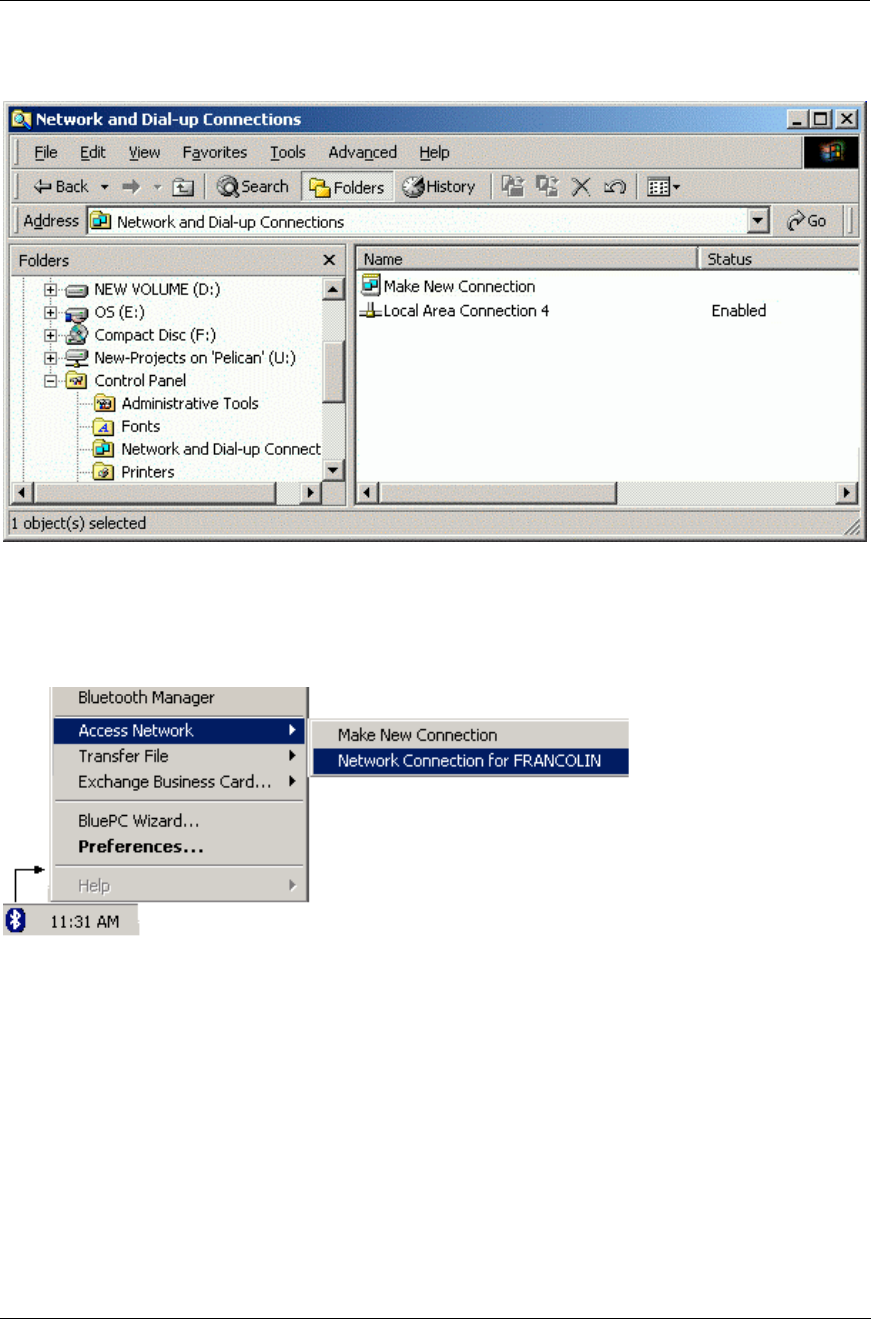

3. You can also see the status using Network and Dialup connections. The window displays the
Connected status.
Figure 66. Network and Dial-up Connections
If you have connected to a LAN access service or Dial-up networking service:
1. Right-click the Bluetooth icon and select the option Access the Network. The Network Access
services that you have configured are displayed as shown.
Figure 67. Access Network Menu
BluePC User Manual
Using BluePC 55
2. Click to select the required service. The corresponding log in screen is displayed. For example, if
you are connecting to a Network Connection the following screen is displayed.

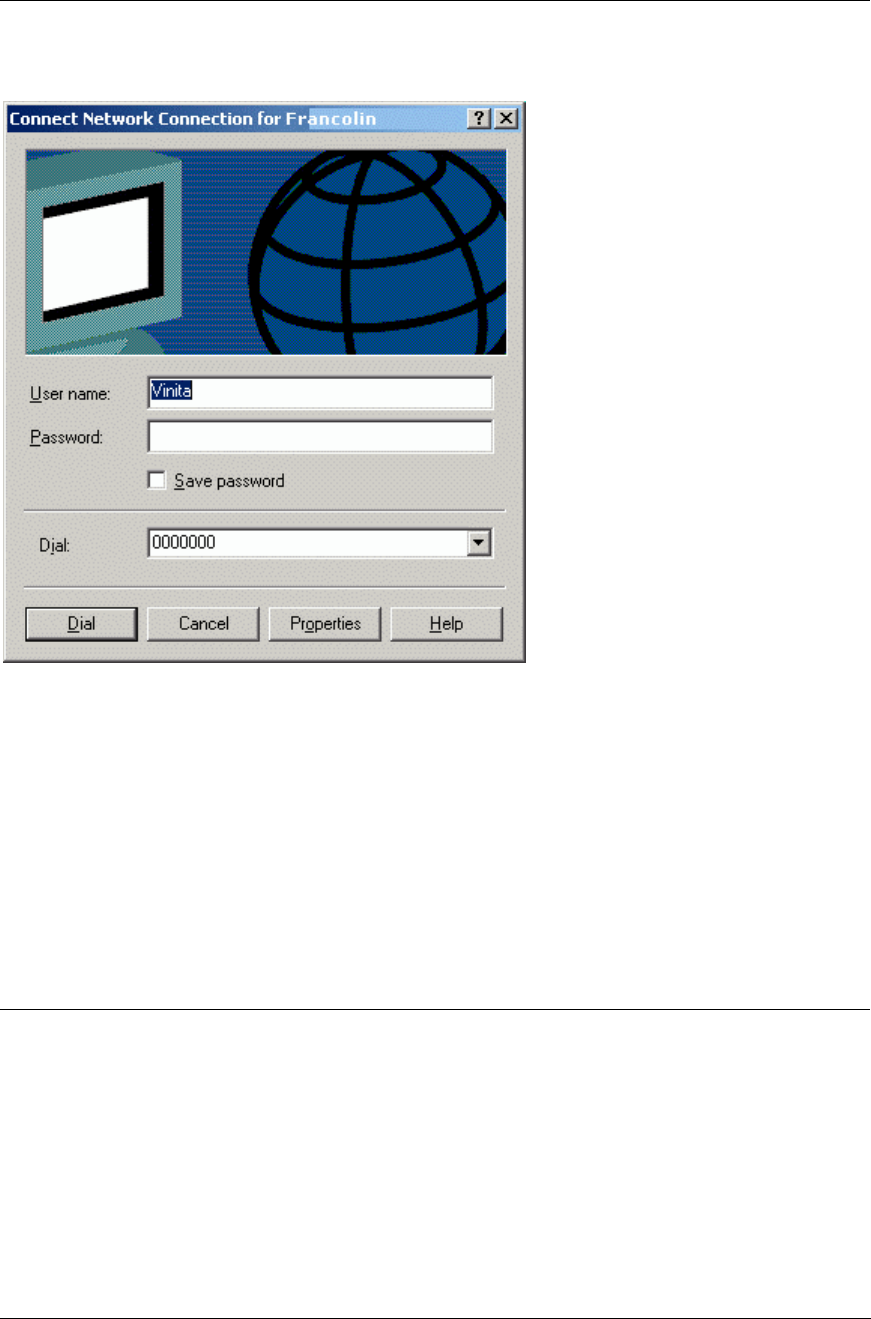

Figure 68. Network Log in screen
3. Enter your network user name and password and click Dial.
Once you have established the connection you are a part of the Local Area Network (LAN). Now,
you can browse the Internet, share and access resources from the LAN, and use the printer resource
available in the LAN. For data transfer using the Network Access service, the user who has logged
into the system acting as the LAN gateway should have permissions to access the domain on which
the machine is connected, and administrator privileges on the machine acting as the LAN access
gateway.
To access the connection through the Bluetooth-enabled explorer:
1. In the Windows Explorer screen, double-click the service that you have configured (you may
also right-click the service and select the option Connect). The corresponding login screen is
displayed
BluePC User Manual
Using BluePC 56
1. For example if you are connecting to a Dial-up Networking service the following screen is
displayed:

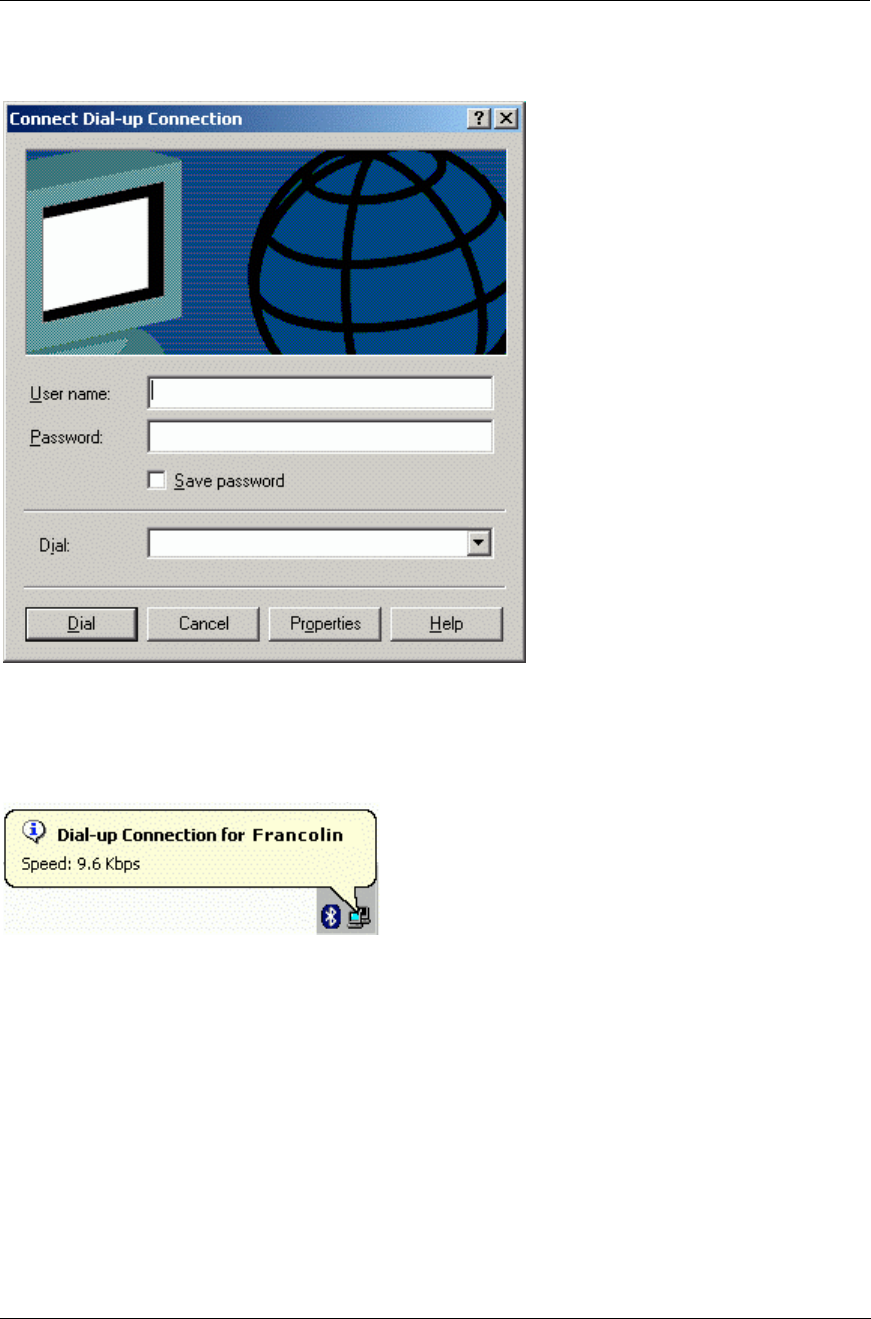

Figure 69. Dial-up connection
2. Edit your Internet Service Provider username and password. Click Connect.
3. Once you establish a connection the following icon is displayed in the system tray with a
message.
Figure 70. Dial-up Connection icon in System Tray
BluePC User Manual
Using BluePC 57

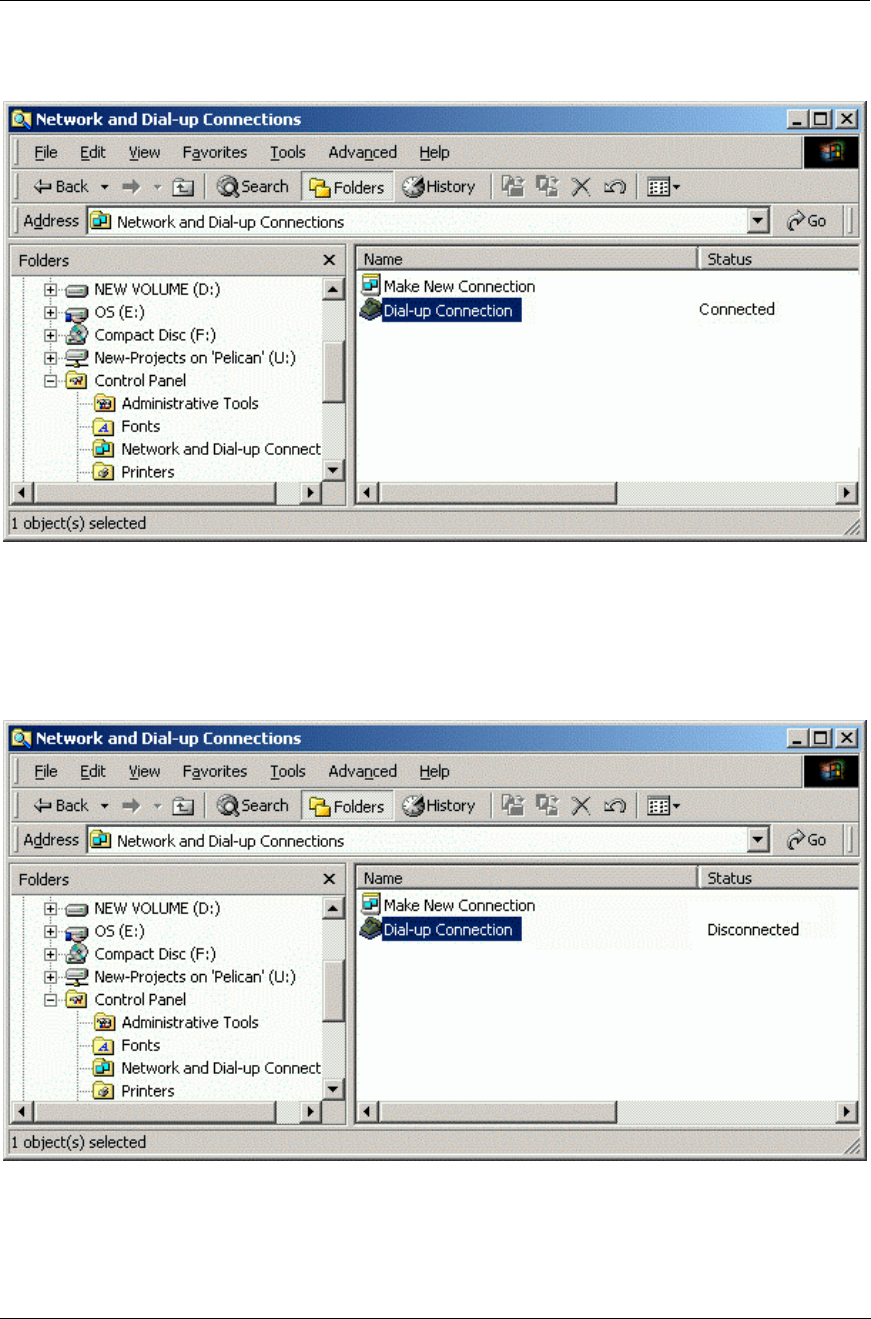

4. You can also see the status using Network and Dialup connections. The window displays the
Connected status.
Figure 71. Connected Status
5. Now that you have established a Dial-up networking connection, you can browse the Internet.
6. To disconnect the connection, right-click the icon in the system tray and select the option
Disconnect. The icon disappears from the system tray and Network and Dial-up
Connections window will display the Disconnected status.
Figure 72. Disconnected Status
BluePC User Manual
Using BluePC 58
4.2 Transfer Files
BluePC allows you to browse folders and copy, move, or delete files on a remote Bluetooth enabled
system. You can transfer files in the following ways:
• Using the Transfer File menu option
• Using the Bluetooth-enabled Windows Explorer
4.2.1 Using the Transfer File Menu Option
Send Files
1. Right-click the Bluetooth icon in the system tray and select the option Transfer File -> Send
File.

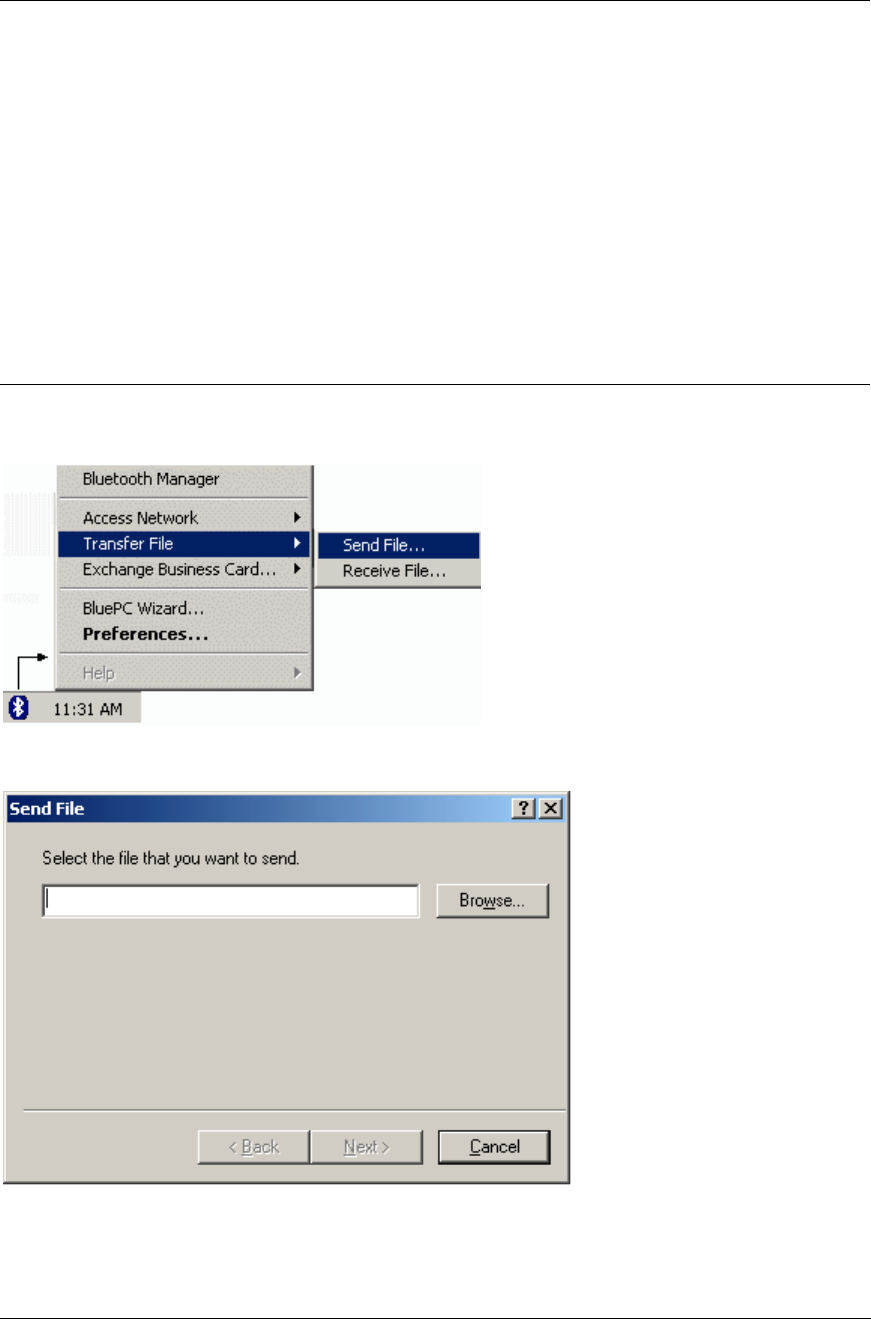

Figure 73. Send File menu
2. The File Selection screen is displayed. Click Browse to select the required file.
Figure 74. File Selection
3. Click Next to proceed.
BluePC User Manual
Using BluePC 59
Next, you need to select the remote device to which you want to send the file. Select the required
device and click OK.

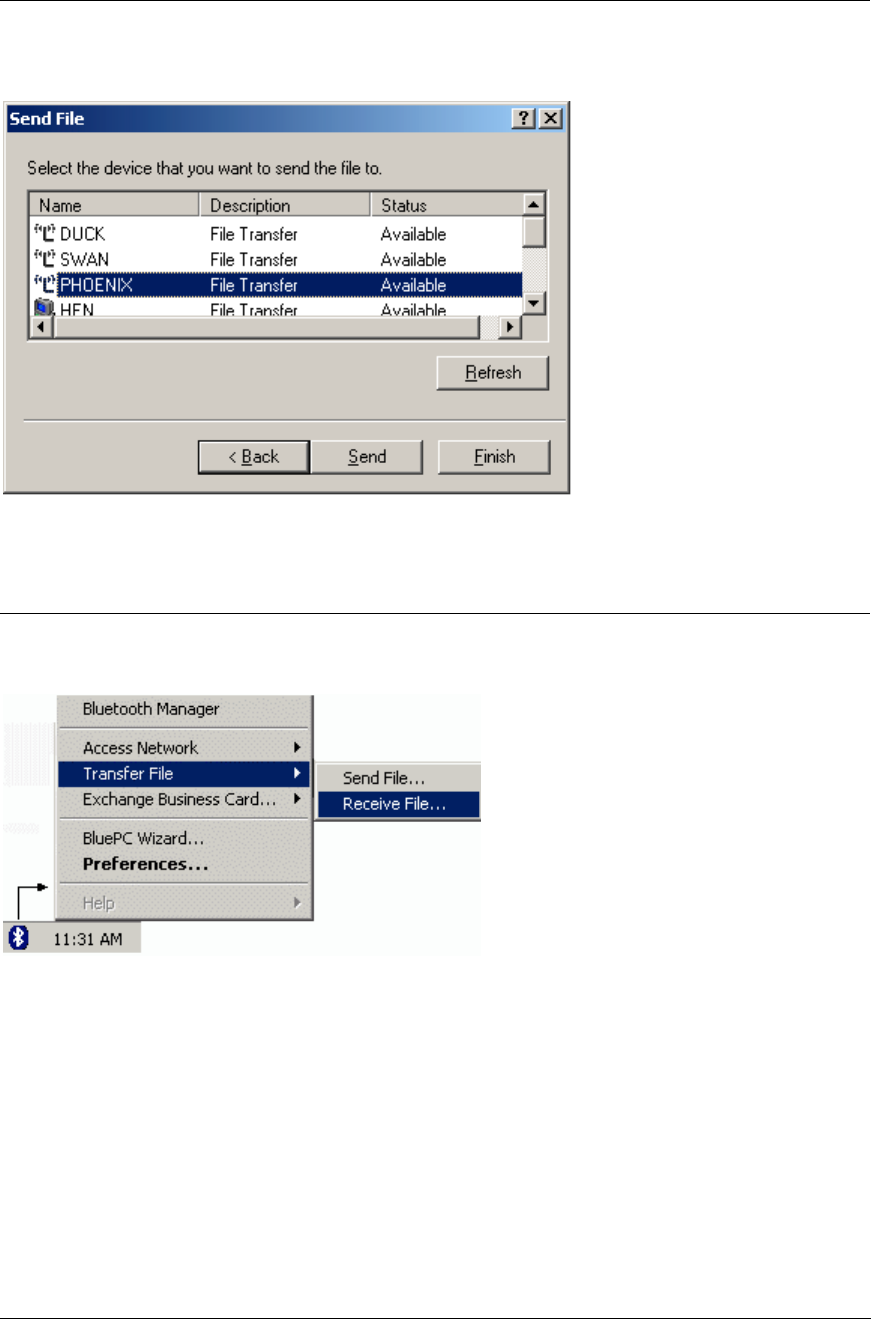

Figure 75. Select device
4. The file is sent to the shared folder of the remote device.
Receive Files
1. Right-click the Bluetooth icon in the system tray and select the option Transfer File -> Receive
File.
Figure 76. Receive File Menu
BluePC User Manual
Using BluePC 60

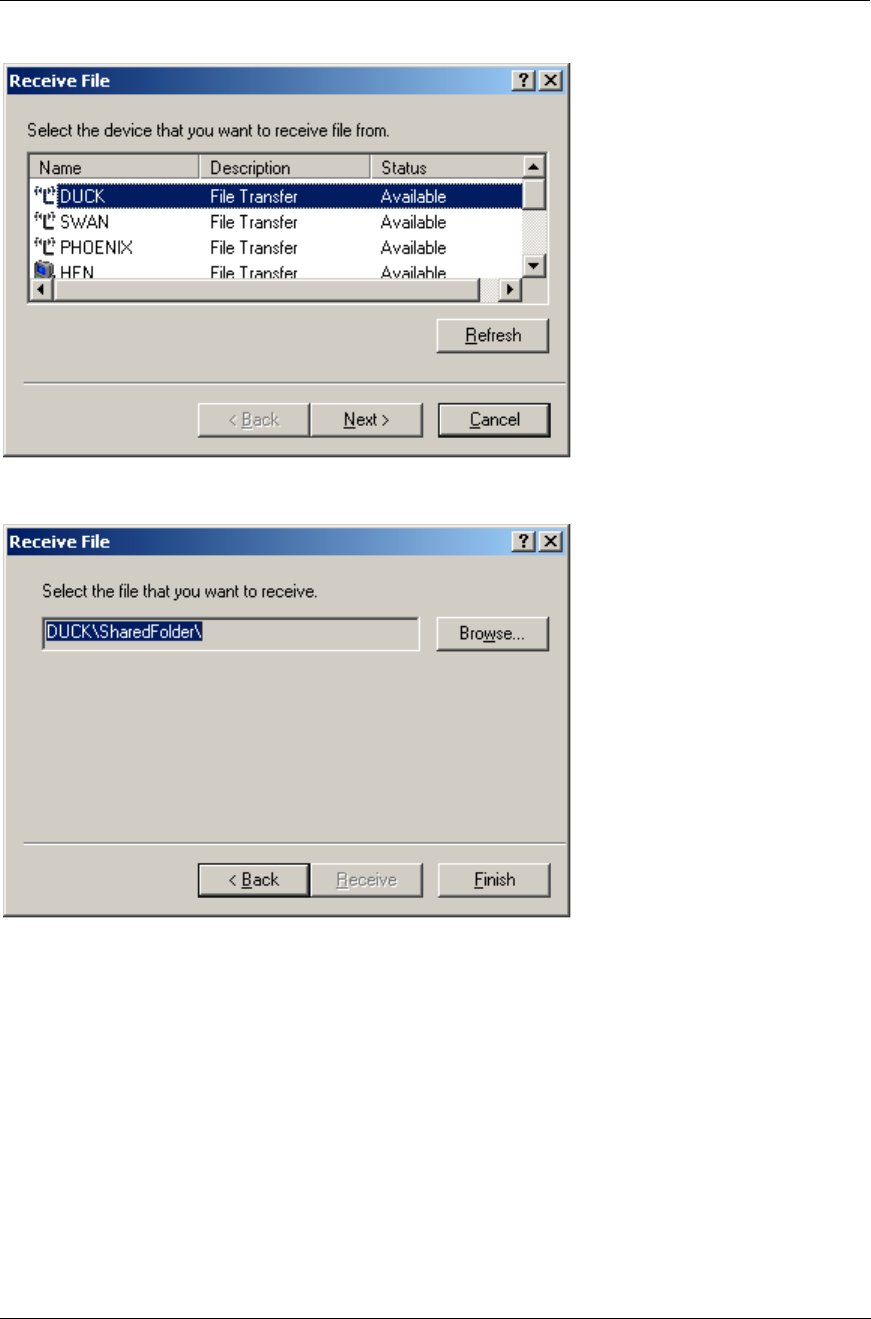

2. The Device Selection window is displayed.
Figure 77. Device Selection
3. Select the device and click Next. The File Selection screen is displayed.
Figure 78. Receive File
BluePC User Manual
Using BluePC 61
4. Click Browse. The Receive File screen is displayed.

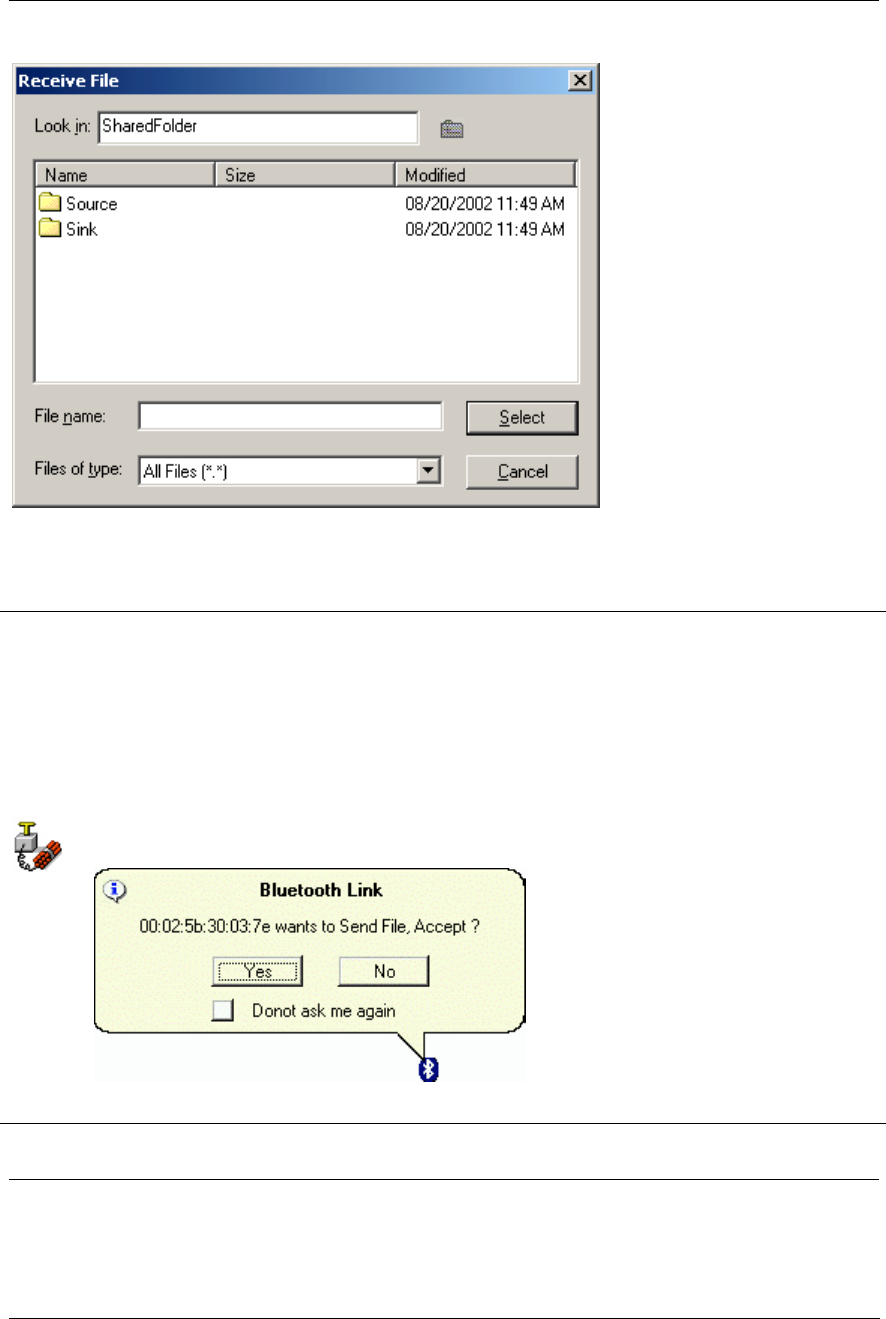

Figure 79. Receive Files
5. Select the required file and click Select. In the File Selection screen, click Receive.
6. When the file has been copied to your shared folder, click Finish to close the screen.
Caveat: If someone wants to send you a file or copy a file to your system or delete
a file from your system, a prompt is displayed asking you whether you want to
allow the operation. You have the option of rejecting or accepting the operation. If
either option in this pop-up window is not exercised within 10 seconds, the
operation will be rejected and this window will disappear. If you select the option
“Do not ask me again” all the above operations will be performed, for the remote
device, without prompting you again.
Figure 80. Security Prompt
4.2.2 Using the Bluetooth-enabled Windows Explorer
You can use the Explorer to transfer files between two Bluetooth devices. To do so:
1. In Windows Explorer double-click the Bluetooth Devices icon. The devices are displayed in
the right-pane. Double-click the required device.
BluePC User Manual
Using BluePC 62
2. Double-click the device name to view the services offered. The services are listed as shown in
the figure. Double-click the File Transfer icon (you may also right-click the File Transfer icon
and select the option Open).
Figure 81. File Transfer menu
3. The contents of “shared folder” of the selected device is displayed.
BluePC User Manual
Using BluePC 63

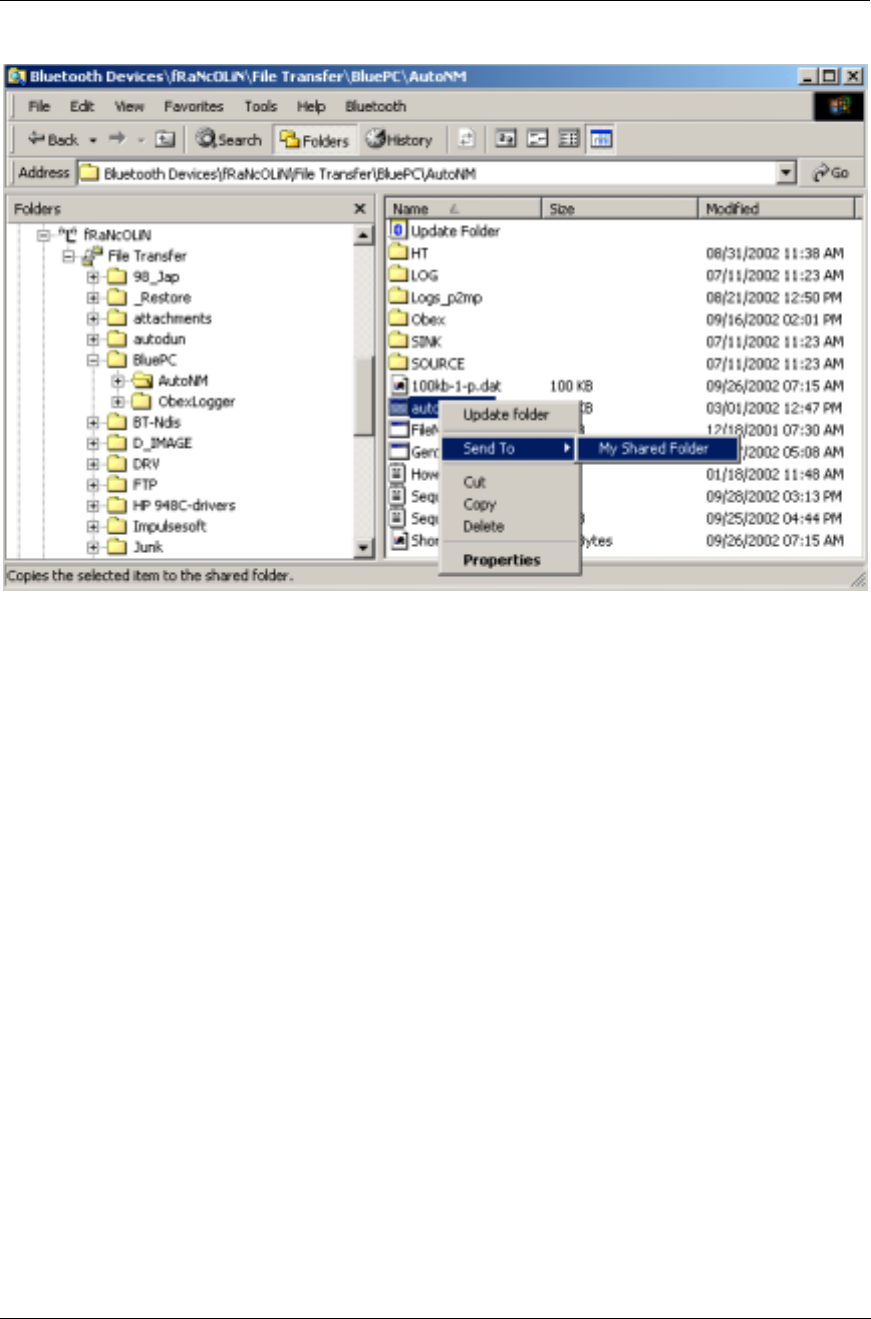

4. Right-click a file on the remote device.
Figure 82. File Transfer option
5. You have the following options:
• To move a file, select the option Cut. Select the destination location and Paste it there.
• To copy a file, select the option Copy and Paste it in the destination location.
• To send a file to your shared folder select the option Send To -> My Shared Folder.
The selected file is copied to the shared folder on your system
• If you have required permissions you can also delete a file in the remote Bluetooth
device.
BluePC User Manual
Using BluePC 64
6. If you right-click a file on your system the following screen is displayed.
Figure 83. Send to option
7. You have the following options:
• To move a file, select the option Cut. Select the destination location and Paste it there.
• To copy a file, select the option Copy and Paste it in the destination location.
• Send To -> Bluetooth Devices (Refer Step 8)
8. To send a file to a Bluetooth device directly, select the option Send To -> Bluetooth Devices.
The Send File screen is displayed.
Figure 84. Send File
9. Select the device to which you want to send the file. Click Send. The file is transferred to the
shared folder of the selected device.
BluePC User Manual
Using BluePC 65
10. You can also drag and drop files. Select the required file on your system and drag and drop it in
the shared folder of the remote device. Or select a file in the shared folder of the remote device,
and drag and drop it into a folder on your system.
BluePC User Manual
Using BluePC 66
4.3 Exchange Business Cards
BluePC allows you to send or receive business cards between your computer and other Bluetooth
enabled devices.
4.3.1 Send Business Cards
1. Right-click the Bluetooth icon in the system tray and select the option
Exchange Business Card->Send.
Figure 85. Send Business Card menu
2. The Exchange Business Card dialog is displayed
Figure 86. Exchange Business Card
3. Select the device to which you want to send the business card. Click OK.
BluePC User Manual
Using BluePC 67

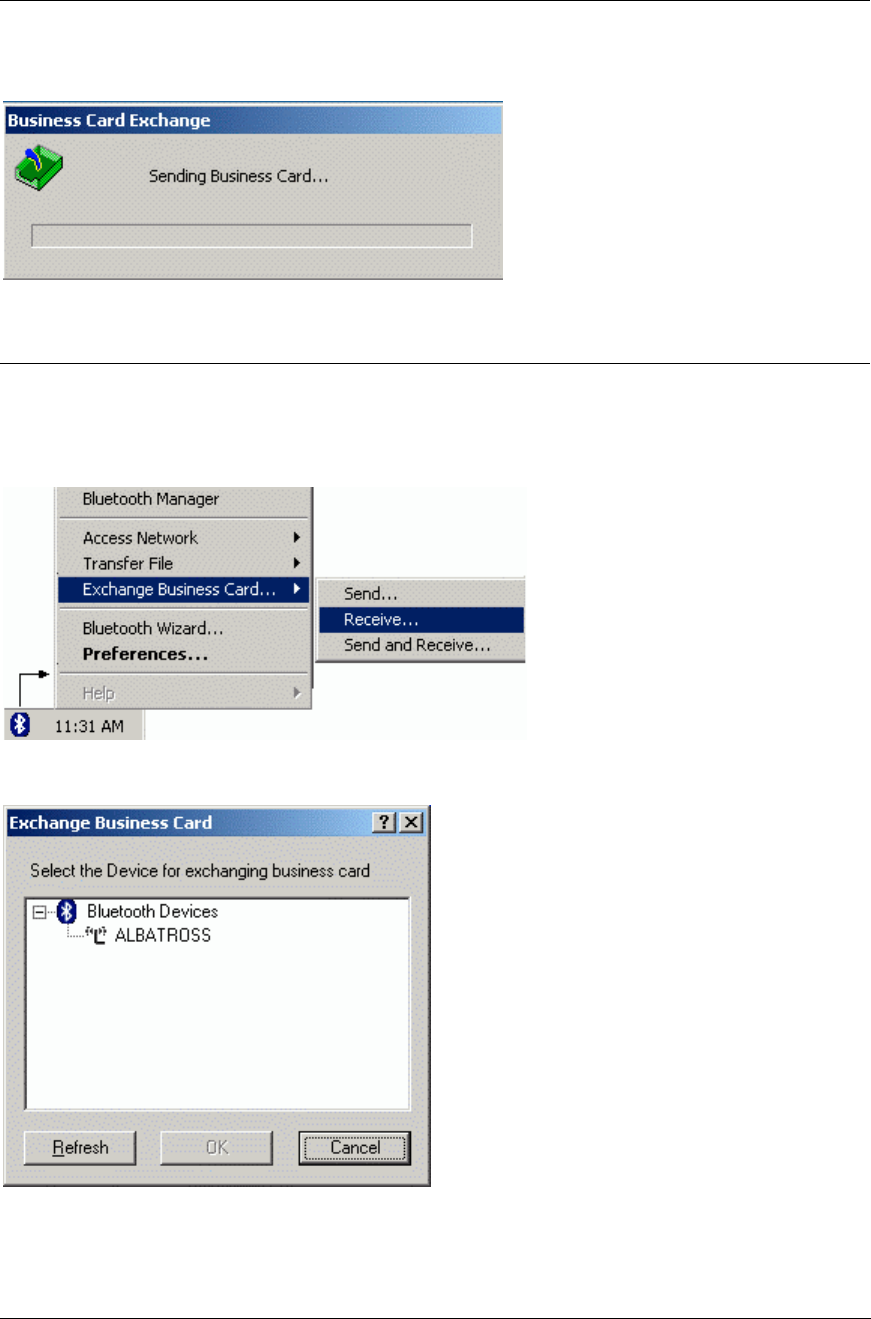

4. The business card is sent to the remote device. The Business Card Exchange dialog displays
the status of the business card exchange.
Figure 87. Send Business Card progress bar
4.3.2 Receive Business Cards
To receive business cards from a remote device:
1. Right-click the Bluetooth icon in the system tray and select the option
Exchange Business Card->Receive.
Figure 88. Receive Business Card menu
2. Select Receive. The Exchange Business Card screen is displayed.
Figure 89. Exchange Business Card
3. Select the device from which you want to receive a business card. Click OK.
BluePC User Manual
Using BluePC 68
4. The Business Card Exchange dialog displays the status of the business card exchange.

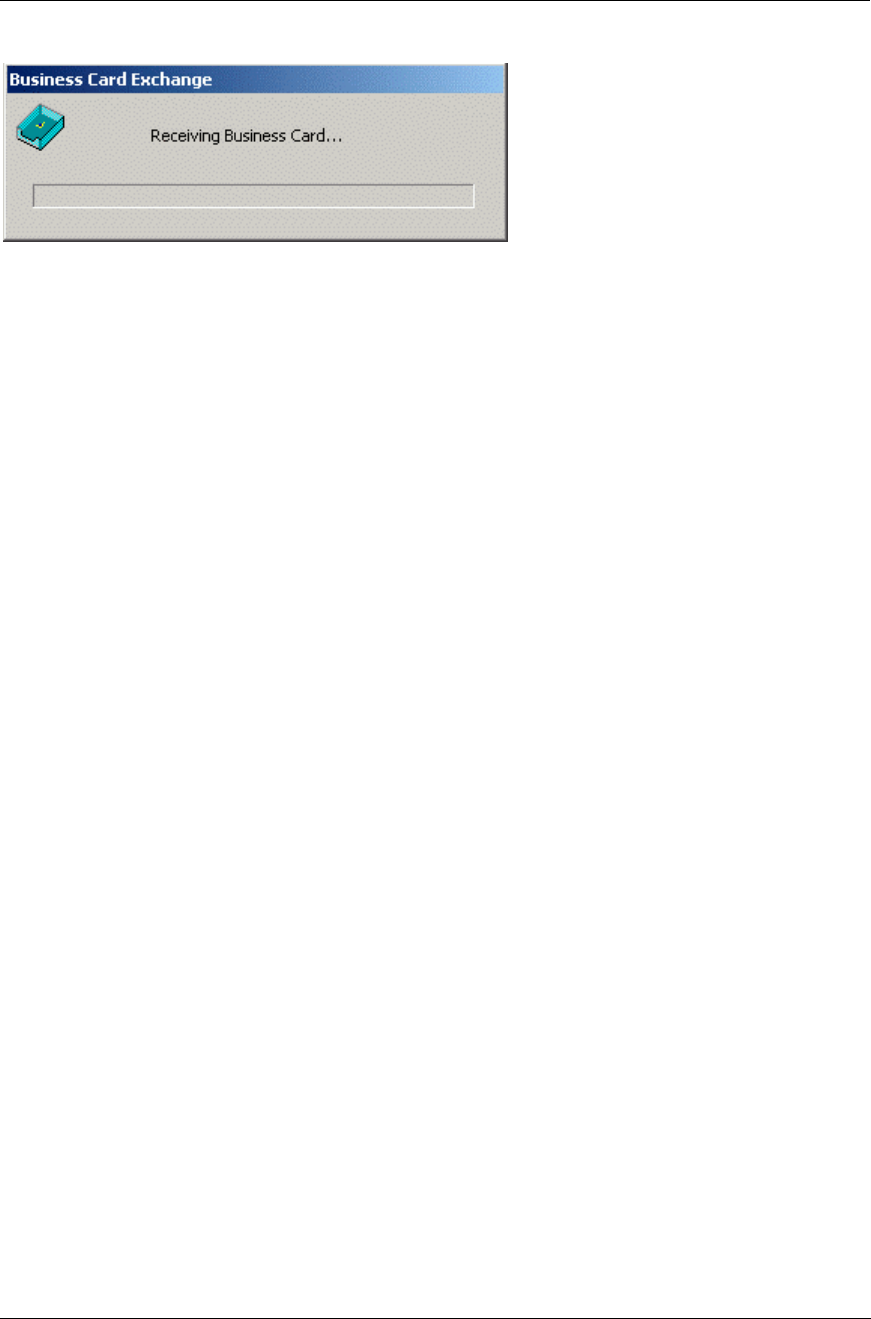

Figure 90. Receive Business Card progress bar
You can exchange Business cards through the Bluetooth-enabled Windows Explorer.
BluePC User Manual
Using BluePC 69
4.4 Print Files
You can set up the printing service through the BluePC wizard or through the Bluetooth-enabled
Windows Explorer.
4.4.1 Using BluePC Wizard
To set up the printer:
1. Right-click the Bluetooth icon in the system and select the option BluePC Wizard.
Figure 91. Bluetooth Wizard menu option
BluePC User Manual
Using BluePC 70
2. The BluePC Wizard welcome screen is displayed. Click Next.
Figure 92. Bluetooth Wizard welcome screen
3. A list of options is displayed. Select Print Files and click Next.
Figure 93. Print Files option
BluePC User Manual
Using BluePC 71

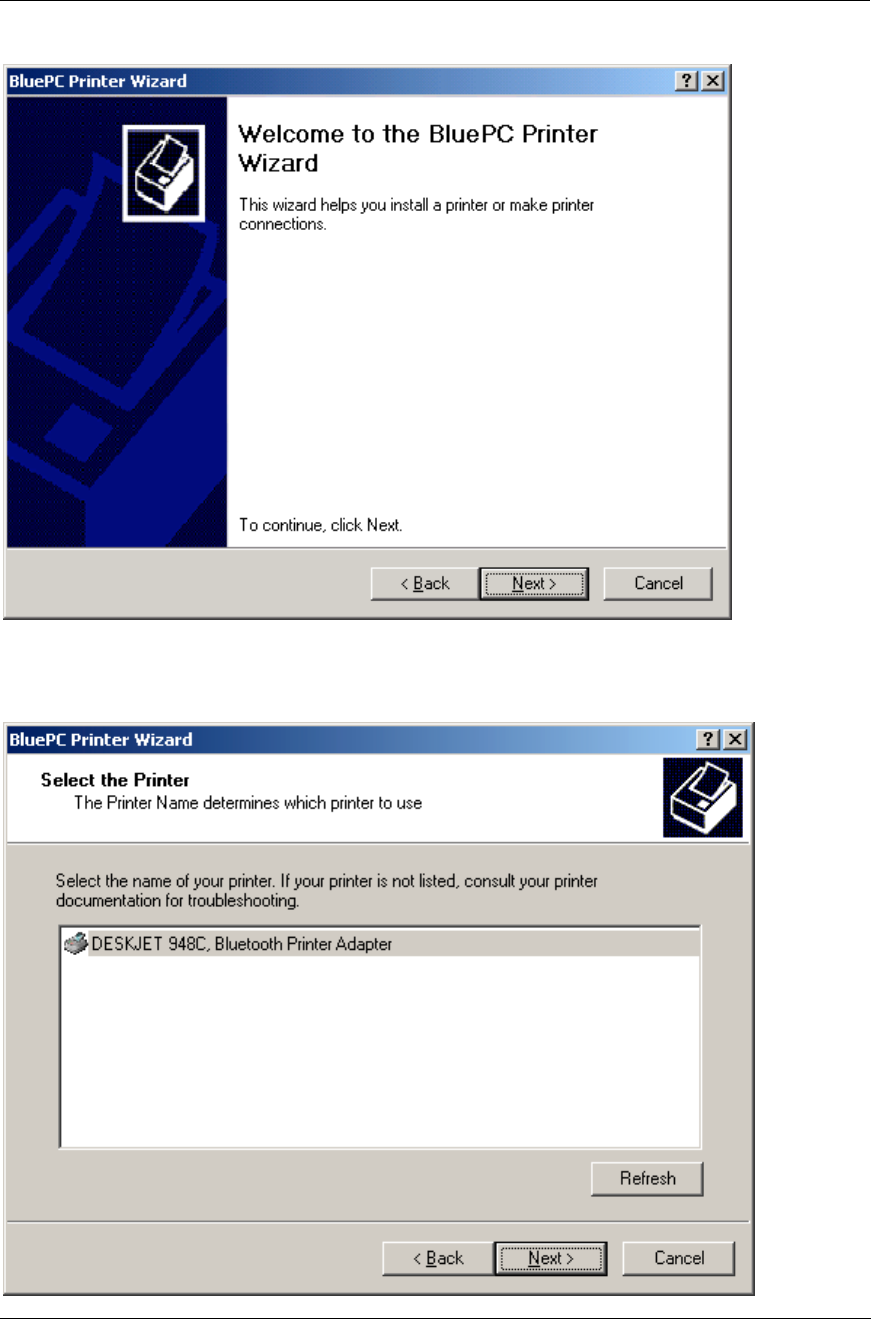

4. The BluePC Printer Wizard dialog is displayed. Click Next.
Figure 94. Add Printer Wizard
5. BluePC automatically discovers all the devices in the vicinity offering a printing service and lists
them in the dialog.
BluePC User Manual
Using BluePC 72
Figure 95. Printer selection
Caveat: BluePC Wizard will display only those printers that provide Bluetooth
Hardcopy Cable Replacement feature
6. Select the required printer. Click Next.

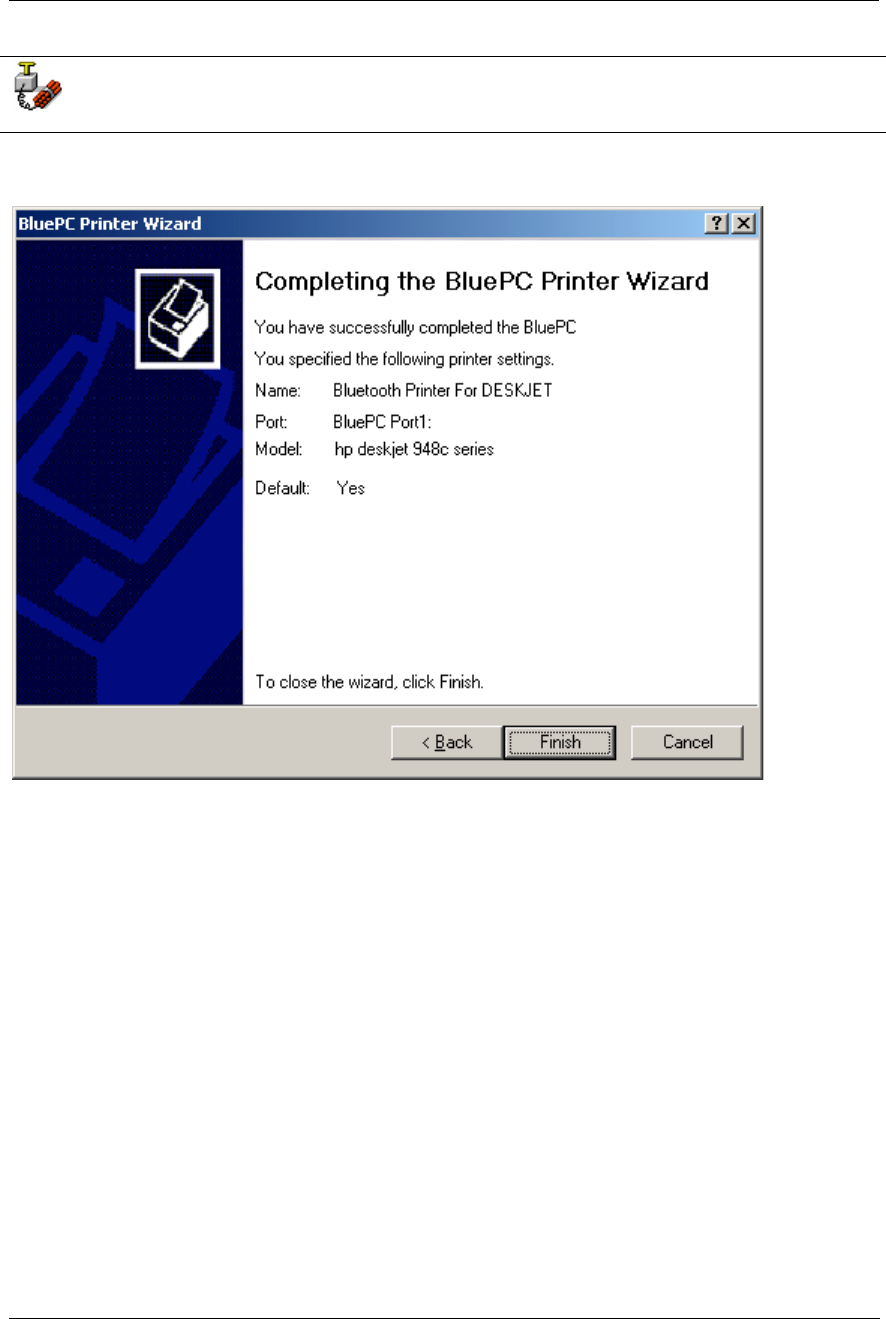

7. The Final screen is displayed. Click Finish to complete the process.
Figure 96. Final screen
BluePC User Manual
Using BluePC 73

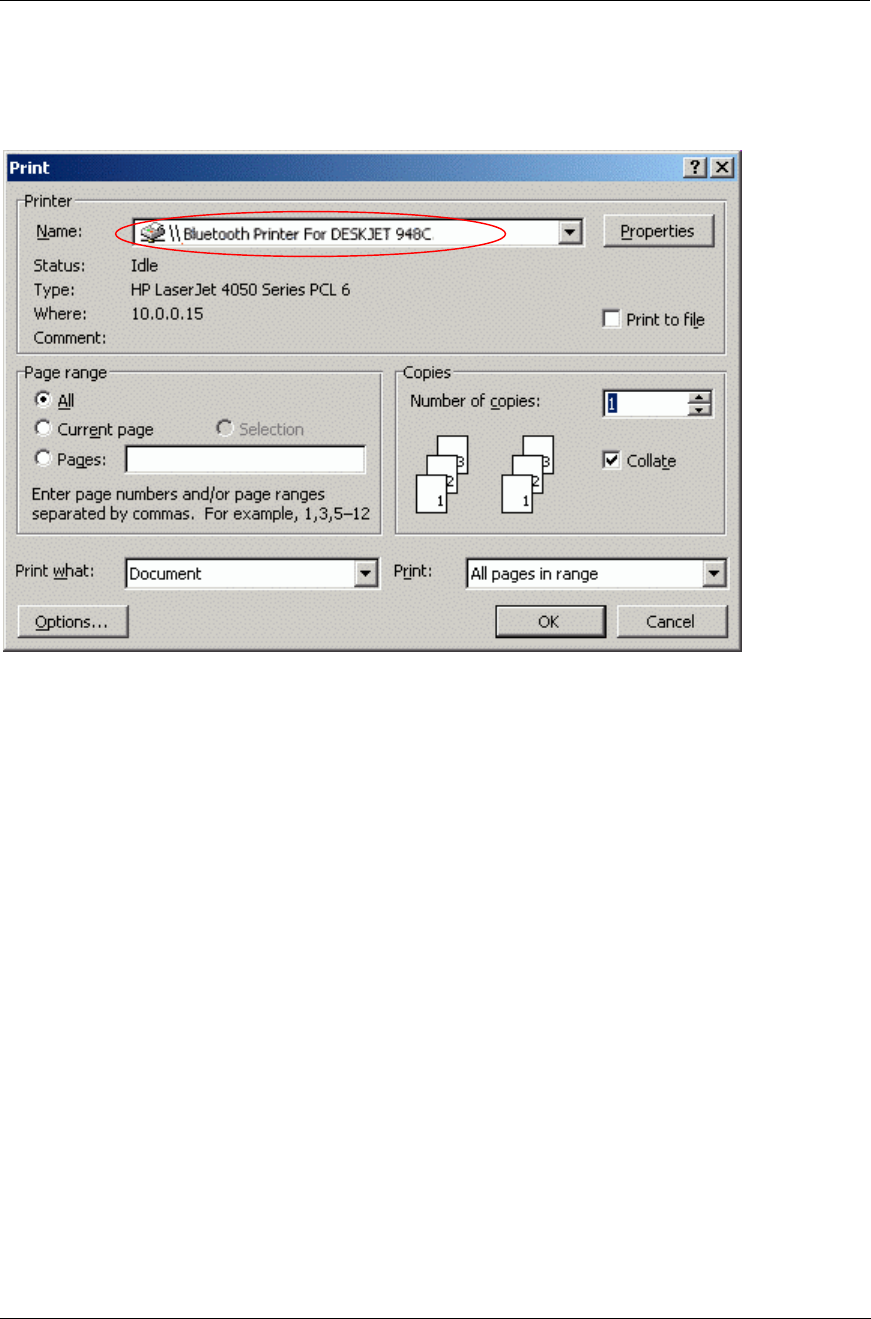

Now, use any Windows application with the Print option to print files. The printer that you have
configured is added to the list of configured Printers. For example, if you are printing a Word file
select the printer that you have configured.
Figure 97. Printer Selection
BluePC User Manual
Using BluePC 74
4.4.2 Using Bluetooth-enabled Windows Explorer
1. In Windows Explorer double-click the Bluetooth devices.
Figure 98. Explorer Devices
2. Double-click the device offering the printing service. The Printing service icon is displayed in
the right-pane.
Figure 99. Printer service
BluePC User Manual
Using BluePC 75
3. Double-click the Hardcopy Cable Replacement service to connect to the printing service.
Figure 100. Service Mapped
The status Service Mapped is displayed. Now, use any Windows application with the Print option
to print files. The printer that you have configured is added to the list of configured Printers.
4.4.3 Print to a Standalone Printer
You can print to a standalone printer offering Serial Port service. To do so, you need to do the
following:
• Setup the Bluetooth Enabled Printer
• Access the Serial Port Service on your computer
Setup the Bluetooth-Enabled Printer
The Bluetooth printer needs to offer a Serial Port Service. Please refer to the printer’s user manual
for instructions on how to setup the printer to offer a Serial Port Service.
Access the Serial Port Service
On your computer you first need to locate the Serial Port service offered by the printer.
To locate the service:
1. The Bluetooth-enabled Windows Explorer displays all the Bluetooth devices within the vicinity
along with a list of services provided by them.
BluePC User Manual
Using BluePC 76
Figure 101. Bluetooth-enabled Windows Explorer
2. Select the printer that is offering the Serial Port Service from the list of displayed devices.
3. Double-click the Serial Port Service to connect to the service. Let us say that the COM port
through which you are connected is COM 7.
Note: COM 7 is for illustration purposes only. You can be assigned any other COM port in
your case.
Next, you need to setup a printer connection so that print jobs can be directed to the printer.
To setup the printer connection:
1. Click Start and select the Settings -> Printer option.
Figure 102. Printers
BluePC User Manual
Using BluePC 77
2. The Printers screen is displayed. Double-click Add Printer. The Add Printer Wizard is
displayed.
Figure 103. Add Printer Wizard
3. Click Next to proceed.
Figure 104. Local or Network Printer
BluePC User Manual
Using BluePC 78
4. The Local or Network Printer selection screen is displayed. Select the Local Printer option
and click Next.

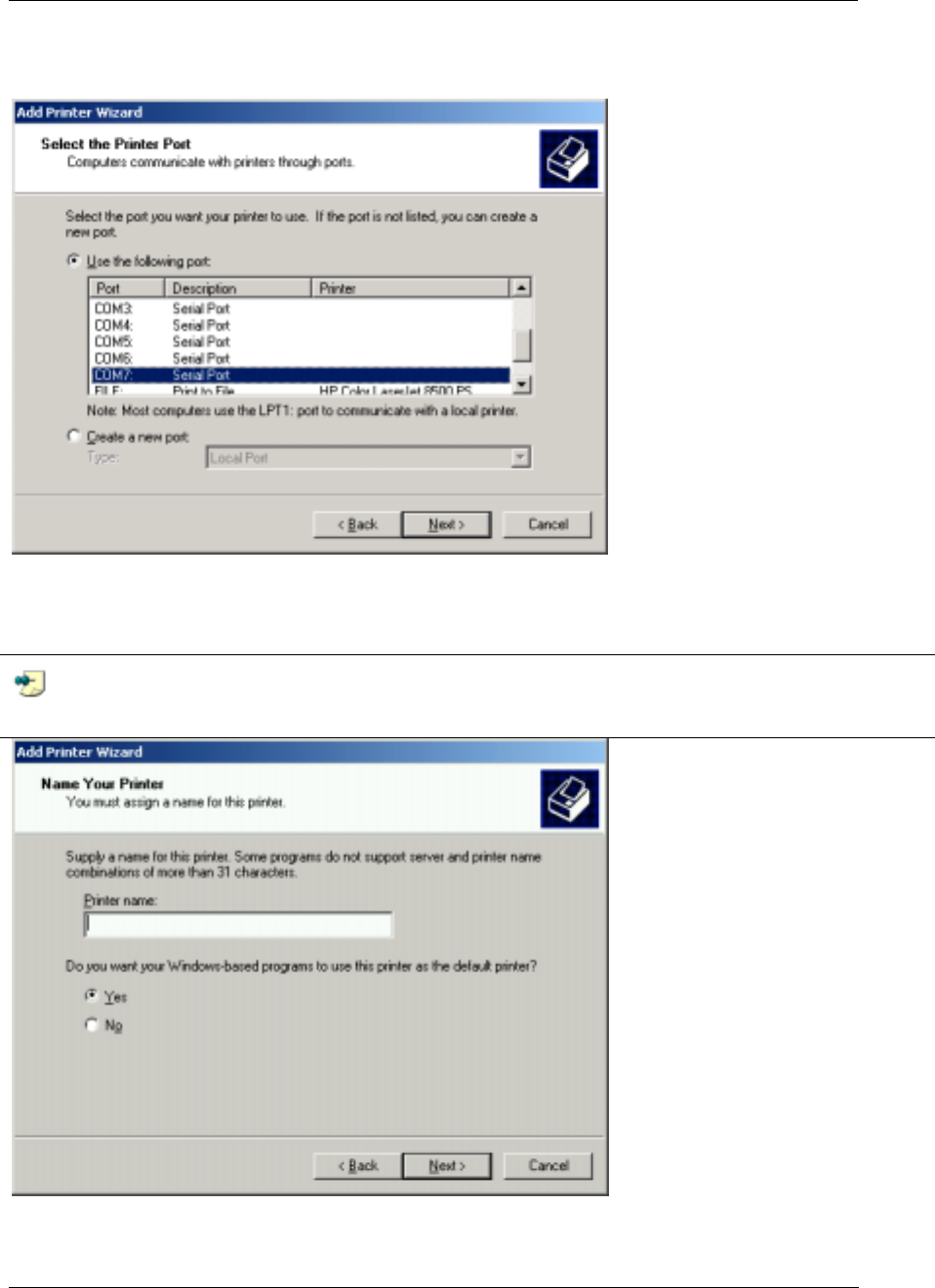

Figure 105. Select Printer Port
5. The Select Printer Port screen is displayed. Select the port through which you have connected
to the Serial Port Service, namely COM 7. Click Next.
Note: COM 7 is for illustration purposes only. You can be assigned any other COM port in
your case.
Figure 106. Name your Printer
BluePC User Manual
Using BluePC 79
6. The Printer Name screen is displayed. Enter a name. If you want to set this printer as the
default printer, click the Yes radio button. Click Next.
Figure 107. Printer Sharing
7. The Printer Sharing screen is displayed. Select the option Do not share this printer, and click
Next.
Figure 108. Print Test Page
8. The Print Test Page screen is displayed. If you want to print a test page, select the option Yes
and click Next. Else, select the option No and click Next.
BluePC User Manual
Using BluePC 80
Figure 109. Final Printing Setup screen
9. The Final screen is displayed. Click Finish to complete the process.
Now, use any Windows application with the Print option to print files. When you select the Print
option in a Windows application, ensure that you select the printer that you have installed.
BluePC User Manual
Using BluePC 81
4.5 Synchronize PDAs with your PC
With this scenario, you can synchronize your PDA with your PC to get your appointment calendar,
or Emails.
To synchronize your PDA with a PC, you need to:
• Add a Serial Port Service
• Setup the PDA to use the Serial Port Service
• Synchronize your PDA using the synchronization application
4.5.1 Add a Serial Port Service
You can add a serial port using the Bluetooth Configuration Manager. Refer to the section Add Serial
Port Service for more information.
Let us say that the port the service is subscribed to is COM 8.
Note: COM 8 is for illustration purposes only. You can be assigned any other COM port in
your case.
4.5.2 Setup the PDA to use the Serial Port Service
Refer to the respective PDA user manual for instructions on how to use the synchronization service,
such as ActiveSync, over the Serial Port offered by the Bluetooth-enabled PC.
4.5.3 Synchronize your PDA
Synchronize your PDA using ActiveSync
To synchronize the PDA with the PC:
1. Double-click the ActiveSync icon in the system tray on your laptop. The ActiveSync screen
is displayed.
2. Select the option File -> Connection Settings from the main menu. The Connection Settings
screen is displayed.
BluePC User Manual
Using BluePC 82

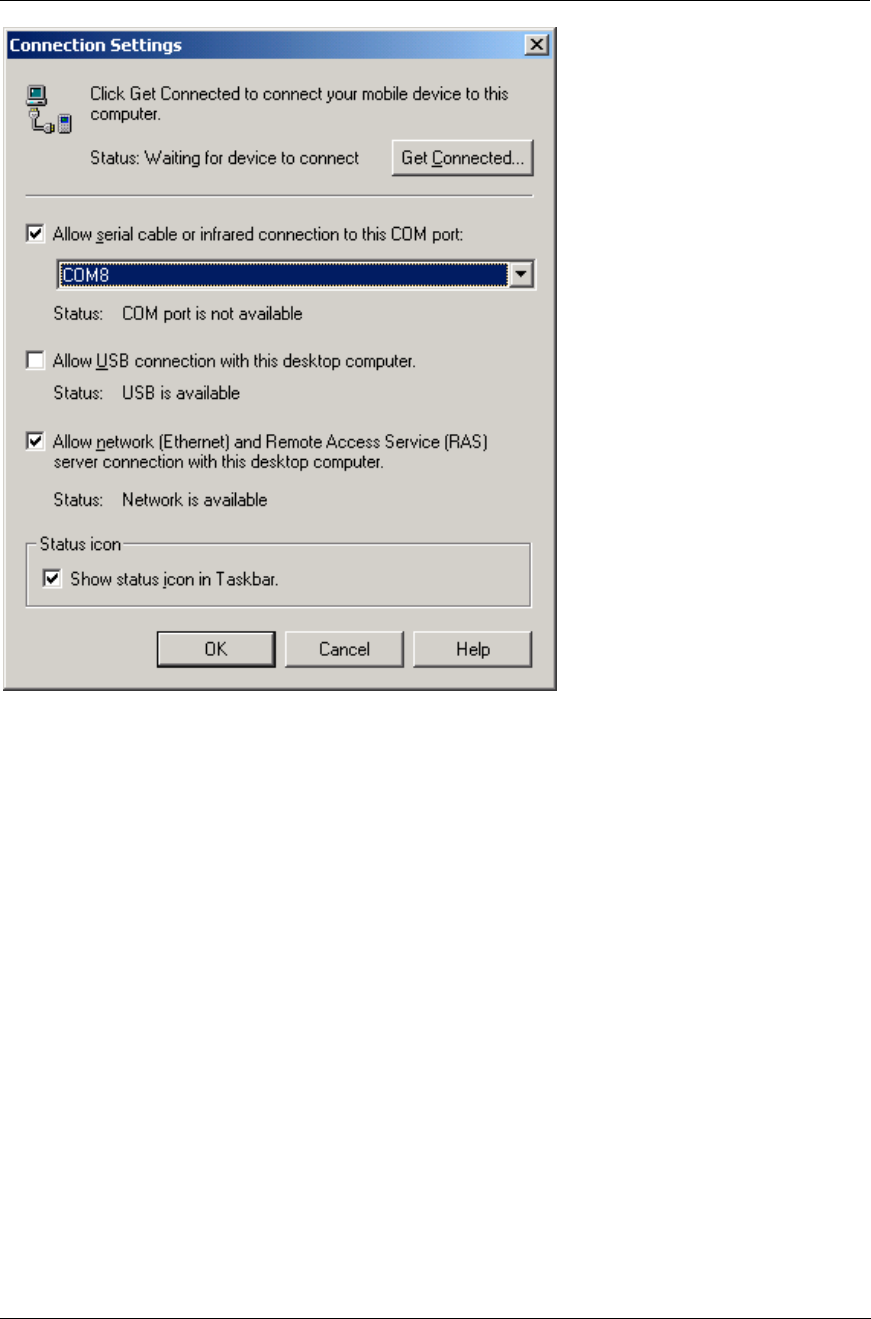

Figure 110. ActiveSync Connection Settings
3. Select the option Allow serial cable or infrared connection to this COM port:, and select
the Serial Port to which you have subscribed the service. In this example, it is COM 8. Click OK.
You have now configured ActiveSync to use the required port.
BluePC User Manual
Using BluePC 83
Now, to synchronize the PDA:
1. From the PDA, select the required synchronization option. The PDA connects with the PC.

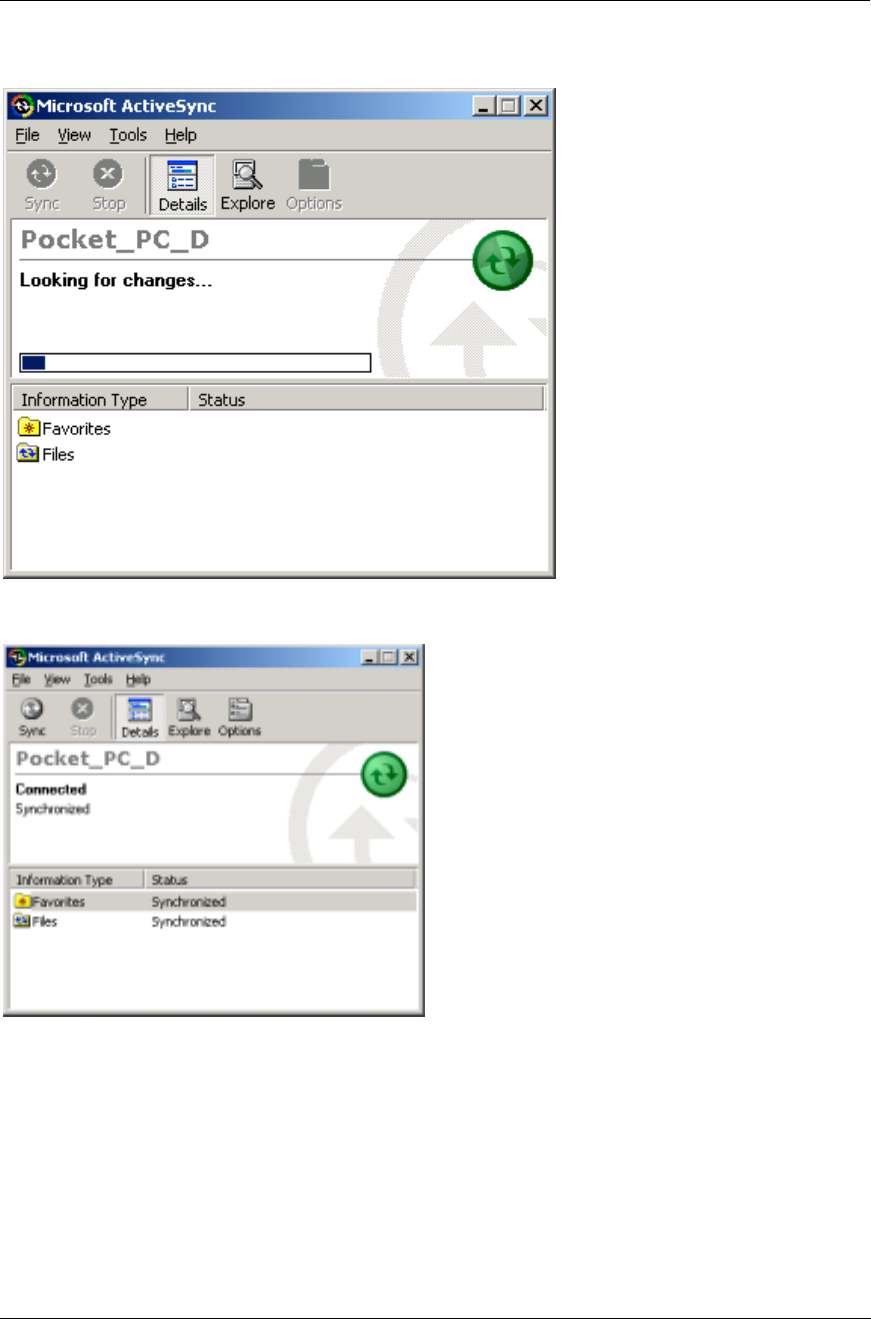

Figure 111. Connection Established
2. Once the connection is established the synchronization progress screen is displayed on your PC.
Figure 112. Synchronization Complete
3. Once the synchronization is complete, Synchronized status is displayed in the ActiveSync screen.
BluePC User Manual
Using BluePC 84
Synchronize your PDA Using Hotsync
To synchronize the PDA with the laptop:

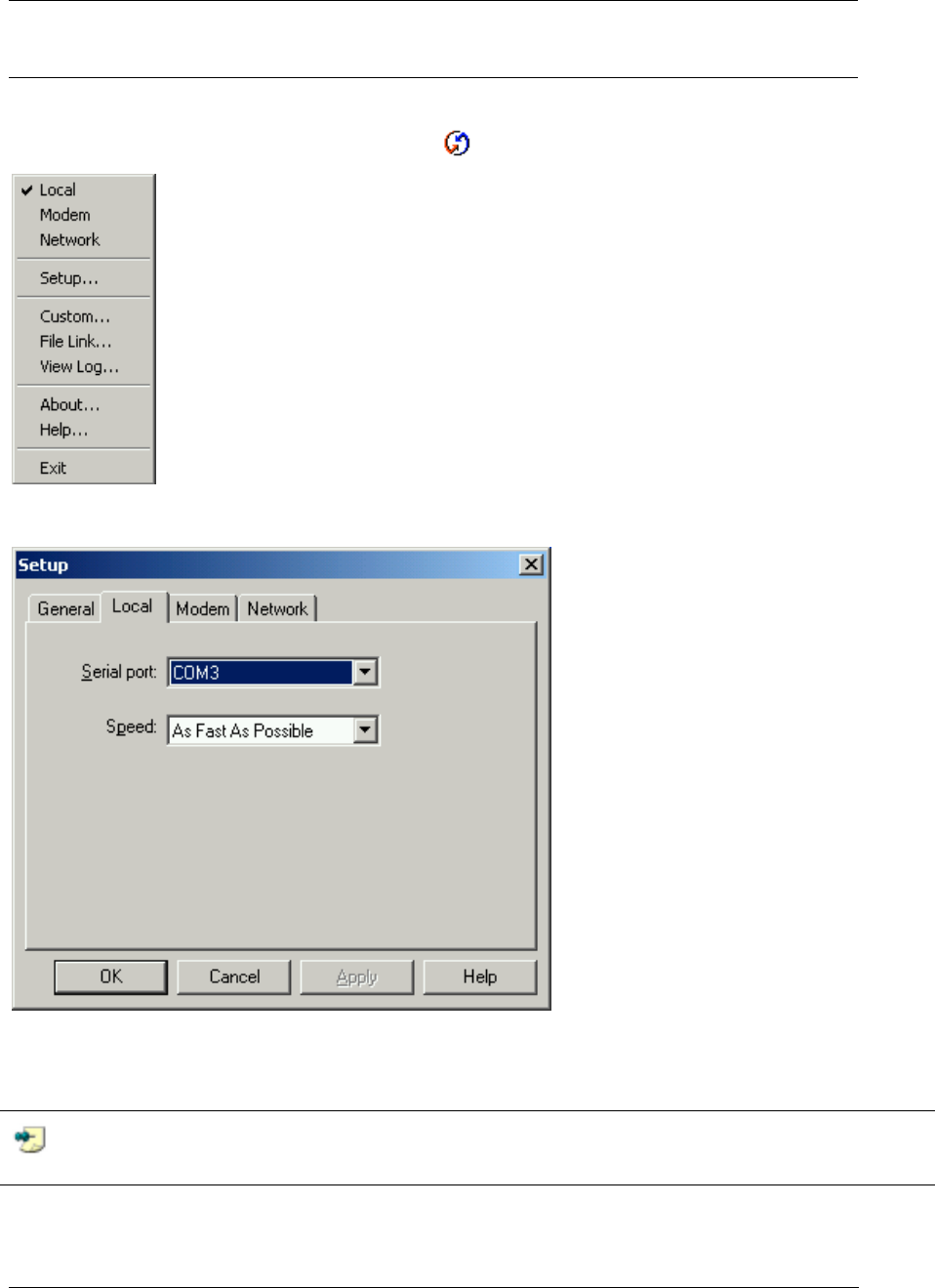

1. Right-click the Hotsync icon in the system tray on your laptop.
Figure 113. Hotsync Menu
The HotSync menu is displayed. Select the option Setup.
Figure 114. Synchronization setup
Select the Serial Port to which you have subscribed the Serial Port Service. In this example, it is
COM 3. Click OK.
Note: COM 3 is for illustration purposes only. You can be assigned any other COM port in
your case.
You have now configured HotSync to use the required port.
BluePC User Manual
Using BluePC 85
Now, to synchronize the PDA:
1. Press the HotSync button on your PDA cradle. This button has two arrows pointing towards
each other.
2. If this the first time you are doing a HotSync, enter a user name in the New User dialog box and
click OK.
3. The HotSync dialog box will appear, and will you show you the synchronization progress.
Wait for a message on your PDA indicating that the synchronization is complete. Then, you can
remove the PDA from the cradle.
BluePC User Manual
Using BluePC 86
4.6 Wireless Conferencing scenario
With this scenario, you can exchange information with friends and colleagues, to collaborate on
projects, teach a class, and give presentations wirelessly.
4.6.1 Setup the Host Computer
The first step is to add a Serial Port service on the host computer. Please refer to the section Add
Serial Port Service on page 31 for more Information.
Next, you need to setup a Direct Connection. Let us say that the COM port assigned is COM 7. This
will be needed to setup Direct Connection.
Note: COM 7 is for illustration purposes only. You can be assigned any other COM port in
your case.
To set up a connection:
1. Click Start and select the Programs > Accessories > Communication > Network and Dial-
up Connections option. The Network and Dial-up Connections screen is displayed.
Figure 115. Network and Dial-up Connections Window
BluePC User Manual
Using BluePC 87
2. Double-click Make New Connection. The Network Connection Wizard displays.
Figure 116. Network Connection Window
3. Click Next to proceed. The Network Connection Window is displayed.
Figure 117. Network Connection Type
BluePC User Manual
Using BluePC 88
4. Select the Accept incoming connections option. Click Next. The Choose Role screen is
displayed.

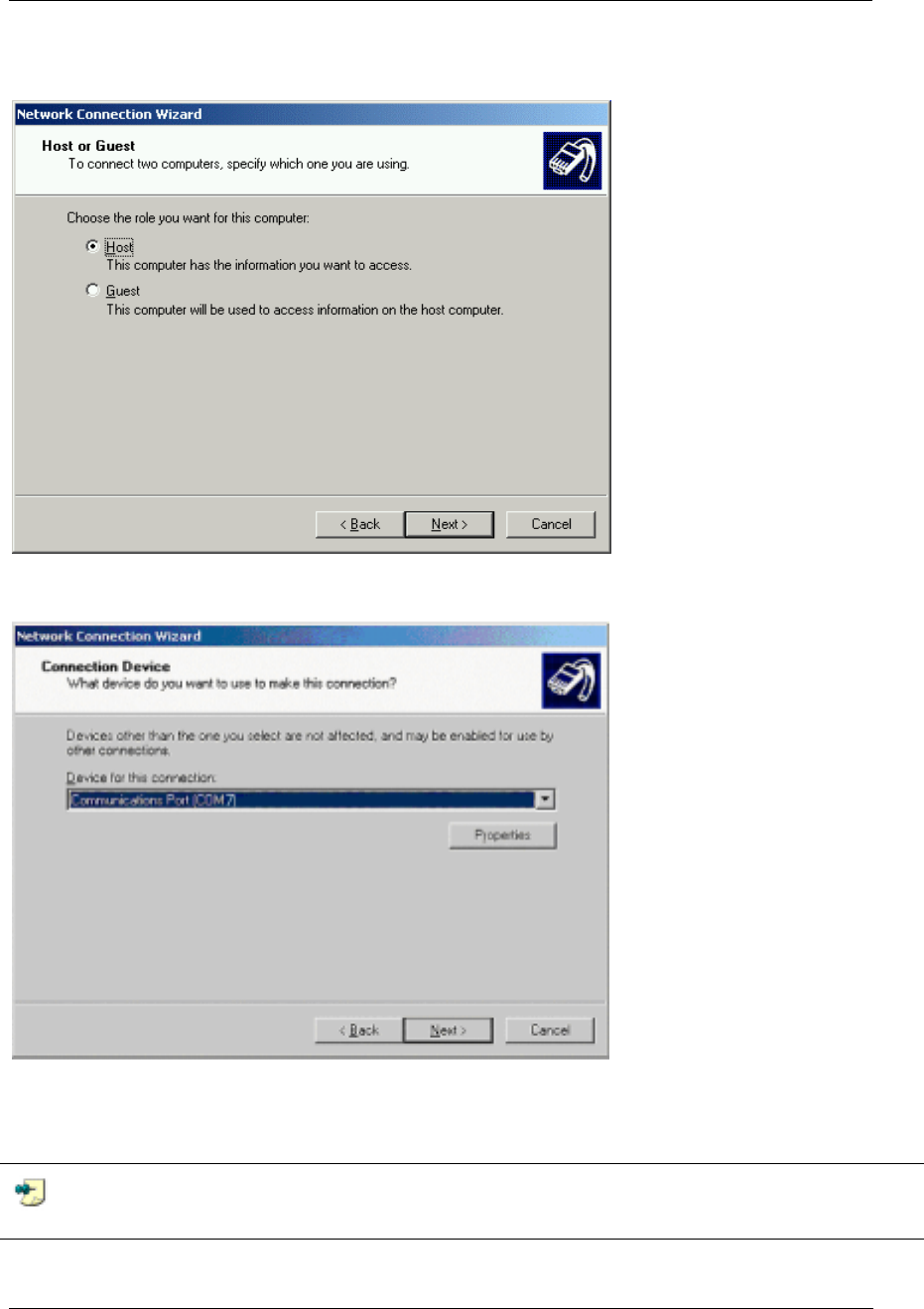

Figure 118. Choose Role
5. Select the Host option. Click Next. The Connection Device screen displays.
Figure 119. Connection Window
6. Select the same communication service (COM 7). Click Next. The Allowed Users screen is
displayed.
Note: COM 7 is for illustration purposes only. You can be assigned any other COM port in
your case.
BluePC User Manual
Using BluePC 89
Figure 120. Allowed users
7. Click the checkbox to select the users who are authorized to use the direct cable connection.
Click Next. The Final screen is displayed.
Figure 121. Incoming Connection Name
8. Enter the required name and click Finish to complete the process.
A new network connection link is created in the Network and Dial-up Connection explorer with
the name Incoming Connection. The connection type and connection status is also displayed adjacent to
it.
BluePC User Manual
Using BluePC 90

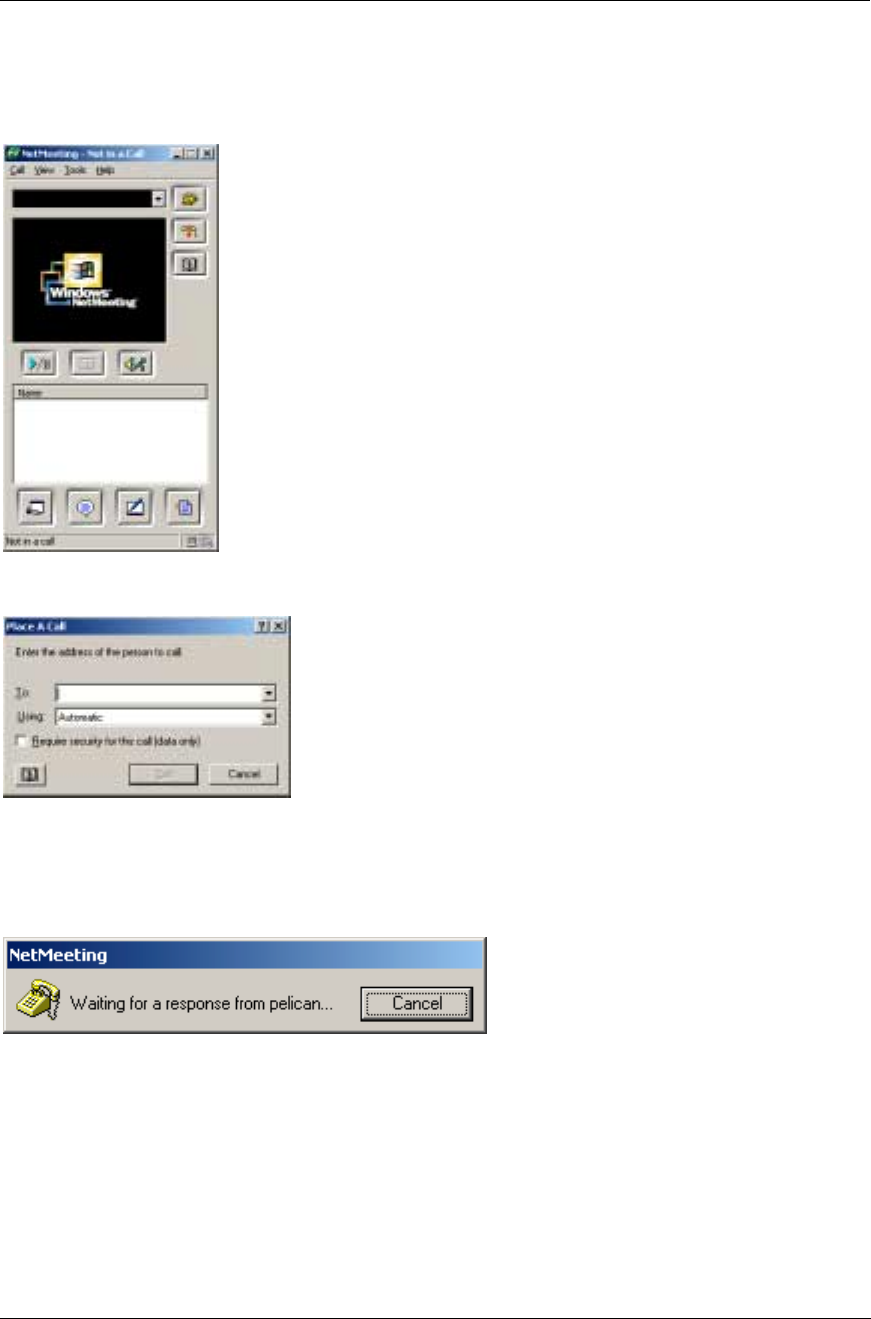

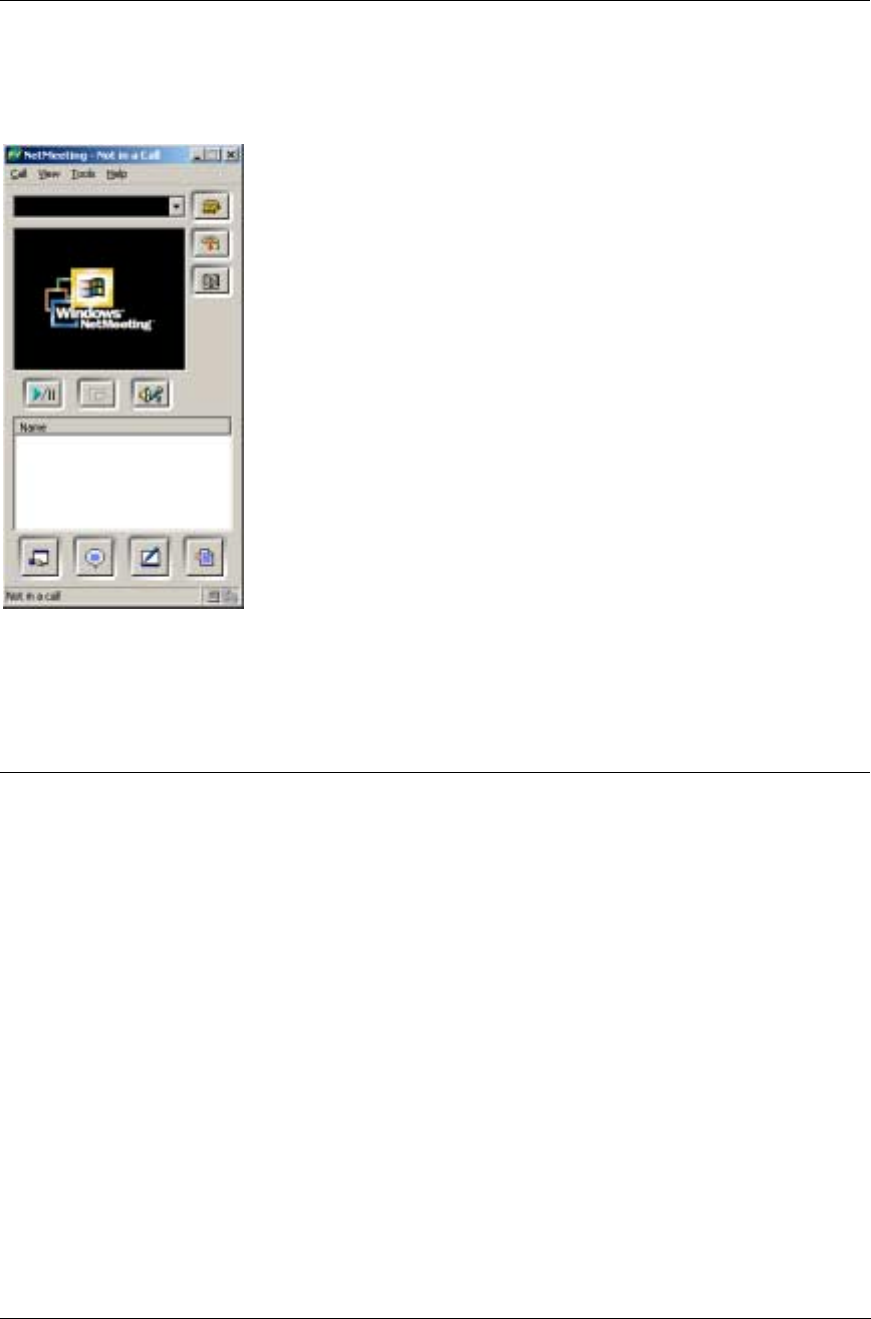

Next, you need to start a NetMeeting session on the host computer.
1. Click Start > Programs > Accessories > Communication > NetMeeting. A NetMeeting
window appears as shown by Figure 122.
Figure 122. NetMeeting
Do not close the NetMeeting window until you wish to allow other Bluetooth devices to connect
over NetMeeting.
4.6.2 Set up the Guest Computer
To setup the guest computer, which is your computer, you first need to access the Serial Port service
offered by the host computer.
To locate the service:
1. The Bluetooth-enabled Windows Explorer displays all the Bluetooth devices within the vicinity
along with a list of services provided by them.
BluePC User Manual
Using BluePC 91
Figure 123. Bluetooth-enabled Windows Explorer
2. Select the host computer that is offering the Serial Port Service from the list of displayed devices.
3. Double-click the Serial Port Service to connect to the service. Let us say that the COM port
through which you are connected is COM 7.
Note: COM 7 is for illustration purposes only. You can be assigned any other COM port in
your case.
Next, you need to setup a direct connection with the host computer, which is offering printing
resources.
BluePC User Manual
Using BluePC 92
To setup a direct connection with the host computer:
1. Click Start and select the Programs > Accessories > Communication > Network and Dial-
up Connections option. The Network and Dial-up Connections screen is displayed.
Figure 124. Network and Dial-up Connections
2. Double-click Make New Connection. The Network Connection Wizard is displayed.
Figure 125. Network Connection Window
BluePC User Manual
Using BluePC 93
3. Click Next to proceed. The Network Connection screen is displayed.
Figure 126. Network Connection Type
4. Select the Connect directly to another computer option. The Choose Role screen is
displayed.
Figure 127. Choose Role
BluePC User Manual
Using BluePC 94
5. Select the Guest option. Click Next. The Connection Device screen is displayed.
Figure 128. Connection Window
6. Select the same communication port to which you have subscribed this service (COM 4). Click
Next. The Connection Availability screen is displayed.
Figure 129. Connection Availability
BluePC User Manual
Using BluePC 95
7. Select the For All Users option. Click Next. The Final screen is displayed.
Figure 130. Direct Connection name
8. Enter a name for the connection, and click Finish. The Connect Direct Connection screen is
displayed.
Figure 131. Connection Window
Enter the user name and password as specified by the host computer and click Connect. In case
“Guests” are allowed to connect, user name and password will be blank.
BluePC User Manual
Using BluePC 96
Next you need to start a NetMeeting session on the guest computer.
1. Click Start > Programs > Accessories > Communication > NetMeeting. A NetMeeting
window appears as shown by Figure 132.
Figure 132. NetMeeting
2. Click Call > New Call. The following dialog box appears.
Figure 133. Place a Call
3. Enter the address of the person to call.
4. Select the relevant address.
5. Click Call button. The following message box appears.
Figure 134. NetMeeting Status
BluePC User Manual
Using BluePC 97
Once the host computer (the computer that you have called) accepts the call, the message box
disappears. The NetMeeting dialog box displays the user name of the host computer in the Name
field as shown by Figure 135.
Figure 135. NetMeeting Ready
Now you can correspond on any of the NetMeeting tools like; chat, whiteboard, and file transfer.
The following section describes how to chat and use whiteboard in NetMeeting. For the complete
information on how to use NetMeeting, refer to NetMeeting Help.
4.6.3 Use an already setup Wireless Conference Scenario
Every time you need to use the NetMeeting service, you need to setup both host and guest as given
in the previous sections.
To chat on NetMeeting, do the following:
1. Click on the relevant person name you need to chat in the Name field.
BluePC User Manual
Using BluePC 98
2. Click Tools > Chat. The following dialog box appears.
Figure 136. Chat Session
3. Enter your message in the Message field. Click File > Send Message.
To use Whiteboard, do the following:
1. Click on the relevant person name you need to collaborate in the Name field.
2. Click Tools > Whiteboard. The Whiteboard appears as shown by Figure 137.
Figure 137. Whiteboard Session
You can now collaborate in real time with others via graphic information.
BluePC User Manual
Using BluePC 99
4.7 Send a Fax
You can send a Fax to a Bluetooth-enabled Fax machine, or to Bluetooth Mobile Phone. To send a
Fax you first need to locate a device offering the Fax service. To do so:
1. In the Bluetooth-enabled Windows explorer double-click the Bluetooth Devices icon. All the
devices in the vicinity are listed.
2. Double-click Obtain Services. The services offered by the device are listed.
Figure 138. Explorer Services
BluePC User Manual
Using BluePC 100
3. Double-click the Fax service icon. The following screen is displayed.
Figure 139. Digital Signature not found
4. Click Yes. BluePC connects to the service and the status Service Mapped is displayed in the
Service field.
Figure 140. Service mapped
5. To connect to the service, right-click the Fax service icon and select the option Connect.
BluePC User Manual
Using BluePC 101
You would need a Fax client software such as WinFax PRO for using fax. This can be obtained from
www.symantec.com/winfax. The steps that follow describe the procedure for configuring the Fax
setup using WinFax Pro.
1. Start WinFax. Select Tools > Program Setup from the menu.
2. Select Modem & Communication Devices and click Properties. The Modem and
Communication Properties screen is displayed.
Figure 141. Modem and Communications Devices Properties
3. Select the checkbox that corresponds to the configured Fax. The following message is displayed.
Figure 142. WinFax Confirmation Prompt
Note: This Modem name “BluePC Fax Modem for Francolin” is for illustration purposes
only. The actual Modem name might be different in your case.
BluePC User Manual
Using BluePC 102
4. Click Yes. The Modem Configuration screen is displayed.
Figure 143. Modem Configuration Wizard
5. Click Next. The Setup tests and verifies the modem. On completing the query the following
screen is displayed.
Figure 144. Testing Modem
BluePC User Manual
Using BluePC 103
6. Click Next to proceed. The Final screen is displayed.
Figure 145. Final Screen
7. Click Finish to complete the configuration process.
To send a Fax:
In the WinFax Pro screen click Send. The following screen is displayed:
Figure 146. Send a Fax
Type the information and click Send.
BluePC User Manual
Using BluePC 104
4.8 Listen to Music
Note: This feature is available only if you are using a PC card.
To set up an audio gateway, you need to:
• Setup the headset
• Setup your computer as a audio gateway
To setup the headset, refer to the Headset user manual.
4.8.1 Setup your Computer as a Audio Gateway
You can setup your computer as an audio gateway in the following ways:
• Using the BluePC menu
• Using the BluePC Wizard
Using the BluePC menu
1. Right-click the Bluetooth icon in the system tray and select the option Listen to Audio -> Make
New Connection.
Figure 147. Bluetooth Wizard menu option
BluePC User Manual
Using BluePC 105
2. The BluePC Audio Wizard welcome screen is displayed. Click Next.
Figure 148. Bluetooth Wizard welcome screen
3. Click Next.
BluePC User Manual
Using BluePC 106
4. The BluePC Audio Wizard automatically discovers the audio devices in the vicinity and displays
them in the dialog.
Figure 149. Select the Headset
5. Select the required device and click Next.
BluePC User Manual
Using BluePC 107
6. The Final screen is displayed. Click Finish to complete the process.
Figure 150. BluePC Audio Connection Final screen
7. To launch the multimedia application immediately, select the option To launch your
multimedia application immediately, select this box and click Finish. You can run any
audio applications and use Headset to record or play the music. You can also participate in audio
conferencing using Microsoft NetMeeting.
If you have not checked the option as indicated in Step 6, you can connect to the audio device using
the procedure described in section Connect to the Audio Device on page 109.
Using the BluePC Wizard
1. Right-click the Bluetooth icon in the system tray and select the option BluePC Wizard.
Figure 151. BluePC Wizard Menu
BluePC User Manual
Troubleshooting BluePC 108
2. The BluePC Wizard screen is displayed.
Figure 152. BluePC Wizard
3. Click Next. A list of options is displayed.
Figure 153. BluePC Wizard options
BluePC User Manual
Troubleshooting BluePC 109
4. Select the option Listen to Audio, and click Next.
5. The steps that follow are the same as described in the section Using the BluePC menu on page
104.
4.8.2 Connect to the Audio Device
After you have created an audio gateway, you can connect to the audio device.
1. Right-click the Bluetooth icon in the system tray and select the audio device.
You can run any audio applications and use Headset to record or play the music. You can also
participate in audio conferencing using Microsoft NetMeeting. Once you have completed using the
headset, you can disconnect it. To do so, right-click the Bluetooth icon in the system tray, and select
the option Listen to Audio -> Disconnect.
2.
BluePC User Manual
Troubleshooting BluePC 110
Chapter 5 Troubleshooting BluePC
This section gives solutions to some of the common problems that you may face while using BluePC
and is divided into the following section:
• Installation
• Post Installation
• Locate Bluetooth Devices
• Connect to services
• File Transfer
• Exchange Business Cards
• Network Access
• Printing Information
• Listening to Music
Installation
Problem Solution
Unable to start the installation. If you have downloaded the installation file, the
downloaded file could be corrupted. Download the file
again, and verify the size of the downloaded file against
the size mentioned in the release notes.
The installation appears to be hanging Check whether the Digital Signature Verification dialog
has been masked by the installation screen. Move the
installation screen, and click Continue Anyway in the
dialog to proceed with the installation.
Post Installation
The Bluetooth icon in the system tray is
not active (gray in color)
This could be because BluePC is unable to recognize the
Bluetooth device. Plug out and plug in the device slowly
until it is recognized.
Check whether
BluePC User Manual
Troubleshooting BluePC 111
• The Bluetooth device has been plugged in. If it
has not, plug it in.
• The Bluetooth device has been plugged in
properly. If it has not been plugged in properly,
plug it out and plug it in again. Note that, on
Windows ME as soon as the Bluetooth device is
plugged in the Multimedia Properties window is
displayed along with the BluePC Startup
window. You should first click OK in the
Multimedia Properties window, and then close the
BluePC startup screen.
Plug-in the Bluetooth device and restart the system. If the
problem still persists, contact Support.
On Windows 2000/XP you need to check whether you
have administrator privileges to the system.
After rebooting the system, the
Bluetooth devices icon is not displayed
in the desktop.
On Windows 98, the NDIS driver initialization takes
anywhere between 30 to 60 seconds. Until this is done you
may not see the Bluetooth icon in the system tray.
This is because BluePC has not been installed properly.
Uninstall and install BluePC again.
Locate Bluetooth Devices
An explore operation consistently fails. Check whether the Bluetooth device has been plugged in
properly. Plug it out and plug in the device again.
The device that you want to locate is
not getting displayed when you
perform an explore.
• This is because the device discovery duration is too
short. Right-click the Bluetooth icon in the system
tray, and select the Preferences option. Select the
Advanced tab. Modify the number of seconds to
search for devices and click OK to save the
information.
• Check whether the remote device is active.
The Bluetooth-enabled Windows In BluePC Preferences, select the Advance tab. Check the
option Number of Devices to Report. Increase the
BluePC User Manual
Troubleshooting BluePC 112
Explorer is not displaying the names of
all the discovered devices.
numbers and repeat the device discovery process.
Connect to services
An Obtain Services operation
performed on a device fails.
• Check whether the remote device is active.
• Check whether the Bluetooth device has been plugged
in properly. Plug it out and plug in the device again.
• If the Obtain Services operation has not been
performed through the Bluetooth Manager, do so.
• Log off and log in again.
Unable to refresh the devices in
Bluetooth Manager.
Check whether the Bluetooth device has been plugged in
properly. Plug it out and plug in the device again.
Unable to establish a connection with
the remote machine.
Check if the remote device is active.
Remote service not found. The services may have been removed. Refresh the services
list, and rediscover the services.
File Transfer
Unable to copy a file from the remote
machine.
Check whether:
• A response has been given to the authorization
request on the remote machine.
• A file with a similar name exists on the client and it
has read-only permissions.
On Windows XP if the shared folder is "C:\Documents
and Settings\\My Documents", you will not be able to
send files to that machine. Change the shared folder and
retry the operation.
Unable to delete a folder on the remote
machine.
Check whether a response has been given to the
authorization request on the remote machine.
Unable to delete a file on the remote
machine.
Check whether a response has been given to the
authorization request on the remote machine.
BluePC User Manual
Troubleshooting BluePC 113
Exchange Business Cards
The Send Business Card operation is
failing.
Check whether you have specified a business card to be
sent in your Bluetooth Device Preferences. In the
Services tab, select Business Card Exchange and click
Properties. A business card should be specified in the My
Business Card field.
Check whether the business card that is being sent is a
valid one.
Network Access
Unable to connect to the Internet
through the Dial- up Network
connection
Check whether
• You have entered the correct ISP number.
• You have entered the correct user name and
password.
On Windows 98/ME, a direct cable connection and a dial-
up networking connection cannot be run simultaneously.
Disconnect the direct cable connection, if it has been
connected.
On Windows 98/ME, two simultaneous dial-up
networking connections is not possible. Check whether
this is the case and disconnect one of the connections.
On Windows 98/ME, a simultaneous dial-up networking
connection and Personal Area Network is not possible.
Check whether this is the case and disconnect one of the
connections.
Unable to connect to the Internet
through LAN Access
Check whether
• You have administrator privileges.
• You have entered the correct user name and
password.
• The LAN Access Point has the Ethernet cable
connected.
BluePC User Manual
Troubleshooting BluePC 114
Unable to transfer data using the LAN
Access gateway
For data transfer using the LAN Access service, the user
who has logged into the system acting as the LAN gateway
should have permissions to access the domain on which
the machine is connected, and administrator privileges on
the machine acting as the LAN access gateway. Only then
will users, who have connected to gateway, be able to
transfer data.
Printing Information
Unable to print information. Check whether
• The printer has been powered on.
• The printer has been setup.
• The printer is available.
Listening to Music
Cannot connect to the headset. Check whether your device is already connected to
another headset.
Unable to hear music through the
headset
• You may not have accepted the incoming
connection on your headset. Connect to the
headset again, and accept the connection when
you hear the ringing tone on your headset.
Disconnect the headset. And, during the disconnect when
a beep is heard on the headset click the headset to
complete the disconnect operation. Reconnect the
headset.
BluePC User Manual
Appendix 115
Appendix A Uninstalling BluePC
To uninstall BluePC:
1. Click Start, and select Programs > Impulsesoft > BluePC > Uninstall BluePC.
Figure 154. Uninstall Menu
Figure 155. Uninstall screen
BluePC User Manual
Appendix 116
2. Click Next to proceed. The Uninstall progress screen is displayed. After BluePC program is
uninstalled, the Finish screen is displayed.
Figure 156. Uninstall Complete
3. You can restart your computer immediately or later. Select the required option, and click Finish
to complete the uninstall process.
BluePC User Manual
Appendix 117
Appendix B BlueExplore Icons
In BlueExplore, the following icons are used to represent remote devices and services.
Table 1. List of Icons
Icon Type Description
Device Desktop or Laptop Computer
Device LAN Access Point
Device Mobile Phone
Device Printer
Device Headset
Device/Service Unknown Device or Service
Service Dial-up Networking
Service FAX
Service Network Access
Service Serial Port
Service Audio
Connected devices are denoted as shown by the figure below:
BluePC User Manual
Appendix 118
Appendix C Disabling “Digital
Signature Not Found”
1. Right-click My Computer and select Properties. The System Properties property sheet
appears.
Figure 157. Hardware Settings
BluePC User Manual
Appendix 119
2. Click Hardware tab. The System Properties property sheet changes as shown by the figure.
Click the Driver Signing button.
Figure 158. Driver Signing Options
3. Select Ignore-Install all files, regardless of file signature option and then click OK.
BluePC User Manual
Appendix 120
Appendix D Supported OS,
Profiles, and Protocols
BluePC supports the following Operating System:
• Microsoft Windows® XP
• Microsoft Windows® 2000
• Microsoft Windows® Millennium Edition
• Microsoft Windows® 98 Second Edition
BluePC currently supports the following Bluetooth Profiles:
• General Access Profile
• Service Discovery Application Profile
• Serial Port Profile
• Dial-up Networking Profile
• LAN Access Profile
• FAX Profile
• File Transfer Profile
• Object Push Profile
• Headset Profile (for UART Transport Layer only)
• HCRP – Hard Copy Cable Replacement
• PANU – Personal Area Network
BluePC currently implements the following Bluetooth Protocols:
• HCI - Host Controller Interface
• L2CAP - Logical Link Control and Adaptation Protocol
• RFCOMM - Radio Frequency Communication
• SDP - Service Discovery Protocol
• OBEX – Object Exchange
BluePC User Manual
Appendix 121
Appendix E Regulatory
Information
Exposure to Radio Frequency Radiation
The radiated output power of the USB BlueOpal Adapter (Bluetooth) internal wireless radio is far
below the FCC and Industry Canada radio frequency exposure limits. Nevertheless, the wireless
radio shall be used in such a manner that the potential for human contact during normal operation is
minimized. The internal wireless radio operates within guidelines found in radio frequency safety
standards and recommendations, which reflect the consensus of the scientific community.
The level of emitted energy emitted is far less than the electromagnetic energy emitted by wireless
devices such as mobile phones. However, the use of wireless radios may be restricted in some
situations or environments, such as aboard airplanes. If you are unsure of restrictions, you are
encouraged to ask for authorization before turning on the wireless radio.
The FCC and Industry Canada has set a general guideline of 20 cm (8 inches) separation between
the device and the body, for use of a wireless device near the body. This device should be used
more than 20 cm (8 inches) from the body when wireless devices are on.
FCC Part 15 Radio Frequency Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on. The user is encouraged to correct the interference by one or more of the
following measures:
BluePC User Manual
Appendix 122
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet that is on a circuit different from the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada RSS-210 Radio Compliance Statement
To prevent radio interference to the licensed service, this device must be operated indoors only and
should be kept away from windows to provide maximum shielding.
Pour empêcher le brouillage radioélectrique du service faisant l’object d’un license, cet appareil doit
être utilisé à l’intérieur et loin des fenêtres afin d’assurer un blindage maximal.
Industry Canada ICES-003 Emission Compliance Statement
This Class B digital apparatus meets the requirement of the Canadian Interference-Causing
Equipment Regulations.
Cet appareil numérique de la classe B respecte toutes les exigences du règlement sur le matériel
brouiller du Canada.
European Radio Approval Information
The USB BlueOpal Adapter is a low power, wireless communication devices, operating in the 2.4
GHz band, intended for home or office use. The power output of this device is well below the RF
exposure limits as set by the European Commission through the R&TTE directive.
The USB BlueOpal Adapter can be operated in:
Austria, Belgium, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy, Liechtenstein,
Luxembourg, the Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and the United
Kingdom.
BluePC User Manual
Appendix 123
Appendix F Declaration of
Compliance
