User Manual for keyboard PC
1.brief introduction
2.keyboard pc feature
3.direction for use
▪ Indicator led color
▪ Power on, power off, sleep
▪ How to use
▪ Button function
4.keyboard pc parameter
5.keyboard pc maintenance
1 brief introduction
This product is a keyboard computer, use intel Z3735F quad core CPU, 2GB
RAM, 32GB ROM,
support extra TF card 32GB, support Android/WIN 10 double OS. With keyboard,
touchpad, two
speakers inside. Has HDMI/VGA port.
2 keyboard pc feature
1>keyboard pc is portable and light, easy to carry.
2>keyboard pc with touchpad inside, easy to use.
3 direction for use

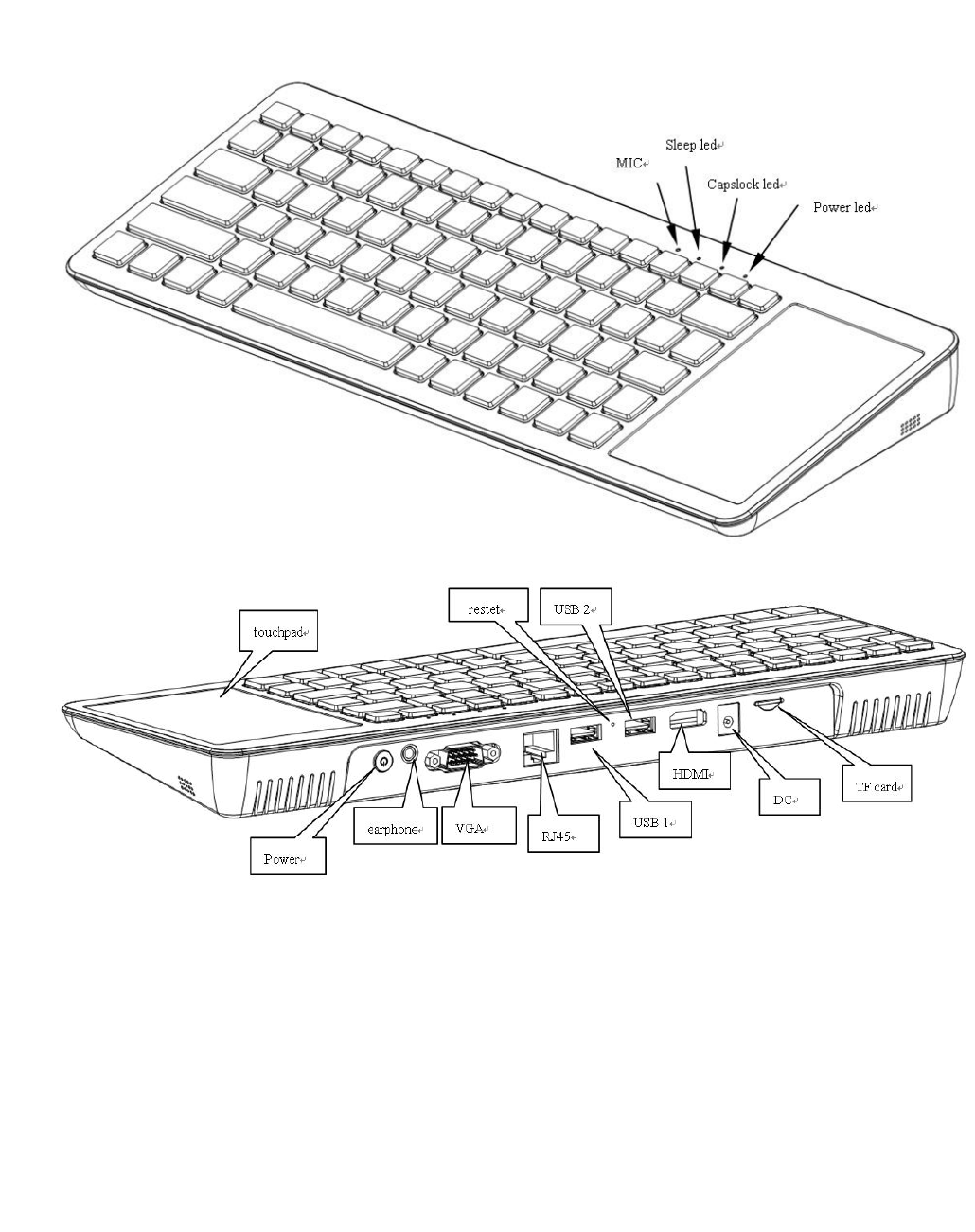

Indicator led color
1> power led yellow
2>capslock led yellow
3>sleep led yellow
Power on/power off/sleep
1>long press Power button 3 seconds, power led on, indicate start power on
2>long press Power button 3 seconds, appear a “slip to power off” dialog, follow the
steps to power off
3>short press Power button start sleep mode, short press power button again to
wake up.
How to use
1>DC port connect 5V/2A power adapter
2>VGA or HDMI port connect display device. (VGA not support plug and play)
3>Long press Power button 3 seconds power led on, keyboard pc start power on
4>Sleep led and Power led will be yellow when the PC is sleep
5>USB port is standard 2.0USB port, can connect mouse, U disk, hard disk.
6>If meet computer crash, do not pull up power adapter, try press reset button to
reboot computer
7>Pls note that touchpad for keyboard pc only owns “Confirm” function, if you need
to realize traditional mouse function please connect mouse to USB port.
Key functions
Combination keys
functions
FN+F1
Sleep
FN+F2
previous
FN+F3
Play/pause
FN+F4
next
FN+F5
projection
FN+F6
Volume off
FN+F7
Volume -
FN+F8
Volume +
FN+F9
Touchpad off
FN+F10
Airplane mode
FN+↑
PgUp
FN+↓
PgDn
FN+←
Home
FN+→
End
4 keyboard pc parameter
Model No.
SRKPC1
CPU
intel baytrail-t z3735fO
core
Quad cores
CPU frequency
1.33GHz（Max 1.83GHz）
RAM
2GB DDR3L
ROM
32GB
OS
Android/WIN10
Extra TF card
Support 32GB
Max resolution
1920*1080
Muti-point touch
Multi-point touch
WIFI
support
Bluetooth
Bluetooth 4.0
speaker
yes
Inside Mic
yes
keyboard
82 keys
adapter
5V/2A
material
ABS+PC
Product size
321.5*115*27.3 mm
Net weight
480g
5 keyboard maintenance
1>Do not put your keyboard pc under the liquid conditions or get wet in the rain,
such as using nearby the bathtub, sink, sauna, swimming pool or steam room.
2>Please use the machine water do the cleaning, avoid using pure water to wash
directly.
3> Do not expose your keyboard pc under too high or too low temperature conditions.
4> Do not expose your keyboard pc to direct sunlight for long time.
5> Do not put your keyboard pc close to open fire, such as cooking stores, candles
or fireplace.
6> Avoiding using sharp objects scratching the keyboard pc.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment and receiver.
—Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help.
Thisdevicecomplieswithpart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:
(1)thisdevicemaynotcauseharmfulinterference,and
(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycause
undesiredoperation.
Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor
compliancecouldvoidtheuser'sauthoritytooperatetheequipment.
