You can have as many transmitters as you want for family and guests to open your gate.
The DIP switches in all the transmitters for a particular gate opener must be set the same.
Instructions for adding additional entry transmitter(s)
If you already have a two button
transmitter that operates your gate(s)
and are simply adding an additional
transmitter, set the DIP switches in
the new transmitter to match the DIP
switches in your original transmitter,
reassemble the transmitters and you
are done.
IMPORTANT:
If you change the DIP switches in the
original transmitter refer to Program
New Transmitter Setting to Gate
Opener’s Memory section below.
Open transmitter to
access DIP switches
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8
ORIGINAL
TRANSMITTER
NEW
TRANSMITTER
12345678

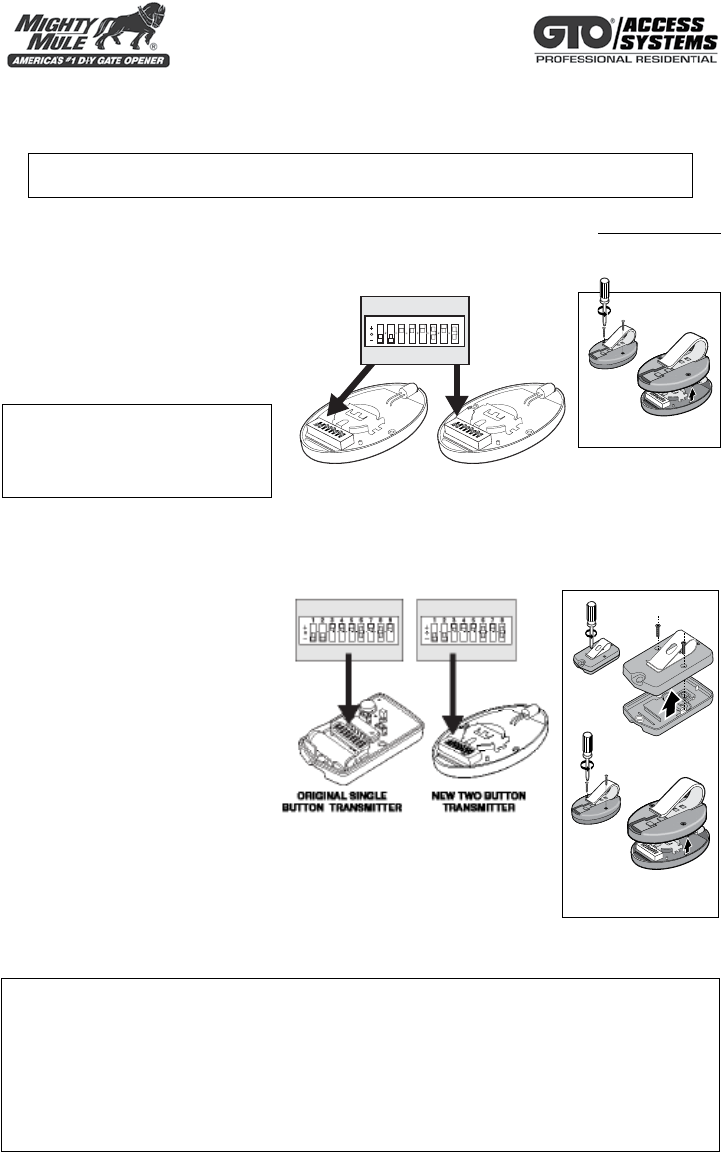

1. Match the eight DIP switches found
in the dual button transmitter to the
first eight DIP switches in the single
button transmitter.
2. The ninth DIP switch on the single
button transmitter cannot be in
the lowest position (-); it must be
changed to the upper (+) or middle
(0) position at this time.
3. If the ninth DIP switch is set to the
upper position (+) the left hand
button will be used to send the
same code when using the dual
button remote.
4. If the ninth DIP switch is set to the
middle position (0) the right hand button will be used to send the
same code when using the dual button remote.
5. If you change the ninth DIP switch in the original transmitter refer
to Program New Transmitter Setting to Gate Opener’s Memory
section below.
If you are matching your two button transmitter to a single button
transmitter follow these steps:
Open transmitters to
access DIP switches
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8
The two button transmitter is used for the remote control of two gate openers
or a gate opener and a garage door opener. A GTO Universal Receiver
(RB709U-NB) is required for use with garage door openers.
Instructions for Gate Opener
Two Button Entry Transmitter
Your GTO® Accessory is warranted by the manufacturer against defects in materials and manufacturer workmanship for a period of one (1) year from date of purchase, provided the recommended installation procedures have been followed.
GTO® sells its products through authorized retail and on-line channels to ensure that consumers obtain quality pre-sale and after sale support and service. The warranty on GTO® products is NOT VALID if the products have been purchased
from an unauthorized, on-line E-tailer (e.g., E-bay® sellers who are not authorized GTO® resellers), or if a product’s serial number has been altered, removed, or replaced in any way. To verify that you are buying from an authorized, on-line
GTO® e-tailer, visit www.gtoinc.com, or call 1-800-543-GATE.
In the case of product failure due to defective material or manufacturer workmanship within the one (1) year warranty period, the opener will be repaired or replaced (at the manufacturer’s option) at no charge to the customer, if returned freight
prepaid to Gates That Open, LLC, 3121 Hartseld Road, Tallahassee, Florida, USA 32303. IMPORTANT: Call (850) 575-4144 or Fax (850) 575-8950 for a Return Goods Authorization (RGA) number before returning item(s) to the factory.
Products shipped to the factory without an RGA number will not be accepted. Replacement or repaired parts are covered by this warranty for the remainder of the one (1) year warranty period or six (6) months, whichever is greater. GTO® will
pay shipping costs (equal to United Parcel Service ground rate) for return to owner of item(s) repaired under warranty.
The manufacturer will not be responsible for any charges or damages incurred in the removal of the defective parts for repair, or the reinstallation of these parts after repair. Use of any components that are not GTO® specified (e.g. battery or
transformer) will void the warranty. This warranty shall be considered void if damage to the product(s) was due to improper installation or use, use of non-GTO® specified or approved components or replacement parts, connection to an improper
power source, or if damage was caused by lightning, electrical power surge, wind, fire, flood, insects, or other natural agents.
This warranty gives you specific legal rights, and you may also have other rights which may vary from state to state. This warranty is in lieu of all other warranties, either expressed or implied.
After the one (1) year warranty period expires, GTO® (or one of its authorized service centers) will perform necessary repairs for a nominal fee. Call GTO® at (800) 543-1236 or (850) 575-4144 for more information.
ONE YEAR LIMITED WARRANTY
If you have any questions or concerns, please contact our Technical Service Department • M-F 8:00 am to 7:00 pm (ET) at 1-800-543-1236 or 850-575-4144.
Gates That Open, LLC • 3121 Hartseld Road • Tallahassee, Florida 32303 • Telephone (850) 575-0176 • Fax (850) 575-8912 • website www.gtoinc.com
The two button transmitter is used for the remote control of two gate openers
or a gate opener and a garage door opener. A GTO Universal Receiver
(RB709U-NB) is required for use with garage door openers.
Instructions for Gate Opener
Two Button Entry Transmitter
Instructions for replacing a lost entry transmitter
If you are replacing a lost transmitter and you know or have your original transmitter’s DIP switch
setting written down, set the new transmitter DIP switches to that setting and it is ready to activate
your gate opener.
If you don’t know the DIP switch setting from your original transmitter, you will need to select a new
setting.
Personalize your Transmitter Setting
There are eight (8) DIP switches, each of which can be placed
in three different positions (+,0,-). DO NOT set all switches in
the same position, such as all +, all -, or all zeros.
Program New Transmitter Setting to Gate Opener’s Memory
Some gate openers are programmed with a LEARN REMOTE
or LEARN TRANSMITTER button and some with the ON/OFF
switch. Refer to your Gate Opener’s or Universal Receiver’s
Installation Manual for instructions on how to program the transmitter to that device.
NOTE: If the red light on the transmitter is dim or flickers when the transmitter
button is pushed, the transmitter battery may be weak. Replace when
necessary with a A23S 12 Volt battery.
Reassemble the
transmitter when finished
1 2 3 4
ON
STATUS
LEARN RMT
LEARN
MAST LIMIT
S3
S2
OFF
SOFT START OFF
WARNING OFF
OPEN PULL
SLV OPEN DLY.
MODE1 OFF
MODE2 OFF
ON
ON
PUSH
SIMULT.
ON
ON
120 MIN MAX
AUTO CLOSE TIME STALL FORCE
ON/OFF
+or
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8
12345678
+
0
ECE
1 2 3 4 5 6 7 8
+
0
ECE
1 2 3 4 5 6 7 8

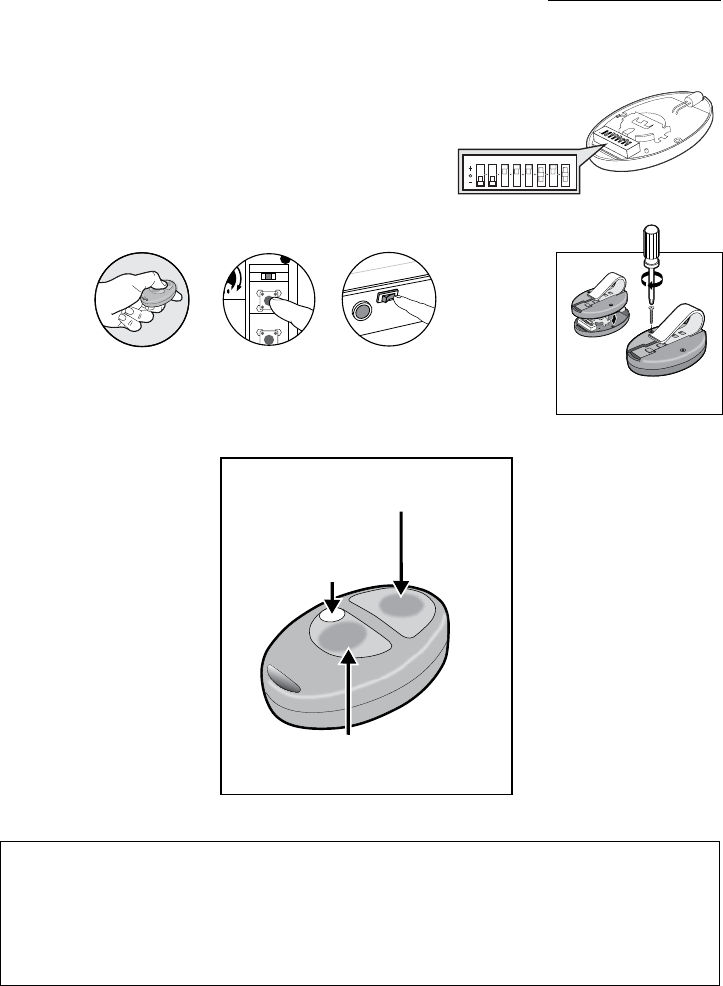

Top button activates the same device
