Dear users, the configuration for this camera
is professional, so please read the user
manual carefully before using the camera.
If the user manual can not help you to solve the problem, please call our technology center
for solutions. We will update the content for the new functions without notice.
1、 Installation Environment
I Keep away from the places for high-temperature, heat source and direct sunlight;
I Keep away from water and when it gets wet, cut off the power immediately.
I Avoid using at damp environment; the reference range for operation humidity is below
85%RH.
I Avoid using in overheating and too cold environment, the reference range for operation
temperature is -10℃~ +50℃
I Please install it horizontally or wall mounting, avoid strenuous vibration place and not put
other equipments onto the item
2、 Transport and Handling
I The package is well-designed to ensure the security during the delivery, so please do
not change the package at random.
1， Do not move the ip cameras from overheated to supercooled condition frequently,
otherwise it will frost and shorten the service life.
2， Do not move the item when it is on, otherwise the main board might be damaged.
Notice:
1. Please check the power supply before it is working.
2. Be careful not to bang the camera or subject it to strong impacts or shocks.
3. Do not directly touch the optical components for the image sensor, if necessary, please
place a clean and moistened cloth with alcohol and wipe the dirt gently; When not in use,
please place the dust cover on to the item to protect the image sensor.
4. Do not aim the camera directly into the sun or at other intense light sources that could
affect the image quality (it is not the problem for the ip camera), also shorten the service
life for the image sensor.
5. Keep away from laser when it is working, otherwise the image sensor can be damaged.
6. If the equipment is not working properly, please contact the store or the service center,
do not disassemble or modify the equipment in any way. ( Problems caused by
unauthorized modification or repair should be at your own risk.）
Statement
Notice
2
Index
1. PRODUCT INTRODUCTION..................................................................................................5
1.1. PRODUCT SUMMARY ............................................................................................................5
1.2. PACKAGE FOR TYPICAL PRODUCTION....................................................................................5
2. INSTALLATION GUIDE..........................................................................................................7
2.1. WIRED CONNECTION TO LAN..............................................................................................7
2.2. WIFI CONNECTION TO LAN.................................................................................................8
2.3. CONNECTION TO WAN........................................................................................................9
3. OPERATION OF USING IE BROWSER .............................................................................11
3.1. VIEW VIDEO ......................................................................................................................11
3.2. VIDEO SETTING .................................................................................................................12
3.2.1. Video parameters......................................................................................................12
3.2.2. Audio parameters.....................................................................................................13
3.2.3. Image parameters.....................................................................................................13
3.3. WEB SETTING....................................................................................................................14
3.3.1. Basic web setting......................................................................................................14
3.3.2. WIFI setting.............................................................................................................14
3.3.3. WAN access setting...................................................................................................14
3.3.4. ONVIF setting..........................................................................................................15
3.4. ALARM SETTING................................................................................................................15
3.4.1. External Alarm Input................................................................................................15
3.4.2. Motion Detection Setting..........................................................................................16
3.4.3. Alarm mode setting...................................................................................................16
3.4.4. Alarm time setting....................................................................................................17
3.5. ADVANCE SETTING ............................................................................................................17
3.5.1. User management.....................................................................................................17
3.5.2. Auto Capture Setting.................................................................................................18
3.5.3. Timer recording........................................................................................................18
3.5.4. E-mail Setting...........................................................................................................19
3.5.5. FTP setting...............................................................................................................19
3.5.6. Multiple settings.......................................................................................................20
3.6. SYSTEM SETTING...............................................................................................................20
3.6.1. Device information...................................................................................................20
3.6.2. Date and time setting................................................................................................21
3.6.3. Initialize setting........................................................................................................21
3.6.4. System Log...............................................................................................................21
4. VISITING DEVICE BY OTHER SOFTWARE......................................................................22
4.1. OTHER WEB BROWSER .......................................................................................................22
4.2. MOBILE PHONE SOFTWARE.................................................................................................22
4.3. PC CLIENT SOFTWARE .......................................................................................................23
4.4. OTHER COMMON SOFTWARE ..............................................................................................23
3
5. PRODUCT FAMILY FOR M SERIES ..................................................................................24
5.1. HD CUBE CAMERA ...........................................................................................................24
5.2. HD PTZ CAMERA .............................................................................................................24
5.3. HD WATERPROOF CAMERA.................................................................................................26
APPENDIX：M SERIES IP CAMERA PARAMETERS COMPARISION LIST...........................1
4
FCC STATEMENT
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION
IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY
NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST
ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-Consult the dealer or an experienced radio/TV technician for help.
FCC Part 15.21 Statement
Changes or modifications not expressly approved by the party responsible for compliance
could
void the user’s authority to operate the equipment.
FCC RF Exposure Statement
To comply with FCC RF exposure compliance requirements, a separation distance of at least
20 cm must be maintained between the antenna of this device and all persons.
5
1. Product introduction
1.1. Product summary
Thank you for choosing our company’s M series IP camera, which has several models,
including indoor HD PTZ camera, indoor HD cube camera, outdoor HD waterproof
camera etc. It is very suitable for family, shops, office building and so on.
Main features for M series：
♦ Support 3 kinds of H.264 video stream and 1 way MJPEG video stream
simultaneously, suitable for Local, Internet and Cross-platform view;
♦ Support resolution for 1280*720/640*360/320*180;
♦ Support 4 ways view in a video stream;
♦ Support two-way intercom function, and G.711 and G.726 audio encoding;
♦ Support 802.11b/g/n protocol, build-in WiFi module to perform wireless
monitoring;
♦ Support max. 32G SD/TF card for storing the alarm video and pictures, timing
snapshot and recording;
♦ Built-in web server, use one port to send all the data, users can facilitates
network setting;
♦ Support ONVIF and RTSP protocol, easy to integrate it to NVR or large client
software;
♦ Support WPS/QSS function;
♦ Support POE function for some cameras, user optional;
♦ Support multi-languages web interface, support 1/4/9 split screen to perform
several view at same time;
♦ Manufacturer puts a label of DDNS at the bottom of each IP Camera. When IP
Camera is connected to the internet, this URL can be used to visit the device;
♦ Provide free client software, support Multi-view, Long time recording, video
replay etc;
♦ Provide free software viewed by mobile phone.
1.2. Package for typical production
Accessory
Type
Power
adaptor
CD Cable Bracket
Stand
of
plastic
Antenna
HD Cube camera
5V √ √ √ √ Built in
6
HD PTZ camera
（Model A）
5V √ √ √ √ Optional
HD PTZ camera
(Model B）
5V √ √ √ √ √
HD PTZ camera
（Model C）
5V √ √ √ √ Optional
HD PTZ camera
（Model D）
5V √ √ √ √ Optional
HD waterproof camera
12V √ √ √ √ Optional
Notice:
♦ If you choose IP camera with wireless function, so it includes wifi module inside
the camera and antenna in package.
♦ Please check carefully if all listed items are included in the package, if anything
missing, please contact vendor in time.
7
2. Installation guide
2.1. Wired connection to LAN
Power on the IP camera（please check carefully the voltage of power adaptor, don’t
insert incorrect power, otherwise it will be damaged）, connect IP camera to router by
network cable and connect computer to the same router, example of figure 1.
Figure 1
Insert attached CD to computer driver, double click “H&MSearch_en.exe” in the CD,
will pop up the interface as figure 2, please operate as the following steps:
Figure 2
1) Click “Search”（Please make sure your firewall will not block up the item to be
searched）
2) Choose a camera;
3) Change the ip address of the ip camera according to the information in the red
8
frame on the left. The numbers in the red circle should not be the same. The
Http port should be a number between 80~65535;
4) Enter user name and password for the device, the default is “admin” and
“123456”;
5) Click “update”;
6) After updating successfully, click “Search (F3)”, choose the device again and
click “Browse (F4)”. Then you can run the web browser, enter user name and

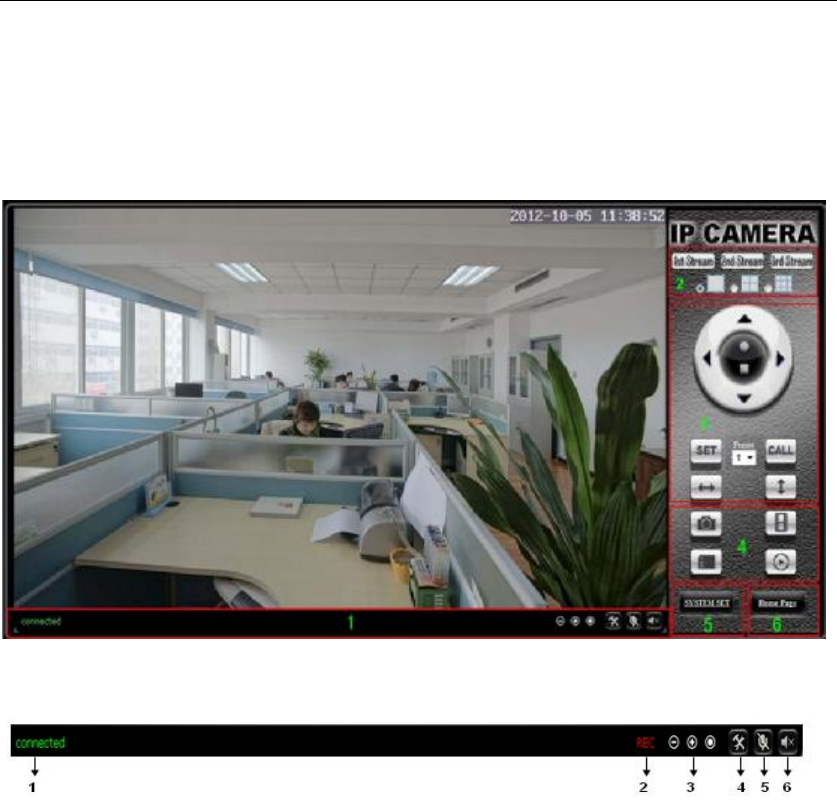

password and login IP camera to view the video, example of figure 3.（please
use IE browser at first time）
Figure 3
Notice: Need to download ActiveX when first use, click “download ActiveX( when first
use)” in figure 3, will display prompt as figure 4, click ‘run’ will download and install the
ActiveX automatically.
Figure 4
Tips: You can hold on reset button on the camera for 10 seconds to restore factory
default if you forget user name and password, or not sure the device parameters.
2.2. WiFi connection to LAN
After finishing the wired connection as chapter 2.1, you can connect the camera by WiFi.
Login camera in wired connection and enter wifi setting, and then operate as the
following step, example of figure 5.
9
Figure 5
Select ‘On’ and click ‘Search’, and then select wireless router in pop up menu, click ‘OK’
and enter its password, click ‘apply’ to save the wireless settings. And you can click
‘check’ to check if the wireless setting is successful. After setting successfully, please pull
out network cable and reboot the camera to use the wireless function.
Because the camera supports WPS/QSS, so you can set wireless by simple way as
below.
1) Please confirm if the router connected to camera supports WPS/QSS (you can check
user manual of the router or get the support from router factory);
2) Press WPS/QSS button on the router, it will launch the function.
3) Press and hold on reset button for 2~5 seconds after it ran normally（not need
connect cable）, it will launch the WPS/QSS function, then match the setting with the
router, the status LED always on when it was matching, and it will flash after
matching successfully.
4) Unplug power adaptor and reboot the camera, then you can use the wireless
connect function.
Note: The camera will automatically stop the function when the matching is unsuccessful
after continuing 50 seconds. Due to different kinds of the router, we don’t sure our
camera can be connected to all routers successfully.
2.3. Connection to WAN
You should connect it to LAN network and do the port forwarding at first, and then
connect the LAN network to WAN, connect as figure 6.
Figure 6

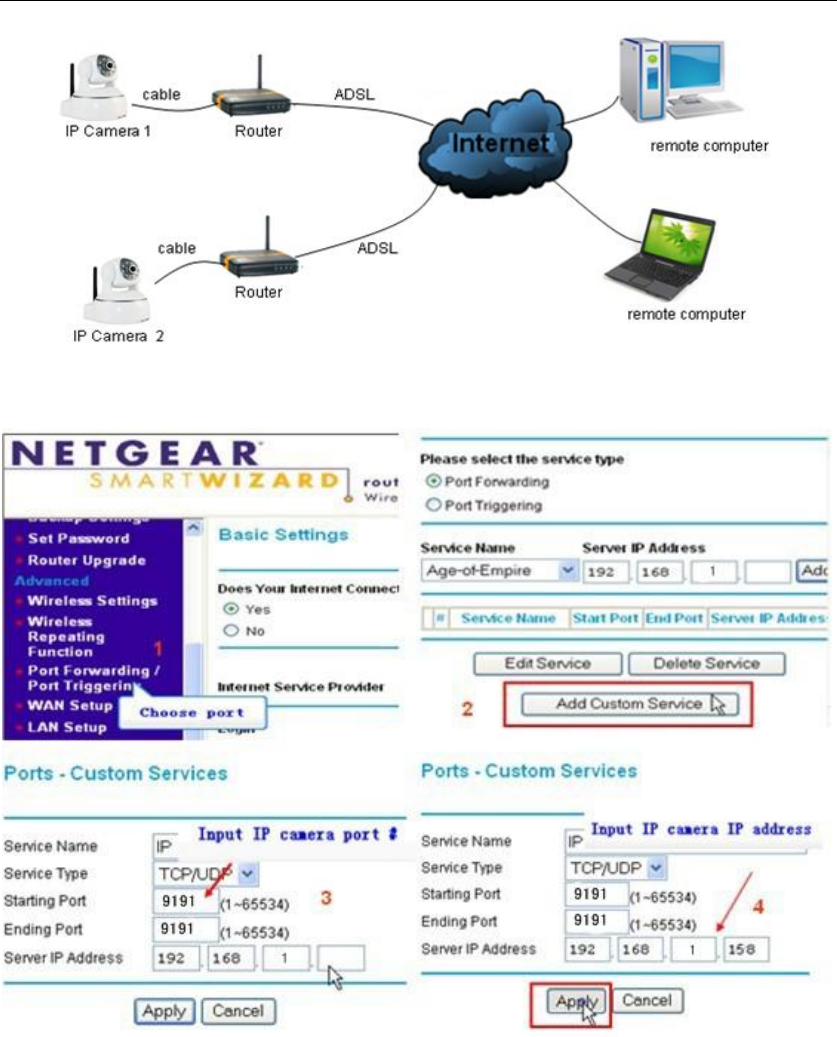

For example: operation step of port forwarding as figure 7.
Figure 7
1) Please go to the setting interface of Router, and choose “Port Forwarding”;
2) Choose “Add custom Service” ;
3) Input IP camera http port;
4) Input LAN IP Address of the camera, click “Apply” (port number and IP address as
you set in figure 2）
After finishing the port forwarding, you can use WAN IP address of router and http port of
camera to visit the camera by remote computer as figure 6.
Notice: because the routers are different, so the interface and setting method of router
are also different, how to do the port forwarding for various routers, please refer to the
user manual of your router or consult with router manufacturer.
11
3. Operation of using IE browser
3.1. View video
Figure 8
1) Status bar
Figure 9
① Display connection status;
② Display record status: if click “Record”, it will show “REC” which stands for
recording; click record button again, it will stop;
③ Zoom out, zoom in and restore digital zoom;
④ Set saving file path: set the location for recording and capturing file storage;
⑤ Talk button: Click this button to hear what the person at the side of computer
talks. Click it again, it will stop playing;
⑥ Audio monitor button: Click this button to hear what people talking about at the
side of IP Cameras,
2) Choose video stream
You can choose primary stream or second stream, third stream to view the video.
Recommend to view by primary stream in LAN, by second stream in WAN and by third
stream in mobile phone.
You can view the video by four, nine pictures in same screen, but need to set the camera
in 3.6.6 multiple setting.
3) PTZ control
If the camera supports PTZ function, you can click up, down, left, right arrow to control
the camera moving, click button to center and stop the camera.
When you set camera to a preset position, and then click ‘, after the camera is
changed to other direction, click can move the camera to the position you have
set.
4) Snap /record / SD card/playback
♦ Click “Snap” button, to save the picture to the specified file.
♦ Click “Record” button to start record. Click again to stop record.
♦ Click “Check TF/SD card” can browse the files in the SD card (If the SD card
already inside the camera), you can select file to download it;
♦ Click “Playback” button, it will show a player which can play the record video.
For these buttons means: play; stop; open video file; slow
play; quick play.
3.2. Video setting
3.2.1. Video parameters
Figure 10
JPEG stream is for some views by non windows platform, for example, click ‘mobile view’
in first page, it will transmit JPEG stream actually.
3.2.2. Audio parameters
Figure 11

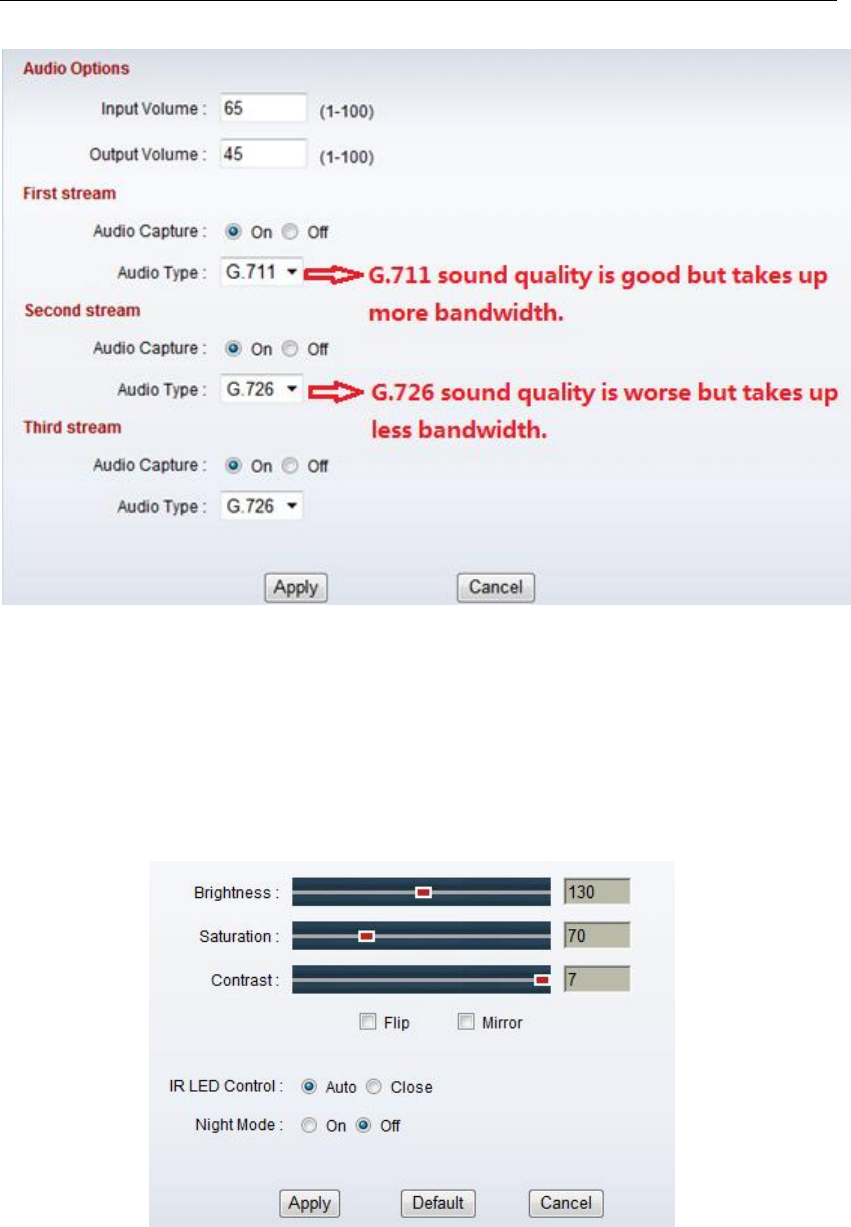

The camera supports G.711 and G.726 audio encoding format. The sound of the G.711 is
better, but it occupies more bandwidth. If you click “On” of the audio capture, so it will
transmit audio in corresponding video stream. Please open the audio here, should you
hear the sound when clicking audio play button in figure 9.
3.2.3. Image parameters
Figure 12
You can select “close” to disable IR LED when you don’t need it. It will cut frame rate
automatically to enhance night vision at night when select “on”.
3.3. Web setting
3.3.1. Basic web setting
Figure 13
The cameras support RTSP protocol, if select “on” of “RTSP authority verification”, you
need to enter user name and password when invoke video by RTSP protocol.
3.3.2. WIFI setting
Please refer to chapter 2.2.
3.3.3. WAN access setting
In chapter 2.3, you have known how to do port forwarding. After the success of the port
forwarding, you can also visit camera by DDNS. The manufacturer has established a
DDNS system, and allotted a DDNS to every device, the user can view it from remote PC,
example of figure 14.
Figure 14
User can also use third party DDNS, such as www.dyndns.com. User applies a free
domain name from this website and fills the info into below blanks (Figure 15) and saves
the settings. Then the domain name can be used.
Figure 15
Notice: Using the third party DDNS, if the http port is not 80, the port number should be
adding to the domain name with colon.
Example: http://mydomain.dyndns.org:81.
3.3.4. ONVIF setting
Figure 16
The camera supports ONVIF protocol, so it can be interconnected with other factory
camera with ONVIF.
3.4. Alarm setting
3.4.1. External Alarm Input
Figure 17
The camera should have external alarm input port for enable this functions. Connect
external alarm detector to the input port, the detector will output switching signal when it
detects any abnormal, input port of the camera will detect the level change, so it will
detect the alarm, therefore the detector should be switching sensor (same as switch)
3.4.2. Motion Detection Setting
Figure 18
Please click “apply” after the settings are done, and motion detection takes effect. The
higher value, the higher sensitivity. The camera will trigger corresponding alarm when
any change occurs in the detection area.
3.4.3. Alarm mode setting
After camera detects any change, it will alarm as several mode, example of figure 18.
Figure 19
3.4.4. Alarm time setting
Figure 20
The device will trigger the alarm only during the scheduled time period, you can select
the scheduled time according to your request. Example of figure 20, set armed time from
Mon 8:30 to 9:00, you only need to click the corresponding time block to set them, the
time block will become green when you selected.
Note: Please make sure your system time is correct before you set the alarm time period.
Please refer to chapter 3.6.2 to set system time.
3.5. Advance setting
3.5.1. User management
Figure 21
There are 3 levels of user authorization in it.
♦ Administrator: “admin” has the highest authority. It can do any settings. The factory
default password: 123456.
♦ User: user can only operate the device but can’t do any settings. The default
password is user.
♦ Guest: User can view the video, but can’t operate the device. The default password
is guest.
Note: Please change these 3 level passwords when your first use to ensure your safety.
3.5.2. Auto Capture Setting
Figure 22
Tick “Save Images to the TF/SD card”, the snap pictures will be stored into SD card
during the setting time.
3.5.3. Timer recording
Figure 23
Example of figure 23, set recording time from Mon 8:30 to 9:00.
3.5.4. E-mail Setting
Figure 24
The SMTP server name: It is mailbox server, for example of SOHU mailbox, it is
“smtp.sohu.com”. Please fill all blanks which we filled above in figure 24 as example.
Otherwise, the settings will fail.
Please click “Test” to test if the E-mail setting is successful.
3.5.5. FTP setting
Figure 25
Before to use FTP function, please get the following ready.
1) FTP user name and password
2) FTP storage space and the authority
3) Create sub-category to store the video or pictures.
Notice: The password should not be special character; otherwise the camera can’t
identify it.
3.5.6. Multiple settings
Figure 26
Please set multiple devices here first to view 4 or 9 split screen at chapter 3.1 browse
interface.
3.6. System setting
3.6.1. Device information
Figure 27
SD status shows the free capacity if SD card is installed.
Notice: the device supports max 32G SD card. Please format the SD card to FAT32
before use the card on camera. Please check if the SD Card matches the camera or not
before purchasing the SD Card.
3.6.2. Date and time setting
Figure 28
Example of figure 28, please select the time zone at first and then select a NTP server
and obtain time from network time server.
3.6.3. Initialize setting
Figure 29
If you click “Confirm” of Backup setting data, the camera will create a file, you can store it
to your computer, and you can directly call this file to restore the settings. The function
helps to manage the cameras and no need to do all the settings again.
The firmware upgrade is for updating system firmware and web UI.
3.6.4. System Log
Figure 30
4. Visiting device by other software
4.1. Other web browser
In the Windows OS, for using browser with IE kernel, user must download the ActiveX.
While for Safari and Firefox browsers, please Download “QuickTime” plug-in and install it

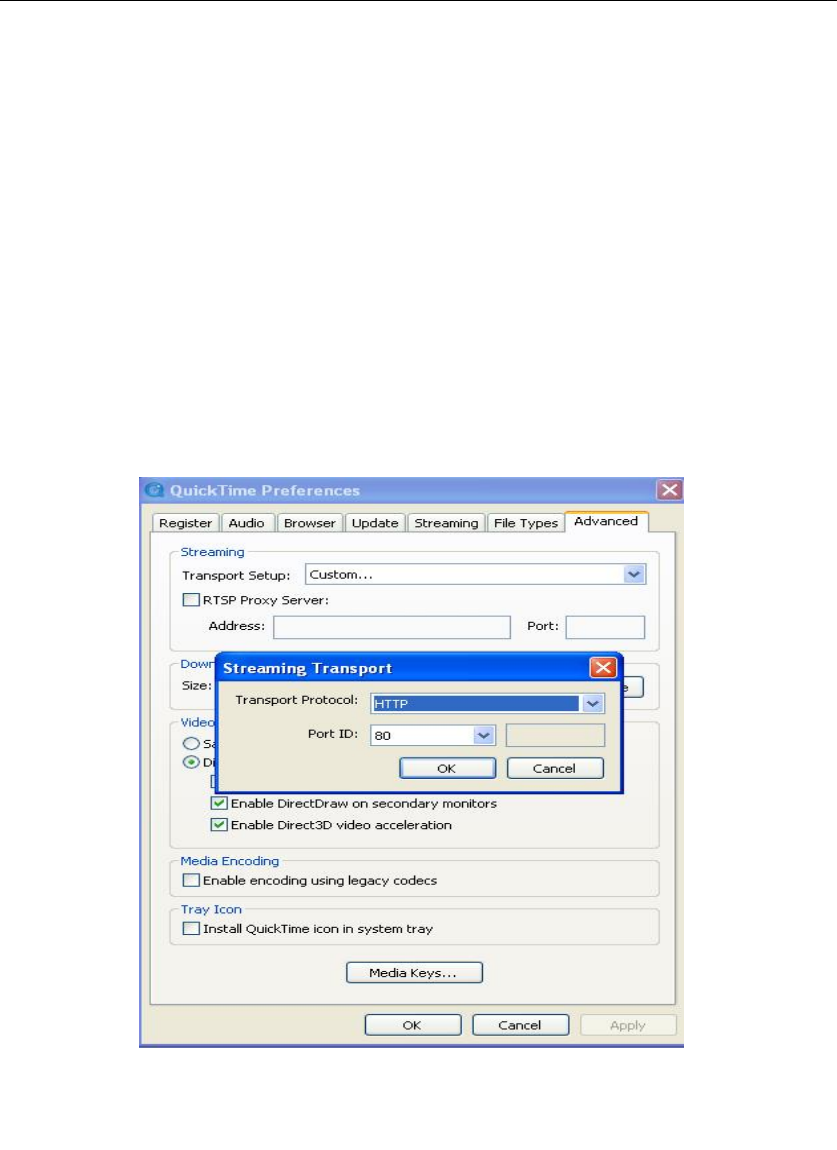

to access the IP camera. After installation, please run the QuickTime program to access
the QuickTime Preferences dialog box from Edit Menu, example as figure 31. Click
“Advanced”, select “custom.” in the Transport Setup. It pops up the Streaming Transport
dialog box. Please select “HTTP” for transport protocol and “80” as port ID, click “ok”,
and then return to Transport Setup to change “Custom..” to “Auto”. Finally, click “ok” at
the bottom. After finishing these settings, run the Firefox or Safari browser to view the
video.
Figure 31
In Mac computer, the Quicktime is installed by default, so the user simply accesses
setting tool folder at application folder and run the command program, enter command
by command line mode:
qtdefaults write TransportSettings HTTP 80
And then run the Safari browser to view the video.
Note: Please select the G.711 audio code format for hearing sound in Quicktime plug-in.
4.2. Mobile phone software
For more information, please see the user manual for mobile phone in attached CD, or
download the latest software and user manual in our website.
4.3. PC Client software

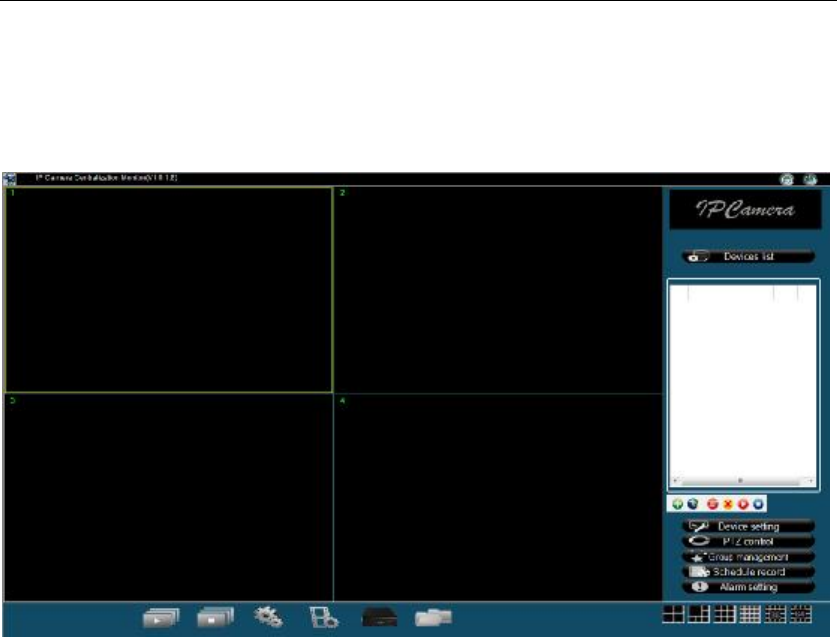

IPCMonitor is a free software offered by factory, several devices on LAN and WAN can
be browsed at the same time. The software also support real time recording, schedule
recording, alarm, snap, and so on. The interface is as Figure 32.
Figure 32
For more information, pls. refer the <<IPCMonitor User Manual>> in CD.
4.4. Other common software
As the device supports RTSP protocol, you can use VLC player to play IP Camera video.
It is compatible with VLC 1.1.12 version or above. Please use below URL to visit:
rtsp://ip:port/11 （View the video by first stream）
rtsp://ip:port/12 (View video by second stream）
rtsp://ip:port/13 (View video by third stream）
The port is RTSP port; please refer to the settings of Figure 13.
5. Product family for M series
5.1. HD Cube Camera
Figure 33 HD Cube Camera
Mega pixels CMOS sensor, IR-CUT, 3.6mm lens, built in MIC, support TF card, 12pcs
IR LED, audio out interface. It uses 5V power adaptor.

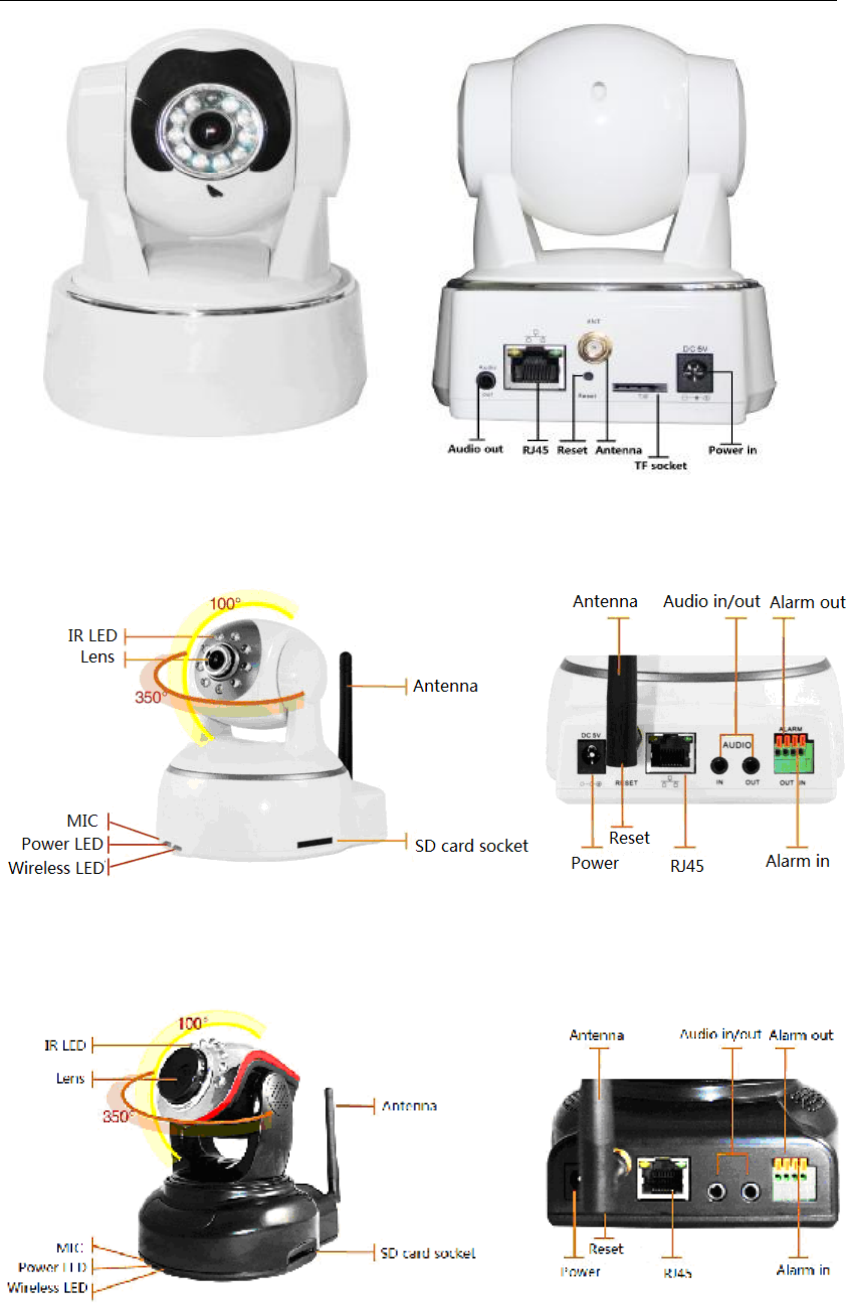

5.2. HD PTZ Camera
Figure 34 Model A
Mega pixels CMOS sensor, IR-CUT, 3.6mm lens, built in PTZ, MIC, support TF card,
11pcs IR LED, audio out interface. It uses 5V power adaptor.
Figure 35 Model B
Mega pixels CMOS sensor, IR-CUT, 3.6mm lens, built-in PTZ, MIC, speaker, support
TF card, 11pcs IR LED, audio out interface. It uses 5V power adaptor.
Figure 36 Model C
Mega pixels CMOS sensor, IR-CUT, 3.6mm lens, built in PTZ, MIC, support SD card,
8pcs IR LED, audio in/out interface, alarm in/out interface. It uses 5V power adaptor.
Figure 37 Model D
Mega pixels CMOS sensor, IR-CUT, 3.6mm lens, built in PTZ, MIC, support SD card,
10pcs IR LED, audio in/out interface, alarm in/out interface. It uses 5V power adaptor.

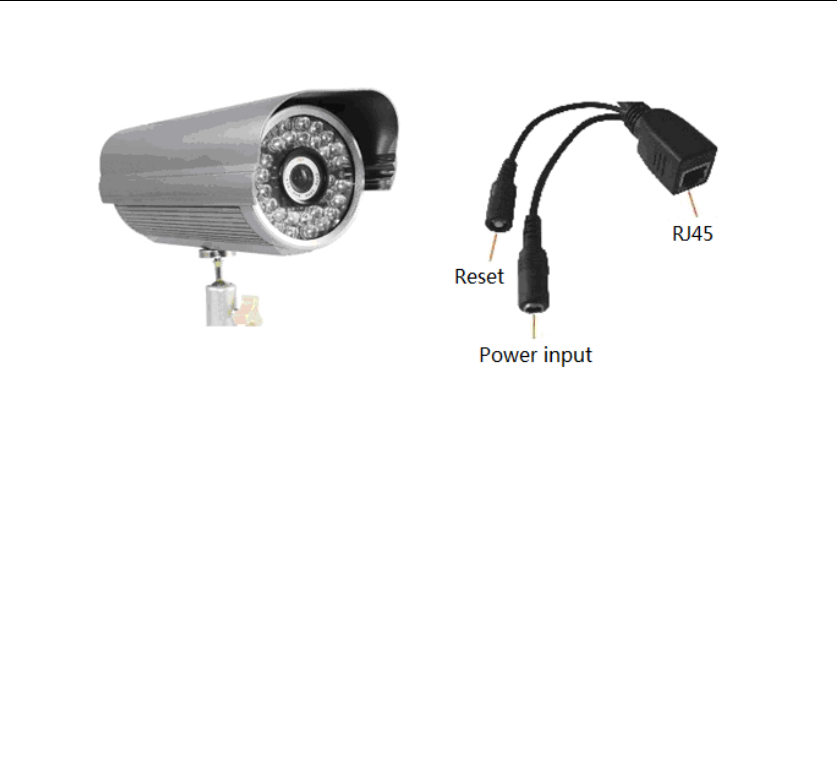

5.3. HD waterproof camera
Figure 38 Waterproof camera
Mega pixels CMOS sensor, IR-CUT, 8mm lens, 36pcs IR LED, POE function optional, it
uses 12V power adaptor.
Statement：
1. This manual may be different with your using camera, if you have any questions
of the manual, please contact our technical support.
2. This manual will be updated periodically; the company reserved the right
without prior notice.

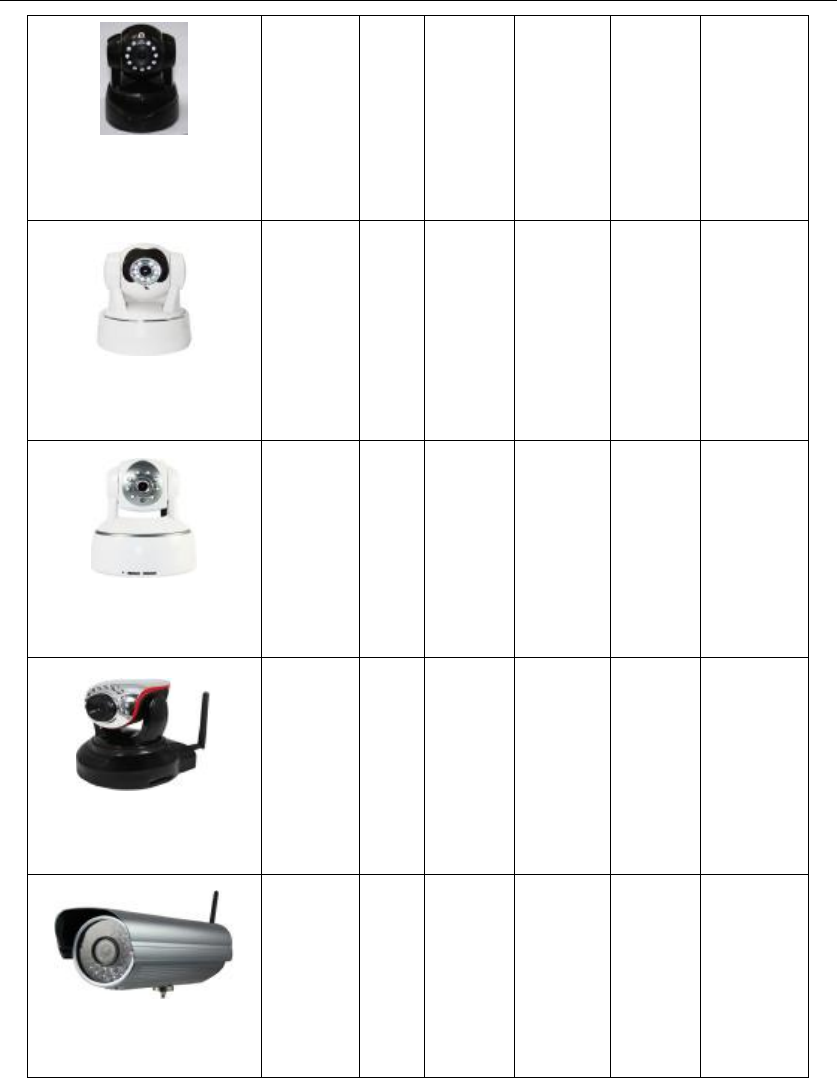

Appendix：M series IP camera parameters comparision list
Video Compression
H.264/M-JPEG
Resolution 1280*720/640*360/320*180
Max. Framerate 30fps
Audio compression G.711/G.726
Main software
function
Support HTTP, DHCP, IEEE 802.11b/g/n, NTP, FTP, SMTP, ONVIF, RTSP, WPS, P2P protocol etc; Support 32GB TF/SD card; support motion detection;
three level of user authority; PTZ preset point; support upgrading online
SD/TF Micro SD（support Max. 32GB） SD（ support Max. 32GB ）
IR-cut Yes
Lens 3.6mm 8mm 3.6mm 3.6mm 3.6mm 3.6mm
Pan/Tilt Tilt 100°Pan 350° N/A Tilt 100°Pan 350° N/A Tilt 100° Pan 350°
Night vision 11pcs IR LED, 8m
distance
36pcs IR LED, 25m
distance 11pcs IR LED,8m distance
12pcs IR LED, 8m
distance
8pcs IR LED, 5m
distance
10pcs IR LED, 6m
distance
Wi-Fi optional optional Yes Yes optional optional
Audio Built in MIC, audio
out N/A Built in MIC and speaker,
audio out Built in MIC, audio out Built in MIC, audio in/out
Alarm N/A 1 way alarm in/out
Power supply
5V
power
consumption<6W
12V power
consumption<10W
5V
power consumption<6W
5V
power consumption<6W
5V
power
consumption<6W
5V
power
consumption<6W
Work condition -10~ 50 ℃℃under 85%RH
Body size 106*99*126mm 220*112*106mm 102*110*130mm 48*85*110mm 102*107*148mm 111*110*125mm
Function
Product

Navigation menu
