airPoint XO™ Series Wireless Access Points Quick Install Guide

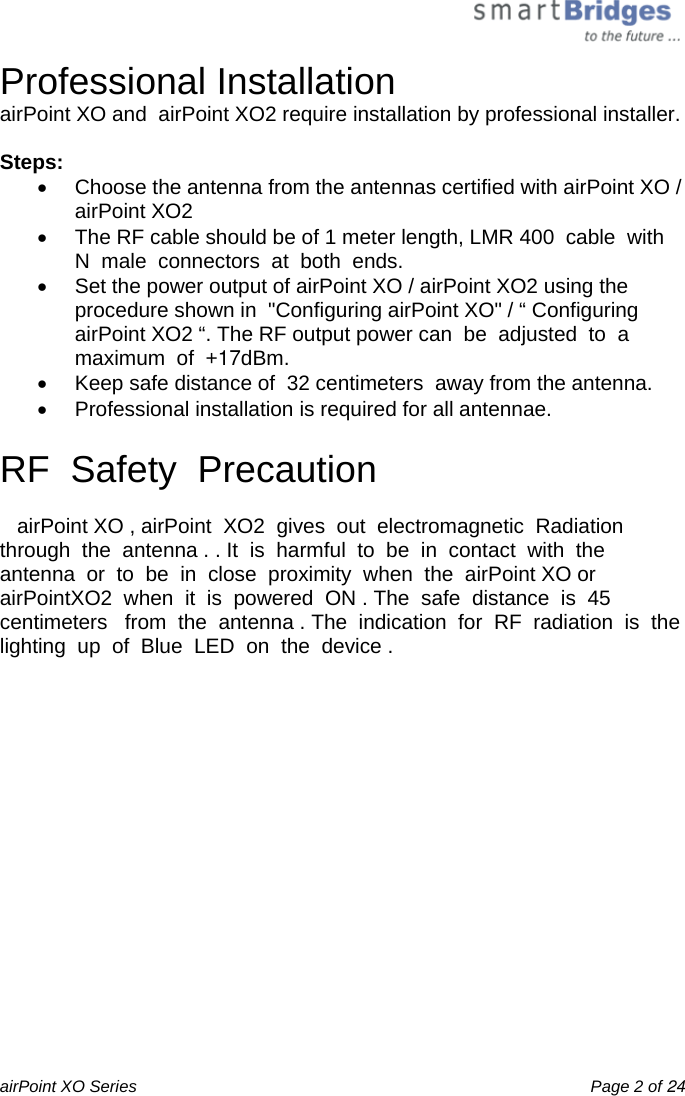

airPoint XO Series Page 2 of 24 Professional Installation airPoint XO and airPoint XO2 require installation by professional installer. Steps: • Choose the antenna from the antennas certified with airPoint XO / airPoint XO2 • The RF cable should be of 1 meter length, LMR 400 cable with N male connectors at both ends. • Set the power output of airPoint XO / airPoint XO2 using the procedure shown in "Configuring airPoint XO" / “ Configuring airPoint XO2 “. The RF output power can be adjusted to a maximum of +17dBm. • Keep safe distance of 32 centimeters away from the antenna. • Professional installation is required for all antennae. RF Safety Precaution airPoint XO , airPoint XO2 gives out electromagnetic Radiation through the antenna . . It is harmful to be in contact with the antenna or to be in close proximity when the airPoint XO or airPointXO2 when it is powered ON . The safe distance is 45 centimeters from the antenna . The indication for RF radiation is the lighting up of Blue LED on the device .

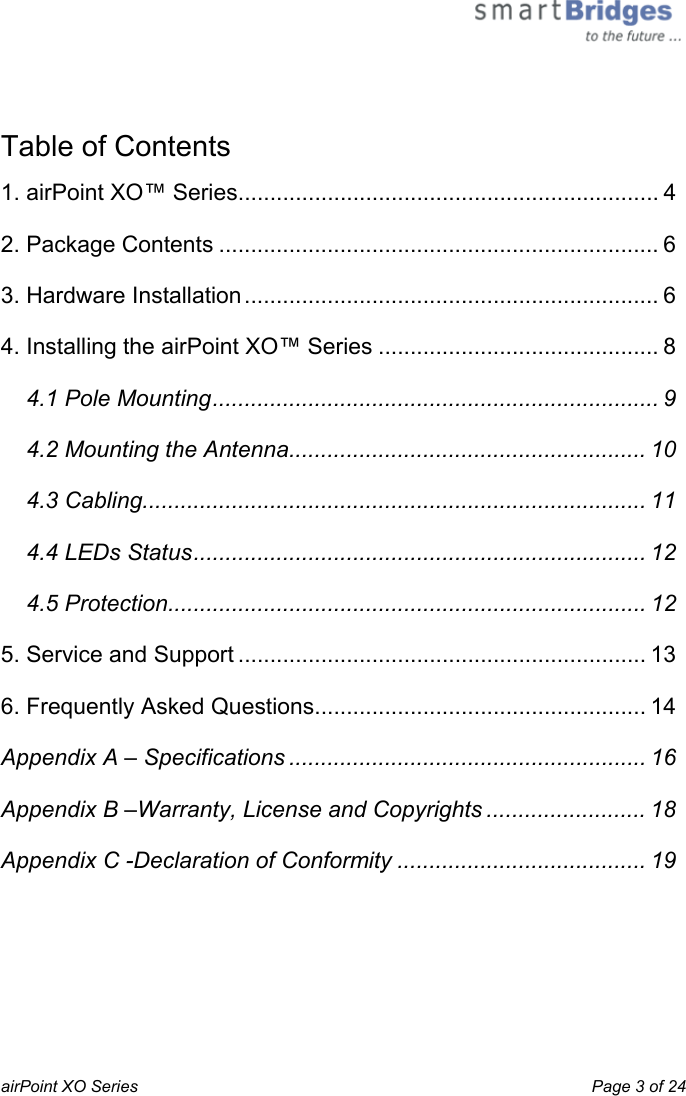

airPoint XO Series Page 3 of 24 Table of Contents 1. airPoint XO™ Series.................................................................. 4 2. Package Contents ..................................................................... 6 3. Hardware Installation................................................................. 6 4. Installing the airPoint XO™ Series ............................................ 8 4.1 Pole Mounting...................................................................... 9 4.2 Mounting the Antenna........................................................ 10 4.3 Cabling............................................................................... 11 4.4 LEDs Status....................................................................... 12 4.5 Protection........................................................................... 12 5. Service and Support ................................................................ 13 6. Frequently Asked Questions.................................................... 14 Appendix A – Specifications ........................................................ 16 Appendix B –Warranty, License and Copyrights ......................... 18 Appendix C -Declaration of Conformity ....................................... 19

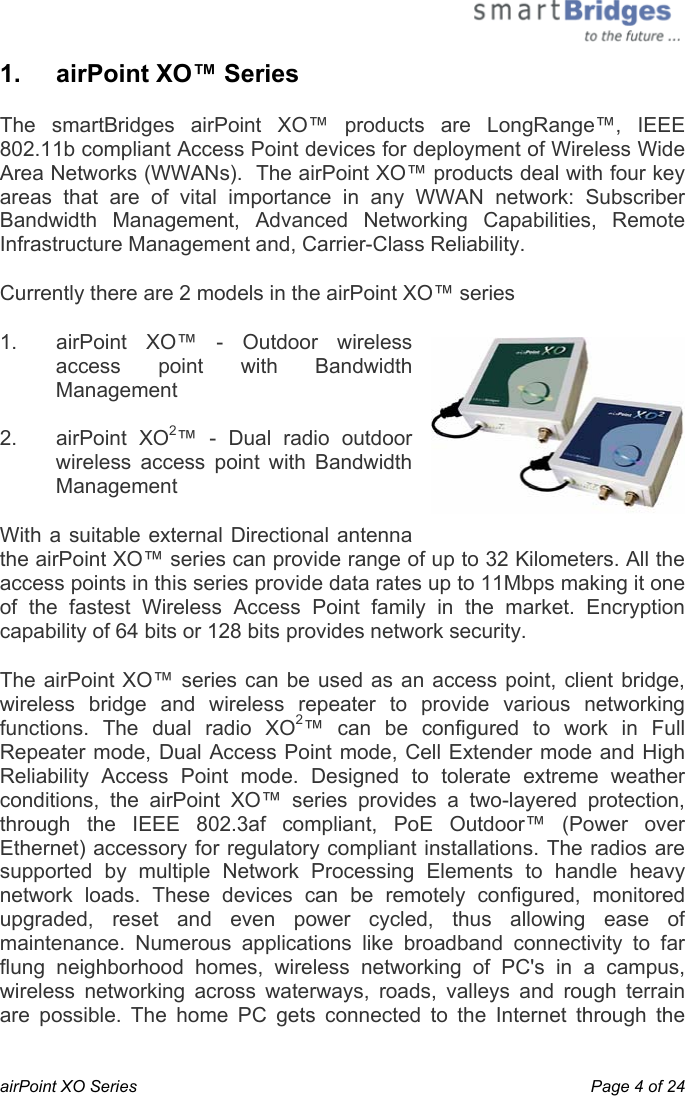

airPoint XO Series Page 4 of 24 1. airPoint XO™ Series The smartBridges airPoint XO™ products are LongRange™, IEEE 802.11b compliant Access Point devices for deployment of Wireless Wide Area Networks (WWANs). The airPoint XO™ products deal with four key areas that are of vital importance in any WWAN network: Subscriber Bandwidth Management, Advanced Networking Capabilities, Remote Infrastructure Management and, Carrier-Class Reliability. Currently there are 2 models in the airPoint XO™ series 1. airPoint XO™ - Outdoor wireless access point with Bandwidth Management 2. airPoint XO2™ - Dual radio outdoor wireless access point with Bandwidth Management With a suitable external Directional antenna the airPoint XO™ series can provide range of up to 32 Kilometers. All the access points in this series provide data rates up to 11Mbps making it one of the fastest Wireless Access Point family in the market. Encryption capability of 64 bits or 128 bits provides network security. The airPoint XO™ series can be used as an access point, client bridge, wireless bridge and wireless repeater to provide various networking functions. The dual radio XO2™ can be configured to work in Full Repeater mode, Dual Access Point mode, Cell Extender mode and High Reliability Access Point mode. Designed to tolerate extreme weather conditions, the airPoint XO™ series provides a two-layered protection, through the IEEE 802.3af compliant, PoE Outdoor™ (Power over Ethernet) accessory for regulatory compliant installations. The radios are supported by multiple Network Processing Elements to handle heavy network loads. These devices can be remotely configured, monitored upgraded, reset and even power cycled, thus allowing ease of maintenance. Numerous applications like broadband connectivity to far flung neighborhood homes, wireless networking of PC's in a campus, wireless networking across waterways, roads, valleys and rough terrain are possible. The home PC gets connected to the Internet through the

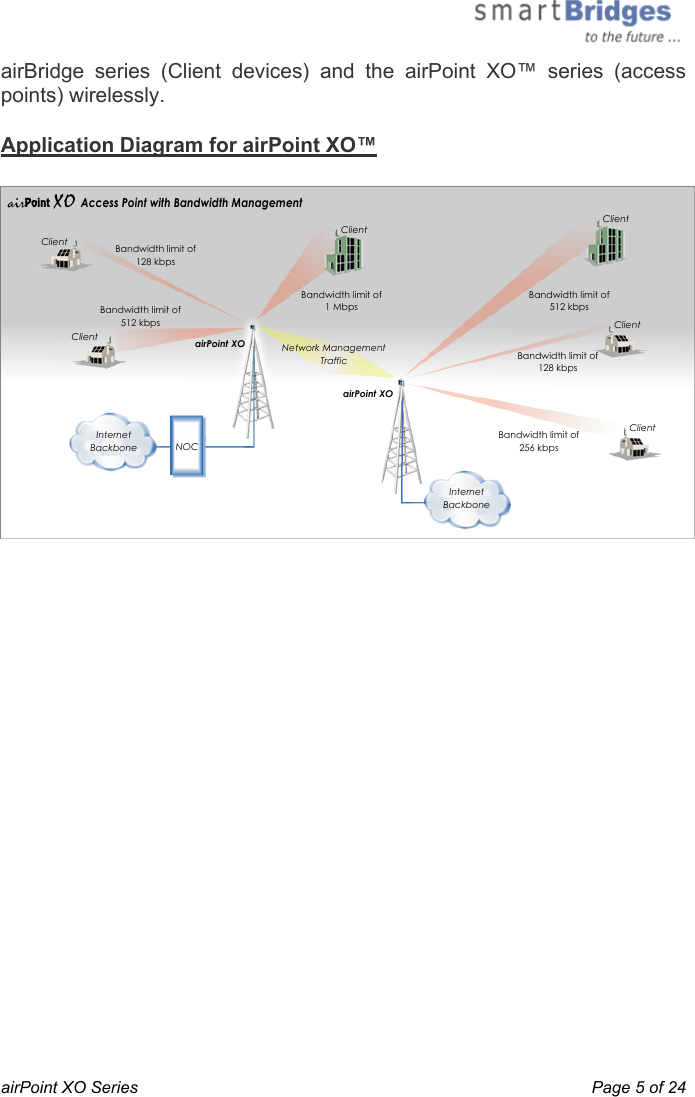

airPoint XO Series Page 5 of 24 airBridge series (Client devices) and the airPoint XO™ series (access points) wirelessly. Application Diagram for airPoint XO™airPoint XO Access Point with Bandwidth Management Client Client Client Client Client ClientInternetBackbone NOCairPoint XOBandwidth limit of512 kbpsBandwidth limit of128 kbpsBandwidth limit of256 kbpsBandwidth limit of128 kbpsBandwidth limit of512 kbpsBandwidth limit of1 MbpsairPoint XOInternetBackboneNetwork ManagementTraffic

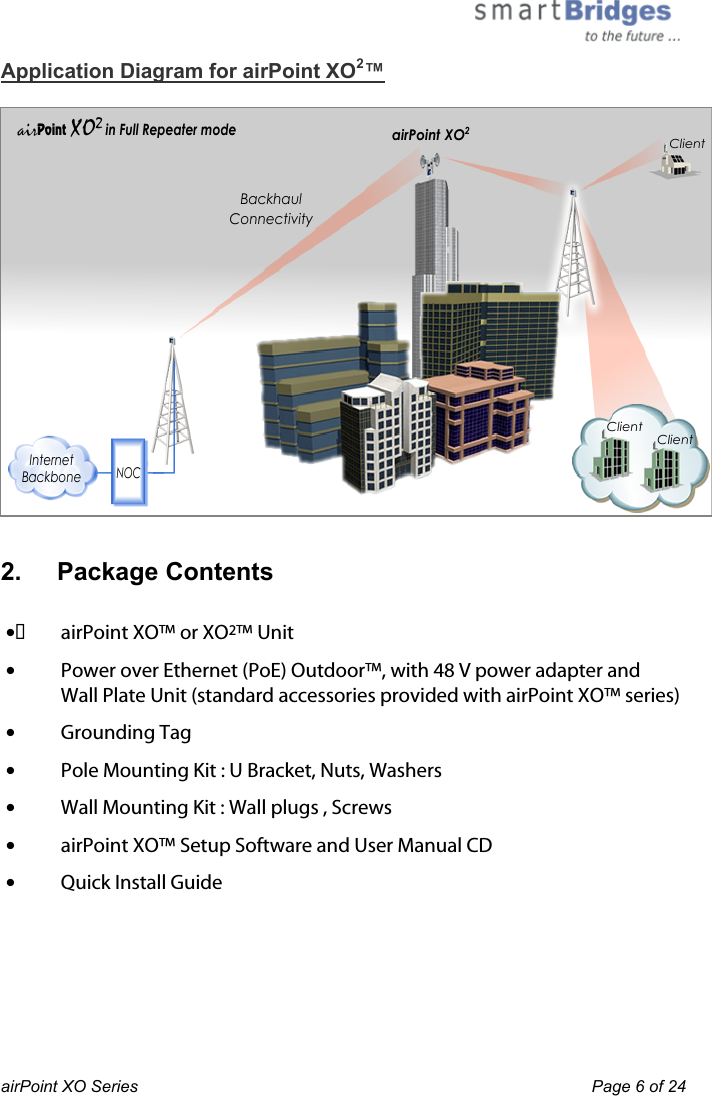

BackhaulConnectivityNOCInternetBackboneairPoint XO2 in Full Repeater modeairPoint XO2ClientClientClient airPoint XO Series Page 6 of 24 Application Diagram for airPoint XO2™ 2. Package Contents lairPoint XO™ or XO2™ Unitl  Power over Ethernet (PoE) Outdoor™, with 48 V power adapter and  Wall Plate Unit (standard accessories provided with airPoint XO™ series)l  Grounding Tagl  Pole Mounting Kit : U Bracket, Nuts, Washersl  Wall Mounting Kit : Wall plugs , Screwsl  airPoint XO™ Setup Software and User Manual CDl  Quick Install Guide

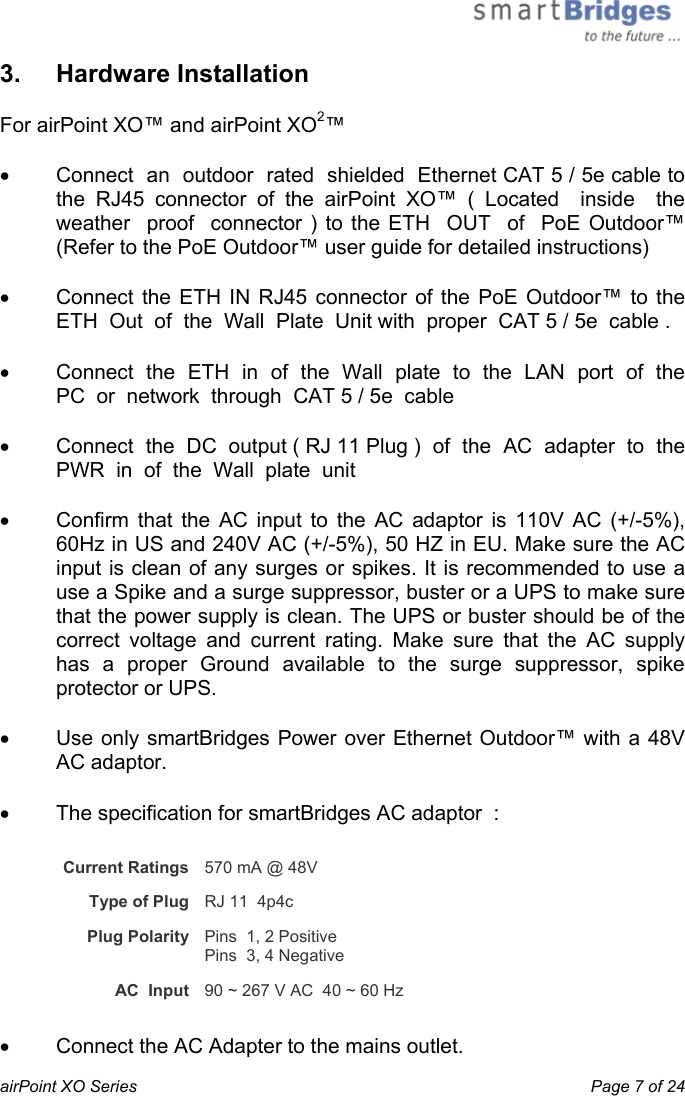

airPoint XO Series Page 7 of 24 3. Hardware Installation For airPoint XO™ and airPoint XO2™ • Connect an outdoor rated shielded Ethernet CAT 5 / 5e cable to the RJ45 connector of the airPoint XO™ ( Located inside the weather proof connector ) to the ETH OUT of PoE Outdoor™ (Refer to the PoE Outdoor™ user guide for detailed instructions) • Connect the ETH IN RJ45 connector of the PoE Outdoor™ to the ETH Out of the Wall Plate Unit with proper CAT 5 / 5e cable . • Connect the ETH in of the Wall plate to the LAN port of the PC or network through CAT 5 / 5e cable • Connect the DC output ( RJ 11 Plug ) of the AC adapter to the PWR in of the Wall plate unit • Confirm that the AC input to the AC adaptor is 110V AC (+/-5%), 60Hz in US and 240V AC (+/-5%), 50 HZ in EU. Make sure the AC input is clean of any surges or spikes. It is recommended to use a use a Spike and a surge suppressor, buster or a UPS to make sure that the power supply is clean. The UPS or buster should be of the correct voltage and current rating. Make sure that the AC supply has a proper Ground available to the surge suppressor, spike protector or UPS. • Use only smartBridges Power over Ethernet Outdoor™ with a 48V AC adaptor. • The specification for smartBridges AC adaptor : Current Ratings 570 mA @ 48V Type of Plug RJ 11 4p4c Plug Polarity Pins 1, 2 Positive Pins 3, 4 Negative AC Input 90 ~ 267 V AC 40 ~ 60 Hz • Connect the AC Adapter to the mains outlet.

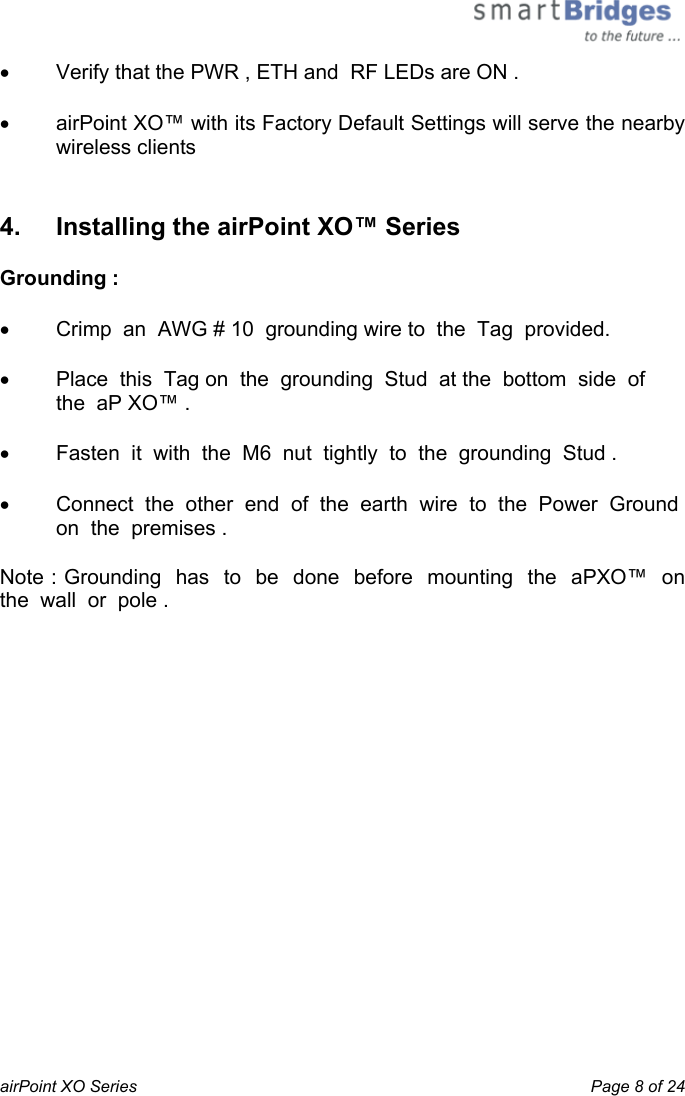

airPoint XO Series Page 8 of 24 • Verify that the PWR , ETH and RF LEDs are ON . • airPoint XO™ with its Factory Default Settings will serve the nearby wireless clients 4. Installing the airPoint XO™ Series Grounding : • Crimp an AWG # 10 grounding wire to the Tag provided. • Place this Tag on the grounding Stud at the bottom side of the aP XO™ . • Fasten it with the M6 nut tightly to the grounding Stud . • Connect the other end of the earth wire to the Power Ground on the premises . Note : Grounding has to be done before mounting the aPXO™ on the wall or pole .

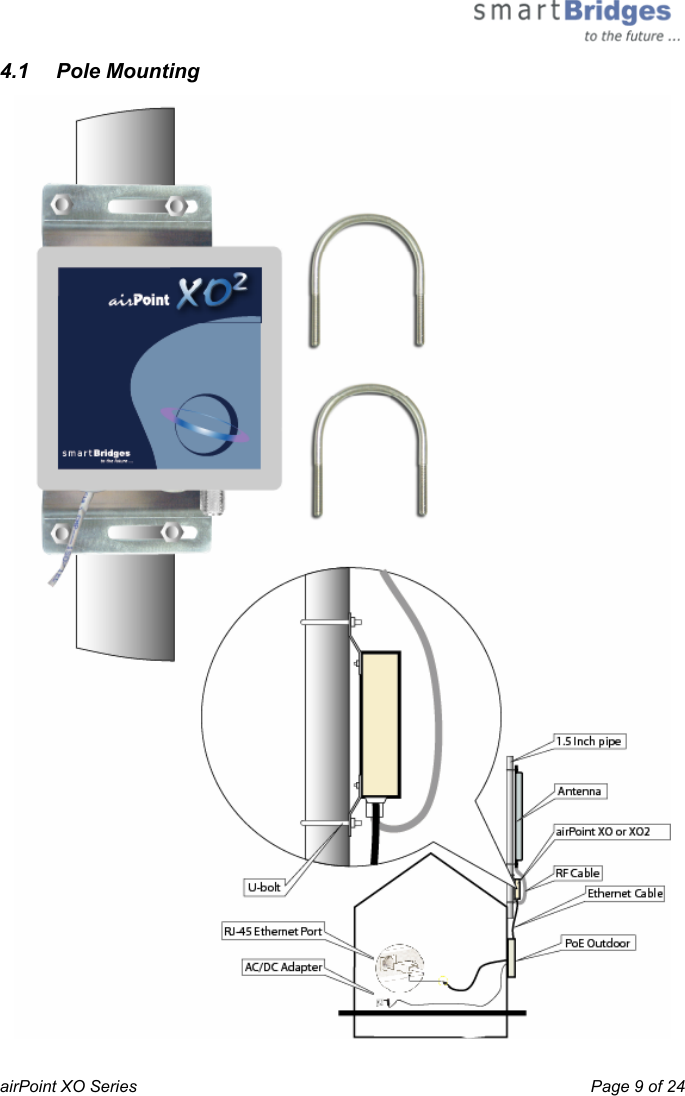

airPoint XO Series Page 9 of 24 4.1 Pole Mounting

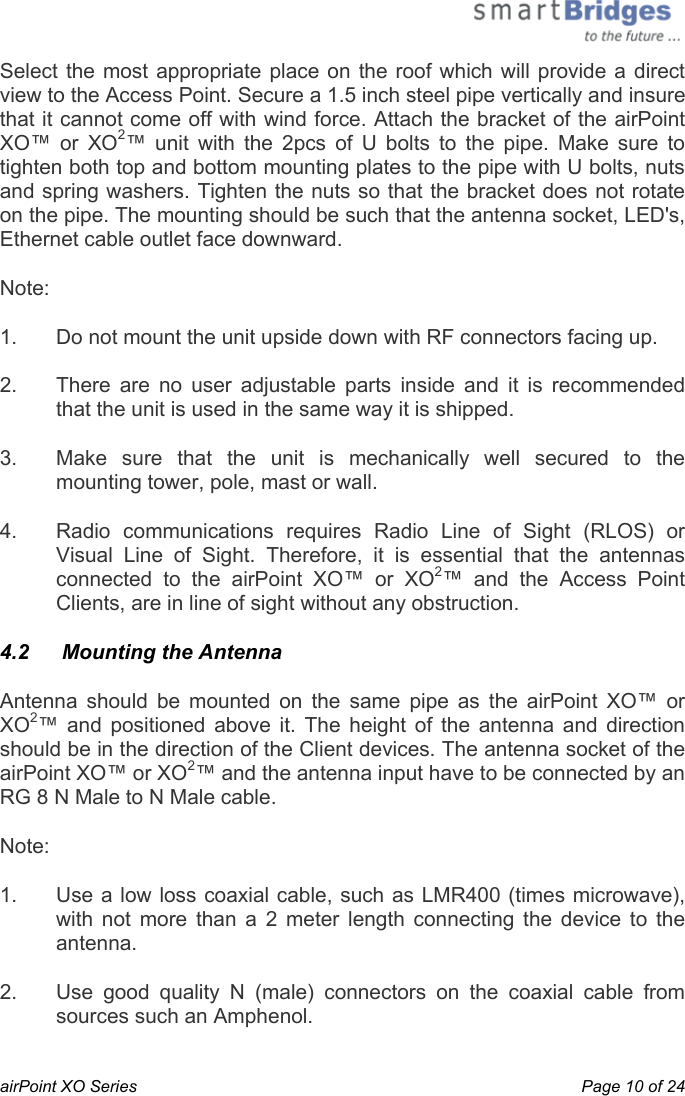

airPoint XO Series Page 10 of 24 Select the most appropriate place on the roof which will provide a direct view to the Access Point. Secure a 1.5 inch steel pipe vertically and insure that it cannot come off with wind force. Attach the bracket of the airPoint XO™ or XO2™ unit with the 2pcs of U bolts to the pipe. Make sure to tighten both top and bottom mounting plates to the pipe with U bolts, nuts and spring washers. Tighten the nuts so that the bracket does not rotate on the pipe. The mounting should be such that the antenna socket, LED's, Ethernet cable outlet face downward. Note: 1. Do not mount the unit upside down with RF connectors facing up. 2. There are no user adjustable parts inside and it is recommended that the unit is used in the same way it is shipped. 3. Make sure that the unit is mechanically well secured to the mounting tower, pole, mast or wall. 4. Radio communications requires Radio Line of Sight (RLOS) or Visual Line of Sight. Therefore, it is essential that the antennas connected to the airPoint XO™ or XO2™ and the Access Point Clients, are in line of sight without any obstruction. 4.2 Mounting the Antenna Antenna should be mounted on the same pipe as the airPoint XO™ or XO2™ and positioned above it. The height of the antenna and direction should be in the direction of the Client devices. The antenna socket of the airPoint XO™ or XO2™ and the antenna input have to be connected by an RG 8 N Male to N Male cable. Note: 1. Use a low loss coaxial cable, such as LMR400 (times microwave), with not more than a 2 meter length connecting the device to the antenna. 2. Use good quality N (male) connectors on the coaxial cable from sources such an Amphenol.

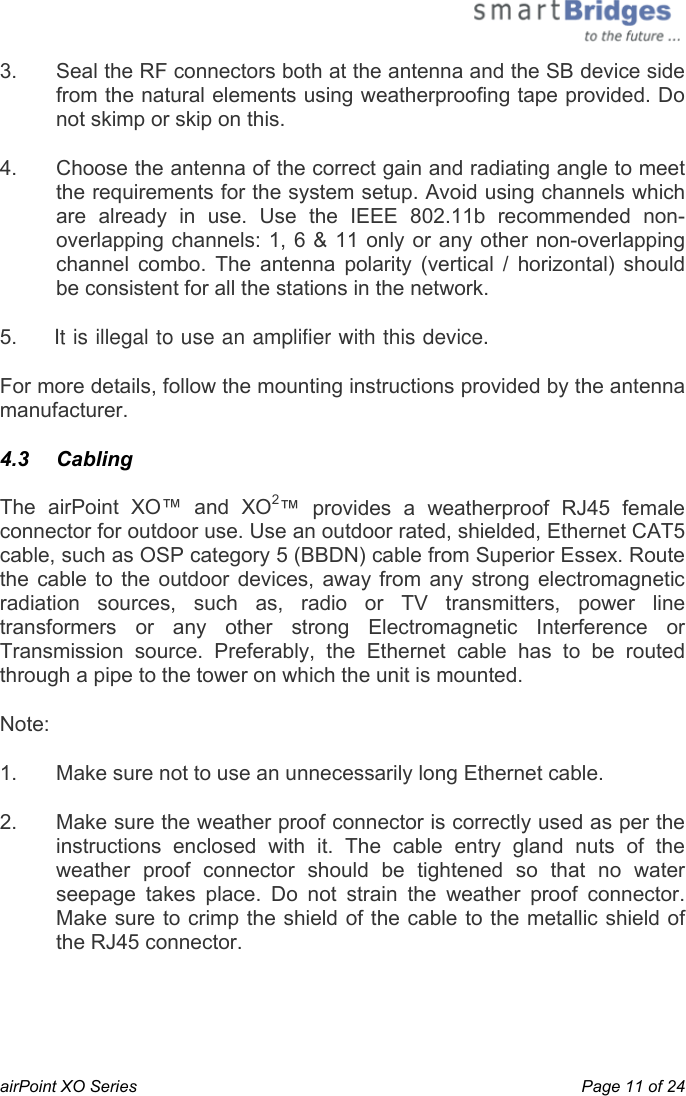

airPoint XO Series Page 11 of 24 3. Seal the RF connectors both at the antenna and the SB device side from the natural elements using weatherproofing tape provided. Do not skimp or skip on this. 4. Choose the antenna of the correct gain and radiating angle to meet the requirements for the system setup. Avoid using channels which are already in use. Use the IEEE 802.11b recommended non-overlapping channels: 1, 6 & 11 only or any other non-overlapping channel combo. The antenna polarity (vertical / horizontal) should be consistent for all the stations in the network. 5. It is illegal to use an amplifier with this device.For more details, follow the mounting instructions provided by the antenna manufacturer. 4.3 Cabling The airPoint XO™ and XO2™ provides a weatherproof RJ45 female connector for outdoor use. Use an outdoor rated, shielded, Ethernet CAT5 cable, such as OSP category 5 (BBDN) cable from Superior Essex. Route the cable to the outdoor devices, away from any strong electromagnetic radiation sources, such as, radio or TV transmitters, power line transformers or any other strong Electromagnetic Interference or Transmission source. Preferably, the Ethernet cable has to be routed through a pipe to the tower on which the unit is mounted. Note: 1. Make sure not to use an unnecessarily long Ethernet cable. 2. Make sure the weather proof connector is correctly used as per the instructions enclosed with it. The cable entry gland nuts of the weather proof connector should be tightened so that no water seepage takes place. Do not strain the weather proof connector. Make sure to crimp the shield of the cable to the metallic shield of the RJ45 connector.

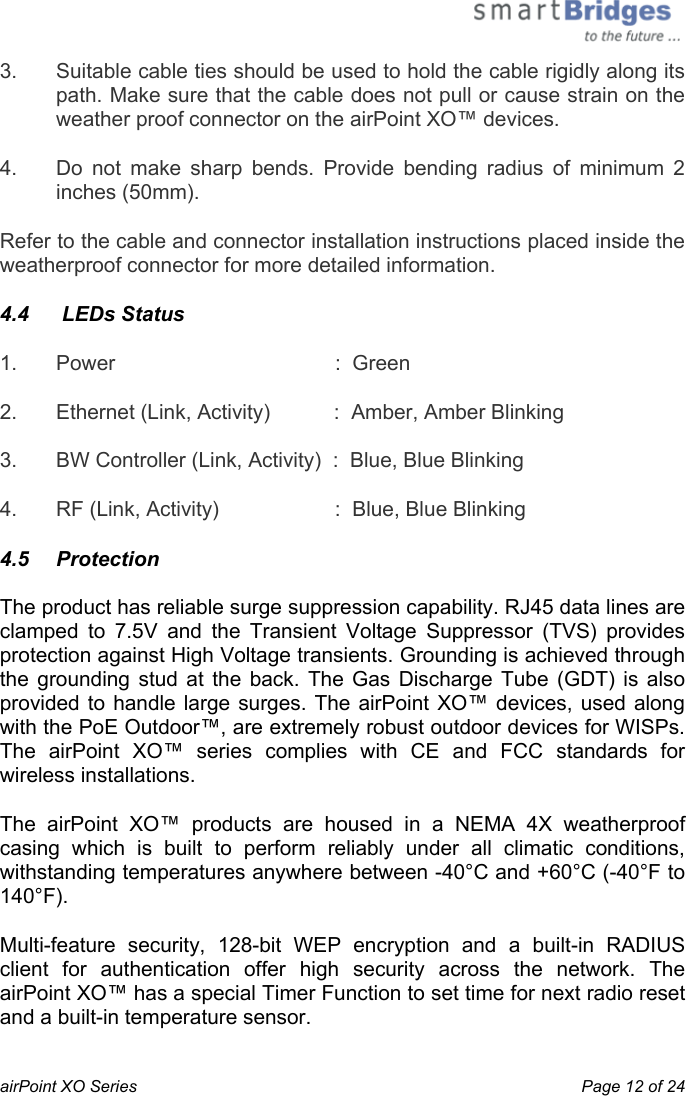

airPoint XO Series Page 12 of 24 3. Suitable cable ties should be used to hold the cable rigidly along its path. Make sure that the cable does not pull or cause strain on the weather proof connector on the airPoint XO™ devices. 4. Do not make sharp bends. Provide bending radius of minimum 2 inches (50mm). Refer to the cable and connector installation instructions placed inside the weatherproof connector for more detailed information. 4.4 LEDs Status 1. Power : Green 2. Ethernet (Link, Activity) : Amber, Amber Blinking 3. BW Controller (Link, Activity) : Blue, Blue Blinking 4. RF (Link, Activity) : Blue, Blue Blinking 4.5 Protection The product has reliable surge suppression capability. RJ45 data lines are clamped to 7.5V and the Transient Voltage Suppressor (TVS) provides protection against High Voltage transients. Grounding is achieved through the grounding stud at the back. The Gas Discharge Tube (GDT) is also provided to handle large surges. The airPoint XO™ devices, used along with the PoE Outdoor™, are extremely robust outdoor devices for WISPs. The airPoint XO™ series complies with CE and FCC standards for wireless installations. The airPoint XO™ products are housed in a NEMA 4X weatherproof casing which is built to perform reliably under all climatic conditions, withstanding temperatures anywhere between -40°C and +60°C (-40°F to 140°F). Multi-feature security, 128-bit WEP encryption and a built-in RADIUS client for authentication offer high security across the network. The airPoint XO™ has a special Timer Function to set time for next radio reset and a built-in temperature sensor.

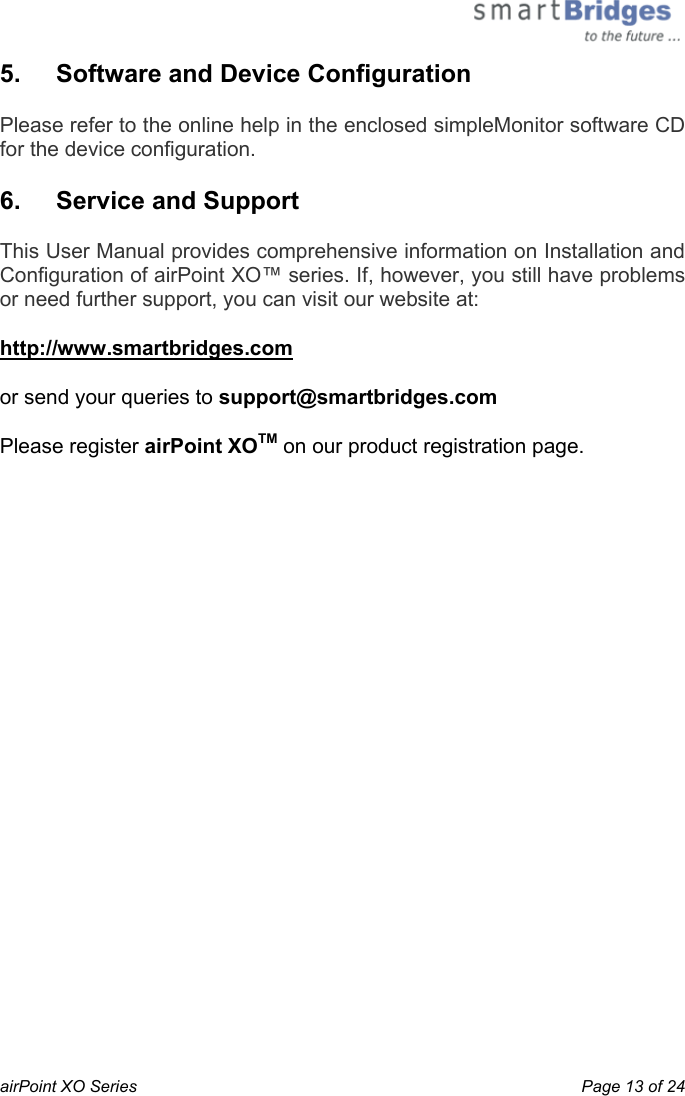

airPoint XO Series Page 13 of 24 5. Software and Device Configuration Please refer to the online help in the enclosed simpleMonitor software CD for the device configuration. 6. Service and Support This User Manual provides comprehensive information on Installation and Configuration of airPoint XO™ series. If, however, you still have problems or need further support, you can visit our website at: http://www.smartbridges.com or send your queries to support@smartbridges.com Please register airPoint XOTM on our product registration page.

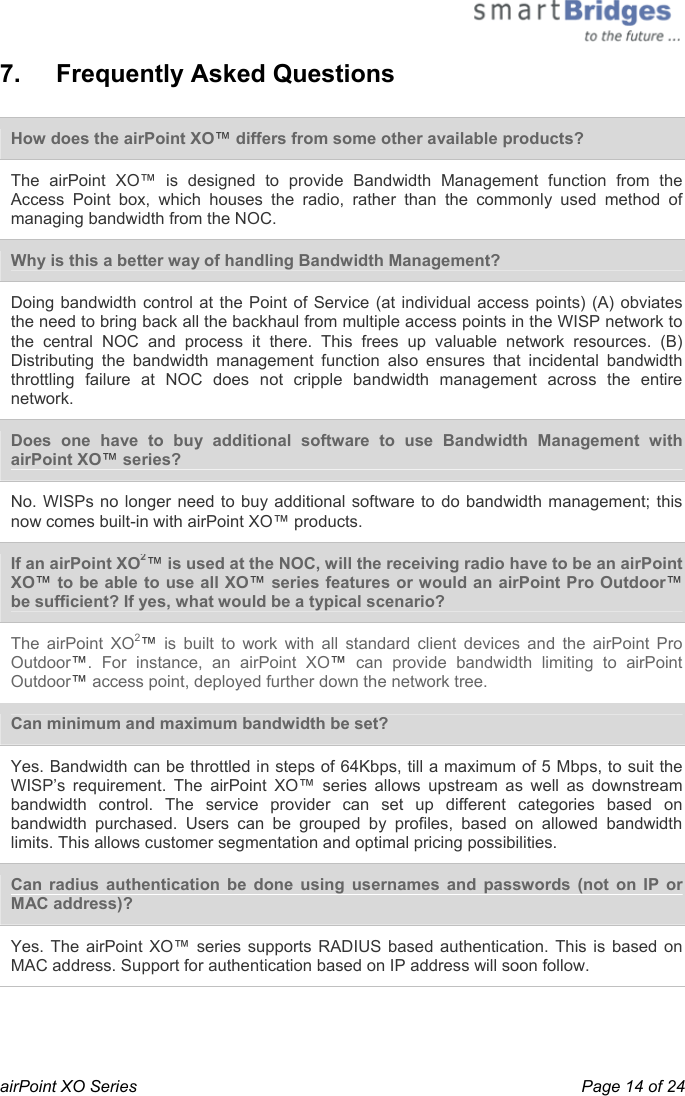

airPoint XO Series Page 14 of 24 7. Frequently Asked Questions How does the airPoint XO™ differs from some other available products? The airPoint XO™ is designed to provide Bandwidth Management function from the Access Point box, which houses the radio, rather than the commonly used method of managing bandwidth from the NOC. Why is this a better way of handling Bandwidth Management? Doing bandwidth control at the Point of Service (at individual access points) (A) obviates the need to bring back all the backhaul from multiple access points in the WISP network to the central NOC and process it there. This frees up valuable network resources. (B) Distributing the bandwidth management function also ensures that incidental bandwidth throttling failure at NOC does not cripple bandwidth management across the entire network. Does one have to buy additional software to use Bandwidth Management with airPoint XO™ series? No. WISPs no longer need to buy additional software to do bandwidth management; this now comes built-in with airPoint XO™ products. If an airPoint XO2™ is used at the NOC, will the receiving radio have to be an airPoint XO™ to be able to use all XO™ series features or would an airPoint Pro Outdoor™ be sufficient? If yes, what would be a typical scenario? The airPoint XO2™ is built to work with all standard client devices and the airPoint Pro Outdoor™. For instance, an airPoint XO™ can provide bandwidth limiting to airPoint Outdoor™ access point, deployed further down the network tree. Can minimum and maximum bandwidth be set? Yes. Bandwidth can be throttled in steps of 64Kbps, till a maximum of 5 Mbps, to suit the WISP’s requirement. The airPoint XO™ series allows upstream as well as downstream bandwidth control. The service provider can set up different categories based on bandwidth purchased. Users can be grouped by profiles, based on allowed bandwidth limits. This allows customer segmentation and optimal pricing possibilities. Can radius authentication be done using usernames and passwords (not on IP or MAC address)? Yes. The airPoint XO™ series supports RADIUS based authentication. This is based on MAC address. Support for authentication based on IP address will soon follow.

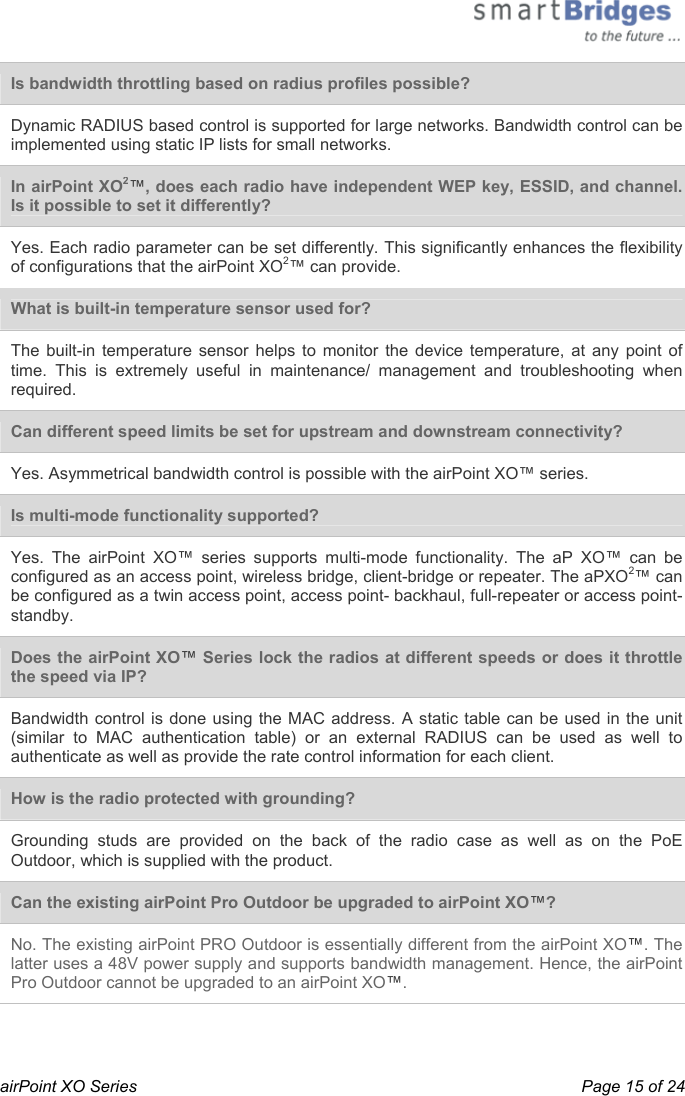

airPoint XO Series Page 15 of 24 Is bandwidth throttling based on radius profiles possible? Dynamic RADIUS based control is supported for large networks. Bandwidth control can be implemented using static IP lists for small networks. In airPoint XO2™, does each radio have independent WEP key, ESSID, and channel. Is it possible to set it differently? Yes. Each radio parameter can be set differently. This significantly enhances the flexibility of configurations that the airPoint XO2™ can provide. What is built-in temperature sensor used for? The built-in temperature sensor helps to monitor the device temperature, at any point of time. This is extremely useful in maintenance/ management and troubleshooting when required. Can different speed limits be set for upstream and downstream connectivity? Yes. Asymmetrical bandwidth control is possible with the airPoint XO™ series. Is multi-mode functionality supported? Yes. The airPoint XO™ series supports multi-mode functionality. The aP XO™ can be configured as an access point, wireless bridge, client-bridge or repeater. The aPXO2™ can be configured as a twin access point, access point- backhaul, full-repeater or access point-standby. Does the airPoint XO™ Series lock the radios at different speeds or does it throttle the speed via IP? Bandwidth control is done using the MAC address. A static table can be used in the unit (similar to MAC authentication table) or an external RADIUS can be used as well to authenticate as well as provide the rate control information for each client. How is the radio protected with grounding? Grounding studs are provided on the back of the radio case as well as on the PoE Outdoor, which is supplied with the product. Can the existing airPoint Pro Outdoor be upgraded to airPoint XO™? No. The existing airPoint PRO Outdoor is essentially different from the airPoint XO™. The latter uses a 48V power supply and supports bandwidth management. Hence, the airPoint Pro Outdoor cannot be upgraded to an airPoint XO™.

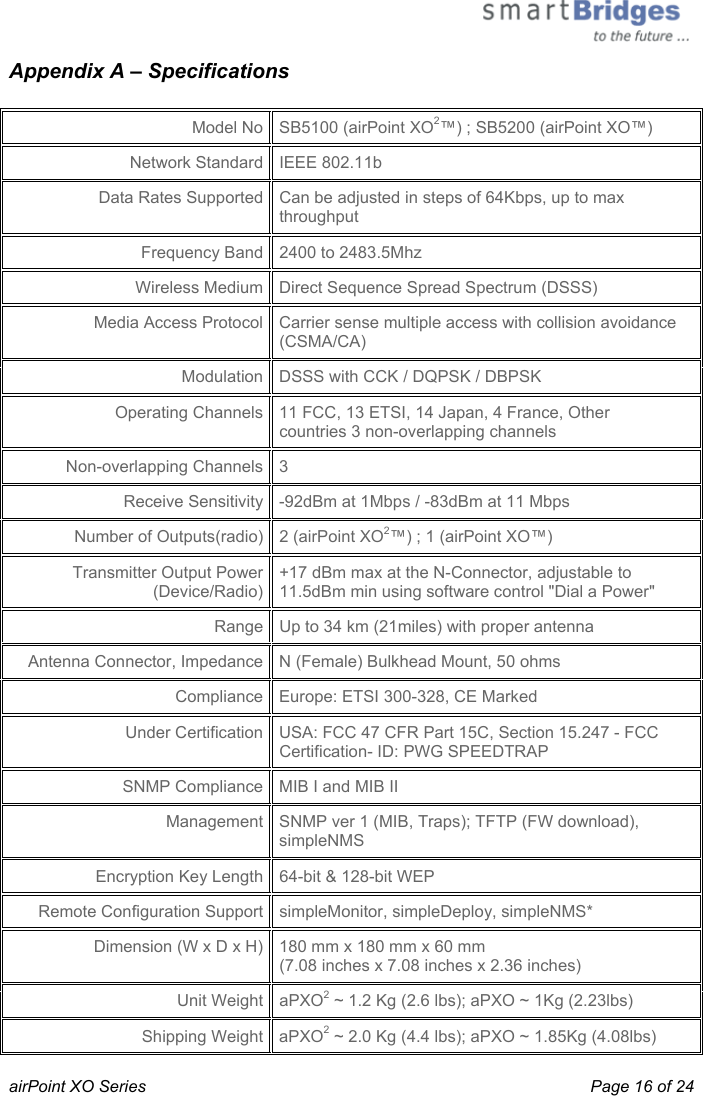

airPoint XO Series Page 16 of 24 Appendix A – Specifications Model No SB5100 (airPoint XO2™) ; SB5200 (airPoint XO™) Network Standard IEEE 802.11b Data Rates Supported Can be adjusted in steps of 64Kbps, up to max throughput Frequency Band 2400 to 2483.5Mhz Wireless Medium Direct Sequence Spread Spectrum (DSSS) Media Access Protocol Carrier sense multiple access with collision avoidance (CSMA/CA) Modulation DSSS with CCK / DQPSK / DBPSK Operating Channels 11 FCC, 13 ETSI, 14 Japan, 4 France, Other countries 3 non-overlapping channels Non-overlapping Channels 3 Receive Sensitivity -92dBm at 1Mbps / -83dBm at 11 Mbps Number of Outputs(radio) 2 (airPoint XO2™) ; 1 (airPoint XO™) Transmitter Output Power(Device/Radio) +17 dBm max at the N-Connector, adjustable to 11.5dBm min using software control "Dial a Power" Range Up to 34 km (21miles) with proper antenna Antenna Connector, Impedance N (Female) Bulkhead Mount, 50 ohms Compliance Europe: ETSI 300-328, CE Marked Under Certification USA: FCC 47 CFR Part 15C, Section 15.247 - FCC Certification- ID: PWG SPEEDTRAP SNMP Compliance MIB I and MIB II Management SNMP ver 1 (MIB, Traps); TFTP (FW download), simpleNMS Encryption Key Length 64-bit & 128-bit WEP Remote Configuration Support simpleMonitor, simpleDeploy, simpleNMS* Dimension (W x D x H) 180 mm x 180 mm x 60 mm (7.08 inches x 7.08 inches x 2.36 inches) Unit Weight aPXO2 ~ 1.2 Kg (2.6 lbs); aPXO ~ 1Kg (2.23lbs) Shipping Weight aPXO2 ~ 2.0 Kg (4.4 lbs); aPXO ~ 1.85Kg (4.08lbs)

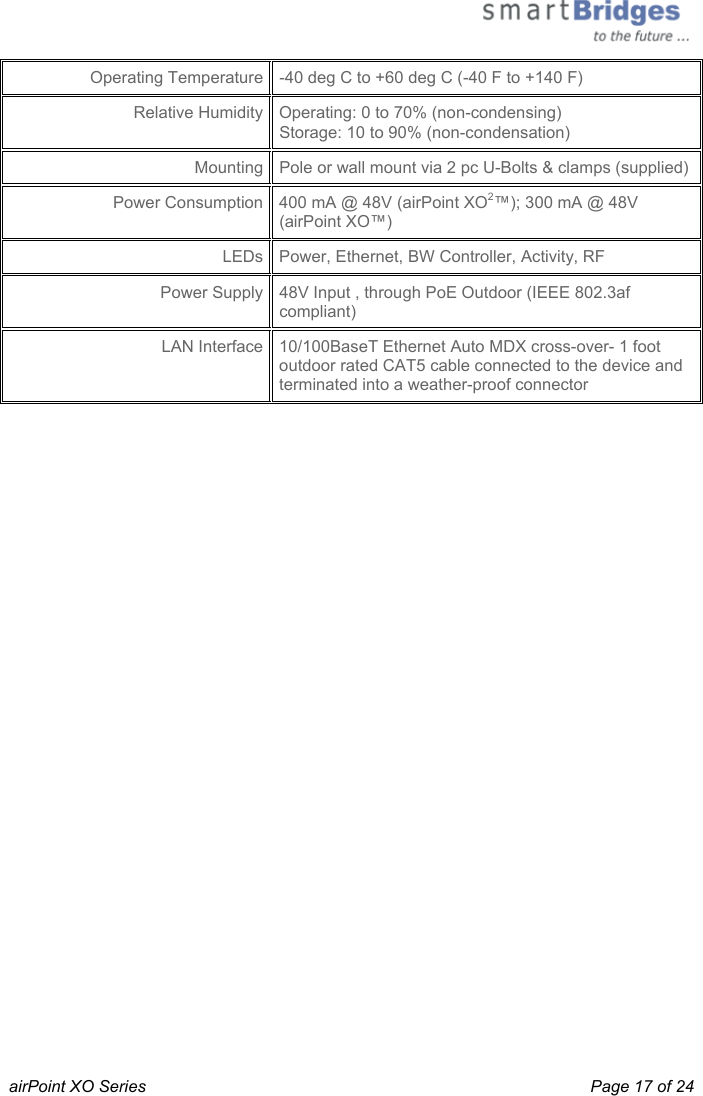

airPoint XO Series Page 17 of 24 Operating Temperature -40 deg C to +60 deg C (-40 F to +140 F) Relative Humidity Operating: 0 to 70% (non-condensing) Storage: 10 to 90% (non-condensation) Mounting Pole or wall mount via 2 pc U-Bolts & clamps (supplied) Power Consumption 400 mA @ 48V (airPoint XO2™); 300 mA @ 48V (airPoint XO™) LEDs Power, Ethernet, BW Controller, Activity, RF Power Supply 48V Input , through PoE Outdoor (IEEE 802.3af compliant) LAN Interface 10/100BaseT Ethernet Auto MDX cross-over- 1 foot outdoor rated CAT5 cable connected to the device and terminated into a weather-proof connector

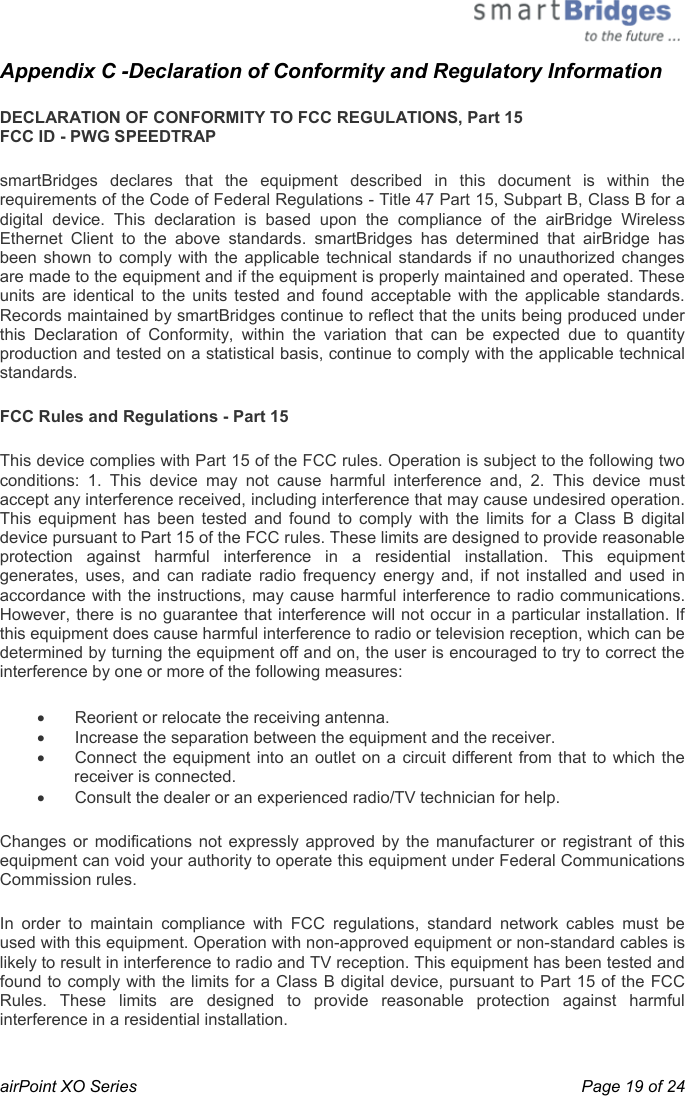

airPoint XO Series Page 19 of 24 Appendix C -Declaration of Conformity and Regulatory Information DECLARATION OF CONFORMITY TO FCC REGULATIONS, Part 15 FCC ID - PWG SPEEDTRAP smartBridges declares that the equipment described in this document is within the requirements of the Code of Federal Regulations - Title 47 Part 15, Subpart B, Class B for a digital device. This declaration is based upon the compliance of the airBridge Wireless Ethernet Client to the above standards. smartBridges has determined that airBridge has been shown to comply with the applicable technical standards if no unauthorized changes are made to the equipment and if the equipment is properly maintained and operated. These units are identical to the units tested and found acceptable with the applicable standards. Records maintained by smartBridges continue to reflect that the units being produced under this Declaration of Conformity, within the variation that can be expected due to quantity production and tested on a statistical basis, continue to comply with the applicable technical standards. FCC Rules and Regulations - Part 15 This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and, 2. This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and the receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the manufacturer or registrant of this equipment can void your authority to operate this equipment under Federal Communications Commission rules. In order to maintain compliance with FCC regulations, standard network cables must be used with this equipment. Operation with non-approved equipment or non-standard cables is likely to result in interference to radio and TV reception. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

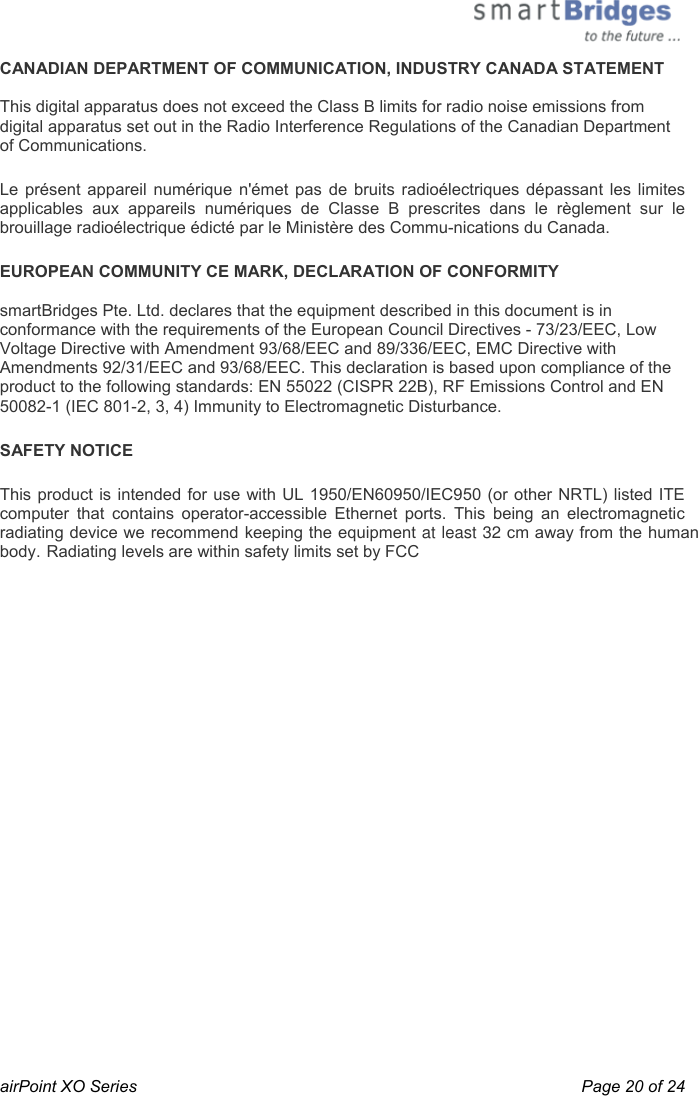

airPoint XO Series Page 20 of 24 CANADIAN DEPARTMENT OF COMMUNICATION, INDUSTRY CANADA STATEMENT This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de Classe B prescrites dans le règlement sur le brouillage radioélectrique édicté par le Ministère des Commu-nications du Canada. EUROPEAN COMMUNITY CE MARK, DECLARATION OF CONFORMITY smartBridges Pte. Ltd. declares that the equipment described in this document is in conformance with the requirements of the European Council Directives - 73/23/EEC, Low Voltage Directive with Amendment 93/68/EEC and 89/336/EEC, EMC Directive with Amendments 92/31/EEC and 93/68/EEC. This declaration is based upon compliance of the product to the following standards: EN 55022 (CISPR 22B), RF Emissions Control and EN 50082-1 (IEC 801-2, 3, 4) Immunity to Electromagnetic Disturbance. SAFETY NOTICE This product is intended for use with UL 1950/EN60950/IEC950 (or other NRTL) listed ITE computer that contains operator-accessible Ethernet ports. This being an electromagnetic radiating device we recommend keeping the equipment at least 32 cm away from the human body. Radiating levels are within safety limits set by FCC

airPoint XO Series Page 21 of 24 Notes:

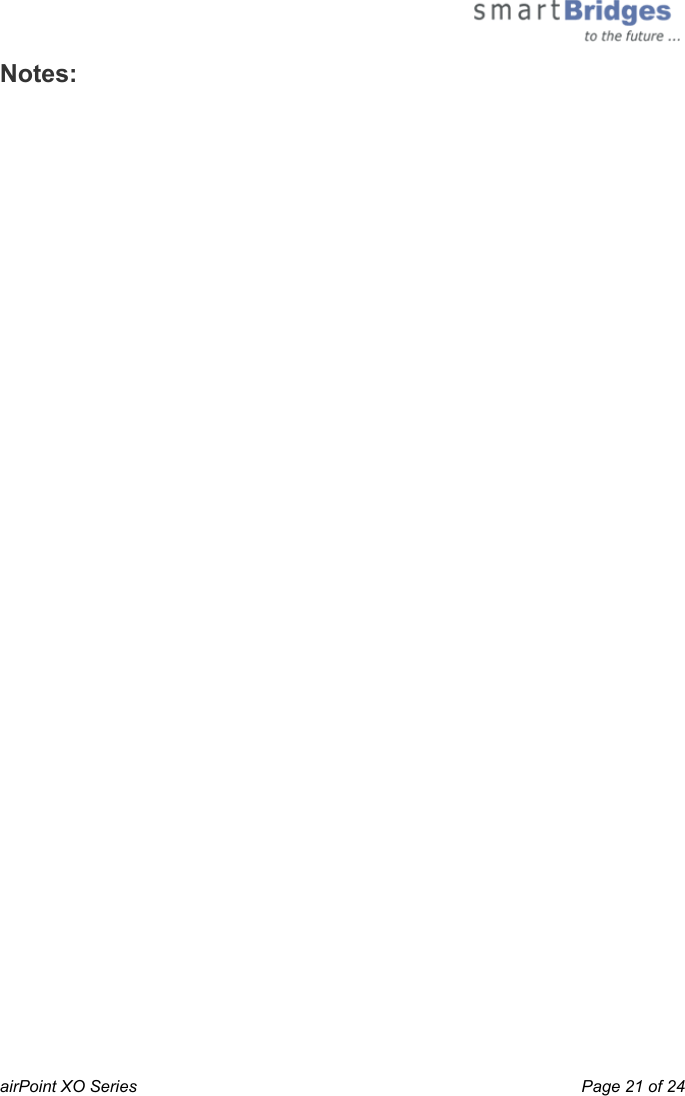

airPoint XO Series Page 22 of 24 Notes:

airPoint XO Series Page 23 of 24 Notes:

airPoint XO Series Page 24 of 24
