user manual
User Manual
ClicClock
Q50
Please read this quick start user guide carefully before using.
The illustration in this quick start user guide is for reference
only,please refer to the actual product.
Product parameters
GSM:850/900/1800/1900MHz
GPRS:Class12
MHz/L1,1575.42MHz C/A code
GPS watch /GPS positioning
accuracy:5-15 meters
Base station location accuracy:
100 ~ 1000 meters
GPS channel number:22 channel
Content in Box
The watch ×1
USB charging line ×1
The instructions ×1
input voltage/ electric current:5V-0.35A
1.Preparation before use
(1)Check all the accessories if they are complete.
(2)Choose the SIM card which match to the GSM network, you can refer
to opinions of the dealer.(Power off before you insert the SIM card)
(3)The SIM card need to open the GPRS function and call screening
function.
(4)Install the APP on the phone,you can ask the dealer if you don't know
how to download it.
(5)The bar code and QR code is used to registered users.
2.Product function
● GPS+ base station localization way
● You can control it via mobile client.
● GPRS real-time positioning, tracking, monitoring
●Phone book
● Talkback
● Health
● Footmark
● Alarm clock
● Electronic fence
● SOS for help
● Warning if watch was taken down
● Warning if low power
● Remote Power Off
●Touch to add the friends (only some models and function
is optional)

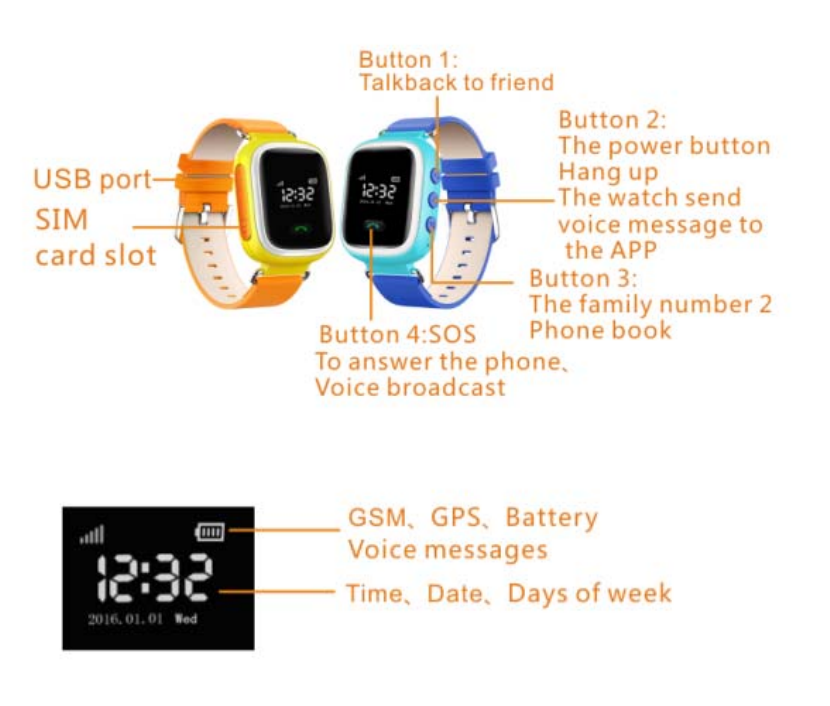

Instruction of buttons
The picture is for reference only, please make adjust depends on the real watch
Button 1：Press for enter the “touch to add friend” interface. The watch( don’t have friend) can add
friend by touching. Long press to start recording, then release the watch for send the message
Button 2：Long press for power on; in the main interface,long press for voice recording, release for
sending the voice message to the APP; short press for hang up the incoming call.
Button 3：Short press enter the phone book, then short press for choose phone number, long press
for dialing, The phone number in the phone book can make double talk with the watch . If you
have set the family number 2 in the APP, you can long press to dialing the family number3
directly.
Button 4：If the APP have setting SOS number, long press SOS button for dialing, if got no answer,
the watch will call the family number one by one. When you have incoming call, short press to
answer the incoming call. when you got voice message,short press for play the voice message
5.Mobile client operate instructions
5.1 APP register( Note:Please choose the right language and region before register)
Register first before login in please. Input the ID number(The registration code/ID is on the back
cover of the watch) in the APP. the device name can not be empty,the family number must be
real(when you lost the password, you can use this number find the password ), the password can

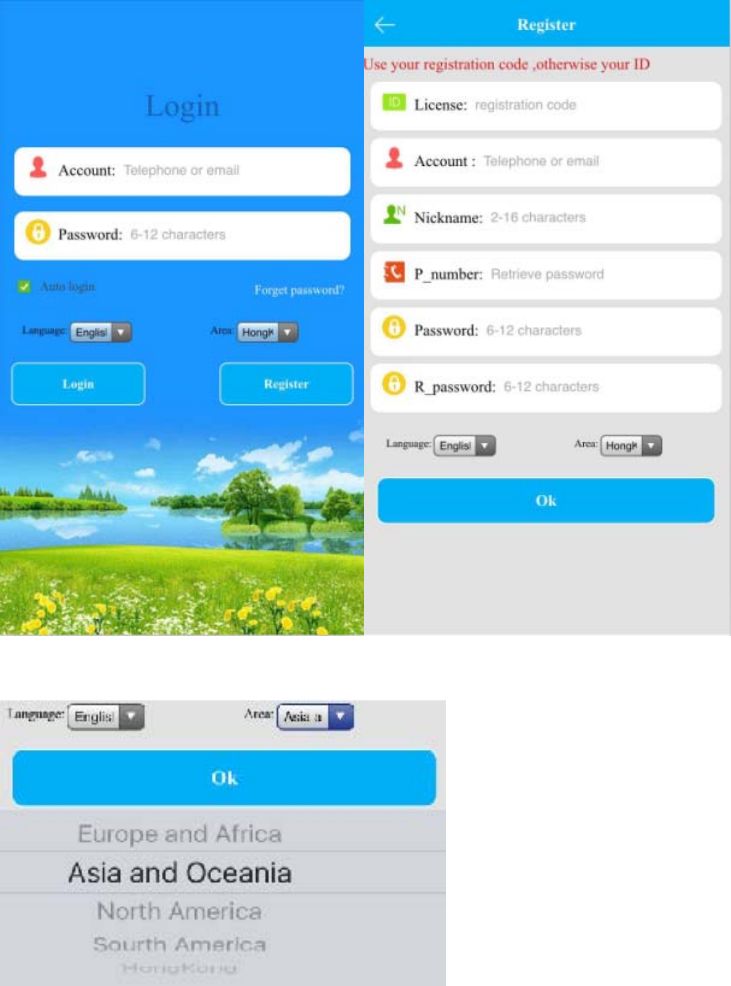

be change( 6-12 letters or Numbers ), The registration interface is as below: You can get your
5.2 Login

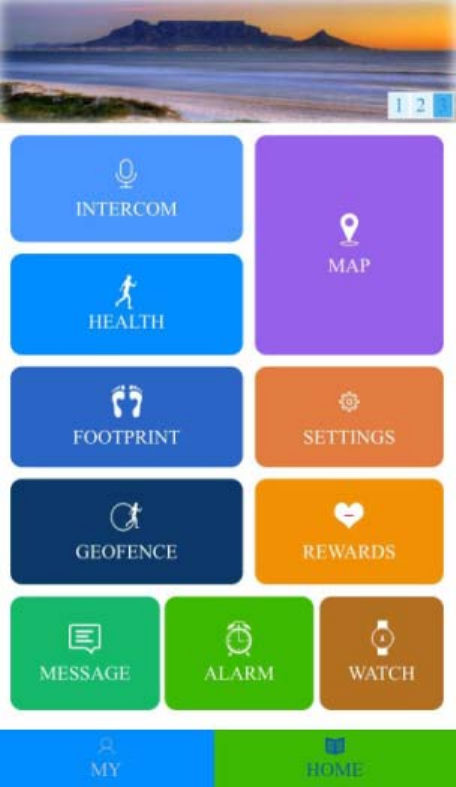

APP Functional menu interface
Enter the correct account and password in the APP interface and click
login, then you can enter the main interface. The picture is shown as
Below.
Function description
(1)Intercom: watches and app voice dialogue.Mobile phone can
also send text to watches, the text can be read in watches directly.
App sends the voice: after start the recording, APP starts recording,
then sent it to watch. The longest speech is for 15 seconds.Press the
SOS key to play the tape.
Watch recording: Press the power button for 3 seconds to start
recording, then sent the tape after loosen the watch,the longest
recording is for 15 seconds.APP receive voice prompt information
(The time of receiving voice is related to network status).
(2)Map: check the position of the watch at any time
The interface of map can display the location of the watch and mobile
phone APP.Click on "localization" watch then start real-time positioning
for 3 minutes, upload interval is 10 seconds and restore to the default
operating mode after 3 minutes.

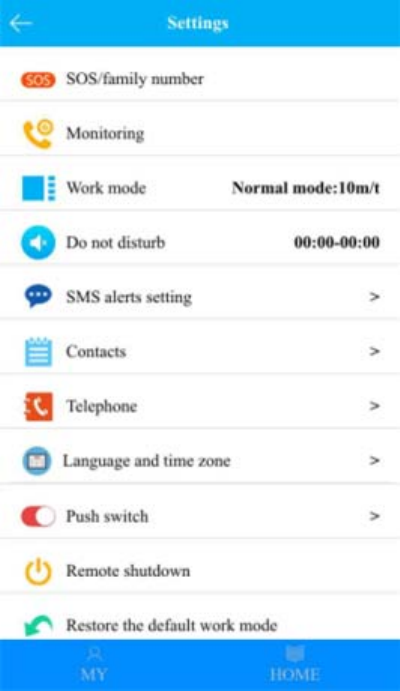

Setting: set all the parameters of the watch.
①Set SOS number: After connection with your mobile phone, you could
choose 3 numbers in your phonebook to save as emergency contact
persons. In emergency, you can long press the SOS key for 3 seconds
to alarm. If the call is answered, it won't dial any more,or it will keep
dialing until the second round finished.
②Listening:General settings for the parent number, watch dial the
number be set initiatively after determine, Watch can't hear the
sound of the phone, Mobile phones can listening watch.
③Don't disturb period: The three period of watches to block all calls.
④SMS alerts Settings: low power, SOS, Remove the watch . Three alarm
message switch.
⑤Baby contacts: You can set a contacts list included 10 person.
⑥The phone book：The watch can be set 10 phone numbers, and
these 10 phone numbers can dial the watch with each other, is a
two-way conversation.
⑦Restore the default work mode: The default work mode: open the GPS
24 hours per day, upload interval of 10 minutes.
⑧Remote power off: The watch can’t power off by the power off key when
it is starting up and normal working.
⑨Touch to add the friends:Add or delete friends.
(4)Electronic fence：Fence minimum radius is 500 meters, it will produce
the alarm of the fence when a user walk outside of the fence.
(5)Love reward: Select the number of hearts on the app and click the
determine key, then the information will be sent to watch. And the screen
will show love hearts and number.
(6)Watch alarm: can installed three alarm clock, alarm clock can be set
according to their own requirements.
(7)Looking for watch: You can send this instruction when your watch lost,
the watch will ring the bell for a minute, then you can look for your watch,
and you can press any key to stop ringing the bell.
Attention: You can find the ID number in the iquipment lise, if this ID do not match the ID sticked
on the watch, the watch will not be able to link the APP.
"Help" documentation for all functions are made more detailed instructions, you can go into the
instructions carefully.
5.3 Watch alarm instructions
Once device receive any alarm, alarm notice will be sent to the client,
click to the notice, the client will see the list of alarm details and view them.
6.Watch working mode functions
Three basic working mode: The normal mode, the power saving mode
and the following mode. The work upload interval of three patterns are different.
Normal mode:upload interval is 600 seconds
Power saving mode:upload interval is 3600 seconds
Following mode:upload interval is 60 seconds
7.Device related instructions
7.1 SOS emergency alarm
Press the SOS button for 3 seconds, the terminal screen SOS,the
terminal will into alarm state, it will dial three SOS number for two rounds.
If the call is answered,it won't dial any more,Or it will keep dialing until
the second round finished.And at the same time it will send a alarm
notification to the APP.
7.2 Warning for taking down the watch
The terminal strap is equipped with the sensor switch, you should wear
the watch for at least 3 minutes, then it will alarm if the strap was taken
off, and terminal will send a alarm message to the center number (The
default setting is off), and send a alarm notification to the APP.
7.3 Low power alarm
If the power percentage is less than 20%, it will alarm, and terminal will
send a alarm message to the center number. At the same time it will
send a alarm notification to the APP.
7.4 Health
7.4.1 Smart pedometer
A vibration sensor mounted on the device, when the client are doing
healthy exercise, and reach a moving limit, smart pedometer application
program will begin. Client could know their movement through the APP.
7.4.2 Sleep Management
Based on the upturned frequency of the device, the device can determine
whether a reasonable night sleep of the client. The default detection time
for 10:00 p.m. to 7:00 a.m. of the following day. Data could be viewed on
the APP.
7.4.3 Physical activity
Calculating according to the steps, step and weight, and the interval and
weight can be set up
7.4.4 Sports journey
According to the result of step and step distance calculation, the interval can be
set up.
7.5 Talkback
Long press the button 2 to start recording,then release for send the message to the APP . When
you got voice message, the watch will show voice symbol, short press the button 4 play the
message, After you read all the message, the message will delete automatically. and the voice
symbol will disappear.
7.6 Remote monitoring
Firstly, you need set tutelar number, and send opening voice monitoring
instructions to device , then device will dial to the tutelar number, turn to auto
answer state. And for one-way conversation, device can't hear voice of the
other side.
7.7 Turn off
Remove SIM card then click turn off button ,APK remote control to power off.
7.8 The phone book
You can be set 10 phone numbers for the watch's phone book in APP, these Numbers can make
double talk with the watch. press button 3 enter the phone book, then press button 3 for choose
phone number, long press for dialing.
8.Trouble diagnoses
Device can't connect to server at the first time and the backend show off
line. Please check below:
1) Check if you have put the SIM card correct, and the screen display is
normal, please refer to the picture instruction.
2) If your SIM card is out of service, please check if you have open the GPRS
service.
3) Whether GPRS service was canceled
4) Check whether the parameters of service is right from the supplier, and
then set it right.

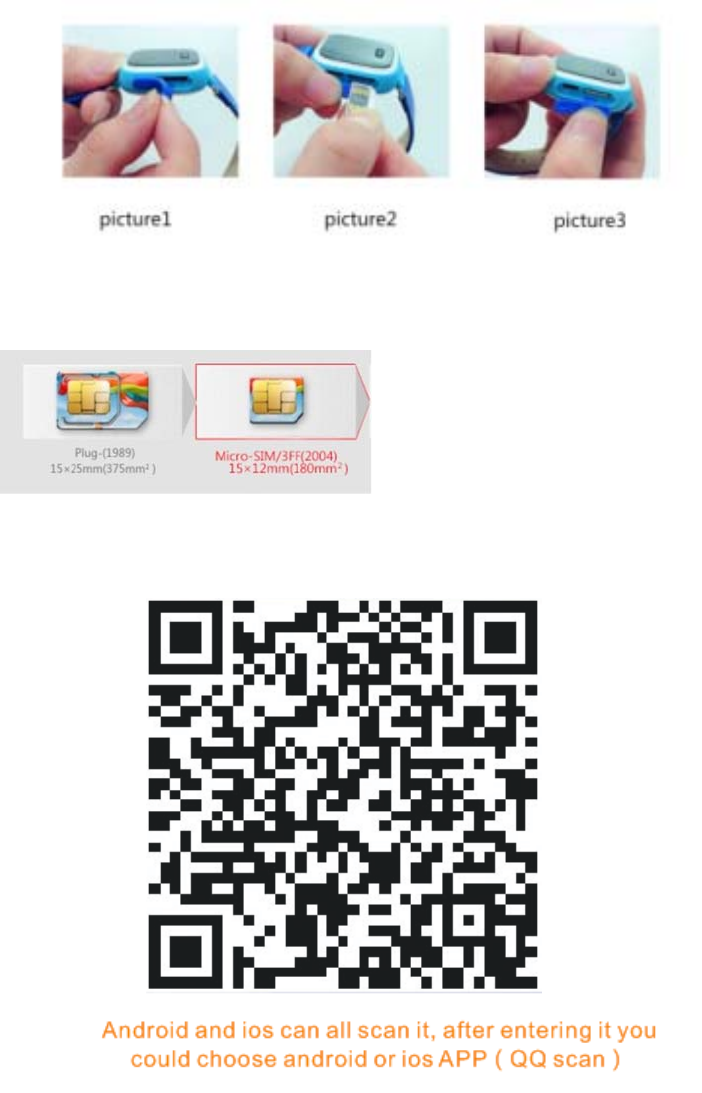

9.The instruction for put in the SIM card
1. Open the dust plug, you will see the SIM card slot as the picture as below:
2.Prepare the standard Micro-SIM card, insert the SIM card, the directionis as the picture 2
3.Push the SIM card into the card slot as the picture 3. And close the dust plug
10.QR code scanning entrance
FCCRegulatoryCompliance
This device been tested and meets applicable limits for radio frequency (RF)
exposure.
During testing,This device radios are set to their highest transmission levels
and placed in positions that simulate use against the head, with 10mm
separation, and on the wrist, with no separation. When placing This device
near your face, keep at least 10mm of separation to ensure exposure levels
remain at or below the as-tested levels.
This device is also designed to meet the requirements for exposure to radio
waves established by the Federal Communications Commission (USA). The
SAR limit adopted by the USA is 1.6 W/kg averaged over one gram of tissue.
The highest SAR value reported to the FCC for this device type complies with
this limit. SAR Max. Values:0.36 W/Kg (10g) for extremity; 0.11 W/Kg (1g) for
next tomouth
