Smartmatic VIU-800 Voter Identification Unit, Electronic Voting Machine User Manual

Smartmatic International Corporation Voter Identification Unit, Electronic Voting Machine

User manual

- 1 -
User manual
Model: VIU-800
Brand:
- 2 -
This manual’s main purpose is to introduce the correct way of using the Voter Identification
Unit / Electronic Voting Machine (hereinafter referred to as "the device"). Please read the
manual carefully to ensure safe and satisfactory operation, and keep the manual for future
reference.
Content
1. Warm Tips............................................................................................................................................... - 3 -
2. Warning .................................................................................................................................................. - 3 -
3. Product Introduction .............................................................................................................................. - 3 -
4. The Quick Start Guide ............................................................................................................................ - 5 -
5. The Index ................................................................................................................................................ - 6 -
6. About the Battery ................................................................................................................................... - 7 -
- 3 -
1. Warm Tips
(1) The manual is subjected to change without prior notice.
(2) The manual is a general guide for the product. Functions might be increased or reduced
due to customized needs. Please contact local distributors for details.
2. Warning
Unauthorized disassembly is forbidden, or else at your own risk.
Do not charge with standard higher than original battery and charger.
Do not dispose of the product in a fire or heat as the product may cause crack and injury.
3. Product Introduction
(1) Product Photos

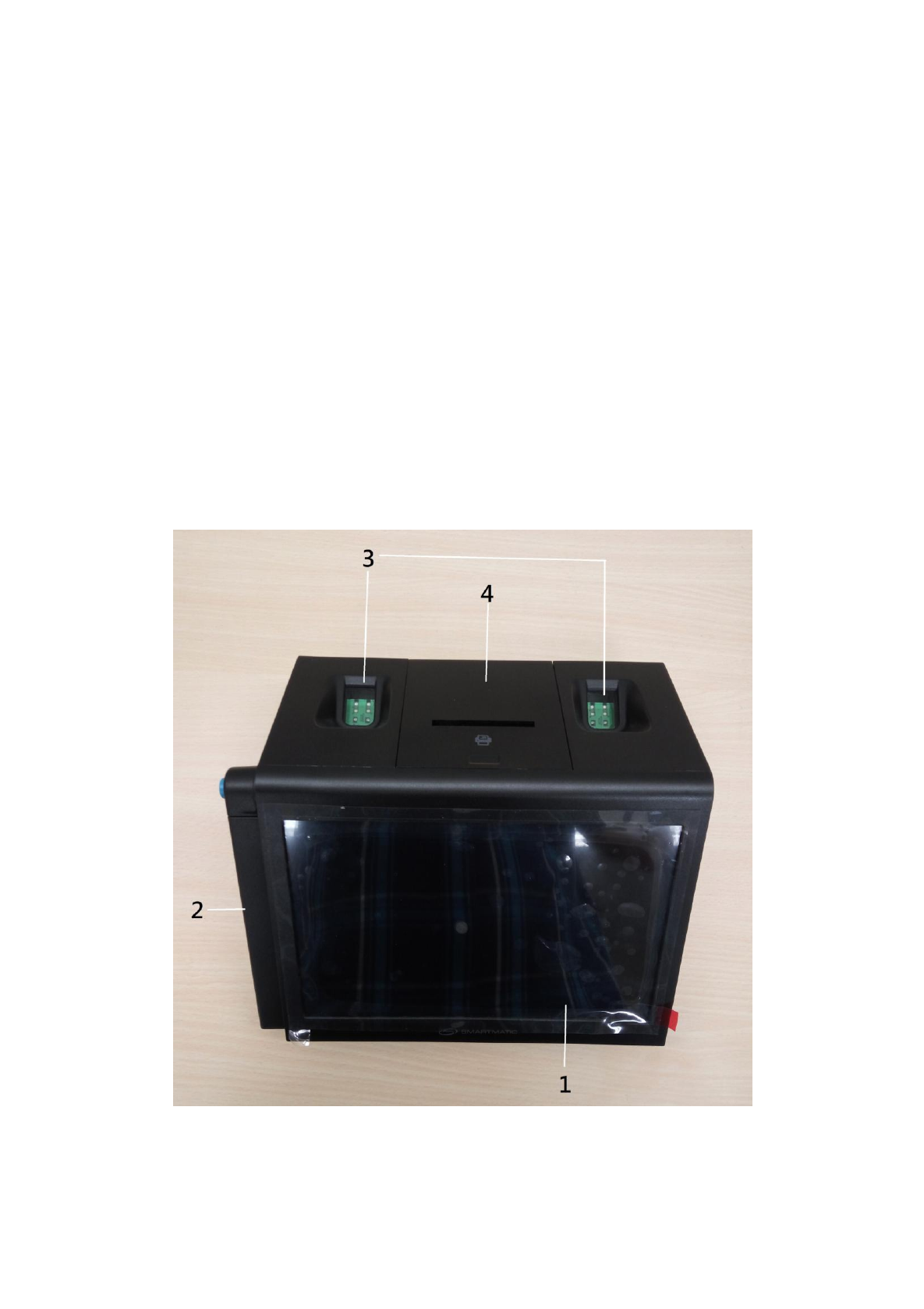

a). Top view of the product
- 4 -

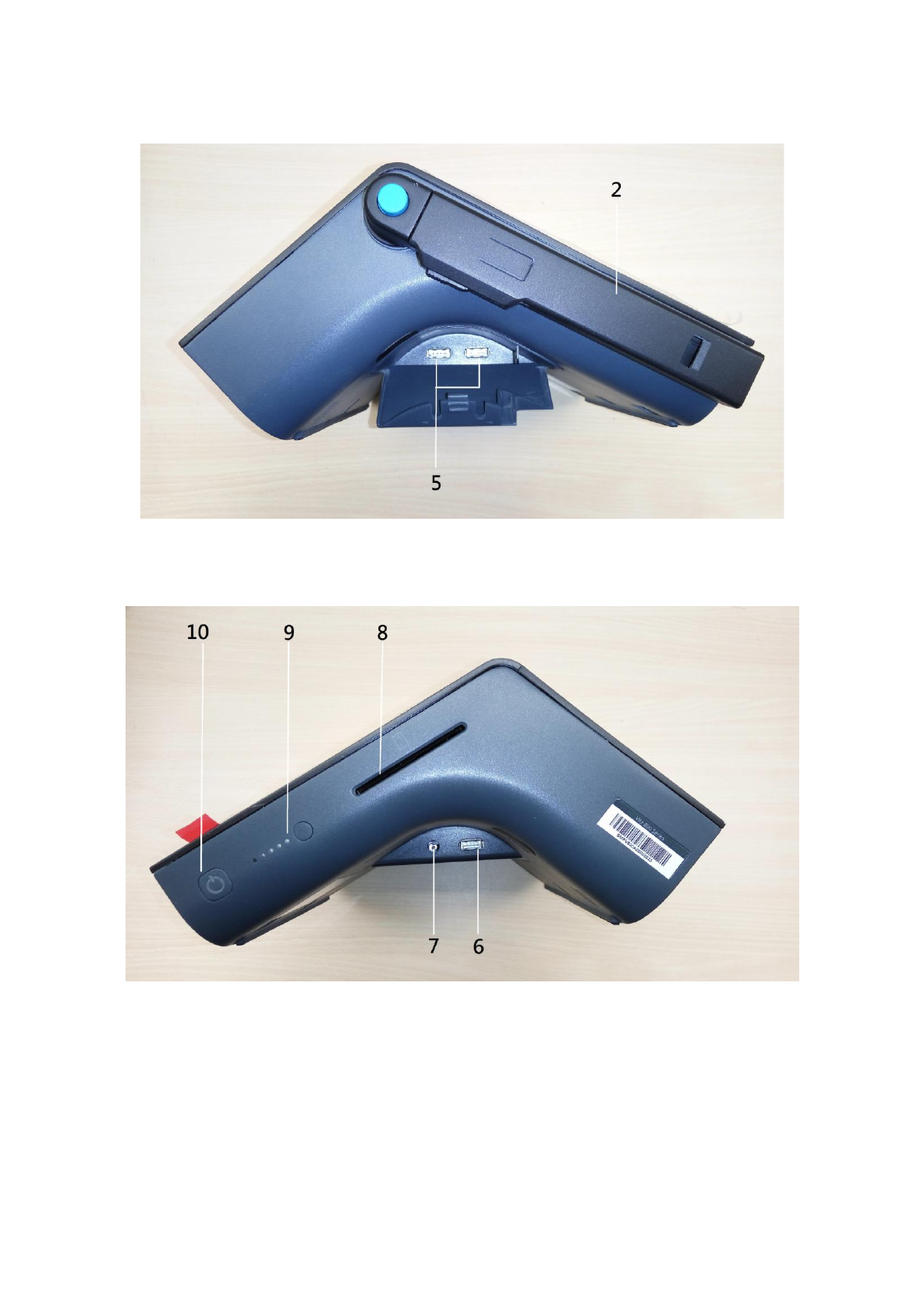

b). Left side view of the product
c). Right side view of the product
- 5 -
(2) Components
NO.
Item
Function
1
LCM
Displaying.
2
Camera Holder for Camera
and Flash
Holding camera and flash, only available in
model 820.
3
Fingerprint Reader
Capture fingerprint.
4
Thermal Printer
Printing.
5
USB2.0 Port
USB data port.
6
USB2.0 Port
USB data port.
7
DC in Jack Port
For connector AC adaptor for charging.
8
Smartcard Reader
Reading smartcard
Support from VIU815 and over
9
Battery indicator button
Indicating the battery power status.
10
Power Button
On/Off.
4. The Quick Start Guide
(1) Charging operation
Plug in AC adapter into DC-in jack port for charging.
(2) On/off operation
When the device is power-off, long press the power button for 5 seconds until the
power button lights up, the device powers on and the screen shows.
When the device is power-on, long press the power button for 5 seconds until the
screen shows power-off message then you can switch off.
- 6 -
5. The Index
Hardware Parameters
Items
Detailed description
CPU
1 Intel Atom Z8300
2M catch, up to 1.4GHz GHz Quad-Core Processor
Display
10.1” Display ，1280×720 pixels
Touch Screen
Capacitive Touch Screen
RAM
1G RAM
Data RAM
8G ROM
Not Support
Camera
--
Audio
Support 2.1 sound output
--
--
Stereo Speaker
Interface
--
--
--
Only support in VIU model 815
USB2.0 x 3
--
Button
Power Switch/Battery power status
button
G-Sensor
Optional
Light- sensor
--
Proximity sensor
--
MRZ
Support on model 815
GPS
--
GSM
--
（WCDMA 850 MHZ Optional）
GPRS
--
Fingerprint
Sensor
CMOS
Scanning
windows size
16 x 24mm
resolution
320 x 480 pixel, 500dpi
Wireless
Wi-Fi
Support
Bluetooth4.0
Support
3G
--
Power
Battery
Lithium-ion 10500mAh
Supply
DC 19V/3.42A
OS（Operating System）
Windows 10 x86 Home Edition / Android 5.1
- 7 -
Accessory
- Stylus
- AC-DC adaptor
- 2” paper roll
- USB Pendrive
Machine Weight
2kg
Dimension
242mm*251.77mm*124.5mm
Operating Environment
Working temperature ：0 ℃~70 ℃
Relative humidity ≤ 90%
Temperature for Storage and
Transportation
-40 ~ 60 ℃
EMC
ESD meets the third level condition of contact
discharge formulated in table one of GB 17626.2
RS meets the secondary conditions formulated
in table one of GB 17626.3
6. About the Battery
High-performance 10500mAh Lithium-ion battery is installed in the terminal.
(1) Battery Life：
Up to 8 hours for continuous work, standby for a week. (The result may vary depends on
different model.)
(2) Charging Method：
Please charge your battery on time when the system warns. A full charge to 100% is
necessary.
(3) Time for Charging：
A standard 10500mAh battery charge takes about 4-5 hours.
(4) Operating Notice:
a). The standby time is measured in an actual environment, but the specific standby time
may vary in different areas. This is due to various factors.
b). A rechargeable battery for the device can charge and discharge hundreds of times, but
it will eventually wear out. When standby times are noticeably shorter than normal,
replace the original battery.
c). Enter system hibernation if no intend to use battery for long period. Battery should be
kept in dry environment with full charge. Charge and discharge once every 3 to 6
months.
d). Use designated battery for replacement.
- 8 -
7. Optional Genuine Accessories
(1) USB data cable
(2) AC adapter
(3) External battery
(4) Camera lighting device
8. Simple Troubleshooting Guide
phenomenon
Cause
Operation
Abnormal Charge
Not full insertion of AC
adapter into household
outlet
Check plug insertion
No USB
connection
Poor contact of USB port
Ensure good contact of USB port
Heating
Normal phenomenon
under service conditions
Avoid using in a too hot
environment, or stop operation
for a while
Crash
Malware running or BUG
in running software
Press reset button, avoid malware
in peacetime
9. Maintenance & Repair
(1) Keep the device dry in case rain, humidity and all kinds of liquids or moisture containing
minerals will erode electronic wires.
(2) Avoid using and storing the device in dusty and dirty place in case detachable parts and
internal electronic components damaged.
(3) Do not put the device in a too hot place because high temperature shortens the life of
electronic devices, destroys batteries, deforms and melts some plastic components.
(4) Do not store the device in a too cold place. Or else when the temperature of the device
rises (to normal temperature), humidity appears inside it then destroys circuit board.
(5) Open the device in accordance with the manual, do not try other methods.
(6) No throw, beat or vibration allowed, because that will damage the inner circuit board and
its precision architecture.
(7) Do not clean the device with strong chemicals, cleaning agents and strong detergents.
- 9 -
(8) Do not paint the device because paints affect detachable parts work smoothly.
(9) The adaptor is for use in dry environment only.
(10) Capacitive touch panel designation, avoid extrusion with hard objects, scratch or rude
touching in case touch panel fracture or failure.
(11) Power off while long time no use.
(12) Abnormal situation may happen due to increasing electromagnetic interference. Please
reboot system after shutdown.
The suggestions above are applicable equally to the product, battery, charger and all
accessories. If abnormal situation of any accessory happens, contact local authorized
agent for replacement or maintenance.
- 10 -
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body
