Chapter 1 About the TigerAccess EE Switch
Chapter 2 Network Planning
Chapter 3 Installing the Switch
Chapter 4 Making Network Connections
Appendix A Troubleshooting
Appendix B Cables
Appendix C Specifications
Appendix D Ordering Information
Glossary
Index

TigerAccess™ EE

6-Band VDSL2 Switch

◆16 VDSL Downlink Ports (1 RJ-21 Connector)

◆2 Gigabit Ethernet Combination Ports (RJ-45/SFP)

◆1 Fast Ethernet Management Port (RJ-45)

◆Non-blocking switching architecture

◆Spanning Tree Protocol, RSTP, and MSTP

◆Up to 12 LACP or static 8-port trunks

◆Layer 2/3/4 CoS support through eight priority queues

◆Layer 3/4 traffic priority with IP Precedence and IP DSCP

◆Full support for VLANs with GVRP

◆IGMP multicast filtering and snooping

◆Manageable via console, Web, SNMP/RMON

◆Security features: ACL, RADIUS, 802.1x

◆VDSL line configuration using Long-Reach Ethernet

(LRE) commands, line profiles, and alarm profiles

Installation Guide

SMC7816M/VSW

20 Mason

Irvine, CA 92618

Phone: (949) 679-8000

TigerAccess™ EE

Installation Guide

From SMC’s Tiger line of feature-rich workgroup LAN solutions

February 2007

Pub. # 149100012100H

Information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and reliable. However, no

responsibility is assumed by SMC for its use, nor for any infringements of patents or other rights of third

parties which may result from its use. No license is granted by implication or otherwise under any patent or

patent rights of SMC. SMC reserves the right to change specifications at any time without notice.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

Trademarks:

SMC is a registered trademark; and EZ Switch, TigerAccess, TigerStack and TigerSwitch are trademarks of

SMC Networks, Inc. Other product and company names are trademarks or registered trademarks of their

respective holders.

IMITED

ARRANTY

Limited Warranty Statement: SMC Networks, Inc. (“SMC”) warrants its products to be

free from defects in workmanship and materials, under normal use and service, for the

applicable warranty term. All SMC products carry a standard 90-day limited warranty from

the date of purchase from SMC or its Authorized Reseller. SMC may, at its own discretion,

repair or replace any product not operating as warranted with a similar or functionally

equivalent product, during the applicable warranty term. SMC will endeavor to repair or

replace any product returned under warranty within 30 days of receipt of the product.

The standard limited warranty can be upgraded to a Limited Lifetime* warranty by registering

new products within 30 days of purchase from SMC or its Authorized Reseller. Registration

can be accomplished via the enclosed product registration card or online via the SMC Web

site. Failure to register will not affect the standard limited warranty. The Limited Lifetime

warranty covers a product during the Life of that Product, which is defined as the period of

time during which the product is an “Active” SMC product. A product is considered to be

“Active” while it is listed on the current SMC price list. As new technologies emerge, older

technologies become obsolete and SMC will, at its discretion, replace an older product in its

product line with one that incorporates these newer technologies. At that point, the obsolete

product is discontinued and is no longer an “Active” SMC product. A list of discontinued

products with their respective dates of discontinuance can be found at:

http://www.smc.com/index.cfm?action=customer_service_warranty.

All products that are replaced become the property of SMC. Replacement products may be

either new or reconditioned. Any replaced or repaired product carries either a 30-day limited

warranty or the remainder of the initial warranty, whichever is longer. SMC is not responsible

for any custom software or firmware, configuration information, or memory data of

Customer contained in, stored on, or integrated with any products returned to SMC pursuant

to any warranty. Products returned to SMC should have any customer-installed accessory or

add-on components, such as expansion modules, removed prior to returning the product for

replacement. SMC is not responsible for these items if they are returned with the product.

Customers must contact SMC for a Return Material Authorization number prior to returning

any product to SMC. Proof of purchase may be required. Any product returned to SMC

without a valid Return Material Authorization (RMA) number clearly marked on the outside

of the package will be returned to customer at customer’s expense. For warranty claims within

North America, please call our toll-free customer support number at (800) 762-4968.

Customers are responsible for all shipping charges from their facility to SMC. SMC is

responsible for return shipping charges from SMC to customer.

WARRANTIES EXCLUSIVE: IF AN SMC PRODUCT DOES NOT OPERATE AS

WARRANTED ABOVE, CUSTOMER’S SOLE REMEDY SHALL BE REPAIR OR

REPLACEMENT OF THE PRODUCT IN QUESTION, AT SMC’S OPTION. THE

FOREGOING WARRANTIES AND REMEDIES ARE EXCLUSIVE AND ARE IN

LIEU OF ALL OTHER WARRANTIES OR CONDITIONS, EXPRESS OR IMPLIED,

EITHER IN FACT OR BY OPERATION OF LAW, STATUTORY OR OTHERWISE,

INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND

FITNESS FOR A PARTICULAR PURPOSE. SMC NEITHER ASSUMES NOR

AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT ANY OTHER

LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION,

MAINTENANCE OR USE OF ITS PRODUCTS. SMC SHALL NOT BE LIABLE

UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THE

ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY

CUSTOMER’S OR ANY THIRD PERSON’S MISUSE, NEGLECT, IMPROPER

INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO REPAIR, OR

ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY

ACCIDENT, FIRE, LIGHTNING, OR OTHER HAZARD.

LIMITATION OF LIABILITY: IN NO EVENT, WHETHER BASED IN CONTRACT

OR TORT (INCLUDING NEGLIGENCE), SHALL SMC BE LIABLE FOR

INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE

DAMAGES OF ANY KIND, OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR

OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE

SALE, INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE, OR

INTERRUPTION OF ITS PRODUCTS, EVEN IF SMC OR ITS AUTHORIZED

RESELLER HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES

OR THE LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR

CONSUMER PRODUCTS, SO THE ABOVE LIMITATIONS AND EXCLUSIONS

MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL

RIGHTS, WHICH MAY VARY FROM STATE TO STATE. NOTHING IN THIS

WARRANTY SHALL BE TAKEN TO AFFECT YOUR STATUTORY RIGHTS.

* SMC will provide warranty service for one year following discontinuance from the active

SMC price list. Under the limited lifetime warranty, internal and external power supplies, fans,

and cables are covered by a standard one-year warranty from date of purchase.

SMC Networks, Inc.

20 Mason

Irvine, CA 92618

vii

COMPLIANCES

FCC - Class A

This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

You are cautioned that changes or modifications not expressly approved by the party

responsible for compliance could void your authority to operate the equipment.

You may use unshielded twisted-pair (UTP) for RJ-45 connections - Category 3 or better for

10 Mbps connections, Category 5 or better for 100 Mbps connections, Category 5, 5e, or 6

for 1000 Mbps connections. For fiber optic connections, you may use 50/125 or 62.5/125

micron multimode fiber or 9/125 micron single-mode fiber.

FCC - Part 68

This equipment complies with Part 68 of FCC Rules. On the base unit of this equipment is a

label that contains, among other information, the FCC Registration Number and Ringer

Equivalence Number (REN) for this equipment. If requested, this information must be given

to the telephone company.

This equipment uses the following USOC jacks: RJ-21.

The REN is useful to determine the quantity of devices you may connect to your telephone

line and still have those entire devices ring when your telephone number is called. In most,

but not all areas, the sum of the REN of all devices connected to one line should not exceed

five (5.0). To be certain of the number of devices you may connect to you line, as determined

by the REN, you should contact your local telephone company to determine the maximum

REN for your calling area.

If your equipment causes harm to the telephone network, the telephone company may

discontinue your service temporarily. If possible, they will notify you in advance. But if

advance notice is not practical, you will be notified as soon as possible. You will be informed

of your right to file a complaint with the FCC. Your telephone company may make changes in

its facilities, equipment, operations or procedures that could affect the proper functioning of

your equipment. If they do, you will be notified in advance to give you an opportunity to

maintain uninterrupted telephone service.

If you experience trouble with this telephone equipment, please contact please contact our

company at the numbers shown on back of this manual for information on obtaining service

or repairs. The telephone company may ask that you disconnect this equipment from the

OMPLIANCES

viii

network until the problem has been corrected or until you are sure that the equipment is not

malfunctioning.

This equipment may not be used on coin service provided by the telephone company.

Connection to party lines is subject to state tariffs.

Industry Canada - Class A

This digital apparatus does not exceed the Class A limits for radio noise emissions from

digital apparatus as set out in the interference-causing equipment standard entitled “Digital

Apparatus,” ICES-003 of the Department of Communications.

Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux appareils

numériques de Classe A prescrites dans la norme sur le matériel brouilleur: “Appareils

Numériques,” NMB-003 édictée par le ministère des Communications.

CE Mark Declaration of Conformance for EMI and

Safety (EEC)

SMC contact for these products in Europe is:

SMC Networks Europe,

Edificio Conata II,

Calle Fructuós Gelabert 6-8, 2o, 4a,

08970 - Sant Joan Despí, Barcelona, Spain.

This information technology equipment complies with the requirements of the Council

Directive 89/336/EEC on the Approximation of the laws of the Member States relating to

Electromagnetic Compatibility and 73/23/EEC for electrical equipment used within certain

voltage limits and the Amendment Directive 93/68/EEC. For the evaluation of the

compliance with these Directives, the following standards were applied:

RFI Emission:

• Limit class A according to EN 55022:1998

• Limit class A for harmonic current emission according to

EN 61000-3-2/1995

• Limitation of voltage fluctuation and flicker in low-voltage supply

system according to EN 61000-3-3/1995

Immunity:

• Product family standard according to EN 55024:1998

• Electrostatic Discharge according to EN 61000-4-2:1995

(Contact Discharge: ±4 kV, Air Discharge: ±8 kV)

• Radio-frequency electromagnetic field according to EN 61000-4-3:1996

(80 - 1000 MHz with 1 kHz AM 80% Modulation: 3 V/m)

• Electrical fast transient/burst according to EN 61000-4-4:1995 (AC/

DC power supply: ±1 kV, Data/Signal lines: ±0.5 kV)

OMPLIANCES

Warning:

Do not plug a phone jack connector in the RJ-45 port. This may damage this device.

Attention: Les raccordeurs ne sont pas utilisés pour le système téléphonique!

Safety Compliance

Warning: Fiber Optic Port Safety

Avertissment: Ports pour fibres optiques - sécurité sur le plan optique

Warnhinweis: Faseroptikanschlüsse - Optische Sicherheit

PSE Alarm

本製品に同梱いたしております電源コードセットは、

本製品専用です。本電源コードセットは、本製品以外の

製品並びに他の用途でご使用いただくことは出来ません。

製品本体に同梱された電源コードセットを利用し、他製品

の電源コードセットを使用しないで下さい。

• Surge immunity test according to EN 61000-4-5:1995

(AC/DC Line to Line: ±1 kV, AC/DC Line to Earth: ±2 kV)

• Immunity to conducted disturbances, Induced by radio-frequency

fields: EN 61000-4-6:1996 (0.15 - 80 MHz with

1 kHz AM 80% Modulation: 3 V/m)

• Power frequency magnetic field immunity test according to

EN 61000-4-8:1993 (1 A/m at frequency 50 Hz)

• Voltage dips, short interruptions and voltage variations immunity test

according to EN 61000-4-11:1994 (>95% Reduction @10 ms, 30%

Reduction @500 ms, >95% Reduction @5000 ms)

LVD:

• EN 60950-1:2001

When using a fiber optic port, never look at the transmit laser while

it is powered on. Also, never look directly at the fiber TX port and

fiber cable ends when they are powered on.

Ne regardez jamais le laser tant qu’il est sous tension. Ne regardez

jamais directement le port TX (Transmission) à fibres optiques et les

embouts de câbles à fibres optiques tant qu’ils sont sous tension.

Niemals ein Übertragungslaser betrachten, während dieses

eingeschaltet ist. Niemals direkt auf den Faser-TX-Anschluß und auf

die Faserkabelenden schauen, während diese eingeschaltet sind.

CLASS I

LASER DEVICE

DISPOSITIF LASER

DE CLASSE I

LASERGER

DER KLASSE I

ÄT

OMPLIANCES

Power Cord Safety

Please read the following safety information carefully before installing the switch:

Warning:

Installation and removal of the unit must be carried out by qualified personnel only.

• The unit must be connected to an earthed (grounded) outlet to comply with international

safety standards.

• Do not connect the unit to an A.C. outlet (power supply) without an earth (ground)

connection.

• The appliance coupler (the connector to the unit and not the wall plug) must have a

configuration for mating with an EN 60320/IEC 320 appliance inlet.

• The socket outlet must be near to the unit and easily accessible. You can only remove power

from the unit by disconnecting the power cord from the outlet.

• This unit operates under SELV (Safety Extra Low Voltage) conditions according to

IEC 60950. The conditions are only maintained if the equipment to which it is connected

also operates under SELV conditions.

France and Peru only

This unit cannot be powered from IT† supplies. If your supplies are of IT type, this unit must

be powered by 230 V (2P+T) via an isolation transformer ratio 1:1, with the secondary

connection point labelled Neutral, connected directly to earth (ground).

† Impédance à la terre

Important! Before making connections, make sure you have the correct cord set. Check it

(read the label on the cable) against the following:

Power Cord Set

U.S.A. and Canada The cord set must be UL-approved and CSA certified.

The minimum specifications for the flexible cord are:

- No. 18 AWG - not longer than 2 meters, or 16 AWG.

- Type SV or SJ

- 3-conductor

The cord set must have a rated current capacity of at least 10 A

The attachment plug must be an earth-grounding type with NEMA

5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.

Denmark The supply plug must comply with Section 107-2-D1, Standard

DK2-1a or DK2-5a.

Switzerland The supply plug must comply with SEV/ASE 1011.

U.K. The supply plug must comply with BS1363 (3-pin 13 A) and be

fitted with a 5 A fuse which complies with BS1362.

The mains cord must be <HAR> or <BASEC> marked and be of

type HO3VVF3GO.75 (minimum).

OMPLIANCES

Veuillez lire à fond l'information de la sécurité suivante avant

d'installer le Switch:

AVERTISSEMENT: L’installation et la dépose de ce groupe doivent être confiés à un

personnel qualifié.

• Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a

pas de connexion de mise à la terre (mise à la masse).

• Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de

respecter les normes internationales de sécurité.

• Le coupleur d’appareil (le connecteur du groupe et non pas la prise murale) doit respecter

une configuration qui permet un branchement sur une entrée d’appareil EN 60320/IEC

320.

• La prise secteur doit se trouver à proximité de l’appareil et son accès doit être facile. Vous

ne pouvez mettre l’appareil hors circuit qu’en débranchant son cordon électrique au niveau

de cette prise.

• L’appareil fonctionne à une tension extrêmement basse de sécurité qui est conforme à la

norme IEC 60950. Ces conditions ne sont maintenues que si l’équipement auquel il est

raccordé fonctionne dans les mêmes conditions.

Europe The supply plug must comply with CEE7/7 (“SCHUKO”).

The mains cord must be <HAR> or <BASEC> marked and be of

type HO3VVF3GO.75 (minimum).

IEC-320 receptacle.

Power Cord Set (Continued)

OMPLIANCES

xii

France et Pérou uniquement:

Ce groupe ne peut pas être alimenté par un dispositif à impédance à la terre. Si vos

alimentations sont du type impédance à la terre, ce groupe doit être alimenté par une tension

de 230 V (2 P+T) par le biais d’un transformateur d’isolement à rapport 1:1, avec un point

secondaire de connexion portant l’appellation Neutre et avec raccordement direct à la terre

(masse).

Bitte unbedingt vor dem Einbauen des Switches die folgenden

Sicherheitsanweisungen durchlesen:

WARNUNG: Die Installation und der Ausbau des Geräts darf nur durch Fachpersonal

erfolgen.

• Das Gerät sollte nicht an eine ungeerdete Wechselstromsteckdose angeschlossen werden.

• Das Gerät muß an eine geerdete Steckdose angeschlossen werden, welche die

internationalen Sicherheitsnormen erfüllt.

• Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß

einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben.

• Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die

Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der

Netzsteckdose unterbrochen werden.

• Der Betrieb dieses Geräts erfolgt unter den SELV-Bedingungen

(Sicherheitskleinstspannung) gemäß IEC 60950. Diese Bedingungen sind nur gegeben,

Cordon électrique - Il doit être agréé dans le pays d’utilisation

Etats-Unis et

Canada: Le cordon doit avoir reçu l’homologation des UL et un certificat de

la CSA.

Les spécifications minimales pour un cable flexible sont AWG No.

18, ouAWG No. 16 pour un cable de longueur inférieure

2 métres.

- type SV ou SJ

- 3 conducteurs

Le cordon doit être en mesure d’acheminer un courant nominal

d’au moins 10 A.

La prise femelle de branchement doit être du type à mise à la terre

(mise à la masse) et respecter la configuration NEMA 5-15P (15 A,

125 V) ou NEMA 6-15P (15 A, 250 V).

Danemark: La prise mâle d’alimentation doit respecter la section 107-2 D1 de

la norme DK2 1a ou DK2 5a.

Suisse: La prise mâle d’alimentation doit respecter la norme SEV/ASE

1011.

Europe La prise secteur doit être conforme aux normes CEE 7/7

(“SCHUKO”)

LE cordon secteur doit porter la mention <HAR> ou <BASEC>

et doit être de type HO3VVF3GO.75 (minimum).

OMPLIANCES

xiii

wenn auch die an das Gerät angeschlossenen Geräte unter SELV-Bedingungen betrieben

werden.

Warnings and Cautionary Messages

Warnings (in German)

Stromkabel. Dies muss von dem Land, in dem es benutzt wird geprüft werden:

Schweiz Dieser Stromstecker muß die SEV/ASE 1011Bestimmungen

einhalten.

Europe Das Netzkabel muß vom Typ HO3VVF3GO.75

(Mindestanforderung) sein und die Aufschrift <HAR> oder

<BASEC> tragen.

Der Netzstecker muß die Norm CEE 7/7 erfüllen (”SCHUKO”).

Warning: This product does not contain any serviceable user parts.

Warning: Installation and removal of the unit must be carried out by qualified personnel

only.

Warning: When connecting this device to a power outlet, connect the field ground lead

on the tri-pole power plug to a valid earth ground line to prevent electrical

hazards.

Warning: This switch uses lasers to transmit signals over fiber optic cable. The lasers are

compliant with the requirements of a Class 1 Laser Product and are inherently

eye safe in normal operation. However, you should never look directly at a

transmit port when it is powered on.

Caution: Wear an anti-static wrist strap or take other suitable measures to prevent

electrostatic discharge when handling this equipment.

Caution: Do not plug a phone jack connector in the RJ-45 port. This may damage this

device. Les raccordeurs ne sont pas utilisé pour le système téléphonique!

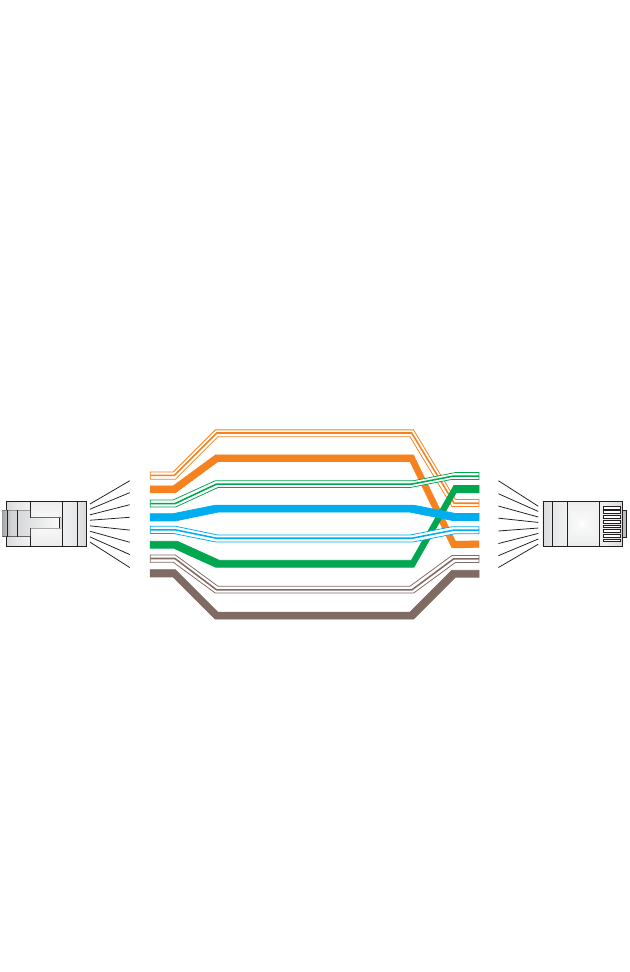

Caution: Use only twisted-pair cables with RJ-45 connectors that conform to FCC

standards.

Achtung: Dieses Produkt enthält keine Teile, die eine Wartung vom Benutzer benötigen.

Achtung: Installation und Deinstallation des Gerätes müssen von qualifiziertem

Servicepersonal durchgeführt werden.

Achtung: Wenn das Gerät an eine Steckdose angeschlossen wird, muß der Masseanschluß

am dreipoligen Netzstecker mit Schutzerde verbunden werden, um elektrische

Gefahren zu vermeiden.

Achtung: Dieses Gerät nutzt Laser zur Signalübertragung über Glasfasern. Die Laser

entsprechen den Anforderungen an eine Lasereinrichtung der Klasse 1 und sind

durch ihre Bauart im normalen Betrieb sicher für die Augen. Trotzdem sollte

niemals direkt in den einen Übertragungskanal geblickt werden, wenn er

eingeschaltet ist.

OMPLIANCES

xiv

Environmental Statement

The manufacturer of this product endeavours to sustain an environmentally-friendly policy

throughout the entire production process. This is achieved though the following means:

• Adherence to national legislation and regulations on environmental production standards.

• Conservation of operational resources.

• Waste reduction and safe disposal of all harmful un-recyclable by-products.

• Recycling of all reusable waste content.

• Design of products to maximize recyclables at the end of the product’s life span.

• Continual monitoring of safety standards.

End of Product Life Span

This product is manufactured in such a way as to allow for the recovery and disposal of all

included electrical components once the product has reached the end of its life.

Manufacturing Materials

There are no hazardous nor ozone-depleting materials in this product.

Documentation

All printed documentation for this product uses biodegradable paper that originates from

sustained and managed forests. The inks used in the printing process are non-toxic.

Purpose

This guide details the hardware features of the switches, including Its physical and

performance-related characteristics, and how to install each switch.

Audience

This guide is for system administrators with a working knowledge of network management.

You should be familiar with switching and networking concepts.

Zielgruppe Dieser Anleitung ist fuer Systemadministratoren mit Erfahrung im

Netzwerkmangement. Sie sollten mit Switch- und Netzwerkkonzepten vertraut sein.

Related Publications

The following publication gives specific information on how to operate and use the

management functions of the switches:

The SMC7816M/VSW Management Guide

Also, as part of both switches firmware, there is an online web-based help that describes all

management related features.

ABLE

ONTENTS

1 About the TigerAccess EE Switch . . . . . . . . . . . . . . . 1-1

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

VDSL Technology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Switch Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

Network Management Options . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

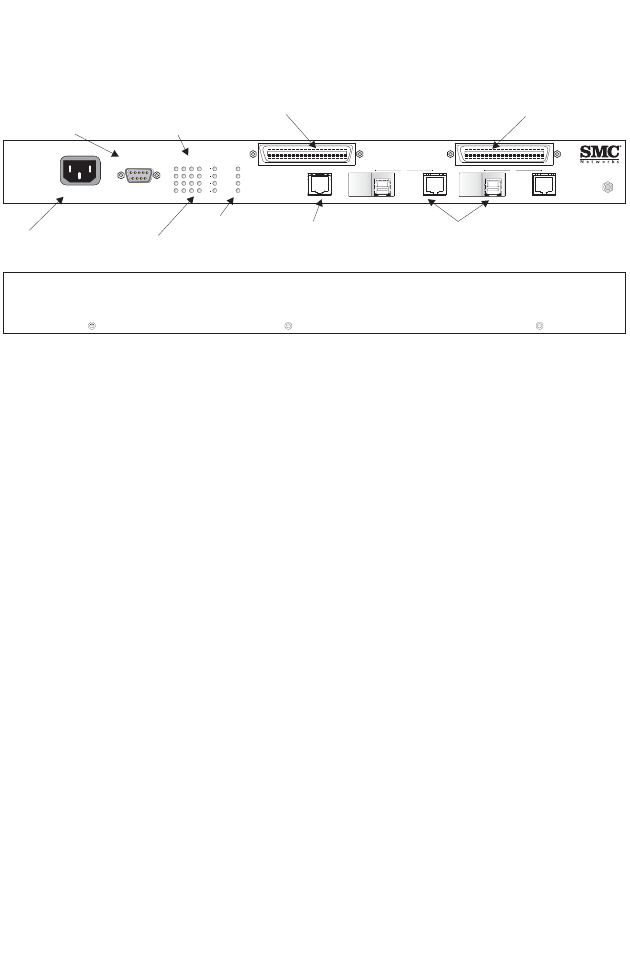

Description of Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

RJ-21 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

1000BASE-T Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

SFP Slots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Management Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Ethernet-over-VDSL CPE (Optional Equipment) . . . . . . . . . . . 1-8

Port and System Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Power Supply Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

2 Network Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Introduction to Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

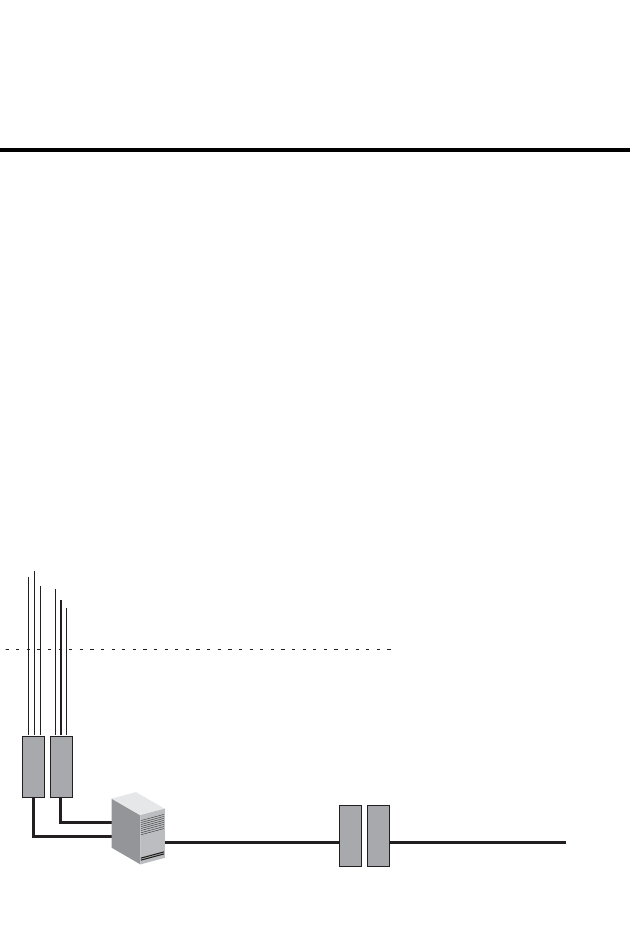

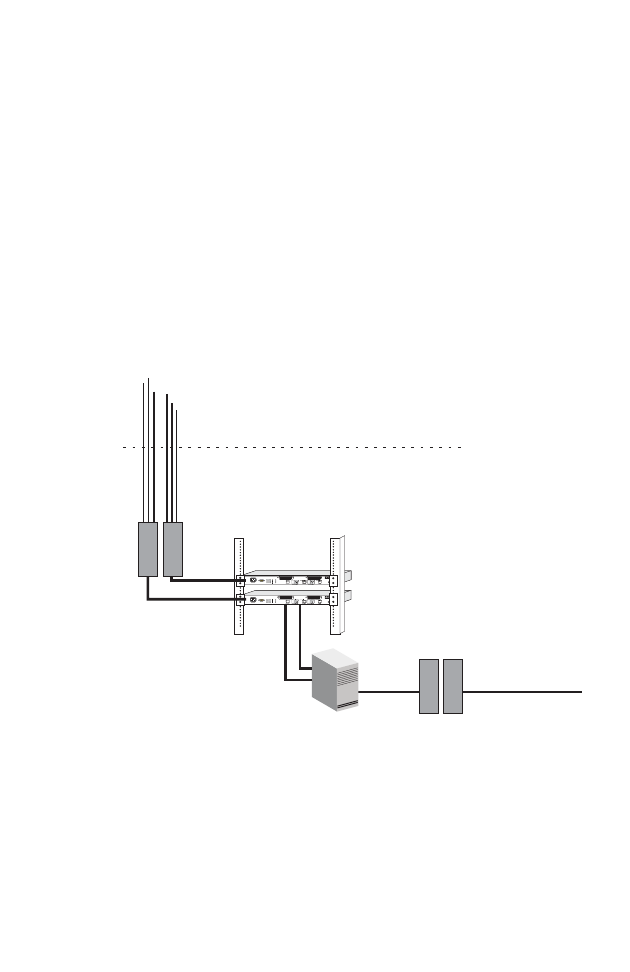

Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Internet Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Remote Connections with Fiber Cable . . . . . . . . . . . . . . . . . . . . 2-3

Making VLAN Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

3 Installing the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Preparing the Site for VDSL/POTS Connections . . . . . . . . . . . . . . . . . 3-1

Installing Additional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Verifying Site Requirement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Installing Ethernet Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

Equipment Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Optional Rack-Mounting Equipment . . . . . . . . . . . . . . . . . . . . . 3-5

Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Rack Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5

Desktop or Shelf Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

ABLE

ONTENTS

xvi

Installing an Optional SFP Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Connecting to a Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Connecting to the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Wiring Map for Serial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

4 Making Network Connections . . . . . . . . . . . . . . . . . . . 4-1

Connecting RJ-21 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Connecting to the Punch-down Blocks . . . . . . . . . . . . . . . . . . . . 4-2

Using Patch Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Connecting Twisted-Pair Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Cabling Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Network Wiring Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Connecting to PCs, Servers, Hubs and Switches . . . . . . . . . . . . 4-5

Connecting Fiber Optic Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Connectivity Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

1000BASE-T Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . 4-8

1000 Mbps Gigabit Ethernet Cable Lengths . . . . . . . . . . . . . . . . 4-8

100 Mbps Fast Ethernet Cable Lengths . . . . . . . . . . . . . . . . . . . 4-9

10 Mbps Ethernet Cable Lengths . . . . . . . . . . . . . . . . . . . . . . . . 4-9

Cable Labeling and Connection Records . . . . . . . . . . . . . . . . . . . . . . . 4-10

ABLE

ONTENTS

xvii

APPENDICES:

A Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

Diagnosing Switch Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

Power and Cooling Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

In-Band Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3

B Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .B-1

Twisted-Pair Cable and Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . B-1

10BASE-T/100BASE-TX Pin Assignments . . . . . . . . . . . . . . . . B-2

Straight-Through Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Crossover Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

1000BASE-T Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . B-5

1000BASE-T Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . B-6

Cable Testing for Existing Category 5 Cable . . . . . . . . . . . . . . . B-6

Adjusting Existing Category 5 Cabling to Run 1000BASE-T . . B-6

Fiber Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7

RJ-21 Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Console Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

DB-9 Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

Console Port to 9-Pin DTE Port on PC . . . . . . . . . . . . . . . . . . B-10

Console to 25-Pin DTE Port on PC . . . . . . . . . . . . . . . . . . . . B-10

C Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .C-1

Physical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1

Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Management Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3

Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

Compliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4

D Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . D-1

Glossary

Index

xviii

ABLES

Table 1-1 Optional SFP Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

Table 1-2 Port Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Table 1-3 System Status LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

Table 3-1 Optional SFP Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-8

Table 3-2 Wiring Map for Serial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . 3-10

Table 4-1 Maximum 1000BASE-T Gigabit Ethernet Cable Length . . . . 4-8

Table 4-2 Maximum 1000BASE-SX Gigabit Ethernet Cable Length . . 4-8

Table 4-4 Maximum 1000BASE-ZX Gigabit Ethernet Cable Length . . 4-9

Table 4-5 Maximum Fast Ethernet Cable Length . . . . . . . . . . . . . . . . . . 4-9

Table 4-6 Maximum Ethernet Cable Length . . . . . . . . . . . . . . . . . . . . . . 4-9

Table 4-3 Maximum 1000BASE-LX Gigabit Ethernet Cable Length . . 4-9

Table A-1 Diagnosing Switch Indicators . . . . . . . . . . . . . . . . . . . . . . . . .A-1

Table B-1 10/100BASE-TX MDI and MDI-X Port Pinouts . . . . . . . . . B-2

Table B-2 1000BASE-T MDI and MDI-X Port Pinouts . . . . . . . . . . . . . B-5

Table B-3 RJ-21 Port Pin Assignments (PBX/MDF connector) . . . . . . B-8

Table B-4 RJ-21 Port Pin Assignments (VDSL Line connector) . . . . . . B-8

Table B-5 DB-9 Port Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9

Table B-6 Console Port to 9-Pin DTE Port on PC . . . . . . . . . . . . . . . . B-10

Table B-7 Console to 25-Pin DTE Port on PC . . . . . . . . . . . . . . . . . . . B-10

Table D-1 TigerAccess EE Products and Accessories . . . . . . . . . . . . . . .D-1

xix

IGURES

Figure 1-1 VDSL Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

Figure 1-2 Front and Rear Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6

Figure 1-3 Port and System LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8

Figure 1-4 Power Supply Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10

Figure 2-1 Internet Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Figure 2-2 Remote Connections with Fiber Cable . . . . . . . . . . . . . . 2-3

Figure 2-3 Making VLAN Connections . . . . . . . . . . . . . . . . . . . . . . . 2-4

Figure 3-1 Wiring before VDSL Switch Installation . . . . . . . . . . . . . 3-1

Figure 3-2 Wiring after Switch Installation . . . . . . . . . . . . . . . . . . . . 3-2

Figure 3-3 RJ-45 Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

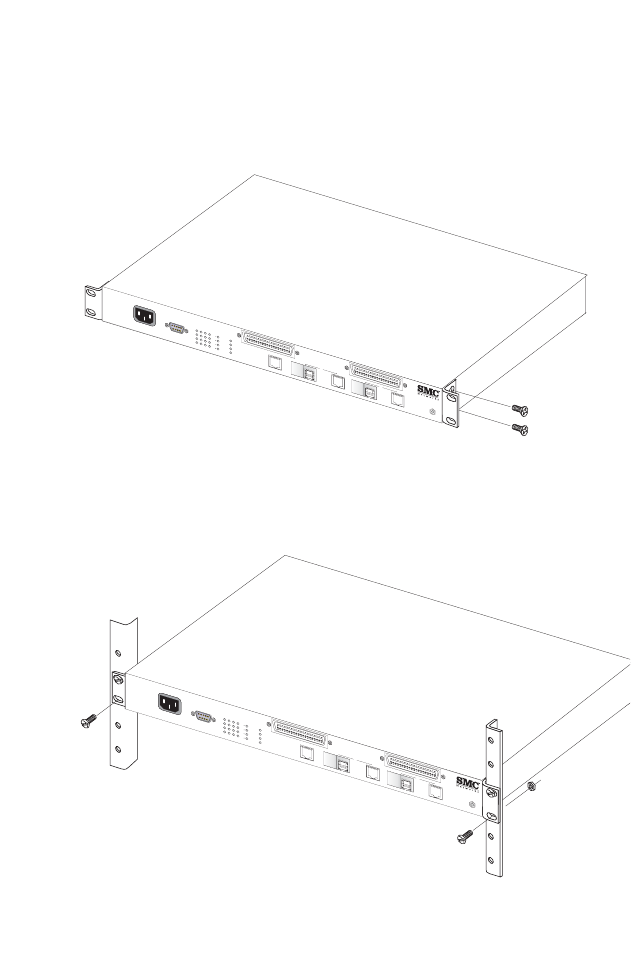

Figure 3-4 Attaching the Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

Figure 3-5 Installing the Switch in a Rack . . . . . . . . . . . . . . . . . . . . . 3-6

Figure 3-6 Attaching the Adhesive Feet . . . . . . . . . . . . . . . . . . . . . . 3-7

Figure 3-7 Inserting an SFP Transceiver into a Slot . . . . . . . . . . . . . 3-8

Figure 3-8 Power Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-9

Figure 3-9 Serial Port (RJ-45) Pin-Out . . . . . . . . . . . . . . . . . . . . . . . 3-10

Figure 4-1 Connecting to the Punch-down Blocks . . . . . . . . . . . . . . 4-2

Figure 4-2 Using Patch Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Figure 4-3 Network Wiring Connections . . . . . . . . . . . . . . . . . . . . . 4-4

Figure 4-4 Customer Premises Connections . . . . . . . . . . . . . . . . . . . 4-5

Figure 4-5 Making LC Port Connections . . . . . . . . . . . . . . . . . . . . . . 4-7

Figure B-1 RJ-45 Connector Pin Numbers . . . . . . . . . . . . . . . . . . . . B-1

Figure B-2 Straight-through Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . B-3

Figure B-3 Crossover Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4

Figure B-4 RJ-21 Port Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8

Figure B-5 DB-9 Console Port Pin Numbers . . . . . . . . . . . . . . . . . . B-9

IGURES

1-1

HAPTER

BOUT

THE

IGER

CCESS

EE S

WITCH

Overview

This Ethernet-over-VDSL system consists of end-user CPEs (Customer

Premise Equipment) connected to a VDSL switch by standard telephone

cable. The VDSL connection delivers an Ethernet data link while

simultaneously supporting standard telephone services. The system can be

deployed in any multi-dwelling/multi-tenant environment (apartment

blocks, hotels, or office complex) to provide both high-speed Internet

access and telephone services without any need for re-wiring.

The VDSL switch has a built-in POTS splitter that combines both the data

and phone signals coming from your Internet and telephone service

providers, and passes these signals directly over standard telephone wiring

to multiple users in the same building. A CPE is then used to separate

these signals and pass them on to a customer’s computer and telephone

equipment. Using the pre-defined profiles, in-building connections can

operate up to 100 Mbps upstream and downstream for runs up to 200

meters (656 ft).

Note: Type-1 26 AWG (100 ohm)/0.4 mm, or Type-2 24 AWG (100

ohm)/0.5 mm cable may be installed to achieve the maximum

distance. However, typically 24 AWG

(100 ohm)/0.5 mm wire

provides better performance than 26 AWG (100 ohm)/0.4

mm wire.

Note the distance may be limited by factors such as how the cable is

bundled, and the interference and noise on the link.

BOUT

THE

IGER

CCESS

EE S

WITCH

1-2

The VDSL switch is typically located in a wiring closet or other central

location of a multi-dwelling/multi-tenant unit, campus or enterprise. An

Internet connection is provided from the ISP to the customer’s building

over fiber optic cable, running Ethernet directly over a 1 Gbps connection.

(Trunking both uplink ports together can provide a 2 Gbps connection.)

This kind of WAN connection is referred to as fiber To The Building

(FTTB). The data and phone signals for each user are combined in the

switch, and passed over VDSL lines to individual customers.

The CPE at the other end of the VDSL line connects to any PC or

Macintosh equipped with a 10/100BASE-TX network interface card. Your

existing telephone, modem, or fax machine simply plugs into the CPE’s

phone port. There is no need for special terminators or filters. In fact,

there is no need to modify your wiring at all. Since the VDSL connection is

based on Ethernet, no further complex software configurations are

required.

VERVIEW

1-3

VDSL Technology

VDSL2 (Very High Bit-Rate Digital Subscriber Line) is at the high-end of

all the DSL technologies, offering the best combination of fiber optic and

copper to provide high-speed broadband Internet access. VDSL’s primary

application is in providing a broadband data service to multi-tenant

residential or commercial buildings. In this implementation, fiber optic

cable carries data from an Internet Service Provider to the building; then

the installed telephone copper wires take the data and deliver it to

individual units within that building.

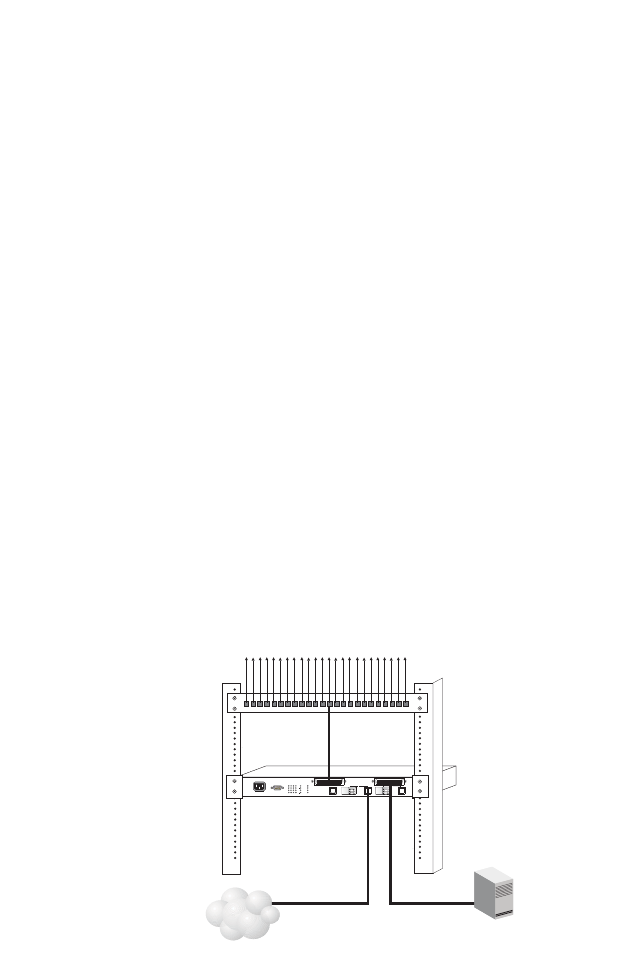

Figure 1-1 VDSL Application

VDSL provides high-speed Internet access over existing phone lines by

making use of previously unused frequency bandwidth above the voice

band (i.e., up to 30 MHz with VDSL2). By placing VDSL signals above the

frequency of the voice signal, a VDSL service can coexist on the

same line

as other telephone services. VDSL can operate

symmetrically, providing the

same data rate in both directions, or a

symmetrically, providing

a higher data

rate in the downstream (receive) direction than in the upstream (transmit)

direction.

ISP

(Internet)

Central Office

(PSTN)

Punch Down

Blocks /

Patch Panels

PBX

Telephone/Fax

Telephone

VDSL CPE

Telephone Line

from Central Office

Fiber Optic Link to ISP

Local Servers

(Locally Hosted Services,

Video Servers, Billing)

Existing Phone

Lines to Clients

Multi-dwelling/Multi-tenant Building

Floor 2

Floor 1

Rooms/Clients

VDSL Lines

Phone Lines

VDSL Switch

MPOE

100240V50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line MgmtOE

17OE

POTS

ESDPORT

SMC7816MVSW/

TigerAccessEESwitch

BOUT

THE

IGER

CCESS

EE S

WITCH

1-4

VDSL can deliver high-performance online applications, such as

high-quality video and other switched multimedia services. This

Ethernet-over-VDSL system provides robust performance, with a

maximum symmetric data rate of 100 Mbps for runs up to 200 meters

(656 ft). This system is based on advanced VDSL2 Multi-Carrier

Modulation (MCM) technology with adaptive channel equalization that

overcomes bridge taps and other line distortions. Reed-Solomon Forward

Error Correction and interleaving protect against errors due to impulse

noise and enable recovery from signal interruptions. Frequency Division

Duplexing (FDD) separates downstream and upstream channels and

allows VDSL signals to coexist with regular telephone services. A power

back-off mechanism is also implemented to reduce noise from crosstalk in

line bundles.

Switch Architecture

The VDSL Switch employs a wire-speed, non-blocking switching fabric.

This permits simultaneous wire-speed transport of multiple packets at low

latency on all ports. This switch also features full-duplex capability on all

ports, which effectively doubles the bandwidth of each connection.

For communications between different VLANs, this switch uses IP

routing. For communications within the same VLAN, the switch uses

store-and-forward switching to ensure maximum data integrity. With

store-and-forward switching, the entire packet must be received into a

buffer and checked for validity before being forwarded. This prevents

errors from being propagated throughout the network.

Network Management Options

This switch contains a comprehensive array of LEDs for “at-a-glance”

monitoring of network and port status. It also includes a management

agent that allows you to configure or monitor the switch using its

embedded management software, or via SNMP applications. To manage

the switch, you can make a direct connection to the console port

(out-of-band), or you can manage the switch through a network

ESCRIPTION

ARDWARE

1-5

connection (in-band) using Telnet, the on-board web agent, or

SNMP-based network management software.

The management port provides a dedicated management channel that

operates outside of the data transport network. This makes it possible to

re-configure or troubleshoot the switch over either a local or remote

connection when access via the data channel is not possible or deemed

insecure.

For a detailed description of the switch’s advanced features, refer to the

Management Guide.

Description of Hardware

This device is an intelligent Layer 2 VDSL2 switch with 16 VDSL ports for

subscriber access to the data network, and two Gigabit Ethernet

combination ports* for uplink traffic. The uplink ports are implemented as

10/100/1000BASE-T ports shared with SFP transceiver slots (see Figure

1-1, Ports 17-18). The switch also includes one 10/100BASE-TX port for

dedicated management access (which can be operated outside the data

channel).

The VDSL switch combines data and voice signals for delivery over

standard telephone cable to multiple users in residential or commercial

buildings. Ethernet data signals are received on the switch uplink port(s)

and passed to the 16 VDSL ports on the front panel via 16 internal

Ethernet ports.

* If an SFP transceiver is plugged in, the corresponding RJ-45 port (17 or 18) is disabled.

BOUT

THE

IGER

CCESS

EE S

WITCH

1-6

The following figure shows the components of the VDSL switch.

Figure 1-2 Front and Rear Panels

RJ-21 Ports

The RJ-21 ports on the switch front panel support 16 twisted-pair

connections. The “Line” port connects to end-user CPEs through a

punch-down box. The “POTS” port connects to the local PBX or directly

to telephone lines from the CO.

1000BASE-T Ports

The switch contains two Gigabit RJ-45 ports shared with alternate Small

Form Factor Pluggable (SFP) transceiver slots. The 1000BASE-T RJ-45

ports operate at 10/100 Mbps, half/full duplex, or at 1000 Mbps, full

duplex. Because all of the RJ-45 ports support automatic MDI/MDI-X

operation, you can use straight-through cables for all network connections

to PCs or servers, or to other switches or hubs. (See “1000BASE-T Pin

Assignments” on page B-3.)

Each of these ports support auto-negotiation, so the optimum

transmission mode (half or full duplex), and data rate (10, 100, or 1000

Mbps) can be selected automatically. If a device connected to one of these

ports does not support auto-negotiation, the communication mode of that

port can be configured manually.

100 240V 50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESD PORT

SMC7816M VSW/

TigerAccess EE Switch

VDSL Port

Status Indicators

Power Socket

System Status

Indicators

Ethernet Port

Status Indicators

Console Port

100BASE-TX

Management Port

PBX/MDF Connectors

(to POTS provider )

VDSL Line Connector

(to end users)

1000BASE-T

RJ-45/SFP Uplink Ports

ESCRIPTION

ARDWARE

1-7

Each port also supports auto-negotiation of flow control, so the switch

can automatically prevent port buffers from becoming saturated.

Note: If an SFP transceiver (purchased separately) is installed in a slot and

has a valid link on the port, the associated RJ-45 port is disabled.

SFP Slots

The Small Form Factor Pluggable (SFP) transceiver slots are shared with

RJ-45 ports (ports 17~18). In its default configuration, if an SFP

transceiver (purchased separately) is installed in a slot and has a valid link

on its port, the associated RJ-45 port is disabled and cannot be used. The

switch can also be configured to force the use of an RJ-45 port or SFP slot,

as required.

Note that 1000BASE-SX transceivers use multimode duplex fiber cable,

1000BASE-LX and 1000BASE-ZX transceivers use single-mode duplex

fiber cable.

Management Port

The 100BASE-TX port labeled “Mgmt” provides a dedicated management

interface which is segregated from the data traffic crossing the other ports.

This port supports auto-negotiation, so the optimum data rate and

transmission mode (10/100 Mbps at half/full duplex) can be selected

automatically, if this feature is also supported by the attached device.

However, note that the interface connection parameters of this port

cannot be configured.

Table 1-1 Optional SFP Transceivers

1000BASE-SX (SMCBGSLCX1)

1000BASE-LX (SMCBGLLCX1)

1000BASE-ZX (SMCBGZLCX1)

BOUT

THE

IGER

CCESS

EE S

WITCH

1-8

Console Port

The console port on the switch’s front panel is a DB-9 connector that

enables a connection to a terminal for performing switch monitoring and

configuration functions. The terminal may be a PC or workstation running

terminal emulation software, or a terminal configured as a Data Terminal

Equipment (DTE) connection. A null-modem wired serial cable is

supplied with the switch for connecting to this interface.

Ethernet-over-VDSL CPE (Optional Equipment)

The VDSL switch is designed to connect to the RJ-11 VDSL Line port on

a CPE. The CPE provides users with a high-speed Internet connection via

the RJ-45 Ethernet port and a standard telephone connection via the

RJ-11 phone jack.

Port and System Status LEDs

The switch includes key system and port indicators that simplify

installation and network troubleshooting. The LEDs, which are located on

the front panel for easy viewing, are shown below and described in the

following table.

Figure 1-3 Port and System LEDs

Power

Fault

Diag

Mgmt

ESCRIPTION

ARDWARE

1-9

Table 1-2 Port Status LEDs

LED Condition Status

VDSL Ports

Link/Act

(Port 1-16)

On Green Port has a valid link

Flashing Green Flashing indicates activity on the port

Off The link is down, or port is disabled

Uplink Ports

Link/Act

(Port 17-18)

E: RJ-45

O: SFP

On Green Port has a valid link

Flashing Green Flashing indicates activity on the port

Off The link is down, or port is disabled

Management Port

Mgmt

(Port 19)

On Green Port has a valid link

Flashing Green Flashing indicates activity on the port

Off The link is down, or port is disabled

Table 1-3 System Status LEDs

LED Condition Status

Power On Green Switch is receiving power

Off Switch is not receiving power

Fault Amber A fan has failed, the temperature threshold

exceeded, or other hardware malfunction

Diag Flashing Green System diagnostic test in progress

On Green System diagnostic test successfully completed

Off System self-diagnostic test has detected a fault

BOUT

THE

IGER

CCESS

EE S

WITCH

1-10

Power Supply Socket

There is a power socket on the front panel of the switch for an AC power

cord.

Figure 1-4 Power Supply Socket

Key Features

VDSL Features

• High-speed Internet access over existing phone lines

• ITU-T G.993.1/G.993.2 VDSL & VDSL2 Standard and G.993.2

Annex.C Compliant

• Support programmable band Plan (up to 6 band) compliant with

spectrum utilization up to 30MHz

• Concurrent data and telephone services (voice/ISDN) over a single

connection

• Always-on digital connection eliminates dial-up delays, and transparent

reconnection when initiating any network request

• Supports evolving ETSI, ANSI and ITU VDSL standards for the

copper local loop

• Spectral compatibility with VDSL, VDSL2, ADSL, ADSL2+, POTS,

ISDN (2B1Q/4B3T) or “Smartphone” digital PBX extensions

• Port-to-port isolation for Ethernet

100 240V 50 60Hz 1A--

EATURES

1-11

• Robust operation on severely distorted lines

• Supports power back-off algorithm that permits a mixed distance

deployment

Additional VDSL2 features include:

• Fast startup for quick initialization

• Trellis coding modulation for higher performance

• Seamless rate adaptation for enhanced quality in video applications

• Variable tone spacing enables best performance for long and short

reach lines

• Improved framing, overhead channel, and interleaving

Ethernet Connectivity

• 16 VDSL lines for Ethernet connections to subscribers, operating at

100 Mbps symmetric or at asymmetric rates (such as 100/50 Mbps).

• 2 1000BASE-T/SFP ports provide 4 Gbps of aggregate bandwidth for

network uplink.

• Auto-negotiation enables each RJ-45 uplink port to automatically

select the optimum speed and communication mode (10/100 Mbps at

half/full duplex, or 1000 Mbps at full duplex) if this feature is supported

by the attached device; otherwise the port can be configured manually.

• RJ-45 ports support auto MDI/MDI-X pinout selection.

• Unshielded (UTP) cable supported on all RJ-45 ports: Category 3 or

better for 10 Mbps connections, Category 5 or better for 100 Mbps

connections, and Category 5, 5e, 6 or better for 1000 Mbps

connections.

• IEEE 802.3-2005 Ethernet, Fast Ethernet, Gigabit Ethernet

compliance ensures compatibility with standards-based hubs, network

cards and switches from any vendor.

BOUT

THE

IGER

CCESS

EE S

WITCH

1-12

Expandability

• Supports optional 1000BASE-SX, 1000BASE-LX and 1000BASE-ZX

SFP transceivers

System Features

• Transparent bridging

• Aggregate switch fabric bandwidth of 8.8 Gbps

• Switching table with a total of 8K entries

• Store-and-forward switching

• Wire-speed Layer 2 switching

• Flow control, using back pressure for half duplex and IEEE 802.3x for

full duplex

Management features include:

• “At-a-glance” LEDs for easy troubleshooting

• Network management agent:

- Manages the switch in-band or out-of-band

- Supports Telnet, SSH, SNMP v1/v2c/v3, RMON (4 groups)

web-based interface

2-1

HAPTER

ETWORK

LANNING

Introduction to Switching

A network switch allows simultaneous transmission of multiple packets via

non-crossbar switching. This means that it can partition a network more

efficiently than bridges or routers. The switch has, therefore, been

recognized as one of the most important building blocks for today’s

networking technology.

When performance bottlenecks are caused by congestion at the network

access point (such as the network card for a high-volume file server), the

device experiencing congestion (server or power user) can be attached

directly to a switched port. And, by using full-duplex mode, the bandwidth

to the end-user can be doubled to maximize throughput.

A switch can be easily configured in any Ethernet network to significantly

boost bandwidth while using conventional cabling and network cards.

Application Examples

VDSL provides significant savings on network installation, equipment and

service fees. Internet services operate over existing phone cabling and a

minimal amount of network equipment. The only changes require

installing a VDSL CPE for each client, and a VDSL switch in the basement

wiring closet. Internet service can then be provided over a direct Ethernet

connectio

n from your ISP. For non-commercial environments, you can run

the switch through a broadband router at the customer’s site. This will

allow you to use a single-user account and ISP sharing to significantly

reduce network access charges.

ETWORK

LANNING

2-2

This VDSL switch provides Internet connections of up to 100 Mbps

symmetric, or an asymmetric 100 Mbps downstream and 50 Mbps

upstream over 200 meters. Cable distances also can run up to 1.5 km at

lower transmission rates. Installation is extremely economical for

multiple-tenant dwellings such as apartment buildings, hotels or school

dormitories, as well as commercial buildings.

VDSL provides multiple-user access to the Internet with benefits

including:

• Internet services such as e-mail over faster connections than currently

possible with other options such as cable modem or ADSL

• Multimedia applications such as video and virtual gaming made

available to the broader public for the first time

• Access to corporate intranets at speeds close to that available in the

office

• Both local network applications and Internet services are supported

for commercial environments

Internet Connections

The figure below shows a VDSL switch providing a broadband data

service to a multi-tenant residential or commercial building. In this

implementation, fiber optic cable carries data from a telephone company’s

central office to the building; then the installed telephone copper wires

take the data and deliver it to individual units within that building.

Figure 2-1 Internet Connections

ISP

(Internet)

Punch Down

Blocks /

Patch Panels

PBX Telephone Line

from Central Office

Fiber Optic Link to ISP

Local Servers

(Locally Hosted Services,

Video Servers, Billing)

Multi-dwelling/Multi-tenant Building

VDSL Lines

Phone Lines

Existing Phone

Lines to Clients

VDSL Switch

Central Office

(PSTN)

MPOE

100240V50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

LineMgmt OE

17OE

POTS

ESDP

ORT

SMC7816MV

TigerAccessEESwitch

PPLICATION

XAMPLES

2-3

Remote Connections with Fiber Cable

Fiber optic technology allows for longer cabling than any other media type.

A 1000BASE-SX MMF Gigabit link can connect to a site up to 550m

away, a 1000BASE-LX (SMF) link up to 10 km, and a 1000BASE-ZX link

up to 70 km. This allows end-users at two sites to use the same Internet

connection, share server resources, and communicate with each other.

In the figure below, a 1000BASE-SX port on the switch in Building 1 is

providing 1000 Mbps connectivity to the switch in Building 2.

Figure 2-2 Remote Connections with Fiber Cable

Making VLAN Connections

This switch supports VLANs which can be used to organize any group of

network nodes into separate broadcast domains. VLANs confine

broadcast traffic to the originating group, and can eliminate broadcast

storms in large networks. This provides a more secure and cleaner network

environment.

VLANs can be based on untagged port groups, or traffic can be explicitly

tagged to identify the VLAN group to which it belongs. Untagged VLANs

1000BASE-SX (550 m)

Central Office

(PSTN)

Punch Down

Blocks /

Patch Panels

PBX

Telephone Line

from Central Office

Fiber Optic Link to ISP

Local Servers

(Locally Hosted Services,

Video Servers, Billing)

Multi-dwelling/Multi-tenant Building 1

VDSL Lines

Phone Lines

Existing Phone

Lines to Clients

VDSL Switch

ISP

(Internet)

MPOE

Central Office

(PSTN)

Punch Down

Blocks /

Patch Panels

PBX

Telephone Line

from Central Office

Local Servers

(Locally Hosted Services,

Video Servers, Billing)

Multi-dwelling/Multi-tenant Building 2

VDSL Lines

Phone Lines

Existing Phone

Lines to Clients

VDSL Switch

VDSLSwitch-VS4512

VS4512

MPOE

1002

40V506

0Hz1A

Console

Power

Fault

Diag

Mgmt

LineMgmtOE

17OE

POTS

ESDPORT

SMC7816MVSW/

TigerAccessEESwitch

1002

40V5060Hz1A

Console

Power

Fault

Diag

Mgmt

LineMgmt OE

17OE

POTS

ESDPORT

SMC7816MVSW

TigerAccessEESwitch

ETWORK

LANNING

2-4

can be used for small networks attached to a single switch. However,

tagged VLANs should be used for larger networks, and all the VLANs

assigned to the inter-switch links.

This switch also has a Private VLAN feature. This allows modification of

the default VLAN to provide port-based security and isolation between

ports within the VLAN. Data traffic on these ports can only be forwarded

to, and from, the uplink port. Private VLANs and normal VLANs can

exist simultaneously within the same switch.

In the figure below, ports 1-5 are connected to four end users and a server

in a normal VLAN configuration. The remaining ports are configured into

a private VLAN.

Figure 2-3 Making VLAN Connections

Note: When connecting to a switch that does not support IEEE 802.1Q

VLAN tags, use untagged ports.

Ports 6-12 in a Private VLAN

Ports 1-5 in VLAN 2

VDSL Switch

Central Office

(PSTN)

Fiber Optic Link to ISP

Phone Lines to Central Office

ISP

(Internet)

100 240V50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESDPORT

SMC7816MVSW/

TigerAccess EE Switch

PPLICATION

OTES

2-5

Application Notes

1. Full-duplex operation only applies to point-to-point access (such as

when a switch is attached to a workstation, server or another switch).

When the switch is connected to a hub, both devices must operate in

half-duplex mode.

2. To interconnect distinct VLANs or IP subnets, you can attach the

switch to a standard Layer 3 router. For network applications that

require routing between dissimilar network types, you can attach the

switch directly to a router.

3. As a general rule the length of fiber optic cable for a single switched

link should not exceed:

• 1000BASE-SX: 550 m (1805 ft) for multimode fiber.

• 1000BASE-LX: 5 km (3.2 miles) for single-mode fiber.

• 1000BASE-ZX: 70 km (43 miles) for single-mode fiber.

However, power budget constraints must also be considered when

calculating the maximum cable length for your specific environment.

ETWORK

LANNING

2-6

3-1

HAPTER

NSTALLING

THE

WITCH

Preparing the Site for VDSL/POTS Connections

In multi-tenant buildings, phone lines from the service provider enter the

site and are terminated at a location referred to as the MPOE (Minimum

Point of Entry). The MPOE is the “demarcation” point where the service

provider’s cables end and that of the building’s owner/customer begins.

An MPOE typically consists of two sets of punch-down blocks; one from

the service provider, and the other from the customer. The customer’s

punch-down blocks are connected to PBX or MDF equipment in the

building. A PBX may have either analog or digital cards that provide the

phone lines to individual end users. The PBX lines are usually connected

to the end users through another set of punch-down blocks or patch

panels. The following figure displays the normal wiring before installing

the VDSL switch.

Figure 3-1 Wiring before VDSL Switch Installation

Punch-Down Blocks

Connecting to Clients

PBX Telephone Line

from Central Office

Existing Phone

Lines to Clients

Upper Floors

Basement

MPOE

Customer s

Punch-Down

Blocks

'Service Provider s

Punch-Down

Blocks

NSTALLING

THE

WITCH

3-2

Installing Additional Equipment

The VDSL switch should be installed close to the PBX, punch-down

blocks, and patch panels, usually in the basement or wiring closet. You may

also want to install a rack for distribution equipment (switches, routers

etc.), and extra punch-down blocks or patch panels for flexibility and

future applications or expansion.

An optional patch panel can be used to connect the circuits between the

switch and the punch-down blocks. If a patch panel is not used, the switch

connects directly to the PBX for the incoming phone lines and the

punch-down block used for the VDSL lines running up to the end users.

In this case, the punch-down blocks must have an RJ-21 connector.

Figure 3-2 Wiring after Switch Installation

Verifying Site Requirement

Before you start installing the switch, make sure you can provide the right

operating environment, including power requirements, sufficient physical

space, and proximity to other network devices that are to be connected. Be

sure to follow the guidelines below when choosing a location.

100240V 50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESDPORT

SMC7816MVSW/

TigerAccessEE Switch

100240V 50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESDPORT

SMC7816MVSW/

TigerAccessEE Switch

witch10/1 00

6724L3

witch10/1 00

6724L3

Punch-Down Blocks

Connecting to Clients

PBX Telephone Line

from Central Office

Existing Phone

Lines to Clients

Upper Floors

Basement

MPOE

Switches

NSTALLING

THERNET

ABLING

3-3

•The site should:

- be at the center of all the devices you want to link and near a power

outlet.

- be out of direct sunlight, and away from heat sources or areas with a

high amount of electromagnetic interference. The temperature should

be within 0 to 50 °C (32 to 122 °F) and its humidity within 5% to 95%,

non-condensing.

- be located in a cool dry place, and have adequate space (approximately

ten centimeters or four inches) on all sides for proper air flow

- be accessible for installing, cabling and maintaining the devices

- allow the status LEDs to be clearly visible

• Make sure twisted-pair cable is always routed away from power lines,

fluorescent lighting fixtures and other sources of electrical interference,

such as radios and transmitters.

• Make sure that the unit is connected to a separate grounded power outlet

that provides 100 to 240 VAC (± 10%), 50 to 60 Hz (± 3Hz), is within 2

m (6.6 feet) of each device and is powered from an independent circuit

breaker. As with any equipment, using a filter or surge suppressor is

recommended.

Installing Ethernet Cabling

To ensure proper operation when installing switches into a network, make

sure that the current cables are suitable for 10BASE-T, 100BASE-TX or

1000BASE-T operation. Check the following criteria against the current

installation of your network:

• Cable type should be unshielded twisted pair (UTP) or shielded twisted

pair (STP) cables with RJ-45 connectors; Category 3 or better for

10BASE-T, Category 5 or better for 100BASE-TX, and Category 5, 5e or

6 for 1000BASE-T.

NSTALLING

THE

WITCH

3-4

• Protection from radio frequency interference emissions

• Electrical surge suppression

• Separation of electrical wires (switch related or other) and

electromagnetic fields from data based network wiring

• Safe connections with no damaged cables, connectors or shields

Figure 3-3 RJ-45 Connections

Equipment Checklist

After unpacking the switch, check the contents to be sure you have

received all the components. If any of the items are missing or damaged,

contact your local distributor. Also, be sure you have all the necessary tools

and cabling before installing the switch.

Package Contents

• TigerAccess EE Switch (SMC7816M/VSW)

• Four adhesive foot pads

• Bracket Mounting Kit containing two brackets and four screws for

attaching the brackets to the switch

• Power cord—either US, Continental Europe or UK

• Two RJ-21 cables

• This Installation Guide

• Management Guide CD

RJ-45 Connector

OUNTING

3-5

If possible, retain the carton, including the original packing materials. Use

them again to repack the product in case there is a need to return it for

repair.

Optional Rack-Mounting Equipment

If you plan to rack-mount the switch, be sure to have the following

equipment available:

• Four mounting screws for each device you plan to install in a rack—these

are not included

• A screwdriver (Phillips or flathead, depending on the type of screws used)

Mounting

The switch may be mounted on any flat surface, such as a shelf, or in a

rack. Mounting instructions for each type of site follow.

Rack Mounting

Before rack mounting the switch, pay particular attention to the following

factors:

• Temperature: Since the temperature within a rack assembly may be

higher than the ambient room temperature, check that the

rack-environment temperature is within the specified operating

temperature range. (See page C-2.)

• Mechanical Loading: Do not place any equipment on top of a

rack-mounted unit.

• Circuit Overloading: Be sure that the supply circuit to the rack assembly

is not overloaded.

• Grounding: Rack-mounted equipment should be properly grounded.

Particular attention should be given to supply connections other than

direct connections to the mains.

NSTALLING

THE

WITCH

3-6

To rack-mount devices:

1. Attach the brackets to the device using the screws provided in the

Bracket Mounting Kit.

Figure 3-4 Attaching the Brackets

2. Mount the device in the rack, using four rack-mounting screws (not

provided).

Figure 3-5 Installing the Switch in a Rack

100 240V 50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESD PORT

SMC7816M VSW/

TigerAccess EE Switch

100 240V 50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESD PORT

SMC7816M VSW/

TigerAccess EE Switch

OUNTING

3-7

3. If installing a single switch only, turn to Connecting to a Power Source

on page 3-7.

4. If installing multiple switches, mount them in the rack, one below the

other, in any order.

Desktop or Shelf Mounting

1. Attach the four adhesive feet to the bottom of the first switch.

Figure 3-6 Attaching the Adhesive Feet

2. Set the device on a flat surface near an AC power source, making sure

there are at least four inches of space on all sides for proper air flow.

3. If installing a single switch only, go to Connecting to a Power Source at

the end of this chapter.

4. If installing multiple switches, attach four adhesive feet to each one.

Place each device squarely on top of the one below, in any order.

100 240V 50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESD PORT

SMC7816M VSW/

TigerAccess EE Switch

NSTALLING

THE

WITCH

3-8

Installing an Optional SFP Transceiver

Figure 3-7 Inserting an SFP Transceiver into a Slot

The switch support the following optional transceivers:

To install an SFP transceiver, do the following:

1. Consider network and cabling requirements to select an appropriate

SFP transceiver type.

2. Insert the transceiver with the optical connector facing outward and

the slot connector facing down. Note that SFP transceivers are keyed

so they can only be installed in the correct orientation.

3. Slide the SFP transceiver into the slot until it clicks into place.

Note: SFP transceivers are hot-swappable. The switch does not need to

be powered off before installing or removing a transceiver.

However, always first disconnect the network cable before

removing a transceiver.

Table 3-1 Optional SFP Transceivers

1000BASE-SX (SMCBGSLCX1)

1000BASE-LX (SMCBGLLCX1)

1000BASE-ZX (SMCBGZLCX1)

Line

Mgmt

17 OE

POTS

ESD PORT

SMC7816M VSW/

TigerAccess EE Switch

ONNECTING

OWER

OURCE

3-9

Note: SFP transceivers are not provided in the switch package.

Connecting to a Power Source

To connect a device to a power source:

1. First verify that the external AC power supply can provide 100 to 240

VAC, 50-60 Hz, 1 A minimum.

2. Plug the power cable into a grounded, 3-pin, AC power source.

Note: For international use, you may need to change the AC line

cord. You must use a line cord set that has been approved for

the socket type in your country.

3. Insert the plug on the other end of the power directly into the socket

located on the front of the switch.

Figure 3-8 Power Socket

4. Check the front-panel LEDs as the switch is powered on to be sure

the Power LED is lit. If not, check that the power cable is correctly

plugged in. The switch will automatically select the setting that

matches the connected input voltage. Therefore, no additional

adjustments are necessary when connecting it to any input voltage

within the range marked on the front panel.

Notes: 1. The switch performs a self-diagnostic test upon power-on.

2. The unit supports a “hot remove” feature which permits you to

connect or disconnect network cables without powering off the unit

100 240V 50 60Hz 1A--

NSTALLING

THE

WITCH

3-10

and without disrupting the operation of the devices attached to the

unit.

Connecting to the Console Port

The RJ-45 serial port on the switch’s front panel is used to connect to the

switch for out-of-band console configuration. The on-board configuration

program can be accessed from a terminal or a PC running a terminal

emulation program. The pin assignments used to connect to the serial port

are provided in the following table.

Figure 3-9 Serial Port (RJ-45) Pin-Out

Wiring Map for Serial Cable

Table 3-2 Wiring Map for Serial Cable

Switch’s 8-Pin

Serial Port

Null Modem PC’s 9-Pin

DTE Port

6 RXD (receive data) <---------------------------- 3 TXD (transmit data)

3 TXD (transmit data) -----------------------------> 2 RXD (receive data)

5 SGND (signal ground) ------------------------------ 5 SGND (signal ground)

No other pins are used.

ONNECTING

THE

ONSOLE

ORT

3-11

The serial port’s configuration requirements are as follows:

• Default Baud rate—9,600 bps

• Character Size—8 Characters

•Parity—None

•Stop bit—One

• Data bits—8

• Flow control—none

See “Console Port Pin Assignments” on page B-9 for more detailed

information on attaching various connector types to the console port.

NSTALLING

THE

WITCH

3-12

4-1

HAPTER

AKING

ETWORK

ONNECTIONS

The TigerAccess EE Switch is designed to connect subscriber ports via

VDSL lines, and uplink to the service provider’s network via twisted-pair

or fiber optic cabling. The uplink ports can be connected to network cards

in PCs and servers, as well as to hubs, switches or routers. The dedicated

management port is designed for local configuration access outside of the

data network.

Connecting RJ-21 Cables

For incoming phone lines, a switch can connect directly to a PBX or can

be connected via a punch-down block or patch panel. The particular

connection method used will depend on the type of connectors and cables

supported on the PBX, and on the existing cabling in the building.

The RJ-21 cables from the switch are connected to the punch-down block

that connects the phone lines and run up to the end users.

For all connections to the switch, cables with standard Telco RJ-21

connectors must be used. Some punch-down blocks and panels can be

pre-wired with an RJ-21 connector, making the connection simple.

Otherwise, a cable with an RJ-21 on one end and free wiring on the other

end will be required.

Note: RJ-21 Cable is Type-1 26 AWG (100 ohm)/0.4 mm, or Type-2 24

AWG (100 ohm)/0.5 mm cable with male RJ-21 connectors at

AKING

ETWORK

ONNECTIONS

4-2

each end. Typically 24 AWG (100 ohm)/0.5 mm wire provides

better performance than 26 AWG (100 ohm)/0.5 mm wire.

Connecting to the Punch-down Blocks

The switch connects directly to the PBX and building’s phone-line

punch-down block with RJ-21 connectors. Follow the steps listed below to

connect the switch.

1. Connect one RJ-21 cable from the PBX/MDF to the RJ-21 connector

on the rear of the switch labeled “POTS.”

2. Connect another RJ-21 cable from the punch-down block to the RJ-21

connector on the rear of the switch labeled “VDSL.” Note that the

connection to the punch down block usually requires punching down

the free wires from the RJ-21 cable.

The RJ-21 ports on punch-down blocks must be wired to match the pin

assignments of ports on the back of the switch. To ensure that your cables

are properly wired, refer to “RJ-21 Port Pin Assignments” on page B-8.

Note: If you are using a patch panel, connect the RJ-21 ports on the back

of the switch directly to the corresponding ports on the patch

panel, and then manually wire each pair (up to 16) from the patch

panel to the punch-down blocks.

Figure 4-1 Connecting to the Punch-down Blocks

100 240V 50 60Hz 1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESD PORT

SMC7816M VSW/

TigerAccess EE Switch

RJ-21

Cable

PBX/MDF

Connector PBX

Punch-down Block

with RJ-21 Connector

Building’s Phone-line

Punch-down Block

Free

Wiring

Twisted-pair

Connection

to CPE

RJ-21

Cable

ONNECTING

RJ-21 C

ABLES

4-3

Using Patch Panels

Follow the steps below to connect a VDSL switch to a building’s

phone-line system using a patch panel:

1. Connect an RJ-21 cable from the patch panel to the RJ-21 connectors

on the rear of the switch labeled “VDSL.” If connecting to a pre-wired

patch-panel with an RJ-21 connector, use a cable with RJ-21

connectors on both ends, otherwise a cable with free wires at one end

will have to be punched down to the back of the patch panel.

2. Connect each port on the front of the patch panel to one end-user

phone-line connection. This connection can be direct to the building’s

phone-line punch-down block or via another patch-panel.

3. Label the cables to simplify future troubleshooting.

Figure 4-2 Using Patch Panels

100 240V 50 60Hz1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESDPORT

SMC7816MVSW/

TigerAccess EE Switch

TigerSw it c h 10/100

6724L3

TigerSw it c h 10/100

6724L3

VDSL Switch

Patch Panel

Twisted-pair Cables

to End Users

PBX

RJ-21 Cable

AKING

ETWORK

ONNECTIONS

4-4

Connecting Twisted-Pair Devices

Each device requires an unshielded twisted-pair (UTP) cable with RJ-45

connectors at both ends. Use Category 5, 5e or 6 cable for 1000BASE-T

connections, Category 5 or better for 100BASE-TX connections, and

Category 3 or better for 10BASE-T connections.

Cabling Guidelines

The RJ-45 ports on the switch support automatic MDI/MDI-X pinout

configuration, so you can use standard straight-through twisted-pair cables

to connect to any other network device (PCs, servers, switches, routers, or

hubs). See Appendix B for further information on cabling.

Caution: Do not plug a phone jack connector into an RJ-45 port. This

will damage the switch. Use only twisted-pair cables with RJ-45

connectors that conform to FCC standards.

Network Wiring Connections

Attach one end of a twisted-pair cable to an available uplink port on the

switch in the wiring closet, and the other end to the Internet Service

Provider’s network equipment.

Figure 4-3 Network Wiring Connections

100 240V 50 60Hz1A--

Console

Power

Fault

Diag

Mgmt

Line

Mgmt

17 OE

POTS

ESDPORT

SMC7816MVSW/

TigerAccess EE Switch

TigerSw it c h 10/100

6724L3

TigerSw it c h 10/100

6724L3

VDSL Switch

Patch Panel

Twisted-pair Cables

to End Users

PBX

RJ-21 Cable

ISP

(Internet)

ONNECTING

WISTED

-P

AIR

EVICES

4-5

Connecting to PCs, Servers, Hubs and Switches

Depending on the wiring configuration used at the customer’s site,

separate wall jacks may be used for telephone and VDSL services.

Otherwise, you will need to connect the telephone and computer directly

to a CPE similar to that shown below. For detailed information on

installing and operating the CPE, refer to the relevant user guide.

Figure 4-4 Customer Premises Connections

1. Attach one end of a twisted-pair cable segment to the CPE’s RJ-45

connector.

2. Attach the other end of the cable segment to to your PC or other

network equipment. Make sure the twisted pair cable does not exceed

100 meters (328 ft) in length.

3. As each connection is made, the corresponding Link LED (on the

CPE) should light up to indicate that the connection is valid.

VDSL Line Wall Jack

Standard Telephone Cable

Category 5 UTP cable to

Ethernet port on computer

RJ-11 Ports RJ-45 Port

Telephone, Fax, or Modem

Computer

AC Power Adapter

AC Power Outlet

AKING

ETWORK

ONNECTIONS

4-6

Connecting Fiber Optic Devices

An optional SFP transceiver (1000BASE-SX, 1000BASE-LX or

1000BASE-ZX) can be used for a backbone connection to your Internet

Service Provider, or for connecting to a high-speed server.

Each single-mode fiber port requires 9/125 micron single-mode fiber

optic cable with an LC connector at both ends. Each multimode fiber optic

port requires 50/125 or 62.5/125 micron multimode fiber optic cabling

with an LC connector at both ends. 1000BASE-SX/LX/ZX uses duplex

fiber, operating at a frequency of 1310 nm for both transmit and receive

signals.

Warning: This switch uses lasers to transmit signals over fiber optic

cable. The lasers are compliant with the requirements of a

Class 1 Laser Product and are inherently eye safe in normal

operation. However, you should never look directly at a

transmit port when it is powered on.

Note: When selecting a fiber SFP device, considering safety, please make

sure that it can function at a temperature that is not less than the

recommended maximum operational temperature of the product.

You must also use an approved Laser Class 1 SFP transceiver.

1. Remove and keep the LC port’s rubber cover. When not connected to

a fiber cable, the rubber cover should be replaced to protect the optics.

2. Check that the fiber terminators are clean. You can clean the cable

plugs by wiping them gently with a clean tissue or cotton ball

moistened with a little ethanol. Dirty fiber terminators on fiber cables

will impair the quality of the light transmitted through the cable and

lead to degraded performance on the port.

ONNECTIVITY

ULES

4-7

3. Connect one end of the cable to the LC port on the switch and the

other end to the LC port on the other device. Since LC connectors are

keyed, the cable can be attached in only one orientation.

Figure 4-5 Making LC Port Connections

4. As a connection is made, check the Link LED on the switch

corresponding to the port to be sure that the connection is valid.

The 1000BASE-SX, 1000BASE-LX and 1000BASE-ZX fiber optic ports

operate at 1 Gbps full duplex. All of these SFP modules also support

auto-negotiation of flow control. The maximum length for fiber optic

cable depends on the fiber type as listed under “1000 Mbps Gigabit

Ethernet Cable Lengths” on page 4-8.

Connectivity Rules

When adding hubs (repeaters) to your network, please follow the

connectivity rules listed in the manuals for these products. However,

note that because switches break up the path for connected devices into

separate collision domains, you should not include the switch or connected

cabling in your calculations for cascade length involving other devices.

Line

Mgmt

17 OE

POTS

ESD PORT

SMC7816M VSW/

TigerAccess EE Switch

AKING

ETWORK

ONNECTIONS

4-8

1000BASE-T Cable Requirements

All Category 5 UTP cables that are used for 100BASE-TX connections

should also work for 1000BASE-T, providing that all four wire pairs are

connected. However, it is recommended that for all critical connections, or

any new cable installations, Category 5e (enhanced Category 5) or

Category 6 cable should be used. The Category 5e specification includes

test parameters that are only recommendations for Category 5. Therefore,

the first step in preparing existing Category 5 cabling for running

1000BASE-T is a simple test of the cable installation to be sure that it

complies with the IEEE 802.3-2005 standards.

1000 Mbps Gigabit Ethernet Cable Lengths

Table 4-1 Maximum 1000BASE-T Gigabit Ethernet Cable Length

Cable Type Maximum Cable

Length

Connector

Category 5, 5e, 6 100-ohm UTP or STP 100 m (328 ft) RJ-45

Table 4-2 Maximum 1000BASE-SX Gigabit Ethernet Cable Length

Fiber Size Fiber

Bandwidth

Maximum Cable

Length

Connector

62.5/125 micron

multimode fiber

160 MHz/km 2-220 m (7-722 ft) LC

200 MHz/km 2-275 m (7-902 ft) LC

50/125 micron

multimode fiber

400 MHz/km 2-500 m (7-1641 ft) LC

500 MHz/km 2-550 m (7-1805 ft) LC

ONNECTIVITY

ULES

4-9

100 Mbps Fast Ethernet Cable Lengths

10 Mbps Ethernet Cable Lengths

Table 4-3 Maximum 1000BASE-LX Gigabit Ethernet Cable Length

Fiber Size Fiber

Bandwidth

Maximum Cable

Length

Connector

9/125 micron

single-mode

fiber

N/A 2 m - 10 km

(7 ft - 6.2 miles)

Table 4-4 Maximum 1000BASE-ZX Gigabit Ethernet Cable Length

Fiber Size Fiber

Bandwidth

Maximum Cable

Length

Connector

9/125 micron

single-mode fiber

N/A 70* - 100 km

(43.5 - 62.1 miles)

* For link spans exceeding 70 km, you may need to use premium single mode fiber

or dispersion shifted single mode fiber

Table 4-5 Maximum Fast Ethernet Cable Length

Type Cable Type Max. Cable Length Connector

100BASE-TX Category 5 or better

100-ohm UTP or STP

100 m (328 ft) RJ-45

Table 4-6 Maximum Ethernet Cable Length

Type Cable Type Maximum Length Connector

100ASE-T Categories 3, 4, 5 or

better 100-ohm UTP

100 m (328 ft) RJ-45

AKING

ETWORK

ONNECTIONS

4-10

Cable Labeling and Connection Records

When planning a network installation, it is essential to label the opposing

ends of cables and to record where each cable is connected. Doing so will

enable you to easily locate inter-connected devices, isolate faults and

change your topology without need for unnecessary time consumption.

To best manage the physical implementations of your network, follow

these guidelines:

• Clearly label the opposing ends of each cable.

• Using your building’s floor plans, draw a map of the location of all

network-connected equipment. For each piece of equipment, identify

the devices to which it is connected.

• Note the length of each cable and the maximum cable length

supported by the switch ports.

• For ease of understanding, use a location-based key when assigning

prefixes to your cable labeling.

• Use sequential numbers for cables that originate from the same

equipment.

• Differentiate between racks by naming accordingly.

• Label each separate piece of equipment.

• Display a copy of your equipment map, including keys to all

abbreviations at each equipment rack.

A-1

PPENDIX

ROUBLESHOOTING

Diagnosing Switch Indicators

This switch can be easily monitored through panel indicators to identify

problems.The table below describes common problems you may

encounter and possible solutions.

Table A-1 Diagnosing Switch Indicators

Symptom Possible Cause Action

Power indicator

does not light up

after power on.

Power outlet,

power cord, or

internal power

supply may be

defective.

• Check the power outlet by

plugging in another device that is

functioning properly.

• Check the power cord with

another device.

• If these measures fail to resolve

the problem, have the unit’s

power supply replaced by a

qualified distributor.

Diag LED is off Boot-up diagnostic

program has

detected a problem.

• Power cycle the switch to try and

clear the condition.

• If the condition does not clear,

contact your local dealer for

assistance.

ROUBLESHOOTING

A-2

Ethernet port

Link indicator

does not light up

after making a

connection.

Network cable or

Ethernet device

attached to this port

may be defective.

• Verify that the switch and

attached device are powered on.

• Be sure an Ethernet cable is

plugged into both the switch and

attached device.

• Verify that the proper cable type

is used and its length does not

exceed specified limits.

• Check the network cable

connections for possible defects.

Replace the defective cable if

necessary.

VDSL port

LINK indicator

does not light up

after making a

connection.

VDSL switch,

cabling, or VDSL

switch ports may be

defective.

• Verify that the VDSL switch and

attached CPE are powered on.

• Be sure the RJ-21 cables are

plugged into the VDSL switch

and the VDSL punch-down

block/patch panel.

• Verify that the cable length does

not exceed specified limits.

• Check the cable connections on

the VDSL switch, punch-down

block/patch panel, and the VDSL

CPE for possible defects. Replace

the defective cable if necessary.

Fault is on

amber.

Fan failure,

temperature

threshold exceeded,

or other hardware

malfunction

• Have the switch replaced.

Table A-1 Diagnosing Switch Indicators

Symptom Possible Cause Action

OWER

AND

OOLING

ROBLEMS

A-3

Power and Cooling Problems

If the power indicator does not turn on when the power cord is plugged in,

you may have a problem with the power outlet, power cord, or internal

power supply. However, if the unit powers off after running for a while,

check for loose power connections, power losses or surges at the power

outlet, and verify that the fans on the unit are unobstructed and running

prior to shutdown. If you still cannot isolate the problem, then the internal

power supply may be defective.

Installation

Verify that all system components have been properly installed. If one or

more components appear to be malfunctioning (such as the power cord or

network cabling), test them in an alternate environment where you are sure

that all the other components are functioning properly.

In-Band Access

You can access the management agent in the switch from anywhere within

the attached network using Telnet, Secure Shell, a web browser, or other

network management software such as SMC EliteView. However, you

must first configure the switch with a valid IP address, subnet mask, and

default gateway. If you have trouble establishing a link to the management

agent, check to see if you have a valid network connection. Then verify

that you entered the correct IP address. Also, be sure the port through

which you are connecting to the switch has not been disabled. If it has not

been disabled, then check the network cabling that runs between your

remote location and the switch.

Also, note that the switch may be configured to prevent management

access from a connection through the data ports (1-16). Refer to the

Management Guide for detailed information on this configuration option.

ROUBLESHOOTING

A-4

Note: The switch can accept up to four simultaneous Telnet sessions. If

the maximum number of sessions already exists, an additional

Telnet connection will not be able to log into the system.

B-1

PPENDIX

ABLES

Twisted-Pair Cable and Pin Assignments

For 10BASE-T/100BASE-TX connections, a twisted-pair cable must have

two pairs of wires. For 1000BASE-T connections the twisted-pair cable

must have four pairs of wires. Each wire pair is identified by two different

colors. For example, one wire might be green and the other, green with

white stripes. Also, an RJ-45 connector must be attached to both ends of

the cable.

Caution: Each wire pair must be attached to the RJ-45 connectors in a

specific orientation.

Caution: DO NOT plug an RJ-11 connector into any RJ-45 port. Use

only twisted-pair cables with RJ-45 connectors that conform

with FCC standards.

Figure B-1 illustrates how the pins on the RJ-45 connector are numbered.

Be sure to hold the connectors in the same orientation when attaching the

wires to the pins.

Figure B-1 RJ-45 Connector Pin Numbers

ABLES

B-2

10BASE-T/100BASE-TX Pin Assignments

Use unshielded twisted-pair (UTP) or shielded twisted-pair (STP) cable

for RJ-45 connections: 100-ohm Category 3 or better cable for 10 Mbps

connections, or 100-ohm Category 5 or better cable for 100 Mbps

connections. Also be sure that the length of any twisted-pair connection

does not exceed 100 meters (328 feet)

All RJ-45 ports on this switch support automatic MDI/MDI-X operation,

so you can use straight-through cables for all network connections to PCs

or servers, or to other switches or hubs. In straight-through cable, pins 1,

2, 3, and 6, at one end of the cable, are connected straight through to pins

1, 2, 3 and 6 at the other end of the cable. When using any RJ-45 port on

this switch, you can use either straight-through or crossover cable.

Note: Auto-negotiation must be enabled for automatic MDI/MDI-X

pinout configuration.

Table B-1 10/100BASE-TX MDI and MDI-X Port Pinouts

Pin MDI Signal Name MDI-X Signal Name

1 Transmit Data plus (TD+) Receive Data plus (RD+)

2 Transmit Data minus (TD-) Receive Data minus (RD-)

3 Receive Data plus (RD+) Transmit Data plus (TD+)

6 Receive Data minus (RD-) Transmit Data minus (TD-)

4,5,7,8 Not used Not used

Note: The “+” and “-” signs represent the polarity of the wires that

make up each wire pair.

WISTED

-P

AIR

ABLE

AND

SSIGNMENTS

B-3

Straight-Through Wiring

If the twisted-pair cable is to join two ports and only one of the ports has

an internal crossover (MDI-X), the two pairs of wires must be straight-

through. (When auto-negotiation is enabled for any RJ-45 port on this

switch, you can use either straight-through or crossover cable to connect

to any device type.)

You must connect all four wire pairs as shown in the following diagram to

support Gigabit Ethernet connections.

Figure B-2 Straight-through Wiring

White/Orange Stripe

Orange

White/Green Stripe

Green

EIA/TIA 568B RJ-45 Wiring Standard

10/100BASE-TX Straight-through Cable

End A End B

Blue

White/Blue Stripe

Brown

White/Brown Stripe

ABLES

B-4

Crossover Wiring

If the twisted-pair cable is to join two ports and either both ports are

labeled with an “X” (indicating MDI-X) or neither port is labeled with an

“X” (which indicates MDI), a crossover must be implemented in the

wiring. (When auto-negotiation is enabled for any RJ-45 port on this

switch, you can use either straight-through or crossover cable to connect

to any device type.)

You must connect all four wire pairs as shown in the following diagram to

support Gigabit Ethernet connections.

Figure B-3 Crossover Wiring

White/Orange Stripe

Orange

White/Green Stripe

EIA/TIA 568B RJ-45 Wiring Standard

10/100BASE-TX Crossover Cable

End A End B

Green

Blue

White/Blue Stripe

Brown

White/Brown Stripe

WISTED

-P

AIR

ABLE

AND

SSIGNMENTS

B-5

1000BASE-T Pin Assignments

1000BASE-T ports switch support automatic MDI/MDI-X operation, so

you can use straight-through cables for all network connections to PCs or

servers, or to other switches or hubs.

The table below shows the 1000BASE-T MDI and MDI-X port pinouts.

These ports require that all four pairs of wires be connected. Note that for

1000BASE-T operation, all four pairs of wires are used for both transmit

and receive.

Use 100-ohm Category 5, 5e, or better unshielded twisted-pair (UTP) or

shielded twisted-pair (STP) cable for 1000BASE-T connections. Also be

sure

that the length of any twisted-pair connection does not exceed 100

meters (328 feet).

Table B-2 1000BASE-T MDI and MDI-X Port Pinouts

Pin MDI Signal Name MDI-X Signal Name

1Bi-directional Data One Plus (BI_D1+) Bi-directional Data Two Plus (BI_D2+)

2Bi-directional Data One Minus (BI_D1-) Bi-directional Data Two Minus (BI_D2-)

3Bi-directional Data Two Plus (BI_D2+) Bi-directional Data One Plus (BI_D1+)

4Bi-directional Data Three Plus (BI_D3+) Bi-directional Data Four Plus (BI_D4+)

5Bi-directional Data Three Minus (BI_D3-) Bi-directional Data Four Minus (BI_D4-)

6Bi-directional Data Two Minus (BI_D2-) Bi-directional Data One Minus (BI_D1-)

7Bi-directional Data Four Plus (BI_D4+) Bi-directional Data Three Plus (BI_D3+)

8Bi-directional Data Four Minus (BI_D4-) Bi-directional Data Three Minus (BI_D3-)

ABLES

B-6
