SMC GE Web Smart Series

EZ Switch™ 10/100/1000 10/18/26/50-Port

Gigabit Web Smart w/wo PoE Switch

Product Overview

SMC Network’s EZ Switch™ web smart series a new 10/18/26/50-port Gigabit Ethernet Smart Switch providing 8/16/24/48 Gigabit

w/wo PoE ports and 2 100/1000BASE-X SFP slots. The switch supports a flexible web-based management interface as well as

SNMP for both IPv4 and IPv6. The GE web smart series provides a range of feature-rich functions, including VLANs, Spanning Tree,

link aggregation, multicasting, security, storm control, and QoS with 8 priority queues. Ideal for users looking to migrate from

unmanaged to managed networks, this Smart Switch is easy to install and is perfect for SMB and SOHO businesses.

Key Features and Benefits

Performance and Scalability

This entry-level managed switch provides 20/36/52/100Gbps

wire-speed switching performance across all 10/18/26/50

ports. This enables the switch to fully support existing

high-performance PCs and laptops, which significantly

improves application response times and the speed of large

file transfers.

The two Gigabit Ethernet 100/1000BASE-X SFP slots provide

uplink flexibility, offering extended fiber connections to the

network backbone.

Feature-Rich Functionality

VLAN features support flexible network partition and

configuration, performance improvement, and cost savings.

IGMP snooping prevents flooding of IP multicast traffic and

limits bandwidth-intensive video traffic to only the subscribers.

Storm control monitors the amount of storm traffic that is sent

every single second on an interface. It allows the

administrator to specify how much storm traffic can be sent as

a percentage of the total bandwidth of an interface.

Continuous Availability

IEEE 802.1w Rapid Spanning Tree Protocol provides a

loop-free network and redundant links to the core network

with rapid convergence, ensuring faster recovery from failed

links, and enhancing overall network stability and reliability.

IEEE 802.3ad Link Aggregation Control Protocol (LACP)

increases bandwidth by automatically aggregating several

physical links together as a logical trunk and providing load

balancing and fault tolerance for uplink connections.

Comprehensive QoS

Support for eight egress queues per port enable differentiated

management of up to eight traffic types. Traffic is prioritized

according to 802.1p, DSCP, and TCP/UDP port number, giving

optimal performance to real-time applications such as voice and

video. Asymmetric bidirectional rate-limiting, per port or per

traffic class, preserves network bandwidth and allows maximum

control of network resources.

Enhanced Security

Port Security limits the total number of devices that can access

a switch port based on MAC address, and protects against MAC

flooding attacks. IEEE 802.1X port-based or MAC-based

access control ensures all users are authorized before being

granted access to the network. User authentication is carried

out using a standard-based RADIUS server, with support for

dynamic VLAN assignment.

Simple Management

An embedded user-friendly web interface helps users quickly

and simply configure switches. SNMP v1/v2 is supported for

management by a network management station. The switch

supports management functions over both IPv4 and IPv6. Cable

diagnostics identifies cable faults (such as short, open, etc.) and

feeds back a distance to the fault. LLDP (Link Layer Discovery

Protocol) enables administrators to monitor devices attached to

switch ports.

PoE Features

The SMCGS10/18/26/50P-Smart can provide up to 30 Watts of

power to attached devices, such as VoIP phones, wireless

access points, surveillance cameras, etc, all over existing Cat. 5

cables. The switch can deliver up to 30 Watts on 2/6/6/12 ports,

15.4 Watts on 4/12/12/24 ports, or 7.5 Watts on 8/24/24/48

ports. This eliminates the need for individual power sources for

devices in the network, saving on costs for power cables and

avoiding power outlet availability issues. If the power demand

exceeds the switch’s maximum power budget, ports can be

prioritized to receive power.

Non PoE Series PoE Series

www.smc.com

www.smc-asia.com

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

SMC-DS-0914-01SMC-DS-0914-01

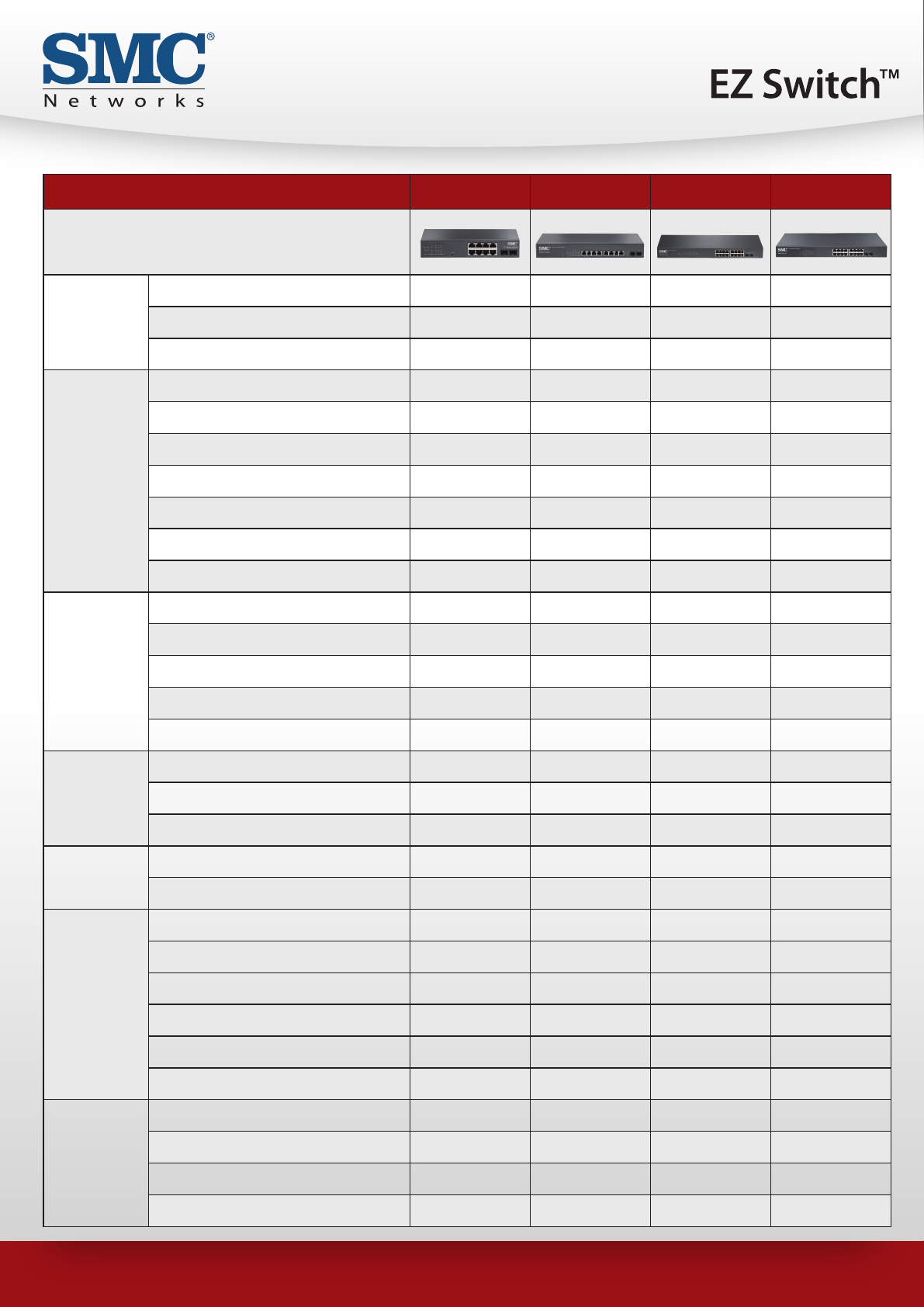

Product Model SMCGS10C-

Smart SMCGS10P-

Smart SMCGS18C-

Smart SMCGS18P-

Smart

Product Image

Port RJ-45 10/100/1000 Ports 8816 16

SFP Uplink Ports 2222

PoE Port X8X16

Performance Switching Capacity 20 Gbps 20 Gbps 36 Gbps 36 Gbps

Forwarding Rate 14.9 Mpps 14.9 Mpps 26.8 Mpps 26.8 Mpps

Flash Memory 8 M8 M 16 M 16 M

DRAM 64 M 64 M 128 M 128 M

MAC Address Table Size 8 K 8 K8 K8 K

Jumbo Frames 10 K 10 K 10 K 10 K

Auto-negotiation, Auto-MDI/MDIXOOOO

PoE Support on all Gigabit ports based on IEEE

802.3af XOXO

PoE+ based on IEEE 802.3at XOXO

Auto disable after exceeding power budget XOXO

Dynamic Power Allocation XOXO

PoE Power Budget X 75 WX190 W

Mechanical Rack Space 19" 19" 19" 19"

Dimension (W x D x H) cm 19.64 x 11.63 x 3.66 33 x 20.4 x 4.3 44 x 17.3 x 4.4 44 x 35 x 4.4

Weight 1.55 kg 2.2 kg 1.91 kg 4.05 kg

Power Supply 100-240 VAC, 50-60 Hz OOOO

Max System Power Consumption (Watts) 20 W 100 W 20 W 250 W

Environmental Operating Temperature 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC

Storage Temperature -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC

Operating Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Storage Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Environmental Regulation compliance: WEEE OOOO

Environmental Regulation compliance: RoHS OOOO

Electromagnetic

Compatibility Safety Compliance: UL OOOO

CE OOOO

Safety Compliance: CB OOOO

Safety Compliance: UL OOOO

www.smc.com

www.smc-asia.com

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

SMC-DS-0914-01SMC-DS-0914-01

Product Model SMCGS26C-

Smart SMCGS26P-

Smart SMCGS50C-

Smart SMCGS50P-

Smart

Product Image

Port RJ-45 10/100/1000 Ports 24 24 48 48

SFP Uplink Ports 2222

PoE Port X24X48

Performance Switching Capacity 52 Gbps 52 Gbps 100 Gbps 100 Gbps

Forwarding Rate 38.7 Mpps 38.7 Mpps 74.4 Mpps 74.4 Mpps

Flash Memory 16 Mpps 16 Mpps 16 Mpps 16 Mpps

DRAM 128 M 128 M 128 M 128 M

MAC Address Table Size 8 K8 K 32 K 32 K

Jumbo Frames 10 K 10 K 10 K 10 K

Auto-negotiation, Auto-MDI/MDIXOOOO

PoE Support on all Gigabit ports based on IEEE

802.3af XOXO

PoE+ based on IEEE 802.3at XOXO

Auto disable after exceeding power budget XOXO

Dynamic Power Allocation XOXO

PoE Power Budget X 190 WX375 W

Mechanical Rack Space 19" 19" 19" 19"

Dimension (W x D x H) cm 44 x 17.3 x 4.4 44 x 35 x 4.4 43 x 25 x 4.45 44 x 35 x 4.45

Weight 2.01 kg 4.22 kg 2.99 kg 5.19 kg

Power Supply 100-240 VAC, 50-60 Hz OOOO

Max System Power Consumption (Watts) 20 W 250 W 50 W 525 W

Environmental Operating Temperature 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC 0ºC to 50ºC

Storage Temperature -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC -40ºC to 70ºC

Operating Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Storage Humidity (non-condensing) 10% to 90% 10% to 90% 10% to 90% 10% to 90%

Environmental Regulation compliance: WEEE OOOO

Environmental Regulation compliance: RoHS OOOO

Electromagnetic

Compatibility Safety Compliance: UL OOOO

CE OOOO

Safety Compliance: CB OOOO

Safety Compliance: UL OOOO

2222

X1

K8

OO

XOXO

XOXO

XOXO

XOXO

OOOO

OOOO

OOOO

OOOO

OOOO

OOOO

OOOO

www.smc.com

www.smc-asia.com

Connect Your World ...

Switches | Wireless | Broadband | Home Security | Network Adapters

SMC-DS-1114-01

Contact

Worldwide Corporate and Sales Headquarters

No. 1 Creation Road III,

Hsinchu Science Park,

30077, Taiwan, R.O.C.

Tel: +886 3 5638888 Fax: +886 3 6686111

Check www.smc-asia.com or www.smc.com for your local country contact information

Edge-Core Networks Corporation

Features

L2 Features

Spanning Tree:

■ IEEE 802.1D Spanning Tree Protocol (STP)

■ IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

■ IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP)

■ Loopback detection

■ BDPU Filter / Guard

■ Root Guard

VLAN:

■ Supports 4K IEEE 802.1Q VLANs

■ Port-based / Private / Protocol / Management / Voice / Guest VLANs

■ MVR

■ Q-in-Q

Link Aggregation:

■ Static Trunk

■ IEEE 802.3ad (LACP) Link Aggregation Control Protocol

IGMP :

■ IGMP snooping v1/v2/v3

■ IGMP snooping v1/v2/v3 Proxy

■ IGMP Filtering / Throtting

■ IGMP immediate leave

■ IGMP Querier

■ MLD Snooping

Storm Control:

■ Broadcast / Multicast / Unknown Storm Control

LLDP (802.1ab) LLDP/ LLDP-MED

802.3az EEE (No Link Power-Saving)

PoE Features

Support 802.3af/at

■ Support 7.5W/15.4W/30W in each port

(Total PoE Power Budget have limited as follow)

PoE power budget:

■ SMGS10P-Smart (75W)

■ SMGS18P-Smart (190W)

■ SMGS26P-Smart (190W)

■ SMGS50P-Smart (375W)

Dynamic Power Allocation / Auto disable after exceeding power budget

QoS Features

Rate Limiting:

Priority Queues Schedule

■ WRR/Strict Priority / Hybrid

CoS

■ IEEE 802.1p QoS

■ 8 HW Queues / per port

■ TCP / UDP Port

■ DSCP

■ IPv4/ IPv6-Base QoS

■ DiffServ

Singapore

15 Enggor Street

#10-04, Realty Centre

Singapore 079716

Tel: 65-63387667 Fax: 65-63387767

SMC-DS-0914-01

2222

4X

OO

XOXO

XOXO

XOXO

XOXO

OOOO

OOOO

OOOO

OOOO

OOOO

OOOO

OOOO

IPv6 Features

IPv4/ IPv6 Dual Protocol Stack

IPv6 Management

SNMP over IPv6 (SMCGS10-C Smart and SMCGS10P Smart are not

supported)

Security Features

IEEE 802.1X

ACL

■ L2/L3/L4

■ ACL entry (10C/10P/18C/18P/26C/26P: 256); (50C/50P: 512)

■ IPv4/ IPv6

Port Security (Static / Dynamic)

Trusted MAC

MAC Filter

MAC limitation per port

DHCP Snooping

Dynamic ARP Inspection

AAA (RADIUS / TACACS+)

SSH1.5/2.0

SSL

■ SSL L2/L3/L4

■ SSL v3

■ SSL IPv4/IPv6 (SMCGS10-C Smart and SMCGS10P Smart are not

supported)

Management Features

System password protection

sFlow (SMCGS10-C Smart and SMCGS10P Smart are not supported)

NTP

Dual Image

Configuration upload / download (HTTP / TFTP)

Firmware upload /download (HTTP/ TFTP)

RMON(groups 1,2,3 and 9)

SNMP

■ SNMP Trap

■ SNMP v1/v2/v3

■ SNMP Standard MIB

Management Access (SNMP / WEB /Telnet )

BOOTP

Memory Flash Log

Event / Error Log / Syslog

DHCP Client/ Option 82

Port Mirroring (One to One) TX/RX (both)
