Revised 1-11-07 OWNER’S MANUAL
5.25 MOTORIZED TREADMILL
USER WEIGHT LIMITATION: 275lbs. (124 kgs.)
SERIAL NUMBER (found on frame):
www.smoothfitness.com 2
PRECAUTIONS
For future service or related questions:
Please staple your receipt and/or write in the name and phone number of the retail store where you purchased your treadmill.
Name: ______________________________ Phone Number: ___________________ Receipt: ______________________
Precautions:
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the following important precautions and
information before operating the treadmill. It is the responsibility of the owner to ensure that all users of this treadmill are adequately
informed of all warnings and precautions.
• Use the treadmill only as described in this manual.
• Place on a level surface, with 6 feet (2 m) of clearance behind it. Do not place the treadmill on any surface that blocks air
openings. To protect the floor or carpet from damage, place a mat under the treadmill.
• When choosing a location for the treadmill be sure that the location and position permit access to a plug.
• Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near
water.
• Do not operate the treadmill where aerosol products are used or where oxygen is being administered.
• Keep children under the age of 12 and pets away from the treadmill at all times.
• The treadmill should not be used by persons weighing more than 275lbs (124 kgs. )
• Never allow more than one person on the treadmill at a time. Wear appropriate exercise clothing when using the treadmill.
Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both
men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.
• When connecting the power cord, plug the power cord into a grounded circuit. No other appliance should be on the same
circuit.
• Always straddle the belt and allow it to start moving before stepping onto the belt.
• Always examine your treadmill before using to ensure all parts are in working order.
• Allow the belt to fully stop before dismounting.
• Never insert any object or body parts into any opening.
• Follow the safety information in regards to plugging in your treadmill.
• Keep the power cord away from the incline wheels and do not run the power cord underneath your treadmill. Do not operate
the treadmill with a damaged or frayed power cord.
• Always unplug the treadmill before cleaning and/or servicing. Service to your treadmill should only be performed by an
authorized service representative, unless authorized and/or instructed by the manufacturer. Failure to follow these
instructions will void the treadmill warranty.
• Never leave the treadmill unattended while it is running.
• This equipment is Class B (Home Use Only).
www.smoothfitness.com 3

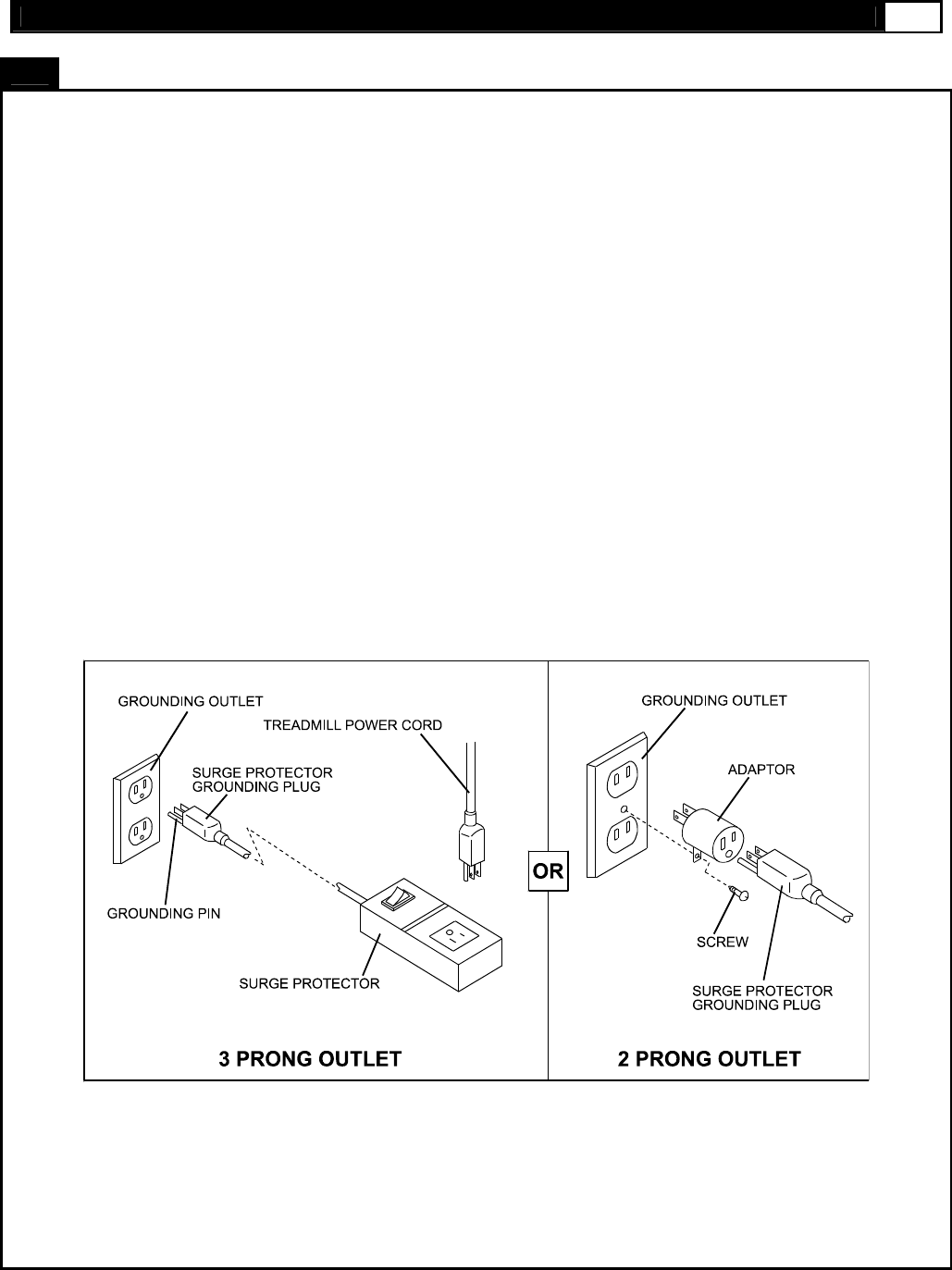

POWER REQUIREMENTS
Power Requirements:
IMPROPER CONNECTION OF THE EQUIPMENT GROUNDING CONNECTOR CAN RESULT IN THE RISK OF AN ELECTRIC
SHOCK. CHECK WITH A QUALIFIED ELECTRICIAN OR SERVICE MAN IF YOU ARE IN DOUBT AS TO WHETHER THE
PRODUCT IS PROPERLY GROUNDED. DO NOT MODIFY THE PLUG PROVIDED WITH THE PRODUCT, IF IT WILL NOT FIT
THE OUTLET; HAVE A PROPER OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
This treadmill can be seriously damaged by sudden voltage changes in your home’s electrical power. Voltage spikes, surges and
noise interference can result from weather conditions or from other appliances being turned on or off. To reduce the possibility of
treadmill damage, always use a surge protector (not included) with your treadmill.
Surge protectors can be purchased at most hardware stores. The manufacturer recommends a single outlet surge protector with a UL
1449 rating as a Transient Voltage Surge Suppressor (TVSS) with a UL suppressed voltage rating of 400V or less and an electrical
rating 110VAC, 15 amps.
This treadmill must be grounded to reduce the risk of electrical shock. Grounding provides a path of least resistance for electric
current, should the treadmill malfunction. This treadmill is equipped with an electrical cord that has an equipment-grounding
conductor and a grounding plug. Always plug the power cord into a surge protector, and plug the surge protector into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
This product is for use on a nominal 110-volt circuit, and has a grounding plug that looks like the plug illustrated in the drawing below.
GFCI outlets and GFCI Circuit Breakers are NOT recommended for use on this product. GFCI outlets and GFCI Circuit Breakers may
cause this equipment to improperly function.
www.smoothfitness.com 4
Before You Begin
Open the boxes:
Open the boxes of your new equipment. Inventory all parts included in the boxes, and compare them to the
Supplied Components and Supplied Hardware lists on pages 5-6 for a full count of the parts included. If you
are missing any parts or have any questions contact us directly at 888-800-1167
*Assembly instructions begin on page 10.
Gather your tools:
Before you begin, make sure that you have gathered all the necessary tools you may require to assemble the
unit properly. Having all of the necessary equipment at hand will save time and make the assembly quick and
hassle-free.
Clear your work area:
Make sure that you have cleared away a large enough space to properly assemble the unit. Make sure the
space is free from anything that may cause injury during assembly. After the unit is fully assembled, make
sure there is a comfortable amount of free area around the unit for unobstructed operation.
Invite a friend:
Some of the assembly steps may require heavy lifting. It is recommended that you obtain the assistance of
another person when assembling this product.
User Weight Limitation:
Please note that there is a weight limitation for this product. If you weigh more than 275LB (Approx. 124 Kg)
it is not recommended that you use this product. Serious injury may occur if the user’s weight exceeds the
limit shown here. This product is not intended to support users whose weight exceeds this limit.
Care and maintenance:
The safety level can be maintained only if it is examined for damage and wear.
Replace any defective components immediately and stop all use of the equipment until repaired.
Always take care when mounting the equipment. Straddle the equipment by placing your feet on the straddle
rails. Dismount from the equipment only after all parts have stopped.
Always check the wear and tear components like pulley, belts, etc.…To prevent injury.
There is an emergency stop, in the form of a SAFETY KEY, to prevent injury; you can stop the treadmill
immediately by actuating the emergency stop for emergency dismount.
www.smoothfitness.com 5

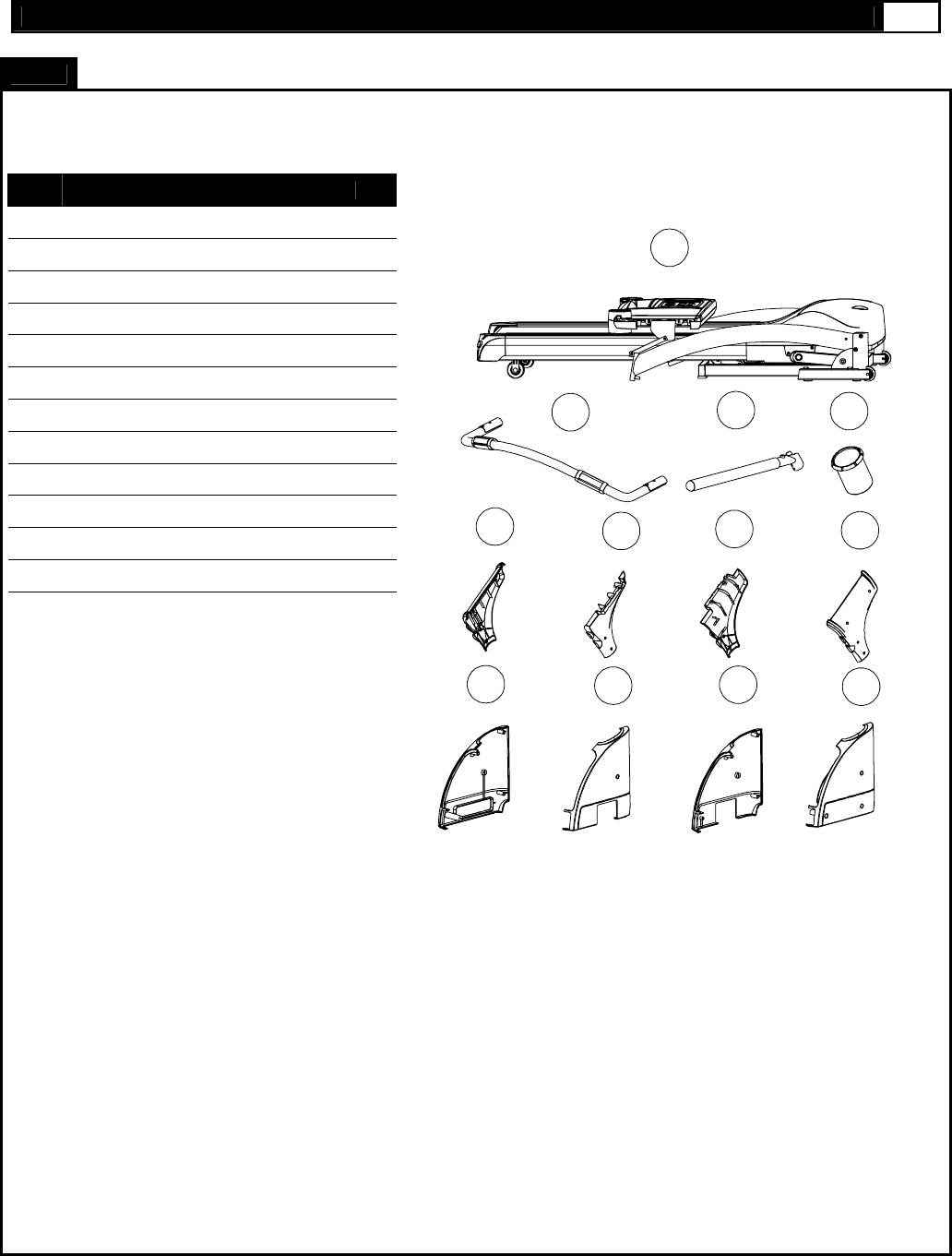

Supplied Components
This list identifies the major components you will use to assemble this product. Component A, B, and C are already partially
assembled
No. Description Qty.
A Main Frame Assembly 1
B Front handlebar 1
C Side handle bar 2

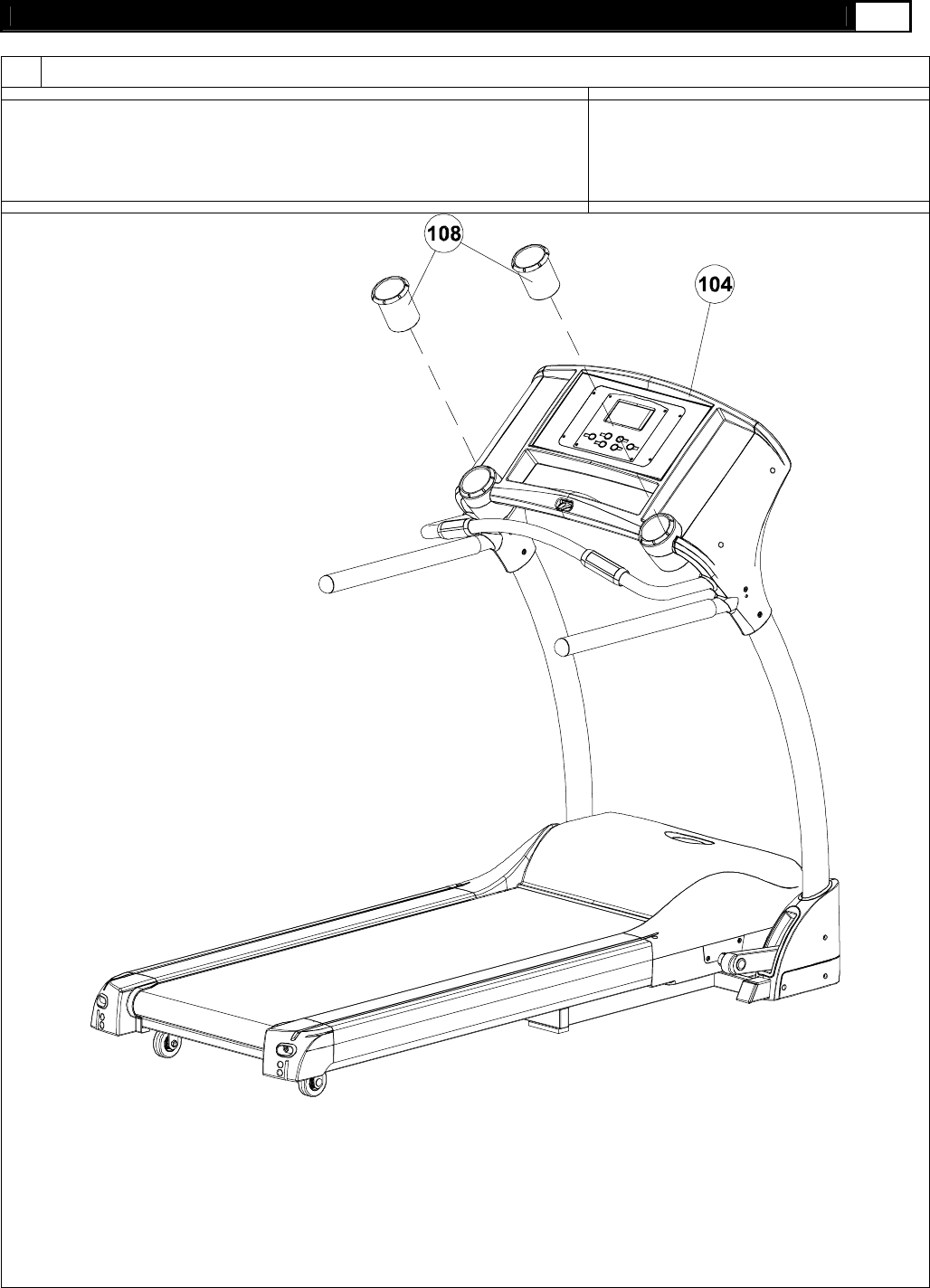

108 Water Bottle Holder 2
207 Handle Bar Cover - LL 1
208 Handle Bar Cover - LR 1
209 Handle Bar Cover - RL 1
210 Handle Bar Cover - RR 1

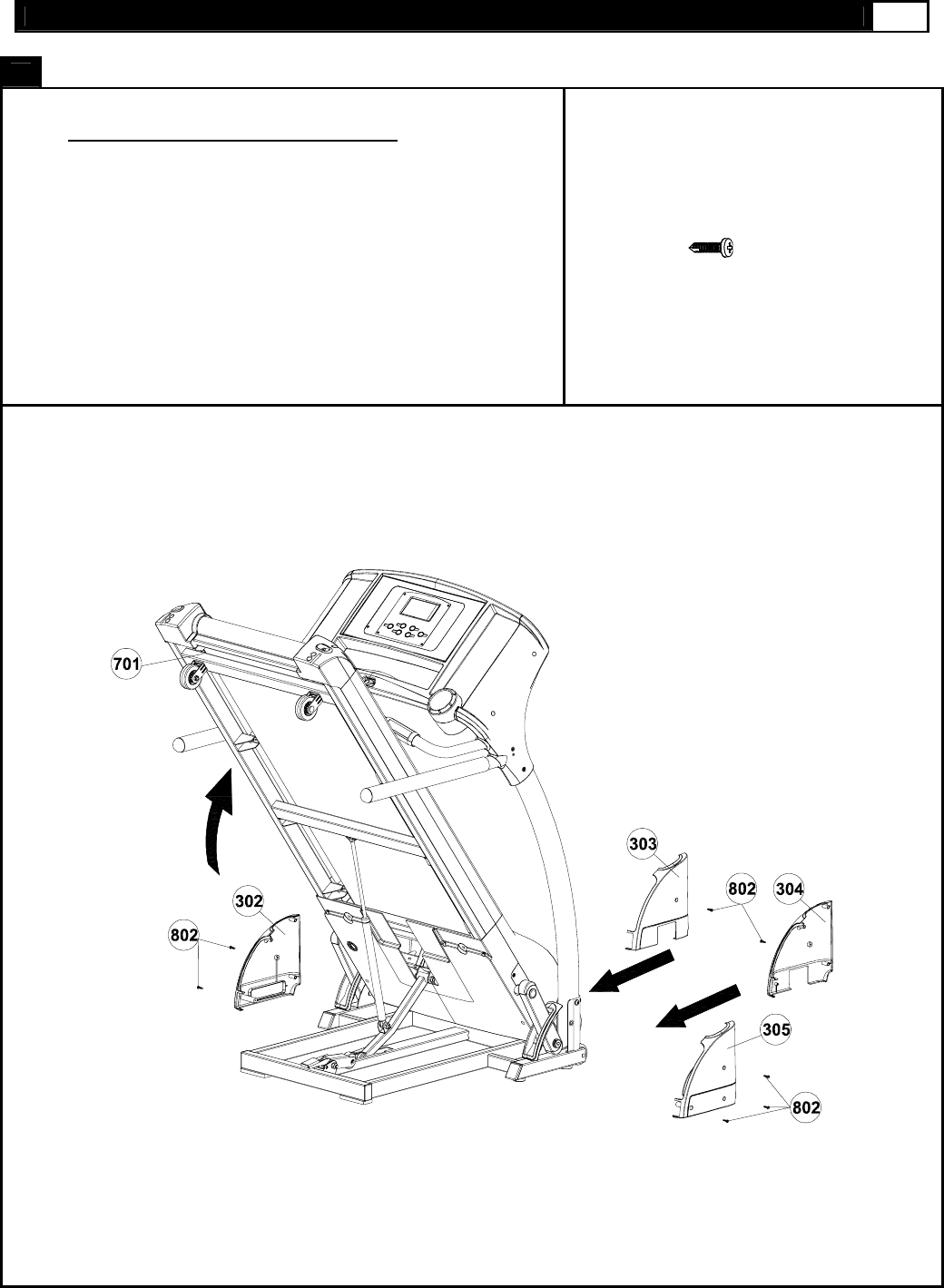

302 Upright Base Cover - LL 1
303 Upright Base Cover - LR 1
304 Upright Base Cover - RL 1
305 Upright Base Cover - RR 1
A
BC108
207 208 209 210
302 303 304 305
www.smoothfitness.com 6

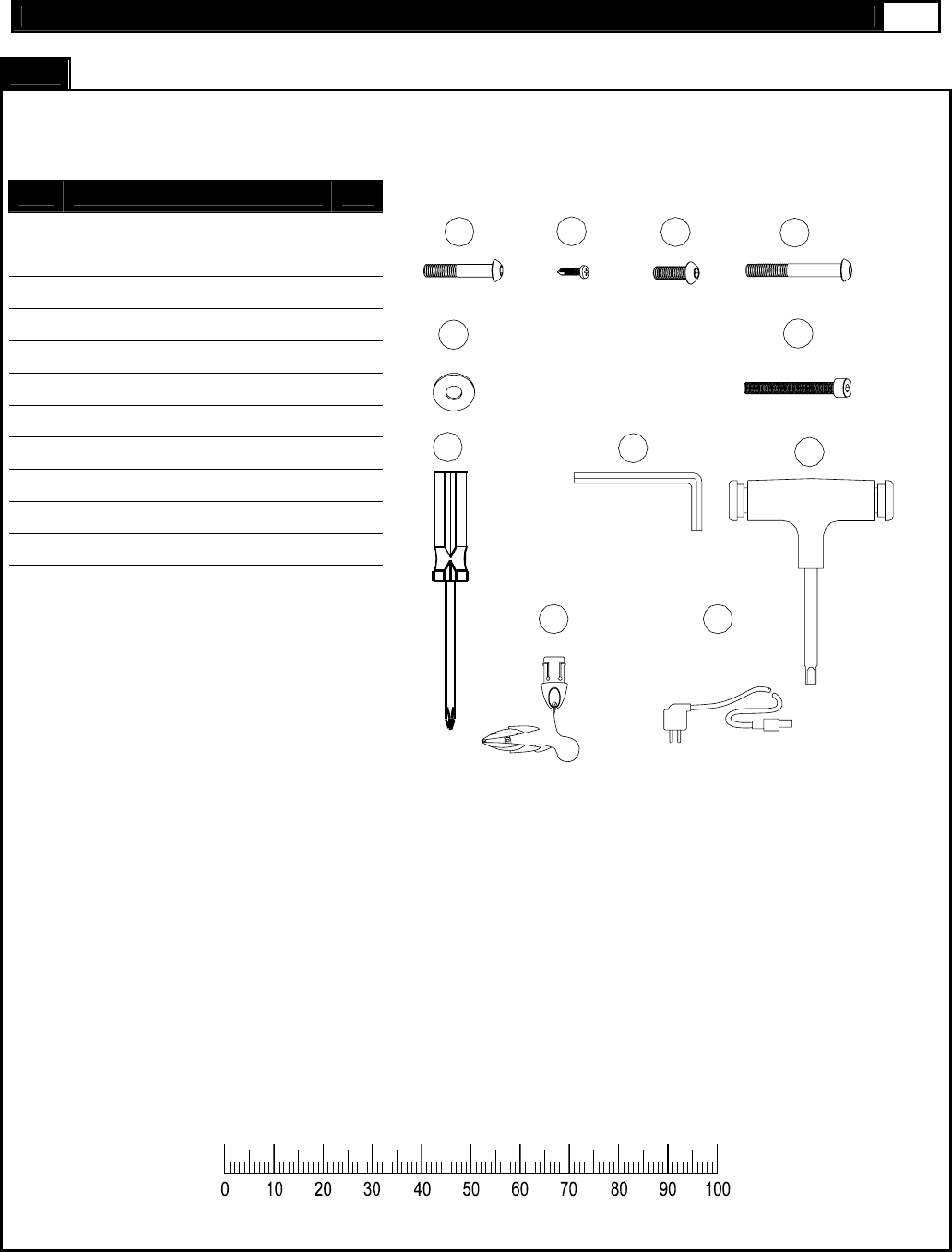

Supplied Hardware
This list identifies the hardware you will use to assemble the product. To help distinguish between the various
types of screws and bolts, use the scale below to measure them and compare them to the sizes listed.
No. Description Qty.
802 M4×15 Screw 27
805 M8×45 Bolt 2
810 M8×18 Bolt 8
811 M8×52 Bolt 2
812 #8 Washer 12
845 M8×75 Bolt 2
A Screw driver 1
B Allen key 1
C Allen Wrench 1
D Safety Key 1
E Power Cord 1
845
810 811
805
812
802
ABC
D E
MILLIMETERS
www.smoothfitness.com 7
Complete Parts List
Description Qty. Order No.
100 Complete Computer Console Components
101 Overlay 1 5.25-101
102 Computer PC Board 1 5.25-102
103 Console Plate 1 5.25-103
104 Console Housing – Upper 1 5.25-104
105 Console Housing – Bottom 1 5.25-105
106 Safety Key Base 1 5.25-106
107 Safety Key 1 5.25-107
108 Water Bottle Holder 2 5.25-108
109 Hand Pulse Wire – Upper 2 5.25-109
110 Plastic Fixing Insert 8 5.25-110
111 Hand Pulse Wire – Lower 2 5.25-111
200 Complete Handle Bar Components
201 Front Handle Bar Tube 1 5.25-201
202 Handle Bar 2 5.25-202
203 Handle Bar Upright Foam Grip 2 5.25-203
204 Handle Bar Upright Foam Grip 2 5.25-204
205 Handle Bar Upright Foam Grip 1 5.25-205
206 Hand Pulse Sensor 2 5.25-206
207 Handle Bar Cover – LL 1 5.25-207
208 Handle Bar Cover – LR 1 5.25-208
209 Handle Bar Cover – RL 1 5.25-209
210 Handle Bar Cover – RR 1 5.25-210
211 Console Connect Piece – L 1 5.25-211
212 Console Connect Piece – R 1 5.25-212
213 Console Connect Tube 2 5.25-213
216 Handle Bar End Cap 2 5.25-216
217 Hand Pulse Wire – Lower 2 5.25-217
300 Complete Upright Components
301 Upright 2 5.25-301
302 Upright Low Cover – LL 1 5.25-302
303 Upright Low Cover – LR 1 5.25-303
304 Upright Low Cover – RL 1 5.25-304
305 Upright Low Cover – RR 1 5.25-305

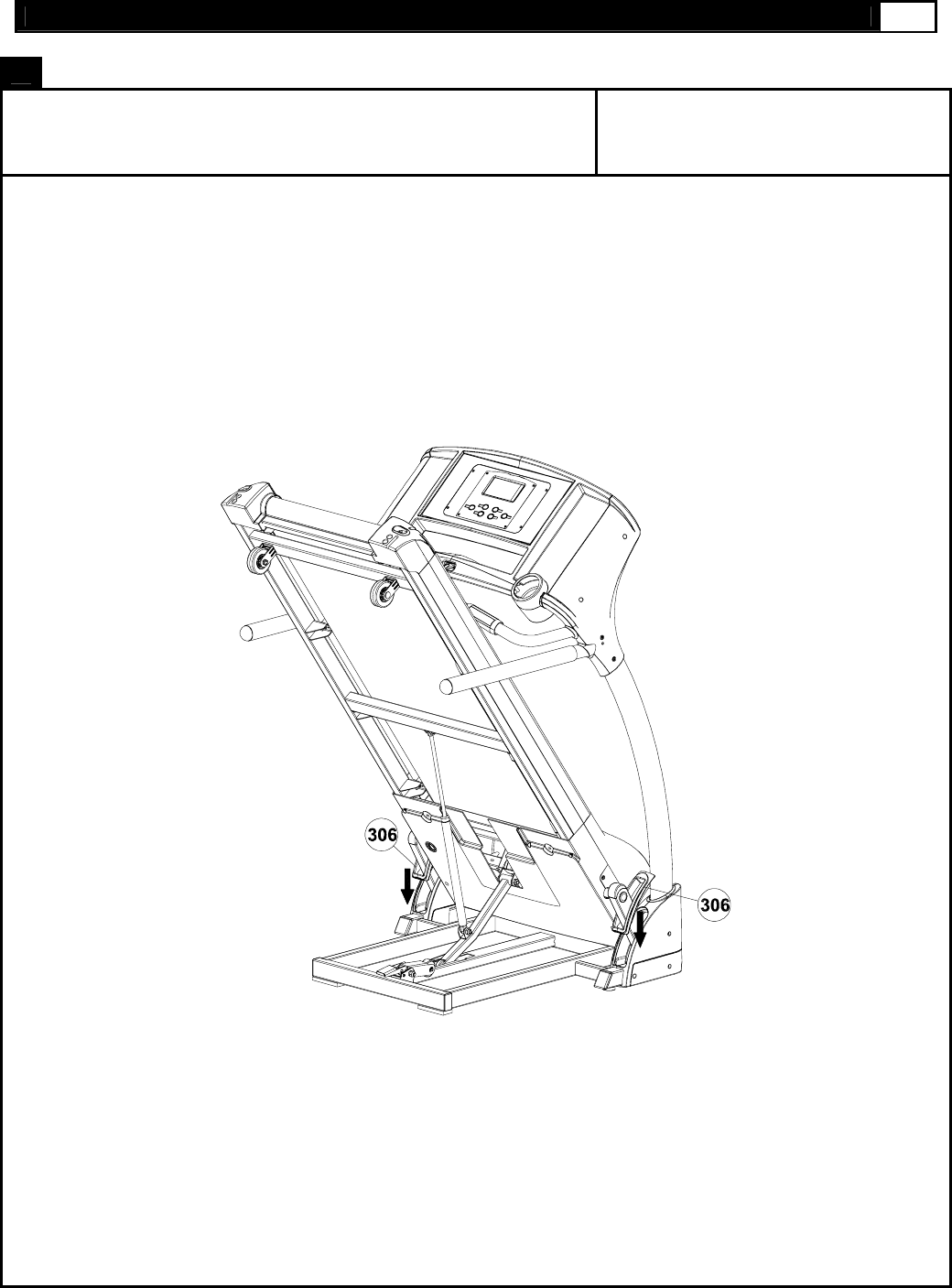

306 Adjustable Cylinder Cover – Upper 2 5.25-306
307 Motion Control Sensor Wire – Middle 2 5.25-307
308 2 pin Safety Key Wire 2200 mm 1 5.25-308
309 7 pin Computer Wire – Upper 2980mm 1 5.25-309
www.smoothfitness.com 8
COMPLETE PARTS LIST cont.
Description Qty. Order No.
400 Complete Base Frame Components
401 Base Frame 1 5.25-401
402 Rubber Cushion 2 5.25-402
403 Rubber Cushion 2 5.25-403
404 Power Switch Plate Base 1 5.25-404
405 Power Switch Plate Cover 1 5.25-405
406 Power Switch Plate 1 5.25-406
407 Power Breaker 1 5.25-407
408 Power Switch 1 5.25-408
409 Front Caster 2 5.25-409
410 Cushion 2 5.25-410
411 Foot Locker 1 5.25-411
412 Transportation Wheel Bracket 1 5.25-412
413 Spring 1 5.25-413
414 Transportation Wheel 1 5.25-414
415 Fold Up Locker 1 5.25-415
416 Spring Of The Fold Up Locker Assembly 1 5.25-416
500 Complete Motor Components
501 Motor Hood Top 1 5.25-501
502 Driving Motor 1 5.25-502
503 Motor Holder 1 5.25-503
504 Driving Belt 1 5.25-504
505 Control Board 1 5.25-505
506 Elevation Support Tube 1 5.25-506
507 Elevation Support Tube End Cap 4 5.25-507
508 Elevation Motor 1 5.25-508
509 Elevation Gear Sleeve 1 5.25-509
510 Fold Up Support 1 5.25-510
511 Shock 1 5.25-511
512 Wheel 1 5.25-512
513 Plastic Clamp – Top 2 5.25-513
514 Plastic Clamp – Bottom 2 5.25-514
515 Elevation Support 2 5.25-515
516 Motor Hood – Left 1 5.25-516
517 Motor Hood – Right 1 5.25-517
518 Motor Bottom Cover 1 5.25-518

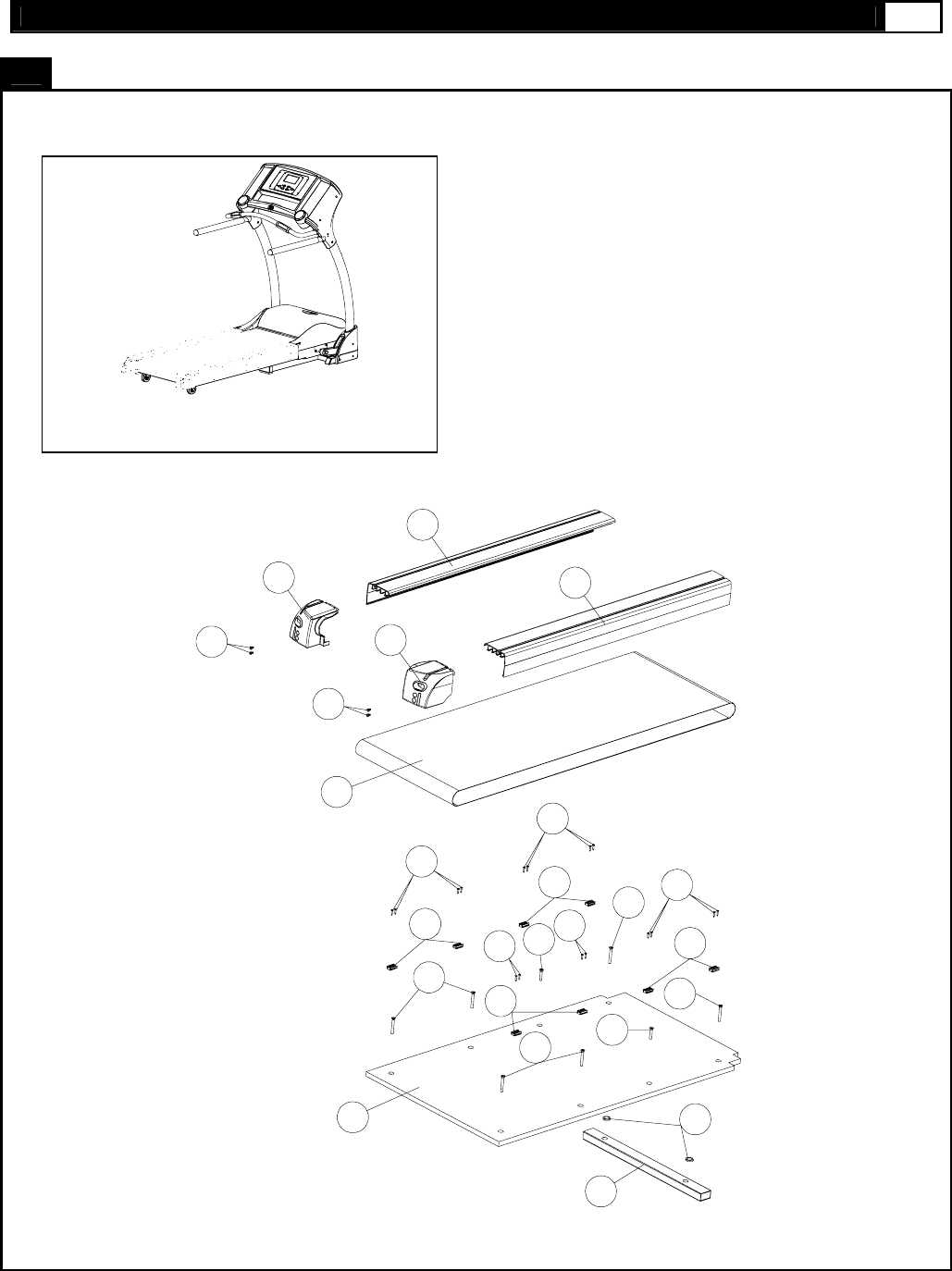

600. Complete Running Deck Components
601 Running Belt 1 5.25-601
602 Side Rail 2 5.25-602
603 Running Deck 1 5.25-603
604 Side Rail End Cap – Left 1 5.25-604
605 Side Rail End Cap – Right 1 5.25-605
606 Cushion Pad 8 5.25-606
607 Main Frame Cross Bar 1 5.25-607
www.smoothfitness.com 9
COMPLETE PARTS LIST cont.
No. Description Qty. Order No.
700 Complete Deck Frame Components
701 Deck Frame 1 5.25-701
702 Front Roller Shaft 1 5.25-702
703 Front Roller Tube 1 5.25-703
704 Rear Roller Shaft 1 5.25-704
705 Rear Roller Tube 1 5.25-705
706 Running Deck Support Tube 2 5.25-706
707 Cushion Pad 6 5.25-707
800 Complete Hardware PACK
801 M3.5×16 Screw 8 5.25-801
802 M4×15 Screw 49 5.25-802
803 M3×10 Screw 2 5.25-803
804 #4 Washer 4 5.25-804
805 M8×45 Bolt 2 5.25-805
806 M4×8 Screw 4 5.25-806
807 M5×30 Screw 4 5.25-807
808 M3×14 Screw 4 5.25-808
809 M8×49 Bolt 1 5.25-809
810 M8×18 Bolt 8 5.25-810
811 M8×52 Bolt 4 5.25-811
812 #8 Washer 22 5.25-812
813 M4×25 Screw 2 5.25-813
814 Transportation Wheel Bolt 3 5.25-814
815 #5 Washer 3 5.25-815
816 M5×10 Screw 3 5.25-816
817 M4×14 Screw 3 5.25-817
818 M10 Nylon Nut 7 5.25-818
819 M10×67 Bolt 2 5.25-819
820 14×50 Bolt 2 5.25-820
821 33×8×10 Screw 2 5.25-821
823 4×45 Screw 2 5.25-823
824 M10×116 Screw 1 5.25-824
825 #8 Nylon Nut 2 5.25-825
826 M8×12 Bolt 2 5.25-826
827 #8 Washer 2 5.25-827
828 #10 Washer 4 5.25-828
829 14 Clip 2 5.25-829
www.smoothfitness.com 10
COMPLETE PARTS LIST cont.
No. Description Qty. Order No.
830 M8×48 Screw 1 5.25-830
831 M8×85 Screw 1 5.25-831
832 26×8.5×3 Washer 2 5.25-832
833 25 Rubber Cushion 1 5.25-833
834 M8×30 Bolt 4 5.25-834
835 M5×14 Screw 4 5.25-835
836 M4×19 Screw 16 5.25-836
837 M3×8 Screw 2 5.25-837
838 M8×23 Screw 6 5.25-838
839 M6×45 Bolt 3 5.25-839
840 #6 Washer 3 5.25-840
841 M10×33 Bolt 1 5.25-841
842 M10×56 Bolt 2 5.25-842
843 M8×36.5 Bolt 1 5.25-843
844 M10×43.5 Bolt 1 5.25-844
845 M8×75 Bolt 2 5.25-845
846 M8×30 Screw 2 5.25-846
847 3MM RUBBER CUSHION 2 5.25-847
848 M10×26 Bolt 2 5.25-848
849 M8x20 mm Bolt 1 5.25-849
www.smoothfitness.com 11

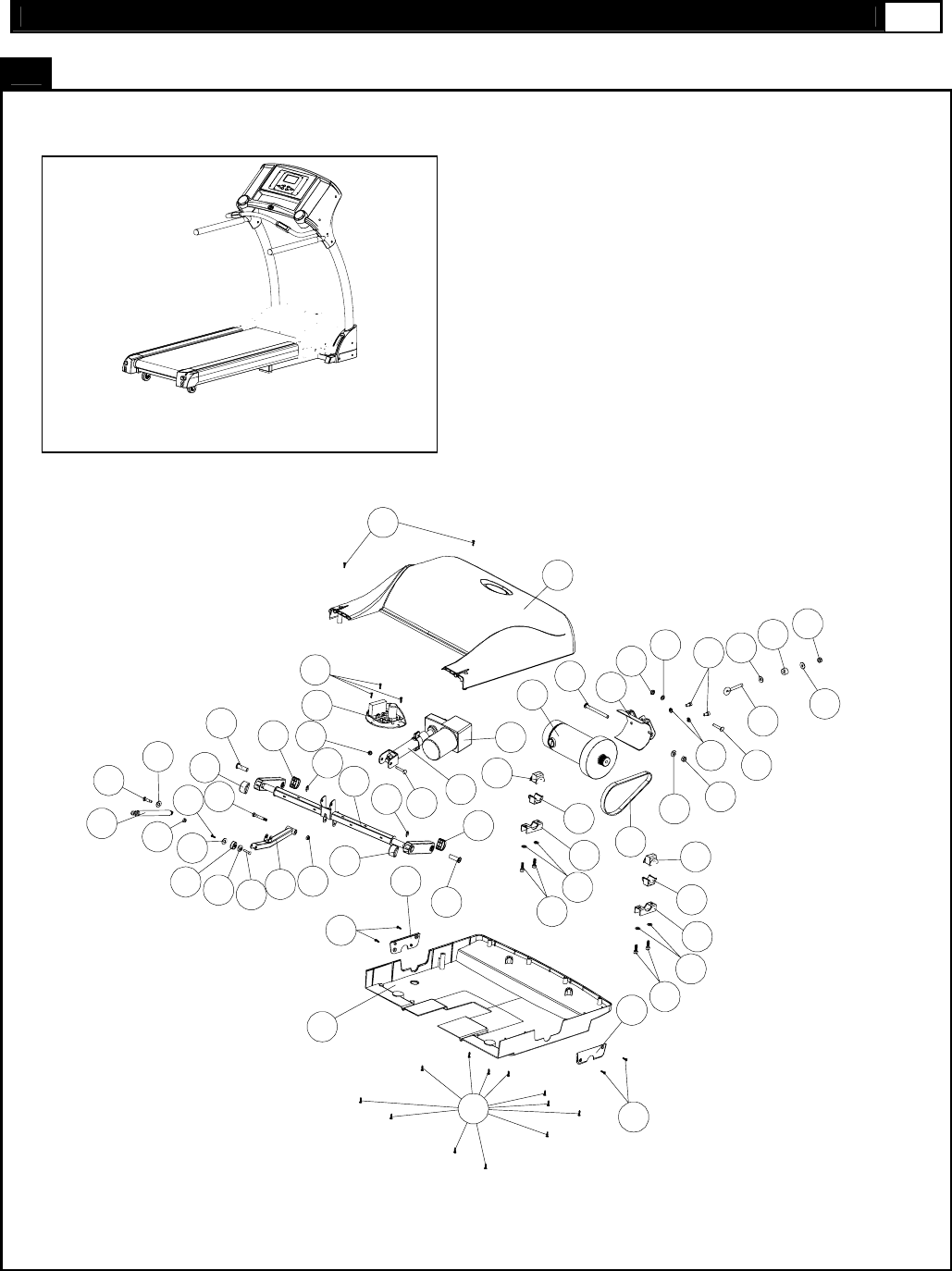

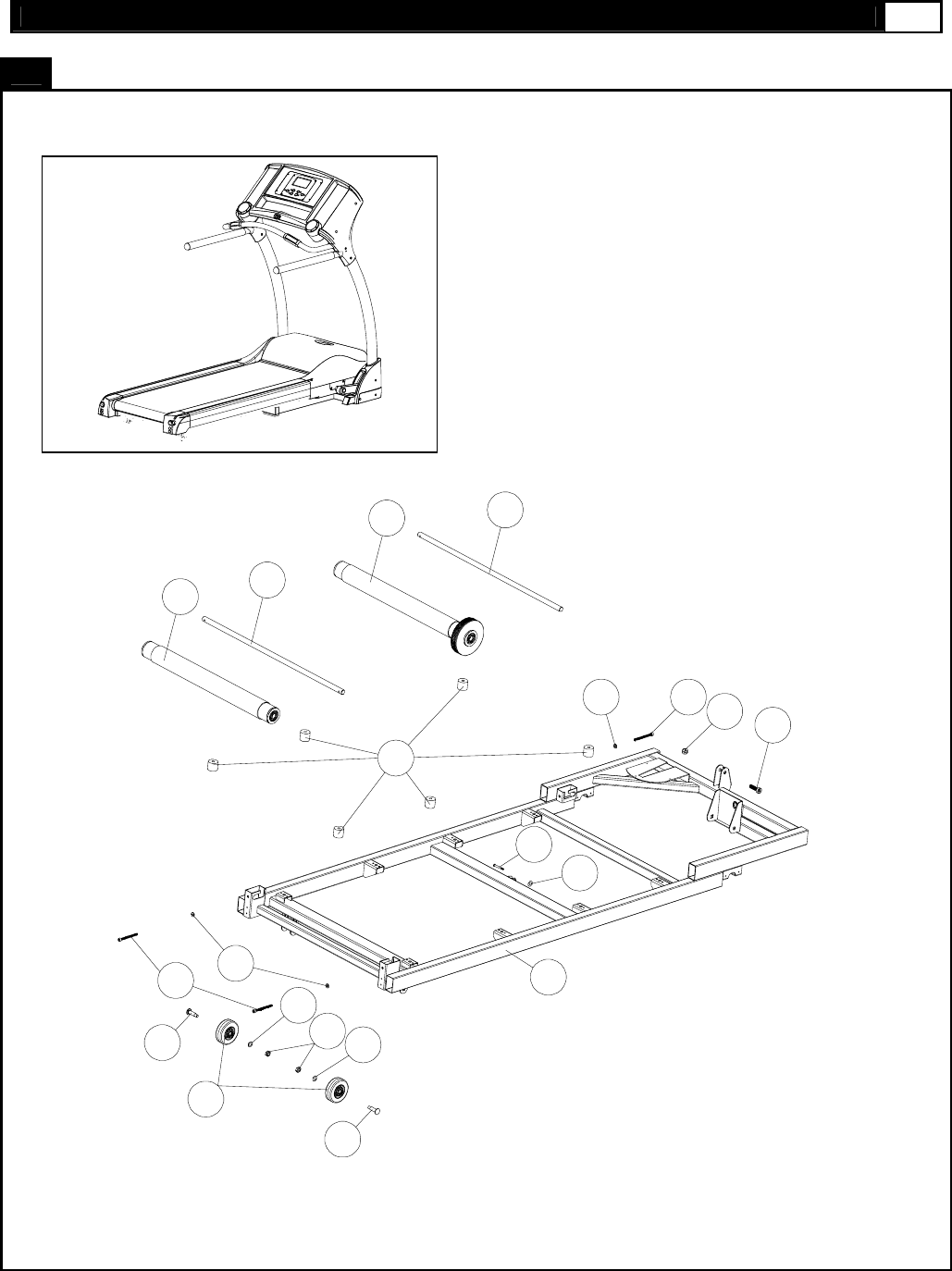

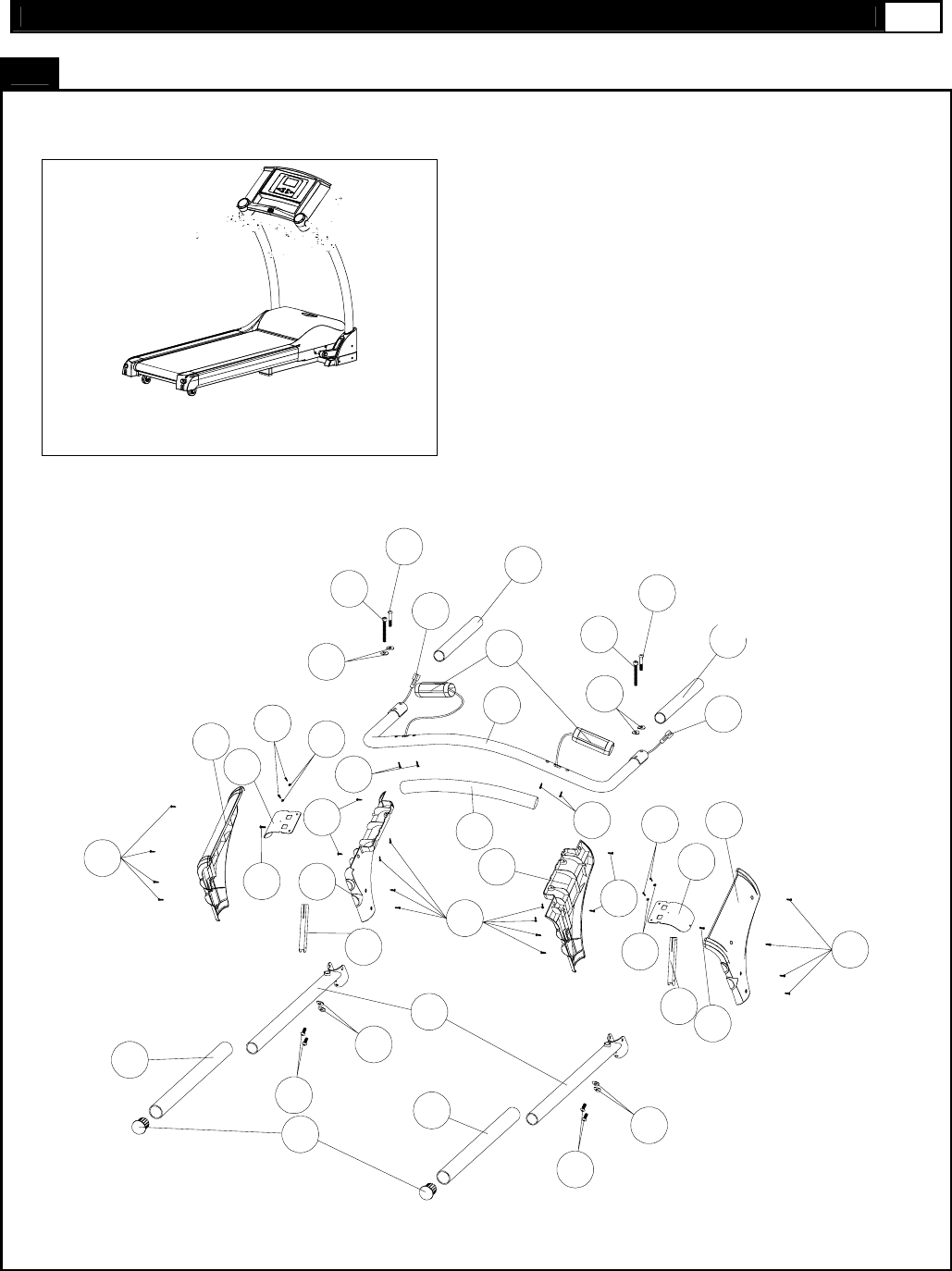

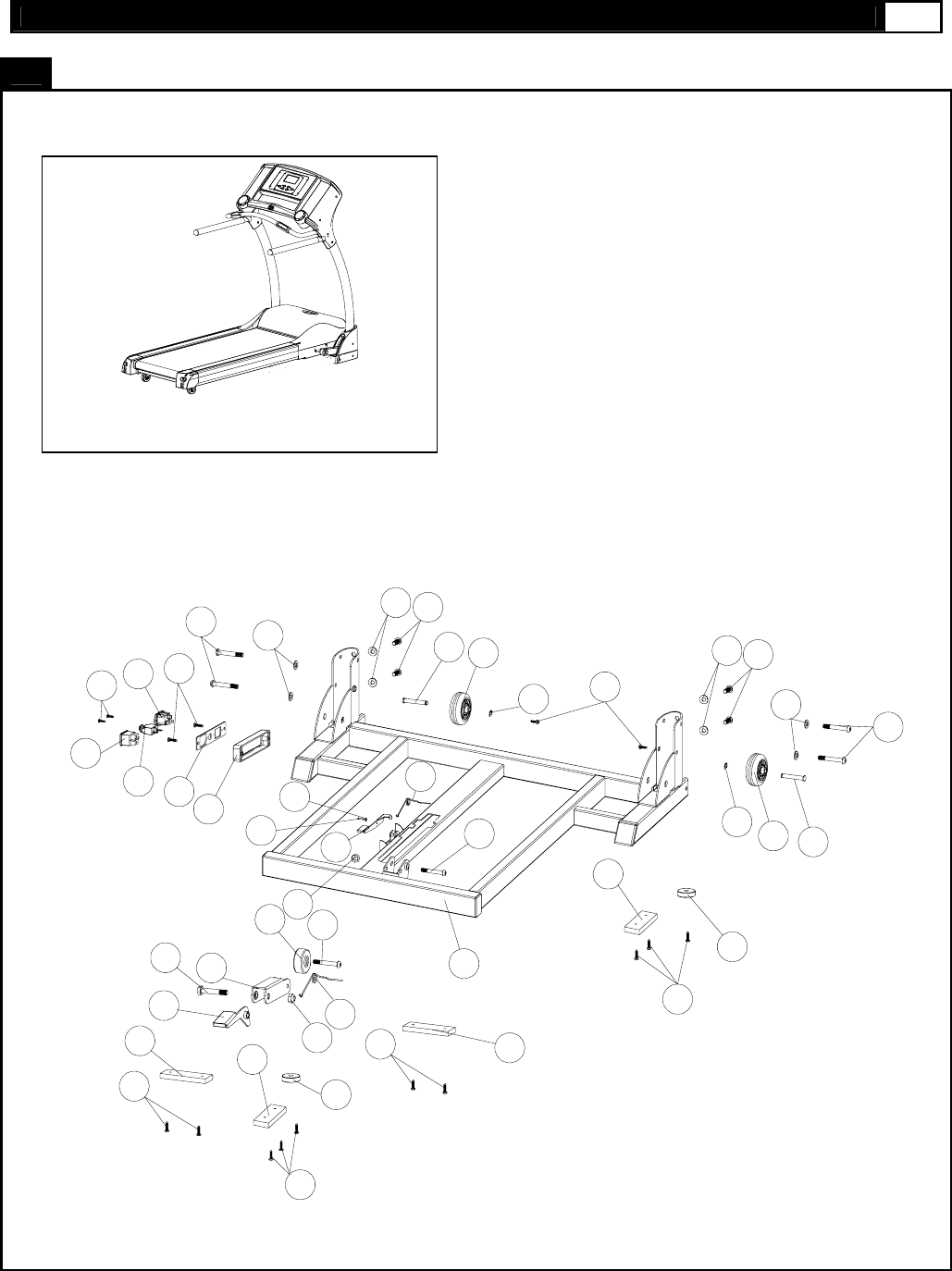

PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE ALREADY BEEN PRE-ASSEMBLED.
105
106
107
108
110
801
801
802
803
101
102
103
104
111
www.smoothfitness.com 12
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE ALREADY BEEN PRE-ASSEMBLED.
802
206
202
204
203
203
205
207
208 209
210
211
212
213
213
216
201
808
808
806 804
806
804
807
802
802
802
807
805
805
217
217
845
845
812
812
810
204 812
812
810
802
www.smoothfitness.com 13
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE ALREADY BEEN PRE-ASSEMBLED.
307
807
807
301
301
802
802
110
305
302
303
802
110 304
306
306
309
308
307
www.smoothfitness.com 14
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE ALREADY BEEN PRE-ASSEMBLED.
816
403
402
403
809
825
416
812
849 415
414 843
412
844
411
818
413
802
802
401
404
405
406
407
408
409
409
402
410 410
810
812
811 812
811
812
802
802
813
837
814
815
815 814
810
812
www.smoothfitness.com 15
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE ALREADY BEEN PRE-ASSEMBLED.
848
501
502 503
504
505
506
507
507
507
507
508
509
510
513
513
514
514
515
515
516
517
518
823
817
818
819
820
820
819
818
824 825 812 826
827
828 818
830
831
832833
832
825
812
834
812
834
802
802
802
829
829
821
816
814
821
512
815
511
828
www.smoothfitness.com 16
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE ALREADY BEEN PRE-ASSEMBLED.
601
602
602
603
604
605
835
835
836
836
836
836
836
606
606
606
606
838
846
838
838
838
846
607
847
www.smoothfitness.com 17
PARTS DIAGRAM
MOST OF THE PARTS SHOWN HERE HAVE ALREADY BEEN PRE-ASSEMBLED.
848
828
701
702
703
704
705
706
707
840 839818 841
840
839
842
842
818828
828
www.smoothfitness.com 18
ASSEMBLY

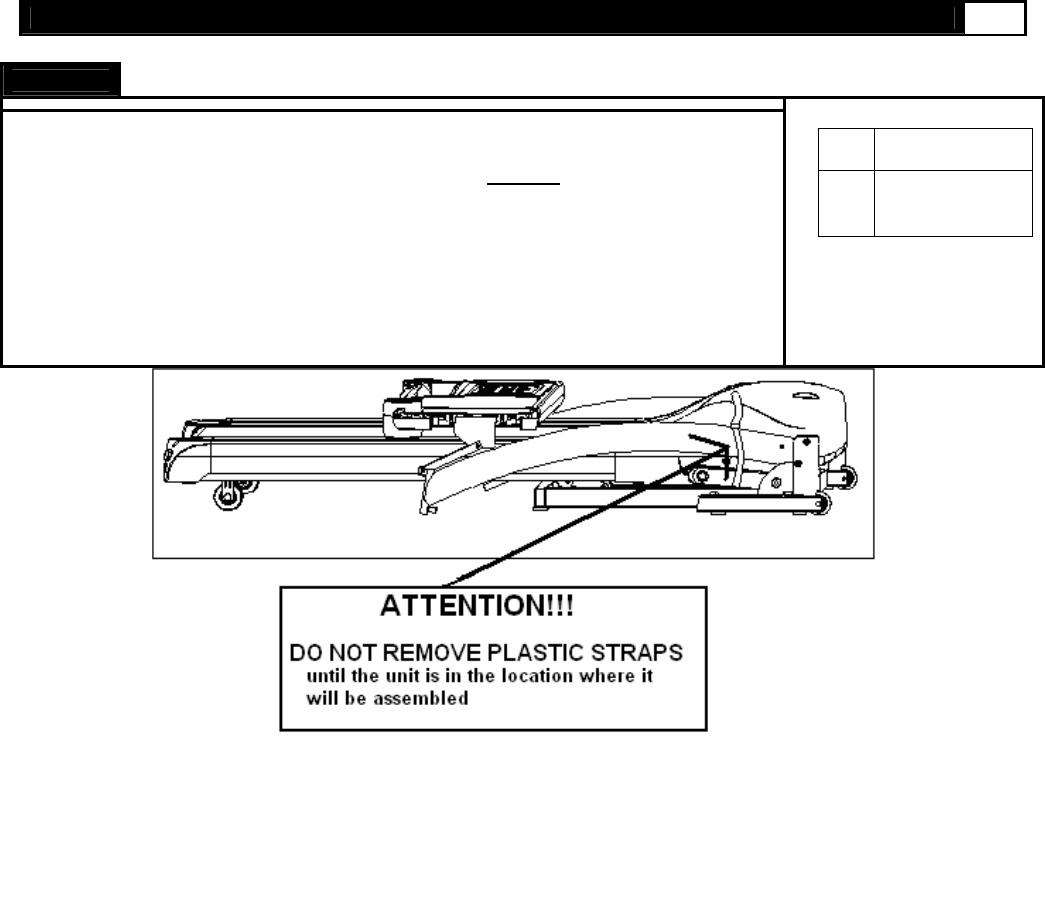

STEP 1: Unpacking and Inventory
NOTE: FOR SAFER AND EASIER TRANSPORTATION DO NOT REMOVE THE PLASTIC
RETAINING STRAPS UNTILL THE UNIT IS IN THE AREA OF ASSEMBLY
Remove the treadmill and all the components and hardware from the box. Check the
quantities of all components and hardware with the component and hardware lists on
pages 5-6
P.5 Components
P.6 Hardware and
tools
www.smoothfitness.com 19
ASSEMBLY
STEP 2: Assemble Upright Frame
NOTE: Make sure all wires are recessed into the frame. DO NOT trap
or pinch (Hand tighten bolts until last step)
A) Raise the Left and right uprights (301 x 2)
B) Secure the left upright (301) with two 8x18mm Allen bolts (810)
and two # 8 washers through the front side of the base frame. Hand
tighten.
C) Secure the right upright (301) with two 8x18mm Allen bolts (810)
and two # 8 washers through the front side of the base frame. Hand
tighten.
D) Insert one M8x52mm Allen bolt (811) and one #8 washer through
the side of the base frame and the left upright. Hand tighten.
E) Insert one M8x52mm Allen bolt (811) and one #8 washer through
the side of the base frame and the right upright. Hand tighten.
F) Tighten all Allen bolts with Allen wrench C (provided with hardware)
811 X2
810 X4
812 X6
301
810 812
811
812
fig-1
www.smoothfitness.com 20
ASSEMBLY

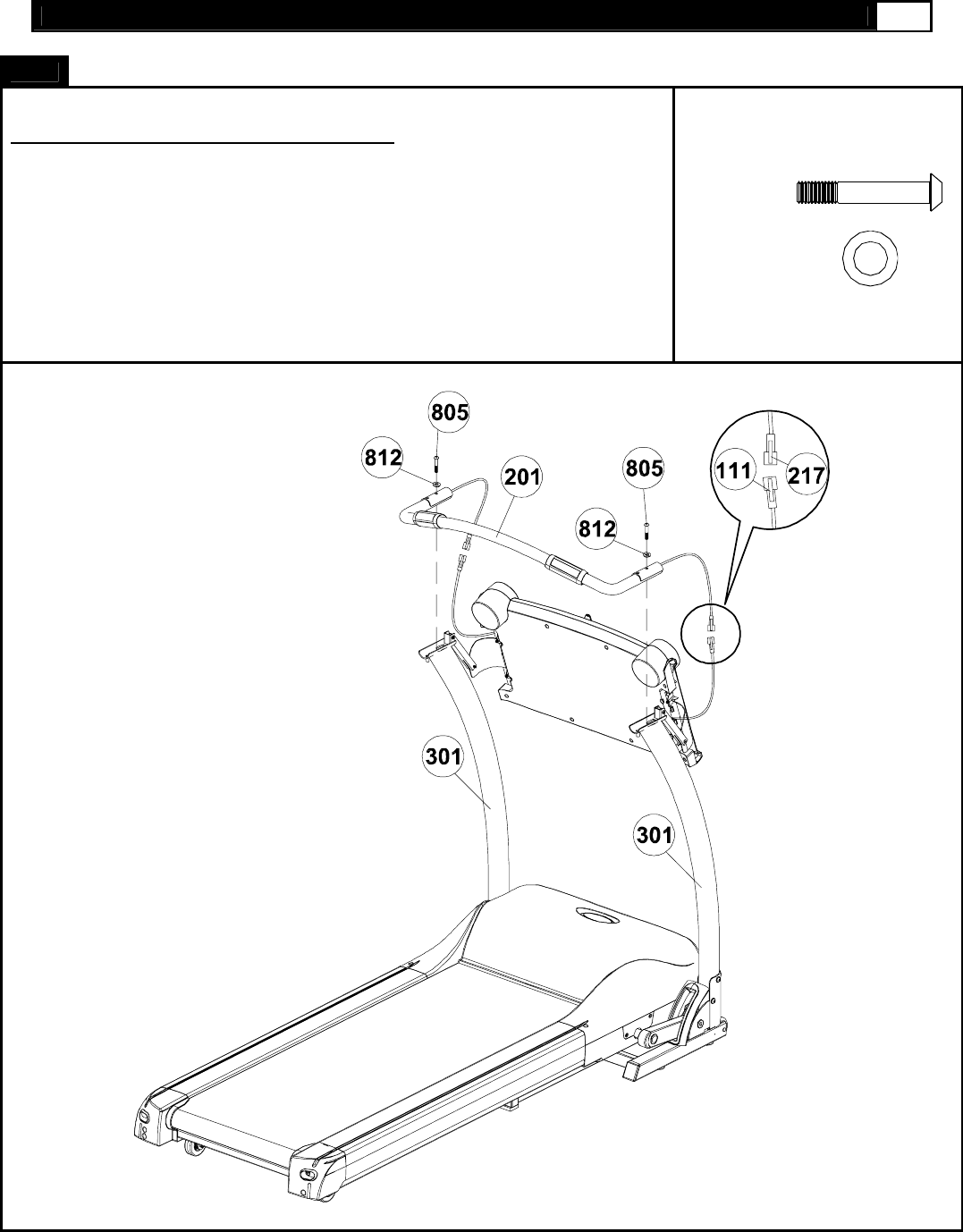

STEP 3: Assemble Front Handle Bar
Note: Only hand tighten bolts until last step
A) Place the front handle bar (201) on top of the left and right uprights (301).
B) Secure left side with one #8 washer (812) and one M8x45mm Allen bolt (805)
in the forward most hole
C) Secure right side with one #8 washer (812) and one M8x45mm Allen bolt (805)
in the forward most hole
D) Connect contact pulse wire (217) and wire (111) on left and right side (as
shown in diagram). Then insert the remaining length of wire into the front
handle bar tube. Tighten all bolts with Allen wrench.
805 X2
812 X2
www.smoothfitness.com 21
ASSEMBLY

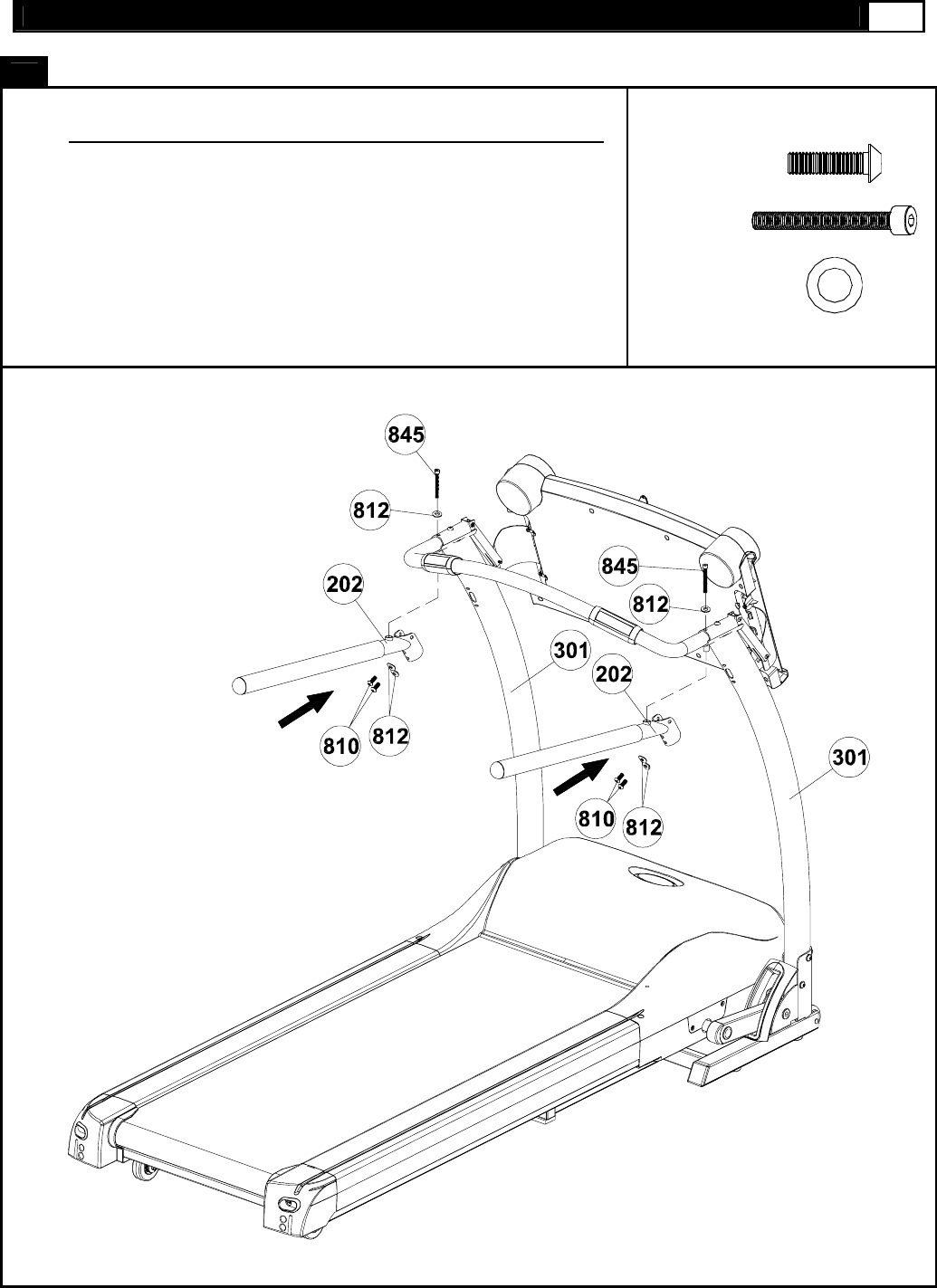

STEP 4: Assemble The Side Handlebars
NOTE: Side rails are interchangeable for use on both right and left sides
A) Attach one handlebar (202) to the left upright (301)
B) Secure the Side Handlebar with one M8×75mm bolt (845) and one #8
washer, through the top of front handle bar into the side handle bar.
C) Insert two M8×18mm (810) and two #8 washers (812) through the side
handrail plate and thread into the upright
D) Repeat the above process for the right side
E) Tighten all bolts with Allen wrench
810 X4
845 X2
812 X6
www.smoothfitness.com 22
ASSEMBLY

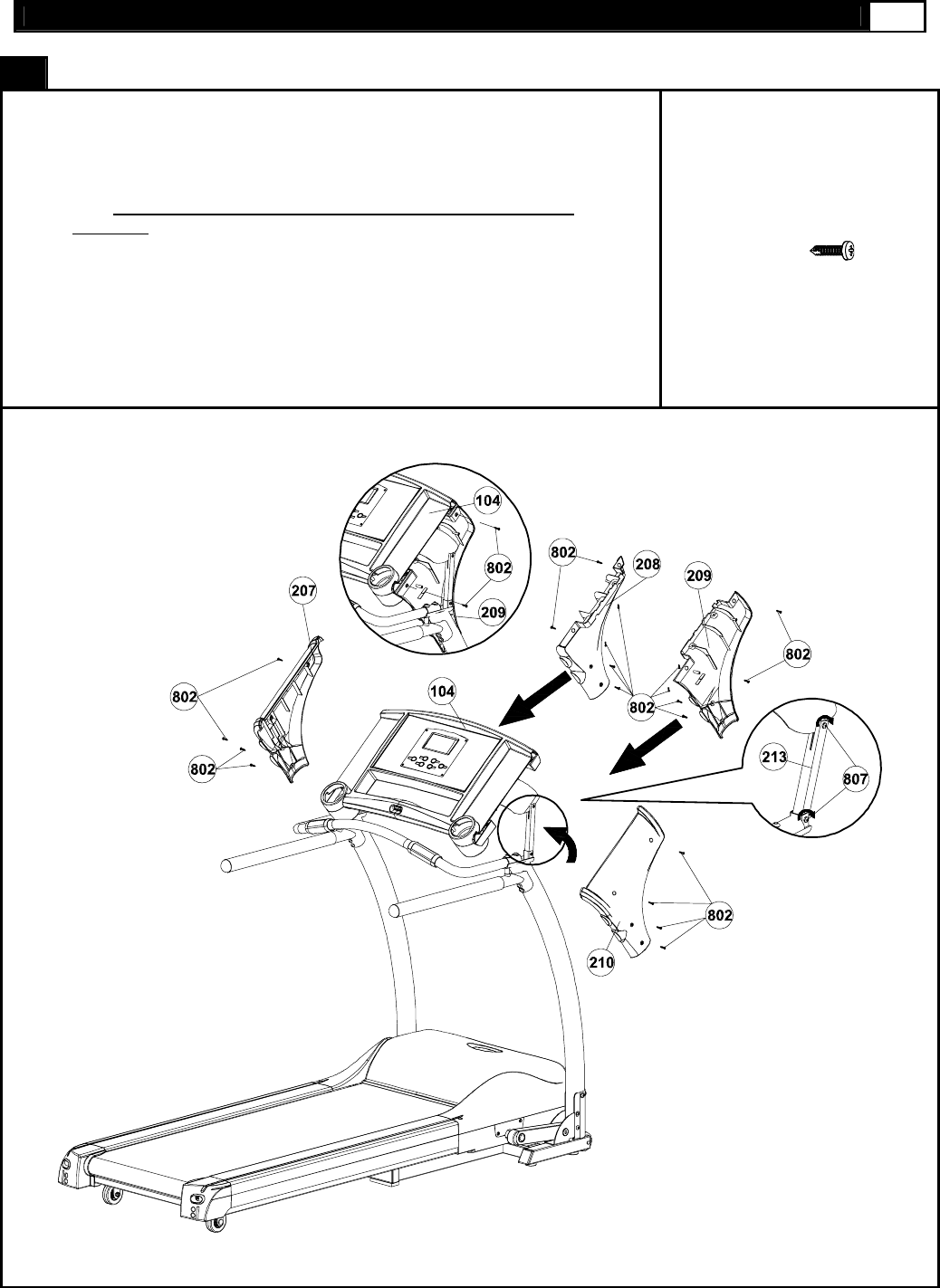

STEP 5:Assemble Computer Console
A) Rotate the console up until it stops as shown in diagram below.
B) Tighten the screw (807) of the console connect tube (213) for right and left
side. Console connect tube (213) will be loose for the next steps of
assembly.
C) Attach Handle Bar Cover (208) to the underside of the console and the
inside of the Left Upright (301). Secure with four M4×15mm screws (802).
D) Attach Handle Bar Cover (207) to the top left side of the console and to the
outside of the Left Upright. Secure with four M4x15mm screws (802).
E) Repeat the above process for the right hand side as shown in diagram.(209)
(210)
802 X20
www.smoothfitness.com 23
ASSEMBLY
STEP 6: Assemble Base Covers
NOTE: Refer to the folding instructions on page 26.
A) Fold up the running deck until it locks in place.
B) Attach Upright Base Cover (302) to the outside of the Left
Upright (301). Secure with two M4x15mm screws(802)
C) Attach Upright Base Cover (303) to the inside of the Left
Upright (301). Secure using one M 4x15 mm.
D) Attach Upright Base Cover (302) to the outside of the Right
Upright (301). Secure with three M4x15mm screws(802)
E) Attach Upright Base Cover (304) to the inside of the Right
Upright (301). Secure using one M 4x15 mm.
802 X7
www.smoothfitness.com 24
ASSEMBLY
STEP 6: Attaching Rubber Cover
Insert the rubber cover (306) into the slot upright base cover
www.smoothfitness.com 25
ASSEMBLY
STEP 7: Inserting Water Bottle Holders
Insert the Water Bottle Holder（108）to the Console Housing -
Upper（104). Push down until they snap in place.
www.smoothfitness.com 26
ASSEMBLY COMPLETE
Assembly is now complete. Check that all the components are secure and all the hardware is tight. By this step all
bolts and screws should be wrench tight. If any hardware is not wrench tight go back and tighten.
The finished product should resemble the picture below.
Safety Features
The safety key must be inserted for the treadmill to
function. The safety key tether should be worn at all
times when the treadmill is in use. This safety feature
is designed to prevent injury.
There are two orange levers on this treadmill. The
most forward lever is the folding lock which is used
in folding and unfolding this treadmill. The other is
used for transporting from one location to another
www.smoothfitness.com 27

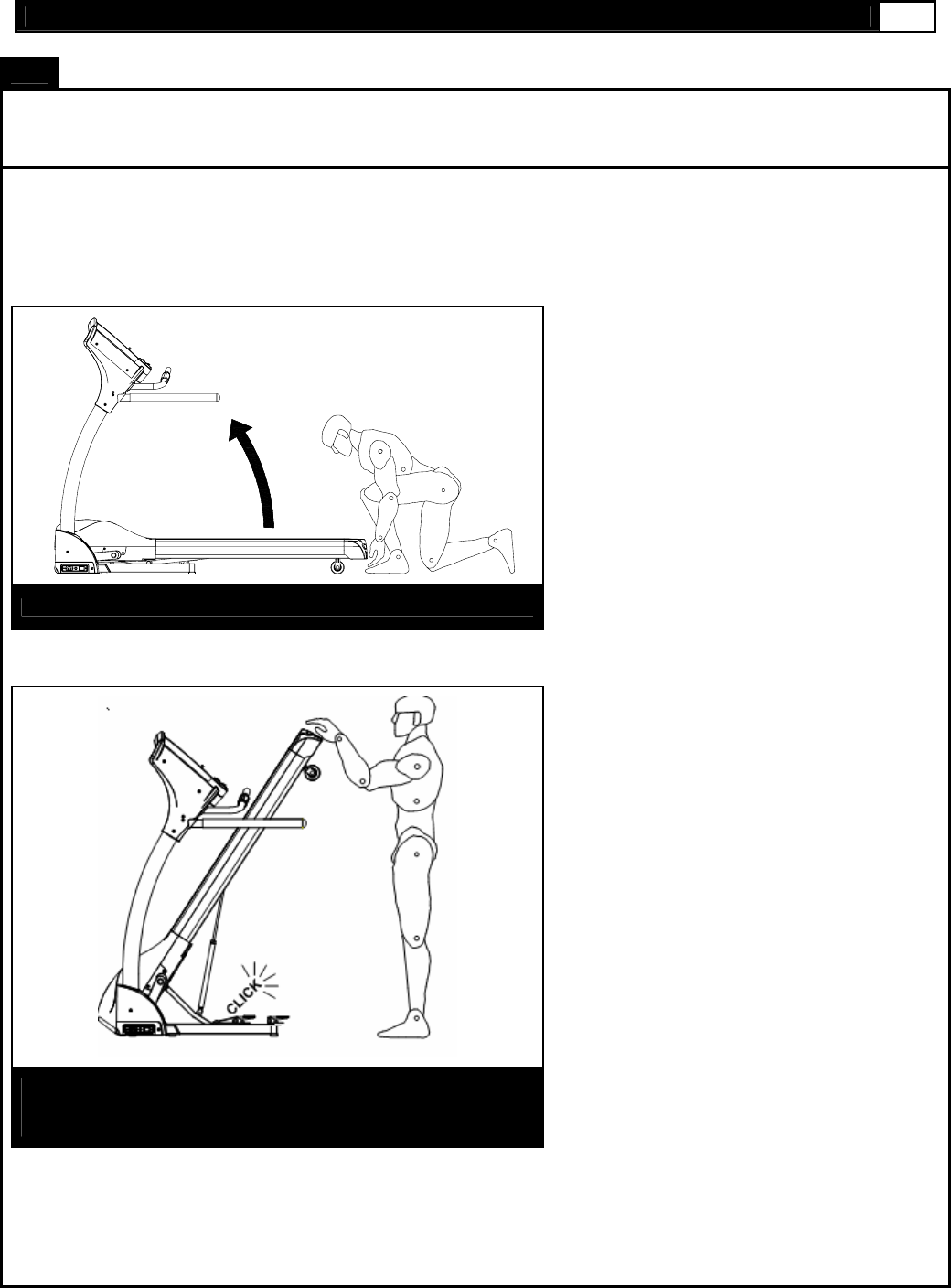

FOLDING INSTRUCTIONS
How to fold up the treadmill:
This treadmill can be folded up for space saving storage. To do this follow the instructions here:
Lift the deck from the rear towards the computer console.
Listen for the click of the Folding Lever locking mechanism.
Be sure locking mechanism is engaged before transporting.
(Transportation instruction on pg 28)
www.smoothfitness.com 28

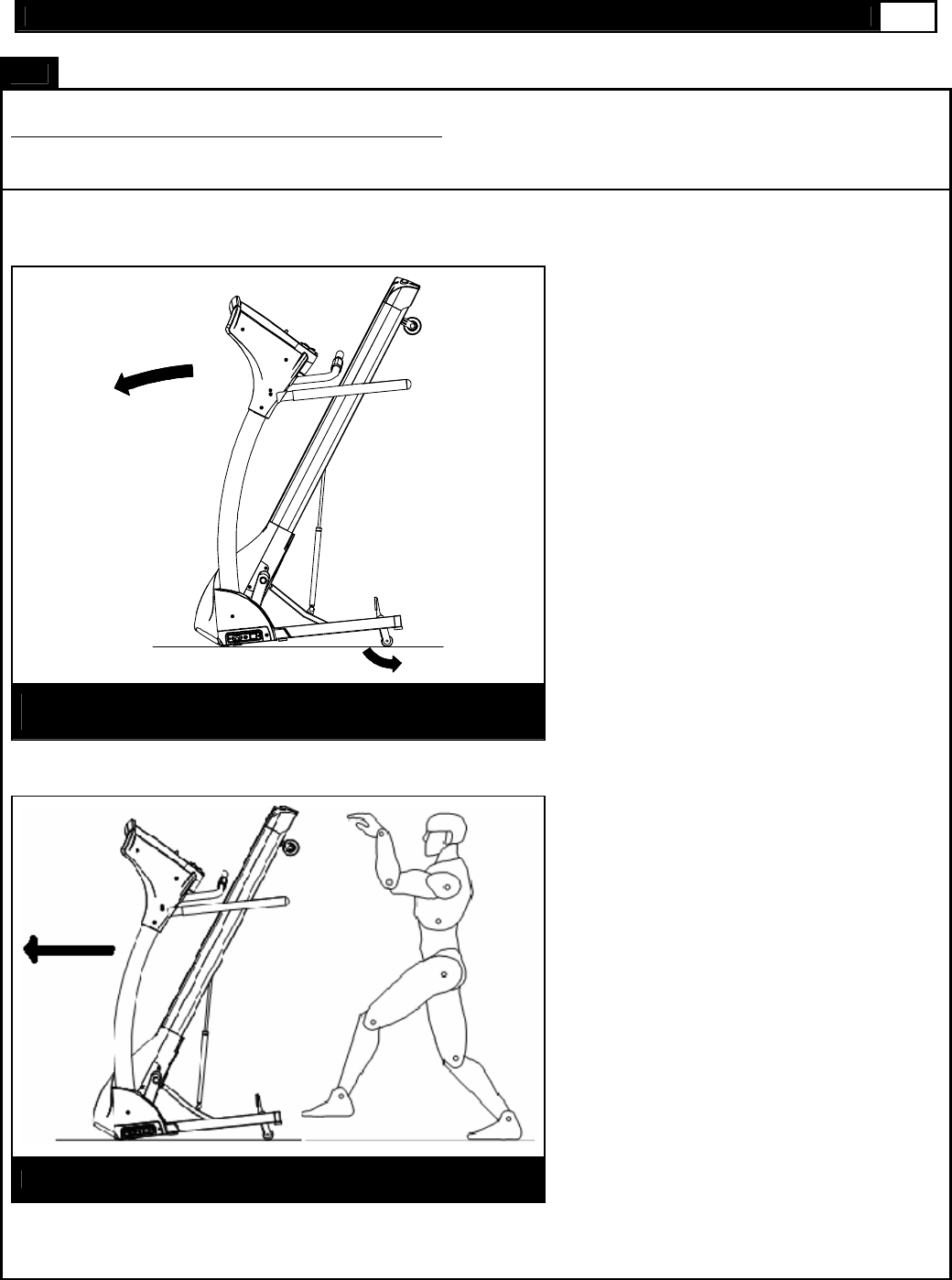

UNFOLDING INSTRUCTIONS
How to unfold the treadmill:
NOTE: To maintain stability make sure the rear transportation wheel is disengaged before unfolding treadmill
To unfold the treadmill for use follow the instructions here:
Push the deck towards the computer console.
Depress the Folding Lever begin lowering the treadmill
towards the floor release the Folding Lever
Lower treadmill deck towards floor.
www.smoothfitness.com 29
TRANSPORT INSTRUCTIONS
TRANSPORT INSTRUCTIONS:
NOTE: Transport wheel must be down as pictured below
To roll away for storage simply grab the rear deck, lift slightly and roll to desired location.
Lift the deck from the rear so that the treadmill rests on the
front transportation wheels and rear transportation wheel engages
Roll to a desired location.
www.smoothfitness.com 30
MAINTAINENCE
HOW TO MAINTAIN THE Smooth -5.25 TREADMILL:
Proper maintenance is very important to ensure your treadmill is always in top working condition. Improper maintenance could cause
damage or shorten the life of your treadmill and exceed the LIMITED WARRANTY coverage.
• Important: DO NOT use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids away
and keep it out of direct sunlight.
• Inspect and tighten all parts of the treadmill regularly. Replace any damaged or worn parts immediately.

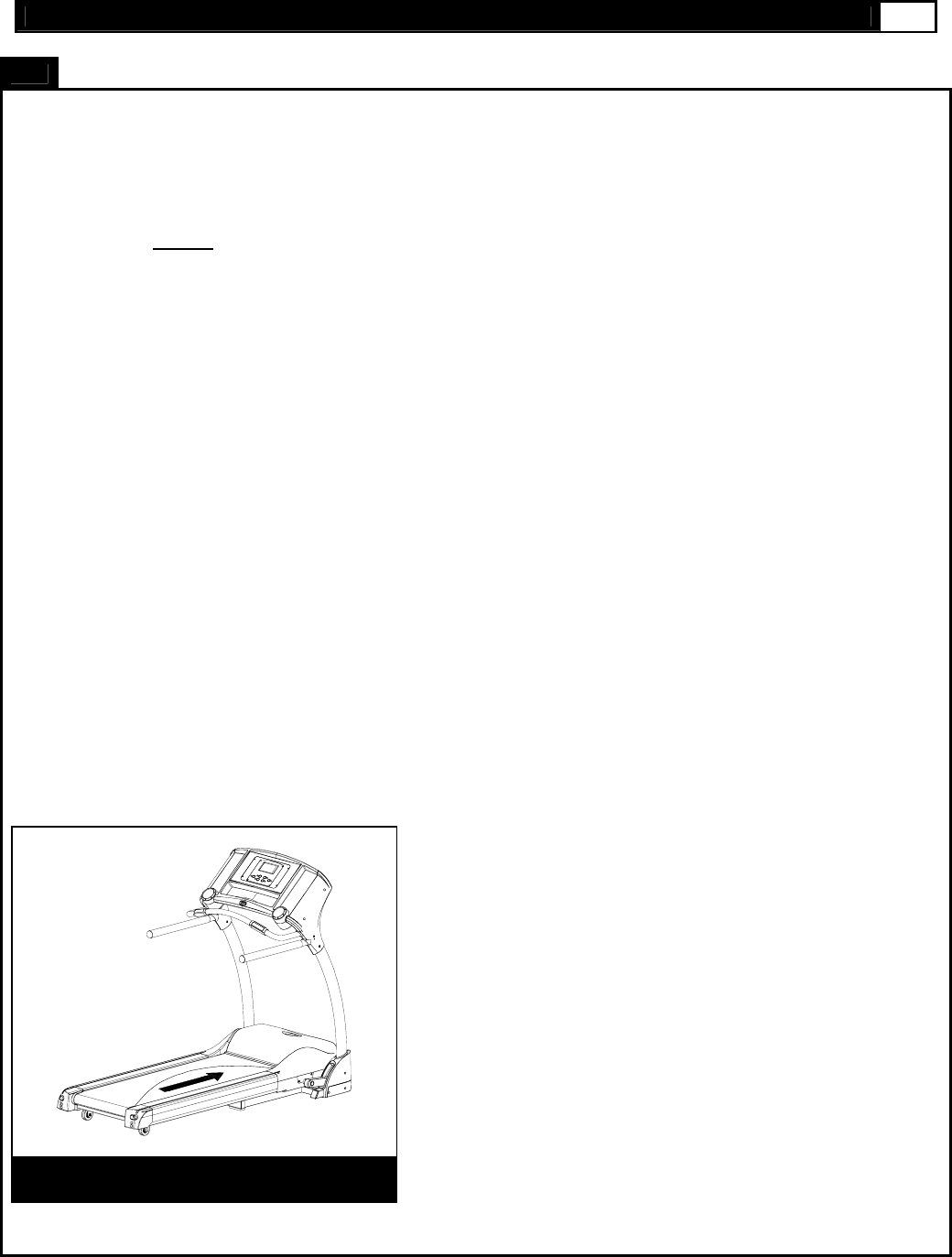

BELT ADJUSTMENT:
ALL BELT ADJUSTMENTS ARE CONSIDERED MAINTENIANCE, AND ARE THE RESPONSIBILITY OF THE END USER.
Belt adjustment and tension performs two functions: adjustment for tension and centering. The running belt has been adjusted properly
at the factory. However transportation, uneven flooring or other unpredicted reasons could cause the belt to shift off center resulting in
the belt rubbing on the plastic side rail or end caps and possibly causing damage to the equipment. To adjust the belt back to it’s
proper position please follow the directions below:
• Walking belt has shifted to the left: First unplug the power cord from the surge protector. Using the hex key provided, turn
the left rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into the surge protector and run
the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back towards the center. Repeat the above
procedure until the walking belt is centered. It may be necessary to set walking belt tension once you have completed this
procedure if the belt feels like it is slipping while walking. Refer below to the "Walking belt slipping" instructions.
• Walking belt has shifted to the right: First unplug the power cord from the surge protector. Using the hex key provided,
turn the right rear roller adjustment bolt 1/4 turn in the clockwise direction. Plug the power cord back into the surge protector
and run the treadmill at 2.5 mph. You should see the belt start to correct itself, moving back towards the center. Repeat the
above procedure until the walking belt is centered. It may be necessary to set walking belt tension once you have completed
this procedure if the belt feels like it is slipping while walking. Refer below to the "Walking belt slipping" instructions.
• Walking belt is slipping: First unplug the power cord from the surge protector. Using the hex key provided, turn both the left
and right rear roller adjustment bolts the equal amounts, 1/2 turn in the clockwise direction. Plug the power cord back into the
surge protector and run the treadmill at 2.5 mph. You should now walk on the belt to determine if the belt is still slipping.
Repeat the above procedure until the walking belt is not slipping. The tension should be just tight enough not to slip. If proper
tension cannot be achieved within four attempts please contact Smooth Fitness Technical Support. Belt centering may be
necessary once you have completed the tensioning procedure.
WARNING! Do not over tighten rollers! This will cause premature roller bearing failure!

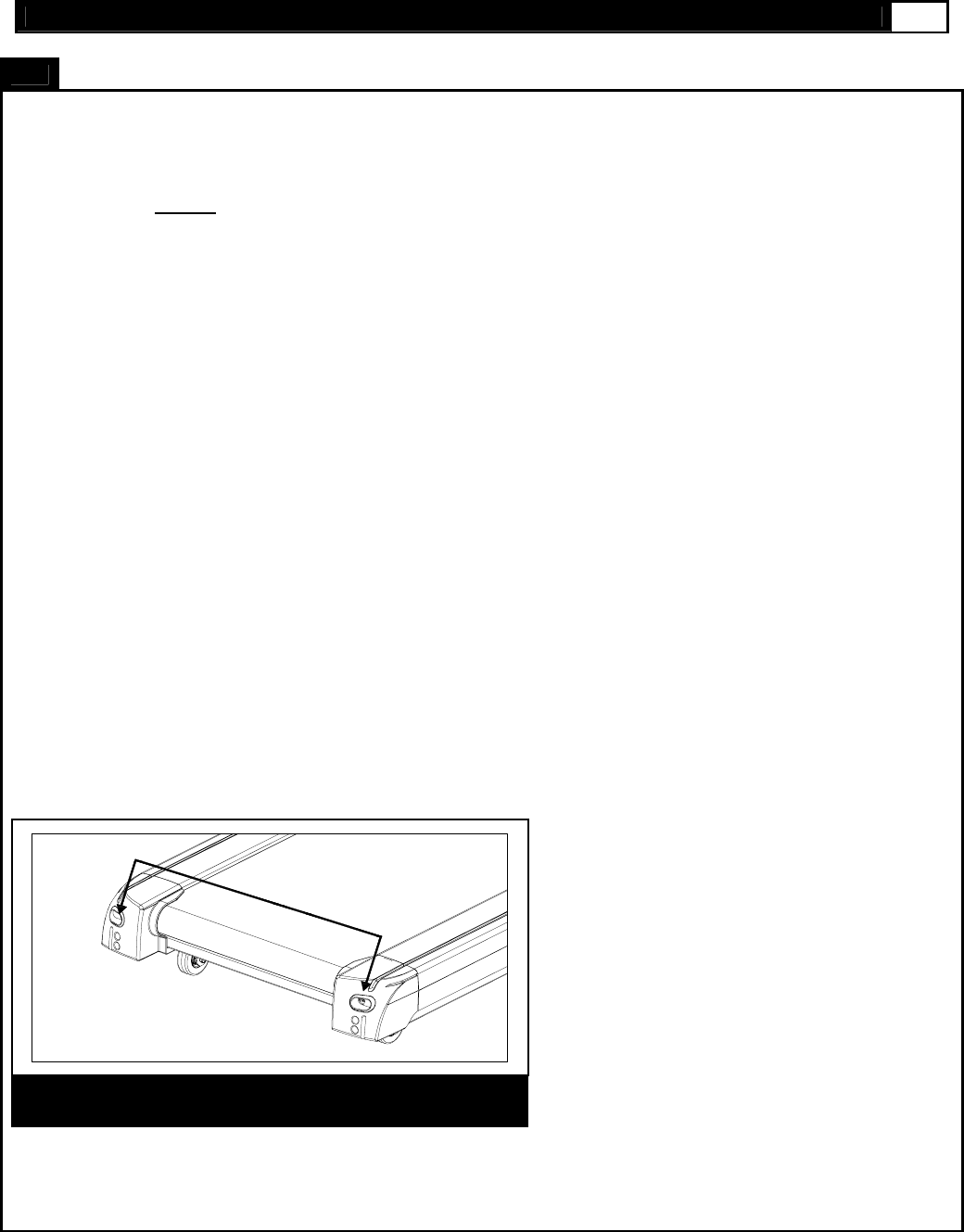

Right and left tension bolts are located at the rear of the treadmill.
www.smoothfitness.com 31
MAINTAINENCE
CLEANING:
Routine cleaning of your treadmill will extend the product's life.
• Warning: To prevent electrical shock, be sure the power to the treadmill is OFF and the power cord is unplugged from the
wall electrical outlet before attempting any cleaning or maintenance.
• Important: DO NOT use abrasives or solvents to clean the treadmill. To prevent damage to the computer, keep liquids away
and keep it out of direct sunlight.
• After each workout: Wipe off the console and other treadmill surfaces with a clean, water dampened soft cloth to remove
excess perspiration.
• Weekly: Use of a treadmill mat is recommended for ease of cleaning. Dirt from your shoes contacts the belt and eventually
makes it to underneath the treadmill. Vacuum underneath treadmill once a week.
DECK LUBRICATION:
The walking belt has been pre-lubricated at the factory. However, it is recommended that the running deck be checked periodically for
lubrication to ensure optimal treadmill performance. Your treadmill should not have to be lubricated usually within the first 400 hours of
use.
Every 2 months of operation lift the sides of the walking belt and feel the top surface of the running deck as far as you can reach. If you
feel signs of silicone, no further lubrication is required. If it feels dry to the touch, follow the instructions below.
. To purchase lubricant Kit please contact Smooth Fitness 1-888-800-1167
To apply lubricant under the walking belt:
1. Position the walking belt so that the seam is located on top and in center of the walking board.
2. Insert the spray nozzle into the spray head of the lubricant can.
3. While lifting the side of the walking belt, position the spray nozzle between the walking belt and the board approximately 6"
from the front of the treadmill and as far to the center as possible. Apply the silicone spray to the walking board, moving from
the front of the treadmill to the rear. Repeat this on the other side of the belt. Spray approximately 1/4 bottle (supplied with
treadmill) each time.
4. Allow the silicone to "set" for 1 minute before using the treadmill.
Apply from front to back.
www.smoothfitness.com 32
IMPORTANT STEPS
Warning:
Before using this product, please consult your personal physician for a complete physical examination. Frequent and strenuous
exercise should be approved by your doctor prior to use. If any discomfort should result from your use of this product, stop exercising
and consult your doctor. Proper usage of this product is essential. Please read your manual carefully before exercising.
Please keep all children away from the equipment during use and when equipment is unattended.
Always wear appropriate clothing, including athletic shoes, when exercising. Do not wear loose clothing that could become caught
during exercising.
Make sure that all bolts and nuts are tightened before each use. Periodic maintenance is required on all exercise equipment to keep it
in good condition.
Before beginning:
How you begin your exercise program depends on your physical condition. If you have been inactive for several years, or are severely
overweight, you must start slowly and increase your time gradually, a few minutes per week.
Initially you may be able to exercise only for a few minutes in your target zone. However, your aerobic fitness will improve over the next
six to eight weeks. Don’t be discouraged if it takes longer. It’s important to work at your own pace. Ultimately, you’ll be able to
exercise continuously for 30 minutes. And the better your aerobic fitness, the harder you will have to work to stay in your target zone.
But remember these essentials:
• Contact your physician before starting a workout or training program. Have your doctor review your training and diet programs
to advise you of a workout routine you should adopt.
• Begin your training program slowly with realistic goals that have been set by you and your doctor.
• Supplement your program with some type of aerobic exercise such as walking, jogging, swimming, dancing and/or bicycling.
Monitor your pulse frequently. If you do not have an electronic heart rate monitor, have your physician show you the proper
way to manually check your pulse by using your wrist or neck. Establish your target heart rate based on your age and
condition.
• Drink plenty of fluids during the course of your routine. You must replace the water content lost from excessive exercising to
avoid dehydration. Avoid drinking large amounts of cold liquids. Fluids should be at room temperature when consumed.
www.smoothfitness.com 33
TARGET HEART RATE
Finding your pulse:
To make sure your heart is beating in its target zone, you’ll need to know how to monitor your heart rate. The easiest way is to feel the
pulse in the carotid artery on either side of your neck, between the windpipe and the large neck muscles. Count the number of beats in
ten seconds, and then multiply that number by six. This gives you the number of beats per minute.
How fast should your heart beat during aerobic exercise? Fast enough to reach and stay in its “target zone,” a range of beats per
minute that is largely determined by your age and physical condition. To determine your target zone, consult the chart we have
provided.

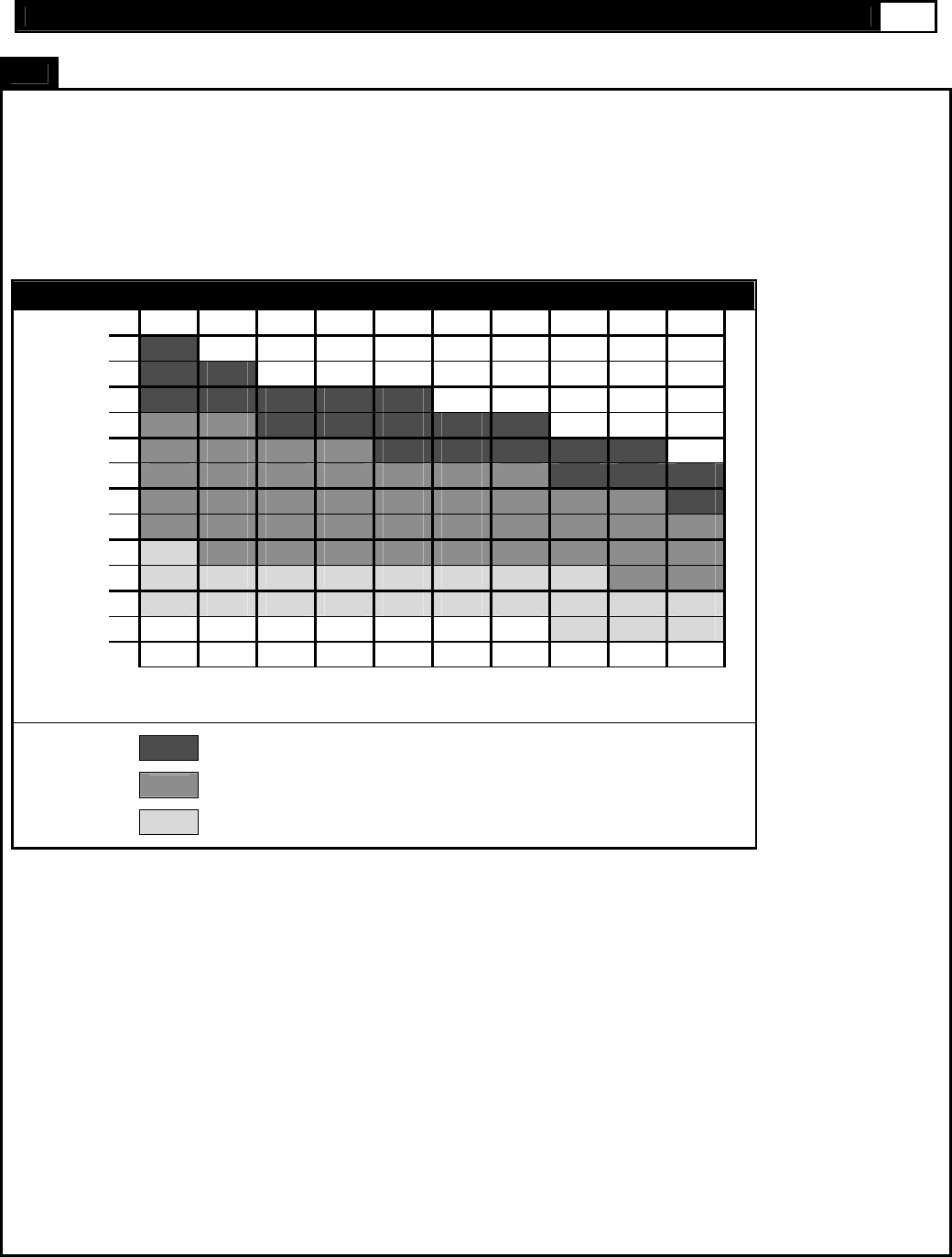

FIND YOUR TARGET HEART RATE
200
180
160
140
120
100
YOUR HEART RATE in beats per minute
80
20 25 30 35 40 45 50 55 60 65 70
YOUR AGE in years
ADVANCED: Sports, athletic conditioning or interval training
FITNESS: Optimal training, aerobic or cardiovascular
HEALTH: Beginner, low intensity with long duration produces fat burning
Aerobic exercise:
Is any sustained activity that sends oxygen to your muscles via your heart and lungs. It will improve the fitness of your lungs and heart:
your body’s most important muscle. Aerobic fitness is promoted by any activity that uses your large muscle groups - arms, legs or
buttocks, for example. Your heart beats quickly and you breathe deeply. An aerobic exercise should be part of your entire exercise
routine.
www.smoothfitness.com 34
MUSCLE CHART
Targeted muscle groups:
The exercise routine that is performed on this product will develop primarily lower body muscle groups. These muscle groups are
shown in gray color on the chart below.
MUSCLE GROUPS
A Shoulder muscles Calf muscles G
B Pectoral muscles Trapezius muscles H
C Bicep muscle Tricep muscles I
D Abdominal muscles Back muscles J
E Forearm muscles Gluteal muscles K
F Quadricep muscles Hamstring muscles L
www.smoothfitness.com 35

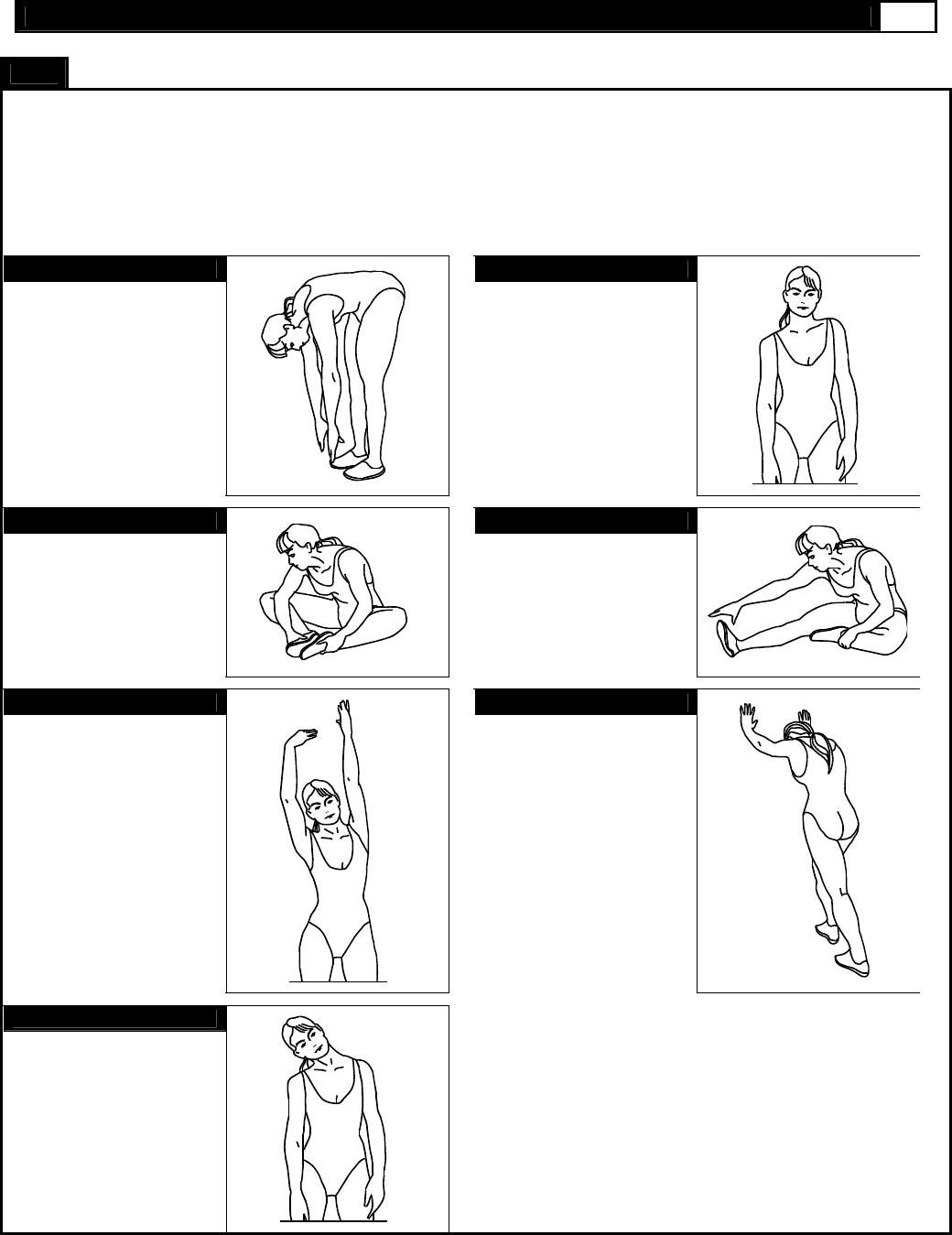

STRETCHING ROUTINE
Warm up and cool down:
A successful exercise program consists of a warm-up, aerobic exercise, and a cool-down. Do the entire program at least two and
preferably three times a week, resting for a day between workouts. After several months, you can increase your workouts to four or five
times per week.
Warming up is an important part of your workout, and should begin every session. It prepares your body for more strenuous exercise
by heating up and stretching out your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
At the end of your workout, repeat these exercises to reduce sore muscle problems. We suggest the warm-up and cool-down
exercises on the following pages:
Toe Touch:
Slowly bend forward from
your waist, letting your back
and shoulders relax as you
stretch toward your toes.
Reach down as far as you
can and hold for 15 counts.
Shoulder Lift:
Lift your right shoulder up
toward your ear for one
count. Then lift your left
shoulder up for one count as
you lower your right
shoulder.
Inner Thigh Stretch:
Sit with the soles of your feet
together with your knees
pointing outward. Pull your
feet as close into your groin
as possible. Gently push
your knees towards the floor.
Hold for 15 counts.
Hamstring Stretch:
Sit with your right leg
extended. Rest the sole of
your left foot against your
right inner thigh. Stretch
toward your toe as far as
possible. Hold for 15 counts.
Relax and then repeat with
left leg extended.
Side Stretch:
Open your arms to the side
and continue lifting them until
they are over your head.
Reach your right arm as far
upward toward the ceiling as
you can for one count. Feel
the stretch up your right side.
Repeat this action with your
left arm.
Calf-Achilles Stretch:
Lean against a wall with your
left leg in front of the right
and your arms forward. Keep
your right leg straight and the
left foot on the floor; then
bend the left leg and lean
forward by moving your hips
toward the wall. Hold, and
then repeat on the other side
for 15 counts.
Head Roll:
Rotate your head to the right
for one count, feeling the
stretch up the left side of your
neck. Next, rotate your head
back for one count, stretching
your chin to the ceiling and
letting your mouth open.
Rotate your head to the left
for one count, and finally,
drop your head to your chest
for one count.
www.smoothfitness.com 36
TROUBLESHOOTING
NOTE: Do not touch any internal electric wires without consulting the manufacturer.
Treadmill will not start:
Symptom Resolution
Treadmill will not power up
Check the following:
Make sure the power cord is plugged into a surge
protector, the surge protector is plugged into a properly
grounded outlet and the surge protector is turned on
(refer to the Power Requirements section in this manual).
Equipment circuit breaker is in the reset position
Equipment power switch is in the on position
Safety key is properly inserted into the computer console
Wall outlet is properly functioning with correct voltage
(Have an electrician check for inadequate voltage at the
outlet refer to the Power Requirements section in this
manual)
House circuit breaker is reset and is the proper size.
(refer to the Power Requirements section in this manual)
Treadmill stops operation during use
Safety key is properly inserted into the computer console
Equipment circuit breaker is in the reset position
House circuit breaker is reset, meets proper
requirements and if worn replaced by an electrician.
(refer to the Power Requirements section in this manual)
Program time has expired
Treadmill will not incline(Power fold models only) Check for proper positioning of spring knob for folding(See
procedure in owners manual)
Treadmill will not unfold
Power Fold only
Check for proper positioning of spring knob for
folding(See procedure in owners manual)
Manual Fold only
Folding locking lever is depressed
Treadmill running belt moves slower than speed displayed on
computer
Metric/English conversion (See owners manual for
Metric/English conversion process)
Treadmill running belt moves slower than speed displayed on
computer
Metric/English conversion (See owners manual for
Metric/English conversion process)
Running belt is not centered
Treadmill is properly leveled(See procedure in owners
manual)
Center running belt (See Centering procedure in owners
manual)
Running belt is slipping or hesitating while in use Tension running belt (See process in owners manual)
Treadmill running belt moves slower than speed displayed on
computer
Metric/English conversion (See owners manual for
Metric/English conversion process)
Running belt is not centered
Treadmill is properly leveled(See procedure in owners
manual)
Center running belt (See Centering procedure in owners
manual)
Running belt is slipping or hesitating while in use Tension running belt (See process in owners manual)
Copyright © 2005 Greenmaster Industrial Corp. All rights reserved.
Smooth Fitness
112 Gaither Drive
Mt. Laurel, NJ 08054
Toll Free Customer Service:
1.888.800.1167
Website:
www.smoothfitness.com
Copyright © 2005 Greenmaster Industrial Corp. All rights reserved.
