Control4 Speaker Point Installation Guide 1
Speaker Point Installation Guide
Supported Models
This installation and user guide covers this Speaker Point model(s):
General Description
The Speaker Point is intended for Control4 system users who want to
add new audio zones to their home using an easy and cost effective
method. Users can locate the Speaker Point in remote locations to
enable audio zones beyond the area near the audio rack.
It is an end point of digital audio distribution and can be used to
amplify and distribute an audio source to bookshelf speakers in
remote locations throughout the home. It receives a digital audio
signal from a source via Ethernet, Wi-Fi or line in and distributes that
audio directly through a pair of connected speakers. The Speaker
Point transmits the source information and is controlled via an
Ethernet connection or its built-in Zigbee wireless connection.
The Speaker Point is designed with a compact profile and small
footprint so that it can be located discreetly throughout the home
(such as on a bookshelf, an overhead plant shelf, or even in attic
space). It is a small box (less than ½ rack size, approximate
dimensions are 1.5” Tall x 6.5” Wide x 6.5” deep). Its unique design
allows it to be stored horizontally or vertically (with the special bracket
included). If a user chooses to place a Speaker Point in his standard
EIA rack of components, then the rack shelf must be set at one rack
unit high to hold the unit.
The Speaker Point has one stereo speaker pair output and one
analog output for external power amps. The on-board digital 50 watt
per channel amplifier powers local bookshelf or in-wall speakers. The
user has the ability to adjust bass, treble, loudness, balance and mute
from local controls.
WARNING! To reduce the risk of serious injury or death, turn all power
OFF before installing this product.
WARNING! This product generates heat. The device must be
operated within specified operating temperature limits.
CAUTION! Using this product in a manner other than outlined in this
document voids your warranty. Further, Control4 is NOT liable for any
damage incurred with the misuse of this product. See “Limited 1 Year
Warranty.”
About the Hardware

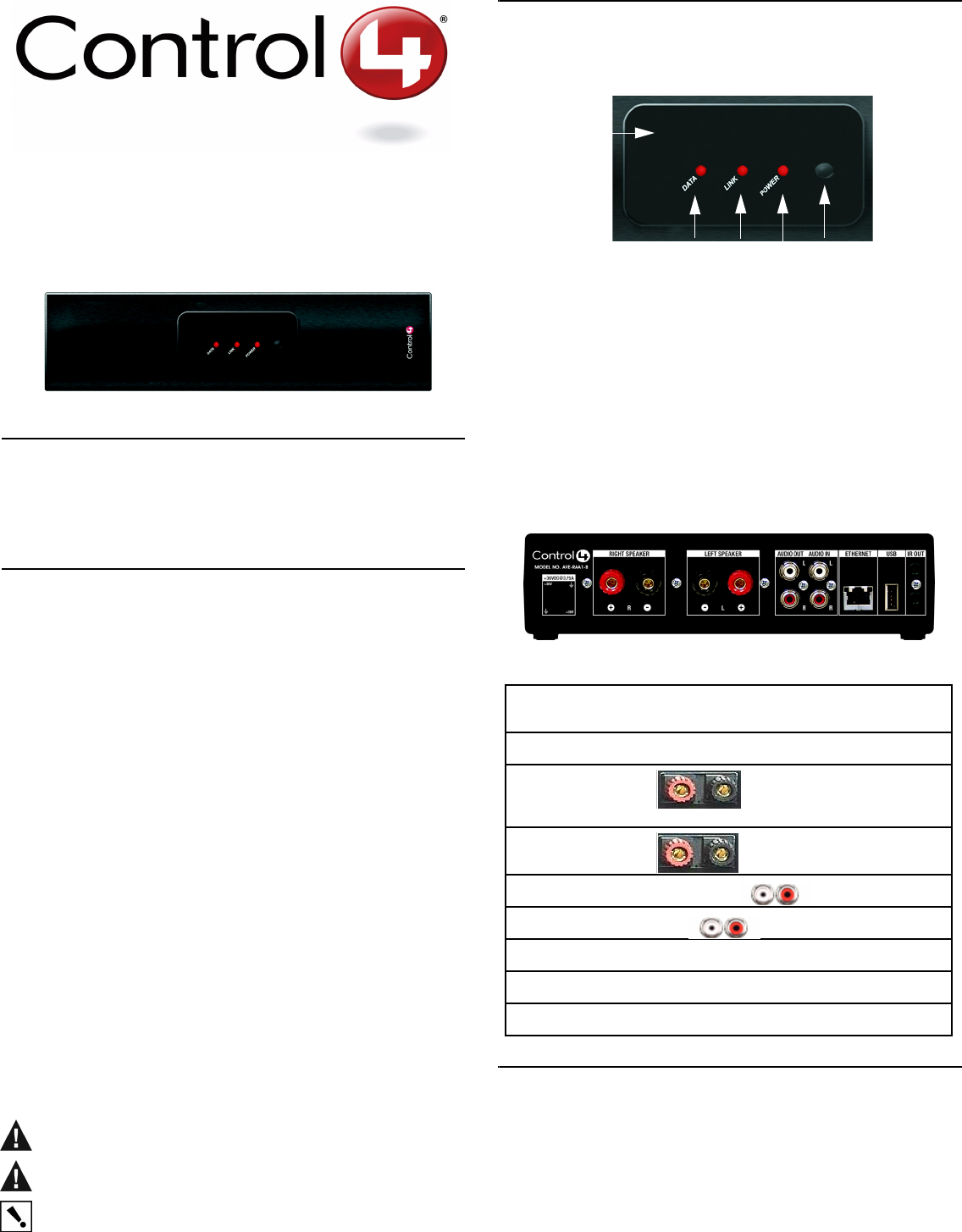

Front Panel
1. IR reader (behind the window)
2. Data LED to indicate music is currently streaming in or out.
3. Link LED to indicate a network connection is present.
4. Power LED to indicate when power is present.
5. Identification and Reset button: To identify this device during
setup and will reset this device when pressed for longer than 10
seconds.
Back Panel
Included Accessories
•Power cable and adapter with power plug
•Vertical Mount Bracket
•Speaker Point Installation Guide (this document)
AVE-RAA1-B Ethernet Speaker Point
Label or
Description
Connector Type
+36VDC@3.75A AC In power pLug Port
Right Speaker
Five Way Binding Post (+Red/-Black)
Left Speaker
Five Way Binding Post (+Red/-Black)
AudioOut RCA (Pre-Amp)
Audio In RCA
Ethernet RJ-45 port
USB USB Wi-Fi 802.11g port (Disabled in this model)
IR Out For 1 IR out emitter
1
2 3 4 5
(Placeholder Graphic)
Control4 Speaker Point Installation Guide 2
Installation Instructions
1. Ensure that the location and intended use meet the following
criteria:
• Install in accordance with all national and local electrical codes.
• The range and performance of the control system is highly
dependent on the following:
•Distance between devices
•Layout of the home
•Walls separating devices
•Electrical equipment located near devices
2. (Optional) Connect an audio source to the Audio In port. The
maximum input voltage is 1V RMS.
3. Connect a left and right speaker to the Left and Right Speaker
ports. This must be a minimum of 50 watts RMS power each to
avoid damaging the speakers.
4. (Optional) Connect the inputs of an externally powered amplifier
to the pre-amp Audio Out port on the back of the device.
5. Plug the Speaker Point’s power cord into a standard 110 or 220
volt AC outlet to power up the speaker point.
6. Check the Speaker Point status using its LEDs.
7. Configure this device as a new audio zone:
Trained installers must use Control4 Composer Pro software to
install and configure the Speaker Point on the existing network.
When Composer is ready to recognize this device, press the
small button on the front panel.
User Interface
Once the new music zone has been configured, you can control it
through the system navigation interfaces (such as keypads, touch
screens, On-Screen Navigator, or the System Remote Control). You
can choose to play music to the new zone at will. Because the
Speaker Point is being controlled by a centralized controller, you do
not need to be in the same room as the music . You can control the
music zone wherever you are using any of the interfaces.
Regulatory Compliance
This product complies with standards established by the following regulatory
bodies:
• Federal Communications Commission (FCC)
• Industry Canada
FCC
FCC ID: (Not yet approved): This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions: (1) this device may
not cause harmful interfence, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
CAUTION! Changes or modifications not expressly approved by
Control4 could void the user’s authority to operate the equipment.
Industry Canada Statement
This Class B digital apparatus complies with Canada ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du
Canada.
Limited 1 Year Warranty
This device has a limited one (1) year warranty on parts from the date of purchase. Control4 will
replace or repair any defective unit. Return unit to the place of purchase for replacement. For any
damages incurred, the warranty will never exceed the purchase price of the device. This
warranty does not cover installation, removal, or reinstallation cost. The warranty is not valid in
cases where damage was incurred due to misuse, abuse, incorrect repair, or improper wiring or
installation. It does not cover incidental or consequential damage. This warranty gives you
specific legal rights, and you might also be entitled to other rights that vary from state to state.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or
limitation of incidental or conseqential damages. In these cases, the above mentioned limitations
might not apply to you. For complete warranty information, see www.control4.com. To
automatically receive notification of upgrades, return the enclosed registration card or register
online at www.control4.com.
About this Document
United States Patents Pending. Copyright © 2004-2005 Control4 Corporation.
Control4 and the Control4 logo are registered trademarks of Control4
Corporation. All trademarks are properties of their respective owners.
Part Number: 21-0210 Rev A Draft 6
LED Label State
Data On = Music is streaming to or from this device
Link On = Network connection established
Power On = Power is Present. This LED will turn on
approximately 30 seconds after the power is
applied to the device.
