11_C4-WALL7_10 User Manual Control4 Edits

Supported models

• C4-WALL7-BL 7" T3-7 In-Wall Touch Screen, Black

• C4-WALL7-WH 7" T3-7 In-Wall Touch Screen, White

• C4-WALL10-BL 10" T3-10 In-Wall Touch Screen, Black

• C4-WALL10-WH 10" T3-10 In-Wall Touch Screen, White

Introduction

The Control4® T3-7 (7") and T3-10 (10") In-Wall Touch Screens

oer complete system control in an elegant and compact design.

The touch screens are equipped with a full capacitive screen,

audio and video Intercom (with the built-in camera) using SIP,

and more.

This touch screen works great in either new construction or

retroﬁt installations. For power and network connectivity, choose

from three options:

• Ethernet with PoE—The Ethernet network connection is

provided through the PoE Injector. No additional wiring is

needed.

• Ethernet with AC—Connect the touch screen to one of the

RJ-45 LAN ports on the gateway/router using the RJ-45

Ethernet cable. AC power is used to power the touch screen.

• WiFi with AC—The internal WiFi will communicate with the

LAN’s WAP. If the LAN has a WAP set up, no additional

network wiring is needed. AC power is used to power the

touch screen.

Note: 802.11b is not recommended for Video Intercom.

We recommend using Wireless-N. See “Speciﬁcations”

and “Power and Network Installation Options” for more

information.

Box contents

• 7" or 10" T3-7/T3-10 In-Wall Touch Screen

• Power box (to power the touch screen) (005-00065)

• Two screws (to attach the power box)

• Touch Screen removal tool

• Four adhesive-backed foam pads

• Warranty card

Accessories available for purchase

• PoE. Control4 Power over Ethernet Injector, sold separately

(AC-POE1-B).

• Back box options (sold separately)—Metal and plastic, for

new construction or retroﬁt installations.

• 7" and 10" In-Wall Touch Screen Back Box Kits - New

Construction

• 7" and 10" In-Wall Touch Screens Wall Box, New

Construction, Plastic (C4-NWB57C-P)

• 7" and 10" In-Wall Touch Screens Wall Box, New

Construction, Metal (C4-NWB57C-M)

• 7" and 10" In-Wall Touch Screen Back Box Kit - Retroﬁt

• 7" and 10” In-Wall Touch Screens Wall Box, Retroﬁt,

Plastic (C4-RWB57C-P)

• 7" and 10" In-Wall Touch Screens Wall Box, Retroﬁt,

Metal (C4-RWB57C-M)

For back box installation details, see:

• 7" or 10" In-Wall Touch Screen Wall Box Installation

Guide-New Construction

• 7", or 10" In-Wall Touch Screen Wall Box Installation

Guide-Retroﬁt

7" and 10" T3 Series In-Wall Touch Screen

Installation Guide

Warnings

Warning! The touch screen must be protected by an

external circuit breaker or a fuse rated at 6A maximum

when used in Europe.

AVERTISSEMENT ! Pour réduire le risque du feu ou de

choc électrique, n’exposez pas cet appareil à la pluie ou

à l’humidité.

Warning! Do not place the touch screen near sources of

heat or expose to direct sunlight for an extended period

of time.

AVERTISSEMENT ! Ne placez pas l’unité près des

sources de chaleur ou exposition pour diriger la lumière

du soleil pendant une période prolongée.

Warning! Install in accordance with all national, state,

and local electrical codes.

AVERTISSEMENT ! Installez selon tous les national, état,

et codes électriques locaux.

Warning! This product generates heat. The room must

have adequate ventilation or the ability to dissipate heat

eectively.

AVERTISSEMENT ! Ce produit produit de la chaleur.

La salle doit avoir à ventilation proportionnée ou la

capacité d’absorber la chaleur ecacement.

Warning! This product must be grounded in accordance

with the National Electrical Code (NEC) requirements.

AVERTISSEMENT ! Ce produit doit être fondu selon les

conditions électriques nationales de code (NEC).

Warning! Use this product only in dry locations.

AVERTISSEMENT ! Employez ce produit seulement dans

des endroits secs.

Caution! This product is for residential use only.

AVERTISSEMENT ! Ce produit est pour à l’usage

résidentiel ou commercial seulement.

Caution! Do not use pens or sharp objects to navigate

or make selections on the touch screen. To select an

item or scroll through a list, use your ﬁngertip.

AVERTISSEMENT ! N’employez pas les stylos ou les

objets pointus pour diriger ou pour faire des choix sur

l’écran. Pour choisir un article ou un rouleau par une

liste, employez votre bout du doigt.

Caution! Improper use or installation can cause

DAMAGE OF PROPERTY.

AVERTISSEMENT ! L’utilisation ou l’installation inexacte

peut causer DAMAGE DE PROPRIÉTÉ.

Important! Using this product in a manner other than

outlined in this document voids your warranty. Further,

Control4 is NOT liable for any damage incurred with the

misuse of this product. See “Warranty.”

Important ! Utilisant ce produit en quelque sorte autre

que décrit dans ce document vide votre garantie. De

plus, Control4 n’est pas responsable d’aucun dommage

encouru avec l’abus de ce produit. Voyez que «

Warranty. »

For more information, visit the Products pages at

dealer.control4.com

Speciﬁcations and requirements

Speciﬁcations

Model Numbers C4-WALL7-BL, C4-WALL7-WH, C4-WALL10-BL,

C4-WALL10-WH

Screen Resolution: 1280 × 800

Camera: 720p

Network

Ethernet or WiFi (802.11b/g/n [2.4 GHz] / (802.11an

[5 GHz]

Security: WEP, WPA/WPA2 PSK, 801.1x EAP, PEAP

Notes: (1) Intercom usage. 802.11b is not

recommended for Video Intercom. (2) Wireless-N

is recommended for Video Intercom. Even with

Wireless-N, broadcasting to several devices will

degrade Video Intercom response time and

images. Broadcasting to additional devices will

further degrade performance. See “Wireless

Network Limitations.”

Power supply PoE (IEEE802.3af) 13 W peak

100-240VAC, 50/60 Hz

Operating temperature 32 ~ 104˚F (0˚ ~ 40˚C)

Storage temperature 4 ~ 158˚F (-20˚ ~ 70˚C)

Dimensions (W × H × D)

7" model: 6.9" × 5.0" × 0.53" (175 × 127 × 13 mm)

10" model: 9.4" × 6.5" × 0.53" (239 × 165 × 13 mm)

Back box: 2.7" × 4.1" × 2.4" (68 × 104 × 61 mm)

Power box: 2.8" × 4.5" × 1.8" (71 × 114 × 46 mm)

Weight (with mid-box) 7" model: 0.9 lbs. (0.41 kg)

10" model: 1.5 lbs. (0.68 kg)

Shipping Weight 7" model: 1.5 lbs (0.68 kg)

10" model: 2.1 lbs (0.95 kg)

Requirements

• A controller fully installed and conﬁgured with Control4

OS2.7.0 or later.

• Control4 7" or 10" In-Wall Touch Screen custom back box

installed. See “Accessories.”

• If using Ethernet with PoE power:

• Ethernet network installed and available that includes a

gateway/router/switch

• Control4 PoE Injector (model #AC-POE1-B) or another

third-party PoE Injector or switch (UL/ANSI certiﬁed).

• Two Ethernet CAT5/6 cables: (1) one that runs from the

Ethernet gateway/router/switch to the PoE Injector/switch

and (2) one that runs from the PoE Injector/switch to the

Ethernet connection in the touch screen’s back box.

• If using Ethernet with AC power:

• Ethernet network installed and available that includes a

gateway/router/switch

• Access to in-wall AC power (neutral connection required)

• One Ethernet CAT5/6 cable that runs from the Ethernet

gateway/router/switch to the touch screen

• A 14-gauge electrical wire long enough to pull between

the touch screen and the power source

• If using wireless with AC power:

• Wireless network (WiFi 802.11b/g/n) installed and

available with a wireless access point (WAP). Security can

be WEP, WPA/WPA2 PSK, 801.1x EAP, PEAP.

• Access to in-wall AC power (neutral connection required)

• A 14-gauge electrical wire long enough to pull between

the touch screen and the power source

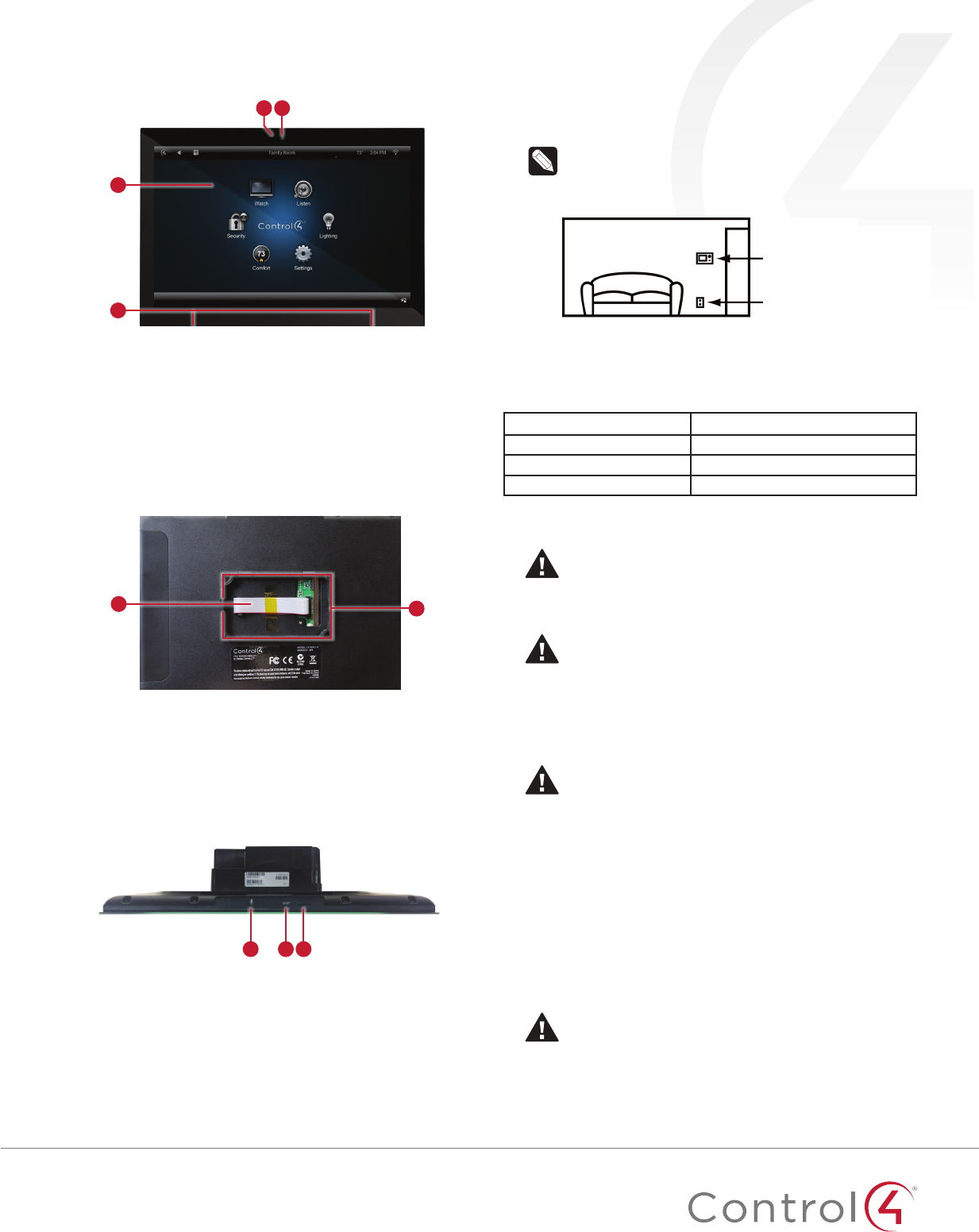

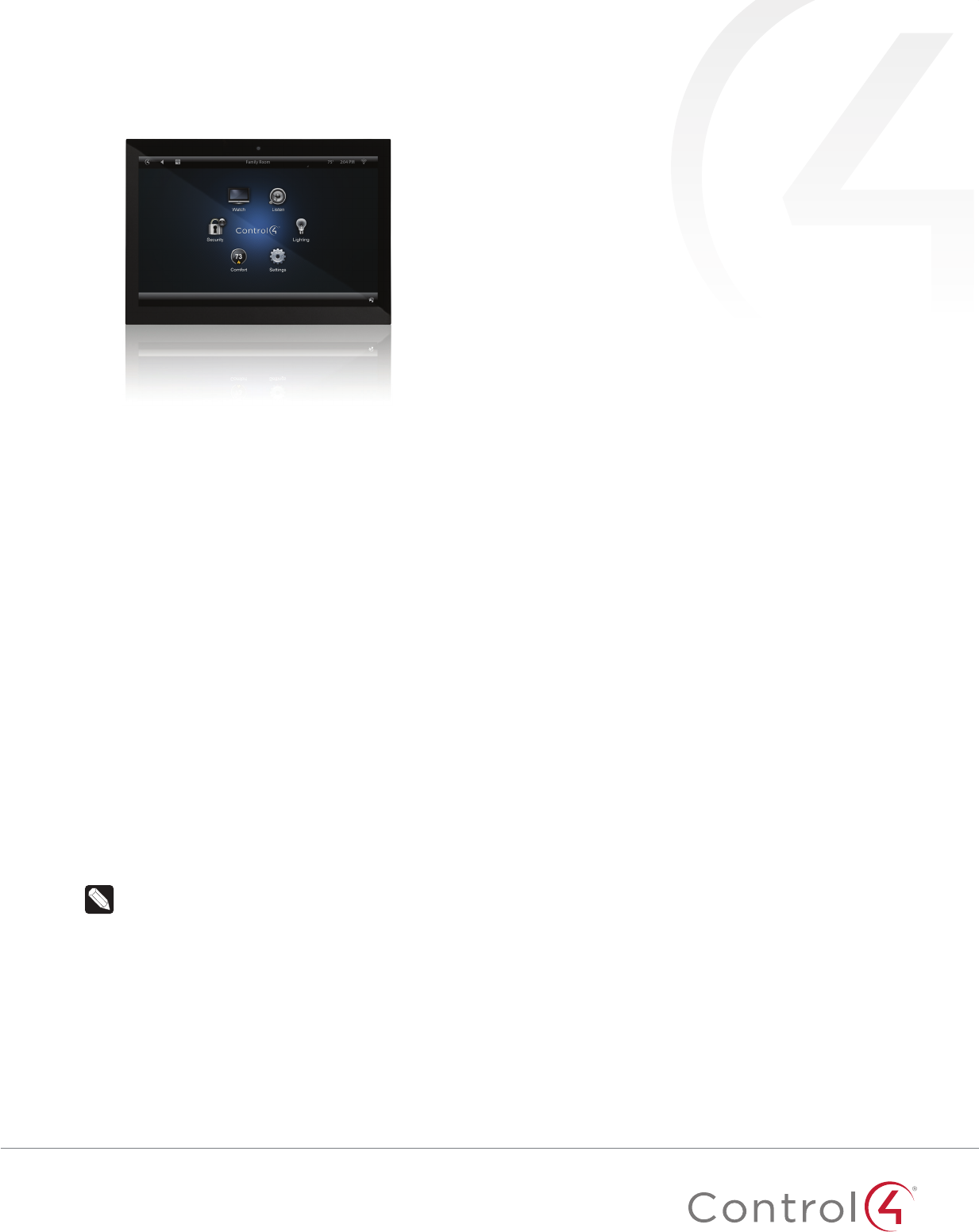

Front view

Figure 1: Front view

A LED—Indicates when the camera is on.

B Camera—For video intercom calls.

C Display—7" or 10" diagonal, capacitive touch screen with

1280 × 800 resolution.

D Speakers—Provide stereo audio.

Back view

Figure 2: Back view

A Ribbon cable-Provides data and power connection to the

touch screen from the power box.

B Mounting ring—Fits into the power box.

Top view

Figure 3: Top view (with power box attached)

A CB

A Microphone—Records audio.

B RESET—Press and hold a straightened paper clip into this hole

to reset the touch screen to factory defaults.

C Power button—Press to turn off the touch screen, or press and

hold to reboot.

Touch screen placement

Place the touch screen in a convenient location at eye level,

typically near the entrance of the room, approximately 57 to 61

inches (145 cm to 155 cm) from the ﬂoor (Figure 3).

Note: Consider the camera on the panel and the height

of the people in the home who will use the camera for

Video Intercom.

Figure 3: Touch screen placement

LED indicator

The LED on the touch screen indicates the camera status of the

camera and booting information as described in the next table.

Camera/LED color state Touch screen status

O Camera is o

Green Camera is on

Green (blinking slowly) Touch screen is booting

Installation

Warning! Before installing the touch screen, switch o

the circuit breaker or remove the fuse from the fuse box.

AVERTISSEMENT ! Pour l’endroit où vous installez

l’écran tactile, coupez le disjoncteur ou enlevez le fusible

de la boîte de fusible.

Important! Before you can complete the instructions

below, you must have a 7" or 10" Touch Screen back box

installed according to the documentation provided in

the back box kit. See “Accessories” for details.

Important ! En coupant l’ouverture pour la boîte de

mur, ne coupez pas l’ouverture trop grande. Soyez

conservateur et agrandissez-avec précaution la comme

nécessaire. Voyez que <<Accessories>>.

Important! When cutting the opening for the back box,

do not cut the opening too large. Be conservative and

cautiously enlarge it as needed.

Important ! En coupant l’ouverture pour la boîte de

mur, ne coupez pas l’ouverture trop grande. Soyez

conservateur et agrandissez-avec précaution la comme

nécessaire.

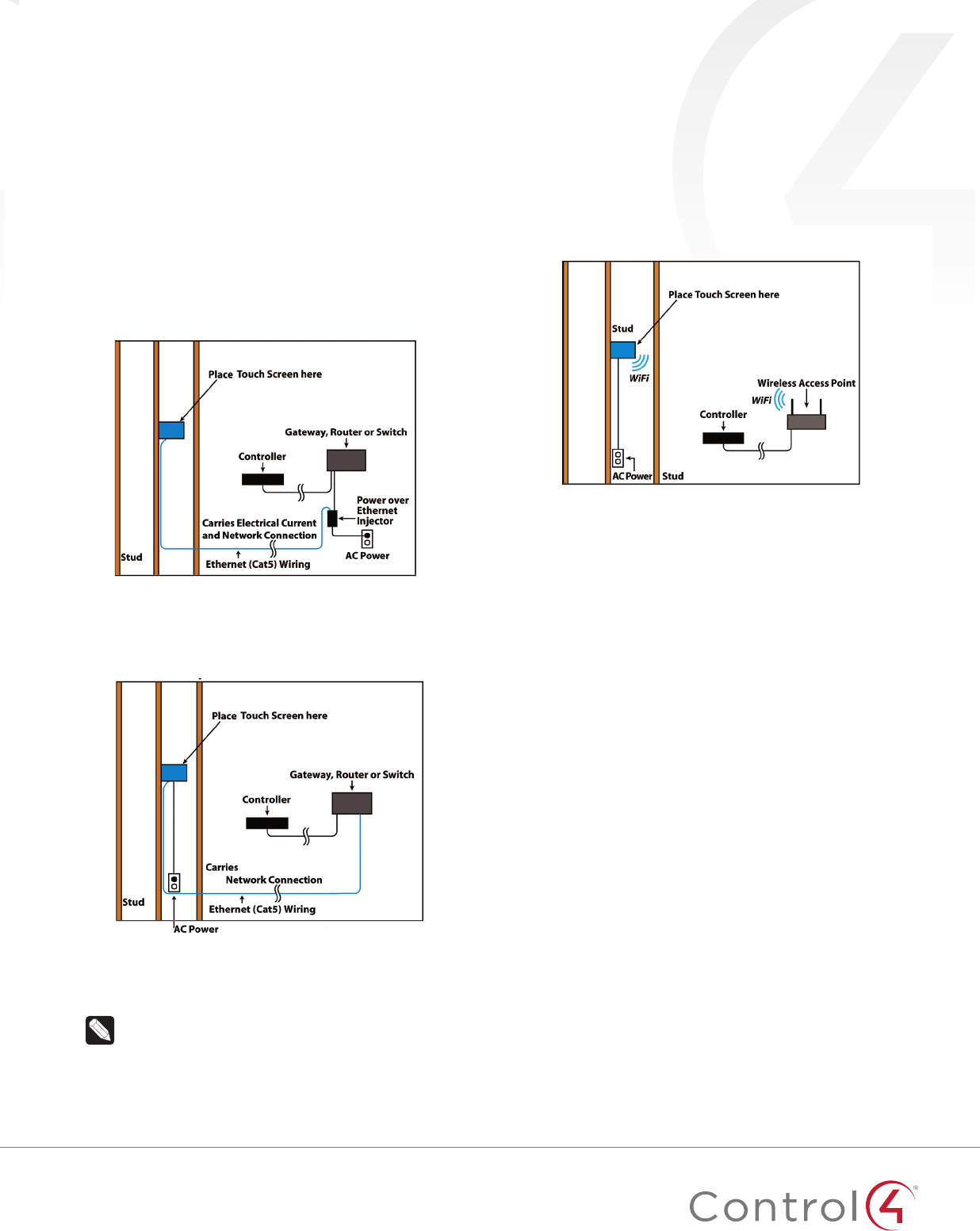

Power and network installation options

This device uses an Ethernet or WiFi network connection, and

can be powered using PoE or AC power.

Choose one of the following options to install the power and

network communication.

Caution! Do not attempt to use PoE and AC power at

the same time. Choose only one power option.

ATTENTION ! Ne pas tenter d’utiliser PoE et AC en

même temps. Choisir une seule option d’alimentation.

Touch screen

AC power

(unless using PoE)

Option 1: Ethernet connection with PoE

PoE supplies DC power on the Ethernet cable using a PoE

Injector (model #AC-POE1-B) or a third-party PoE solution to

provide the touch screen with power and a network connection.

The touch screen works with the Control4 PoE Injector or a third-

party PoE Injector.

To set up your PoE and Ethernet connection with a PoE Injector:

1 Attach the PoE Injector according to the instructions in your

PoE’s installation guide if provided. Control4 PoE Injector

instructions are provided later in this document.

2 Pull the Ethernet cable from that location to where you want

to install the touch screen.

Figure 4: Ethernet with PoE—Requires Ethernet connection to PoE

injector

Option 2: Ethernet connection with AC

The Ethernet is connected directly to the switch (Figure 5). This

power connection requires both neutral and hot connections.

Figure 5: Ethernet—Requires a connection to Ethernet and AC power

Option 3: WiFi connection with AC

Place the touch screen above a power source, for example, an

outlet. Ensure that you have WiFi in the home (Figure 6).

Notes: (1) Video Intercom. Although this device

supports 802.11b/g/n, 802.11 b is not recommended for

Video Intercom use. (2) We recommend Wireless-N for

Video Intercom. See the Composer Pro User Guide for

details about the touch screen’s properties.

Wireless Network Limitations: Many WiFi Access Points

handle Multicasts (WiFi simultaneously sent to multiple

devices, for example, when the touch screen broadcasts

video to all stations) by slowing down transmission

speed to the 1 Mb basic rate. This can cause overall WiFi

congestion in the WiFi network during the broadcast.

Video Intercom response times and images may

degrade at each device.

If a home requires a large number of WiFi Video

Intercom devices, ensure that you have a robust WiFi

network (possibly consisting of multiple access points).

Figure 6: WiFi—Requires AC Power and WAP

Power installation

Prepare the plastic power box for installation into the back box

by inserting either the Ethernet cable or the AC power cable into

the power box, and then follow the instructions.

Connecting PoE

Connect the PoE injector to power and the network, and then

connect it to the power box.

To install a Control4 PoE injector:

1 Connect the Control4 PoE injector to an AC outlet using the

power cord.

2 Connect one of the RJ-45 LAN ports on the gateway/router/

switch to the PoE Injector’s LAN port using CAT5/6 Ethernet

cable.

3 Connect the PoE Injector’s PWR LAN-OUT port to the RJ-45

Ethernet cable that will be connected to the touch screen’s

power box.

4 Pull the Ethernet cable through the top left hole of the back

box, then plug it into the Ethernet jack on the top back of

the power box (Figure 7).

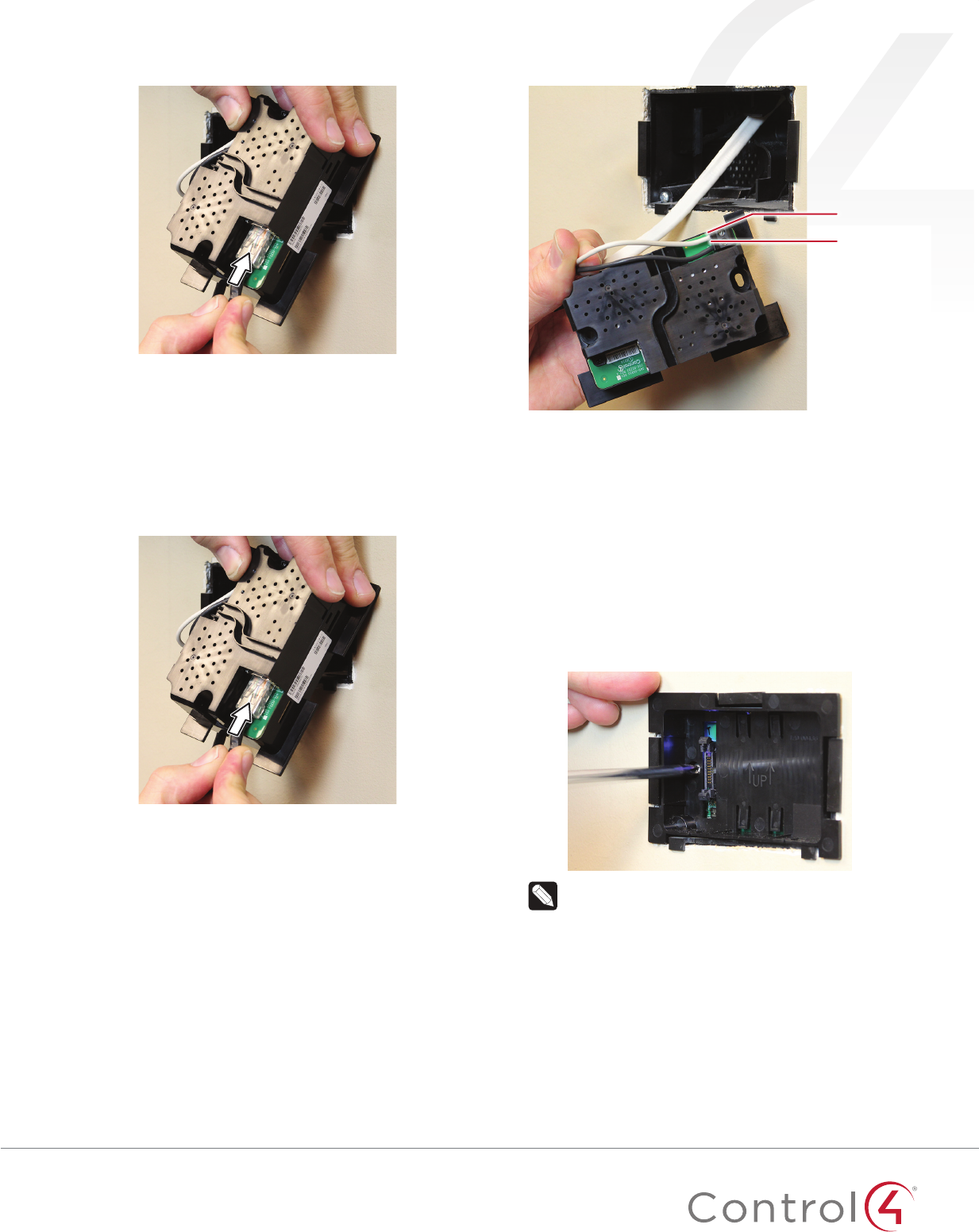

Figure 7: Insert Ethernet cable into power box

5 Go to “Attach the power box and touch screen” below.

Connecting standard Ethernet

To connect to a wired network:

1 Pull the in-wall Ethernet cable through the top left hole of

the back box, then plug it into the Ethernet jack on the top

back of the power box (Figure 8).

Figure 8: Insert Ethernet cable into power box

2 Go to “Attach the power box and touch screen” below.

Connecting AC power

The steps below represent a typical U.S. installation.

1 Connect the wires to the AC power source for the touch

screen according to national and local electrical codes.

Installation may require alternative wires and the use of a

terminal block.

2 Thread the power cable through the upper back hole of the

back box to the terminal block (Figure 7).

3 Strip the black and white power wire ends to 1/4" as

necessary. Using a ﬂat-head screwdriver, loosen the screws

on the power box’s terminal block and connect the power

wires to each terminal (Figure 9).

Figure 9: Connect AC power

4 Cap the ground wire from the wall if you are using a plastic

back box. Attach the ground wire to the back box if using a

metal back box.

Attach the power box and touch screen

To attach the power box and touch screen:

1 Align and bend the wires carefully to ﬁt them inside the back

box.

2 Align slide the power box into the back box, then secure the

power box to the back box using the two screws provided.

Figure 10: Secure power box to back box

Note: Overtightening the power box screws can warp

the box and make it dicult to attach the touch screen.

3 Straighten out the ribbon cable taped to the back of the

touch screen, then plug it into the ribbon cable port in the

power box. To make sure it’s securely connected, press it into

the port until the two locking tabs close onto the connector.

Neutral (N)

Line (L)

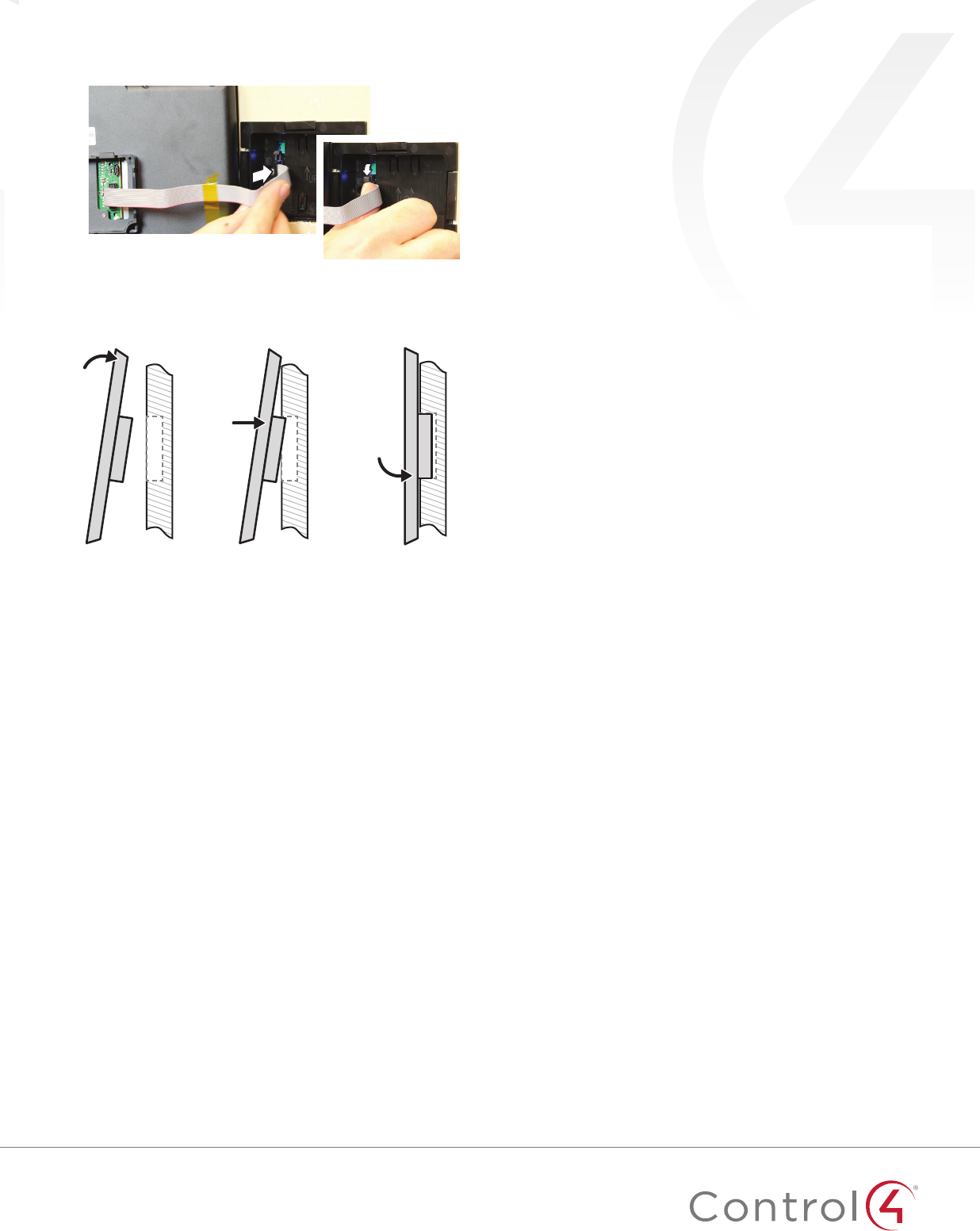

Figure 11: Attach ribbon cable to the power box

4 For easiest installation, angle the top of the touch screen

toward the wall, insert the top tabs of the mounting ring into

the power box, then press the bottom of the touch screen

into place.

Conﬁguration

Conﬁgure the touch screen for wireless (optional)

1 After initialization, tap Network. The network conﬁguration

page opens.

2 Under Wireless, tap Enable, then tap the network you want

to connect to.

Or, if you don’t see the network you want:

a Tap Other.

b Tap the Network Name ﬁeld, type the network name with

the on-screen keyboard, then tap Done.

c Tap the Security ﬁeld, then select a type of security to

use.

d Tap the Key ﬁeld, type the network password with the on-

screen keyboard, then tap Done.

e Tap Connect. Notice that the IP settings change. The IP

address is set to DHCP by default.

3 (Optional) If you need to set a static IP address:

a On the Network page, tap Show advanced options, scroll

down and tap DHCP, then tap Static.

b Select each box one at a time and use the on-screen

keyboard to type the IP Address, Subnet Mask, Default

Gateway, Preferred DNS, and Alternate DNS.

c Tap Done.

4 Tap OK to return to the Network page. You can now connect

to a Director.

5 Tap OK.

Add and conﬁgure in Composer Pro

After the touch screen is installed and appears on the home

network, use Composer Pro to add it to the Control4 system and

conﬁgure it.

Use the Composer Pro System Design and Connections views to

add and conﬁgure this device.

To add and conﬁgure a T3 touch screen to a project:

1 Add the T3-T7 or T3-T10 In-Wall Touch Screen driver to your

project.

2 To conﬁgure the properties, click System Design.

3 In the project tree, select the T3 7" or T3 10" In-Wall Touch

Screen.

4 View and change the properties in the Properties pane as

needed.

Properties include:

•Network Connection—Reports the touch screen’s current

network connection type.

•Back Light—Use the arrows or type numbers to set the

light level, then click Set.

Advanced properties include:

•Enable Camera—Allows you to enable or disable the

camera.

Intercom (nested under the touch screen) properties:

•Appearance—Select to hide the touch screen from

appearing in Navigators as an available device.

•Behavior—Select the modes you want this touch screen to

support.

•Audio Control—Select the volume of individual audio

settings.

•Sip Information—Information for integrating the touch

screen into your SIP/VoIP system.

•Custom Buttons—Select to enable and label the two

available custom buttons.

•Alternate Camera—Select to use an external camera for

the video associated with the touch screen, for example, a

security camera mounted to the side of the entrance and

pointing at the door.

7200-00387-B

2015-03-04 MS

Mockupancy are registered trademarks or trademarks of Control4 Corporation in the United States and/or other countries. All other names and brands may be claimed as

the property of their respective owners. All speciﬁcations subject to change without notice. B

Troubleshooting

Boot up time

When the device is booting up, it may take 30 seconds or longer

before the Green LED turns on. When it turns on, it blinks slowly

for a time and then turns o. After that, you’ll see an image on

the touch screen.

Unresponsive screen

If the camera’s LED blinks on and o for more than 30 seconds,

the device may need to be power cycled. If power cycling doesn’t

solve the problem, the touch screen may need to be restored to

factory defaults.

To power cycle the touch screen:

1 Press and hold the (power) button for several seconds

until the touch screen turns o.

2 Press and release the (power) button again to turn on.

To restore to factory defaults:

1 On the touch screen’s main screen, tap Settings, System

Information, then Restore.

- OR -

Insert a straightened paper clip into the RESET hole on the

top of the touch screen, then press and hold it for several

seconds until the screen resets.

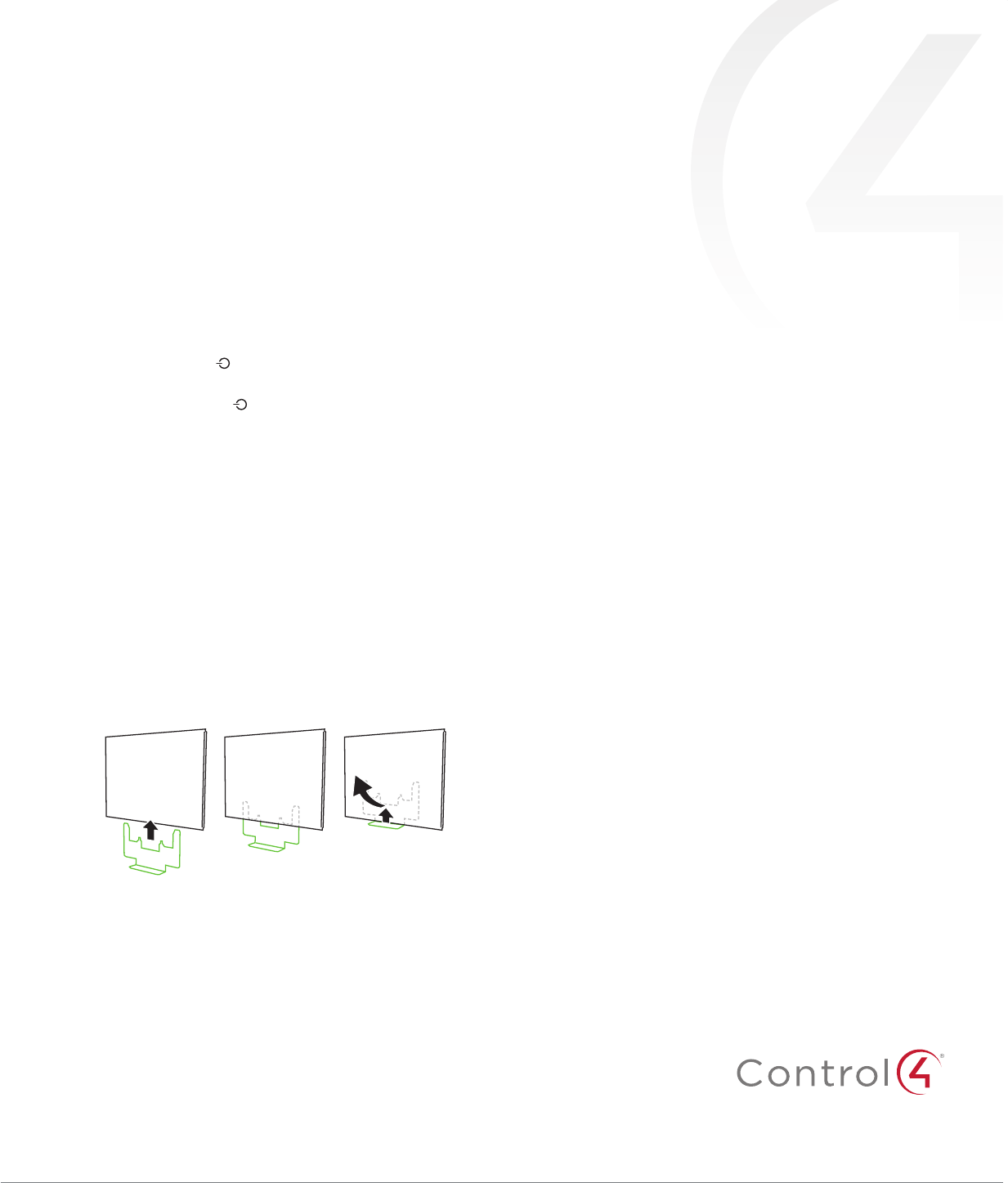

Removing the touch screen from the wall

To remove the touch screen:

1 Hold the removal tool ﬂat against the wall, centered directly

beneath the touch screen, then slide it upward between the

wall and touch screen.

2 While pressing the tool up as far as it will go, carefully pull

the touch screen away from the wall.

Additional resources

The following resources are available for more support.

• Control4 Knowledgebase and forums

• Control4 Technical Support

• Control4 website:

www.control4.com

• Composer documentation in online help or PDF formats,

available on the Dealer Portal under Resources

Regulatory/Safety Information

To review regulatory information for your particular Control4

products, see the information located on the Control4 website at:

ctrl4.co/reg

Warranty

Visit

www.control4.com/warranty

for details.

control4.com | 888.400.4070

Regulatory Compliance & Safety Information for Contol4 Model C4-WALL7-XX & C4-

WALL10-XX.

Electrical Safety Advisory

Sécurité électrique consultatif

Important Safety Information

Informations de sécurité importantes

Read the safety instructions before using this product.

Lisez les consignes de sécurité avant d'utiliser ce produit.

1. Read these instructions.

1. Lisez ces instructions.

2. Keep these instructions.

2. Conservez ces instructions.

3. Heed all warnings.

3. Respectez tous les avertissements.

4. Follow all instructions.

4. Suivez toutes les instructions.

5. Do not use this apparatus near water.

5. Ne pas utiliser cet appareil près de l'eau.

6. Clean only with dry cloth.

6. Nettoyez-le uniquement avec un chiffon sec.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

7. Ne pas bloquer les ouvertures de ventilation. Installer conformément aux instructions du

fabricant.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including amplifiers) that produce heat.

8. Ne pas installer près de sources de chaleur telles que des radiateurs, registres de

chaleur, poêles, ou autres appareils (incluant les amplificateurs) qui produisent de la

chaleur.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades

and a third grounding prong. The wide blade or the third prong is provided for your safety.

If the provided plug does not fit into your outlet, consult an electrician for replacement of

the obsolete outlet.

9. Ne pas contourner le dispositif de sécurité de la fiche polarisée ou de mise à la terre. Une

fiche polarisée possède deux lames dont une plus large que l'autre. Une fiche de terre a

deux lames et une troisième broche de terre. La lame large ou la troisième broche est

fournie pour votre sécurité. Si la fiche fournie ne s'adapte pas à votre prise, consultez un

électricien pour le remplacement de la prise obsolète.

10. Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

10. Protégez le cordon d'alimentation ne soit piétiné ou pincé, en particulier au niveau des

fiches, des prises et au point où il sort de l'appareil.

11. Only use attachments/accessories specified by the manufacturer.

11. Utilisez uniquement des fixations / accessoires spécifiés par le fabricant.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or

sold with the apparatus. When a cart is used, use caution when moving the

cart/apparatus combination to avoid injury from tip-over.

12. Utilisez uniquement avec le chariot, le socle, le trépied, le support ou la table spécifiés

par le fabricant ou vendu avec l'appareil. Lorsque vous utilisez un chariot, soyez prudent

lorsque vous déplacez l'ensemble chariot / appareil pour éviter des blessures dues au

renversement.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

This equipment uses AC power which can be subjected to electrical surges, typically

lightning transients which are very destructive to customer terminal equipment connected

to AC power sources. The warranty for this equipment does not cover damage caused

by electrical surge or lightning transients. To reduce the risk of this equipment becoming

damaged it is suggested that the customer consider installing a surge arrestor.

13. Débranchez cet appareil pendant les orages ou lorsqu'il n'est pas utilisé pendant de

longues périodes de temps. Cet équipement utilise la puissance AC qui peuvent être

soumis à des surtensions électriques, la foudre généralement transitoires qui sont très

destructives envers les équipements terminaux connectés à des sources d'alimentation

CA. La garantie de cet appareil ne couvre pas les dommages causés par les surtensions

électriques ou transitoires de foudre. Pour réduire le risque de cet équipement devient

endommagé, il est suggéré que le client envisager l'installation d'un limiteur de

surtension.

14. Refer all servicing to qualified service personnel. Servicing is required when the

apparatus has been damaged in any way, such as power-supply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate normally, or has been dropped.

14. Confiez toutes les réparations à un personnel qualifié. Une réparation est nécessaire

lorsque l'appareil a été endommagé de quelque façon que ce soit le cordon

d'alimentation ou la fiche est endommagé, du liquide a été renversé ou si des objets sont

tombés dans l'appareil, l'appareil a été exposé à la pluie ou à l'humidité, ne fonctionne

pas normalement , ou s'il est tombé.

15. Use the circuit breaker to disconnect the apparatus from the AC mains. The circuit

breaker shall remain readily accessible.

15. Utiliser le disjoncteur pour déconnecter l'appareil de l'alimentation secteur. Le disjoncteur

doit rester facilement accessible.

16. To completely disconnect unit power from the AC mains, turn off the circuit breaker. To

reconnect power, turn on the circuit breaker following all safety instructions and

guidelines.

16. Pour couper entièrement l'alimentation appareil de l'alimentation secteur, éteignez le

disjoncteur. Pour rétablir le courant, mettez le disjoncteur après les consignes de sécurité

et des lignes directrices.

17. This product relies on the buildings installation for short-circuit (overcurrent) protection.

Ensure that the protective device is rated not greater than: 20A.

17. Ce produit repose sur l'installation des bâtiments pour les courts-circuits (surintensité) de

protection. Assurez-vous que le dispositif de protection est assignée ne dépassant pas:

20A.

18. CAUTION: As with all batteries, there is a risk of explosion or personal injury if the

battery is replaced by an incorrect type. Dispose of used battery according to the

instructions of the battery manufacturer and applicable environmental guidelines. Do not

open, puncture or incinerate the battery, or expose it to conducting materials, moisture,

liquid, fire or heat above 54° C or 130° F.

18. ATTENTION: Comme avec toutes les batteries, il ya un risque d'explosion ou de blessure

si la batterie est remplacée par un type incorrect. Éliminez les batteries usagées selon

les instructions du fabricant de la batterie et applicables des directives

environnementales. Ne pas ouvrir, percer ou incinérer la batterie, ou de l'exposer à des

matériaux conducteurs, de l'humidité, du liquide, un incendie ou une température

supérieure à 54 ° C ou 130 ° F.

19. Never push objects of any kind into this product through cabinet slots as they may touch

dangerous voltage points or short out parts that could result in fire or electric shock.

19. N'introduisez jamais d'objets d'aucune sorte dans ce produit à travers les fentes du

boîtier car ils pourraient toucher des points de tension dangereux ou court-circuiter des

pièces qui pourraient entraîner un incendie ou un choc électrique.

20. This product can interfere with electrical equipment such as tape recorders, TV sets,

radios, computers and microwave ovens if placed in close proximity.

20. Ce produit peut interférer avec des appareils électriques tels que les magnétophones,

téléviseurs, radios, ordinateurs et fours à micro-ondes si placés à proximité.

The lightning flash and arrow head within the triangle is a warning sign alerting

you of dangerous voltage inside the product

L'éclair et la flèche dans le triangle est un signe d'alerte pour vous avertir d'une

tension dangereuse à l'intérieur du produit

Caution: To reduce the risk of electric shock, do not remove cover (or back). No

user serviceable parts inside. Refer servicing to qualified service personnel.

Attention: Pour réduire le risque de choc électrique, ne pas retirer le couvercle

(ou l'arrière). Aucune pièce réparable par l'utilisateur. Confiez l'entretien à un

personnel qualifié.

The exclamation point within the triangle is a warning sign alerting you of

important instructions accompanying the product.

Le point d'exclamation dans un triangle est un signe d'avertissement vous

signale des instructions importantes accompagnant le produit.

See marking on bottom / back of product

Voir le marquage sur les bas / dos du produit

Warning!: To reduce the risk of electrical shock, do not expose this

apparatus to rain or moisture

AVERTISSEMENT! Pour réduire le risque de choc électrique,

n'exposez pas cet appareil à la pluie ou à l'humidité.

Save these instructions

Conservez ces instructions

Compliance of this equipment is confirmed by the following label that is placed on the equipment:

Conformité de cet appareil est confirmé par le symbole suivant qui est placé sur l'équipement:

USA & Canada Compliance

FCC Part 15, Subpart B Unintentional Emissions Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection

against harmful interference when the equipment is operated in a residential installation. This

equipment generates uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

 Consult the dealer or an experienced radio/TV technician for help.

FCC Partie 15, sous-section B Unintentional Déclaration sur les interférences des

émissions

Cet équipement a été testé et jugé conforme aux limites établies pour un dispositif numérique de

classe B, conformément à la Partie 15 des règlements de la FCC. Ces limites sont conçues pour

fournir une protection raisonnable contre les interférences nuisibles lorsque l'équipement est

utilisé dans une installation résidentielle. Cet équipement génère, utilise et peut émettre de

l'énergie rayonnent fréquence et, s'il n'est pas installé et utilisé conformément aux instructions, il

peut causer des interférences nuisibles aux communications radio. Cependant, il n'existe aucune

garantie que des interférences ne se produiront pas dans une installation particulière. Si cet

équipement provoque des interférences nuisibles à la réception radio ou télévision, ce qui peut

être déterminé en mettant l'équipement hors et sous tension, l'utilisateur est encouragé à essayer

de corriger l'interférence par une ou plusieurs des mesures suivantes:

 Réorienter ou déplacer l'antenne de réception.

 Augmenter la distance entre l'équipement et le récepteur.

 Connecter l'équipement à une prise sur un circuit différent de celui sur lequel le récepteur

est branché.

 Consulter le revendeur ou un technicien radio / télévision qualifié pour obtenir de l'aide.

This device complies with part 15 of the FCC rules and Industry Canada’s licence-exempt RSS-

GEN. Operation is subject to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that

may cause undesired operation.

Le présent appareil est conforme partie 15 des règles de la FCC et aux RSS-GEN d'Industrie

Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux

conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de

l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible

d'en compromettre le fonctionnement.

IMPORTANT! Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

IMPORTANT! Tous les changements ou modifications pas expressément approuvés par la partie

responsable de la conformité ont pu vider l’autorité de l’utilisateur pour actionner cet équipement.

FCC Part 15, Subpart C / RSS-210 Intentional Emissions Interference Statement

Compliance of this equipment is confirmed by the following certification numbers that are placed

on the equipment:

Notice: The term “FCC ID:” and “IC:” before the certification number signifies that FCC and

Industry Canada technical specifications were met. The FCC ID: and IC: numbers listed below

are for the WiFi module that was certified as a Limited Modular Approval.

FCC ID: R33C4LGWM

IC: 7848A-C4LGWM

The end user equipment that contains the certified WiFi module are labeled with the following on

the outside of the equipment:

Contains FCC ID: R33C4LGWM

Contains IC: 7848A-C4LGWM

This equipment must be installed by qualified professionals or contractors in accordance with

FCC Part 15.203 & IC RSS-210, Antenna Requirements. Do not use any antenna other than the

one provided with the unit.

FCC Partie 15, sous-partie C / RSS-210 Déclaration volontaire des émissions interférences

Conformité de cet appareil est confirmé par les chiffres de certification suivants qui sont placés

sur l'équipement:

Avis: Le terme «FCC ID:" et "IC:" devant le numéro de certification signifie que les spécifications

techniques de la FCC et d'Industrie Canada ont été respectées. La FCC ID: et IC: numéros

indiqués ci-dessous sont pour le module WiFi qui a été certifiée en tant que Approbation limitée

modulaire.

FCC ID: R33C4LGWM

IC: 7848A-C4LGWM

L'équipement d'utilisateur final qui contient le module WiFi certifiée sont marqués par le suivant à

l'extérieur de l'objet:

Contient ID FCC: R33C4LGWM

Contient IC: 7848A-C4LGWM

Cet équipement doit être installé par des professionnels qualifiés ou entrepreneurs conformément

aux normes FCC partie 15.203 & IC RSS-210, Exigences d'antenne. Ne pas utiliser une antenne

autre que celui fourni avec l'appareil.

RF Radiation Exposure Statement

This equipment complies with the FCC/IC radiation exposure limits set fourth for portable

transmitting devices operation in an uncontrolled environment. End users must follow the specific

operating instructions to satisfy RF exposure compliance.

 The equipment should only be used or installed at locations where there is normally

greater than a 20cm separation between the antenna and all persons.

 This transmitter must not be co-located or operation in conjunction with any other

antenna or transmitter.

 Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate this equipment.

Déclaration d'exposition aux radiations RF

Cet équipement est conforme aux limites FCC / IC d'exposition aux rayonnements définies

quatrième opération appareils portables transmettre dans un environnement non contrôlé. Les

utilisateurs finaux doivent suivre les instructions de fonctionnement spécifiques pour satisfaire la

conformité aux expositions RF.

 L'équipement ne doit être utilisé ou installé à des endroits où il est normalement

supérieure à une séparation de 20 cm entre l'antenne et toute personne.

 Cet émetteur ne doit pas être co-localisés ou fonctionnement en conjonction avec une

autre antenne ou un autre émetteur.

 Tout changement ou modification non expressément approuvé par la partie responsable

de la conformité pourraient annuler l'autorité de l'utilisateur à utiliser cet équipement.

European Compliance

Conformity of the equipment with the guidelines below is attested by the application of the CE

mark.

CE Declaration of Conformity

Manufacturer’s Name: CONTROL4 CORPORATION

Manufacturer’s Address: 11734 S. ELECTION ROAD SUITE 200

SALT LAKE CITY

UT 84020 USA

EU Representative Name: CONTROL4 EMEA LIMITED

EU Representative Address: UNIT3, GREEN PARK BUSINESS CENTRE

SULTON-ON-THE FOREST

YORK YO61 IET, UNITED KINGDOM

Product Name(s): In-Wall Touch Screen

Brand: Contol4

Model(s): C4-WALL7-XX & C4-WALL10-XX

Product Standard(s) to which Conformity of the Council Directive(s) is declared:

EMC - 2004/108/EC “Electromagnetic Compatibility (EMC) Directive”:

(Emissions) EN 55022:2010, (Immunity) EN 55024:2010, EN 301 489-1 V1.9.2 (2011-09), EN

301 489-17 V2.2.1 (2012-09), EN 61000-3-2:2006 + A1:2009 + A2:2009 & EN 61000-3-3:2008

Safety – 206/95/EC “Low Voltage Directive (LVD)”:

EN 60950-1:2006/A11:2009/A1:2010/A12:2011

Telecom & Radio - 1999/5/EC Radio equipment and Telecommunications Terminal

Equipment (R&TTE) Directive:

EN 300 328 V1.8.1

RoHS - 2011/65/EU Restriction of the Use of certain Hazardous Substances in Electrical

and Electronic Equipment (EEE) & WEEE - 2002/96/EC Waste of Electrical and Electronic

Equipment (EEE).

We, the undersigned, hereby declare that the equipment specified above conforms to the above

directives and standards. Date of Issue: March 10, 2015

Legal Representative

Signature

Roger Midgley

Sr. Regulatory Compliance Engineer

Recycling

Control4 understands that a commitment to the environment is essential for a health life and

sustainable growth for future generations. We are committed to supporting the environmental

standards, laws, and directives that have been put in place by various communities and countries

that deal with concerns for the environment. This commitment is represented by combining

technological innovation with sound environmental business decisions.

WEEE Compliance

Control4 is committed to meeting all requirements of the Waste Electrical and Electronic

Equipment (WEEE) directive (2002/96/EC). The WEEE directive requires the manufacturers of

electrical and electronic equipment who sell in EU countries: (1) label their equipment to notify

customers that it needs to be recycled, and (2) provide a way for their products to be

appropriately disposed of or recycled at the end of their product lifespan. For collection or

recycling of Control4 products, please contact your local Control4 representative or dealer.

About this Document

registered trademarks or trademarks of Control4 Corporation in the United States and/or other countries.

Part Number 200-00? Rev A, 3/10/2015
