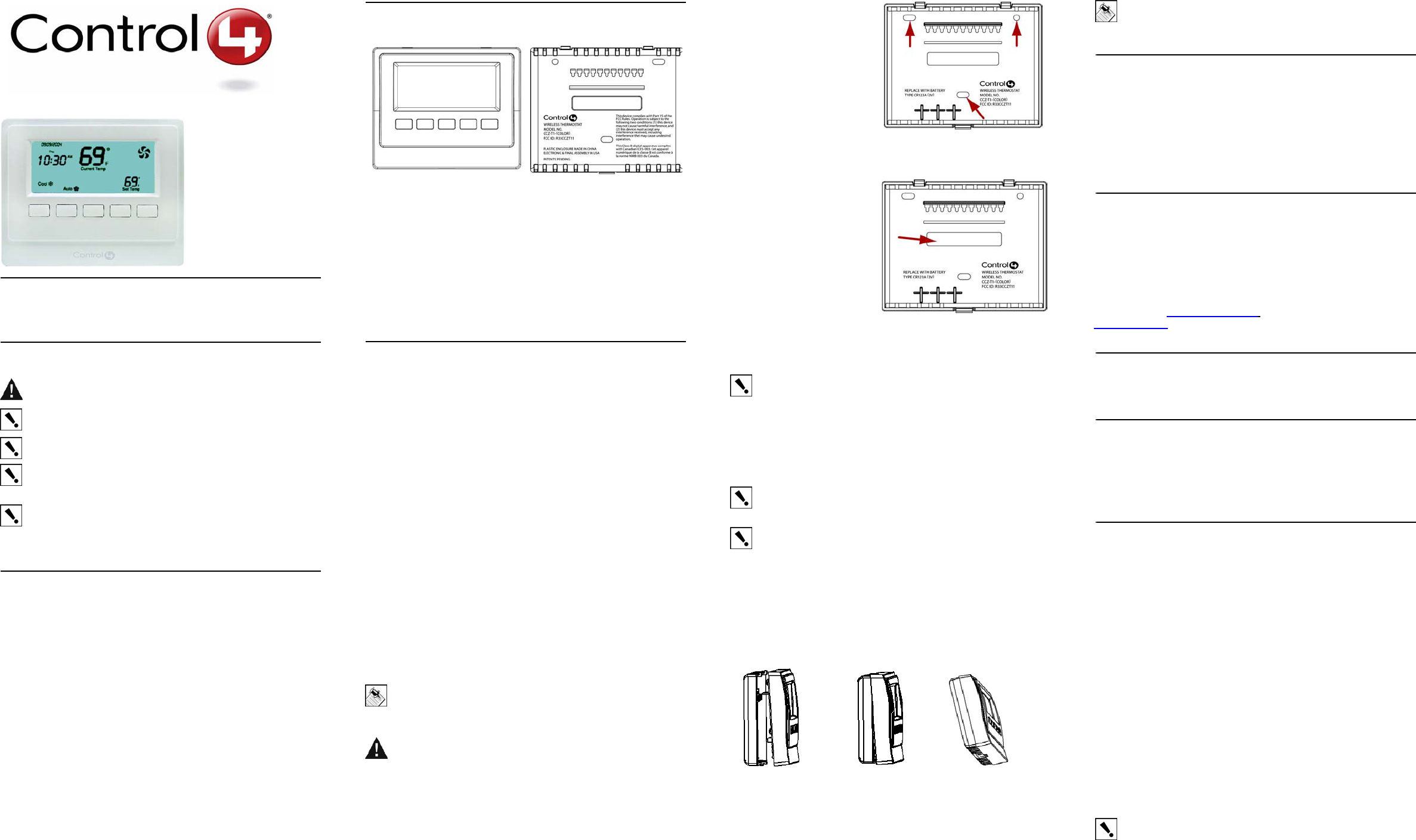

Thermostat
Installation
Guide
Supported Models and Requirements
CCZ-101-W Decora White Thermostat
Important Safety Instructions
WARNING! Install in accordance with all national and local electrical
codes.
IMPORTANT! This product is not intended for use with line-voltage
baseboard heaters.
IMPORTANT! Improper use or installation can cause LOSS/
DAMAGE OF PROPERTY.
IMPORTANT! Operate within limits of this device as specified in the
Control4 Thermostat Installation Guide (this document) and Control4
Thermostat User Guide.
IMPORTANT! Using this product in a manner other than outlined in
this document voids your warranty. Further, Control4 is NOT liable for
any damage incurred with the misuse of this product. See the
warranty information in the Control4 Thermostat User Guide.
General Description
This thermostat enables intellegent HVAC control as part of a Control4
automated system. It uses ZigBee (IEEE 802.15.4) wiring standards and
communicates to the Control4 system using a wireless connection.
The Control4 Wireless Thermostat features a backlit LCD display showing
time, temperature, date, fan status, hold status, and HVAC operating mode.
The front panel allows for temperature setpoint adjustment, HVAC mode
change, variable hold options and fan control. It can also operate as a stand-
alone set-point thermometer if it loses communication with the system.
What is in the Box Requirements
Specifications
Front and Rear View
The specifications are described as follows.
Installation
1 Place the thermostat in an good location to ensure its efficiency and
avoid unnecessary cycling of the furnace or air conditioner.
• Make sure the thermostat gets good ZigBee wireless reception by
(1) ensuring that the thermostat is not too far from another Zigbee
device and (2) avoiding electrical equipment that may cause
interference with the Zigbee signal (such as microwaves and
cordless telephones that operate on the 2.4 GHz frequency).
• Place thermostats and external thermostat sensors away from direct
sunlight, drafts, doorways, skylights, windows, and exterior walls.
2 Locate and turn OFF the power supply for the HVAC system.
3 If replacing an existing thermostat, check the number and type of wires
attached to your old unit. If installing a thermostat for the first time, see
“Sample Wiring Configuration” on page 2 for details on wiring the
thermostat.
4 When you are sure the power has been shut off, remove the old
thermostat's cover from its rear plate, but do not disconnect any wires
yet.
5 Unscrew and remove the old thermostat's rear plate from the wall.
Typically, the old thermostat has a letter identifying each wire. Use a
piece of tape to label each wire that corresponds to the letter on the old
thermostat.
TIP: You can wrap the wires around a pencil or tape them to keep
them from falling back into the wall.
6 Disconnect the old thermostat.
CAUTION! Discard the old thermostat properly or recycle it. Mercury
is a hazardous waste. You MUST dispose of it properly.
7 Route thermostat wires through the large, rectangular hole in the rear
plate and let wires hang. (Later steps describe how to match wires).
8 Position the new thermostat rear plate against the wall to make sure it
sits flush.
9 Use a small level or visually
check that the rear plate is
level, then mark the
locations of the three screw
holes on the wall.
10 Remove the rear plate
from the wall and drill 3/16-
inch-mounting holes at the
three screw hole locations
you marked previously.
11 Press the plastic wall anchors that were included in the product into
the holes you drilled in Step 10.
12 Thread the wires from the
wall through the rear plate
of the new thermostat to
place the rear plate against
the wall.
13 Insert the mounting
screws into the wall anchors
and tighten them.
14 Connect the wires to the
screw terminals in the rear
plate, matching the labeled
wires (Step 5) to the letters on the terminals. The wiring can differ
depending upon the wires available, (see Sample Wiring
Configuration).
IMPORTANT! Do not connect the common ground lead to the
thermostat. Doing so can cause your system to malfunction.
15 Set the dipswitches that sit next to the battery compartment: set for
either an electric or fuel heating system; and for either a conventional or
heat pump system.
16 Install the CR123A (3V) battery (included with the product) in the new
Control4 thermostat faceplate according to labels on thermostat.
NOTE: If the battery was in place and you changed dip switch
settings, remove the battery and reinstall it. This forces the
thermostat to reboot with the new configuration.
IMPORTANT! Do not install the battery in the wrong polarity.
17 Install the faceplate to the thermostat rear plate. To do this:
18 Turn ON power supply for the HVAC system.
19 Test the thermostat in both the auto and manual modes to confirm that
the furnace and air conditioner cycle on and off at the appropriate
settings. See the Control4 Thermostat User Guide for specific
instructions.
TIP: Keep in mind that you need to set back the temperature for at
least eight hours (either at night or while you are at work) to see a
noticeable energy savings.
Programming Instructions
As part of a Control4 system, the thermostat can follow a schedule with up to
six different set points per day. You can also control the thermostat using the
Wireless Touch Screen, the On-Screen Navigator (on your TV with the
System Remote Control), or the Mini Touch Screen. See the Composer
Online Help for programming instructions and see the Control4 Thermostat
User Guide for instruction on programming using one of the navigation
devices).
Troubleshooting
If thermostat is not working:
•Ensure HVAC system is not turned OFF.
•Check for proper wiring. (See the Sample Wiring Configuration sec-
tion.)
For help on the installation or operation of this product, email or call the
Control4 Technical Support Center. Please provide your exact model
number. Contact support@control4.com or see the web site
www.control4.com.
Warranty
See the Control4 Thermostat User Guide for warranty information.
About this Document
United States Patents Pending. Copyright © 2004-2006 Control4
Corporation. Control4 and the Control4 logo are registered trademarks of
Control4 Corporation. All trademarks are properties of their respective
owners. Part Number: 21-0320 Rev A Draft 7
Regulatory Compliance
This product complies with standards established by the following regulatory bodies:
•Federal Communications Commission (FCC)
•Industry Canada
FCC
FCC ID: R33CCZT11
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for help.
IMPORTANT! Changes or modifications not expressly approved by Control4
void the user’s authority to operate the equipment.
Industry Canada
This Class B digital apparatus complies with Canada ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
•Thermostat
•CR123A (3V) Battery
•3 Screws (#6 x 1 inch sheet
metal screws)
•3 Plastic wall anchors (#4-6 x
7/8)
•Product Registration Card
•Control4 Thermostat Installa-
tion Guide
•Control 4Thermostat User
Guide
•Pencil
•Drill with 3/16 drill bit
•Small Level (optional)
•Small flat-blade screwdriver
(13 mm approx.)
•Phillips screwdriver
•Tape for labeling wires
Recommended Wiring: 22 AWG (36 ft. max)
18 AWG (100 ft. max)
Power Source 24 Volt or battery
Power: 1/10 W at 24 VAC, 50/60 Hz
Operating Temperature: 41 to 104 F (5 to 40 C)
Storage Temperature: 14 to 122 F (-10 to 85 C)
Operating Relative Humidity: 0 to 95% (non-condensing)
Dimensions (HxWxD): 4.5 x 3.7 x 0.9 inches
Communications: ZigBee (IEEE 802.15.4 GHz), 15-channel, spread
spectrum radio
1. Align the faceplate
with the rear plate and
push the straight pins to
the back of the
thermostat.
2. With the faceplate
slightly above the rear
plate, slide the top edge
of the faceplate onto the
rear plate, engaging the
plastic hooks with the
corresponding holes.
3. Press firmly on the
bottom center edge of
the faceplace to snap
and lock the bottom
connector in place.
Single Stage, Single Transformer Dual Stage, Dual Transformer
Pin 1234567891011
Code RH RC B G Y1 Y2 W1 W2 O TS TS
Color Black Red Blue Green Yellow Yellow White White Orange
HVAC
Type
Conventional 24VAC Primary
Stage Source
(Heat)
24VAC Second
Stage Source
(Cool)
Damper
Control (Heat) Fan Relay
Air
Conditioning
Compressor
Control First
Stage
Air
Conditioning
Compressor
Control 2nd
Stage
Furnace
Control
Furnace
Control 2nd
Stage Heat
Damper
Control (Cool)
Remote NTC
Temperature
Sensor
Remote NTC
Temperature
Sensor
Heat Pump 24VAC Primary
Stage Source
(Heat)
24VAC Second
Stage Source
(Cool)
Changeover
Valve (Heat) Fan Relay Heat Pump
Primary Stage Heat Pump
Second Stage Auxiliary Heat Heat Pump
Fourth Stage Changeover
Valve (Cool)
Remote NTC
Temperature
Sensor
Remote NTC
Temperature
Sensor

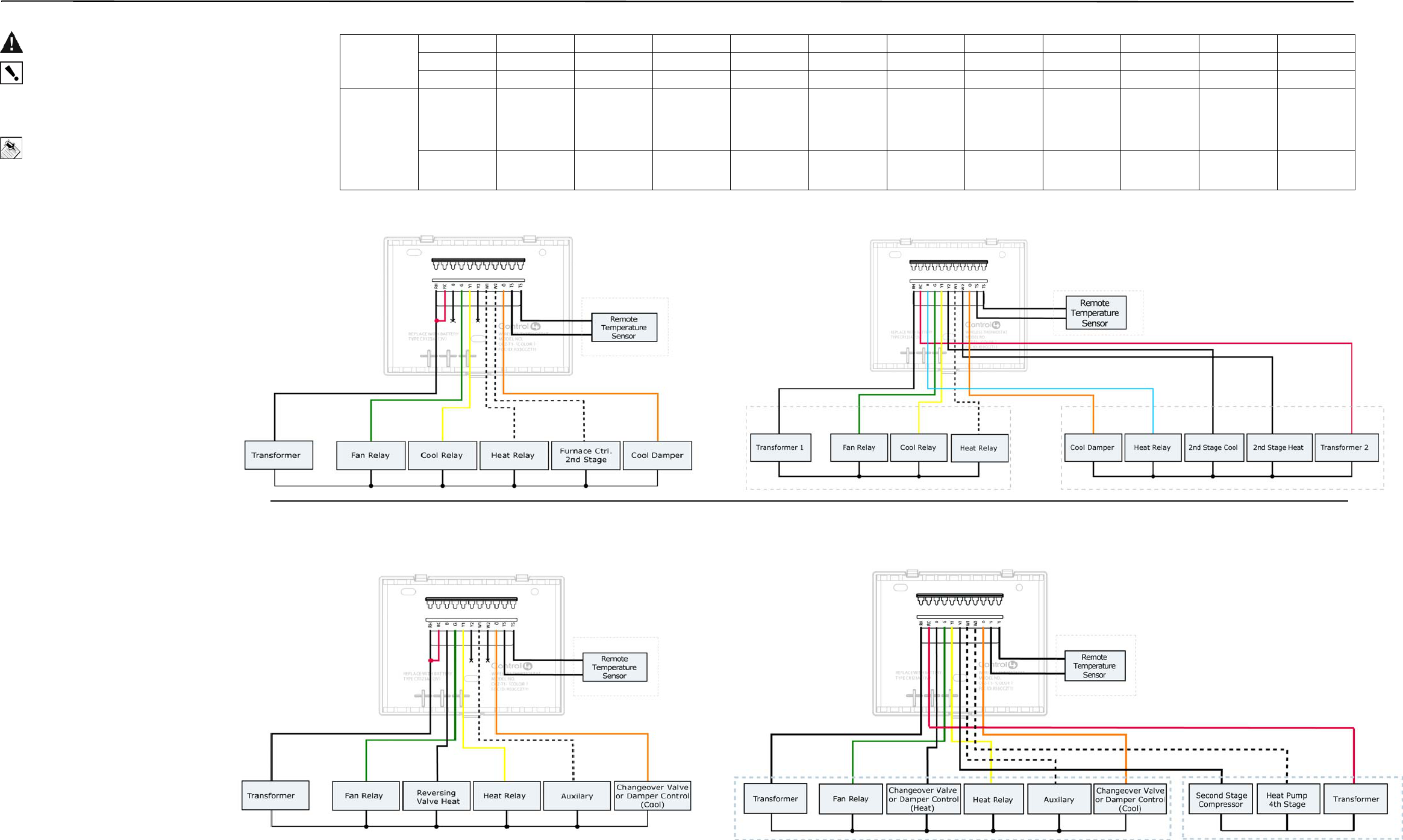

Sample Wiring Configuration
WARNING! Do not install LINE VOLTAGE wires to a
LOW VOLTAGE wire.
IMPORTANT! Do not install any wire to one of the TS
terminals (leading to a remote sensor) other than
supported external temperature sensors (Flush Mount
Remote Temperature Sensor, Aprilaire Model 8051;
or Duct/Outdoor Remote Temperature Sensor,
Aprilaire Model 8052).
NOTE: Install jumper wire between RC and RH for a
single stage system.
Single Stage, Single Transformer Dual Stage, Dual Transformer
Connections for Heating, Cooling and Fan
Conventional Systems
Heat Pump Systems
