Snap One EAV2WIFI EA-V2 WiFi Module User Manual WM 8192EE Spec 1T1R v1 0 180321
Control4 EA-V2 WiFi Module WM 8192EE Spec 1T1R v1 0 180321
Snap One >
Users Manual
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
1
EA-V2
Version: 1.0
Manufacturer CC&C Technologies, Inc.
USER’S GUIDE
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
2
Revision History
Version Date Change Description
1.0 03/21, 2018 Initial release
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
3
C
ONTENT
Overview......................................................................................................................
4
Features…....................................................................................................................
4
Factory Options............................................................................................................
4
General Specification .......................................................................................................................
5
MINI PCI EXPRESS PIN ASSIGNMENT..................................................................................
6
Block Diagram ...........................................................................................................................
7
Mechanical ...................................................................................................................
8
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
4
Overview
WM-8192EE is a WLAN 11n minicard(PCIE), which fully supports the features
and functional compliance of IEEE 802.11e and i standards. It supports up to
150Mbps high -speed wireless network connections.
It is designed to provide excellent performance with minimum power
consumption and enhance the advantages of robust system and cost-effective.
It is targeted at competitive superior performance, better power management
applications.
Features
Operates in 2.4 frequency bands
Freq. Bands Frequency
2.4 GHz 2.412-2.472 GHz,
2.484 GHz
Data rates of up to 150 Mbps for 40 MHz channels
802.11e-compatible bursting
Support for the IEEE 802.11e, and i standards
BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation
schemes
WEP, TKIP, and AES hardware encryption Schemes

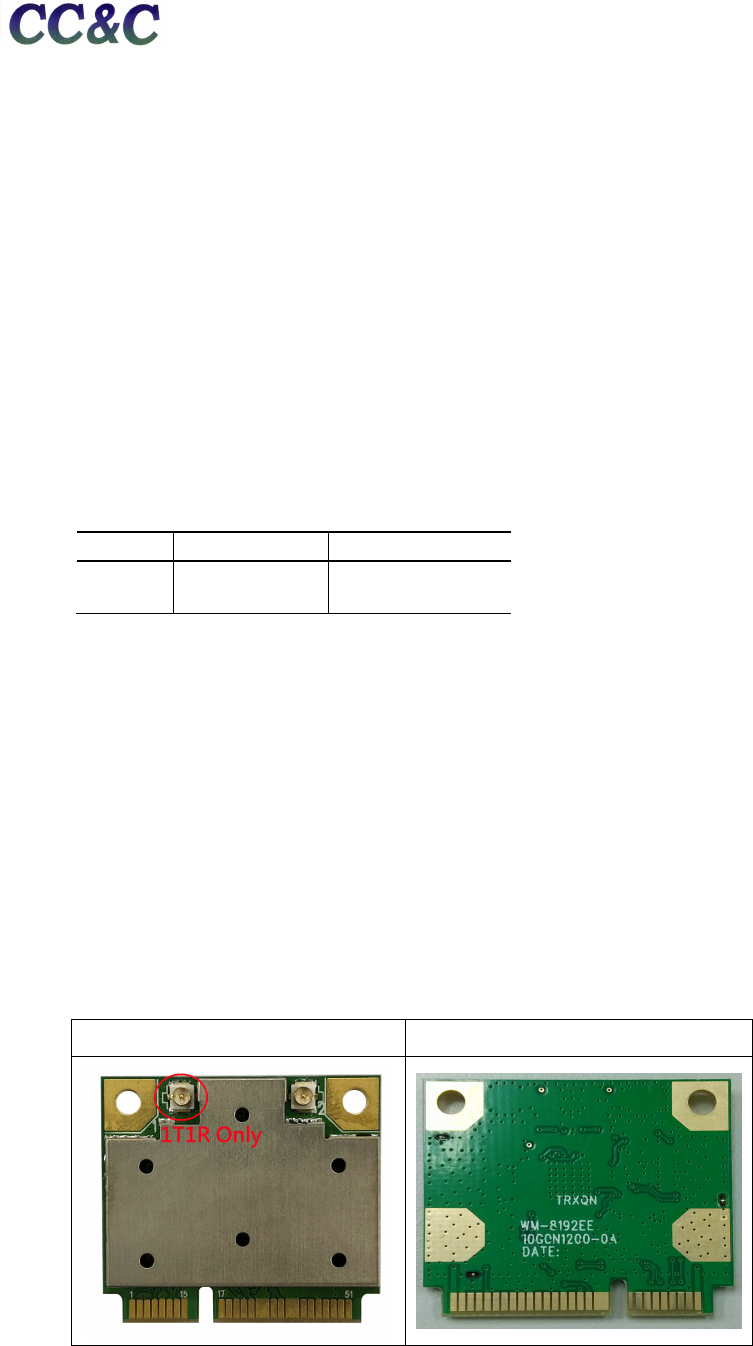

Factory options
PCIE connector
RF output by IPEX connector
TOP BOTTOM
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
5
General Specification
Model Name WM-8812AE
Product Name 11n 1T1R minicard (PCIE)
Standard 802.11b/g/n
Data Transfer Rate
1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of
150Mbps
Modulation Method BPSK/ QPSK/ 16-QAM/ 64-QAM/ DBPSK/ DQPSK/ CCK
Frequency Band 2.4GHz ISM Band
Spread Spectrum
IEEE 802.11b: CCK (Complementary Code Keying)
IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)
RF Output Power
(tolerance ± 2dBm)
17dBm – 802.11b@CCK 11Mbps
15dBm – 802.11g@OFDM 54Mbps
13dBm – 802.11n@MCS7_HT20
13dBm – 802.11n@MCS7_HT40
Operation Mode Ad hoc, Infrastructure, Soft AP
Receiver Sensitivity
-82dBm – 802.11b@11Mbps
-71dBm – 802.11g@54MBps
-67dBm – 802.11n@MCS7_BW20
-64dBm – 802.11n@MCS7_BW40
OS Support Linux
Security
64 bit/128 bit WEP, TKIP, AES, WPA, WPA2
WPS button for easy and secure establishment of a wireless network
Interface PCIE connector
RF output RF IPEX connectors
Operating Temperature 0 – 50° C ambient temperature
Storage Temperature -10 ~ 70°C ambient temperature
Humidity 5 to 90 % maximum (non-condensing)
Size 29.85 x 26.65 mm (L x W)
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
6
M
INI
PCI
E
XPRESS
P
IN
A
SSIGNMENT
PIN# Pin Name PIN# Pin Name
1 WAKE# YES 2 +3.3Vaux YES
3 COEX1 NC 4 GND YES
5 COEX2 NC 6 +1.5V NC
7 CLKREQ# YES 8 UIM_PWR NC
9 GND YES 10 UIM_DATA NC
11 REFCLK- YES 12 UIM_CLK NC
13 REFCLK+ YES 14 UIM_RESET NC
15 GND YES 16 UIM_VPP NC
17 RESERVED NC 18 GND YES
19 RESERVED NC 20 W_DISABLE# YES
21 GND YES 22 PERST# YES
23 PERn0 YES 24 +3.3Vaux NC
25 PERp0 YES 26 GND YES
27 GND YES 28 +1.5V NC
29 GND YES 30 SMB_CLK NC
31 PETn0 YES 32 SMB_DATA NC
33 PETp0 YES 34 GND YES
35 GND YES 36 USB_D- NC
37 GND YES 38 USB_D+ NC
39 +3.3Vaux YES 40 NC NC
41 +3.3Vaux YES 42 LED_WWAN# NC
43 GND YES 44 LED_WLAN# YES
45 RESERVED NC 46 LED_WPAN# NC
47 RESERVED NC 48 +1.5V NC
49 RESERVED NC 50 GND YES
51 RESERVED NC 52 +3.3Vaux YES
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
7

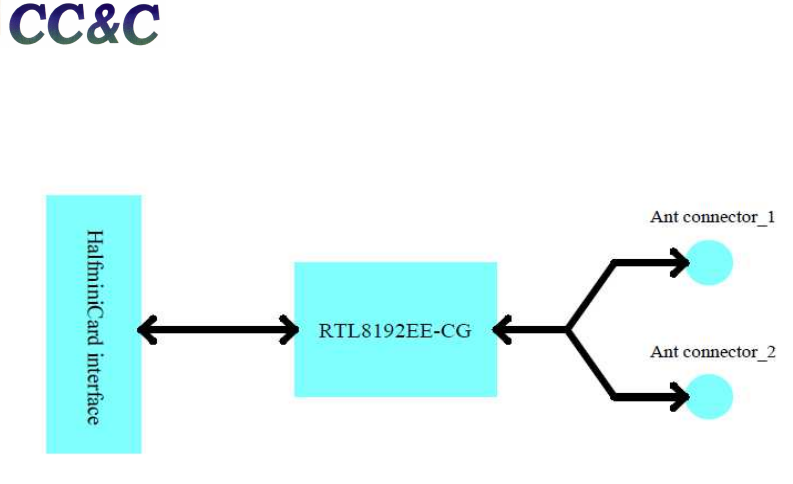

Block Diagram
晶訊科技股份有限公司 8F, No. 150, Jian Yi Road, Zhonghe District,
CC&C Technologies, Inc. New Taipei City, Taiwan 235, R.O.C.
Tel: 886-2-8226-5088 Fax: 886-2-8226-5077
8

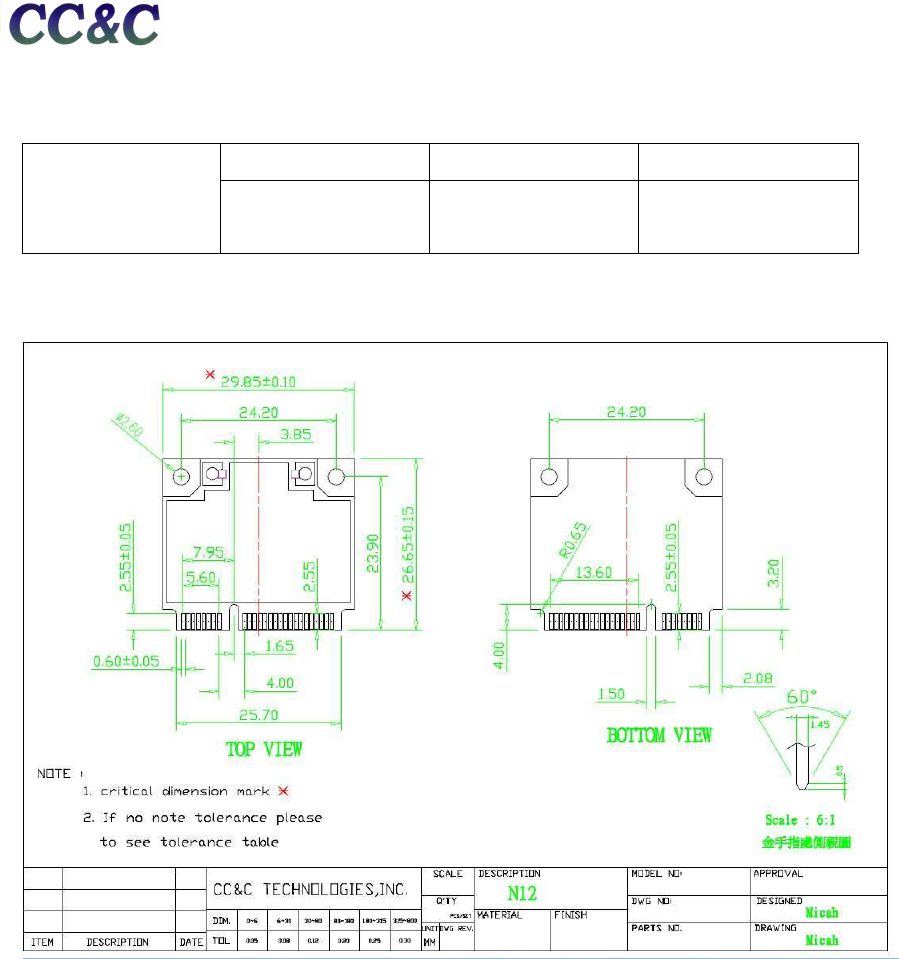

Mechanical
Dimensions (mm)
Length Width Height
29.85
(Tolerance:
±
0.1mm)
26.65
(Tolerance:
±
0.1mm)
4.45
(Tolerance:
±
0.15mm)
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
IMPORTANT NOTE:
Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance
20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
Country Code selection feature to be disabled for products marketed to the US/CANADA
This device is intended only for OEM integrators under the following conditions:
1) The antenna must be installed such that 20 cm is maintained between the antenna
and users, and
2) The transmitter module may not be co-located with any other transmitter or
antenna,
3) For all products market in US, OEM has to limit the operation channels in CH1 to
CH11 for 2.4G band by supplied firmware programming tool. OEM shall not supply
any tool or info to the end-user regarding to Regulatory Domain change.
As long as 3 conditions above are met, further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed
IMPORTANT NOTE
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final
end product must be labeled in a visible area with the following: “Contains FCC ID:
R33EAV2WIFI”.
Manual Information to the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
Industry Canada statement:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation,
Science and Economic Development Canada’s licence-exempt RSS(s). Operation is
subject to the following two conditions:
(1) This device may not cause interference
(2) This device must accept any interference, including interference that may cause
undesired operation of the device
Cet appareil contient des émetteurs / récepteurs exempts de licence qui sont conformes
au (x) RSS (s) exemptés de licence d'Innovation, Sciences et Développement économique
Canada. L'opération est soumise aux deux conditions suivantes:
(1) Cet appareil ne doit pas causer d'interférences
(2) Cet appareil doit accepter toute interférence, y compris les interférences pouvant
provoquer un fonctionnement indésirable de l'appareil
This radio transmitter (IC: 7848A-EAV2WIFI) has been approved by Industry Canada to
operate with the antenna types listed below with the maximum permissible gain indicated.
Antenna types not included in this list, having a gain greater than the maximum gain
indicated for that type, are strictly prohibited for use with this device.
Le présent émetteur radio (IC: 7848A-EAV2WIFI) a été approuvé par Industrie Canada
pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain
admissible maximal. Les types d'antenne non inclus dans cette liste, et dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de
l'émetteur.
Antenna info.
Antenna
Peak gain ( dBi )
Model
Type
Connector
2400~2483.5MHz
CSL-AN2400-100840-B01
Dipole
R-SMA
2dBi
Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with minimum
distance 20cm between the radiator & your body.
Déclaration d'exposition aux radiations:
Cet équipement est conforme Canada limites d'exposition aux radiations dans un
environnement non contrôlé. Cet équipement doit être installé et utilisé à distance
minimum de 20cm entre le radiateur et votre corps.
This device is intended only for OEM integrators under the following conditions:
1) The transmitter module may not be co-located with any other transmitter or antenna.
As long as 1 condition above are met, further transmitter test will not be required. However,
the OEM integrator is still responsible for testing their end-product for any additional
compliance requirements required with this module installed.
Cet appareil est conçu uniquement pour les intégrateurs OEM dans les conditions
suivantes:
1) Le module émetteur peut ne pas être coïmplanté avec un autre émetteur ou antenne.
Tant que les 1 condition ci-dessus sont remplies, des essais supplémentaires sur
l'émetteur ne seront pas nécessaires. Toutefois, l'intégrateur OEM est toujours
responsable des essais sur son produit final pour toutes exigences de conformité
supplémentaires requis pour ce module installé.
IMPORTANT NOTE:
In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the Canada authorization is no
longer considered valid and the IC ID can not be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate Canada authorization.
NOTE IMPORTANTE:
Dans le cas où ces conditions ne peuvent être satisfaites (par exemple pour certaines
configurations d'ordinateur portable ou de certaines co-localisation avec un autre
émetteur), l'autorisation du Canada n'est plus considéré comme valide et l'ID IC ne peut
pas être utilisé sur le produit final. Dans ces circonstances, l'intégrateur OEM sera chargé
de réévaluer le produit final (y compris l'émetteur) et l'obtention d'une autorisation distincte
au Canada.
End Product Labeling
The final end product must be labeled in a visible area with the following: “Contains
IC:7848A-EAV2WIFI”.
Plaque signalétique du produit final
Le produit final doit être étiqueté dans un endroit visible avec l'inscription suivante:
"Contient des IC: 7848A-EAV2WIFI".
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user’s manual of the end product which
integrates this module.
The end user manual shall include all required regulatory information/warning as show in
this manual.
Manuel d'information à l'utilisateur final
L'intégrateur OEM doit être conscient de ne pas fournir des informations à l'utilisateur final
quant à la façon d'installer ou de supprimer ce module RF dans le manuel de l'utilisateur
du produit final qui intègre ce module.
Le manuel de l'utilisateur final doit inclure toutes les informations réglementaires requises
et avertissements comme indiqué dans ce manuel.
