Exhibit D Users Manual per 2 1033 b3

Remote Lock Owner’s

Manual

IMPORTANT SAFETY INSTRUCTIONS

This document contains important safety and operation instructions

for tool storage units equipped with remote lock. Refer to this

information often for safe usage and operation.

SAVE THESE INSTRUCTIONS

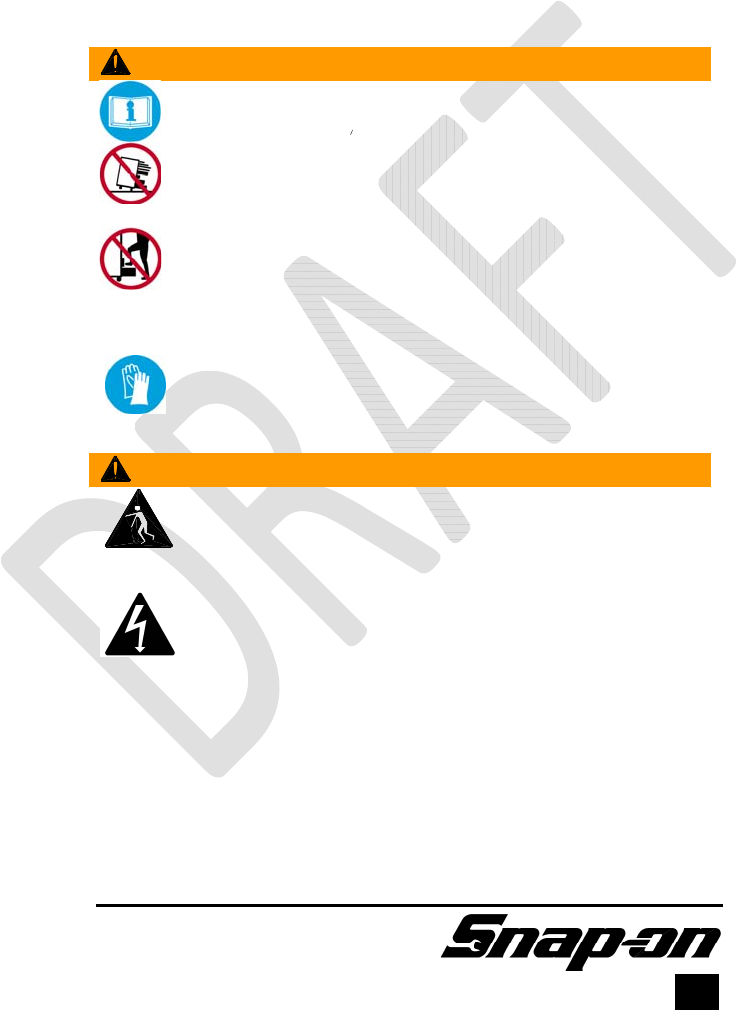

WARNING

Improper usage can cause broken parts.

Read instructions before usage.

Broken parts can cause injury.

Units can tip or strike you.

 Do not open more than one loaded drawer at a time

 Close lid and lock drawers before moving

 Apply brakes on locking casters when not moving

 Do not step in or on drawers

 Secure units together with fasteners

 Disconnect or unplug all power cords and cable assemblies

before moving unit

 Read instruction manual

Tipping of storage unit or unit striking you can cause injury

Component edges can cut or pinch.

 Keep fingers clear of edges when working near or with sheet

metal components

 Keep hands and fingers clear of sharp objects

Units’ edges or components can cause injury

WARNING

Risk of tripping.

 Do not place power adapter in walkway

 Disconnect or unplug all power cords and cable assemblies

before moving unit

Tripping can cause injury

Risk of electric shock and fire.

 Do not remove the ground connection

 Do not expose to rain, snow, or wet conditions

 Do not operate with damaged cord or plug

 Replace damaged cord or plug immediately

 Do not expose remote’s lithium battery to fire or very high

temperatures

Electric shock or fire can cause injury

IMPORTANT SAFETY INSTRUCTIONS con’t

This document contains important safety and operation instructions

for tool storage units equipped with remote lock. Refer to this

information often for safe usage and operation.

SAVE THESE INSTRUCTIONS

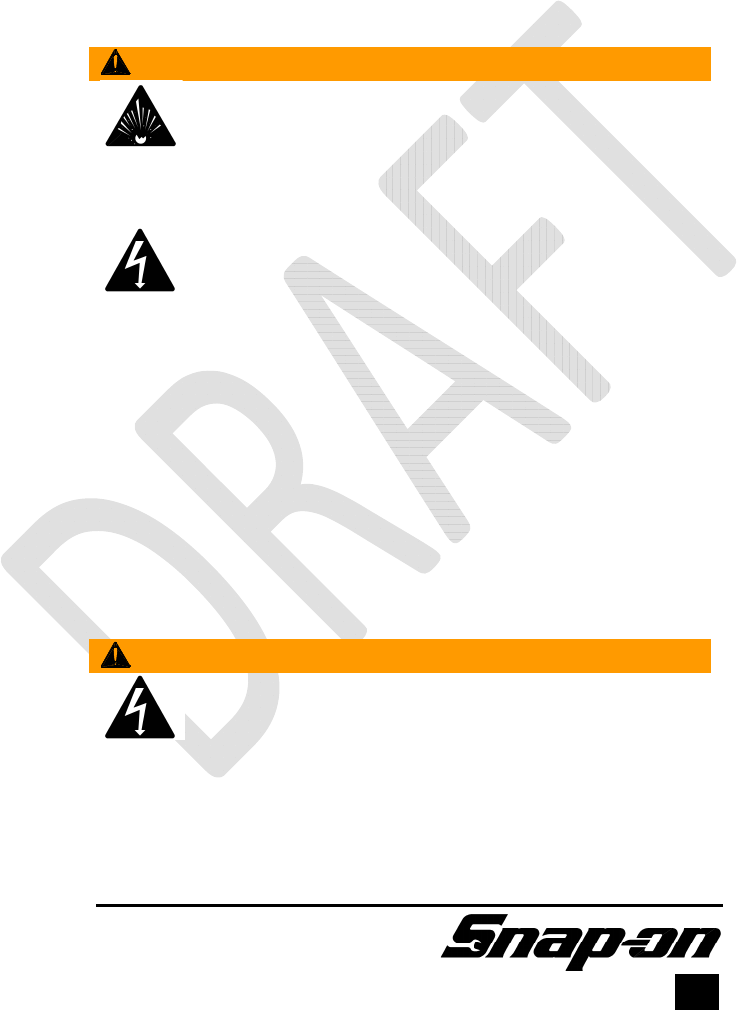

WARNING

Risk of explosion.

 Flammable fuel or vapors can ignite

 This equipment should not be located in a recessed area or

below floor level

 Remote lock has internal arcing or sparking parts

 Do not expose to flammable vapors.

Explosion or flame can cause injury

Risk of shock or injury.

 Remote lock service must be performed only by a Snap-on

Representative

Service or maintenance performed by a person other than a Snap-

on Representative may result in injury

 When servicing remote lock, use only identical replacement

parts. Follow instructions in the maintenance section of this

manual.

Use of unauthorized parts or failure to follow maintenance

instructions may result in shock or injury.

GROUNDING INSTRUCTIONS

This product must be grounded. If it should malfunction or break down, grounding

provides a path of least resistance for electric current to reduce the risk of electric

shock. This product is equipped with a cord having an equipment-grounding

conductor and a grounding plug. The plug must be plugged into an appropriate outlet

that is properly installed and grounded in accordance with all local codes and

ordinances.

WARNING

Risk of electric shock and fire.

 Do not remove the ground connection

Electric shock or fire can cause injury

Improper connection of the equipment-grounding conductor is able to result in a risk

of electric shock. Check with a qualified electrician or serviceman if you are in doubt

as to whether the product is properly grounded. Do not modify the plug provided with

the product – if it will not fit the outlet, have a proper outlet installed by a qualified

electrician.

FCC Notice

FCC ID: Fob/Transmitter 2ACXB872737A

IC: 12245A-872737A

This device complies with part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference; and (2)

This device must accept any interference received, including interference that may

cause undesired operation.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux

appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions

suivantes: (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de

l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est

susceptible d’en compromettre le fonctionnement.

Note: This equipment has been tested and found to comply with the limits for a Class

B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses, and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

o Reorient or relocate the receiving antennae

o Increase the separation between the equipment and receiver

o Connect the equipment into an output or circuit different from that to which

the receiver is connected

o Consult the dealer or an experienced radio/TV technician for help

Table of Contents

IMPORTANT SAFETY INSTRUCTIONS ............................... 2

FCC Notice ................................................................................. 4

Table of Contents ....................................................................... 5

Features ...................................................................................... 6

Specifications ............................................................................. 6

Remote.................................................................................... 6

Power .................................................................................. 6

Battery Life......................................................................... 6

Storage ................................................................................ 6

Remote Lock Module ............ Error! Bookmark not defined.

Power .................................................................................. 6

Storage ................................................................................ 6

Manual Locking / Unlocking ..................................................... 7

Setting Up Remote Lock ............................................................ 8

Remote Use ............................... Error! Bookmark not defined.

Maintenance ............................................................................... 9

Remote Battery Replacement ................................................. 9

Replacing Remote Lock Module Fuse ................................... 9

Remote Pairing ..................................................................... 10

Resetting Remote Lock Module ........................................... 11

Troubleshooting........................................................................ 12

Remote lock is designed to give the user ease of locking and

unlocking tool storage units (TSU’s) without the hindrance of

using a key(s). This TSU is equipped with an electronic module

that receives a coded transmission from the remote transmitter.

The remote lock electronic module will either lock or unlock the

storage unit. The following service tips should help in the

proper care and maintenance of your remote lock equipped

TSU.

Features

 Unlock or lock from a distance

 Manual key override

 Remote can be keyed to work several electronic locks at once

 Two remotes can be used on one TSU

 Thermal overload protection

 Maintenance free design

 Small ergonomic remote

 Audible signal of unlock or lock

 On/Off switch

Specifications

Remote Power

Battery Life

Storage

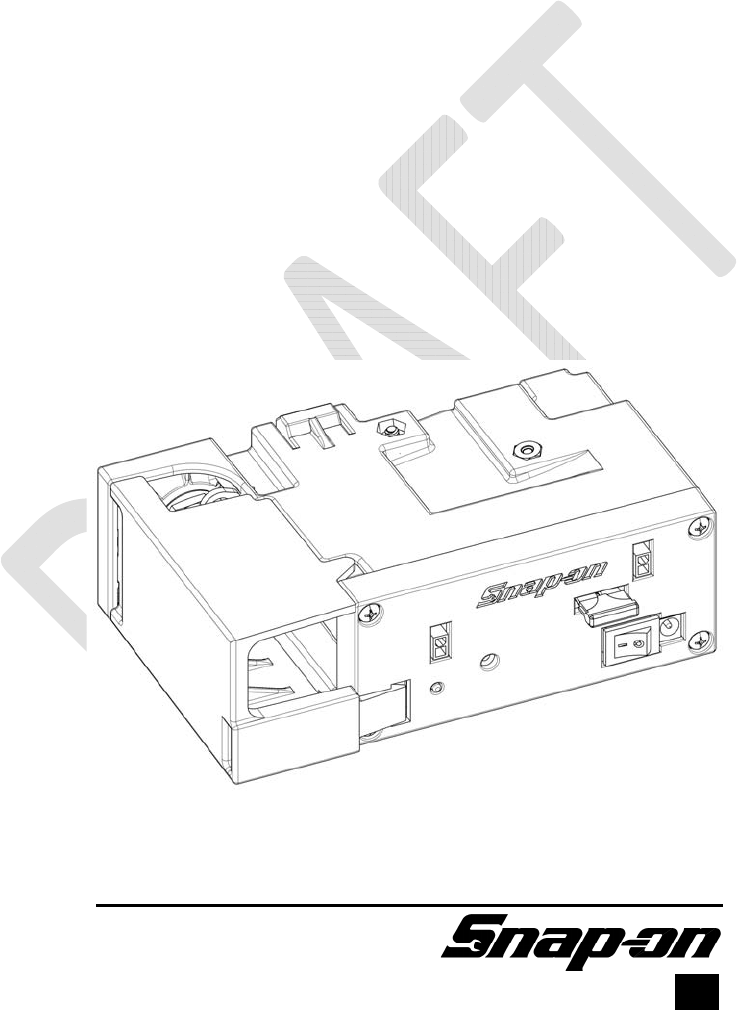

Remote Lock Module

Power

Storage

Lithium CR2032 3 volt

2 to 3 years

Temperatures from -20°F to 140°F

120 V AC to 24V DC power converter

Temperatures from -20°F to 140°F

Manual Locking / Unlocking

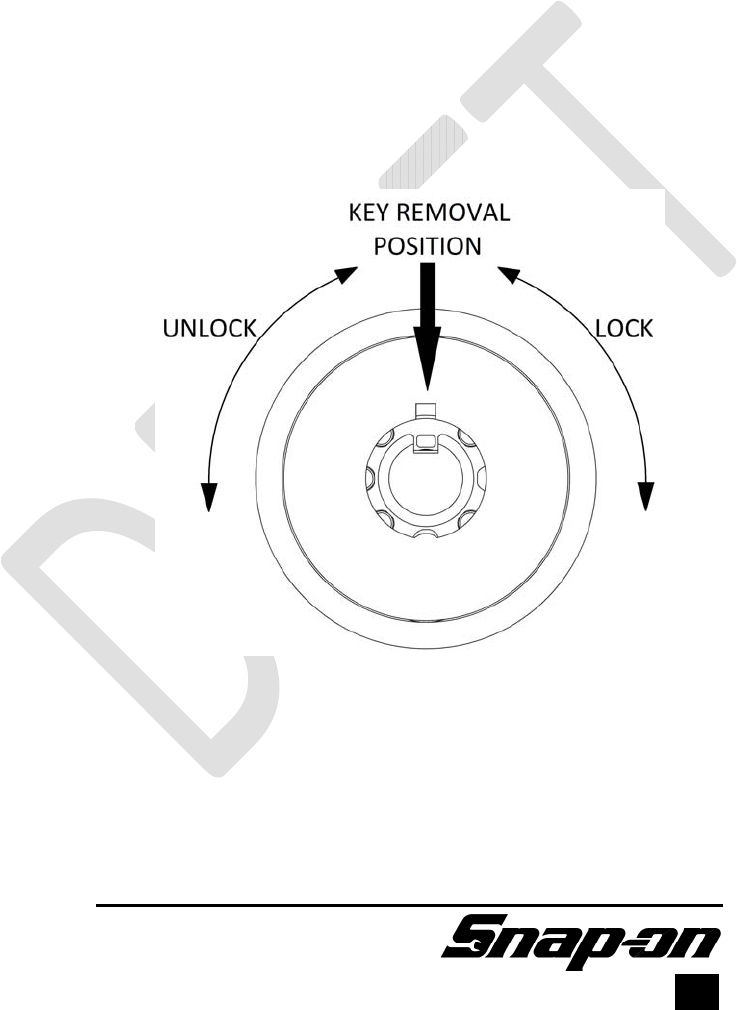

Remote lock units use a unique lock with only one position that

the key can be removed. Follow these instructions to manually

unlock your TSU for the first time:

Push the key into the lock cylinder and unlock by turning the

key to the 9:00 position. Return the key back to the 12:00

position and remove the key.

The remote lock can also be locked manually. Push the key into

the lock cylinder and lock by turning the key to the 3:00

position. Return the key back to the 12:00 position and remove

the key.

This manual override feature can be used if the batteries in the

remote are non-functioning or the remote is lost. Be sure to

store mechanical lock keys in a safe place outside of your TSU.

Setting up REMOTE LOCK

Each remote lock equipped TSU comes pre-programmed from

the factory with the switch in the ON position and the drawers

locked. Follow these steps to setup remote lock for the first

time:

1. Unlock the TSU using the procedure outlined in the

manual unlocking/locking section of this manual.

2. Locate your AC/DC adapter and plug into a proper

electrical outlet.

3. Plug the round DC end of the adapter into the jack on

the back of the TSU.

4. Use remote to function as explained in the remote

section of the manual.

Remote Use

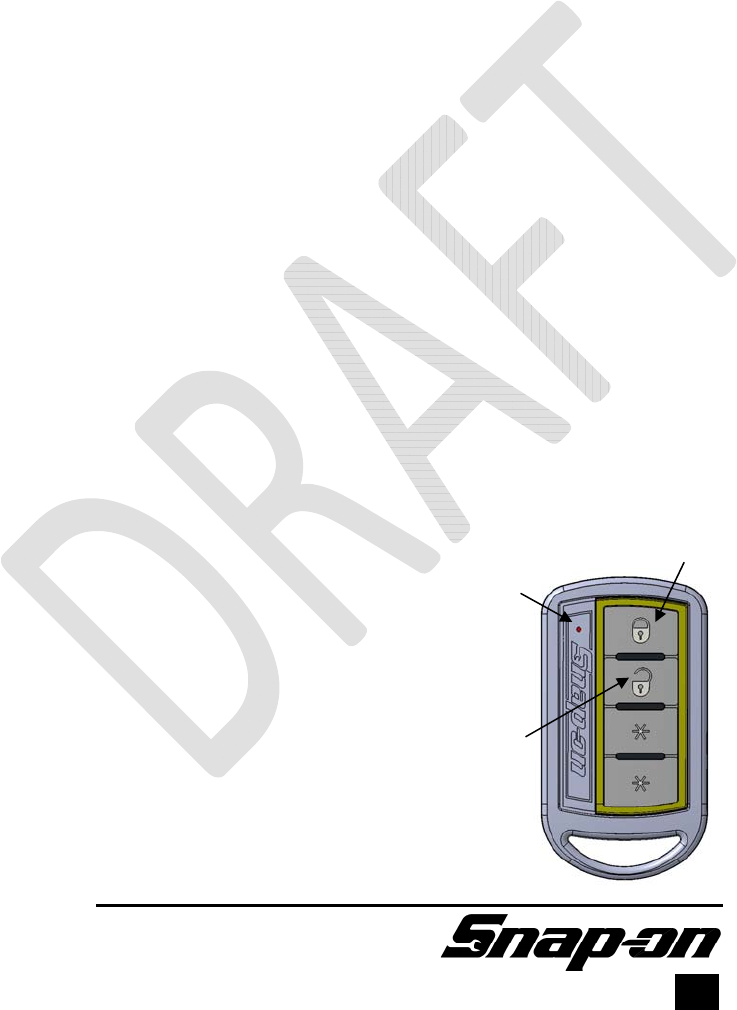

The remote is a four button design similar to an automotive

remote.

Press lock key (1) 1-3 seconds to lock

1 beep will sound

Press unlock key (2) 1-3 seconds to unlock

2 beeps will sound

Both star keys are for future use

- If red LED (3) does not turn on when

pressing lock or unlock, battery may be low

Maintenance

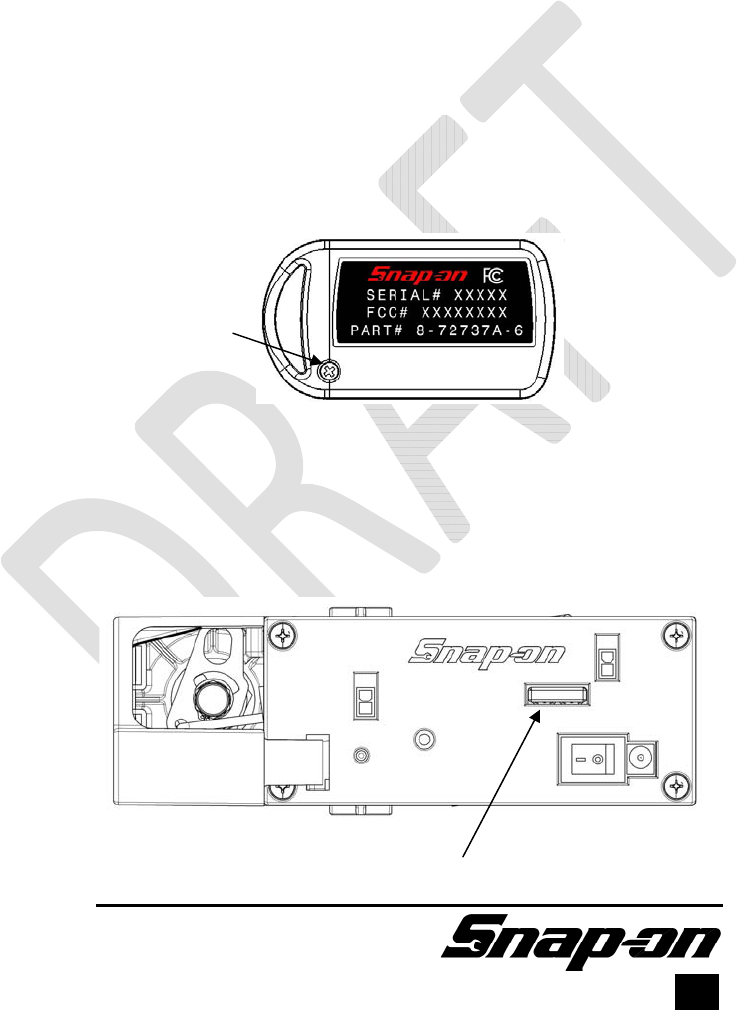

Remote Battery Replacement

1. Unscrew Philips head screw on rear of remote case.

2. Separate two halves of remote case.

3. Remove battery out of its holding bracket.

4. Slide new battery into holding bracket with positive (+)

side up.

5. Reassemble remote case by pressing two halves firmly

together.

6. Replace Philips head screw.

Replacing Remote Lock Module Fuse

1. Open top drawer of the TSU and locate the module.

2. Remove fuse with fingers – do not damage fuse while

uninstalling.

3. Replace fuse with 5A ATO fuse.

5A ATO fuse

Remove

Screw

Remote Pairing

Follow these steps to pair the remote with your TSU:

1. Open top drawer of the TSU and locate the remote lock

module.

2. Hold down the learn button on the module until it starts

to beep. The unit will beep for 1 second. Release the

learn button.

3. After beeping has stopped, pair remote by pressing the

lock or unlock button on the remote. The remote lock

module will beep once to confirm pairing was

successful.

4. After 10 seconds, the remote lock module will beep

twice to signify that the pairing time period is over.

5. If pairing multiple remotes, press the lock button on

each remote within the 10 second learn period. The

module will end the pairing time period once the second

remote is paired. Only two remotes can be paired to one

TSU.

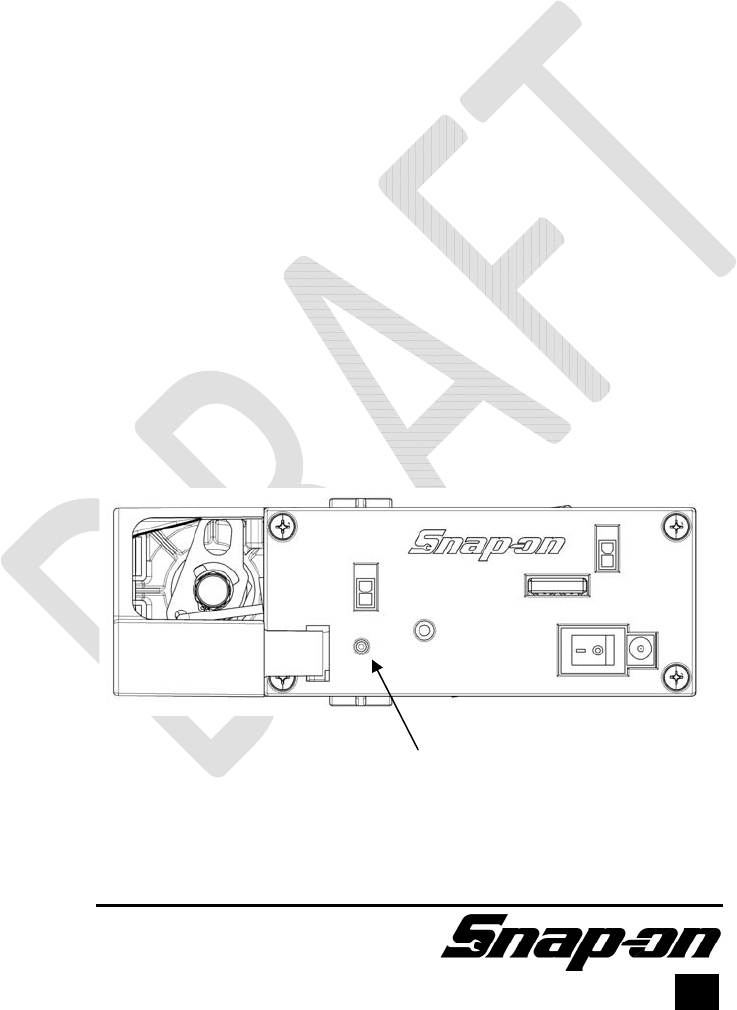

Learn/Volume Button

Resetting Remote Lock Module

Follow these steps to reset the remote lock module:

1. Open top drawer of the TSU and locate the remote lock

module.

2. Reset module by turning switch to OFF, wait 5 seconds,

switch back ON.

Note: If you are unable to reset module with the switch due to

the drawers being locked, unplug TSU from AC/DC adapter and

plug back in after 5 seconds.

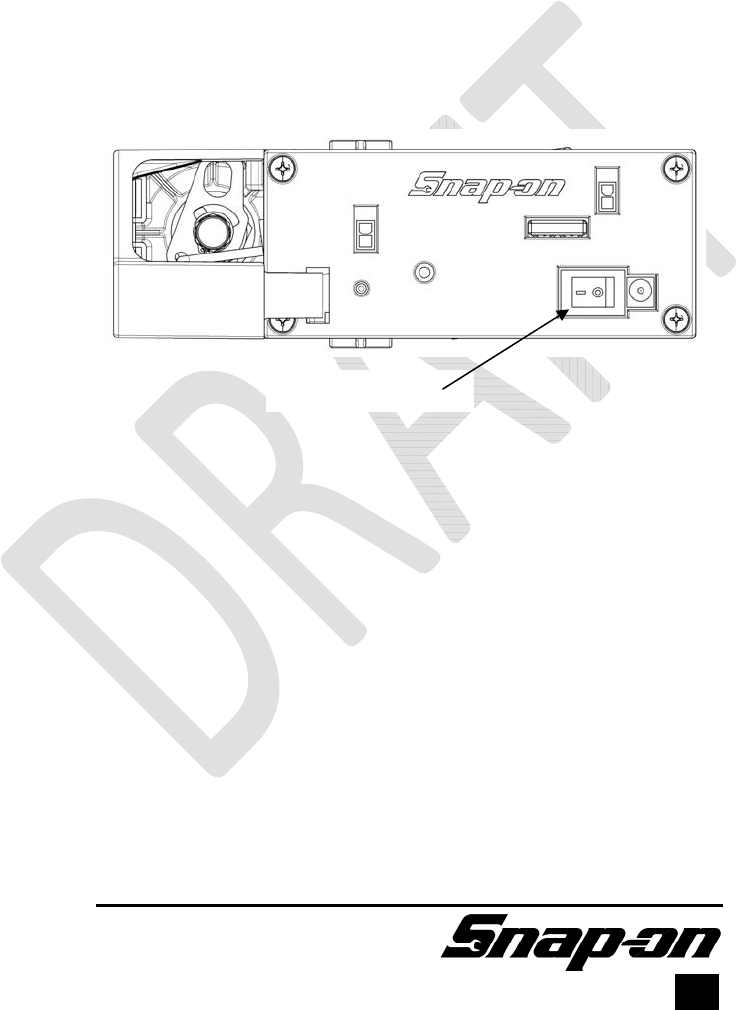

ON/OFF Button

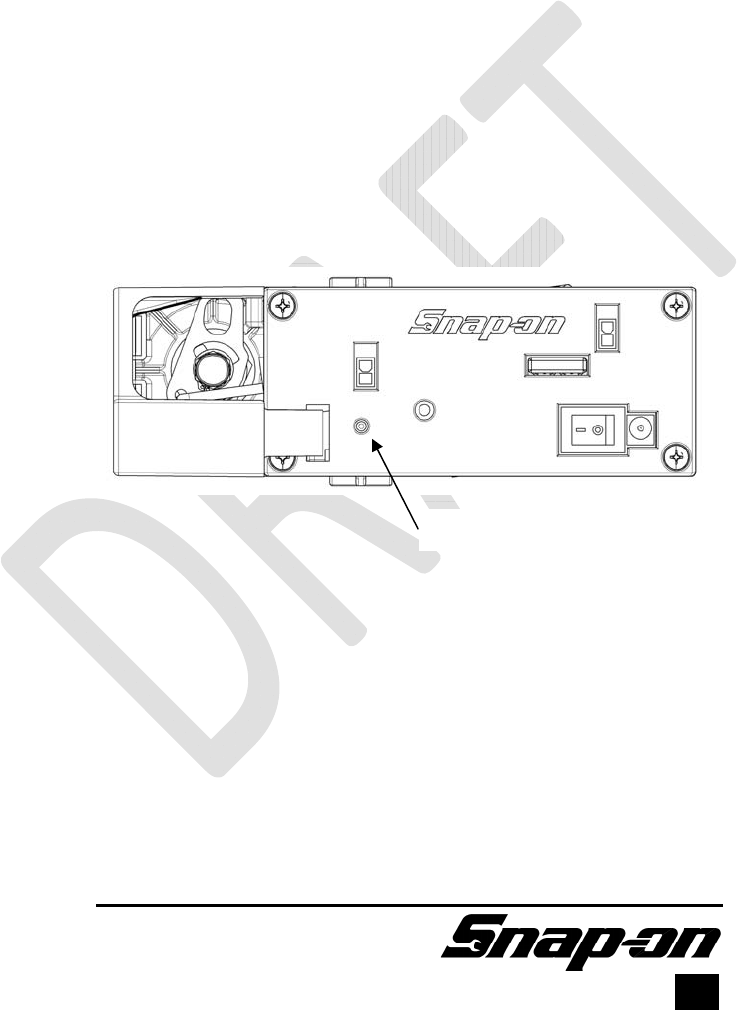

Speaker Volume Adjustment

Follow these steps adjust the volume of your remote lock

module:

1. Open top drawer of the TSU and locate the remote lock

module.

2. Press the volume two times to change volume of speaker

3. Remote lock will beep to confirm volume change

a. 1 Beep – Low Volume

b. 2 Beeps – High Volume

c. 3 Beeps – Volume Off

Learn/Volume Button

Troubleshooting

SymptomPossibleCauseSolution

Remotelockdoesnot

respond,remotelightsup

‐Remotebatterylow

‐Removeandreinstall

remotebattery

‐Replaceremotebattery

‐Mechanismnotreceiving

power

‐PlugAC/DCadapterinto

outletandDCjackonrear

ofrollcab

‐CheckbluepowerLEDon

AC/DCadapter

‐Checkconnection

betweenDCcordintool

storageunit(TSU)and

mechanism

‐Turnonmechanisminside

oftoolstorageUnit(switch

flippedtowardlock)

‐Remotenotpairedwith

mechanism

‐SeeRemotepairing

sectionofmanual

‐Fuseblown‐Replacemechanismfuse

insideofTSU

‐Remoteoutofrange‐MoveclosertoTSU

‐Resetneeded

‐Turnremotelock

mechanismOff&On

‐Unplugandre‐plug

remotelockcordonbackof

TSU

Remotedoesnotlightup‐Remotebatterylow

‐Removeandreinstall

remotebattery

‐Replaceremotebattery

Responsepooror

intermittent

‐Remotebatterylow

‐Removeandreinstall

remotebattery

‐Replaceremotebattery

‐Remoteoutofrange‐MoveclosertoTSU

Drawer(s)stillunlockedafter

lockingunit

‐Drawer(s)notfullyclosed

beforelocking

‐Closedrawer(s)before

activatinglock

Remotelockspeakersounds

butunitdoesnot

lock/unlock

‐Actuatorjammedornot

movingfreely

‐Pushindrawer(s)

‐Manuallyunlockandlock

TSUtofreelockrodand

actuator

‐Turnremotelock

mechanismOff&On

‐Unplugandre‐plug

remotelockcordonbackof

TSU

Snap on orporated 872737A Remote Lock User Manual 15 USERS MANUAL

Snap-on Incorporated Remote Lock 15 USERS MANUAL

Exhibit D Users Manual per 2 1033 b3

Navigation menu

Namespaces

Views

Navigation
