SafetyInstructions& Operator'sManual for

21" STEELDECK

WALKMOWERS

SERIES19

Models

2167519B(7800174)

P2167519B(7800175)

P2187519BV(7800176)

P2187519BVE(7800178)

P216019KWV (7800193)

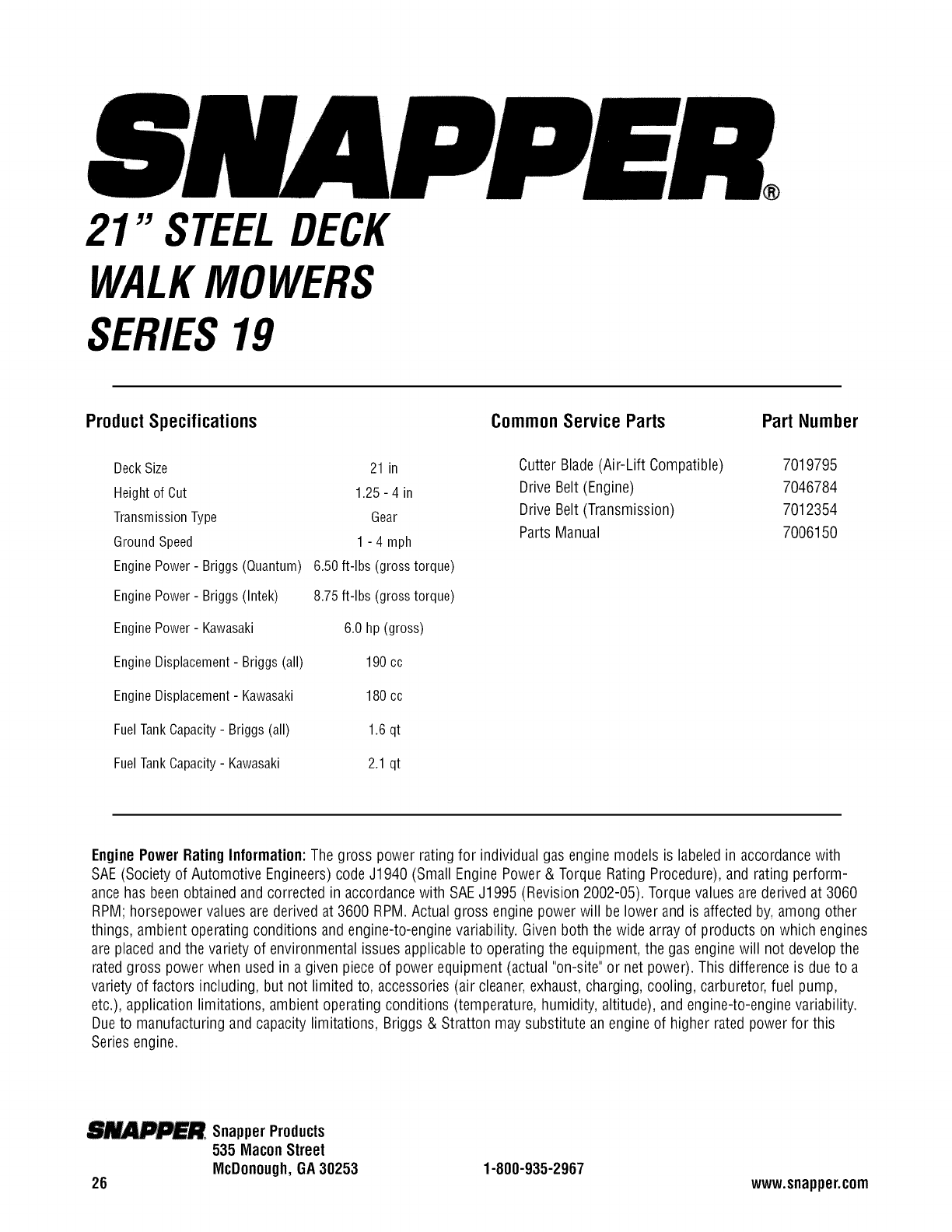

NOTE:Specifications are correct at time of printing and are subjectto changewithout notice.

* Actual sustained engine power will likely be lower due to operating limitations and environmental factors. Please refer to 'EnginePower Rating Information' for

further details.

McDonough, GA;_ 30;253 U_S_A_

Manual No. 7101294 (I.R. 1/26/2007)

TP lO0-5257-1R-WB-N

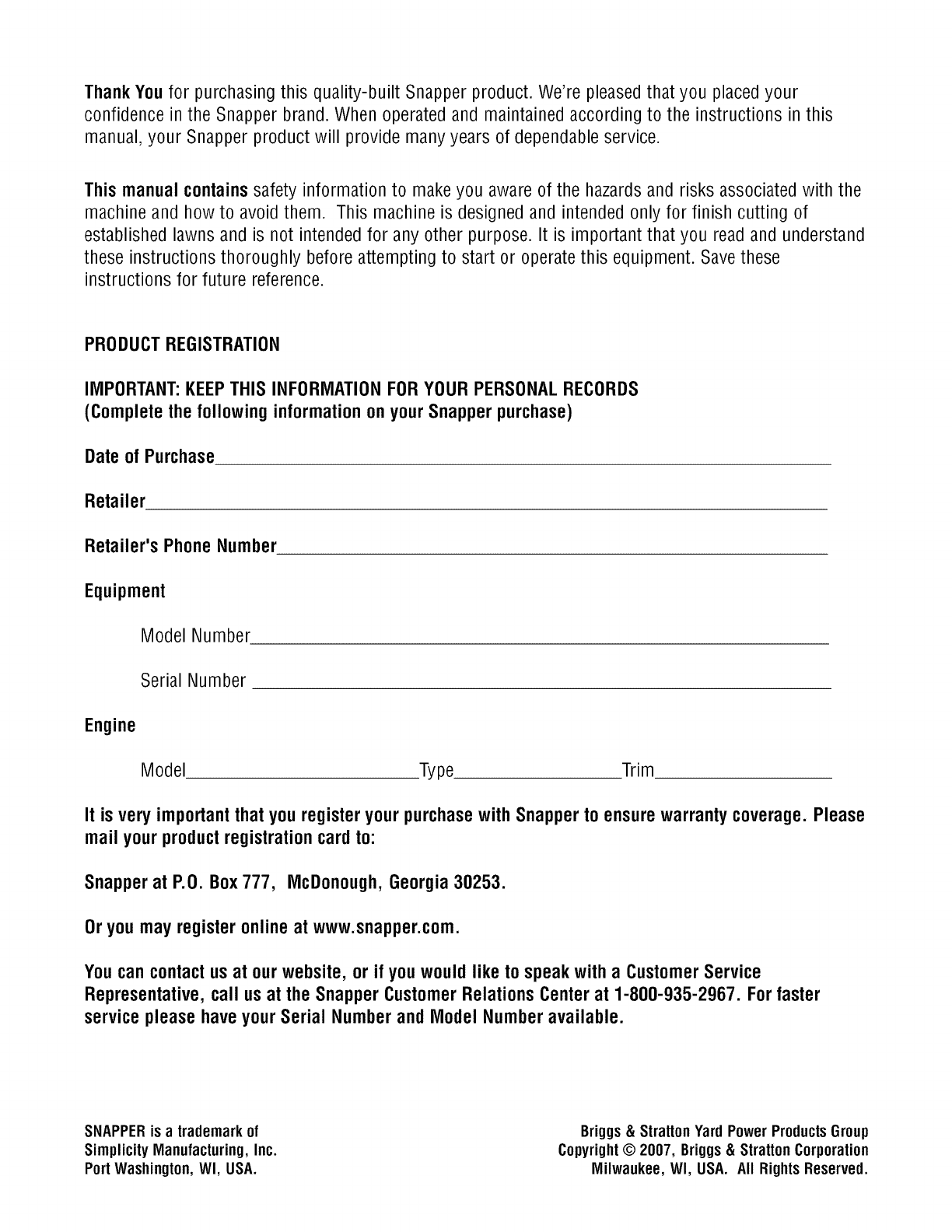

ThankYoufor purchasingthis quality-built Snapperproduct. We're pleasedthat you placedyour

confidence in the Snapperbrand. When operatedand maintainedaccordingto the instructions in this

manual, your Snapperproduct will provide many years of dependableservice.

Thismanualcontainssafety information to makeyou awareof the hazardsand risks associatedwith the

machineand how to avoidthem. This machineis designedand intended only for finish cutting of

establishedlawns and is not intendedfor any other purpose. It is important that you read and understand

these instructions thoroughly before attempting to start or operatethis equipment.Savethese

instructions for future reference.

PRODUCT REGISTRATION

IMPORTANT: KEEPTHIS INFORMATION FOR YOUR PERSONAL RECORDS

(Complete the following information on your Snapper purchase)

Date of Purchase

Retailer

Retailer's Phone Number

Equipment

Model Number

Serial Number

Engine

Model .Type. Trim

It is very importantthat youregisteryourpurchasewith Snapperto ensurewarrantycoverage.Please

mail yourproductregistrationcardto:

Snapper at P.O. Box777, McDonough, Georgia 30253.

Or you may registeronline at www.snapper.com.

Youcan contactusat ourwebsite,or if youwouldlike tospeakwith a CustomerService

Representative,call usat the SnapperCustomerRelationsCenterat 1-800-935-2967. Forfaster

serviceplease haveyourSerial NumberandModel Numberavailable.

SNAPPERis a trademarkof

Simplicity Manufacturing,Inc.

PortWashington,WI, USA.

Briggs& StrattonYardPower Products Group

Milwaukee, WI, USA. All RightsReserved.

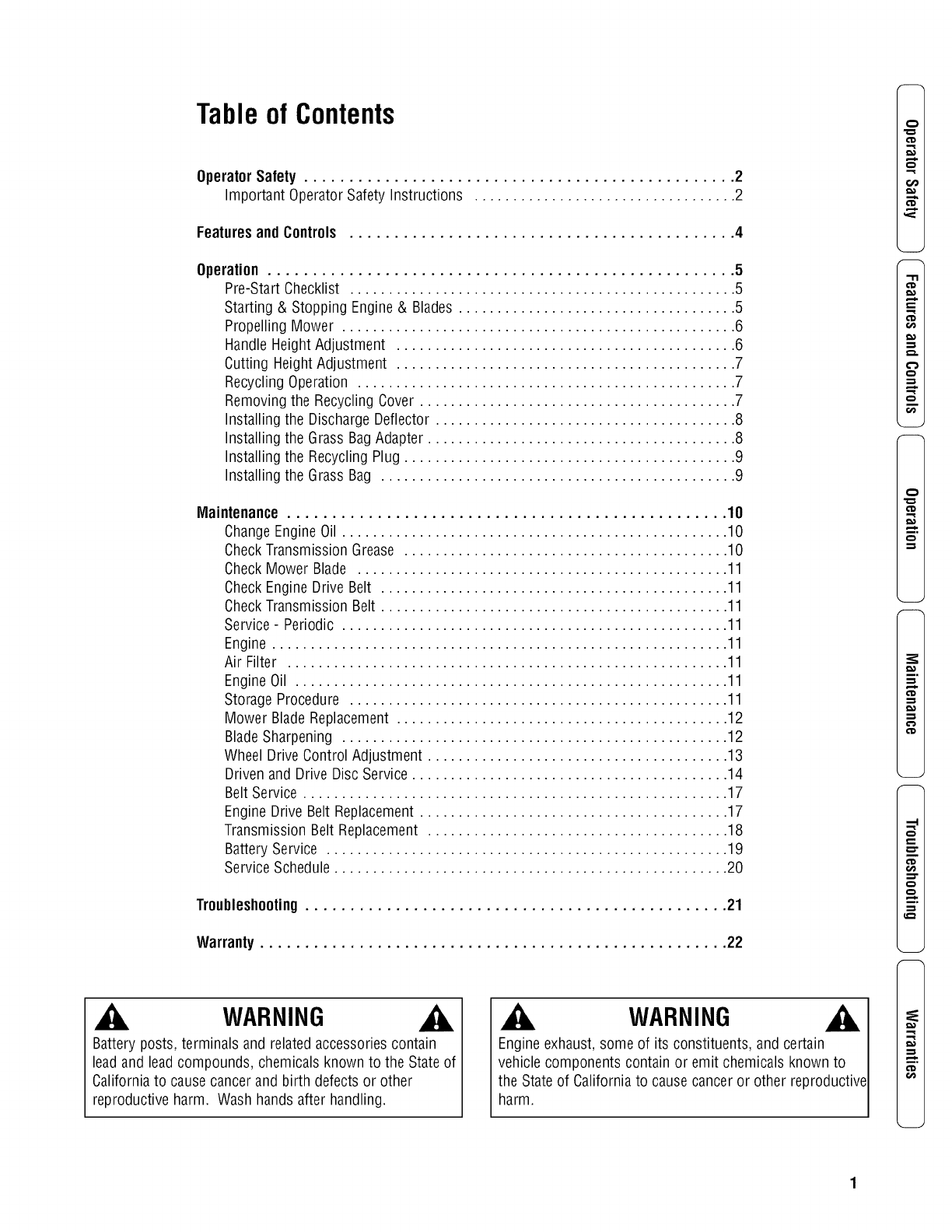

Tableof Contents

Operator Safety ................................................ 2

Important Operator Safety Instructions .................................. 2

Featuresand Controls ........................................... 4

Operation .................................................... 5

Pre-Start Checklist .................................................. 5

Starting & Stopping Engine& Blades .................................... 5

Propelling Mower ................................................... 6

Handle Height Adjustment ............................................ 6

Cutting HeightAdjustment ............................................ 7

Recycling Operation ................................................. 7

Removing the Recycling Cover ......................................... 7

Installing the Discharge Deflector ....................................... 8

Installing the Grass BagAdapter ........................................ 8

Installing the Recycling Plug ........................................... 9

Installing the Grass Bag .............................................. 9

Maintenance ................................................. 10

ChangeEngine Oil .................................................. 10

CheckTransmission Grease .......................................... 10

Check Mower Blade ................................................ 11

Check EngineDrive Belt ............................................. 11

CheckTransmission Belt ............................................. 11

Service -Periodic .................................................. 11

Engine ........................................................... 11

Air Filter ......................................................... 11

Engine Oil ........................................................ 11

Storage Procedure ................................................. 11

Mower Blade Replacement ........................................... 12

BladeSharpening .................................................. 12

Wheel DriveControl Adjustment ....................................... 13

Driven and Drive Disc Service ......................................... 14

Belt Service ....................................................... 17

Engine Drive Belt Replacement ........................................ 17

Transmission Belt Replacement ....................................... 18

Battery Service .................................................... 19

Service Schedule ................................................... 20

Troubleshooting............................................... 21

Warranty .................................................... 22

WARNING

Battery posts, terminals and related accessoriescontain

lead and lead compounds, chemicals known to the State of

Californiato cause cancer and birth defects or other

reproductive harm. Wash hands after handling.

WARNING

Engineexhaust, some of its constituents, and certain

vehicle components contain or emit chemicals known to

the State of California to causecancer or other reproductive

harm.

"11

,-1

,..z.

--z

x,.,

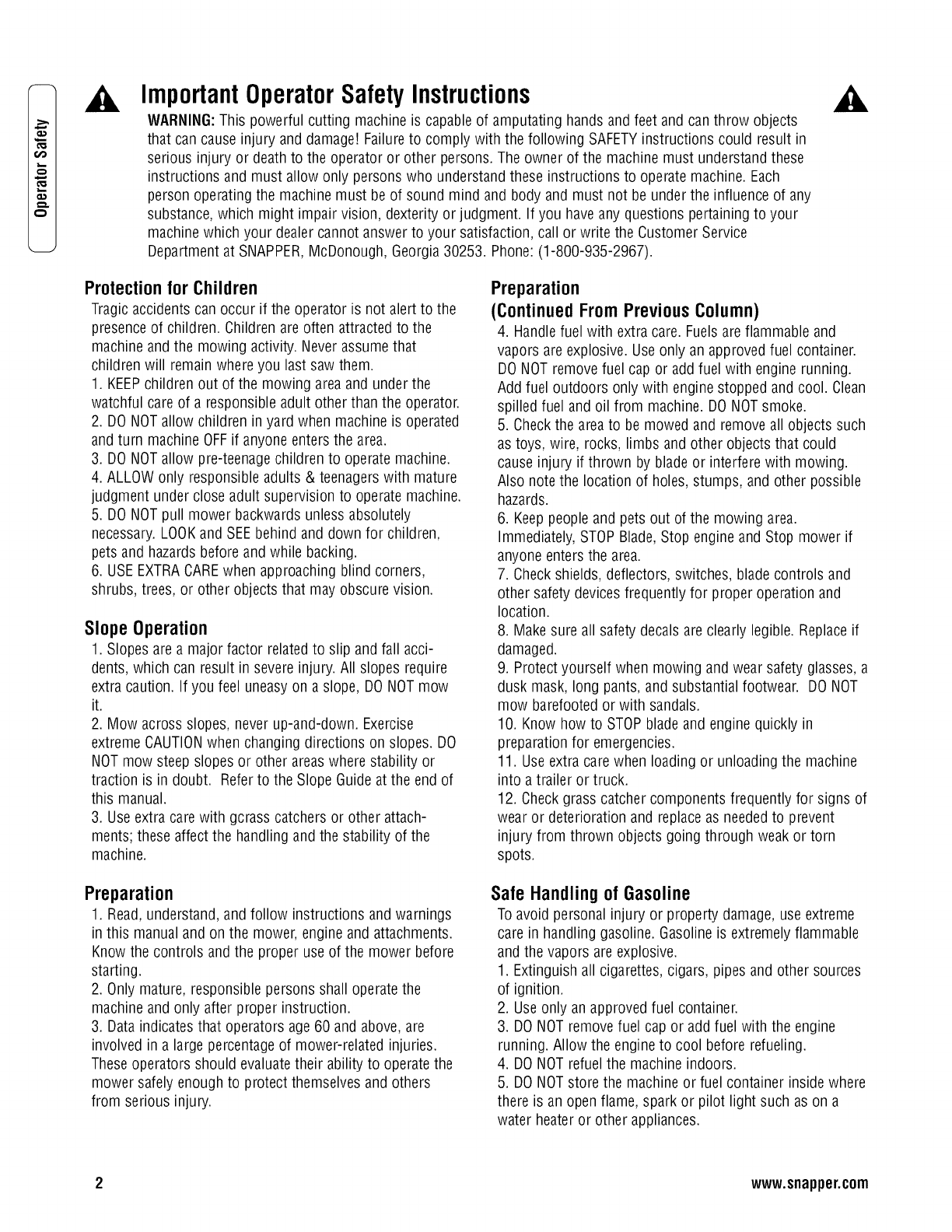

,A ImportantOperatorSafetyInstructions

WARNING:This powerful cutting machine is capable of amputating hands and feet and can throw objects

that can cause injury and damage! Failureto comply with the following SAFETYinstructions could result in

serious injury or death to the operator or other persons. The owner of the machine must understand these

instructions and must allow only persons who understandthese instructions to operate machine. Each

person operating the machine must be of sound mind and body and must not be under the influence of any

substance,which might impair vision, dexterity or judgment. If you have any questions pertaining to your

machinewhich your dealer cannot answer to your satisfaction, call or write the Customer Service

Departmentat SNAPPER,IVIcDonough,Georgia30253. Phone: (1-800-935-2967).

Protection for Children

Tragic accidents can occur if the operator is not alert to the

presenceof children. Children are often attracted to the

machine andthe mowing activity. Neverassume that

children will remain where you last saw them.

1. KEEPchildren out of the mowing area and under the

watchful care of a responsible adult other than the operator.

2. DO NOTallow children in yard when machine is operated

andturn machine OFFif anyone enters the area.

3. DO NOTallow pre-teenagechildren to operate machine.

4. ALLOW only responsible adults & teenagerswith mature

judgment under close adult supervision to operate machine.

5. DO NOTpull mower backwards unless absolutely

necessary.LOOKand SEEbehind and down for children,

pets and hazards before and while backing.

6. USEEXTRACAREwhen approaching blind corners,

shrubs, trees, or other objects that may obscure vision.

SlopeOperation

1. Slopes are a major factor relatedto slip and fall acci-

dents, which can result in severe injury. All slopes require

extra caution. If you feel uneasyon a slope, DO NOTmow

it.

2. Mow across slopes, never up-and-down. Exercise

extreme CAUTIONwhen changing directions on slopes. DO

NOTmow steep slopes or other areas where stability or

traction is in doubt. Referto the Slope Guideat the end of

this manual.

3. Useextra care with gcrass catchers or other attach-

ments; these affect the handling and the stability of the

machine.

Preparation

(ContinuedFromPrevious Column)

4. Handle fuel with extra care. Fuelsareflammable and

vapors are explosive. Useonly an approved fuel container.

DO NOTremovefuel cap or addfuel with engine running.

Add fuel outdoors only with engine stopped and cool. Clean

spilled fuel and oil from machine. DO NOTsmoke.

5. Checkthe areato be mowed and removeall objects such

as toys, wire, rocks, limbs and other objects that could

cause injury if thrown by bladeor interfere with mowing.

Also note the location of holes, stumps, and other possible

hazards.

6. Keeppeople and pets out of the mowing area.

Immediately,STOP Blade,Stop engine and Stop mower if

anyone entersthe area.

7. Checkshields, deflectors, switches, blade controls and

other safety devices frequently for proper operation and

location.

8. Make sure all safety decals are clearly legible. Replaceif

damaged.

9. Protect yourself when mowing and wear safety glasses, a

dusk mask, long pants, and substantial footwear. DO NOT

mow barefooted or with sandals.

10. Know how to STOPbladeand engine quickly in

preparation for emergencies.

11. Use extra care when loading or unloading the machine

into a trailer or truck.

12. Checkgrass catcher components frequently for signs of

wear or deterioration and replaceas neededto prevent

injury from thrown objects going through weak or torn

spots.

Preparation

1. Read,understand, and follow instructions and warnings

in this manual and on the mower, engine and attachments.

Know the controls and the proper use of the mower before

starting.

2. Only mature, responsible persons shall operate the

machine and only after proper instruction.

3. Data indicates that operators age 60 and above,are

involved in a large percentageof mower-related injuries.

Theseoperators should evaluatetheir ability to operate the

mower safely enough to protect themselves and others

from serious injury.

Safe Handling of Gasoline

To avoid personal injury or property damage, use extreme

care in handling gasoline. Gasoline is extremely flammable

and the vapors are explosive.

1. Extinguish all cigarettes, cigars, pipes and other sources

of ignition.

2. Use only an approved fuel container.

3. DO NOTremovefuel cap or add fuel with the engine

running. Allow the engineto cool before refueling.

4. DO NOTrefuel the machine indoors.

5. DO NOTstore the machine or fuel container inside where

there is an open flame, spark or pilot light such as on a

water heater or other appliances.

2 www.snapper.com

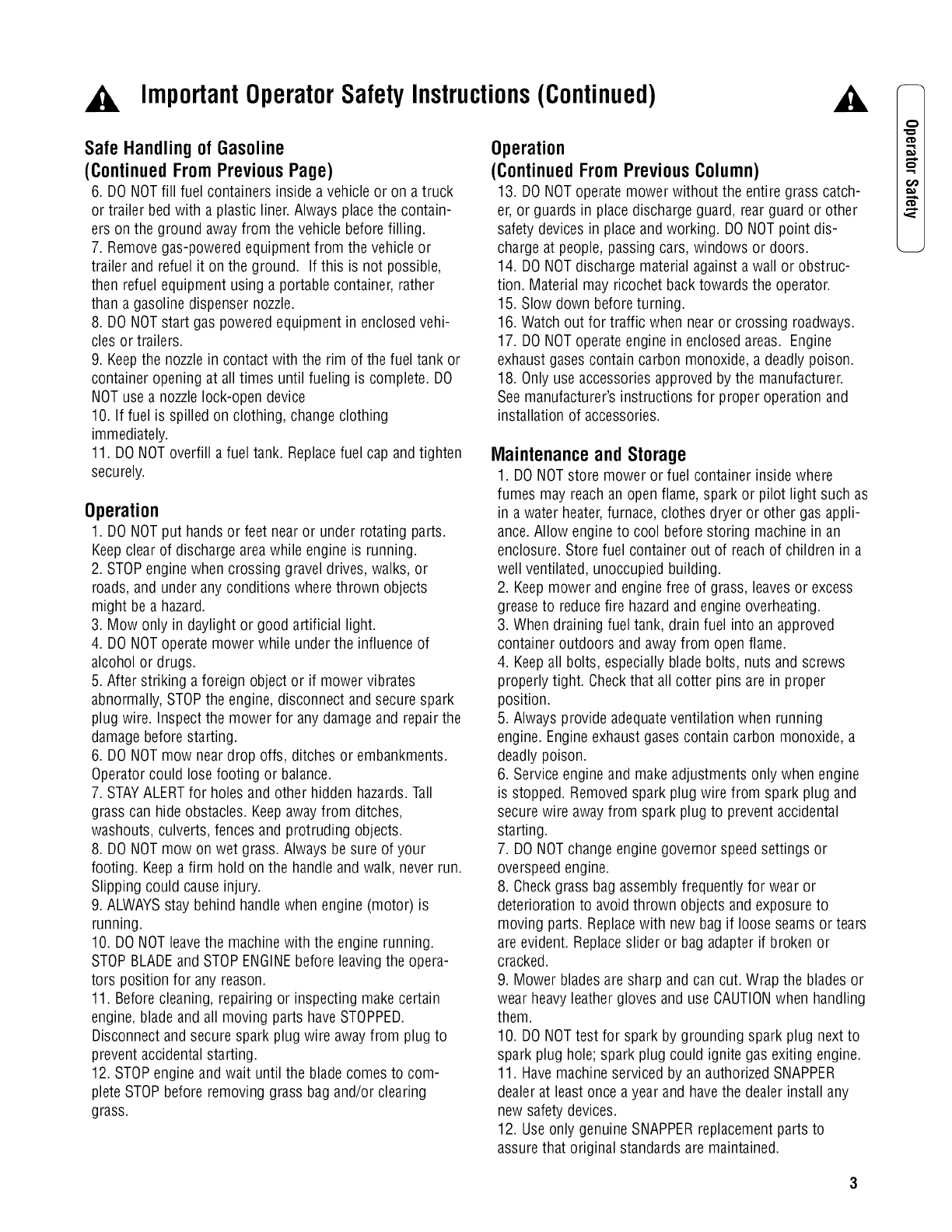

ImportantOperatorSafetyInstructions(Continued)

Safe Handling of Gasoline

(ContinuedFromPrevious Page)

6. DO NOTfill fuel containers inside a vehicle or on atruck

or trailer bed with a plastic liner. Always placethe contain-

ers on the ground away from the vehicle beforefilling.

7. Remove gas-poweredequipment from the vehicle or

trailer and refuel it on the ground. If this is not possible,

then refuel equipment using a portable container, rather

than a gasoline dispenser nozzle.

8. DO NOT start gas powered equipment in enclosedvehi-

cles or trailers.

9. Keepthe nozzlein contact with the rim of the fuel tank or

container opening at all times until fueling is complete. DO

NOTuse a nozzle lock-open device

10. If fuel is spilled on clothing, change clothing

immediately.

11. DO NOToverfill a fuel tank. Replacefuel cap and tighten

securely.

Operation

1. DO NOTput hands or feet near or under rotating parts.

Keepclear of discharge areawhile engine is running.

2. STOPenginewhen crossing gravel drives, walks, or

roads, and under any conditions where thrown objects

might be a hazard.

3. Mow only in daylight or good artificial light.

4. DO NOT operate mower while under the influence of

alcohol or drugs.

5. After striking a foreign object or if mower vibrates

abnormally, STOPthe engine, disconnect and secure spark

plug wire. Inspect the mower for any damage and repair the

damage before starting.

6. DO NOTmow near drop offs, ditches or embankments.

Operator could lose footing or balance.

7. STAYALERTfor holes and other hidden hazards.Tall

grass can hide obstacles. Keepawayfrom ditches,

washouts, culverts, fences and protruding objects.

8. DO NOTmow on wet grass. Always be sure of your

footing. Keepa firm hold on the handleand walk, never run.

Slipping could cause injury.

9. ALWAYSstay behind handlewhen engine (motor) is

running.

10. DO NOTleavethe machinewith the engine running.

STOPBLADEand STOPENGINEbefore leaving the opera-

tors position for any reason.

11. Before cleaning, repairing or inspecting make certain

engine, blade and all moving parts haveSTOPPED.

Disconnect and secure spark plug wire awayfrom plug to

prevent accidental starting.

12. STOPengineand wait until the bladecomes to com-

plete STOPbefore removing grass bag and/or clearing

grass.

Operation

(ContinuedFromPrevious Column)

13. DO NOT operate mower without the entire grass catch-

er, or guards in place discharge guard, rearguard or other

safety devices in place and working. DONOTpoint dis-

charge at people, passing cars, windows or doors.

14. DO NOTdischarge material against a wall or obstruc-

tion. Material may ricochet back towards the operator.

15. Slow down before turning.

16. Watch out for traffic when near or crossing roadways.

17. DO NOT operate engine in enclosedareas. Engine

exhaust gasescontain carbon monoxide, a deadly poison.

18. Only use accessories approved by the manufacturer.

See manufacturer's instructions for proper operation and

installation of accessories.

MaintenanceandStorage

1. DO NOTstore mower or fuel container inside where

fumes may reach an open flame, spark or pilot light such as

in awater heater,furnace, clothes dryer or other gas appli-

ance. Allow engine to cool before storing machine in an

enclosure. Store fuel container out of reach of children in a

well ventilated, unoccupied building.

2. Keepmower and engine free of grass, leavesor excess

grease to reduce fire hazardand engine overheating.

3. When draining fuel tank, drain fuel into an approved

container outdoors and away from open flame.

4. Keepall bolts, especially bladebolts, nuts and screws

properly tight. Checkthat all cotter pins are in proper

position.

5. Always provide adequateventilation when running

engine. Engineexhaust gasescontain carbon monoxide, a

deadly poison.

6. Serviceengine and makeadjustments only when engine

is stopped. Removed spark plug wire from spark plug and

secure wire awayfrom spark plug to prevent accidental

starting.

7. DO NOT change engine governor speed settings or

overspeed engine.

8. Checkgrass bag assembly frequently for wear or

deterioration to avoid thrown objects and exposure to

moving parts. Replacewith new bag if loose seams or tears

are evident. Replaceslider or bag adapter if broken or

cracked.

9. Mower blades are sharp and can cut. Wrap the blades or

wear heavy leather gloves and use CAUTIONwhen handling

them.

10. DO NOTtest for spark by grounding spark plug next to

spark plug hole; spark plug could ignite gas exiting engine.

11. Havemachine serviced by an authorized SNAPPER

dealer at least once ayear and havethe dealerinstall any

new safety devices.

12. Use only genuine SNAPPERreplacement parts to

assure that original standards are maintained.

FeaturesandControls

IMPORTANT

The figures and illustrations in this manual are provided

for referenceonly and may differ from your specific

model. Contactyour Snapperdealer if you have questions.

x,...

0.1

I.I.

FeaturesandControls

Oil Fill Capand Dipstick

Fuel Filler Cap

Grass BagAdapter

Rear Height Adjustment Latch (2)

Front Height Adjustment Latch (2)

EnginePrimer (Not all models)

BladeControl

Rope Start Handle

Ground SpeedControl

Drive Wheel Control

EngineSpeedControl

Grass Bag

4 www.snapper.com

Operation

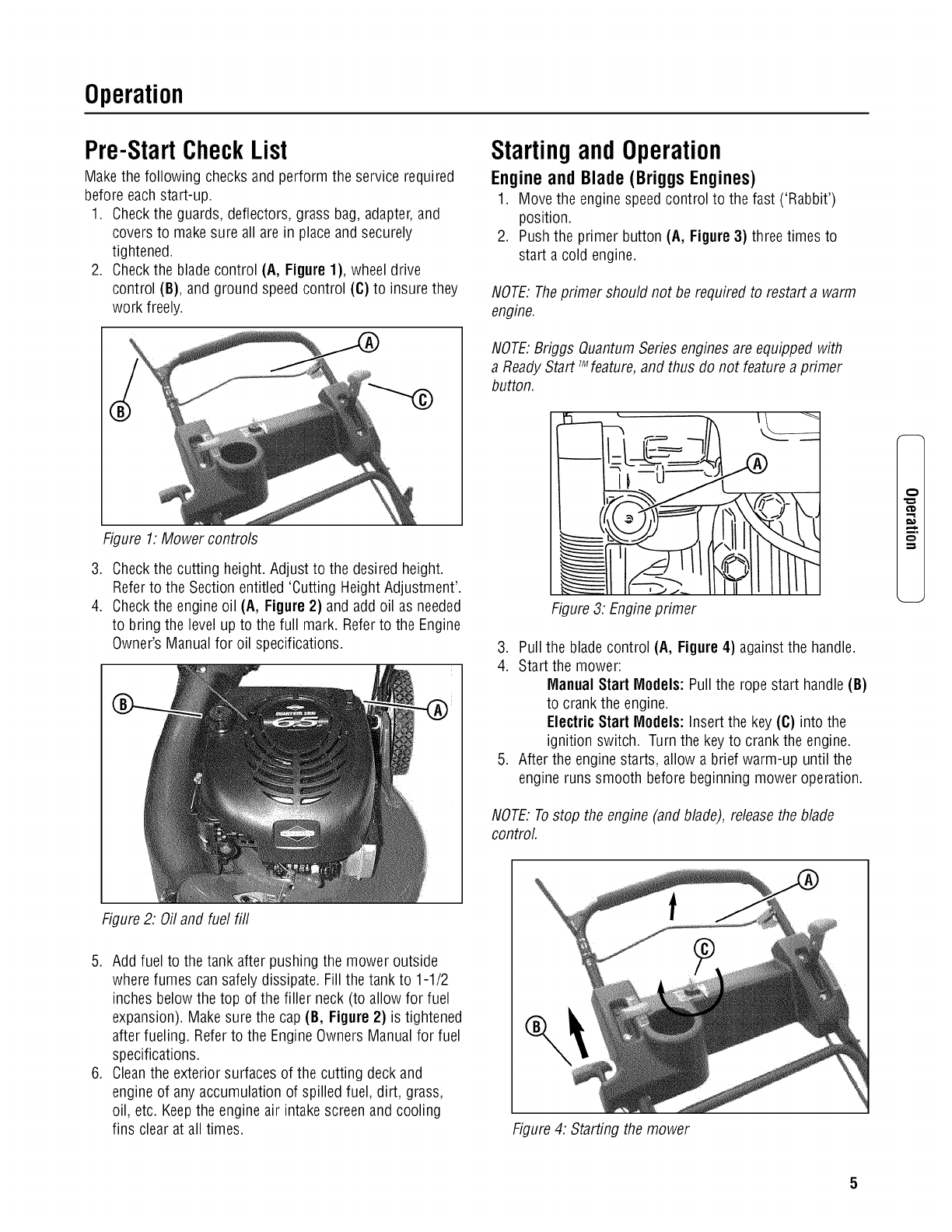

Pre-StartCheckList

Make the following checks and perform the service required

before each start-up.

1. Checkthe guards, deflectors, grass bag, adapter,and

covers to makesure all are in place and securely

tightened.

2. Checkthe blade control (A, Figure 1), wheel drive

control (B), and ground speed control (C) to insure they

work freely.

StartingandOperation

Engine and Blade (Briggs Engines)

1. Move the engine speed control to the fast ('Rabbit')

position.

2. Push the primer button (A, Figure 3) three times to

start a cold engine.

NOTE: Theprimer should not be required to restart a warm

engine.

NOTE:Briggs QuantumSeries engines are equipped with

a ReadyStart TMfeature, and thus do not feature a primer

button.

Figure 1. Mower controls

3. Checkthe cutting height. Adjust to the desired height.

Refer to the Section entitled 'Cutting HeightAdjustment'.

4. Checkthe engineoil (A, Figure 2) and add oil as needed

to bring the level up to the full mark. Referto the Engine

Owner's Manual for oil specifications.

Figure 3: Engineprimer

3. Pull the blade control (A, Figure 4) against the handle.

4. Start the mower:

Manual Start Models: Pullthe rope start handle (B)

to crank the engine.

Electric Start Models: Insert the key(C) into the

ignition switch. Turn the key to crank the engine.

5. After the enginestarts, allow a brief warm-up until the

engine runs smooth before beginning mower operation.

NOTE: Tostop the engine (and blade), releasethe blade

control.

Figure 2: Oiland fuel fill

5. Add fuel to the tank after pushing the mower outside

where fumes can safely dissipate. Fill the tank to 1-1/2

inches below the top of the filler neck (to allow for fuel

expansion). Makesure the cap (B, Figure 2) is tightened

after fueling. Referto the EngineOwners Manual for fuel

specifications.

6. Cleanthe exterior surfaces of the cutting deck and

engine of any accumulation of spilled fuel, dirt, grass,

oil, etc. Keepthe engine air intakescreen and cooling

fins clear at all times. Figure 4: Starting the mower

Operation(Continued)

t::

€:)

o.1

StartingandOperation(Continued)

Engine and Blade (Kawasaki Engine)

1. Make sure the fuel valve (A, Figure5) on the engine is

open.

Figure 5. Fuel shut-off (Kawasaki engine only)

2. Move the engine speed control past the fast ('Rabbit')

detent to the 'Choke' position.

3. Pull the blade control (A, Figure 4) against the handle.

4. Pull the rope start handle(B) to crank the engine.

5. After the engine starts, allow a brief warm-up until the

engine runs smooth before beginning mower operation.

NOTE.To stop the engine (and blade), releasethe blade

control.

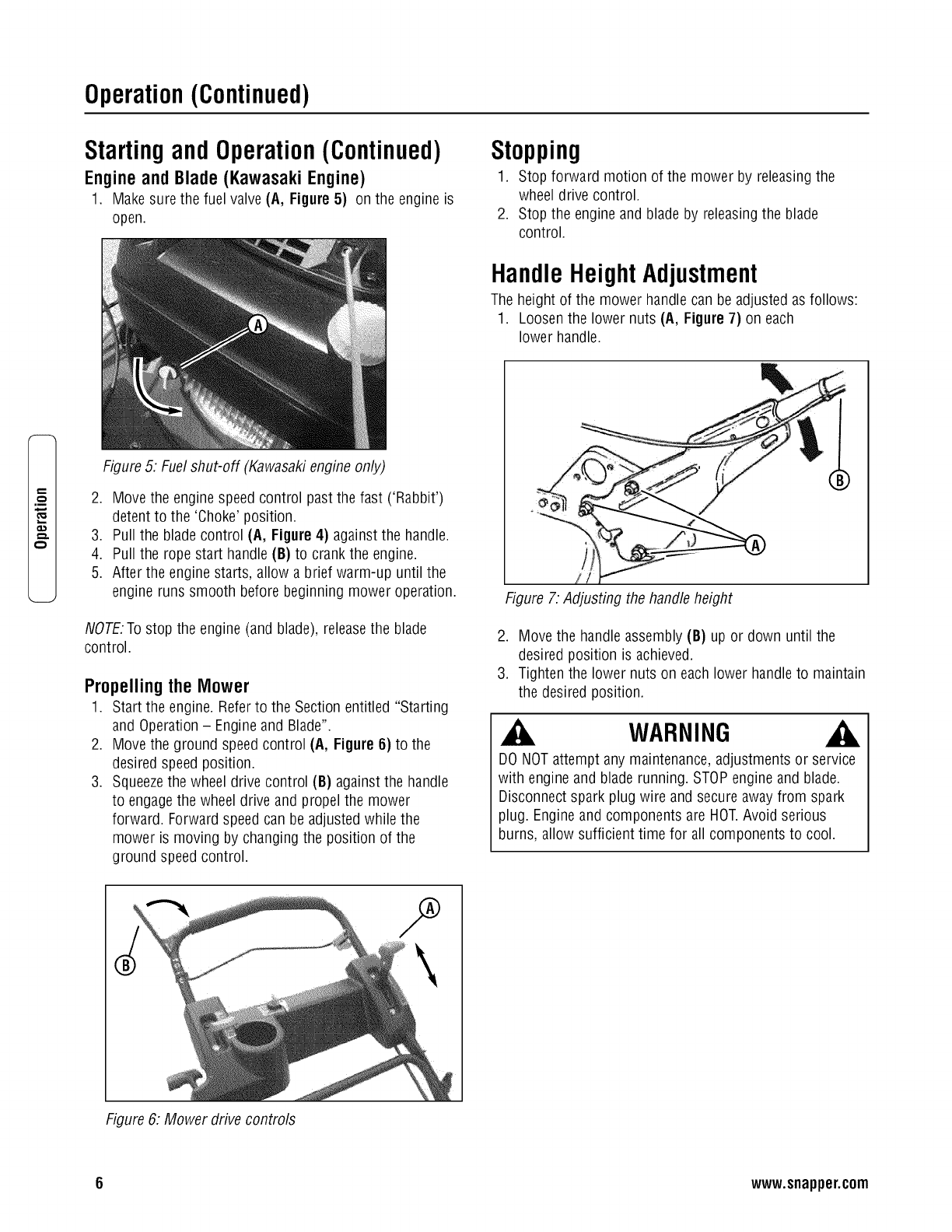

Propelling the Mower

1. Start the engine. Referto the Section entitled "Starting

and Operation - Engineand Blade".

2. Move the ground speedcontrol (A, Figure 6) to the

desired speed position.

3. Squeezethe wheel drive control (B) againstthe handle

to engagethe wheel drive and propel the mower

forward. Forward speed can be adjusted while the

mower is moving by changing the position of the

ground speed control.

Stopping

1. Stop forward motion of the mower by releasingthe

wheel drive control.

2. Stop the engine and blade by releasingthe blade

control.

HandleHeightAdjustment

The height of the mower handle can be adjusted as follows:

1. Loosen the lower nuts (A, Figure 7) on each

lower handle.

Figure 7: Adjusting the handleheight

2. Move the handleassembly (B) up or down until the

desired position is achieved.

3. Tighten the lower nuts on eachlower handleto maintain

the desired position.

WARNING

DO NOTattempt any maintenance, adjustments or service

with engine and blade running. STOPengine and blade.

Disconnect spark plug wire and secureaway from spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

Figure 6: Mower drive controls

6 www.snapper.com

Operation(Continued)

WARNING

DONOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengine and blade.

Disconnect spark plug wire and secure away from spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

CuttingHeightAdjustment

1. Pull the height adjusting latch (A, Figure8) outward and

move to the desired cutting height.

Figure 8: Adjusting cutting height

2. Set all wheels at the same cutting height. The highest

cutting position is Notch 7 (Figure 9). The lowest

cutting position is Notch 1.

1.25 in 4.00 in

Figure 9: Cutting height settings (approximate)

RecyclingOperation

Note: For best recycling results, cut up to a maximum of 1/3

of grass blade length and recycle ONLYwhen grass is dry.

1. Set all wheels in the highest cutting position (Notch 7).

Referto the Section entitled "Cutting Height

Adjustment".

2. Move the engine speed control to the fast (Rabbit)

position.

3. Move the ground speed control to the slowest speed

setting.

4. Proceed mowing slowly. If the grass is very dense,

lower each rearwheel latch one notch lower than the

front wheel latches to improve recycling performance.

Note: The recycling cover should remain on the machineat

all times, unless alternatedischarge operations are desired,

such as side discharging or bagging.

Removingthe RecyclingCover

1. Removethe knob nuts (A, Figure 10) and internal/

externaltooth lock washers (B) securing the recycling

cover (C) to the mower deck.

2. Remove the cover.

Figure 10. Removing the recycling cover

WARNING

Stop engineand mower blade by releasing the blade

control before adjusting cutting height.

Operation(Continued)

WARNING

DONOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengine and blade.

Disconnect spark plug wire and secure away from spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

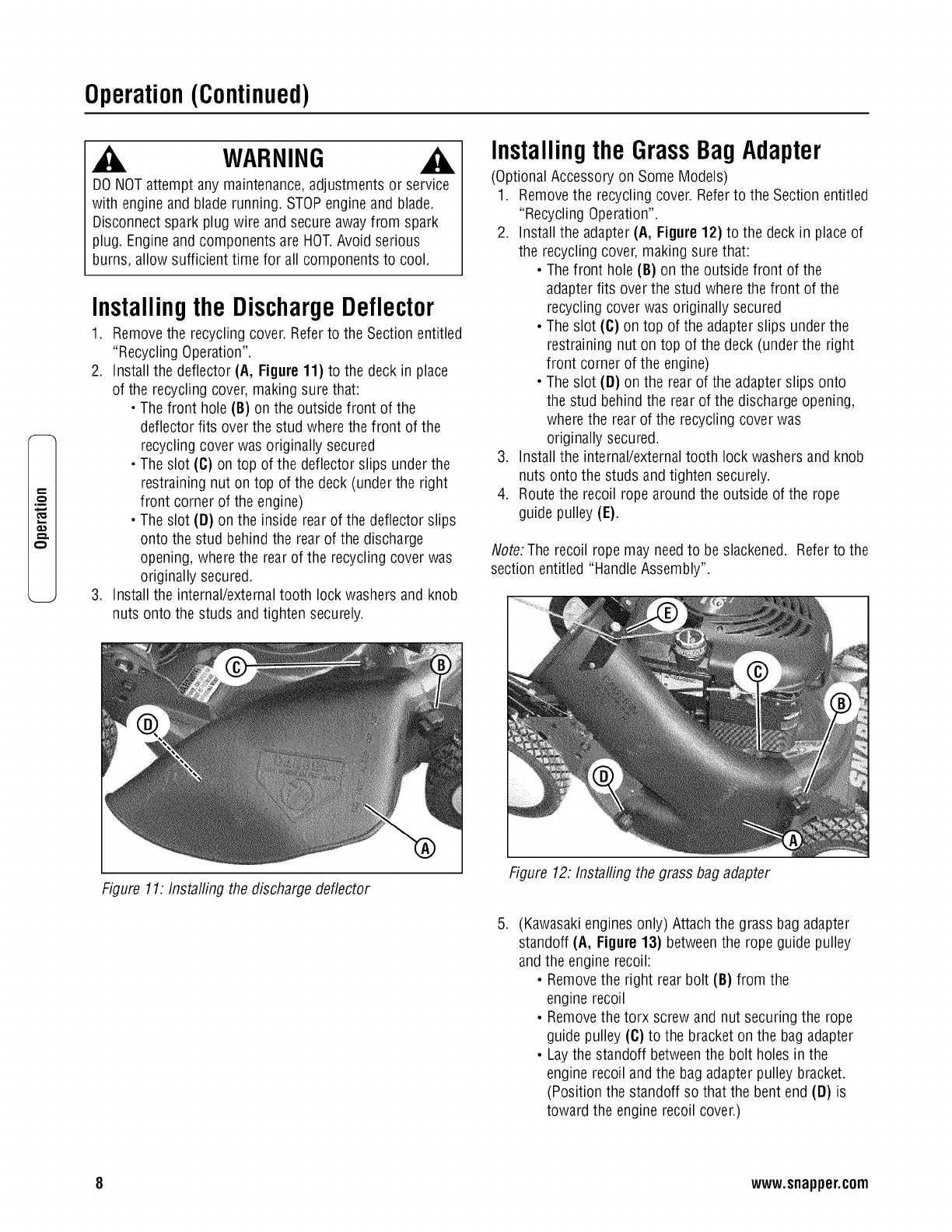

Installingthe DischargeDeflector

1. Remove the recycling cover. Referto the Section entitled

"Recycling Operation".

2. Install the deflector (A, Figure 11) to the deck in place

of the recycling cover, making sure that:

• The front hole (B) on the outside front of the

deflector fits over the stud where the front of the

recycling cover was originally secured

• The slot (C) on top of the deflector slips underthe

restraining nut on top of the deck (under the right

front corner of the engine)

• The slot (D) on the inside rear of the deflector slips

onto the stud behind the rear of the discharge

opening, where the rear of the recycling cover was

originally secured.

3. Install the internal/externaltooth lock washers and knob

nuts onto the studs andtighten securely.

Figure 11: Installing the discharge deflector

Installingthe GrassBagAdapter

(Optional Accessory on Some Models)

1. Removethe recycling cover. Referto the Section entitled

"Recycling Operation".

2. Install the adapter (A, Figure 12) to the deck in place of

the recycling cover, making sure that:

• The front hole (B) on the outside front of the

adapter fits over the stud where the front of the

recycling cover was originally secured

• The slot (C) on top of the adapter slips under the

restraining nut on top of the deck (under the right

front corner of the engine)

• The slot (D) on the rear of the adapter slips onto

the stud behind the rear of the discharge opening,

where the rear of the recycling cover was

originally secured.

3. Install the internal/externaltooth lock washers and knob

nuts onto the studs and tighten securely.

4. Route the recoil rope around the outside of the rope

guide pulley (E).

Note: The recoil rope may needto be slackened. Referto the

section entitled "Handle Assembly".

Figure 12. Installing the grass bag adapter

(Kawasaki engines only) Attach the grass bag adapter

standoff (A, Figure 13) betweenthe rope guide pulley

and the engine recoil:

•Removethe right rear bolt (B) from the

engine recoil

• Removethe torx screw and nut securing the rope

guide pulley (C) to the bracket on the bagadapter

• Laythe standoff betweenthe bolt holes in the

engine recoil and the bag adapter pulley bracket.

(Position the standoff so that the bent end (D) is

toward the engine recoil cover.)

8 www.snapper.com

Operation(Continued)

WARNING

DONOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengine and blade.

Disconnect spark plug wire and secure away from spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

Installingthe GrassBagAdapter

(Continued)

• Flip the pulley over so that the bushing flange is

under the pulley. The bushing will act as a washer

betweenthe pulley and the standoff.

• Reassemblethe pulley to the bag adapter,and

install the supplied replacementbolt, fitted with the

thread sleeve, into the recoil cover. Tighten all

hardware securely.

Figure 13: Installing the adapter standoff

(Kawasakiengines only)

WARNING

DONOToperate without entire Grass Catcheror guard in

place. GrassCatcher components are subject to

deterioration during normal use. Inspect frequently and

replaceworn or damaged components immediately.

Installingthe RecyclingPlug

1. Install the recycling plug (A, Figure 14) if recycling is

desired after the bag adapter is installed. Install the

recycling plug completely and securely into the bag

adapter (B).

IMPORTANT.Install the grass bag as a safeguard.

2. Referto the section entitled "Recycling Operation".

Figure 14. Installing the recycfing plug

Installingthe GrassBag

(Door Type Bag)

1. Install the grass bag adapter.Refer to the Section

entitled "Installing the Grass BagAdapter".

2. Install the grass bag by sliding the connector (A, Figure

15) over the adapter flange.

3. Attach the grass bag hooks (B) over the middle handle

cross bar.

Figure 15. Installing the grass bag

_k WARNING

GrassCatcher bags used on SNAPPERproducts are made

of woven fabric, and are subject to deterioration and wear

during normal usage. Check condition of bag before each

use. Immediately replace worn or damaged catcher bags

with only bags recommended by SNAPPER. The grass

catcher is optional equipment on some models.

Maintenance

p,,

q-.

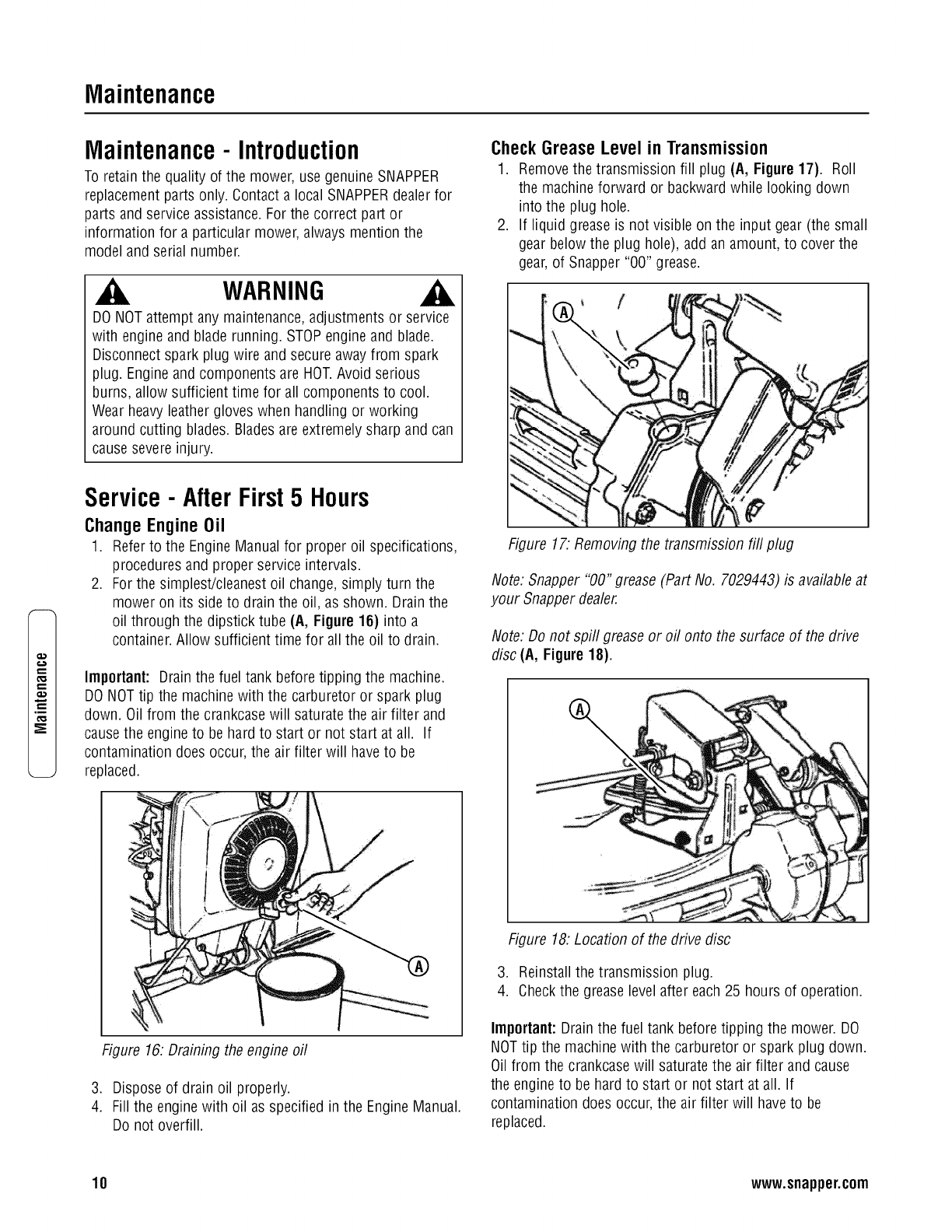

Maintenance-Introduction

To retain the quality of the mower, use genuineSNAPPER

replacement parts only. Contact a local SNAPPERdealer for

parts and service assistance.For the correct part or

information for a particular mower, always mention the

model and serial number.

WARNING

DONOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengine and blade.

Disconnect spark plug wire and secure away from spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

Wear heavy leather gloves when handling or working

around cutting blades. Bladesare extremely sharp and can

causesevere injury.

Service- AfterFirst5 Hours

Change Engine Oil

1. Refer to the EngineManual for proper oil specifications,

procedures and proper service intervals.

2. For the simplest/cleanest oil change,simply turn the

mower on its side to drain the oil, as shown. Drain the

oil through the dipstick tube (A, Figure 16) into a

container. Allow sufficient time for all the oil to drain.

Important: Drain the fuel tank before tipping the machine.

DO NOTtip the machinewith the carburetor or spark plug

down. Oil from the crankcasewill saturate the air filter and

causethe engineto be hard to start or not start at all. If

contamination does occur, the air filter will haveto be

replaced.

CheckGreaseLevel in Transmission

1. Removethe transmission fill plug (A, Figure 17). Roll

the machine forward or backward while looking down

into the plug hole.

2. If liquid grease is not visible on the input gear (the small

gear below the plug hole), add an amount, to cover the

gear, of Snapper "00" grease.

Figure 17. Removing the transmission fill plug

Note: Snapper "00" grease (Part No. 7029443) is available at

your Snapper dealer.

Note: Do not spill grease or oil onto the surface of the drive

disc (A, Figure 18).

Figure 16: Draining the engine oil

3. Dispose of drain oil properly.

4. Fill the enginewith oil as specified in the EngineManual.

Do not overfill.

Figure 18: Location of the drive disc

3. Reinstall the transmission plug.

4. Checkthe grease level after each 25 hours of operation.

Important:Drain the fuel tank before tipping the mower. DO

NOTtip the machinewith the carburetor or spark plug down.

Oil from the crankcasewill saturate the air filter and cause

the engine to be hard to start or not start at all. If

contamination does occur, the air filter will haveto be

replaced.

10 www.snapper.com

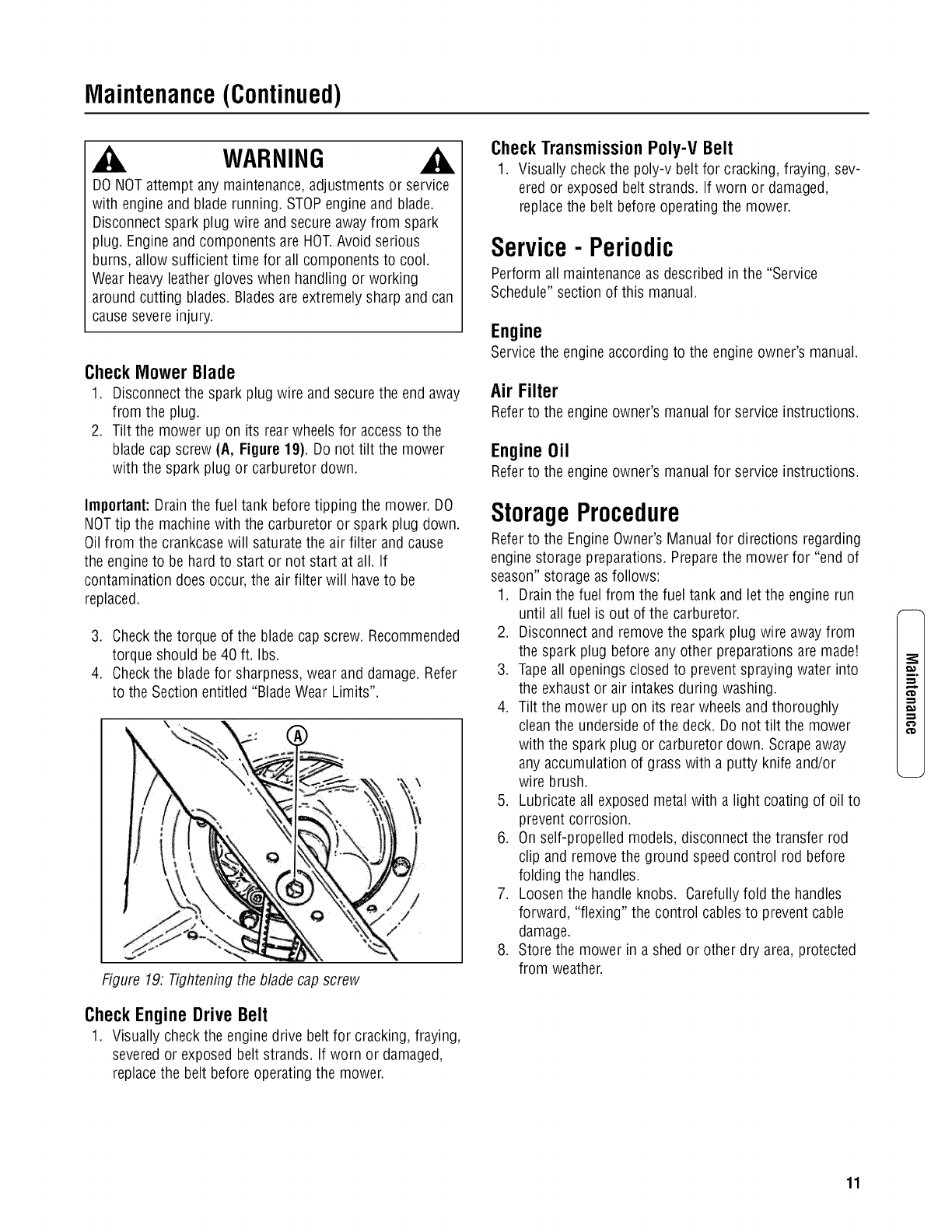

Maintenance(Continued)

WARNING

DONOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengine and blade.

Disconnect spark plug wire and secure away from spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

Wear heavy leather gloves when handling or working

around cutting blades. Bladesare extremely sharp and can

causesevere injury.

Check Mower Blade

1. Disconnect the spark plug wire and securethe end away

from the plug.

2. Tilt the mower up on its rearwheels for accessto the

blade cap screw (A, Figure19). Do not tilt the mower

with the spark plug or carburetor down.

Important:Drain the fuel tank before tipping the mower. DO

NOTtip the machine with the carburetor or spark plug down.

Oil from the crankcasewill saturate the air filter and cause

the engineto be hard to start or not start at all. If

contamination does occur, the air filter will haveto be

replaced.

3. Checkthe torque of the bladecap screw. Recommended

torque should be 40 ft. Ibs.

4. Checkthe bladefor sharpness, wear and damage. Refer

to the Section entitled "BladeWear Limits".

Figure 19. Tightening the blade cap screw

Check Engine Drive Belt

1. Visually check the enginedrive belt for cracking, fraying,

severedor exposed belt strands. If worn or damaged,

replace the belt before operating the mower.

Check Transmission Poly-V Belt

1. Visually check the poly-v belt for cracking, fraying, sev-

ered or exposed belt strands. If worn or damaged,

replacethe belt before operating the mower.

Service- Periodic

Perform all maintenanceas described in the "Service

Schedule" section of this manual.

Engine

Service the engine according to the engineowner's manual.

Air Filter

Referto the engine owner's manual for service instructions.

EngineOil

Referto the engine owner's manual for service instructions.

StorageProcedure

Referto the EngineOwner'sManual for directions regarding

engine storage preparations. Preparethe mower for "end of

season" storage as follows:

1. Drain the fuel from the fuel tank and let the engine run

until all fuel is out of the carburetor.

2. Disconnect and remove the spark plug wire awayfrom

the spark plug before any other preparations are made!

3. Tapeall openings closed to preventspraying water into

the exhaust or air intakes during washing.

4. Tilt the mower up on its rear wheels and thoroughly

clean the underside of the deck. Do not tilt the mower

with the spark plug or carburetor down. Scrapeaway

any accumulation of grass with a putty knife and/or

wire brush.

5. Lubricate all exposed metal with a light coating of oil to

prevent corrosion.

6. On self-propelled models, disconnect the transfer rod

clip and remove the ground speed control rod before

folding the handles.

7. Loosen the handle knobs. Carefully fold the handles

forward, "flexing" the control cablesto prevent cable

damage.

8. Store the mower in a shed or other dry area, protected

from weather.

€'D

Maintenance(Continued)

WARNING

DONOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengine and blade.

Disconnect spark plug wire and secure away from spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

Wear heavy leather gloves when handling or working

around cutting blades. Bladesare extremely sharp and can

causesevere injury.

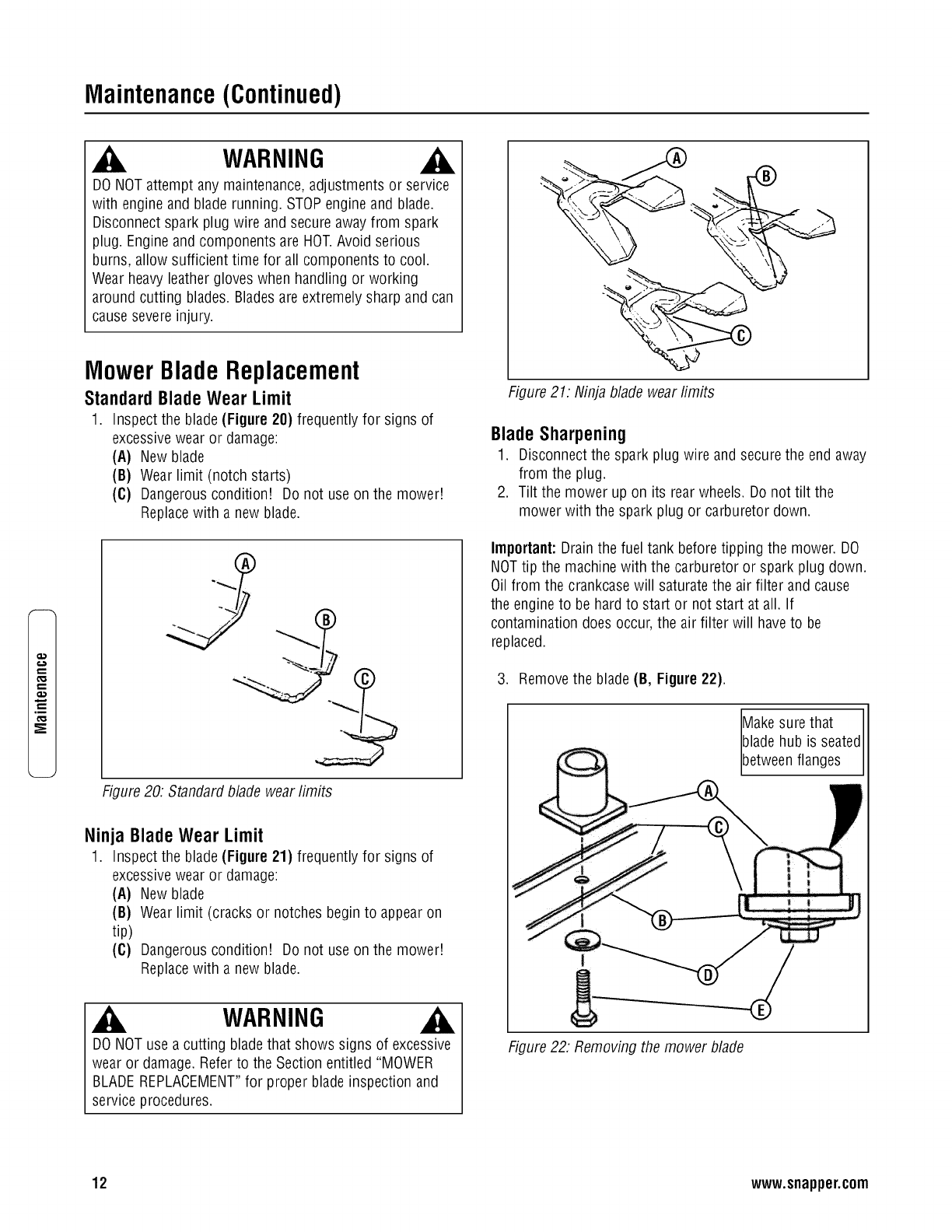

MowerBladeReplacement

Standard Blade Wear Limit

1. Inspect the blade(Figure 20) frequently for signs of

excessivewear or damage:

(A) New blade

(B) Wear limit (notch starts)

Replacewith a new blade.

Figure 20: Standard blade wear limits

Ninja Blade Wear Limit

1. Inspect the blade(Figure 21) frequently for signs of

excessivewear or damage:

(A) New blade

(B) Wear limit (cracks or notches begin to appearon

tip)

Replacewith a new blade.

WARNING

DONOTuse a cutting bladethat shows signs of excessive

wear or damage.Refer to the Section entitled "MOWER

BLADEREPLACEMENT"for proper blade inspection and

service procedures.

Figure 21: Ninja blade wear fimits

BladeSharpening

1. Disconnect the spark plug wire and secure the end away

from the plug.

2. Tilt the mower up on its rear wheels. Donot tilt the

mower with the spark plug or carburetor down.

Important:Drain the fuel tank before tipping the mower. DO

NOTtip the machinewith the carburetor or spark plug down.

Oil from the crankcasewill saturate the air filter and cause

the engineto be hard to start or not start at all. If

contamination does occur, the air filter will haveto be

replaced.

3. Remove the blade (B, Figure22).

Makesure that

bladehub is seatedI

[betweenfanges J

Figure 22: Removing the mower blade

12 www.snapper.com

Maintenance(Continued)

WARNING

DO NOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengineand blade.

Disconnect spark plug wire and secure awayfrom spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

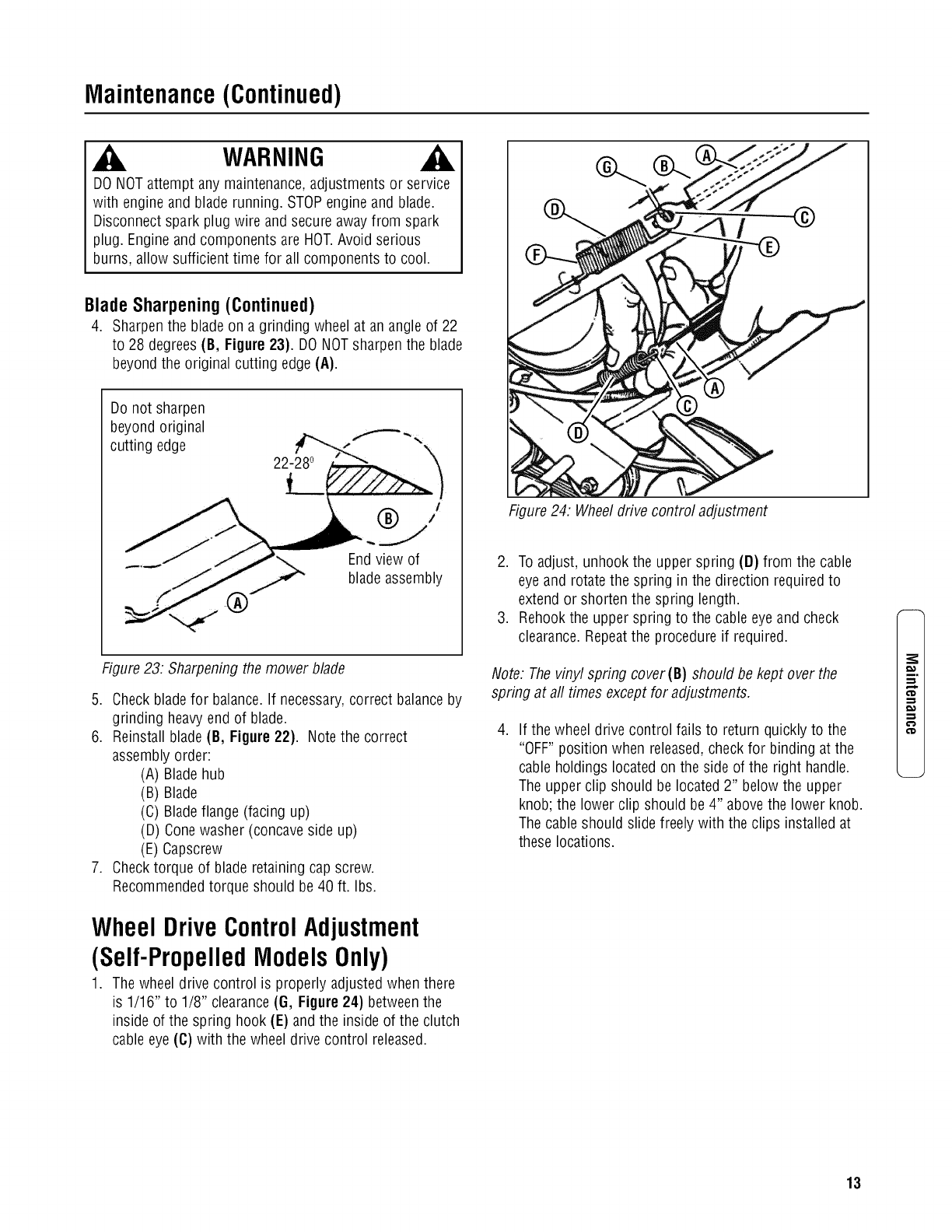

BladeSharpening(Continued)

4. Sharpenthe bladeon a grinding wheel at an angle of 22

to 28 degrees (B, Figure 23). DO NOTsharpen the blade

beyond the original cutting edge(A).

Do not sharpen

beyond original

cutting edge

Endview of

bladeassembly

Figure 23: Sharpening the mower blade

5. Check bladefor balance.If necessary,correct balance by

grinding heavyend of blade.

6. Reinstall blade(B, Figure 22}. Notethe correct

assembly order:

(A) Blade hub

(B) Blade

(D) Conewasher (concave side up)

(E) Capscrew

7. Checktorque of blade retaining cap screw.

Recommendedtorque should be 40 ft. Ibs.

WheelDriveControlAdjustment

(Self-PropelledModelsOnly)

1. The wheel drive control is properly adjusted when there

is 1/16" to 1/8" clearance(G, Figure24) betweenthe

inside of the spring hook (E) and the inside of the clutch

cable eye (C) with the wheel drive control released.

Figure 24: Wheeldrive control adjustment

2. To adjust, unhook the upper spring (D) from the cable

eye and rotatethe spring in the direction required to

extend or shorten the spring length.

3. Rehook the upper spring to the cable eye and check

clearance. Repeatthe procedure if required.

Note. Thevinyl spring cover(B) should be kept over the

spring at aft times except for adjustments.

.If the wheel drive control fails to return quickly to the

"OFF" position when released,check for binding at the

cable holdings located on the side of the right handle.

The upper clip should be located 2" below the upper

knob; the lower clip should be 4" above the lower knob.

The cable should slide freely with the clips installed at

these locations.

€'D

Maintenance(Continued)

e,,,

WARNING

DO NOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengineand blade.

Disconnect spark plug wire and secure awayfrom spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

DrivenandDriveDiscService

If the mower does not propel itself properly, check for the

following problems:

Figure 25. Wheel drive components

1. Greaseon the drive disc (A, Figure 25) causing

slippage.

2. Broken or disconnecteddrive spring (B).

3. Driven disc (C) is out of adjustment.

4. Driven disc rubber is worn - does not contact drive disc

properly.

5. Worn Poly-V belt (D) or engine drive belt (E).

If any of the above (1 thru 5) arecausing problems, service

as follows:

Cleaning Drive Disc & Driven Disc

If oil or greaseon the drive disc or driven disc is causing

slippage, clean the discs as follows:

1. Wipe awayany oil or grease with a clean cloth.

2. Use either an approved grease solvent or hot, soapy

water to clean drive disc or driven disc.

3. Rinse components with clean water.

4. Dry components with a clean cloth.

DriveSpringRepair/Replacement

If the drive spring (A, Figure 26) is loose, reconnect. If the

spring is broken, replacewith a new spring.

Note: Usea pair of needlenose pliers to install the drive

spring.

IMPORTANT:If the drive system continues slipping, refer to

the Troubleshooting section.

Figure 26: Replacingthe drive spring

Driven Disc Adjustment

If the drive disc and driven disc areclean and the mower

drive is still slipping, adjust the driven disc as follows:

1. Move the ground speed control (A, Figure 27) into the

'fast' position.

Figure 27: Theground speed control

14 www.snapper.com

Maintenance(Continued)

WARNING

DO NOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengineand blade.

Disconnect spark plug wire and secure awayfrom spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

Driven Disc Adjustment (Continued)

2. Remove the driven disc spring (A, Figure 28) from the

driven disc assembly (B). Also removethe pin and

washer (C) from the transfer rod (D), and removethe

end of the transfer rod from the hole in the driven disc

assembly.

Figure 28: Adjusting the driven disc

3. Slide the driven disc assembly over to 1/8" (A, Figure

29) from the outside edge of the drive disc (B).

4. Loosen the jam nut (A, Figure 38) securing the transfer

rod (B) to the ball joint (C) on the pivot bracket (D).

5. Turn the rod in or out of the ball joint until the end of the

rod aligns with the hole (E) in the driven disc assembly

from which the rod was removed.

IMPORTANT:Do not move the pivot bracket.

6. Reinstall the rod as removed in Step 2. Move the ground

speed control to the 'slow' position, then backto the

'fast' position. Recheckthe 1/8" measurement described

previously. Readjustas needed.Tighten the nut when

finished.

7. Reinstall the driven disc spring to the driven disc

assembly.

Figure 29: Proper driven disc adjustment

Figure 30: Adjusting the transfer rod

Driven Disc Replacement

If the rubber on the driven disc is badly chunked or worn, it

must be replaced. Install a new driven disc as follows:

1. Removethe pin and washer (C, Figure 28) from the

transfer rod (D), and removethe end of the transfer rod

from the hole in the driven disc assembly.

Maintenance(Continued)

e,,,

WARNING

DO NOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengineand blade.

Disconnect spark plug wire and secure awayfrom spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

Driven Disc Replacement (Continued)

2. Using needlenose pliers, unhook the drive spring (A,

Figure 31) and slide the driven disc assembly off the

hex shaft.

3. Remove the two snap rings (A, Figure 32) which secure

the rubber driven disc (B) to the driven disc assembly.

4. Install a new rubber driven disc onto the driven disc

assembly, and secure with the retaining rings.

5. Reversethe above proceduresfor reassemblyand

installation of the driven disc assembly.

Figure 31. Removing the driven disc assembly

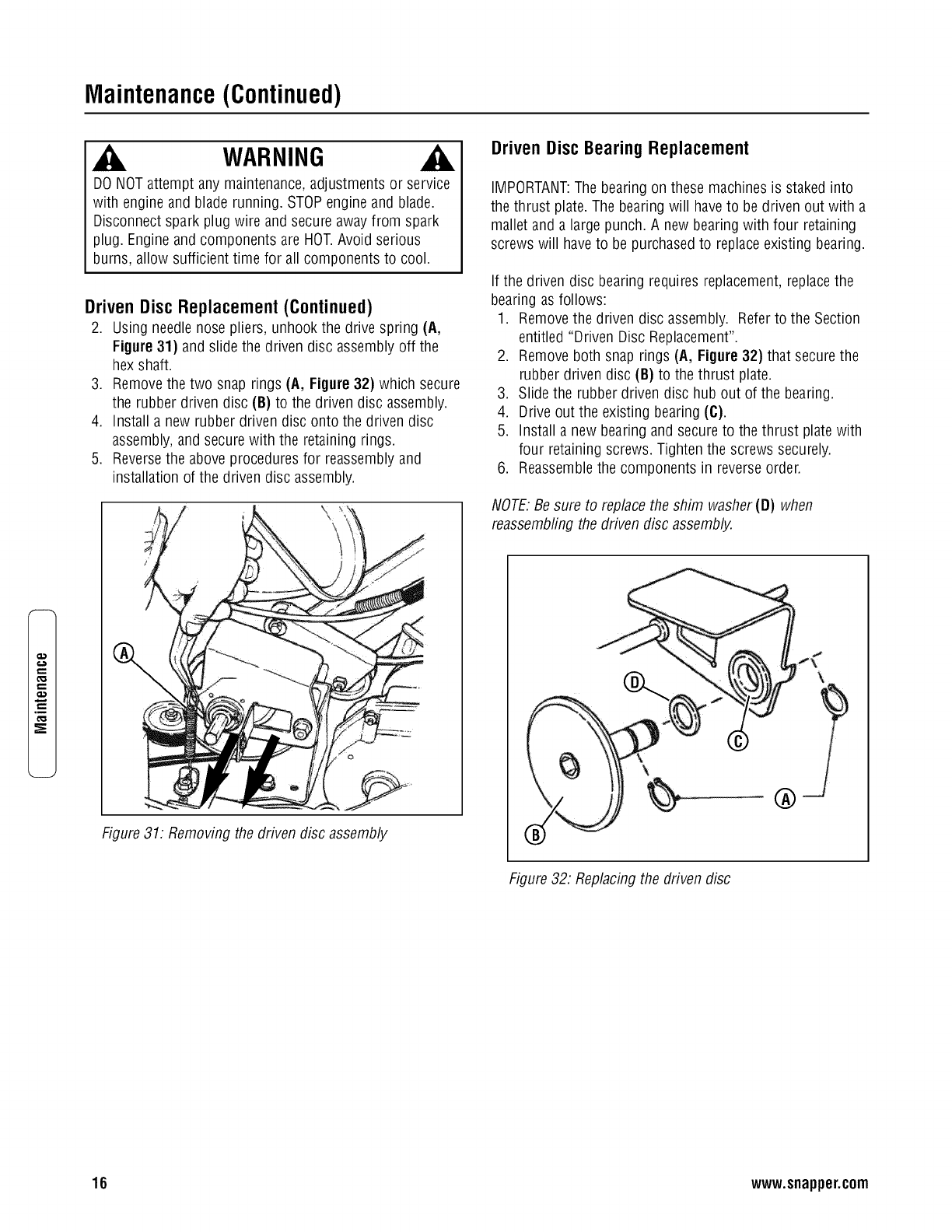

Driven Disc Bearing Replacement

IMPORTANT:The bearing on these machines is staked into

the thrust plate. The bearingwill haveto be driven out with a

mallet and a large punch. A new bearing with four retaining

screws will haveto be purchasedto replace existing bearing.

If the driven disc bearing requires replacement,replace the

bearing as follows:

1. Removethe driven disc assembly. Referto the Section

entitled "Driven Disc Replacement".

2. Remove both snap rings (A, Figure 32) that secure the

rubber driven disc (B) to the thrust plate.

3. Slide the rubber driven disc hub out of the bearing.

4. Drive out the existing bearing (C).

5. Install a new bearing and secure to the thrust platewith

four retaining screws. Tighten the screws securely.

6. Reassemblethe components in reverseorder.

NOTE:Besure to replace the shim washer(D) when

reassembfingthe driven disc assembly.

Figure 32. Replacing the driven disc

16 www.snapper.com

Maintenance(Continued)

WARNING

DO NOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengineand blade.

Disconnect spark plug wire and secure awayfrom spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

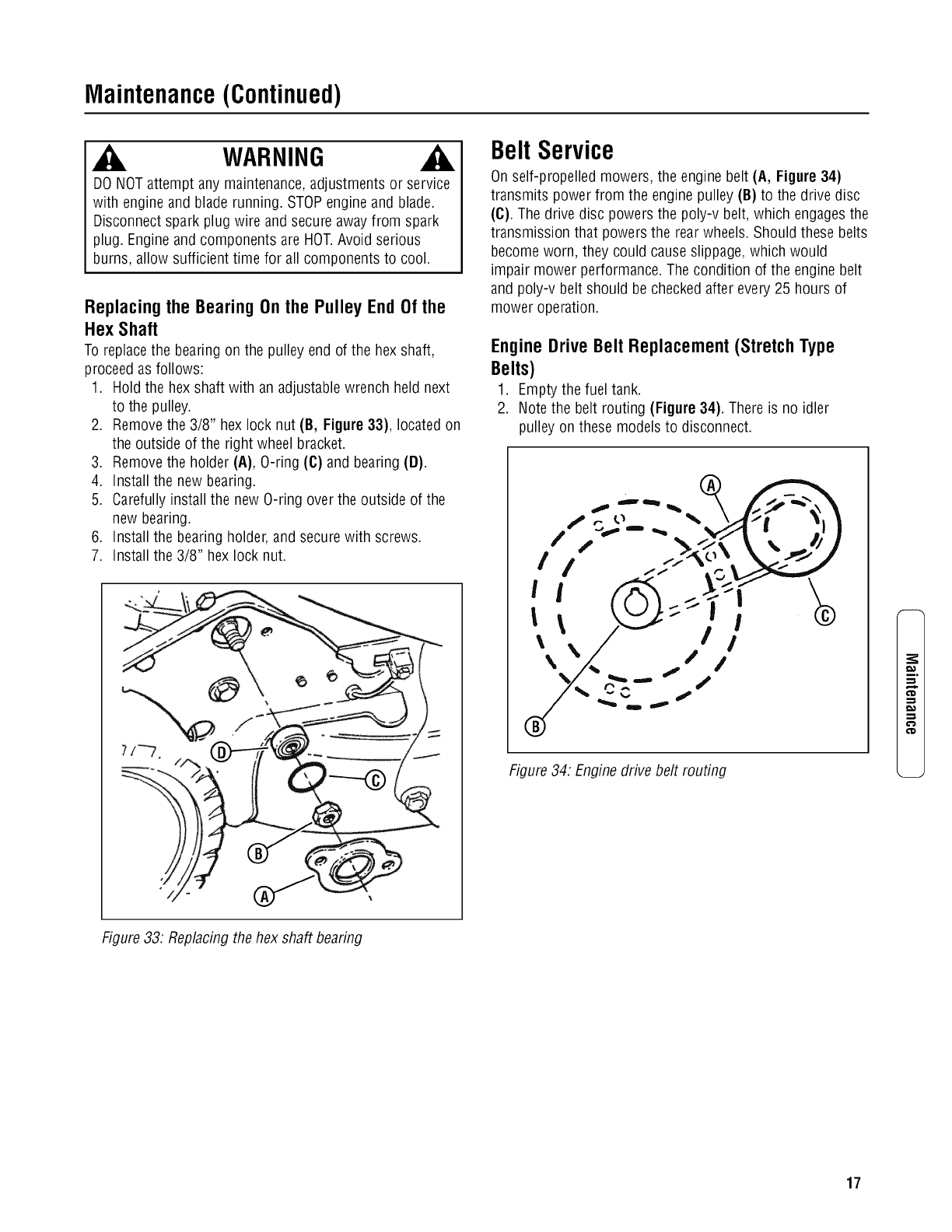

Replacing the Bearing On the Pulley End Of the

Hex Shaft

To replace the bearing on the pulley end of the hex shaft,

proceed as follows:

1. Hold the hex shaft with an adjustablewrench held next

to the pulley.

2. Remove the 3/8" hex lock nut (B, Figure33), located on

the outside of the right wheel bracket.

3. Remove the holder (A), O-ring (C) and bearing (D).

4. Install the new bearing.

5. Carefully install the new O-ring over the outside of the

new bearing.

6. Install the bearing holder, and secure with screws.

7. Install the 3/8" hex lock nut.

BeltService

On self-propelled mowers, the engine belt (A, Figure 34)

transmits power from the engine pulley (B) to the drive disc

(C). The drive disc powers the poly-v belt, which engages the

transmission that powers the rearwheels. Should these belts

become worn, they could cause slippage,which would

impair mower performance. The condition of the engine belt

and poly-v belt should be checked after every 25 hours of

mower operation.

Engine Drive Belt Replacement (Stretch Type

Belts)

1. Empty the fuel tank.

2. Note the belt routing (Figure 34). There is no idler

pulley on these models to disconnect.

f,.. o"_ \//>_ "l,

\% \/ /I//

Figure 34. Engine drive belt routing

€'D

Figure 33. Replacingthe hex shaft bearing

Maintenance(Continued)

e,,,

WARNING

DO NOTattempt any maintenance,adjustments or service

with engine and blade running. STOPengineand blade.

Disconnect spark plug wire and secure awayfrom spark

plug. Engineand components are HOT.Avoid serious

burns, allow sufficient time for all components to cool.

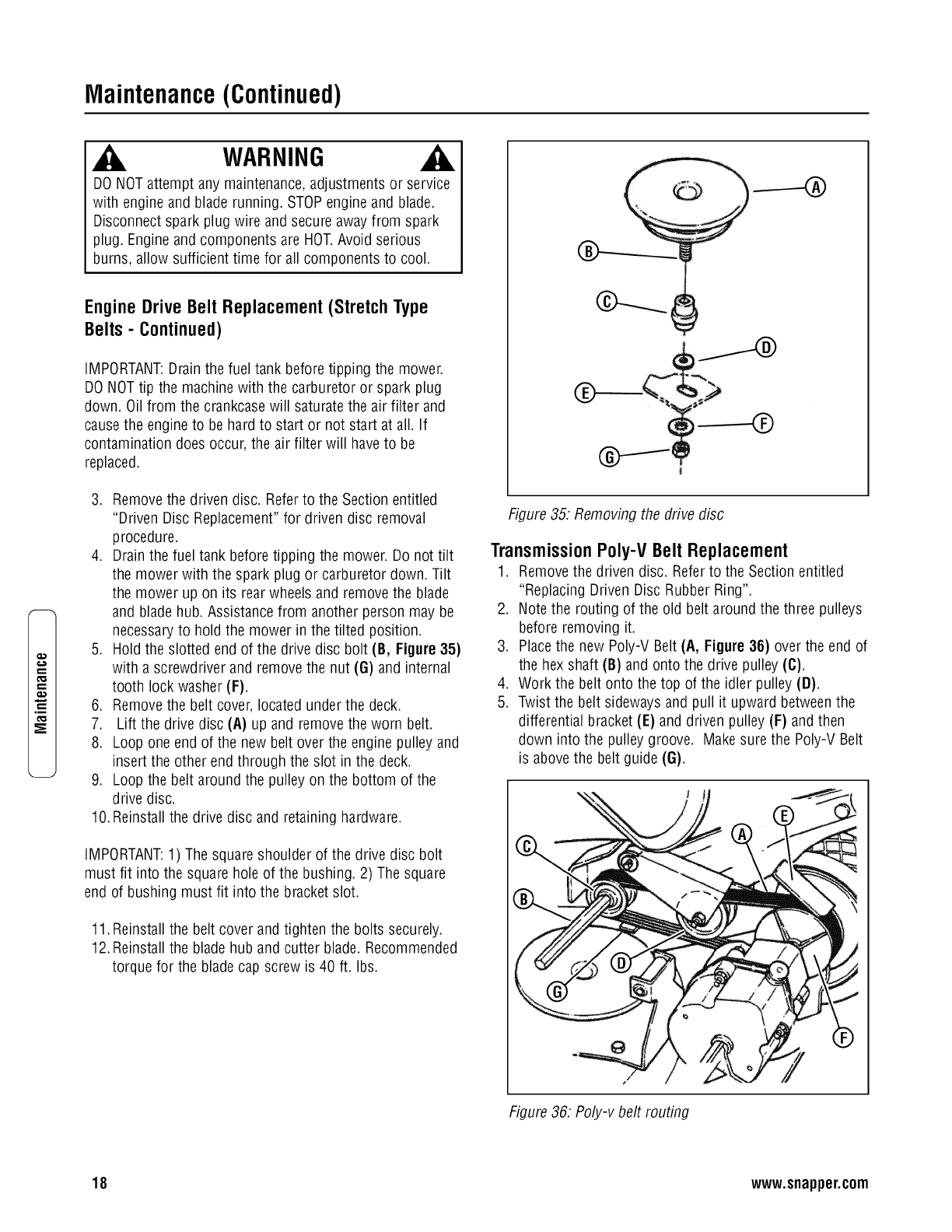

EngineDriveBelt Replacement(StretchType

Belts- Continued)

IMPORTANT:Drain the fuel tank before tipping the mower.

DO NOTtip the machinewith the carburetor or spark plug

down. Oil from the crankcasewill saturate the air filter and

causethe engineto be hard to start or not start at all. If

contamination does occur, the air filter will haveto be

replaced.

3. Remove the driven disc. Referto the Section entitled

"Driven Disc Replacement"for driven disc removal

procedure.

4. Drain the fuel tank before tipping the mower. Do not tilt

the mower with the spark plug or carburetor down. Tilt

the mower up on its rear wheels and removethe blade

and bladehub. Assistance from another person may be

necessaryto hold the mower in the tilted position.

5. Hold the slotted end of the drive disc bolt (B, Figure 35)

with a screwdriver and remove the nut (G) and internal

tooth lock washer (F).

6. Remove the belt cover, located under the deck.

7. Lift the drive disc (A) up and removethe worn belt.

8. Loop one end of the new belt over the engine pulley and

insert the other end through the slot in the deck.

9. Loop the belt around the pulley on the bottom of the

drive disc.

10.Reinstall the drive disc and retaining hardware.

IMPORTANT:1) The square shoulder of the drive disc bolt

must fit into the square hole of the bushing. 2) The square

end of bushing must fit into the bracket slot.

11.Reinstall the belt cover and tighten the bolts securely.

12.Reinstall the blade hub and cutter blade. Recommended

torque for the blade cap screw is 40 ft. Ibs.

------4b

)

Figure 35. Removing the drive disc

Transmission Poly-V Belt Replacement

1. Remove the driven disc. Referto the Section entitled

"Replacing Driven Disc Rubber Ring".

2. Note the routing of the old belt around the three pulleys

before removing it.

3. Place the new Poly-V Belt (A, Figure 36) over the end of

the hex shaft (B) and onto the drive pulley (C).

4. Work the belt onto the top of the idler pulley(D).

5. Twist the belt sideways and pull it upward betweenthe

differential bracket (E) and driven pulley (F) and then

down into the pulley groove. Makesure the Poly-V Belt

is above the belt guide (G).

Figure 36. Poly-v belt routing

18 www.snapper.com

Maintenance(Continued)

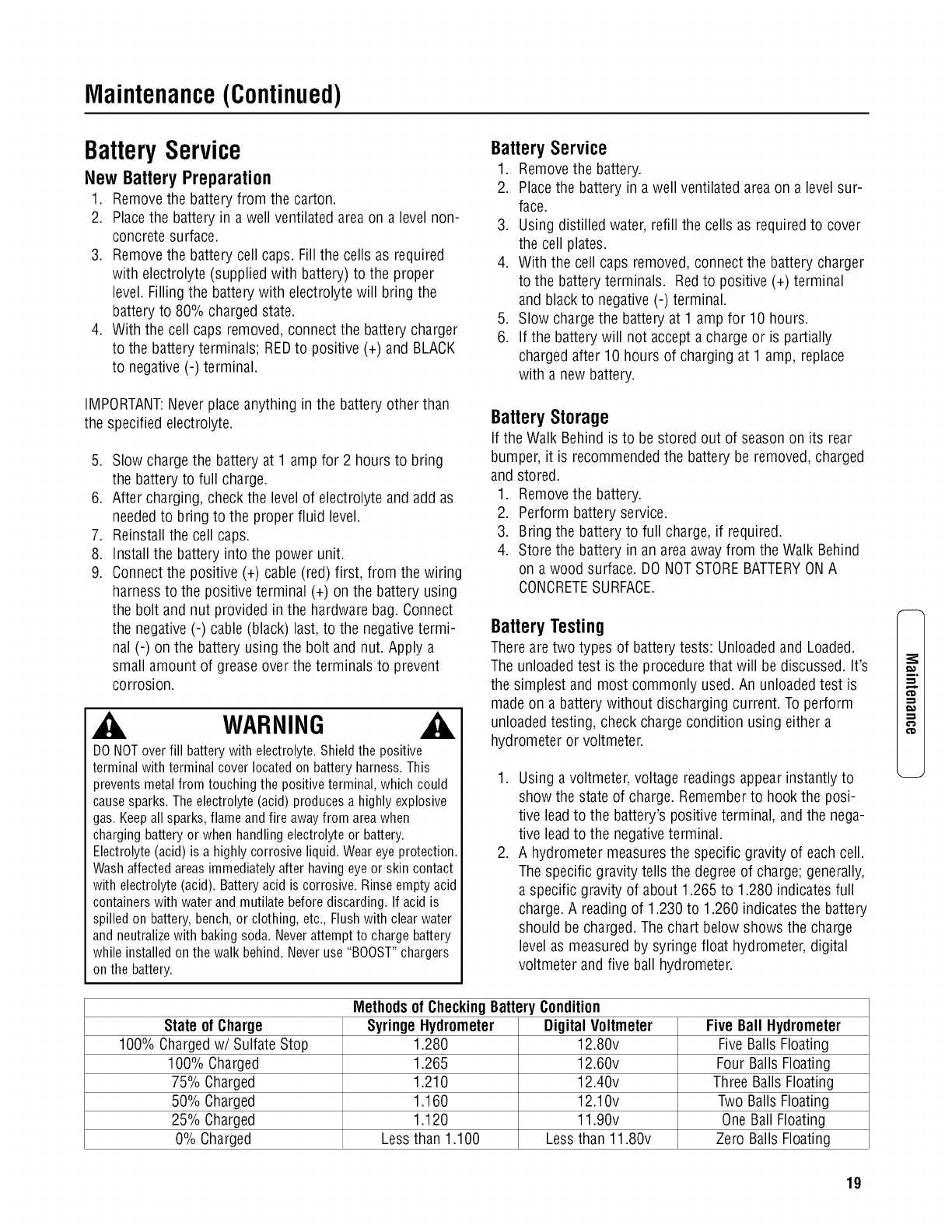

BatteryService

New BatteryPreparation

1. Remove the battery from the carton.

2. Placethe battery in a well ventilated areaon a level non-

concrete surface.

3. Remove the battery cell caps. Fill the cells as required

with electrolyte (supplied with battery) to the proper

level. Filling the battery with electrolyte will bring the

battery to 80% charged state.

4. With the cell caps removed, connect the battery charger

to the battery terminals; REDto positive (+) and BLACK

to negative(-) terminal.

IMPORTANT:Neverplace anything in the battery other than

the specified electrolyte.

5. Slow charge the battery at 1 amp for 2 hours to bring

the battery to full charge.

6. After charging, check the level of electrolyte and add as

neededto bring to the proper fluid level.

7. Reinstall the cell caps.

8. Install the battery into the power unit.

9. Connect the positive (+) cable (red) first, from the wiring

harness to the positive terminal (+) on the battery using

the bolt and nut provided in the hardware bag. Connect

the negative (-) cable (black) last,to the negativetermi-

nal (-) on the battery using the bolt and nut. Apply a

small amount of grease over the terminals to prevent

corrosion.

WARNING

DONOToverfill batterywithelectrolyte.Shieldthe positive

terminalwithterminalcoverlocatedonbatteryharness.This

preventsmetalfromtouchingthe positiveterminal,whichcould

causesparks.Theelectrolyte(acid)producesa highlyexplosive

gas.Keepall sparks,flameandfire awayfromareawhen

chargingbatteryor whenhandlingelectrolyteor battery.

Electrolyte(acid)is a highlycorrosiveliquid.Weareyeprotection.

Washaffectedareasimmediatelyafterhavingeyeor skincontact

with electrolyte(acid).Batteryacid is corrosive.Rinseemptyacid

containerswithwaterandmutilatebeforediscarding.If acidis

spilledon battery,bench,or clothing,etc.,Flushwith clearwater

andneutralizewith bakingsoda.Neverattemptto chargebattery

while installedonthe walkbehind.Neveruse"BOOST"chargers

onthe battery.

BatteryService

1. Removethe battery.

2. Place the battery in a well ventilated areaon a level sur-

face.

3. Using distilled water, refill the cells as requiredto cover

the cell plates.

4. With the cell caps removed, connect the battery charger

to the battery terminals. Redto positive (+) terminal

and black to negative (-) terminal.

5. Slow charge the battery at 1 amp for 10 hours.

6. If the battery will not accept a charge or is partially

charged after 10 hours of charging at 1 amp, replace

with a new battery.

BatteryStorage

If the Walk Behindis to be stored out of season on its rear

bumper, it is recommendedthe battery be removed, charged

and stored.

1. Removethe battery.

2. Perform battery service.

3. Bring the battery to full charge, if required.

4. Store the battery in an area awayfrom the Walk Behind

on a wood surface. DO NOTSTOREBATTERYON A

CONCRETESURFACE.

Battery Testing

There are two types of battery tests: Unloaded and Loaded.

The unloaded test is the procedure that will be discussed. It's

the simplest and most commonly used. An unloadedtest is

made on a battery without discharging current. To perform

unloaded testing, check charge condition using either a

hydrometer or voltmeter.

Using a voltmeter, voltage readings appear instantly to

show the state of charge. Rememberto hook the posi-

tive leadto the battery's positive terminal, and the nega-

tive leadto the negativeterminal.

A hydrometer measuresthe specific gravity of each cell.

The specific gravity tells the degreeof charge; generally,

a specific gravity of about 1.265 to 1.280 indicates full

charge. A readingof 1.230 to 1.260 indicates the battery

should be charged.The chart below shows the charge

level as measured by syringe float hydrometer, digital

voltmeter and five ball hydrometer.

Methodsof CheckingBatteryCondition

State of Charge SyringeHydrometer Digital Voltmeter Five Ball Hydrometer

100% Chargedw/Sulfate Stop 1.280 12.80v FiveBalls Floating

100% Charged 1.265 12.60v Four Balls Floating

75% Charged 1.210 12.40v Three Balls Floating

50% Charged 1.160 12.10v Two Balls Floating

25% Charged 1.120 11.90v One Ball Floating

0% Charged Lessthan 1.100 Lessthan 11.80v Zero Balls Floating

¢D

€'D

ServiceSchedule

ITEM

Engine Oil

Air Pre-Cleaner

Air Cleaner

Spark Plug

EngineCooling

System

Drive Belts

Mower Blade

Mower Deck

Transmission

Grease

Drive Disc

SERVICE

PERFORMED

Check Oil Level

Initial Oil Change

Periodic Oil Change

CleanSponge Element

Cleanor Replace

Replace

CleanShroud & Fins

Check tor Wear and

Tension

Check for wear, Damage

& Replacement

Clean Debris

Accumulation

CheckGrease Level

Periodic GreaseCheck

Check for Wear Damage

and Replacement

REF.

Page5

Page10

Page11

EngineManual

EACH

USE

HRS

Page11, 17

Page12 X

Page5 X

Page10

Page13-16

* Changeoil every 25 hours when operating under heavyload or high temperatures.

** Cleanmore often under dusty conditions or when air debris is present.

HRS

X**

HRS

lOO

HRS

X**

Maintenance/ReplacementParts

EngineSpeed Control (Briggs Engines)

EngineSpeed Control (KawasakiEngines)

BladeControl Cable (Briggs Engines)

BladeControl Cable (KawasakiEngines)

Clutch Pull Cable

Cutter Blade(Air Lift Compatible)

Cutter Blade(Mulching)

Cutter Blade(Not Air Lift Compatible)

Cutter Blade(Ninja - Quad Edge)

Wheel Drive Pulley to Transmission Pulley Belt

Engineto Drive Disc Belt

Cantilever Drive Tire Assembly

Rubber Drive Tire

Parts Manual for 21" Steel Deck Walk Behind Mower Series 19

EACH

SEASON

7074460

7074138

7034608

7074141

7034604

7019795

7017168

7026691

7026407

7012354

7046784

7073528

7041855

7006150

20 www.snapper.com

Troubleshooting

PROBLEM

EngineWill Not Start Using

Recoil Starter

EngineWill Not Start (Electri(

Start Models)

EngineStalls or Stops After

Running

EngineLoses Power

Excessive Vibration

IVlowerWill Not IVloveLoss

Of Traction (Self-Propelled

Models)

Cutting Grass Improperly

Poor Grass Discharge

Oil Leaking

PROBABLECAUSE

1. Fuel tank empty. 1.

2. Engine needs choking or priming. 2.

3. Spark plug wire disconnected. 3.

4. Kawasaki Engines Only - Fuel shut-oft in the 'Off' 4.

)osition.

1. Fuel tank empty. 1.

2. Engine needs choking or priming. 2.

3. Spark plug wire disconnected. 3.

4. Wiring harness disconnected. 4.

5. Battery dead. 5.

6. Kawasaki Engines Only - Fuel shut-off in the 'Off' 6.

)osition.

1. Blade control is released or is not being held

securely against handle.

2. Fuel tank empty.

3. Engineair pre-cleaner and or air cleanerdirty.

4. Spark plug detective or gap set improperly.

CORRECTIVEACTION

Fill tuel tank with tresh fuel.

Choke/Prime. Check EngineIVlanualfor Instructions.

Place spark plug wire onto spark plug.

lurn Fuel shut-oft to 'On' position.

Fill tuel tank with tresh tuel.

Choke/Prime. Check EngineManual for Instructions.

Place spark plug wire onto spark plug.

Connectwiring harness.

Charge or replace battery.

lurn Fuel shut-off to 'On' position.

1. Blade control should be held securely against handle

at all times during operation of mower.

2. Fill with fuel to proper level.

3. Cleantree of all debris.

4. Service spark plug.

5. Water, debris or stale fuel in fuel system. 5.

6. Kawasaki Engines Only - Fuel shut-oft in the 'Ott' 6.

)osition.

1. Engineair pre-cleaner or air cleaner dirty. 1.

2. Spark plug faulty. 2.

3. Water, debris or stale fuel in fuel system. 3.

1. Damaged,out of balanceor bent mower blade. 1.

2. Loose blade components. 2.

3. Loose or missing air Iitt (it equipped). 3.

4. Lumpy or trayed belt. 4.

1. Build-up of debris on or around wheel drive 1.

components.

2. Driven disc slipping.

3. Drive belt requires replacement.

4. Damaged transmission.

1. Cutting height too low or high.

2. Engine speed too slow.

3. Forward ground speedtoo fast.

4. lerraced cut, side to side.

5. Excessivedeck pitch, front to rear.

6. Cutting blade dull or damaged.

1. Engine speed too fast. 1.

2. Forward speed too tast. 2.

3. Grass is wet. 3.

4. Excessively worn or damaged blade. 4.

5. Build up of grass clippings and debris under deck. 5.

6. Improper blade installed on deck. 6.

7. Blade installed improperly on deck. 7.

1. Leaking engine case. 1.

Drain and clean fuel system.

lurn Fuel shut-oft to 'On' position.

Cleanor replace tilters.

Service spark plug.

Drain and clean fuel system.

Service mower blade.

Service and tighten loose parts.

Replaceair lifts, lighten to proper torque.

Replace belt.

Cleandebris.

2. Cleanor replace driven disc.

3. Replace drive belt.

4. Contact authorized SNAPPERdealer.

1. Adjust cutting height.

2. Move engine speed control to 'Fast' position.

3. Move ground speed control to a slower speed.

4. Adjust height of cut with height adjust levers.

5. Adjust height of cut with height adjust levers.

6. Sharpen cutting edges or replace blade.

Move engine speed control to 'Fast' position.

IVloveground speed control to a slower speed.

IVlowwhen grass is dry.

Service mower blade.

Cleandeck.

Install proper SNAPPEHblade.

Install blade properly.

Contact authorized SNAPPERdealer.

Check and tighten drain plug.

3. IVlakesure dip stick or oil tiller cap is securely in

)lace.

=3"

2 YEAR LIMITED WARRANTY

For two (2) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER,through any

authorizedSNAPPERdealerwill replace,free of charge (except for taxes where applicable), any part or parts found upon

_xamination by the factory at McDonough, Georgia,to be defective in material or workmanship or both.

For ninety (90) days from purchasedate for the original purchaser's commercial, rental,or other non-residential use, SNAP-

PER,through any authorized SNAPPERdealerwill replace,free of charge,any part or parts found upon examination by the

[actory at McDonough, Georgia,to be defective in material or workmanship or both.

&ll transportation costs incurred by the purchaser in submitting material to an authorized SNAPPERdealerfor replacement

underthis warranty must be paid by the purchaser.

This warranty does not apply to certain transmissions, to engines and their components, and batteries, as these items arewar-

ranted separately. This warranty does not apply to parts that havebeen damaged by accident, alteration, abuse, improper

lubrication, normal wear,or other causebeyond the control of SNAPPER.This warranty does not cover any machine or com-

ponent part that has been altered or modified changing safety, performance, or durability.

Batteries have a one (1) year warranty period with free replacement if required for one (1) year from the original purchase

date.SNAPPERwill not be responsiblefor any installation cost incurred. The battery warranty only covers original equipment

batteries and does not cover damageto the battery or machinecaused by neglect or abuse, destruction by fire, explosion,

[reezing, overcharging, improper maintenance, or use of improper electrolyte.

There is no other express warranty.

DISCLAIMMEROFWARRANTY

Implied warranties, includingthoseof merchantabilityand fitnessfor a particularpurpose,are limited to two (2) years

[rom purchasedate for the original purchaser'sresidential or other non-commercialuse, and ninety(90) daysfrom pur-

chase for the original purchaser'scommercial, rental or other non-residentialuse, and to the extent permittedby law, any

andall implied warrantiesare excluded. This is the exclusiveremedy. Liabilities for consequentialdamages, underany

andall warrantiesare excluded.

Somestates donot allow limitations onhow longan implied warranty lasts, or do notallow the exclusionor limitation of

incidentalor consequentialdamages, so the abovelimitation or exclusionmay notapply to you.

Thiswarranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WARNING:THE USEOF REPLACEMENTPARTSOTHERTHAN GENUINESNAPPERPARTSMAY IMPAIRTHESAFETYOF

SNAPPERPRODUCTSAND WILL VOIDANY LIABILITYANDWARRANTYBYSNAPPERASSOCIATEDWITH THE USEOF

SUCHPARTS.

IMPORTANT: Pleasefill out the attached SNAPPERProduct Registration Card immediately and mail to:

Snapper'sProductRegistrationCenter, P.O.Box1379, IVlcDonough,Georgia30253

22 www.snapper.com

Notes

24 www.snapper.com

tt3

4- SLOPE GUIDE

........ :..../.b" DE_D_... SIGHT AND HOLD THIS GUIDE LEVEL WITH A VERTICAL TREE,

I".... -'..'.._S A CORNER OF A STRUCTURE, A POWER LINE POLE, OR A FENCE.

j ........................

...... .....................

Operate a walk-behind mower

across the face of slopes,

never up or down slopes.

10 DEGREES 15 DEGREES

Operate a riding mower

up or down slopes, never

across the face of slopes.

On a riding mower to determine if a slope is safe to mow: (1) disengage the blade(s), (2) put the unit in reverse, and (3) try to back straight up the

slope. If you can back up the slope, it is generally safe to mow. However, if you do not feel safe, or if you are not completely sure, use this guide

anddo not mow a slope that is greater than 15 degrees. If the riding mower is used with a pull-behind or rear mounted attachment,

do not operate the und on a slope that is greater than 10 degrees.

A 15 degree slope is a hill that increases in height at approximately 2.5 feet in 10 feet.

A 10 degree slope is a hill that increases in height at approximately 1.7 feet in 10 feet.

Use extreme care at all times, and avoid sudden turns or maneuvers. Follow other instructions in this manual for safety in mowing on

slopes. Operate a riding mower up or down slopes, never across the face of slopes. Operate a walk-behind mower across the face

of slopes, never up or down slopes. Use extra care when operating on or near slopes and obstructions.

................................. _U'T_E'R_fO'U§E'_GP__&_D'E.................................

21" STEELDECK

WALKMOWERS

SERIES19

Product Specifications

Deck Size

Height of Cut

Transmission Type

Ground Speed

Engine Power - Briggs (Quantum)

Engine Power - Briggs (Intek)

Engine Power - Kawasaki

EngineDisplacement-Briggs(all)

EngineDisplacement-Kawasaki

FuelTankCapacity- Briggs(all)

FuelTankCapacity- Kawasaki

21 in

1.25 - 4 in

Gear

1 - 4 mph

6.50 ft-lbs (gross torque)

8.75 ft-lbs (gross torque)

6.0 hp (gross)

190 cc

180 cc

1.6 qt

2.1 qt

CommonServiceParts

Cutter Blade(Air-Lift Compatible)

Drive Belt (Engine)

Drive Belt (Transmission)

Parts Manual

Part Number

7019795

7046784

7012354

7006150

EnginePower RatingInformation:The gross power rating for individual gas engine models is labeled in accordancewith

SAE(Society of Automotive Engineers) code J1940 (Small Engine Power & Torque Rating Procedure),and rating perform-

ance has been obtained and corrected in accordancewith SAEJ1995 (Revision 2002-05). Torque values are derived at 3060

RPM; horsepower values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other

things, ambient operating conditions and engine-to-engine variability. Given both the wide array of products on which engines

are placed and the variety of environmental issues applicable to operating the equipment, the gas enginewill not develop the

rated gross power when used in a given piece of power equipment (actual "on-site" or net power). This difference is due to a

variety of factors including, but not limited to, accessories (air cleaner,exhaust, charging, cooling, carburetor, fuel pump,

etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-engine variability.

Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher rated power for this

Series engine.

SnapperProducts

535 Macon Street

McDonough, GA30253

26 1-000-935-2967 www.snapper.com

Snapper 2167519B (7800174) User Manual LAWN MOWER Manuals And Guides L0807684

SNAPPER Walk Behind Lawnmower, Gas Manual L0807684 SNAPPER Walk Behind Lawnmower, Gas Owner's Manual, SNAPPER Walk Behind Lawnmower, Gas installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
