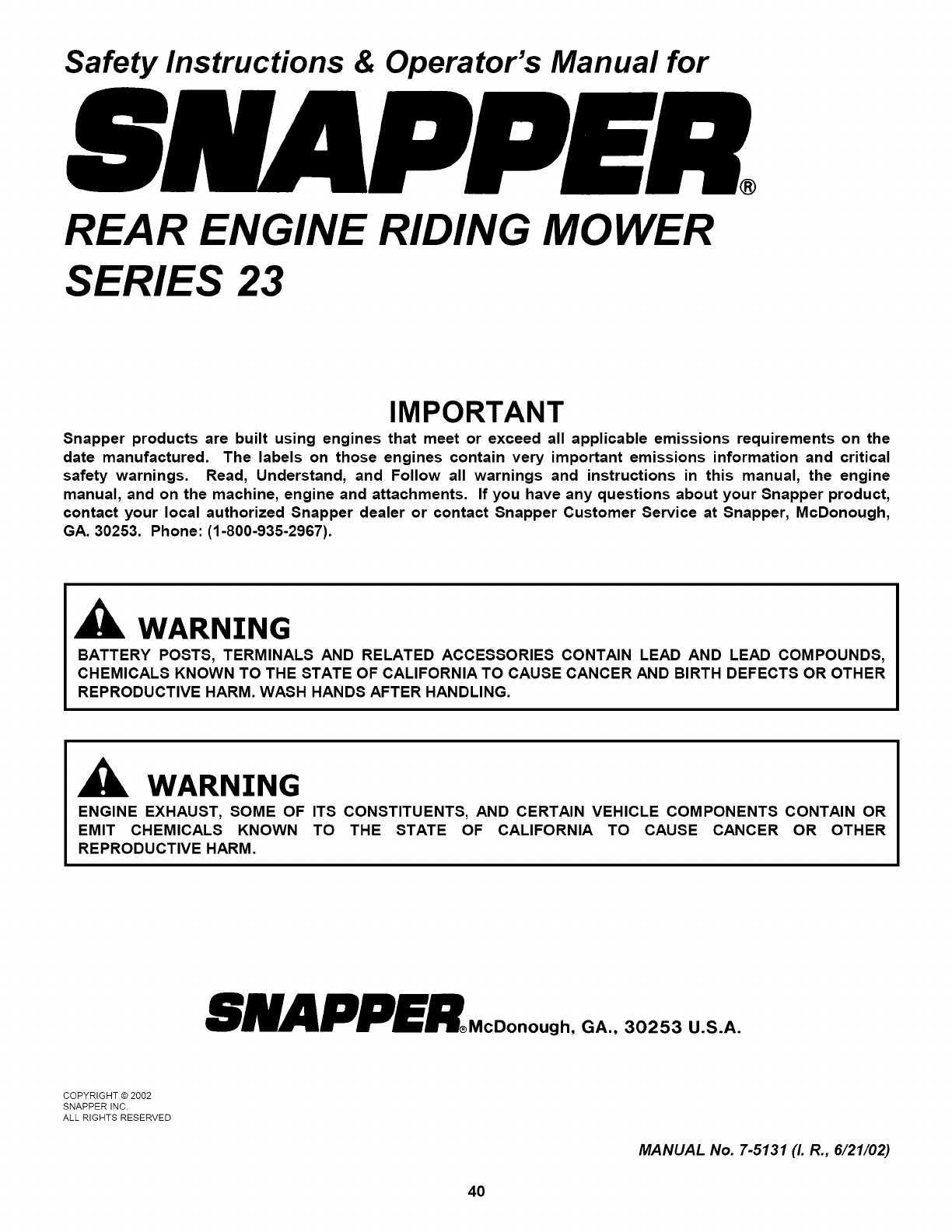

Safety Instructions & Operator's Manual for
REAR ENGINE RIDING MOWER
SERIES 23
MODEL
421823BVE
W421623BVE
MODEL NUMBER EXPLANATION
CUTTING WIDTH
ENGINE HP
SERIES DESIGNATION
ENGINE OPTIONS
ENGINE TYPE
ENGINE MODEL
W - Model Designation '_-'_c°"n°°'°kI"""°xP°n°in"I_3_'ri'sO's'0n°"°n,.-,..0XP0n,in. °°ri00s0n0in"IVOv'rX'°0V°'v'0-0,_,rioSOO
Thank you for buying aSNAPPER Product! Before operating your REAR ENGINE RIDER, read this manual
carefully and pay particular attention to the "IMPORTANT SAFETY INSTRUCTIONS" on Pages 2 & 3. Remember
that all power equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful
use in accordance with the operating instructions and common sense!
COPYRIGHT © 2002
SNAPPER INC.
ALL RIGHTS RESERVED
SNAPPER McDonough, GA., 30253 U.S.A.
MANUAL No. 7-5131 (I. R., 6/21/02)

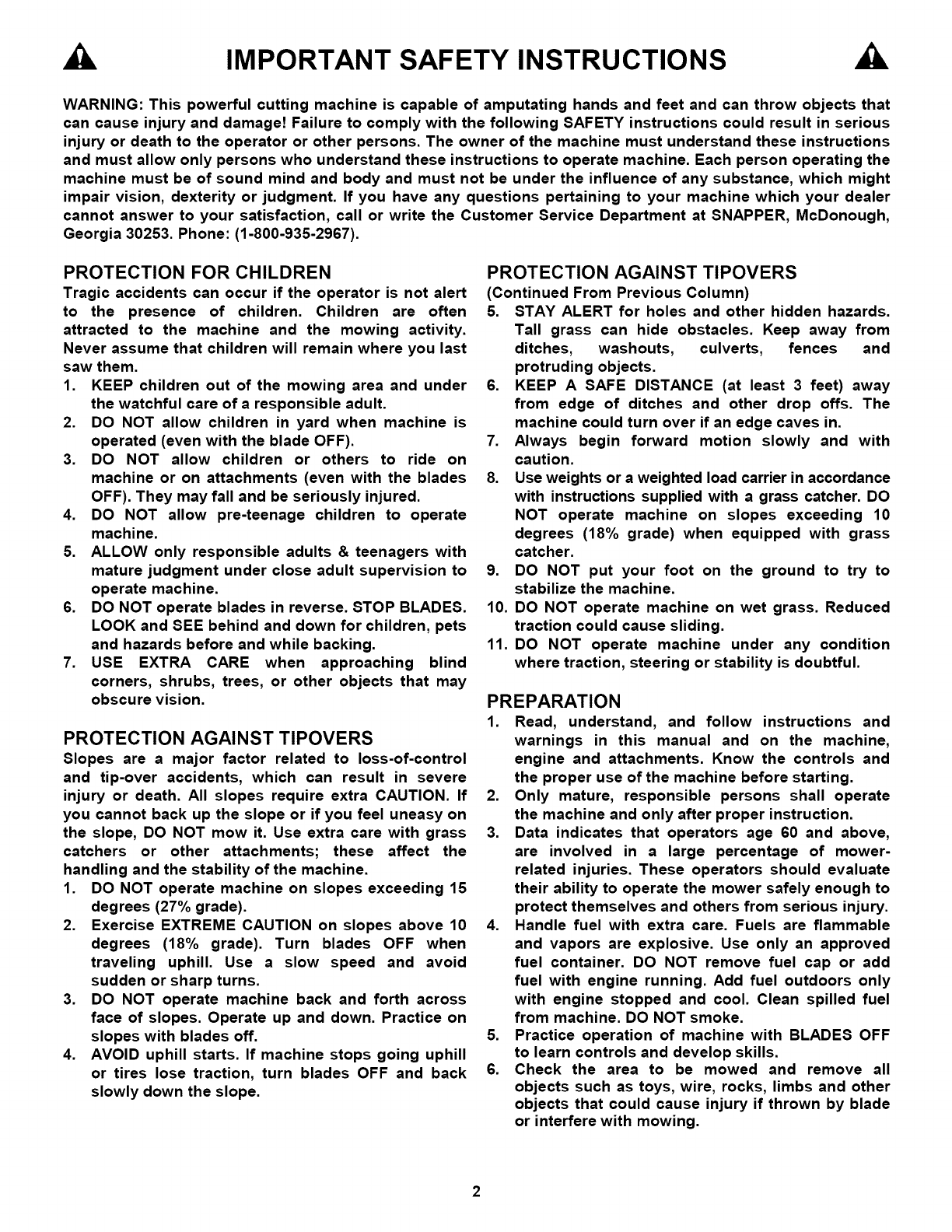

AIMPORTANT SAFETY INSTRUCTIONS
WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that
can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious
injury or death to the operator or other persons. The owner of the machine must understand these instructions
and must allow only persons who understand these instructions to operate machine. Each person operating the
machine must be of sound mind and body and must not be under the influence of any substance, which might
impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer
cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough,
Georgia 30253. Phone: (1-800-935-2967).
PROTECTION FOR CHILDREN
Tragic accidents can occur if the operator is not alert
to the presence of children. Children are often
attracted to the machine and the mowing activity.
Never assume that children will remain where you last
saw them.
1. KEEP children out of the mowing area and under
the watchful care of a responsible adult.
2. DO NOT allow children in yard when machine is
operated (even with the blade OFF).
3. DO NOT allow children or others to ride on
machine or on attachments (even with the blades
OFF). They may fall and be seriously injured.
4. DO NOT allow pre-teenage children to operate
machine.
5. ALLOW only responsible adults & teenagers with
mature judgment under close adult supervision to
operate machine.
6. DO NOT operate blades in reverse. STOP BLADES.
LOOK and SEE behind and down for children, pets
and hazards before and while backing.
7. USE EXTRA CARE when approaching blind
corners, shrubs, trees, or other objects that may
obscure vision.
PROTECTION AGAINST TIPOVERS
Slopes are a major factor related to loss-of-control
and tip-over accidents, which can result in severe
injury or death. All slopes require extra CAUTION. If
you cannot back up the slope or if you feel uneasy on
the slope, DO NOT mow it. Use extra care with grass
catchers or other attachments; these affect the
handling and the stability of the machine.
1. DO NOT operate machine on slopes exceeding 15
degrees (27% grade).
2. Exercise EXTREME CAUTION on slopes above 10
degrees (18% grade). Turn blades OFF when
traveling uphill. Use a slow speed and avoid
sudden or sharp turns.
3. DO NOT operate machine back and forth across
face of slopes. Operate up and down. Practice on
slopes with blades off.
4. AVOID uphill starts. If machine stops going uphill
or tires lose traction, turn blades OFF and back
slowly down the slope.
PROTECTION AGAINST TIPOVERS
(Continued From Previous Column)
5. STAY ALERT for holes and other hidden hazards.
Tall grass can hide obstacles. Keep away from
ditches, washouts, culverts, fences and
protruding objects.
6. KEEP A SAFE DISTANCE (at least 3 feet) away
from edge of ditches and other drop offs. The
machine could turn over if an edge caves in.
7. Always begin forward motion slowly and with
caution.
8. Use weights or aweighted load carrier in accordance
with instructions supplied with agrass catcher. DO
NOT operate machine on slopes exceeding 10
degrees (18% grade) when equipped with grass
catcher.
9. DO NOT put your foot on the ground to try to
stabilize the machine.
10. DO NOT operate machine on wet grass. Reduced
traction could cause sliding.
11. DO NOT operate machine under any condition
where traction, steering or stability is doubtful.
PREPARATION
1. Read, understand, and follow instructions and
warnings in this manual and on the machine,
engine and attachments. Know the controls and
the proper use of the machine before starting.
2. Only mature, responsible persons shall operate
the machine and only after proper instruction.
3. Data indicates that operators age 60 and above,
are involved in alarge percentage of mower-
related injuries. These operators should evaluate
their ability to operate the mower safely enough to
protect themselves and others from serious injury.
4. Handle fuel with extra care. Fuels are flammable
and vapors are explosive. Use only an approved
fuel container. DO NOT remove fuel cap or add
fuel with engine running. Add fuel outdoors only
with engine stopped and cool. Clean spilled fuel
from machine. DO NOT smoke.
5. Practice operation of machine with BLADES OFF
to learn controls and develop skills.
6. Check the area to be mowed and remove all
objects such as toys, wire, rocks, limbs and other
objects that could cause injury if thrown by blade
or interfere with mowing.

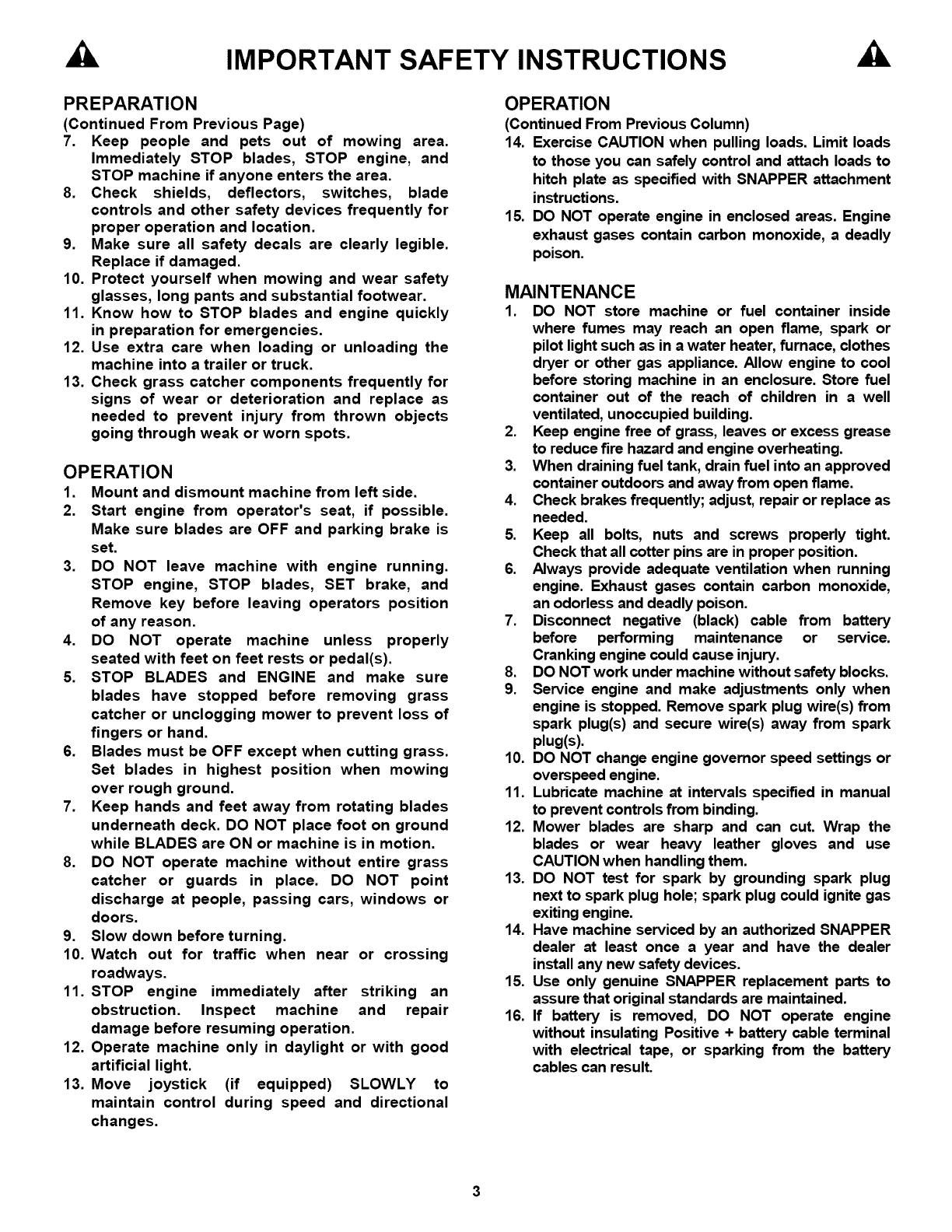

IMPORTANT SAFETY INSTRUCTIONS
PREPARATION
(Continued From Previous Page)
7. Keep people and pets out of mowing area.
Immediately STOP blades, STOP engine, and
STOP machine if anyone enters the area.
8. Check shields, deflectors, switches, blade
controls and other safety devices frequently for
proper operation and location.
9. Make sure all safety decals are clearly legible.
Replace if damaged.
10. Protect yourself when mowing and wear safety
glasses, long pants and substantial footwear.
11. Know how to STOP blades and engine quickly
in preparation for emergencies.
12. Use extra care when loading or unloading the
machine into atrailer or truck.
13. Check grass catcher components frequently for
signs of wear or deterioration and replace as
needed to prevent injury from thrown objects
going through weak or worn spots.
OPERATION
1. Mount and dismount machine from left side.
2. Start engine from operator's seat, if possible.
Make sure blades are OFF and parking brake is
set.
3. DO NOT leave machine with engine running.
STOP engine, STOP blades, SET brake, and
Remove key before leaving operators position
of any reason.
4. DO NOT operate machine unless properly
seated with feet on feet rests or pedal(s).
5. STOP BLADES and ENGINE and make sure
blades have stopped before removing grass
catcher or unclogging mower to prevent loss of
fingers or hand.
6. Blades must be OFF except when cutting grass.
Set blades in highest position when mowing
over rough ground.
7. Keep hands and feet away from rotating blades
underneath deck. DO NOT place foot on ground
while BLADES are ON or machine is in motion.
8. DO NOT operate machine without entire grass
catcher or guards in place. DO NOT point
discharge at people, passing cars, windows or
doors.
9. Slow down before turning.
10. Watch out for traffic when near or crossing
roadways.
11. STOP engine immediately after striking an
obstruction. Inspect machine and repair
damage before resuming operation.
12. Operate machine only in daylight or with good
artificial light.
13. Move joystick (if equipped) SLOWLY to
maintain control during speed and directional
changes.
OPERATION
(Continued From Previous Column)
14. Exercise CAUTION when pulling loads. Limit loads
to those you can safely control and attach loads to
hitch plate as specified with SNAPPER attachment
instructions.
15. DO NOT operate engine in enclosed areas. Engine
exhaust gases contain carbon monoxide, a deadly
poison.
MAINTENANCE
1. DO NOT store machine or fuel container inside
where fumes may reach an open flame, spark or
pilot light such as in a water heater, furnace, clothes
dryer or other gas appliance. Allow engine to cool
before storing machine in an enclosure. Store fuel
container out of the reach of children in a well
ventilated, unoccupied building.
2. Keep engine free of grass, leaves or excess grease
to reduce fire hazard and engine overheating.
3. When draining fuel tank, drain fuel into an approved
container outdoors and away from open flame.
4. Check brakes frequently; adjust, repair or replace as
needed.
5. Keep all bolts, nuts and screws properly tight.
Check that all cotter pins are in proper position.
6. Always provide adequate ventilation when running
engine. Exhaust gases contain carbon monoxide,
an odorless and deadly poison.
7. Disconnect negative (black) cable from battery
before performing maintenance or service.
Cranking engine could cause injury.
8. DO NOT work under machine without safety blocks.
9. Service engine and make adjustments only when
engine is stopped. Remove spark plug wire(s) from
spark plug(s) and secure wire(s) away from spark
plug(s).
10. DO NOT change engine governor speed settings or
overspeed engine.
11. Lubricate machine at intervals specified in manual
to prevent controls from binding.
12. Mower blades are sharp and can cut. Wrap the
blades or wear heavy leather gloves and use
CAUTION when handling them.
13. DO NOT test for spark by grounding spark plug
next to spark plug hole; spark plug could ignite gas
exiting engine.
14. Have machine serviced by an authorized SNAPPER
dealer at least once a year and have the dealer
install any new safety devices.
15. Use only genuine SNAPPER replacement parts to
assure that original standards are maintained.
16. If battery is removed, DO NOT operate engine
without insulating Positive + battery cable terminal
with electrical tape, or sparking from the battery
cables can result.

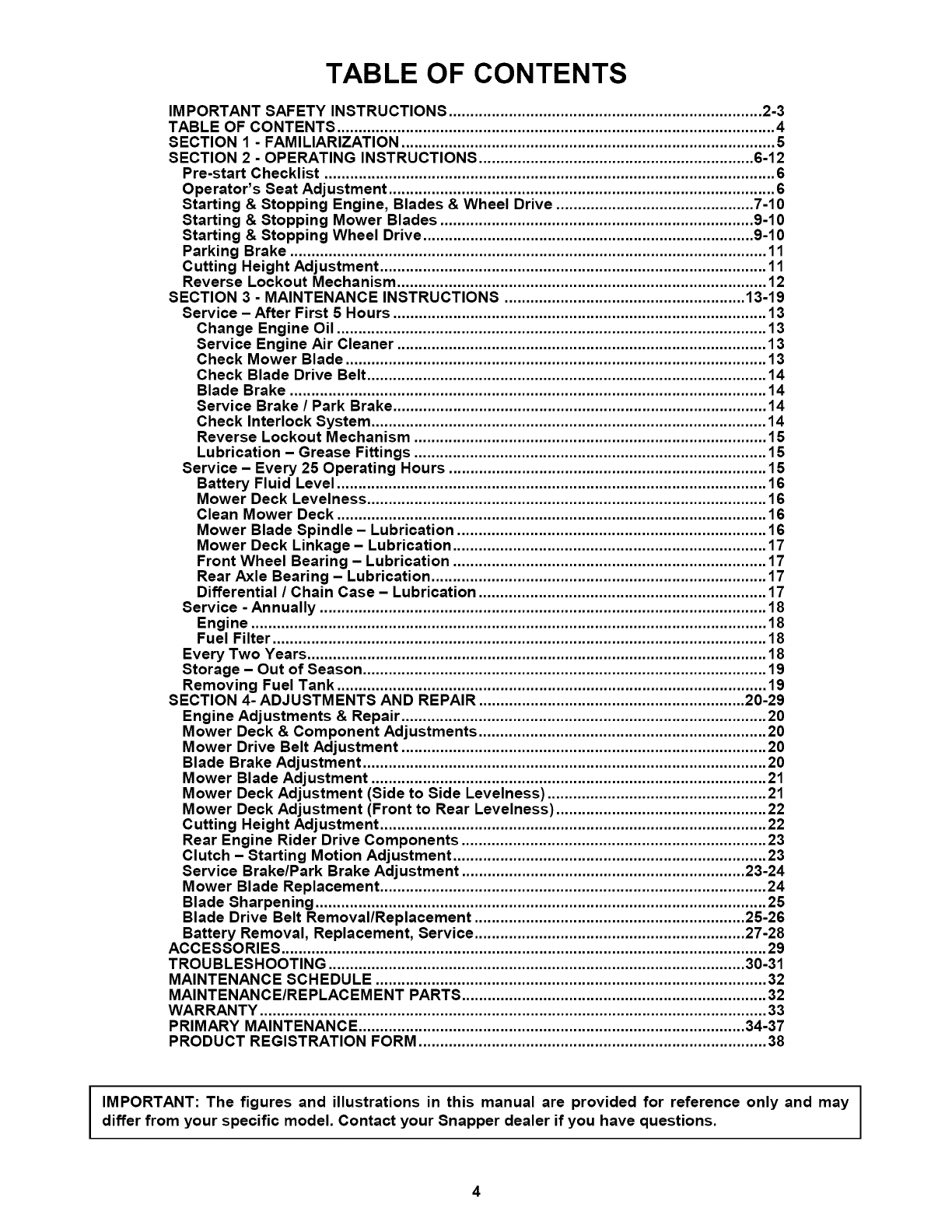

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ......................................................................... 2-3
TABLE OF CONTENTS ...................................................................................................... 4
SECTION 1 - FAMILIARIZATION ....................................................................................... 5
SECTION 2 - OPERATING INSTRUCTIONS ................................................................ G-12
Pre-start Checklist ......................................................................................................... G
Operator's Seat Adjustment .......................................................................................... 6
Starting & Stopping Engine, Blades & Wheel Drive .............................................. 7-10
Starting & Stopping Mower Blades ......................................................................... 9-10
Starting & Stopping Wheel Drive ............................................................................. 9-10

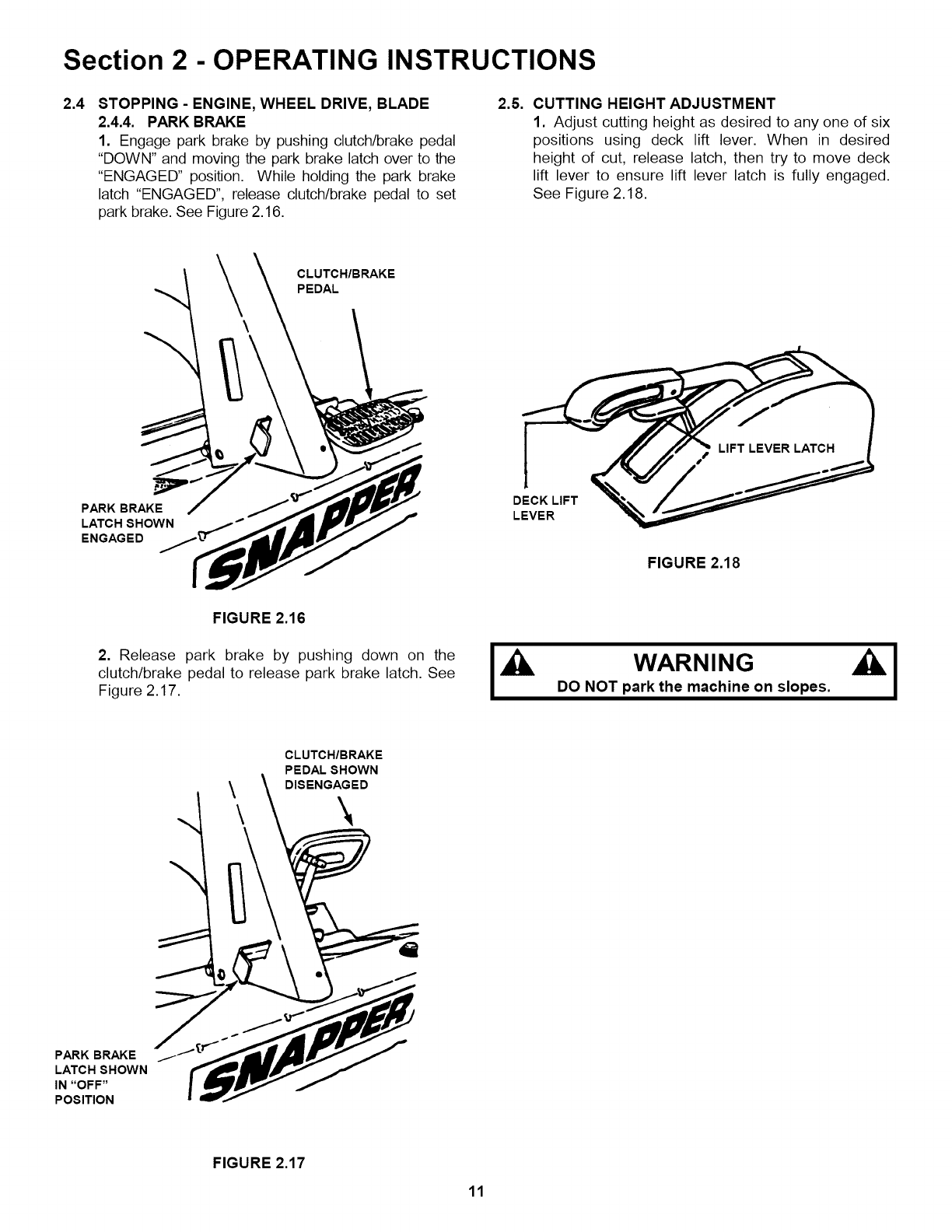

Parking Brake ............................................................................................................... 11
Cutting Height Adjustment .......................................................................................... 11

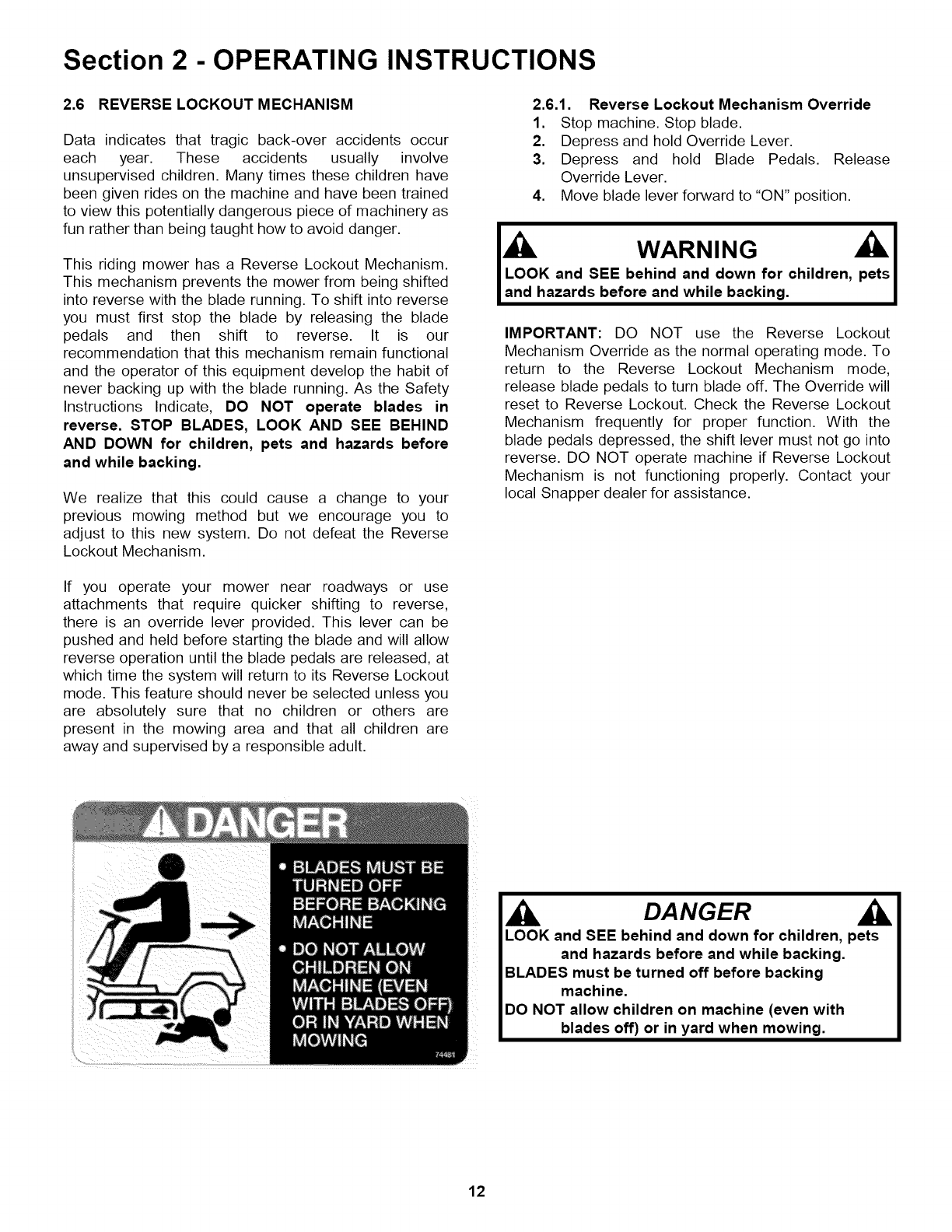

Reverse Lockout Mechanism ...................................................................................... 12
SECTION 3 - MAINTENANCE INSTRUCTIONS ........................................................ 13-19

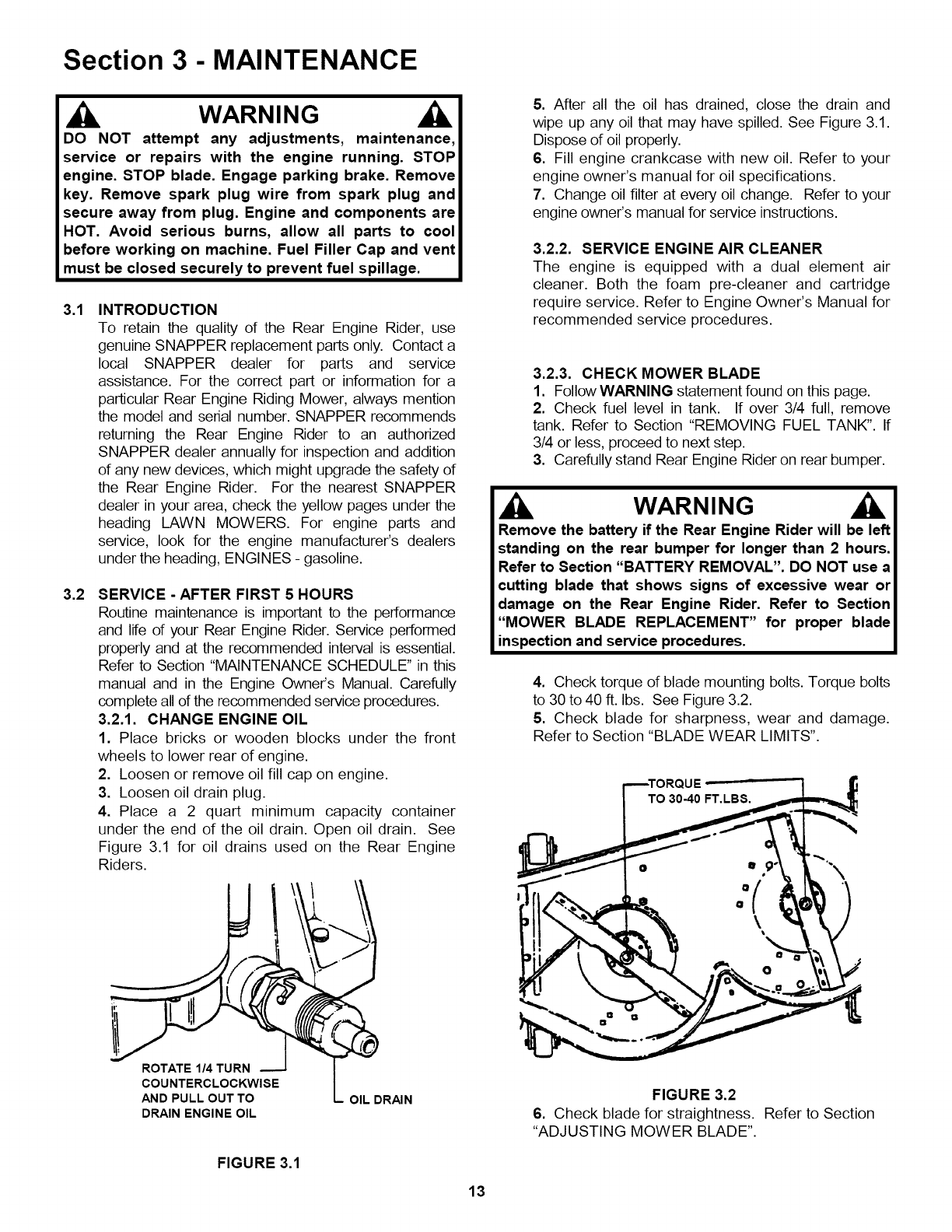

Service - After First 5 Hours ....................................................................................... 13
Change Engine Oil .................................................................................................... 13
Service Engine Air Cleaner ...................................................................................... 13
Check Mower Blade .................................................................................................. 13

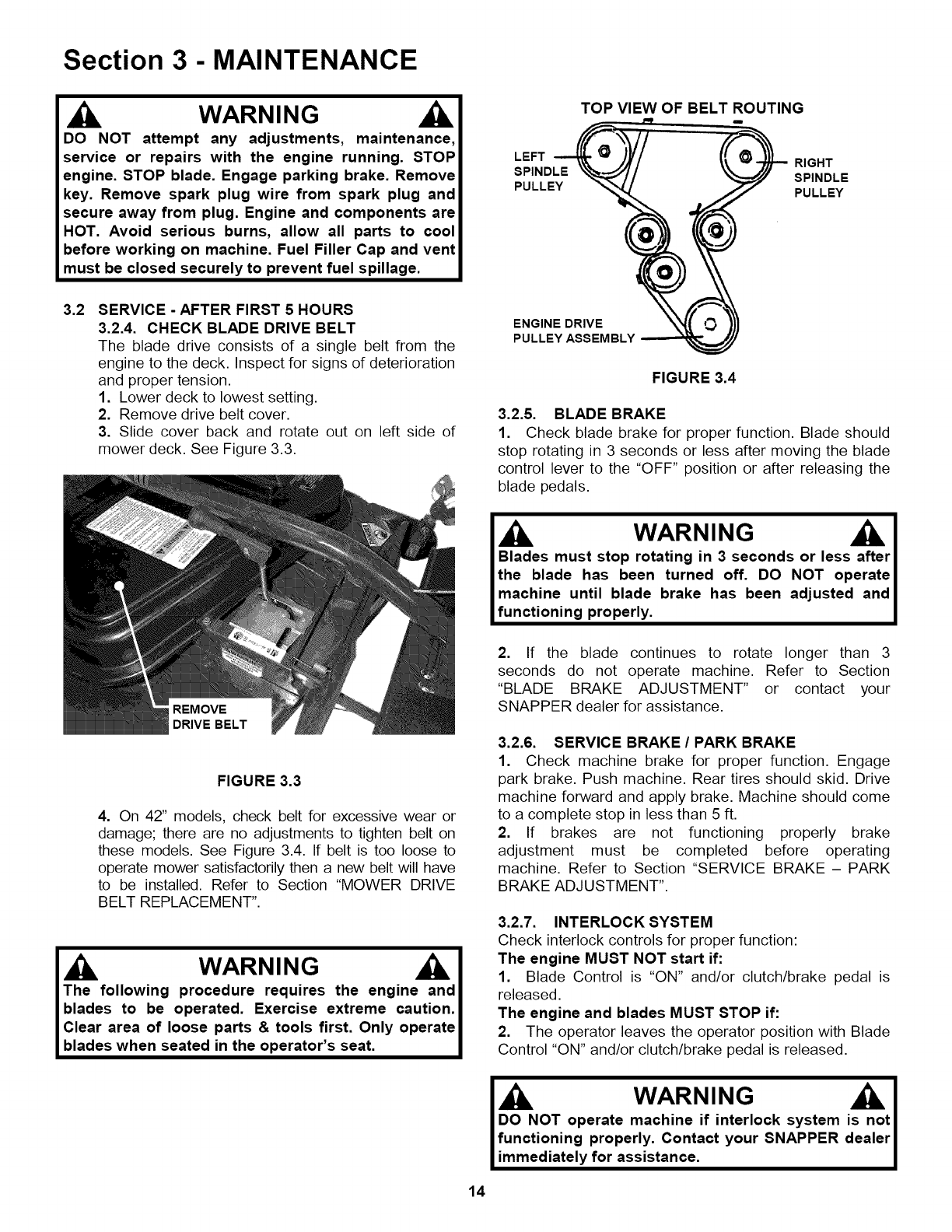

Check Blade Drive Belt ............................................................................................. 14
Blade Brake ............................................................................................................... 14
Service Brake /Park Brake ....................................................................................... 14
Check Interlock System ............................................................................................ 14
Reverse Lockout Mechanism .................................................................................. 15
Lubrication - Grease Fittings .................................................................................. 15

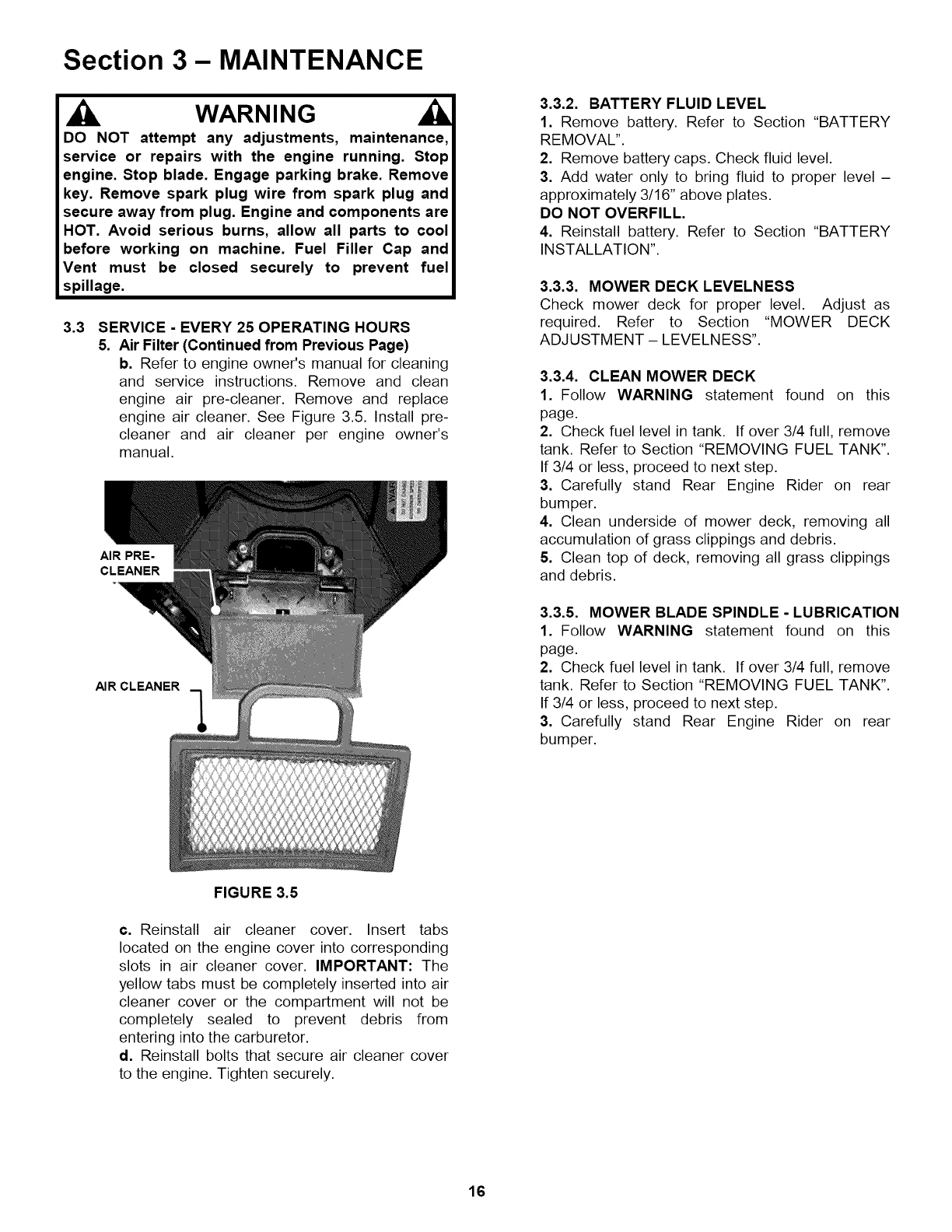

Service - Every 25 Operating Hours .......................................................................... 15
Battery Fluid Level .................................................................................................... 16
Mower Deck Levelness ............................................................................................. 16
Clean Mower Deck .................................................................................................... 16

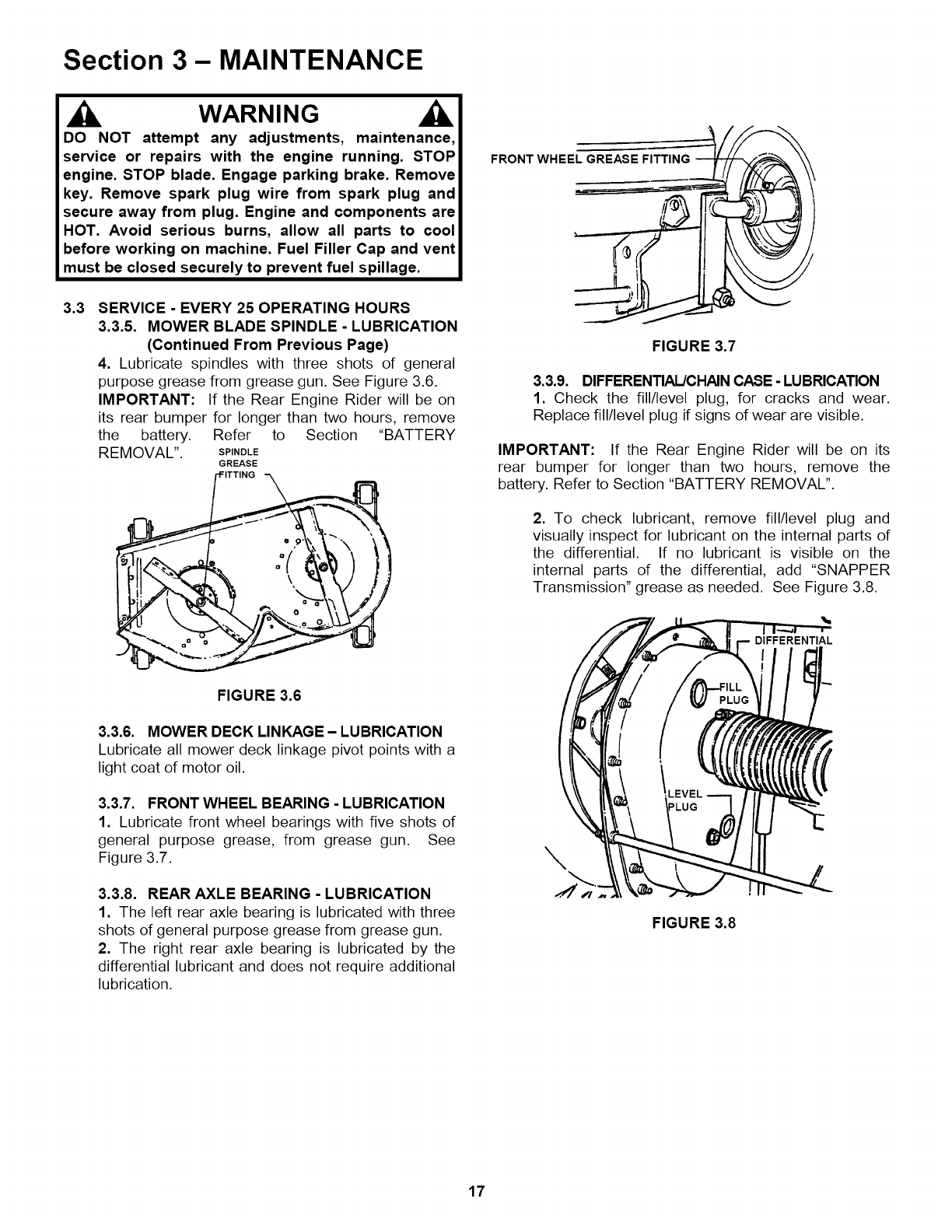

Mower Blade Spindle- Lubrication ........................................................................ 16
Mower Deck Linkage- Lubrication ......................................................................... 17
Front Wheel Bearing - Lubrication ......................................................................... 17
Rear Axle Bearing - Lubrication .............................................................................. 17
Differential /Chain Case- Lubrication ................................................................... 17

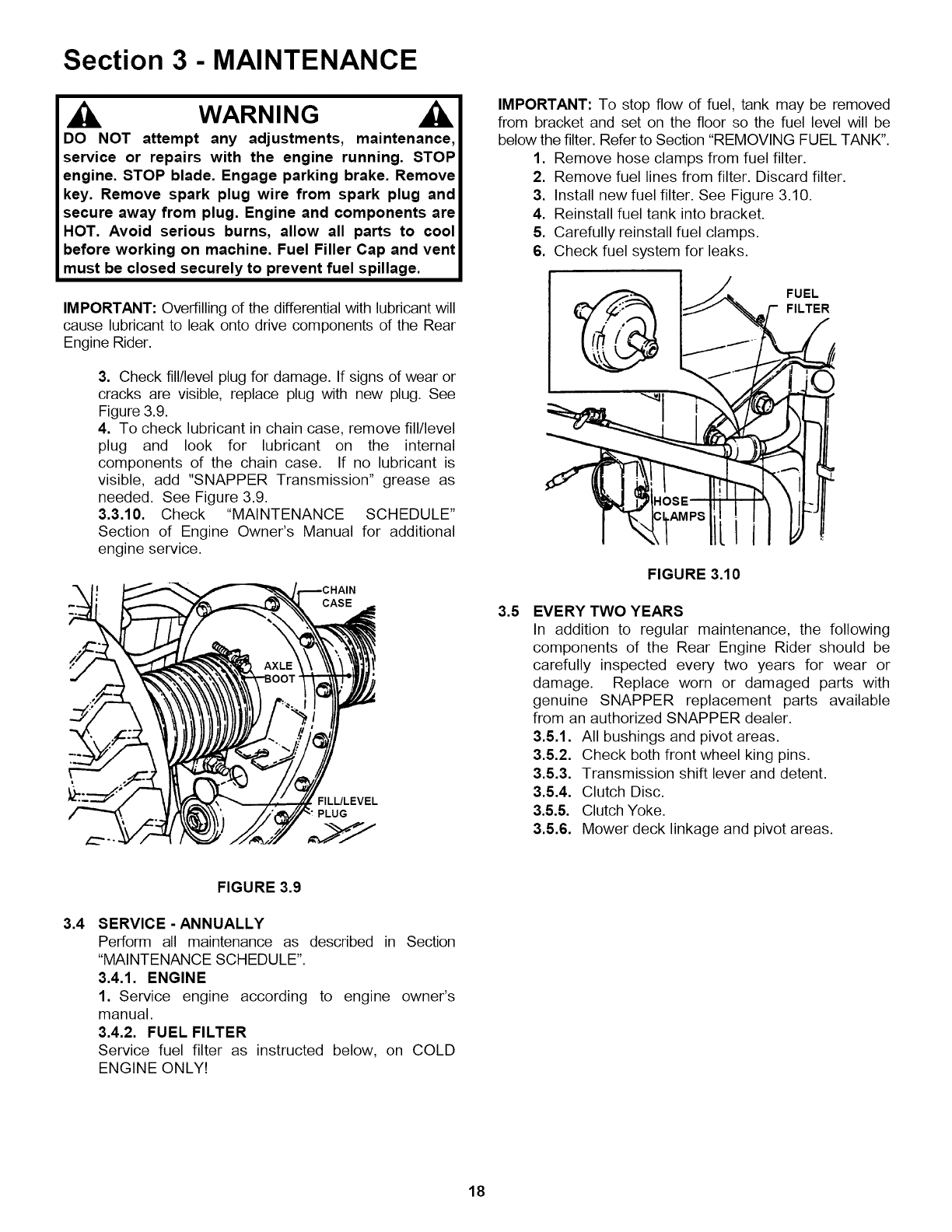

Service - Annually ........................................................................................................ 18
Engine ........................................................................................................................ 18
Fuel Filter ................................................................................................................... 18
Every Two Years ........................................................................................................... 18

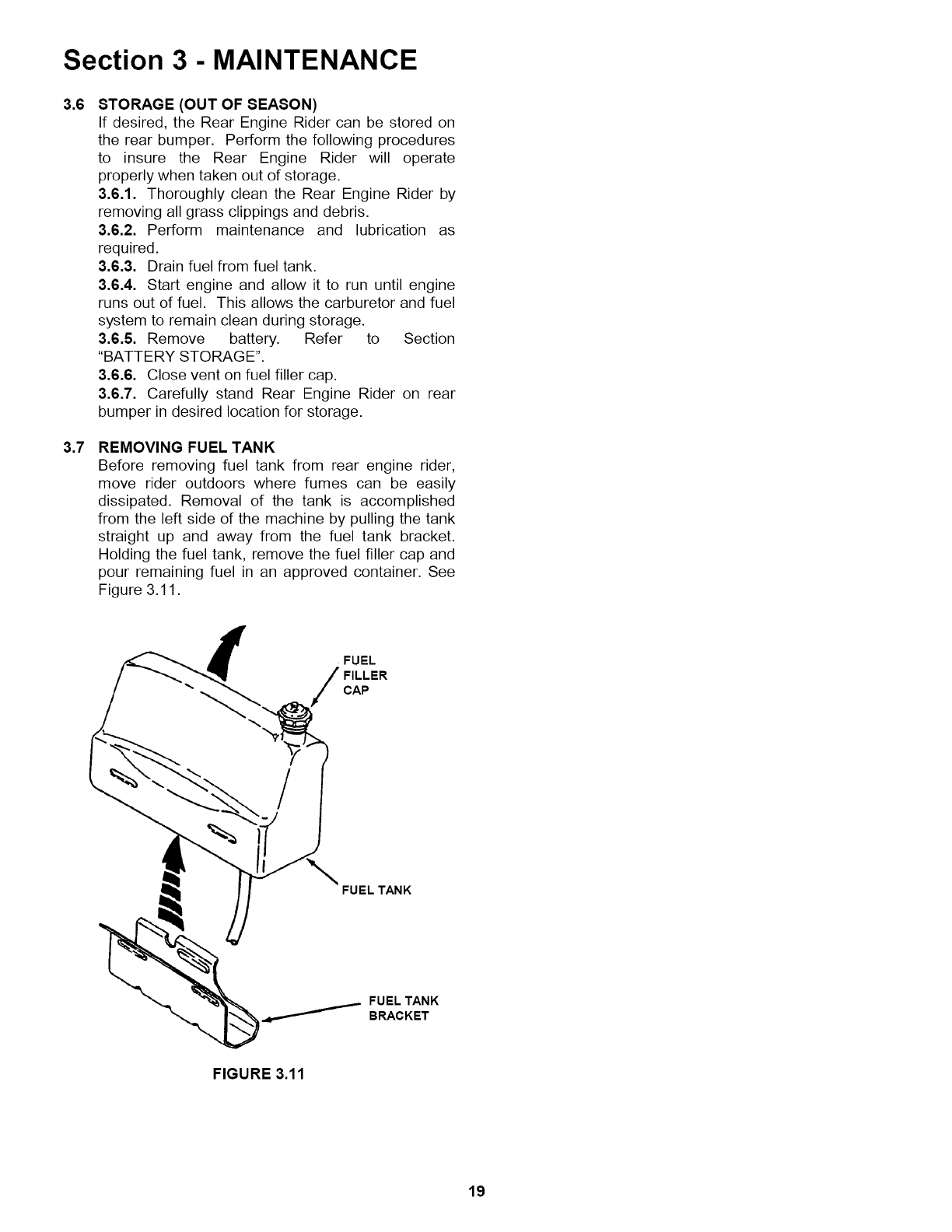

Storage - Out of Season .............................................................................................. 19
Removing Fuel Tank .................................................................................................... 19
SECTION 4- ADJUSTMENTS AND REPAIR .............................................................. 20-29
Engine Adjustments & Repair ..................................................................................... 20
Mower Deck & Component Adjustments ................................................................... 20

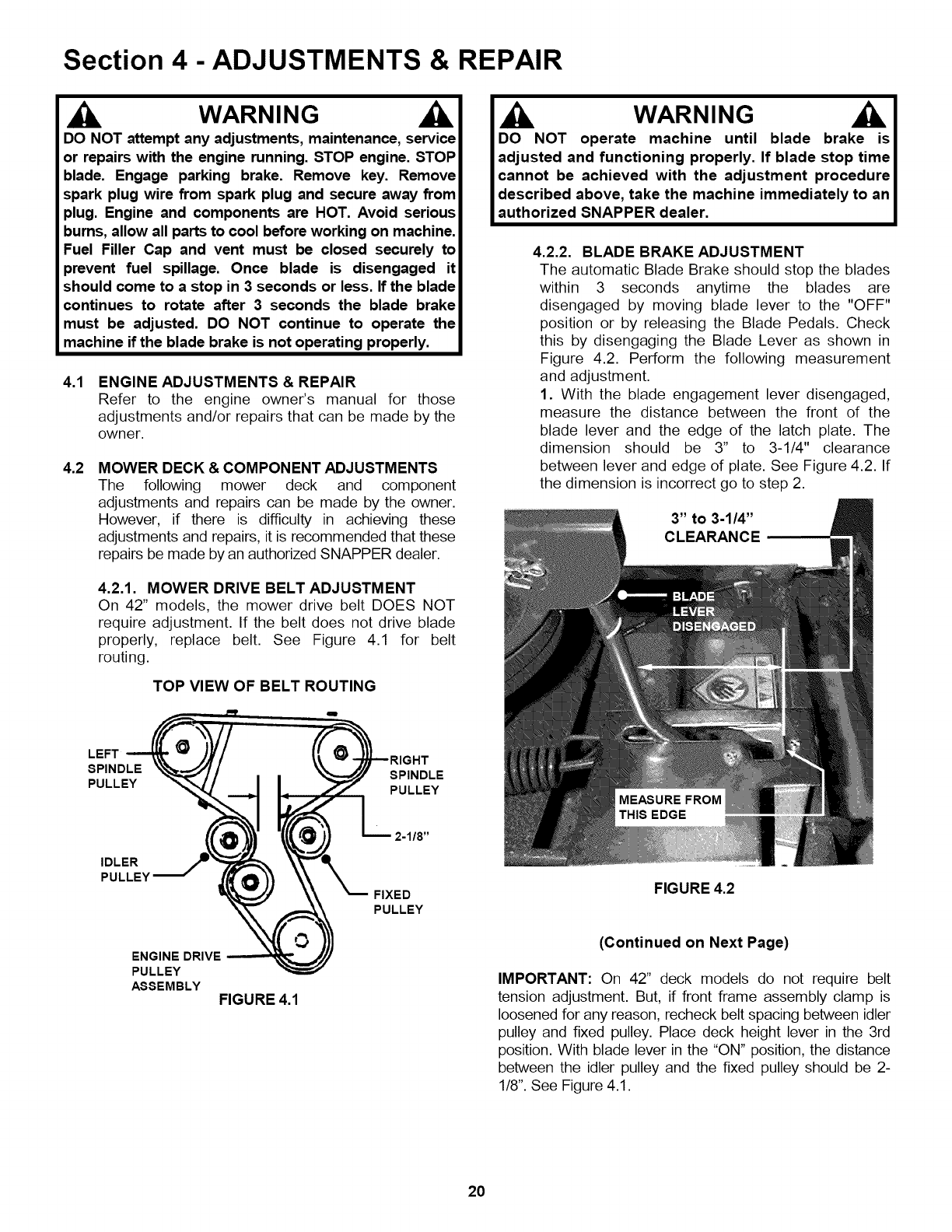

Mower Drive Belt Adjustment ..................................................................................... 20

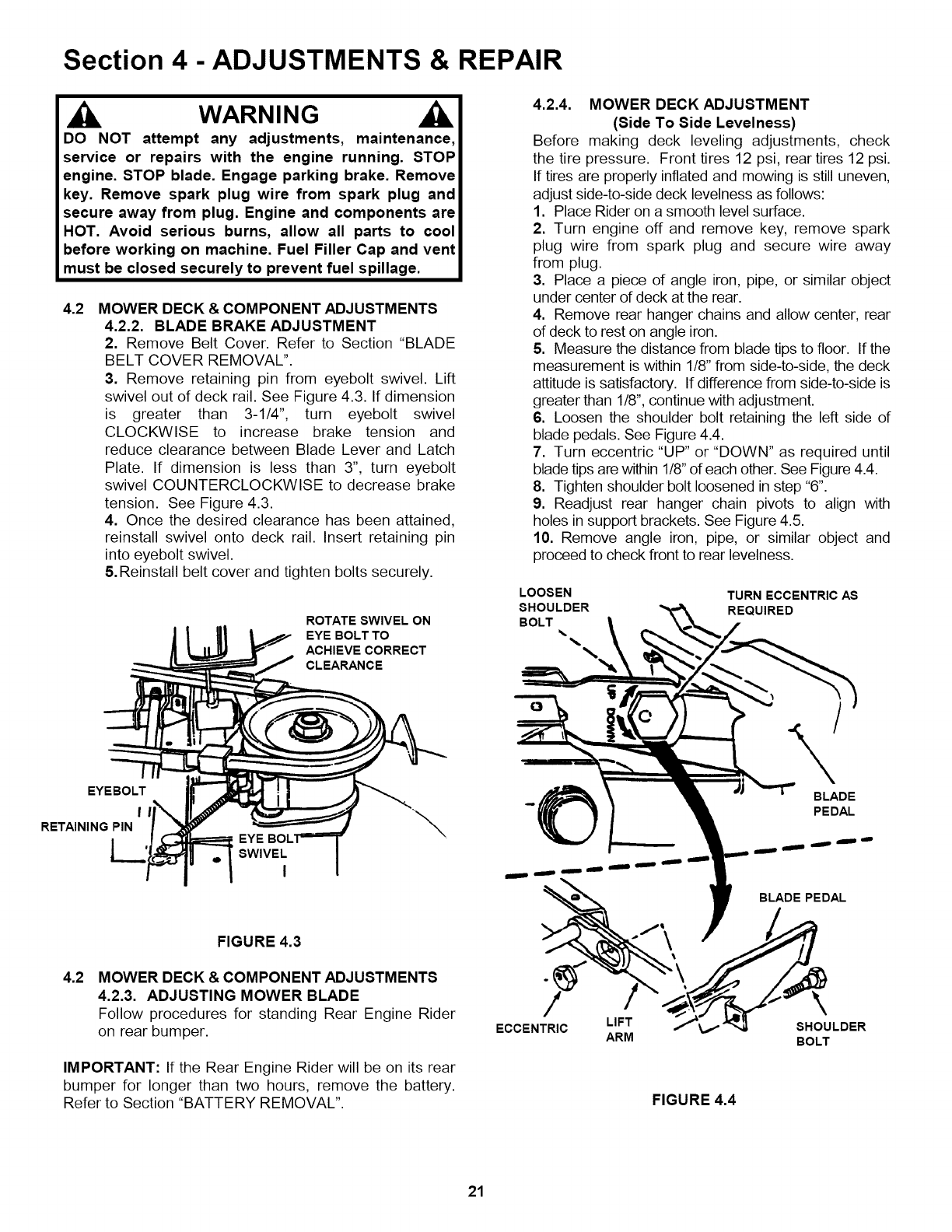

Blade Brake Adjustment .............................................................................................. 20
Mower Blade Adjustment ............................................................................................ 21
Mower Deck Adjustment (Side to Side Levelness) ................................................... 21
Mower Deck Adjustment (Front to Rear Levelness) ................................................. 22
Cutting Height Adjustment .......................................................................................... 22
Rear Engine Rider Drive Components ....................................................................... 23

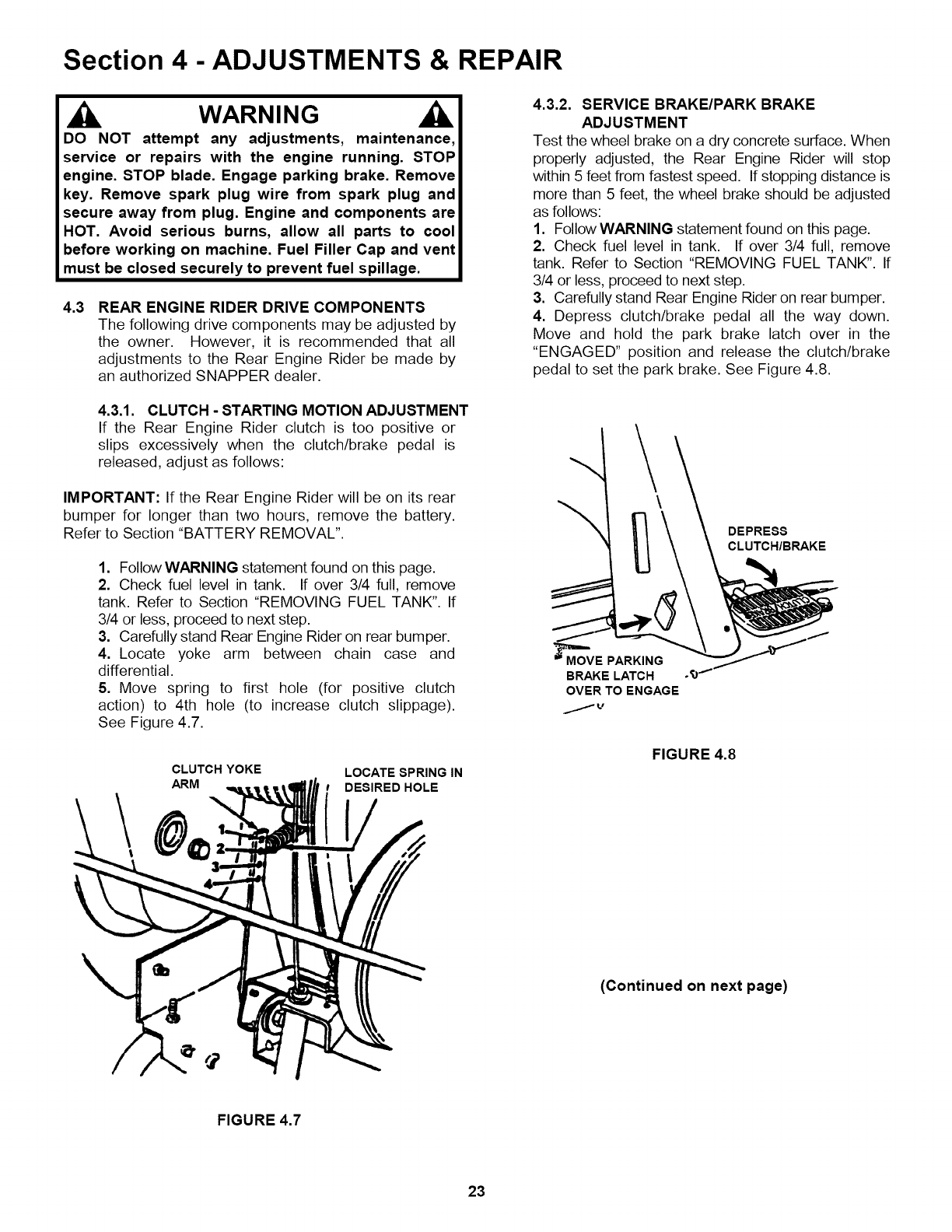

Clutch - Starting Motion Adjustment ......................................................................... 23

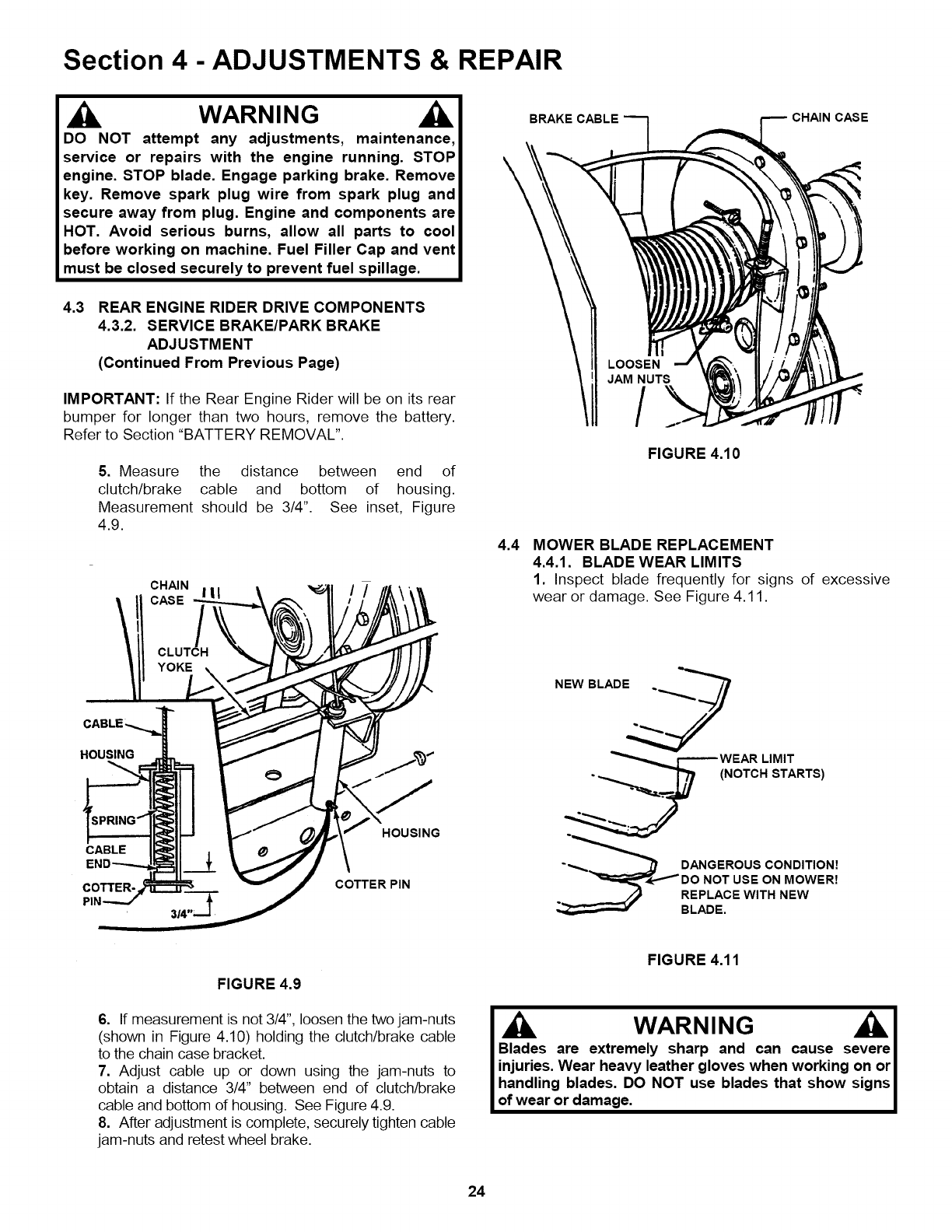

Service Brake/Park Brake Adjustment .................................................................. 23-24
Mower Blade Replacement .......................................................................................... 24

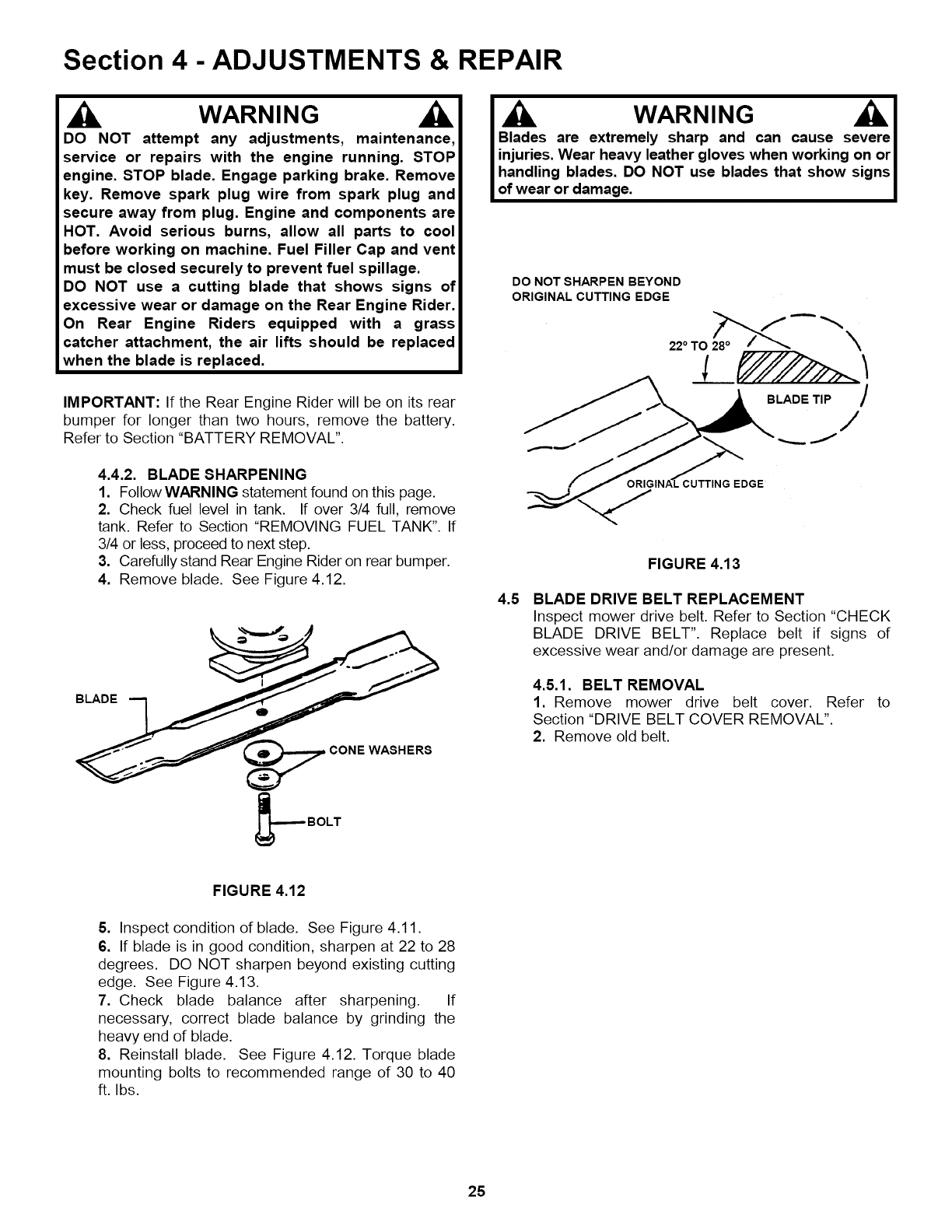

Blade Sharpening ......................................................................................................... 25
Blade Drive Belt Removal/Replacement ............................................................... 25-26

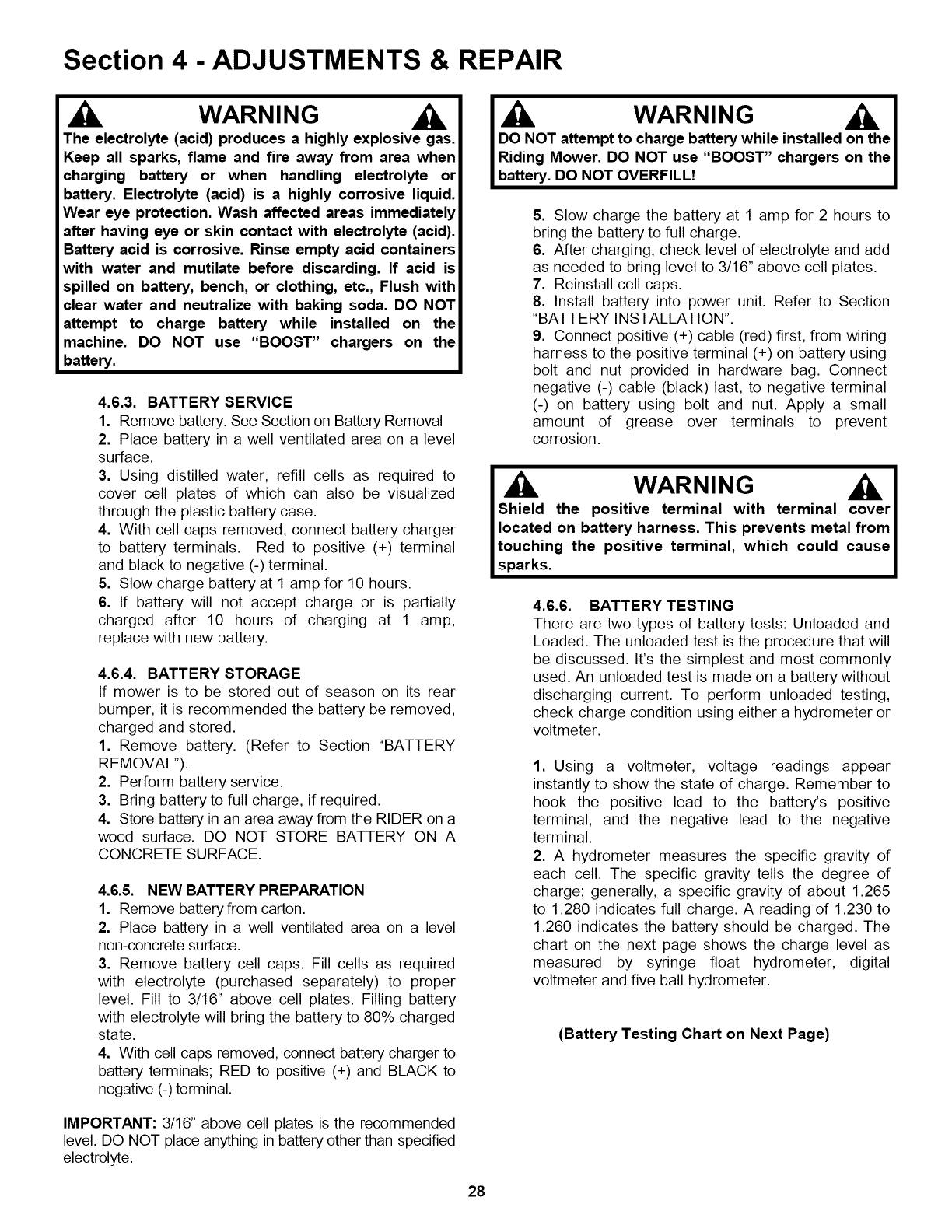

Battery Removal, Replacement, Service ............................................................... 27-28

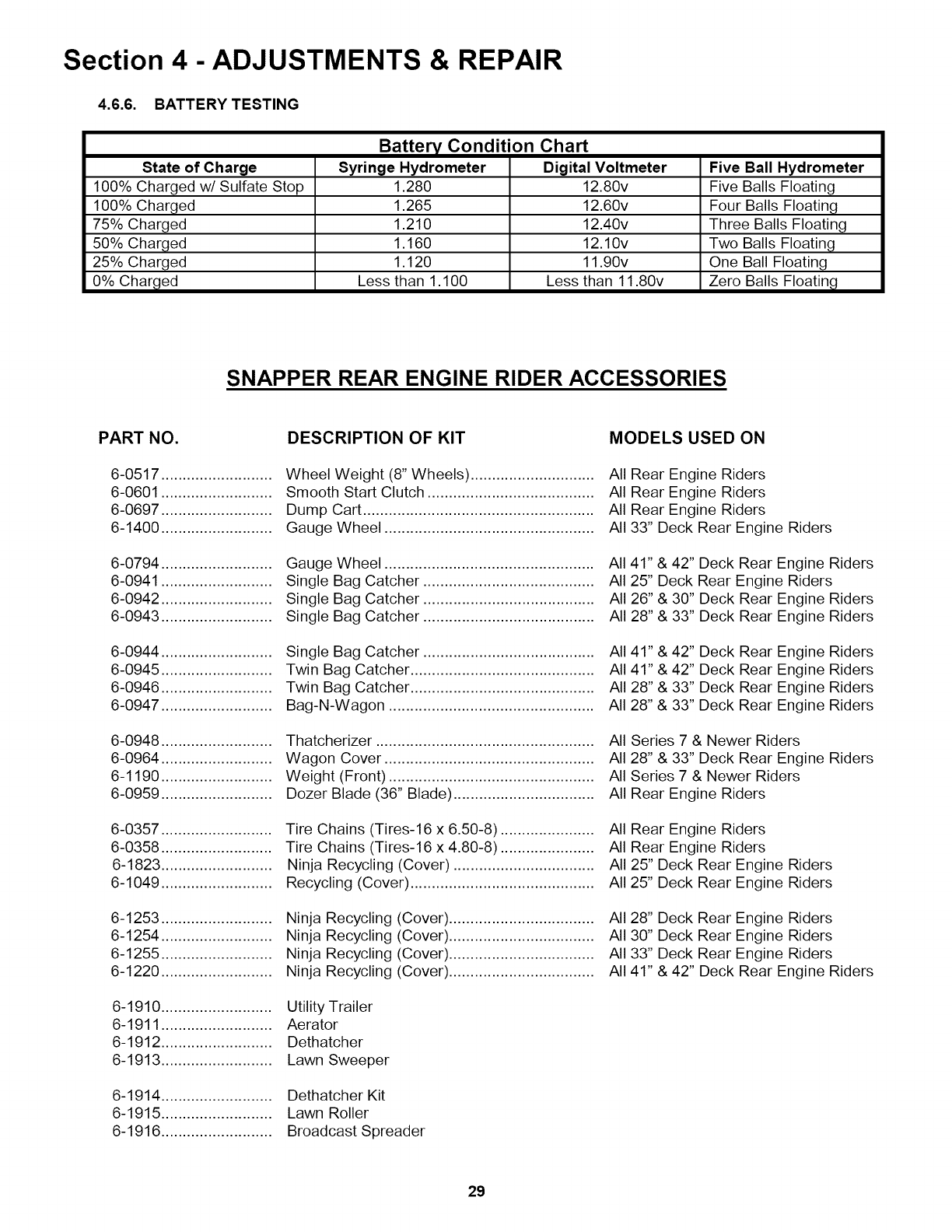

ACCESSORIES ................................................................................................................. 29

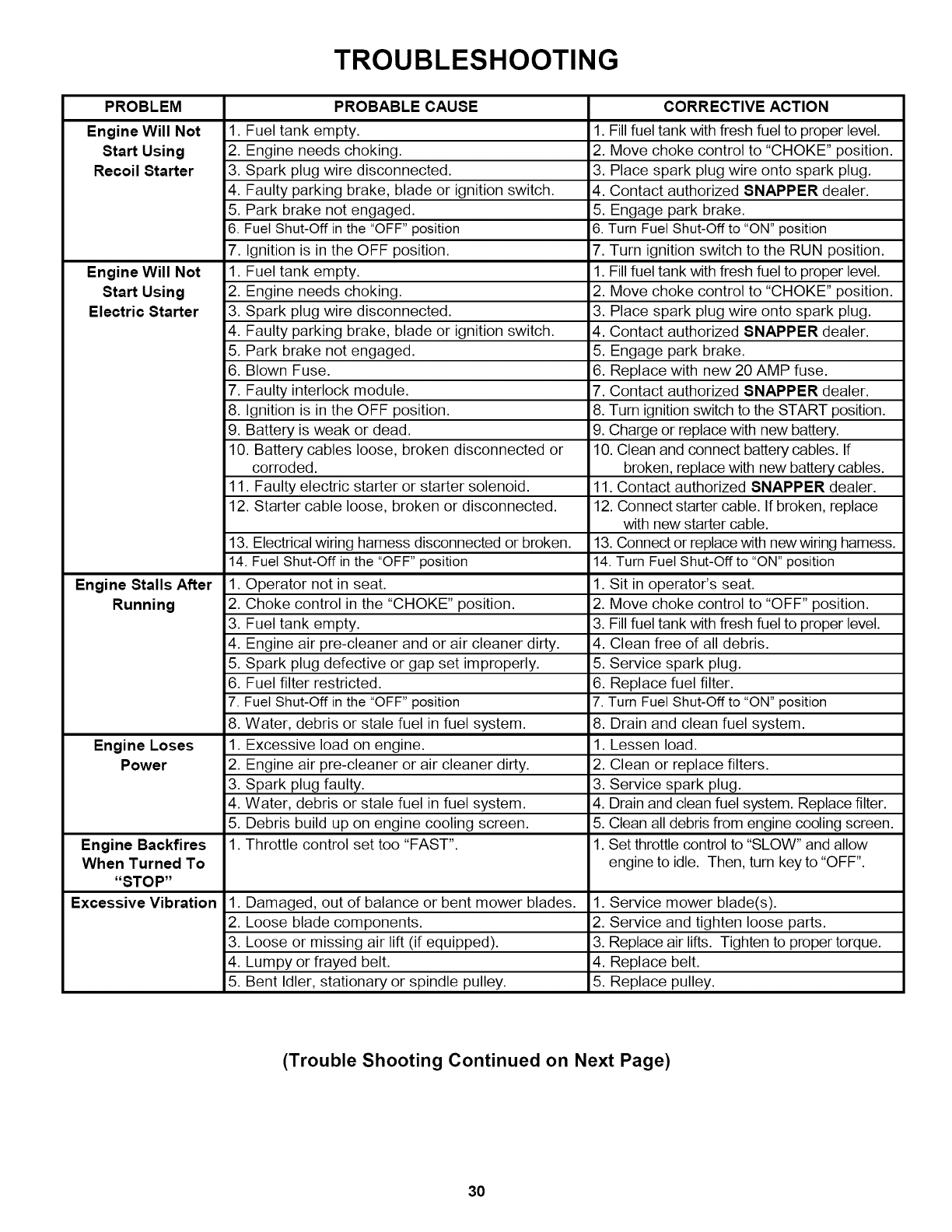

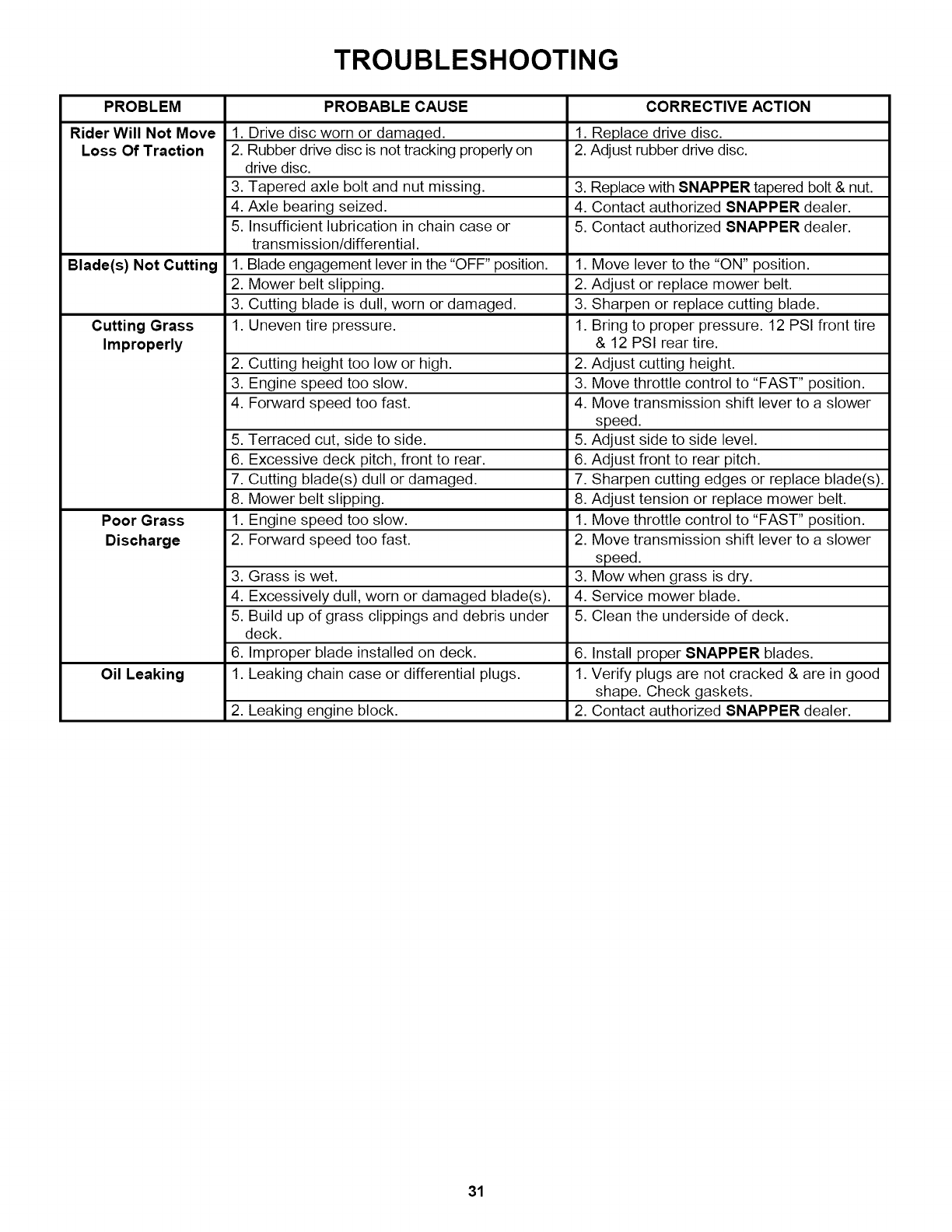

TROUBLESHOOTING ................................................................................................. 30-31

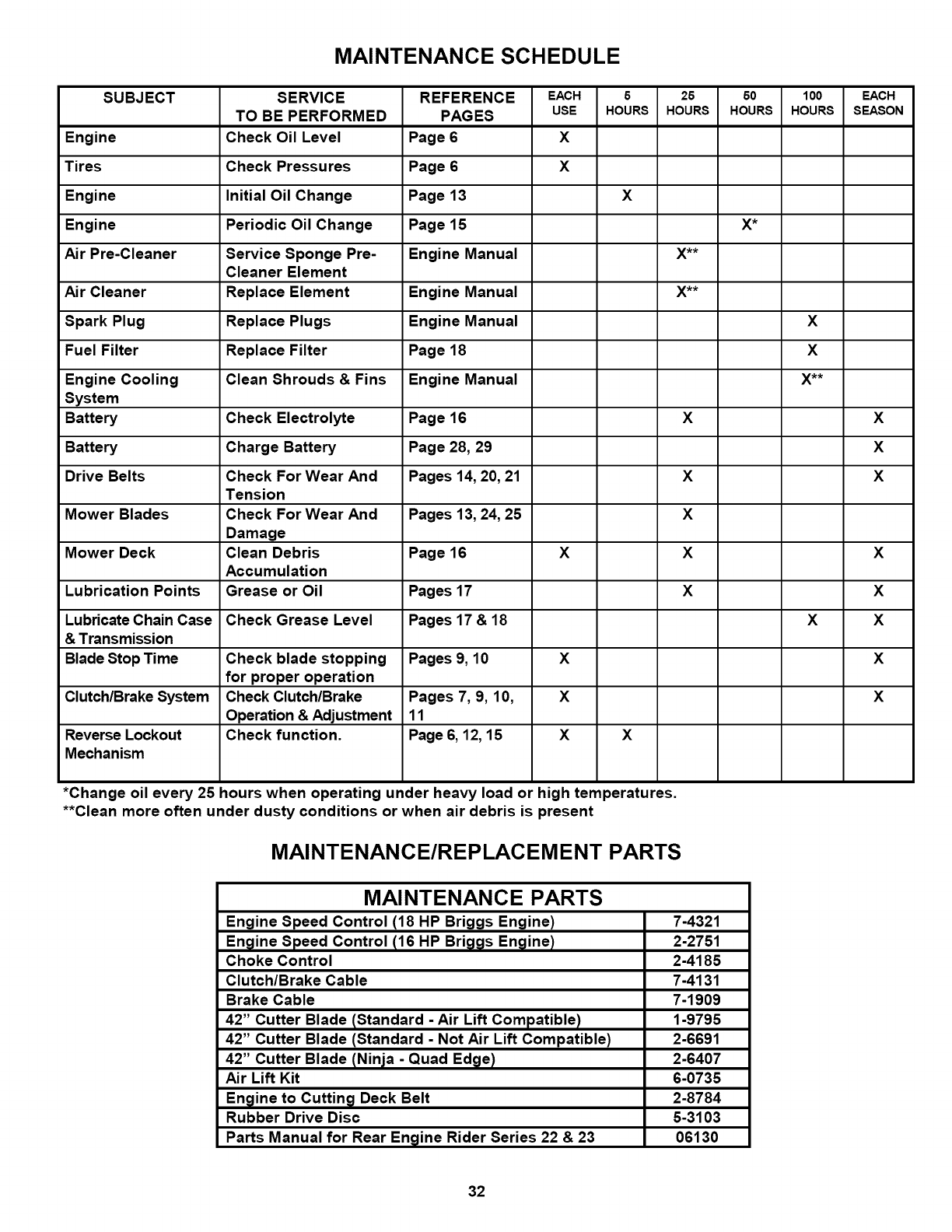

MAINTENANCE SCHEDULE ........................................................................................... 32
MAINTENANCE/REPLACEMENT PARTS ....................................................................... 32

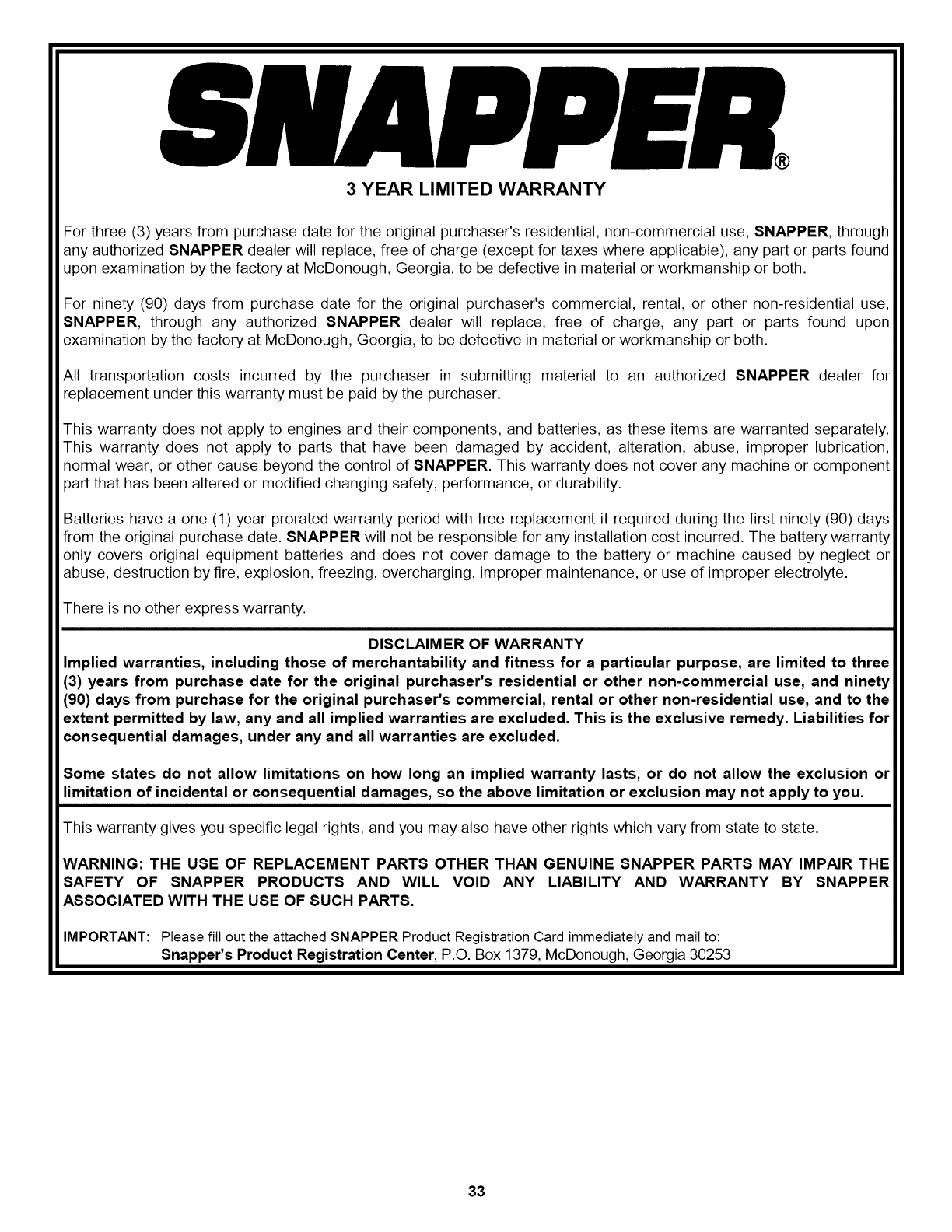

WARRANTY ...................................................................................................................... 33

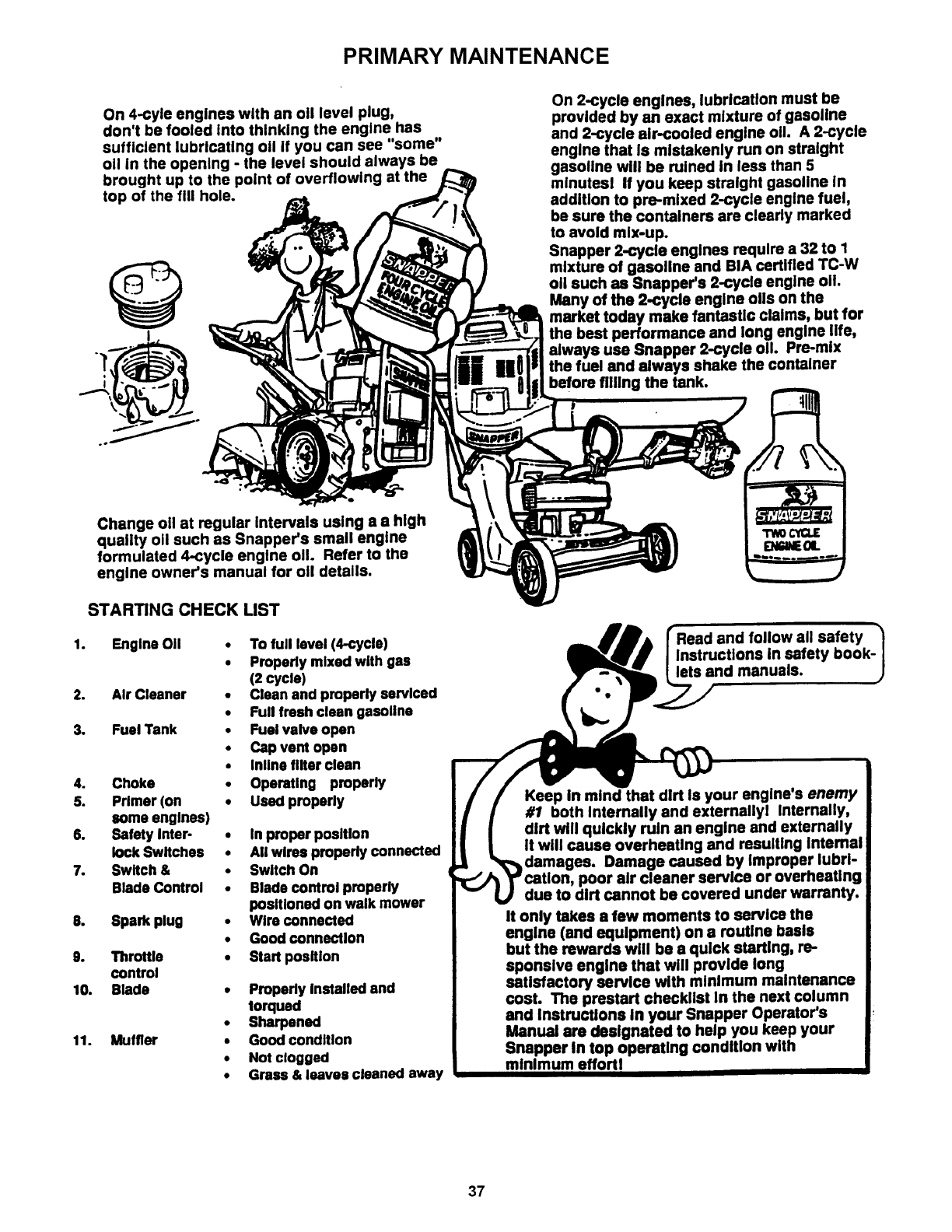

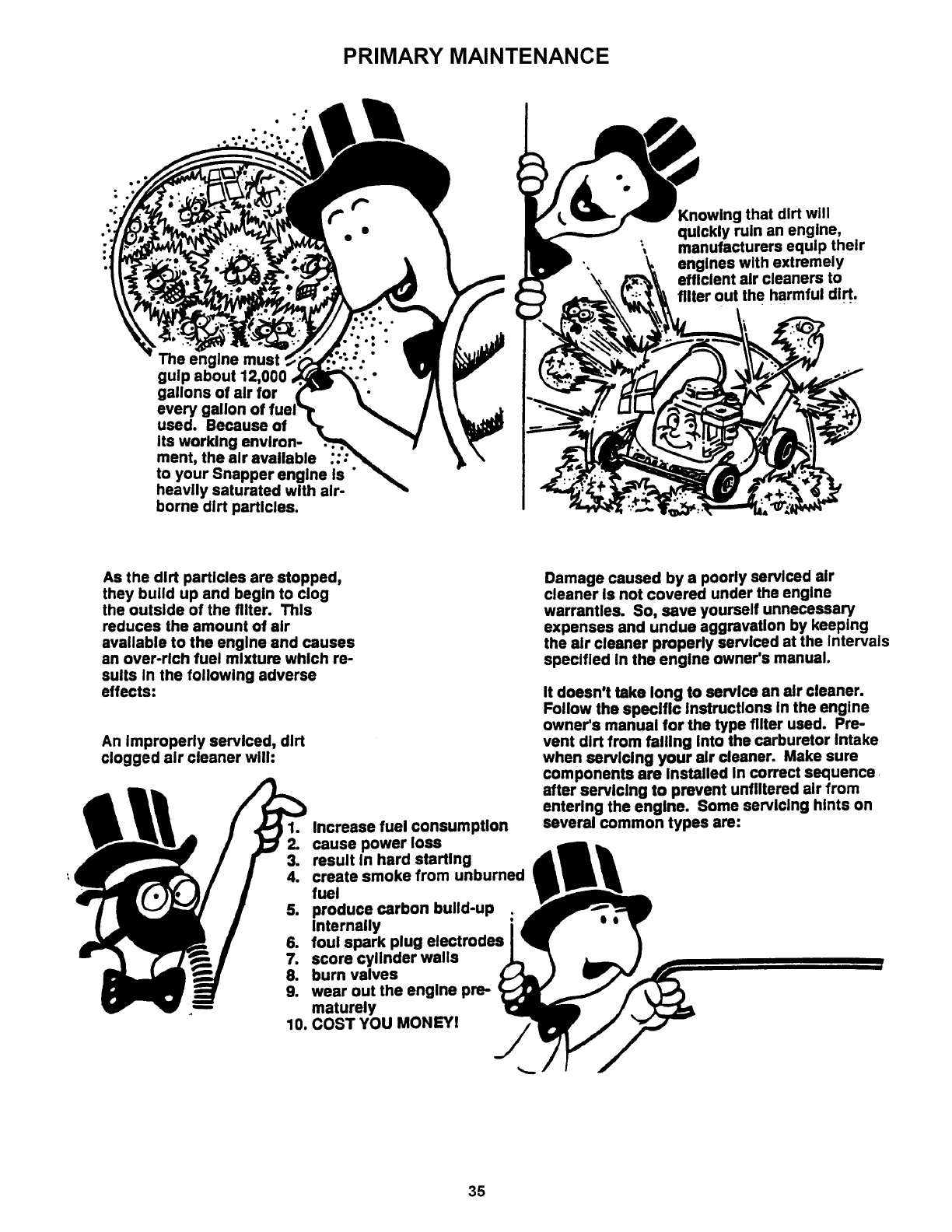

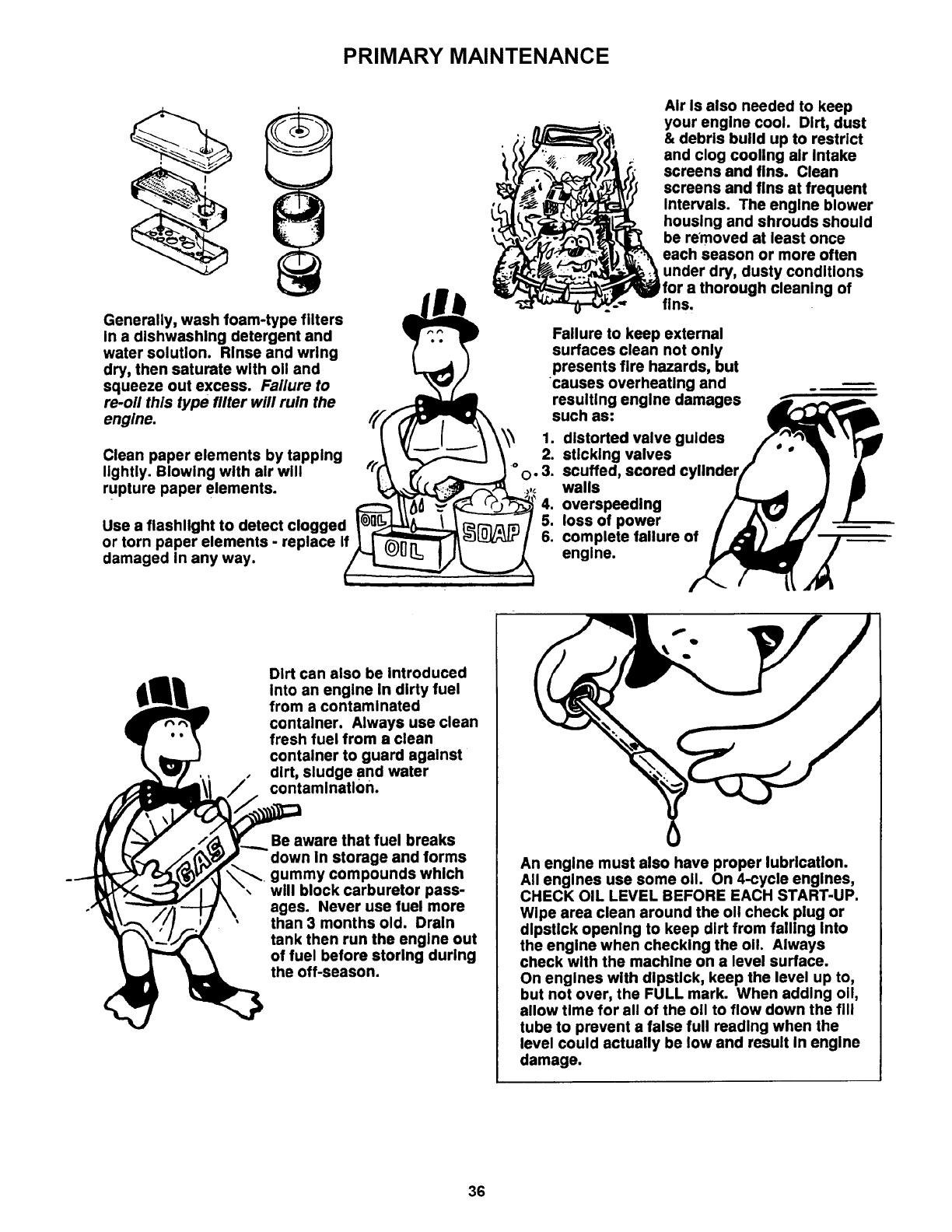

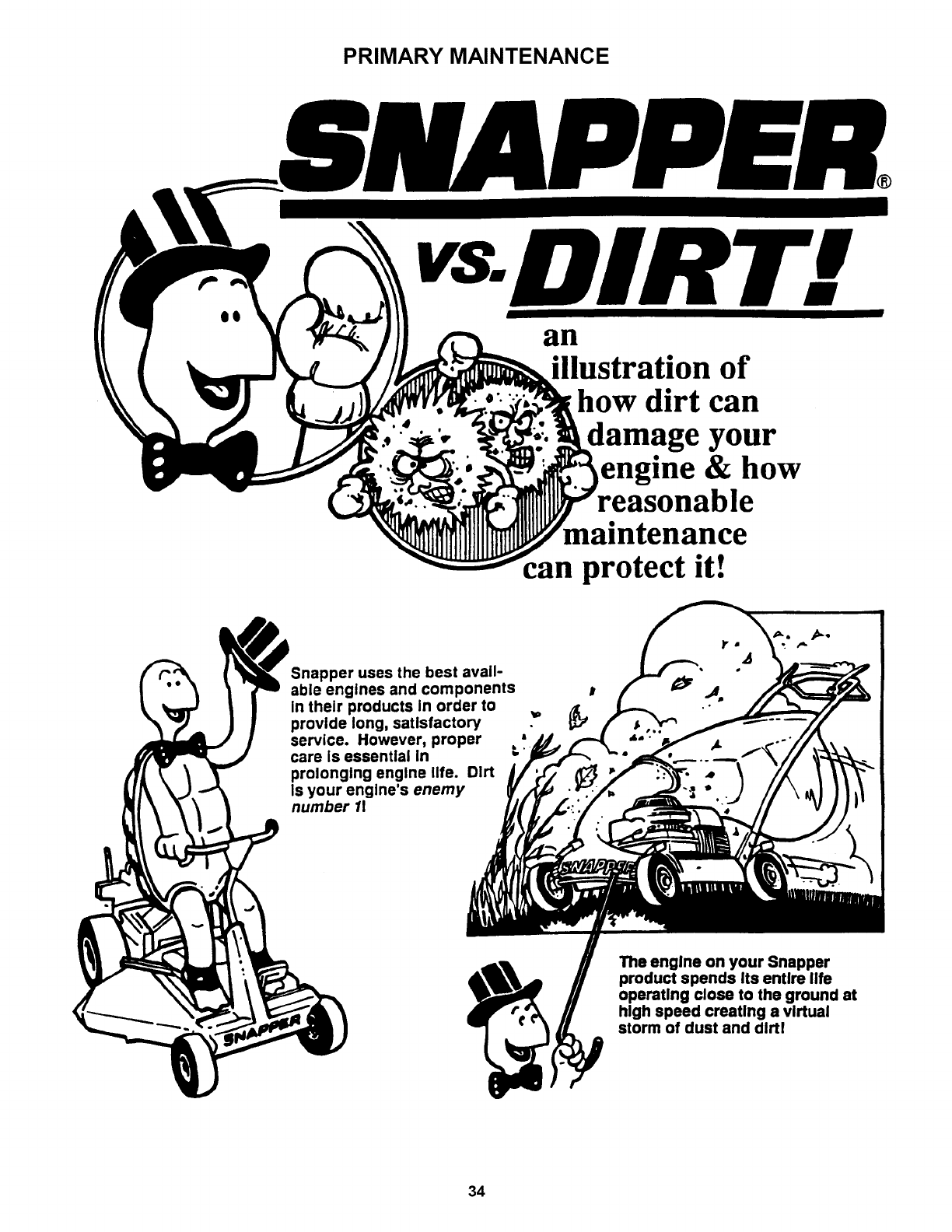

PRIMARY MAINTENANCE .......................................................................................... 34-37

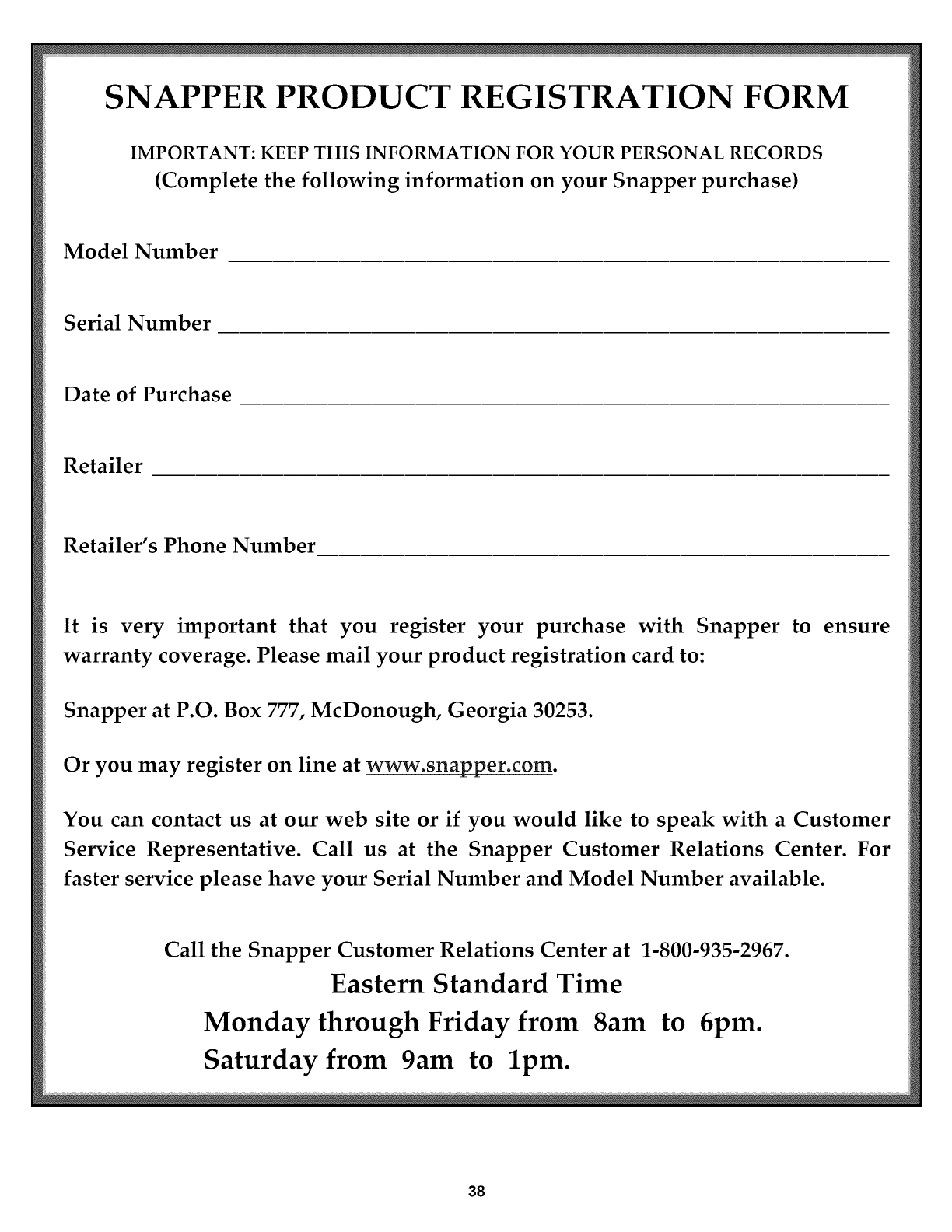

PRODUCT REGISTRATION FORM ................................................................................. 38
I IMPORTANT: The figures and illustrations in this manual are provided for reference only and may I
I
differ from your specific model. Contact your Snapper dealer if you have questions. I

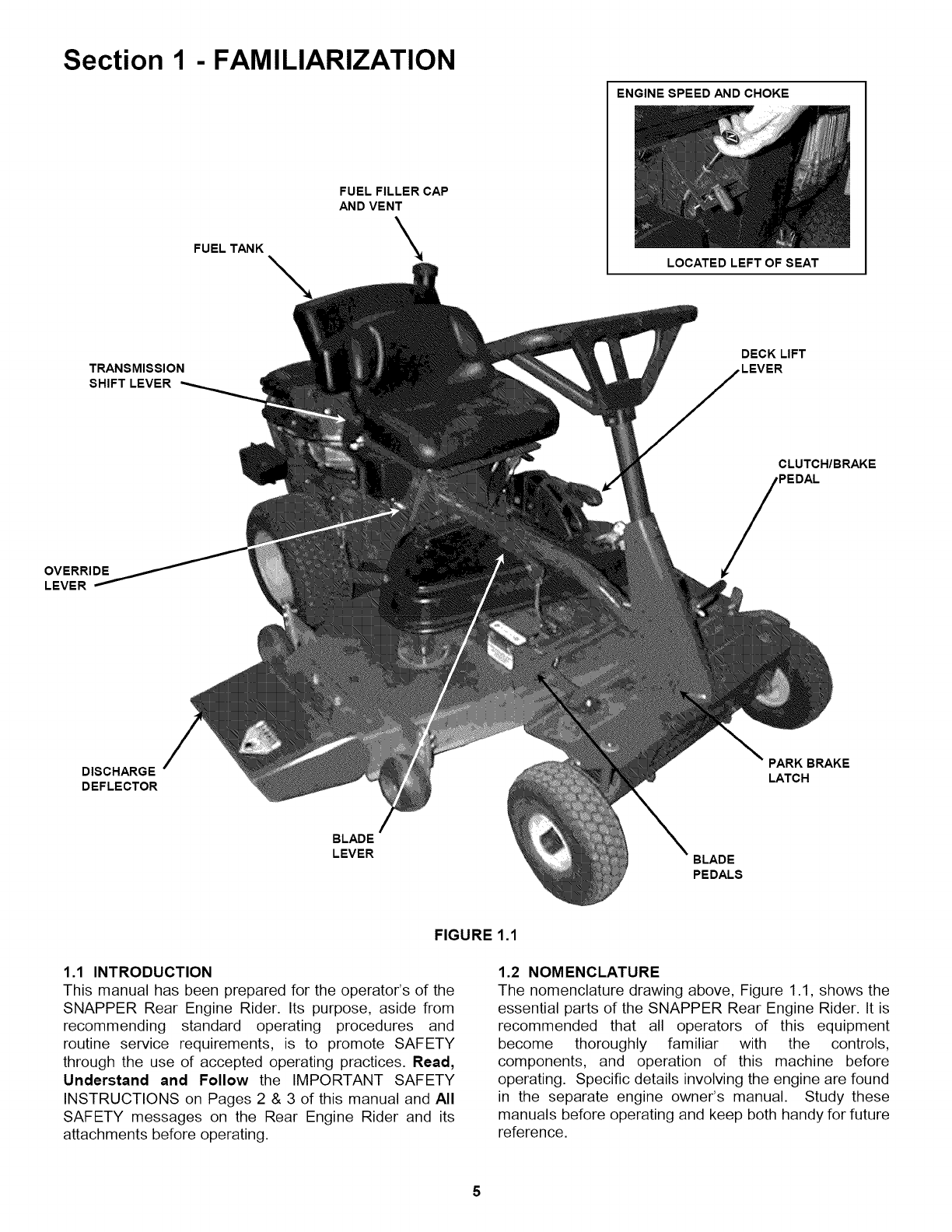

Section 1 - FAMILIARIZATION
FUEL TANK
FUEL FILLER CAP
AND VENT
\
ENGINE SPEED AND CHOKE
LOCATED LEFT OF SEAT
OVERRIDE
LEVER
TRANSMISSION
SHIFT LEVER
DISCHARGE
DEFLECTOR
BLADE
LEVER
DECK LIFT
.LEVER
CLUTCH/BRAKE
PARK BRAKE
LATCH
BLADE
PEDALS
FIGURE
1.1 INTRODUCTION
This manual has been prepared for the operator's of the
SNAPPER Rear Engine Rider. Its purpose, aside from
recommending standard operating procedures and
routine service requirements, is to promote SAFETY
through the use of accepted operating practices. Read,
Understand and Follow the IMPORTANT SAFETY
INSTRUCTIONS on Pages 2 & 3 of this manual and All
SAFETY messages on the Rear Engine Rider and its
attachments before operating.
1.1
1.2 NOMENCLATURE
The nomenclature drawing above, Figure 1.1, shows the
essential parts of the SNAPPER Rear Engine Rider. It is
recommended that all operators of this equipment
become thoroughly familiar with the controls,
components, and operation of this machine before
operating. Specific details involving the engine are found
in the separate engine owner's manual. Study these
manuals before operating and keep both handy for future
reference.
Section 2 - OPERATING INSTRUCTIONS
2.1 PRE-START CHECK LIST
Make the following checks and perform the service
required before each start-up.
2.1.1. Check tires and add or release air as needed
to bring pressure to 12 psi in front and 12 psi in rear
tires.
2.1.2. Check guards, deflectors and covers to make
sure all are in place and securely tightened.
2.1.3. Check engine oil and add oil as needed to
bring level up to the FULL mark. Refer to engine
owner's manual for oil specifications. See Figure 2.1.
FUEL
FILLER
CAP
FUEL
TANK
OPEN
SHOWN"OFF"
FUEL
2.2
.LEVEL
FIGURE 2.1
2.1.4. Adjust seat as needed to most comfortable
position. Refer to Section "OPERATOR'S SEAT
ADJUSTMENT". See Figure 2.3.
2.1.5. Check blade control to insure it works freely.
If blade pedals are depressed, blade lever can be
moved manually from "ON" to "OFF" to stop blade.
2.1.6. Check Reverse Lockout Mechanism. With
blade pedals depressed, shift lever must not go into
reverse.
2.1.7. Clean exterior surfaces of cutting deck and
engine of any accumulation of dirt, grass, oil, etc. Keep
engine air intake screen and cooling fins clear at all
times.
2.1.8. Add fuel to tank after pushing the Rear Engine
Rider outside where fumes can dissipate. Make sure
fuel filler cap is tight, vent is open and fuel valve is
"ON" after refueling. Refer to engine owner's manual.
See Figure 2.2.
OPERATOR'S SEAT ADJUSTMENT
2.2.1. FRONT TO REAR ADJUSTMENT
1. With the engine stopped, loosen the two adjusting
knobs and move seat to desired position. After
adjustment, tighten knobs securely. If seat does not
move after loosening knobs, it may be necessary to
loosen the hex nuts located at the rear of the seat. The
adjusting knobs need to be positioned as shown so as
not to interfere with seat mounting plate when returned
to sitting position. See Figure 2.3.
HEX NUTS
(DO NOT
FIGURE 2.2
FIGURE 2.3
ADJUSTING
KNOBS

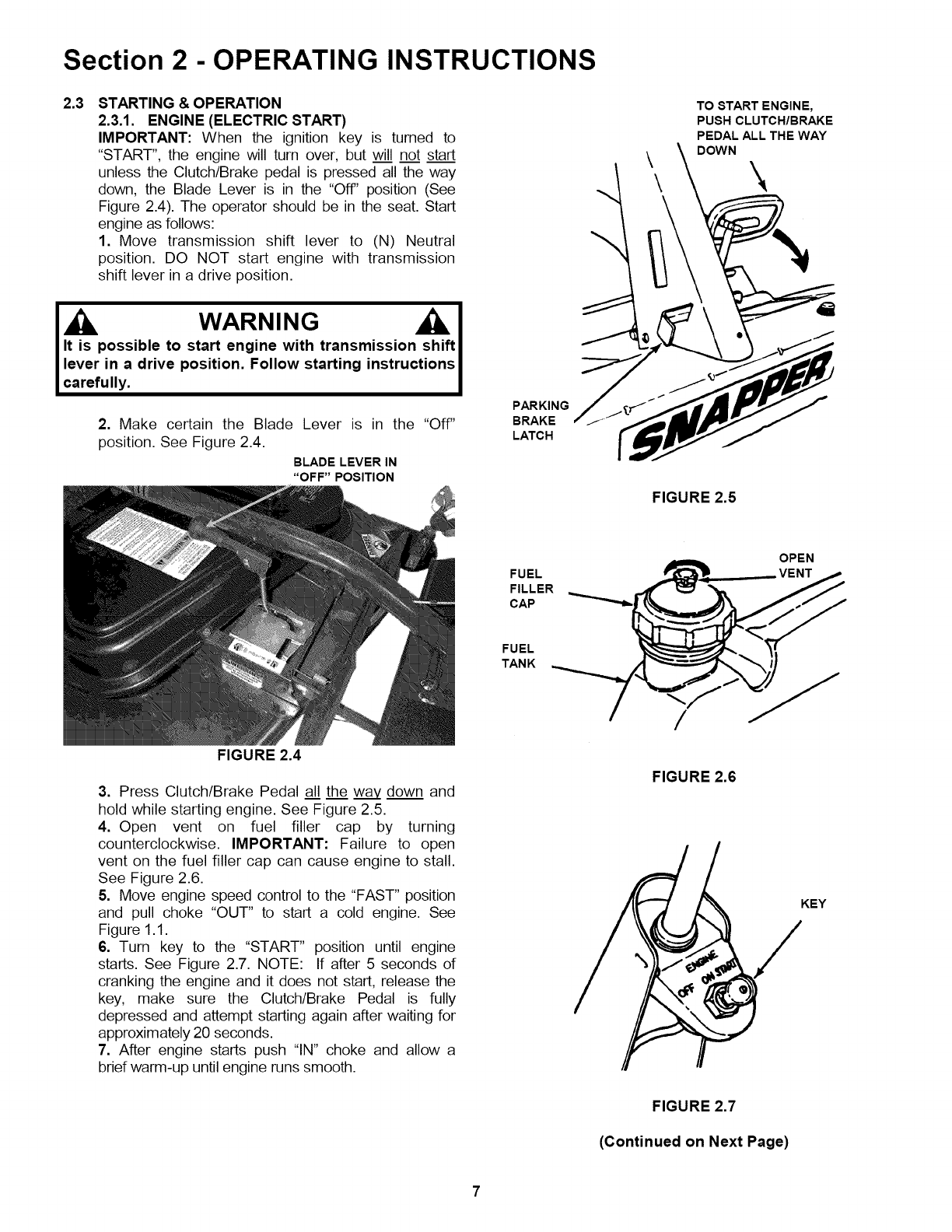

Section 2 - OPERATING INSTRUCTIONS
2.3 STARTING & OPERATION
2.3.1. ENGINE (ELECTRIC START)
IMPORTANT: When the ignition key is turned to
"START", the engine will turn over, but will not start
unless the Clutch/Brake pedal is pressed all the way
down, the Blade Lever is in the "Off" position (See
Figure 2.4). The operator should be in the seat. Start
engine as follows:
1. Move transmission shift lever to (N) Neutral
position. DO NOT start engine with transmission
shift lever in a drive position.
WARNING
It is possible to start engine with transmission shift I
lever in adrive position. Follow starting instructions
carefully. I
2. Make certain the Blade Lever is in the "Off"
position. See Figure 2.4.
BLADE LEVER IN
"OFF" POSITION
FIGURE 2.4
PARKING
BRAKE
LATCH
\
TO START ENGINE,
PUSH CLUTCH/BRAKE
PEDAL ALL THE WAY
DOWN \
FIGURE 2.5
OPEN
FUEL _ -- VENT
_
CAP
FUEL
TANK __
3. Press Clutch/Brake Pedal all the wa_ down and
hold while starting engine. See Figure 2.5.
4. Open vent on fuel filler cap by turning
counterclockwise. IMPORTANT: Failure to open
vent on the fuel filler cap can cause engine to stall.
See Figure 2.6.
5. Move engine speed control to the "FAST" position
and pull choke "OUT" to start a cold engine. See
Figure 1.1.
6. Turn key to the "START" position until engine
starts. See Figure 2.7. NOTE: If after 5 seconds of
cranking the engine and it does not start, release the
key, make sure the Clutch/Brake Pedal is fully
depressed and attempt starting again after waiting for
approximately 20 seconds.
7. After engine starts push "IN" choke and allow a
brief warm-up until engine runs smooth.
FIGURE 2.6
FIGURE 2.7
(Continued on Next Page)
KEY

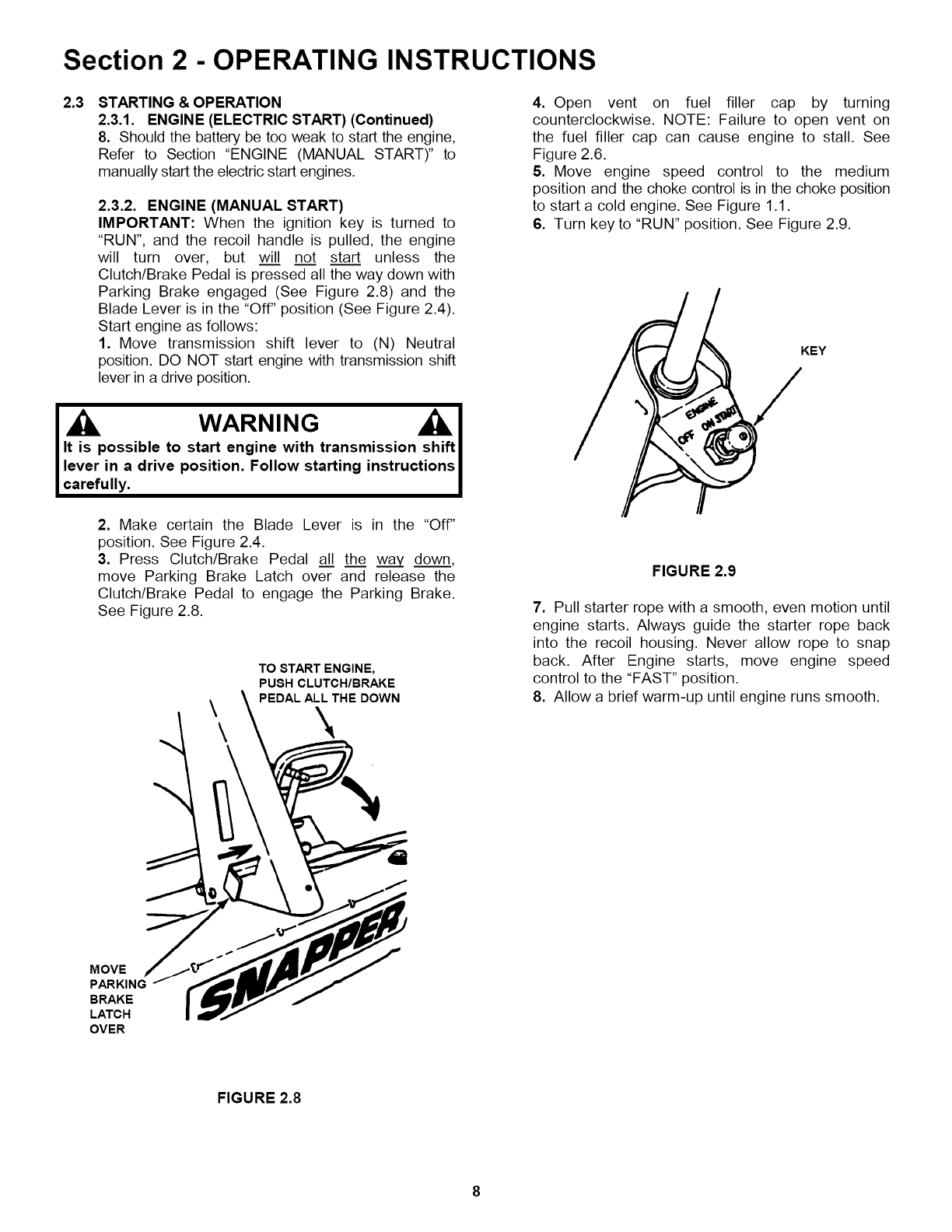

Section 2 - OPERATING INSTRUCTIONS
2.3 STARTING & OPERATION
2.3.1. ENGINE (ELECTRIC START) (Continued)
8. Should the battery be too weak to start the engine,
Refer to Section "ENGINE (MANUAL START)" to
manually start the electric start engines.
2.3.2. ENGINE (MANUAL START)
IMPORTANT: When the ignition key is turned to
"RUN", and the recoil handle is pulled, the engine
will turn over, but will not start unless the
Clutch/Brake Pedal is pressed all the way down with
Parking Brake engaged (See Figure 2.8) and the
Blade Lever is in the "Off" position (See Figure 2.4).
Start engine as follows:
1. Move transmission shift lever to (N) Neutral
position. DO NOT start engine with transmission shift
lever in a drive position.
WARNING I
It is possible to start engine with transmission shift I
lever in adrive position. Follow starting instructions
carefully. I
2. Make certain the Blade Lever is in the "Off"
position. See Figure 2.4.
3. Press Clutch/Brake Pedal all the wa_z down,
move Parking Brake Latch over and release the
Clutch/Brake Pedal to engage the Parking Brake.
See Figure 2.8.
\\ \
TO START ENGINE,
PUSH CLUTCH/BRAKE
PEDAL ALL THE DOWN
4. Open vent on fuel filler cap by turning
counterclockwise. NOTE: Failure to open vent on
the fuel filler cap can cause engine to stall. See
Figure 2.6.
5. Move engine speed control to the medium
position and the choke control is in the choke position
to start a cold engine. See Figure 1.1.
6. Turn key to "RUN" position. See Figure 2.9.
KEY
FIGURE 2.9
7. Pull starter rope with a smooth, even motion until
engine starts. Always guide the starter rope back
into the recoil housing. Never allow rope to snap
back. After Engine starts, move engine speed
control to the "FAST" position.
8. Allow a brief warm-up until engine runs smooth.
MOVE
PARKING
BRAKE
LATCH
OVER
FIGURE 2.8

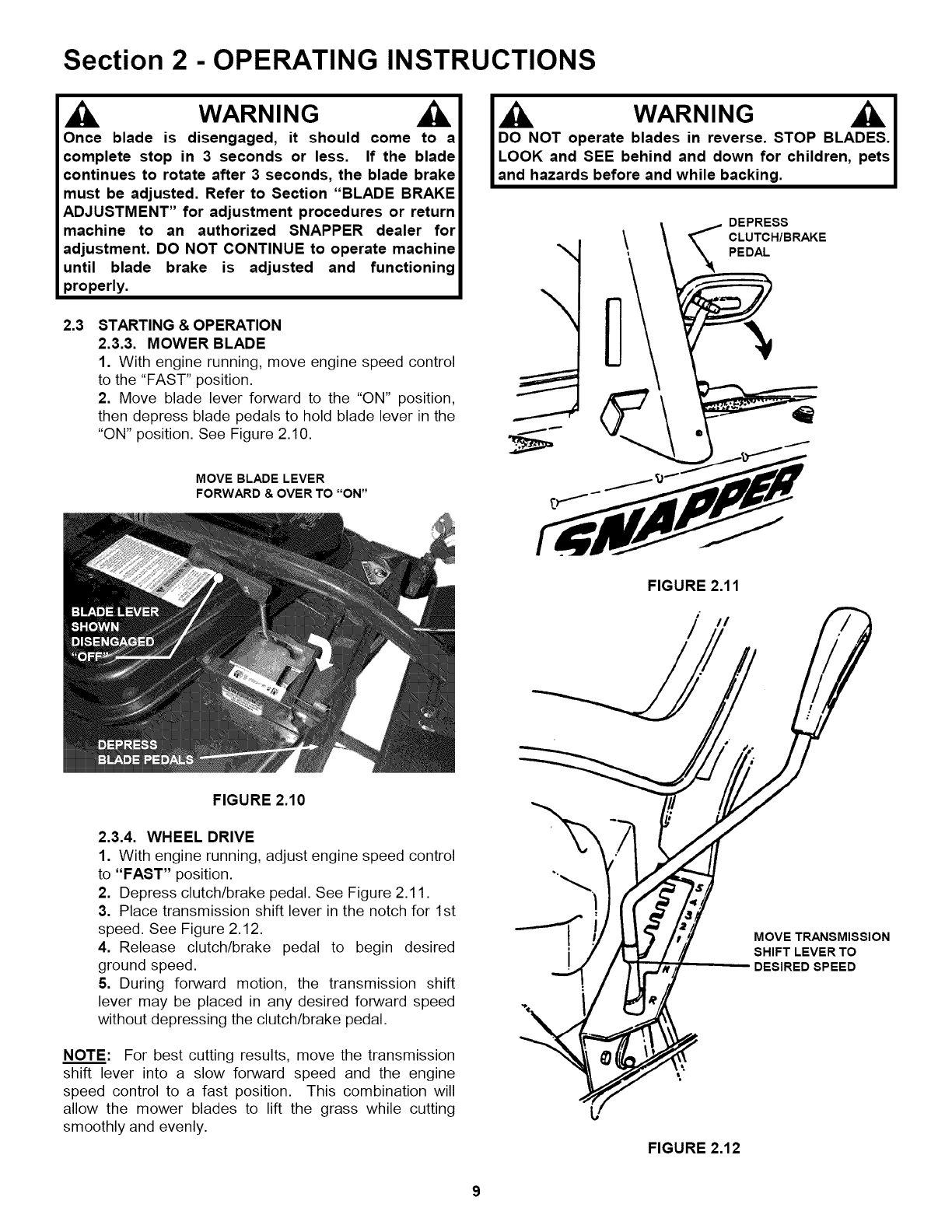

Section 2 - OPERATING INSTRUCTIONS
WARNING
Once blade is disengaged, it should come to a
complete stop in 3 seconds or less. If the blade
continues to rotate after 3 seconds, the blade brake
must be adjusted. Refer to Section "BLADE BRAKE
ADJUSTMENT" for adjustment procedures or return
machine to an authorized SNAPPER dealer for
adjustment. DO NOT CONTINUE to operate machine
until blade brake is adjusted and functioning
properly.
2.3 STARTING & OPERATION
2.3.3. MOWER BLADE
1. With engine running, move engine speed control
to the "FAST" position.
2. Move blade lever forward to the "ON" position,
then depress blade pedals to hold blade lever in the
"ON" position. See Figure 2.10.
MOVE BLADE LEVER
FORWARD & OVER TO "ON"
IL. WARNING I
DO NOT operate blades in reverse. STOP BLADES.I
LOOK and SEE behind and down for children, pets
and hazards before and while backing.
\
\
\t
/DEPRESS
CLUTCH/BRAKE
PEDAL
FIGURE 2.11
i
/_/
FIGURE 2.10
2.3.4. WHEEL DRIVE
1. With engine running, adjust engine speed control
to "FAST" position.
2. Depress clutch/brake pedal. See Figure 2.11.
3. Place transmission shift lever in the notch for 1st
speed. See Figure 2.12.
4. Release clutch/brake pedal to begin desired
ground speed.
5. During forward motion, the transmission shift
lever may be placed in any desired forward speed
without depressing the clutch/brake pedal.
NOTE: For best cutting results, move the transmission
shift lever into a slow forward speed and the engine
speed control to a fast position. This combination will
allow the mower blades to lift the grass while cutting
smoothly and evenly.
I
FIGURE 2.12
MOVE TRANSMISSION
SHIFT LEVER TO
DESIRED SPEED

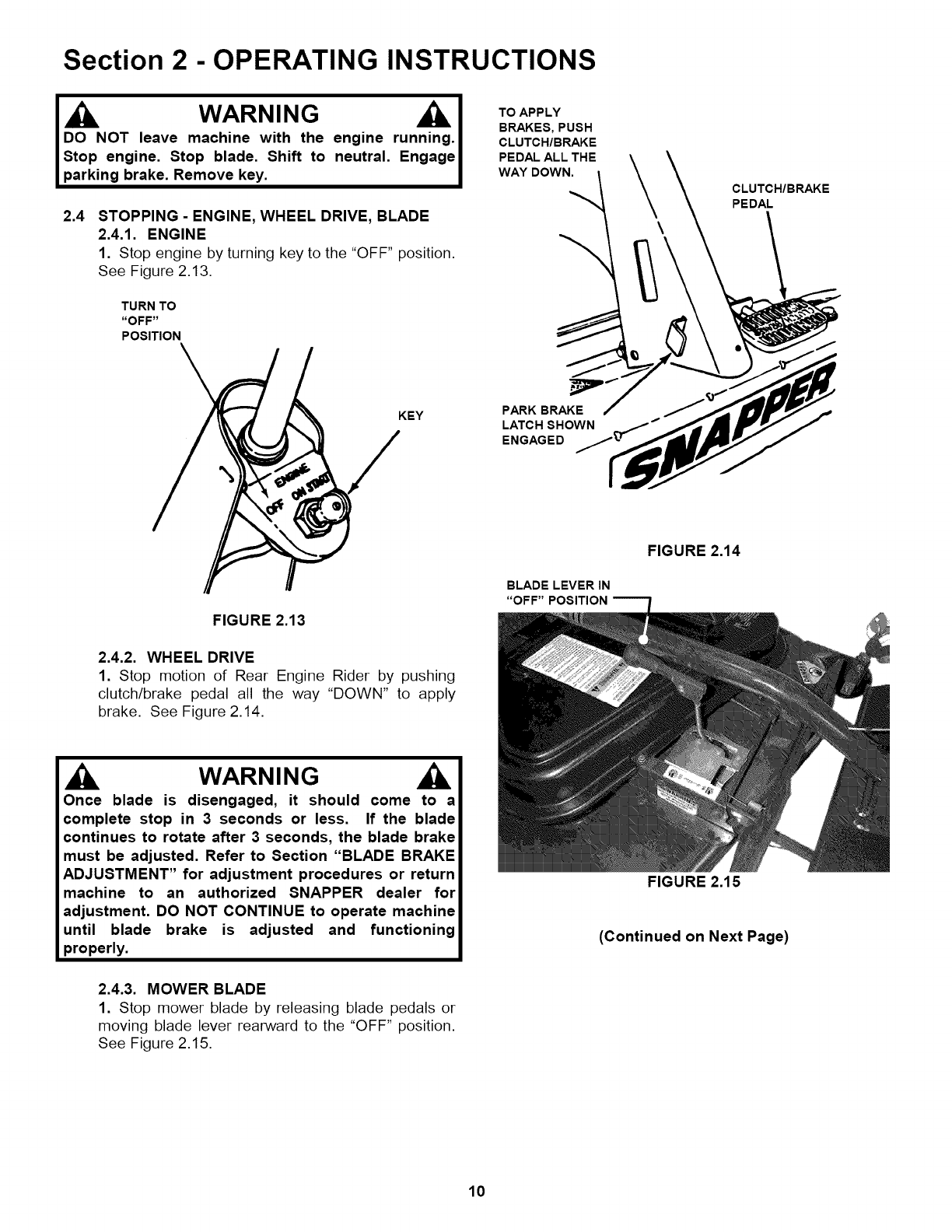

Section 2 - OPERATING INSTRUCTIONS
WARNING
DO NOT leave machine with the engine running.
Stop engine. Stop blade. Shift to neutral. Engage
parking brake. Remove key.
2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.1. ENGINE
1. Stop engine by turning key to the "OFF" position.
See Figure 2.13.
TURN TO
"OFF"
POSITION \
KEY
TO APPLY
BRAKES, PUSH
CLUTCH/BRAKE
PEDAL ALL THE
WAY DOWN.
PARK BRAKE
LATCH SHOWN
ENGAGED
CLUTCH/BRAKE
PEDAL
FIGURE 2.13
2.4.2. WHEEL DRIVE
1. Stop motion of Rear Engine Rider by pushing
clutch/brake pedal all the way "DOWN" to apply
brake. See Figure 2.14.
WARNING
Once blade is disengaged, it should come to a
complete stop in 3 seconds or less. If the blade
continues to rotate after 3 seconds, the blade brake
must be adjusted. Refer to Section "BLADE BRAKE
ADJUSTMENT" for adjustment procedures or return
machine to an authorized SNAPPER dealer for
adjustment. DO NOT CONTINUE to operate machine
until blade brake is adjusted and functioning
properly.
2.4.3. MOWER BLADE
1. Stop mower blade by releasing blade pedals or
moving blade lever rearward to the "OFF" position.
See Figure 2.15.
BLADE LEVER IN
"OFF" POSITION
FIGURE 2.14
FIGURE 2.15
(Continued on Next Page)
10
Section 2 - OPERATING INSTRUCTIONS
2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE
2.4.4. PARK BRAKE
1. Engage park brake by pushing clutch/brake pedal
"DOWN" and moving the park brake latch over to the
"ENGAGED" position. While holding the park brake
latch "ENGAGED", release clutch/brake pedal to set
park brake. See Figure 2.16.
2.5. CUTTING HEIGHT ADJUSTMENT
1. Adjust cutting height as desired to any one of six
positions using deck lift lever. When in desired
height of cut, release latch, then try to move deck
lift lever to ensure lift lever latch is fully engaged.
See Figure 2.18.
CLUTCH/BRAKE
PEDAL
PARK BRAKE
LATCH SHOWN
ENGAGED
DECK LIFT
LEVER
FIGURE 2.18
FIGURE 2.16
2. Release park brake by pushing down on the
clutch/brake pedal to release park brake latch. See
Figure 2.17. IWARNING
DO NOT park the machine on slopes.
CLUTCH/BRAKE
PEDAL SHOWN
\DISENGAGED
\ \
PARK BRAKE
LATCH SHOWN
IN "OFF"
POSITION
FIGURE 2.17
11
Section 2 - OPERATING INSTRUCTIONS
2.6 REVERSE LOCKOUT MECHANISM
Data indicates that tragic back-over accidents occur
each year. These accidents usually involve
unsupervised children. Many times these children have
been given rides on the machine and have been trained
to view this potentially dangerous piece of machinery as
fun rather than being taught how to avoid danger.
This riding mower has a Reverse Lockout Mechanism.
This mechanism prevents the mower from being shifted
into reverse with the blade running. To shift into reverse
you must first stop the blade by releasing the blade
pedals and then shift to reverse. It is our
recommendation that this mechanism remain functional
and the operator of this equipment develop the habit of
never backing up with the blade running. As the Safety
Instructions Indicate, DO NOT operate blades in
reverse. STOP BLADES, LOOK AND SEE BEHIND
AND DOWN for children, pets and hazards before
and while backing.
We realize that this could cause a change to your
previous mowing method but we encourage you to
adjust to this new system. Do not defeat the Reverse
Lockout Mechanism.
2.6.1. Reverse Lockout Mechanism Override
1. Stop machine. Stop blade.
2. Depress and hold Override Lever.
3. Depress and hold Blade Pedals. Release
Override Lever.
4. Move blade lever forward to "ON" position.
IaLn'_OdOhKazandsSbEeEfbreehWi=ARNI !NGk[no rg.Chi'd ren, P'_ets I
IMPORTANT: DO NOT use the Reverse Lockout
Mechanism Override as the normal operating mode. To
return to the Reverse Lockout Mechanism mode,
release blade pedals to turn blade off. The Override will
reset to Reverse Lockout. Check the Reverse Lockout
Mechanism frequently for proper function. With the
blade pedals depressed, the shift lever must not go into
reverse. DO NOT operate machine if Reverse Lockout
Mechanism is not functioning properly. Contact your
local Snapper dealer for assistance.
If you operate your mower near roadways or use
attachments that require quicker shifting to reverse,
there is an override lever provided. This lever can be
pushed and held before starting the blade and will allow
reverse operation until the blade pedals are released, at
which time the system will return to its Reverse Lockout
mode. This feature should never be selected unless you
are absolutely sure that no children or others are
present in the mowing area and that all children are
away and supervised by a responsible adult.
DANGER
LOOK and SEE behind and down for children, pets
and hazards before and while backing.
BLADES must be turned off before backing
machine.
DO NOT allow children on machine (even with
blades off) or in yard when mowing.
12
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
3.1
3.2
INTRODUCTION
To retain the quality of the Rear Engine Rider, use
genuine SNAPPER replacement parts only. Contact a
local SNAPPER dealer for parts and service
assistance. For the correct part or information for a
particular Rear Engine Riding Mower, always mention
the model and serial number. SNAPPER recommends
returning the Rear Engine Rider to an authorized
SNAPPER dealer annually for inspection and addition
of any new devices, which might upgrade the safety of
the Rear Engine Rider. For the nearest SNAPPER
dealer in your area, check the yellow pages under the
heading LAWN MOWERS. For engine parts and
service, look for the engine manufacturer's dealers
under the heading, ENGINES - gasoline.
SERVICE - AFTER FIRST 5 HOURS
Routine maintenance is important to the performance
and life of your Rear Engine Rider. Service performed
properly and at the recommended interval is essential.
Refer to Section "MAINTENANCE SCHEDULE" in this
manual and in the Engine Owner's Manual. Carefully
complete all of the recommended service procedures.
3.2.1. CHANGE ENGINE OIL
1. Place bricks or wooden blocks under the front
wheels to lower rear of engine.
2. Loosen or remove oil fill cap on engine.
3. Loosen oil drain plug.
4. Place a 2 quart minimum capacity container
under the end of the oil drain. Open oil drain.
Figure 3.1 for oil drains used on the Rear Engine
Riders.
ROTATE 1/4 TURN
COUNTERCLOCKWISE
AND PULL OUT TO
DRAIN ENGINE OIL
See
RAIN
FIGURE 3.1
5. After all the oil has drained, close the drain and
wipe up any oil that may have spilled. See Figure 3.1.
Dispose of oil properly.
6. Fill engine crankcase with new oil. Refer to your
engine owner's manual for oil specifications.
7. Change oil filter at every oil change. Refer to your
engine owner's manual for service instructions.
3.2.2. SERVICE ENGINE AIR CLEANER
The engine is equipped with a dual element air
cleaner. Both the foam pre-cleaner and cartridge
require service. Refer to Engine Owner's Manual for
recommended service procedures.
3.2.3. CHECK MOWER BLADE
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
Remove the battery if the Rear Engine Rider will be left
standing on the rear bumper for longer than 2 hours.
Refer to Section "BATTERY REMOVAL". DO NOT use a
cutting blade that shows signs of excessive wear or
damage on the Rear Engine Rider. Refer to Section
"MOWER BLADE REPLACEMENT" for proper blade
inspection and service procedures.
4. Check torque of blade mounting bolts. Torque bolts
to 30 to 40 ft. Ibs. See Figure 3.2.
5. Check blade for sharpness, wear and damage.
Refer to Section "BLADE WEAR LIMITS".
FT TORQUE -- I_
O 30-40 FT.LB_,=_._
BQ Q
FIGURE 3.2
6. Check blade for straightness. Refer to Section
"ADJUSTING MOWER BLADE".
13
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
3.2 SERVICE - AFTER FIRST 5 HOURS
3.2.4. CHECK BLADE DRIVE BELT
The blade drive consists of a single belt from the
engine to the deck. Inspect for signs of deterioration
and proper tension.
1. Lower deck to lowest setting.
2. Remove drive belt cover.
3. Slide cover back and rotate out on left side of
mower deck. See Figure 3.3.
REMOVE
DRIVE BELT
FIGURE 3.3
4. On 42" models, check belt for excessive wear or
damage; there are no adjustments to tighten belt on
these models. See Figure 3.4. If belt is too loose to
operate mower satisfactorily then a new belt will have
to be installed. Refer to Section "MOWER DRIVE
BELT REPLACEMENT".
WARNING
The following procedure requires the engine and
blades to be operated. Exercise extreme caution.
Clear area of loose parts & tools first. Only operate
blades when seated in the operator's seat.
TOP VIEW OF BELT ROUTING
LEFT RIGHT
SPINDLE SPINDLE
PULLEY PULLEY
14
ENGINE DRIVE
PULLEY ASSEMBLY
FIGURE 3.4
3.2.5. BLADE BRAKE
1. Check blade brake for proper function. Blade should
stop rotating in 3 seconds or less after moving the blade
control lever to the "OFF" position or after releasing the
blade pedals.
I Blades must stop rotating in 3 seconds or less after I
the blade has been turned off. DO NOT operate I
machine until blade brake has been adjusted and I
functioning properly. I
2. If the blade continues to rotate longer than 3
seconds do not operate machine. Refer to Section
"BLADE BRAKE ADJUSTMENT" or contact your
SNAPPER dealer for assistance.
3.2.6. SERVICE BRAKE /PARK BRAKE
1. Check machine brake for proper function. Engage
park brake. Push machine. Rear tires should skid. Drive
machine forward and apply brake. Machine should come
to a complete stop in less than 5 ft.
2. If brakes are not functioning properly brake
adjustment must be completed before operating
machine. Refer to Section "SERVICE BRAKE - PARK
BRAKE ADJUSTMENT".
3.2.7. INTERLOCK SYSTEM
Check interlock controls for proper function:
The engine MUST NOT start if:
1. Blade Control is "ON" and/or clutch/brake pedal is
released.
The engine and blades MUST STOP if:
2. The operator leaves the operator position with Blade
Control "ON" and/or clutch/brake pedal is released.
DO NOT operate machine if interlock system t
functioning properly. Contact your SNAPPER r
immediately for assistance.
Section 3- MAINTENANCE

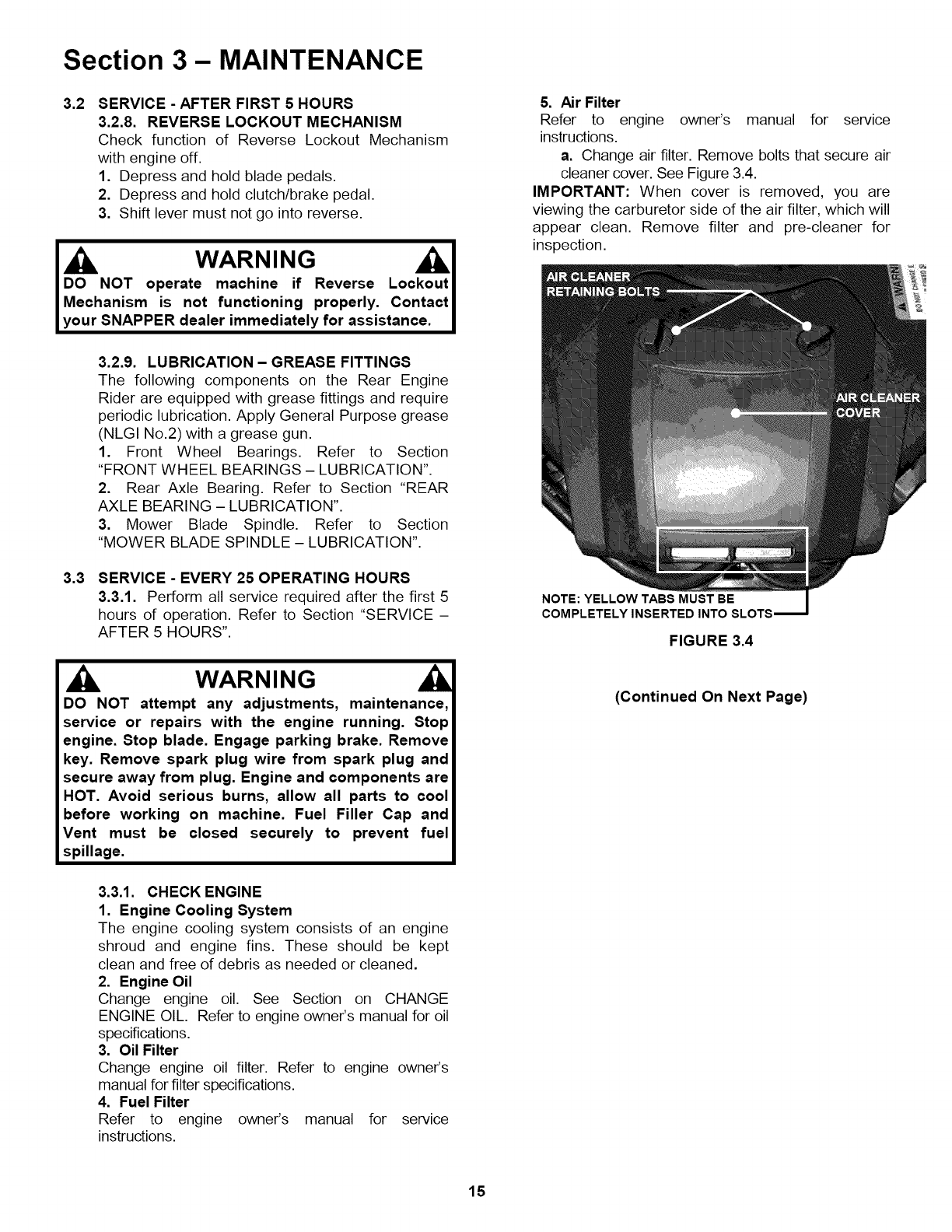

3.2 SERVICE - AFTER FIRST 5 HOURS
3.2.8. REVERSE LOCKOUT MECHANISM
Check function of Reverse Lockout Mechanism
with engine off.
1. Depress and hold blade pedals.
2. Depress and hold clutch/brake pedal.
3. Shift lever must not go into reverse.
| WARNING
DO NOT operate machine if Reverse Lockout
Mechanism is not functioning properly.Contact
your SNAPPER dealer immediately for assistance.
3.2.9. LUBRICATION - GREASE FITTINGS
The following components on the Rear Engine
Rider are equipped with grease fittings and require
periodic lubrication. Apply General Purpose grease
(NLGI No.2) with a grease gun.
1. Front Wheel Bearings. Refer to Section
"FRONT WHEEL BEARINGS - LUBRICATION".
2. Rear Axle Bearing. Refer to Section "REAR
AXLE BEARING - LUBRICATION".
3. Mower Blade Spindle. Refer to Section
"MOWER BLADE SPINDLE - LUBRICATION".
3.3 SERVICE - EVERY 25 OPERATING HOURS
3.3.1. Perform all service required after the first 5
hours of operation. Refer to Section "SERVICE -
AFTER 5 HOURS".
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and
Vent must be closed securely to prevent fuel
spillage.
3.3.1. CHECK ENGINE
1. Engine Cooling System
The engine cooling system consists of an engine
shroud and engine fins. These should be kept
clean and free of debris as needed or cleaned.
2. Engine Oil
Change engine oil. See Section on CHANGE
ENGINE OIL. Refer to engine owner's manual for oil
specifications.
3. Oil Filter
Change engine oil filter. Refer to engine owner's
manual for filter specifications.
4. Fuel Filter
Refer to engine owner's manual for service
instructions.
15
5. Air Filter
Refer to engine owner's manual for service
instructions.
a. Change air filter. Remove bolts that secure air
cleaner cover. See Figure 3.4.
IMPORTANT: When cover is removed, you are
viewing the carburetor side of the air filter, which will
appear clean. Remove filter and pre-cleaner for
inspection.
NOTE: YELLOW TABS MUST BE
COMPLETELY INSERTED INTO SLOTS
FIGURE 3.4
(Continued On Next Page)
Section 3- MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and
Vent must be closed securely to prevent fuel
spillage.
3.3 SERVICE - EVERY 25 OPERATING HOURS
5. Air Filter (Continued from Previous Page)
b. Refer to engine owner's manual for cleaning
and service instructions. Remove and clean
engine air pre-cleaner. Remove and replace
engine air cleaner. See Figure 3.5. Install pre-
cleaner and air cleaner per engine owner's
manual.
AIR PRE-
CLEANER
MR CLEANER -1
3.3.2. BATTERY FLUID LEVEL
1. Remove battery. Refer to Section "BATTERY
REMOVAL".
2. Remove battery caps. Check fluid level.
3. Add water only to bring fluid to proper level -
approximately 3/16" above plates.
DO NOT OVERFILL.
4. Reinstall battery. Refer to Section "BATTERY
INSTALLATION".
3.3.3. MOWER DECK LEVELNESS
Check mower deck for proper level. Adjust as
required. Refer to Section "MOWER DECK
ADJUSTMENT - LEVELNESS".
3.3.4. CLEAN MOWER DECK
1. Follow WARNING statement found on this
page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK".
If 3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear
bumper.
4. Clean underside of mower deck, removing all
accumulation of grass clippings and debris.
5. Clean top of deck, removing all grass clippings
and debris.
3.3.5. MOWER BLADE SPINDLE -LUBRICATION
1. Follow WARNING statement found on this
page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK".
If 3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear
bumper.
FIGURE 3.5
c. Reinstall air cleaner cover. Insert tabs
located on the engine cover into corresponding
slots in air cleaner cover. IMPORTANT: The
yellow tabs must be completely inserted into air
cleaner cover or the compartment will not be
completely sealed to prevent debris from
entering into the carburetor.
d. Reinstall bolts that secure air cleaner cover
to the engine. Tighten securely.
16
Section 3- MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
3.3 SERVICE - EVERY 25 OPERATING HOURS
3.3.5. MOWER BLADE SPINDLE - LUBRICATION
(Continued From Previous Page)
4. Lubricate spindles with three shots of general
purpose grease from grease gun. See Figure 3.6.
IMPORTANT: If the Rear Engine Rider will be on
its rear bumper for longer than two hours, remove
the battery. Refer to Section "BATTERY
REMOVAL". SP,NDLE
GREASE
FIGURE 3.6
3.3.6. MOWER DECK LINKAGE- LUBRICATION
Lubricate all mower deck linkage pivot points with a
light coat of motor oil.
3.3.7. FRONT WHEEL BEARING - LUBRICATION
1. Lubricate front wheel bearings with five shots of
general purpose grease, from grease gun. See
Figure 3.7.
3.3.8. REAR AXLE BEARING - LUBRICATION
1. The left rear axle bearing is lubricated with three
shots of general purpose grease from grease gun.
2. The right rear axle bearing is lubricated by the
differential lubricant and does not require additional
lubrication.
FRONT WHEEL GREASE FITIING "_
FIGURE 3.7
3.3.9. DIFFERENTIAL/CHAINCASE- LUBRICATION
1. Check the fill/level plug, for cracks and wear.
Replace fill/level plug if signs of wear are visible.
IMPORTANT: If the Rear Engine Rider will be on its
rear bumper for longer than two hours, remove the
battery. Refer to Section "BATTERY REMOVAL".
2. To check lubricant, remove fill/level plug and
visually inspect for lubricant on the internal parts of
the differential. If no lubricant is visible on the
internal parts of the differential, add "SNAPPER
Transmission" grease as needed. See Figure 3.8.
DIFFERENTIAL
\
FIGURE 3.8
17
Section 3 - MAINTENANCE
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
IMPORTANT: Overfilling of the differential with lubricant will
cause lubricant to leak onto drive components of the Rear
Engine Rider.
3. Check fill/level plug for damage. If signs of wear or
cracks are visible, replace plug with new plug. See
Figure 3.9.
4. To check lubricant in chain case, remove fill/level
plug and look for lubricant on the internal
components of the chain case. If no lubricant is
visible, add "SNAPPER Transmission" grease as
needed. See Figure 3.9.
3.3.10. Check "MAINTENANCE SCHEDULE"
Section of Engine Owner's Manual for additional
engine service.
FILL/LEVEL
PLUG
IMPORTANT: To stop flow of fuel, tank may be removed
from bracket and set on the floor so the fuel level will be
below the filter. Refer to Section "REMOVING FUEL TANK".
1. Remove hose clamps from fuel filter.
2. Remove fuel lines from filter. Discard filter.
3. Install new fuel filter. See Figure 3.10.
4. Reinstall fuel tank into bracket.
5. Carefully reinstall fuel clamps.
6. Check fuel system for leaks.
FUEL
FILTER
3.5
FIGURE 3.10
EVERY TWO YEARS
In addition to regular maintenance, the following
components of the Rear Engine Rider should be
carefully inspected every two years for wear or
damage. Replace worn or damaged parts with
genuine SNAPPER replacement parts available
from an authorized SNAPPER dealer.
3.5.1. All bushings and pivot areas.
3.5.2. Check both front wheel king pins.
3.5.3. Transmission shift lever and detent.
3.5.4. Clutch Disc.
3.5.5. Clutch Yoke.
3.5.6. Mower deck linkage and pivot areas.
3.4
FIGURE 3.9
SERVICE - ANNUALLY
Perform all maintenance as described in Section
"MAINTENANCE SCHEDULE".
3.4.1. ENGINE
1. Service engine according to engine owner's
manual.
3.4.2. FUEL FILTER
Service fuel filter as instructed below, on COLD
ENGINE ONLY!
18
Section 3 - MAINTENANCE
3.6
3.7
STORAGE (OUT OF SEASON)
If desired, the Rear Engine Rider can be stored on
the rear bumper. Perform the following procedures
to insure the Rear Engine Rider will operate
properly when taken out of storage.
3.6.1. Thoroughly clean the Rear Engine Rider by
removing all grass clippings and debris.
3.6.2. Perform maintenance and lubrication as
required.
3.6.3. Drain fuel from fuel tank.
3.6.4. Start engine and allow it to run until engine
runs out of fuel. This allows the carburetor and fuel
system to remain clean during storage.
3.6.5. Remove battery. Refer to Section
"BATTERY STORAGE".
3.6.6. Close vent on fuel filler cap.
3.6.7. Carefully stand Rear Engine Rider on rear
bumper in desired location for storage.
REMOVING FUEL TANK
Before removing fuel tank from rear engine rider,
move rider outdoors where fumes can be easily
dissipated. Removal of the tank is accomplished
from the left side of the machine by pulling the tank
straight up and away from the fuel tank bracket.
Holding the fuel tank, remove the fuel filler cap and
pour remaining fuel in an approved container. See
Figure 3.11.
FUEL
,z FILLER
CAP
FUEL TANK
FUEL TANK
BRACKET
FIGURE 3.11
19
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance, service
or repairs with the engine running. STOP engine. STOP
blade. Engage parking brake. Remove key. Remove
spark plug wire from spark plug and secure away from
plug. Engine and components are HOT. Avoid serious
burns, allow all parts to cool before working on machine.
Fuel Filler Cap and vent must be closed securely to
prevent fuel spillage. Once blade is disengaged it
should come to astop in 3 seconds or less. If the blade
continues to rotate after 3 seconds the blade brake
must be adjusted. DO NOT continue to operate the
machine if the blade brake is not operating properly.
4.1 ENGINE ADJUSTMENTS & REPAIR
Refer to the engine owner's manual for those
adjustments and/or repairs that can be made by the
owner.
4.2 MOWER DECK & COMPONENT ADJUSTMENTS
The following mower deck and component
adjustments and repairs can be made by the owner.
However, if there is difficulty in achieving these
adjustments and repairs, it is recommended that these
repairs be made by an authorized SNAPPER dealer.
4.2.1. MOWER DRIVE BELT ADJUSTMENT
On 42" models, the mower drive belt DOES NOT
require adjustment. If the belt does not drive blade
properly, replace belt. See Figure 4.1 for belt
routing.
TOP VIEW OF BELT ROUTING
LEFT
SPINDLE SPINDLE
PULLEY PULLEY
IDLER
PULLEY
2-1/8"
FIXED
PULLEY
ENGINE DRIVE
PULLEY
ASSEMBLY FIGURE 4.1
WARNING
DO NOT operate machine until blade brake is
adjusted and functioning properly. If blade stop time
cannot be achieved with the adjustment procedure
described above, take the machine immediately to an
authorized SNAPPER dealer.
4.2.2. BLADE BRAKE ADJUSTMENT
The automatic Blade Brake should stop the blades
within 3 seconds anytime the blades are
disengaged by moving blade lever to the "OFF"
position or by releasing the Blade Pedals. Check
this by disengaging the Blade Lever as shown in
Figure 4.2. Perform the following measurement
and adjustment.
1. With the blade engagement lever disengaged,
measure the distance between the front of the
blade lever and the edge of the latch plate. The
dimension should be 3" to 3-1/4" clearance
between lever and edge of plate. See Figure 4.2. If
the dimension is incorrect go to step 2.
3" to 3-1/4"
CLEARANCE
FIGURE 4.2
(Continued on Next Page)
IMPORTANT: On 42" deck models do not require belt
tension adjustment. But, if front frame assembly clamp is
loosened for any reason, recheck belt spacing between idler
pulley and fixed pulley. Place deck height lever in the 3rd
position. With blade lever in the "ON" position, the distance
between the idler pulley and the fixed pulley should be 2-
1/8". See Figure 4.1.
20
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
4.2 MOWER DECK & COMPONENT ADJUSTMENTS
4.2.2. BLADE BRAKE ADJUSTMENT
2. Remove Belt Cover. Refer to Section "BLADE
BELT COVER REMOVAL".
3. Remove retaining pin from eyebolt swivel. Lift
swivel out of deck rail. See Figure 4.3. If dimension
is greater than 3-1/4", turn eyebolt swivel
CLOCKWISE to increase brake tension and
reduce clearance between Blade Lever and Latch
Plate. If dimension is less than 3", turn eyebolt
swivel COUNTERCLOCKWISE to decrease brake
tension. See Figure 4.3.
4. Once the desired clearance has been attained,
reinstall swivel onto deck rail. Insert retaining pin
into eyebolt swivel.
5.Reinstall belt cover and tighten bolts securely.
ROTATE SWIVEL ON
EYE BOLTTO
ACHIEVE CORRECT
CLEARANCE
EYEBOLT
I
RETAINING PIN EYE
SWIVEL
I
\
FIGURE 4.3
4.2 MOWER DECK & COMPONENT ADJUSTMENTS
4.2.3. ADJUSTING MOWER BLADE
Follow procedures for standing Rear Engine Rider
on rear bumper.
IMPORTANT: If the Rear Engine Rider will be on its rear
bumper for longer than two hours, remove the battery.
Refer to Section "BATTERY REMOVAL".
4.2.4. MOWER DECK ADJUSTMENT
(Side To Side Levelness)
Before making deck leveling adjustments, check
the tire pressure. Front tires 12 psi, rear tires 12 psi.
If tires are properly inflated and mowing is still uneven,
adjust side-to-side deck levelness as follows:
1. Place Rider on a smooth level surface.
2. Turn engine off and remove key, remove spark
plug wire from spark plug and secure wire away
from plug.
3. Place a piece of angle iron, pipe, or similar object
under center of deck at the rear.
4. Remove rear hanger chains and allow center, rear
of deck to rest on angle iron.
5. Measure the distance from blade tips to floor. If the
measurement is within 118"from side-to-side, the deck
attitude is satisfactory. If difference from side-to-side is
greater than 118",continue with adjustment.
6. Loosen the shoulder bolt retaining the left side of
blade pedals. See Figure 4.4.
7. Turn eccentric "UP" or "DOWN" as required until
blade tips are within 1/8" of each other. See Figure 4.4.
8. Tighten shoulder bolt loosened in step "6".
9. Readjust rear hanger chain pivots to align with
holes in support brackets. See Figure 4.5.
10. Remove angle iron, pipe, or similar object and
proceed to check front to rear levelness.
LOOSEN TURN ECCENTRIC AS
SHOULDER REQUIRED
BOLT
BLADE
PEDAL
-BLADE PEDAL
ECCENTR,C L, T SHOULDER
ARM BOLT
FIGURE 4.4
21
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

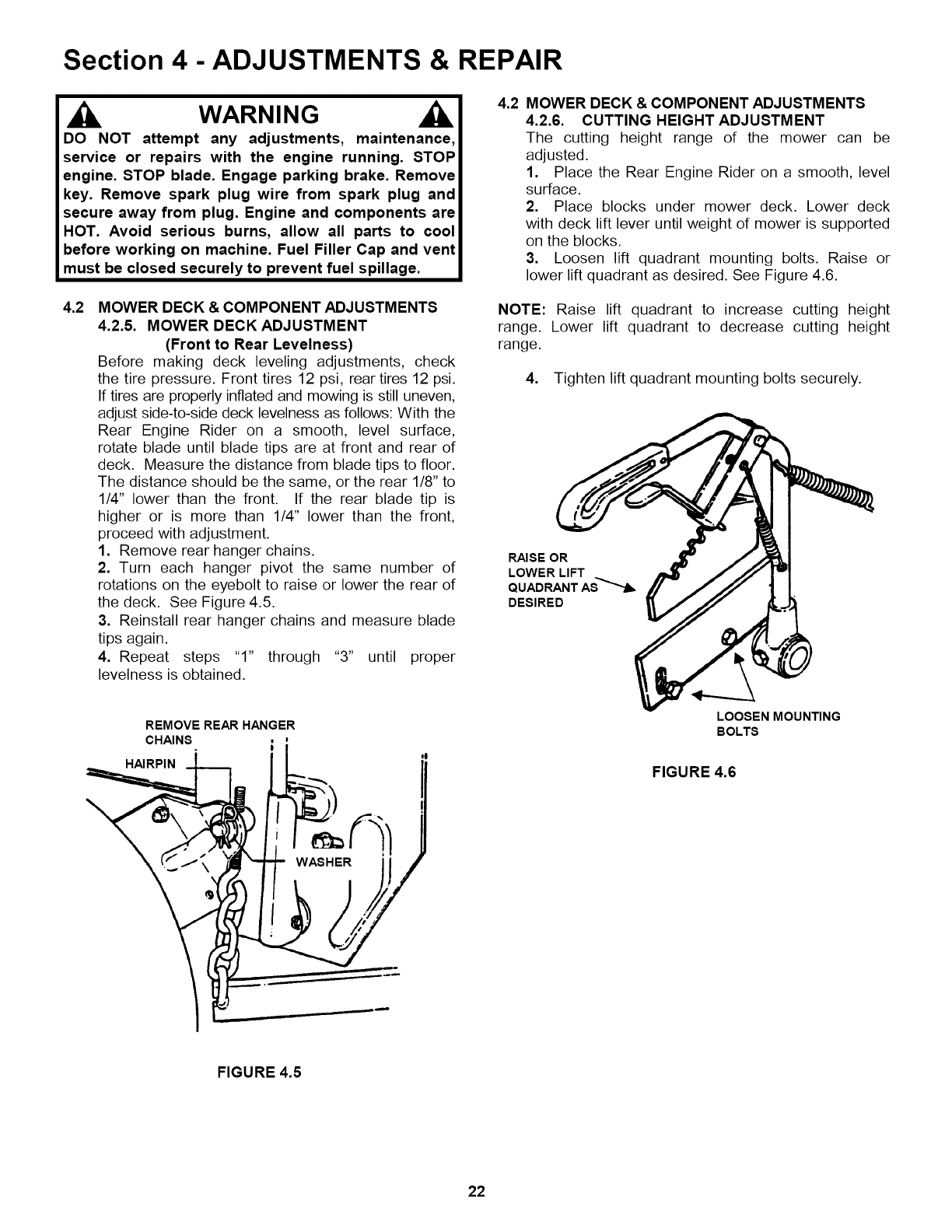

4.2 MOWER DECK & COMPONENT ADJUSTMENTS
4.2.5. MOWER DECK ADJUSTMENT
(Front to Rear Levelness)
Before making deck leveling adjustments, check
the tire pressure. Front tires 12 psi, rear tires 12 psi.
If tires are properly inflated and mowing is still uneven,
adjust side-to-side deck levelness as follows: With the
Rear Engine Rider on a smooth, level surface,
rotate blade until blade tips are at front and rear of
deck. Measure the distance from blade tips to floor.
The distance should be the same, or the rear 118"to
114" lower than the front. If the rear blade tip is
higher or is more than 114" lower than the front,
proceed with adjustment.
1. Remove rear hanger chains.
2. Turn each hanger pivot the same number of
rotations on the eyebolt to raise or lower the rear of
the deck. See Figure 4.5.
3. Reinstall rear hanger chains and measure blade
tips again.
4. Repeat steps "1" through "3" until proper
levelness is obtained.
4.2 MOWER DECK & COMPONENT ADJUSTMENTS
4.2.6. CUTTING HEIGHT ADJUSTMENT
The cutting height range of the mower can be
adjusted.
1. Place the Rear Engine Rider on a smooth, level
surface.
2. Place blocks under mower deck. Lower deck
with deck lift lever until weight of mower is supported
on the blocks.
3. Loosen lift quadrant mounting bolts. Raise or
lower lift quadrant as desired. See Figure 4.6.
NOTE: Raise lift quadrant to increase cutting height
range. Lower lift quadrant to decrease cutting height
range.
4. Tighten lift quadrant mounting bolts securely.
RAISE OR
LOWER LIFT
QUADRANT AS_"J_
DESIRED
REMOVE REAR HANGER
CHAINS _
WASHER
LOOSEN MOUNTING
BOLTS
FIGURE 4.6
FIGURE 4.5
22
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
4.3 REAR ENGINE RIDER DRIVE COMPONENTS
The following drive components may be adjusted by
the owner. However, it is recommended that all
adjustments to the Rear Engine Rider be made by
an authorized SNAPPER dealer.
4.3.1. CLUTCH - STARTING MOTION ADJUSTMENT
If the Rear Engine Rider clutch is too positive or
slips excessively when the clutch/brake pedal is
released, adjust as follows:
IMPORTANT: If the Rear Engine Rider will be on its rear
bumper for longer than two hours, remove the battery,
Refer to Section "BATTERY REMOVAL",
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
4. Locate yoke arm between chain case and
differential.
5. Move spring to first hole (for positive clutch
action) to 4th hole (to increase clutch slippage).
See Figure 4.7.
CLUTCH YOKE LOCATE SPRING IN
ARM uDESIRED HOLE
4.3.2. SERVICE BRAKE/PARK BRAKE
ADJUSTMENT
Test the wheel brake on a dry concrete surface. When
properly adjusted, the Rear Engine Rider will stop
within 5 feet from fastest speed. If stopping distance is
more than 5 feet, the wheel brake should be adjusted
as follows:
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
4. Depress clutch/brake pedal all the way down.
Move and hold the park brake latch over in the
"ENGAGED" position and release the clutch/brake
pedal to set the park brake. See Figure 4.8.
DEPRESS
CLUTCH/BRAKE
""M_OVE PARKING
BRAKE LATCH
OVER TO ENGAGE
F_,
FIGURE 4.8
(Continued on next page)
FIGURE 4.7
23
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
4.3 REAR ENGINE RIDER DRIVE COMPONENTS
4.3.2. SERVICE BRAKE/PARK BRAKE
ADJUSTMENT
(Continued From Previous Page)
IMPORTANT: If the Rear Engine Rider will be on its rear
bumper for longer than two hours, remove the battery.
Refer to Section "BATTERY REMOVAL".
5. Measure the distance between end of
clutch/brake cable and bottom of housing.
Measurement should be 314". See inset, Figure
4.9.
CHAIN
CASE I I I
4.4
BRAKE CABLE CHAIN CASE
LOOSEN
/
FIGURE 4.10
MOWER BLADE REPLACEMENT
4.4.1. BLADE WEAR LIMITS
1. Inspect blade frequently for signs of excessive
wear or damage. See Figure 4.1 1.
HOUSING
CABLE
COTTER-
PIN
HOUSING
COTTER PIN
NEW BLADE .--------_'_
"_,,_ WEAR LIMIT
(NOTCHSTARTS)
-_ DANGEROUS CONDITION[
_'_-"'_ DO NOT USE ON MOWER!
-- ____w/j REPLACEWITHNEW
BLADE.
FIGURE 4.9
6. If measurement is not 3/4", loosen the two jam-nuts
(shown in Figure 4.10) holding the clutch/brake cable
to the chain case bracket.
7. Adjust cable up or down using the jam-nuts to
obtain a distance 3/4" between end of clutch/brake
cable and bottom of housing. See Figure 4.9.
8. After adjustment is complete, securely tighten cable
jam-nuts and retest wheel brake.
FIGURE 4.11
lL WARNING
Blades are extremely sharp and can cause severe I
injuries. Wear heavy leather gloves when working on or I
handling blades. DO NOT use blades that show signs I
of wear or damage. I
24
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.
DO NOT use a cutting blade that shows signs of
excessive wear or damage on the Rear Engine Rider.
On Rear Engine Riders equipped with a grass
catcher attachment, the air lifts should be replaced
when the blade is replaced.
IMPORTANT: If the Rear Engine Rider will be on its rear
bumper for longer than two hours, remove the battery.
Refer to Section "BATTERY REMOVAL".
4.4.2. BLADE SHARPENING
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
4. Remove blade. See Figure 4.12.
WARNING
Blades are extremely sharp and can cause severe I
injuries. Wear heavy leather gloves when working on or
handling blades. DO NOT use blades that show signs
of wear or damage. I
DO NOT SHARPEN BEYOND
ORIGINAL CUTTING EDGE
BLADE TIP )
/
.CUTTING EDGE
4.5
FIGURE 4.13
BLADE DRIVE BELT REPLACEMENT
Inspect mower drive belt. Refer to Section "CHECK
BLADE DRIVE BELT". Replace belt if signs of
excessive wear and/or damage are present.
4.5.1. BELT REMOVAL
1. Remove mower drive belt cover. Refer
Section "DRIVE BELT COVER REMOVAL".
2. Remove old belt.
to
FIGURE 4.12
5. Inspect condition of blade. See Figure 4.11.
6. If blade is in good condition, sharpen at 22 to 28
degrees. DO NOT sharpen beyond existing cutting
edge. See Figure 4.13.
7. Check blade balance after sharpening. If
necessary, correct blade balance by grinding the
heavy end of blade.
8. Reinstall blade. See Figure 4.12. Torque blade
mounting bolts to recommended range of 30 to 40
ft. Ibs.
25
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. STOP
engine. STOP blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and vent
must be closed securely to prevent fuel spillage.

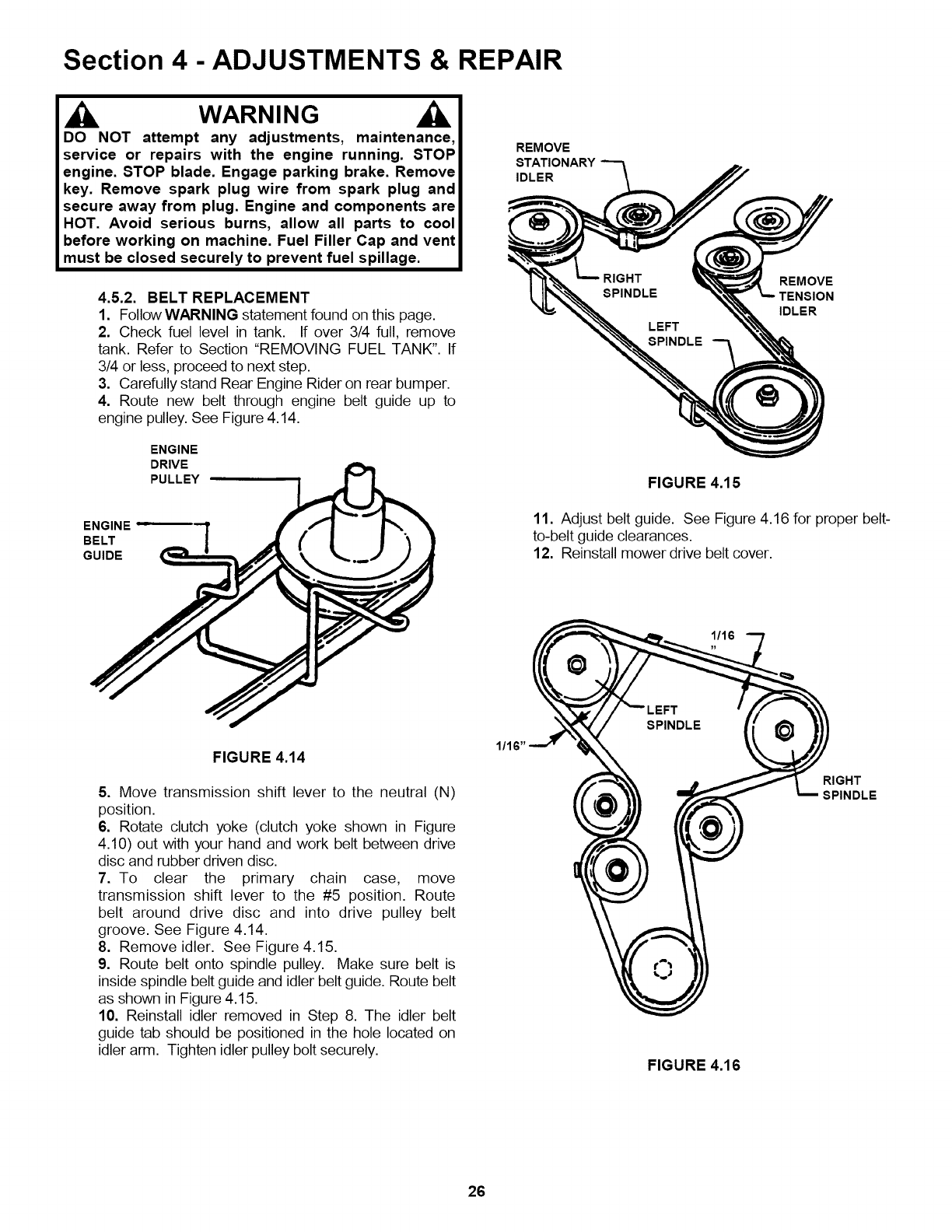

4.5.2. BELT REPLACEMENT
1. Follow WARNING statement found on this page.
2. Check fuel level in tank. If over 3/4 full, remove
tank. Refer to Section "REMOVING FUEL TANK". If
3/4 or less, proceed to next step.
3. Carefully stand Rear Engine Rider on rear bumper.
4. Route new belt through engine belt guide up to
engine pulley. See Figure 4.14.
ENGINE
DRIVE
PULLEY
ENGINE
BELT
GUIDE
REMOVE
STATIONARY
IDLER
REMOVE
IDLER
FIGURE 4.15
11. Adjust belt guide. See Figure 4.16 for proper belt-
to-belt guide clearances.
12. Reinstall mower drive belt cover.
1/16
FIGURE 4.14
5. Move transmission shift lever to the neutral (N)
position.
6. Rotate clutch yoke (clutch yoke shown in Figure
4.10) out with your hand and work belt between drive
disc and rubber driven disc.
7. To clear the primary chain case, move
transmission shift lever to the #5 position. Route
belt around drive disc and into drive pulley belt
groove. See Figure 4.14.
8. Remove idler. See Figure 4.15.
9. Route belt onto spindle pulley. Make sure belt is
inside spindle belt guide and idler belt guide. Route belt
as shown in Figure 4.15.
10. Reinstall idler removed in Step 8. The idler belt
guide tab should be positioned in the hole located on
idler arm. Tighten idler pulley bolt securely.
1/1E
FIGURE 4.16
RIGHT
SPINDLE
26
Section 4 - ADJUSTMENTS & REPAIR
WARNING
DO NOT attempt any adjustments, maintenance,
service or repairs with the engine running. Stop
engine. Stop blade. Engage parking brake. Remove
key. Remove spark plug wire from spark plug and
secure away from plug. Engine and components are
HOT. Avoid serious burns, allow all parts to cool
before working on machine. Fuel Filler Cap and Vent
must be closed securely to prevent fuel spillage. DO
NOT attempt to service or charge the battery while it
is installed on the machine.
RED
POSITIVE
(+)
BLACK
NEGATIVE (-)
CABLE
POSITIVE TERMINAL
INSULATOR

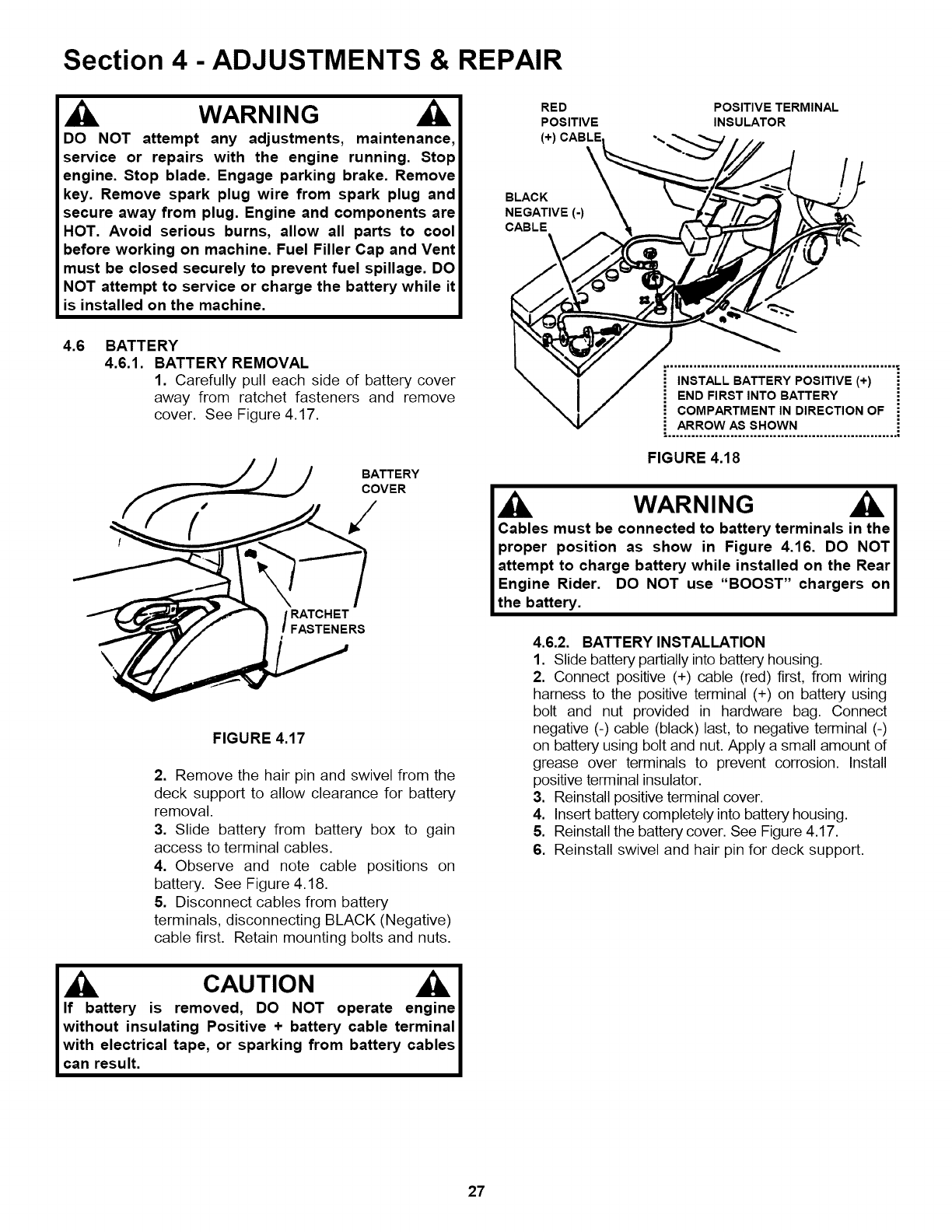

4.6 BATTERY
4.6.1. BATTERY REMOVAL
1. Carefully pull each side of battery cover
away from ratchet fasteners and remove
cover. See Figure 4.17.
BATTERY
COVER
/
RATCHET
FASTENERS
FIGURE 4.17
2. Remove the hair pin and swivel from the
deck support to allow clearance for battery
removal.
3. Slide battery from battery box to gain
access to terminal cables.
4. Observe and note cable positions on
battery. See Figure 4.18.
5. Disconnect cables from battery
terminals, disconnecting BLACK (Negative)
cable first. Retain mounting bolts and nuts.
CAUTION
If battery is removed, DO NOT operate engine
without insulating Positive + battery cable terminal
with electrical tape, or sparking from battery cables
can result.
INSTALL BATTERY POSITIVE (+)
END FIRST INTO BATTERY
COMPARTMENT IN DIRECTION OF
ARROW AS SHOWN
i ........................................................... i
FIGURE 4.18
WARNING
Cables must be connected to battery terminals in the
proper position as show in Figure 4.16. DO NOT
attempt to charge battery while installed on the Rear
Engine Rider. DO NOT use "BOOST" chargers on
the battery.
4.6.2. BATTERY INSTALLATION
1. Slide battery partially into battery housing.
2. Connect positive (+) cable (red) first, from wiring
harness to the positive terminal (+) on battery using
bolt and nut provided in hardware bag. Connect
negative (-) cable (black)last, to negative terminal (-)
on battery using bolt and nut. Apply a small amount of
grease over terminals to prevent corrosion. Install
positive terminal insulator.
3. Reinstall positive terminal cover.
4. Insert battery completely into battery housing.
5. Reinstall the battery cover. See Figure 4.17.
6. Reinstall swivel and hair pin for deck support.
27
Section 4 - ADJUSTMENTS & REPAIR
WARNING
The electrolyte (acid) produces ahighly explosive gas.
Keep all sparks, flame and fire away from area when
charging battery or when handling electrolyte or
battery. Electrolyte (acid) is ahighly corrosive liquid.
Wear eye protection. Wash affected areas immediately
after having eye or skin contact with electrolyte (acid).
Battery acid is corrosive. Rinse empty acid containers
with water and mutilate before discarding. If acid is
spilled on battery, bench, or clothing, etc., Flush with
clear water and neutralize with baking soda. DO NOT
attempt to charge battery while installed on the
machine. DO NOT use "BOOST" chargers on the
battery.
4.6.3. BATTERY SERVICE
1. Remove battery. See Section on Battery Removal
2. Place battery in a well ventilated area on a level
surface.
3. Using distilled water, refill cells as required to
cover cell plates of which can also be visualized
through the plastic battery case.
4. With cell caps removed, connect battery charger
to battery terminals. Red to positive (+) terminal
and black to negative (-) terminal.
5. Slow charge battery at 1 amp for 10 hours.
6. If battery will not accept charge or is partially
charged after 10 hours of charging at 1 amp,
replace with new battery.
4.6.4. BATTERY STORAGE
If mower is to be stored out of season on its rear
bumper, it is recommended the battery be removed,
charged and stored.
1. Remove battery. (Refer to Section "BATTERY
REMOVAL").
2. Perform battery service.
3. Bring battery to full charge, if required.
4. Store battery in an area away from the RIDER on a
wood surface. DO NOT STORE BATTERY ON A
CONCRETE SURFACE.
4.6.5. NEW BATTERY PREPARATION
1. Remove battery from carton.
2. Place battery in a well ventilated area on a level
non-concrete surface.
3. Remove battery cell caps. Fill cells as required
with electrolyte (purchased separately) to proper
level. Fill to 3/16" above cell plates. Filling battery
with electrolyte will bring the battery to 80% charged
state.
4. With cell caps removed, connect battery charger to
battery terminals; RED to positive (+) and BLACK to
negative (-) terminal.
IMPORTANT: 3/16" above cell plates is the recommended
level. DO NOT place anything in battery other than specified
electrolyte.
DO NOT attempt to charge battery while installed on
Riding Mower. DO NOT use "BOOST" chargers on
battery. DO NOT OVERFILL!
5. Slow charge the battery at 1 amp for 2 hours to
bring the battery to full charge.
6. After charging, check level of electrolyte and add
as needed to bring level to 3/16" above cell plates.
7. Reinstall cell caps.
8. Install battery into power unit. Refer to Section
"BATTERY INSTALLATION".
9. Connect positive (+) cable (red) first, from wiring
harness to the positive terminal (+) on battery using
bolt and nut provided in hardware bag. Connect
negative (-) cable (black) last, to negative terminal
(-) on battery using bolt and nut. Apply a small
amount of grease over terminals to prevent
corrosion.
WARNING
Shield the positive terminal with terminal cover
located on battery harness. This prevents metal from
touching the positive terminal, which could cause
sparks.
4.6.6. BATTERY TESTING
There are two types of battery tests: Unloaded and
Loaded. The unloaded test is the procedure that will
be discussed. It's the simplest and most commonly
used. An unloaded test is made on a battery without
discharging current. To perform unloaded testing,
check charge condition using either a hydrometer or
voltmeter.
1. Using a voltmeter, voltage readings appear
instantly to show the state of charge. Remember to
hook the positive lead to the battery's positive
terminal, and the negative lead to the negative
terminal.
2. A hydrometer measures the specific gravity of
each cell. The specific gravity tells the degree of
charge; generally, a specific gravity of about 1.265
to 1.280 indicates full charge. A reading of 1.230 to
1.260 indicates the battery should be charged. The
chart on the next page shows the charge level as
measured by syringe float hydrometer, digital
voltmeter and five ball hydrometer.
(Battery Testing Chart on Next Page)
28
Section 4 - ADJUSTMENTS & REPAIR
4.6.6. BATTERY TESTING
State of Charge
100% Charged w/Sulfate Stop
100% Charged
75% Charged
50% Charged
25% Charged
0% Charged
Battery Condition Chart
Syringe Hydrometer
1.280
1.265
1.210
1.160
1.120
Less than 1.100
Digital Voltmeter
12.80v
12.60v
12.40v
12.10v
11.90v
Less than 11.80v
Five Ball Hydrometer
Five Balls Floating
Four Balls Floating
Three Balls Floating
Two Balls Floating
One Ball Floating
Zero Balls Floating
SNAPPER REAR ENGINE RIDER ACCESSORIES
PART NO.
6-0517 ..........................
6-0601 ..........................
6-0697 ..........................
6-1400 ..........................
6-0794 ..........................
6-0941 ..........................
6-0942 ..........................
6-0943 ..........................
6-0944 ..........................
6-0945 ..........................
6-0946 ..........................
6-0947 ..........................
6-0948 ..........................
6-0964 ..........................
6-1190 ..........................
6-0959 ..........................
6-0357 ..........................
6-0358 ..........................
6-1823 ..........................
6-1049 ..........................
6-1253 ..........................
6-1254 ..........................
6-1255 ..........................
6-1220 ..........................
6-1910 ..........................
6-1911 ..........................
6-1912 ..........................
6-1913 ..........................
6-1914 ..........................
6-1915 ..........................
6-1916 ..........................
DESCRIPTION OF KIT MODELS USED ON
Wheel Weight (8" Wheels) ............................. All
Smooth Start Clutch ....................................... All
Dump Cart ...................................................... All
Gauge Wheel ................................................. All
Rear Engine Riders
Rear Engine Riders
Rear Engine Riders
33" Deck Rear Engine Riders
Gauge Wheel ................................................. All 41" & 42" Deck Rear Engine Riders
Single Bag Catcher ........................................ All 25" Deck Rear Engine Riders
Single Bag Catcher ........................................ All 26" & 30" Deck Rear Engine Riders
Single Bag Catcher ........................................ All 28" & 33" Deck Rear Engine Riders
Single Bag Catcher ........................................ All
Twin Bag Catcher ........................................... All
Twin Bag Catcher ........................................... All
Bag-N-Wagon ................................................ All
41" & 42" Deck
41" & 42" Deck
28"& 33" Deck
28"& 33" Deck
Rear Engine Riders
Rear Engine Riders
Rear Engine Riders
Rear Engine Riders
Thatcherizer ................................................... All
Wagon Cover ................................................. All
Weight (Front) ................................................ All
Dozer Blade (36" Blade) ................................. All
Series 7 & Newer Riders
28" & 33" Deck Rear Engine Riders
Series 7 & Newer Riders
Rear Engine Riders
Tire Chains (Tires-16 x 6.50-8) ...................... All
Tire Chains (Tires-16 x 4.80-8) ...................... All
Ninja Recycling (Cover) ................................. All
Recycling (Cover) ........................................... All
Rear Engine Riders
Rear Engine Riders
25" Deck Rear Engine Riders
25" Deck Rear Engine Riders
Ninja Recycling (Cover) .................................. All 28" Deck Rear Engine Riders
Ninja Recycling (Cover) .................................. All 30" Deck Rear Engine Riders
Ninja Recycling (Cover) .................................. All 33" Deck Rear Engine Riders
Ninja Recycling (Cover) .................................. All 41" & 42" Deck Rear Engine Riders
Utility Trailer
Aerator
Dethatcher
Lawn Sweeper
Dethatcher Kit
Lawn Roller
Broadcast Spreader
29
PROBLEM
EngineWillNot
StartUsing
RecoilStarter
EngineWill Not
Start Using
Electric Starter
TROUBLESHOOTING
PROBABLE CAUSE
1. Fuel tank empty.
2. Engine needs choking.
3. Spark plug wire disconnected.
4.
CORRECTIVE ACTION
1. Fill fuel tank with fresh fuel to proper level.
2. Move choke control to "CHOKE" position.
3. Place spark plug wire onto spark plug.
Faulty parking brake, blade or ignition switch. 4. Contact authorized SNAPPER dealer.
5. Park brake not engaged. 5. Engage park brake.
6. Fuel Shut-Off in the "OFF" position 6. Turn Fuel Shut-Off to "ON" position
7. Ignition is in the OFF position. 7. Turn ignition switch to the RUN position.
1. Fuel tank empty. 1. Fill fuel tank with fresh fuel to proper level.
2. Engine needs choking. 2. Move choke control to "CHOKE" position.
3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.
4. Faulty parking brake, blade or ignition switch. 4. Contact authorized SNAPPER dealer.
5. Park brake not engaged. 5. Engage park brake.
6. Blown Fuse. 6. Replace with new 20 AMP fuse.
7. Faulty interlock module. 7. Contact authorized SNAPPER dealer.
8. Ignition is in the OFF position. 8. Turn ignition switch to the START position.
9. Battery is weak or dead. 9. Charge or replace with new battery.
10. Battery cables loose, broken disconnected or
corroded.
11. Faulty electric starter or starter solenoid.
12. Starter cable loose, broken or disconnected.
13. Electrical wiring harness disconnected or broken.
14. Fuel Shut-Off in the "OFF" position
Engine Stalls After 1. Operator not in seat.
Running 2. Choke control in the "CHOKE" position.
3. Fuel tank empty.
4. Engine air pre-cleaner and or air cleaner dirty.
5. Spark plug defective or gap set improperly.
6. Fuel filter restricted.
7. Fuel Shut-Off in the "OFF" position
8. Water, debris or stale fuel in fuel system.
Engine Loses 1. Excessive load on engine.
Power 2. Engine air pre-cleaner or air cleaner dirty.
3. Spark plug faulty.
4. Water, debris or stale fuel in fuel system.
5. Debris build up on engine cooling screen.
Engine Backfires 1. Throttle control set too "FAST".
When Turned To
"STOP"
10. Clean and connect battery cables. If
broken, replace with new battery cables.
11. Contact authorized SNAPPER dealer.
12. Connect starter cable. If broken, replace
with new starter cable.
13. Connect or replace with new wiring harness.
14. Turn Fuel Shut-Off to "ON" position
1. Sit in operator's seat.
2. Move choke control to "OFF" position.
3. Fill fuel tank with fresh fuel to proper level.
4. Clean free of all debris.
5. Service spark plug.
6. Replace fuel filter.
7. Turn Fuel Shut-Off to "ON" position
8. Drain and clean fuel system.
1. Lessen load.
2. Clean or replace filters.
3. Service spark plug.
4. Drain and clean fuel system. Replace filter.
5. Clean all debris from engine cooling screen.
1. Set throttle control to "SLOW" and allow
engine to idle. Then, turn key to "OFF".
Excessive Vibration 1. Damaged, out of balance or bent mower blades. 1. Service mower blade(s).
2. Loose blade components. 2. Service and tighten loose parts.
3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.
4. Lumpy or frayed belt. 4. Replace belt.
5. Bent Idler, stationary or spindle pulley. 5. Replace pulley.
(Trouble Shooting Continued on Next Page)
30
PROBLEM
RiderWill NotMove
LossOfTraction
Blade(s)NotCutting
CuttingGrass
Improperly
PoorGrass
Discharge
TROUBLESHOOTING
CORRECTIVE ACTION
Replace drive disc.
Adjust rubber drive disc.
PROBABLE CAUSE
1. Drive disc worn or damaqed. 1.
2. Rubber drive disc is not tracking properly on 2.
drive disc.
3. Tapered axle bolt and nut missing. 3.
4. Axle bearing seized. 4.
5. Insufficient lubrication in chain case or 5.
transmission/differential.
1. Blade engagement lever in the "OFF" position. 1.
2. Mower belt slipping. 2.
3. Cutting blade is dull, worn or damaged. 3.
1. Uneven tire pressure. 1.
2. Cutting height too low or high. 2.
3. Engine speed too slow. 3.
4. Forward speed too fast. 4.
5. Terraced cut, side to side. 5.
6. Excessive deck pitch, front to rear. 6.
7. Cutting blade(s) dull or damaged. 7.
8. Mower belt slipping. 8.
1. Engine speed too slow. 1.
2. Forward speed too fast. 2.
3. Grass is wet. 3.
4. Excessively dull, worn or damaged blade(s). 4.
5. Build up of grass clippings and debris under 5.
deck.
6. Improper blade installed on deck. 6.
1. Leaking chain case or differential plugs. 1.
2. Leaking engine block. 2.
Replace with SNAPPER tapered bolt & nut.
Contact authorized SNAPPER dealer.
Contact authorized SNAPPER dealer.
Move lever to the "ON" position.
Adjust or replace mower belt.
Sharpen or replace cutting blade.
Bring to proper pressure. 12 PSI front tire
& 12 PSI rear tire.
Adjust cutting height.
Move throttle control to "FAST" position.
Move transmission shift lever to a slower
speed.
Adjust side to side level.
Adjust front to rear pitch.
Sharpen cutting edges or replace blade(s).
Adjust tension or replace mower belt.
Move throttle control to "FAST" position.
Move transmission shift lever to a slower
speed.
Mow when grass is dry.
Service mower blade.
Clean the underside of deck.
Install proper SNAPPER blades.
Oil Leaking Verify plugs are not cracked & are in good
shape. Check gaskets.
Contact authorized SNAPPER dealer.
31
MAINTENANCE SCHEDULE
SUBJECT
Engine
Tires
Engine
Engine
Air Pre-Cleaner
Air Cleaner
Spark Plug
Fuel Filter
Engine Cooling
System
Battery
Battery
Drive Belts
Mower Blades
Mower Deck
Lubrication Points
Lubricate Chain Case
& Transmission
Blade Stop Time
Clutch/Brake System
Reverse Lockout
Mechanism
SERVICE
TO BE PERFORMED
Check Oil Level
Check Pressures
Initial Oil Change
Periodic Oil Change
Service Sponge Pre-
Cleaner Element
Replace Element
Replace Plugs
Replace Filter
Clean Shrouds & Fins
Check Electrolyte
Charge Battery
Check For Wear And
Tension
Check For Wear And
Damage
Clean Debris
Accumulation
Grease or Oil
Check Grease Level
Check blade stopping
for proper operation
Check Clutch/Brake
Operation & Adjustment
Check function.
REFERENCE
PAGES
Page 6
Page 6
Page 13
Page 15
Engine Manual
Engine Manual
Engine Manual
Page 18
Engine Manual
Page 16
Page 28, 29
Pages 14, 20, 21
Pages 13, 24, 25
EACH
USE
X
X
Page 16 X
Pages 17
Pages 17 & 18
Pages 9, 10 X
Pages 7, 9, 10, X
11
Page 6, 12, 15 X
6
HOURS
X
X
26
HOURS
X
X
X
X
X
60
HOURS
X*
*Change oil every 25 hours when operating under heavy load or high temperatures.
**Clean more often under dusty conditions or when air debris is present
MAINTENANCE/REPLACEMENT PARTS
100
HOURS
X
X
X**
X
EACH
SEASON
X
X
X
X
X
X
X
X
MAINTENANCE PARTS
Engine Speed Control (18 HP Briggs Engine)
En_line Speed Control 116 HP Bri_l_ls En_lineI
Choke Control
Clutch/Brake Cable
Brake Cable
42" Cutter Blade IStandard -Air Lift Compatible I
42" Cutter Blade (Standard -Not Air Lift Compatible)
42" Cutter Blade INinia -Quad EddieI
Air Lift Kit
En_line to Cuttin_l Deck Belt
Rubber Drive Disc
Parts Manual for Rear En_line Rider Series 22 & 23
7-4321
2-2751
2-4185
7-4131
7-1909
1-9795
2-6691
2-6407
6-0735
2-8784
5-3103
06130
32
3 YEAR LIMITED WARRANTY
For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through
any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found
upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residential use,
SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon
examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.
All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for
replacement under this warranty must be paid by the purchaser.
This warranty does not apply to engines and their components, and batteries, as these items are warranted separately.
This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper lubrication,
normal wear, or other cause beyond the control of SNAPPER. This warranty does not cover any machine or component
part that has been altered or modified changing safety, performance, or durability.
Batteries have a one (1) year prorated warranty period with free replacement if required during the first ninety (90) days
from the original purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty
only covers original equipment batteries and does not cover damage to the battery or machine caused by neglect or
abuse, destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.
There is no other express warranty.
DISCLAIMER OF WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to three
(3) years from purchase date for the original purchaser's residential or other non-commercial use, and ninety
(90) days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the
extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for
consequential damages, under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE
SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER
ASSOCIATED WITH THE USE OF SUCH PARTS.
IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:
Snapper's Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253
33
PRIMARY MAINTENANCE
®
.4
vs.DIRT u
an
illustration of
how dirt can
damage your
,engine &how
reasonable
ance
can protect it!
Snapper uses the best avail-
able engines and components
In their products In orcler to
provide long, satisfactory
service. However, proper
care is essential In
prolonging engine life. Dirt
Is your engine's enemy
number 11
The engine on your Snapper
product spends Its entire life
operating close to the ground at
high speed creating a virtual
storm of dust and dirt!
34
PRIMARY MAINTENANCE
The engine must
gulp about 12,000
gallons of air for
every gallon of fu(
used. Because of
its working environ-
ment, the air available .':
to your Snapper engine Is "
heavily saturated with air-
borne dirt particles.
(nowing that dirt will
quickly ruin an engine,
manufacturers equip their
engines with extremely
efficient air cleaners to
filter out the harmful dirt.
As the dirt particles are stopped,
they build up and begin to clog
the outside of the filter. This
reduces the amount of air
available to the engine and causes
an over-rich fuel mixture which re-
suits In the following adverse
effects:
An Improperly serviced, dirt
clogged air cleaner wilh
Damage caused by a poorly serviced air
cleaner is not covered under the engine
warranties. So, save yourself unnecessary
expenses and undue aggravation by keeping
the air cleaner properly serviced at the Intervals
specified In the engine owner's manual.
1. Increase fuel consumption
2. cause power loss
3. result in hard starting A !
4 create smoke from unburned
fuel
5. produce carbon build-up .
Internally i
foul spark plug electrodes _
). score cylinder walls .L, -_
81 burn valves _)
swear out the engine pre-
maturely '_
10. COST YOU MONEY! _'_
._/
It doesn't take long to service an air cleaner•
Follow the specific Instructions In the engine
owner's manual for the type filter used. Pre-
vent dirt from falling Into the carburetor Intake
when servicing your air cleaner. Make sure
components are Installed In correct sequence
after servicing to prevent unfiltered air from
entering the engine. Some servicing hints on
several common types are:
I
35
PRIMARY MAINTENANCE
Generally, wash foam-type filters
In a dishwashlng detergent and
water solution. Rinse and wring
dry, then saturate with oil and
squeeze out excess. Failure to
re-oil this type filter will ruin the
engine.
Clean paper elements by tapping
lightly. Blowing with air will
rupture paper elements.
Use a flashlight to detect clogged
or torn paper elements -replace If
damaged In any way.
Air Is also needed to keep
your engine cool. Dirt, dust
& debris build up to restrict
and clog cooling air Intake
screens and fins. Clean
screens and fins at frequent
Intervals. The engine blower
housing and shrouds should
be removed at least once
each season or more often
lunder dry, dusty conditions
for a thorough cleaning of
fins.
Failure to keep external
surfaces clean not only
presents fire hazards, but
causes overheating and
resulting engine damages
such as:
1. distorted valve guides
2. sticking valves
i°o. 3. scuffed, scored
walls
4. overspeedlng
5. loss of power
6. complete failure of
engine.
Dirt can also be introduced
Into an engine In dirty fuel
from a contaminated
container. Always use clean
fresh fuel from aclean
container to guard against
dirt, sludge and water
contamination.
Be aware that fuel breaks
down in storage and forms
gummy compounds which
will block carburetor pass-
ages. Never use fuel more
than 3 months old. Drain
tank then run the engine out
of fuel before storing during
the off-season.
An engine must also have proper lubrication.
All engines use some oil. On 4-cycle engines,
CHECK OIL LEVEL BEFORE EACH START-UP.
Wipe area clean around the oll check plug or
dipstick opening to keep dirt from falling Into
the engine when checking the oil. Always
check with the machine on a level surface.
On engines with dipstick, keep the level up to,
but not over, the FULL mark. When adding o11,
allow time for all of the oil to flow down the fill
tube to prevent a false full reading when the
level could actually be low and result In engine
damage.
36
PRIMARY MAINTENANCE
On 4-¢yle engines with an oil level plug,
don't be fooled into thinking the engine has
sufficient lubricating oii if you can see "some"
oil in the opening - the level should always be
brought up to the point of overflowing at the
top of the fill hole.
On 2-cycle engines, lubrication must be
provided by an exact mixture of gasoline
and 2-cycle air-cooled engine oil. A 2-cycle
engine that Is mistakenly run on straight
gasoline will be mined in less than 5
minutes! If you keep straight gasoline In
addition to pre-mixed 2-cycle engine fuel,
be sure the containers are clearly marked
to avoid mix-up.
Snapper 2-cycle engines require a 32 to 1
mixture of gasoline and BIA certified TC-W
oil such as Snapper's 2-cycle engine oil
Many of the 2-cycle engine oils on the
market today make fantastic claims, but for
the best performance and long engine life,
always usa Snapper 2-cycle oil Pre-mix
the fuel and always shake the container
before filling the tank.
Change oil at regular Intervals using a ahigh
quality oil such as Snapper's small engine
formulated a-cycle engine o11. Refer to the
engine owner's manual for oil details.
STARTING CHECK LIST
1. Engine Oil
2. Air Cleaner
3. Fuel Tank
4. Choke
5. Primer (on
some engines)
6. Safety Inter-
lock Switches
7. Switch &
Blade Control
8. 8park plug
g. Throttle
control
10. Blade
11. Muffler
To full level (4-cycle)
Properly mixed with gas
(2 cycle)
Clean and properly serviced
Full fresh clean gasoline
Fuel valve open
Cap vent open
Inline filter clean
Operating properly
Used properly
In proper position
All wires properly connected
Switch On
Blade control properly
positioned on walk mower
Wire connected
Good connection
Start position
Properly Installed and
torqued
Sharpened
Good condition
Not clogged
Grass & leaves cleaned away
Read and follow all safety
Instructions in safety book-
lets and manuals.
Keep in mind that dirt Is your engine's enemy
#1 both Internally and externallyl Internally,
dirt will quickly ruin an engine and externally
It will cause overheating and resulting internal i
Damage caused by Improper lubri-
poor air cleaner service or overheating
due to dirt cannot be covered under warranty.
It only takes a few moments to service the
engine (and equipment) on a routine baals
but the rewards will be aquick starting, re-
sponsive engine that will provide long
satisfactory service with minimum maintenance
cost. The prestart checklist In the next column
and Instructions In your Snapper Operator's
Manual are designated to help you keep your
Snapper In top operating condition with
minimum effortl II
37
SNAPPER PRODUCT REGISTRATION FORM
IMPORTANT: KEEP THIS INFORMATION FOR YOUR PERSONAL RECORDS
(Complete the following information on your Snapper purchase)
Model Number
Serial Number
Date of Purchase
Retailer
Retailer's Phone Number
It is very important that you register your purchase with Snapper to ensure
warranty coverage. Please mail your product registration card to:
Snapper at P.O. Box 777, McDonough, Georgia 30253.
Or you may register on line at www.snapper.com.
You can contact us at our web site or if you would like to speak with a Customer
Service Representative. Call us at the Snapper Customer Relations Center. For
faster service please have your Serial Number and Model Number available.
Call the Snapper Customer Relations Center at 1-800-935-2967.
Eastern Standard Time
Monday through Friday from 8am to 6pm.
Saturday from 9am to lpm.
38
NOTES
39
Safety Instructions & Operator's Manual for
REAR ENGINE RIDING MOWER
SERIES 23
IMPORTANT
Snapper products are built using engines that meet or exceed all applicable emissions requirements on the
date manufactured. The labels on those engines contain very important emissions information and critical
safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine
manual, and on the machine, engine and attachments. If you have any questions about your Snapper product,
contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough,
GA. 30253. Phone: (1-800-935-2967).
WARNING
BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,
CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.
WARNING
ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR
EMIT CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER
REPRODUCTIVE HARM.
SNAPPER° McDonough, GA., 30253 U.S.A.
COPYRIGHT © 2002
SNAPPER IND.
ALL RIGHTS RESERVED
MANUAL No. 7-5131 (I. R., 6/21/02)
40

Navigation menu
