OPERATOR’S
MANUAL
6HP Rear Tine Tiller
Mfg. No. Description
1694161 6016RT, 6HP Rear Tine Tiller
1694908 6016RT, 6HP Rear Tine Tiller
7800052 6016RT, 6HP Rear Tine Tiller
7HP Rear Tine Tiller
Mfg. No. Description
1694162 7016RT, 7HP Rear Tine Tiller
1694909 7016RT, 7HP Rear Tine Tiller
7800053 7016RT, 7HP Rear Tine Tiller
Rear Tine Tiller
1722732
Revision 02
Rev. Date 12/2005
TP 100-2627-02-RT-SMA
OM7016 RT / OM6016RT
Page 1
Table Of Contents
MODEL IDENTIFICATION .......................................... 1
SAFETY RULES ......................................................... 2
Owner's Responsibility ............................................. 2
General .................................................................... 2
Preparation............................................................... 2
Operation ................................................................. 3
Maintenance & Storage ............................................ 3
Safety Decals ........................................................... 4
FEATURES ................................................................. 5
CONTROLS ................................................................ 6
Drive Safety Control Levers ...................................... 6
Reverse Handle........................................................ 6
Engine Controls ........................................................ 7
ADJUSTMENTS ......................................................... 8
Wheel Lockpins ........................................................ 8
Wheel Lockouts ........................................................ 8
Handlebar Adjustments ............................................ 9
Depth Regulator Lever ........................................... 10
Belt Tension Adjustment ......................................... 10
OPERATION ............................................................. 11
Pre-Start Inspection ............................................... 11
Start-up .................................................................. 11
Shutting Down ........................................................ 12
Tilling ...................................................................... 12
TIPS .......................................................................... 13
Tilling Tips .............................................................. 13
Cultivating Tips ....................................................... 13
NORMAL CARE ....................................................... 14
Schedule ................................................................ 14
Servicing The Rototiller .......................................... 15
STORAGE ................................................................. 19
Storage................................................................... 19
TROUBLESHOOTING AND REPAIR ....................... 20
Troubleshooting Guide............................................ 20
SPECIFICATIONS..................................................... 22
Features ................................................................. 22
TECHNICAL MANUALS ........................................... 22
NOTES ...................................................................... 23
You must read, understand and comply with all
safety and operating instructions in this manual
before attempting to setup and operate your
rototiller.
Failure to comply with all safety and operating
instructions can result in loss of machine control,
serious personal injury to you and/or bystanders,
and risk of equipment and property damage. The
triangle in the text signifies important cautions
or warnings which must be followed.
Engine exhaust from this product contains
chemicals known, in certain quantities, to cause
cancer, birth defects, or other reproductive harm.
ROTOTILLER REFERENCE DATA
Model Description/Number
M/N (Manufacturer's Number) S/N (Serial Number)
Dealer Name Date Purchased
ENGINE REFERENCE DATA
Engine Make/Model Engine ID/Serial Number
MODEL IDENTIFICATION
Record your model number, manufacturer number and
serial number in the space provided for easy reference.
The model and manufacturer numbers can be found on
the unit I.D. plate located on the unit's left engine mount.
Refer to the Engine Owner's Manual for location of
engine serial number.
If you have a service problem requiring special
assistance, contact a local dealer for help.
WARNING
WARNING
Page 2
Safety Rules
OWNER'S RESPONSIBILITY
Safe and effective use of the rototiller is the owner's
responsibility.
1. Read and follow all safety instructions.
2. Maintain the tiller according to directions and
schedule included.
3. Ensure that anyone who uses the tiller is familiar
with all controls and safety precautions.
GENERAL
The Safety Alert symbol shown here is used to
alert you to important safety information that must
be read, fully understood, and followed at
all
times
when handling, transporting, operating, servicing, or
storing your rototiller unit.
Each safety alert symbol is followed by a "signal word"
that advised you of the relative intensity, or level, of the
hazard the safety alert instructions pertain to.
The following list of signal words is being provided to
help you understand the intensity levels associated with
each signal word used in this manual.
•CAREFULLY READ THIS MANUAL AND
FOLLOW ALL INSTRUCTIONS.
• Be familiar with all controls before operating the
tiller. Your tiller is equipped with a safety device that
enables you to stop the wheels and tines quickly in
an emergency. Learn how the drive safety control
levers work and how to control the tiller at all times.
• Never allow children to operate the tiller. Keep small
children away from the area being tilled. Do not
allow adults to operate the tiller without proper
instruction.
PREPARATION
• Dress appropriately when operating the tiller. Always
wear sturdy footwear. Never wear sandals,
sneakers, or open shoes, and never operate the
tiller with bare feet. Do not wear loose clothing that
might get caught in moving parts.
• Carefully inspect the area to be tilled, and remove
all foreign objects. Do not till above underground
water lines, gas lines, electric cables, or pipes. Do
not operate the tiller in soil with large rocks and
foreign objects which can damage the equipment.
• Disengage all clutches and shift into neutral before
starting the engine.
• Handle fuel with care; it is highly flammable.
a. Use an approved fuel container.
b. Never add fuel to a running engine or hot engine.
c. Fill fuel tank outdoors with extreme care. Never fill
fuel tank indoors.
d. Replace gasoline cap securely and clean up
spilled fuel before restarting.
• Never attempt to make any adjustments while the
engine is running.
The signal word "DANGER" is used when a
serious injury or fatality will result if the safety
instructions that follow this signal word are not
obeyed.
The right and left sides of your
rototiller are determined from the
operating position as you face the
direction of forward travel.
DANGER
The signal word "WARNING" is used when a
serious injury or fatality could result if the safety
instructions that follow this signal word are not
obeyed.
WARNING
The signal word "CAUTION" is used when
personal injury, or property or equipment damage
could result if the safety instructions that follow
this signal word are not obeyed.
CAUTION
Engine is shipped from factory without oil. You
must add engine oil before starting engine.
Page 3
Safety Rules
OPERATION
• Never operate the tiller without guards, covers, and
hoods in place.
• Never start the engine or operate the tiller with the
wheels in the free-wheel position. Make sure the
wheel lockouts or lockpins are engaged through
wheel hubs and wheel axle. The wheels act as a
brake to keep the tiller at a controlled speed.
Disengage wheels to permit free-wheeling only when
engine is stopped.
• Keep hands, feet, and clothing away from rotating
parts. Keep clear of tiller tines at all times.
• Tines and wheels rotate when tiller is engaged in
forward
or
reverse
-- in
forward
, tines and wheels
rotate when the drive safety control levers are pulled
down; in
reverse
, wheels and tines rotate when the
reverse handle is pulled back towards the operator.
Releasing the drive safety control levers to
neutral
stops the wheels and tines.
• Be extremely cautious when operating in
reverse
.
Take extra care to avoid slipping or falling, and to
keep feet clear of tines.
• Exercise extreme caution when operating on or
crossing gravel drives, walks, or roads. Stay alert for
hidden hazards or traffic.
• After striking a foreign object, stop the engine,
remove the wire from the spark plug, thoroughly
inspect the tiller for any damage, and repair the
damage before restarting and operating the tiller.
• If vegetation clogs the tines, raise the handlebars to
elevate the tines, and run the tiller in
reverse
. If this
does not clean clogged vegetation from the tines,
STOP THE ENGINE AND DISCONNECT THE
SPARK PLUG WIRE before removing vegetation
by hand.
• Engine muffler will be hot from operation. Do not
touch it with bare skin or a severe burn may result.
• If the unit should start to vibrate abnormally, stop
the engine and check immediately for the cause.
Vibration is generally a warning of trouble.
• Do not run the engine indoors; exhaust fumes are
dangerous.
• Do not overload the machine capacity by attempting
to till too deep at too fast a rate.
• Never operate the machine at high transport speeds
on slippery surfaces. Look behind and use care
when backing.
• Never allow bystanders near the unit.
• Use only attachments and accessories approved by
the manufacturer of the tiller.
• Never operate the tiller without good visibility or
light.
• Be careful when tilling in hard ground. The tines may
catch in the ground and propel the tiller forward. If
this occurs, let go of the handlebars and do not
restrain the machine.
• Take all possible precautions when leaving the
machine unattended. Disengage all controls levers,
stop the engine, wait for all moving parts to stop,
and make certain guards and shields are in place.
• When leaving the operating position for any reason:
- shut off the engine.
- wait for all moving parts to stop.
MAINTENANCE AND STORAGE
• Keep machine, attachments, and accessories in
safe working condition.
• Check shear bolts, engine mounting bolts, and other
bolts at frequent intervals for proper tightness to be
sure the equipment is in safe working condition.
• To prevent accidental starting, always disconnect
and secure the spark plug wire from the spark plug
before performing tiller maintenance.
• Never run the engine indoors. Exhaust fumes are
deadly.
• Always allow muffler to cool before filling fuel tank.
• Never store equipment with gasoline in the tank
inside a closed building where fumes may reach an
open flame or spark. Allow the engine to cool before
storing in any building.
• Always refer to the operator's guide instructions for
important details if the tiller is to be stored for an
extended period.
Page 4
Safety Rules

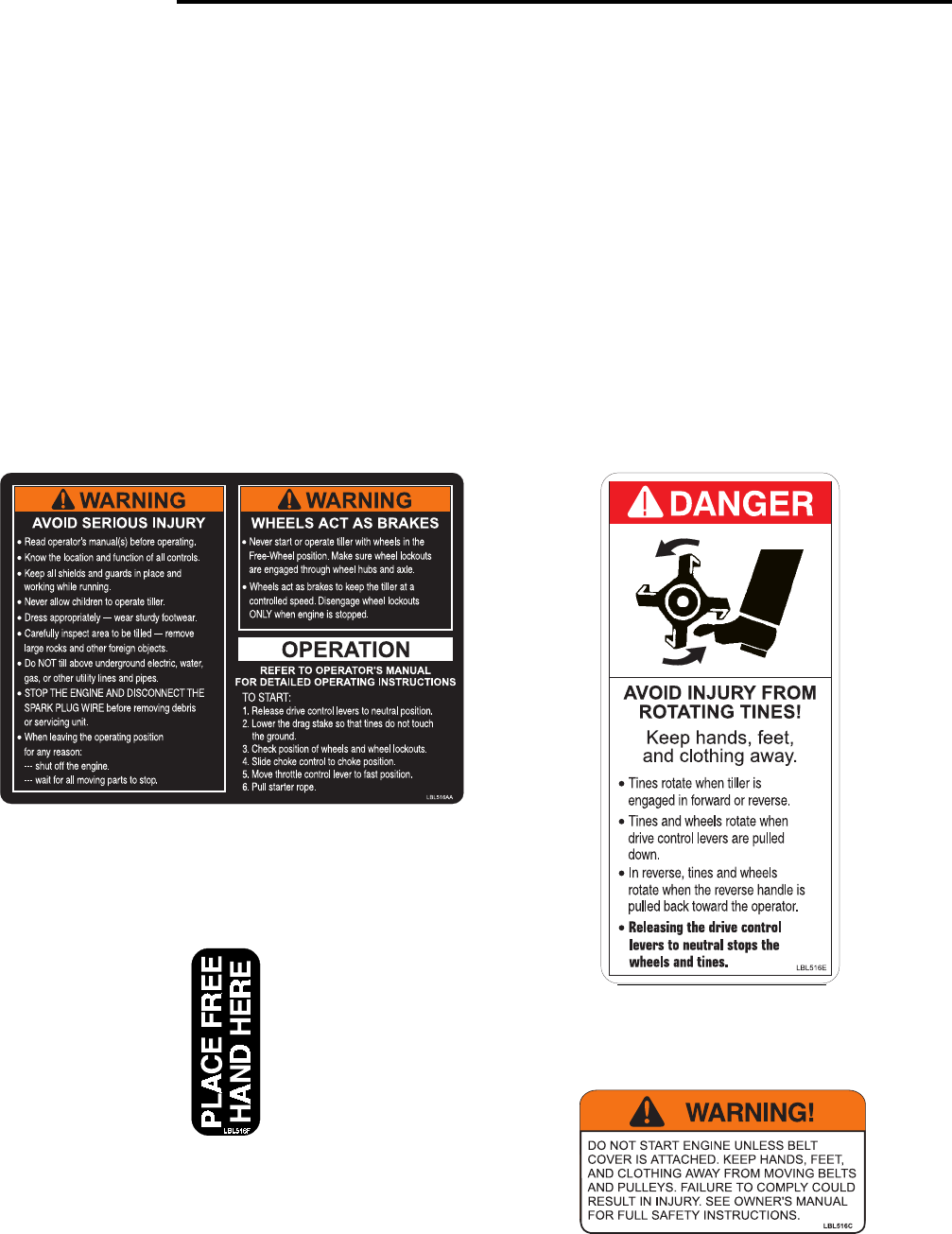

SAFETY DECALS
This rototiller unit has been designed and manufactured to provide you with the safety and reliability you would
expect from an industry leader in outdoor power equipment manufacturing.
Although reading this manual and the safety instructions it contains will provide you with the necessary basic
knowledge to operated this equipment safely and effectively, we have placed several safety labels on the tiller to
remind you of this important information while you are operating the unit.
These important safety labels are illustrated below, and are shown here to help familiarize you with the location and
content of the safety messages you will see as you perform normal tilling operations. Please review these labels
now, and if you have any questions regarding their meaning or how to comply with these instructions, reread the
complete safety instruction text on the preceding pages, or contact your local dealer.
Should any of these labels become unreadable because of being worn, faded, or otherwise damaged during the
use of your tiller, please use the part number information provided to order a replacement label from your local
authorized dealer.
These labels are easily applied, and will act as a constant visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for safe, effective operation of your rototiller.
Part No. 1716839
FREE HAND / Bumper Guard Decal
Part No. 1716747
OPERATING INSTRUCTIONS / Hood Decal
Part No. 1716800
WARNING / Belt Cover Decal
Part No. 1716840
TINES DANGER / Hood Flap Decal
Page 5
7016 RT

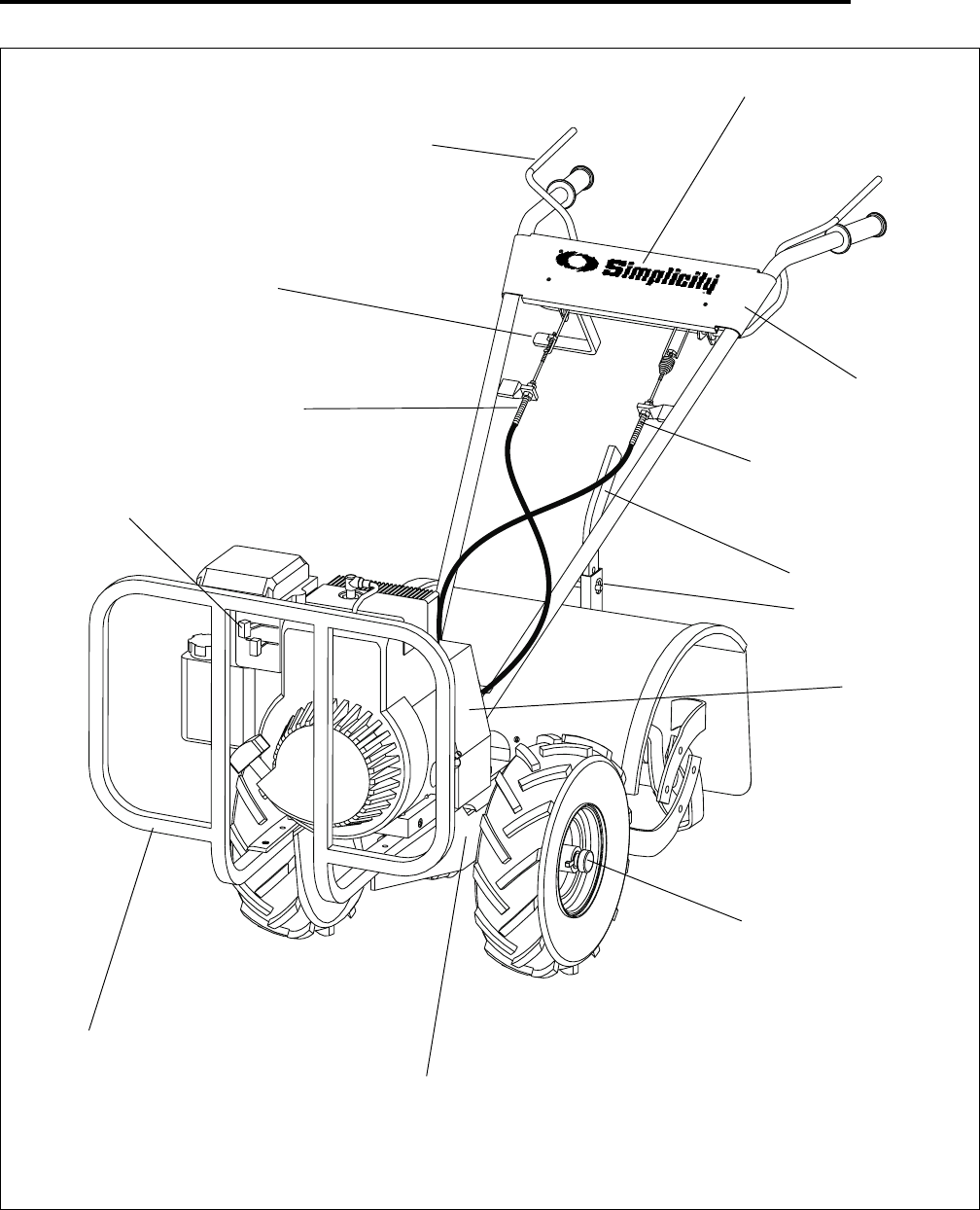

Features
Drag Stake
Wheel Lockouts
(Standard on Model 7016RT)
Reverse Belt Tension
Adjustment
Console
Forward Belt Tension
Adjustment
Reverse Handle
Belt Cover
Serial No. Plate
Drive Safety Control Lever
Detent Pin
Engine Controls
MODEL 7016RT*
Bumper Guard
(Standard on Model 7016RT)
* Hiller-Furrower Attachment
is standard on Model 7016RT
1722551 - Simplicity Logo Decal
1723522 - 7016 RT Decal
1723523 - 6016 RT Decal
Page 6

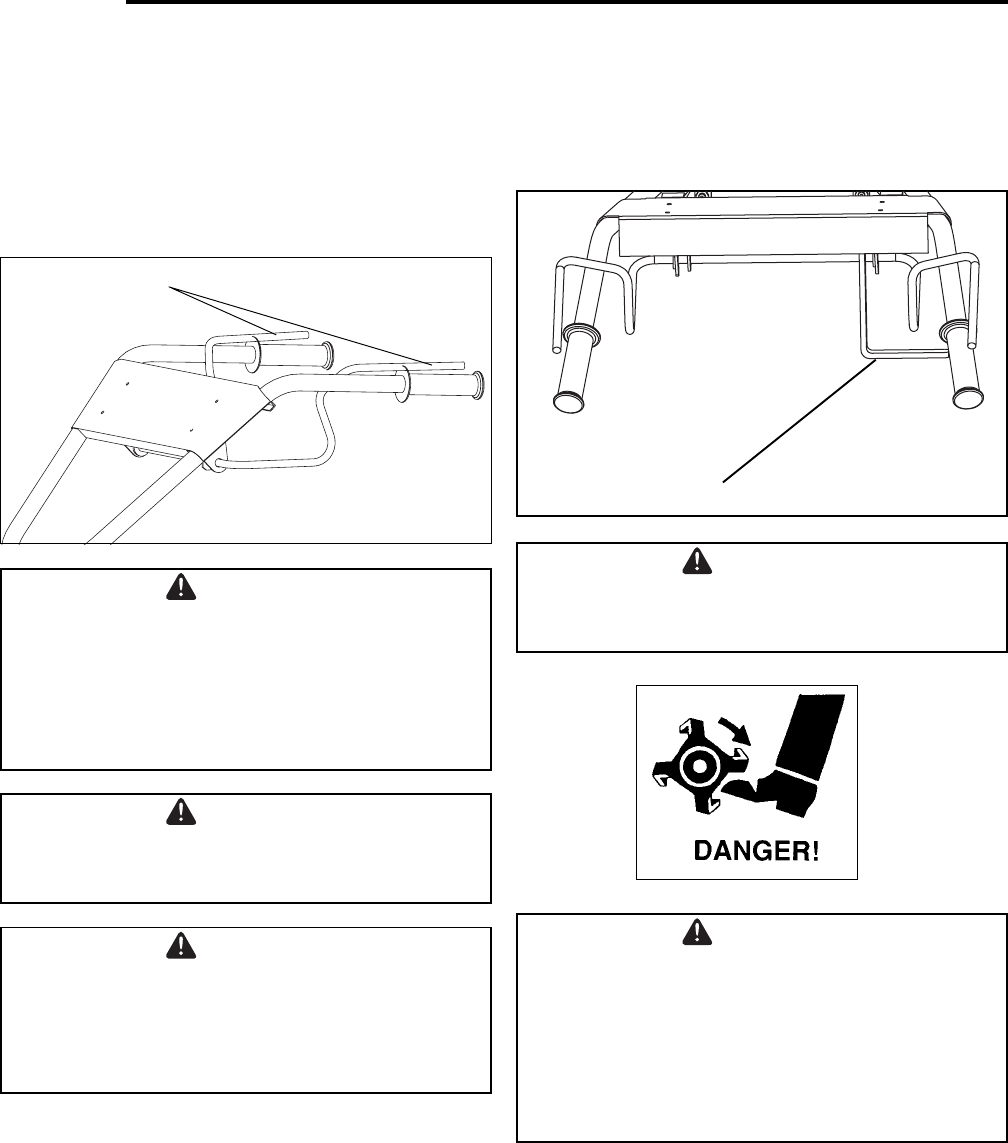

REVERSE HANDLE
Engages wheels and tines in reverse.
Pulling reverse handle back towards operator reverses
tiller.
❖❖
❖❖
❖As a safety precaution, the reverse handle will
not lock in reverse.
❖❖
❖❖
❖To stop the wheels and tines at any time,
release the reverse handle.
❖❖
❖❖
❖Do not operate both the reverse handle and
drive safety control levers at the same time.
Controls
DRIVE SAFETY CONTROL LEVERS
Engage wheels and tines into forward, releasing returns
machine to neutral.
Pulling down on drive safety control levers engages the
wheels and tines. Releasing drive safety control levers
disengages the wheels and brings the tiller to a
complete stop. It is now in the neutral position.
Drive Safety Control
Levers Engaged
reverse handle
This information is provided here only to introduce
the controls. DO NOT START THE ENGINE AT THIS
TIME. Starting and operating instructions are
given on page 11. Please read this section and all
operating and safety instructions before starting
your tiller.
CAUTION
ENGINE SHOULD BE OFF BEFORE ADJUSTING
ANY CONTROLS.
WARNlNG
❖❖
❖❖
❖As a safety precaution, the drive safety control
levers will not lock in the forward position.
❖❖
❖❖
❖To stop the wheels and tines at any time
release the drive safety control levers.
CAUTION
Extreme caution should be used when
operating rototiller in the reverse direction.
WARNlNG
CAUTION
Page 7
Controls
ENGINE CONTROLS
Your new rototiller has been designed for both ease of
use and lasting reliability, and features a simplified
control system that requires just two operating controls.
These two operating controls, the Choke and the
Throttle, are conveniently located on the tiller engine
where they can be easily adjusted to start and run the
unit under a variety of operating conditions.
Throttle
The throttle controls engine speed, and allows you to
conserve fuel when idling, or to run the unit at maximum
speed for optimal tilling performance.
Choke
Put choke control in choke position if engine is cold. A
warm engine requires less choking than a cold engine.
Refer to your engine manual for further information.

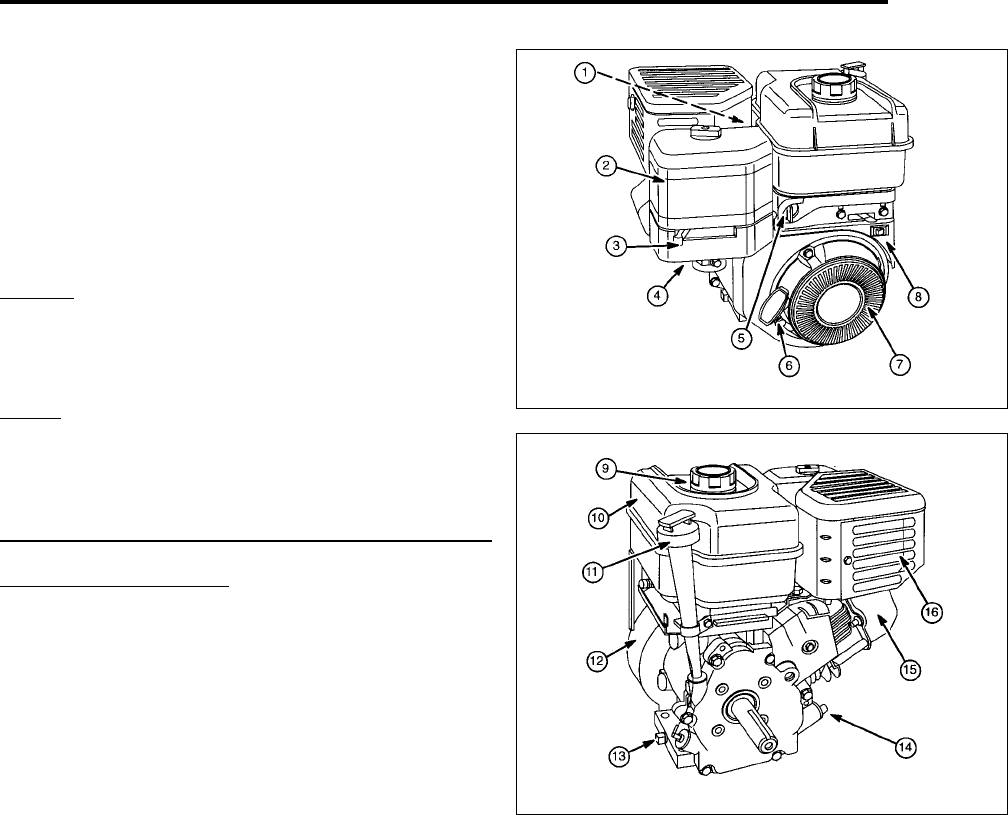

Model 7016RT & 6016RT
1. Spark plug wire
2. Air cleaner
3. Choke
4. Carburetor
5. Fuel shut-off valve (if equipped)
6. Rope handle
7. Finger guard
8. Stop switch (if equipped)
9. Fuel fill
10. Fuel tank
11. Oil fill/Dipstick (if equipped)
12. Blower housing
13. Oil drain plug
14. Oil fill cap
15. Engine Id plate
16. Muffler
Briggs & Stratton Intec Engine
Briggs & Stratton Intec Engine
Page 8

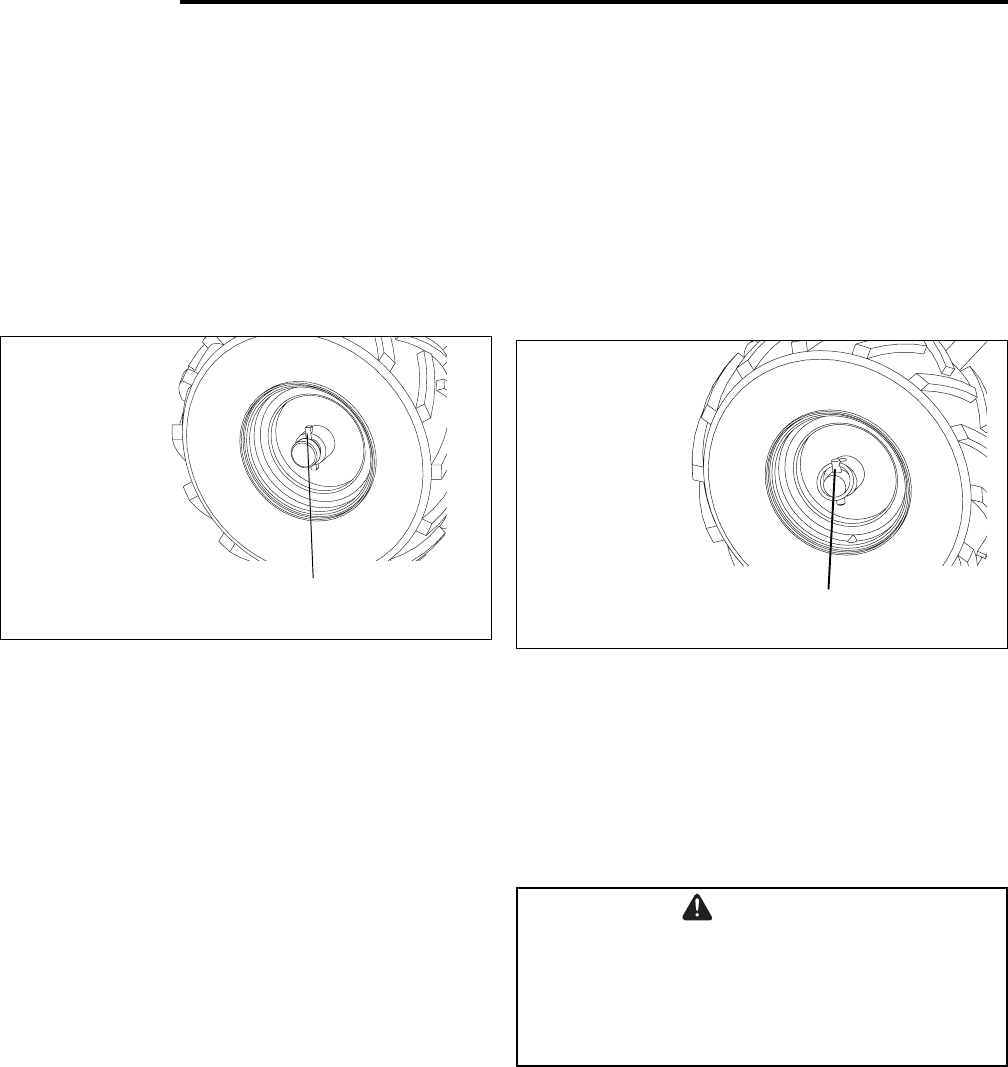

WHEEL LOCKOUTS (7016RT)
Place wheels in tilling position.
1. Pull knob in center of wheel out, away from machine.
2. Rotate knob and lockout to align with slot on axle,
release knob. Rotate wheel to align slot in wheel hub
with lockout.
3. Wheel and axle should be firmly locked together
before tilling.
4. Repeat for other wheel.
NOTE: Always have both wheel lockouts in or out.
Do not operate tiller with only one wheel locked.
To place wheels in free-wheel position.
1. Pull knob in center of wheel out, away from machine.
2. Rotate knob and lockout to align lockout with detent
in end of axle. Release knob.
3. Wheel should turn freely on axle.
WHEEL LOCKPINS (6016RT)
Place wheels in tilling position.
1. Remove lockpin. Align hole in axle with hole in wheel
hub.
2. Insert lockpin through holes, fold lockpin ring to
secure pin to axle.
3. Wheel and axle should be firmly locked together
before tilling.
4. Repeat for other wheel.
NOTE: Always have both wheel lockouts in or out.
Do not operate tiller with only one wheel locked.
To place wheels in free-wheel position.
1. Remove lockpin. Slide wheel inward toward machine.
2. Insert pin in axle only.
3. Wheel should turn freely on axle.
Model
6016RT
(6-hp)
Wheel lockpin in free-wheel position.
(axle hole only)
Wheel lockout in tilling position.
(hub & axle slot)
Model
7016RT
(7-hp)
Never start engine or operate tiller with wheels in
free-wheel position. The free-wheel position is for
transporting the tiller long distances over level
ground--do not attempt to move the tiller up or
down steep grades in the free-wheel position.
Adjustments
WARNING
Page 9
Adjustments

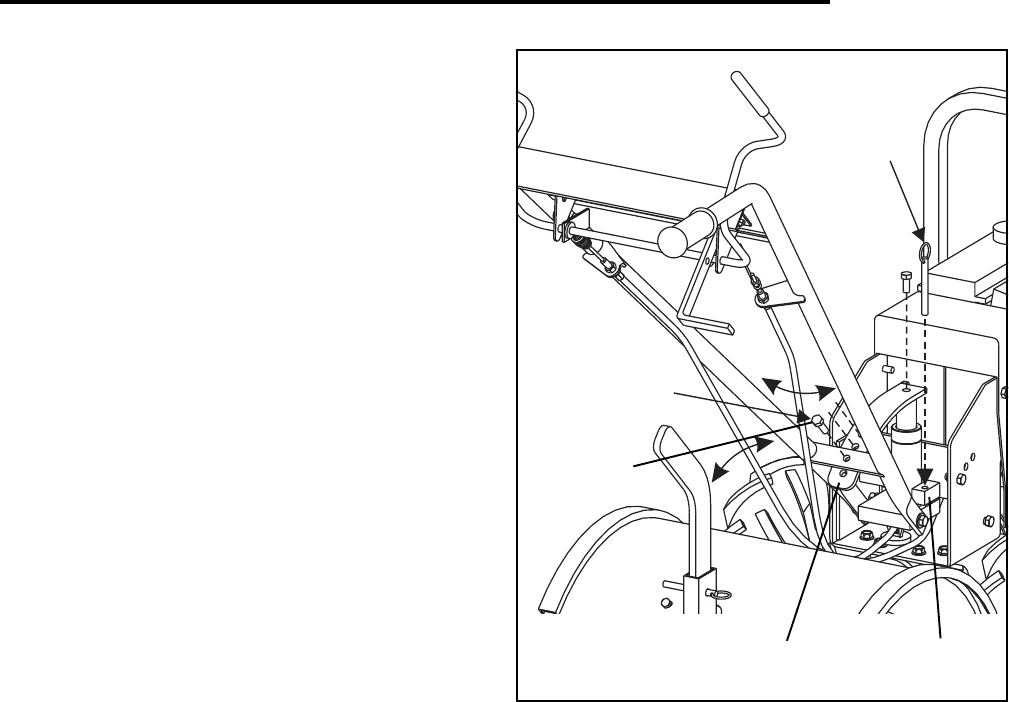

HANDLEBAR ADJUSTMENTS
Height Adjustment
The ideal height of the handlebar varies with operator
height and the depth of tilling.
To adjust handlebar height:
1. Remove bolt from lower crossbar of handlebar and
pivot handlebar height adjuster.
2. Align handlebar to desired hole on the height
adjuster.
3. Install bolt and retighten.
Swivel Adjustment
Handlebar swivels 20° left or right for operator comfort.
To swivel handlebar:
1. Pull detent pin out of hole in pivot lock bar.
2. Rotate handlebar 20° left or right.
3. Insert detent pin in hole.
height
adjustment
bolt
pivot handlebar
height adjuster
pivot
lock bar
Pull Detent
Pin for Swivel
Adjustment
3 Height
Adjustment
Positions
Page 10

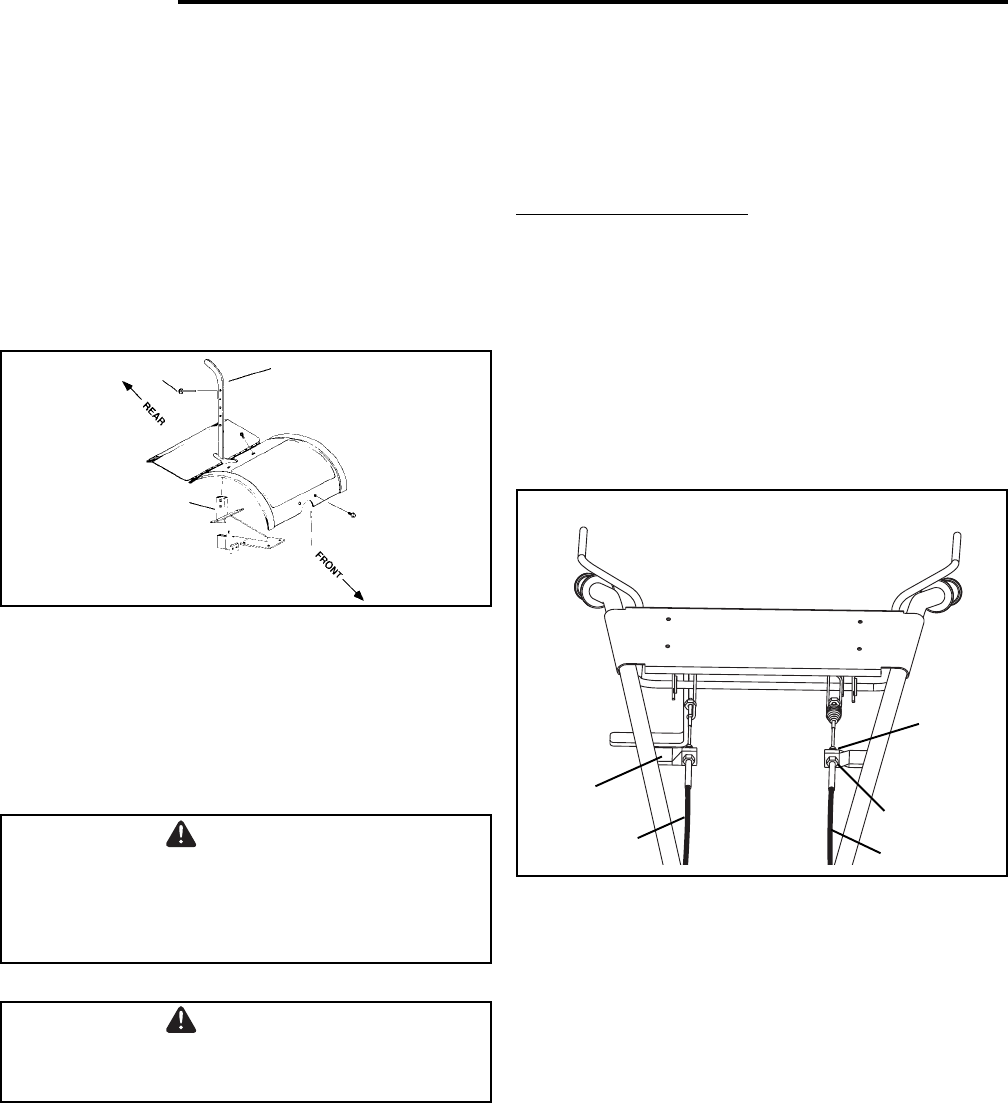

DEPTH REGULATOR LEVER
Tilling depth is controlled by the height of the depth
regualtor lever.
To adjust tilling depth.
1. Remove detent pin.
2. Raise the depth regulator lever to position tines at
chosen tilling depth.
3. Align hole in depth regulator lever with hole in depth
regulator bracket and replace detent pin.
Always set the depth regulator lever in the
transport position before starting engine, that is,
place the detent pin in the highest hole of the
depth regulator lever.
Do not adjust tilling depth unless drive safety
control levers are released to neutral position.
Adjustments
depth regulator
bracket
depth regulator lever
detent pin
Depth Regulator Lever Down =
Shallower tilling. Place
the detent pin in the top hole of the depth regulator lever
for shallowest tilling.
Depth Regulator Lever Up =
Deeper tilling. Place the
detent pin in the bottom hole of the depth regulator lever
for deepest tilling.
BELT TENSION ADJUSTMENT
Proper belt tension is critical to good performance. After
1/2 hour of operation, all cables may have to be
adjusted due to initial stretch. Thereafter, check tension
after every 2 hours of operation.
To increase belt tension:
1. Loosen upper jam nut. Turn nut up cable in 1/8"
increments.
2. Tighten lower jam nut.
3. Check adjustment.
This procedure can be repeated until conduit
adjustment bolts have no more adjustment left. If no
more adjustment can be made, belt may have to be
replaced.
reverse cable
bracket
forward cable
upper
jam nut
lower jam nut
up cable
➜➜
➜➜
➜
WARNING
WARNING
Page 11
Operation
PRE-START INSPECTION
1. Make sure all safety guards are in place and all nuts
and bolts are secure.
2. Check oil level in engine crankcase. See your engine
manual for procedure and specifications.
3. Inspect air cleaner for cleanliness. See your engine
manual for procedure.
4. Check the fuel supply. Fill the fuel tank no closer
than 1 inch from top of tank to provide space for
expansion. See your engine manual for fuel
recommendations.
5. Be sure spark plug wire is attached and spark plug is
tightened securely.
6. Check position of wheels and wheel lockouts.
7. Check depth regulator lever position.
Please do not start your tiller until you have read
the Manual that came with your engine, and the
sections in this manual titled Controls,
Adjustments and Safety. If you have read these,
follow the steps below to start your tiller. Always
perform this pre-start checklist before starting the
engine.
Gasoline is highly flammable and must be handled
with care. Never fill the tank when the engine is
hot or running. Always move outdoors to fill the
tank.
Wheels must always be locked in the TILLING
position when engine is running. Do not operate
the tiller with the wheel lockouts unlocked. Always
set the wheels in tilling position before starting
engine.
Always put the depth regulator lever in the
transport position before starting engine. Tines
should clear the ground.
ENGINE IS SHIPPED FROM FACTORY WITHOUT
OIL. YOU MUST ADD ENGINE OIL BEFORE
STARTING ENGINE.
START-UP
The controls required to start and run the rototiller are
located on the engine and are marked "Choke" and
"Throttle".
A more detailed description of engine operation and all
related precautions and procedures can be found in the
engine manufacturer's manual that accompanies each
tiller.
Cold Starts
1. Move choke lever to full choke position.
2. Move throttle lever to "start".
3. Pull starting rope out slowly one time and allow to
return normally.
4. Pull starting rope out rapidly, and allow rope to return
normally.
5. When engine starts, gruadually move choke lever to
"no choke" position and increase throttle speed.
Restarting A Warm Engine
Restarting an engine that is already warm from
previous running does not normally require use of the
choke.
1. Move throttle lever to "start" position.
2. Pull starting rope out rapidly until engine starts. Allow
rope to return normally.
3. Adjust throttle speed to "high" for best tiller action.
Idle Speed
Use the "low" position on the throttle lever to reduce
stress on the engine when tilling is not being performed.
Lowering the engine speed to "idle" the engine will help
extend the life of the motor, as well as conserve fuel
and reduce the noise level of the equipment.
Operating Speed
For normal tilling, set the throttle lever to "fast".
CAUTION
WARNING
WARNING
WARNING
Always keep hands and feet clear of rotating
machine parts.
DANGER
Page 12
SHUTTING DOWN
Operation
TILLING
1. Adjust the depth regulator lever to desired tilling
depth.
NOTE: Raise depth regulator lever up one hole at a
time, testing tiller operation after each raise.
Raising depth regulator lever too high can result in
loss of control of tiller!
2. Move the throttle control to
fast
.
3. Place the tiller in
forward
by pushing down on the
drive safety control levers--this will engage the
wheels and tines.
NOTE: You can slow the tiller's forward advance at
any time by putting slight downward pressure on
the handlebars, or you can stop the tiller by
releasing the drive safety control levers to the
neutral position.
To stop wheels and tines at any time, release drive
safety control levers to neutral position.
Always release drive safety control levers to
neutral position before adjusting the depth
regulator lever.
Practice operating the controls and tiller with tines
out of ground before beginning to till. It is
important that you know how to use the tiller
properly, how to keep control at all times, how to
stop the tines and wheels from turning, and how
to stop the engine if necessary. If you do not know
how to do these things, read the Controls,
Adjustments and Safety sections before
proceeding.
Temperature of muffler and near by areas may
exceed 150°°
°°
° F. Avoid these areas.
Do not move choke control to CHOKE to stop
engine. Backfire or engine damage may occur.
To stop the engine at any time, move throttle
control to the off position. To stop wheels and
tines at any time, release drive safety control
levers to neutral position.
WARNING
WARNING
Engine and surrounding parts become extremely
hot during normal use, and will cause serious burn
injuries if touched before the engine has cooled.
Allow engine to cool completely before
touching these hot surfaces.
DANGER
WARNING
WARNING
WARNING
Page 13
Tips
TILLING TIPS
The key to successful tilling is to begin with a shallow
cut on the first pass, and then work an inch or two
deeper on each successive pass.
✮Tilling depth will vary with ground conditions.
✮When beginning to till in unbroken ground or in
extremely hard soil, set the detent pin in the highest
hole of the drag stake (follow instructions under
Tilling on previous page). This will allow for shallow
tilling. With the drag stake in this position, make
several light passes over the area to be tilled. Reset
for deeper depths with successive passes.
✮If tiller jumps or skids uncontrollably, lower the drag
stake by placing the detent pin in a higher hole. This
will allow for shallower tilling. Hold firmly to the
handlebars to control sudden lurches.
✮If weeds, tall grasses, vines, or other materials clog
or jam the tines, reverse the tiller to unwind
vegetation.
Immediately release the drive control levers if the tines
jam or you strike a foreign object. With drive control
levers in neutral, push throttle control to stop position to
stop the engine. Disengage the spark plug wire. When
tines have stopped, remove foreign objects and check
for damage.
CULTIVATING TIPS
If you plan to use your tiller for cultivating:
✮Plant rows on 20" - 22" centers for ease of turning.
✮Set the drag stake with the detent pin in one of the
higher holes. This will allow the shallow cultivation
necessary to turn over weeds, and break up and
aerate the soil.
Extreme caution must be taken in selecting tilling
depth. If you attempt to till too deeply for soil conditions,
that is, with the drag stake in too high a position,
loss of control could result.
If removing material from the tines by hand, stop
engine and remove spark plug wire first.
WARNING
WARNING
Page 14
Normal Care
SCHEDULE
Your rototiller has been designed and produced by the industry's leading manufacturer of outdoor power equipment
to provide you with years of reliable operation.
Keeping your tiller in top running condition will prolong its life, and help you obtain optimum performance whenever
you wish to till your garden.
Please read this normal care schedule, and observe these recommended care operating intervals to extend the life
of your unit.
EM = See engine manual
1Adjust throttle control after first 3 hours of operation or if engine is hard to start or run-on occurs.
2Change oil after first 5-8 hours of use, then after every 50 hours or every season. Change oil every 25 hours
when operating under heavy load or in high temperatures.
noitarepOecnanetniaM egaP esUhcaEerofeB rosrh05 nosaeSyrevE
noisnettlebesrever/drawrofkcehC51X
tlebesrever/drawrofegnahC61X
ecnanetniamenignE71X X
pmusliollifrokcehCME,71X
esaergnoissimsnartrellitkcehC81X
erusserperitkcehC81X
noitacirbuL81X
tfahselxaenitnaelC81X
tfahselxaleehwetacirbuL91X
tnemtsujdalortnocelttorhtkcehCME1
Page 15
SERVICING THE ROTOTILLER
General
The following information will help you make the
necessary checks and perform the procedures required
to follow the normal care recommendations made for
your rototiller unit.
If you prefer, your local authorized dealer can make
these checks and perform the required procedures for
you.

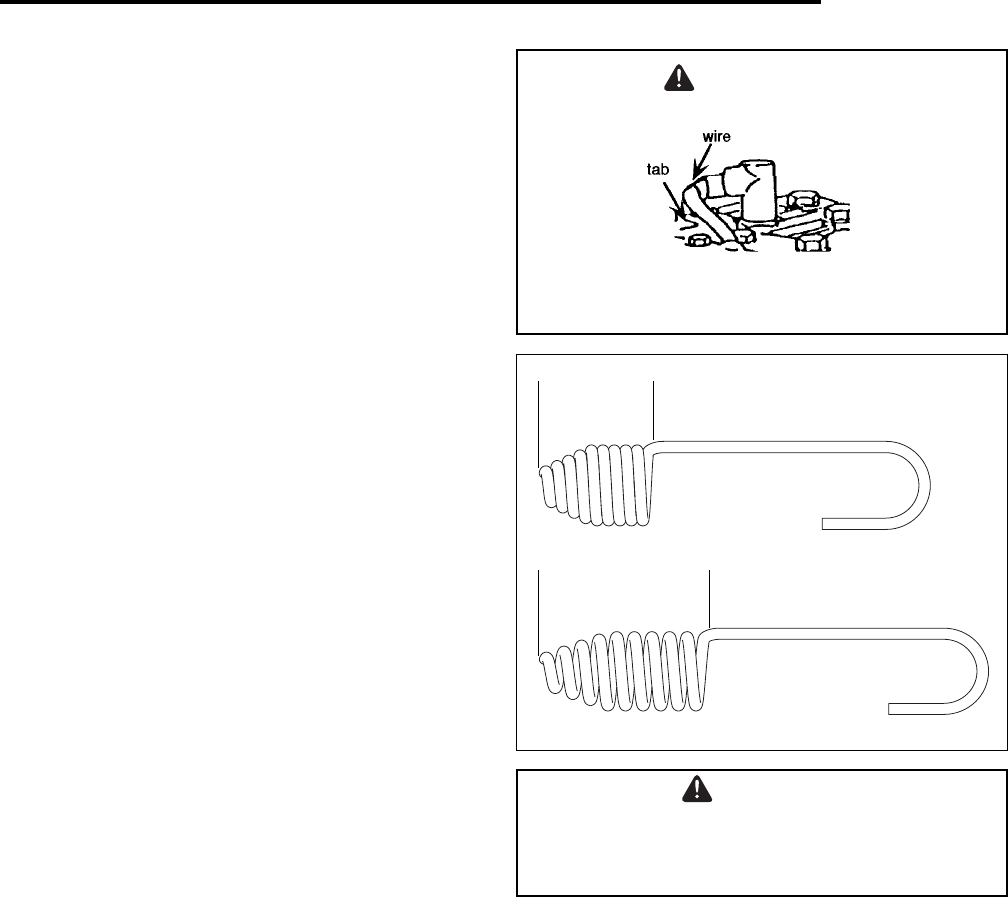

Check Forward Belt Tension
Forward belt tension may decrease over time. It must be
adjusted within the first half hour of operation, and
checked after every two hours of operation. Proper
adjustment will assure long belt life. Too much or too
little belt tension will cause premature belt failure. To
check and adjust the forward belt tension:
1. Turn off engine. Engine must be cool.
2. Remove and secure spark plug wire from spark plug.
3. With drive safety control levers in neutral position,
measure length of spring when compressed.
4. Pull down on drive safety control levers and
remeasure length of spring when stretched out. Ideal
length would be 1/4" longer.
Check Reverse Belt Tension
Reverse belt tension is not adjustable.
To prevent accidental starting:
Engine must be turned off and cool, and spark plug
wire must be removed and secured from spark plug
before checking and adjusting engine or equipment.
1"
1-1/4"
Check forward belt tension regularly. Too much
or too little tension will cause premature belt
failure.
Normal Care
WARNING
WARNING
Page 16
Normal Care

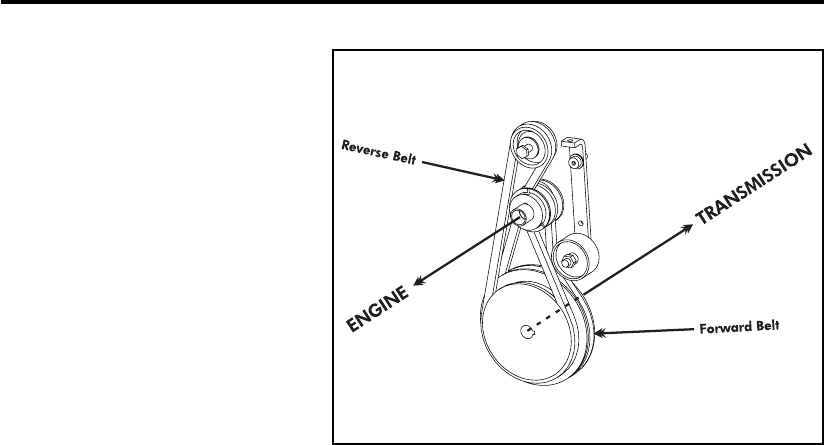

Change Forward/Reverse Belt
1. Turn off engine. Engine must be cool.
2. Remove spark plug wire and secure from spark plug.
3. Remove belt guard.
✮remove the forward belt from the forward engine
pulley:
- gently pull the engine recoil rope to rotate the
pulley.
- with the pulley turning, force the forward belt
out of the V-groove.
- slide the belt free of the engine pulley.
- pull the forward belt down and out of the way.
✮remove the reverse belt from the reverse engine
pulley:
- gently pull the engine recoil rope to rotate the
pulley.
- with the pulley turning, force the reverse belt
out of the V-groove.
- slide the belt free of engine pulleys and reverse
belt guides.
- pull belt down and away from transmission
pulley.
✮install new reverse belt:
- thread belt up from bottom.
- place belt around transmission pulley in groove.
- place belt under reverse belt guides.
- gently pull engine recoil rope while forcing the
belt over the edge of the engine pulley into the
V-groove.
✮install new forward belt:
- place forward belt in transmission pulley
groove.
- gently pull the engine recoil rope to rotate the
pulley while forcing the forward belt into the
V-groove.
4. Replace belt guard.
5. Attach spark plug wire.
Page 17
Adapted from Briggs & Stratton Corporation, Form No. 274263-10/99.
Engine is shipped from factory without oil. You
must add engine oil before starting engine.

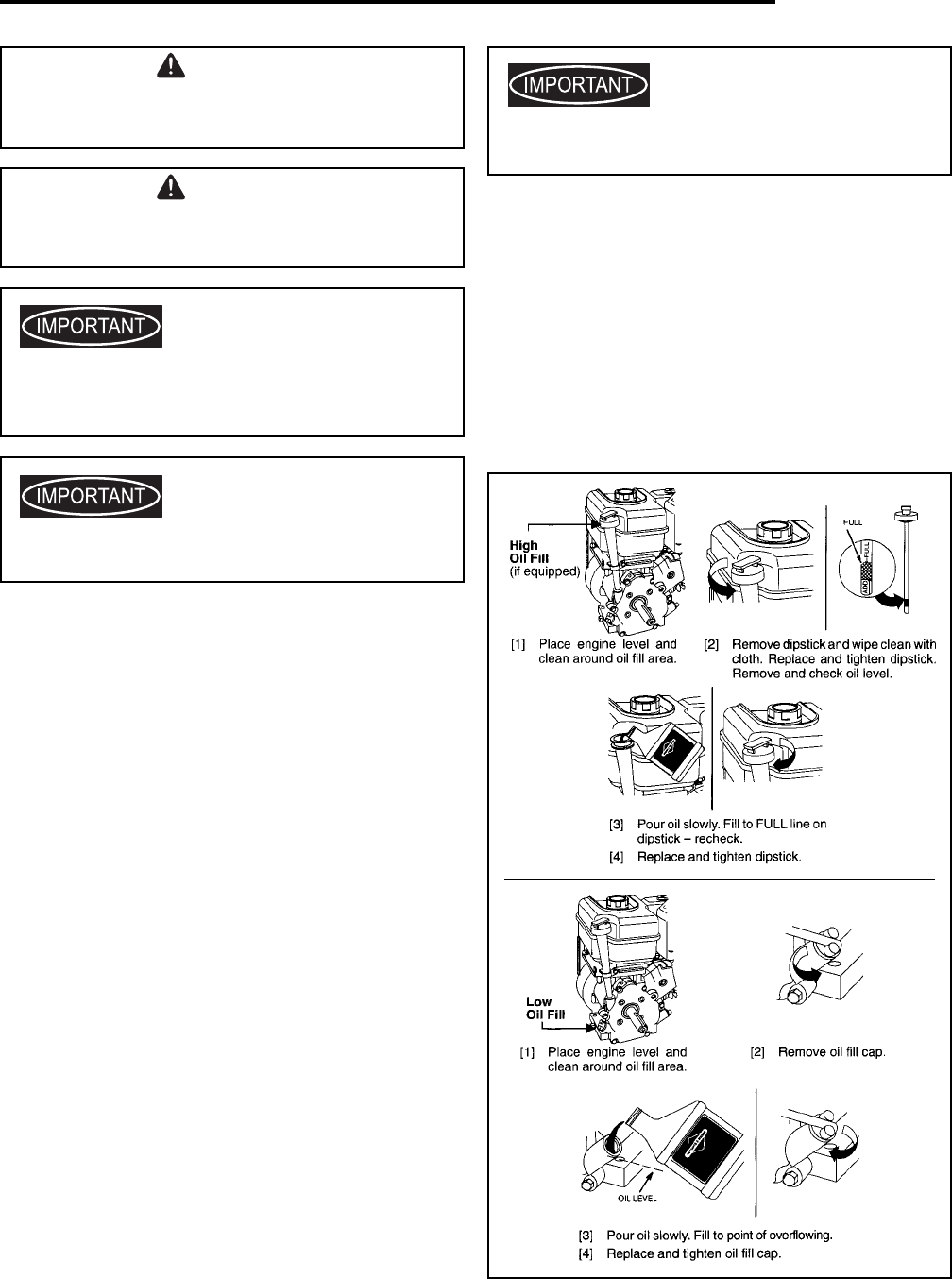

Check or Fill Oil Sump
1. Add oil according to engine manual. Do not overfill.
Use a clean, high quality detergent oil. Container
must be marked A.P.I. Service SF - SJ. Use no
special additives with recommended oils. Do not
mix oil with gasoline. Oil level must be full. Check
the oil level by removing oil fill plug. Oil level should
be up to the bottom of the fill plug opening.
2. Always check oil level before starting engine. Refer
to engine manual for capacity and type of oil to use.
Normal Care
Engine Maintenance
Refer to the engine manual included in your parts
packet for information on engine maintenance. Your
engine manual provides detailed information and a
maintenance schedule for performing the following
tasks:
1. Check oil level before each use or after every 8
hours of operation.
2. Change oil after first 5-8 hours of operation. Change
oil while engine is warm. Refill with new oil of
recommended grade.
4. Check spark plug yearly or every 100 hours of
operation.
5. Service air cleaner.
6. Keep engine and parts clean.
7. Check engine and equipment often for loose nuts
and bolts, keep these items tightened.
Do not operate tiller before reading the engine
manual provided in the parts packet.
Temperature of muffler and near by areas may
exceed 150° °
° °
° F. Avoid these areas.
Engine can overheat and become damaged if
debris blocks the cooling system or rotating
screen.
Never run engine without complete air cleaner
installed on engine.
CAUTION
WARNING
Page 18
Check Tire Pressure
Recommended tire pressure is 20 PSI. If tires do not
have equal pressure, tiller will pull to one side.
Lubrication
Proper lubrication of moving mechanical parts of your
rototiller is a very important part of care and
maintenance. You should oil the moving parts shown at
10 hour intervals using a 30 weight oil.
Clean Tine Axle Shaft
1. Turn off engine. Engine must be cool.
2. Remove spark plug wire and secure from spark plug.
3. Tip the tiller forward. Block the tiller in position so
that it rests on the engine mount and the tines are
exposed.
4. Remove all vegetation, string, wire, and other
material that may have accumulated on the axle
between the inside set of tines and the seal on the
transmission housing.
5. Tip the tiller back to a level position.
6. Replace spark plug wire.
TILLER TRANSMISSION IS SHIPPED FROM
FACTORY WITH THE PROPER AMOUNT OF
00 LIQUID GREASE.
When replacing grease, the tiller transmission
holds 18-22 ounces. DO NOT OVERFILL.

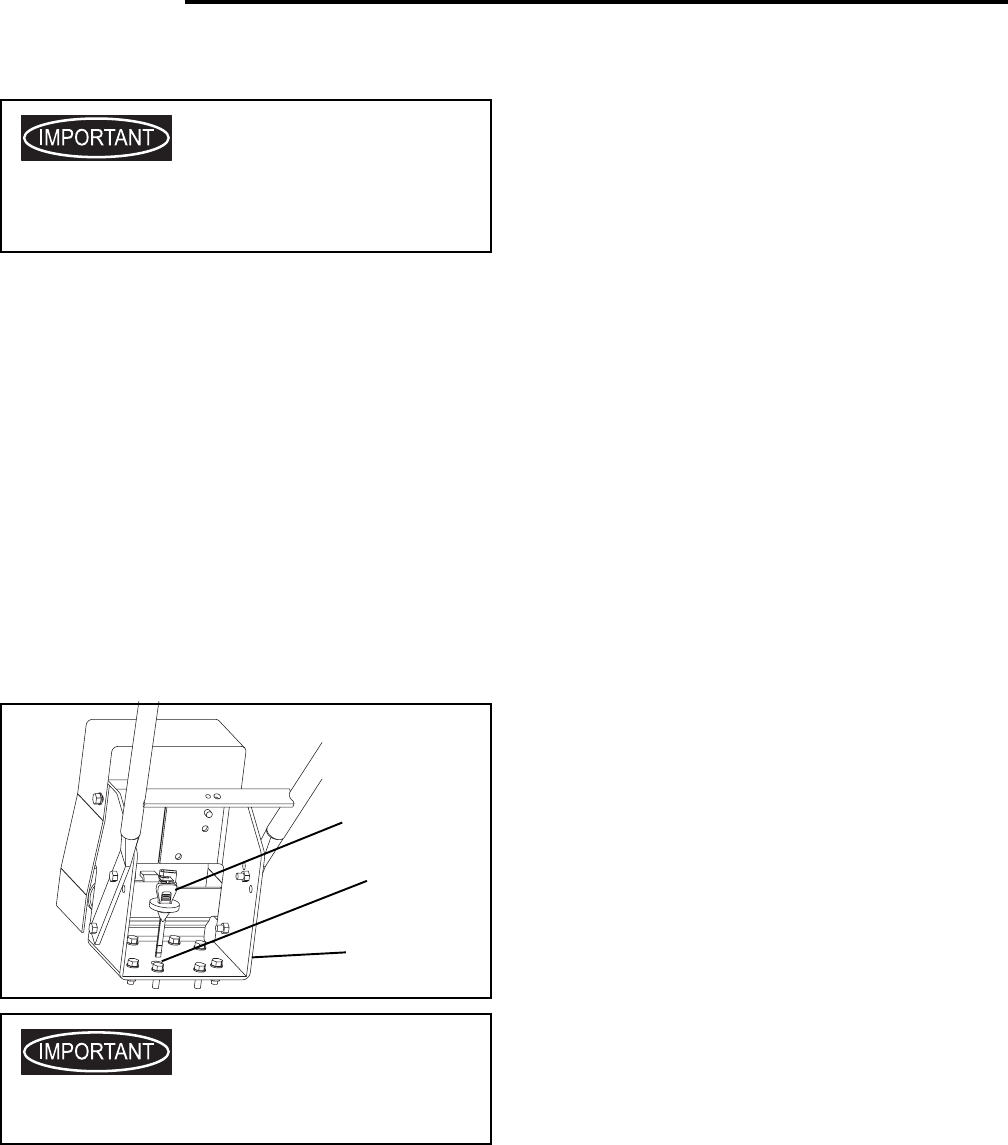

Check Tiller Transmission Grease
Check the grease level annually. To check the grease
level:
1. Move tiller to level ground.
2. Remove grease level dipstick located between the
handlebar mounts in the front transmission cover.
Correct 00 grease level is indicated between the high
and low levels on the dipstick.
3. Replace grease level dipstick in the filler hole.
4. Note that the front wheel transmission and rear tine
transmission are one common reservoir. When you
add to the front transmission, you must wait a short
period of time for the 00 grease to flow rearward and
equalize in both front and rear. The dipstick will read
correctly on level ground for both gear units.
dipstick
gear case
dipstick hole
transmission
cover plate
Normal Care
Page 19
PREPARE FOR STORAGE
Follow the steps below to prepare your tiller for storage.
Read your engine manual for detailed instructions on
preparing the engine for storage.
1. Protect wheels and axles from rust:
- Loosen locking bolt inside wheel. Slide wheel
toward machine.
- Coat the axles lightly with axle grease.
- Move wheel back into position and snug locking
bolt. Back off locking bolt 1/16 turn and lock jam
nut.
2. Drain fuel system completely following engine
manufacturer's instructions or add fuel stabilizer to
prevent fuel from gumming up during extended
storage period.
3. While engine is still warm, drain the oil from the
engine. Refill with fresh oil of the recommended
grade.
4. Clean external surfaces, engine and cooling fan.
5. Remove spark plug, pour one ounce of SAE 30 oil
into spark plug hole.
6. Plug hole and pull starter cord slowly to distribute oil
evenly in cylinder head area.
7. Reinstall spark plug.
8. Transport unit to a suitable storage location. If you
have chosen to use a fuel stabilizer and have not
drained the fuel system, follow all safety instructions
and storage precautions in this manual to prevent the
possibility of fire from the ignition of gasoline fumes.
Remember, gasoline fumes can travel to distant
sources of ignition and ignite, causing risk of
explosion and fire.
9. If there is any possibility of unauthorized use or
tampering, remove the spark plug and store it in a
safe place before storing the rototiller unit away. Be
sure to plug the spark plug hole to prevent foreign
material from entering.
Do not store tiller in an unventilated area where
fuel fumes may reach flame, sparks, pilot lights
or an ignited object. Drain fuel outdoors away from
any ignition sources. Use only approved fuel
containers.
Storage
WARNING
Page 20
TROUBLESHOOTING GUIDE
While normal care and routine maintenance will extend
the life of your rototiller, prolonged or constant use may
eventually require that service be performed to allow it
to continue operating properly. The troubleshooting
guide below lists the most common problems, causes
and remedies.
Practice safety at all times. Engine must be turned
off and allowed to cool, and spark plug wire must
be disconnected and secured before attempting
any maintenance or repair.
Failure to comply with this safety requirement can
result in serious personal injury to you or
bystanders.
PROBLEM REMEDY/ACTION
Engine will not start
Engine runs rough, floods during operation
Engine is hard to start
Engine misses or lacks power
Engine will not stop when throttle control is positioned
at stop
Tiller moves forward during starting
Tiller is difficult to control when tilling (machine jumps
or lurches forward)
Tines turn, wheels do not turn
Tines turn, wheels turn, tiller does not move
Troubleshooting and Repair
•Add gas to gas tank.
•Connect spark plug wire to spark plug
•Throttle must be positioned at choke for a cold start
(see page 11 for instructions)
•Clean or replace air cleaner
•Drain old fuel and replace with fresh. Use gas stabilizer
at end of season
•Make sure spark plug wire is securely attached to spark
plug
•Drive safety control levers must be released to
neutral
to start the engine
•Raise the tines for shallower tilling by lowering the
depth regulator lever, see page 10
•Remove and clean fuel tank
•Clean or replace air cleaner
•Improper carburetor adjustment, take to authorized
Briggs & Stratton service center
•Replace spark plug and adjust gap
•Drain and refill gas tank and carburetor
•See engine manual to check and adjust throttle linkage
•Drive safety control levers must be released to
neutral
to start the engine
•Lock wheels in tilling position, see page 8
•Raise the tines for shallower tilling by lowering the
depth regulator lever, see page 10
•Lock wheels in tilling position, see page 8
•Internal transmission failure, see your dealer
•Lower the tines for deeper tilling by raising the depth
regulator lever, see page 10
WARNING
Page 21
PROBLEM REMEDY/ACTION
Belts squeal in neutral and/or reverse
Belts squeal in forward operation
Excessive heat build up in transmission/tine area
during tilling
•Adjust forward belt guide:
- turn engine off and allow muffler to cool
- disconnect spark plug wire and secure from spark plug
- remove belt guard
- pull down on drive safety control levers
- manually bend forward belt guide so there is 1/16 inch
or less clearance between belt guide and belt
- replace belt guard and spark plug wire
•Adjust tabs on the reverse belt guide
- turn engine off and allow muffler to cool
- disconnect spark plug wire and secure from spark plug
- release drive safety control levers to
neutral
- remove belt guard
- adjust tabs of reverse belt guide:
while drive safety control levers are released, bend
metal tabs on reverse belt guide to 1/64 inch or less
clearance from reverse belt
- replace belt guard and spark plug wire
•Remove vegetation by following instructions in Clean
Tine Axle Shaft on page 18 of Maintenance & Storage
section. FOLLOW ALL SAFETY INSTRUCTIONS
•Check transmission fluid and fill if needed by following
instructions on page 18
Troubleshooting and Repair
Page 22
Specifications
Additional copies of this manual, as well as a fully
illustrated parts manuals for your unit are also available.
The parts manuals show all of the assemblies and
individual parts as exploded views which show the
relationship of the parts and how they go together.
Important assembly notes and special torque values
are included in the illustrations. Standard hardware and
torque specification charts are also included.
To order copies of the manuals applicable to your
model, contact the Simplicity Customer Publications
Department at 414-284-8519.
Have the information on the form at the right available
when phoning in your request.
Please allow 3 to 4 weeks for delivery.
Model: __________________________________________________
M/N (Mfg. No.): ___________________________________________
S/N (Serial #): ____________________________________________
Your Name: ______________________________________________
Address: ________________________________________________
City, State, Zip: ___________________________________________
Visa/Mastercard No.: ______________________________________
Card Expiration Date: ______________________________________
FEATURES
N7-HP Briggs & Stratton Engine (7016RT)
N6-HP Briggs & Stratton Engine (6016RT)
NTractor Type Pneumatic Tires
NAll Gear Drive Transmission
NHandlebar Height Adjustment
NForward/Reverse Control
NFunctional Depth Regulator System
NWheel Lockout Control (7016RT)
NWheel Lockpins (6016RT)
NDrive Safety Control Levers
NSelf Cleaning Bolo Tines (7016RT)
NDouble Bolo Tines (6016RT)
NBumper Guard (7016RT)
NHiller-Furrower Attachment (7016RT)
Technical Manuals
Snapper Inc.
535 Macon Street
McDonough, GA 30253
www.snapper.com
MANUFACTURING, INC.
500 N Spring Street / PO Box 997
Port Washington, WI 53074-0997
www.SimplicityMfg.com
© Copyright 2005 Simplicity Manufacturing, Inc.
All Rights Reserved. Printed in USA.
