Parts Manual fo

r

Revision 2,

LAWN TRACTOR MANUAL CLUTCH

SERIES 1

COPYRIGHT

©

2006

McDonough, GA, 30253 U.S.A.

TP 400-5213-2-TC-N

7/14/2006

Manual No. 7006427

SNAPPER PRODUCTS, INC.

ALL RIGHTS RESERVED.

HYDRO DRIVE

(

1991 1/2

)

MODEL

ELT140H331KV

ELT140H411KV

LT140H331K

V

LT140H411K

V

RLT140H331KV

Table Of Content

s

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 3

PAGE GROUP

4Hood, Bumper, Headlights

6Wheels - Front

8Wheels - Rear

10 Engine, Engine Base & Drive Parts

14 Transmission Support & Components I

16 Transmission Support & Components II

18 Dash Panel

20 Steering And Front Axle Parts

22 Seat, Rear Fender

24 Clutch, Brake & Transmission Controls

28 Transmission Group

32 Transmission - Service Parts

34 Implement Lift Parts

36 Blade Engagement

38 33" Cutting Deck, Belts, Brakes

44 41" Cutting Deck

48 Belt, Blade Brake, 41" Deck

50 Fuel Tank & Battery

52 Electrical System

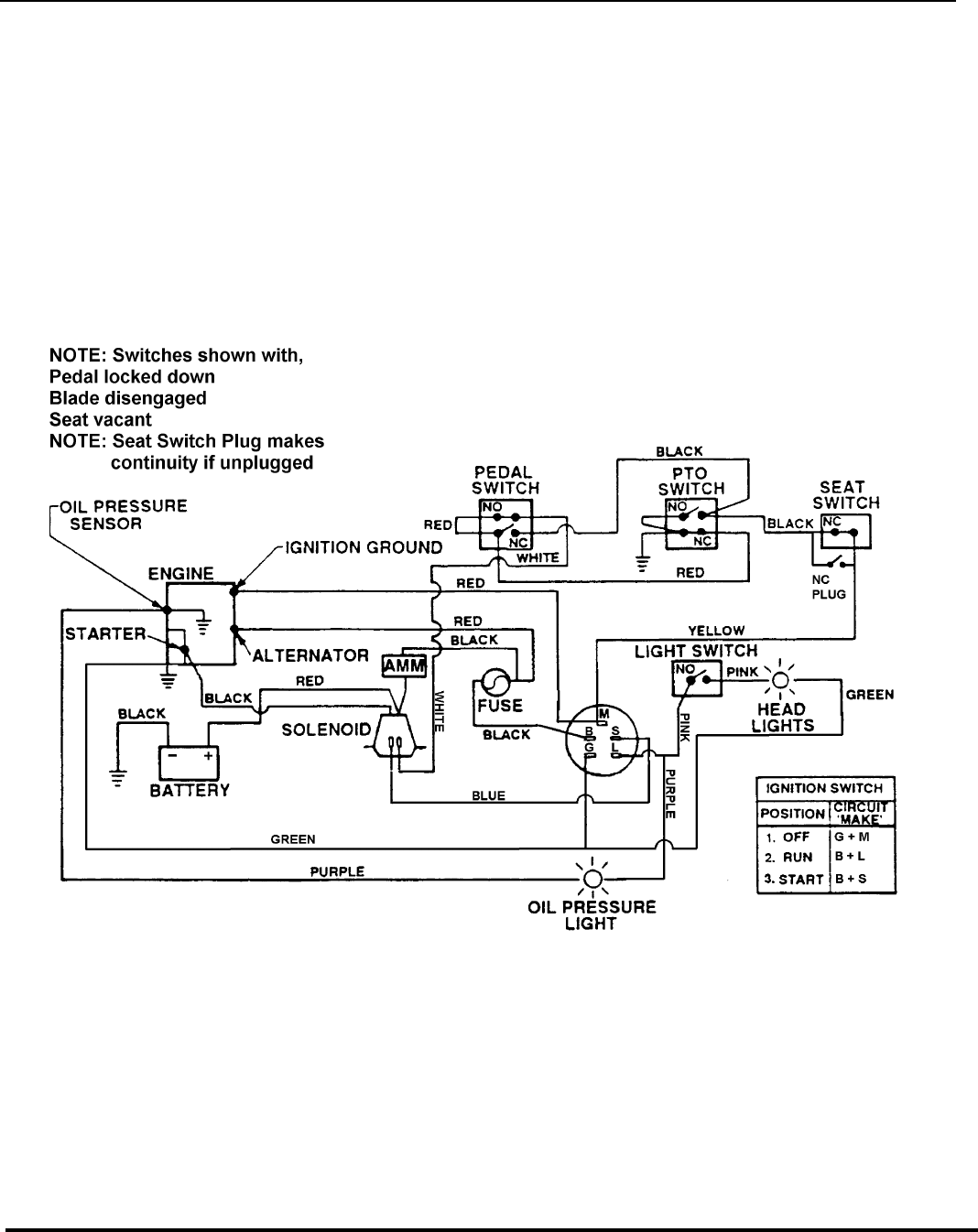

54 Schematic Electrical System (Kohler Engines Only)

Hood, Bumper, Headlights

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

4

Hood, Bumper, Headlights

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 5

Part No Descri

p

tionItem Qt

y

Note

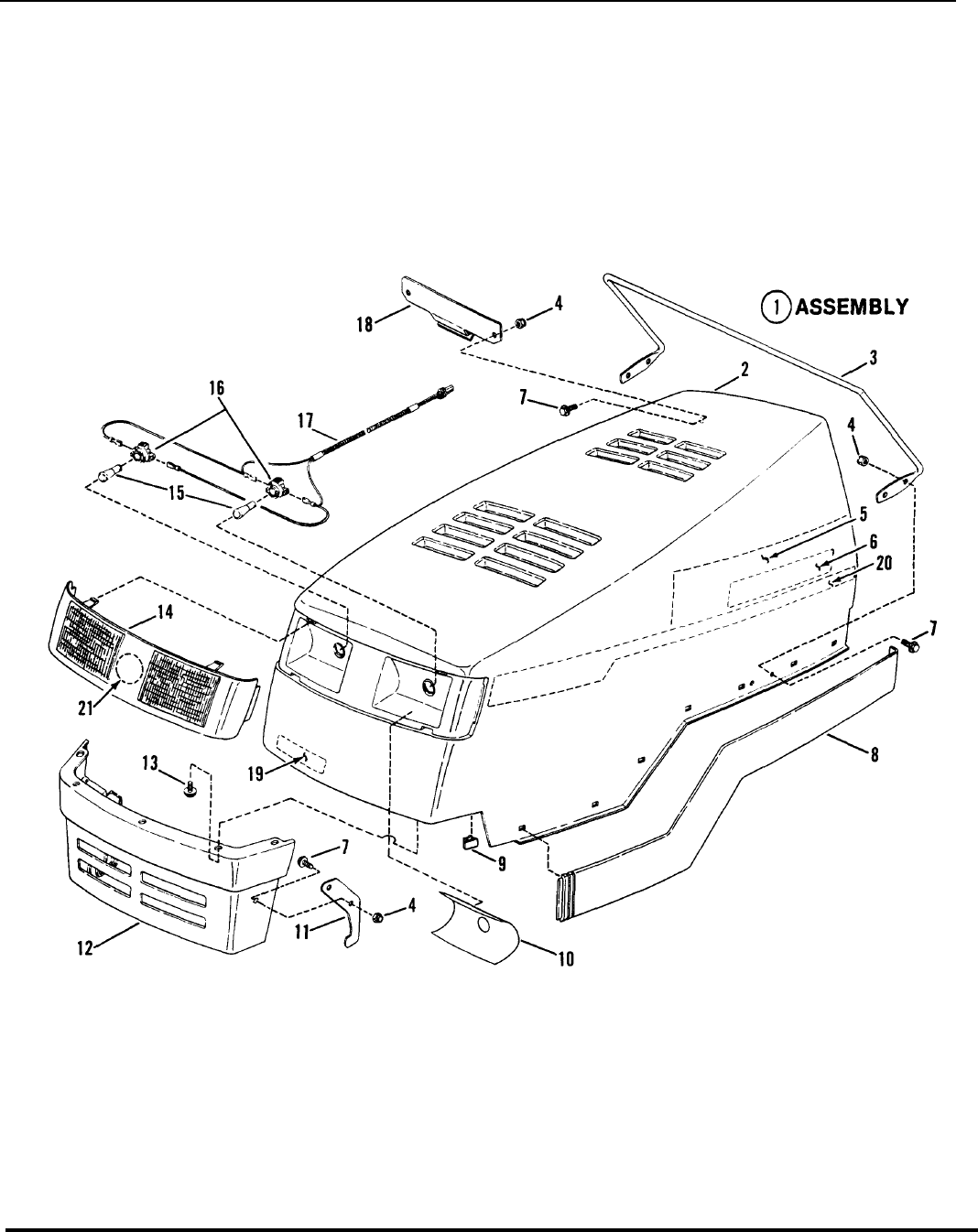

1 7063298 1 KIT, Hood Assembly, Sloped Mozart Was 61082 or 61383 (Includes 2

thru 18)

2 1 HOOD (No longer available, use kit 7063298) Was 19411

3 7016766 1 ROD, Hood Latch

4 7076978 10 NUT, 1/4-20 Hex Lock

5 1 HEAT SHIELD, Hood 3" x 5" (No longer available) Was 17787

6 2 DECAL-SNAPPER, Molded Logo (No longer available) Was 16974 or 36438 or 24980

7 7090999 10 SCREW, 1/4-20 x 5/8" Torx, Truss Head

8 1 BUMPER (R.H.) (No longer available) Was 19412

1 BUMPER (L.H. Shown) (No longer available) Was 19413

9 7012691 2 CLIP, Wiring Harness .31"

10 7017174 1 DECAL, Reflect (R.H.)

7017175 1 DECAL, Reflect (L.H. Shown)

11 7033265 2 BRACKET, Latch Hook

12 1 BUMPER, Front (No longer available) Was 19414

13 7091106 5 SCREW, #12 x 1/2"

14 7024893 1 LENS, Clear Bezel Was 19415

15 7016756 2 BULB, Headlights, 1156

16 7016757 2 SOCKET, Headlight Bulb

17 7016765 1 HARNESS, Headlight Wiring

18 7017359 1 CLIP, Hood Latch

19 1 DECAL-SNAPPER, Molded Logo 4" - Blue (No longer available) Was 22968 (LT140H33 &

LT140H41)

7022969 1 DECAL-SNAPPER, Molded Logo 4" - Green (RLT140H33)

20 1 DECAL, 1550LX - Blue (R.H.)(No longer available) Was 22986 (LT140H33 &

LT140H41)

1 DECAL, 1550LX - Blue (L.H. Shown)(No longer available) Was 22987 (LT140H33 &

LT140H41)

7022988 1 DECAL, 1550RX - Green (R.H.) (RLT140H33)

7022989 1 DECAL, 1550RX - Green (L.H. Shown) (RLT140H33)

21 7022975 1 DECAL, Convertible - Blue (LT140H33)

7022977 1 DECAL, Twin-Turbo - Blue (LT140H41)

1 DECAL, Recycling - Green (No longer available) Was 22972 (RLT140H33)

Wheels - Front

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

6

Wheels - Front

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 7

Part No Descri

p

tionItem Qt

y

Note

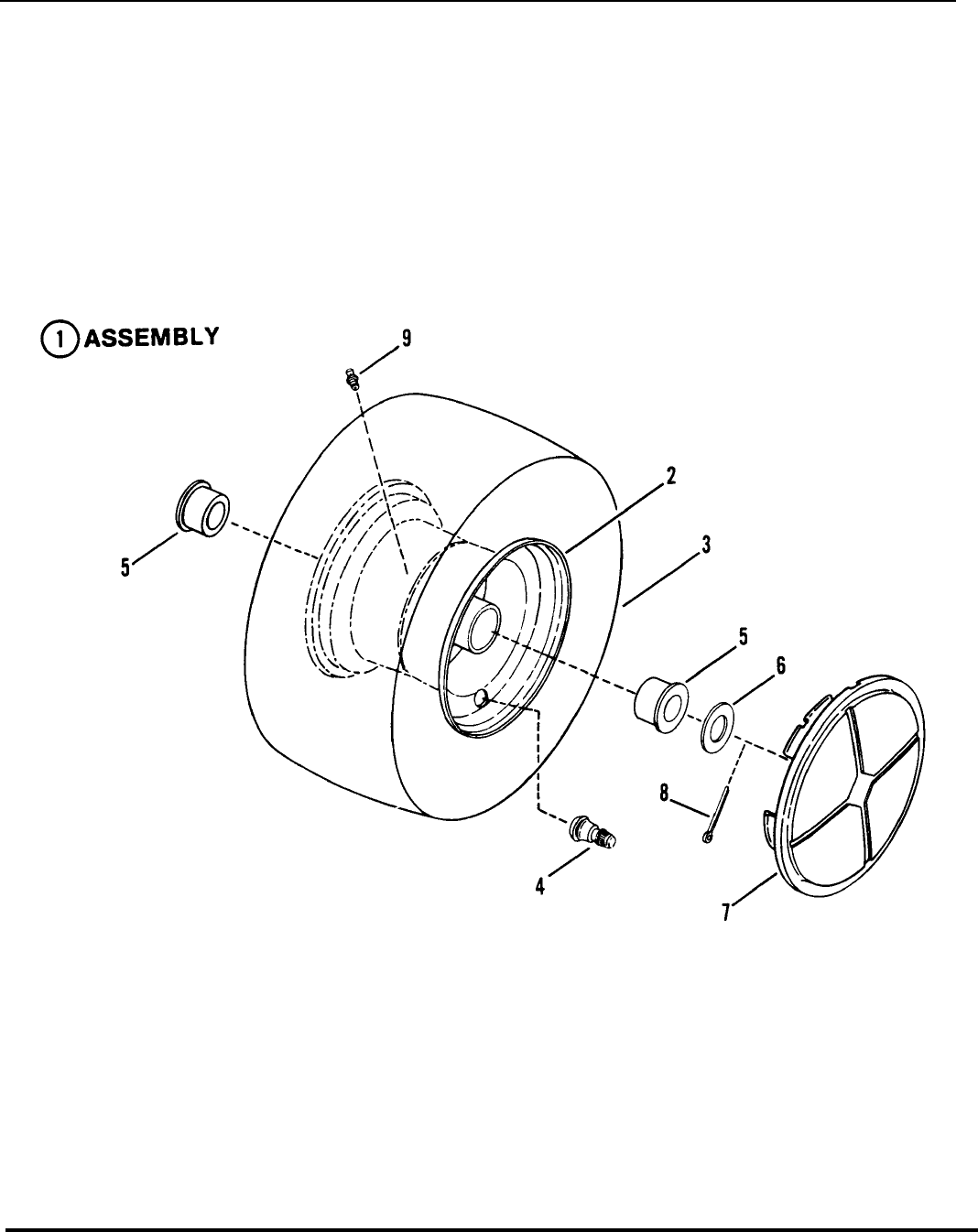

1 7058517 2 ASSEMBLY, Front Tire & Rim 15x5.50-6.00 Was 52185 (Includes Items 2, 3

& 4)

2 7022772 2 RIM, 6 x 4.50 Was 16739

3 7072704 2 TIRE, 15-5.50 x 6 Was 16740

4 7012234 2 VALVE, Air (Snap-in)

5 7014483 4 BEARING, Wheel Flanged PM .758 ID x 1.38 OD x 1.0 L

6 7032027 2 WASHER .77 x 1.5 x .06

7 7019417 2 WHEEL-COVER

8 7091516 2 COTTER-PIN 5/32 x 1 YZ Was 90364

9 7076998 2 FITTING, Lube 1/4-28 Tapered Thread Was 13876

Wheels - Rear

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

8

Wheels - Rear

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 9

Part No Descri

p

tionItem Qt

y

Note

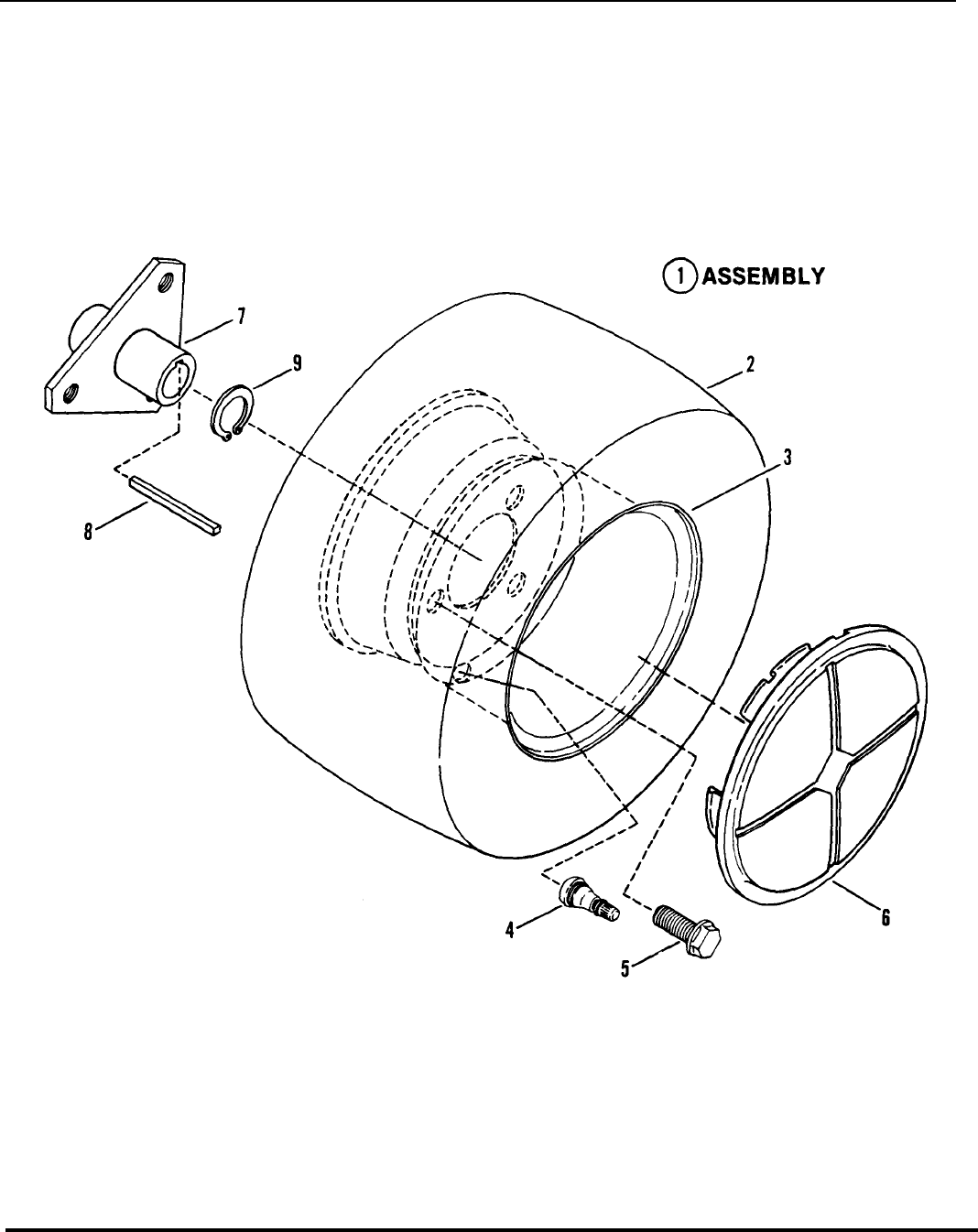

1 2 ASSEMBLY, Rear Tire & Rim (No longer available) Was 52187 (LT140H41)

2 ASSEMBLY, Rear Tire & Rim (No longer available) Was 52675 (LT140H33 &

RLT140H33)

2 7016744 2 TIRE, 18-8.50 x 8 (Used with 41" Deck)

7022688 2 TIRE, 18-7.50 x 8 (Used with 33" Deck)

3 7016742 2 RIM, 8 x 7 (Used with 41" Deck)

7016741 2 RIM, 8 x 5.375 (Used with 33" Deck)

4 7012234 2 VALVE, Air (Snap-in)

5 7091502 6 BOLT, 1/2-20 x 3/4" Lug Was 90367

6 7019418 2 WHEEL-COVER

7 7040720 2 HUB, Rear Wheel

8 7017173 2 KEY, Square, 3/16 x 2 1/2"

9 7012899 2 RING, Retaining EXT .75 Was 12829

Engine, Engine Base & Drive Parts

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

10

Engine, Engine Base & Drive Parts

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 11

Part No Descri

p

tionItem Qt

y

Note

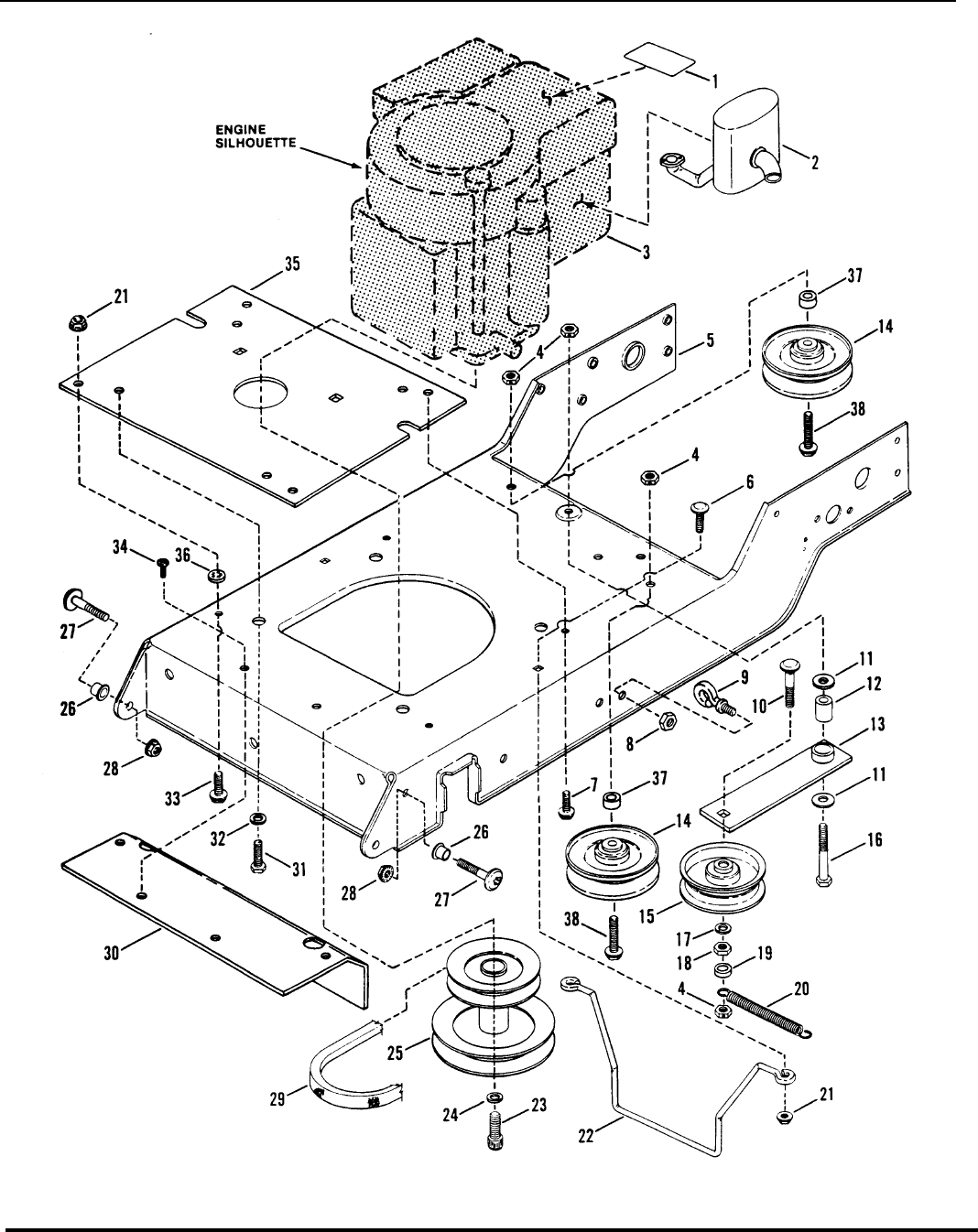

1 7017358 1 DECAL, Engine 14 HP OHV

2 7017313 1 MUFFLER, Exhaust

3 1 ENGINE, Kohler Model CV14S, Spec. PS1431 (Purchase Engine Parts, Other

Than Those Listed, From

Engine Service Outlets.)

4 7091585 4 NUT, 3/8-16 Hex, Center Lock Was 90546

5 7033145 1 BASE, Engine Kohler

6 7091508 2 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90788

7 7090595 2 BOLT, 5/16-18 x 3/4" Flange Lock

8 7091575 1 NUT, 5/16-18 Hex Lock Was 90184

9 7014438 1 EYE-BOLT

10 7091008 1 BOLT, 3/8-16 x 2 1/2" Short Neck Carriage

11 7090517 2 WASHER, 3/8" Flat Was 90600

12 7044752 1 BUSHING, Idler Arm .750 OD x .406 ID x .25 L Was 22062

13 7040565 1 ARM, Idler

14 7011029 2 PULLEY, Idler, 4" O.D.

15 7023199 1 PULLEY, Idler, 3 3/4" O.D.

16 7090629 1 BOLT, 3/8-16 x 2 1/4 Hex

17 7090118 1 WASHER, 3/8 Split Lock

18 7091302 1 NUT, 3/8-16 Hex Was 90130

19 7014527 1 SPACER .623 OD x .38 ID x .25 L

20 7011807 1 SPRING, Idler Arm

21 7091601 6 NUT, 5/16-18 Hex Flange Lock Was 90585

22 7019042 1 GUIDE, Belt

23 7090836 1 SCREW, 7/16-20 Socket, Hex Head Cap

24 7091301 1 WASHER, 7/16 Split Lock Was 90247

25 7019036 1 PULLEY ASSEMBLY, Engine

26 7012306 2 BUSHING

27 7023198 2 SCREW, Shoulder, 3/8-16 x 1 5/8"

28 7091619 2 NUT, 3/8-16 Hex Flange Lock Was 90613

29 7016724 1 V-BELT, Traction Drive, (111.6" EL) LT140H33, LT140H41, &

RLT140H33

30 1 AXLE SUPPORT (No longer available) Was 33100

31 7077692 4 BOLT, M8-1.25 x 25MM Hex Head

32 7090187 4 WASHER, 5/16 Split Lock

33 7090661 2 BOLT, 5/16-18 x 1" Hex Flange Lock

34 7091000 2 SCREW, 5/16-18 x 7/8" Truss Head Torx Was 91001

35 7033424 1 SPACER, Kohler Engine

36 7011791 2 RETAINER 5/16"

37 7016719 2 SPACER .750 x .39 ID x .5 L

Engine, Engine Base & Drive Parts

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

12

Engine, Engine Base & Drive Parts

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 13

Part No Descri

p

tionItem Qt

y

Note

38 7091580 2 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701

Transmission Support & Components I

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

14

Transmission Support & Components I

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 15

Part No Descri

p

tionItem Qt

y

Note

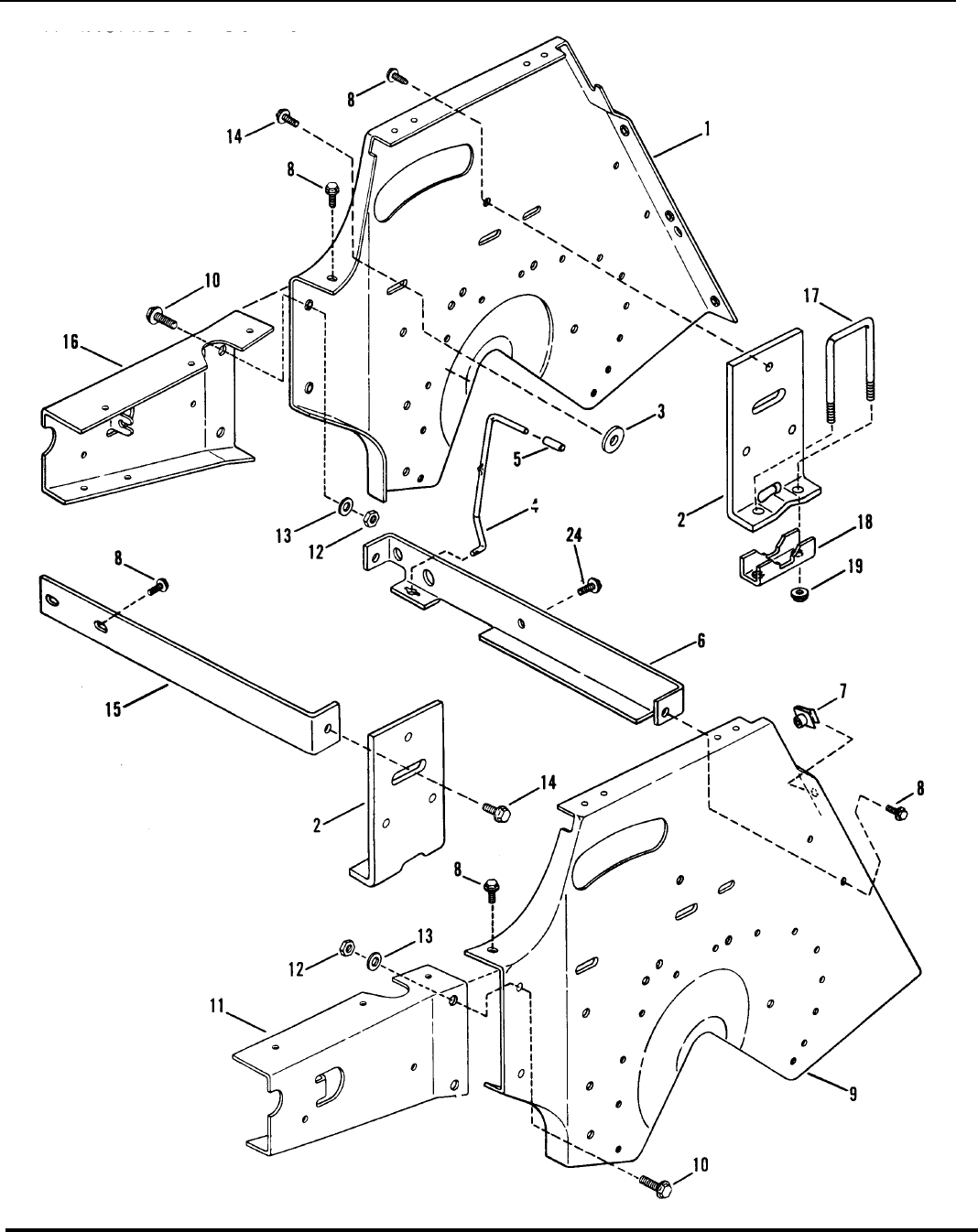

1 1 TRANSMISSION SUPPORT, R.H. (No longer available) Was 33063

2 2 BRACKET, Transmission Mount (No longer available) Was 33059

3 7016360 2 WASHER .406 x 1.38 x .25

4 7017164 1 ROD, Release

5 7023606 1 CAP, Release Rod Was 23525

6 7033061 1 BRACE, Torque

7 7016116 4 NUT, 5/16 Push-On

8 7090361 14 SCREW, 5/16-18 x 5/8" Self-Tapping

9 1 TRANSMISSION SUPPORT, L.H. (No longer available) Was 33062

10 7027198 4 BOLT, 3/8-16 x 1" Hex Flange Lock Was 90582

11 1 EXTENSION, Transmission Support, L.H. (No longer available) Was 35179

12 7091585 4 NUT, 3/8-16 Center Lock Was 90546

13 7090122 4 WASHER, 3/8 SAE

14 7091541 2 SCREW, 5/16-18 x 3/4" Self-Tapping Was 90368

15 1 BRACE, Shift Bracket (No longer available) Was 33065

16 1 EXTENSION, Transmission Support, R.H. (No longer available) Was 35180

17 7022289 2 U-BOLT

18 7033320 2 SADDLE, U-Bolt

19 7091601 2 NUT, 5/16-18 Hex Flange Lock Was 90585

24 7091000 1 SCREW, 5/16-18 X 7/8" Torx Self-Tap

Transmission Support & Components II

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

16

Transmission Support & Components II

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 17

Part No Descri

p

tionItem Qt

y

Note

8 7090361 14 SCREW, 5/16-18 x 5/8" Self-Tapping

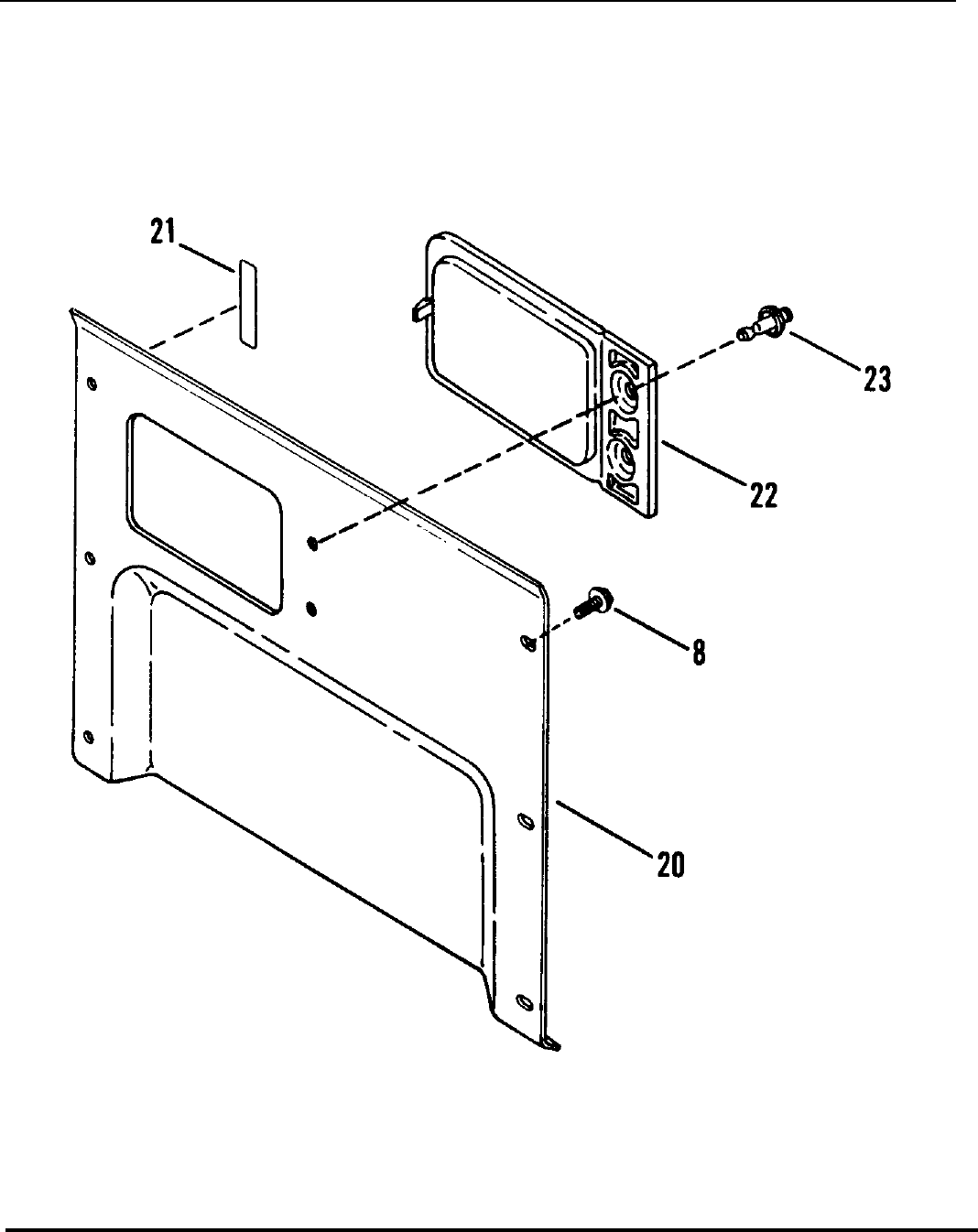

20 7033068 1 COVER, Rear

21 7017209 1 DECAL, Roll

22 1 COVER, Transmission Oil Access (No longer available) Was 16863

23 7017327 2 SCREW, Expansion

Dash Panel

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

18

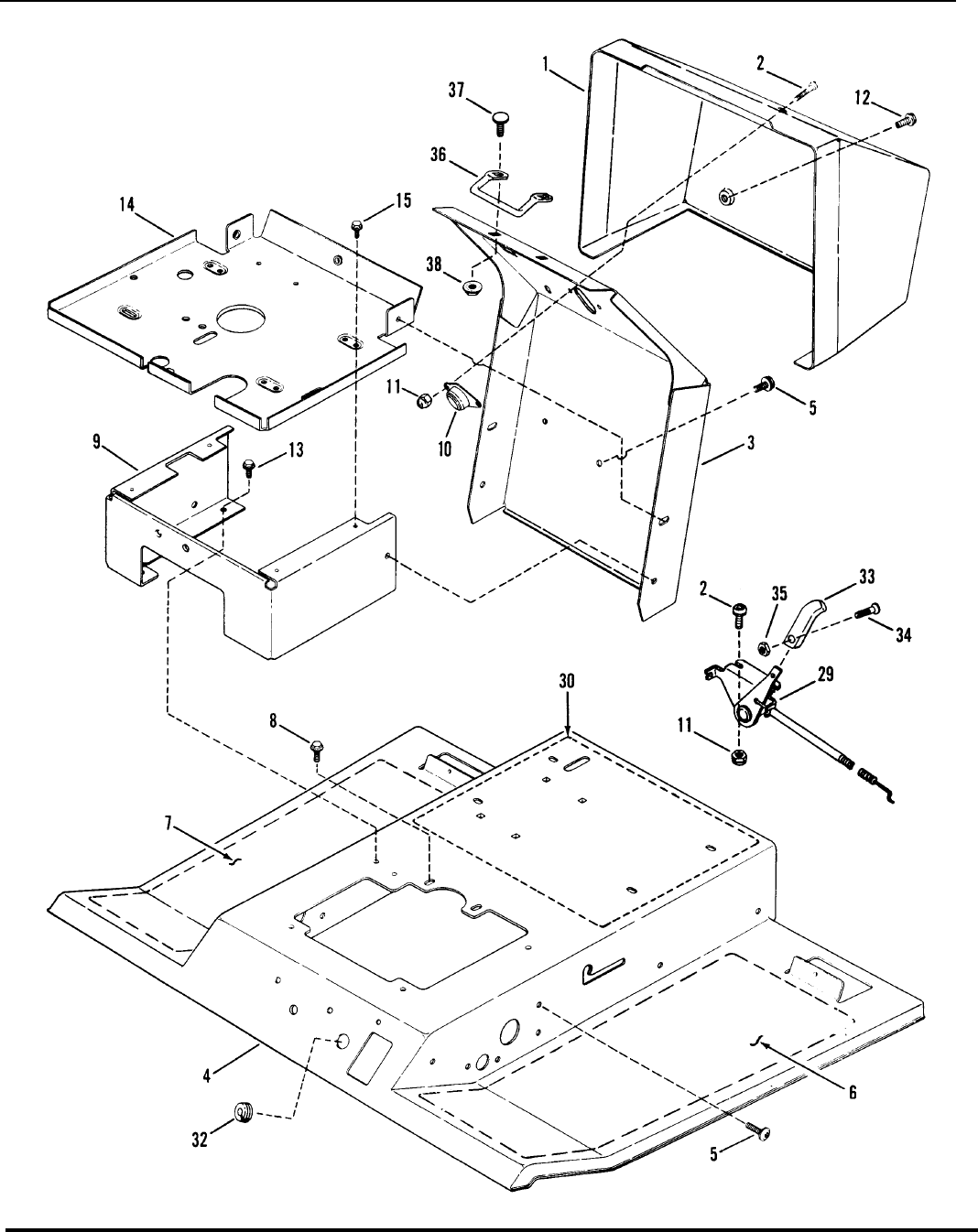

Dash Panel

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 19

Part No Descri

p

tionItem Qt

y

Note

1 7052685 1 PANEL, Dash Was 52686

2 7090996 4 SCREW, 1/4-20 x 1" Phillips

3 7040734 1 SUPPORT, Steering Shaft

4 7051915 1 CHANNEL, Foot Rest (Includes item 30)

5 7091000 14 SCREW, 5/16-18 x 7/8" Torx, S.T. Was 91001

6 7019400 1 TREAD, Left Side (Non-Skid)

7 7019399 1 TREAD, Right Side (Non-Skid)

8 7090361 2 SCREW, 5/16-18 x 5/8" Hex Cap S.T.

9 7033073 1 MOUNT, Fuel Tank/Battery

10 7026196 1 FLANGE ASSM'Y., Steering Shaft .75" ID Bearing Was 23173

11 7076978 4 NUT, 1/4-20 Hex

12 7090896 2 SCREW, #10-24 x 1/2" Self-Tapping Was 90853

13 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping

14 7033078 1 PLATE, Fuel Tank & Battery Mount

15 7091122 4 SCREW, 1/4-20 x 1/2" Hex Cap, S.T. Was 90539

29 7016824 1 CONTROL, Throttle 41.6" Long

30 7017026 1 DECAL, Caution & Instruction

32 1 GROMMET, 5/16 I.D. for .75 Hole (No Longer available) Was 14856

33 7023655 1 HANDLE, Throttle Control

34 7091017 1 SCREW, #8-32 x 3/8" Recessed, Fillister Head

35 7091018 1 NUT, #8-32 Hex

36 1 ROD, Hood Latch (No longer available, try using 7033828) Was 17345

37 7090803 6 BOLT, 1/4-20 x 5/8" Flat Head Carriage

38 7091584 6 NUT, 1/4-20 Hex Flange Lock Was 90583

Steering And Front Axle Parts

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

20

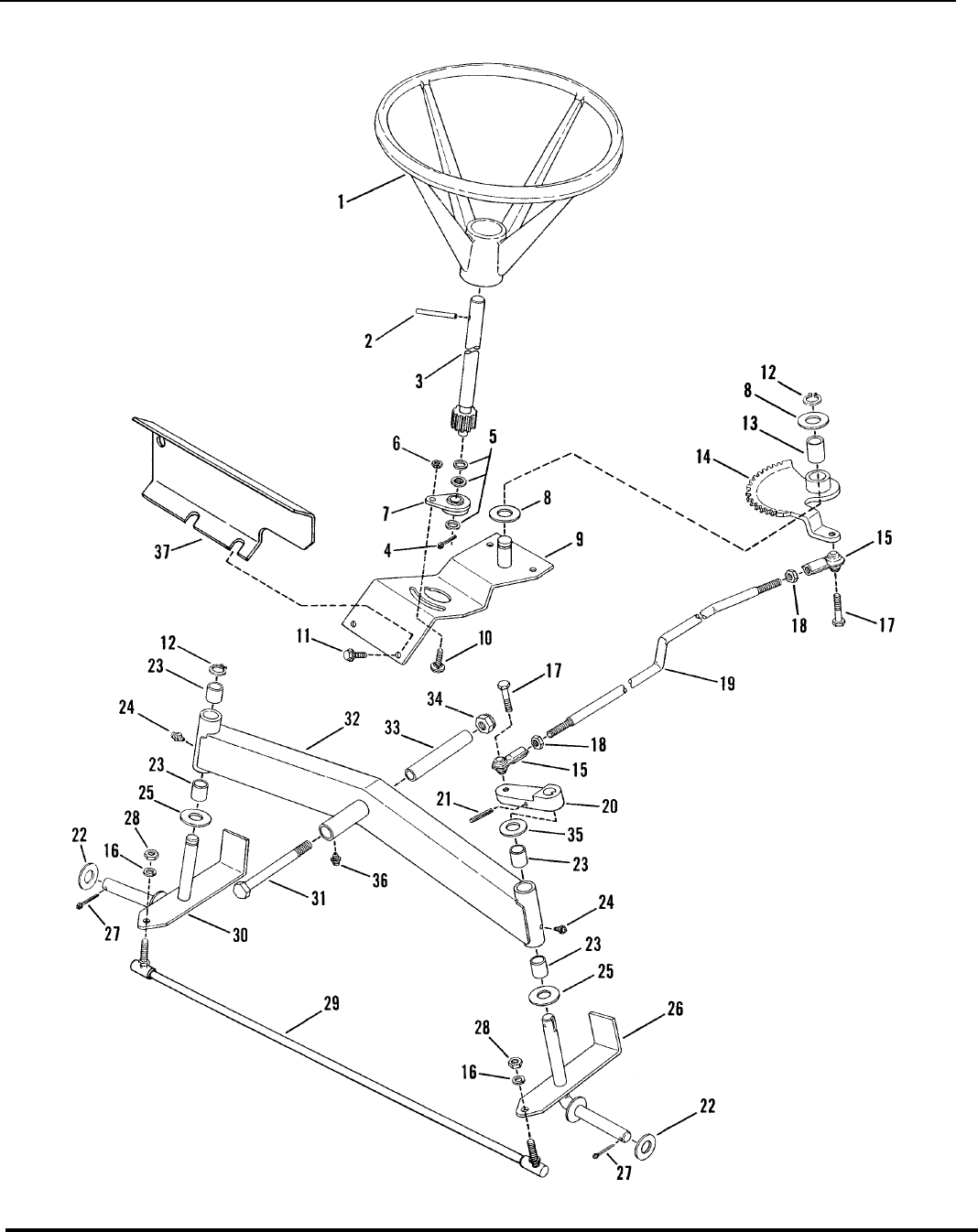

Steering And Front Axle Parts

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 21

Part No Descri

p

tionItem Qt

y

Note

1 7017040 1 STEERING WHEEL

2 7012765 1 ROLL-PIN Spiral .26 x 2.25

3 7040610 1 SHAFT, Steering

4 7091313 1 PIN, Cotter 3/32 x 1.0 YZ Was 10076 retaining ring

5 7014296 3 WASHER, Shim .5 x .75 x .03

6 7091584 1 NUT, 1/4-20 hex Flange Lock Was 90583

7 7052562 1 ADJUSTER, Steering Was 51751

8 7011071 2 WASHER, Thrust

9 7047938 1 ASSEMBLY, Steering Support

10 7091573 1 BOLT, 1/4-20 x 5/8" Short Neck Carriage Was 90551

11 7090361 4 SCREW, 5/16-18 x 5/8" Self-Tapping

12 7010746 2 RING, Retaining EXT .625

13 7015140 2 BEARING

14 7051752 1 ASSEMBLY, Sector

15 7027936 2 ROD-END, Drag Link .377 ID Ball x 3/8-24 End Was 23200

16 7090118 4 WASHER, 3/8 Split Lock

17 7090163 2 SCREW, 3/8-24 x 1 1/4" Hex Head Cap Nylon Patch

18 7090482 4 JAM-NUT, 3/8-24 Hex

19 7016062 1 DRAG-LINK

20 7019034 1 ARM, Steering

21 7090842 1 ROLL-PIN 1/4 x 1.25"

22 7032027 3 WASHER, Flat .77 x 1.5 x .06

23 7012706 4 BEARING, Sleeve .875 OD

24 7013864 2 LUBE FITTING, Straight (press-fit for .187 dia. Hole)

25 7031036 2 WASHER, Thrust

26 7040977 1 SPINDLE ASSEMBLY, L.H.

27 7091516 2 COTTER-PIN 5/32 x 1 YZ Was 90364

28 7091630 2 NUT, 3/8-24 Hex Was 90155

29 7017608 1 TIE-ROD

30 7040976 1 SPINDLE ASSEMBLY, R.H.

31 7090993 1 SCREW, 1/2-20 x 4 1/2" Hex Head Cap

32 7057536 1 ASSEMBLY, Front Axle (Includes four item 23, two item

24, one item 36)

33 7022070 1 SPACER, Axle Pivot .748 OD x .508 ID x 3.77 L

34 7090819 1 NUT, 1/2-20 Hex Lock

35 7010935 1 WASHER .77 x 1.13 x .06

36 7014871 1 FITTING, Lube 3/16

37 7033264 1 HEAT SHIELD, Fuel Line

Seat, Rear Fender

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

22

Seat, Rear Fender

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 23

Part No Descri

p

tionItem Qt

y

Note

1 1 SEAT, Operator's 5 Hole (No longer available) Was 22544 or 22545

2 7022278 2 SPRING, Seat Switch

3 7022794 2 SPACER, Seat .467 OD x .328 x 1.375 L

4 7033362 1 HOLDER, Seat Switch

5 7091592 2 BOLT, 5/16-18 x 2" Hex Flange Lock Was 90586

6 7022793 2 BUSHING, Seat

7 7019348 2 CLIP, Seat Bumper

8 7019109 2 CUSHION, Seat

9 7023191 1 KNOB, 3 Prong 5/16-18 x 3/4

10 7011763 1 WASHER 5/16"

11 7033360 1 SUPPORT, Seat

12 7033361 1 BRACKET, Seat Support

13 7012431 1 PIN, Hair 1.12"

14 7090721 3 BOLT, 5/16-18 x 1/2" Hex Flange Lock

15 1 DECAL, SNAPPER, Molded Logo 8" - Blue (No longer available) Was 22971

1 DECAL, SNAPPER, Molded Logo 8" - Green (No longer available Was 22972

16 7091000 4 SCREW, 5/16-18 x 7/8" Torx Head, Self-Tapping

17 7033049 1 FENDER, Rear

18 7090999 6 SCREW, 1/4-20 x 5/8" Torx Head, Self-Tapping

19 7091105 4 SCREW, #10-16 x 1/2" Self-Tapping

20 7033120 1 DETENT, Shift

21 7019416 1 COVER, Shift Detent

22 7073424 1 DECAL, Shift Cover Was 16576

23 7023193 3 RIV-NUT, 5/16-18

24 7032692 3 SPACER, WEAR Nylon 2.0 x .62 x .055

25 7023192 2 WASHER, Flat .445 x 1.0 x .059

26 7015761 2 SCREW, Shoulder, 5/16-18 x 3/4"

27 7019035 1 ROD, Seat Hinge

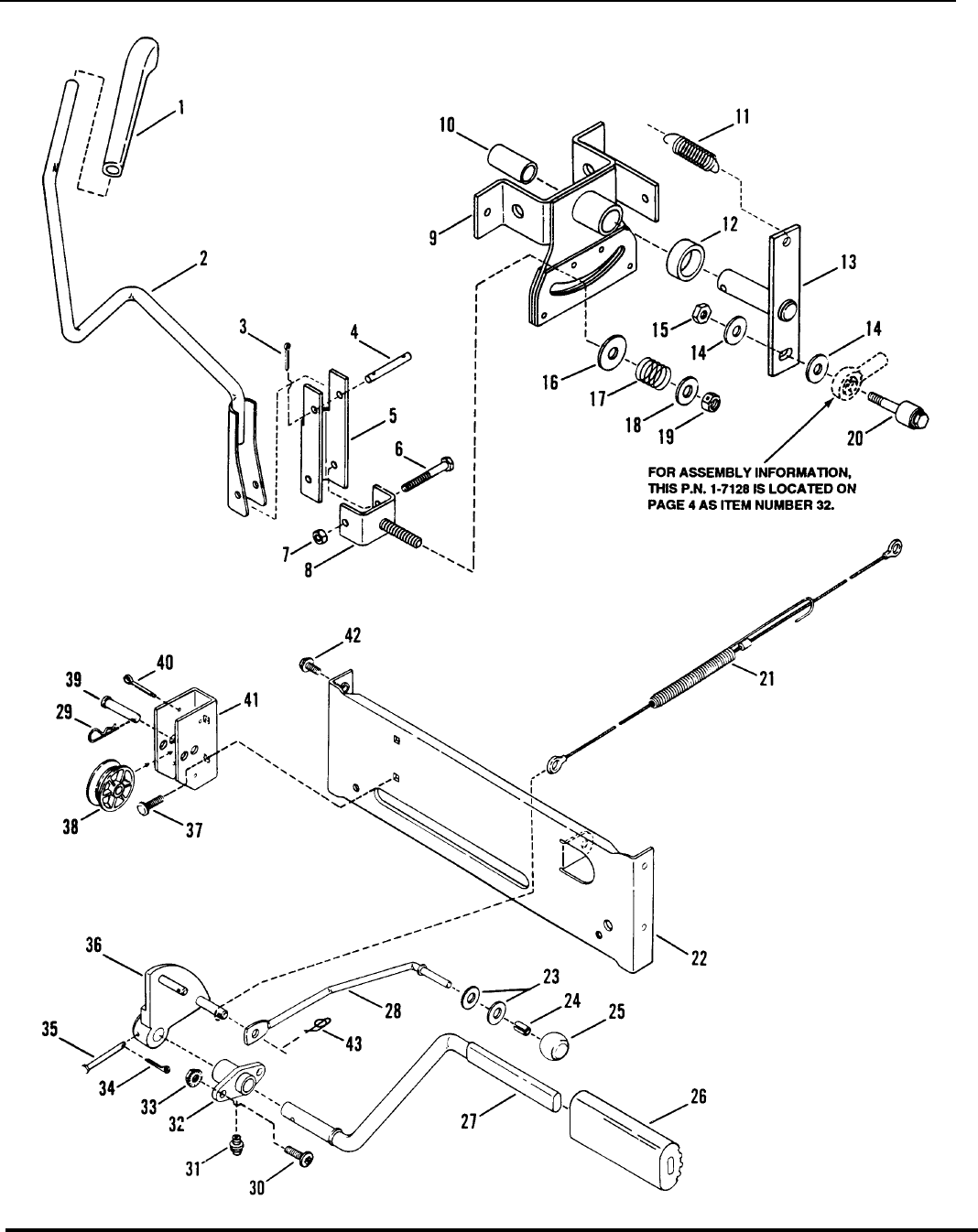

Clutch, Brake & Transmission Controls

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

24

Clutch, Brake & Transmission Controls

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 25

Part No Descri

p

tionItem Qt

y

Note

1 7023656 1 KNOB, Shifter (Elongated)

2 7040716 1 SHIFTER, Transmission

3 7091597 1 COTTER-PIN, 3/32 x 3/4" Was 90037

4 7022182 1 PIN, Shifter

5 7033159 1 EXTENSION, Hub

6 7090112 1 SCREW, 1/4-28 x 2" Hex Head Cap

7 7090303 1 NUT, 1/4-28 Hex Lock

8 7052346 1 RUB PLATE ASSEMBLY

9 7052274 1 SHIFT PIVOT ASSEMBLY

10 1 BEARING, Shift Pivot Assembly (No longer available, try using

7015048)

Was 16955

11 7017818 1 SPRING, Shift

12 7017820 1 SPACER, 1.0 OD x .755 ID x .310 L

13 7040704 1 SPEED CONTROL

14 7091130 2 WASHER, 5/16 Flat

15 7091297 1 NUT, 5/16-24 Hex Was 90223

16 7017415 1 WASHER, Special

17 7017416 1 SPRING, Tension

18 7090517 1 WASHER, 3/8" Flat Was 90600

19 7090289 1 NUT, 3/8-24 Hex Lock

20 7017543 1 CAM FOLLOWER

21 7019039 1 CABLE, Clutch (22.5" Long)

22 7032926 1 BRACE

23 7023649 2 WASHER, Nylon 5/16"

24 7023189 1 RING, Tolerance 5/16" x 1/2"

25 7023188 1 KNOB, Latch 5/16"

26 7012661 1 PAD, Pedal

27 7017024 1 PEDAL, Clutch/Brake

28 7019033 1 LATCH, Clutch/Brake

29 7012431 PIN, Hair 1.12"

30 7091000 2 SCREW, 5/16-18 x 7/8" Torx

31 7014871 1 FITTING, Lube 3/16"

32 7052431 1 PIVOT, Clutch/Brake Pedal (Includes item 31)

33 7091601 2 NUT, 5/16-18 Hex Lock Was 90585

34 7090360 1 COTTER-PIN, 1/16 x 3/4"

35 7023645 1 PIN, Clevis, 3/16 x 1 1/2"

36 7041309 1 BRAKE ARM Was 41016

37 7091530 2 BOLT, 1/4-20 x 3/4" Short Neck Carriage Was 90074

Clutch, Brake & Transmission Controls

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

26

Clutch, Brake & Transmission Controls

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 27

Part No Descri

p

tionItem Qt

y

Note

38 7023182 1 SPOOL, Bracket

39 7012715 1 PIN, Clevis, 3/8 x 1 9/32"

40 7091809 1 COTTER-PIN, 1/8 x 1 1/4" Was 90042

41 1 BRACKET, Spool (No longer available, try modifying 7033328 to

fit)

Was 32694 or 33154

42 7090858 4 SCREW, 5/16-18 x 1/2" Self-Tapping

43 7091593 1 COTTER-PIN, 3/8 Self-Lock Was 24159

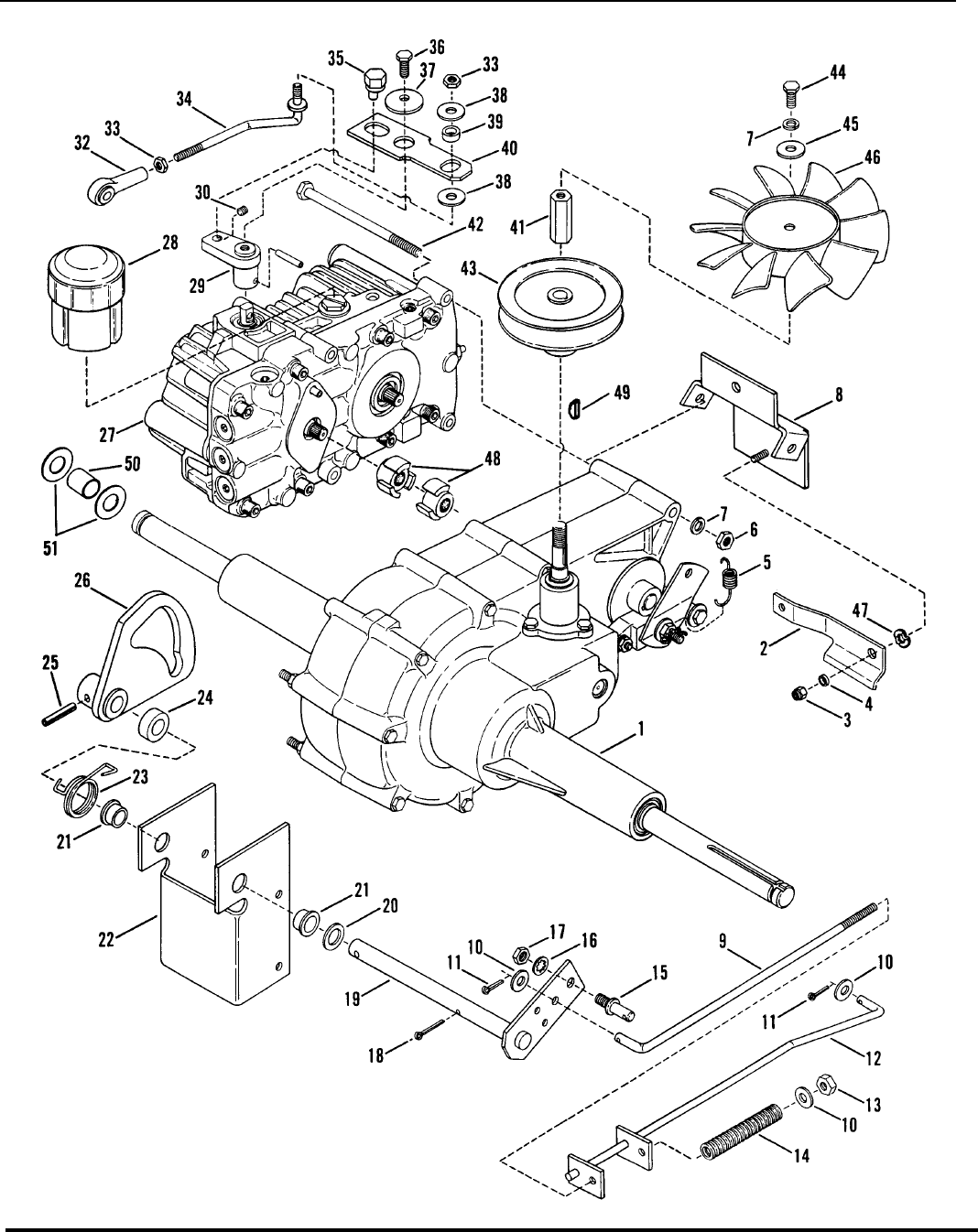

Transmission Group

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

28

Transmission Group

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 29

Part No Descri

p

tionItem Qt

y

Note

1 7026084 1 TRANSAXLE ASSEMBLY Was 19725

2 7033133 1 LEVER, Release

3 7076978 1 NUT, 1/4-20 Hex Lock

4 7017166 1 SPACER .37 OD x .271 ID x .120 L

5 7016927 1 SPRING, Brake Return

6 7091511 4 NUT, 5/16-18 Hex Was 90628

7 7090187 1 WASHER, 5/16 Split Lock

8 7052281 1 TORQUE BRACKET ASSEMBLY

9 7017121 1 ROD, Brake Spring

10 7090692 3 WASHER 5/16 x 7/8 x .083

11 7091598 2 COTTER-PIN, 5/32 x 1" Was 90365

12 7040702 1 ROD, Brake Stop

13 7091575 1 NUT, 5/16-18 Hex Center Lock Was 90184

14 7016721 1 SPRING, Brake

15 7015464 1 STUD, Neutral Pivot

16 7090390 1 WASHER, 3/8 Internal Tooth Lock

17 7091630 1 NUT, 3/8-24 Hex Was 90155

18 7091809 1 COTTER-PIN,1/8 x 1 1/4" Was 90042

19 7040703 1 NEUTRAL PIVOT ASSEMBLY

20 7072801 1 WASHER Was 12855

21 2 BEARING, 5/8 Flanged Nylon .625 ID x .719 x .325 (No longer

available)

Was 16956

22 7033056 1 SUPPORT, Neutral Pivot

23 7016723 1 SPRING, Torsion

24 1 SPACER, 1.120 OD x .635 ID x .38 L (No longer available) Was 17165

25 7090842 1 PIN, Roll, 1/4 x 1 1/4"

26 7016715 1 CAM, Neutral Return

27 7016726 1 TRANSMISSION, Hydro (HG BDU-105-120)

28 7016727 1 RESERVOIR ASSEMBLY (HG 2003081)

29 7016712 1 HUB, Speed Control

30 1 SCREW, 1/4-28, 1/8 Hex Socket Set (No longer available, try

using 7077667)

Was 13670

31 7017732 1 PIN, Spiral 5 MM x 36 MM

32 7027139 1 ROD END, Speed Control Was 17128

33 7091297 2 NUT, 5/16-24 Hex Was 90223

34 1 ROD, Adjustment 4.41" l, 5/16-24 Ends (No longer available) Was 17816

35 7016729 1 PIN, Eccentric

36 7090534 1 SCREW, 5/16-18 x 1/2" Hex Head Cap Was 90203

37 7014263 1 WASHER, Cone .32 x 1.4 x .1

Transmission Group

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

30

Transmission Group

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 31

Part No Descri

p

tionItem Qt

y

Note

38 7091130 2 WASHER, Flat .327 x .875 x .09

39 7011968 1 ROLLER

40 7033054 1 PLATE, Speed Control

41 1 NUT, Special 3/4 Hex Stock/5/16-24 Thru/9/16-18x1.0 Deep (No

longer available)

Was 16717

42 7076940 3 SCREW, 5/16-18 x 4 1/2" Hex Head Cap

7090924 1 SCREW, 5/16-18 x 4 1/8" Hex Head Cap (Not Shown)

43 7016716 1 PULLEY, Drive

44 7090322 1 SCREW, 5/16-24 x 1/2" Hex Head Cap

45 7011763 1 WASHER, Fender 5/16

46 7016728 1 FAN, 7" DIA 10 Blade

47 5023202 1 WASHER, 3/8 Wave Was 17855

48 7024235 4 PUMP COUPLING

49 7024425 1 KEY, 3/32" X 5/8" Hi-pro

50 7072385 1 SPACER 1.25 OD x .791 ID x 1.115 L Was 24858

51 7032027 2 WASHER, 3/4" Flat

Transmission - Service Parts

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

32

Transmission - Service Parts

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 33

Part No Descri

p

tionItem Qt

y

Note

1 7024395 1 TRANSAXLE ASSEMBLY HOUSING, L.H.

2 7091511 9 NUT, 5/16-18 Hex Was 90628

3 7024235 4 PUMP COUPLING

4 7024397 1 DIFFERENTIAL ASSEMBLY

5 7024399 1 REDUCTION GEAR ASSEMBLY

6 7024400 1 SHAFT, Drive

7 7024401 1 GEAR, Drive Pinion

8 7024402 1 SHAFT, Pinion Gear

9 7024396 1 TRANSAXLE ASSEMBLY HOUSING, R.H.

10 7024428 1 SEAL, Grease

11 7024416 1 KEY, 3/16 x 5/8" Hi-Pro

12 7024404 2 PUCK, Brake

13 7024403 1 DISC, Brake

14 7024405 1 PLATE, Puck

15 7024406 1 BRAKE YOKE ASSEMBLY

16 7024420 1 SPACER

17 7024419 1 WASHER, Flat, .265 I.D. x 7/8" O.D.

18 1921963 1 BOLT, 1/4-20 x 2" Hex Was 24418

19 7024412 1 PIN, Cotter

20 7024411 1 NUT, 5/16-24 Castle

21 7024410 1 WASHER, Flat, .343 I.D. x .88" O.D.

22 7024409 1 ARM, Brake Actuator

23 7024408 2 PIN, Brake Actuating

24 2816622 1 NUT, 1/4-20 Hex Was 24414

25 7024415 1 WASHER, 1/4 Spring Lock

26 7024421 4 BOLT, 1/4-20 x 2" Hex Hd., Self-Tapping

27 7024424 1 BOLT, 5/16-18 x 3 3/4" Hex Head

28 7024422 4 BOLT, 1/4-20 x 3" Hex Hd., Self-Tapping

29 7024398 1 INPUT PINION HOUSING ASSEMBLY

30 7024425 1 KEY, 3/32 x 5/8" Hi-Pro

31 7024413 3 SCREW, 1/4-20 x 3/4" Hex Head

32 7090841 2 PIN, Roll, 3/16 x 1.5" Was 24427

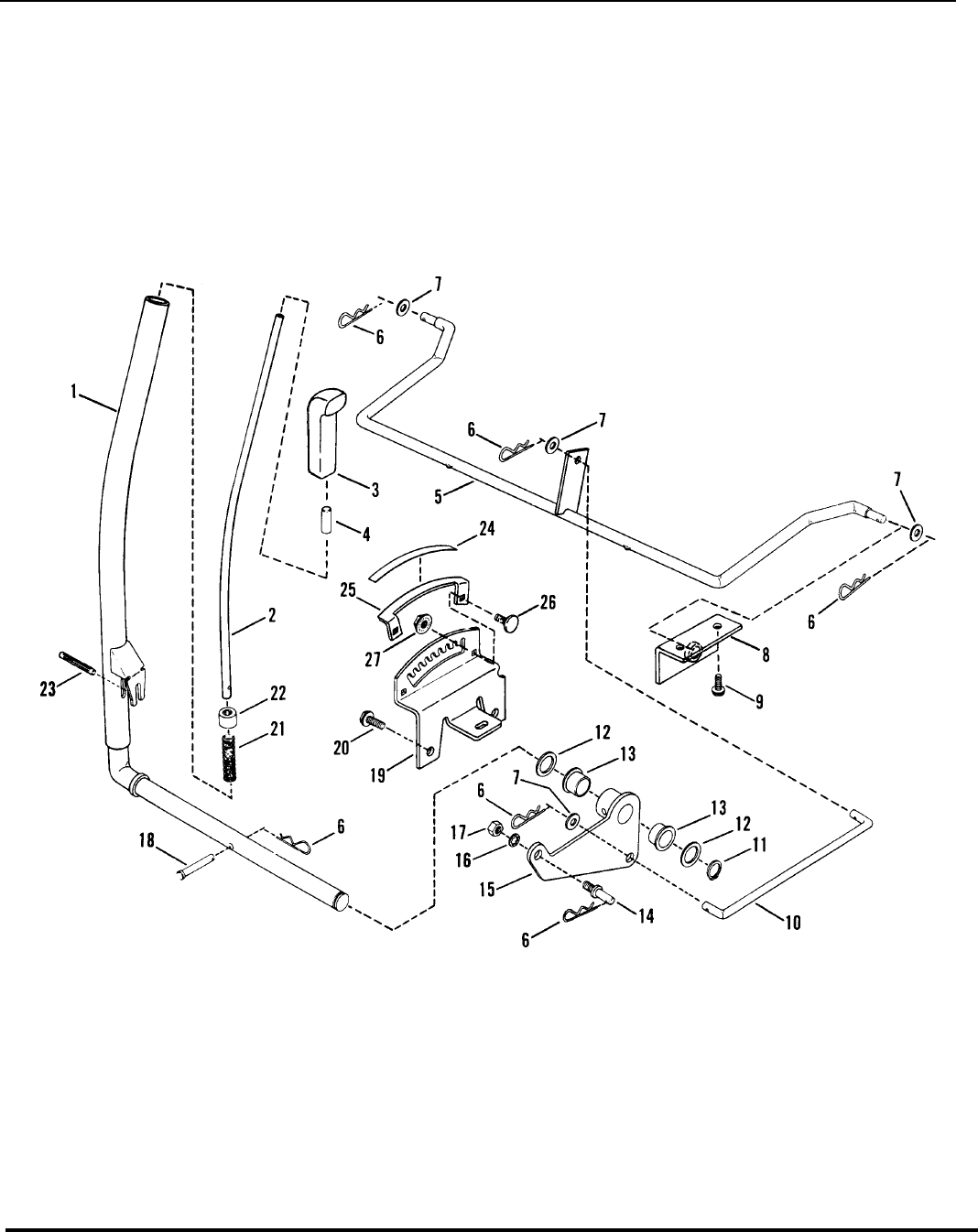

Implement Lift Parts

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

34

Implement Lift Parts

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 35

Part No Descri

p

tionItem Qt

y

Note

1 7040698 1 ARM, Implement Lift Lever

2 7033047 1 ROD, Lift Lever

3 7019363 1 GRIP, Lift Lever

4 7014361 1 CAP, Lift Release

5 7047967 1 ARM, Rear Lift

6 7091503 6 PIN, Hair, 3/32 x 1 1/2" Was 15067

7 7090122 4 WASHER, 3/8 SAE Flat

8 7033737 2 BRACKET, Hanger Was 33419

9 7090361 4 SCREW, 5/16-18 x 5/8" H.W.H.S.T.

10 7023171 1 LIFT-ROD

11 7015020 1 RING, Retaining EXT 7/8"

12 7014354 2 WASHER, Lift Lever .905 x 1.25 x .091

13 7023197 2 BEARING, Lift Lever

14 7015464 1 STUD

15 7047933 1 PIVOT ASSEMBLY, Lift Lever

16 7090390 1 WASHER, 3/8 Int. Tooth Lock

17 7091630 1 NUT, 3/8-24 Hex Was 90155

18 7029841 1 PIN, Clevis, 5/16 x 1 11/16" Was 12407

19 7033046 1 QUADRANT, Lift Lever

20 7091000 3 SCREW, 5/16-18 x 7/8" Self-Tapping Was 91001

21 7014432 1 SPRING, Lift Lever

22 7015019 1 PLUG, Lift Lever Nylon

23 7090881 1 GROOVE-PIN, 3/16 x 2"

24 7017445 1 DECAL, Cut Height

25 7033176 1 INDICATOR, Cut Height

26 7090803 2 BOLT, 1/4-20 x 5/8" Flt. Hd. Carr.

27 7091584 2 NUT 1/4-20 Hex Flg. Lock Was 90583

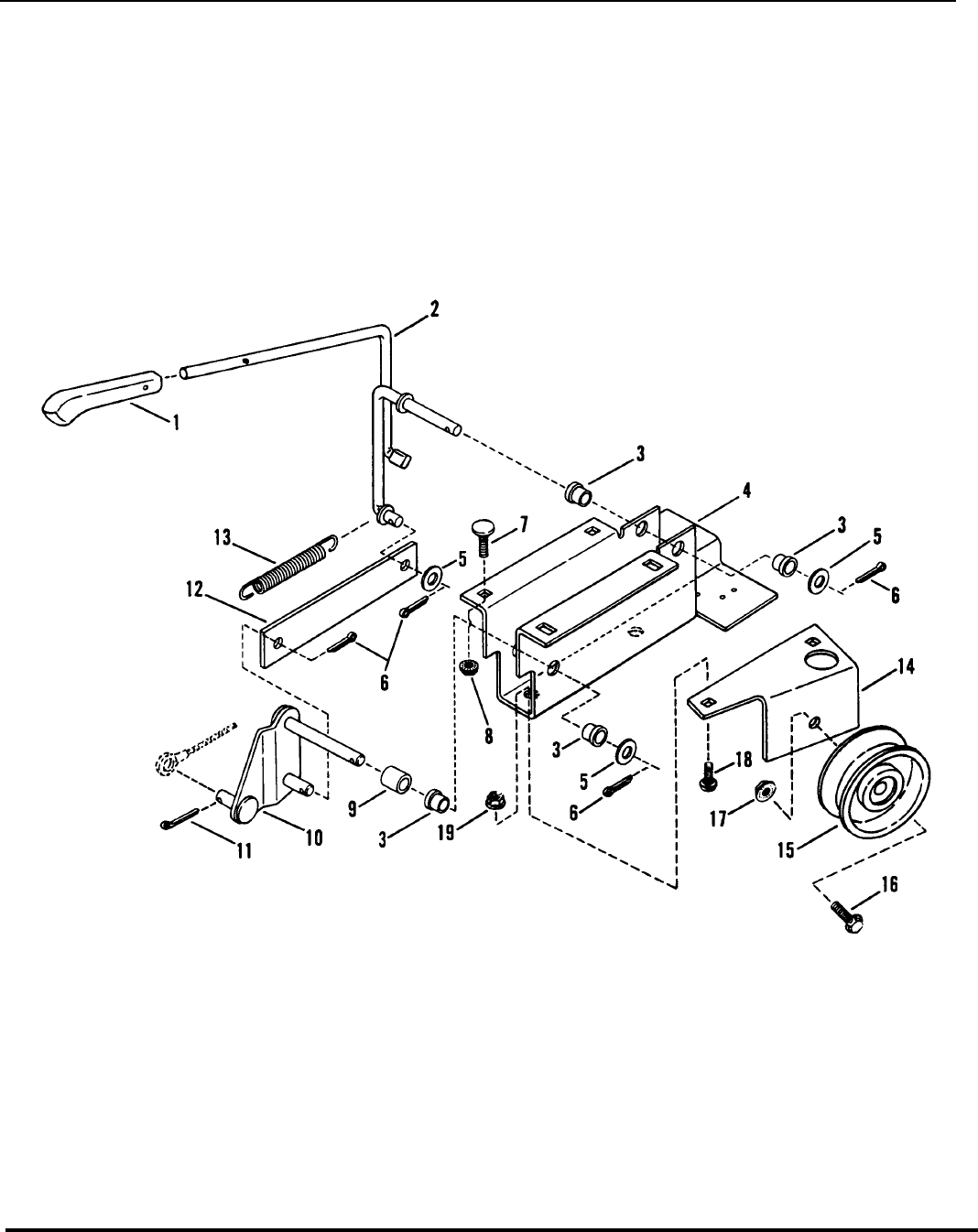

Blade Engagement

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

36

Blade Engagement

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 37

Part No Descri

p

tionItem Qt

y

Note

1 7016356 1 KNOB, Handle 7/16"

2 1 HANDLE, Blade Engagement (No longer available) Was 40996

3 7013321 4 BUSHING

4 7033364 1 BRACKET, Handle

5 7090122 3 WASHER, 3/8 SAE YZ

6 7091597 4 COTTER-PIN, 3/32 x 3/4" Was 90037

7 7090803 4 BOLT, 1/4-20 x 5/8 Flat Hd. Carriage

8 7091584 4 NUT, 1/4-20 Hex Flange Lock Was 90583

9 7023206 1 SPACER .625 OD x .380 ID x .560 L

10 7040570 1 PIVOT ARM ASSEMBLY

11 7091313 1 COTTER-PIN, 3/32 x 1" Was 90038

12 7032712 1 LINK

13 7023165 1 SPRING, Return

14 7033277 1 BRACKET, Idler Support

15 7017748 1 PULLEY, Idler 2.75" OD

16 7091580 1 BOLT, 3/8-16 x 1 3/4" Hex Flange Lock Was 90701

17 7091619 1 NUT, 3/8-16 Hex Lock Was 90613

18 7090731 2 BOLT, 5/16-18 x 1/2" Short Neck Carr.

19 7091601 2 NUT, 5/16-18 Hex Lock Flanged Was 90585

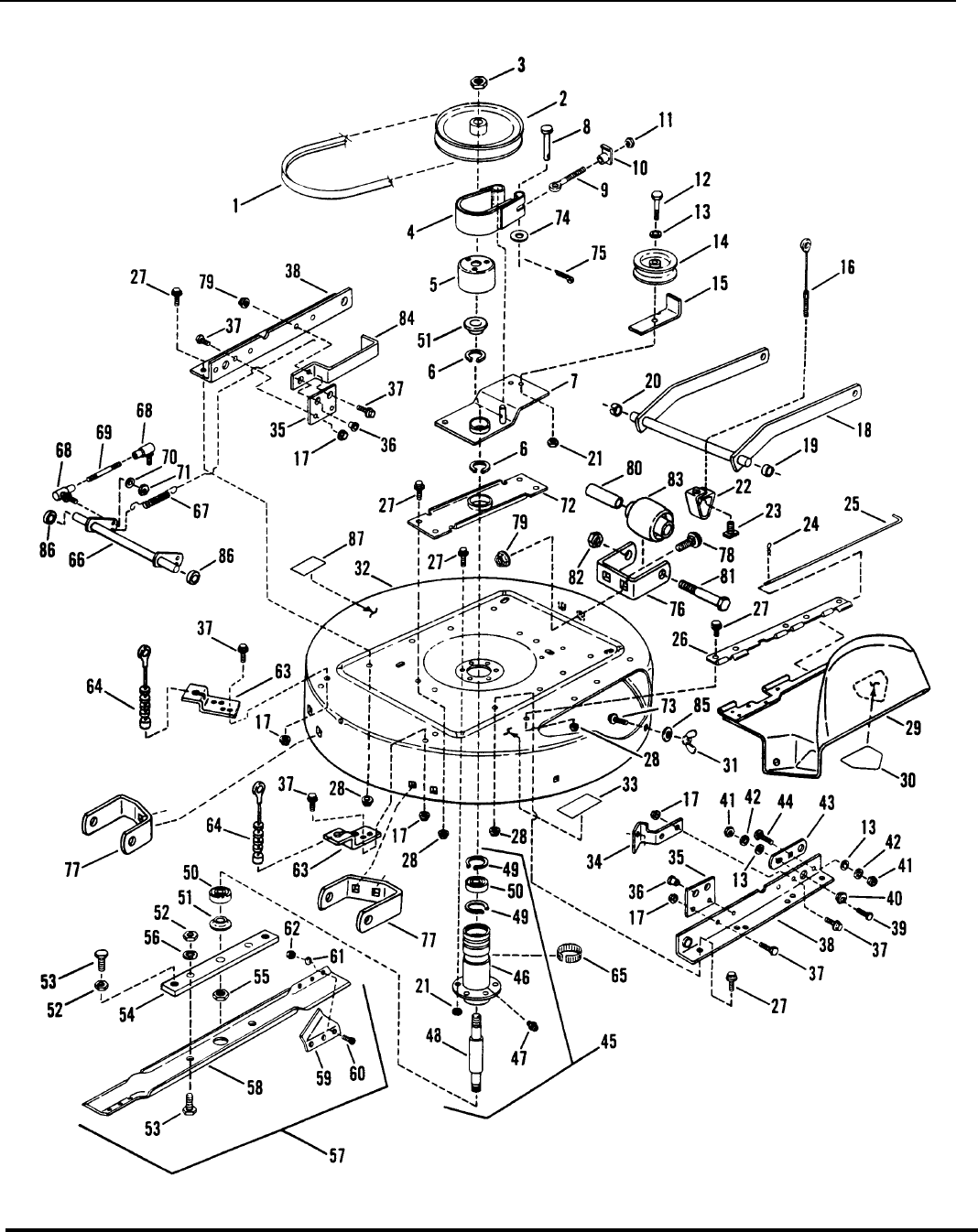

33" Cutting Deck, Belts, Brakes

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

38

33" Cutting Deck, Belts, Brakes

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 39

Part No Descri

p

tionItem Qt

y

Note

1 7023710 1 BELT, 33" Drive Kevlar (A-59 61" OD)

2 7018581 1 PULLEY, 8" O.D.

3 7074467 1 NUT, 3/4-16 Hex Jam Was 10027

4 7052886 1 BAND, Brake Assembly Was 57307

5 7032169 1 DRUM, Brake

6 7010740 2 RING, 2” External Retaining

7 7047961 1 ARM, Idler

8 7014304 1 PIN, 1/4 x 1 1/4" Clevis

9 7014302 1 BOLT, 1/4-20 Eye

10 7014303 1 NUT, 1/4-20 Tee

11 7091576 1 NUT, 1/4-20 Hex GR 5 YZ Was 90063

12 7090164 1 SCREW, 3/8-24 x 1 1/2" Hex Head Cap

13 7090122 3 WASHER, 3/8 SAE

14 7018574 1 PULLEY, Idler, 4.12 O.D.

15 7032368 1 GUIDE, Belt

16 7023180 1 CABLE, Front Lift 6.12"

17 7091601 10 NUT, 5/16-18 Hex Flange Lock Was 90585

18 7047959 1 LIFT, Front Arm

19 7012067 1 RING, Red (Right Side)

20 7023791 1 RING, Black (Left Side)(5/8" ID x .44" Wide) Was 10996

21 7090289 7 NUT, 3/8-24 Hex Lock

22 7038043 1 BRACKET, Front Lift Hanger

23 7090388 1 T-NUT, 5/16-18

24 7091503 1 PIN, Hair 3/32" x 1.5" Was 15067

25 7032323 1 PIN, Hinge Was 31914

26 7039586 1 HINGE, Deflector

27 7091588 14 BOLT, 3/8-16 x 3/4" Hex Flange Lock Was 90612

28 7091619 14 NUT, 3/8-16 Hex Flange Lock Was 90613

29 7052555 1 ASSEMBLY, Deflector Was 51978 (Includes item 30)

30 7013010 1 DECAL, Danger (Cut Finger)

31 7091537 1 WING-NUT, 5/16-18 Was 90492

32 7061956 1 DECK, Cutting, 33" Was 51917 or 60978 (Now

61956 + 52555)(Includes items

33 & 87)

33 7014852 1 DECAL, Caution (Deflector)

34 7038455 1 ANCHOR, Brake

35 7032803 2 BRACKET, Cross-Shaft

36 7011016 2 BEARING, Cross-Shaft Bracket

37 7090721 10 BOLT, 5/16-18 x 1/2" Hex Flange Lock

33" Cutting Deck, Belts, Brakes

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

40

33" Cutting Deck, Belts, Brakes

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 41

Part No Descri

p

tionItem Qt

y

Note

38 7038453 2 RAIL, Side

39 7091304 1 SCREW, 3/8-16 x 1" Hex Head Cap Was 90563

40 7015012 1 ECCENTRIC, Leveling

41 7091302 2 NUT, 3/8-16 Hex Was 90130

42 7090118 2 WASHER, 3/8 Split Lock

43 7032432 1 LINK, Adjustment

44 7091547 1 BOLT, 3/8-16 x 3/4" Carriage Was 90850

45 7059784 1 ASSEMBLY, Spindle (Includes items 46 thru 55)

46 7052294 1 HOUSING, Spindle 5.575" Tall (Includes item 47)

47 7010817 1 FITTING, Lube (Press into .187" hole, no ball)

48 7027711 1 SPINDLE, 33" Mower Deck 8.26" Long

49 7012491 2 RING, Retaining EXT 1.75"

50 7013313 2 BEARING, Spindle

51 7014407 2 WASHER, Spindle

52 7090559 4 NUT, 1/4-20 Hex Jam (2 in assembly)

53 7090392 4 SCREW, 1/2-20 Hex Head Cap (2 in assembly)

54 7037751 1 HOLDER, Blade

55 7090356 1 NUT, 5/8-18 Hex Lock

56 7090509 2 WASHER, 1/2 Int. Tooth Lock

58 7019523 1 BLADE, 33" Mower Deck

7024741 1 BLADE, 33" Mower Deck Ninja (Mulching) Not shown (Not Included With This

Assembly)

7016982 1 BLADE, 33" Mower Deck (Recycling) Not shown (Not Included With This

Assembly)

59 7037723 2 AIR-LIFT

60 7090228 6 SCREW, 5/16-24 x 11/16" Machine

61 7090391 2 WASHER, 5/16 Internal Tooth Lock

62 7091297 6 NUT, 5/16-24 Hex Was 90223

63 7033115 2 BRACKET, Rear Lift

64 7016844 2 CABLE, Support (4.25", 8 Spacers)

65 7012670 1 RING, Tolerance 2.0"

66 7047960 1 CROSS-SHAFT

67 7028652 1 SPRING Was 16153

68 7015753 2 BALL-JOINT

69 7023687 1 LINK, Ball Joint

70 7090053 2 WASHER, 1/4 Int. Tooth Lock

71 7090095 2 NUT, 1/4-28 Hex

72 7038018 1 BRACE, Spindle

73 7091508 1 BOLT, 5/16-18 x 3/4" Short Neck Carriage Was 90001

74 7091294 1 WASHER .28 x .63 x .065 YZ Was 90055

33" Cutting Deck, Belts, Brakes

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

42

33" Cutting Deck, Belts, Brakes

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 43

Part No Descri

p

tionItem Qt

y

Note

75 7091597 1 COTTER-PIN, 3/32 x 3/4" Was 90037

76 7033570 1 BRACKET, Gage Wheel (Front) Was 38451

77 7033571 2 BRACKET, Gage Wheel (Rear) Was 38450

78 7090731 6 BOLT, 5/16-18 x 1/2" Short Neck Carriage Was 90004

79 7091601 7 NUT, 5/16-18 Hex Flange Lock Was 90585

80 7015272 3 SPACER .625 OD x .423 ID x 3" L

81 7091532 3 SCREW, 3/8-24 x 3 3/4" Hex Head Cap Was 90859

82 7090289 3 NUT, 3/8-24 Hex Lock

83 7019190 3 WHEEL, Gage

84 7033352 1 GUIDE, Belt

85 7090188 2 WASHER, 5/16 Flat

86 7020908 2 SPACER

87 7014852 1 DECAL, Caution (Rotating Blades) Was 16973

1 DECAL 33" (RLT140H33) (No longer available) Was 22990

7022991 1 DECAL 33" (LT140H33) (Not Shown)

1 DECAL Deep Drawn (RLT140H33) (No longer available) Was 22993

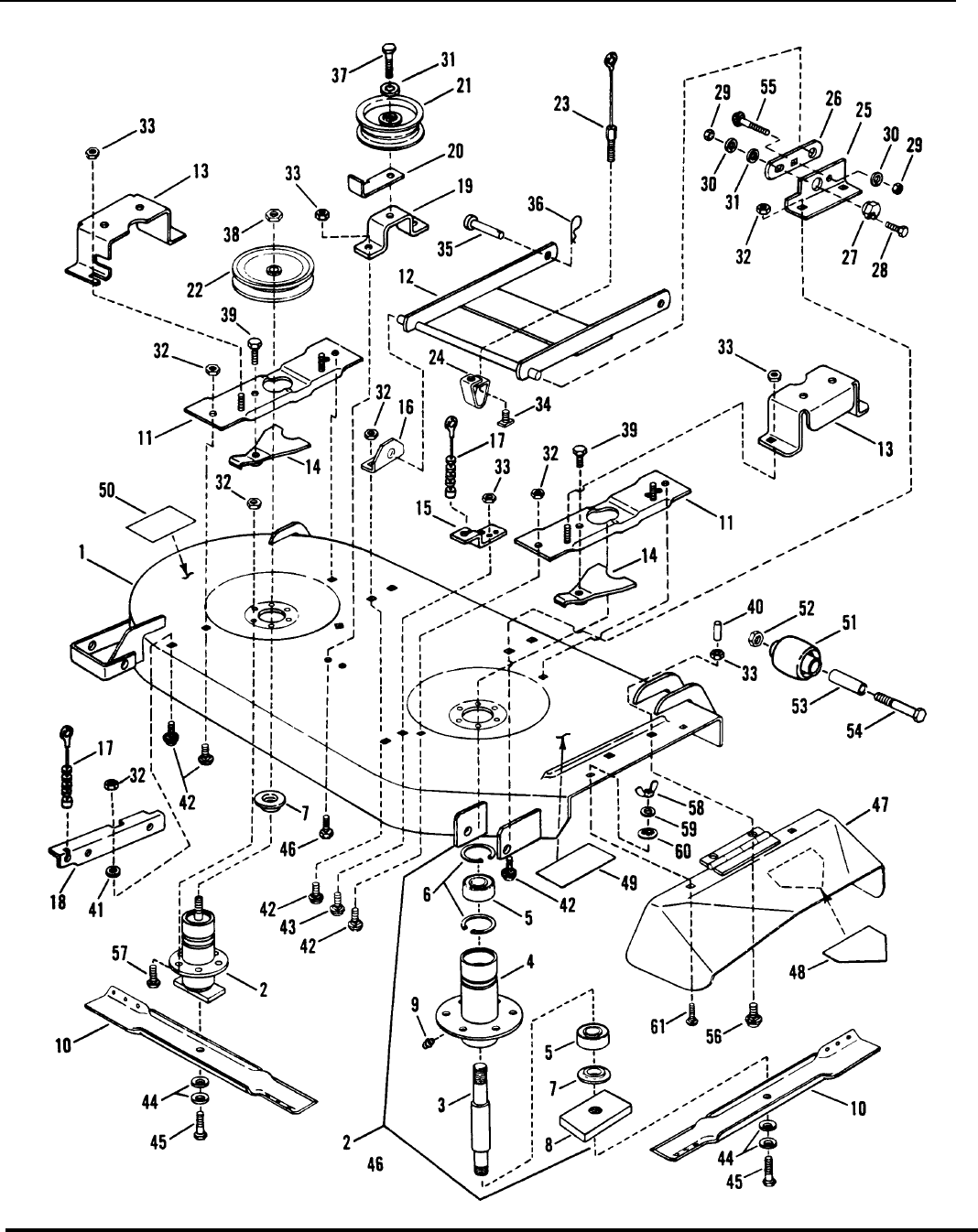

41" Cutting Deck

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

44

41" Cutting Deck

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 45

Part No Descri

p

tionItem Qt

y

Note

1 7051916 1 DECK, Mower, 41" Shell (Includes items 49 & 50)

2 7051914 2 ASSEMBLY, Spindle (Includes items 3-9)

3 7027668 2 SPINDLE 6.5" Long

4 7051918 2 HOUSING, Spindle 5.1" Tall (Includes item 9)

5 7013313 2 BEARING, Spindle

6 7012491 2 RING, Retaining EXT 1.75"

7 7014407 2 WASHER, Spindle

8 7032294 2 HOLDER, Blade

9 7010817 2 FITTING, Lube (Press fit for .187 hole-no ball)

10 7019795 2 BLADE, 21" Cutter

11 7052487 2 ASSEMBLY, Rear Support

12 7042469 1 ASSEMBLY, Front Hanger 42" Was 49762

13 7034409 2 GUARD, Pulley Was 33367

14 7051747 2 ASSEMBLY, Spindle Lock

15 7033083 2 ASSEMBLY, Chain Support

16 7032297 1 BRACKET, Front Left Hanger

17 7016844 2 CABLE, Support (4.25", 8 Spacers)

18 7033086 1 ASSEMBLY, Rear Support

19 7051748 1 BRACKET, Idler Mount

20 7032368 1 GUIDE, Belt

21 7018574 2 PULLEY, Flat Idler 4.12" OD

22 7015724 2 PULLEY, Spindle "V" 5.75" OD .750" ID Hole

23 7023180 1 CABLE, Front Lift 6.12"

24 7038043 1 BRACKET, Front Lift Arm Hanger

25 7038382 1 BRACKET, Front Right

26 7032432 1 LINK, Adjustment

27 7015012 1 RING, Adjustment

28 7091304 1 SCREW, 3/8-16 x 1" Hex Head Cap Was 90563

29 7091302 2 NUT, 3/8-16 Hex Was 90130

30 7090118 2 WASHER, 3/8" Split Lock

31 7090122 2 WASHER, 3/8" Flat

32 7091619 22 NUT, 3/8-16 Hex Flange Lock Was 90613

33 7091601 9 NUT, 5/16-18 Hex Flange Lock Was 90585

34 7090388 1 T-NUT, 5/16-18

35 7012951 2 PIN, 1/2 x 1 3/8" Clevis

36 7091596 2 HAIRPIN, Cotter .148 x 2.62 YZ Was 13844

37 7091497 1 SCREW, 3/8-16 x 1 1/2" Hex Cap Was 90655

41" Cutting Deck

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

46

41" Cutting Deck

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 47

Part No Descri

p

tionItem Qt

y

Note

38 7074467 2 NUT, 3/4-16 Hex Jam Was 10027

39 7027198 2 BOLT, 3/8-16 x 1" Hex Flange Lock Was 90582

40 7023606 2 CAP, Vinyl

41 7090517 1 WASHER, 7/16 Flat Was 90600

42 7091547 9 BOLT, 3/8-16 x 3/4" Carriage Was 90850

43 7091508 2 BOLT, 5/16-18 x 3/4" Carriage Was 90788

44 7012063 4 WASHER, 13/32 x 1 13/32" Dia., Cone

45 7090824 2 SCREW, 3/8-24 x 1 1/4" Hex Cap

46 7090595 2 BOLT, 5/16-18 x 3/4" Hex Flange Lock

47 7051401 1 DEFLECTOR, Side Chute (Includes item 48)

48 7013010 1 DECAL, Danger

49 7014852 1 DECAL, Caution (Deflector in Place)

50 7014852 1 DECAL, Caution (Rotating Blades) Was 16973

51 7019190 4 WHEEL, Gage

52 7090289 4 LOCKNUT, 3/8-24 Hex

53 7015272 4 SPACER, .625 OD x .435 ID x 3" L

54 7091532 4 SCREW, 3/8-24 x 3 3/4" Hex Head Cap Was 90859

55 7091547 1 BOLT, 3/8-16 x 3/4" Short Neck Carriage Was 90850

56 7091303 2 BOLT, 5/16-18 x 1" Short Neck Carriage Was 90383

57 7091588 12 BOLT, 3/8-16 x 3/4" Hex Flange Lock Was 90612

58 7091537 2 WING-NUT, 5/16-18 Was 90375

59 7090187 2 WASHER, 5/16 Split Lock

60 7011791 2 RETAINER, 5/16 Bolt

61 7090799 2 BOLT, 5/16-18 x 5/8" Carriage

7022992 DECAL 41" (LT140H41) (Not Shown)

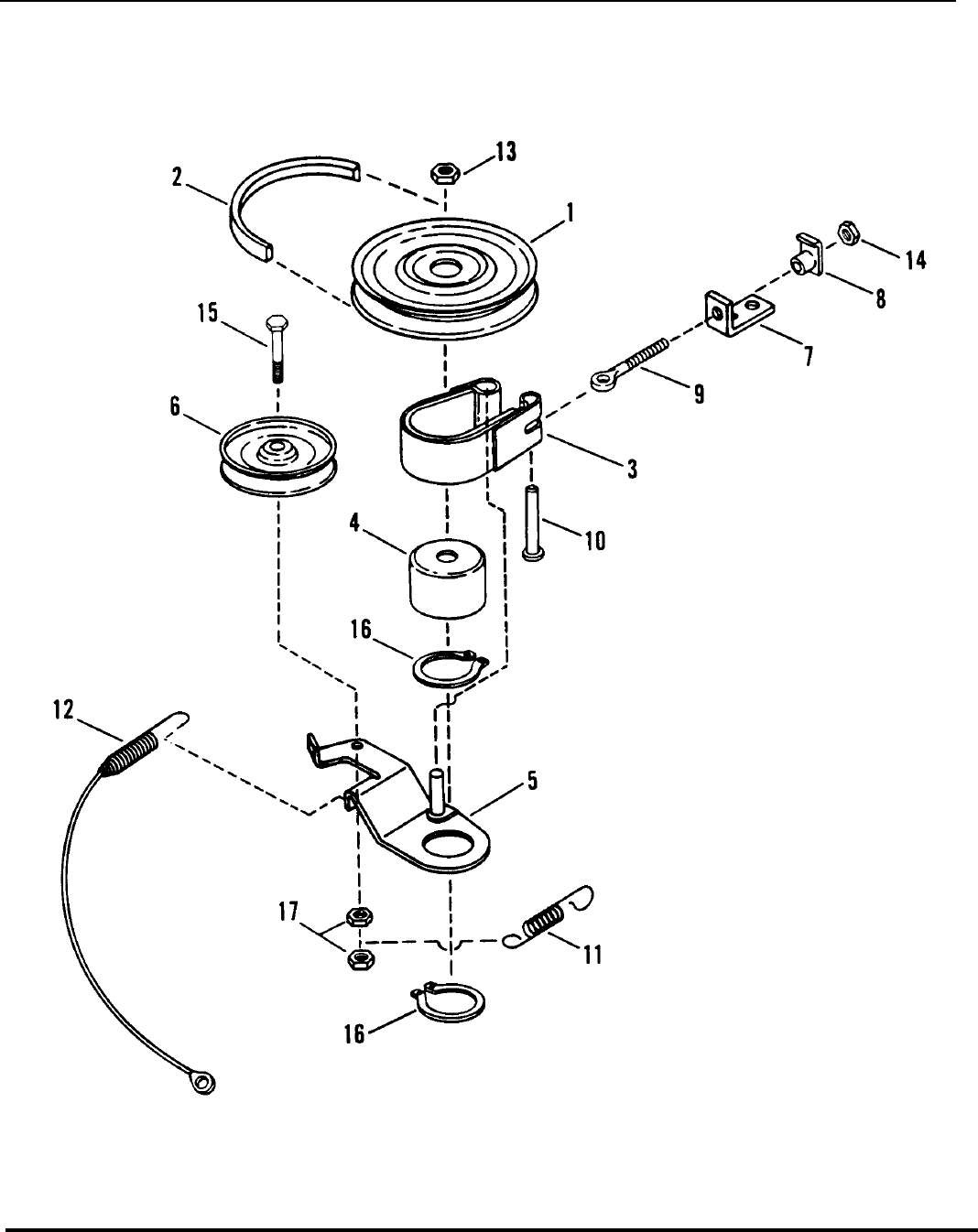

Belt, Blade Brake, 41" Deck

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

48

Belt, Blade Brake, 41" Deck

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 49

Part No Descri

p

tionItem Qt

y

Note

1 7015724 1 PULLEY, Drive 5.75" OD

2 7014799 1 BELT, Drive VA101

3 7052886 1 BAND, Brake Assembly Was 57307

4 7032169 1 DRUM, Brake

5 7047912 1 ASSEMBLY, Brake Arm

6 7018574 1 PULLEY, Idler Flat 4.12" OD

7 7032587 1 ANCHOR, Brake

8 7014303 1 TEE-NUT, 1/4-20

9 7014302 1 BOLT, 1/4-20 Eye

10 7011021 1 PIN, Clevis, 1/4 x 1 1/4"

11 7029788 1 SPRING, Blade Brake Was 23172

12 7035434 1 CABLE, Blade 28.5" Was 19040

13 7074467 1 NUT, 3/4-16 Hex Jam Was 10027

14 7091576 1 NUT, 1/4-20 Hex Was 90063

15 7090167 1 SCREW, 3/8-24 x 2" Hex Hd. Cap

16 7010740 2 RING, 2” External Retaining

17 7090289 2 NUT, 3/8-24 Hex Lock

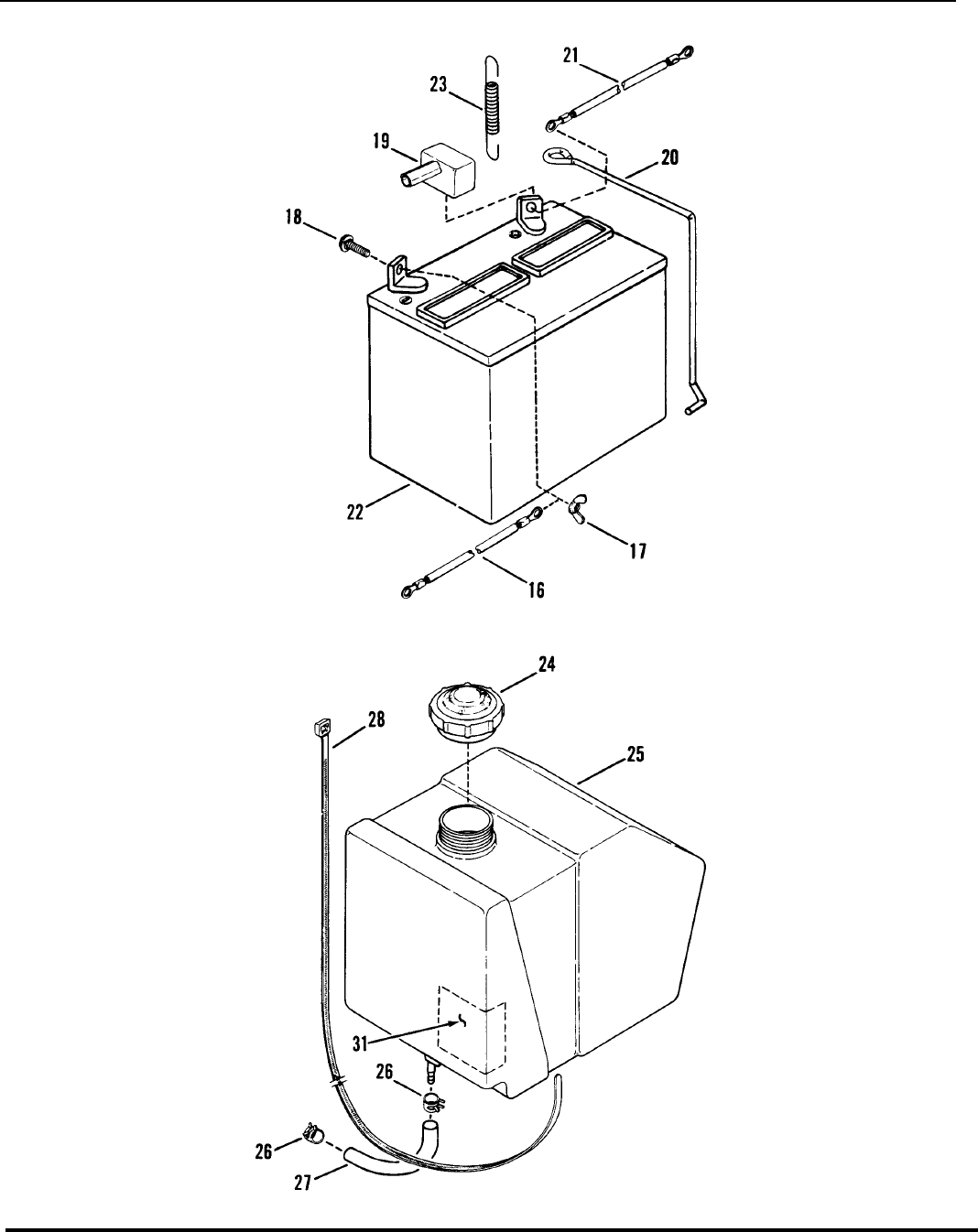

Fuel Tank & Battery

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

50

Fuel Tank & Battery

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 51

Part No Descri

p

tionItem Qt

y

Note

16 7014475 1 CABLE, Negative Terminal 15" 8 AWG Black

17 7091568 2 WING-NUT, 1/4-20 Was 90311

18 7091530 2 BOLT, 1/4-20 x 3/4" Short Neck Carriage Was 90074

19 7012444 1 COVER, Positive Terminal

20 7022366 1 CLAMP, Battery

21 7014476 1 CABLE, Positive Terminal 11" 8 AWG Red

22 7060618 1 KIT, Battery, 12 Volt

23 7022696 1 SPRING, Battery Bracket

24 7012515 1 CAP, Fuel Tank Was 17808

25 7052258 1 TANK, Fuel w/cap (Includes item 24)

26 7029900 2 CLAMP, Fuel Line .490 x .31 Was 12222

27 1 LINE, Fuel (14.5" Long) (No longer available) Was 32633

28 7023195 1 CABLE-TIE, Fuel Tank Hold Down

31 1 HEAT SHIELD, Fuel Tank 3" x 5.5" (No longer available) Was 17788

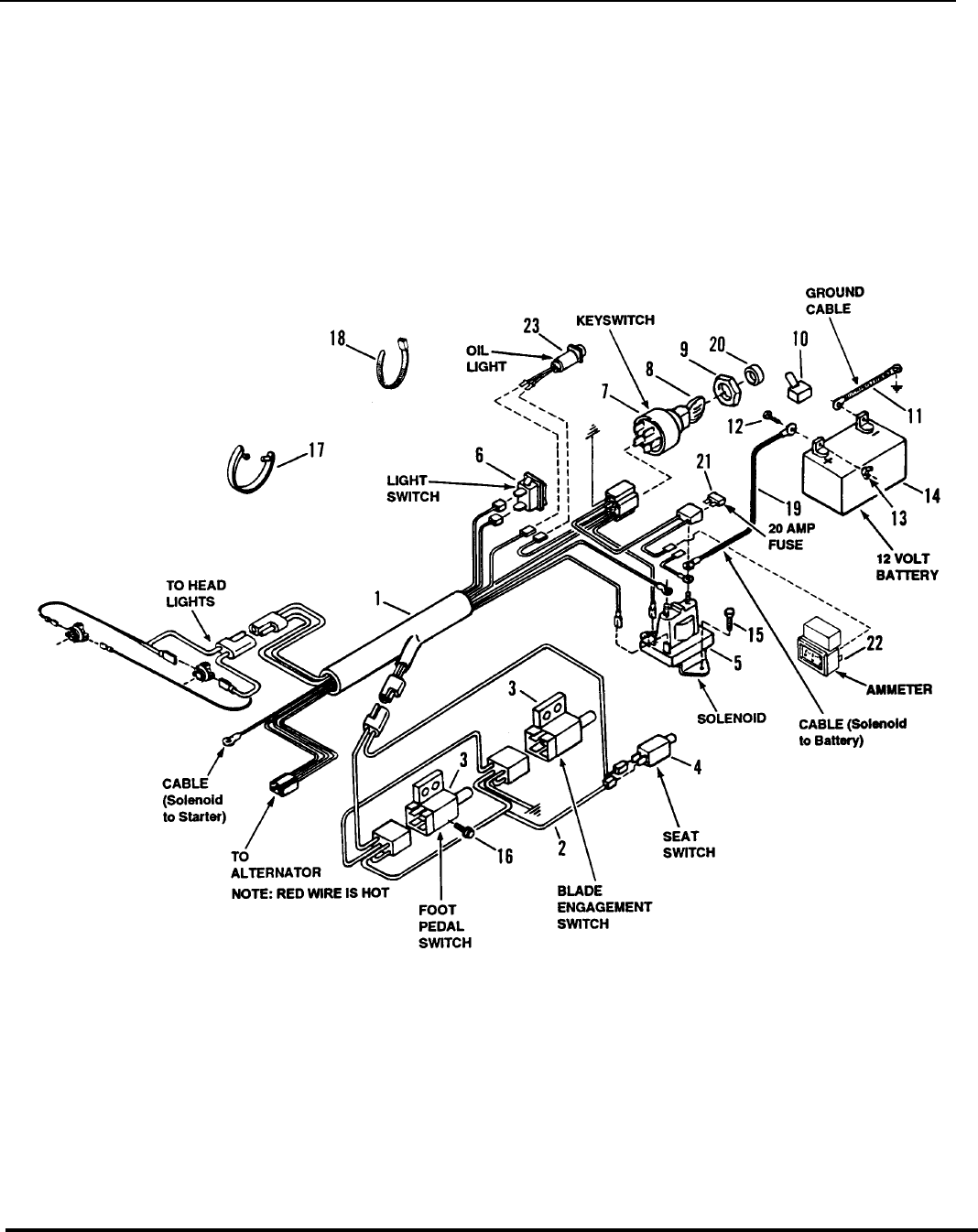

Electrical System

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

52

Electrical System

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 53

Part No Descri

p

tionItem Qt

y

Note

1 7022699 1 HARNESS, Wiring (Kohler Engine)

2 7024126 1 HARNESS, Interlock

3 7023355 2 SWITCH, Clutch & PTO

4 7023354 1 SWITCH, Seat NC Was 17590

5 7075622 1 SOLENOID Was 18604

6 7023187 1 SWITCH, Light

7 7027698 1 SWITCH, Key Was 18562 (Includes 2 item 8)

8 7073406 2 KEY, Switch (With Cover) Was 23504

9 7012685 1 NUT, 5/8-32 Hex Was 23505

10 7012444 1 COVER, Positive Terminal

11 7014475 1 CABLE, Negative 15" 8 AWG Black

12 7091530 2 BOLT, 1/4-20 x 3/4" Carriage Was 90074

13 7091568 2 WING-NUT, 1/4-20 Was 90311

14 7060618 1 KIT, Battery

15 7091122 1 SCREW, 1/4-20 x 1/2" Self-Tapping Was 90539

16 7090913 1 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx) Was 90307

17 7014451 1 TIE, Wire

18 7012080 1 TIE, Cable 7"

19 7014476 1 CABLE, Positive 11" 8 AWG Red

20 7023506 1 BEZEL

21 7023653 1 FUSE, 20 Amp

22 7022690 1 AMMETER

23 7060982 1 OIL LIGHT Was 22691

1 RETAINER, 1/2 (Not shown on back of light switch)(No longer

available)

Was 16245

Schematic Electrical System (Kohler Engines Only)

TP 400-5213-2-TC-N

Manual No. 7006427 LAWN TRACTOR MANUAL CLUTCH

SERIES 1

54

Schematic Electrical System (Kohler Engines Only)

Footnotes:

TP 400-5213-2-TC-N

Manual No. 7006427LAWN TRACTOR MANUAL CLUTCH

SERIES 1 55

Part No Descri

p

tionItem Qt

y

Note

Wiring schematic includes harness #'s 7022699 & 7024126

Parts Manual fo

r

LAWN TRACTOR MANUAL CLUTCH

SERIES 1

IT IS THE POLICY OF SNAPPER TO IMPROVE ITS PRODUCTS

WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO. WE

RESERVE THE RIGHT TO MAKE CHANGES OR ADD IMPROVEMENTS

AT ANY TIME WITHOUT INCURRING ANY OBLIGATION TO MAKE

SUCH CHANGES ON PRODUCTS MANUFACTURED PREVIOUSLY.

Revision 2,

COPYRIGHT

©

2006

TP 400-5213-2-TC-N

7/14/2006

Manual No. 7006427

SNAPPER PRODUCTS, INC.

ALL RIGHTS RESERVED.

McDonough, GA, 30253 U.S.A.

HYDRO DRIVE

(

1991 1/2

)
