Parts Manual fo

r

Revision M,

(

L.E.

)

SINGLE STAG

E

SERIES 0 & 1

McDonough, GA, 30253 U.S.A.

TP 400-5024-M-LE-N

11/7/2007

Manual No. 7006026

SNOW THROWER

Copyright © 2007

Briggs & Startton Yard Power Products Group

Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation

MODEL

ELE3190R (84675)

LE3170E (80488)

LE3170R (80370)

LE3170R (84362)

LE3170R (84559)

LE3171R (7085660)

LE3171R (85660)

LE3190E (80371)

LE3190E (84364)

LE3190E (84561)

LE3190R (80487)

LE3190R (84363)

LE3190R (84560)

LE3191E (7085662)

LE3191E (85662)

LE3191R (7085661)

LE3191R (85661)

Table Of Content

s

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 3

PAGE GROUP

4HANDLES, AUGER CONTROL

6DISCHARGE CHUTE, DEFLECTOR, CONTROL HANDLE

8AUGER HOUSING, DRIVE SYSTEM, CHASSIS

12 COVERS, ENGINE

16 DECALS (94 MODEL YEAR & EARLIER)

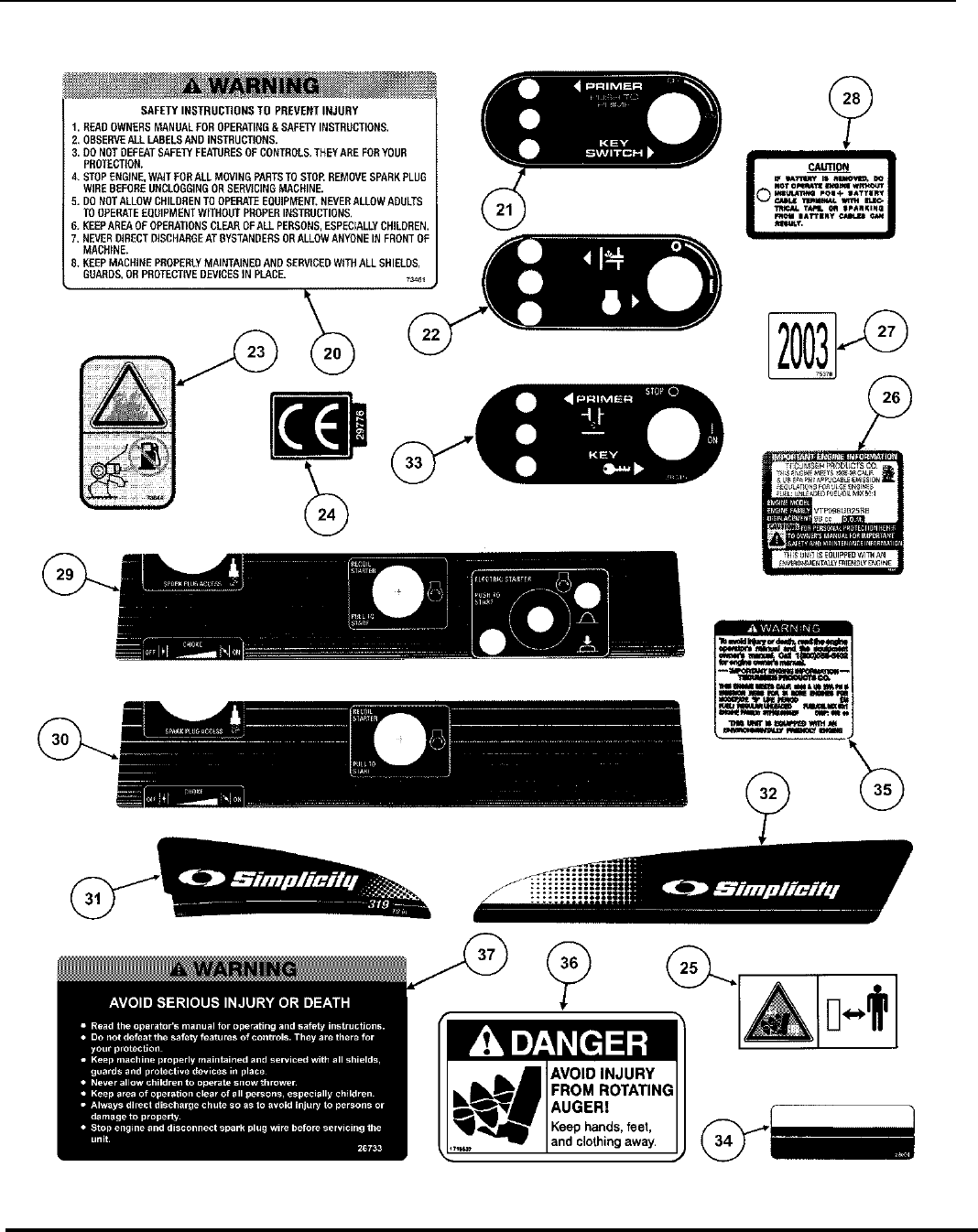

18 DECALS (95 MODEL YEAR & LATER) Pt. 1

20 DECALS (95 MODEL YEAR & LATER) Pt. 2

22 HARDWARE BAGS

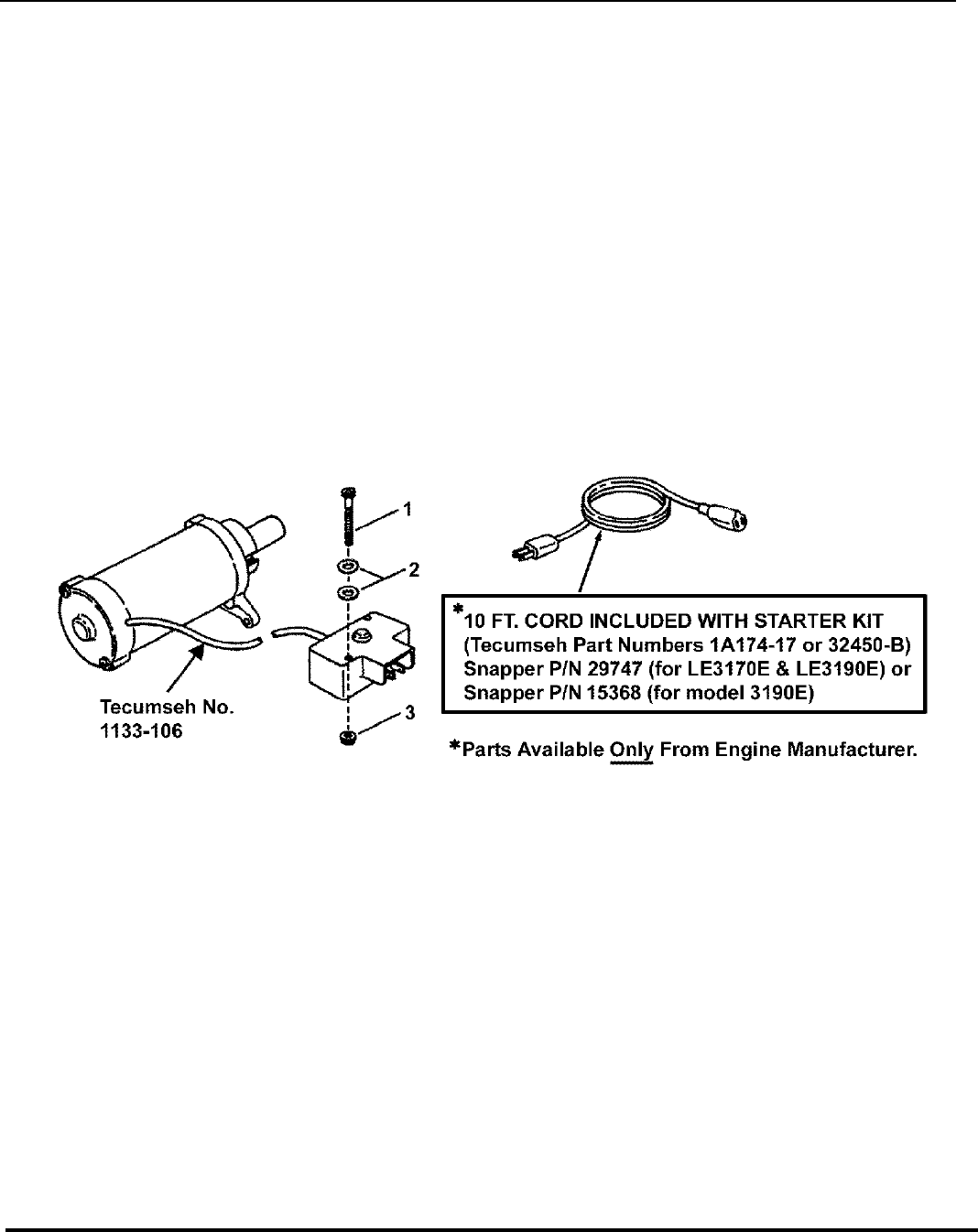

24 ACCESSORIES- ELECTRIC START KIT

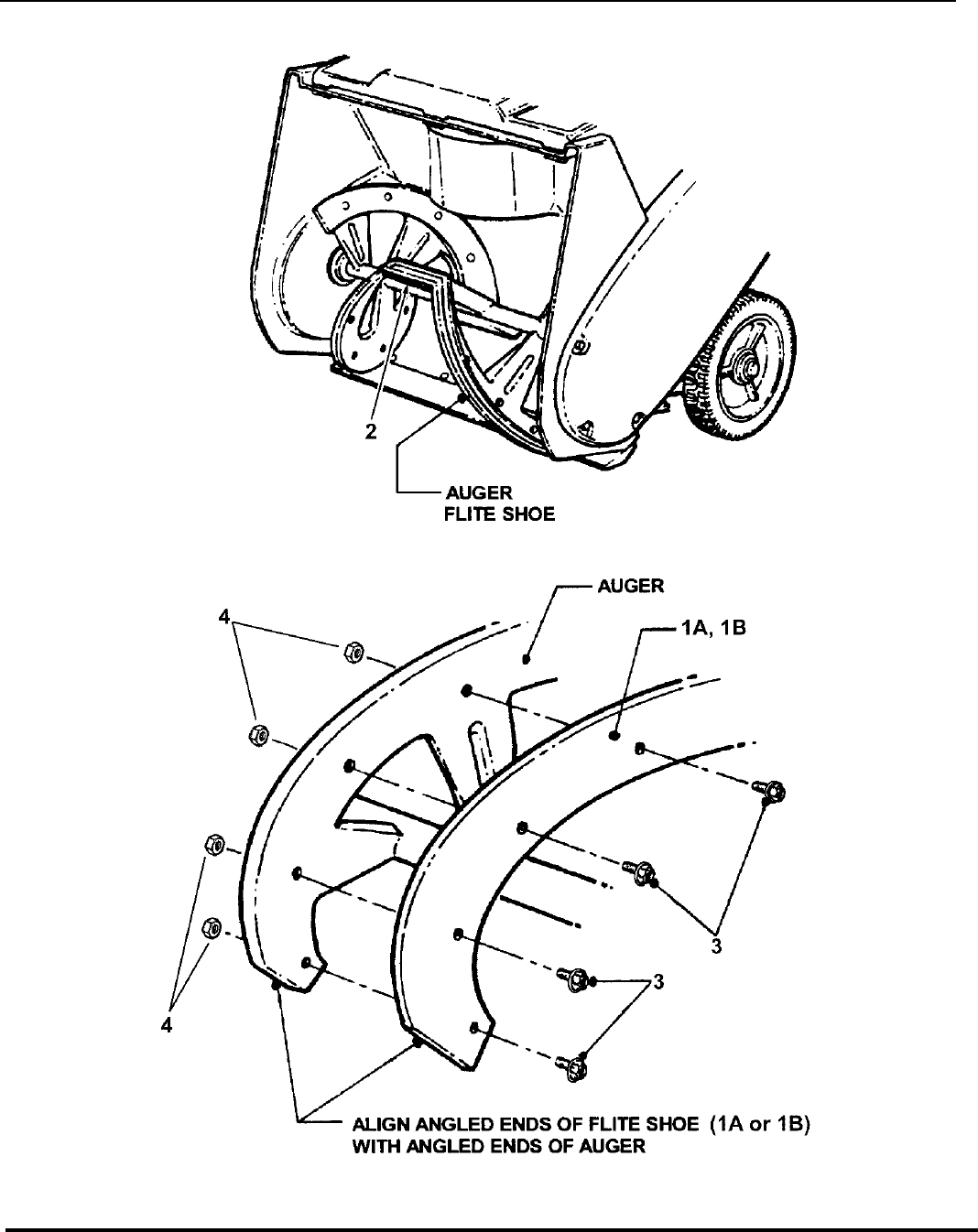

26 ACCESSORIES- FLITE SHOE KITS

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

4

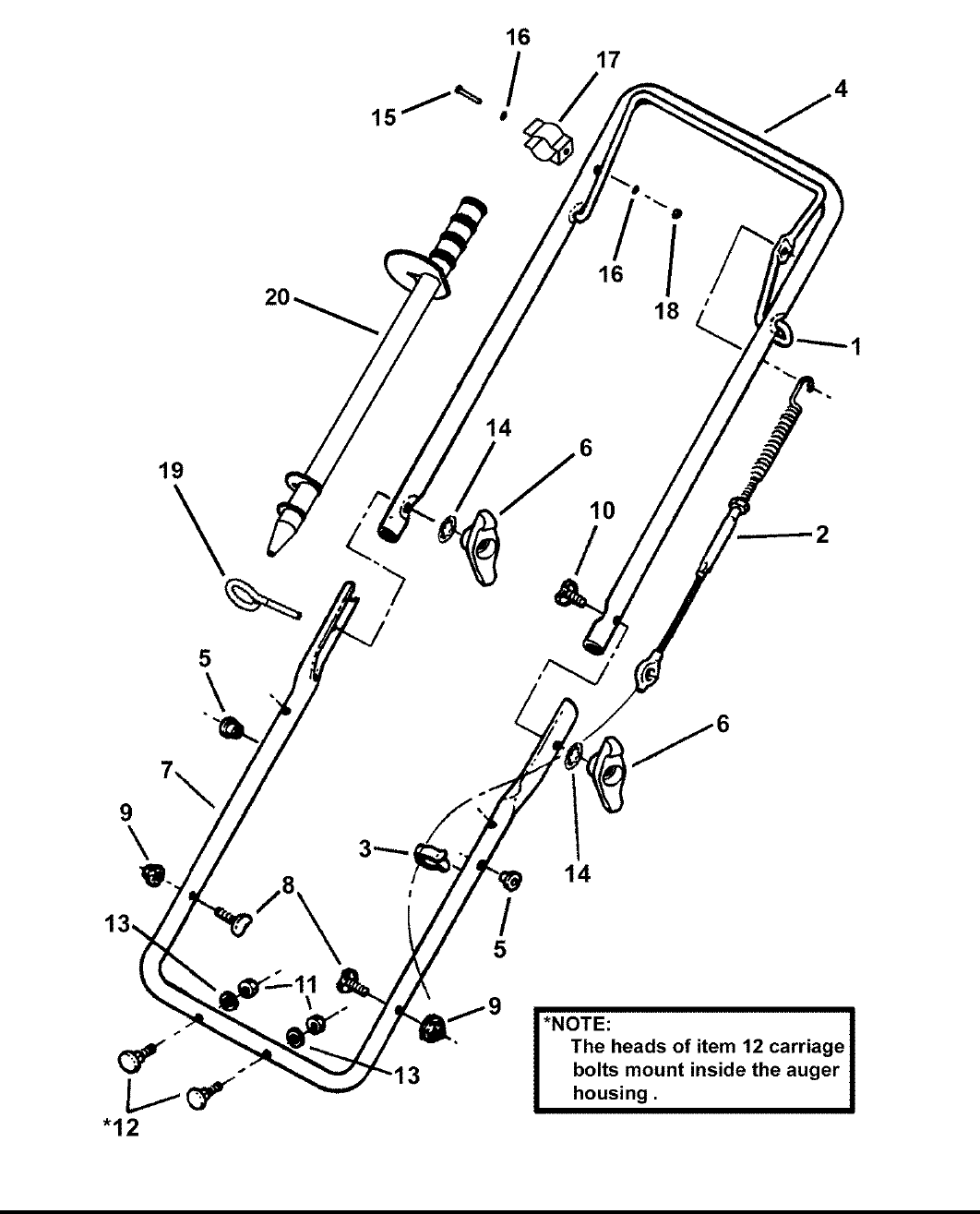

HANDLES, AUGER CONTROL

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 5

Part No Descri

p

tionItem Qt

y

Note

1 7024645 1 BAIL, Drive Control

2 7024662 1 CABLE, Drive Control

3 7023813 1 CLIP, Wiring Harness

4 7033496 1 HANDLE, Upper

5 7091182 2 INSERT, Nylon

6 7035744 2 KNOB, 5/16-18 Wing (Black)

7 7036570 1 HANDLE, Lower

8 7091190 2 BOLT, 5/16-18 x 1-3/8” Curved Head

9 7091601 2 NUT, 5/16-18 Hex Flange Lock, GR 5 Was 91070

10 7091013 2 BOLT, 5/16-18 x 2” Curved Head, GR 2

11 7091511 2 NUT, 5/16-18 Hex Was 90196

12 7091612 2 * BOLT, 5/16-18 x 1-1/2” Square Neck Carriage, GR 5 Was 90582

13 7090187 2 WASHER, 5/16” Split Lock

14 7090391 2 WASHER, 5/16” Internal Tooth Lock

15 7091757 1 SCREW, #10-24 x 1-1/4” Hex Head Cap, GR 5

16 7090011 2 WASHER, #10 Flat

17 7071895 1 HOLDER, Snostik, Upper

18 7091267 1 NUT, #10-24 Hex Center Lock

19 7075342 1 HOLDER, Snostik, Lower (5/16-18 thread)

20 7075909 1 SNOW STICK

Note* The heads of item 12 carriage bolts are inside the auger housing.

DISCHARGE CHUTE, DEFLECTOR, CONTROL HANDLE

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

6

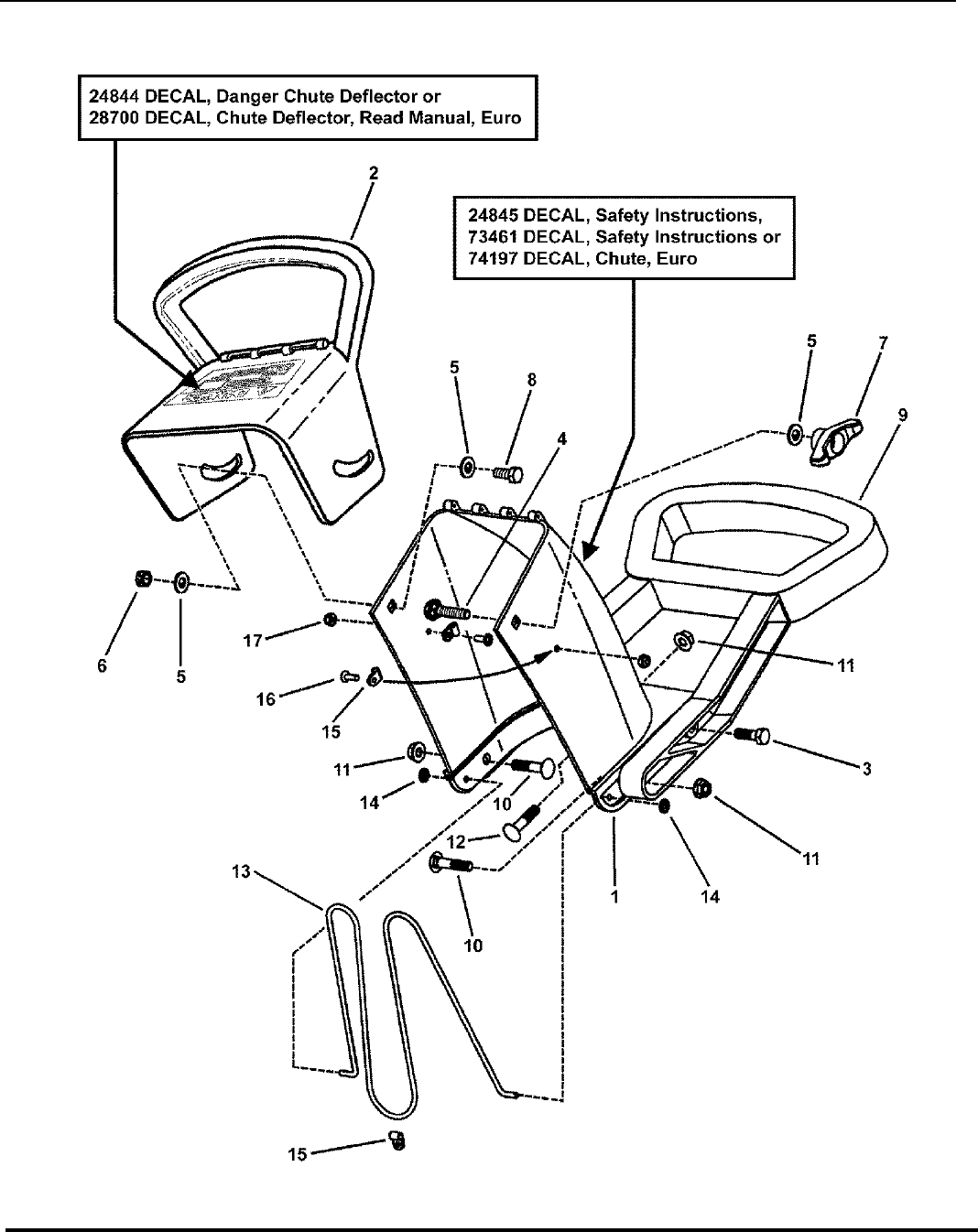

DISCHARGE CHUTE, DEFLECTOR, CONTROL HANDLE

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 7

Part No Descri

p

tionItem Qt

y

Note

1 7052973 1 CHUTE, Discharge w/inserts Was 59232 (Model ELE3190R;

shown)

1 7052973 1 CHUTE, Discharge w/inserts (incl. decal # 24845) Models LE3170R, LE3190R &

LE3190E

1 7052973 1 CHUTE, Discharge w/inserts Was 52978, Models 3190M,

3190E & all Series 1

2 7059231 1 DEFLECTOR, Chute (incl. decal # 24106) Model ELE3190R

2 7052975 1 DEFLECTOR, Chute (incl. decal # 24844) Models LE3170R, LE3190R,

LE3190E, 3190M, 3190E & all

Series 1

3 7091318 2 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 2 Was 90206

4 7091303 1 BOLT, 5/16-18 x 1” Short Neck Carriage, GR 5 Was 91072

5 7091076 3 WASHER, 5/16” Flat

6 7091606 1 NUT, 5/16-24 Hex Center Lock, GR B Was 91074

7 7035744 1 KNOB, 5/16-18 Wing (Black)

8 7091021 2 SCREW, 5/16-24 x 3/4” Hex Head Cap, GR 5

9 7046340 1 HANDLE, Chute Control

10 7091612 2 BOLT, 5/16-18 x 1-1/2” Square Neck Carriage, GR 5 Was 90582

11 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5 Was 91070

12 7090316 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5 Was 91097

13 7019692 1 WIRE, Safety

14 7023673 2 FASTENER, Push On, .156 Internal Diameter

15 7074198 3 CLIP, Guard Tinnerman # C2980

16 7092077 3 SCREW, #8-32 x 1/2” Pan Head Cross Recess

17 7092078 3 NUT, #8-32 Hex (w/free spinning external lock washer)

AUGER HOUSING, DRIVE SYSTEM, CHASSIS

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

8

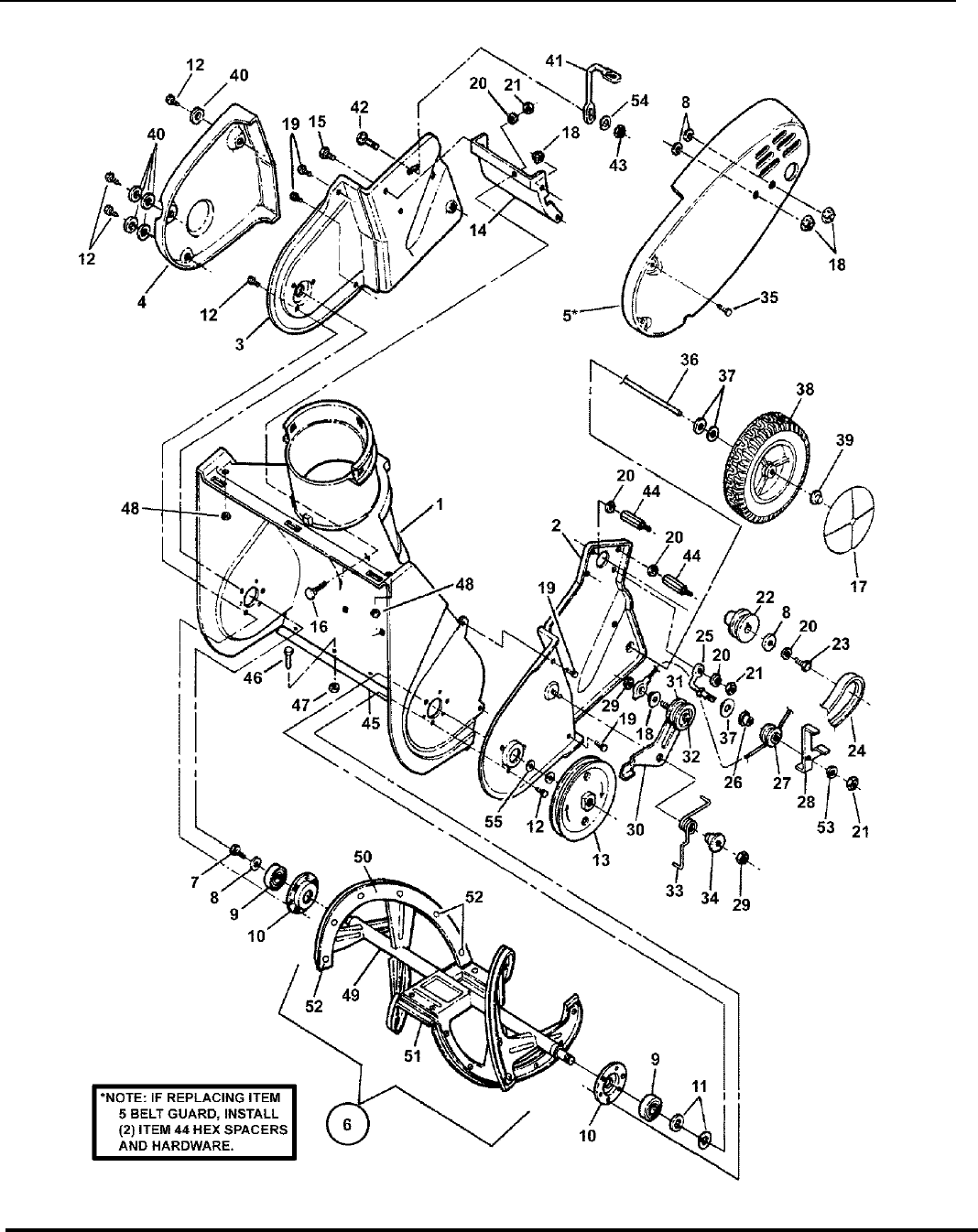

AUGER HOUSING, DRIVE SYSTEM, CHASSIS

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 9

Part No Descri

p

tionItem Qt

y

Note

1 7052968 1 * ASSEMBLY, Auger Housing 17” Models

1 7052969 1 ASSEMBLY, Auger Housing 19” Non-Euro Models

1 7059233 1 ASSEMBLY, Auger Housing Model ELE3190R

2 7052963 1 ASSEMBLY, End Frame, L.H. 17” Models

2 7052964 1 ASSEMBLY, End Frame, L.H. 19” Models

3 7041335 1 FRAME, End, R.H. 17” Models

3 7041333 1 FRAME, End, R.H. 19” Models

4 7026116 1 COVER, R.H. Side 17” Models

4 7026117 1 COVER, R.H. Side 19” Models

5 7034327 1 ** GUARD, Belt Drive fits all models

6 7052939 1 ASSEMBLY, Auger (incl. items 49 thru 52) 17” Models

6 7052940 1 ASSEMBLY, Auger (incl. items 49 thru 52) 19” Models

7 7090361 1 SCREW, 5/16-18 x 5/8” Hex Washer Self-Tap

8 7014098 3 WASHER, 5/16” Flat

9 7014608 2 BALL BEARING

10 7034385 2 RETAINER, 1-3/4” O.D. Bearing

11 7010935 2 WASHER, 3/4” Shim

12 7091012 9 SCREW, #10-32 x 3/8” Hex Washer Self-Tap (Torx)

13 7018635 1 PULLEY

14 7033457 1 BRACE, Engine

15 7091084 2 SCREW, 1/4-20 x 3/8” Hex Washer Self-Tap

16 7090316 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5 Was 91097

17 7019381 2 COVER, Wheel 94 Model Year & earlier

18 7091601 4 NUT, 5/16-18 Hex Flange Lock, GR 5 Was 91070

19 7091081 4 SCREW, 1/4-15 x 1” Hex Washer Self-Tap

20 7090187 7 WASHER, 5/16” Split Lock

21 7091511 5 NUT, 5/16-18 Hex Was 90196

22 7022179 1 PULLEY, Engine

23 7090233 1 SCREW, 5/16-24 x 3/4” Hex Head Cap, GR 5

24 7024618 1 V-BELT, 3L Section, 34.27” effective length Snapper part no. printed on part

25 7024800 1 GUIDE, Cable 17” Models

25 7024743 1 GUIDE, Cable 19” Models

26 7012306 1 BUSHING, Flange

27 7024228 1 PULLEY, Nylon

28 7033729 1 GUIDE, Belt

29 7091575 2 NUT, 5/16-18 Hex Center Lock Was 91067

30 7033695 1 BRACKET, Idler Pivot

Note* Riveted housing, throat & ring assembly with scraper installed

Note** 1994 & earlier models use a different belt guard & one hex spacer. If replacing item 5 belt guard, install (2) item 44

hex spacers & hardware.

AUGER HOUSING, DRIVE SYSTEM, CHASSIS

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

10

AUGER HOUSING, DRIVE SYSTEM, CHASSIS

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 11

Part No Descri

p

tionItem Qt

y

Note

31 7024626 1 PULLEY, Idler 19” Models

31 7027460 1 PULLEY, Single Flange Idler 17” Models

32 7090669 1 SCREW, 5/16-18 x 1-3/4” Hex Head Cap, GR 5

33 7024621 1 SPRING, Idler Torsion

34 7024620 1 BUSHING, Pivot

35 7091195 3 SCREW, #10-16 x 3/4” Pan Head Self-Tap

36 7033692 1 AXLE, 3/8” Dia. Wheel

37 7014098 4 WASHER, 3/8” Flat

38 7026160 2 WHEEL, 7 x 1.50

38 7026240 2 WHEEL, 7” Models 3190M, 3190E & Series

1

39 7014667 2 PUSH NUT, 3/8”

40 7090010 5 WASHER, #10 Flat

41 7024852 1 SUPPORT, Fuel Tank

42 7091573 1 BOLT, 1/4-20 x 5/8” Short Neck Carriage, GR 5 Was 90666

43 7090372 1 NUT, 1/4-20 Hex Nyloc

44 7027924 2 SPACER, Hex (2.69” long) 17” Models

44 7027925 2 SPACER, Hex (3.69” long) 19” Models

45 7035947 1 BLADE, Scraper 17” Models

45 7035948 1 BLADE, Scraper 19” Models

46 7091148 4 SCREW, 1/4-20 x 1/2” Pan Head Machine (Torx)

47 7090372 4 NUT, 1/4-20 Hex Nyloc

48 7090372 2 NUT, 1/4-20 Hex Center Lock Was 91099

49 7047026 1 WELDMENT, Auger 17” Models

49 7047025 1 WELDMENT, Auger 19” Models

50 7029566 4 SHOE, Flite 17” Models

51 7018638 4 SHOE, Flite 19” LE Models

51 7029565 4 SHOE, Flite Models 3190M, 3190E & 19”

Series 1

51 7014612 2 SHOE, Center Flite

52 7091286 24 SCREW, #10-24 x 1/2” Hex Washer Self-Tap Sems

53 7090391 1 WASHER, 5/16” Internal Tooth Lock

54 7090052 1 WASHER, 1/4” Split Lock

55 7010935 2 WASHER, 3/4” Flat

Note* Riveted housing, throat & ring assembly with scraper installed

Note** 1994 & earlier models use a different belt guard & one hex spacer. If replacing item 5 belt guard, install (2) item 44

hex spacers & hardware.

COVERS, ENGINE

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

12

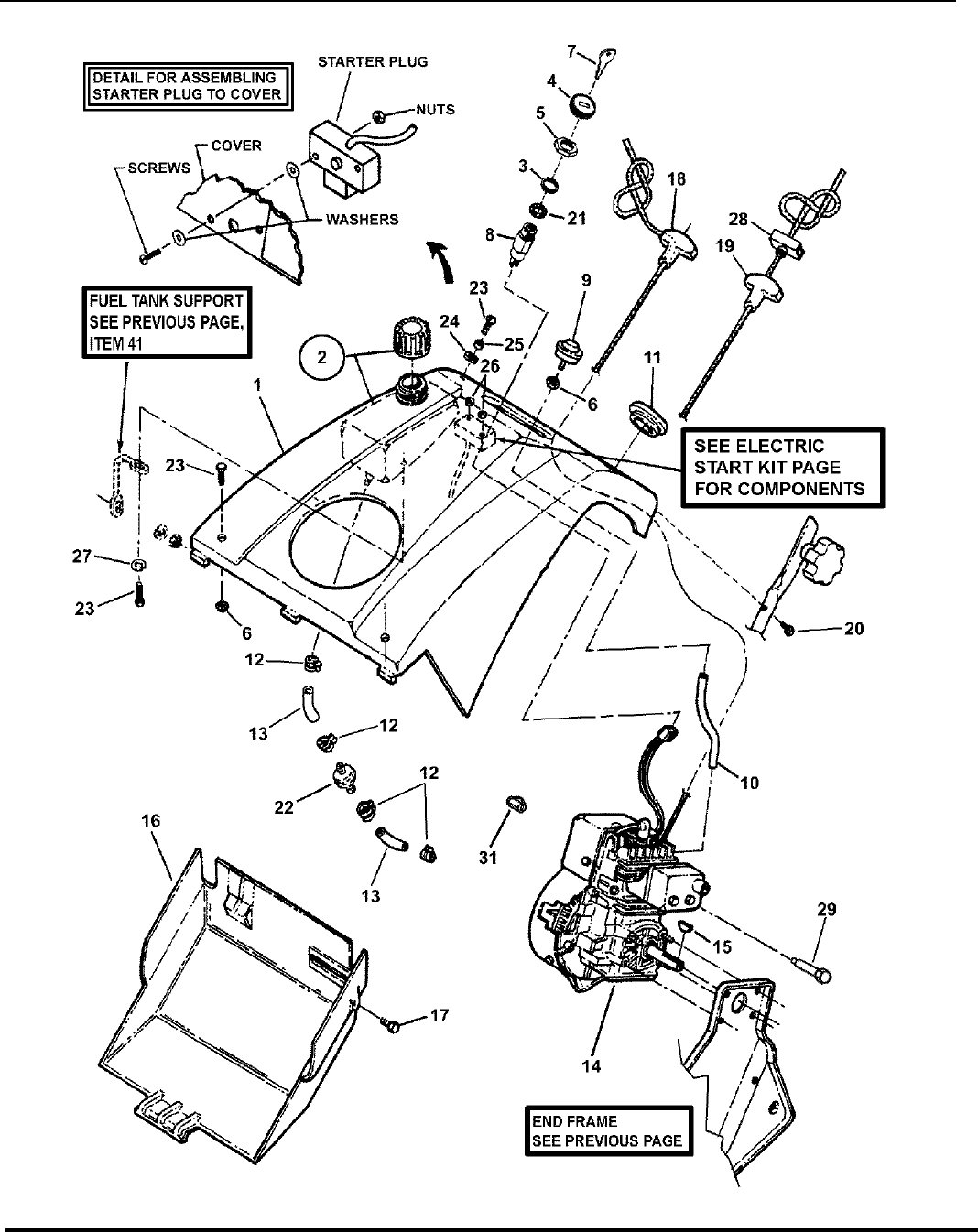

COVERS, ENGINE

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 13

Part No Descri

p

tionItem Qt

y

Note

1 7052977 1 COVER, Top (includes Eyelet # 24636) all Models except 3190M &

3190E

1 7058013 1 COVER, Top (includes Eyelet # 24636) 3190M & 3190E

2 7052974 1 ASSEMBLY, Fuel Tank (includes Cap # 24495)

3 7016132 1 SPACER

4 7023506 1 BEZEL

5 7012685 1 NUT, 5/8-32 Hex

6 7091584 1 NUT, 1/4-20 Hex Flange lock Was 91065

7 7011138 1 KEY (Pair)

8 7017817 1 SWITCH, Ignition

9 7014638 1 PRIMER

10 7014639 1 HOSE, Primer .126/.141 I.D. x 9-1/2” long

11 7091183 1 PLUG, Hole

12 7029900 2 CLAMP, Fuel Hose

13 7076272 2 HOSE, Fuel 1/4” I.D. x 8-1/2” long

14 1 * ENGINE, 3 HP Tecumseh (HSK 600-1683T) 17” Models (Engine Crank Shaft:

2.21” long)

14 1 * ENGINE, 3 HP Tecumseh (HSK 600-1691T) 19” Models (Engine Crank Shaft:

3.21” long)

14 1 * ENGINE, 3 HP Tecumseh (HSK 600-1702T) 19” Electric Start Models

(Engine Crank Shaft: 3.21” long)

14 1 * ENGINE, 3 HP Tecumseh (TH098SA-1732E) 17” Series 1

14 1 * ENGINE, 3 HP Tecumseh (TH098SA-1733E) 19” Series 1

14 1 * ENGINE, 3 HP Tecumseh (TH098SA-1734E) 19” Euro Series 1

15 7010783 1 KEY, 5/32 x 5/8” Woodruff

16 7023978 1 COVER, Bottom Recoil Start Models

16 7024923 1 COVER, Bottom Electric Start Models

17 7090913 2 SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

18 7024478 1 HANDLE, Pull Rope 94 Model Year and Earlier

19 7028201 1 HANDLE, Pull Rope 95 Model Year and Later

19 7025063 1 HANDLE, Pull Rope 3190M, 3190E & Series 1

Models (not shown)

20 7091196 2 SCREW, #8 x 1-1/4” Hi-Lo Self-Tap

21 7091546 1 WASHER, 5/8” Internal Tooth Lock Was 90880

22 7014359 1 FILTER, In-Line

23 7091495 3 SCREW, 1/4-20 x 3/4” Hex Head Cap, GR 5 Was 90073

24 7027910 1 ISOLATOR, Fuel Tank/Cover

25 7027911 1 SPACER

26 7090010 4 WASHER, #10 Flat Electric Start Models only

27 7090052 1 WASHER, 1/4” Split Lock

28 7028202 1 INSERT, Starter Handle 95 Model Year and Later

29 7027945 2 MUFFLER STUD LE317

Note * Purchase engine & engine parts other than those listed, from engine service outlets.

COVERS, ENGINE

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

14

COVERS, ENGINE

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 15

Part No Descri

p

tionItem Qt

y

Note

30 7024640 2 MUFFLER STUD LE319 (not shown)

31 7028599 1 KNOB, Red

Note * Purchase engine & engine parts other than those listed, from engine service outlets.

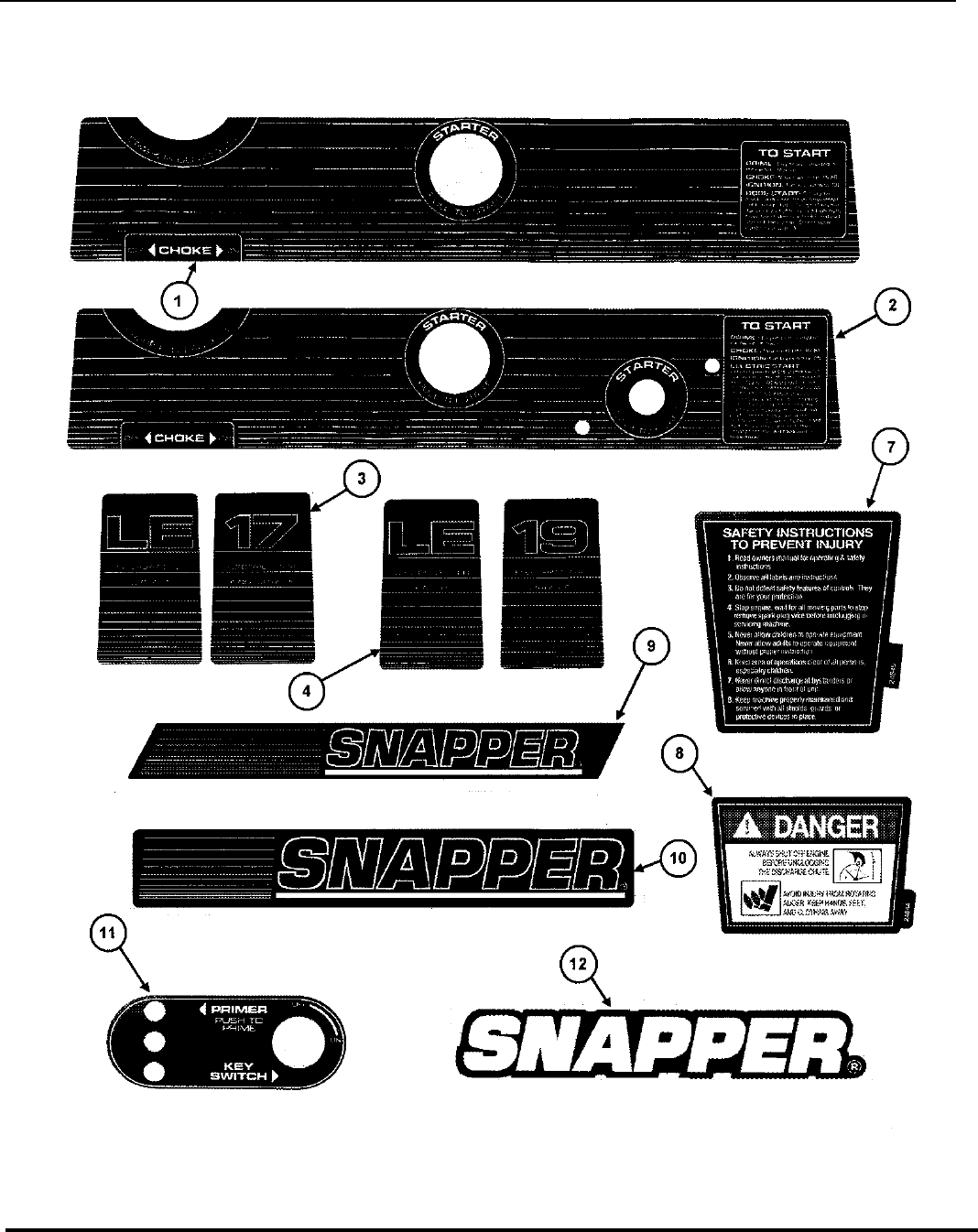

DECALS (94 MODEL YEAR & EARLIER)

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

16

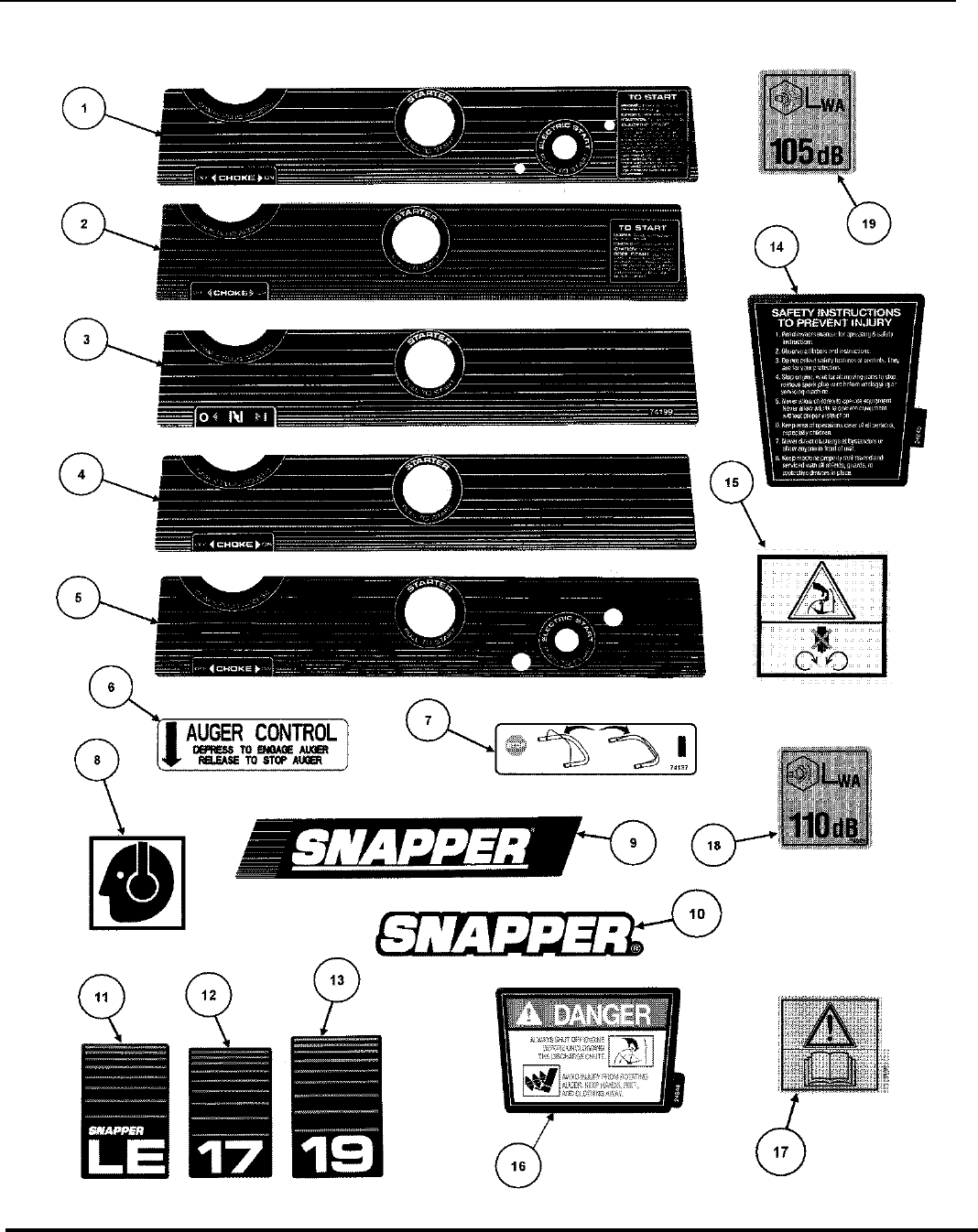

DECALS (94 MODEL YEAR & EARLIER)

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 17

Part No Descri

p

tionItem Qt

y

Note

1 7024848 1 DECAL, Panel Instructions Recoil Start Models

2 7024851 1 DECAL, Panel Instructions Electric Start Models only

3 7024846 1 DECAL, 17” Models Electric Start Models only

3 7026851 1 DECAL, 17” Models Electric Start Models only

4 7024850 1 DECAL, 19” Models Electric Start Models only

4 7026850 1 DECAL, 19” Models Recoil Start Models

7 7024845 1 DECAL, Safety Instruction

8 7024844 1 DECAL, Danger

9 7026091 1 DECAL, SNAPPER (Top Cover)

10 7026092 1 DECAL, SNAPPER (Belt Cover)

11 7024849 1 DECAL, Primer Instruction

12 7024983 1 LOGO, SNAPPER

DECALS (95 MODEL YEAR & LATER) Pt. 1

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

18

DECALS (95 MODEL YEAR & LATER) Pt. 1

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 19

Part No Descri

p

tionItem Qt

y

Note

1 7028292 1 DECAL, Panel Instructions Electric Start Models only

2 7073463 1 DECAL, Panel Instructions Was 28291 Recoil Start Models

3 7074199 1 DECAL, Panel Instructions Euro Models

4 7073463 1 DECAL, Panel Instructions Recoil Start Models

5 7073466 1 DECAL, Panel Instructions Electric Start Models only

6 7072883 1 DECAL, Auger Control

7 7074137 1 DECAL, Auger Control Euro Models

8 7027733 1 DECAL, Ear Protection

9 7028284 1 DECAL, SNAPPER (Belt Cover) 13” long

9 7028290 1 DECAL, SNAPPER (Belt Cover) 15” long

10 7024983 1 LOGO, SNAPPER

11 7028285 1 DECAL, L.E. Model

12 7028286 1 DECAL, 17” Model

13 7028287 1 DECAL, 19” Model

14 7024845 1 DECAL, Chute, Safety Instructions

15 7074197 1 DECAL, Chute Euro Models

16 7024844 1 DECAL, Danger, Chute Deflector

17 7028700 1 DECAL, Deflector, Read Manual Euro Models

18 7074329 1 DECAL, Sound (110 dB)

19 7074136 1 DECAL, Sound (105 dB)

DECALS (95 MODEL YEAR & LATER) Pt. 2

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

20

DECALS (95 MODEL YEAR & LATER) Pt. 2

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 21

Part No Descri

p

tionItem Qt

y

Note

20 7073461 1 DECAL, Warning Safety Instructions

21 7028288 1 DECAL, Primer Instruction

22 7074209 1 DECAL, Primer Instruction Euro Models

23 7073844 1 DECAL, Fuel Safety

24 7029776 1 DECAL, Euro Community

25 7028711 1 DECAL, Foot/Danger Euro Models

26 7046276 1 DECAL, Tecumseh 3HP Carb/EPA Certified Tecumseh p/n 64-1654-64

27 7074548 1 DECAL, 2002 Year of Manufacture (Not shown)

27 7075378 1 DECAL, 2003 Year of Manufacture

28 7016134 1 DECAL, Caution Tag

29 7026218 1 DECAL, Panel Instructions Electric Start Models only

30 7026217 1 DECAL, Panel Instructions Recoil Start Models

31 7026241 1 DECAL, Top Cover, Left Hand

32 7024565 1 DECAL, Top Cover, Right Hand

33 7028315 1 DECAL, Primer Instruction/Key Switch

34 7028004 1 DECAL, Top Cover, Front

35 7044999 1 DECAL, Tecumseh 3HP Carb/EPA Certified Tecumseh p/n 64-2128-105

36 1716532 1 DECAL, Danger, Auger

37 7026733 1 DECAL, Warning Safety Instructions

HARDWARE BAGS

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

22

HARDWARE BAGS

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 23

Part No Descri

p

tionItem Qt

y

Note

7063186 1 HARDWARE BAG (includes Items 1 thru 6) Model ELE3190R

7061217 1 HARDWARE BAG (includes Items 1, 2, 3 & 5) Models LE3170R, LE3190R,

LE3190E, 3190M, 3190E & all

Series 1

1 7091318 2 SCREW, 5/16-18 x 3/4” Hex Head Cap, GR 2 Was 90206

2 7091928 2 BOLT, 5/16-18 x 1-1/4” Square Neck Carriage Was 90978

3 7091601 3 NUT, 5/16-18 Hex Flange Lock, GR 5 Was 91070

4 7092077 1 SCREW, #8-32 x 1/2” Pan Head Cross Recess

5 7090316 1 BOLT, 5/16-18 x 3/4” Short Neck Carriage, GR 5 Was 91097

6 7092078 1 NUT, #8-32 Hex (w/free spinning external lock washer)

ACCESSORIES- ELECTRIC START KIT

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

24

ACCESSORIES- ELECTRIC START KIT

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 25

Part No Descri

p

tionItem Qt

y

Note

7063186 BAG, Hardware (Incl. items 1 thru 6)

1 7090206 2 SCREW, 5/16-18 x 3/4” Hex Head Cap GR5 discharge chute, item 3

2 7090978 2 BOLT, 5/16-18 x 1-1/4” Sq. Neck Carriage GR5 handles, item 11

3 7091070 3 NUT, 5/16-18 Hex Flange Lock GR5 discharge chute, item 11

4 7092077 1 SCREW, #8-32 x 1/2” Pan Head Cross Recess discharge chute, item 16

5 7091097 1 BOLT, 5/16-18 x 3/4” Sq. Neck Carriage GR5 discharge chute, item 12

6 7092078 1 NUT, #8-32 Hex w/External Tooth Washer discharge chute, item 17

ACCESSORIES- FLITE SHOE KITS

TP 400-5024-M-LE-N

Manual No. 7006026 (L.E.) SINGLE STAGE

SERIES 0 & 1

26

ACCESSORIES- FLITE SHOE KITS

Footnotes:

TP 400-5024-M-LE-N

Manual No. 7006026(L.E.) SINGLE STAGE

SERIES 0 & 1 27

Part No Descri

p

tionItem Qt

y

Note

7061215 1 KIT, 17” Flite Shoe (incl. Items 1A, 2, 3 & 4)

7061213 1 KIT, 19” Flite Shoe (incl. Items 1B, 2, 3 & 4)

1A 7029566 4 SHOE, 17” Flite Auger

1B 7029565 4 SHOE, 19” Flite Auger

2 7014612 2 SHOE, Flite Center

3 7091148 24 * SCREW, 1/4-20 x 1/2” Machine 28 used in 19” kit

4 7090372 24 * NUT, 1/4-20 Hex Center Lock, GR 5 or B 28 used in 19” kit

Note: * Items 3 & 4 were used on early models, but were replaced by self-tapping screws (91286) on later models.

Parts Manual fo

r

(

L.E.

)

SINGLE STAGE

SERIES 0 & 1

IT IS THE POLICY OF BRIGGS & STRATTON CORP TO IMPROVE ITS

PRODUCTS WHENEVER IT IS POSSIBLE AND PRACTICAL TO DO SO.

WE RESERVE THE RIGHT TO MAKE CHANGES OR ADD

IMPROVEMENTS AT ANY TIME WITHOUT INCURRING ANY

OBLIGATION TO MAKE SUCH CHANGES ON PRODUCTS

Revision M, TP 400-5024-M-LE-N

11/7/2007

Manual No. 7006026

McDonough, GA, 30253 U.S.A.

SNOW THROWER

Copyright © 2007

Briggs & Startton Yard Power Products Group

Milwaukee, WI USA. All Rights Reserved

Briggs & Startton Corporation
