Safety Instructions & Operator’s Manual for

REAR ENGINE RIDING MOWER

SERIES 22

MODELS

281222BE

301222BE

3314522BVE

331522KVE

MODEL NUMBER EXPLANATION

33 15 22 K V E

CUTTING WIDTH ENGINE OPTIONS

ENGINE HP ENGINE TYPE

SERIES DESIGNATION ENGINE MODEL

28 - 28” Cutting Deck

30 - 30” Cutting Deck

33 - 33” Cutting Deck

12 - 12.0 HP Engine

145 - 14.5 HP Engine

15 - 15.0 HP Engine

22 - Series Designation B - Briggs Engine

K - Kohler Engine V - Over Head

Valve E - Electric Start

Thank you for buying a SNAPPER Product! Before operating your machine, read this manual carefully and pay

particular attention to the “IMPORTANT SAFETY INSTRUCTIONS” on Pages 2 & 3. Remember that all power

equipment can be dangerous if used improperly. Also keep in mind that SAFETY requires careful use in

accordance with the operating instructions and common sense!

SNAPPER INC.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: This powerful cutting machine is capable of amputating hands and feet and can throw objects that

can cause injury and damage! Failure to comply with the following SAFETY instructions could result in serious

injury or death to the operator or other persons. The owner of the machine must understand these instructions

and must allow only persons who understand these instructions to operate machine. Each person operating the

machine must be of sound mind and body and must not be under the influence of any substance, which might

impair vision, dexterity or judgment. If you have any questions pertaining to your machine which your dealer

cannot answer to your satisfaction, call or write the Customer Service Department at SNAPPER, McDonough,

Georgia 30253. Phone: (1-800-935-2967).

PROTECTION FOR CHILDREN

Tragic accidents can occur if the operator is not alert

to the presence of children. Children are often

attracted to the machine and the mowing activity.

Never assume that children will remain where you last

saw them.

1. KEEP children out of the mowing area and under

the watchful care of a responsible adult.

2. DO NOT allow children in yard when machine is

operated (even with the blade OFF).

3. DO NOT allow children or others to ride on

machine or on attachments (even with the blades

OFF). They may fall and be seriously injured.

4. DO NOT allow pre-teenage children to operate

machine.

5. ALLOW only responsible adults & teenagers with

mature judgment under close adult supervision to

operate machine.

6. DO NOT operate blades in reverse. STOP BLADES.

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

7. USE EXTRA CARE when approaching blind

corners, shrubs, trees, or other objects that may

obscure vision.

PROTECTION AGAINST TIPOVERS

Slopes are a major factor related to loss-of-control

and tip-over accidents, which can result in severe

injury or death. All slopes require extra CAUTION. If

you cannot back up the slope or if you feel uneasy on

the slope, DO NOT mow it. Use extra care with grass

catchers or other attachments; these affect the

handling and the stability of the machine.

1. DO NOT operate machine on slopes exceeding 15

degrees (27% grade).

2. Exercise EXTREME CAUTION on slopes above 10

degrees (18% grade). Turn blades OFF when

traveling uphill. Use a slow speed and avoid

sudden or sharp turns.

3. DO NOT operate machine back and forth across

face of slopes. Operate up and down. Practice on

slopes with blades off.

4. AVOID uphill starts. If machine stops going uphill

or tires lose traction, turn blades OFF and back

slowly down the slope.

PROTECTION AGAINST TIPOVERS

(Continued From Previous Column)

5. STAY ALERT for holes and other hidden hazards.

Tall grass can hide obstacles. Keep away from

ditches, washouts, culverts, fences and

protruding objects.

6. KEEP A SAFE DISTANCE (at least 3 feet) away

from edge of ditches and other drop offs. The

machine could turn over if an edge caves in.

7. Always begin forward motion slowly and with

caution.

8. Use weights or a weighted load carrier in accordance

with instructions supplied with a grass catcher. DO

NOT operate machine on slopes exceeding 10

degrees (18% grade) when equipped with grass

catcher.

9. DO NOT put your foot on the ground to try to

stabilize the machine.

10. DO NOT operate machine on wet grass. Reduced

traction could cause sliding.

11. DO NOT operate machine under any condition

where traction, steering or stability is doubtful.

PREPARATION

1. Read, understand, and follow instructions and

warnings in this manual and on the machine,

engine and attachments. Know the controls and

the proper use of the machine before starting.

2. Only mature, responsible persons shall operate

the machine and only after proper instruction.

3. Data indicates that operators age 60 and above,

are involved in a large percentage of mower-

related injuries. These operators should evaluate

their ability to operate the mower safely enough to

protect themselves and others from serious injury.

4. Handle fuel with extra care. Fuels are flammable

and vapors are explosive. Use only an approved

fuel container. DO NOT remove fuel cap or add

fuel with engine running. Add fuel outdoors only

with engine stopped and cool. Clean spilled fuel

from machine. DO NOT smoke.

5. Practice operation of machine with BLADES OFF

to learn controls and develop skills.

6. Check the area to be mowed and remove all

objects such as toys, wire, rocks, limbs and other

objects that could cause injury if thrown by blade

or interfere with mowing.

IMPORTANT SAFETY INSTRUCTIONS

PREPARATION

(Continued From Previous Page)

7. Keep people and pets out of mowing area.

Immediately STOP blades, STOP engine, and

STOP machine if anyone enters the area.

8. Check shields, deflectors, switches, blade

controls and other safety devices frequently for

proper operation and location.

9. Make sure all safety decals are clearly legible.

Replace if damaged.

10. Protect yourself when mowing and wear safety

glasses, long pants and substantial footwear.

11. Know how to STOP blades and engine quickly

in preparation for emergencies.

12. Use extra care when loading or unloading the

machine into a trailer or truck.

13. Check grass catcher components frequently for

signs of wear or deterioration and replace as

needed to prevent injury from thrown objects

going through weak or worn spots.

OPERATION

1. Mount and dismount machine from left side.

2. Start engine from operator's seat, if possible.

Make sure blades are OFF and parking brake is

set.

3. DO NOT leave machine with engine running.

STOP engine, STOP blades, SET brake, and

Remove key before leaving operators position

of any reason.

4. DO NOT operate machine unless properly

seated with feet on feet rests or pedal(s).

5. STOP BLADES and ENGINE and make sure

blades have stopped before removing grass

catcher or unclogging mower to prevent loss of

fingers or hand.

6. Blades must be OFF except when cutting grass.

Set blades in highest position when mowing

over rough ground.

7. Keep hands and feet away from rotating blades

underneath deck. DO NOT place foot on ground

while BLADES are ON or machine is in motion.

8. DO NOT operate machine without entire grass

catcher or guards in place. DO NOT point

discharge at people, passing cars, windows or

doors.

9. Slow down before turning.

10. Watch out for traffic when near or crossing

roadways.

11. STOP engine immediately after striking an

obstruction. Inspect machine and repair

damage before resuming operation.

12. Operate machine only in daylight or with good

artificial light.

13. Move joystick (if equipped) SLOWLY to

maintain control during speed and directional

changes.

OPERATION

(Continued From Previous Column)

14. Exercise CAUTION when pulling loads. Limit loads

to those you can safely control and attach loads to

hitch plate as specified with SNAPPER attachment

instructions.

15. DO NOT operate engine in enclosed areas. Engine

exhaust gases contain carbon monoxide, a deadly

poison.

MAINTENANCE

1. DO NOT store machine or fuel container inside

where fumes may reach an open flame, spark or

pilot light such as in a water heater, furnace,

clothes dryer or other gas appliance. Allow engine

to cool before storing machine in an enclosure.

Store fuel container out of the reach of children in

a well ventilated, unoccupied building.

2. Keep engine free of grass, leaves or excess grease

to reduce fire hazard and engine overheating.

3. When draining fuel tank, drain fuel into an

approved container outdoors and away from open

flame.

4. Check brakes frequently; adjust, repair or replace

as needed.

5. Keep all bolts, nuts and screws properly tight.

Check that all cotter pins are in proper position.

6. Always provide adequate ventilation when running

engine. Exhaust gases contain carbon monoxide,

an odorless and deadly poison.

7. Disconnect negative (black) cable from battery

before performing maintenance or service.

Cranking engine could cause injury.

8. DO NOT work under machine without safety

blocks.

9. Service engine and make adjustments only when

engine is stopped. Remove spark plug wire(s)

from spark plug(s) and secure wire(s) away from

spark plug(s).

10. DO NOT change engine governor speed settings

or overspeed engine.

11. Lubricate machine at intervals specified in manual

to prevent controls from binding.

12. Mower blades are sharp and can cut. Wrap the

blades or wear heavy leather gloves and use

CAUTION when handling them.

13. DO NOT test for spark by grounding spark plug

next to spark plug hole; spark plug could ignite

gas exiting engine.

14. Have machine serviced by an authorized

SNAPPER dealer at least once a year and have the

dealer install any new safety devices.

15. Use only genuine SNAPPER replacement parts to

assure that original standards are maintained.

16. If battery is removed, DO NOT operate engine

without insulating Positive + battery cable terminal

with electrical tape, or sparking from the battery

cables can result

TABLE OF CONTENTS

IMPORTANT SAFETY INSTRUCTIONS..........................................................2-3

TABLE OF CONTENTS...................................................................................... 4

SECTION 1 - FAMILIARIZATION ....................................................................... 5

SECTION 2 - OPERATING INSTRUCTIONS................................................. 6-12

Pre-start Checklist .........................................................................................................6

Operator’s Seat Adjustment..........................................................................................6

Starting & Stopping Engine, Blade & Wheel Drive ................................................7-10

Starting & Stopping Mower Blades .........................................................................9-10

Starting & Stopping Wheel Drive.............................................................................9-10

Parking Brake ...............................................................................................................11

Cutting Height Adjustment..........................................................................................11

Reverse Lockout Mechanism......................................................................................12

SECTION 3 - MAINTENANCE INSTRUCTIONS ......................................... 13-18

Service – After First 5 Hours..................................................................................13-15

Change Engine Oil ....................................................................................................13

Service Engine Air Cleaner ......................................................................................13

Check Mower Blade..................................................................................................13

Check Blade Drive Belt.............................................................................................14

Blade Brake ...............................................................................................................14

Service Brake / Park Brake.......................................................................................14

Check Interlock System............................................................................................14

Reverse Lockout Mechanism ..................................................................................15

Lubrication – Grease Fittings ..................................................................................15

Service – Every 25 Operating Hours .....................................................................15-17

Battery Fluid Level....................................................................................................15

Mower Deck Levelness.............................................................................................15

Clean Mower Deck ....................................................................................................15

Mower Blade Spindle - Lubrication.........................................................................15

Mower Deck Linkage – Lubrication.........................................................................15

Front Wheel Bearing - Lubrication..........................................................................16

Rear Axle Bearing – Lubrication..............................................................................16

Differential / Chain Case – Lubrication..............................................................16-17

Service – Annually........................................................................................................17

Engine ........................................................................................................................17

Fuel Filter...................................................................................................................17

Every Two Years...........................................................................................................17

Storage – Out of Season..............................................................................................17

Removing Fuel Tank....................................................................................................18

SECTION 4- ADJUSTMENTS AND REPAIR............................................... 19-27

Engine Adjustments & Repair.....................................................................................19

Mower Deck & Component Adjustments...................................................................19

Blade Brake Adjustment..............................................................................................19

Mower Deck Adjustment (Side to Side Levelness)...................................................20

Mower Deck Adjustment (Front to Rear Levelness).................................................20

Mower Drive Belt Adjustment – 28” & 30” Decks .....................................................21

Rear Engine Rider Drive Components.......................................................................22

Service Brake/ParkBrake Adjustment........................................................................22

Mower Blade Replacement..........................................................................................23

Blade Sharpening.........................................................................................................23

Mower Drive Belt Removal/Replacement – 28” 30” & 33” Decks............................24

Battery Removal, Replacement, Service...............................................................25-27

ACCESSORIES ................................................................................................ 27

TROUBLESHOOTING................................................................................. 28-29

MAINTENANCE SCHEDULE............................................................................ 30

MAINTENANCE/REPLACEMENT PARTS........................................................ 31

WARRANTY ..................................................................................................... 32

PRIMARY MAINTENANCE.......................................................................... 33-36

IMPORTANT: The figures and illustrations in this manual are provided for reference only and

may differ from your specific model. Contact your Snapper dealer if you have questions.

Section 1 - FAMILIARIZATION

FIGURE 1.1

1.1 INTRODUCTION

This manual has been prepared for the operator’s of the

SNAPPER Rear Engine Rider. Its purpose, aside from

recommending standard operating procedures and

routine service requirements, is to promote SAFETY

through the use of accepted operating practices. Read,

Understand and Follow the IMPORTANT SAFETY

INSTRUCTIONS on Pages 2 & 3 of this manual and All

SAFETY messages on the Rear Engine Rider and its

attachments before operating.

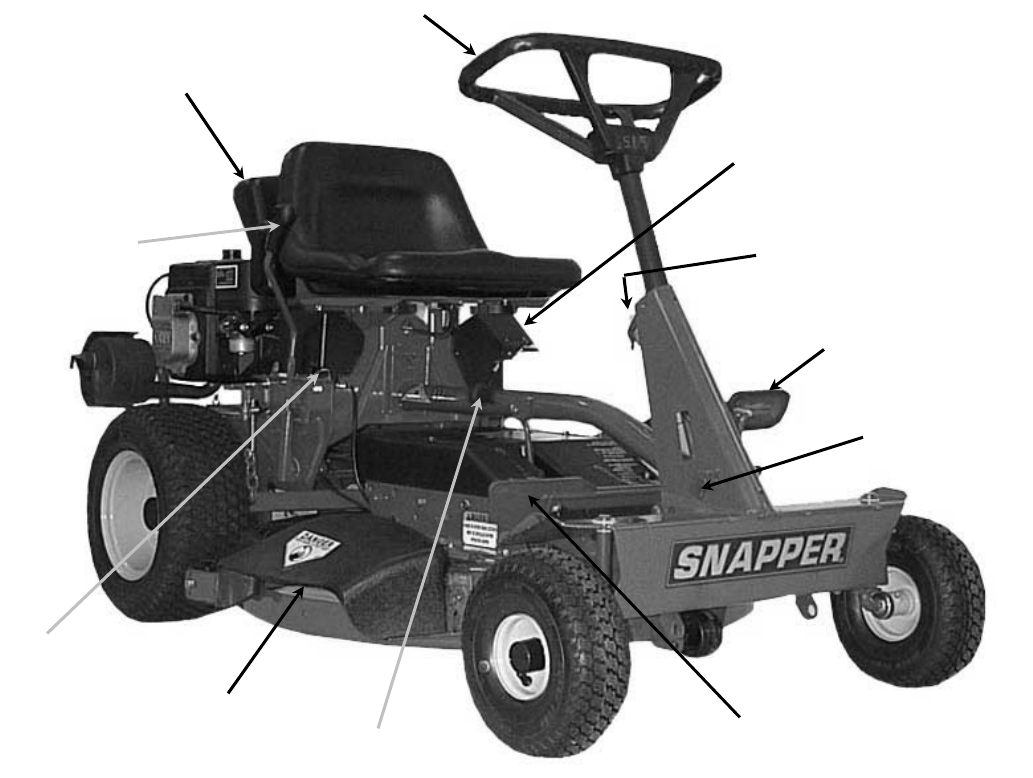

1.2 NOMENCLATURE

The nomenclature drawing above, Figure 1.1, shows the

essential parts of the SNAPPER Rear Engine Rider. It is

recommended that all operator’s of this equipment

become thoroughly familiar with the controls,

components, and operation of this machine before

operating. Specific details involving the engine are found

in the separate engine owner’s manual. Study these

manuals before operating and keep both handy for future

reference.

FUEL TANK

TRANSMISSION

SHIFT LEVER

STEERING

WHEEL

IGNITION

SWITCH

CLUTCH/BRAKE

PEDAL

PARK BRAKE

LATCH

BLADE LEVER

DISCHARGE

DEFLECTOR

OVERRIDE

CONTROL

ENGINE SPEED

CONTROL

BLADE

Section 2 - OPERATING INSTRUCTIONS

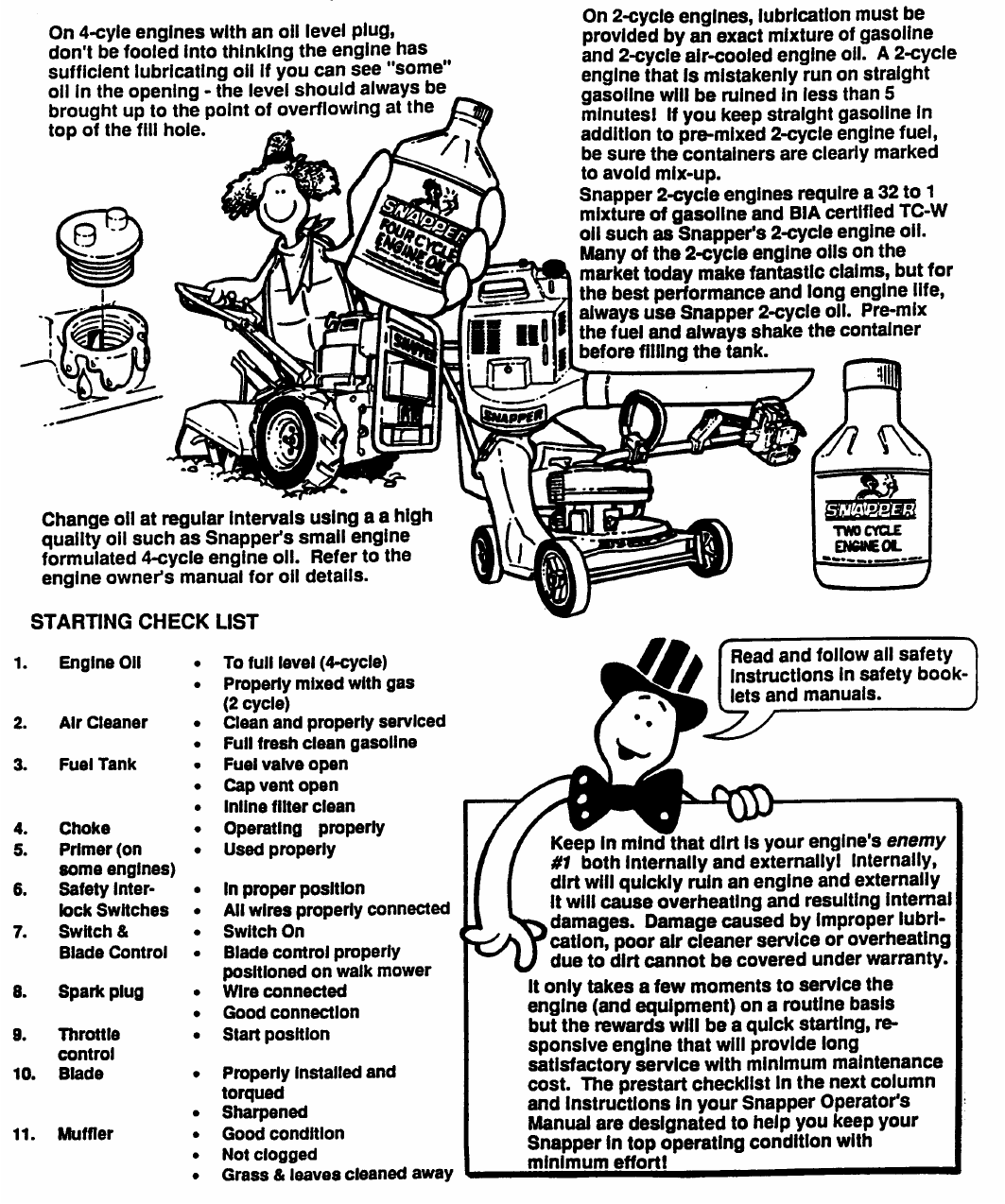

2.1 PRE-START CHECK LIST

Make the following checks and perform the service

required before each start-up.

2.1.1. Check tires and add or release air as needed

to bring pressure to 12 psi in front and 12 psi in rear

tires.

2.1.2. Check guards, deflectors and covers to make

sure all are in place and securely tightened.

2.1.3. Check engine oil and add oil as needed to

bring level up to the FULL mark. Refer to engine

owner’s manual for oil specifications. See Figure 2.1.

FIGURE 2.1

2.1.4. Adjust seat as needed to most comfortable

position. Refer to Section “OPERATOR’S SEAT

ADJUSTMENT”.

2.1.5. Check blade control to insure it works freely.

If blade pedals are depressed, blade lever can be

moved manually from “ON” to “OFF” to stop

blade.

2.1.6. Check Reverse Lockout Mechanism. With

blade pedals depressed, shift lever must not go into

reverse.

2.1.7. Clean exterior surfaces of cutting deck and

engine of any accumulation of dirt, grass, oil, etc.

Keep engine air intake screen and cooling fins clear at

all times.

2.1.8. Add fuel to tank after pushing the Rear Engine

Rider outside where fumes can dissipate. Make sure

fuel filler cap is tight and vent is open after refueling.

Refer to engine owner’s manual for fuel specifications.

See Figure 2.2.

FIGURE 2.2

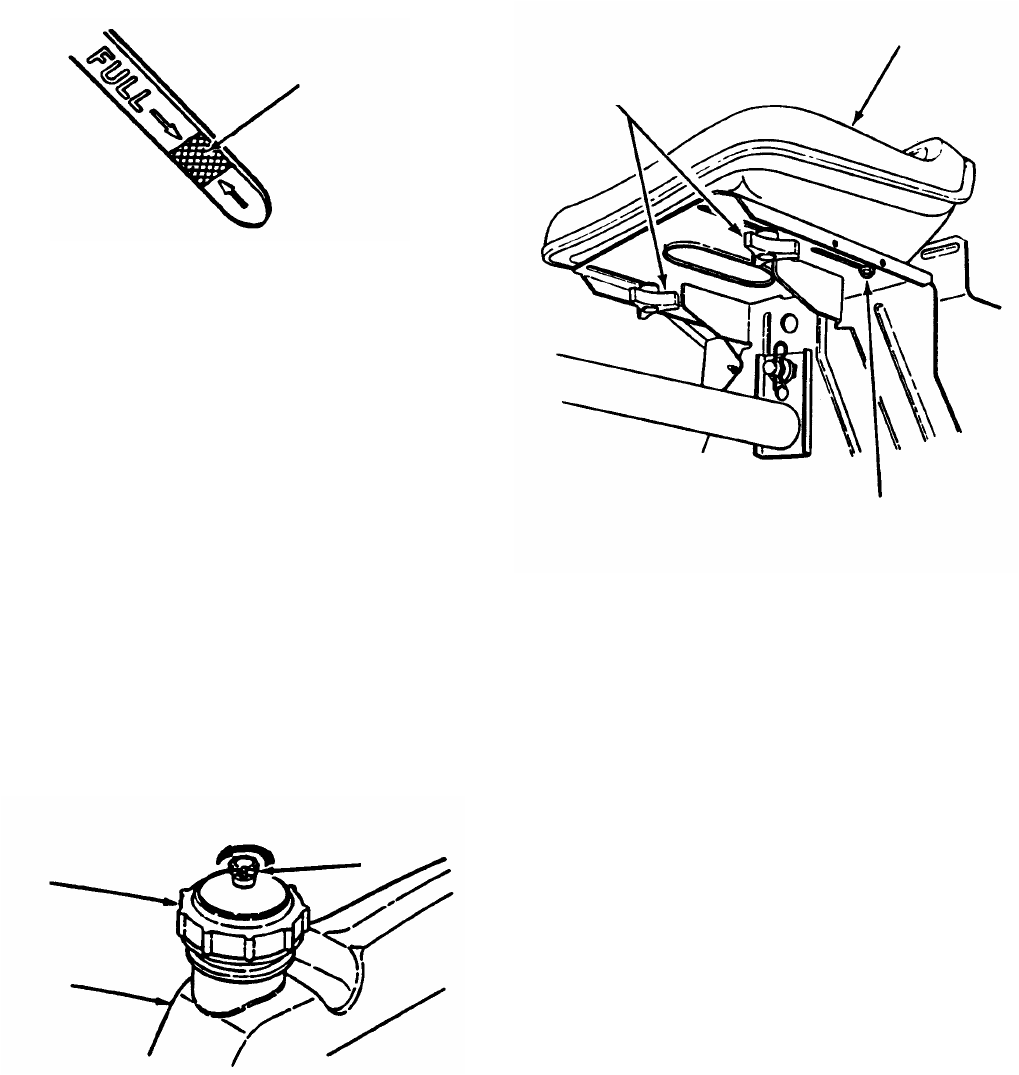

2.2 OPERATOR’S SEAT ADJUSTMENT

2.2.1. FRONT TO REAR ADJUSTMENT

1. With the engine stopped, loosen the two adjusting

knobs and move seat to desired position. After

adjustment, tighten knobs securely. If seat does not

move after loosening knobs, it may be necessary to

loosen the 5/16” patch lock screws located at the rear

of the seat using a 1/2 inch wrench. See Figure 2.3.

FIGURE 2.3

SAFE LEVEL

AREA

OPEN

VENT

FUEL

FILLER

CAP

FUEL

TANK

ADJUSTING

KNOBS

OPERATOR’S

SEAT

5/16” PATCH LOCK

SCREWS (DO NOT

OVERTIGHTEN)

Section 2 - OPERATING INSTRUCTIONS

2.3 STARTING & OPERATION

2.3.1. ENGINE (ELECTRIC START)

IMPORTANT: When the ignition key is turned to

“START”, the engine will turn over, but will not start

unless the Clutch/Brake pedal is pressed all the way

down, the Blade Lever is in the “OFF” position (See

Figure 2.5). The operator should be in the seat. Start

engine as follows:

1. Move transmission shift lever to (N) Neutral

position. DO NOT start engine with transmission

shift lever in a drive position.

WARNING

It is possible to start engine with transmission shift

lever in a drive position. Follow starting instructions

carefully.

2. Make certain the Blade Lever is in the “OFF”

position. See Figure 2.4.

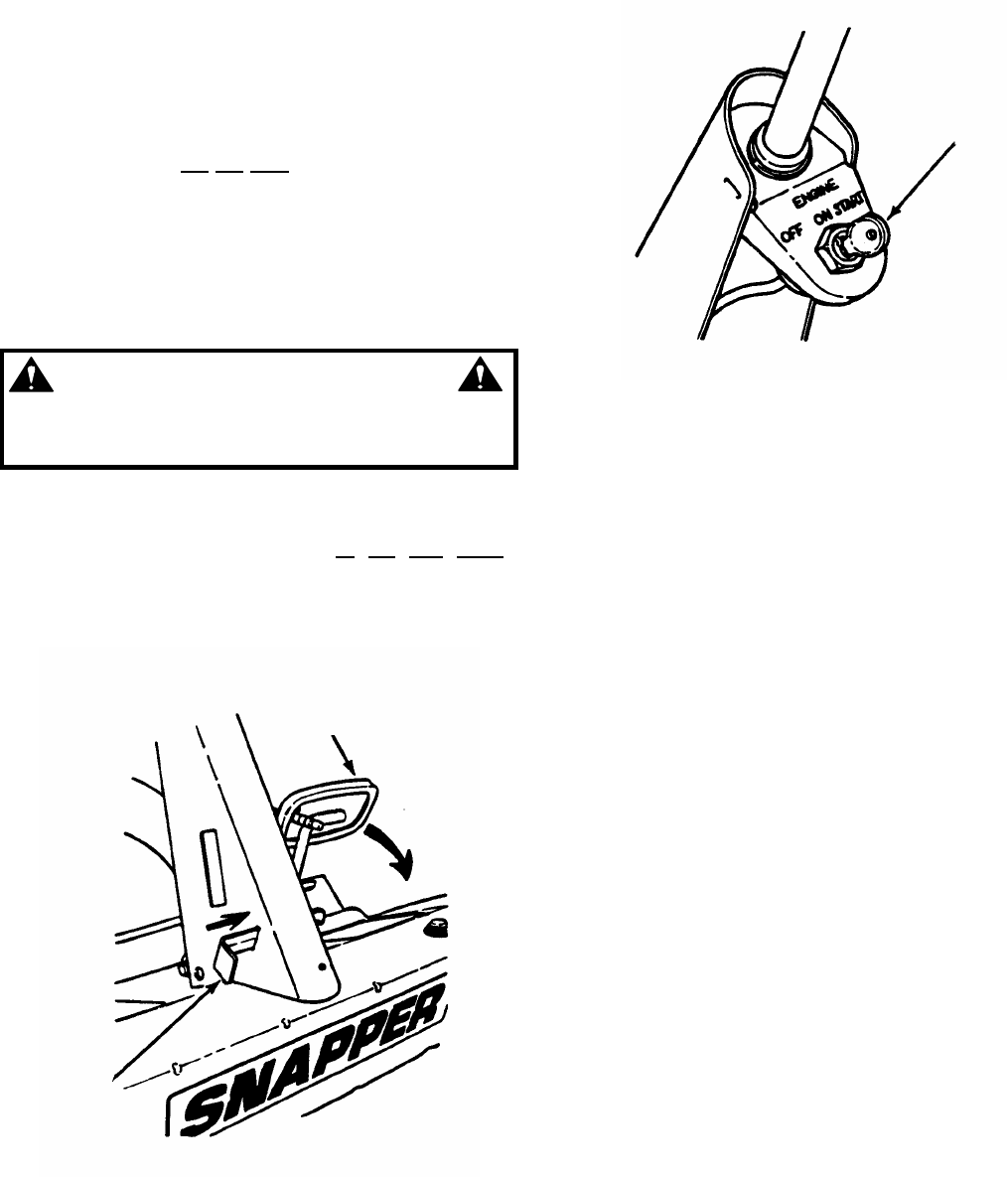

FIGURE 2.4

3. Press Clutch/Brake Pedal all the way down and

hold while starting engine. See Figure 2.5.

4. Open vent on fuel filler cap by turning

counterclockwise. IMPORTANT: Failure to open

vent on the fuel filler cap can cause engine to stall.

See Figure 2.2.

5. Move engine speed control to the choke position to

start a cold engine. See Figure 2.6.

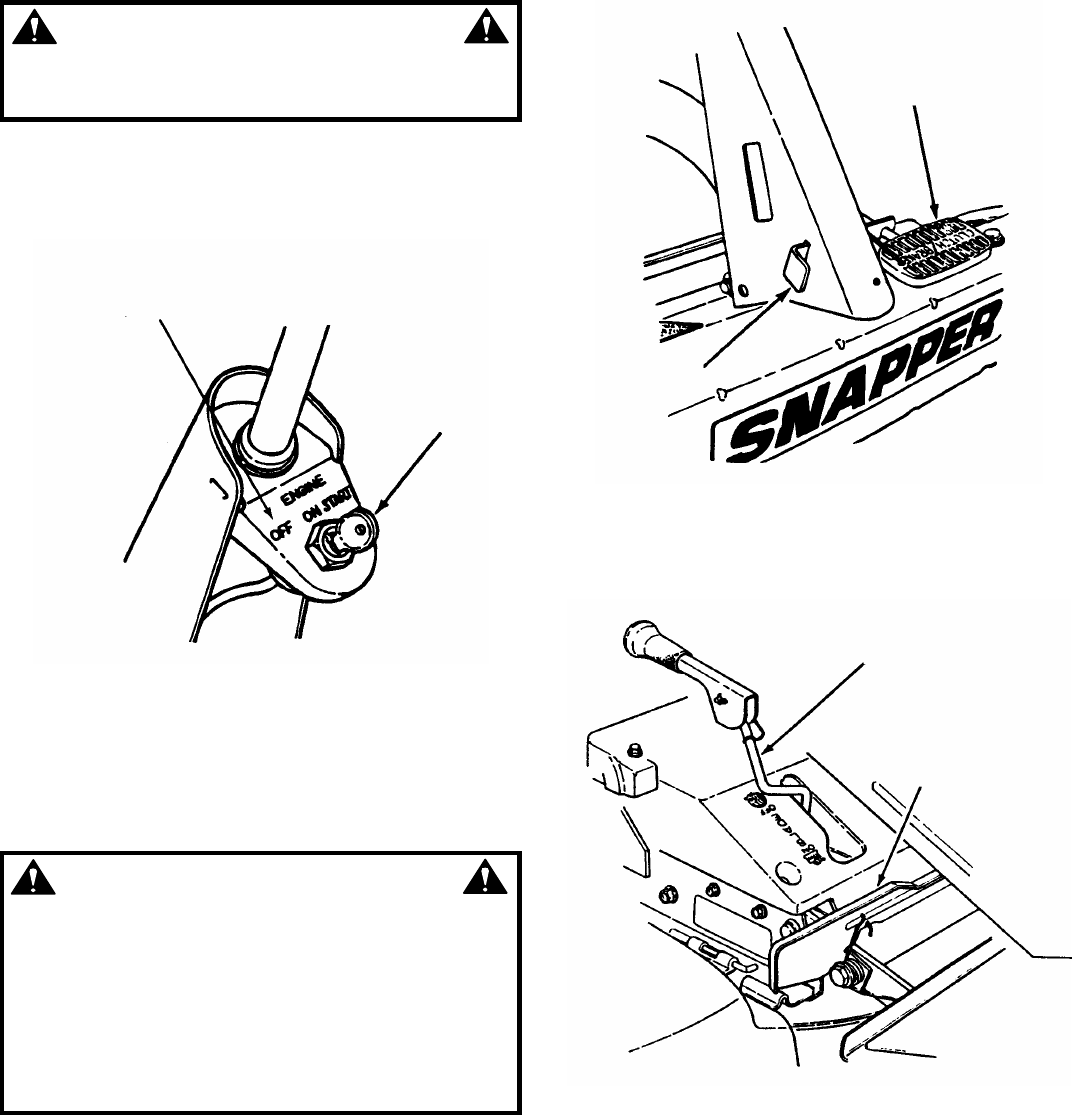

6. Turn key to the “START” position until engine

starts. See Figure 2.7. NOTE: If after 5 seconds of

cranking the engine and it does not start, release the

key, make sure the Clutch/Brake Pedal is fully

depressed and attempt starting again after waiting for

approximately 20 seconds.

7. After engine starts, move engine speed control to

the “FAST” position, allow a brief warm-up until engine

runs smooth.

FIGURE 2.5

FIGURE 2.6

FIGURE 2.7

(Continued on Next Page)

BLADE LEVER IN

“OFF” POSITION

RELEASE BLADE

PEDALS

TO START ENGINE,

PUSH CLUTCH/BRAKE

PEDAL ALL THE WAY

DOWN

PARKING

BRAKE

LATCH

CHOKE

POSITION

ENGINE

SPEED

CONTROL

KEY

Section 2 - OPERATING INSTRUCTIONS

2.3 STARTING & OPERATION

2.3.1. ENGINE (ELECTRIC START) (Continued)

8. Should the battery be too weak to start the engine,

refer to Section “ENGINE (MANUAL START)” to

manually start the electric start engines.

9. On Model 3314522BVE, the engine is equipped

with a fuel shut-off solenoid. If the battery is dead, the

engine can be started with the recoil back-up starter if

the throttle control is in the choke position (HOT engine

or COLD engine).

2.3.2. ENGINE (MANUAL START)

IMPORTANT: When the ignition key is turned to

“ON”, and the recoil handle is pulled, the engine will

turn over, but will not start unless the Clutch/Brake

Pedal is pressed all the way down with Parking

Brake engaged (See Figure 2.8) and the Blade

Lever is in the “Off” position (See Figure 2.4). Start

engine as follows:

1. Move transmission shift lever to (N) Neutral

position. DO NOT start engine with transmission shift

lever in a drive position.

WARNING

It is possible to start engine with transmission shift

lever in a drive position. Follow starting instructions

carefully.

2. Make certain the Blade Lever is in the “OFF”

position. See Figure 2.4.

3. Press Clutch/Brake Pedal all the way down,

move Parking Brake Latch over and release the

Clutch/Brake Pedal to set Parking Brake. See

Figure 2.8.

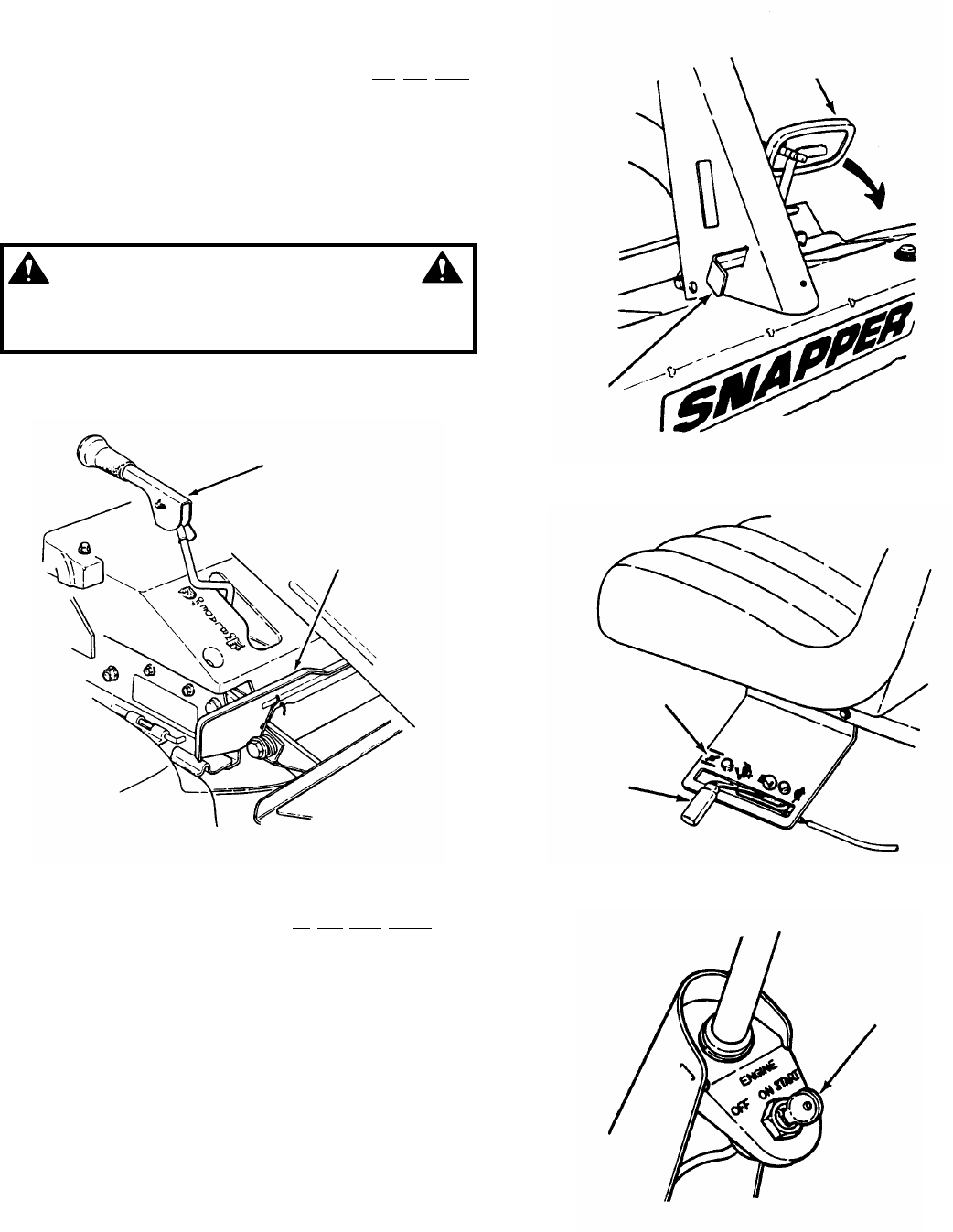

FIGURE 2.8

4. Open vent on fuel filler cap by turning

counterclockwise. NOTE: Failure to open vent on

the fuel filler cap can cause engine to stall.

5. Move engine speed control to the choke position

to start a cold engine. See Figure 2.6.

6. Turn key to “ON” position. See Figure 2.9.

FIGURE 2.9

7. Pull starter rope with a smooth, even motion until

engine starts. Always guide the starter rope back

into the recoil housing. Never allow rope to snap

back. After Engine starts, move engine speed

control to the “FAST” position.

8. Allow a brief warm-up until engine runs smooth.

TO START ENGINE,

PUSH CLUTCH/BRAKE

PEDAL ALL THE DOWN

MOVE

PARKING

BRAKE

LATCH

OVER

KEY

Section 2 - OPERATING INSTRUCTIONS

WARNING

Once blade is disengaged, it should come to a

complete stop in 3 seconds or less. If the blade

continues to rotate after 3 seconds, the blade brake

must be adjusted. Refer to Section “BLADE BRAKE

ADJUSTMENT” for adjustment procedures or return

machine to an authorized SNAPPER dealer for

adjustment. DO NOT CONTINUE to operate machine

until blade brake is adjusted and functioning

properly.

2.3 STARTING & OPERATION

2.3.3. MOWER BLADE

1. With engine running, move engine speed control

to the “FAST” position.

2. Move blade lever forward to the “ON” position,

then depress blade pedals to hold blade lever in the

“ON” position. See Figure 2.10.

FIGURE 2.10

2.3.4. WHEEL DRIVE

1. With engine running, adjust engine speed control

to “FAST” position.

2. Depress clutch/brake pedal. See Figure 2.11.

3. Place transmission shift lever in notch for first

speed. See Figure 2.12.

4. Release clutch/brake pedal to begin desired

ground speed.

5. During forward motion, the transmission shift

lever may be placed in any desired forward speed

without depressing the clutch/brake pedal.

NOTE: For best cutting results, move the transmission

shift lever into a slow forward speed and the engine

speed control to a fast position. This combination will

allow the mower blades to lift the grass while cutting

smoothly and evenly.

WARNING

DO NOT operate blades in reverse. STOP BLADES.

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

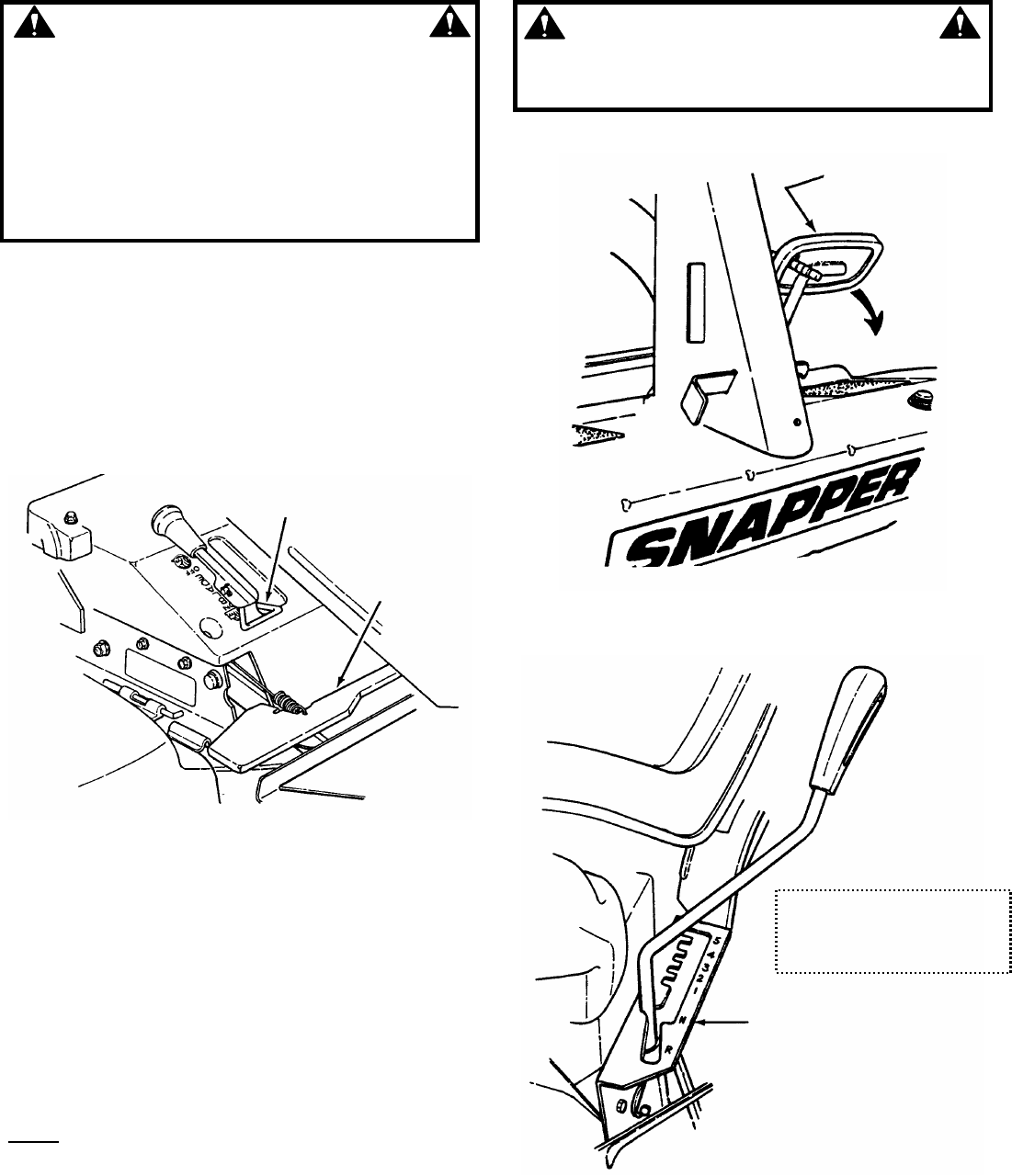

FIGURE 2.11

FIGURE 2.12

BLADE LEVER SHOWN IN

“ON” POSITION

BLADE PEDAL

SHOWN

DEPRESSED

THERE ARE FIVE

DIFFERENT FORWARD

GROUND SPEEDS AND ONE

REVERSE GROUND SPEED

SHIFT LEVER SHOWN IN

NEUTRAL POSITION

DEPRESS

CLUTCH/BRAKE

PEDAL

Section 2 - OPERATING INSTRUCTIONS

WARNING

DO NOT leave the machine with the engine running.

STOP Blade. STOP engine. Shift to neutral and

engage park brake. Remove key.

2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE

2.4.1. ENGINE

1. Stop engine by turning key to the “OFF” position.

See Figure 2.13.

FIGURE 2.13

2.4.2. WHEEL DRIVE

1. Stop motion of Rear Engine Rider by pushing

clutch/brake pedal all the way “DOWN” to apply

brake. See Figure 2.14.

WARNING

Once blade is disengaged, it should come to a

complete stop in 3 seconds or less. If the blade

continues to rotate after 3 seconds, the blade brake

must be adjusted. Refer to Section “BLADE BRAKE

ADJUSTMENT” for adjustment procedures or return

machine to an authorized SNAPPER dealer for

adjustment. DO NOT CONTINUE to operate machine

until blade brake is adjusted and functioning

properly.

2.4.3. MOWER BLADE

1. Stop mower blade by releasing blade pedals or

moving blade lever rearward to the “OFF” position.

See Figure 2.15.

FIGURE 2.14

FIGURE 2.15

BLADE LEVER IN “OFF”

POSITION

RELEASE BLADE

PEDALS

TURN TO

“OFF”

POSITION

KEY

TO APPLY

BRAKES, PUSH

CLUTCH/BRAKE

PEDAL ALL THE

WAY DOWN CLUTCH/BRAKE

PEDAL

PARK BRAKE

LATCH SHOWN

ENGAGED

Section 2 - OPERATING INSTRUCTIONS

2.4 STOPPING - ENGINE, WHEEL DRIVE, BLADE

2.4.4. PARK BRAKE

1. Engage park brake by pushing clutch/brake pedal

“DOWN” and moving the park brake latch to the

“ENGAGED” position. While holding the park brake

latch “ENGAGED”, release clutch/brake pedal to set

park brake. See Figure 2.16.

WARNING

DO NOT park the machine on slopes.

FIGURE 2.16

2. Release park brake by pushing down on the

clutch/brake pedal, parking brake latch will move to

the “OFF” position unassisted. See Figure 2.17.

FIGURE 2.17

2.5. CUTTING HEIGHT ADJUSTMENT

1. Adjust cutting height as desired to any one of

five positions using deck lift lever. Move deck lift

lever up or down to desired cutting height and then

move over to secure in the height of cut notch.

See Figure 2.18.

FIGURE 2.18

CLUTCH/BRAKE

PEDAL

PARK BRAKE

LATCH SHOWN

ENGAGED

CLUTCH/BRAKE

PEDAL SHOWN

DISENGAGED

PARK BRAKE

LATCH SHOWN

IN “OFF”

POSITION

HEIGHT OF CUT

NOTCHES

DECK LIFT

LEVER

Section 2 - OPERATING INSTRUCTIONS

2.6 REVERSE LOCKOUT MECHANISM

Data indicates that tragic back-over accidents occur

each year. These accidents usually involve

unsupervised children. Many times these children have

been given rides on the machine and have been trained

to view this potentially dangerous piece of machinery as

fun rather than being taught how to avoid danger.

This riding mower has a Reverse Lockout Mechanism.

This mechanism prevents the mower from being shifted

into reverse with the blade running. To shift into reverse

you must first stop the blade by releasing the blade

pedals and then shift to reverse. It is our

recommendation that this mechanism remain functional

and the operator of this equipment develop the habit of

never backing up with the blade running. As the Safety

Instructions Indicate, DO NOT operate blades in

reverse. STOP BLADES, LOOK AND SEE BEHIND

AND DOWN for children, pets and hazards before

and while backing.

We realize that this could cause a change to your

previous mowing method but we encourage you to

adjust to this new system. Do not defeat the Reverse

Lockout Mechanism.

If you operate your mower near roadways or use

attachments that require quicker shifting to reverse,

there is an override lever provided. This lever can be

pushed and held before starting the blade and will allow

reverse operation until the blade pedals are released, at

which time the system will return to its Reverse Lockout

mode. This feature should never be selected unless you

are absolutely sure that no children or others are

present in the mowing area and that all children are

away and supervised by a responsible adult.

2.6.1. Reverse Lockout Mechanism Override

1. Stop machine. Stop blade.

2. Depress and hold Override Lever.

3. Depress and hold Blade Pedals. Release

Override Lever.

4. Move blade lever forward to “ON” position.

WARNING

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

IMPORTANT: DO NOT use the Reverse Lockout

Mechanism Override as the normal operating mode. To

return to the Reverse Lockout Mechanism mode,

release blade pedals to turn blade off. The Override will

reset to Reverse Lockout. Check the Reverse Lockout

Mechanism frequently for proper function. With the

blade pedals depressed, the shift lever must not go into

reverse. DO NOT operate machine if Reverse Lockout

Mechanism is not functioning properly. Contact your

local Snapper dealer for assistance.

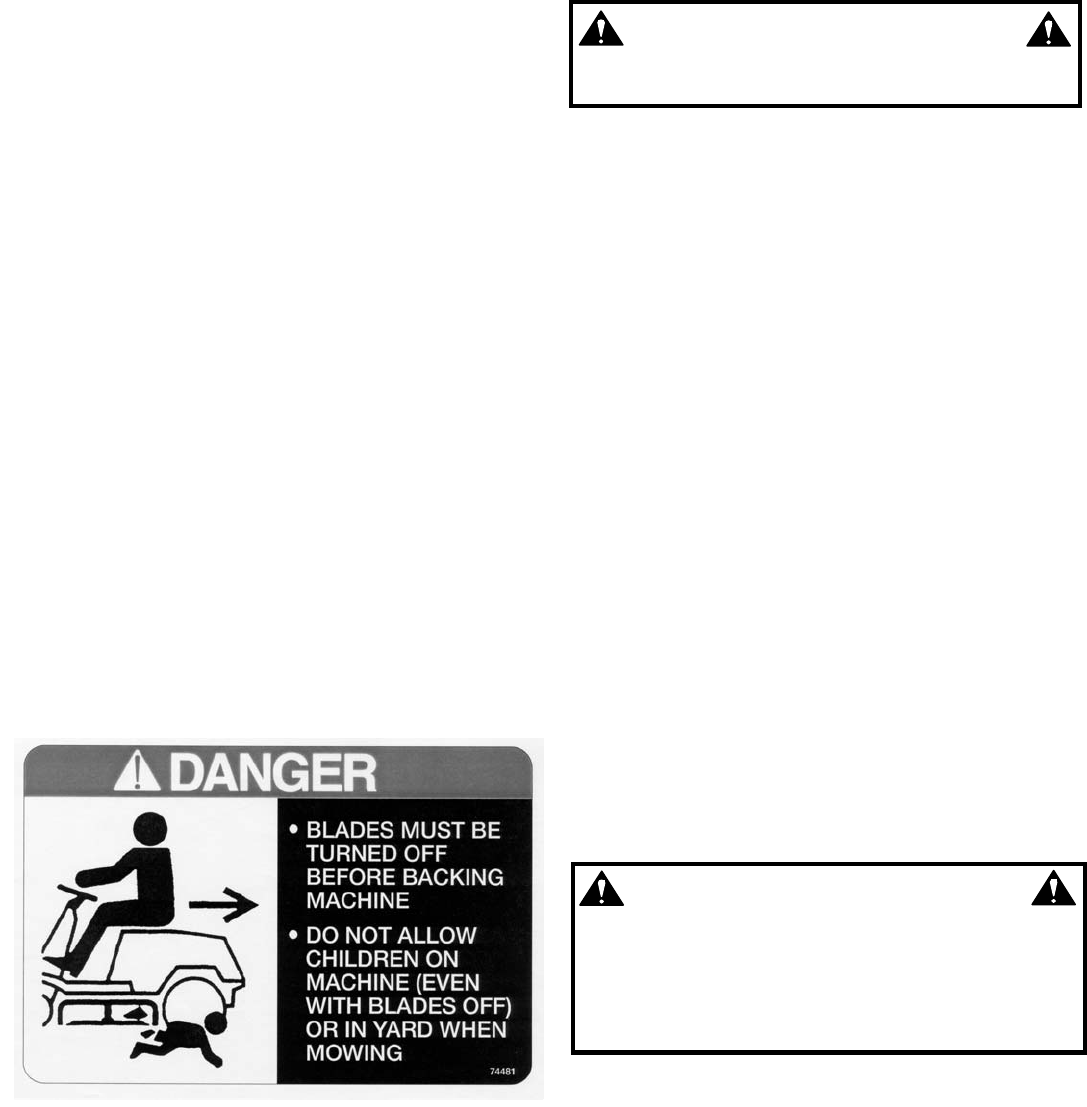

DANGER

LOOK and SEE behind and down for children, pets

and hazards before and while backing.

BLADES must be turned off before backing

machine.

DO NOT allow children on machine (even with

blades off) or in yard when mowing.

Section 3 – MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance, service

or repairs with the engine running. STOP engine. STOP

blade. Engage parking brake. Remove key. Remove

spark plug wire from spark plug and secure away from

plug. Engine and components are HOT. Avoid serious

burns, allow all parts to cool before working on

machine. Fuel Filler Cap and vent must be closed

securely to prevent fuel spillage.

3.1 INTRODUCTION

To retain the quality of the Rear Engine Rider, use

genuine SNAPPER replacement parts only. Contact a

local SNAPPER dealer for parts and service

assistance. For the correct part or information for a

particular Rear Engine Riding Mower, always mention

the model and serial number. SNAPPER recommends

returning the Rear Engine Rider to an authorized

SNAPPER dealer annually for inspection and addition

of any new devices which might upgrade the safety of

the Rear Engine Rider. For the nearest SNAPPER

dealer in your area, check the yellow pages under the

heading LAWN MOWERS. For engine parts and

service, look for the engine manufacturer’s dealers

under the heading, ENGINES - gasoline.

3.2 SERVICE - AFTER FIRST 5 HOURS

Routine maintenance is important to the performance

and life of your Rear Engine Rider. Service performed

properly and at the recommended interval is essential.

Refer to Section “MAINTENANCE SCHEDULE” in this

manual and in the Engine Owner’s Manual. Carefully

complete all of the recommended service procedures.

3.2.1. CHANGE ENGINE OIL

1. Place bricks or wooden blocks under the front

wheels to lower rear of engine.

2. Loosen or remove oil fill cap on engine.

3. Loosen oil drain plug.

4. Place a 2 quart minimum capacity container

under the end of the oil drain. Open oil drain. See

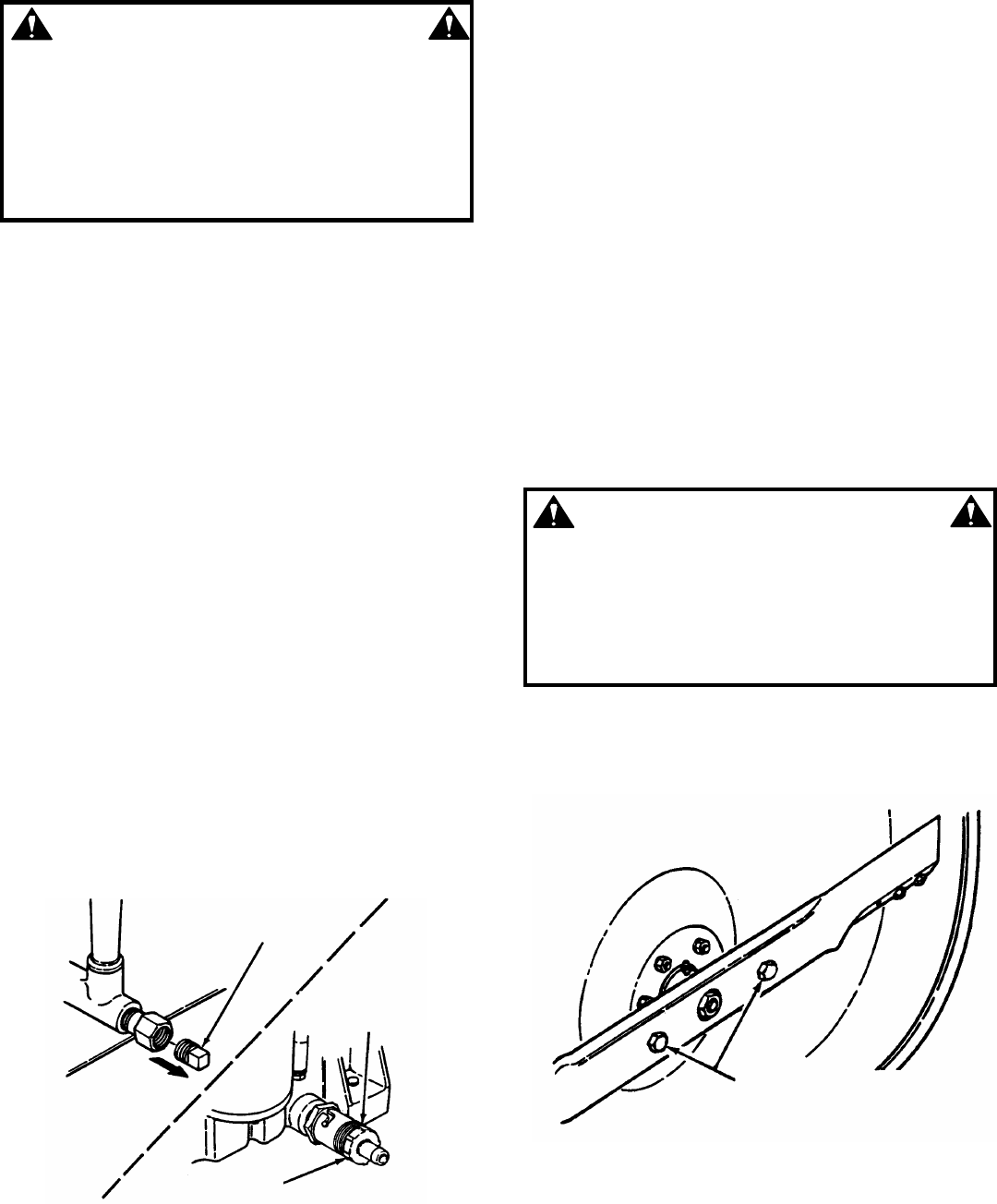

Figure 3.1 for oil drains used on the Rear Engine

Riders.

FIGURE 3.1

5. After all the oil has drained, close the drain and

wipe up any oil that may have spilled. See Figure 3.1.

Dispose of used oil properly.

6. Fill engine crankcase with new oil. Refer to

your engine owner’s manual for oil specifications.

7. Change oil filter on 14HP Kohler engines at every

oil change. Refer to your engine owner’s manual for

service instructions.

3.2.2. SERVICE ENGINE AIR CLEANER

The engine is equipped with a dual element air

cleaner. Both the foam pre-cleaner and cartridge

require service. Refer to Engine Owner’s Manual

for recommended service procedures.

3.2.3. CHECK MOWER BLADE

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Section “REMOVING FUEL TANK”.

If 3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear

bumper.

WARNING

Remove the battery if the Rear Engine Rider will be left

standing on the rear bumper for longer than 2 hours.

Refer to Section “BATTERY REMOVAL”. DO NOT use a

cutting blade that shows signs of excessive wear or

damage on the Rear Engine Rider. Refer to Section

“MOWER BLADE REPLACEMENT” for proper blade

inspection and service procedures.

4. Check torque of blade mounting bolts. As

necessary, torque to 30 to 40 ft. lbs. See Figure 3.2.

5. Check blade for sharpness, wear and damage.

Refer to Section “BLADE WEAR LIMITS”.

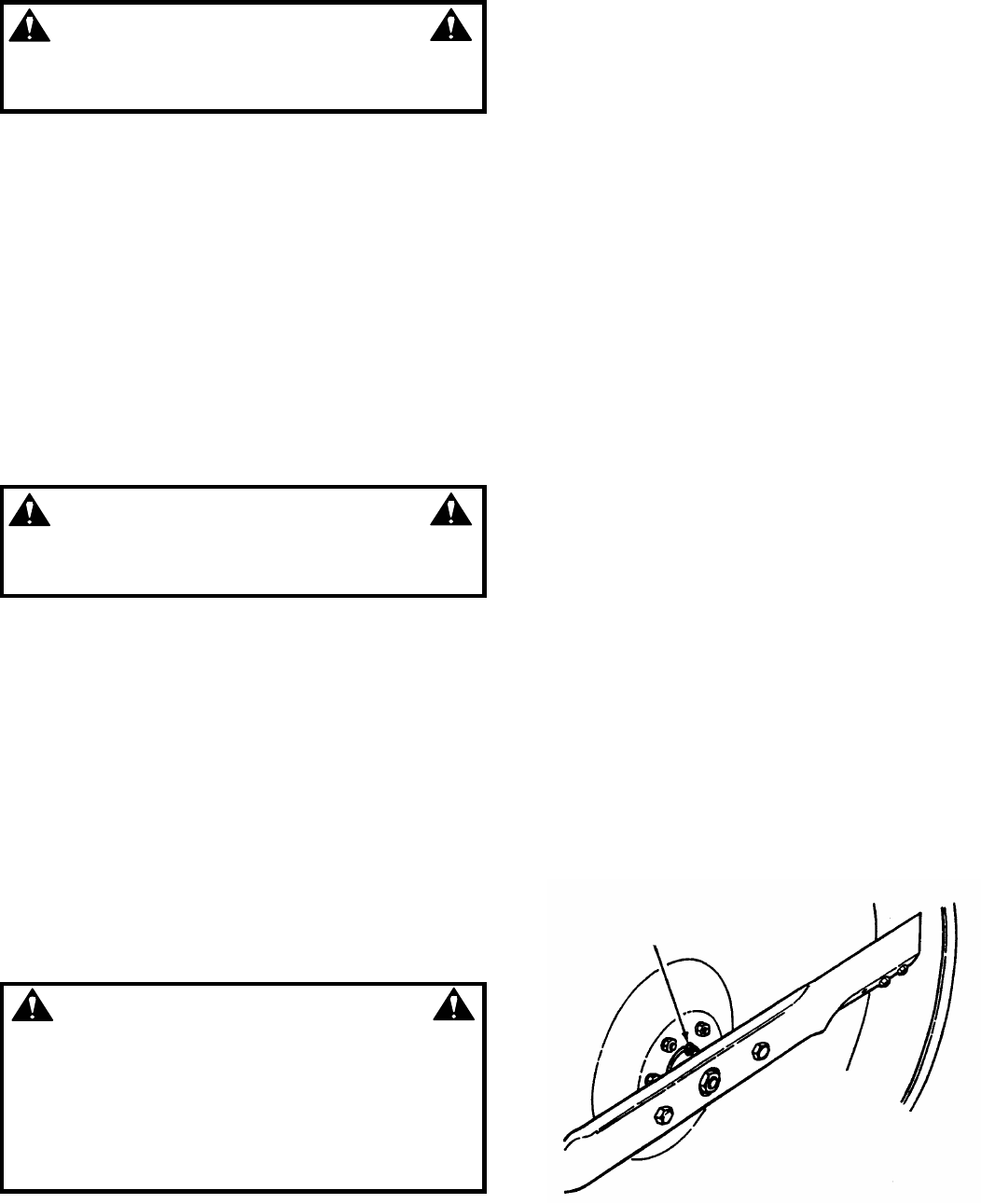

FIGURE 3.2

6. Check blade for straightness. Refer to Section

“ADJUSTING MOWER BLADE”.

REMOVE OIL PLUG TO

ALLOW OIL TO DRAIN

ROTATE COUNTER-

CLOCKWISE AND

PULL OUT TO OPEN

PUSH IN AND ROTATE

CLOCKWISE TO CLOSE

TORQUE BLADE

MOUNTING BOLTS TO

30 TO 40 FT. LBS.

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. STOP

engine. STOP blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and vent

must be closed securely to prevent fuel spillage.

3.2 SERVICE - AFTER FIRST 5 HOURS

3.2.4. CHECK BLADE DRIVE BELT

The blade drive consists of a single belt from the

engine to the deck. Inspect for signs of deterioration

and proper tension.

1. Lower deck to lowest setting.

2. Remove four self-tapping screws, two on each

side of mower drive belt cover. See Figure 3.3.

3. Slide cover back and rotate out on left side of

mower deck.

FIGURE 3.3

4. With engine “OFF” and deck in 3rd height of cut

position, move blade lever back to the “ON” position

and depress blade pedals.

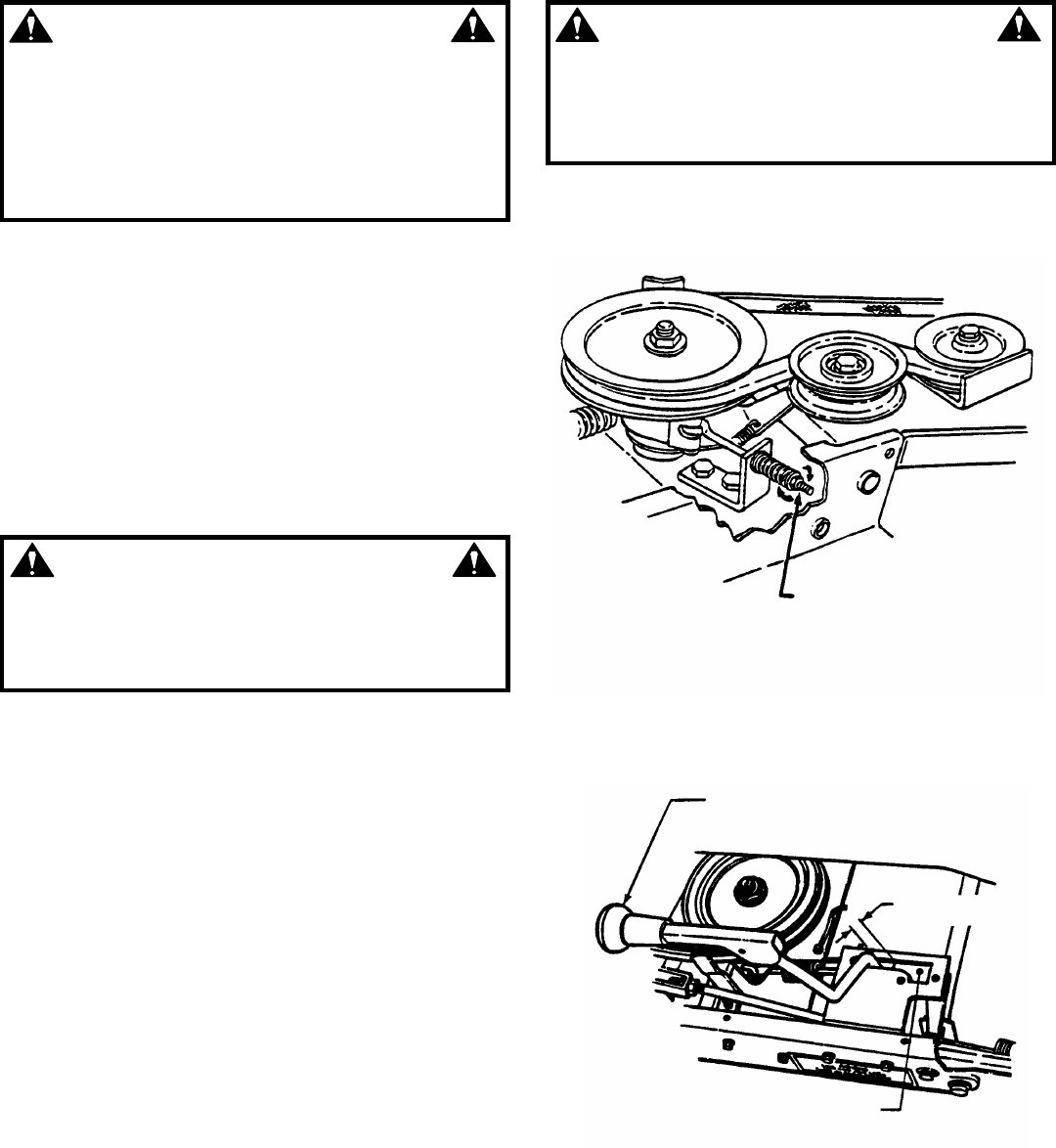

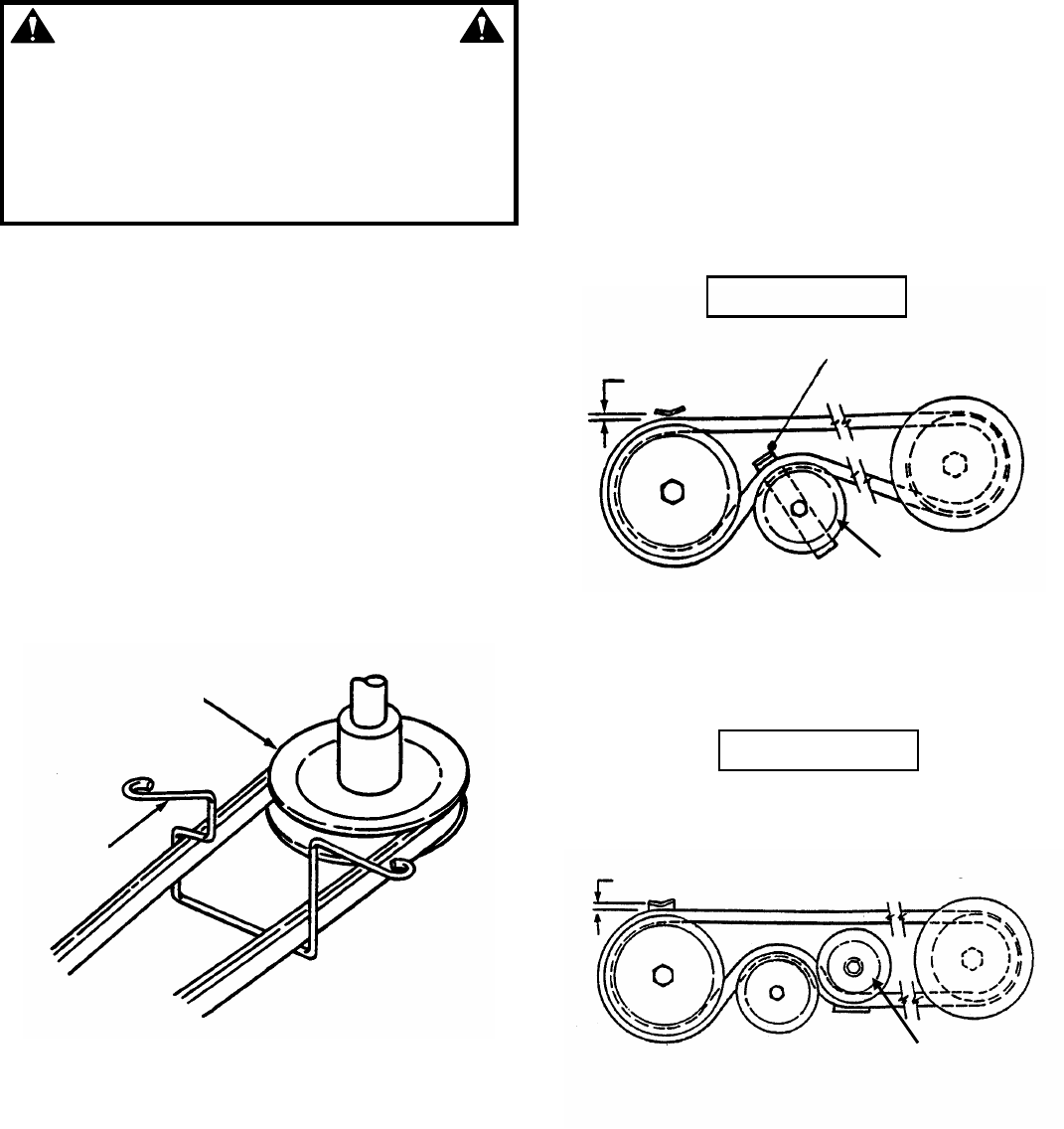

5. 28” and 30” Decks: Measure the belt spacing at

idler pulley. See Figure 3.4. The belt spacing

should be 1 1/4” but no less 1”. If the measurement

is less than 1”, the belt tension should be adjusted.

Refer to Section “BLADE DRIVE BELT

ADJUSTMENT”.

WARNING

The following procedure requires the engine and

blades to be operated. Exercise extreme caution.

Clear area of loose parts & tools first. Only operate

blades when seated in the operator’s seat.

IMPORTANT: The blade drive belt on 33” decks does

not require tension adjustment. If the belt becomes worn

or slack it must be replaced. Refer to Section “BLADE

DRIVE BELT REPLACEMENT”.

FIGURE 3.4

3.2.5. BLADE BRAKE

1. Check blade brake for proper function. Blade should

stop rotating in 3 seconds or less after moving the blade

control lever to the “OFF” position or after releasing the

blade pedals.

WARNING

Blades must stop rotating in 3 seconds or less after

the blade has been turned off. DO NOT operate

machine until blade brake has been adjusted and

functioning properly.

2. If the blade continues to rotate longer than 3

seconds do not operate machine. Refer to Section

“BLADE BRAKE ADJUSTMENT” or contact your

SNAPPER dealer for assistance.

3.2.6. SERVICE BRAKE / PARK BRAKE

1. Check machine brake for proper function. Engage

park brake. Push machine. Rear tires should skid. Drive

machine forward and apply brake. Machine should come

to a complete stop in less than 5 ft.

2. If brakes are not functioning properly brake

adjustment must be completed before operating

machine. Refer to Section “SERVICE BRAKE – PARK

BRAKE ADJUSTMENT”.

REMOVE FOUR (4)

SELF-TAPPING

SCREWS

REMOVE

COVER

BELT SPACING

SHOULD BE

1/4”

ENGINE

PULLEY

IDLER

PULLEY

MOWER

DECK

PULLEY

Section 3 – MAINTENANCE

WARNING

DO NOT operate machine if interlock system is not

functioning properly. Contact your SNAPPER dealer

immediately for assistance.

3.2.7. INTERLOCK SYSTEM

Check interlock controls for proper function:

The engine MUST NOT start if:

1. Blade Control is “ON” and/or clutch/brake pedal is

released.

The engine and blades MUST STOP if:

2. The operator leaves the operator position with Blade

Control “ON” and/or clutch/brake pedal is released.

3.2.8. REVERSE LOCKOUT MECHANISM

Check function of Reverse Lockout Mechanism with

engine off.

1. Depress and hold blade pedals.

2. Depress and hold clutch/brake pedal.

3. Shift lever must not go into reverse.

WARNING

DO NOT operate machine if Reverse Lockout

Mechanism is not functioning properly. Contact your

SNAPPER dealer immediately for assistance.

3.2.9. LUBRICATION – GREASE FITTINGS

The following components on the Rear Engine Rider are

equipped with grease fittings and require periodic

lubrication. Apply General Purpose grease (NLGI No.2)

with a grease gun.

1. Front Wheel Bearings. Refer to Section “FRONT

WHEEL BEARINGS – LUBRICATION”.

2. Rear Axle Bearing. Refer to Section “REAR AXLE

BEARING – LUBRICATION”.

3. Mower Blade Spindle. Refer to Section “MOWER

BLADE SPINDLE – LUBRICATION”.

3.3 SERVICE - EVERY 25 OPERATING HOURS

3.3.1. Perform all service required after the first 5 hours

of operation. Refer to Section “SERVICE – AFTER 5

HOURS”.

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

3.3.2. BATTERY FLUID LEVEL

1. Remove battery. Refer to Section “BATTERY

REMOVAL”.

2. Remove battery caps. Check fluid level.

3. Add water only to bring fluid to proper level –

approximately 3/16” above plates.

DO NOT OVERFILL.

4. Reinstall battery. Refer to Section “BATTERY

INSTALLATION”.

3.3.3. MOWER DECK LEVELNESS

Check mower deck for proper level. Adjust as required.

Refer to Section “MOWER DECK ADJUSTMENT –

LEVELNESS”.

3.3.4. CLEAN MOWER DECK

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove tank.

Refer to Section “REMOVING FUEL TANK”.

If 3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Clean underside of mower deck, removing all

accumulation of grass clippings and debris.

5. Clean top of deck, removing all grass clippings and

debris.

3.3.5 MOWER BLADE SPINDLE - LUBRICATION

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove tank.

Refer to Section “FUEK TANK REMOVAL”. If 3/4 or less,

proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Lubricate spindle with three shots of general purpose

grease from grease gun. See Figure 3.5.

IMPORTANT: If the Rear Engine Rider will be on its

rear bumper for longer than two hours, remove the

battery. Refer to Section “BATTERY REMOVAL”.

3.3.6. MOWER DECK LINKAGE - LUBRICATION

Lubricate all mower deck linkage pivot points with a light

coat of motor oil.

FIGURE 3.5

SPINDLE

GREASE FITTING

Section 3 - MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance or

service with the engine or blades running. Stop

blades. Stop engine. Engage parking brake. Remove

key. Remove spark plug wires from spark plugs and

(gas only) secure wires away from spark plugs.

Engine and components are HOT. Avoid serious

burns by allowing all parts sufficient time to cool.

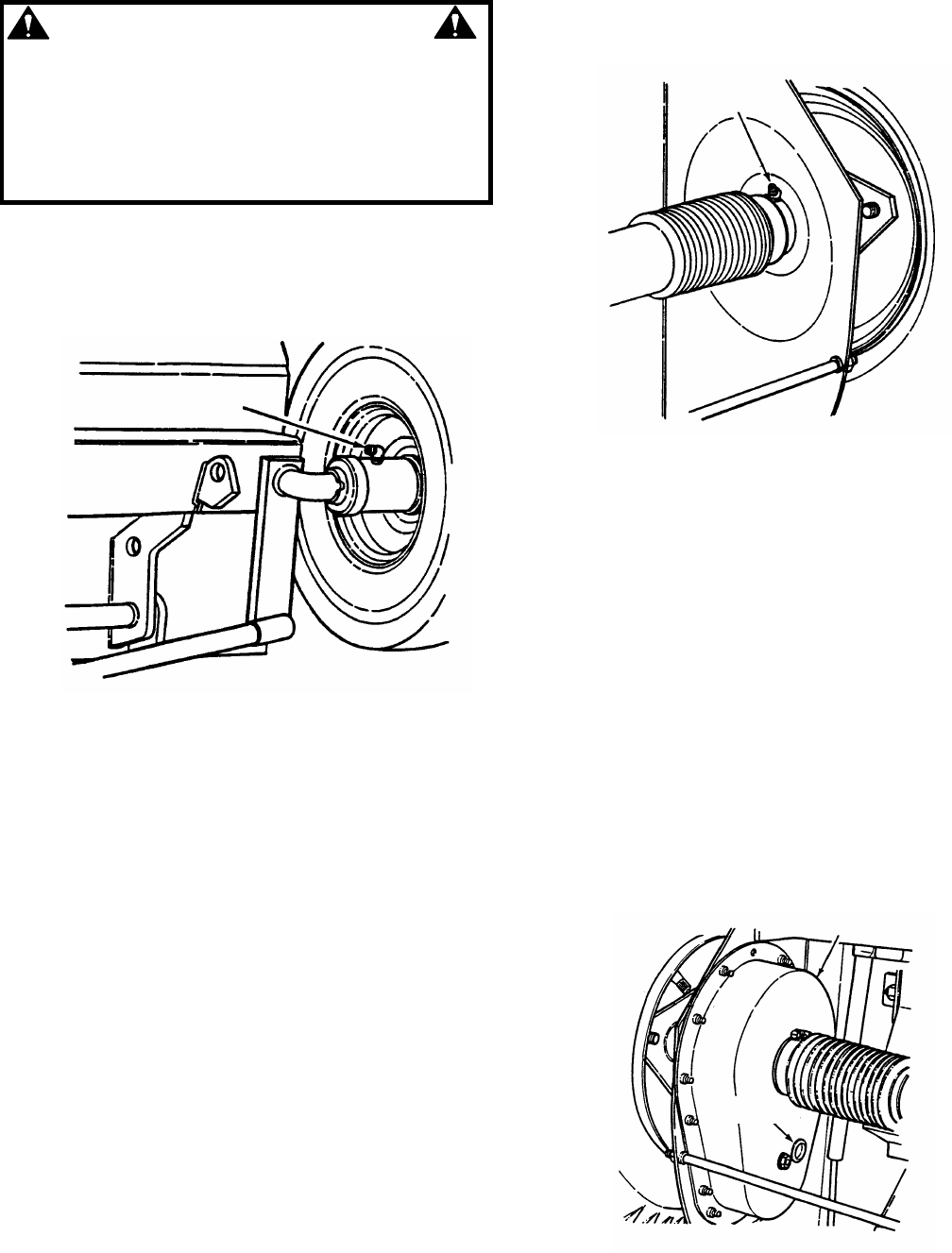

3.3.7. FRONT WHEEL BEARING - LUBRICATION

1. Lubricate front wheel bearings with five shots of

general purpose grease, from grease gun. See

Figure 3.6.

FIGURE 3.6

3.3.8. REAR AXLE BEARING - LUBRICATION

1. The left rear axle bearing on 28” and 30”

machines requires three shots of general purpose

grease from grease gun. See Figure 3.7.

NOTE: Some models are equipped with a pre-

lubricated sealed bearing and require no additional

lubrication.

2. The right rear axle bearing is lubricated by the

differential lubricant and requires no grease.

FIGURE 3.7

3.3.9. DIFFERENTIAL/CHAIN CASE - LUBRICATION

1. Stand rear engine rider on its rear bumper and

check the fill/level plug, for cracks and wear. Replace

fill/level plug if signs of wear are visible.

IMPORTANT: If the Rear Engine Rider will be on its

rear bumper for longer than two hours, remove the

battery. Refer to Section “BATTERY REMOVAL”.

2. To check lubricant, remove fill/level plug and

visually inspect for lubricant on the internal parts of the

differential. If no lubricant is visible on the internal

parts of the differential, add transmission grease as

needed. See Figure 3.8.

IMPORTANT: Overfilling of the differential with lubricant will

cause lubricant to leak onto drive components of the Rear

Engine Rider.

FIGURE 3.8

FRONT WHEEL

GREASE FITTING

LEFT REAR

AXLE BEARING

GREASE

FITTING

PLUG

DIFFERENTIAL

Section 3 – MAINTENANCE

WARNING

DO NOT attempt any adjustments, maintenance, service

or repairs with the engine running. Stop engine. Stop

blade. Engage parking brake. Remove key. Remove

spark plug wire from spark plug and secure away from

plug. Engine and components are HOT. Avoid serious

burns, allow all parts to cool before working on machine.

Fuel Filler Cap and Vent must be closed securely to

prevent fuel spillage.

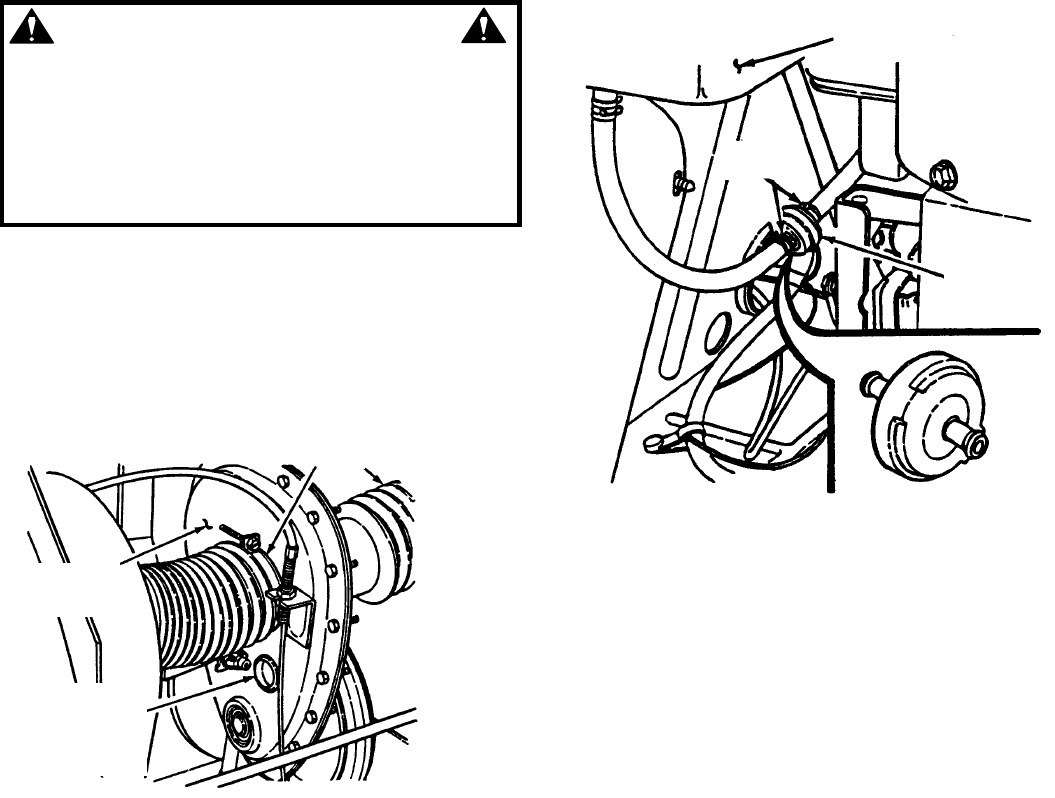

3. Check fill/level plug for damage. If signs of wear or

cracks are visible, replace plug with new plug. See

Figure 3.9.

4. To check lubricant in chain case, remove fill/level

plug and look for lubricant on the internal

components of the chain case. If no lubricant is

visible, add SNAPPER transmission grease as

needed. See Figure 3.9.

FIGURE 3.9

3.3.10. Check “MAINTENANCE SCHEDULE” Section

of Engine Owner’s Manual for additional engine service.

3.4 SERVICE - ANNUALLY

3.4.1. ENGINE

1. Perform all maintenance as specified in

“MAINTENANCE SCHEDULE” Section of this manual.

3.4.2. FUEL FILTER

Service fuel filter as instructed below, on COLD ENGINE

ONLY!

IMPORTANT: To stop flow of fuel, tank may be removed from

bracket and set on the floor so the fuel level will be below the

filter. Refer to Section “REMOVING FUEL TANK”.

1. Remove hose clamps from fuel filter.

2. Remove fuel lines from filter. Discard filter.

3. Install new fuel filter. See Figure 3.10.

4. Reinstall fuel tank into bracket.

5. Carefully reinstall fuel clamps.

6. Check fuel system for leaks.

FIGURE 3.10

3.5 EVERY TWO YEARS

In addition to regular maintenance, the following

components of the Rear Engine Rider should be

carefully inspected every two years for wear or

damage. Replace worn or damaged parts with

genuine SNAPPER replacement parts available

from an authorized SNAPPER dealer.

3.5.1. All bushings and pivot areas.

3.5.2. Check both front wheel king pins.

3.5.3. Transmission shift lever and detent.

3.5.4. Clutch disc.

3.5.5. Clutch Yoke.

3.5.6. Mower deck linkage and pivot areas.

3.6 STORAGE (OUT OF SEASON)

If desired, the Rear Engine Rider can be stored on

the rear bumper. Perform the following procedures

to insure the Rear Engine Rider will operate

properly when taken out of storage.

3.6.1. Thoroughly clean the Rear Engine Rider by

removing all grass clippings and debris.

3.6.2. Perform maintenance and lubrication as

required.

3.6.3. Drain fuel from fuel tank.

3.6.4. Start engine and allow it to run until engine

runs out of fuel. This allows the carburetor and fuel

system to remain clean during storage.

3.6.5. Remove battery. Refer to Section

“BATTERY STORAGE”.

3.6.6. Close vent on fuel filler cap.

3.6.7. Carefully stand Rear Engine Rider on rear

bumper in desired location for storage.

AXLE

BOOTS

CHAIN

CASE

FILL/LEVEL

PLUG

P.N. 1-1024

FUEL

TANK

FUEL

FILTER

HOSE

CLAMPS

P.N. 1-4359

Section 3 – MAINTENANCE

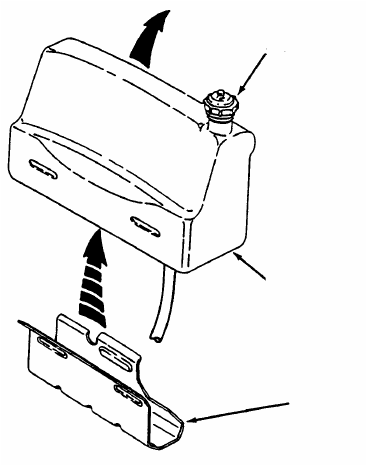

3.7 REMOVING FUEL TANK

Before removing fuel tank from rear engine rider,

move rider outdoors where fumes can be easily

dissipated. Removal of the tank is accomplished

from the left side of the machine by pulling the tank

straight up and away from the fuel tank bracket.

Holding the fuel tank, remove the fuel filler cap and

pour remaining fuel in an approved container. See

Figure 3.11.

FIGURE 3.11

FUEL

FILLER

CAP

FUEL

TANK

FUEL TANK

BRACKET

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage.

4.1 ENGINE ADJUSTMENTS & REPAIR

Refer to the engine owner’s manual for those

adjustments and/or repairs that can be made by the

owner.

4.2 MOWER DECK & COMPONENT ADJUSTMENTS

The following mower deck and component

adjustments and repairs can be made by the owner.

However, if there is difficulty in achieving these

adjustments and repairs, it is recommended that

these repairs be made by an authorized SNAPPER

dealer.

WARNING

Once blade is disengaged it should come to a stop in 3

seconds or less. If the blade continues to rotate after 3

seconds the blade brake must be adjusted. DO NOT

continue to operate the machine if the blade brake is

not operating properly.

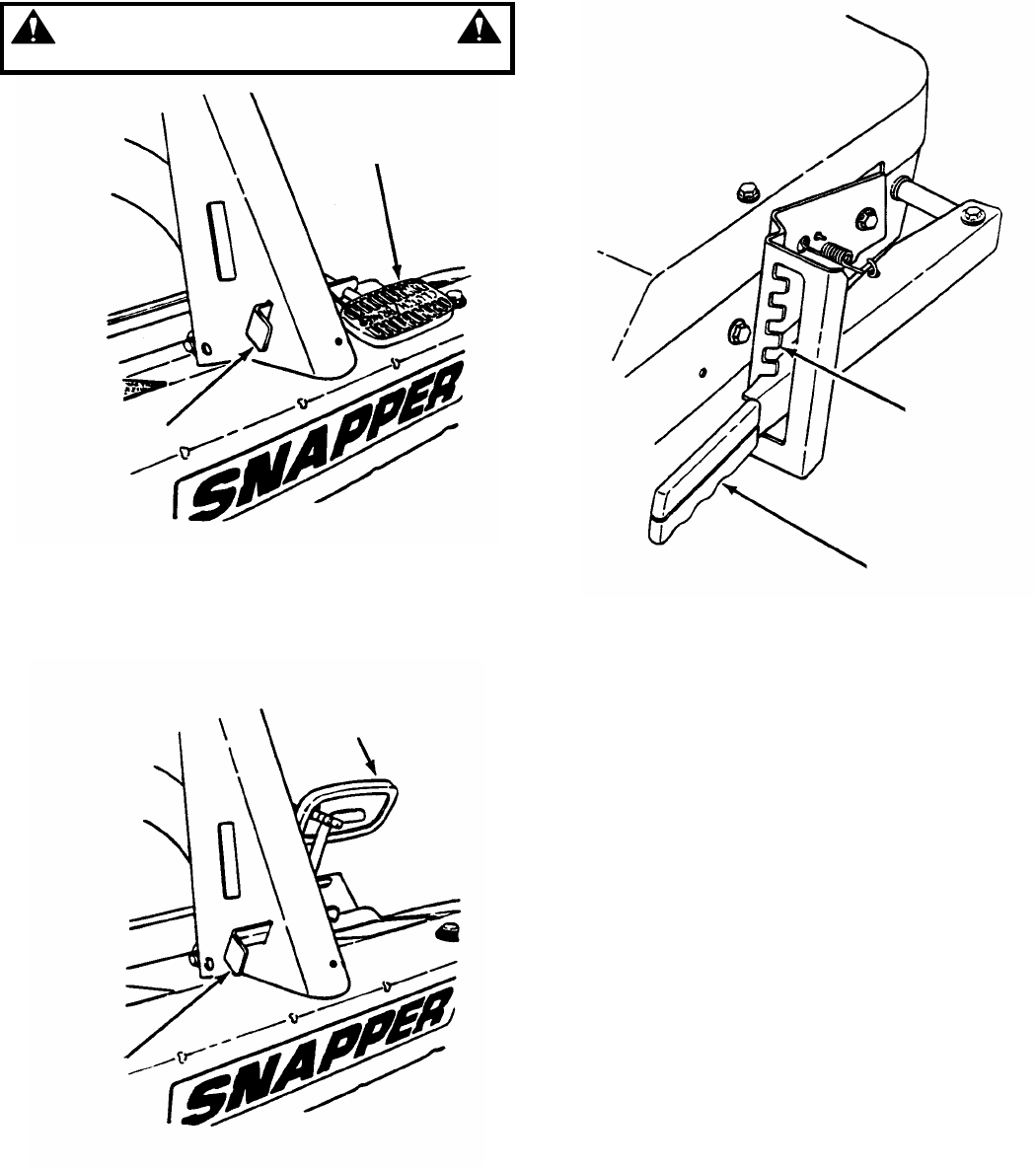

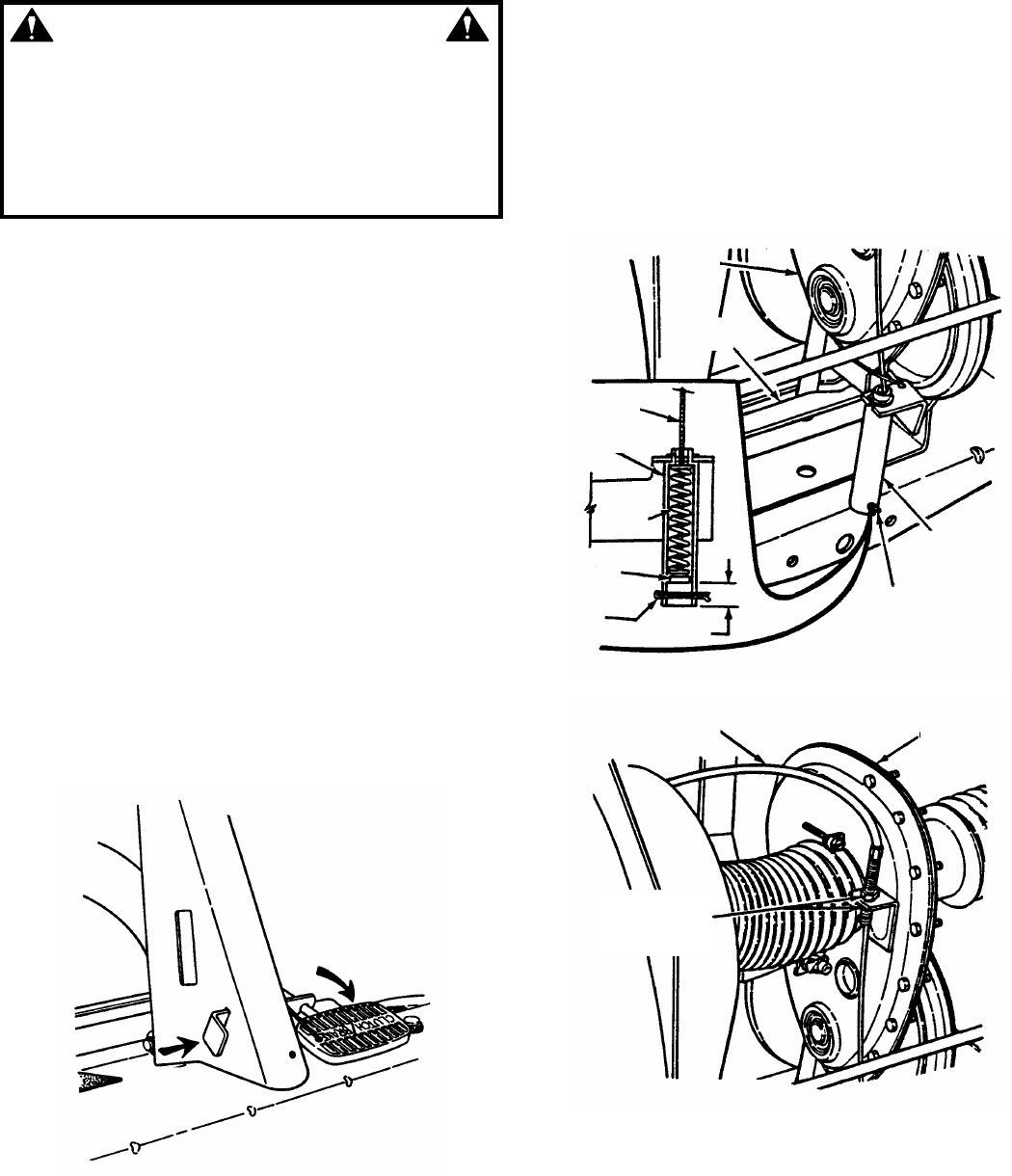

4.2.1. BLADE BRAKE ADJUSTMENT

The automatic Blade Brake should stop the blades

within 3 seconds anytime the blades are

disengaged by moving blade lever to the "OFF"

position or by releasing the Blade Pedals. When

the Blade Brake is properly adjusted there should

be 1/16" to 1/8" clearance between the Blade

Engagement Lever and the back of the Latch

Plate. Check this by disengaging the Blade Lever

and depressing the Blade Pedals as shown in

Figure 4.2. If clearance is greater than 1/8"

perform the following adjustment.

1. Remove Belt Cover. Refer to Section “BLADE

BELT COVER REMOVAL”.

2. With the blade engagement lever disengaged,

hold the blade pedals down and measure the

distance between the front of the blade lever and the

rear of the latch plate. The dimension should be

1/16” to 1/8” clearance between lever and plate. See

Figure 4.2. If the dimension is incorrect go to step 3.

3. If dimension is greater than 1/8”, rotate nut

clockwise to increase brake tension. If dimension

is less than 1/16”, rotate nut counter-clockwise to

decrease brake tension. See Figure 4.1.

4. Reinstall belt cover.

WARNING

DO NOT operate machine until blade brake is

adjusted and functioning properly. If blade stop time

can not be achieved with the adjustment procedure

described above, take machine immediately to an

authorized Snapper dealer.

FIGURE 4.1

FIGURE 4.2

(Continued on Next Page)

ROTATE NUT CLOCKWISE TO

INCREASE BRAKE TENSION.

ROTATE NUT COUNTER-

CLOCKWISE TO DECREASE

BRAKE TENSION.

BLADE ENGAGEMENT LEVER

1/16” TO 1/8” DIMENSION

LATCH

PLATE

NOTE: BLADE PEDALS

ARE ENGAGED

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. STOP

engine. STOP blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and vent

must be closed securely to prevent fuel spillage.

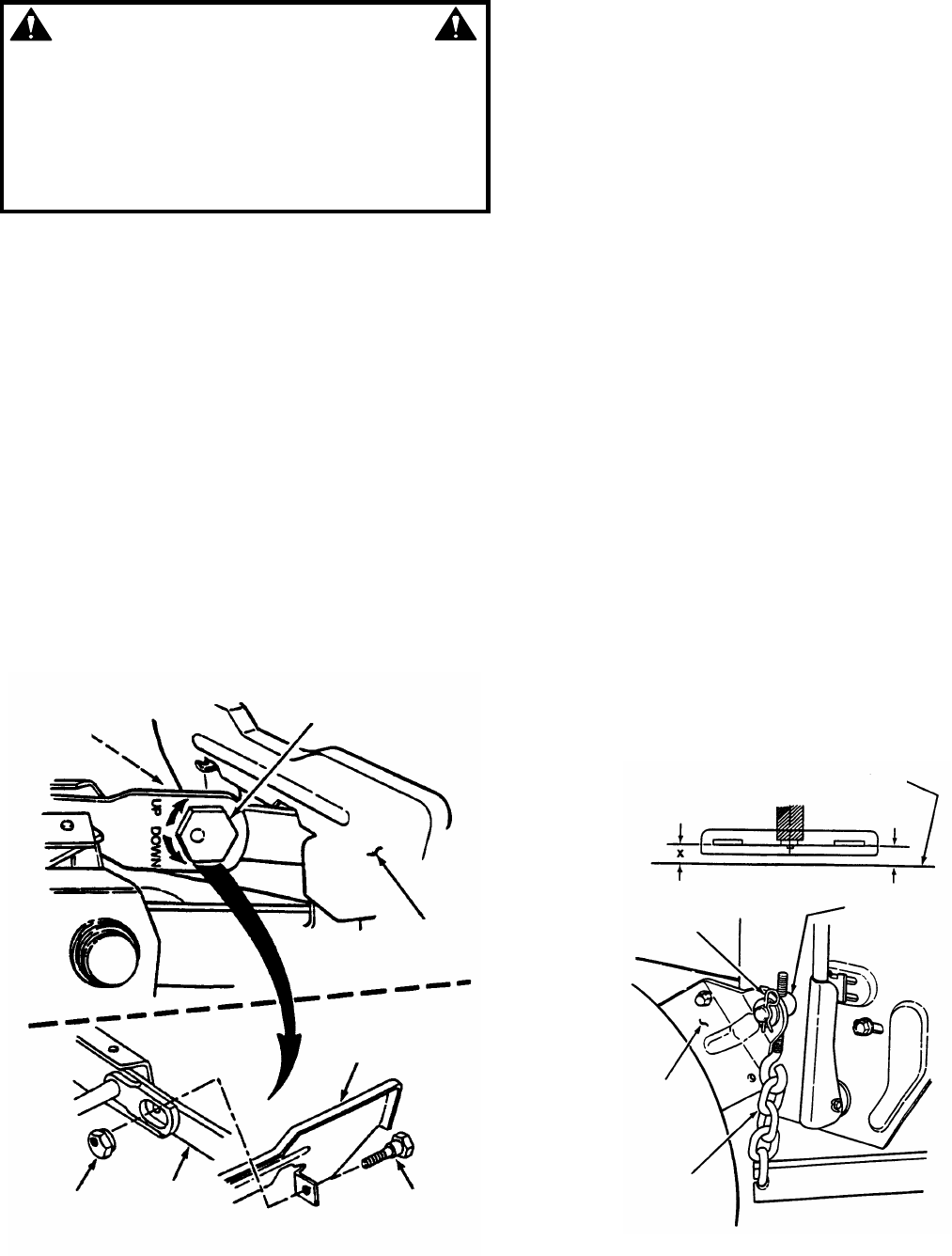

4.2.2. MOWER DECK ADJUSTMENT

(Side-To-Side Levelness)

Before making deck leveling adjustments, check the

tire pressure. Front tires 12 psi, rear tires 12 psi. If

tires are properly inflated and mowing is still uneven,

adjust side-to-side deck levelness.

1. Place Rider on a smooth level surface.

2. Turn engine off and remove key, remove spark

plug wire from spark plug and secure wire away from

plug.

3. Place a piece of angle iron, pipe, or similar object

under center of deck at the rear.

4. Remove rear hanger chains and allow center, rear

of deck to rest on angle iron.

5. Measure the distance from blade tips to floor. If the

measurement is within 1/8” from side-to-side, the deck

attitude is satisfactory. If difference from side-to-side is

greater than 1/8”, continue with adjustment.

6. Loosen the shoulder bolt retaining the left side of

blade pedals. See Figure 4.3.

FIGURE 4.3

7. Turn eccentric “UP” or “DOWN” as required until

blade tips are within 1/8” of each other. See Figure

4.3.

8. Tighten shoulder bolt loosened in Step 6.

9. Readjust rear hanger chain pivots to align with

holes in support brackets.

See Figure 4.4.

10. Remove angle iron, pipe, or similar object and

proceed to check front to rear levelness.

4.2.3. MOWER DECK ADJUSTMENT

(Front to Rear Levelness - 28”, & 33” Decks)

With the Rear Engine Rider on a smooth, level

surface, rotate blade until blade tips are at front and

rear of deck. Measure the distance from blade tips

to floor. The distance should be the same, or the

rear 1/8” to 1/4” lower than the front. If the rear

blade tip is higher or is more than 1/4” lower than

the front, proceed with adjustment.

(Front to Rear Levelness - 30” Decks)

With the Rear Engine Rider on a smooth, level

surface, rotate blade until blade tips are at front and

rear of deck. Measure the distance from blade tips

to floor. The distance should be the same, or the

rear 1/8” to 1/4” higher than the front. If the rear

blade tip is lower or is more than 1/4” higher than

the front, proceed with adjustment.

1. Remove rear hanger chains.

2. Turn each hanger pivot the same number of

rotations on the eye-bolt to raise or lower the rear of

the deck. See Figure 4.4.

3. Reinstall rear hanger chains and measure blade

tips again.

4. Repeat steps “1” through "3” until proper

levelness is obtained.

FIGURE 4.4

TURN ECCENTRIC

AS REQUIRED

BLADE PEDAL

LOOSEN

SHOULDER

BOLT

BLADE PEDAL

SHOULDER

BOLT

LIFT

ARM

ECCENTRIC

FRONT

FLOOR

HANGER

CHAIN PIVOT

REAR

X-1/8”

HAIRPIN

SUPPORT

BRACKET

HANGER

CHAIN

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. STOP

engine. STOP blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and vent

must be closed securely to prevent fuel spillage.

4.2.4. MOWER DRIVE BELT ADJUSTMENT

(FOR 28" & 30” DECKS ONLY)

1. Remove mower drive belt cover. Refer to

Section “CHECK MOWER DRIVE BELT”.

2. Move blade lever up and over to the “ON”

position.

3. Place deck cutting height in the 3rd position.

Measure the belt spacing at idler pulley. The

distance should measure 1-1/4” but no less than 1”.

See Figure 4.5.

FIGURE 4.5

4. If the distance is less than 1”, adjust belt tension.

5. Remove hairpin and flat washers from pivot stud.

See Figure 4.6.

6. Pull front frame forward until distance between

belt, with blade lever “ON”, measures 1-1/4”.

FIGURE 4.6

7. Install required number of snap-in frame spacers

behind channel pivot until the 1-1/4” distance between

belt is maintained. See Figure 4.7.

FIGURE 4.7

8. Reinstall the required amount of flat washers

removed in step “5.” and install hairpin. See Figure

4.6. Retain any remaining spacers for readjustment

when a new belt is installed.

IMPORTANT: The SNAPPER Rear Engine Rider

Models with 28” AND 30” decks are shipped with

additional spacers specifically designed for the Rear

Engine Rider. Should additional spacers be required,

contact an authorized SNAPPER dealer. Snapper

Models with 33” decks do not require belt tension

adjustment.

1-1/4”

SPINDLE

PULLEY

IDLER

PULLEY

ENGINE DRIVE

PULLEY

ASSEMBLY

HAIRPIN

FLAT

WASHERS

FRAME

SPACERS

SNAP-IN FRAME

SPACER

P.N. 2-8395

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. STOP

engine. STOP blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and vent

must be closed securely to prevent fuel spillage.

4.3 REAR ENGINE RIDER DRIVE COMPONENTS

Your Snapper rider is equipped with a patented

smooth start clutch. The clutch should operate

smoothly and provide ample traction. If problems are

experienced, contact your Snapper dealer for repair.

4.3.1 SERVICE BRAKE/PARK BRAKE

ADJUSTMENT

Test the wheel brake on a dry concrete surface.

When properly adjusted, the Rear Engine Rider will

stop within 5 feet from fastest speed. If stopping

distance is more than 5 feet, the wheel brake

should be adjusted as follows:

1. Follow WARNING statement found on this page.

Check fuel level in tank. Refer to Section

“REMOVING FUEL TANK”. If over 3/4 full, remove

tank.

2. If 3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear

bumper.

4. Depress clutch/brake pedal all the way down.

Move and hold the park brake lever in the “ON”

position and release the clutch/brake pedal to lock

the park brake. See Figure 4.8.

FIGURE 4.8

5. Measure the distance between end of

clutch/brake cable and bottom of housing.

Measurement should be 3/4”. See inset of Figure

4.9.

6. If measurement is not 3/4”, loosen the two jam-

nuts. See Figure 4.10. Hold the clutch/brake cable to

the chain case bracket.

7. Adjust cable up or down using the jam-nuts to

obtain a distance of 3/4” between end of clutch/brake

cable (adjustment shown in inset of Figure 4.9) and

bottom of housing. See Figure 4.9.

8. After adjustment is complete, securely tighten cable

jam-nuts.

9. Retest wheel brake.

FIGURE 4.9

FIGURE 4.10

CHAIN

CASE

CLUTCH

YOKE

HOUSING

COTTER PIN

3/4”

COTTER

CABLE

EYE

CABLE

HOUSING

SPRING

BRAKE CABLE CHAIN

CASE

LOOSEN

JAM NUTS

DEPRESS

CLUTCH/BRAKE

MOVE PARKING

BRAKE LATCH OVER

TO LOCK

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage. DO

NOT use a cutting blade that shows signs of

excessive wear or damage. On Rear Engine Riders

equipped with a grass catcher attachment, the air

lifts should be replaced when the blade is replaced.

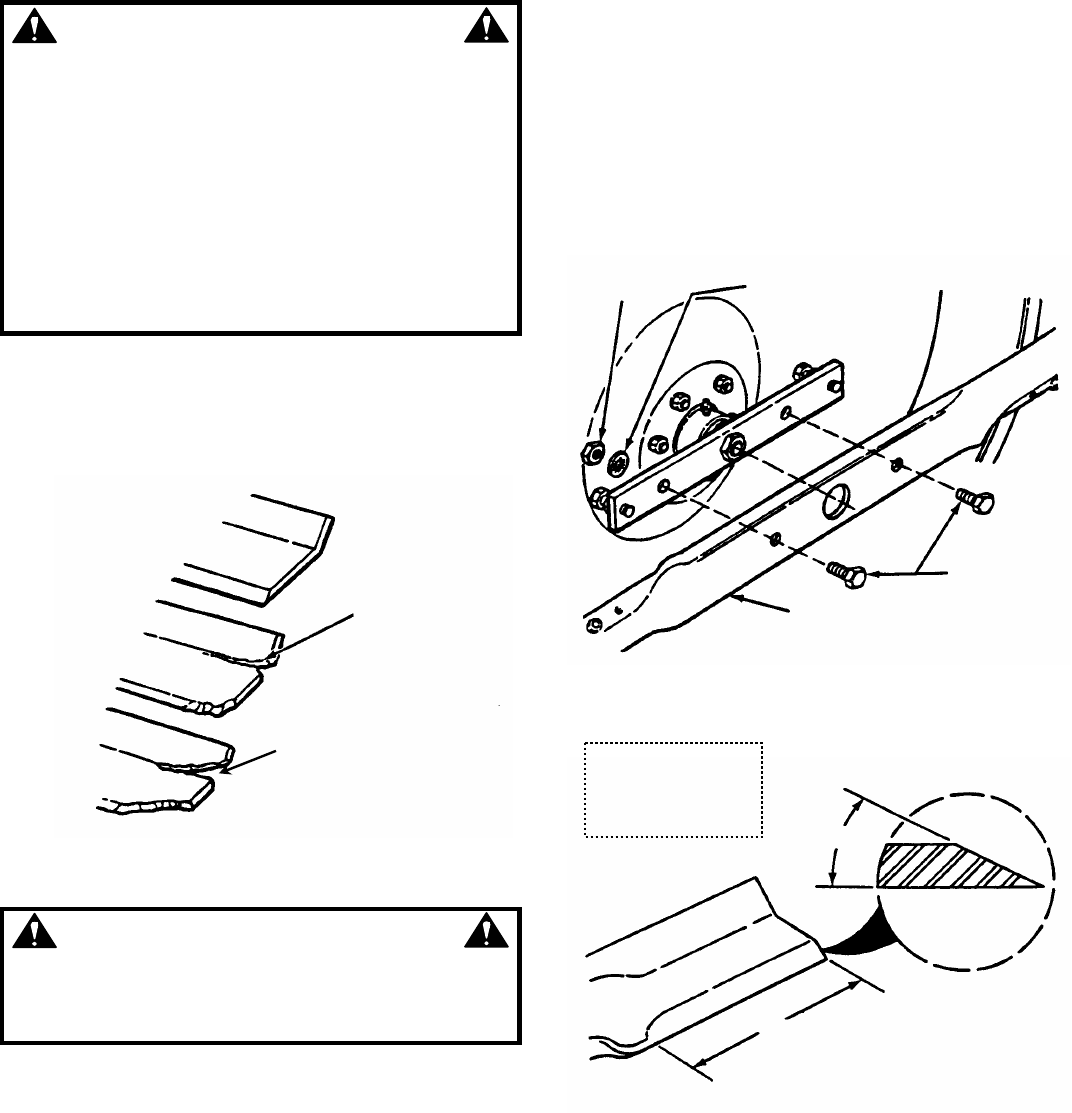

4.4 MOWER BLADE REPLACEMENT

4.4.1. BLADE WEAR LIMITS

1. Inspect blade frequently for signs of excessive

wear or damage. See Figure 4.11.

FIGURE 4.11

WARNING

Wear heavy leather gloves when handling or working

around cutting blades. Blades are extremely sharp and

can cause severe injury. DO NOT use a cutting blade

that shows signs of excessive wear or damage.

4.4.2. BLADE SHARPENING

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Section “REMOVING FUEL TANK”. If

3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Remove blade. See Figure 4.12.

5. Inspect condition of blade. See Figure 4.11.

6. If blade is in good condition, sharpen at 22 to 28

degrees. DO NOT sharpen beyond existing cutting

edge. See Figure 4.13.

7. Check blade balance after sharpening. If

necessary, correct blade balance by grinding the

heavy end of blade.

8. Reinstall blade. See Figure 4.12. Torque blade

mounting bolts to recommended range of 30 to 40

ft. lbs.

FIGURE 4.12

FIGURE 4.13

NEW BLADE

WEAR LIMIT

(Notch Starts)

DANGEROUS CONDITION!

DO NOT USE ON MOWER!

REPLACE WITH NEW

BLADE.

NUT LOCKWASHER

BLADE

MOUNTING

BOLTS

BLADE

DO NOT SHARPEN

BEYOND

ORIGINAL

CUTTING EDGE 22º TO 28º

BLADE TIP

ORIGINAL CUTTING EDGE

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. STOP

engine. STOP blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and vent

must be closed securely to prevent fuel spillage.

4.5 MOWER DRIVE BELT REPLACEMENT

Inspect mower drive belt as described in Section

“CHECK MOWER DRIVE BELT”. Replace belt if signs

of excessive wear and/or damage are present.

4.5.1. BELT REMOVAL

1. Remove mower drive belt cover. Refer to

Section “DRIVE BELT COVER REMOVAL”.

2. Remove old belt.

4.5.2. BELT REPLACEMENT

1. Follow WARNING statement found on this page.

2. Check fuel level in tank. If over 3/4 full, remove

tank. Refer to Section “REMOVING FUEL TANK”. If

3/4 or less, proceed to next step.

3. Carefully stand Rear Engine Rider on rear bumper.

4. Route new belt through engine belt guide up to

engine pulley. See Figure 4.14.

FIGURE 4.14

5. Move transmission shift lever to the neutral (N)

position.

6. Rotate clutch yoke (clutch yoke shown in Figure

4.9) out with your hand and work belt between drive

disc and rubber driven disc.

7. To clear the primary chain case, move

transmission shift lever to the #5 position. Route

belt around drive disc and into drive pulley belt

groove.

8. Remove idler. See Figure 4.15 and 4.16.

9. Route belt onto spindle pulley. Make sure belt is

inside spindle belt guide and idler belt guide. Route belt

as shown in Figure 4.15 or 4.16.

10. Reinstall idler removed in Step 8. The idler belt

guide tab should be positioned in the hole located on

idler arm. Tighten idler pulley bolt securely.

11. Adjust belt guide. See Figure 4.15 or 4.16 for

proper belt-to-belt guide clearances.

12. Check mower drive belt tension and adjust if

necessary (28” & 30” decks only). Refer to Section

“MOWER DRIVE BELT ADJUSTMENT”.

13. Reinstall mower drive belt cover.

FIGURE 4.15

FIGURE 4.16

ENGINE PULLEY

ENGINE

BELT

GUIDE

1/16” NOMINAL

IDLER BELT GUIDE

28” & 30” DECKS

33” DECKS

1/16” NOMINAL

33” MODELS

(DUAL IDLER SYSTEM)

REMOVE IDLER

REMOV

E IDLER

Section 4 - ADJUSTMENTS & REPAIR

WARNING

DO NOT attempt any adjustments, maintenance,

service or repairs with the engine running. Stop

engine. Stop blade. Engage parking brake. Remove

key. Remove spark plug wire from spark plug and

secure away from plug. Engine and components are

HOT. Avoid serious burns, allow all parts to cool

before working on machine. Fuel Filler Cap and Vent

must be closed securely to prevent fuel spillage. DO

NOT attempt to service or charge the battery while it

is installed on the machine.

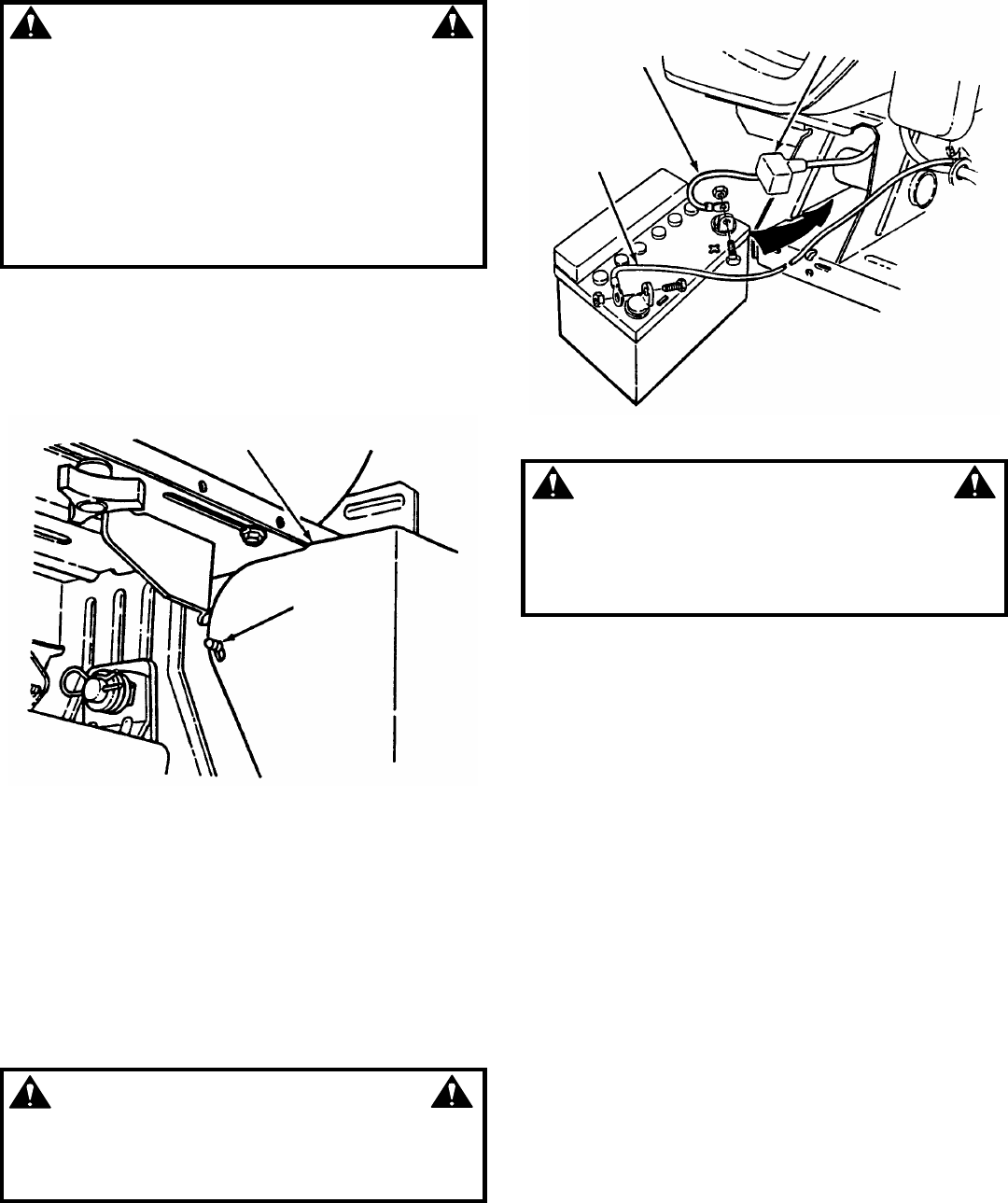

4.6 BATTERY

4.6.1. BATTERY REMOVAL

1. Carefully pull each side of battery cover away

from ratchet fasteners and remove cover. See

Figure 4.17.

FIGURE 4.17

2. Remove the hair pin and swivel from the deck

support to allow clearance for battery removal.

3. Slide battery from battery box to gain access to

terminal cables.

4. Observe and note cable positions on battery.

See Figure 4.18.

5. Disconnect cables from battery terminals,

disconnecting BLACK (Negative) cable first. Retain

mounting bolts and nuts.

CAUTION

If battery is removed, DO NOT operate engine

without insulating Positive + battery cable terminal

with electrical tape, or sparking from battery cables

can result.

FIGURE 4.18

WARNING

Cables must be connected to battery terminals in the

proper position as show in Figure . DO NOT attempt

to charge battery while installed on the Rear Engine

Rider. DO NOT use “BOOST” chargers on the

battery.

4.6.2. BATTERY INSTALLATION

1. Slide battery partially into battery housing.

2. Connect positive (+) cable (red) first, from

wiring harness to the positive terminal (+) on

battery using bolt and nut provided in hardware

bag. Connect negative (-) cable (black) last, to

negative terminal (-) on battery using bolt and nut.

Apply a small amount of grease over terminals to

prevent corrosion.

3. Reinstall positive terminal insulator.

4. Insert battery completely into battery housing.

5. Reinstall battery cover. See Figure 4.17.

6. Reinstall swivel and hair pin for deck support.

BATTERY COVER

RATCHET

FASTENERS

BLACK

NEGATIVE (-)

CABLE

RED

POSITIVE (+)

CABLE

POSITIVE TERMINAL

INSULATOR

INSTALL BATTERY POSITIVE

(+) END FIRST INTO

BATTERY COMPARTMENT IN

DIRECTION OF ARROW AS

SHOWN

Section 4 - ADJUSTMENTS & REPAIR

WARNING

The electrolyte (acid) produces a highly explosive gas.

Keep all sparks, flame and fire away from area when

charging battery or when handling electrolyte or

battery. Electrolyte (acid) is a highly corrosive liquid.

Wear eye protection. Wash affected areas immediately

after having eye or skin contact with electrolyte (acid).

Battery acid is corrosive. Rinse empty acid containers

with water and mutilate before discarding. If acid is

spilled on battery, bench, or clothing, etc., Flush with

clear water and neutralize with baking soda. DO NOT

attempt to charge battery while installed on the RIDER.

DO NOT use “BOOST” chargers on the battery.

4.6.3. BATTERY SERVICE

1. Remove battery. Refer to Section “BATTERY

REMOVAL”.

2. Place battery in a well ventilated area on a level

surface.

3. Using distilled water, refill cells as required to

cover cell plates of which can also be visualized

through the plastic battery case.

4. With cell caps removed, connect battery charger

to battery terminals. Red to positive (+) terminal

and black to negative (-) terminal.

5. Slow charge battery at 1 amp for 10 hours.

6. If battery will not accept charge or is partially

charged after 10 hours of charging at 1 amp,

replace with new battery.

4.6.4. BATTERY STORAGE

If mower is to be stored out of season on its rear

bumper, it is recommended the battery be removed,

charged and stored.

1. Remove battery. Refer to Section “BATTERY

REMOVAL”.

2. Perform battery service.

3. Bring battery to full charge, if required.

4. Store battery in an area away from the RIDER on a

wood surface. DO NOT STORE BATTERY ON A

CONCRETE SURFACE.

4.6.5. NEW BATTERY PREPARATION

1. Remove battery from carton.

2. Place battery in a well ventilated area on a level

non-concrete surface.

3. Remove battery cell caps. Fill cells as required

with electrolyte (purchased separately) to proper

level. Fill to 3/16” above cell plates. Filling battery

with electrolyte will bring the battery to 80% charged

state.

4. With cell caps removed, connect battery charger to

battery terminals; RED to positive (+) and BLACK to

negative (-) terminal.

IMPORTANT: 3/16” above cell plates is the recommended

level. DO NOT place anything in battery other than specified

electrolyte.

WARNING

DO NOT attempt to charge battery while installed on the

Riding Mower. DO NOT use “BOOST” chargers on the

battery. DO NOT OVERFILL!

5. Slow charge the battery at 1 amp for 2 hours to

bring the battery to full charge.

6. After charging, check level of electrolyte and add

as needed to bring level to 3/16” above cell plates.

7. Reinstall cell caps.

8. Remove the hair pin and swivel from the deck

support to allow clearance for battery installation.

9. Slide battery partially into battery housing.

10. Connect positive (+) cable (red) first, from wiring

harness to the positive terminal (+) on battery using

bolt and nut provided in hardware bag. Connect

negative (-) cable (black) last, to negative terminal (-)

on battery using bolt and nut. Apply a small amount of

grease over terminals to prevent corrosion.

11. Insert battery completely into battery housing.

12. Reinstall battery cover. See Figure 4.17.

13. Reinstall swivel and hair pin for deck support.

4.6.6. BATTERY TESTING

There are two types of battery tests: Unloaded and

Loaded. The unloaded test is the procedure that will

be discussed. It’s the simplest and most commonly

used. An unloaded test is made on a battery without

discharging current. To perform unloaded testing,

check charge condition using either a hydrometer or

voltmeter.

1. Using a voltmeter, voltage readings appear

instantly to show the state of charge. Remember to

hook the positive lead to the battery’s positive

terminal, and the negative lead to the negative

terminal.

2. A hydrometer measures the specific gravity of

each cell. The specific gravity tells the degree of

charge; generally, a specific gravity of about 1.265

to 1.280 indicates full charge. A reading of 1.230 to

1.260 indicates the battery should be charged. The

chart on the next page shows the charge level as

measured by syringe float hydrometer, digital

voltmeter and five ball hydrometer.

WARNING

Shield the positive terminal with terminal cover

located on battery harness. This prevents metal from

touching the positive terminal which could cause

sparks.

(Battery Testing Chart on Next Page)

Section 4 - ADJUSTMENTS & REPAIR

4.6.6. BATTERY TESTING

Battery Condition Chart

State of Charge Syringe Hydrometer Digital Voltmeter Five Ball Hydrometer

100% Charged w/ Sulfate Stop 1.280 12.80v Five Balls Floating

100% Charged 1.265 12.60v Four Balls Floating

75% Charged 1.210 12.40v Three Balls Floating

50% Charged 1.160 12.10v Two Balls Floating

25% Charged 1.120 11.90v One Ball Floating

0% Charged Less than 1.100 Less than 11.80v Zero Balls Floating

SNAPPER REAR ENGINE RIDER ACCESSORIES

PART NO. DESCRIPTION OF KIT MODELS USED ON

6-0517................................Wheel Weight (8” Wheels) ...............................All Rear Engine Riders

6-0601................................Smooth Start Clutch..........................................All Rear Engine Riders

6-0697................................Dump Cart.........................................................All Rear Engine Riders

6-1400................................Gauge Wheel....................................................All 33” Deck Rear Engine Riders

6-0794................................Gauge Wheel....................................................All 41” & 42” Deck Rear Engine Riders

6-0941................................Single Bag Catcher...........................................All 25” Deck Rear Engine Riders

6-0942................................Single Bag Catcher...........................................All 26” & 30” Deck Rear Engine Riders

6-0943................................Single Bag Catcher...........................................All 28” & 33” Deck Rear Engine Riders

6-0944................................Single Bag Catcher...........................................All 41” & 42” Deck Rear Engine Riders

6-0945................................Twin Bag Catcher .............................................All 41” & 42” Deck Rear Engine Riders

6-0946................................Twin Bag Catcher .............................................All 28” & 33” Deck Rear Engine Riders

6-0947................................Bag-N-Wagon ...................................................All 28” & 33” Deck Rear Engine Riders

6-0948................................Thatcherizer......................................................All Series 7 & Newer Riders

6-0964................................Wagon Cover....................................................All 28” & 33” Deck Rear Engine Riders

6-1190................................Weight (Front)...................................................All Series 7 & Newer Riders

6-0959................................Dozer Blade (36” Blade)....................................All Rear Engine Riders

6-0357................................Tire Chains (Tires-16 x 6.50-8).........................All Rear Engine Riders

6-0358................................Tire Chains (Tires-16 x 4.80-8).........................All Rear Engine Riders

6-1823................................Ninja Recycling (Cover) ....................................All 25” Deck Rear Engine Riders

6-1049................................Recycling (Cover)..............................................All 25” Deck Rear Engine Riders

6-1253................................Ninja Recycling (Cover) ....................................All 28” Deck Rear Engine Riders

6-1254................................Ninja Recycling (Cover) ....................................All 30” Deck Rear Engine Riders

6-1255................................Ninja Recycling (Cover) ....................................All 33” Deck Rear Engine Riders

6-1987................................Ninja Recycling (Cover) ....................................All 41” & 42” Deck Rear Engine Riders

6-1910................................Utility Trailer

6-1911................................Aerator

6-1912................................Dethatcher

6-1913................................Lawn Sweeper

6-1914................................Dethatcher Kit

6-1915................................Lawn Roller

6-1916................................Broadcast Spreader

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE CORRECTIVE ACTION

Engine Will Not 1. Fuel tank empty. 1. Fill fuel tank with fresh fuel to proper level.

Start Using 2. Engine needs choking. 2. Move choke control to “CHOKE” position.

Recoil Starter 3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.

4. Faulty parking brake, blade or ignition switch. 4. Contact authorized SNAPPER dealer.

5. Park brake not engaged. 5. Engage park brake.

6. Ignition is in the OFF position. 6. Turn ignition switch to the RUN position.

Engine Will Not 1. Fuel tank empty. 1. Fill fuel tank with fresh fuel to proper level.

Start Using 2. Engine needs choking. 2. Move choke control to “CHOKE” position.

Electric Starter 3. Spark plug wire disconnected. 3. Place spark plug wire onto spark plug.

4. Faulty parking brake, blade or ignition switch. 4. Contact authorized SNAPPER dealer.

5. Park brake not engaged. 5. Engage park brake.

6. Blown Fuse. 6. Replace with new 20 AMP fuse.

7. Faulty interlock module. 7. Contact authorized SNAPPER dealer.

8. Ignition is in the OFF position. 8. Turn ignition switch to the START position.

9.Battery is weak or dead. 9. Charge or replace with new battery.

10. Battery cables loose, broken disconnected or

corroded. 10. Clean and connect battery cables. If

broken, replace with new battery cables.

11. Faulty electric starter or starter solenoid. 11. Contact authorized SNAPPER dealer.

12. Starter cable loose, broken or disconnected. 12. Connect starter cable. If broken, replace

with new starter cable.

13. Electrical wiring harness disconnected or broken. 13. Connect or replace with new wiring harness.

Engine Stalls After

1. Operator not in seat. 1. Sit in operator’s seat.

Running 2. Choke control in the “CHOKE” position. 2. Move choke control to “OFF” position.

3. Fuel tank empty. 3. Fill fuel tank with fresh fuel to proper level.

4. Engine air pre-cleaner and or air cleaner dirty. 4. Clean free of all debris.

5. Spark plug defective or gap set improperly. 5. Service spark plug.

6. Fuel filter restricted. 6. Replace fuel filter.

7. Water, debris or stale fuel in fuel system. 7. Drain and clean fuel system.

Engine Loses 1. Excessive load on engine. 1. Lessen load.

Power 2. Engine air pre-cleaner or air cleaner dirty. 2. Clean or replace filters.

3. Spark plug faulty. 3. Service spark plug.

4. Water, debris or stale fuel in fuel system. 4. Drain and clean fuel system. Replace filter.

5. Debris build up on engine cooling screen. 5. Clean all debris from engine cooling screen.

Engine Backfires

When Turned To

“STOP”

1. Throttle control set too “FAST”. 1. Set throttle control to “SLOW” and allow

engine to idle. Then, turn key to “OFF”.

Excessive Vibration

1. Damaged, out of balance or bent mower blades. 1. Service mower blade(s).

2. Loose blade components. 2. Service and tighten loose parts.

3. Loose or missing air lift (if equipped). 3. Replace air lifts. Tighten to proper torque.

4. Lumpy or frayed belt. 4. Replace belt.

5. Bent Idler, stationary or spindle pulley. 5. Replace pulley.

(Trouble Shooting Continued on Next Page)

TROUBLESHOOTING

PROBLEM PROBABLE CAUSE CORRECTIVE ACTION

Rider Will Not Move

1. Drive disc worn or damaged.

1. Replace drive disc.

Loss Of Traction 2. Rubber drive disc is not tracking properly on

drive disc. 2. Adjust rubber drive disc.

3. Tapered axle bolt and nut missing. 3. Replace with SNAPPER tapered bolt & nut.

4. Axle bearing seized. 4. Contact authorized SNAPPER dealer.

5. Insufficient lubrication in chain case or

transmission/differential. 5. Contact authorized SNAPPER dealer.

Blade(s) Not Cutting

1. Blade engagement lever in the “OFF” position. 1. Move lever to the “ON” position.

2. Mower belt slipping. 2. Adjust or replace mower belt.

3. Cutting blade is dull, worn or damaged. 3. Sharpen or replace cutting blade.

Cutting Grass

Improperly 1. Uneven tire pressure. 1. Bring to proper pressure. 12 PSI front tire

& 12 PSI rear tire.

2. Cutting height too low or high. 2. Adjust cutting height.

3. Engine speed too slow. 3. Move throttle control to “FAST” position.

4. Forward speed too fast. 4. Move transmission shift lever to a slower

speed.

5. Terraced cut, side to side. 5. Adjust side to side level.

6. Excessive deck pitch, front to rear. 6. Adjust front to rear pitch.

7. Cutting blade(s) dull or damaged. 7. Sharpen cutting edges or replace blade(s).

8. Mower belt slipping. 8. Adjust tension or replace mower belt.

Poor Grass 1. Engine speed too slow. 1. Move throttle control to “FAST” position.

Discharge 2. Forward speed too fast. 2. Move transmission shift lever to a slower

speed.

3. Grass is wet. 3. Mow when grass is dry.

4. Excessively dull, worn or damaged blade(s). 4. Service mower blade.

5. Build up of grass clippings and debris under

deck. 5. Clean the underside of deck.

6. Improper blade installed on deck. 6. Install proper SNAPPER blades.

Oil Leaking 1. Leaking chain case or differential plugs. 1. Verify plugs are not cracked & are in good

shape. Check gaskets.

2. Leaking engine block. 2. Contact authorized SNAPPER dealer.

MAINTENANCE SCHEDULE

SUBJECT SERVICE

TO BE PERFORMED REFERENCE

PAGES

EACH

USE 5

HOURS 25

HOURS 50

HOURS 100

HOURS EACH

SEASON

Engine Check Oil Level Page 6 X

Engine Initial Oil Change Page 13 X

Engine Periodic Oil Change Page 15 X*

Air Pre-Cleaner Service Sponge Pre-

Cleaner Element Engine Manual X**

Air Cleaner Replace Element Engine Manual X**

Spark Plug Replace Plugs Engine Manual X

Fuel Filter Replace Filter Page 17 X

Engine Cooling

System Clean Shrouds & Fins Engine Manual X**

Battery Check Electrolyte Page 26 X X

Battery Charge Battery Page 25, 26 X

Tires Check Pressures Page 6 X

Drive Belts Check For Wear And

Tension Pages 14, 24 X X

Mower Blades Check For Wear And

Damage Pages 23 X

Mower Deck Clean Debris

Accumulation Page 13, 15 X X X

Lubrication Points Grease or Oil Pages 15 - 17 X X

Lubricate Chain Case

& Transmission Check Grease Level Pages 16, 17 X X

Blade Brake

Stopping Time Check blade stopping

for proper operation Pages 14, 19 X X

Clutch/Brake System Check Clutch/Brake for

proper operation Page 14, 22 X X

Reverse Lockout

Mechanism

Check function. Page 6, 12, 15 X X

*Change oil every 25 hours when operating under heavy load or high temperatures.

**Clean more often under dusty conditions or when air debris is present

MAINTENANCE/REPLACEMENT PARTS

MAINTENANCE PARTS

Engine Speed Control (Briggs Engine) 2-2751

Engine Speed Control (Kohler Engine) 2-2483

Clutch/Brake Cable 2-2449

Brake Cable 7-1909

28” Cutter Blade (Standard - Not Air Lift Compatible) 3-5635

28” Cutter Blade (Standard - Air Lift Compatible) 1-9515

28” Cutter Blade (Mulching) 1-6980

28” Cutter Blade (Ninja - Quad Edge) 2-6453

30” Cutter Blade (Standard - Not Air Lift Compatible) N/A

30” Cutter Blade (Standard - Air Lift Compatible) 1-8069

30” Cutter Blade (Ninja - Quad Edge) 2-6565

33” Cutter Blade (Standard - Not Air Lift Compatible) 3-4168

33” Cutter Blade (Standard - Air Lift Compatible) 1-9523

33” Cutter Blade (Mulching) 1-6982

33” Cutter Blade (Ninja - Quad Edge) 2-4741

Air Lift Kit (28” & 33” Decks) 6-0480

Air Lift Kit (30” Decks) 6-0735

Engine to Cutting Deck Belt (28” & 30” Decks) 2-2252

Engine to Cutting Deck Belt (33” Decks) 4-3844

Rubber Drive Disc 5-3103

Parts Manual for Rear Engine Rider Series 22 06128

3 YEAR LIMITED WARRANTY

For three (3) years from purchase date for the original purchaser's residential, non-commercial use, SNAPPER, through

any authorized SNAPPER dealer will replace, free of charge (except for taxes where applicable), any part or parts found

upon examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

For ninety (90) days from purchase date for the original purchaser's commercial, rental, or other non-residential use,

SNAPPER, through any authorized SNAPPER dealer will replace, free of charge, any part or parts found upon

examination by the factory at McDonough, Georgia, to be defective in material or workmanship or both.

All transportation costs incurred by the purchaser in submitting material to an authorized SNAPPER dealer for

replacement under this warranty must be paid by the purchaser.

This warranty does not apply to engines and their components, and batteries, as these items are warranted separately.

This warranty does not apply to parts that have been damaged by accident, alteration, abuse, improper lubrication,

normal wear, or other cause beyond the control of SNAPPER. This warranty does not cover any machine or component

part that has been altered or modified changing safety, performance, or durability.

Batteries have a one (1) year prorated warranty period with free replacement if required during the first ninety (90) days

from the original purchase date. SNAPPER will not be responsible for any installation cost incurred. The battery warranty

only covers original equipment batteries and does not cover damage to the battery or machine caused by neglect or

abuse, destruction by fire, explosion, freezing, overcharging, improper maintenance, or use of improper electrolyte.

There is no other express warranty.

DISCLAIMER OF WARRANTY

Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to three

(3) years from purchase date for the original purchaser's residential or other non-commercial use, and ninety

(90) days from purchase for the original purchaser's commercial, rental or other non-residential use, and to the

extent permitted by law, any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for

consequential damages, under any and all warranties are excluded.

Some states do not allow limitations on how long an implied warranty lasts, or do not allow the exclusion or

limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

WARNING: THE USE OF REPLACEMENT PARTS OTHER THAN GENUINE SNAPPER PARTS MAY IMPAIR THE

SAFETY OF SNAPPER PRODUCTS AND WILL VOID ANY LIABILITY AND WARRANTY BY SNAPPER

ASSOCIATED WITH THE USE OF SUCH PARTS.

IMPORTANT: Please fill out the attached SNAPPER Product Registration Card immediately and mail to:

Snapper’s Product Registration Center, P.O. Box 1379, McDonough, Georgia 30253

PRIMARY MAINTENANCE

SERVICE NOTES

______________________________________________________________________________

Safety Instructions & Operator’s Manual for

REAR ENGINE RIDING MOWER

SERIES 22

IMPORTANT

Snapper products are built using engines that meet or exceed all applicable emissions requirements on the

date manufactured. The labels on those engines contain very important emissions information and critical

safety warnings. Read, Understand, and Follow all warnings and instructions in this manual, the engine

manual, and on the machine, engine and attachments. If you have any questions about your Snapper product,

contact your local authorized Snapper dealer or contact Snapper Customer Service at Snapper, McDonough,

GA. 30253. Phone: (1-800-935-2967).

SNAPPER INC.

MANUAL No. 7-4390 (Rev 1, 8/27/01)

WARNING

ENGINE EXHAUST, SOME OF ITS CONSTITUENTS, AND CERTAIN VEHICLE COMPONENTS CONTAIN OR

EMIT

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER OR OTHER

REPRODUCTIVE HARM.

WARNING

BATTERY POSTS, TERMINALS AND RELATED ACCESSORIES CONTAIN LEAD AND LEAD COMPOUNDS,

CHEMICALS KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER

REPRODUCTIVE HARM. WASH HANDS AFTER HANDLING.

Snapper Rear Engine Rider 281222Be Users Manual 7 4390D R1

Navigation menu

Versions of this User Manual:

Views

Navigation
