snom 320

VoIP Business Phone

Quick Installation

Version 1.00 www.snom.com

snom technology AG

Gradestr. 46

12347 Berlin, Germany

Note to the reader

This is a quick guide to the installation and operation of the snom 320.

The full manual is available on our web page, www.snom.com.

part of this document may be reproduced, republished or retransmitted

in any form or by any means whatsoever, whether electronically or

mechanically, including, but not limited to, by way of photocopying,

recording, information recording or through retrieval systems, without

the express written permission of snom technology AG.

snom technology AG reserves the right to revise this document and make

changes at any time and without the obligation to notify any person and/

or entity of such revisions and/or changes.

Product speciﬁ cations contained in this document are subject to change

without notice.

snom technology AG • 3

Table of Contents

Note to the reader ...................................................................... 2

Installation ................................................................5

Delivery Content ........................................................................ 5

Safety Information ...................................................................... 5

Power supply ............................................................................. 5

Setting up the Phone ................................................................... 6

Wall Mounting ........................................................................... 6

Cleaning .................................................................................. 10

Connecting the phone ..............................................11

Keypad .....................................................................13

Initialization .............................................................17

Booting ................................................................................... 17

Selecting the language ............................................................. 17

DHCP Conﬁ guration ................................................................... 17

Setting the IP Address ............................................................... 18

Setting the Netmask ................................................................. 18

Setting the IP Gateway .............................................................. 18

Setting the DNS Server ............................................................. 19

Selecting the Tone Scheme ........................................................ 19

Selecting the Timezone ............................................................. 19

Logging on the ﬁ rst account ....................................................... 20

Index .......................................................................23

English

4 •

English

snom technology AG • 5

English

Installation

Delivery Content

Please check whether the delivery contains the following parts:

• The base unit with display and keypad

• The handset

• The handset cable

• The power supply (optional)

Safety Information

Please read the following safety notices before installing or using

your snom phone. They are crucial for the safe and reliable operation

of the device.

Power supply

You have two options for providing the snom 320 with power:

• An external power supply (5 V)

• Power feeding over the network cable (IEEE 802.3af

compatible)

If you want to use an external power supply, use the one that is

included in the package. Other power supplies may cause damage

to the phone, affect its behavior or induce noise.

6 • Installation

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

Setting up the Phone

Your snom 320 is delivered with the footstand attached to the

phone’s bottom shell (shaded gray in Fig. 1). Place the snom 320

on an even, horizontal surface that gives the rubber pads a secure

grip. Do not place it on carpets or other materials containing ﬁ bers

that could block the air vents and cause overheating.

After connecting the phone (see chapter Connecting the Phone,

below), clip the cords into the appropriate slots on the footstand or,

in the case of the handset cord, on the bottom shell of the phone

(Fig. 2).

Fig. 1 Fig. 2

Wall Mounting

It is also possible to mount the snom 320 on the wall. In order to

do this, you detach the footstand from the bottom shell and attach

it in the appropriate position for wall mounting, as described in

steps 1 through 6, below.

snom technology AG • 7

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

1Turn the phone upside down (Fig. 3). Please, ensure that

you do not damage the display and/or its hinge and that

you do not drop the receiver. You may want to hold the

phone in your lap or have a second person hold it.

Fig. 3 Fig. 4

2Lightly press the snap-ﬁ ts of the footstand inwards

(Fig. 3) and, at the same time, tilt the footstand

backwards and lift it from its anchorage in the mounting

holes (Fig. 4).

3Rotate the footstand 180° around its vertical axis.

4Make sure that the handset cord has been clipped

correctly into the groove on the bottom shell of the

phone, as shown in Figs. 4 and 6. Failure to clip the

cord into the groove will result in damage to the cord

when the footstand is attached in the position for wall

mounting.

8 • Installation

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

5Insert the outside, rear snap-ﬁ ts into the mounting

holes on the bottom shell (Fig. 5, arrow no. 1). Tilt

the footstand forward and downward until the snap-ﬁ ts

snap into place in the mounting holes. Please, make

sure that the four snap-ﬁ ts have securely snapped

into the holes before mounting the phone on the

wall.

Fig. 5 Fig. 6

6The slots on the footstand for the various cords can

also be used when the phone is mounted on a wall.

After connecting the phone (see chapter Setting up the

Phone, above), form the cords into loops and gently

press the long ends into the slots on the footstand. The

loops should not be too big, so that they will not hamper

the secure mounting of the phone on the wall, and not

too small, so that the cords will not be bent or broken

(Fig. 6).

The delivery includes a template to be used for marking the position

of the holes to be drilled in the wall.

(Use wall plugs, if necessary, and screws with half-round head

proﬁ les (diameters of screws dmax= 4.5 mm (0.1755”), diameters

of heads dmax=8.5 mm (0.3315”).

snom technology AG • 9

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

The screws must protrude approx. 0.5 cm (0.195”) from the wall

for easy wall mounting of the phone.

Adjusting the Handset Rest

The speaker of the handset has a small, rectangular indentation

that ﬁ ts over the rounded end of the plastic tab inserted into a slot

on the top shell of the phone. When the phone is mounted on the

wall, the handset must be placed on this rounded end to ensure

that it will not fall off.

Slide the tab out of the slot, as shown in Fig. 7, rotate it 180°, and

slide it back into the slot, as shown in Fig. 8.

Fig. 7 Fig. 8

Adjusting the Position of the Display

The position of the snom 320’s display is adjustable up to an angle

of 45° (Figs. 9 and 10).

Hold down the phone with one hand and adjust the display with

your other hand. Do not use too much force and do not pull,

wrench, or twist the display as this might damage or break the

hinges.

10 • Installation

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

Fig. 9 Fig. 10

Cleaning

To clean the snom 320, use an anti-static cloth. Please avoid

cleaning liquids as they might damage the surface or the internal

electronics of the phone.

snom technology AG • 11

English

Connecting the

phone

First connect one end of the handset cable to the handset and

then to the jack labeled “ ” on the left-hand side of the phone’s

bottom.

Next plug the Ethernet (network) cable into the RJ45 connector

labeled “ ”, and plug the other end into the network side to

establish a data link. The second RJ45 connector, labeled “ ”, is

for daisy-chaining further Ethernet devices without the need for a

second Ethernet connection line.

If you are using an external power supply, please insert the plug of

the power supply into the connector labeled “ ” next to the data

line and hook up the casing into the mains.

If you want to use a headset, it can be connected to the audio jack

labeled “ ” on the bottom side of the snom 320.

Clip the cords into the appropriate slots on the footstand or, in the

case of the handset cord, on the bottom shell of the phone (see

Fig. 1 in the chapter Setting up the phone, above).

12 • Connecting the phone

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

snom technology AG • 13

English

Keypad

The numeric keypad with the keys 0 to 9, *, and # is used to enter

digits and letters. Depending on the operating mode, different

actions can be performed (see the table below):

• Entry of digits only (e.g., when dialing a phone number)

• Typing in letters and digits by pressing the keys repeatedly

(similar to a cellular phone), etc.

Use the key to call up the menu. To cancel actions or input,

use the CANCEL key . The ENTER key conﬁ rms actions,

selections and inputs. For navigation, use the large round navigation

key in the middle.

Depending on the operating mode, the keys can have context-

speciﬁ c meanings which are described in the manual.

14 • Keypad

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

The four soft keys located below the display are context-sensitive

function keys. Their current mapping is depicted with texts in the

bottom line on the display.

The twelve keys on the right with LEDs / next to them

are programmable function keys onto which different functionalities

can be mapped.

The keys of the numeric block in different operating modes:

Key Digits Lower case Upper case

0 (SPC)_0 (SPC)_0

1.@1,?!-

/():;&%*#+<=>$[]

.@1,?!-

/():;&%*#+<=>$[]

2abc2 ABC2

3def3 DEF3

4 ghi4 GHI4

5jkl5 JKL5

6 mno6 MNO6

7 pqrs7$ PQRS7$

8 tuv8 TUV8

9 wxyz9 WXYZ9

“#” or

“.” after

time

out

Number guessing

* Toggles upper and lower case

snom technology AG • 15

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

Additionally, the following keys are available:

Key Description

Mute microphone on/off

Casing speaker on/off

Adjust volume (lower/higher)

Open phone book

Info menu

Redial

Settings menu

XML add-on (planned)

Establish 3-party conference

‘Do not disturb’ mode on/off

Call hold/unhold

Call transfer

Record a call (with server support only!)

Connect to Mailbox

LED for MWI (message waiting indication)

16 • Keypad

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

snom technology AG • 17

English

Initialization

Booting

The booting process comprises a series of different conﬁ guration

steps that set up the phone for future use by any user.

Selecting the language

The default language setting is English. After startup the phone

offers you the option to select the language of your choice. To

change to a different language, use the or keys and press

to conﬁ rm.

DHCP Conﬁ guration

If your network supports DHCP, press when this screen

appears:

The phone has a built-in DHCP client. It will receive an IP address

and other network-related settings (Netmask, IP gateway, DNS

server) from the DHCP server.

If your network does not support DHCP, press when the above

screen appears. The user will subsequently be asked for the

following settings:

18 • Initialization

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

Setting the IP Address

The user can provide a static IP address for the phone if DHCP is

not used. A valid IP address appropriate to the network in which

the phone is being used can be provided.

The following edit functions for IP address editing are available via the

navigation key:

Clear IP address

Move cursor to the right

Backspace and delete sign to the left of the cursor

Move cursor to the left

Conﬁ rm input

Setting the Netmask

Similarly, the user will be asked to provide a Netmask. After

entering the information, conﬁ rm with .

Setting the IP Gateway

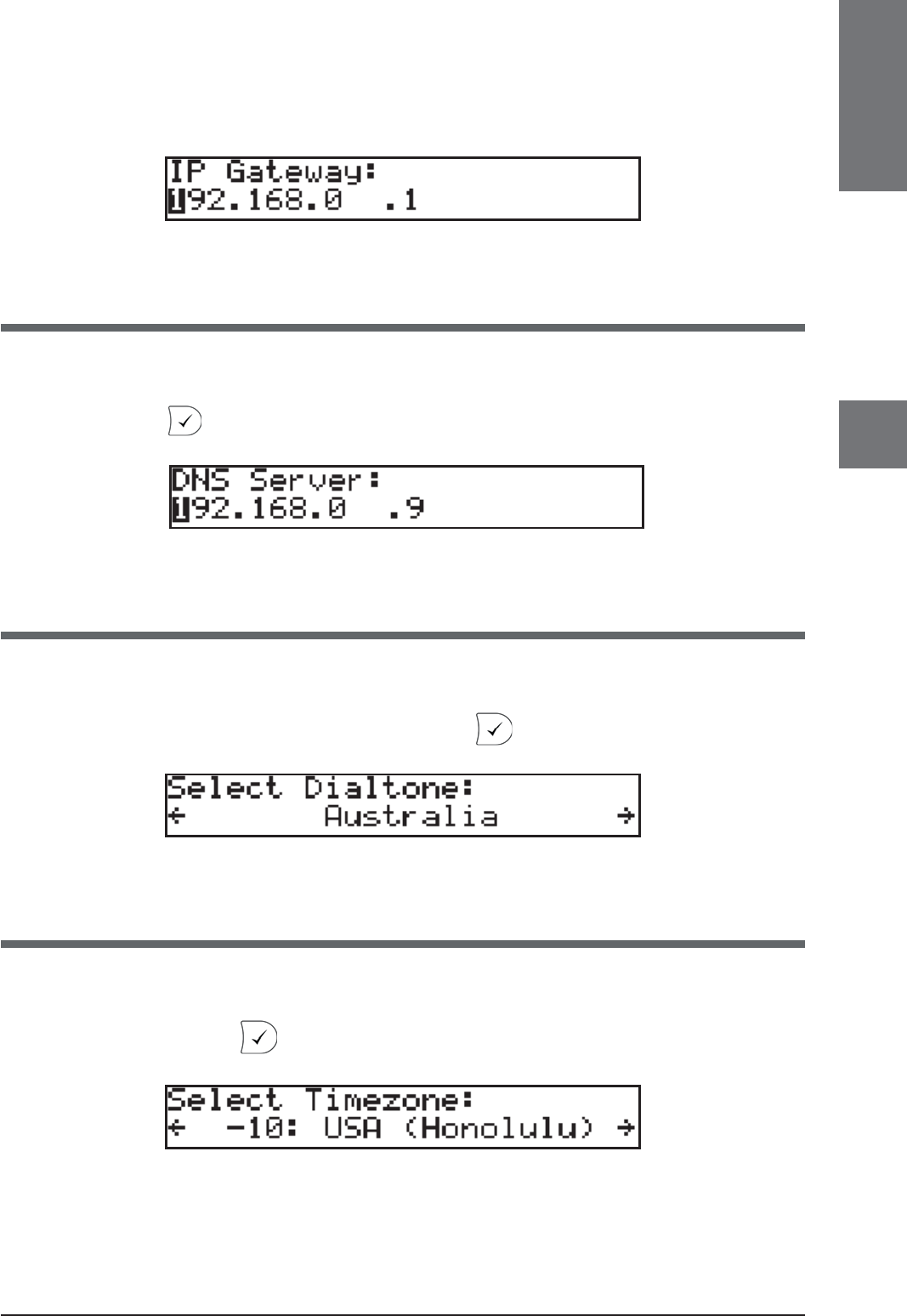

If a valid Netmask has been provided, the user will be asked for

the IP address of the IP gateway. After entering the information,

conﬁ rm with .

snom technology AG • 19

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

Setting the DNS Server

The last item for this series of network-related conﬁ gurations is

the IP address for the DNS server. After entering the information,

conﬁ rm with .

Selecting the Tone Scheme

The user will then be asked for the tone scheme to be used on the

phone. After moving the cursor with the navigation key to the tone

scheme you wish to use, conﬁ rm with .

Selecting the Timezone

The timezone to be used on the phone can also be selected by

moving through the different timezone options available in the

menu and pressing to conﬁ rm your selection.

If the settings explained above are set up properly, the phone will

ask for the ﬁ rst account registration.

20 • Initialization

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

Logging on the ﬁ rst account

If no number is assigned to the phone yet, you will be prompted to

type in your account name. Conﬁ rm by pressing the key.

The phone will then try to guess the correct registrar. If the registrar

shown on the display is incorrect, please correct the information.

The screen might show something like this:

Conﬁ rm by pressing . You will then be asked whether you want

to use ENUM.

Press if you wish to use ENUM or , if you do not. If you

have chosen ENUM, you will be asked for the country code (e.g.,

1 for the US) and the area code (e.g., 802 for Vermont). ENUM

means that a conventional E.164 number (normal phone numbers)

is mapped to a SIP URI so that a pure IP call can be started instead

of an IP/PSTN call. Regarding ENUM see also our white paper

„ENUM on snom phones“.

snom technology AG • 21

[ SNOM 320 QUICK INSTALLATION V1.00 ]

Enter the codes and conﬁ rm with each time.

The phone tries to register your given account name at the given

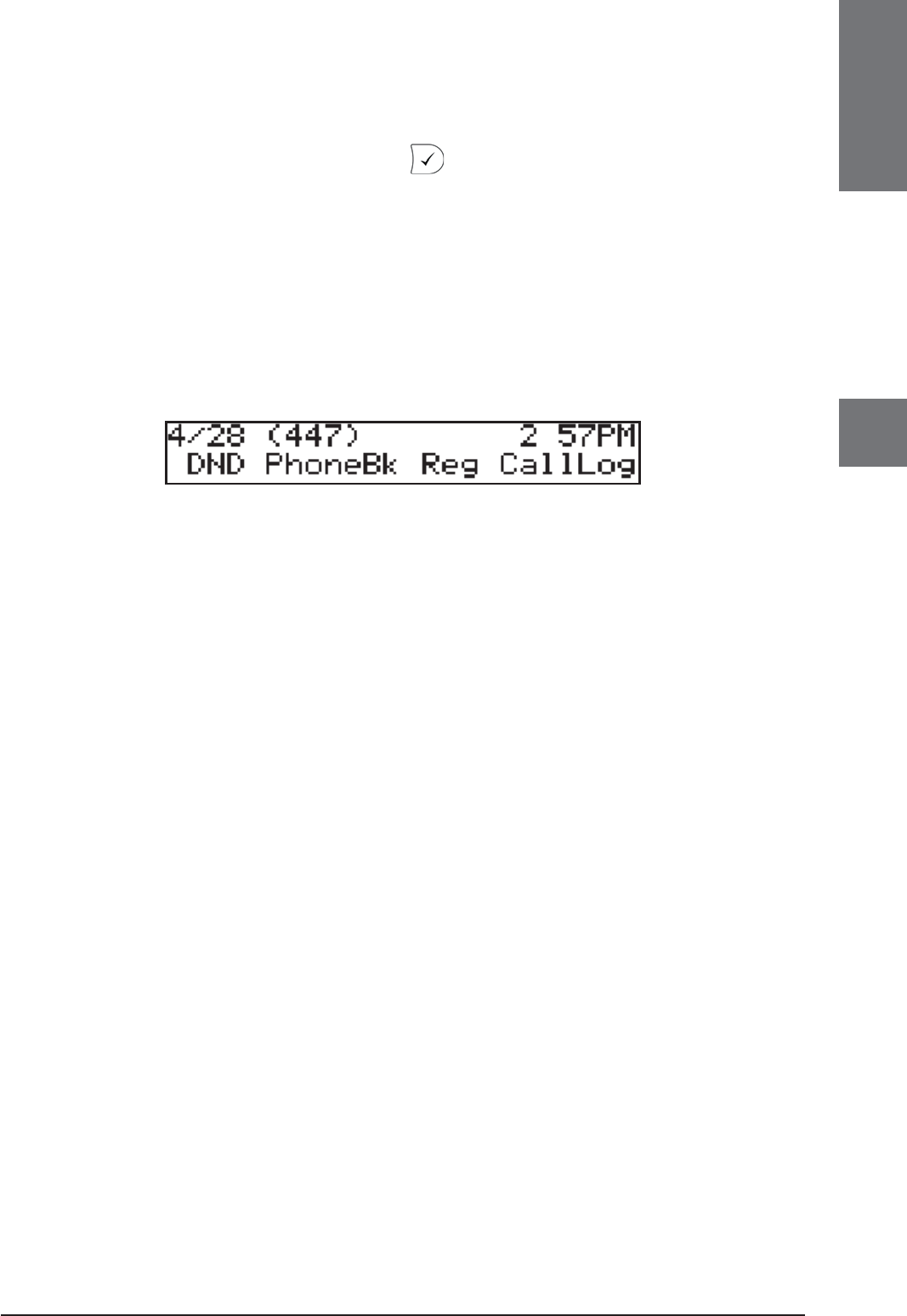

registrar. The idle screen appears. Your registration has been

successful if the identity you have just conﬁ gured is shown in

brackets in the top line. If, however, the letters „NR“ are shown

instead, the registration has not been successful.

When the registration has been successful, the time and date are

also shown on the display.

The complete manual is available on our web page,

www.snom.com.

English

22 • Initialization

[ SNOM 320 QUICK INSTALLATION V1.00 ]

English

snom technology AG • 23

English

Account 20

Adjust volume 15

Booting 17

Call hold/unhold 15

Call transfer 15

CANCEL key 13

Casing speaker 15

Cleaning 10

Conference 15

Connecting the phone 6, 11

Connect to Mailbox 15

DHCP 17

Display 9

DNS Server 19

Do not disturb 15

ENTER key 13

Forwarding. see Call Transfer

Handset rest 9

Help 15

Installation 5

IP Address 18

IP Gateway 18

Keypad 13

Language 17

LEDs 14

LED for MWI 15

Main menu 15

Manual 21

Index

24 • Index

MENU key 13

Mute microphone 15

Netmask 18

Numeric block 14

numeric keypad 13

Open phone book 15

Power supply 5

External power supply 5

Power feeding 5

Record a call 15

Redial 15

Safety 5

Safety Information 5

Settings menu 15

Setting up the Phone 6

Soft keys 14

Timezone 19

Tone scheme 19

Wall mounting 6

English

trademark of snom technology AG and afﬁ liates in Germany, U.S.A. and certain other

countries. Other trademarks or registered trademarks mentioned in this document

are the property of their respective manufacturers or owners.

Snom 320 Users Manual Qrg_snom320_en_v100_Kopie

320 to the manual 54a945e9-8546-41e7-8b27-6655724ecb78

Navigation menu

Versions of this User Manual:

Views

Navigation
