Soaring Technology SCBX3010U Signal shifter User Manual
Soaring Technology Co., Ltd Signal shifter Users Manual
Users Manual
- 1 -
Owner’s Manual
SSLM7BA1 MONITOR-SLIMLINE 7 INCH-A SSLM7BB1 MONITOR-SLIMLINE 7 INCH-B
- 2 -
MONITOR-SLIMLINE 7 INCH
Important Notice
It is unlawful in most jurisdictions for a person to drive a motor vehicle which is equipped with a
television viewer or screen that is located in the motor vehicle at any point forward of the back of the
driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle. In the
interest of safety, the unit should never be installed where it will be visible, directly or indirectly, by the
operator of the motor vehicle.
If your vehicle is equipped with a Wireless Rear Seat Audio System or any other Wireless IR Device,
power system off in order to operate the DVD Headrest System. If system is powered on, the two
systems may interfere with each other cancelling out or creating undesirable audio through the Wireless
headphones.
Safety Precaution
For safety reasons, when changing video disc it is recommended that the vehicle be not in motion, and
that you do not allow children to unfasten safety belts to change disc or make any adjustments to the
system. System adjustments can be accomplished using the remote control unit, while safety belts
remain fastened. Enjoy your entertainment system but remember safety of all passengers remains the
number one priority.
This device complies with part 15 of the fcc rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept any interference received, including interference that maycause undesired
operation.
- 3 -
Welcome
Thank you for purchasing this Headrest Video Monitor with built-in DVD player. Before operating this
system, read this manual thoroughly and retain it for future reference.
Product Features
• 7-inch Color TFT-LCD Panel (480x3(RGB)x234) with 16:9
• Built-in Slim Type Top-Loading Slot-In DVD Player
• Infrared Transmitters for IR Wireless Headphones
• Audio/Video Source Input- 3 RCA Jacks
• Audio/Video Signal Output- 1/8-inch Headphone Jack
• 1/8-inch Stereo Headphone Jack
• USB Port compliant with 1.1 specifications
• Forward Remote Sensor on the Front Panel
• Full Function Remote Control
• 7 Control Buttons on the Front Panel- POWER/SOURCE, STOP/LEFT, UP, SETUP/ENTER,
PLAY/PAUSE/RIGHT, EJECT, DOWN
• OSD (On Screen Display) Control
• 12V DC Power Input
• FM Transmitter (may be optional)
Caution:
• Be sure run the vehicle engine while using the device. Use this device without running the engine
can result in battery drainage. To avoid the risk of battery drainage, please remember turn off the
device when the vehicle unused for long periods of time.
- 4 -
Table of Contents
1. Optional Accessories······························································································································ 7
Wireless Headphone ······························································································································ 7
Wired Headphone·································································································································· 7
AV Control Box····································································································································· 7
Wired FM Modulator····························································································································· 7
2. Installation Sequence····························································································································· 8
Pre-Installation Precaution····················································································································· 8
Battery Disconnect ································································································································ 8
Remove Factory Headrest······················································································································ 8
Install SLIMLINE Headrest Monitor A and Monitor B ·········································································8
Router Cabling under Driver Seat & Passenger Seat··········································································· 10
Functional Verification ························································································································ 11
3. Control Description on the Front Panel····························································································· 12

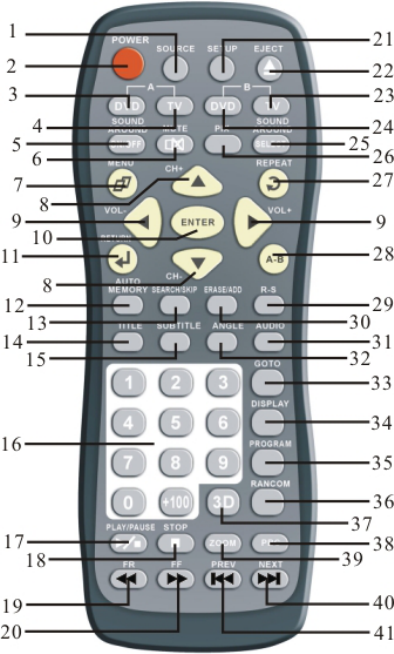

4. Remote Control Operations················································································································ 15

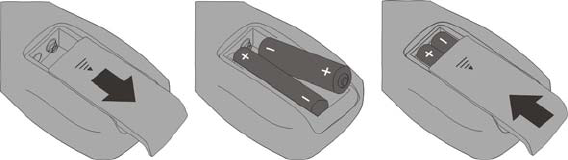

Installing the Battery ··························································································································· 15
Warning/Caution on using Batteries ···································································································· 15
Button Function Descriptions ·············································································································· 16
5. General Operating Instructions·········································································································· 22
Turning the Device ON or OFF··········································································································· 22
Channel Tuning Setup ························································································································· 22
6. DVD Basic············································································································································ 23
Regional Coding·································································································································· 23
- 5 -
Type of Discs your DVD will Play ······································································································ 23
Loading and Playing Discs·················································································································· 23
To Load and Play a Disc······················································································································ 23

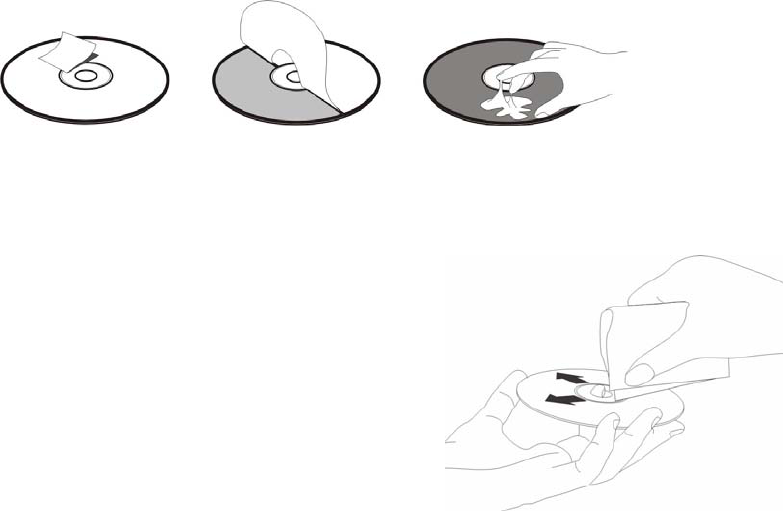

7. Notes on Discs ······································································································································ 24
8. How to use the DVD OSD Menu ········································································································ 25
Using the Setup Menu ························································································································· 25
To Cancel using the Setup Display ······································································································ 25
General Setup Page······························································································································ 26
Setting the Language for On-Screen Display····················································································· 26
OSD (On Screen Display) Language Menu······················································································· 26
Setting for Display····························································································································· 26

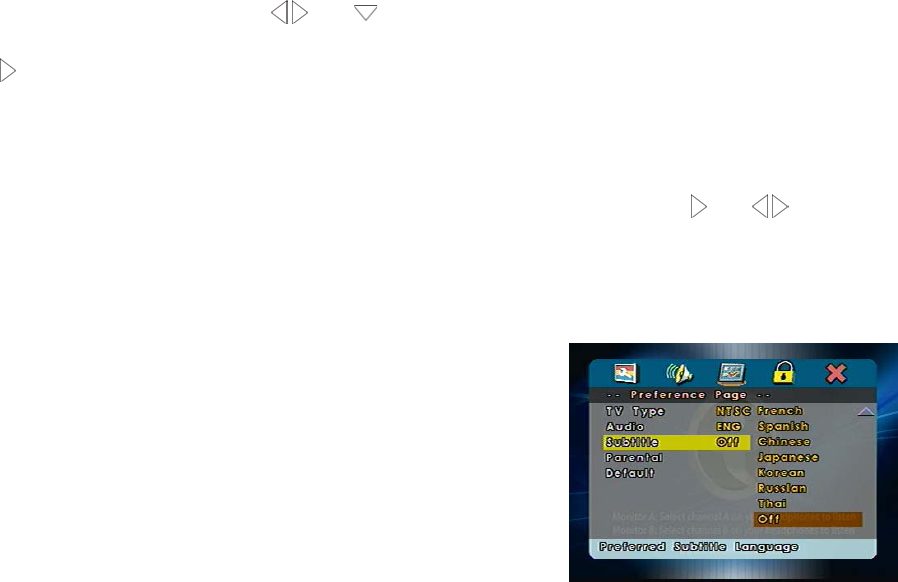

Preference Page ··································································································································· 27
Default Setting··································································································································· 27
Setting for Parental (Parental Control)······························································································· 27
Password Setup Page··························································································································· 28
Setting for Password (Parental Control Password) ············································································ 28
9. Playing Audio CD ································································································································ 29
Using the REPEAT Feature ················································································································· 29
10. Playing MP3 Discs······························································································································· 30
Selecting Folders and Songs················································································································ 30
Skipping Songs···································································································································· 31
Selecting a Play Mode························································································································· 31
11. How to use the Device OSD Menu······································································································ 32

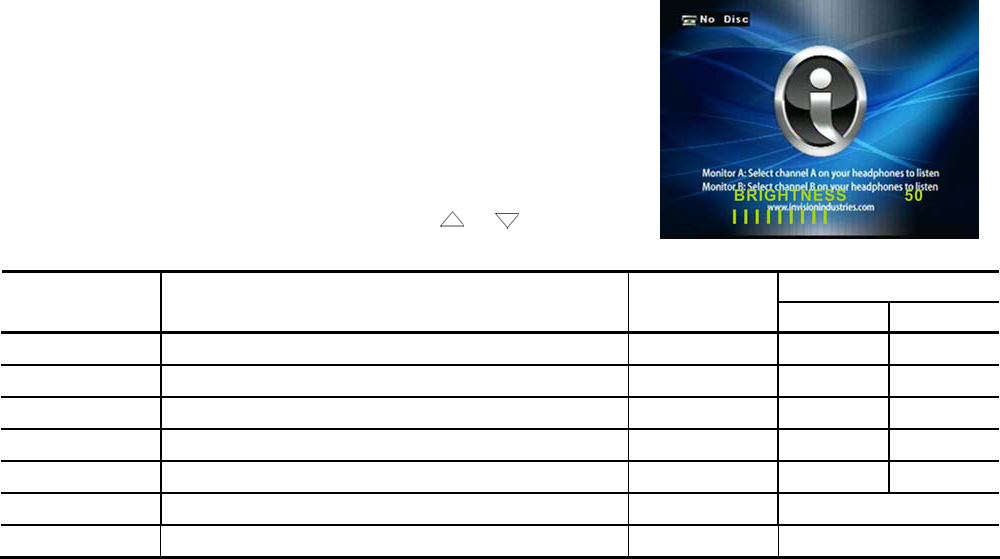

Picture Adjustment ······························································································································ 32
- 6 -
12. Technical Data······································································································································ 33
13. Troubleshooting ··································································································································· 35
14. FCC Notice··········································································································································· 37
15. WEEE Notice ······································································································································· 38
16. MACROVISION Notice······················································································································ 39
- 7 -
Optional Accessories
Wireless Headphone
This SLIMLINE includes a built-in dual channel infrared transmitter for use with a wireless headphone.
The volume can then be adjusted with the controls on each headset. The wireless headphone must be used
within a line of sight from the transmitter, as infrared transmission, like visible light travels only in a
straight line.
Wired Headphone
There is a 1/8-inch headphone jack on the device that can be used with any standard stereo headphone.
Remove and save the protective plastic cover to access the jacks. Remember to replace the cover when
the jacks are not in use.
AV Control Box
The additional audio/video input may connected such as a DVD player, video game device, or other
audio/video devices. To play the second AV source, turn the SLIMLINE on and press the SOURCE button
on the remote control until “AV or AUX” is displayed on the screen. Turn the source component on with
its power button or remote control. The SLIMLINE is now ready to play the audio and video signals from
the source connected to AV or AUX input.
location.
Wired FM Modulator
You video device may be equipped with an external FM modulator, which allows you to listen to the
audio signal by tuning your vehicle’s FM radio to the selected frequency (88.3, 88.7, 89.1, 89.5, 89.9, and
90.3MHz check with your installer) and turning on the remote. Whenever the RF modulator is on
broadcast radio reception will be poor. Turning the remote to switch SOUND AROUND off, FM
modulator will allow normal radio reception.
- 8 -
Installation Sequences
After safety mandated preparatory steps have been taken, the installation sequence is the suggested
method for completing the accessory installation. In some instances the suggested sequence is written for
one associate to install and in others the sequence is given as part of a team accessory installation. Unless
otherwise stated in the document, the associates may perform the installation steps in any order to make
the installation as efficient as possible while maintaining consistent quality.
Pre-Installation Precaution
• Use Seat and Floor Protectors to avoid damage to surfaces.
• If the vehicle is equipped with an Anti-theft radio the radio code must be written down prior to
disconnecting the battery cable. The code must be re-entered when the negative battery cable is
reinstalled.
Battery Disconnect
• Move seats forward and recline back slightly.
• Remove the Negative (-) battery terminal using 10 mm socket before starting any disassembly.
Remove Factory Headrests
• Remove driver side headrest while depressing release button, and repeat for passenger side.
• Disconnect elastic straps, and repeat for passenger side.
Install SLIMLINE Headrests Monitor A and Monitor B
• Insert wire puller into left hand hole of seat back and pull through to bottom, and feed cable #1 from
Monitor A down left hole in top of driver side seatback.
• Repeat the above steps for the right hole of seat back and cable #2.
• Insert headrest while pulling cable #1 and cable #2 down seat back.
• Repeat for passenger side and Monitor B.
- 9 -
- 11 -
Functional Verification
Accessory Function Checks: Look for:
Turn vehicle ignition to ON, depress power
button on each headrest monitor. Monitor should power on start up screen should
appear on screen.
Insert disc into DVD player, press ENTER
button on the remote control or LCD panel. Disc should begin playing.
Listen with wireless headphones (be sure to set
to channel “A” to listen to Monitor A and
channel “B” to listen to Monitor B.
Audio should be heard through vehicle
headphones.
Connect jumper cable from output Monitor A
to inputs on Monitor B, and then press source
button on Monitor B to “AV”.
DVD in Monitor A should be displayed on
Monitor B also.
Connect jumper cable from output Monitor B
to inputs on Monitor A, and then press source
button on Monitor A to “AV”.
DVD in Monitor B should be displayed on
Monitor A also.
Depress eject button on the remote control or
LCD panel. Disc should eject.
Turn on vehicle radio and set station to station
per set on FM transmitter. Audio from Monitor A should be heard through
vehicle speakers.
- 12 -
Control Description on the Front Panel
- 13 -
1. DVD Player Busy Light
The busy light indicates the activity state of the
DVD player.
2. DVD Compartment Slot
Insert a disc to play.
3. IR Sensor - Forward Sensor Eye
Allow the remote control to navigate the OSD (
On Screen Display) on the device and to control
the other accessories.
4. Latch Tip
Allow the user to adjust the viewing angle of the
LCD panel.
5. TFT LCD Panel
7-inch TFT LCD Panel (480x3 (RGB)x234).
Warnings
• Do not use any solvents or cleaning materials
when cleaning the video device.
• Do not use any abrasive cleaners, they may
scratch the screen. Use only a lightly dampened
lint free cloth to wipe the screen if it is dirty.
• Lock the LCD screen in the fully closed
position when not in use.
• Do not pull pressure on the screen.
• Caution children to avoid touching or
scratching the screen, as it may become dirty or
damaged.
6. USB 1.1 Port
You can play videos, music, and images stored
in a USB device such as USB-compatible stick
memory or memory card reader, etc.
7. 1/8-inch AV Output Jack
Allow CVBS signal being output for monitoring.
8. 1/8-inch Headphone Jack
Allow plug-in of wired headphones with
1/8-inch stereo connector plug for monitoring
the audio from the program.
9. AV Input Jacks (Yellow/White/Red)
Connect using a cable (RCA connectors) from
your infotainment device’s video/audio output to
the device’s AV Input jacks.
10. Protection Cover
Insert the protection cover into position when not
in use.
11. Level Lock & Release Latch
Allow the user to lock the LCD panel into the
secure position.
- 14 -
12. STOP/LEFT Button
This button function allows you to navigation
the contents when enter DVD menu, besides
this button is act as STOP function for DVD
playback control.
13. POWER/SOURCE Button
- Switches device ON or to standby/on mode.
- This device is turned on by selecting a source.
Press to cycle through all of the available
sources.
- The device will turned off by press this button
exceed over 3 seconds when the device on
status.
14. SETUP/ENTER Button
This button is used for DVD control only, press
this button to enter the DVD OSD setup menu
when the SOURCE is in device itself DVD.
This button function will changed to ENTER
when the DVD is running in the title menu or
DVD OSD setup menu.
15. UP Button
Navigation button within DVD OSD menu.
16. PLAY/PAUSE/RIGHT Button
Press this button to switch sequentially between
Playback and pause play, and navigation the
DVD OSD menu.
17. EJECTL Button
Press this button to eject the disc from disc
compartment or pull disc into the compartment.
18. DOWN Button
Navigation button within DVD OSD menu.
- 15 -
Remote Control Operations
Installing the Battery
Before attempting to operate your remote control, install the batteries as described below.
1. Turn the remote control face down. Press down on the ridged area of the battery cover and slide it off.
2. Install two “AAA” batteries as shown. Make sure that proper polarity (+ or -) is observed.
3. Slide the cover back until it clicks.
The remote control will operate this device. It is not a universal remote control and will not control other
equipment.
Warning/Caution on using Batteries
• Always ensure that the batteries are inserted with the positive and negative terminals in the correct
direction as shown in the battery compartment.
• Different types of batteries have different characteristics. Do not mix different types.
• Do not mix old and new batteries. Mixing old and new batteries will shorten battery life and/or cause
chemical leaks from the old batteries.
• When batteries fail to function, replace them immediately.
• Keep the batteries out of the reach of children. Should the batteries be swallowed, immediately
consult a doctor. Also, when disposing of used batteries, please comply with governmental regulations
or environmental public institution rules that apply in your country/area.
• Remove the batteries if the remote control is not used for a month or longer.
- 16 -
Button Function Descriptions
1. SOURCE
Any video equipment connected to the audio/video
inputs can be used with the monitor by pressing this
button. Each time the button is pressed, the audio/
video source will change in the following sequence:
Monitor A→Monitor B→AUX→TV.
2. POWER
Press the button to turn the SSLM7BA1/SSLM7BB1
device on. The current video source will be displayed
on the screen, and the picture will appear in a few
seconds. Press the button again to turn the device off.
3. DVD-Monitor A
Transmit IR codes for DVD mode of MONITOR A.
4. TV-Monitor A (If TV mode is available)
Transmit IR codes for TV mode of MONITOR A.
5. SOUND AROUND ON/OFF (If available)
Turn the FM transmitter ON/OFF.
6. MUTE (for DVD only)
Press the button to shut off the sound transmitted to
the headphone stations. The screen will display that
the sound has been turned off. Pressing the button
again restores sound to the previously set level.
- 17 -
7. MENU
Press the button to go to the Root Menu included on the disc.
8. UP, DOWN
For DVD: Navigation button, you can use this button to move the select bar to one of items among
the menu or file list.
For TV: Use these buttons to advance to the next higher or lower channel.
For OSD: Increase or decrease the setting of selected item.
9. LEFT, RIGHT
Navigation button, you can use this button to move the select bar to one of items among
the menu or file list.
10. ENTER
Makes a selection or begins playback of the disc.
11. RETURN
Return to the previous menu screen or resumes disc playback.
12. AUTO MEMORY (If TV mode is available)
When the AUDIO MEMORY button is pressed, all channels in TV mode are searched and tuned; all
the channels with signals that are detected are automatically stored.
13. CH-SEARCH/SKIP (If TV mode is available)
This button selects between SEARCH and SKIP modes. SKIP mode, the TV only stops on channels
that are programmed into memory when the UP/DOWN buttons are used. When the SKIP mode is
off, TV will stop on all active channels.
14. TITLE
Navigate the Title menu included in the disc.
- 18 -
15. SUBTITLE
Press this button. If the current disc has different subtitles options, this now appears on the screen.
Press this button repeatedly until you have reached your desired subtitles option.
16. Numbers
Decimal number: 0 to 9; and +100: Add 100.
17. PLAY/PAUSE
While playing, press this button once to pause the playback, press the button again to resume the
playback.
18. STOP
Stop playing the movie or songs.
STOP→PLAY: Resumes disc playback.
STOP→STOP→PLAY: Resumes from the beginning of the disc.
19. FR (Fast Rewind)
Press this button to search disc backward continuously. There are 5 speed options to choose: 2X, 4X,
8X, 16X, and 32X.
20. FF (Fast Forward)
Press this button to search disc forward continuously. There are 5 speed options to choose: 2X, 4X,
8X, 16X, and 32X.
21. SETUP
Navigate the Setup Menu. The following 4 pages are used to configure the system: General Setup
Page; Audio Setup Page; Preference Page; and Password Setup Page.
22. EJECT
Eject the disc from the disc compartment or load the disc into the disc compartment.
- 19 -
23. TV-Monitor B (If TV mode is available)
Transmit IR codes for TV mode of monitor B.
24. DVD-Monitor B
Transmit IR codes for DVD mode of monitor B.
25. SOUND AROUND SELECT (If available)
Select a FM transmitter channel. There are 6 channels:
CH1: 88.3MHz; CH2: 88.7MHz; CH3: 89.1MHz; CH4: 89.5MHz; CH5: 89.9MHz; CH6: 90.3MHz.
26. PIX (Picture Selection)
Each time the button is pressed, the picture adjustment OSD, cycles through bars for BRIGHTNESS,
CONTRAST, SATURATION, HUE, SHARPNESS, IR HEADPHONE, and RESET. Once the desired
adjustment bar is displayed, use the UP/DOWN button to adjust the setting. The bar display will
automatically disappear, if no adjustments are made within 6 seconds or if any button is pressed.
27. REPEAT
Press this button to switch the repeat mode by “ALL”, “TITLE”, “CHAPTER” and cancel the repeat
mode while playing DVD-video. Others disc type such as VCD, CD, and SVCD that only has “
TRACK” and “ALL” two repeat mode can be selected.
Note: The both repeat function of VCD and SVCD need to turn the PBC status to ON then available.
28. A-B (Expect MP3)
Repeat from point A to point B.
29. R-S (If TV mode is available)
The button selects between Air TV and CATV modes.
30. ERASE/ADD (If TV mode is available)
When tuned to a channel, press the button to store or erase the channel from memory. The stored
channel numbers are displayed in green on the screen, and the non-stored channel numbers are in
- 20 -
red. When the SKIP mode is on, the device will be tuned to only the stored channels when using the
UP/DOWN buttons.
31. AUDIO
Press this button. If the current disc has different language options, this now appears on the screen.
Press this button repeatedly until you have reached your desired language option.
32. ANGLE
View with a different camera angle (The button takes effect only on the DVD that supports frames
with multiple angles). Press this button repeatedly until you have reached your desired viewing angle.
33. GOTO
For the DVD, press this button can enter the menu to set the Title/Chapter/Audio/Subtitle/Angle/
Title Time/Chapter Time/Repeat Mode/Time display mode while normal playing.
For the SVCD and VCD, press this button can enter the menu to set the
Track/Disc Time/Track Time/Repeat Mode/Time display mode while normal playing.
34. DISPLAY
Show information on the screen including title, chapter/track, time elapsed, and time remaining,
or turn off the display.
35. PROGRAM
Edit a playback program containing desired titles in the DVD or tracks in the CD-DA.
36. RANDOM
Play titles randomly.
37. 3D
Press this button to setting of audio effect for the following audio options.
DVD mode: Off, Rock, Pop, Live, Dance, Techno, Classic, and Soft.
CD mode: Off, Concert, Living Room, Hall, Bathroom Cave, Arena, and Church.
- 21 -
38. PBC (Video CD only)
Turn the PBC (Play Back Control) on or off.
39. ZOOM
Enlarge the picture in the movie by 2x, 3x, and 4x, or
Shrink the picture in the movie by 1/2x, 1/3x, and 1/4x.
40. NEXT
When a disc has more than one Chapter, Track, or File, you can move to another Chapter/Track/File.
Press the button briefly during play to select the next Chapter for DVD-video or Track/File for VCD,
SVCD, MP3, CD, etc.
41. PREV
When a disc has more than one Chapter, Track, or File, you can move to another Chapter/Track/File.
Press this button briefly during play to step back to the previous Chapter for DVD-video or Track/
File for VCD, SVCD, MP3, CD, etc.
Note:
The remote control incorporate an infrared sensor which relays signals from the remote control to be
controlled simply by pointing its remote control at the remote sensor eye. This provides control of
auxiliary equipment such as an video DVD player. The infrared sensor can relay signals from any
manufacturer’s remote control to its respective component connected to the AUX input, such as a
DVD player. In this case you must use the remote control supplied with the device.
- 22 -
General Operating Instructions
Turning the Device ON or OFF
1. Pivot the screen downward until a comfortable viewing angle is reached.
2. Pressing the POWER button on the lower-left corner of the front panel or the remote control will
turn the device on or off. When in use, the controls will be lit.
3. After the device has been turned on and is displaying a picture, adjust the viewing angle by pivoting
the screen to optimize the picture quality.
4. Remember to turn the device off and pivot the LCD panel to the licked position when not in use.
Channel Tuning Setup (If TV mode is available)
In order to easily access all available TV channels, it may be necessary to perform channel auto-
programming whenever the vehicle’s geographic location has changed i.e. city to city, weak signal area.
1. Press the AUTO MEMORY button on the remote control unit or the AUTO PROGRAM button on
the drop-down video unit. You will see the TV cycling through all its channels. The built-in
microprocessor will automatically note each channel that is actively broadcasting in your area.
2. (A) To tune only strong clear channels with the channel UP/DOWN buttons, press the SKIP/
SEARCH buttons on the remote control unit until “SKIP MODE ON” is displayed on the bottom of
the screen. The TV will now tune only to strong active channels when the UP or DOWN buttons are
used on the monitor or remote control.
3. (B) To tune weak or marginal channels with the channel UP/DOWN buttons, press the SKIP/
the screen. Tune to the desired channel using the UP or DOWN buttons or go directly to the channel
by using the 0-9 buttons on the remote control.
4. To erase a channel, press the ERASE/WRITE buttons on the remote control unit until “MANUAL
MEMORY XX ERASE” is displayed on screen. To store a channel, press the buttons until the “
MANUAL MEMORY XX ADD” is displayed on screen.
- 23 -
DVD Basic
To get the most use out of each DVD, make sure you read this section completely.
Regional Coding
Both the DVD player and disc are coded by region. These regional codes must match in order for the
disc to play. If the codes do not match, the disc will not play. The system’s code may be region 1. Other
regional may not be played in this system.
Type of Discs your DVD will Play
DVD-Video: DVD contains video.
CD-DA: CD contains musical or sound content only.
CD-Video: CD contains movie only.
CD-R/RW: A disc that contains audio files (for example, a CD-R with downloaded MP3 files), MPEG,
or JPEG files.
Loading and Playing Discs
Before you load a disc, make sure that it is compatible with the player. Note that the following discs
CAN NOT be used with this player:
Optical disc- CD-1, CD-ROM, and DVD-ROM
Mini disc- CDG (audio only, not graphics)
To Load and Play a Disc
When you press the POWER button the system on and in DVD mode. Put the disc’s printed-side facing
rear of vehicle into the disc compartment about halfway into the slot. The disc will loaded automatically
and begin to play .
(Some discs may start at the root menu, where play must be selected to start movie.)
Depending on the disk and playback location on the disc, the icon may be displayed in the upper-left
corner of the screen indicating that still playback is not possible.
- 24 -
Notes on Discs
• To keep a disc clean, do not touch its surface. Handle the disc by its edge.
• Keep your discs in their cases or disc magazines when not in use. Also, do not subject disc to heat/high
temperature. Avoid leaving them in a parked vehicle or on a dashboard/rear tray.
• Do not attach labels, or use discs with sticky ink/residue. Such discs may stop spinning when used,
causing a malfunction, or may ruin the disc.
• Do not use any discs with labels or stickers attached. The following malfunctions may result from
using such discs:
- Inability to eject a disc (due to a label or sticker peeling off and jamming the eject mechanism).
- Inability to read audio data correctly (e.g., playback skipping, or no playback) due to heat shrinking
of a sticker or label causing a disc to warp.
• Before playing, clean the discs with a commercially available
cleaning cloth. Wipe each disc from the centre out. Do not use
solvents such as benzine, thinner, commercially available
cleaners, or antistatic spray intended for analogue discs.
• Use only normal, round disk. If you insert irregular, non-round,
shaped discs they may jam in the DVD player or not play
properly.
- 25 -
How to use the DVD OSD Menu
This section describes how to set and adjust using the on-screen setup pages included in the OSD Menu.
You can use the OSD menu screen to adjust all the settings on your screen. Follow the steps outlined
below to select the function you desire, and refer to the pages indicated for more information.
Using the Setup Menu
Using the setup display that you can do the initial setup, adjust the picture quality, and set the various
output. You can also set a language for the on-screen display, the setup display, and limit playback by
children.
(1) Press the SETUP button on the remote control will bring up the following Setup Menu on screen.
(2) Press the or buttons to select the desired page on screen, choose functions or change settings.
To Cancel using the Setup Display
Press the SETUP button on the remote control.
- 26 -
General Setup Page
Setting the Language for On-Screen Display
Press the SETUP button on the remote control, use the buttons to navigating to General Setup
Page, then use the buttons to select OSD Lang sub-menu.
OSD (On Screen Display) Language Menu
The OSD Lang sub-menu allows the user to select the language for the on-screen display. Press the
button and then use the buttons on the remote control to select the desired language. The user can
select either English, French, or Spanish for the OSD language.
Setting for Display
Press the SETUP button on the remote control, use buttons navigating to General Setup Page, and
then use the button to select TV Display sub-menu. The setup allows you to adjust the screen setting
(aspect ratio). Press the and then use the buttons to select the appropriate setting. The options
are as follows:
Normal/PS (Pan and Scan)
This displays the wide picture on the screen with a portion of the
left and right sides removed.
Normal/LB (Letter-Box)
This displays the wide picture with black bands on the upper
and lower portions of the screen.
Wide (16:9)
This option is choose if the LCD panel is of wide screen.
Then press the ENTER button on the remote control to
confirm the screen.
- 27 -
Preference Page
Default Setting
Press the SETUP button, and use the and buttons on the remote control to navigate to the Default
sub-menu under Preference Page. The default setup allows you to reset all options to factory defaults.
Press the button and then press ENTER button to carry out the reset. Note: This function will not effect
the parental setting.
Setting for Parental (Parental Control) (Accessible only when no disc is loaded)
This section of the Setup Menu allows user to control the content of movie playback from G to ADULT.
The parental control function allows you to limit viewing to your preference.
1. After navigating to the Parental sub-menu under the Preference Page, use the and buttons on
the remote control to select: KID SAF (Children); G; PG; PG 13; PGR; R; NC 17; ADULT.
Note: The lower the value, the more strict the limitation.
2. Press the ENTER button on the remote control to confirm the selection.
3. Input a password in 6 digits using the numeric buttons and then press the ENTER button on the
remote control. Note: The default password is 136900.
Note: If a disc is inserted into the DVD Compartment Slot and
exceeds the Parental Setting, the following message
appears on the screen:
The Parental Settings of this player prohibits play.
Would you like to allow this disc to play?
If you select yes, the password must be entered for the
disc to play. If wrong password is entered, the following
message appears on the screen:
This movie will not play due to the Parental Settings of the player.
- 28 -
Password Setup Page
Setting for Password (Parental Control Password)
Press the SETUP button and navigate to the Password submenu
under the Password Setup Page. The menu appears and allows
you to change the parental control password. Press the button
and then press the ENTER button on the remote control to
entering the sub-menu.
Old Password
Input the old password or the default password (4 digits).
New Password
Input a new password (4 digits) using numeric buttons.
Confirm PWD
Confirm the new password by entering the same new
password again.
Then scroll to the OK button and press the ENTER button
on the remote control. Your password has been changed.
Note: The default password is 0000
- 29 -
Playing Audio CD
When playing an audio CD, the DISPLAY banner appears automatically. It displays the current track
and the amount of the time that track playing, the total amount of time on the disc and the current time
running on the disc. Press the DISPLAY button on the remote control to display the DISPLAY banner.
The options below show you what happens when you press the DISPLAY button.
Press DISPLAY (1x)
“Single Elapsed” appears along with the current track playing and the time of that track.
Press DISPLAY (2x)
“Single Remain” appears along with the current track playing and the amount of time left.
Press DISPLAY (3x)
“Total Elapsed” appears along with the current track playing and the total time playing on CD.
Press DISPLAY (4x)
“Total Remain” appears along with the current track playing and the amount of time left on CD.
Using the REPEAT Feature
The default mode for the REPEAT feature is OFF. Pressing REPEAT button on the remote control
consecutively changes the REPEAT options as follows:
• Track - repeat the track that is playing.
• All - repeat the disc that is playing.
As you toggle through the options, the REPEAT option changes that
time. The track repeats once that track has ended. The selected
repeat option loops repeatedly until you turn it off.
- 30 -
Playing MP3 Discs
MP3 is the format for storing digital audio. An audio CD-quality song can be compressed into the MP3
format with very little loss of quality, while talking up much less space. CD-R discs that have been
encoded in MP3 format can be played on your DVD player. Press the DISPLAY button on the remote
control to show DISPLAY Banner. The options below show you what happens when you press the
DISPLAY button.
• Press DISPLAY (1x) “TIME REMAIN”
Appears along with the amount of time left in the song that is
playing. “TIME REMAIN” and the time that is left remain
on-screen until you press DISPLAY button again.
• Press DISPLAY (2x) “TIME ELAPSED”
Appears along with the amount of time the song that is played.
“TIME ELAPSED” and the elapsed time will remain on-
screen until you press DISPLAY button again.
• Press DISPLAY (3x) “OFF”
Appears screen along with the amount of time the song that is played. The time remains on-screen until
you press DISPLAY button again to see the time left in the song that is playing.
Selecting Folders and Songs
When an MP3 disc is inserted in the player, the navigation screen appears automatically. You can change
folders and songs by navigating the file system. The DVD player plays the songs in the order they were
burned to the disc.
1. If a disc is playing, press the STOP button on the remote control, and then press the UP or DOWN
arrow buttons to go through the folder list on the left side of the navigation screen.
2. Once the folder you want is highlighted, press the ENTER button on the remote control (the folder list
- 31 -
shift to left side of the screen and the song s in the folder appear on the right).
3. Press the UP or DOWN arrow button on the remote control to go through the song list and highlight
the song you want. Press the ENTER button to begin the playback of the highlighted song.
Skipping Songs
Use the (NEXT) button on the remote control to move to the next song. Use the (PREV)
button to move to the beginning of the currently playing song. Press the button 2 times to move to
the previous song.
Selecting a Play Mode
You can choose what order the songs will play on a disc temporarily. The FOLDER play mode is the
default. To access the play mode operations, press the REPEAT button on the remote control. The play
mode options are as follows:
• Single: Play a selected song.
• Repeat One: Repeat the song that is playing.
• Folder: Play the folder in the order the songs were recorded.
• Folder Repeat: Repeat the folder that is playing.
• Disc: Play the entire disc.
• Disc Repeat: Repeat the disc that is playing.
• Random: Play the songs in the random order.
• Shuffle: Play the songs in random order (within the selected folder).
- 32 -
How to use the Device OSD Menu
Picture Adjustment
This section describes how to set and adjust using the on-screen in the
device OSD Menu. You can use the device OSD menu screen to
adjust advanced picture selections on your screen.
• Press the PIX button by continuously hitting on the remote
control to select the BRIGHTNESS, CONTRAST, SATURATION,
HUE, SHARPNESS, IR HEADPHONE, RESET options to adjust
value and setting.
• After selecting the desired option, and use the or buttons to
adjust the setting.
Default
Option Description Range
7-inch 8-inch
Brightness Adjust to brighten or darken the picture. 0-100 47 50
Contrast Adjust to increase or decrease picture contrast. 0-100 44 51
Saturation Adjust to increase or decrease color intensity. 0-100 50 55
Hue Adjust to increase or decrease the green tones. 0-100 50 50
Sharpness Adjust to sharpen or soften the picture. 0-100 38 38
IR Headphone Select to turn on or off IR headphone function. ON or OFF ON
Reset Resets the current settings to default values.
- 33 -
Technical Specification
Dimensions 204.90(W)x160.18(H)x57.62(D) mm
Weight 1.26Kg
Operation <16W (max.)
Power Consumption Standby <1.5W (max.)
LCD Backlight LED
Resolution 480x3(RGB)x234 for 7-inch TFT LCD Panel
Luminance 400cd/m2 (min.)
DVD Slim Type Slot-In Loader
Supported Disc DVD (Single, Dual Layer), DVD-R/+R, DVD+R Dual layer,
DVD-RW/+RW, CD, CD-R, CD-RW
Supported Format DVD-Video Navigation Ver1.0, VCD Ver1.0/2.0, SVCD,
CD-DA, Data (MP3, WMA, JPEG, MPEG 1/2/4, Divx)
Source Internal DVD, CD, USB Flash Memory (USB play MP3,
JPEG only)
Operation Temperature/Humidity 0°C~60°C/20~90% RH
Storage Temperature/Humidity -20°C~70°C/5~95% RH
Expected Backlight Lifetime 10,000 hours
Video Display System NTSC/PAL
Supply Input Voltage 10V~16V DC
Maximum Input Current 1.3A Vin= 10V DC
- 34 -
Frequency Response 20Hz~20KHz ± 1dB
Signal/Noise Ratio ≥ 85dB
Audio Distortion ≤ 0.02
Acoustic Noise 40dB
Control Button on the Front Panel POWER/SOURCE, STOP/LEFT, UP, SETUP/ENTER,
PLAY/PAUSE/RIGHT, EJECT, and DOWN
I/O Ports USB 1.1 Port, 1/8” AV Out Jack, 1/8” Headphone Jack,
AV In RCA Jacks
Audio Out (analog audio) Output Level: 2V ± 10%
Load Impedance (Audio Out) 10KΩ
Video Out Output Level 1Vp-p ± 20%
Load Impedance (Video Out) 75Ω
FM Reception 6 odd channels (Software Command Control to Control Box)
Wireless Audio Dual channel infrared audio transmitter, Support IR receiver
stereo headphone (reception: 0.9 m; 80°, 1.8 m; 50°)
- 35 -
Troubleshooting
If it appears that the device is faulty, first consult this checklist. It may be that something has been
overlooked.
Symptom Remedy
Device does not power “
ON”
• Check if both plugs of the main cord are properly connected.
• Is ignition turned “ON”?
• Are batteries installed in remote control?
IR sensor inoperative
• Verify that the batteries in the remote control are fresh.
• Verify that the remote sensor eye is not obstructed.
• Verify that the infrared transmitter is affixed over the sensor eye of the
component to be controlled.
Poor in vehicle radio
reception (FM modulator
installed)
• Check the condition of the vehicle’s radio antenna.
• Verify that the antenna is fully raised.
• If a wired RF modulator has been installed, verify that it is turned on by
using remote.
Disc won’t play
• Insert a disc with label side rear of the vehicle.
• Check if the disc id defective by trying another disc.
• Check the type of disc you put into DVD compartment slot. This DVD
player only plays DVDs, audio CDs, and MP3s.
• Both the device and the disc are coded by region. If the regional codes
don’t match, the disc can’t be played. The DVD play is region number 1.
Play starts, but then stops
immediately • The disc is dirty and then cleaning it.
• Condensation has formed. Allow player to dry out.
- 36 -
No picture
• Check that the signal source is connected.
• Check that the setting may be in the wrong status. Match your source
selected correctly.
• Contact the service department.
Distorted picture
• Check the disc for fingerprints and clean with a soft cloth, wiping from
center to edge.
• Sometimes a small amount of picture distortion may appear. This is not a
malfunction.
Cannot advance through a
movie
• You cannot advance through the opening credits and warning information
that appears at the beginning of movies because the disc is programmed
to prohibit that action.
No sound or distorted
sound
• Make sure that the DVD player is connected properly, and all cables are
securely inserted into the appropriate jacks.
• If you are using the IR headphones, make sure you turn on the IR power.
• Make sure the FM modulator is on and the proper frequency has been
selected.
• Is volume turned “UP” on headphones?
• Is anything blocking signal between monitor and headphones?
Player does not respond to
all operating commands
during playback
• Operations are not permitted by the disc.
• Refer to the instructions in the disc inlay.
Device feels warm • When the device is in use for a long period of time, the surface will
heated. This is normal.
- 37 -
FCC Notice
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This device generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause unacceptable interference to radio or television reception, which can
be determined by turning the device off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the device and receiver;
• Connect the device into an outlet on a circuit different from that to which the receiver is connected;
• Consult your dealer or an experienced radio/TV technician for help.
FCC Warning:
To assure continued FCC compliance, then user must use the provided grounded power supply cord and
the shielded video interface cable with bonded ferrite cores. Also, any unauthorized change or
modifications to this devise would void the user’s authority to operate this device.
- 38 -
WEEE Notice
Disposal of Old Electrical & Electronic Equipment (Applicable in the European Union and other
European countries with separate collection systems).
This symbol on the product or on its packaging indicates that device shall not be treated as household
waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and
electronic equipment. By ensuring this device is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this device.
The recycling of materials will help to conserve natural resources. For more detailed information about
recycling of this device, please contact your local city office, your household waste disposal service or the
shop where you purchased the device.
Applicable accessory: remote control.
