Socket Mobile BM56S Socket Bluetooth 56K Modem User Manual BM56Smnl
Socket Mobile, Inc. Socket Bluetooth 56K Modem BM56Smnl
Manual revised
M73-APO02-550
Socket Bluetooth 56K Modem
User’s Guide
BM56S
Declaration of conformity
This equipment conforms to the Directive 1995/5/EC (R&TTE Directive)
and is qualified for bearing the CE Marking.
Standard:
EN301 489-17 ,
EN301-489-1,
EN300382-1,
EN300382-2,
EN60950
Important Safety Instructions
Before using your telephone equipment, basic safety precautions should
always be followed to reduce the risk of fire, electric shock and injury to
persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the telephone jack and the power outlet before
cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for
cleaning.
4. Do not use this product near water, such as near a bathtub, sink, laundry
tub, in a wet basement, or near a swimming pool.
5. Do not place this product on an unstable cart, stand, or table. Serious
damage may result if the product falls.
6. Slots or openings in the cabinet and the back and bottom are provided
for ventilation to protect the phone from overheating. These openings
must not be blocked or covered. The product should never be placed
near or over a radiator or heat register.
7. This product should be operated only from the type of power source
indicated on the marking label.
8. Do not allow anything to rest on the power cord. Do not locate this
product where the cord will be abused by persons walking on it. Do not
attach the power cord to building surfaces.
9. do not overload wall outlets and extension cords as this can result in the
risk of fire or electric shock.
10. never push any objects into this product through cabinet slots as they
may touch dangerous voltage points or short out parts that could result in
a fire or electric shock. Never spill liquid of any kind on the product.
11. if this product does not operate normally, see the “In Case of Difficulty”
section in this owner’s manual. If you cannot resolve the problem, or if
the product is damaged, refer to the “Umited Warranty” section of this
owner’s manual. Opening the product or reassembling it incorrectly may
expose you to dangerous voltages or other risks, and will void the
warranty.
12. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions: (a) When the power
supply cord or plug is damaged or frayed. (b) if liquid has been spilled
into the product. (c) If the product has been exposed to rain or water. (d)
If the product does not operate normally by following the operating
instructions. Adjust only thoser controls that are covered by the
operating instructions. (e) If the product has been dropped or the cabinet
has been damaged. (f) If the product exhibits a distinct change in
performance.
13. Avoid using a telephone during an electrical storm. There may be a
remote risk of electric shock and/or hearing damage from lightning.
14. Do not use the telephone near a gas leak even to report the leak.
FCC Warning
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate the
equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
The users manual or instruction manual for an intentional or unintentional
radiator shall caution the user that changes or modifications not expressly
approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to
which the receiver is needed.
o Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
1. The equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2).
2. This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter
Basic Information
Features
§ Plug & Play
§ DTE rate up to 115,200bps
§ CE, R&TTE approval
§ V.92 Hardware Ready
§ Wireless connection via BluetoothTM radio
transmission between PC host and modem.
§ Complies with Bluetooth SIG specification Rev.
1.0
§ Uses 2.4 GHz ISM frequency band
§ High-speed wireless transmissions, up to 721
Kbps data throughput
§ Connections within ranges up to 32 feet (10
meters)
§ PSTN Telephone Line interface through RJ-11
Requirements
• An analog telephone line with RJ-11 jack
• System with Bluetooth utility and Bluetooth
module pre-installed.
LEDs on the Front Panel
LED Indicators Status
Charger LED Green (Full), Amber (Charge)
Power LED Power ON(Green Flash),
Battery low(Red Flash)
BT LED Blue(Flash),radio side being
present and operating
Off Hook LED Green (ON) off hook
INSTALLATION
In Windows 98/ME/2000
Before you start
1.Make sure your computer, namely PC, notebook
or PDA has Bluetooth utility and hardware
device well-installed. (This is can be checked by
the existence of a Bluetooth icon on the
bottom right corner of your screen)
2.If you are using Windows 98, have Windows 98
CD on hand as the installation program may
require the original CD while installing.
Getting Started
1. Connect a telephone line to the Line port of the
Bluetooth 56K Modem.
2. Power on the Bluetooth 56K Modem.

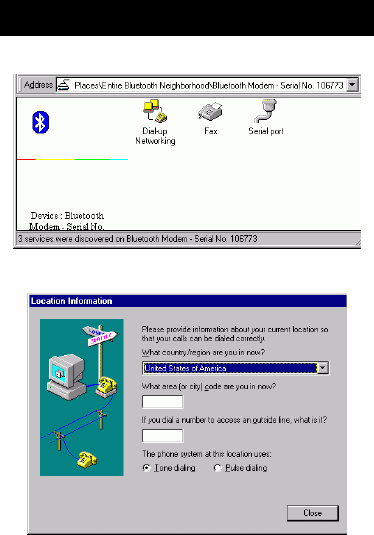

3. Open “My Bluetooth Places” which should be
present on your desk.
4. Click Entire Bluetooth Neighborhood to
search the Bluetooth 56K Modem..
5. The Bluetooth 56K Modem shall be found if
this computer has used the Bluetooth service.
6. Double-click Bluetooth Modem.

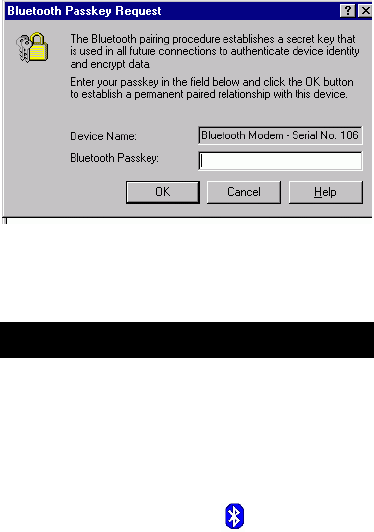

7. Note the Bluetooth icon on the bottom
right of your desktop will blink. Double click
to open the following dialog box. Enter
your Passkey. Your Passkey is written on the
bottom label of the Bluetooth 56K Modem.
Turn over the Modem to find the Passkey. The
Passkey is composed by 12 numbers and is a
unique one.
8. Available Bluetooth services will appear.
In Windows XP
Before you start
Make sure your computer, namely PC, notebook
or PDA has Bluetooth utility and hardware device
well-installed. (This can be checked by the
existence of a Bluetooth icon on the bottom
right corner.)
Getting started
1. Connect a telephone line to the Line port of
the Bluetooth 56K Modem.
2. Power on the Bluetooth 56K Modem.
3. Open “My Bluetooth Places” which should
be present on your desk.
4. Select Add Bluetooth Place. Windows
will automatically start searching Bluetooth
devices.
5. Once Bluetooth Modem is found, click
Next to continue.
6. Windows will start searching the available
Bluetooth services. When the bottom right
message appears, enter your Passkey. Your
Passkey is written on the bottom of the
Bluetooth 56K Modem. Turn over the Modem
to find the Passkey label. The Passkey is
composed by 12 numbers and is unique.
7. Click Finish.
8. Available Bluetooth services will appear.
Internet Access
In Windows 98/ME

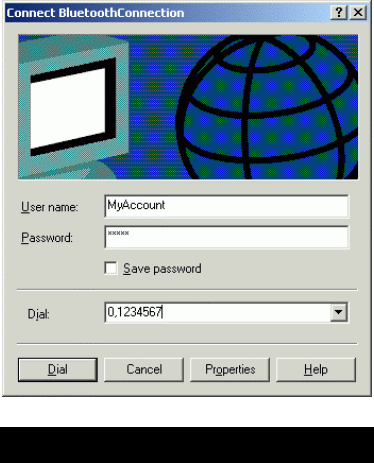

1. Double click Dial-up Networking.
2. Enter the Location Information.
3. Enter the information needed for Internet
access.
4. Click Connect. You will be on the net once
connected.
In Windows 2000
1. Double click Dial-up Networking.
2. Enter the information needed for Internet
access.
3. Click Connect. You will be on the net once
connected.

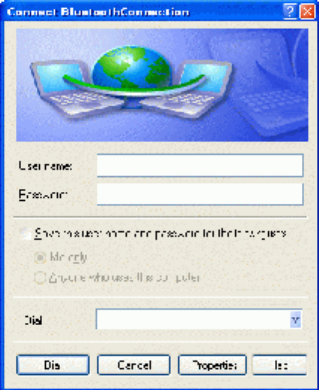

In Windows XP
1. Double click Bluetooth Modem.
2. Enter the information needed for Internet
access.
3. Click Dial. You will be on the net once
connected.
