Socket Mobile BTC-1 Spread Spectrum Connection Kit User Manual BT ug 171C

Socket Mobile, Inc. Spread Spectrum Connection Kit BT ug 171C

Contents

Users Guide

Bluetooth™ Connection Kit
Featuring the Socket Bluetooth Card™ and
Windows CE software for adding Bluetooth wireless
connectivity to the following mobile computers:
• Pocket PCs
• Pocket PC 2002s
• Handheld PC 2000s
• Handheld PC Pros
User’s Guide
How this Manual is Organized
This manual is designed to help you install and use the Socket Bluetooth
Connection Kit.
Chapter 1, Introduction, describes key features of the Bluetooth
Connection Kit and identifies package contents.
Chapter 2, Basic Setup, explains the minimum steps you need to complete
to install and use the Bluetooth Card.
Chapter 3, Advanced Features, shows additional steps you may choose to
perform while installing and/or operating the Bluetooth Card.
These optional steps include: setting up your Bluetooth Card, viewing

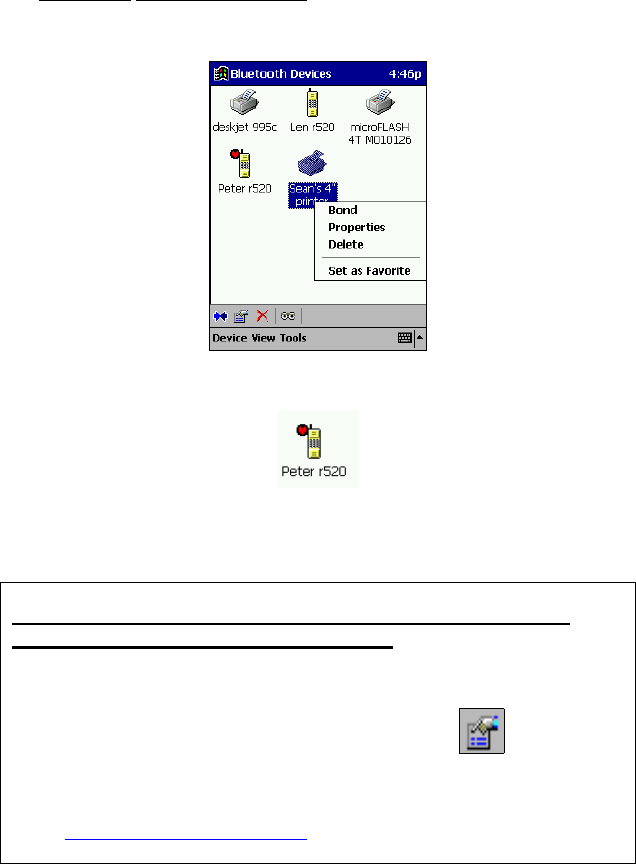

device properties, setting up your favorite device, using the Bluetooth

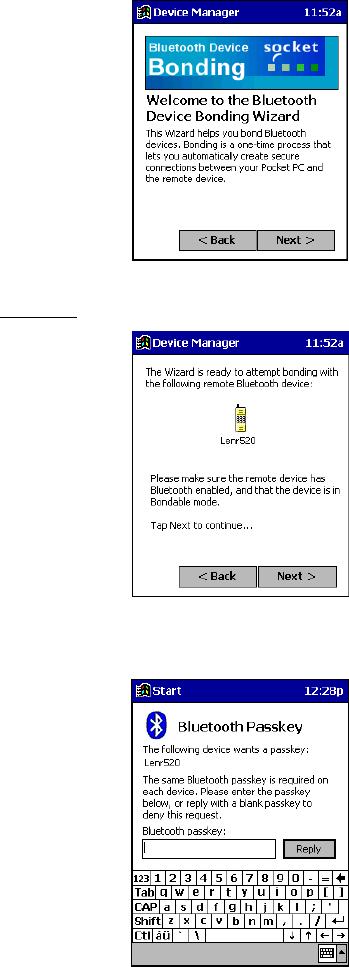

Device Discovery Wizard, using the Bluetooth Device Bonding Wizard,

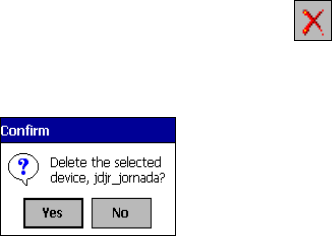

changing views, and deleting an item from the Bluetooth Devices manager.
Chapter 4, The Socket Dialer, explains how to install the Socket Dialer,
assign a dialing prefix, and use the program to dial a number directly from
your Contacts folder.
Chapter 5, Printing, explains how to print using the PrintPocketCE program
included on the Bluetooth Connection Kit Installation CD.
Appendix A, Specifications, provides technical specifications for the
Bluetooth Card.
Appendix B, Safety and Usage Tips, lists guidelines you should follow to
use the Bluetooth Card safely and efficiently, including information about
product care, antenna care, use while driving or in an aircraft, and radio
frequency exposure.
Appendix C, Troubleshooting, gives advice for fixing the most common
problems you may encounter using the Bluetooth Card.
Appendix D, Technical Support, explains Socket’s technical support
policy for the Bluetooth Card.
TABLE OF CONTENTS | 3
Table of Contents
CHAPTER 1 INTRODUCTION 4
Overview 4
Contents of the Connection Kit 5
Installation Steps Summary 6
CHAPTER 2 BASIC SETUP 7
STEP 1: Install the Software 7
STEP 2: Insert the Card 10
STEP 3: Get Connected! 11

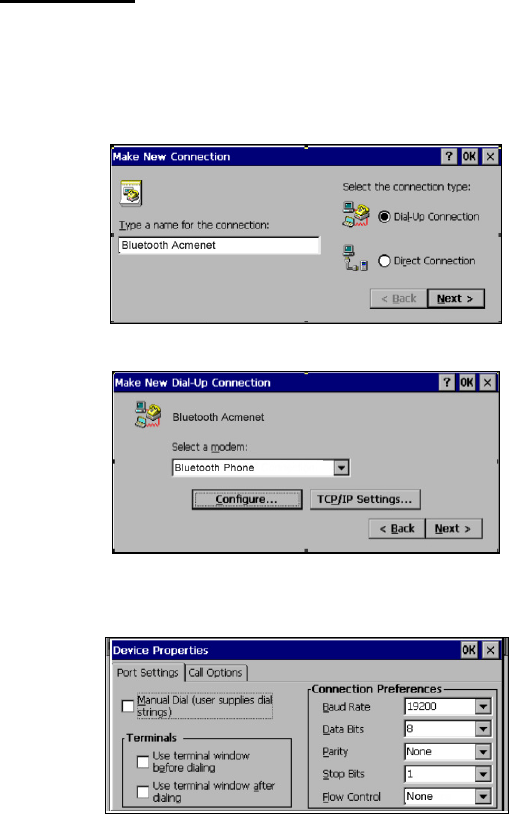

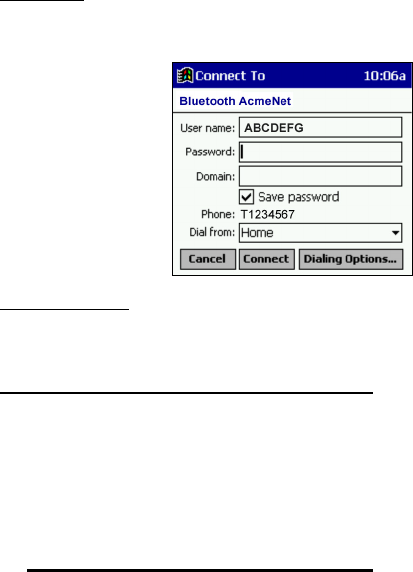

STEP 4: Dial-up Networking 15
CHAPTER 3 ADVANCED FEATURES 19

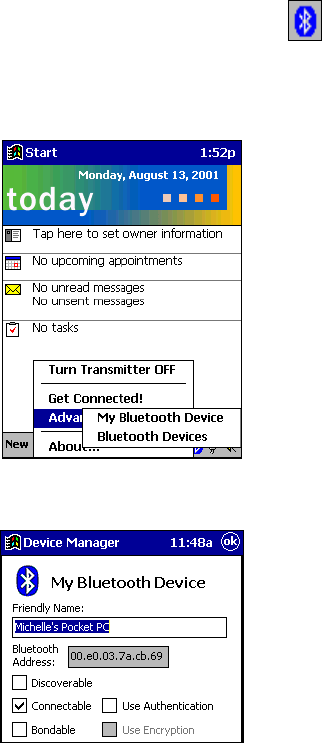

Turn Radio Transmitter ON/OFF 20
Set up Your Bluetooth Card 21
View Device Properties 22
Set up Your Favorite Device 23
Discover Bluetooth Device(s) 24
Bond with Discovered Device(s) 25
CHAPTER 4 THE SOCKET DIALER 29
Assign a Dialing Prefix 29
Use the Socket Dialer 30

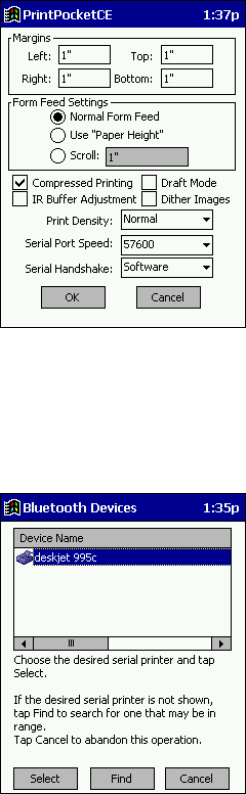

CHAPTER 5 PRINTING 32
APPENDIX A SPECIFICATIONS 35
APPENDIX B SAFETY AND USAGE TIPS 36
APPENDIX C TROUBLESHOOTING 38
APPENDIX D TECHNICAL SUPPORT 40
LIMITED WARRANTY 41
LIMITED SOFTWARE WARRANTY 42
COPYRIGHT NOTICE 43
REGULATORY COMPLIANCE 44
4 | CHAPTER 1: INTRODUCTION
Chapter 1 Introduction
Overview
The Socket Bluetooth Connection Kit makes it easy to add Bluetooth
wireless connectivity to a Windows Powered Pocket PC (including Pocket
PC 2002s) or a Windows CE-based HPC 2000 or Handheld PC Pro. It’s
perfect for connecting any of these mobile computers wirelessly to your
favorite Bluetooth phone or printer.
The Bluetooth Card is the only plug-in card to
incorporate all Bluetooth components within the
CompactFlash Type I form factor. With a
CompactFlash-to-PC Card adapter, the Bluetooth Card
also works in a PC Card (PCMCIA) slot.
You can purchase adapters separately online at:
www.esend.com/socket/product.asp?sku=AC4000%2
D978
The Bluetooth Connection Kit includes a Bluetooth Card and Bluetooth
software, including drivers, the Get Connected! Wizard, the Bluetooth
Devices manager, and the Socket Dialer.
For quickly connecting your mobile computer to a Bluetooth phone, use the
Get Connected! Wizard. To connect to a non-phone device, use the
advanced features found in the Bluetooth Devices manager. After
connecting to a Bluetooth phone, you can use the Socket Dialer to directly
dial a number from your Contacts list.
This User’s Guide explains how to install and use the Bluetooth Card.
This guide primarily shows Pocket PC screens. Except where otherwise
noted, Pocket PC 2002s, HPC 2000s and Handheld PC Pros will have
functionally equivalent screens.
To register the Bluetooth Connection Kit, please visit:
http://www.socketcom.com/product/prodreg.htm
For software updates, please check: www.socketcom.com
CHAPTER 1: INTRODUCTION | 5

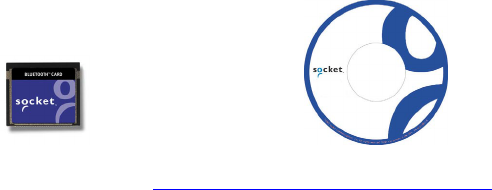

Contents of the Connection Kit
The Socket Bluetooth Connection Kit includes these items:
• A Socket Bluetooth Card (CompactFlash card Type I)
• The Socket Bluetooth Connection Kit Installation CD
• The Quick Start Guide for Bluetooth Connection Kit
• A registration card
To register the kit online, visit: www.socketcom.com/product/prodreg.htm
6 | CHAPTER 1: INTRODUCTION
Installation Steps Summary
The most basic installation and operation of the Bluetooth Card can be
completed in only four steps. There are also several advanced features you
can choose to perform, as well as the Socket Dialer program you may want
to install and use.
BASIC SETUP AND USE
STEP 1: Install the software.
STEP 2: Insert the Bluetooth Card into your mobile computer.
STEP 3: Get Connected!
STEP 4: Set up dial-up networking.
OPTIONAL: ADVANCED FEATURES
• Set up your Bluetooth Card.
• Use the Bluetooth Devices manager.
- View device properties.
- Set up your favorite device.
- Discover other Bluetooth device(s).
- Bond with another Bluetooth device.

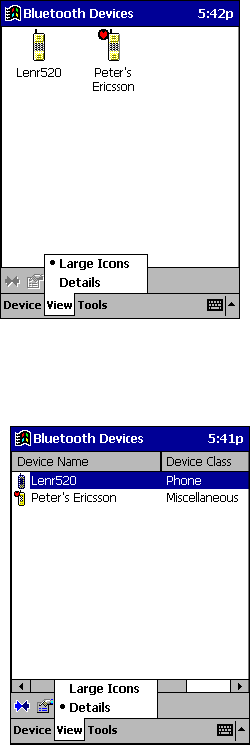

- Change views.
- Delete a device from your folder.
OPTIONAL: SOCKET DIALER
• Assign a dialing prefix.
• Dial a contact.
Note: There are some important safety and usage guidelines you should
read before operating the Bluetooth Card. Please refer to Appendix B,
“Safety and Usage Tips.”
CHAPTER 2: BASIC SETUP | 7
Chapter 2 Basic Setup
This chapter covers the minimum steps you must complete to install and
operate the Bluetooth Card. The four steps detailed in this chapter include
installing software, inserting the card, getting connected, and setting up dial-
up networking.
STEP 1: Install the Software
Follow these steps BEFORE inserting the Bluetooth Card:

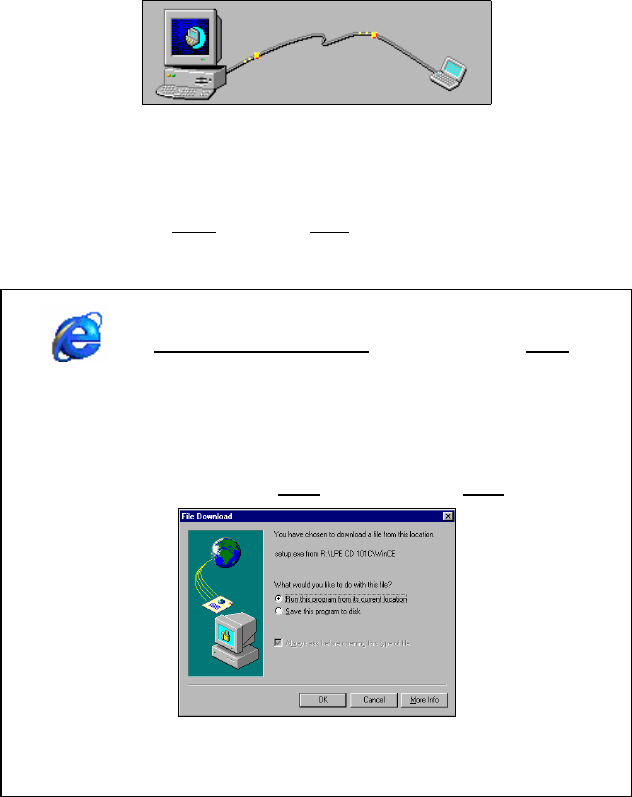

1. Make an active partnership between the mobile computer and a host PC.
An active partnership exists if data can be moved between the mobile
computer and the host PC via a serial/USB/Ethernet cable or cradle.
2. Insert the Socket Bluetooth Card Installation CD into the host PC.
3. Run the SETUP.HTM or SETUP.EXE file on the CD-ROM, depending
on what web browser your host PC uses by default.
IF YOUR DEFAULT WEB BROWSER IS
INTERNET EXPLORER, run the SETUP.HTM file:
(a) Click Start | Run on the host PC. Type X:\SETUP.HTM
(Replace X with your CD drive letter.)
(b) In File Download, select the option that lets you run (or open) the file.
IMPORTANT! YOU MUST RUN THE FILE! DO NOT SAVE IT!
File Download screen from Internet Explorer 5.5
(c) A Security Warning screen will appear. Click Yes.
8 | CHAPTER 2: BASIC SETUP

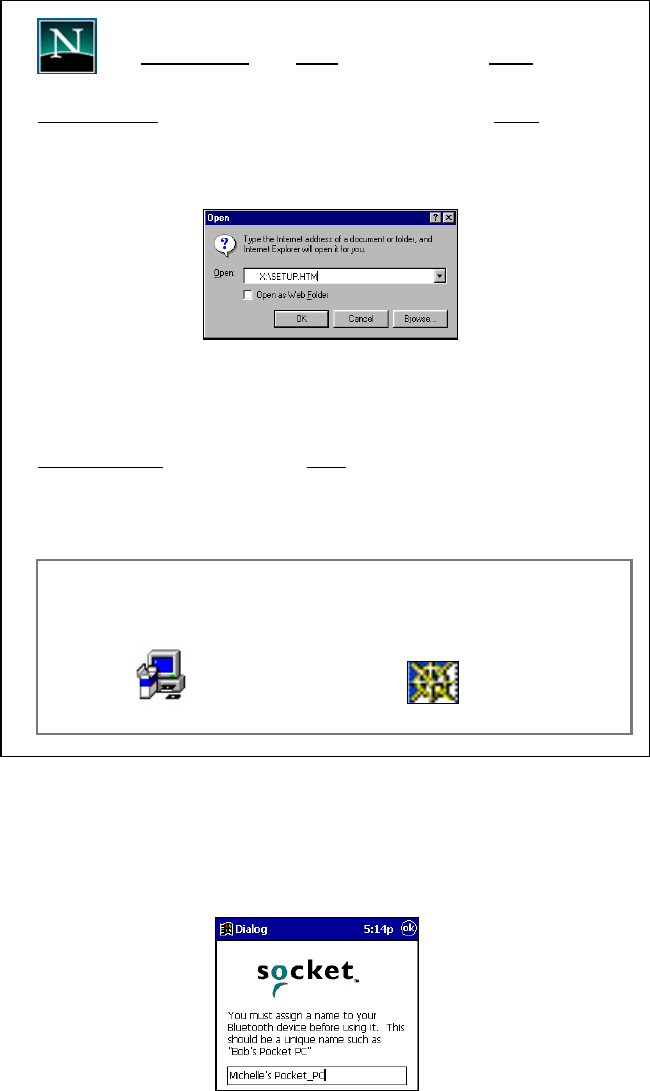

IF YOUR DEFAULT WEB BROWSER IS
NETSCAPE, DO NOT run the SETUP.HTM file on
Netscape. Instead, choose either of two options:
OPTION ONE: Use Internet Explorer to run the SETUP.HTM file.
(a) In the Internet Explorer screen, click File | Open.
(b) In the Open screen, type X:\SETUP.HTM
(Replace X with your CD drive letter.)
Open screen from Internet Explorer 5.5
(c) Proceed with the instructions described on the previous page for
Internet Explorer.
OPTION TWO: Run the SETUP.EXE file.
Click on My Computer or use Windows Explorer to manually browse the
CD to the WinCE (or other appropriate directory) and manually launch
the SETUP.EXE file found there.
Important! Be sure to choose the SETUP.EXE file, NOT the
SETUP.HTM file. The two file types have different icons:
EXE icon HTM icon for Netscape
4. Follow the instructions on the host PC screen until installation is done.
5. After completing setup, your host PC may display an Application
Downloading Complete. Click OK.
6. In the Dialog screen, enter a name for the mobile computer. Tap ok.
CHAPTER 2: BASIC SETUP | 9
7. If desired, install the Socket Dialer. This program lets you dial a
number directly from your Contacts list.
8. Disconnect the mobile computer from the host computer. Soft reset the
mobile computer. Push the reset button, often on the back of the device.
10 | CHAPTER 2: BASIC SETUP

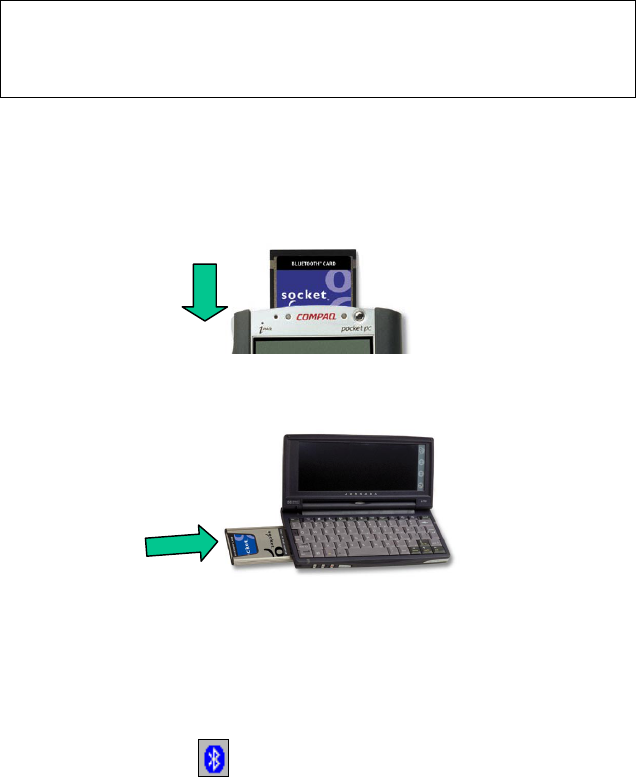

STEP 2: Insert the Card
Important!
Do NOT insert the card upside down or shove the card in too hard.
Damage may occur!
Insert the card into your mobile computer’s slot. If using a PC Card slot,
first insert the Bluetooth Card into a CompactFlash-to-PC Card adapter
(available separately). Make sure the blue label is on top.
When properly inserted, the card unit will be fully contained within the slot.
After the mobile computer recognizes the card, the following will occur:
• You will get a message warning against using Bluetooth on airplanes.
Tap OK.
• The Bluetooth icon will appear in the task tray (visible in the Today
screen for Pocket PCs and Pocket PC 2002s).
Insert the card
directly into a
CompactFlash
I
/O slot…
…or plug the card into
an adapter for use in a
PC Card slot.
CHAPTER 2: BASIC SETUP | 11
STEP 3: Get Connected!
The Get Connected! Wizard guides you through a one-time setup process
that prepares the mobile computer and phone for Bluetooth connections.
The wizard varies depending on what phone you want to connect to.
Ericsson, Nokia, Sony Phones

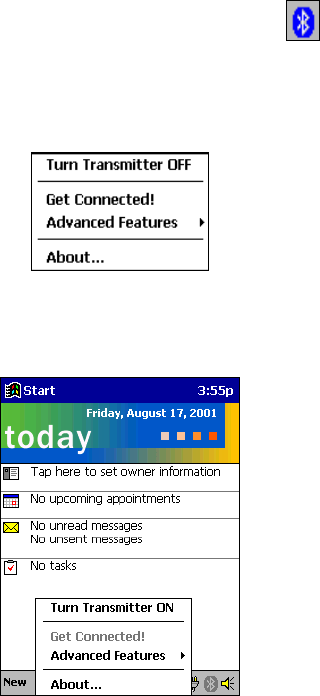

1. Tap on the Bluetooth task tray icon (in the Today screen for Pocket
PCs and Pocket PC 2002s). In the pop-up menu, tap Get Connected!
2. Follow the Bluetooth “Get Connected!” Wizard.
Note: For HPCs, adjust the taskbar to reveal the entire wizard screen.
Go to Start | Settings | Taskbar. Select Auto hide. Tap OK.
3. In the welcome screen, use the drop-down list to select the type of
phone you are using. The wizard will provide tailored instructions based
on your selection.
Note: This example is for a Nokia phone. Your phone may differ.
4. As prompted, find out what kind of passkey system your phone uses.
Important! If your phone has a pre-assigned passkey, have it ready.
(e.g., The passkey of a Nokia phone is on a label in the box and/or on
the battery.)
12 | CHAPTER 2: BASIC SETUP

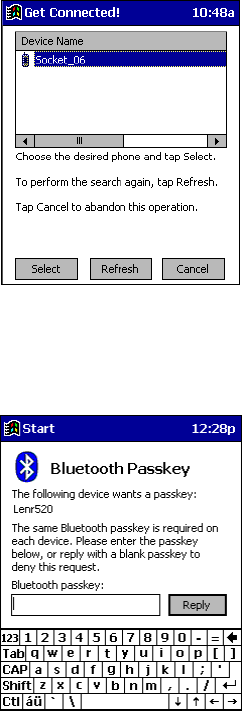

5. When the search is complete, a list of the discovered Bluetooth phones
will appear. Choose the phone you wish to connect to, and tap Select.
A service discovery phase will begin, about 5-10 seconds.
6. As prompted in the next screen, set your phone to “Bondable” or
“Pairable” mode. For instructions, refer to your phone manual.
Have your passkey ready, then tap Next>.
7. In the next screen, enter the passkey. Tap Reply.
Note: Exchanging passkeys allows the phone and mobile computer to set
up an encrypted data link for secure communications.
8. Enter the same passkey into the mobile phone. The mobile phone may
then either automatically accept the passkey or ask for you to enter one.
9. Tap Finish. After successfully connecting, the phone will appear in the
Bluetooth Devices folder. You will not need to run the Get Connected!
Wizard again unless you plan to switch between different phones.
CHAPTER 2: BASIC SETUP | 13

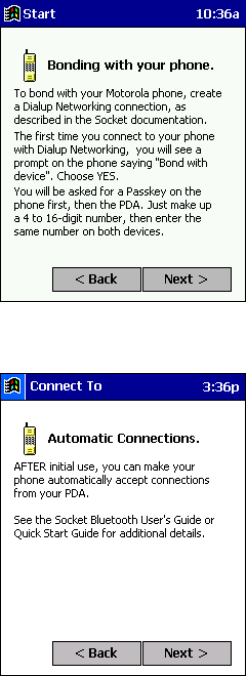

Motorola Timeport 270C

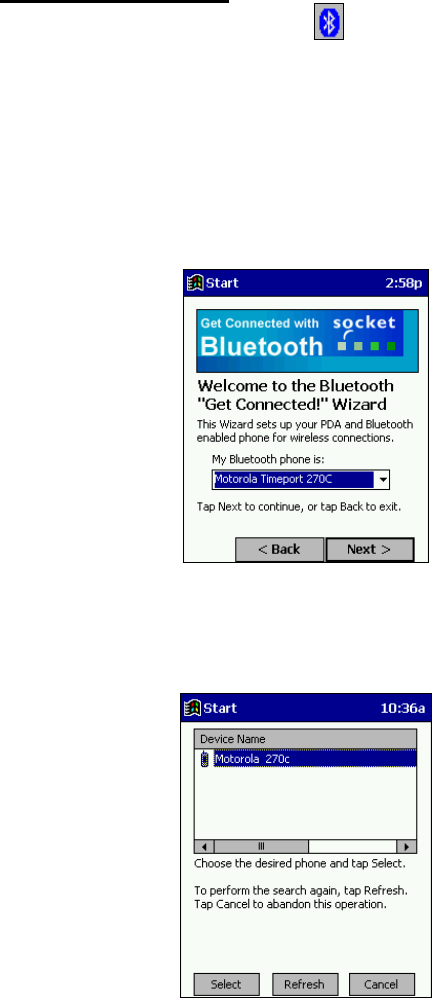

1. Tap on the Bluetooth task tray icon (visible from the Today screen
for Pocket PCs and Pocket PC 2002s). In the pop-up menu, select
Get Connected!
2. Follow the Bluetooth “Get Connected!” Wizard.
Note: For HPCs, adjust the taskbar to reveal the entire wizard screen.
Go to Start | Settings | Taskbar. Select Auto hide. Tap OK.
3. In the welcome screen, use the drop-down list to select the Motorola
Timeport 270C. The wizard will provide tailored instructions for this
phone.
4. As directed in the next two screens, assign the phone a unique name and
set the phone in Discoverable mode. Then tap Next>.
5. The mobile computer will begin to search for the phone. When the
search is over, a list of the discovered Bluetooth phones will appear.
Choose the phone you wish to connect to, and tap Select. A service
discovery phase will begin, about 5-10 seconds.
14 | CHAPTER 2: BASIC SETUP
6. The next two screens describe procedures you can only complete outside
of the wizard. Read through each screen but do not complete the
described procedures until you exit the wizard. Directions for these
procedures are provided in STEP 4: Dial-up Networking, starting on the
next page. The two procedures are:
Bonding with your phone — This must be completed in order to
complete the Bluetooth connection and involves dial-up networking.
Automatic Connections — This procedure is optional but will make
future Bluetooth connections more convenient.
7. Continue to the last screen of the wizard and tap Finish. Now proceed to
STEP 4 to complete the bonding process and, if desired, set up automatic
connections.
CHAPTER 2: BASIC SETUP | 15
STEP 4: Dial-up Networking
Before setting up dial-up networking, prepare yourself with dial-up
information and other necessary settings for your office network or ISP.
Pocket PCs and Pocket PC 2002s
1. Pocket PC — Go to Start | Settings | Connections | Modems. In the next
screen, tap New Connection…
Pocket PC 2002 — Go to Start | Settings | Connections. Tap on the
Connections icon. In the top field, select Internet Settings. Tap Modify…
In the next screen, tap New…

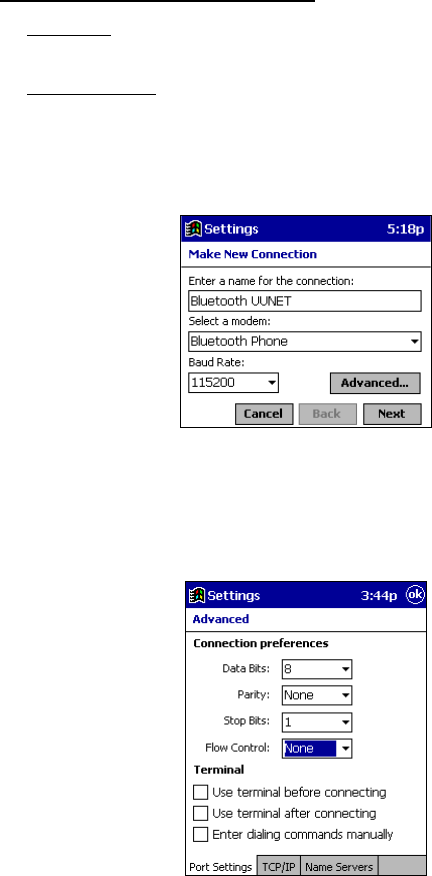

2. In the next screen(s), enter a name for the dial-up connection and select
Bluetooth Phone for the modem. Tap Advanced…
Note: Remember what you name the connection. You will need it when
you start the connection.
3. The Port Settings screen will appear. For Flow Control, select None.
If needed, tap on the TCP/IP and/or Name Servers screens to enter any
necessary settings for your office network or ISP. Tap OK.
4. Tap Next.
5. In the Phone number field, enter the dial-up number. Tap Next.
6. Uncheck Wait for dial tone before dialing. Tap Finish.
16 | CHAPTER 2: BASIC SETUP
7. Now you are ready to start the connection.
Pocket PC — Go to Start | Programs | Connections. Tap on the Bluetooth
connection you just set up. Make sure the correct dialing information is
entered, then tap Connect.
Pocket PC 2002 — When you return to the Connections screen, under
Internet Settings, tap Connect. In the next screen, make sure the correct
dialing information is entered. Tap OK.
8. FOR MOTOROLA TIMEPORT 270C ONLY:
After you tap Connect for the first time, the phone will display a message
asking if you want to bond. Enter YES. Make up a 4-8 digit passkey,
enter it on the phone, then enter it on the mobile computer.
After successfully bonding, you can set up the phone for automatic
connections.
Automatic Connections for Motorola:
• On the phone, press MENU.
• Scroll to Settings, then press SELECT.
• Scroll to Connection, then press ON.
• On Bluetooth Link, press SELECT.
• Scroll to Devices, then press SELECT.
• Choose your mobile computer, then press EDIT.
• Scroll to Access:Ask, then press CHANGE.
• Scroll to Automatic, then press SELECT. Press DONE.
9. To use a different Bluetooth phone for dial-up networking, you can use
the same connection setup, but you must make the new phone your
favorite. Just run the Get Connected! Wizard again, select the new phone,
and make it your new Favorite when prompted. Or you can use the
Bluetooth Devices folder to change your favorite phone (see page 23).
CHAPTER 2: BASIC SETUP | 17
Handheld PCs
1. Go to Start | Programs | Communication | Remote Networking |
Make New Connection.
2. In the next screen, enter a name for the Bluetooth connection.
Select Dial-Up Connection. Tap Next>.
2. Select Bluetooth Phone for the modem. Tap Configure…
3. The Port Settings screen will appear. For Flow Control, select None.
Enter any necessary settings for your office network or ISP.
18 | CHAPTER 2: BASIC SETUP
5. Tap on the Call Options tab. Uncheck Wait for dial tone before dialing.
Tap OK.
6. If needed, tap on TCP/IP to enter any special network settings for your
office network or ISP. Tap OK.
7. Tap Next>.
8. Enter the dial-up number for your office network or ISP. Tap Finish.
9. Now you are ready to start the connection.
Go to Start | Control Panel | Remote Networking. Tap on the Bluetooth
connection you just set up. Make sure the correct dialing information is
entered, then tap Connect.
8. FOR MOTOROLA TIMEPORT 270C ONLY:
After you tap Connect for the first time, the phone will display a message
asking if you want to bond. Enter YES. Make up a 4-8 digit passkey,
enter it on the phone, then enter it on the mobile computer.
After successfully bonding, you can set up the phone for automatic
connections.
Automatic Connections for Motorola:
• On the phone, press MENU.
• Scroll to Settings, then press SELECT.
• Scroll to Connection, then press ON.
• On Bluetooth Link, press SELECT.
• Scroll to Devices, then press SELECT.
• Choose your mobile computer, then press EDIT.
• Scroll to Access:Ask, then press CHANGE.
• Scroll to Automatic, then press SELECT. Press DONE.
9. To use a different Bluetooth phone for dial-up networking, you can use
the same connection setup, but you must make the new phone your
favorite. Just run the Get Connected! Wizard again, select the new phone,
and make it your new Favorite when prompted. Or you can use the
Bluetooth Devices folder to change your favorite phone (see page 23).
CHAPTER 3: ADVANCED FEATURES | 19
Chapter 3 Advanced Features
This chapter explains optional steps you may choose to perform while
installing and/or using the Bluetooth Card.
The steps covered in this chapter include:
• Turning the radio transmitter on/off
• Setting up your Bluetooth Card
• Viewing device properties
• Setting up a Favorite Device
• Using the Bluetooth Device Discovery Wizard
• Using the Bluetooth Device Bonding Wizard
• Changing views
• Deleting an item from the Bluetooth Devices folder
20 | CHAPTER 3: ADVANCED FEATURES
Turn Radio Transmitter ON/OFF
You may want to turn off the radio transmitter to save power or if you are
entering an area with radio restrictions.
1. After you insert the Bluetooth Card, the Bluetooth icon should
appear in the task tray (visible from the Today screen for Pocket PCs and
Pocket PC 2002s). Tap on the icon.
2. In the pop-up menu, select Turn Transmitter OFF.
3. The Bluetooth Card radio transmitter will shut off. The Bluetooth icon in
the task tray will become gray, as will relevant menu options
(e.g., Get Connected!).
4. To turn the radio transmitter back on, in the pop-up-menu, select
Turn Transmitter ON.
CHAPTER 3: ADVANCED FEATURES | 21
Set up Your Bluetooth Card
Note: If you use the Get Connected! Wizard, which is recommended for
normal usage, then this step is not necessary. This step would be used to
change the friendly name of your mobile computer.
1. After you insert the Bluetooth Card, the Bluetooth icon should
appear in the task tray (visible from the Today screen for Pocket PCs and
Pocket PC 2002s). Tap on the icon.
2. In the pop-up menu, select Advanced Features, then My Bluetooth Device.
3. In the My Bluetooth Device screen, enter a Friendly Name and make any
desired configuration changes. When done, tap OK.
Note:
• In normal phone connect operation, Discoverable mode is not needed
and should be disabled.
• If you do enable Discoverable mode, note that it does not shut off by
itself. To save power, remember to disable it when not needed.
• Connectable, Bondable, Use Authentication, and Use Encryption are
also not required for printing or dial-up networking applications.
22 | CHAPTER 3: ADVANCED FEATURES

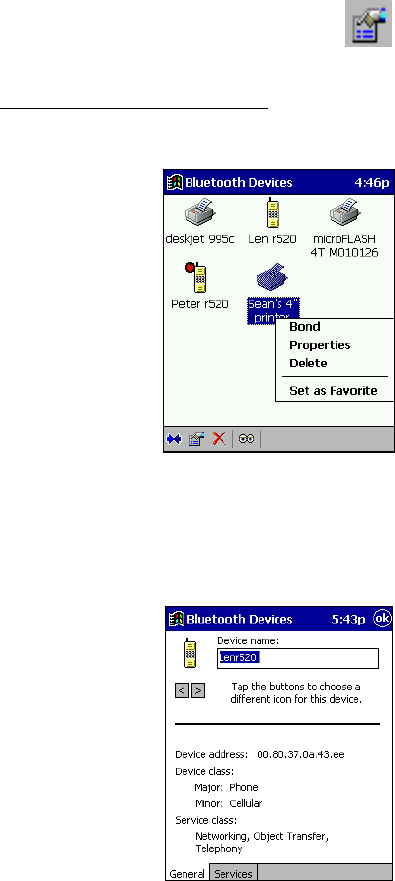

View Device Properties
Follow these steps to view the properties of an already discovered device.
1. If not open, launch the Bluetooth Devices folder.
Tap on the Bluetooth icon (in the Today screen for Pocket PCs and
Pocket PC 2002s). Select Advanced Features then Bluetooth Devices.
For HPCs, you can also tap on the Bluetooth Devices folder directly on
the desktop.
2. Select a device. Tap on the Properties icon , or tap on Device then
select Properties.
Pocket PCs and Pocket PC 2002s — Alternatively, you can tap and hold
your stylus on the Bluetooth device you want to view information about.
In the pop-up menu, select Properties.
3. Use the General and Services screens to configure and/or research device
properties.
If needed, assign a new device type icon by tapping on the arrow buttons
in the General screen. You can also use the Device name field to rename
the device. When done, tap ok.
CHAPTER 3: ADVANCED FEATURES | 23
Set up Your Favorite Device
Follow these steps to set up a default device in the Bluetooth Devices folder.
This is needed only if you want to set up a non-phone device as a favorite.
Note: If the folder has only one device, it will automatically be the favorite.
1. Tap on Tools and select My Favorites. In the My Favorite screen, use the
drop-down menu to select a default device.
Pocket PCs and Pocket PC 2002s — Alternatively, in the Bluetooth
Devices folder, you can tap and hold your stylus on the device you wish
to set as your favorite. In the pop-up menu, select Set as Favorite.
2. After setting a device as your favorite, its icon will appear in the
Bluetooth Devices folder with a heart next to it.
Note: The “favorite” device will be associated with the Bluetooth virtual
COM port with the friendly name “Bluetooth Phone.” This would be
used in the “Dial-up Networking” setup selection.
What if I can’t connect to a device in the Bluetooth Devices
folder, or I can’t select it as my favorite?
You can connect to a device only if its services have been successfully
discovered. Follow these steps to perform a service discovery:
With the device selected in the folder, tap on Properties , then select
the Services tab. Tap the Update button.
Please report any devices that you have problems discovering services for.
Email askbluetooth@socketcom.com
24 | CHAPTER 3: ADVANCED FEATURES

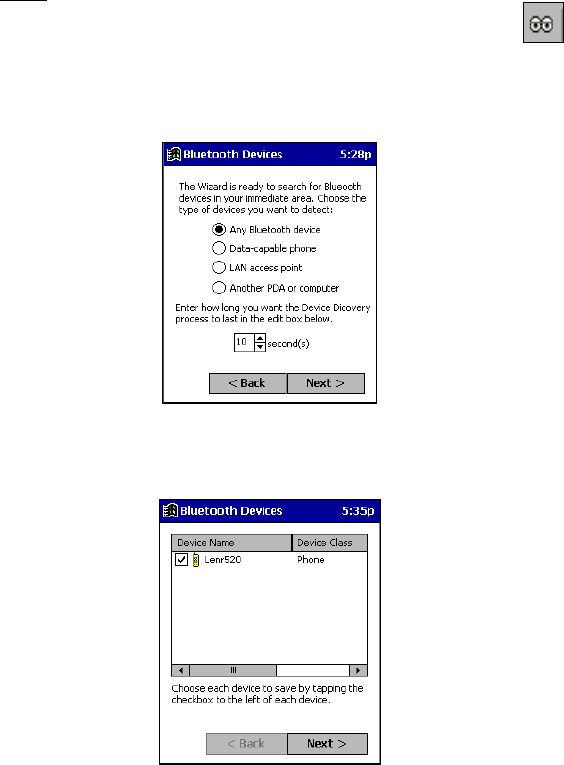

Discover Bluetooth Device(s)
Follow these steps to discover other Bluetooth devices nearby, including
non-phone devices. This is a more detailed alternative to using the
Bluetooth “Get Connected!” Wizard, and it will allow you to discover both
phone and non-phone devices.
1. If not open, launch the Bluetooth Devices folder:
Tap on the Bluetooth icon (in the Today screen for Pocket PCs and
Pocket PC 2002s). Select Advanced Features then Bluetooth Devices.
HPCs — You can also tap on Bluetooth Devices on the desktop.
2. In the Bluetooth Devices Folder, tap on the Device Discovery icon .
Or you can tap on Tools. In the pop-up menu, select Device Discovery.
3. Follow the Bluetooth Device Discovery Wizard to search for Bluetooth
devices nearby. When prompted, select the device type you seek.
4. When the search is complete, a screen will report the discovered
Bluetooth devices. Check the box next to any device you wish to save
information about, (i.e., any devices you wish to connect to). Tap Next>.
5. A service discovery phase will begin, 5-10 seconds per chosen device.
6. In the next screen, tap Finish.
CHAPTER 3: ADVANCED FEATURES | 25
Bond with Discovered Device(s)
Follow these steps to bond with an already discovered Bluetooth device. In
most cases, bonding is for establishing secure communications with a
Bluetooth-enabled phone. This is a more detailed alternative to using the
Bluetooth “Get Connected! Wizard.”
Important!
• Do not attempt bonding with a Motorola Timeport 270C phone!
• Do not use this method to bond with a printer! The third-party printing
software included on the installation CD also handles bonding.
1. If not open, launch the Bluetooth Devices folder:
Tap on the Bluetooth icon (in the Today screen for Pocket PCs and
Pocket PC 2002s). Select Advanced Features then Bluetooth Devices.
HPCs — You can also tap on Bluetooth Devices on the desktop.
2. Tap and hold your stylus on the Bluetooth device you want to bond with.
In the pop-up menu, select Bond.
3. Alternatively, after selecting a device, tap on the Bond icon .
Or tap on Device, then select Bond.
26 | CHAPTER 3: ADVANCED FEATURES
4. The Bluetooth Device Bonding Wizard will launch. Follow the wizard to
bond with your selected device.
5. As prompted, make sure the Bluetooth device that you want to bond with
is in Bondable mode.
6. If the remote device is set up to accept bonding, a Bluetooth Passkey
screen will appear. To continue bonding, enter the correct passkey and
tap Reply.
7. When you have successfully bonded with the other device, tap Finish.
CHAPTER 3: ADVANCED FEATURES | 27
Change Views
You can switch between the Large Icons or Details views for the Bluetooth
Devices folder.
1. In Bluetooth Devices, tap on View.
2. In the pop-up menu, choose between Large Icons or Details.
Large Icons view
Details view
28 | CHAPTER 3: ADVANCED FEATURES
Delete a Device from the Folder
If you no longer plan to connect with it, you can delete a device from the
Bluetooth Devices folder.
1. If not open, launch the Bluetooth Devices folder.
2. Tap and hold your stylus on the device you wish to delete. In the pop-up
menu, select Delete.
3. Alternatively, after selecting a device, tap on the Delete icon .
Or tap on Device then select Delete.
4. A Confirm screen will appear. Tap Yes.
APPENDIX A: SPECIFICATIONS | 29
Chapter 4 The Socket Dialer
This chapter explains how to assign a dialing prefix and use the Bluetooth
Installer to dial a number directly from your Contacts list.
If you have not done so already, be sure to run the Dialer Installer from the
Socket Bluetooth Card Installation CD. While installing the program, you
can also assign the dialing prefix.

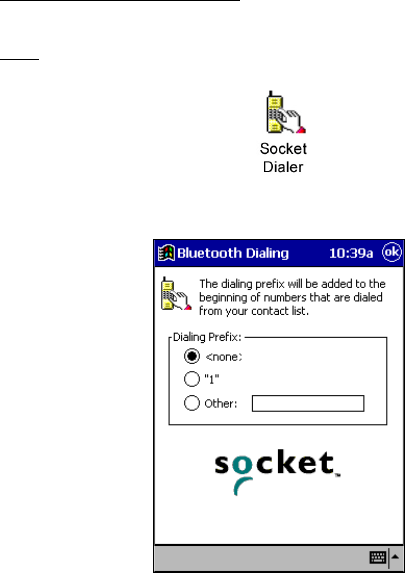

Assign a Dialing Prefix
If you have not already assigned a dialing prefix during the install process,
you can do so by following these steps:
1. Pocket PC or Pocket PC 2002 — Go to Start | Settings | System.
Tap on Socket Dialer.
HPC — Go to Start | Settings | Control Panel. Tap on Socket Dialer.
2. Select the appropriate Dialing Prefix, then tap ok.
30 | APPENDIX A SPECIFICATIONS
Use the Socket Dialer
1. To use the dialer, the mobile computer must already be connected to the
Bluetooth phone. You can use the Get Connected! Wizard to do this.
2. Pocket PC or Pocket PC 2002 — Go to Start | Contacts.
HPC — Click on the Contacts icon from the desktop.

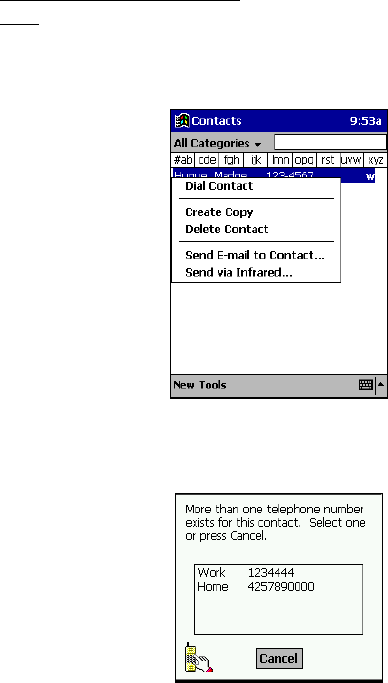

3. Tap and hold your stylus on the contact you wish to dial to. In the pop-
up menu, select Dial Contact. Alternatively, you can tap on Tools and
select Dial Contact.
4. If you have multiple phone numbers for a contact, a screen will appear
listing them, including any dialing prefix you may have assigned.
Select the phone number you wish to dial.
APPENDIX A: SPECIFICATIONS | 31
5. Your mobile computer will connect to your phone and begin dialing.
Note: The Socket Dialer can dial a phone number containing any of the
17 following non-numeric characters:
* # + . / ! @ - \ space A B C D T P W
Additionally, the following string can be included in a phone number:
(‘,’)
The Socket Dialer can not dial a phone number containing non-numeric
characters other than those listed above.
Socket recommends that you follow the standard Microsoft Outlook
format for phone numbers.
32 | APPENDIX A SPECIFICATIONS
Chapter 5 Printing
This chapter explains how to print from a Bluetooth-enabled printer using
the PrintPocketCE program included in on the Socket Bluetooth Card
Installation CD. This program only works with Pocket PCs and Pocket PC
2002s. The Socket Bluetooth Connection Kit includes a 30-day trial version
of PrintPocketCE. For a full version, please visit: www.fieldsoftware.com
If you have not done so already, be sure to install the PrintPocketCE
program. To find the install for this program on the installation CD, go to
the Third Party folder, then the Field Software folder.
1. To print a file to a Bluetooth-enabled printer, you must first be
connected to that printer. You can use the Get Connected! Wizard to do
this.

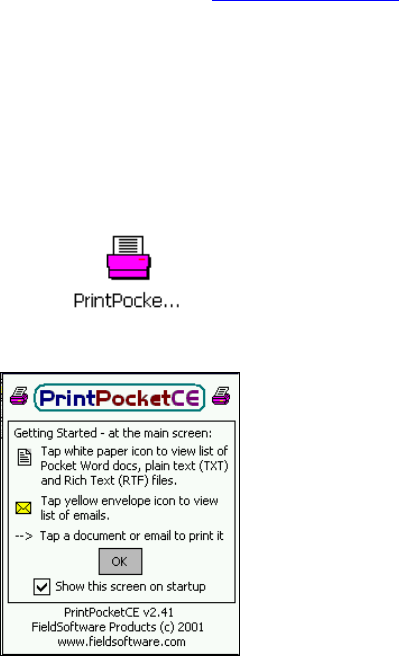

2. Go to Start | Programs | PrintPocketCE.
3. In the welcome screen, tap OK.
APPENDIX A: SPECIFICATIONS | 33

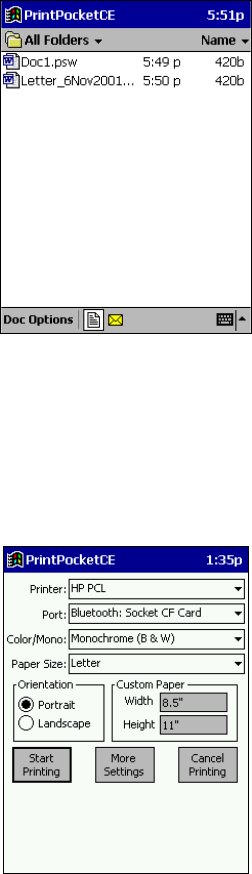

4. In the main screen, tap on the file you wish to print.
To locate your file, you can tap on the white paper icon at the bottom of
the screen to view a list of Pocket Word docs, TXT, or RTF files.
Tap on the yellow envelope icon to view email messages.
Use the folders drop-down menu to switch between folders.
5. In the next screen, make sure the correct printer is chosen. For Port,
choose Bluetooth: Socket CF Card. Make any other necessary printer
settings.
34 | APPENDIX A SPECIFICATIONS
If needed, tap on More Settings to adjust margins, form feed, and other
settings. Tap OK to return to the main printing screen.
When done adjusting the settings, tap Start Printing.
6. The mobile computer will search for a Bluetooth printer. After the
search, the Bluetooth Devices folder will appear. Select the Bluetooth
printer, then tap Select .
If the mobile computer fails to detect the Bluetooth printer, make sure
the printer is on, discoverable, and in range. Tap Find to repeat the
search.
7. The document will begin printing.
8. To exit the program, tap Doc Options. In the pop-up menu, tap Exit.
APPENDIX A: SPECIFICATIONS | 35
Appendix A Specifications
Physical Characteristics:
CF I/O Card Size: 1.43 x 1.69 x 0.13 in (36.4 x 42.8 x 3.3 mm)
Power Consumption (3.3 V Supply):
Idle: 16 mA
Typical: 40 mA
Maximum: 90 mA
Interface Standards:
CompactFlash Interface: CompactFlash I/O, Type I
With CompactFlash-to-PC Card Adapter: PCMCIA, Type II
Serial Communications: TTL
Operating System Support:
Windows CE v3.0 and v2.11
Software Compatibility:
Windows COM port
Hardware Compatibility:
Standard Card (without PC Card adapter):
Handheld PC Pro with Windows CE (v2.11 or greater)
Pocket PC, Pocket PC 2002 or HPC 2000 with Windows CE
(v3.0 or greater)
With CompactFlash-to-PC Card adapter:
Handheld PC Pro or HPC 2000 with Windows CE (v2.11 or greater).
Software Included:
Socket Bluetooth Connection Kit Installation CD
Compatible Applications:
PrintPocketCE
Warranty:
CompactFlash Card: Three years
Certification:
FCC: Part 15, Class B
C-TICK s.182
Bluetooth 1.0b with critical errata
ETS 300 328 ETS 300 826
36 | APPENDIX B: SAFETY AND USAGE TIPS
Appendix B Safety and Usage Tips
Product Care
• Do not expose your product to liquid, moisture or extreme humidity.
• Do not expose your product to extreme high or low temperatures.
• Do not expose your product to lit candles, cigarettes, or cigars, or to
open flames, etc.
• Do not drop, throw or try to bend the product, as rough treatment could
damage it.
• Do not paint your product, as the paint could obstruct parts and prevent
normal use.
• Do not attempt to disassemble your product: a broken warranty seal will
void the warranty. The product does not contain consumer serviceable
components. Should your Bluetooth Card need service, please contact
Socket technical support at: techsupport@socketcom.com.
• Treat your product with care. Keep in a clean and dust-free place.
• Changes or modifications of this product, not expressly approved by
Socket, may void the user’s authority to operate the equipment.
Antenna Care
Do not place a metallic shield around your Bluetooth Card since it will
reduce the radio transmission efficiency.
Efficient Use
For optimum performance, please make sure that there is no metallic
surrounding your Bluetooth Card.
Driving
RF energy may affect some electronic systems in motor vehicles, such as car
stereo, safety equipment, etc. Check with your vehicle manufacturer’s
representative to be sure that your Bluetooth Card will not affect the
electronic system in your vehicle.
Aircraft
• Turn off your Bluetooth Card antenna before boarding any aircraft.
• To prevent interference with communications systems, you must not use
your Bluetooth Card while the plane is in the air.
• Do not use it on the ground without permission from the crew.
APPENDIX B: SAFETY AND USAGE TIPS | 37
Radio Frequency Exposure
Your Bluetooth Card is a radio transmitter and receiver. When in operation,
it communicates with a Bluetooth-equipped mobile phone or mobile
computer by receiving and transmitting radio frequency (RF) magnetic
fields in the frequency range 2400 to 2500 MHz. The output power of the
radio transmitter is 0.001 Watt.
The Bluetooth Card unit is designed to be in compliance with the RF
exposure limits set by national authorities and international health agencies1
when installed or used separately from other antennas or radio transmitters.
1 Examples of RF exposure standards and guidelines:
ICNIRP, “Guidelines for limiting exposure to time-varying electric, magnetic, and
electromagnetic fields (up to 300 GHz)”, International Commission on Non-Ionizing
Radiation Protection (ICNIRP), Health Physics, vol. 74, pp 494-533, April 1998.
99/519/EC, EU Council Recommendation on the limitation of exposure to the
general public to electromagnetic fields 0 Hz – 300 GHz, Official Journal of the
European Communities, July 12, 1999.
ANSI/IEEE C95.1-1992, “Safety levels with respect to human exposure to radio
frequency electromagnetic fields, 3 kHz to 300 GHz”, The Institute of Electrical and
Electronics Engineers, Inc., New York, 1991.
FCC Report and Order, ET Docket 93-62, FCC 96-326, Federal Communications
Commission (FCC), August 1996.
Radiocommunications (Electromagnetic Radiation Human Exposure) Standard
1999, Australian Communications Authority (ACA), May 1999.
38 | APPENDIX C: TROUBLESHOOTING
Appendix C Troubleshooting
SYMPTOM:
• I cannot connect to a device in my folder.
POSSIBLE REASONS SOLUTION
The services for the devices have
not been discovered.
In the BT Devices folder, tap on the
Properties icon. Tap on the
Services tab. In the Services
screen, tap on the Update button.
SYMPTOM:
• When I try to connect to my phone, I get a
screen that says Partial Success.
POSSIBLE REASONS SOLUTION
The phone is not in Bondable
mode.
Set your phone to Bondable mode.
If needed, consult your phone’s
documentation for help.
The passkey is incorrect. Make sure the same passkey is
entered on the phone and your
mobile computer. If using a pre-
assigned passkey for the phone,
verify that your passkey is
accurate.
SYMPTOM:
• When I insert the Bluetooth Card, I get a
message that says Unrecognized Card.
POSSIBLE REASONS SOLUTION
You did not install the software for
the Bluetooth Card yet.
Remove the card and install the
software.
APPENDIX C:TROUBLESHOOTING | 39
SYMPTOM:
• My mobile computer cannot find any Bluetooth
devices nearby.
POSSIBLE REASONS SOLUTION
You are too far from other
Bluetooth devices.
Move closer to the other Bluetooth
device(s), within a range of 10
meters.
The Bluetooth device(s) nearby are
not turned on.
Turn on the Bluetooth device(s)
you wish to find.
The Bluetooth device(s) are not in
discoverable mode.
Set the Bluetooth device(s) to
discoverable mode. If needed,
consult the device’s documentation
for help.
SYMPTOM:
• My mobile computer keeps powering down to
protect memory contents.
POSSIBLE REASONS SOLUTION
Your mobile computer’s battery is
low.
Recharge the battery.
The Bluetooth Card has been in
Discoverable mode for a long time.
This mode requires a lot of battery
power and should be turned off
whenever not needed.
Tap on the Bluetooth icon, then
select My Bluetooth Device.
Uncheck Discoverable.
40 | APPENDIX D: TECHNICAL SUPPORT
Appendix D Technical Support
If you have trouble installing or using the Bluetooth Card, please refer to the
“Troubleshooting” section. If problems persist, contact Socket’s technical
support department prepared with the following information:
• The part number (including revision level) and serial number of your
Bluetooth Card. See the diagram below.
• The manufacturer, model number, and Windows CE version of your
mobile computer
• What you did to try to correct the problem
To reach Socket’s technical support department:
• Visit www.socketcom.com/support/support_mail.htm
• Email techsupport@socketcom.com
• Phone 510-744-2720
• Fax 510-744-2727
Please refrain from disassembling the CompactFlash card. Disassembly of
this device will void the product warranty.
41
Limited Warranty
Socket Communications Incorporated (Socket) warrants this product against defects
in material and workmanship, under normal use and service, for the following
period from the date of purchase:
Plug-in card: Three years
Incompatibility is not a defect covered by Socket’s warranty. During the warranty
period, Socket will, at its option, repair or replace the defective product at no charge
when furnished with proof of retail purchase, provided that you deliver the product
to Socket or to an authorized Socket Service Center.
The returned product must be accompanied by a return material authorization
(RMA) number issued by Socket or by Socket's Authorized Service Center. If you
ship the product, you must use the original container or equivalent and you must pay
the shipping charges to Socket. Socket will pay shipping charges back to any
location in the contiguous United States. This warranty applies only to the original
retail purchaser and is not transferable.
Socket may, at its option, replace or repair the product with new or reconditioned
parts and the returned product becomes Socket's property. Socket warrants the
repaired or replaced products to be free from defects in material or workmanship for
ninety (90) days after the return shipping date, or for the duration of the original
warranty period, whichever is greater.
This warranty does not cover the replacement of products damaged by abuse,
accident, misuse or misapplication, nor as a result of service or modification other
than by Socket.
SOCKET IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM BREACH OF ANY EXPRESS OR IMPLIED
WARRANTY, INCLUDING DAMAGE TO PROPERTY AND, TO THE EXTENT
PERMITTED BY LAW, DAMAGES FOR PERSONAL INJURY. THIS
WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES INCLUDING
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
Some states do not allow limitation of implied warranties, or the exclusion or
limitation of incidental or consequential damages, so that the above limitations or
exclusions may not apply to you. This warranty gives you specific legal rights and
you may also have other rights which vary from state to state.
This product may contain fully tested, recycled parts, warranted as if new.
For warranty information, phone (510) 744-2700.
42
Limited Software Warranty
LIMITED WARRANTY. SOCKET warrants that the original disk or CD ROM is
free from defects for 90 days from the date of delivery of the SOFTWARE.
CUSTOMER REMEDIES. SOCKET’S entire liability and your exclusive remedy
shall be, at SOCKET’S option, either (a) return of the price paid or (b) replacement
of the SOFTWARE which does not meet SOCKET’S Limited Warranty and which
is returned to SOCKET with a copy of your receipt. Any replacement SOFTWARE
will be warranted for the remainder of the original warranty period or 30 days,
whichever is longer. THESE REMEDIES ARE NOT AVAILABLE OUTSIDE OF
THE UNITED STATES OF AMERICA.
NO OTHER WARRANTIES. SOCKET disclaims all other warranties, either
express or implied, including but not limited to implied warranties of
merchantability and fitness for a particular purpose, with respect to the SOFTWARE
and the accompanying written materials. This limited warranty gives you specific
legal rights. You may have others which vary from state to state.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES. In no event shall SOCKET
or its suppliers be liable for any damages whatsoever (including, without limitation,
damages for loss of business profits, business interruption, loss of business
information, or other pecuniary loss) arising out of the use of or inability to use the
SOFTWARE, even if SOCKET has been advised of the possibility of such damages.
Because some states do not allow the exclusion or limitation of liability for
consequential or incidental damages, the above limitation may not apply to you.
EXPORT LAW ASSURANCES. You may not use or otherwise export or reexport
the SOFTWARE except as authorized by United States law and laws of the
jurisdiction in which the SOFTWARE was obtained. In particular, but without
limitation, none of the SOFTWARE may be used or otherwise exported or
reexported (a) into (or to a national or resident of) a United States embargoed
country or (b) to anyone on the U.S. Treasury Department’s list of Specially
Designated Nationals or the U.S. Department of Commerce’s Table of Denial
Orders. By using the SOFTWARE, you represent and warrant that you are not
located in, under control of, or a national or resident of any such country or on any
such list.
GOVERNMENT END USERS. If the SOFTWARE is supplied to the U. S.
Government, the SOFTWARE is classified as “restricted computer software” as
defined in clause 52.227-19 of the FAR. The U. S. Government ‘s rights to the
SOFTWARE are as provided in clause 52.227-19 of the FAR.
CONTROLLING LAW AND SEVERABILITY. This License shall be governed by
the laws of the United States and the State of California. If for any reason a court of
competent jurisdiction finds any provision, or portion thereof, to be unenforceable,
the remainder of this License shall continue in full force and effect.
43
January 2002 Document # 6410-00171 C
Copyright Notice
Copyright © 2002 Socket Communications, Inc. All rights reserved.
Socket, the Socket logo and Battery Friendly are registered trademarks of
Socket Communications, Inc. Bluetooth Card is a trademark of Socket
Communications, Inc. Bluetooth and the Bluetooth logos are trademarks
owned by Bluetooth SIG, Inc., U.S.A. and licensed to Socket
Communications, Inc. All other brand and product names are trademarks of
their respective holders.
The Bluetooth Card includes technology licensed under United States Patent
Nos. 4,543,450, 4,603,320, 4,686,506, and 4,972,470.
Reproduction of the contents of this manual without the permission of
Socket Communications is expressly prohibited. Please be aware that the
products described in this manual may change without notice.
This manual has been prepared with the greatest care regarding its contents.
However, in the event that it contains omissions, errors or any other
misinformation, please contact SOCKET COMMUNICATIONS at:
Socket Communications, Inc.
37400 Central Court
Newark, CA 94560
Phone: (510) 744-2700
Fax: (510) 744-2727
Other than the above, Socket Communications can assume no responsibility
for anything resulting from the application of information contained in this
manual.
Socket Communications requests that you refrain from any applications of
the Socket Bluetooth Card that are not described in this manual. Socket
Communications also requests that you refrain from disassembling the
Bluetooth Card. Disassembly of this device will void the product warranty.
You can track new product releases, software updates and technical
bulletins by visiting Socket’s web page at: www.socketcom.com.
44
Regulatory Compliance
The Socket Bluetooth Card is designed to be compliant with the rules and
regulations in locations where they are sold and will be labeled as required.
This product is type approved — users are not required to obtain license or
authorization before using.
Radio Frequency Interference Requirements
This device complies with part 15 of the FCC rules. Operation is subject to
the following conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment is also ETS 300 328, ETS 300 826 and C-TICK compliant.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and,
if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in
which case the user will be required to correct the interference at his or her
own expense.
This equipment generates and radiates radio-frequency energy. To comply
with FCC RF exposure compliance requirements, the following antenna
installation and device operating configurations must be satisfied: (1) Users
are not permitted to make changes or modify the system in any way, and (2)
connecting external antennas to the card is prohibited. This device and its
antenna must not be co-located or operated with any other antenna or
transmitter.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user may try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna of the radio or television.
• Increase the distance separating the equipment and the receiver.
• Connect the equipment to an outlet on a different branch circuit than that
of the receiver.
• Consult the dealer or an experienced radio/TV technician for help.
45
The user may find the following booklet helpful: How to Identify and
Resolve Radio-TV Interference Problems. This booklet is available from the
U.S. Government Printing Office, Washington, D.C. 20402.
Radio Frequency Interference Requirements
– Canada
This Class B digital apparatus meets the requirements of the Canadian
Interference-Causing Equipment Regulations. Cet appareil numérique de la
Classe B respecte toutes les exigencies du Reglement sur le Matériel
Brouilleur du Canada.
NOTE: To comply with FCC and Industry Canada exposure requirements,
this device is approved for operations in a user’s hand when there is a
distance of 20 cm or more between the device antenna and the user’s body.
CE Marking & European Union Compliance
Products intended for sale within the European Union are marked with a
CEMark which indicates compliance to applicable Directives and European
Normes (EN), as follows. Amendments to these Directives or ENs are
included: Normes (EN), as follows:
Applicable Directives:
• Electromagnetic Compatibility Directive 89/336/EEC
• Low Voltage Directive 73/23/EEC
Applicable Standards:
• EN 55 022 – Limits and Methods of Measurement of Radio Interference
Characteristics of Information Technology Equipment.
• EN 50 082-1 – Electromagnetic Compatibility – General Immunity
Standard, Part 1: Residential, Commercial, Light Industry.
• IEC 801.2 – Electromagnetic Compatibility for Industrial Process
Measurement and Control Equipment, Part 2: Electrostatic Discharge
Requirements.
• IEC 801.3 – Electromagnetic Compatibility for Industrial Process
Measurement and Control Equipment, Part 3: Radiated Electromagnetc
Field Requirements.
• IEC 801.4 - Electromagnetic Compatibility for Industrial Process
Measurement and Control Equipment, Part 4: Electrical Fast Transients
Requirements.
• EN 60 950 + Amd 1 + Amd 2 – Safety of Information Technology
Equipment Including Business Equipment.
Printed in U.S.A.

Navigation menu
