Socket Mobile USB-2I USB Bluetooth 2.0 Adapter User Manual BluetoothUSB ug
Socket Mobile, Inc. USB Bluetooth 2.0 Adapter BluetoothUSB ug
Manual
USB Bluetooth 2.0 Adapter
with Bluetooth® Wireless Technology
Model Number: 8550-00026 A
User’s Guide
2
7/2007 Document # 6410-00xxx A
Copyright Notice
Copyright © 2007 Socket Communications, Inc. dba Socket Mobile, Inc.
All rights reserved.
Socket, the Socket logo and Battery Friendly are registered trademarks of
Socket Communications, Inc. dba Socket Mobile, Inc. The Bluetooth word
mark and logos are owned by the Bluetooth SIG, Inc., and any use of such
marks by Socket Mobile, Inc. is under license. All other brand and product
names are trademarks of their respective holders.
Reproduction of the contents of this manual without the permission of
Socket Mobile is expressly prohibited. Please be aware that the products
described in this manual may change without notice.
Feel free to contact SOCKET MOBILE at:
Socket Mobile, Inc.
39700 Eureka Drive
Newark, CA 94560
USA
Other than the above, Socket Communications can assume no responsibility
for anything resulting from the application of information contained in this
manual.
Socket Communications requests that you refrain from any applications of
the Class 1 USB Adapter that are not described in this manual. Socket
Communications also requests that you refrain from disassembling the
product. Disassembly of this device will void the product warranty.
You can track new product releases, software updates and technical
bulletins by visiting Socket’s website at: www.socketmobile.com.
3
Table of Contents
COPYRIGHT NOTICE 2
1 | INTRODUCTION 4
2 | INSTALLATION INSTRUCTIONS 5
APPENDIX A SPECIFICATIONS 6
APPENDIX B SAFETY AND USAGE TIPS 7
APPENDIX C TECHNICAL SUPPORT 9
LIMITED WARRANTY 10
REGULATORY COMPLIANCE 11
4
1 | Introduction
The Class 1 USB Adapter with Bluetooth Wireless
technology is a mobile USB-to-AC adapter to form a
Bluetooth beacon.
System Requirements
• USB-to-AC adapter
Product Registration
Socket highly recommends that all customers register
their Socket products. Registered users receive the
following benefits:
• Priority for technical support
• Special offers for future products and product upgrades
• The latest new product information
To register your product online, visit: www.socketmobile.com/prodreg
CHAPTER 3: SETUP FOR PALM OS 5
2 | Installation Instructions
STEP 1: Insert into USB-to-AC Adapter
Insert the USB Bluetooth 2.0 Adapter into the USB port of a USB-to-AC
Adapter as shown.
STEP 2: Insert into Wall Outlet
Insert the combined unit into an AC wall outlet. The LED will turn orange
to indicate that the USB Adapter is on.
6 | APPENDIX A: SPECIFICATIONS
Appendix A
Specifications
Physical Characteristics:
L x W x H: 2.7 x 0.79 x 0.34 inches (69 x 20 x 8.6 mm)
Weight: 0.39 oz (11 g)
Power Consumption:
Requirement: 5 VDC
Maximum: 200 mA (normal operation)
Environmental Conditions:
Operating Temperature: 0 to +45° C (ambient)
Storage Temperature: -20 to +45° C (ambient)
Operating Humidity: 90% maximum (non-condensing)
Storage Humidity: 90% maximum (non-condensing)
Bluetooth Characteristics
Frequency Range: Bluetooth 2.45 GHz ISM band
RF Technology: Frequency Hopping Spread Spectrum (FHSS)
Antenna: Integrated
Radio Range: Up to 300 ft (100 m), depending on environment
Data Rate: Up to 723.2 Kbps
Sensitivity: -77 dBm (typical)
Selectable channels: 79
Output Power: 13.5 dBm (maximum)
Connection: Point-to-point and point-to-multipoint
Security: Data encryption up to 56 bits
Interface: USB 1.1
Certification/Compliance
FCC Part 15 Class B
Industry Canada
Bluetooth 2.0
APPENDIX B: SAFETY AND USAGE TIPS | 7
Appendix B
Safety and Usage Tips
About Bluetooth and Health
Bluetooth wireless technology allows you to use short-range radio signals
to connect a variety of devices, such as mobile phones, Pocket PCs,
notebook computers, printers, LAN access points, and many other devices
at home or work. These radio signals replace the cables that have
traditionally connected these devices.
Bluetooth enabled products have small radio transmitters and receivers.
Output power is normally very low. This gives a working range of
approximately 100 meters.
The maximum exposure levels from Bluetooth enabled products are far
below recommended safety guidelines. At most, typical Bluetooth enabled
devices (1 mW) reach only one percent of the prescribed safety levels.
Product Care
• Do not expose your product to liquid, moisture or extreme humidity.
• Do not expose your product to extreme high or low temperatures.
• Do not expose your product to lit candles, cigarettes, cigars, open
flames, etc.
• Do not drop, throw or try to bend the product, as rough treatment could
damage it.
• Do not paint your product, as the paint could obstruct parts and prevent
normal use.
• Do not attempt to disassemble your product: a broken warranty seal will
void the warranty. The product does not contain consumer serviceable
components. Should your Class 1USB Adapter need service, please
contact Socket technical support at:
www.socketmobile.com/support/support/.
• Treat your product with care. Keep in a clean and dust-free place.
• Changes or modifications of this product, not expressly approved by
Socket, may void the user’s authority to operate the equipment.
8 | APPENDIX B: SAFETY AND USAGE TIPS
Antenna Care
Do not place a metallic shield around your adapter since it will reduce the
radio transmission efficiency.
Efficient Use
For optimum performance, please make sure that there is no metal
surrounding your adapter.
Driving
RF energy may affect some electronic systems in motor
vehicles, such as car stereo, safety equipment, etc. Check with
your vehicle manufacturer’s representative to be sure that your
adapter will not affect the electronic system in your vehicle.
Aircraft
• Unplug the Class 1 USB Adapter before boarding any aircraft.
• To prevent interference with communications systems, you must
not use your Class 1 USB Adapter while the plane is in the air.
• Do not use it on the ground without permission from the
crew.
Radio Frequency Exposure
Your Class 1 USB Adapter is a radio transmitter and receiver. When in
operation, it communicates with other Bluetooth enabled devices by
receiving and transmitting radio frequency (RF) magnetic fields in the
frequency range 2400 to 2500 MHz. The output power of the radio
transmitter is 13.5 dBm.
You should keep your Class 1 USB Adapter at least 20 cm away from your
body during use.
The Class 1 USB Adapter is designed to be in compliance with the RF
exposure limits set by national authorities and international health
agencies when installed or used separately from other antennas or radio
transmitters.
APPENDIX C: TECHNICAL SUPPORT | 9
Appendix C
Technical Support
If you have trouble installing or using the Class 1 USB Adapter, Socket has
two resources to help you:
Socket Online Support

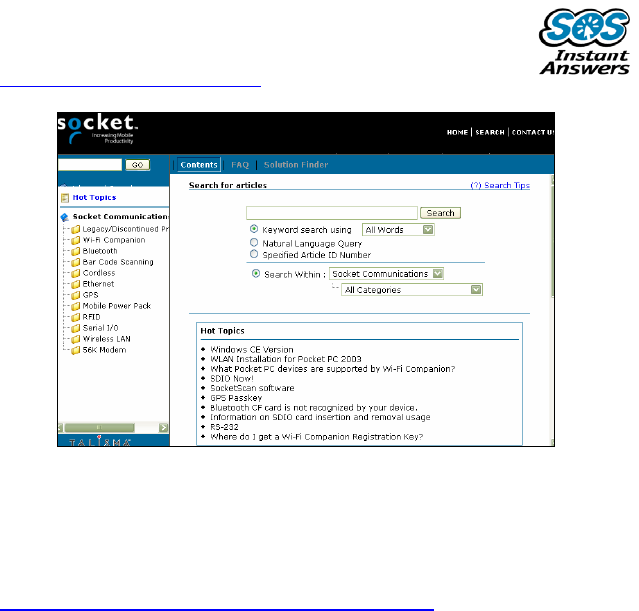

Socket Online Support is an interactive technical support
program that provides immediate service and is the best place to
start for technical support. To access SOS, visit:
www.socketmobile.com/support. Click on the SOS icon.
Live Technical Support
IMPORTANT! To obtain technical support, you must first
register your product online at
www.socketmobile.com/support/support/new.
After product registration, log in and click on the Technical Support tab.
Click Submit New Ticket to enter an online request for technical support.
Afterwards, you can log in any time to track the status of your request. If
we are unable to resolve your support inquiry online, we can arrange for a
representative to call you at a specific time.
Please refrain from disassembling the modem. Disassembly of this device
will void the product warranty
10
Limited Warranty
Socket Communications Incorporated (Socket) warrants this product against
defects in material and workmanship, under normal use and service, for one (1)
year from the date of purchase.
Incompatibility is not a defect covered by Socket’s warranty. During the
warranty period, Socket will, at its option, repair or replace the defective
product at no charge when furnished with proof of retail purchase, provided that
you deliver the product to Socket or to an authorized Socket Service Center.
The returned product must be accompanied by a return material authorization
(RMA) number issued by Socket or by Socket's Authorized Service Center. If
you ship the product, you must use the original container or equivalent and you
must pay the shipping charges to Socket. Socket will pay surface shipping
charges back to any location in the contiguous United States. This warranty
applies only to the original retail purchaser and is not transferable.
Socket may, at its option, replace or repair the product with new or
reconditioned parts and the returned product becomes Socket's property. Socket
warrants the repaired or replaced products to be free from defects in material or
workmanship for ninety (90) days after the return shipping date, or for the
remainder of the original warranty period, whichever is greater.
This warranty does not cover the replacement of products damaged by abuse,
accident, misuse or misapplication, nor as a result of service or modification
other than by Socket.
SOCKET IS NOT RESPONSIBLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY, INCLUDING DAMAGE TO
PROPERTY AND, TO THE EXTENT PERMITTED BY LAW, DAMAGES
FOR PERSONAL INJURY. THIS WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES INCLUDING IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
Some states do not allow limitation of implied warranties, or the exclusion or
limitation of incidental or consequential damages, so that the above limitations
or exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights which vary from state to state.
This product may contain fully tested, recycled parts, warranted as if new.
For warranty information, please visit: www.socketmobile.com/support
11
Regulatory Compliance
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment on or off, the user is encouraged to try to correct the
interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver
- Connect the equipment into an outlet on a circuit different from that to}
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user’s authority to operate
this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment complies with FCC RF radiation exposure limits set forth
for an uncontrolled environment. To maintain compliance with FCC RF
exposure compliance requirements, please avoid direct contact to the
transmitting antenna during transmitting.
FCC ID: LUBUSB-2I
12
Industry Canada Statement
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:
1).this device may not cause interference and
2) this device must accept any interference, including interference that may
cause undesired operation of the device
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. To maintain
compliance with IC RF exposure compliance requirements, please follow
operation instruction as documented in this manual.
Canada Certification
The marking of “IC:2529A-USB2I” on the device means: “2529A-USB2I”
is the certification number, and the term “IC’ before the equipment
certification number only signifies that Industry Canada technical
specifications were met.
Radio Frequency Interference Requirements – Canada
This Class B digital apparatus meets the requirements of the Canadian
Interference-Causing Equipment Regulations. Cet appareil numérique de la
Classe B respecte toutes les exigencies du Reglement sur le Matériel
Brouilleur du Canada.
Product Disposal:
Your device should not be placed in municipal waste. Please check
local regulations for disposal of electronic products.
7/2006 Printed in U.S.A.
